Susceptibilities of the Invasive Fall Armyworm (Spodopterafrugiperda) to the Insecticidal Proteins of Bt maize in China
1
State Key Laboratory for Biology of Plant Diseases and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, Beijing 100193, China
2
Guangdong Laboratory for Lingnan Modern Agriculture, Guangzhou 510640, China
3
School of Grassland Science, Beijing Forestry University, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Toxins 2022, 14(8), 507; https://doi.org/10.3390/toxins14080507
Submission received: 23 June 2022
/
Revised: 13 July 2022
/
Accepted: 22 July 2022
/
Published: 24 July 2022
Abstract
:To control the fall armyworm (FAW), Spodoptera frugiperda (Smith), a serious threat to maize production in China, the Chinese government has issued biosafety certificates for transgenic insect-resistant maize expressing Bt (Bacillus thuringiensis) toxins including Bt-Cry1Ab maize (crop event DBN9936), Bt-Vip3Aa maize (event DBN9501), Bt-(Cry1Ab+Vip3Aa) maize with superimposed traits (event DBN9936 × DBN9501) and Bt-(Cry1Ab+Vip3Aa) maize with superimposed traits (event Bt11 × MIR162), but the susceptibility baselines of geographically distinct FAW populations to these events, which form the basis for managing resistance development in the pest to these events, are not clear. We used the diet-incorporated bioassays method to detect the susceptibilities of the seven FAW populations collected from Yunnan, Henan and Hubei provinces in China in 2021 to the insecticidal proteins of the four Bt maize events. The result showed that the susceptibilities of different geographical populations to Bt insecticidal proteins were significantly different. In the seven populations, the range in median lethal concentrations (LC50) of Cry1Ab expressed in DBN9936 was 0.87–2.63 μg/g, 0.14–0.30 μg/g for Vip3Aa expressed in DBN9501, 0.78–1.86 μg/g for Cry1Ab+Vip3Aa expressed in DBN9936 × DBN9501, and 0.36–1.42 μg/g for CryAb+Vip3Aa expressed in Bt11 × MIR162. The growth inhibition responses also showed that the susceptibilities varied with the different median growth inhibitory concentration (GIC50) ranges (0.38–1.22, 0.08–0.28, 0.28–0.87, and 0.24–0.78 μg/g, respectively). The variations in the ranges of the susceptibility baselines of the geographical populations of fall armyworm in China to the insecticidal proteins expressed in the four events provide a scientific basis for monitoring FAW population resistance to Bt maize and managing the populations using different Bt maize events.
Keywords:
invasive fall armyworm; transgenic insect-resistant maize; Cry1Ab; Vip3Aa; susceptibility baseline; resistance managementKey Contribution: We used the diet-incorporated bioassays method to detect the susceptibilities of the seven FAW populations in China in 2021 to the insecticidal proteins of the four Bt maize events. The results showed low interpopulation variations in susceptibilities to the insecticidal proteins expressed by Bt maize.
1. Introduction
Fall armyworm (FAW), Spodoptera frugiperda (Smith), is an omnivorous pest native to tropical and subtropical areas of the Americas and widely distributed on the American continent [1]. Since 2016, it has quickly invaded many countries in Africa and Asia and become a major pest of maize in these areas. FAW was first noted in China in December 2018 [2] and had spread to more than 20 provinces by 2019, damaging more than 1 million hectares. The Chinese government quickly established a nationwide monitoring and early warning system and an emergency prevention and control system to keep maize losses within 5% [3].
Chemical control is among the major tools for emergency prevention and control of FAW due to its efficient, rapid effect [4]. Organophosphorus and carbamate insecticides were mainly used to control FAW before 1980 [5]; since then, pyrethroid insecticides have been widely used [6]. In recent years, new insecticides such as emamectin benzoate, ethyl spinosad, and chlorantraniliprole have become the main controls [7]. However, the continuous use of any insecticide will inevitably lead to resistance. By 2017, FAW had already evolved resistance to at least 29 insecticidal active ingredients among six modes of action [8]. Resistance monitoring of FAW in China shows that the level of resistance to the newer insecticides is still relatively low, while the level of resistance to the traditional insecticides is medium to high [9]. Therefore, chlorantraniliprole, ethyl spinosad, and emamectin benzoate are mainly used to control FAW at present. Developing new control technologies to reduce the dependence on chemical insecticides is thus a critical need for the prevention and control of FAW.
Based on the global control strategy against FAW, planting transgenic insect-resistant maize is among the most economic and effective means. The United States began to plant Bt maize to prevent FAW in 1996, with 33.17 million hectares planted with Bt maize by 2019 [10]. FAW occurrence and damage and the quantity of chemical insecticides have been significantly reduced. However, FAW has evolved resistance to a variety of Bt maize lines. The resistance ratios of FAW reported in 2010 in Puerto Rico to the Cry1F insecticidal protein expressed in the TC1507 event were likely in excess of 1000: 1 [11], so TC1507 was withdrawn from the local market [12]. Substantial resistance to Cry1F was also reported for Brazil, Florida, and North Carolina during 2014–2016 [13,14,15]. Based on monitoring in 2010 to 2015, FAW in Brazil and Argentina had developed resistance to event MON810 expressing Cry1Ab insecticidal protein, and its field efficacy against FAW was reduced significantly [16]. At present, the resistance allele in FAW to Vip3Aa20 protein has been detected in Brazil, but at low frequency in the population [17]. Clearly, resistance monitoring and management is vital for successful control of FAW in regions planted with Bt maize.
For using Bt maize to control FAW and reduce dependence on chemical insecticides in China, the Chinese government issued safety certificates for production and application of Bt maize events used in this study, such as DBN9936, DBN9501, DBN9936 × DBN9501, and Bt11 × MIR162. These events have provided high efficacy against invasive FAW in field experiments, but the susceptibilities of geographically distinct FAW populations to these events are not clear. Toward constructing a resistance monitoring and management system for FAW in China, we here determined the susceptibilities of seven geographic populations to the toxins expressed in four events and established the resistance monitoring baselines of the invasive FAW.
2. Results
2.1. Dose Responses of Larvae from Different FAW Populations to Bt Toxins in Maize
Among the FAW populations, the LC50 for DBN Cry1Ab ranged from 0.87 to 2.63 μg/g, the LC50 for DBN Vip3Aa ranged from 0.14 to 0.30 μg/g, the LC50 for DBN Cry1Ab+Vip3Aa ranged from 0.78 to 1.86 μg/g, and the LC50 for Syngenta Cry1Ab+Vip3Aa ranged from 0.36 to 1.42 μg/g (Table 1). The fold difference between the most-susceptible and most-tolerant populations for each of the respective toxins above was 3.02, 2.14, 2.38, and 3.94. The LC95 for DBN Cry1Ab ranged from 19.13 to 39.12 μg/g, the LC95 for DBN Vip3Aa ranged from 0.44 to 3.73 μg/g, the LC95 for DBN Cry1Ab+Vip3Aa ranged from 12.53 to 26.95 μg/g, and the LC95 for Syngenta Cry1Ab+Vip3Aa ranged from 2.13 to 10.26 μg/g. The LC50 for the same insecticidal protein differed significantly among the populations. The LC50 value for DBN Cry1Ab in the Xinyang population was significantly higher than in the others and did not differ between the Xinxiang and Ezhou populations, but the LC50 for these two populations was significantly higher than for the Xundian and Puer populations. The LC50 for DBN Vip3Aa was significantly higher for the Dehong and Zhoukou populations than those in Xinyang, Xundian and Ezhou populations, and the difference among the other populations was not significant. The LC50 value to DBN Cry1Ab+Vip3Aa of Xinyang was significantly higher than that of other populations except Dehong population. The difference between the LC50 for Dehong and Xinxiang was not significant, but was significantly higher compared with those for the Puer and Xundian populations. The LC50 for Syngenta Cry1Ab+Vip3Aa of the Xinyang population was significantly higher than that of the Zhoukou, Puer, Ezhou, and Xundian populations.
The average LC50 values of seven populations to a toxin were compared (Figure 1), the LC50 values for DBN Cry1Ab (1.61 ± 0.30 μg/g) in all populations was significantly higher than for the other three insecticidal proteins (p < 0.05). The values for DBN Cry1Ab+Vip3Aa (1.15 ± 0.21 μg/g) and Syngenta Cry1Ab+Vip3Aa (0.85 ± 0.22 μg/g) did not differ significantly (p > 0.05), but were significantly higher than for DBN Vip3Aa (0.21 ± 0.04 μg/g) (p < 0.05). LC50 values in the populations from high to low were DBN Cry1Ab > DBN Cry1Ab+Vip3Aa and Syngenta Cry1Ab+Vip3Aa > DBN Vip3Aa.
2.2. Dose Responses of Larvae Mass to Bt Proteins from Maize in Different FAW Populations
The range in GIC50 values among the FAW populations for DBN Cry1Ab was 0.38–1.22 μg/g, the range in GIC50 values for DBN Vip3Aa was 0.08–0.28 μg/g, the range in GIC50 values for DBN Cry1Ab+Vip3Aa was 0.28–0.87 μg/g, and the range in GIC50 values for Syngenta Cry1Ab+Vip3Aa was 0.24–0.78 μg/g (Table 2). Populations differed in susceptibility for the respective proteins by 1.66 to 3.21 fold, 1.13 to 3.50 fold, 1.43 to 3.11 fold, and 1.63 to 3.25 fold. The GIC95 values ranged from 4.04 to 7.38 μg/g for DBN Cry1Ab, 0.25 to 0.88 μg/g for DBN Vip3Aa, 2.14 to 5.91 μg/g for DBN Cry1Ab+Vip3Aa, 1.11 to 2.57μg/g for Syngenta Cry1Ab+Vip3Aa. There were also significant differences in GIC50 among the populations tested for the same insecticidal protein. The GIC50 value for DBN Cry1Ab did not differ significantly among the Ezhou, Xinyang, and Dehong populations, but was significantly higher for these three than for the Xundian population. The GIC50 value for DBN Vip3Aa in the Dehong population was significantly higher than in other populations and in the Zhoukou compared to the Ezhou population, whereas the difference between those for the Puer and Xinxiang populations was not significant, but significantly higher than for Xundian population. For DBN Cry1Ab+Vip3Aa, GIC50 values did not differ significantly between the Ezhou and Xinyang populations, but were significantly higher for these two compared with the other populations except Xinxiang, and the difference was not significant among the other populations. The GIC50 value for Syngenta Cry1Ab+Vip3Aa of Xinyang population was significantly higher than that of other populations except Xinxiang, Puer and Zhoukou had no significant difference but was significantly higher than Xundian population, and the difference between Dehong and Ezhou was not significant.
The GIC50 values for the different Bt proteins differed significantly among the FAW populations (Figure 1). The GIC50 for DBN Cry1Ab (0.83 ± 0.16 μg/g) was significantly higher than that for the other three insecticidal proteins (p < 0.05), and the difference between the values for DBN Cry1Ab+Vip3Aa (0.56 ± 0.11 μg/g) and Syngenta Cry1Ab+Vip3Aa (0.52 ± 0.09 μg/g) was not significant (p > 0.05), but they were significantly higher than those for DBN Vip3Aa (0.14 ± 0.04 μg/g) (p < 0.05). GIC50 values from high to low were in the order of DBN Cry1Ab > DBN Cry1Ab+Vip3Aa and Syngenta Cry1Ab+Vip3Aa > DBN Vip3Aa.
The correlation analysis showed that there was no significant correlation between LC50 and GIC50 for DBN Cry1Ab, DBN Cry1Ab+Vip3Aa on FAW (p > 0.05); However, the LC50 and GIC50 values for DBN Vip3Aa and Syngenta Cry1Ab+Vip3Aa were moderately correlated among the FAW populations (p < 0.05, r = 0.7905 and 0.7950, respectively) (Figure 2), indicating that the lower the LC50, the stronger the inhibition of larval development, and the higher the susceptibility of FAW to the insecticidal protein.
3. Discussion
Previous studies have shown that the Bt maize in China had high efficacy against FAW. Bt-Cry1Ab and Bt-(Cry1Ab+Vip3Aa) maize were highly toxic to the larvae. The mortality of FAW larvae that feed on Bt-Cry1Ab maize leaves is less than 65% and 53.02 to 100% for those that feed on Bt-(Cry1Ab+Vip3Aa) maize leaves, and growth and development of any surviving larvae is significantly inhibited [18]. The mortality of FAW larvae that feed on different tissues of Chinese Bt-Cry1Ab maize DBN9936 ranges from 34 to 100% [19]. Bt maize is a potential means to control FAW in China with good commercial prospects.
Our results indicated low interpopulation variations in susceptibilities to the insecticidal proteins of the four Bt maize events. The ranking for lethality and growth inhibition of FAW by the Bt proteins expressed in the four Bt maize events to the invading FAW (DBN Vip3Aa > Syngenta Cry1Ab+Vip3Aa > DBN Cry1Ab+Vip3Aa > DBN Cry1Ab) indicates that the greater susceptibilities of FAW to Bt-(Cry1Ab+Vip3Aa) maize with superimposed traits and Bt-Vip3Aa maize than to Bt-Cry1Ab maize. Thus, planting bivalent Bt maize expressing Vip3Aa will be more effective against FAW.
Our results also showed that the Bt protein levels expressed in seedling stages of the four Bt maize events were higher than the LC95 values of FAW populations, which meant the Bt maize had a high efficiency for control of the pest. However, there is a basic principle that the levels of Bt proteins in maize gradually decrease as its growth, especially in the late stage of maize, the levels of Bt proteins dropped quickly [19]. Therefore, it is necessary to take a detail study to understand seasonal change of Bt toxin in each Bt variety planted.
In previous measures of the susceptibilities of FAW to different Bt proteins. Li et al. (2019) found that the order of lethal effect of five Bt proteins to the FAW population invading Yunnan was: Vip3Aa > Cry1Ab > Cry1F > Cry2Ab > Cry1Ac [20]. The lethal effects of Vip3Aa and Cry1Ab were consistent with the results of our study, indicating that planting Bt maize expressing Cry1Ab, Vip3Aa, or superimposed Cry1Ab and Vip3Aa can effectively control the occurrence and damage of FAW. In addition, it has been reported that the susceptibilities of FAW to Bt proteins varied among different populations in Brazil. The median effective concentration (EC50) of Cry1Ab in the FAW field populations in Brazil ranged from 0.30 to 3.67 μg/mL and had a 12-fold difference among several populations [16]. The LC50 of Vip3Aa20 changed from 92.38 to 611.65 ng/cm2 and presented a 6.6-fold difference among populations, indicating that natural variation was responsible, not variation due to selective pressure as a result of past exposures [21]. In the present study, the susceptibilities of the FAW populations in China to the insecticidal proteins expressed in the four maize events might be related to the types of chemical insecticides used for emergency prevention and control of FAW. The long-term use of Bacillus thuringiensis or compound insecticides containing B. thuringiensis toxins [22] in China may indirectly increase the resistance of FAW to Cry1Ab, thereby reducing the susceptibility of FAW to monovalent or bivalent Bt maize expressing Cry1Ab protein. At the same time, invasive FAW can also feed on cotton in addition to corn [23]. Due to the spatiotemporal overlaps between maize planting regions and the main cotton-producing areas in China, FAW that feed on Cry1Ac cotton may increase the risk of resistance developing in Bt-Cry1Ab maize.
To ensure long-term, effective control of FAW using Bt maize, resistance management must include (1) establishing a baseline for the susceptibilities of FAW to the corresponding Bt insecticidal proteins before commercialization of the Bt maize and (2) implementing a strict high dose/refuge strategy and (3) thoroughly monitoring resistance when Bt maize is used. For example, before issuing the registration certificates for Bt crops, the United States requires the registrant or company to submit the susceptibilities of target pests to Bt proteins, such as the lethal dose and mortality and provide a field resistance monitoring plan, shelter implementation plan and a grower education and training plan after registration [24].
At present, the most widely used resistance management strategy in the world is the high-dose/refuge strategy [25,26], which has been successful in the United States for more than 20 years [25]. Three key points are required: (1) Bt crops must express a high dose of proteins that are insecticidal to the target pests; (2) the initial resistance allele frequency in the target pests is low (<0.001); (3) set up sufficient non-Bt crop refuges [27]. A high dose is defined as the amount of protein expressed in insect-resistant maize plants that can kill 100% of sensitive homozygous individuals (SS) and 95% of sensitive heterozygous individuals (SR) in the target pest populations [25]. Refuge refers to all non-Bt plants planted near Bt crops that can enable the normal growth and development of target pests. There are three types of refuges: (1) structural refuge with a certain proportion of non-Bt maize is planted near Bt maize to reduce the speed of resistance development in FAW; (2) seed mixture refuge, with a certain proportion of non-Bt maize seeds mixed in the commercial Bt seeds; (3) natural refuge of weeds or cultivated plants that can provide sensitive pests near Bt maize [28]. Refuges can dilute the resistance gene of field populations, prolong the service life of Bt maize, and delay the development of resistance of FAW.
Due to different planting structures and patterns in different countries, the resistance management strategies are also slightly different. The United States and Canada mainly use structural refuges and seed mix refuges to delay the resistance of target pests [29]. The prevention and control of lepidopteran pests by single-gene Bt maize requires the planting of 20% structural refuge [11,12]. However, because the FAW is more widespread in the southern United States than in the northern, the refuge area is also greater. Argentina and Brazil in South America uniformly require the planting of 10% structural refuges [16,30,31].
Although the high-dose strategy combined with the refuge strategy has been implemented in the world for more than 20 years, different countries have achieved different results. The intensive production mode in developed countries including the United States has high requirements for refuges, while the refuge strategy is difficult to implement in the small-scale production mode in developing countries and target pests rapidly develop resistance [27]. The strict implementation of refuge requirements for Bt maize growers and high compliance rate in the United States (>85%) and Canada (>80%) has greatly contributed to the long-term success of Bt maize in North America. However, resistance of FAW developed rapidly in Brazil because it is difficult to implement refuge requirements among Brazilian growers, with <20% compliance [13,32].
Drawing on the experience of other countries controlling the resistance of target pests of Bt maize, China should adopt a strategy using “Natal Source insect resistance management (IRM)” and high-dose/refuge suitable for our conditions based on the biological characteristics, host damage, migration and dispersion of FAW in maize regions, and effectively implement the strategy. At the same time, long-term, accurate monitoring of resistance in field populations of FAW is needed to provide a scientific basis for evaluating the effectiveness of the resistance management measures [33]. Before Bt maize is commercialized, a high-dose evaluation system for Bt maize against FAW first needs to be established to ensure that the Bt maize lines express the insecticidal proteins in high doses that kill target pests in their source areas. At the same time, baselines for the susceptibility of FAW populations to the insecticidal proteins expressed in the candidate Bt maize lines should be determined as a reference for monitoring population resistance after commercialization. Secondly, a regional resistance management strategy needs to be formulated and implemented in combination with the maize planting regions and the FAW infestation areas in China [33]. The Southwest Hilly Corn Region and the Southern Hilly Corn Region in China are the immigration and winter breeding areas for overseas FAW [34], and the source of FAW in the Huanghuaihai Summer Corn Region and the Northern Spring Corn Region. Because generations of FAW overlap and maize is mostly planted twice each year, FAW will face high selection pressure if Bt maize is planted in this area, thus increasing the risk of resistance [33]. Therefore, when planting Bt maize in this area, we should expand the size of the refuge and reduce the selection pressure from Bt maize to prevent the northward migration of FAW that carry resistance genes into other maize production areas. At the same time, a multi-gene strategy should be followed to avoid planting events that express a single gene, especially Bt maize that only expresses the Cry1Ab protein [33]. Multivalent Bt maize with high-dose expression of Cry1 and Vip3A should be planted to control the number of FAW at their source. Bt maize that expresses a single Cry1 class should not be planted in the Huanghuaihai summer maize region, as shown by the refuge strategy to control cotton bollworm in the Yellow River Valley [35], using natural refuges such as soybeans and sorghum to delay the resistance development of FAW. Other maize production areas are mainly located in FAW immigration areas, so the appropriate Bt maize event should be selected according to the pest species present. In addition, because farming in China is a small-scale mode, farmers should bear the main responsibility for implementing the refuge requirements when planting Bt maize, while the government is responsible for guidance and supervision. Based on the current research and development status of Bt maize in China and the maize production mode, a 10–20% structural refuge should be required to control FAW [36]. After the commercialization of Bt maize, long-term monitoring of the dynamics of resistance development of FAW field populations in different maize regions is required using existing Bt crop resistance monitoring technologies such as LC50, diagnostic concentration, single pair crossing, F2 screening, and molecular methods [37] to develop an early warning system for FAW resistance. Finally, the monitoring and early warning system for FAW must be improved by accurately monitoring the FAW migration dynamics with insect radars, geographic information systems, and global positioning technology, and placing light traps and food traps in the migration areas and routes and landing areas to reduce adult densities to the greatest extent. All these approaches are needed to create an effective ecofriendly, sustainable prevention and control system with insect radar monitoring and Bt maize as the core of the system to improve resistance management [38].
Because resistance monitoring is the basis for managing Bt maize resistance in FAW, establishing baseline data on the susceptibility and frequency of resistance alleles in FAW field populations of FAW to Bt insecticidal proteins is crucial. The baseline data forms the foundation for the design and implementation of a reliable resistance monitoring program. The present study provides these susceptibility baselines for FAW populations in the main infestation and immigration areas in China to the insecticidal proteins expressed in the Bt maize events that received biosafety certificates. Our data also provide a scientific basis for formulating effective resistance management measures in China.
4. Conclusions
Herein, we tested different geographical populations of fall armyworm in China to elucidate the ranges in the susceptibility baselines to the insecticidal proteins expressed in four Bt maize events with biosafety certificates. The results showed low interpopulation variations in FAW susceptibilities to the insecticidal proteins of the four Bt maize events. The susceptibility of the FAW populations to the insecticidal proteins expressed in Bt-(Cry1Ab+Vip3Aa) maize and Bt-Vip3Aa maize was higher than for Bt-Cry1Ab maize. These susceptibility baselines can now be used as a reference to monitor and manage resistance in FAW populations after these four Bt events are commercialized in China and thus maintain their effectiveness.
5. Materials and Methods
Insecticidal proteins were lyophilized powder of seedling leaves of each Bt maize event, and FAW populations were collected from maize fields in the main areas affected by FAW in China.
5.1. Transgenic Insect-Resistant Maize Events and Insecticidal Proteins Expressed
Bt-Cry1Ab maize (“DBN9936” event), Bt-Vip3Aa maize (“DBN9501” event), Bt-(Cry1Ab+Vip3Aa) maize (“DBN9936” event × “DBN9501” event) and negative control maize line (Nonghua 106) were provided by the DBN Group, Beijing. Bt-(Cry1Ab+Vip3Aa) maize (“Bt11” event × “MIR162” event) and negative control maize line (Xianda 901) were provided by Syngenta, Beijing. All maize varieties were potted (5 plants/pot) in an air-conditioned greenhouse (about 26 °C). As plants reached the stage with 4 leaves and 1 shoot (plant height about 30 cm), all plant leaves of each variety were removed, placed in a sealed plastic freezer bag, and then moved to an ultrafreezer at −80 °C for 12 hours, then freeze-dried (approximately 48 hours). The samples were then ground to a fine powder using a tissue grinder. Ground samples for an event were mixed thoroughly and subdivided into 50 mL centrifuge tubes and kept at −80 °C until use.
A sandwich enzyme-linked Immunosorbent assay (ELISA) was used to quantify proteins; the Cry1Ab/Cry1Ac Quantiplate Kit (Envirologix, Portland, ME, USA) was used for Cry1Ab proteins and the Vip3A Quantiplate Kit (YouLong Biotech, Shanghai, China) for Vip3Aa proteins according to the manufacturer’s instructions. The Wash Buffer + Tween-20 was added to the sample at a ratio of 1 mg sample to 100 μL buffer, then the sample was mixed with shaking overnight. The samples were centrifuged at 12,000 rpm for 15 min, and the supernatant was collected and diluted into suitable concentrations for ELISA assays. This was repeated 3 times for each well and the optical density (OD) values were read at 450 nm with the Synergy H1 Microplate Reader (Biotek, Winooski, VT, USA). Data were subjected to a simple regression analysis in Excel 2010 (Microsoft, Redmond, WA, USA). The results are in Table 3.
5.2. Collection and Breeding of FAW
FAW populations were collected from Yunnan Province, the main area of occurrence, and Hubei and Henan provinces, where FAW arrived in 2021. Detailed information is given in Table 4. The larvae were fed an artificial diet based on soybean powders and wheat bran [39]. The artificial diet was cut into small pieces. Each well in a 24-well plate contained one piece of the diet and one larva. When the larvae grew to the 5th instar, they were transferred to a glass tube with artificial diet that was then closed with a cotton plug for pupation and adult emergence. The adults were placed in cages (4 × 25 × 25 cm), and fed a 10% w/v sugar solution to supplement nutrition and water. The top of each cage was covered with white medical gauze for oviposition, which was changed every 24 h and put into a zip lock bag with any eggs. The resulting neonates were placed in a climate-controlled insect chamber at 26 ± 1 °C, 60 ± 10% relative humidity (RH) with a photoperiod of 16 h: 8 h (L: D) and used for bioassays within 12 h after hatching.
5.3. Bioassay of FAW Susceptibilities to Bt Proteins
Bt protein samples from Bt maize leaves were diluted with artificial diet. The toxins were tested at the following concentrations: 0.3827, 0.7654, 1.5308, 3.0616, and 6.1232 μg/g DBN Cry1Ab; 0.1016, 0.2032, 0.4064, and 1.0160 μg/g DBN Vip3Aa; 0.4064, 0.8128, 1.6256, 3.2512, and 6.5024 μg/g DBN Cry1Ab+Vip3Aa; 0.5574, 1.1148, 2.2296, 4.4592, and 8.9184 μg/g Syngenta Cry1Ab+Vip3Aa (μg/g: μg of Bt protein per g of artificial diet). Corresponding amounts of the negative control samples were mixed with the artificial diet as control. The diluted toxin diets (0.5 g) were added with one neonate FAW to each well of 24-well plates in a completely randomized, with 3 replicates per concentration and 48 larvae per replicate at each concentration for a total of 144 larvae per concentration. The plates were then placed in an insect chamber. Depending on the freshness of the diet and amount consumed, the diet was either replaced or more was added during the 14 d assay. After 14 days, we counted any dead larvae; any larva that did not crawl normally when touched with a brush was deemed dead. We then calculated the mortality and corrected mortality, weighed each larva in the control group and the treatment group, and calculated the growth inhibitory rate.
5.4. Statistical Analyses
Corrected mortality and growth inhibitory rates of FAW larvae were calculated as:
Corrected mortality (%) = (treatment group mortality − control mortality)/(1 − control mortality) × 100
Growth inhibitory rate (%) = [(body mass increase in control group − body mass increase in treatment group)/body mass increase in control group] × 100
The susceptibilities of different populations to Bt toxins were analyzed by probit regression using SAS 9.4 (SAS Institute, Cary, NC, USA), which generated LC50 values with 95% fiducial limits (FL), chi-square (χ2), slope with standard errors (slope ± SE), and degrees of freedom (df). The difference between LC50 values and LC95 values in diet-incorporated bioassays was considered significant if the 95% fiducial limits of the values did not overlap. The estimates of GIC50 and GIC95, their respective confidence intervals, and the mass of all larvae at each concentration were evaluated using a nonlinear regression analysis.
A one-way ANOVA was used to compare significant differences among the LC50 or GIC50 for the different insecticidal proteins; Duncan’s multiple-range test was used for multiple comparisons to identify the means that differed. The LC50 and GIC50 for different geographical populations were analyzed for correlations using SPSS 23.0, and the correlation coefficient r and p were calculated. SPSS 23.0 (IBM, Armonk, NY, USA) was used for these analyses.
Author Contributions
Conceptualization, K.W. and W.W.; methodology, W.W. and K.W.; software, W.W., D.Z. and S.Z.; formal analysis, W.W.; investigation, W.W.; resources, K.W.; data curation, W.W.; writing—original draft preparation, W.W.; writing—review and editing, K.W.; visualization, W.W.; supervision, K.W.; project administration, K.W.; funding acquisition, K.W. All authors have read and agreed to the published version of the manuscript.
Funding
This research was funded by the Laboratory of Lingnan Modern Agriculture Project (NT2021003) and National Key R&D Program of China (2021YFD1400702).
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
Not applicable.
Acknowledgments
We acknowledge DBN Group and Syngenta for providing seeds, and Guoping Li of Henan Academy of Agricultural Sciences, for providing some of the FAW populations used in this experiment.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Todd, E.L.; Poole, R.W. Keys and illustrations for the armyworm moths of the noctuid genus Spodoptera Guenée from the western hemisphere. Ann. Entomol. Soc. Am. 1980, 73, 722–738. [Google Scholar] [CrossRef]
- Sun, X.X.; Hu, C.X.; Jia, H.R.; Wu, Q.L.; Shen, X.J.; Zhao, S.Y.; Jiang, Y.Y.; Wu, K.M. Case study on the first immigration of fall armyworm, Spodoptera frugiperda invading into China. J. Integr. Agric. 2021, 20, 664–672. [Google Scholar] [CrossRef]
- Zhou, Y.; Wu, Q.L.; Zhang, H.W.; Wu, K.M. Spread of invasive migratory pest Spodoptera frugiperda and management practices throughout China. J. Integr. Agric. 2021, 20, 637–645. [Google Scholar] [CrossRef]
- Wu, K.M. Development direction of crop pest control science and technology in China. J. Agric. 2018, 8, 35–38. [Google Scholar]
- Pitre, H.N. Chemical control of the fall armyworm (Lepidoptera: Noctuidae): An update. Fla. Entomol. 1986, 69, 570–578. [Google Scholar] [CrossRef]
- Leibee, G.L.; Capinera, J.L. Pesticide resistance in Florida insects limits management options. Fla. Entomol. 1995, 78, 386–399. [Google Scholar] [CrossRef]
- Insecticide Resistance Action Committee (IRAC). Integrated Pest Management (IPM) & Insect Resistance Management (IRM) for Fall Armyworm in South African Maize. Available online: https://irac-online.org/documents/ipm-irm-for-fall-armyworm-in-s-african-maize/?ext=pdf (accessed on 2 May 2022).
- Gutiérrez-Moreno, R.; Mota-Sanchez, D.; Blanco, C.; Whalon, M.; Terán, H.; Rodriguez, C.; Difonzo, C. Field-evolved resistance of the fall armyworm (Lepidoptera: Noctuidae) to synthetic insecticides in Puerto Rico and Mexico. J. Econ. Entomol. 2019, 112, 792–802. [Google Scholar] [CrossRef]
- Zhang, D.D.; Xiao, Y.T.; Xu, P.J.; Yang, X.M.; Wu, Q.L.; Wu, K.M. Insecticide resistance monitoring for the invasive populations of fall armyworm, Spodoptera frugiperda in China. J. Integr. Agric. 2021, 20, 783–791. [Google Scholar] [CrossRef]
- International Service for the Acquisition of Agri-biotech Applications (ISAAA). In Proceedings of the Global Status of Commercialized Biotech/GM Crops in 2019: Biotech Crops Drive Socio-Economic Development and Sustainable Environment in the New Frontier; ISAAA Brief 2019, No. 55; ISAAA: Ithaca, NY, USA, 2019. [Google Scholar]
- Storer, N.; Babcock, J.; Schlenz, M.; Meade, T.; Thompson, G.; Bing, J.; Huckaba, R. Discovery and characterization of field resistance to Bt maize: Spodoptera frugiperda (Lepidoptera: Noctuidae) in Puerto Rico. J. Econ. Entomol. 2010, 103, 1031–1038. [Google Scholar] [CrossRef]
- Storer, N.; Kubiszak, M.; King, E.; Thompson, G.; Santos, A. Status of resistance to Bt maize in Spodoptera frugiperda: Lessons from Puerto Rico. J. Invertebr. Pathol. 2012, 110, 294–300. [Google Scholar] [CrossRef]
- Farias, J.; Andow, D.; Horikoshi, R.; Sorgatto, R.; Fresia, P.; Santos, A.; Omoto, C. Field-evolved resistance to Cry1F maize by Spodoptera frugiperda (Lepidoptera: Noctuidae) in Brazil. Crop Prot. 2014, 64, 150–158. [Google Scholar] [CrossRef]
- Li, G.P.; Reisig, D.; Miao, J.; Gould, F.; Huang, F.N.; Feng, H.Q. Frequency of Cry1F non-recessive resistance alleles in north Carolina field populations of Spodoptera frugiperda (Lepidoptera: Noctuidae). PLoS ONE 2016, 11, e0154492. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Huang, F.N.; Qureshi, J.A.; Meagher, R.L., Jr.; Reisig, D.D.; Head, G.P.; Andow, D.A.; Ni, X.Z.; Kerns, D.; Buntin, G.D.; Niu, Y.; et al. Cry1F resistance in fall armyworm Spodoptera frugiperda: Single gene versus pyramided Bt maize. PLoS ONE 2014, 9, e112958. [Google Scholar] [CrossRef] [Green Version]
- Omoto, C.; Bernardi, O.; Salmeron, E.; Sorgatto, R.J.; Dourado, P.M.; Crivellari, A.; Carvalho, R.A.; Willse, A.; Martinelli, S.; Head, G.P. Field-evolved resistance to Cry1Ab maize by Spodoptera frugiperda in Brazil. Pest Manag. Sci. 2016, 72, 1727–1736. [Google Scholar] [CrossRef] [PubMed]
- Bernardi, O.; Bernardi, D.; Ribeiro, R.S.; Okuma, D.M.; Salmeron, E.; Fatoretto, J.; Medeiros, F.C.L.; Burd, T.; Omoto, C. Frequency of resistance to Vip3Aa20 toxin from Bacillus thuringiensis in Spodoptera frugiperda (Lepidoptera: Noctuidae) populations in Brazil. Crop Prot. 2015, 76, 7–14. [Google Scholar] [CrossRef]
- Zhang, D.D.; Wu, K.M. The bioassay of Chinese domestic Bt-Cry1Ab and Bt-(Cry1Ab+Vip3Aa) maize against the fall armyworm, Spodoptera frugiperda. Plant Prot. 2019, 45, 54–60. [Google Scholar]
- Liang, J.G.; Zhang, D.D.; Li, D.Y.; Zhao, S.Y.; Wang, C.Y.; Xiao, Y.T.; Xu, D.; Yang, Y.Z.; Li, G.P.; Wang, L.L.; et al. Expression profiles of Cry1Ab protein and its insecticidal efficacy against the invasive fall armyworm for Chinese domestic GM maize DBN9936. J. Integr. Agric. 2021, 20, 792–803. [Google Scholar] [CrossRef]
- Li, G.P.; Ji, T.J.; Sun, X.X.; Jiang, Y.Y.; Wu, K.M.; Feng, H.Q. Susceptibility evaluation of invaded Spodoptera frugiperda population in Yunnan province to five Bt proteins. Plant Prot. 2019, 45, 15–20. [Google Scholar]
- Bernardi, O.; Amado, D.; Sousa, R.S.; Segatti, F.; Fatoretto, J.; Burd, A.D.; Omoto, C. Baseline susceptibility and monitoring of Brazilian populations of Spodoptera frugiperda (Lepidoptera: Noctuidae) and Diatraea saccharalis (Lepidoptera: Crambidae) to Vip3Aa20 insecticidal protein. J. Econ. Entomol. 2014, 107, 781–790. [Google Scholar] [CrossRef] [Green Version]
- Jin, T.; Lin, Y.Y.; Ma, G.C.; Wen, H.B.; Ma, Z.L.; Yi, K.X.; Peng, Z.Q. Control efficacy of the combinations of several conventional insecticides on fall armyworm (Spodoptera frugiperda) and their economic. J. Environ. Entomol. 2019, 41, 766–774. [Google Scholar]
- Martinelli, S.; Clark, P.L.; Zucchi, M.I.; Silva-Filho, M.C.; Foster, J.E.; Omoto, C. Genetic structure and molecular variability of Spodoptera frugiperda (Lepidoptera: Noctuidae) collected in maize and cotton fields in Brazil. Bull. Entomol. Res. 2007, 97, 225–231. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Yang, X.W.; Li, Y.H.; Han, L.Z. Application and efficiency of “high dose/refuge” strategy for insect resistance management in Bt maize. Plant Prot. 2022, 48, 1–11. [Google Scholar]
- Gould, F. Sustainability of transgenic insecticidal cultivars: Integrating pest genetics and ecology. Annu. Rev. Entomol. 1998, 43, 701–726. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Tabashnik, B.E.; Gould, F.; Carrière, Y. Delaying evolution of insect resistance to transgenic crops by decreasing dominance and heritability. J. Evol. Biol. 2004, 17, 904–912. [Google Scholar] [CrossRef] [PubMed]
- Huang, F.N.; Andow, D.A.; Buschman, L.L. Success of the high-dose/refuge resistance management strategy after 15 years of Bt crop use in North America. Entomol. Exp. Appl. 2011, 140, 1–16. [Google Scholar] [CrossRef]
- United States Environmental Protection Agency (USEPA). Insect Resistance Management for Bt Plant Incorporated Protectants. Available online: https://www.epa.gov/regulation-biotechnology-under-tsca-and-fifra/insect-resistance-management-bt-plant-incorporated (accessed on 2 May 2022).
- Matten, S.R.; Frederick, R.J.; Reynolds, A.H. United States Environmental Protection Agency Insect Resistance Management Programs for Plant-Incorporated Protectants and Use of Simulation Modeling. In Regulation of Agricultural Biotechnology: The United States and Canada; Wozniak, C.A., McHughen, A., Eds.; Springer: Dordrecht, The Netherlands, 2012; pp. 175–267. [Google Scholar]
- Blanco, C.A.; Chiaravalle, W.; Dalla-Rizza, M.; Farias, J.R.; García-Degano, M.F.; Gastaminza, G.; Mota-Sánchez, D.; Murúa, M.G.; Omoto, C.; Pieralisi, B.K.; et al. Current situation of pests targeted by Bt crops in Latin America. Curr. Opin. Insect Sci. 2016, 15, 131–138. [Google Scholar] [CrossRef]
- Farias, J.R.; Andow, D.A.; Horikoshi, R.J.; Sorgatto, R.J.; Santos, A.C.; Omoto, C. Dominance of Cry1F resistance in Spodoptera frugiperda (Lepidoptera: Noctuidae) on TC1507 Bt maize in Brazil. Pest Manag. Sci. 2016, 72, 974–979. [Google Scholar] [CrossRef]
- Fatoretto, J.C.; Michel, A.P.; Silva Filho, M.C.; Silva, N. Adaptive potential of fall armyworm (Lepidoptera: Noctuidae) limits Bt trait durability in Brazil. J. Integr. Pest Manag. 2017, 8, 17. [Google Scholar] [CrossRef]
- He, K.L.; Wang, Z.Y. Resistance evolution to Bt maize in the fall armyworm and consideration on IRM strategy in China. Plant Prot. 2020, 46, 1–15. [Google Scholar]
- Jiang, Y.Y.; Liu, J.; Wu, Q.L.; CiRen, Z.G.; Zeng, J. Investigation on winter breeding and overwintering areas of Spodoptera frugiperda in China. Plant Prot. 2021, 47, 212–217. [Google Scholar]
- Wu, K.M. Monitoring and management strategy for Helicoverpa armigera resistance to Bt cotton in China. J. Invertebr. Pathol. 2007, 95, 220–223. [Google Scholar] [CrossRef] [PubMed]
- Li, G.P.; Wu, K.M. Commercial strategy of transgenic insect-resistance maize in China. J. Plant Prot. 2022, 49, 17–32. [Google Scholar]
- Li, G.P.; Wu, K.M.; He, Y.Z.; Guo, Y.Y. Techniques for monitoring insect resistance to Bt crops. Chin. J. Appl. Entomol. 2003, 40, 299–302. [Google Scholar]
- Wu, K.M. Management strategies of fall armyworm (Spodoptera frugiperda) in China. Plant Prot. 2020, 46, 1–5. [Google Scholar]
- Liang, G.M.; Tan, W.J.; Guo, Y.Y. Improvement of artificial feeding technology of cotton bollworm. Plant Prot. 1999, 25, 16–18. [Google Scholar]

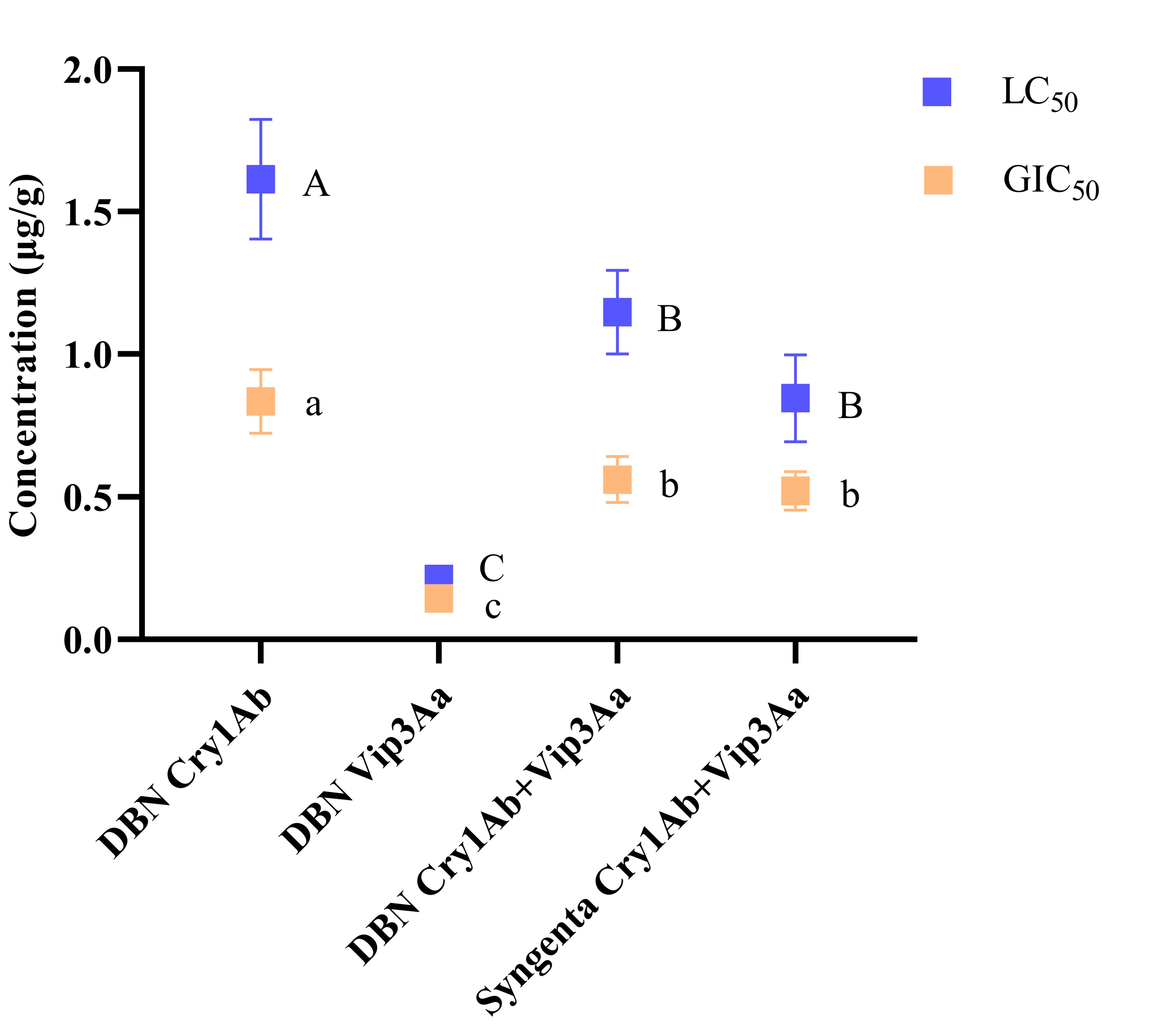

Figure 1.
Mean (±SE) of LC50 and median growth inhibitory concentration (GIC50) of seven populations for different Bt insecticidal proteins. Different uppercase letters indicate significant differences among the LC50 for different Bt insecticidal proteins (p < 0.05, Duncan’s test); different lowercase letters indicate significant differences among the GIC50 for different Bt insecticidal proteins (p < 0.05, Duncan’s test).
Figure 1.
Mean (±SE) of LC50 and median growth inhibitory concentration (GIC50) of seven populations for different Bt insecticidal proteins. Different uppercase letters indicate significant differences among the LC50 for different Bt insecticidal proteins (p < 0.05, Duncan’s test); different lowercase letters indicate significant differences among the GIC50 for different Bt insecticidal proteins (p < 0.05, Duncan’s test).

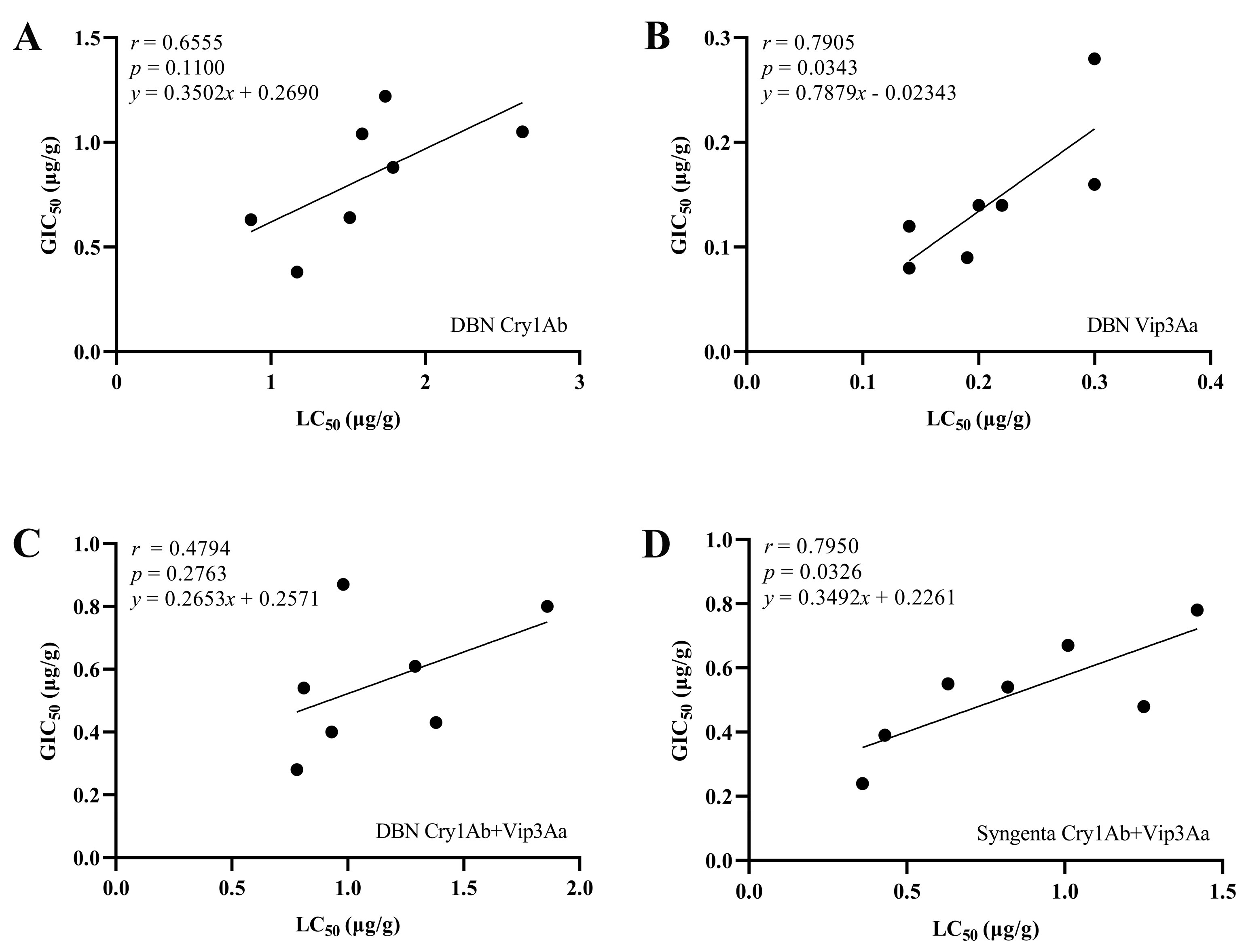

Figure 2.
Correlation between the LC50 and GIC50 for insecticidal proteins from different Bt maize events. (A) DBN Cry1Ab; (B) DBN Vip3Aa; (C) DBN Cry1Ab+Vip3Aa; (D) Syngenta Cry1Ab+Vip3Aa.
Figure 2.
Correlation between the LC50 and GIC50 for insecticidal proteins from different Bt maize events. (A) DBN Cry1Ab; (B) DBN Vip3Aa; (C) DBN Cry1Ab+Vip3Aa; (D) Syngenta Cry1Ab+Vip3Aa.
Table 1.
Mean lethal concentrations of insecticidal proteins expressed in Bt maize against FAW larvae from different populations in China.
Table 1.
Mean lethal concentrations of insecticidal proteins expressed in Bt maize against FAW larvae from different populations in China.
| Bt Event | Protein | Population | N | LC50 (95% FL) µg/g | LC95 (95% FL) µg/g | Slope ± SE | χ2 | df | p |
|---|---|---|---|---|---|---|---|---|---|
| DBN9936 | DBN Cry1Ab | Xundian | 720 | 1.17 (0.95–1.42) c | 32.09 (18.51–72.54) a | 1.14 ± 0.12 | 0.71 | 3 | 0.87 |
| Dehong | 720 | 1.59 (1.31–1.92) bc | 39.12 (22.32–89.25) a | 1.18 ± 0.12 | 6.21 | 3 | 0.10 | ||
| Puer | 720 | 0.87 (0.67–1.08) c | 29.75 (16.81–70.85) a | 1.07 ± 0.12 | 5.93 | 3 | 0.12 | ||
| Xinyang | 720 | 2.63 (2.30–3.03) a | 19.13 (13.50–31.28) a | 1.91 ± 0.18 | 4.12 | 3 | 0.13 | ||
| Zhoukou | 720 | 1.51 (1.28–1.77) bc | 23.00 (15.02–41.62) a | 1.39 ± 0.12 | 4.31 | 3 | 0.23 | ||
| Xinxiang | 720 | 1.79 (1.50–2.16) b | 21.51 (13.81–39.89) a | 1.52 ± 0.14 | 4.15 | 3 | 0.13 | ||
| Ezhou | 720 | 1.74 (1.47–2.08) b | 30.21 (18.78–59.15) a | 1.33 ± 0.12 | 1.29 | 3 | 0.73 | ||
| DBN9501 | DBN Vip3Aa | Xundian | 576 | 0.14 (0.10–0.17) b | 1.68 (1.10–3.23) a | 1.51 ± 0.18 | 1.72 | 2 | 0.19 |
| Dehong | 576 | 0.30 (0.25–0.37) a | 3.73 (2.37–7.31) a | 1.51 ± 0.16 | 1.17 | 2 | 0.28 | ||
| Puer | 576 | 0.20 (0.11–0.30) ab | 1.06 (0.57–7.52) ab | 2.25 ± 0.29 | 4.79 | 2 | 0.09 | ||
| Xinyang | 576 | 0.19 (0.17–0.22) b | 0.57 (0.45–0.80) b | 3.50 ± 0.37 | 1.95 | 2 | 0.16 | ||
| Zhoukou | 576 | 0.30 (0.26–0.34) a | 1.83 (1.38–2.67) a | 2.08 ± 0.17 | 1.90 | 2 | 0.39 | ||
| Xinxiang | 576 | 0.22 (0.13–0.35) ab | 1.30 (0.67–10.37) ab | 2.14 ± 0.27 | 4.67 | 2 | 0.10 | ||
| Ezhou | 576 | 0.14 (0.12–0.15) b | 0.44 (0.37–0.54) b | 3.23 ± 0.29 | 2.93 | 2 | 0.23 | ||
| DBN9936 × DBN9501 | DBN Cry1Ab+Vip3Aa | Xundian | 720 | 0.78 (0.61–0.96) c | 14.15 (9.32–25.61) a | 1.31 ± 0.13 | 4.27 | 3 | 0.12 |
| Dehong | 720 | 1.38 (1.15–1.63) ab | 24.45 (15.60–46.12) a | 1.32 ± 0.12 | 1.79 | 3 | 0.62 | ||
| Puer | 720 | 0.81 (0.63–1.01) c | 17.84 (11.25–34.76) a | 1.23 ± 0.12 | 3.60 | 3 | 0.17 | ||
| Xinyang | 720 | 1.86 (1.55–2.23) a | 26.95 (17.42–50.06) a | 1.42 ±0.13 | 4.16 | 3 | 0.13 | ||
| Zhoukou | 720 | 0.93 (0.77–1.09) bc | 12.53 (8.82–20.29) a | 1.46 ± 0.13 | 1.73 | 3 | 0.63 | ||
| Xinxiang | 720 | 1.29 (1.08–1.52) b | 20.40 (13.46–36.46) a | 1.37 ± 0.12 | 3.52 | 3 | 0.32 | ||
| Ezhou | 720 | 0.98 (0.78–1.20) bc | 20.07 (12.67–38.73) a | 1.25 ± 0.12 | 1.50 | 3 | 0.47 | ||
| Bt11 × MIR162 | Syngenta Cry1Ab+Vip3Aa | Xundian | 720 | 0.36 (0.25–0.46) c | 2.27 (1.85–3.04) b | 2.05 ± 0.24 | 2.37 | 3 | 0.50 |
| Dehong | 720 | 1.25 (0.83–1.71) ab | 10.26 (6.01–29.05) a | 1.80 ± 0.20 | 6.28 | 3 | 0.10 | ||
| Puer | 720 | 0.63 (0.54–0.72) b | 2.54 (2.14–3.19) b | 2.72 ± 0.24 | 1.26 | 3 | 0.74 | ||
| Xinyang | 720 | 1.42 (1.28–1.57) a | 5.91 (4.97–7.33) a | 2.66 ± 0.17 | 4.52 | 3 | 0.21 | ||
| Zhoukou | 720 | 0.82 (0.72–0.92) b | 3.20 (2.59–4.30) b | 2.77 ± 0.25 | 0.49 | 3 | 0.78 | ||
| Xinxiang | 720 | 1.01 (0.49–1.64) ab | 5.56 (2.81–74.88) ab | 2.23 ± 0.32 | 5.23 | 3 | 0.07 | ||
| Ezhou | 720 | 0.43 (0.33–0.52) c | 2.13 (1.76–2.77) b | 2.37 ± 0.26 | 0.22 | 3 | 0.97 |
N = number of larvae in probit analysis. 95% FL = 95% fiducial limits. LC50 (LC95): concentration of protein (μg/g) required to kill 50% (95%) of larvae over 14 d. Values for the same protein and in the same column followed by the same lowercase letter did not differ significantly (overlapping 95% fiducial limits) in a χ2 test. df = degrees of freedom.
Table 2.
Growth inhibitory concentrations of insecticidal proteins expressed in Bt maize against FAW larvae from different populations in China.
Table 2.
Growth inhibitory concentrations of insecticidal proteins expressed in Bt maize against FAW larvae from different populations in China.
| Bt Event | Protein | Population | N | GIC50 (95% FL) µg/g | GIC95 (95% FL) µg/g | Slope ± SE | χ2 | df | p |
|---|---|---|---|---|---|---|---|---|---|
| DBN9936 | DBN Cry1Ab | Xundian | 720 | 0.38 (0.25–0.50) c | 5.05 (3.56–8.59) ab | 1.46 ± 0.17 | 0.48 | 3 | 0.92 |
| Dehong | 720 | 1.04 (0.85–1.23) ab | 6.58 (5.03–9.46) ab | 2.05 ± 0.18 | 3.85 | 3 | 0.15 | ||
| Puer | 720 | 0.63 (0.32–0.94) bc | 4.04 (2.34–14.81) b | 2.04 ± 0.30 | 7.77 | 3 | 0.06 | ||
| Xinyang | 720 | 1.05 (0.94–1.18) ab | 4.08 (3.37–5.22) b | 2.80 ± 0.21 | 5.27 | 3 | 0.15 | ||
| Zhoukou | 720 | 0.64 (0.52–0.76) b | 4.62 (3.53–6.68) ab | 1.92 ± 0.18 | 4.86 | 3 | 0.18 | ||
| Xinxiang | 720 | 0.88 (0.73–1.03) b | 7.38 (5.40–11.37) a | 1.78 ± 0.16 | 5.02 | 3 | 0.17 | ||
| Ezhou | 720 | 1.22 (1.08–1.39) a | 5.82 (4.65–7.80) ab | 2.43 ± 0.19 | 1.18 | 3 | 0.76 | ||
| DBN9501 | DBN Vip3Aa | Xundian | 576 | 0.08 (0.06–0.10) d | 0.35 (0.28–0.49) bc | 2.66 ± 0.37 | 0.75 | 2 | 0.69 |
| Dehong | 576 | 0.28 (0.25–0.32) a | 0.88 (0.71–1.19) a | 3.34 ± 0.38 | 0.06 | 2 | 0.81 | ||
| Puer | 576 | 0.14 (0.12–0.16) bc | 0.61 (0.48–0.85) ab | 2.59 ± 0.28 | 1.23 | 2 | 0.54 | ||
| Xinyang | 576 | 0.09 (0.06–0.11) cd | 0.40 (0.32–0.56) b | 2.48 ± 0.34 | 4.57 | 2 | 0.10 | ||
| Zhoukou | 576 | 0.16 (0.14–0.18) b | 0.53 (0.44–0.69) b | 3.10 ± 0.31 | 4.56 | 2 | 0.10 | ||
| Xinxiang | 576 | 0.14 (0.12–0.16) bc | 0.47 (0.38–0.62) b | 3.12 ± 0.33 | 0.26 | 2 | 0.88 | ||
| Ezhou | 576 | 0.12 (0.11–0.13) c | 0.25 (0.22–0.31) c | 4.98 ± 0.58 | 1.46 | 2 | 0.48 | ||
| DBN9936 × DBN9501 | DBN Cry1Ab+Vip3Aa | Xundian | 720 | 0.28 (0.03–0.50) b | 2.14 (1.25–13.17) b | 1.86 ± 0.37 | 6.90 | 3 | 0.08 |
| Dehong | 720 | 0.43 (0.33–0.53) b | 2.74 (2.15–3.88) b | 2.05 ± 0.22 | 1.90 | 3 | 0.60 | ||
| Puer | 720 | 0.54 (0.41–0.66) b | 3.31 (2.57–4.65) ab | 2.08 ± 0.21 | 3.60 | 3 | 0.17 | ||
| Xinyang | 720 | 0.80 (0.68–0.94) a | 3.34 (2.72–4.37) ab | 2.66 ± 0.22 | 0.92 | 3 | 0.63 | ||
| Zhoukou | 720 | 0.40 (0.30–0.51) b | 3.10 (2.37–4.54) ab | 1.86 ± 0.21 | 2.05 | 3 | 0.56 | ||
| Xinxiang | 720 | 0.61 (0.47–0.74) ab | 5.91 (4.30–9.37) a | 1.66 ± 0.17 | 3.50 | 3 | 0.32 | ||
| Ezhou | 720 | 0.87 (0.74–1.01) a | 5.47 (4.23–7.76) a | 2.06 ± 0.18 | 2.21 | 3 | 0.53 | ||
| Bt11 × MIR162 | Syngenta Cry1Ab+Vip3Aa | Xundian | 720 | 0.24 (0.10–0.35) c | 1.11 (0.90–1.60) b | 2.46 ± 0.53 | 0.52 | 3 | 0.91 |
| Dehong | 720 | 0.48 (0.35–0.59) bc | 2.57 (2.05–3.61) a | 2.25 ± 0.28 | 0.53 | 3 | 0.91 | ||
| Puer | 720 | 0.55 (0.46–0.63) b | 1.58 (1.33–2.03) b | 3.59 ± 0.45 | 4.00 | 3 | 0.26 | ||
| Xinyang | 720 | 0.78 (0.67–0.87) a | 2.49 (2.09–3.18) a | 3.25 ± 0.32 | 5.61 | 3 | 0.13 | ||
| Zhoukou | 720 | 0.54 (0.42–0.64) b | 2.14 (1.75–2.88) ab | 2.74 ± 0.33 | 1.27 | 3 | 0.74 | ||
| Xinxiang | 720 | 0.67 (0.56–0.77) ab | 2.52 (2.07–3.33) a | 2.85 ± 0.30 | 1.13 | 3 | 0.77 | ||
| Ezhou | 720 | 0.39 (0.27–0.48) bc | 1.32 (1.09–1.80) b | 3.10 ± 0.51 | 0.04 | 3 | 0.98 |
N = number of larvae in the probit analysis. 95% FL = 95% fiducial limits. GIC50 (GIC95): growth inhibitory concentration of the protein (μg/g) required to cause 50% (95%) growth inhibition in the observation period of 14 d. Values for the same protein and in the same column followed by the same lowercase letter did not differ significantly (overlapping 95% fiducial limits) in a χ2 test. df = degrees of freedom.
Table 3.
Mean (±SE) amount of two insecticidal Bt proteins produced in leaves of non-Bt maize lines and their associated Bt maize lines (in bold below the non-Bt line).
Table 3.
Mean (±SE) amount of two insecticidal Bt proteins produced in leaves of non-Bt maize lines and their associated Bt maize lines (in bold below the non-Bt line).
| Maize Lines | Cry1Ab (µg·g−1) | Vip3Aa (µg·g−1) | Total Bt Protein (µg·g−1) |
|---|---|---|---|
| Nonghua 106 | 0.00 | 0.00 | 0.00 |
| DBN9936 | 76.54 ± 0.60 b | 0.00 | 76.54 ± 0.60 c |
| DBN9501 | 0.00 | 5.08 ± 0.08 c | 5.08 ± 0.08 d |
| DBN9936 × DBN9501 | 74.51 ± 1.11 b | 6.78 ± 0.13 b | 81.29 ± 1.20 b |
| Xianda 901 | 0.00 | 0.00 | 0.00 |
| Bt11 × MIR162 | 86.64 ± 1.01 a | 24.83 ± 0.43 a | 111.47 ± 1.17 a |
Notes: See methods for extraction and quantification protocols. Values in the same column followed by different lowercase letters differed significantly (p < 0.05, Duncan’s test).
Table 4.
Collection information for the studied FAW larval populations from maize fields in primary maize production areas in China.
Table 4.
Collection information for the studied FAW larval populations from maize fields in primary maize production areas in China.
| Province | Location | Coordinates | Collection Date (2021) |
|---|---|---|---|
| Yunnan | Xundian | 25.56° N, 103.26° E | 28 August |
| Yunnan | Dehong | 23.58° N, 97.48° E | 25 November |
| Yunnan | Puer | 22.68° N, 101.65° E | 20 September |
| Henan | Xinyang | 32.30° N, 114.07° E | 3 July |
| Henan | Zhoukou | 33.65° N, 114.69° E | 20 October |
| Henan | Xinxiang | 35.14° N, 113.77° E | 14 October |
| Hubei | Ezhou | 30.40° N, 114.89° E | 17 September |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Wang, W.; Zhang, D.; Zhao, S.; Wu, K. Susceptibilities of the Invasive Fall Armyworm (Spodopterafrugiperda) to the Insecticidal Proteins of Bt maize in China. Toxins 2022, 14, 507. https://doi.org/10.3390/toxins14080507
AMA Style
Wang W, Zhang D, Zhao S, Wu K. Susceptibilities of the Invasive Fall Armyworm (Spodopterafrugiperda) to the Insecticidal Proteins of Bt maize in China. Toxins. 2022; 14(8):507. https://doi.org/10.3390/toxins14080507
Chicago/Turabian StyleWang, Wenhui, Dandan Zhang, Shengyuan Zhao, and Kongming Wu. 2022. "Susceptibilities of the Invasive Fall Armyworm (Spodopterafrugiperda) to the Insecticidal Proteins of Bt maize in China" Toxins 14, no. 8: 507. https://doi.org/10.3390/toxins14080507
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
