Article

Electrospun Membranes Anchored with g-C3N4/MoS2 for Highly Efficient Photocatalytic Degradation of Aflatoxin B1 under Visible Light

by
Ruixin Song
1,†,
Liangtao Yao
1,†,
Changpo Sun
2,
Dechao Yu
1,
Hui Lin
1,
Guisheng Li
3,
Zichao Lian
3,
Songlin Zhuang
1,* and
Dawei Zhang
1,4,*
1
Engineering Research Center of Optical Instrument and System, Ministry of Education and Shanghai Key Lab of Modern Optical System, University of Shanghai for Science and Technology, No. 516 Jungong Road, Shanghai 200093, China
2
Standards and Quality Center of National Food and Strategic Reserves Administration, No. 25 Yuetan North Street, Xicheng District, Beijing 100834, China
3
Department of Chemistry, College of Science, University of Shanghai for Science and Technology, No. 516 Jungong Road, Shanghai 200093, China
4
Fujian Provincial Key Laboratory for Advanced Micro-Nano Photonics Technology and Devices, Research Center for Photonics Technology, Quanzhou Normal University, Quanzhou 362046, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Toxins 2023, 15(2), 133; https://doi.org/10.3390/toxins15020133
Submission received: 18 January 2023 / Revised: 1 February 2023 / Accepted: 2 February 2023 / Published: 6 February 2023
Browse Figures
Versions Notes

Abstract

:
The degradation of aflatoxin (AF) is a topic that always exists along with the food and feed industry. Photocatalytic degradation as an advanced oxidation technology has many benefits, including complete inorganic degradation, no secondary contamination, ease of activity under moderate conditions, and low cost compared with traditional physical, chemical, and biological strategies. However, photocatalysts are usually dispersed during photocatalytic reactions, resulting in energy and time consumption in the separation process. There is even a potential secondary pollution problem from the perspective of food safety. In this regard, three electrospun membranes anchored with g-C3N4/MoS2 composites were prepared for highly efficient photocatalytic degradation of aflatoxin B1 (AFB1) under visible light. These photocatalytic membranes were characterized by XRD, SEM, TEM, FTIR, and XPS. The factors influencing the degradation efficiency of AFB1, including pH values and initial concentrations, were also probed. The three kinds of photocatalytic membranes all exhibited excellent ability to degrade AFB1. Among them, the photocatalytic degradation efficiency of the photocatalytic membranes prepared by the coaxial methods reached 96.8%. The experiment is with an initial concentration of 0.5 μg/mL (500 PPb) after 60 min under visible light irradiation. The mechanism of degradation of AFB1 was also proposed based on active species trapping experiments. Moreover, the prepared photocatalytic membranes exhibited excellent photocatalytic activity even after five-fold use in the degradation of AFB1. These studies showed that electrospun membranes anchored with g-C3N4/MoS2 composites have a high photocatalytic ability which is easily removed from the reacted medium for reuse. Thereby, our study offers a highly effective, economical, and green solution for AFB1 degradation in the foodstuff for practical application.
Keywords:
electrospun photocatalytic membranes; aflatoxin B1; flexible; visible light; g-C3N4/MoS2
Key Contribution: The flexible electrospun membranes anchored with g-C3N4/MoS2 composites were synthesized via the uniaxial or coaxial electrospinning technique, and showed excellent ability to degrade AFB1 by the synergism of adsorption and photocatalysis under visible light irradiation. The prepared photocatalytic membranes had good mechanical properties and were easy to separate from the AFB1 solution, and the mechanisms of adsorption and photodegradation of AFB1 were revealed.

1. Introduction

Aflatoxin B1 (AFB1) is a highly toxic mycotoxin produced by aspergillus species as secondary metabolites under specific conditions [1,2,3]. It can contaminate food in a variety of ways and get into the human food chain directly or indirectly, threatening human health because of its genetic toxicity, carcinogenesis, embryonic toxicity, teratogenic, and immunotoxicity [4,5]. Studies have shown that a large amount of AFB1 consumed quickly can cause liver damage, such as acute hepatitis and liver tissue hemorrhage. Long-term intake of AFB1 can lead to chronic poisoning symptoms, such as liver fibrosis, poor growth, infertility, fetal malformation, etc. [6]. The International Agency for Research on Cancer (IARC) has listed AFB1 as a type I carcinogen [7,8,9,10]. In order to ensure human health and safety, the maximum allowable limits of AFB1 in various foods are determined. In the European Commission, the maximum allowable limit of AFB1 in edible oil, grain, and cereal products is 2 μg/kg. In China, the maximum allowable limit of AFB1 in peanut and corn oil is 20 μg/kg, while that in other vegetable oils is 10 μg/kg. In the United States, the maximum allowable limit of total aflatoxin (AFB1 + AFB2 + AFG1 + AFG2) in foods is 20 μg/kg. Meanwhile, animals fed with feed contaminated by AFB1 for a long time will increase the probability of disease and reduce feed conversion efficiency [11,12].
Various approaches have been reported for the detoxification of AFB1, including physical, chemical, and biological treatments. The most common physical detoxification method uses adsorbents in which AFB1 can be adsorbed during the process of detoxification [13,14]. Although many adsorbents, such as diatomite and montmorillonite, are used in practical applications, some common drawbacks include poor adsorptive efficiency, weak selectivity, high-cost recyclability, and even non-renewability. Chemical detoxification methods mainly use chlorine dioxide, ozone, sodium hypochlorite, and other chemicals to degrade AFB1 [15,16]. However, the problem of chemical residues has not been effectively solved and may cause secondary pollution. Another approach is to employ biodegradable enzymes or microorganisms to decompose AFB1 [17,18]. However, the application of the biological method is limited because the enzyme or bacteria agents are sensitive to environmental temperature, humidity, pH value, and the cost is high. Moreover, the increasing concern about food safety and the quality of the environment has prompted researchers to seek an efficient, safe, rigorous, and affordable technology to degrade AFB1.
Photocatalytic technology was developed in the 1970s [19] and is increasingly used in mycotoxins’ degradation [20,21,22]. In a photocatalytic reaction, when light with appropriate energy (hν ≥ Eg) falls on photocatalytic materials, electrons (e−) get excited from the valence band (VB) to the conduction band (CB), leaving behind holes (h+). Then, these photogenerated charges (e− and h+) migrate from the inside to the surface of the photocatalyst and interact with O2, H2O, or OH− around to produce •O2− and •OH with strong oxidation, which can degrade AFB1 and convert it into less hazardous compounds such as small organic acids, CO2, or H2O [23,24]. Compared with the physical, chemical, and biological treatments mentioned above, detoxifying mycotoxins using a photocatalytic approach is an emerging and promising strategy because of several advantages, including being free from secondary pollution, having mild conditions, and being economical, highly efficient, and environmental-friendly. Different studies have been carried out for detoxifying mycotoxin, including AFB1 and deoxynivalenol (DONs), using photocatalytic technology (Table 1). Recently, by using the experiments of isotope tracing, electron spin resonance, and active species trapping, Mao et al. found that preferentially inactivating the C8=C9 site by the addition reaction of hydroxyl radical was the main pathway for the detoxification of aflatoxin B1 [22]. Furthermore, hydroxyl radicals were most likely to react with the C9 site and then form AFB1-9-hydroxy through oxidative addition reaction, which was verified by theoretical calculations.
When the photocatalysts mentioned above were used to degrade AFB1 and DONs, the photocatalysts were generally suspended during the photocatalytic process [22,23,24,25,26,27,28,29]. As a result, the photocatalyst powders were easy to agglomerate and the separation process after the photocatalytic reaction required a lot of energy, which limited its large-scale application [31]. It is an attractive solution to prepare membranes by electrospinning as the carrier of photocatalysts. Electrospinning can produce fibers of tens to hundreds of nanometers in diameter with good mechanical properties, which can easily immobilize and recycle photocatalysts [32,33]. Thus, the energy consumption in the separation process and possible secondary pollution are reduced. Up to now, we have not found any reports on photocatalytic degradation of AFB1 using photocatalysts immobilized on electrospun membranes.
AFB1 is often produced during the storage, transportation, and production of foods or food ingredients [2,3]; so, the safety and stability of photocatalysts must be considered. Among the numerous photocatalysts, graphitic carbon nitride (g-C3N4) has gained the intensive attention of many researchers, as this metal-free polymeric n-type semiconductor is non-toxic, chemically stable, thermally stable, and easily modified [34]. However, the pristine g-C3N4 is usually restricted by unsatisfactory photocatalytic efficiency due to insufficient solar light absorption and the fast recombination of photogenerated electron–hole pairs [35]. In order to improve the photocatalytic efficiency of g-C3N4, it is a reasonable strategy to construct heterostructures with other narrow-band gap semiconductors to provide more active sites and inhibit the recombination of photogenerated charges. Molybdenum disulfide (MoS2) consists of three-dimensional stacked atomic layers with direct and indirect band gaps of 1.90 eV and 1.20 eV. It has become one of the most popular emerging co-catalysts due to its appropriate band structure, low cost, non-toxic, and exhibits excellent sunlight harvesting capability [36]. Therefore, it is a good idea to composite g-C3N4 with MoS2 to form effective heterostructures to enhance the visible light absorption and reduce the recombination of photogenerated electron–hole pairs owing to their matching band-edge positions for photocatalytic application [37]. To the best of our knowledge, the attempt to use electrospun membranes anchored with g-C3N4/MoS2 to degrade AFB1 under visible light irradiation has not been reported.

2. Results and Discussion

Based on the above considerations, we prepared g-C3N4/MoS2 composites by calcination and hydrothermal methods and investigated their photocatalytic properties. Then, the prepared photocatalysts were dispersed in the polymer electrospinning solution synthesized by polyacrylonitrile (PAN), and flexible electrospun membranes with different structures anchored with g-C3N4/MoS2 composites were prepared by uniaxial and coaxial methods, respectively. The as-prepared photocatalysts and flexible electrospun membranes (S1, S2, and S3) were characterized by scanning electron microscopy (SEM), transmission electron microscopy (TEM), X-ray diffraction (XRD), Fourier-transform infrared spectroscopy (FTIR), X-ray photoelectron spectroscopy (XPS), and diffuse reflectance spectra (DRS). The photocatalytic efficiency of electrospun membranes for degradation of AFB1 under visible light irradiation in an aqueous medium was investigated. Effects of factors such as pH value and the initial concentration of AFB1 were also studied. Active species trapping experiments analyzed the mechanism of photocatalytic degradation of AFB1. In addition, the effect of recycling on photocatalytic efficiency was also evaluated.

2.1. Characterization of the PAN-g-C3N4/MoS2 Electrospun Membranes

To study the morphologies of electrospun membranes anchored with g-C3N4/MoS2 prepared by different processes, S1, S2, and S3 were examined by SEM (Figure 1). It could be seen spindle-like beads wrapped with g-C3N4/MoS2 on S1 (Figure 1a), which indicated the photocatalysts were successfully immobilized on electrospun membranes. Many other researchers have prepared a series of photocatalytic membranes by similar methods [38]. However, most of the photocatalysts in this kind of membrane were wrapped by polymers, which hindered light absorption and was not conducive to the migration of photogenerated charges to the active sites. Therefore, polyethylene oxide (PEO) was added into the electrospinning solution, which is very soluble in water, and the obtained electrospun membranes were treated with an ultrasonic water bath to expose more photocatalysts. From the red circles marked (Figure 1b), it could be confirmed that pores formed by removing PEO after post-treatment, so that more photocatalysts were exposed and the photocatalytic efficiency was enhanced accordingly. To further expose the photocatalysts, coaxial electrospinning and ultrasonic water washing treatment were adopted to prepare S3. Compared with S1 and S2, the spindle-like beads were greatly reduced, and the photocatalysts that were completely exposed due to PEO could be obliterated. The way electrospun nanofibers bound the photocatalysts (Figure 1c) and wave-like folds caused by the removal of PEO could be observed in the bright area around the red circle. With the increase in photocatalysts exposure, it can be speculated that the photocatalytic efficiency should be improved correspondingly.
The morphologies of the g-C3N4/MoS2 composites were further studied by TEM and HRTEM (Figure 2). It was observed that the well-crystallized MoS2 lines were loaded on g-C3N4 (Figure 2a). Furthermore, many clear lattice fringes were shown in the HRTEM image (Figure 2b), indicating that good crystallinity has been obtained. Three sets of different lattices were found with the d-spacing of 0.62 nm, 0.32 nm, and 0.27 nm, respectively, corresponding to the (002) plane of MoS2, the (002) plane of g-C3N4, and the (110) plane of MoS2, respectively [39]. Meanwhile, the interface between g-C3N4 and MoS2 could also be perceived, indicating that the heterostructures were successfully formed between g-C3N4 and MoS2.
The crystal structure and composition of g-C3N4/MoS2, S1, S2, and S3 were confirmed with X-ray diffraction (XRD). In addition, the XRD pattern of g-C3N4 and MoS2 was displayed to be compared with g-C3N4/MoS2 (Figure S1), which provided more detailed data. As shown in Figure S1a, several diffraction peaks could be observed at 2θ = 14.5°, 32.8°, 33.66°, 39.68°, 44.32°, and 49.92°, corresponding to (002), (100), (101), (103), (006), and (105) planes of MoS2 (JCPDS: 37-1492), respectively [40]. Compared with the standard card, the diffraction peaks of g-C3N4/MoS2 and MoS2 shifted slightly to a bigger angle, which might be due to the residual stress in the material [41]. As shown in Figure S1b, the diffraction peak of g-C3N4, which appeared at 2θ = 13.14°, was assigned to the (001) plane, attributed to the triazine unit, and the strong peak located at 28.02° was the typical (002) diffraction plane ascribed to the inter-planar stacking of the aromatic system in g-C3N4 (JCPDS: 87-1526) [29]. By contrast, the diffraction peak of g-C3N4/MoS2 shifted to a smaller angle, implying the interaction between the g-C3N4 and MoS2. Through the Scherrer formula (Supplementary Information), the crystallite size of g-C3N4/MoS2 at the (002) plane could be estimated to be 98 Å, more significant than the crystallite size of g-C3N4 at the (002) plane (88 Å), which might be attributed to the improvement of crystallinity after annealing.
The XRD patterns of S1, S2, and S3 were generally very similar (Figure 3a) since they were all composed of PAN and g-C3N4/MoS2. The only difference lay in the spatial structure of the photocatalysts and PAN nanofibers. Obvious diffraction peaks belonging to MoS2 and g-C3N4 could be observed at 2θ = 14.72° and 27.5° in the XRD patterns of S1, S2, and S3, respectively. Additionally, wide bumps could be observed in the range of 15–30°, similar to the work of Xie et al. [42], representing the amorphous PAN macromolecules. The results of XRD patterns could confirm the successful combination of g-C3N4/MoS2 composites and PAN electrospun membranes. Other diffraction peaks of g-C3N4/MoS2 were not found in the XRD patterns of S1, S2, and S3 due to the low content of photocatalysts and the amorphous nature of PAN.
The FTIR spectra of the different electrospun membranes were measured (Figure 3b). For pure PAN electrospun membrane, the peaks at 2934 cm−1, 2242 cm−1, 1728 cm−1, 1450 cm−1, and 1093 cm−1 were assigned to the stretching vibration of methylene –CH2–, stretching vibration of C≡N, stretching vibration of C=O, bending vibration of –CH2–, and stretching vibration of the C–N bonds [42,43,44]. Compared with pure PAN electrospun membrane, the C–N stretching vibration absorption peak of g-C3N4 located at 1235 cm−1 and 1640 cm−1, and the characteristic peak of the 3-s-triazine structure located at 814 cm−1, appeared in the FTIR spectra of S1, S2, and S3 [45,46]. Therefore, the FTIR results further demonstrated the successful loading of photocatalysts on electrospun membranes. However, due to the low content of MoS2, its characteristic peaks failed to be observed. It should be noted that the intensity and area of the peaks assigned to g-C3N4 increased in turn from S1 to S3, indicating more photocatalysts were exposed, which was beneficial to improve photocatalytic efficiency.
The chemical status and bonding structures of the PAN-g-C3N4/MoS2 electrospun membranes were analyzed by X-ray photoelectron spectroscopy (XPS). The full-scale XPS survey spectra revealed the existence of C, N, Mo, and S elements (Figure 4). In addition, the peak differentiation imitating the four elements was studied to further understand the detailed composition (Figure 5). The XPS spectra of C 1s could be deconvoluted into four peaks (Figure 5a), wherein the peaks at 284.5 eV and 286.3 eV were attributed to the sp2 C–C bonds and C-NH2 species of the g-C3N4 [33]. The peak at 284.7 eV (sp2 C-C) belonged to C 1s of PAN, and the peak at 288.5 eV could be attributed to the carbon in N-C=N [47]. The XPS spectra of N 1 s had three peaks at 398.7 eV, 400.0 eV, and 401.1 eV, respectively (Figure 5b), which could be attributed to the sp2 hybridized nitrogen in C-N=C, tertiary nitrogen N-(C)3 groups, and free amino groups (C-N-H) [33]. Three peaks in the high-resolution XPS spectra of Mo 3d at 225.8 eV, 228.7 eV, and 231.9 eV were further revealed (Figure 5c), belonging to S 2s, Mo 3d5/2, and Mo 3d3/2, respectively [47]. It could be confirmed that the Mo element in g-C3N4/MoS2 was mainly presented in the state of Mo4+. Regarding the XPS spectra of S 2p (Figure 5d), two major peaks at 162.4 eV and 163.5 eV could be attributed to S 2p3/2 and S 2p1/2, respectively [47]. The XPS results verified that the g-C3N4/MoS2 was successfully anchored with electrospun PAN membranes.
Figure 6a illustrates the DRS spectra of g-C3N4 and g-C3N4/MoS2 powders. Compared with pure g-C3N4, the absorption of g-C3N4/MoS2 has stronger intensity at the UV-visible light range and an obvious red-shift, which meant that the compounding of MoS2 effectively broadens and strengthens the light absorption. The heterojunction constructed between g-C3N4 and MoS2 changes the optical properties of hybrid materials, promoting the light absorption, and could improve the photocatalytic activity under visible-light irradiation.
The results of UV-Vis DRS were used to calculate the band gap energy (Eg) of the material through the Kubelka–Munk formula (1):
αhν = C(hv−Eg)n/2
where α, h, ν, and C are the absorption coefficient, Planck constant, optical frequency, and constant, respectively. The value of n is determined by the material properties. Through the Kubelka–Munk formula, the integral band gap of g-C3N4/MoS2 could be estimated to be 2.75 eV, while that of g-C3N4 was approximated to be 2.9 eV (Figure 6b). Moreover, g-C3N4/MoS2 with a narrower band gap should have better photocatalytic performance, according to a previous study [48].
Furthermore, the transient photocurrent (TPC) response of the as-prepared S1, S2, S3, and PAN electrospun membrane was displayed (Figure 7) under the condition of light on and off illuminating by a visible light source (Xe lamp, λ ≥ 420 nm). It is known that the higher the photocurrent intensity, the higher the separation rate of photogenerated carriers. Obviously, PAN electrospun membrane had no response to visible light radiation, whereas the photocurrent density of S1, S2, and S3 significantly increased in turn when the Xe lamp was turned on, indicating that more photogenerated charges were generated, which was mainly due to the increasingly exposed g-C3N4/MoS2 from S1 to S3. Therefore, the photocatalysts could be completely exposed by optimizing the preparation method to not only enhance the harvest of light but also promote the transfer of photogenerated charges from the inner to the surface, which might improve the photocatalytic efficiency effectively.

2.2. Photocatalysis and Recycling Performance

Figure 8 shows the photocatalytic degradation of RhB (10 mg/mL) over g-C3N4/MoS2 with different mass ratios of MoS2 under visible light irradiation. It can be seen that g-C3N4/MoS2 (1%) had the highest photocatalytic activity, the degradation rate of RhB over which was close to 85% after 90 min. On the other hand, the degradation rate of g-C3N4 and MoS2 to RhB was about 32% and 20%, respectively, obviously inefficient in comparison with that of the composite photocatalyst. These results confirmed that the strategy of small amount of compounding MoS2 with g-C3N4 was workable to promote photocatalytic activity, and the best mass ratio of MoS2 in g-C3N4/MoS2 is 1%.
The photocatalytic performances were comparatively evaluated by photocatalytic degradation of AFB1 aqueous solution under visible light irradiation, and AFB1 aqueous solution without photocatalytic membrane was used as the control group (Figure 9). Before photocatalytic degradation under visible light irradiation, the AFB1 aqueous solution immersed with S1, S2, and S3 was kept in darkness for 30 min to achieve adsorption/desorption equilibrium, and the duration of photocatalytic reaction was 60 min.
It could be observed that for the blank experiment without a photocatalytic membrane, the concentration of AFB1 was unchanged under visible light irradiation. The photocatalytic activity of S1, S2, and S3 was significantly improved, and the photodegradation efficiency was up to 65.5%, 79.2%, and 96.8% in 60 min, respectively (Figure 9a). These results showed that the degradation of AFB1 was mainly due to a photocatalytic reaction. As we speculated, the efficiency of photocatalytic degradation of AFB1 by S1, S2, and S3 increased in turn. S3 showed greatly higher photocatalytic efficiency with a degradation rate of 31.3% and 17.6% higher than S1 and S2, respectively. This implied that g-C3N4/MoS2 anchored on electrospun PAN membranes played an important role in the photocatalytic activity of AFB1 degradation. As the g-C3N4/MoS2 anchored on S3 were utterly exposed, the light-harvesting ability was enhanced compared with S1 and S2. Thus, many photogenerated charges were produced in g-C3N4/MoS2 and more easily transferred to the surface of the photocatalyst because they were not wrapped by the polymer. More importantly, this fully exposed g-C3N4/MoS2 provided more active sites and greatly enhanced the photocatalytic efficiency. The high-performance liquid chromatography (HPLC) chromatogram of AFB1 aqueous solution concentrations with the irradiation time was also demonstrated (Figure 9b).
In a typical photocatalytic process, many factors affect photocatalytic performance. Besides the basic properties (crystal structure, particle size, specific surface area, and surface hydroxyl group) and carrier of the photocatalysts, external environmental factors such as light source, irradiation time, temperature, pH value, and initial concentration of reactants also make a certain sense [49]. In this study, the influence of pH values and initial concentrations of AFB1 on photocatalytic efficiency was estimated, which were two variable factors in practical application.
S3 was used to study the photocatalytic efficiency at pH values of 3, 5, 7, and 9, whereas the concentrations of AFB1 were kept constant (Figure 9c). It was observed that the degradation of AFB1 was suppressed in an acidic aqueous solution. With the increase in pH value, the photocatalytic degradation rates of AFB1 increased accordingly. In the neutral solution with a pH value of 7, nearly 17% of AFB1 was adsorbed after 30 min. However, in the acidic solution with pH values of 3 and 5, only 8% and 13% of AFB1 were adsorbed, indicating that the high photocatalytic degradation efficiency might come from high adsorption. The photocatalytic membranes and AFB1 (pH = 5) were positively charged in an acidic solution [26]. The absorption of AFB1 on the active site was low due to the repulsive force between the photocatalytic membranes and AFB1 [26,38]. Subsequently, the photocatalytic efficiency was weakened.
For the same reason, in an alkaline solution with a pH value of 9, there was a similar repulsive force between the photocatalytic membranes and AFB1. However, the photocatalytic degradation efficiency was not decreased but instead slightly increased. The reason might be that AFB1 was unstable in the alkaline environment [50]. To investigate the effect of the AFB1 initial concentration on the photocatalytic degradation efficiency, S3 was soaked in different initial concentrations of AFB1 (0.5–4 μg/mL, i.e., 500–4000 PPb) with a pH value of 7 (Figure 9d). It was observed that the photocatalytic degradation efficiency was inversely related to AFB1 initial concentration. The AFB1 degradation efficiencies were 97.5% and 63.3% at initial concentrations of 500 and 4000 PPb, respectively. This could be assigned to a constant number of active sites on the photocatalytic membrane. With the increase of initial concentrations and the proceeding of the photocatalytic reaction, competitive adsorption of AFB1 and its intermediates on the photocatalytic membranes would be aggravated, subsequently affecting the harvest of light and forming a barrier against photoexcitation in g-C3N4/MoS2 [28,51].
For the practical application of the photocatalytic membranes, five consecutive photocatalytic experiments were carried out using S3 under the same experimental conditions with proper washing and drying after each cycle (Figure 9e). The reproducibility results of AFB1 degradation by S3 showed that although the degradation pace decreased slightly after each photocatalytic degradation test, the degradation rate reached more than 85% overall. The slight decrease in degradation rate might be due to the contaminant of reused samples during the recovery step by the intermediate products produced in the photocatalytic degradation of AFB1. The recyclability of the photocatalytic membranes verified the possibility of practical application and a better economic benefit.
To better understand the mechanism of photocatalytic degradation of AFB1 by the PAN-g-C3N4/MoS2 electrospun membranes, the active species trapping experiments were carried out using S3 under the same conditions described above (Figure 9f). Isopropanol (IPA), 1,4-benzoquinone (BQ), and ammonium oxalate (AO) were employed as the scavengers for hydroxyl radicals (•OH), super-oxide anion radicals (•O2−), and photogenerated holes (h+), respectively [52]. After 60 min of visible light irradiation, the degradation rate of AFB1 without a sacrificial agent was 96.8%, and for others with scavengers IPA, BQ, and AO, the degradation rate was 90.2%, 88.1%, and 15.4%, respectively. Therefore, it could be confirmed that h+ was the main active specie in the reaction process.

2.3. Mechanism for Enhanced Degradation Performance

Based on the previous results, the possible photocatalytic mechanism of AFB1 degradation by the PAN-g-C3N4/MoS2 electrospun membranes was proposed (Figure 10). It could be regarded that g-C3N4/MoS2 anchored on PAN electrospun membranes was simultaneously excited under visible light irradiation and produced photo-induced electrons and holes. According to previous studies and band gap values estimated by the Kubelka–Munk formula, the conduction band of g-C3N4 (−1.22 eV) is higher than that of MoS2 (−0.12 eV), and the valence band of MoS2 (1.78 eV) is lower than that of g-C3N4 (1.68 eV) [53]. The photo-induced electrons produced in g-C3N4 can be easily transferred to the conduction band of MoS2 through the interface, and the photo-induced holes produced in MoS2 transfer to the valence band of g-C3N4 in a similar manner. As a result, the photo-induced electrons are gathered in the conduction band of MoS2, and the photo-induced holes are gathered in the valence band of g-C3N4, which leads to photo-induced electrons and holes to separate effectively. Therefore, the probability of photo-induced electron-hole recombination is hindered, and the photocatalytic efficiency is improved accordingly. However, the conduction band potential of MoS2 is more positive than the potential of E(O2/•O2−) (−0.12 V > −0.33 V) [54]; the electrons on the conduction band of MoS2 cannot react with O2 to generate •O2−. For the same reason, the holes on the valence band of g-C3N4 cannot generate •OH, as the valence band of g-C3N4 is more negative than the potential of E(OH−/•OH) or E(H2O/•OH) (1.56 V < 1.99 or 2.4 V) [55]. Thereby, rich holes in the valence band of g-C3N4 act as the main reactive species to oxidize AFB1 directly, consistent with the results of active species trapping experiments. The reaction formulas are as follows:
g-C3N4/MoS2 + hν → e−(CB) + h+(VB)
AFB1 + h+ → CO2 + H2O + intermediate products

3. Conclusions

Three kinds of flexible electrospun membranes anchored with g-C3N4/MoS2 composites were synthesized via uniaxial or coaxial electrospinning techniques. Due to more g-C3N4/MoS2 photocatalysts being exposed and more active sites being produced, the photocatalytic efficiency of S1, S2, and S3 increased gradually. The degradation efficiency of AFB1 solution with a concentration of 500 PPb (50 mL) was up to 97% in 60 min under visible light irradiation with 0.025 g S3. The mechanism of photocatalytic membranes degradation of AFB1 in the photocatalytic process was proposed based on active species trapping experiments, and the reusability and stable activity were confirmed after five cycles of photocatalytic degradation experiments. Thus, the PAN-g-C3N4/MoS2 electrospun membranes were proved as high photocatalytic activity, easy separation, good reusability, and potential practical application in the foodstuff for the degradation of AFB1.

4. Materials and Methods

4.1. Materials and Reagents

AFB1 was purchased from Beijing Puhuashi Technology Development Co., Ltd. (Beijing, China), and dissolved to a certain concentration with deionized water. Melamine (≥99.0% purity), sodium molybdate (≥99.0% purity), thioacetamide (≥99.0% purity), N,N-dimethylformamide (DMF, AR, 99.5%), N-methyl pyrrolidone (NMP, ≥99.0%), anhydrous ethanol (AR, 99.5%), glacial acetic acid (for HPLC, ≥99.9%), trifluoroacetate (for HPLC, ≥99.5%), methanol (for HPLC, ≥99.9%), and acetonitrile (for HPLC, ≥99.9%) were purchased from Macklin Biochemical Co., Ltd. PAN (Mw ≈ 120,000) and PEO (Mw ≈ 200,000) were obtained from Sigma-Aldrich Co., Ltd. All reagents were used without any further purification. The deionized water used in this study was purified by a Millipore system.

4.2. Preparation of g-C3N4/MoS2

As shown in Scheme 1, the g-C3N4 powders were prepared by calcining melamine at 550 °C for 3 h (5 °C/min). The MoS2 powders were prepared by hydrothermal process. In a typical procedure, 20 mg sodium molybdate and 25 mg thioacetamide were dissolved in 30 mL deionized water under magnetic stirring for 20 min. Then, the above solution was poured into a stainless-steel autoclave, and the reaction temperature was controlled at 200 °C by the oven for 24 h. Following several times washing with deionized water and ethanol, the resultants dried at 60 °C for 10 h under vacuum were MoS2 powders.
The g-C3N4/MoS2 composites were fabricated by low-temperature calcination, and the mass ratio of MoS2 in g-C3N4/MoS2 was determined as 1% in this study. Firstly, 198 mg g-C3N4 and 2 mg MoS2 powders were dispersed in NMP and absolute ethanol, respectively, and ultrasonicated for 60 min. The two solutions were then mixed and stirred for 12 h, and the precipitates obtained after centrifugation were washed with deionized water and ethanol several times and dried at 80 °C for 10 h under vacuum. Secondly, the precipitates were ground to powders and followed by annealing at 400 °C for 2 h with a ramping speed of 5 °C/min in a nitrogen atmosphere. Finally, the g-C3N4/MoS2 composites were ball-milled for 3 h after cooling to room temperature for future use. According to the above scheme, the g-C3N4/MoS2 composites with different MoS2 mass contents 0.5%, 1.5%, 2%, and 2.5% were prepared by changing the amount of MoS2 added.

4.3. Preparation of PAN-g-C3N4/MoS2 Electrospun Membranes

Three kinds of PAN-g-C3N4/MoS2 electrospun membranes were fabricated by electrospinning (Scheme 2). For the first one, a certain amount of g-C3N4/MoS2 composites was added into DMF and ultrasonicated for 1 h to disperse the photocatalysts. Subsequently, PAN was added and stirred for 2 h to obtain a yellow-grey solution. The concentration of PAN in DMF was 12 w/v%, and the contents of g-C3N4/MoS2 composites to DMF was 3 w/v%. The prepared solution was then injected into a plastic syringe with a metal needle driven by a syringe pump at a flow rate of 1.5 mL/h for electrospinning. The applied voltage was 10 kV, and the distance from the metallic needle to the aluminum foil surface was 15 cm. After electrospinning, the electrospun membranes were dried at 60 °C under vacuum for 12 h, recorded as S1. The second one was prepared according to S1 with some modifications. Typically, the polymer added into DMF was changed to PAN/PEO (PAN: PEO = 2:1, wt%), while keeping the total concentration of the polymer constant with S1 (12 w/v%). After drying at 60 °C under vacuum for 12 h, the electrospun membranes were immersed in deionized water, sonicated in a water bath for 1 h, and placed at 60 °C for 24 h to fully wash out PEO. The washed electrospun membranes were dried at 60 °C under vacuum for 12 h, recorded as S2. The third one was prepared by a simple coaxial electrospinning technique. The core solution with concentration PAN 12 w/v% was prepared similarly to S1 without adding g-C3N4/MoS2 composites. The sheath solution was prepared with PEO, g-C3N4/MoS2, and DMF similar to S1. The concentration of PEO in DMF was set to 7 w/v%, and the contents of g-C3N4/MoS2 composites to DMF were 3 w/v%. The core and sheath solution was pumped out at rates of 1.5 mL/h using two syringe pumps, and the applied voltage and the distance from the metallic needle to the aluminum foil surface were set to be the same as both S1 and S2. The resultant electrospun membranes were washed with deionized water and dried at 60 °C under vacuum for 12 h, recorded as S3.

4.4. Characterization of PAN-g-C3N4/MoS2 Electrospun Membranes

The morphologies of the PAN-g-C3N4/MoS2 electrospun membranes were observed by SEM (ZEISS Sigma, Aalen, Germany), and the microstructure of g-C3N4/MoS2 composites were observed by TEM (JEM-2100F). XRD patterns was obtained with an X-ray diffractometer (MiniFlex 600, Tokyo, Japan) at a scanning speed of 2°/min. FTIR spectra were analyzed on a Vector-22 spectrometer. High-resolution XPS spectra were analyzed by an X-ray photoelectron spectrometer. DRS was detected by a UV/VIS spectrophotometer (Shimadzu UV-3600 Plus, Tokyo, Japan). TPC curves were tested on a three-electrode electrochemical workstation (CHI600E, Beijing, China) with PAN-g-C3N4/MoS2 electrospun membranes/glassy as the working electrode, Ag/AgCl as the reference electrode, and platinum wire as the counter electrode, respectively. The electrolyte was 0.1 M Na2SO4 aqueous solution.

4.5. Photocatalytic Degradation Experiment

The degradation of AFB1 was evaluated in an aqueous medium under visible light irradiation by a 300 W xenon lamp with a 400 nm cut-off filter. Samples from electrospun membranes were cut into a circular shape (2 cm in diameter and approximately 0.025 g in weight) and fixed on a bracket, immersed in 50 mL of AFB1 aqueous solution (500 PPb). Then, it was placed in the dark for 30 min to establish the adsorption/desorption equilibrium before light irradiation. The distance between the xenon lamp and the aqueous surface was 10 cm. In the progress of the photocatalytic degradation, 0.5 mL of the AFB1 aqueous solution was collected every 10 min and then added 0.25 mL glacial acetic acid and 0.25 mL trifluoroacetic acid. The mixed solution was put in a water bath at 70 °C for 40 min to enhance the fluorescence emission intensity of AFB1 when detected by HPLC. The concentration of the AFB1 was analyzed by the HPLC on Waters-600 equipped with a UV/Vis detector (emission wavelength at 365 nm) and C-18 Phenomenex reverse phase column (250 × 4.6 mm i.d., 5 μm) at a flow rate of 1 mL/min with an isocratic system composed of water: methanol: acetonitrile (70:20:10). Different factors were also analyzed, such as pH values (4–10) and initial concentration of AFB1. The AFB1 solution without electrospun membranes upon irradiation was also monitored in order to quantify the photocatalytic degradation of AFB1. The stability of the electrospun membranes was evaluated over 5 continuous cycle experiments under visible light irradiation. After each cycle, the electrospun membranes were rinsed with deionized water for continued use.
To explore the mechanism of degradation of AFB1 by the electrospun membranes, active species trapping experiments were carried out by using the addition of IPA (1 mM), AO (1 mM), and BQ (1 mM) to capture hydroxyl radicals (•OH), photogenerated holes (h+), and super-oxide anion radicals (•O2−), respectively.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/toxins15020133/s1, Figure S1: Photocatalytic degradation of RhB with different weight ratios of g-C3N4 and MoS2.

Author Contributions

Conceptualization, D.Z. and C.S.; methodology, R.S. and L.Y.; validation, R.S. and L.Y.; formal analysis, R.S. and L.Y.; investigation, R.S.; resources, D.Z. and G.L.; data curation, R.S.; writing—original draft preparation, R.S.; writing—review and editing, L.Y., D.Z., D.Y. and Z.L.; visualization, R.S.; supervision, D.Z., D.Y. and H.L.; project administration, D.Z. and S.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (62275160).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Raw data are available on request.

Acknowledgments

The authors give special thanks to Dengguang Yu from University of Shanghai for Science and Technology. The authors also thank Ding Wang at the University of Shanghai for Science and Technology for providing the SEM and TEM measurements used in this study.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analysis, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Wild, C.P.; Turner, P.C. The toxicology of aflatoxins as a basis for public health decisions. Mutagenesis 2002, 17, 471–481. [Google Scholar] [CrossRef] [PubMed]
  2. Wu, F.; Groopman, J.D.; Pestka, J.J. Public health impacts of foodborne mycotoxins. Annu. Rev. Food Sci. Technol. 2014, 52014, 351–372. [Google Scholar] [CrossRef] [PubMed]
  3. Kumar, P.; Mahato, D.K.; KamLe, M.; Mohanta, T.K.; Kang, S.G. Aflatoxins: A global concern for food safety, human health and their management. Front. Microbiol. 2017, 7, 2170. [Google Scholar] [CrossRef] [PubMed]
  4. Sherif, O.S.; Salama, E.E.; Abdel-Wahhab, M.A. Mycotoxins and child health: The need for health risk assessment. Int. J. Hyg. Environ. Health 2009, 212, 347–368. [Google Scholar]
  5. Wild, C.P.; Gong, Y.Y. Mycotoxins and human disease: A largely ignored global health issue. Carcinogenesis 2010, 31, 71–82. [Google Scholar] [CrossRef]
  6. Fan, T.; Xie, Y.; Ma, W. Research progress on the protection and detoxification of phytochemicals against aflatoxin B1-induced liver toxicity. Toxicon 2021, 195, 58–68. [Google Scholar] [CrossRef]
  7. IARC. Some naturally occurring substances: Food items and constituents, heterocyclic aromatic amines and mycotoxins. IARC Monogr. Eval. Carcinog. Risks Hum. 1993, 56, 489–521. [Google Scholar]
  8. Liu, Y.; Wu, F. Global burden of aflatoxin-induced hepatocellular carcinoma: A risk assessment. Environ. Health Perspect. 2010, 118, 818–824. [Google Scholar] [CrossRef]
  9. El-Serag, H.B. Epidemiology of viral hepatitis and hepatocellular carcinoma. Gastroenterology 2012, 143, 269. [Google Scholar] [CrossRef]
  10. Joubert, O. Chronic and acute toxicities of aflatoxins: Mechanisms of action. Environ. Risques Sante 2020, 19, 296–297. [Google Scholar]
  11. Streit, E.; Schatzmayr, G.; Tassis, P.; Tzika, E.; Marin, D.; Taranu, I.; Tabuc, C.; Nicolau, A.; Aprodu, I.; Puel, O.; et al. Current situation of mycotoxin contamination and co-occurrence in animal feed-focus on europe. Toxins 2012, 4, 788–809. [Google Scholar] [CrossRef]
  12. Xiong, J.L.; Wang, Y.M.; Zhou, H.L.; Liu, J.X. Effects of dietary adsorbent on milk aflatoxin m1 content and the health of lactating dairy cows exposed to long-term aflatoxin B1 challenge. J. Dairy Sci. 2018, 101, 8944–8953. [Google Scholar] [CrossRef]
  13. De Jesus Nava-Ramirez, M.; Salazar, A.M.; Sordo, M.; Lopez-Coello, C.; Tellez-Isaias, G.; Mendez-Albores, A.; Vazquez-Duran, A. Ability of low contents of biosorbents to bind the food carcinogen aflatoxin B1 in vitro. Food Chem. 2021, 345, 128863. [Google Scholar] [CrossRef]
  14. Li, S.; Luo, J.; Fan, J.; Chen, X.; Wan, Y. Aflatoxin B1 removal by multifunctional membrane based on polydopamine intermediate layer. Sep. Purif. Technol. 2018, 199, 311–319. [Google Scholar] [CrossRef]
  15. Isikber, A.A.; Athanassiou, C.G. The use of ozone gas for the control of insects and micro-organisms in stored products. J. Stored Prod. Res. 2015, 64, 139–145. [Google Scholar] [CrossRef]
  16. Yu, Y.; Shi, J.; Xie, B.; He, Y.; Qin, Y.; Wang, D.; Shi, H.; Ke, Y.; Sun, Q. Detoxification of aflatoxin B1 in corn by chlorine dioxide gas. Food Chem. 2020, 328, 127121. [Google Scholar] [CrossRef]
  17. Yousefi, M.; Shariatifar, N.; Ebrahimi, M.T.; Mortazavian, A.M.; Mohammadi, A.; Khorshidian, N.; Arab, M.; Hosseini, H. In vitro removal of polycyclic aromatic hydrocarbons by lactic acid bacteria. J. Appl. Microbiol. 2019, 126, 954–964. [Google Scholar] [CrossRef]
  18. Guan, Y.; Chen, J.; Nepovimova, E.; Long, M.; Wu, W.; Kuca, K. Aflatoxin detoxification using microorganisms and enzymes. Toxins 2021, 13, 46. [Google Scholar] [CrossRef]
  19. Fujishima, A.; Honda, K. Electrochemical photolysis of water at a semiconductor electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef]
  20. Bai, X.; Sun, C.; Liu, D.; Luo, X.; Li, D.; Wang, J.; Wang, N.; Chang, X.; Zong, R.; Zhu, Y. Photocatalytic degradation of deoxynivalenol using graphene/ZnO hybrids in aqueous suspension. Appl. Catal. B 2017, 204, 11–20. [Google Scholar] [CrossRef]
  21. Mboula, V.M.; Hequet, V.; Gru, Y.; Colin, R.; Andres, Y. Assessment of the efficiency of photocatalysis on tetracycline biodegradation. J. Hazard. Mater. 2012, 209, 355–364. [Google Scholar] [CrossRef] [PubMed]
  22. Mao, J.; Li, P.; Wang, J.; Wang, H.; Zhang, Q.; Zhang, L.; Li, H.; Zhang, W.; Peng, T. Insights into photocatalytic inactivation mechanism of the hypertoxic site in aflatoxin B1 over clew-like WO3 decorated with CdS nanoparticles. Appl. Catal. B 2019, 248, 477–486. [Google Scholar] [CrossRef]
  23. Mao, J.; Zhang, L.; Wang, H.; Zhang, Q.; Zhang, W.; Li, P. Facile fabrication of nanosized graphitic carbon nitride sheets with efficient charge separation for mitigation of toxic pollutant. Chem. Eng. J. 2018, 342, 30–40. [Google Scholar] [CrossRef]
  24. Yao, L.; Sun, C.; Lin, H.; Li, G.; Lian, Z.; Song, R.; Zhuang, S.; Zhang, D. Electrospun Bi-decorated BixTiyOz/TiO2 flexible carbon nanofibers and their applications on degradating of organic pollutants under solar radiation. J. Mater. Sci. Technol. 2022. [Google Scholar] [CrossRef]
  25. Mao, J.; Zhang, Q.; Li, P.; Zhang, L.; Zhang, W. Geometric architecture design of ternary composites based on dispersive WO3 nanowires for enhanced visible-light-driven activity of refractory pollutant degradation. Chem. Eng. J. 2018, 334, 2568–2578. [Google Scholar] [CrossRef]
  26. Sun, S.; Zhao, R.; Xie, Y.; Liu, Y. Photocatalytic degradation of aflatoxin B1 by activated carbon supported TiO2 catalyst. Food Control 2019, 100, 183–188. [Google Scholar] [CrossRef]
  27. Zhang, J.; Gao, X.; Guo, W.; Wu, Z.; Yin, Y.; Li, Z. Enhanced photocatalytic activity of TiO2/UiO-67 under visible-light for aflatoxin B1 degradation. RSC Adv. 2022, 12, 6676–6682. [Google Scholar] [CrossRef]
  28. Raesi, S.; Mohammadi, R.; Khammar, Z.; Paimard, G.; Abdalbeygi, S.; Sarlak, Z.; Rouhi, M. Photocatalytic detoxification of aflatoxin B1 in an aqueous solution and soymilk using nano metal oxides under UV light: Kinetic and isotherm models. LWT-Food Sci. Technol. 2022, 154, 112638. [Google Scholar] [CrossRef]
  29. Sun, D.; Mao, J.; Cheng, L.; Yang, X.; Li, H.; Zhang, L.; Zhang, W.; Zhang, Q.; Li, P. Magnetic g-C3N4/NiFe2O4 composite with enhanced activity on photocatalytic disinfection of aspergillus flavus. Chem. Eng. J. 2021, 418, 129417. [Google Scholar] [CrossRef]
  30. Wang, H.; Mao, J.; Zhang, Z.; Zhang, Q.; Zhang, L.; Li, P. Photocatalytic degradation of deoxynivalenol over dendritic-like α-Fe₂O₃ under visible light irradiation. Toxins 2019, 11, 105. [Google Scholar] [CrossRef]
  31. Li, G.; Lian, Z.; Wang, W.; Zhang, D.; Li, H. Nanotube-confinement induced size-controllable g-C3N4 quantum dots modified single-crystalline TiO2 nanotube arrays for stable synergetic photoelectrocatalysis. Nano Energy 2016, 19, 446–454. [Google Scholar] [CrossRef]
  32. Song, J.; Wang, X.; Yan, J.; Yu, J.; Sun, G.; Ding, B. Soft Zr-doped TiO2 nanofibrous membranes with enhanced photocatalytic activity for water purification. Sci. Rep. 2017, 7, 1636. [Google Scholar] [CrossRef]
  33. Zheng, X.; Liu, Y.; Liu, X.; Li, Q.; Zheng, Y. A novel PVDF-TiO2@g-C3N4 composite electrospun fiber for efficient photocatalytic degradation of tetracycline under visible light irradiation. Ecotoxicol. Environ. Saf. 2021, 210, 111866. [Google Scholar] [CrossRef]
  34. Thi Kim Anh, N.; Thanh-Truc, P.; Huy, N.-P.; Shin, E.W. The effect of graphitic carbon nitride precursors on the photocatalytic dye degradation of water-dispersible graphitic carbon nitride photocatalysts. Appl. Surf. Sci. 2021, 537, 148027. [Google Scholar]
  35. Jiang, L.; Yuan, X.; Pan, Y.; Liang, J.; Zeng, G.; Wu, Z.; Wang, H. Doping of graphitic carbon nitride for photocatalysis: A reveiw. Appl. Catal. B 2017, 217, 388–406. [Google Scholar] [CrossRef]
  36. Wu, M.; Li, L.; Liu, N.; Wang, D.; Xue, Y.; Tang, L. Molybdenum disulfide (MoS2) as a co-catalyst for photocatalytic degradation of organic contaminants: A review. Process Saf. Environ. Prot. 2018, 118, 40–58. [Google Scholar] [CrossRef]
  37. Li, J.; Wu, W.; Li, Y.; Zhang, H.; Xu, X.; Jiang, Y.; Lin, K. In situ synthesized rodlike MoS2 as a cocatalyst for enhanced photocatalytic hydrogen evolution by graphitic carbon nitride without a noble metal. ACS Appl. Energy Mater. 2021, 4, 11836–11843. [Google Scholar] [CrossRef]
  38. Marinho, B.A.; de Souza, S.M.A.G.U.; de Souza, A.A.U.; Hotza, D. Electrospun TiO2 nanofibers for water and wastewater treatment: A review. J. Mater. Sci. 2021, 56, 5428–5448. [Google Scholar] [CrossRef]
  39. Zhao, Z.; Luo, S.; Ma, P.; Luo, Y.; Wu, W.; Long, Y.; Ma, J. In situ synthesis of MoS2 on C3N4 to form MoS2/C3N4 with interfacial Mo-N coordination for electrocatalytic reduction of N2 to NH3. ACS Sustain. Chem. Eng. 2020, 8, 8814–8822. [Google Scholar] [CrossRef]
  40. Zhang, Z.-G.; Liu, H.; Wang, X.-X.; Zhang, J.; Yu, M.; Ramakrishna, S.; Long, Y.-Z. One-step low temperature hydrothermal synthesis of flexible TiO2/PVDF@MoS2 core-shell heterostructured fibers for visible-light-driven photocatalysis and self-cleaning. Nanomaterials 2019, 9, 431. [Google Scholar] [CrossRef]
  41. D’Elia, A.; Cibin, G.; Robbins, P.E.; Maggi, V.; Marcelli, A. Design and characterization of a mapping device optimized to collect XRD patterns from highly inhomogeneous and low density powder samples. Nucl. Instrum. Methods Phys. Res. Sect. B 2017, 411, 22–28. [Google Scholar] [CrossRef]
  42. Xie, R.; Zhang, L.; Liu, H.; Xu, H.; Zhong, Y.; Sui, X.; Mao, Z. Construction of CQDs-Bi20TiO32/PAN electrospun fiber membranes and their photocatalytic activity for isoproturon degradation under visible light. Mater. Res. Bull. 2017, 94, 7–14. [Google Scholar] [CrossRef]
  43. Liang, H.; Bai, J.; Xu, T.; Li, C. Enhancing photocatalytic performance of heterostructure MoS2/g-C3N4 embeded in PAN frameworks by electrospining process. Mater. Sci. Semicond. Process. 2021, 121, 105414. [Google Scholar] [CrossRef]
  44. Bode-Aluko, C.A.; Pereao, O.; Kyaw, H.H.; Al-Naamani, L.; Al-Abri, M.Z.; Myint, M.T.Z.; Rossouw, A.; Fatoba, O.; Petrik, L.; Dobretsov, S. Photocatalytic and antifouling properties of electrospun TiO2 polyacrylonitrile composite nanofibers under visible light. Mater. Sci. Eng. B 2021, 264, 114913. [Google Scholar] [CrossRef]
  45. Cui, Y.; Jiang, Z.; Xu, C.; Zhu, M.; Li, W.; Wang, C. Preparation, filtration, and photocatalytic properties of PAN@g-C3N4 fibrous membranes by electrospinning. RSC Adv. 2021, 11, 19579–19586. [Google Scholar] [CrossRef]
  46. Dai, K.; Lu, L.; Liang, C.; Liu, Q.; Zhu, G. Heterojunction of facet coupled g-C3N4/surface-fluorinated TiO2 nanosheets for organic pollutants degradation under visible led light irradiation. Appl. Catal. B 2014, 156, 331–340. [Google Scholar] [CrossRef]
  47. Chu, K.; Liu, Y.-p.; Li, Y.-b.; Guo, Y.-l.; Tian, Y. Two-dimensional (2D)/2D interface engineering of a MoS2/C3N4 heterostructure for promoted electrocatalytic nitrogen fixation. ACS Appl. Mater. Interfaces 2020, 12, 7081–7090. [Google Scholar] [CrossRef]
  48. Shafiee, A.; Aibaghi, B.; Carrier, A.J.; Ehsan, M.F.; Nganou, C.; Zhang, X.; Oakes, K.D. Rapid photodegradation mechanism enabled by broad-spectrum absorbing black anatase and reduced graphene oxide nanocomposites. Appl. Surf. Sci. 2022, 575, 151718. [Google Scholar] [CrossRef]
  49. Yuangpho, N.; Trinh, D.T.T.; Channei, D.; Khanitchaidecha, W.; Nakaruk, A. The influence of experimental conditions on photocatalytic degradation of methylene blue using titanium dioxide particle. J. Aust. Ceram. Soc. 2018, 54, 557–564. [Google Scholar] [CrossRef]
  50. Liu, M.; Zhao, L.; Gong, G.; Zhang, L.; Shi, L.; Dai, J.; Han, Y.; Wu, Y.; Khalil, M.M.; Sun, L. Invited review: Remediation strategies for mycotoxin control in feed. J. Anim. Sci. Biotechnol. 2022, 13, 19. [Google Scholar] [CrossRef]
  51. Samuel, M.S.; Mohanraj, K.; Chandrasekar, N.; Balaji, R.; Selvarajan, E. Synthesis of recyclable GO/Cu3(BTC)2/Fe3O4 hybrid nanocomposites with enhanced photocatalytic degradation of aflatoxin B1. Chemosphere 2022, 291, 132684. [Google Scholar] [CrossRef]
  52. Li, Y.; Wang, Z.; Zhao, H.; Yang, M. Composite of TiO2 nanoparticles and carbon nanotubes loaded on poly (methyl methacrylate) nanofibers: Preparation and photocatalytic performance. Synth. Met. 2020, 269, 116529. [Google Scholar] [CrossRef]
  53. Li, J.; Liu, E.; Ma, Y.; Hu, X.; Wan, J.; Sun, L.; Fan, J. Synthesis of MoS2/g-C3N4 nanosheets as 2D heterojunction photocatalysts with enhanced visible light activity. Appl. Surf. Sci. 2016, 364, 694–702. [Google Scholar] [CrossRef]
  54. Samsudin, M.F.R.; Frebillot, C.; Kaddoury, Y.; Sufian, S.; Ong, W.-J. Bifunctional Z-scheme Ag/AgVO3/g-C3C4 photocatalysts for expired ciprofloxacin degradation and hydrogen production from natural rainwater without using scavengers. J. Environ. Manag. 2020, 270, 110803. [Google Scholar] [CrossRef]
  55. Fujishima, A.; Zhang, X.; Tryk, D.A. TiO2 photocatalysis and related surface phenomena. Surf. Sci. Rep. 2008, 63, 515–582. [Google Scholar] [CrossRef]
Toxins 15 00133 g001 550

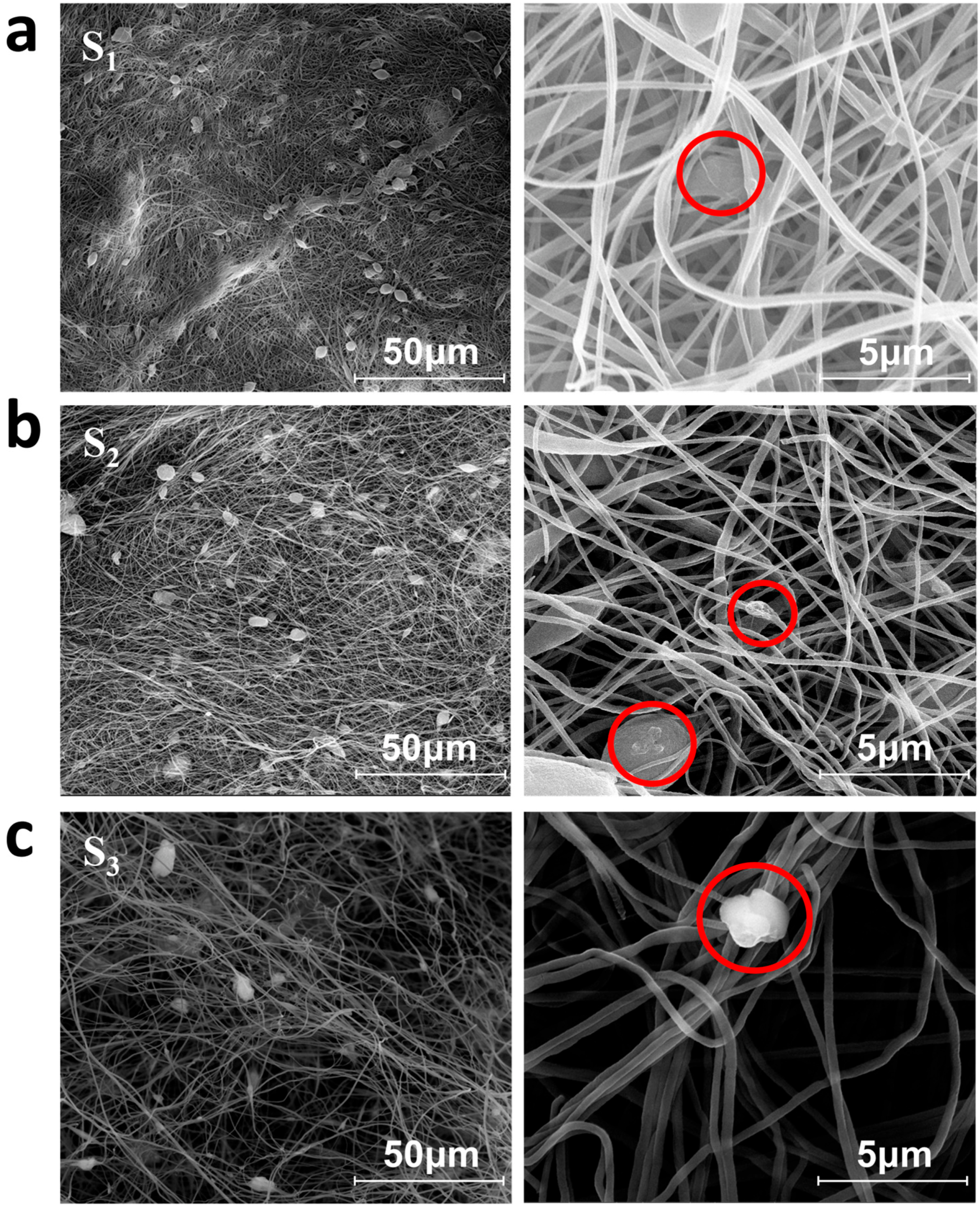

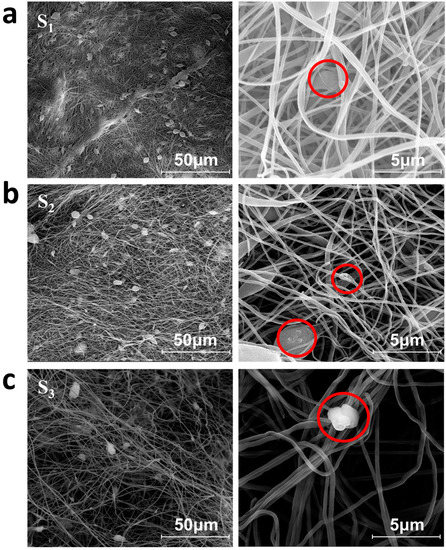

Figure 1. SEM images of electrospun membranes anchored with g-C3N4/MoS2 prepared by different processes: (a) S1~mostly wrapped, (b) S2~partially exposed, and (c) S3~fully exposed.
Figure 1. SEM images of electrospun membranes anchored with g-C3N4/MoS2 prepared by different processes: (a) S1~mostly wrapped, (b) S2~partially exposed, and (c) S3~fully exposed.
Toxins 15 00133 g001
Toxins 15 00133 g002 550

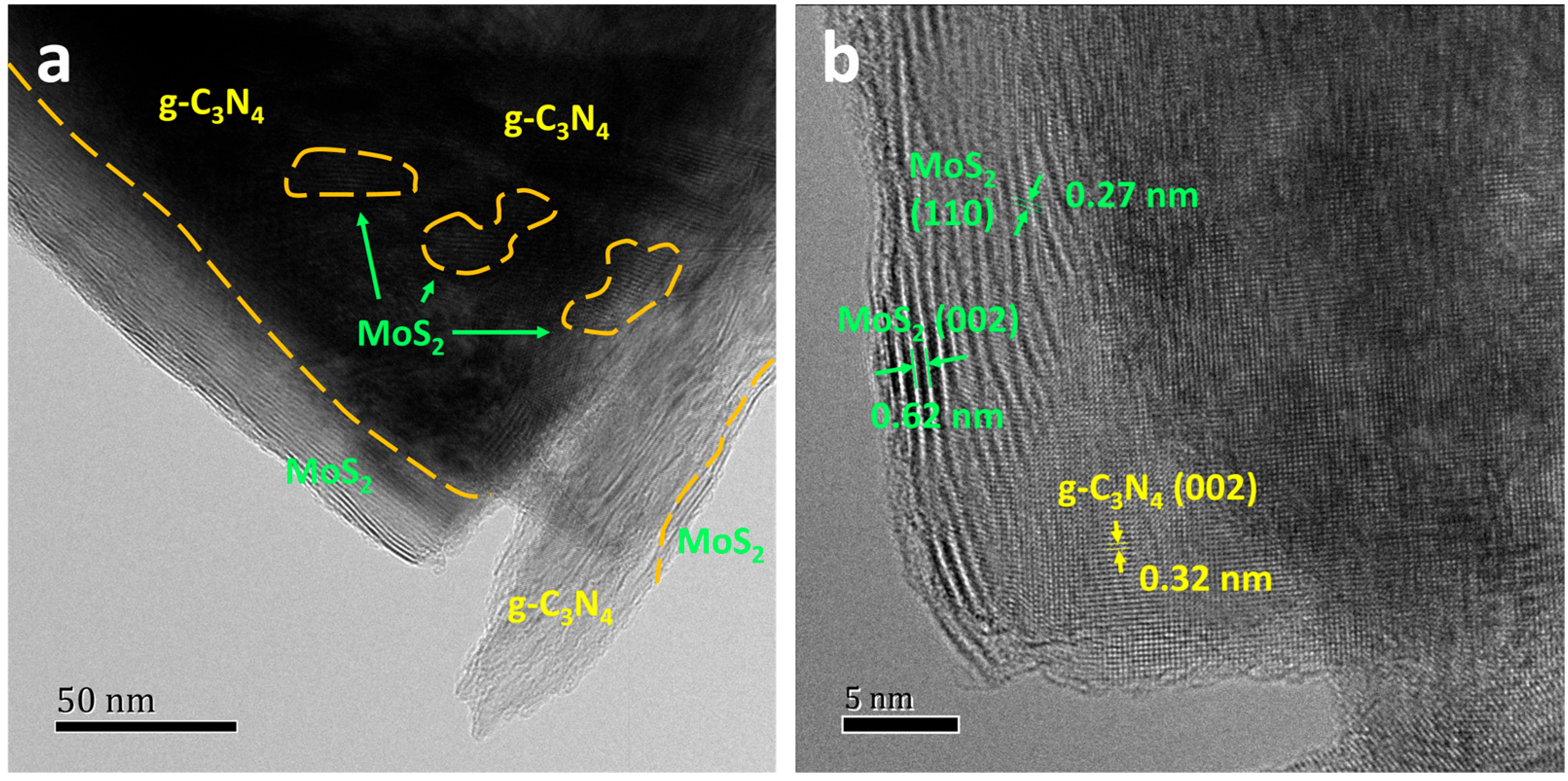

Figure 2. (a) TEM and (b) HRTEM images of g-C3N4/MoS2 composites.
Figure 2. (a) TEM and (b) HRTEM images of g-C3N4/MoS2 composites.
Toxins 15 00133 g002
Toxins 15 00133 g003 550

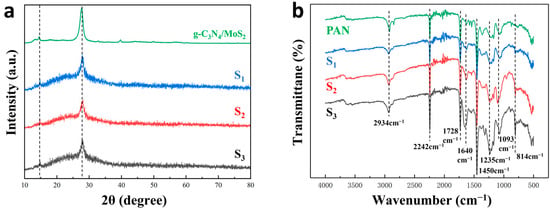

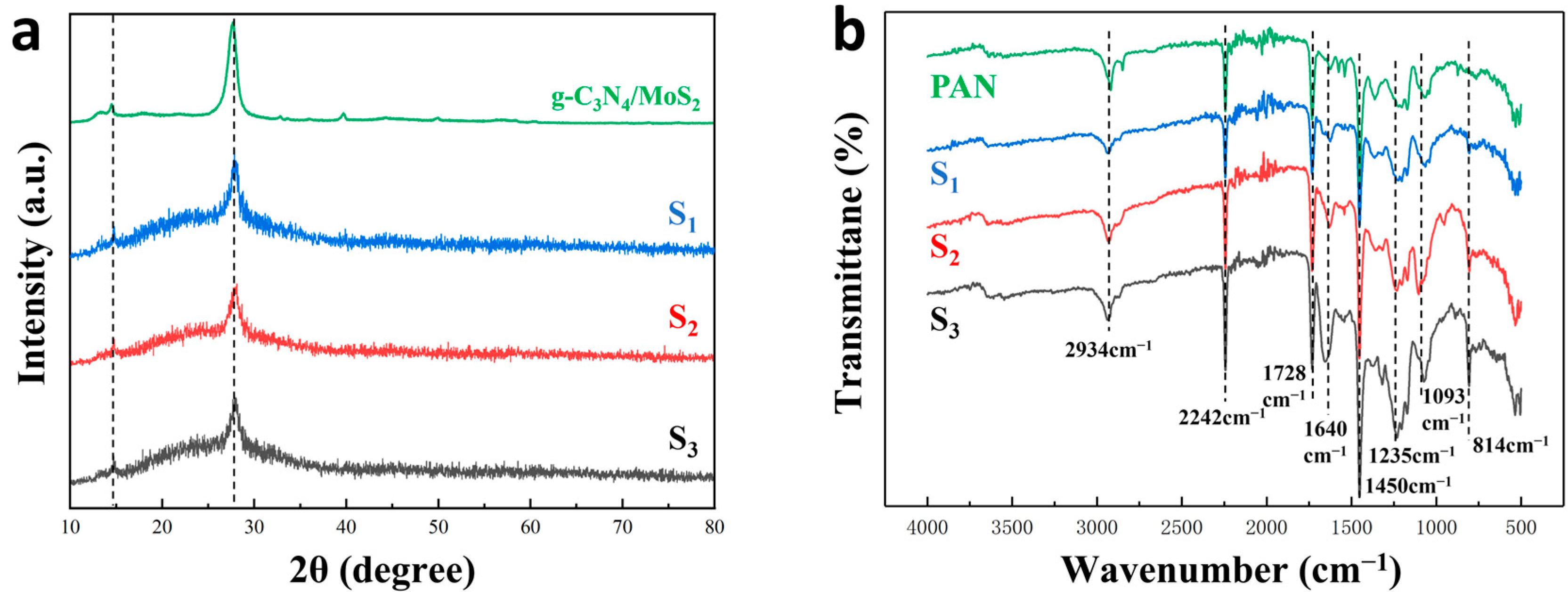

Figure 3. (a) XRD patterns and (b) FTIR spectra of S1, S2, and S3.
Figure 3. (a) XRD patterns and (b) FTIR spectra of S1, S2, and S3.
Toxins 15 00133 g003
Toxins 15 00133 g004 550

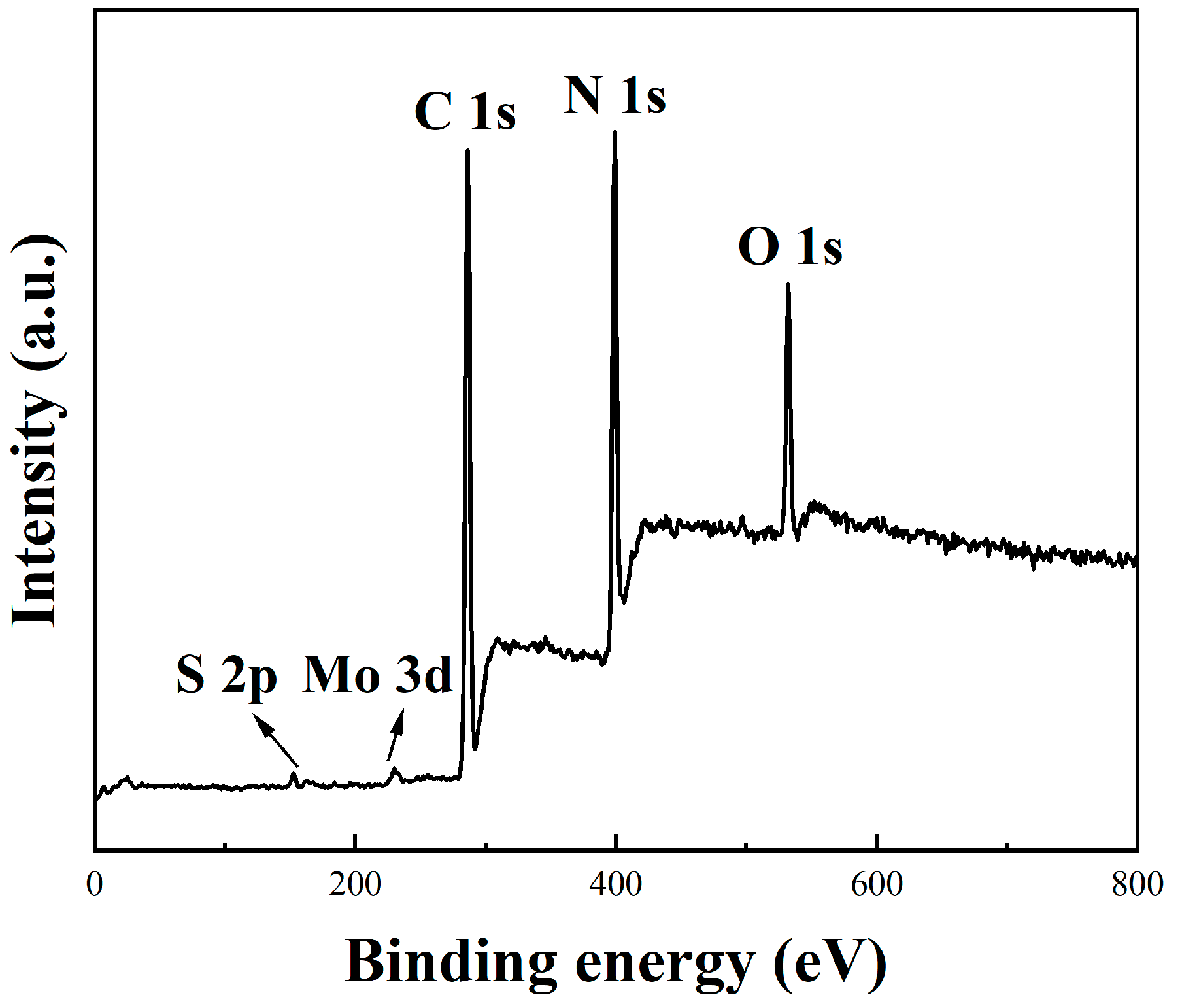

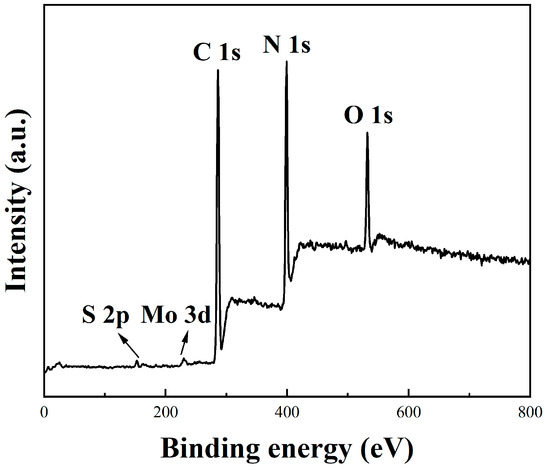

Figure 4. The full-scale XPS survey spectra of S3.
Figure 4. The full-scale XPS survey spectra of S3.
Toxins 15 00133 g004
Toxins 15 00133 g005 550

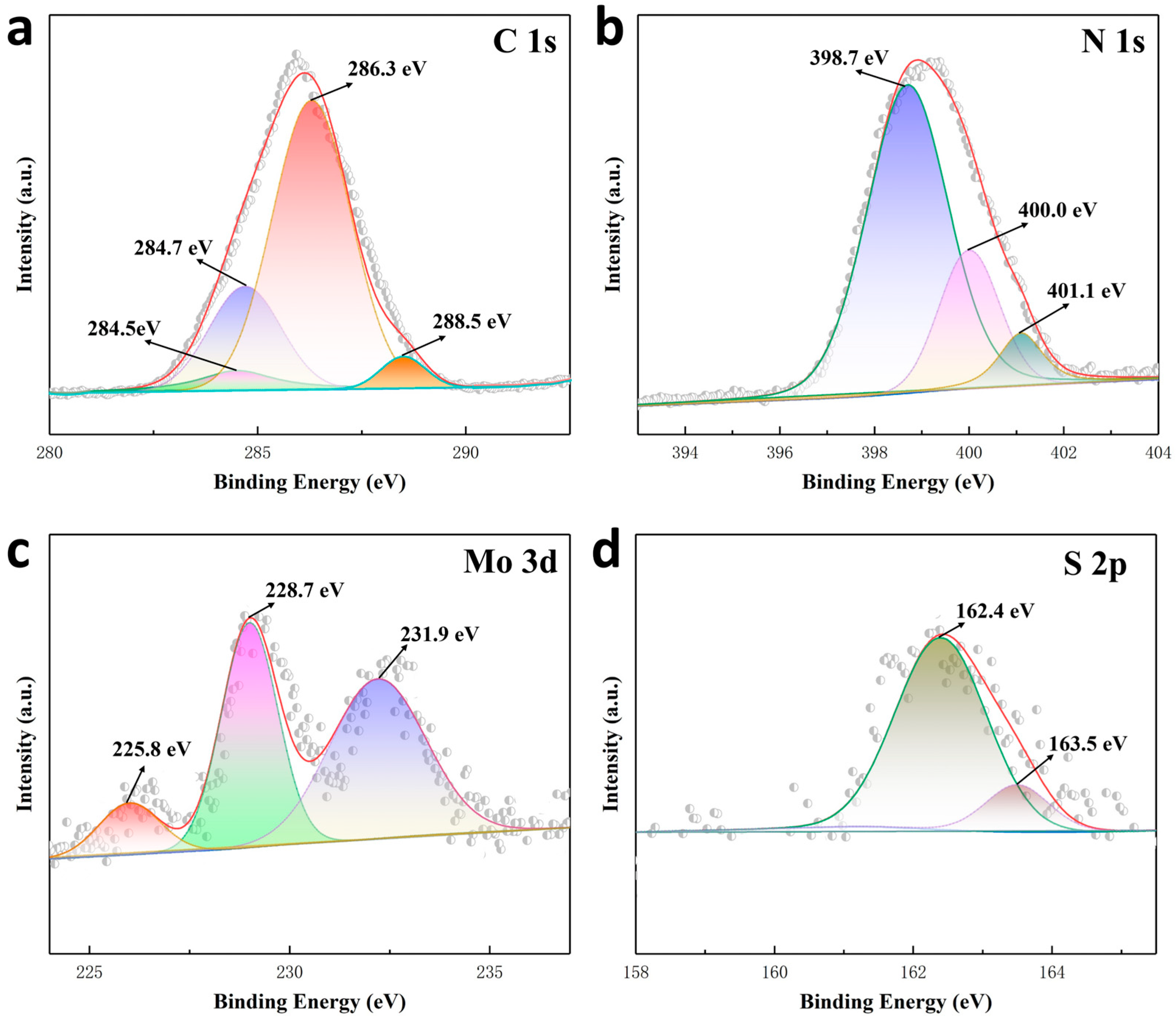

Figure 5. The high-resolution XPS spectra of S3: (a) C 1s, (b) N 1s, (c) Mo 3d, and (d) S 2p.
Figure 5. The high-resolution XPS spectra of S3: (a) C 1s, (b) N 1s, (c) Mo 3d, and (d) S 2p.
Toxins 15 00133 g005
Toxins 15 00133 g006 550

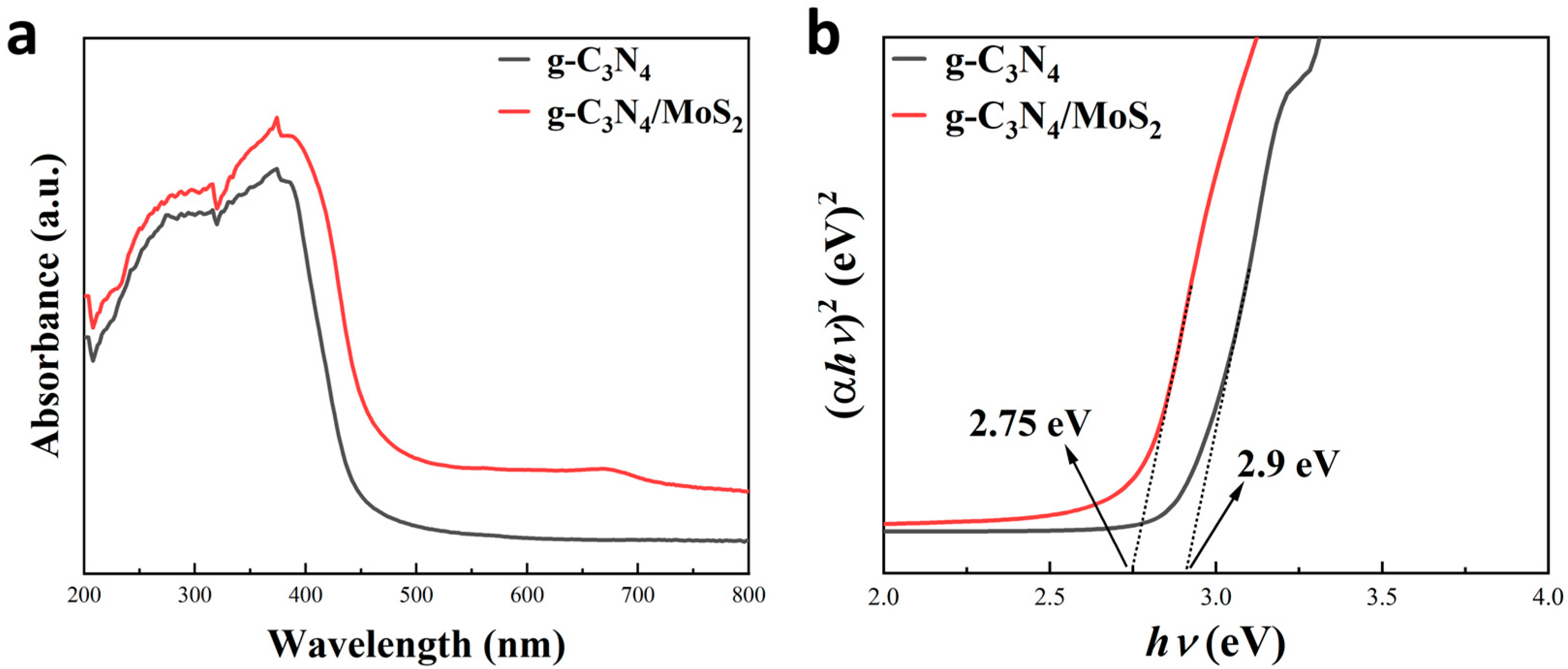

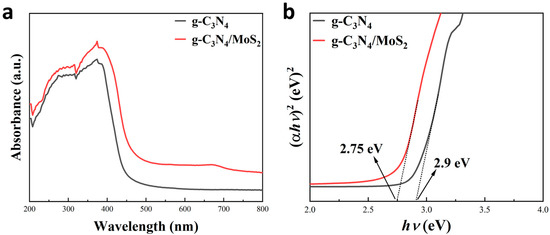

Figure 6. (a) Diffuse reflectance spectra (DRS) of g-C3N4 and g-C3N4/MoS2; (b) band gaps estimated respectively by the Kubelka–Munk equation from DRS data.
Figure 6. (a) Diffuse reflectance spectra (DRS) of g-C3N4 and g-C3N4/MoS2; (b) band gaps estimated respectively by the Kubelka–Munk equation from DRS data.
Toxins 15 00133 g006
Toxins 15 00133 g007 550

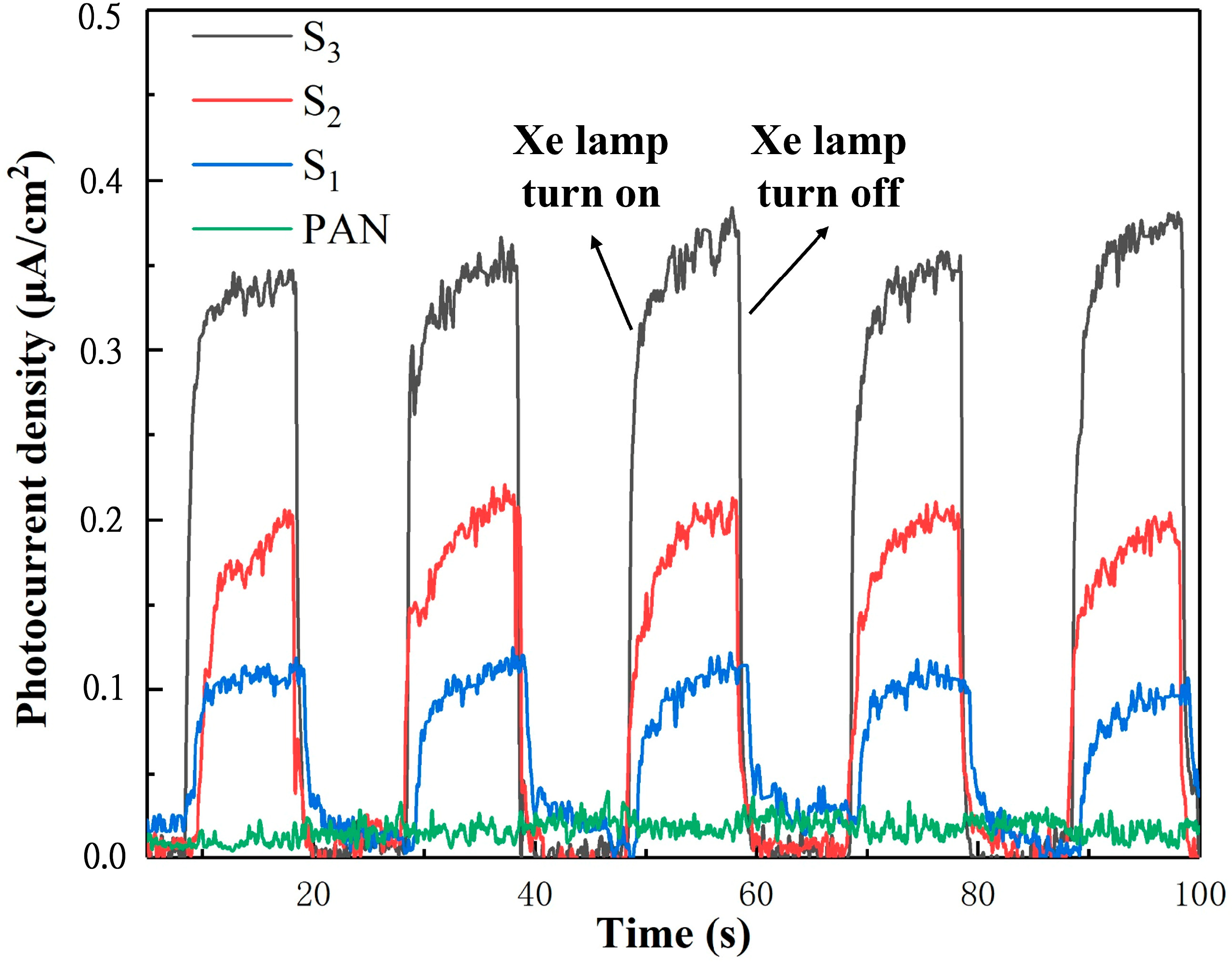

Figure 7. Transient photocurrent response curves of S1, S2, S3, and PAN electrospun membrane.
Figure 7. Transient photocurrent response curves of S1, S2, S3, and PAN electrospun membrane.
Toxins 15 00133 g007
Toxins 15 00133 g008 550

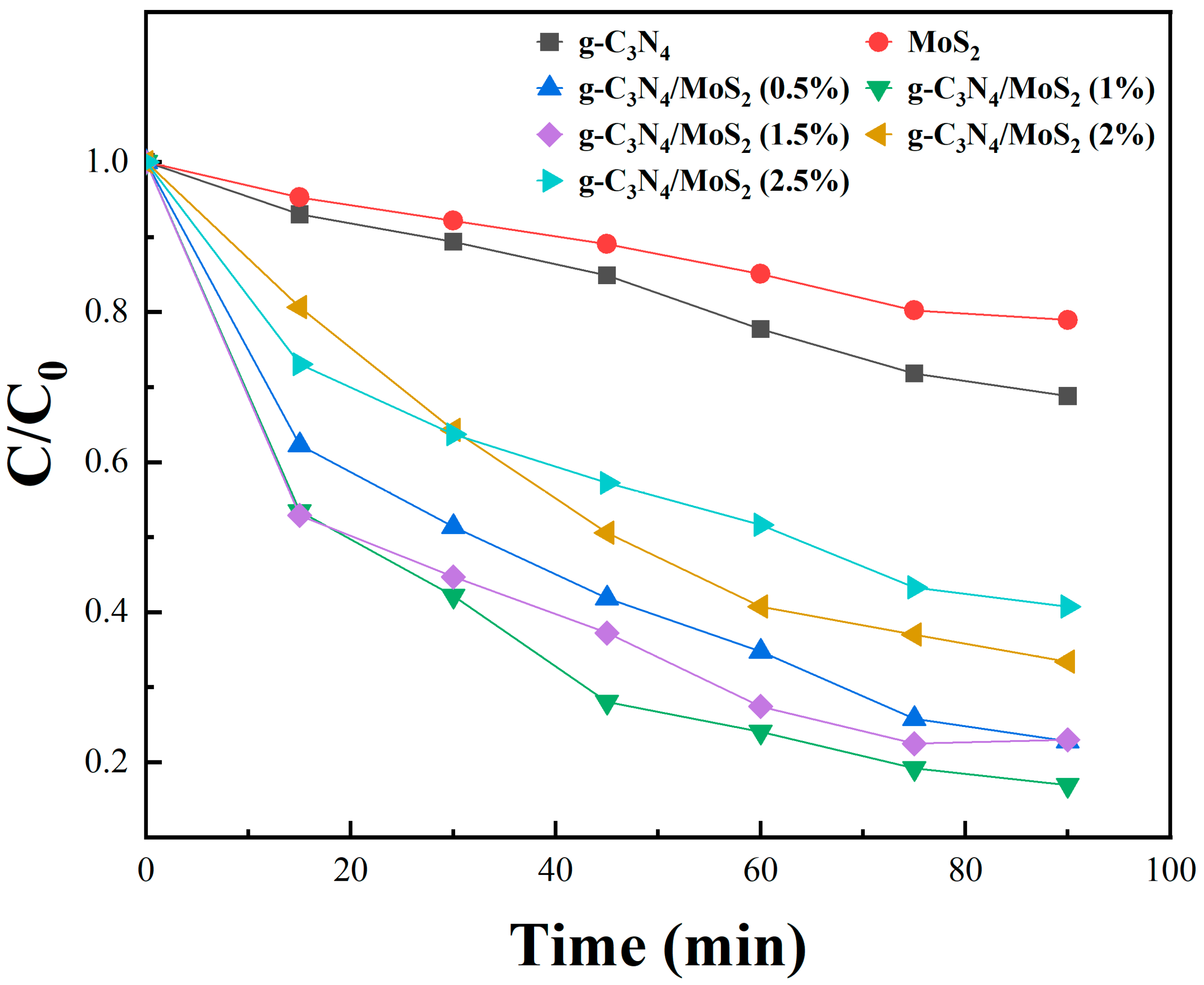

Figure 8. Photocatalytic degradation of RhB over g-C3N4/MoS2 with different weight ratios of MoS2.
Figure 8. Photocatalytic degradation of RhB over g-C3N4/MoS2 with different weight ratios of MoS2.
Toxins 15 00133 g008
Toxins 15 00133 g009 550

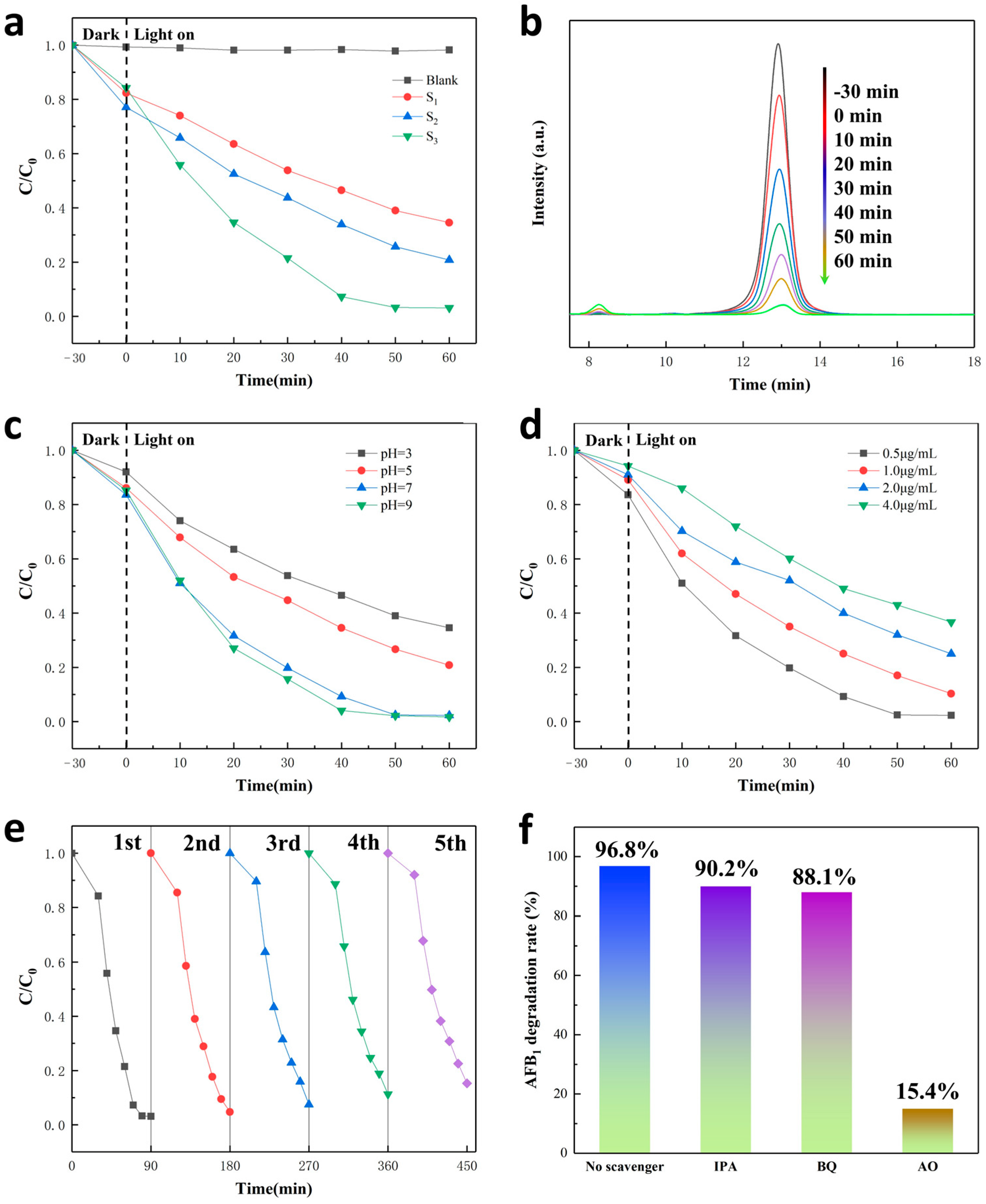

Figure 9. (a) Photocatalytic degradation efficiencies of AFB1 with as-prepared S1, S2, and S3 under visible light irradiation. (b) HPLC chromatogram of AFB1 photocatalytic degradation with S3 under visible light irradiation at different times. (c) The photocatalytic activity of S3 for degradation of AFB1 at different pH values. (d) The photocatalytic activity of S3 for degradation of AFB1 with different initial concentrations. (e) The photocatalytic activity of S3 for degradation of AFB1 for five cycles. (f) Photocatalytic activities of S3 for the degradation of AFB1 in the presence of different scavengers.
Figure 9. (a) Photocatalytic degradation efficiencies of AFB1 with as-prepared S1, S2, and S3 under visible light irradiation. (b) HPLC chromatogram of AFB1 photocatalytic degradation with S3 under visible light irradiation at different times. (c) The photocatalytic activity of S3 for degradation of AFB1 at different pH values. (d) The photocatalytic activity of S3 for degradation of AFB1 with different initial concentrations. (e) The photocatalytic activity of S3 for degradation of AFB1 for five cycles. (f) Photocatalytic activities of S3 for the degradation of AFB1 in the presence of different scavengers.
Toxins 15 00133 g009
Toxins 15 00133 g010 550

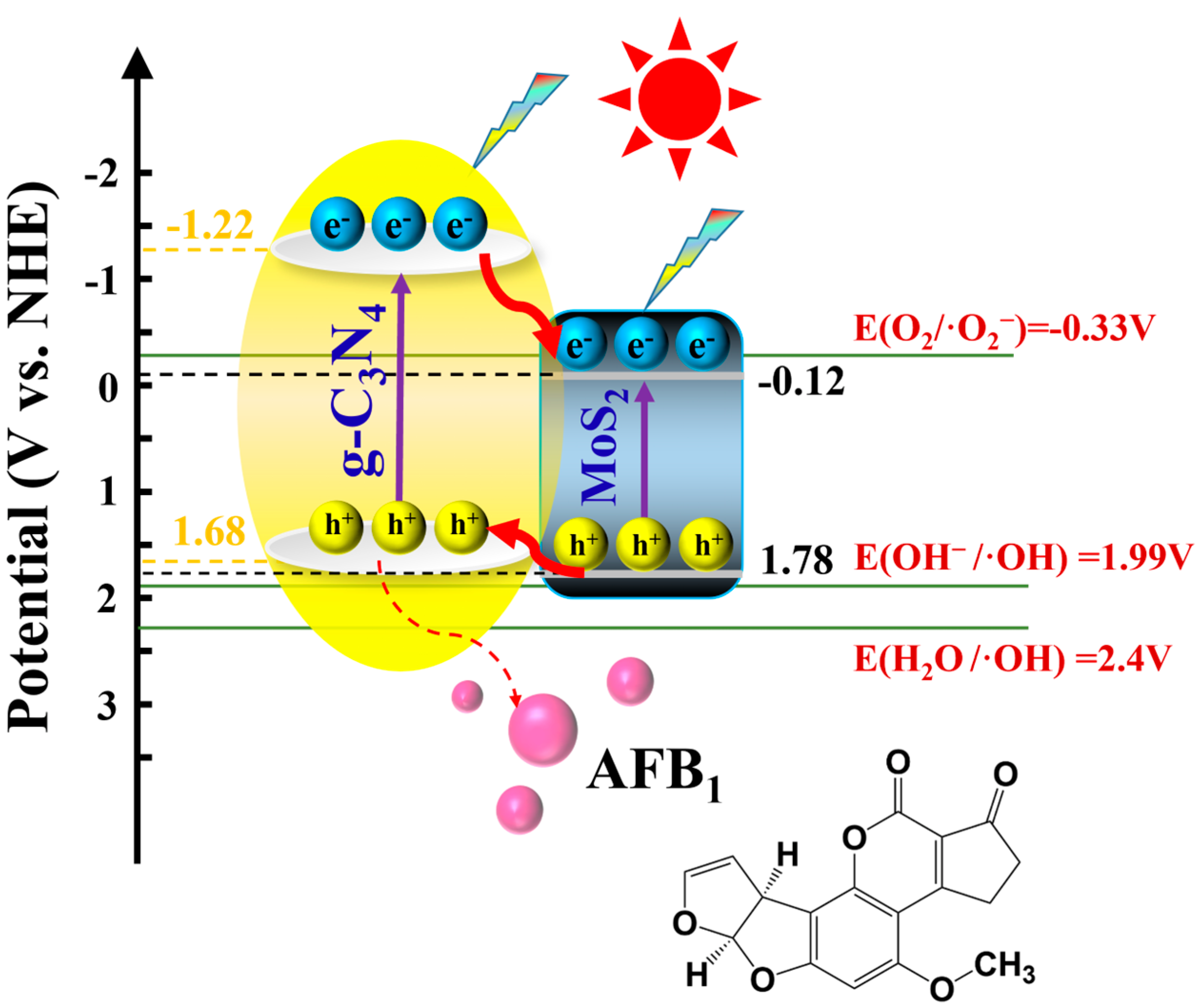

Figure 10. The photocatalytic mechanism of PAN-g-C3N4/MoS2 electrospun membranes for degradation of AFB1 [53].
Figure 10. The photocatalytic mechanism of PAN-g-C3N4/MoS2 electrospun membranes for degradation of AFB1 [53].
Toxins 15 00133 g010
Toxins 15 00133 sch001 550

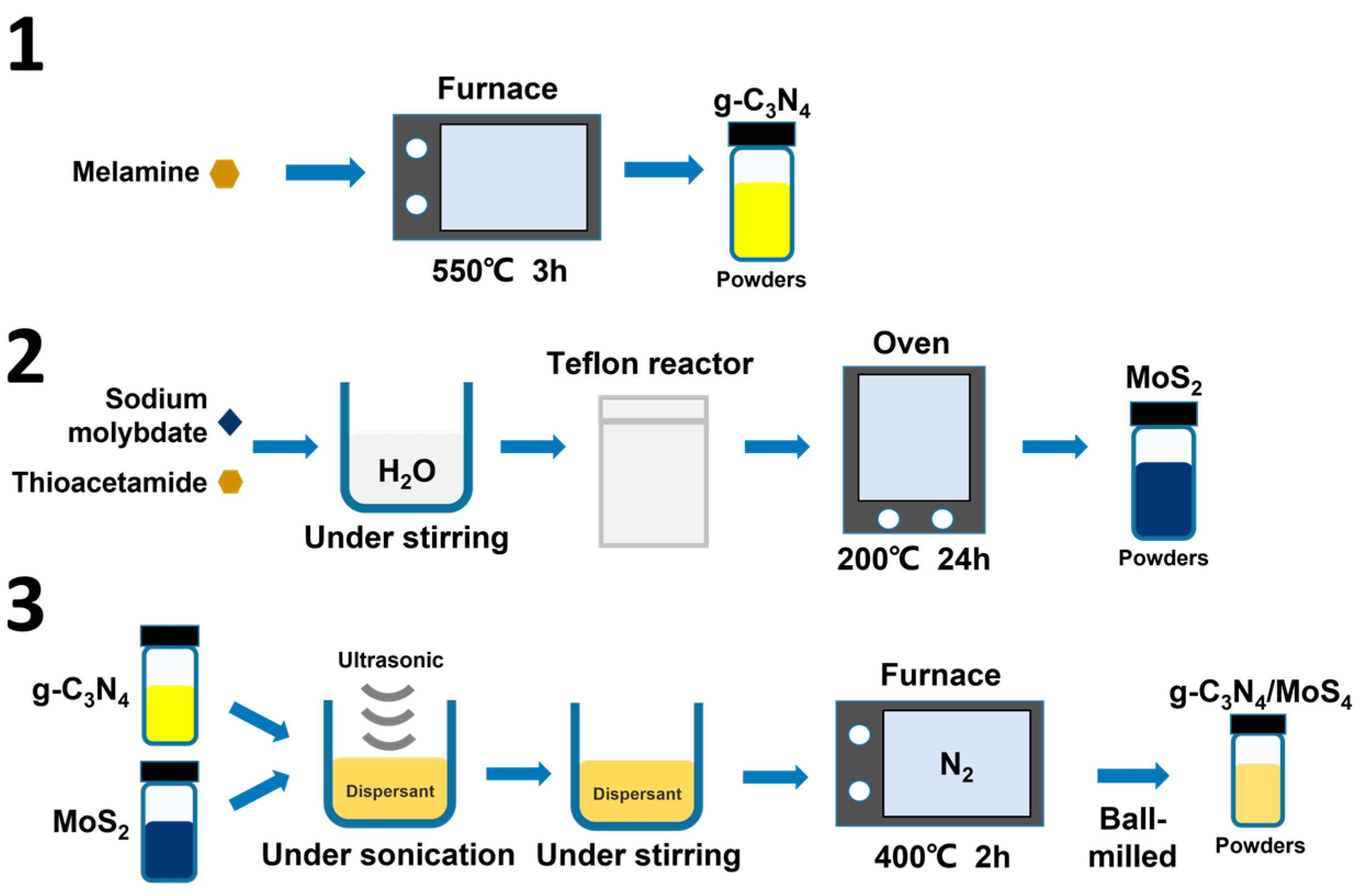

Scheme 1. The schematic illustration of the fabrication of g-C3N4, MoS2, and g-C3N4/MoS2.
Scheme 1. The schematic illustration of the fabrication of g-C3N4, MoS2, and g-C3N4/MoS2.
Toxins 15 00133 sch001
Toxins 15 00133 sch002 550
Scheme 2. The schematic illustration of the fabrication of S1, S2, and S3.
Scheme 2. The schematic illustration of the fabrication of S1, S2, and S3.
Toxins 15 00133 sch002
Table
Table 1. Studies have reported the photocatalytic detoxification of mycotoxin.
Table 1. Studies have reported the photocatalytic detoxification of mycotoxin.
Pollutant
(Concentration)		Medium CatalystSource Time Degradation Ref (Year)
AFB1
(0.5 µg/mL)		Aqueousg-C3N4
(0.1 mg/mL)		Xenon lamp
(300 W, λ ≥ 400 nm)		120 min70.20%[23] Mao et al. (2018)
AFB1
(0.54 µg/mL)		AqueousWO3/RGO
/g-C3N4
(0.1 mg/mL)		Xenon lamp
(300 W, λ ≥ 420 nm)		120 min92.40%[25] Mao et al. (2018)
AFB1
(0.426 µg/mL)		AqueousWO3/CdSVisible light irradiation
(λ ≥ 420 nm)		80 min95.50%[22] Mao et al. (2019)
AFB1
(0.5~2 µg/mL)		MethanolAC/TiO2
(0.3 mg/mL)		Mercury lamp
(130 W, 350–450 nm)		120 min98%[26] Sun et al. (2019)
AFB1
(0.5 µg/mL)		AqueousTiO2
/UiO-67
(0.1 mg/mL)		Xenon lamp
(300 W, λ ≥ 420 nm)		80 min98.90%[27] Zhang et al. (2022)
AFB1
(0.5~30 μg/mL)		Aqueous/SoymilkZnO, Fe2O3,
MnO2 and CuO
(0.1 mg/mL)		UV irradiation60 min±95%[28] Raesi et al. (2022)
AFB1/AFB2/
AFG1/AFG2
(315.21 µg/kg)		Peanutsg-C3N4
/NiFe2O4
(2 mg/mL)		Xenon lamp
(300 W, λ ≥ 420 nm)		90 min94.10%[29] Sun et al. (2021)
DONs
(15 µg/mL)		AqueousGraphene
/ZnO
(0.5 mg/mL)		UV irradiation120 min99.00%[20] Sun et al. (2017)
DONs
(4 µg/mL)		Aqueousα-Fe2O3
(0.1 mg/mL)		Xenon lamp
(300 W, λ ≥ 420 nm)		120 min90.30%[30] Mao et al. (2019)
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Song, R.; Yao, L.; Sun, C.; Yu, D.; Lin, H.; Li, G.; Lian, Z.; Zhuang, S.; Zhang, D. Electrospun Membranes Anchored with g-C3N4/MoS2 for Highly Efficient Photocatalytic Degradation of Aflatoxin B1 under Visible Light. Toxins 2023, 15, 133. https://doi.org/10.3390/toxins15020133

AMA Style

Song R, Yao L, Sun C, Yu D, Lin H, Li G, Lian Z, Zhuang S, Zhang D. Electrospun Membranes Anchored with g-C3N4/MoS2 for Highly Efficient Photocatalytic Degradation of Aflatoxin B1 under Visible Light. Toxins. 2023; 15(2):133. https://doi.org/10.3390/toxins15020133

Chicago/Turabian Style

Song, Ruixin, Liangtao Yao, Changpo Sun, Dechao Yu, Hui Lin, Guisheng Li, Zichao Lian, Songlin Zhuang, and Dawei Zhang. 2023. "Electrospun Membranes Anchored with g-C3N4/MoS2 for Highly Efficient Photocatalytic Degradation of Aflatoxin B1 under Visible Light" Toxins 15, no. 2: 133. https://doi.org/10.3390/toxins15020133

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
