A Multi-Layer-Controlled Strategy for Cloning and Expression of Toxin Genes in Escherichia coli

Abstract

Molecular cloning and controlled expression remain challenging when the target gene encodes a protein that is toxic to the host. We developed a set of multi-layer control systems to enable cloning of genes encoding proteins known to be highly toxic in Escherichia coli and other bacteria. The different multi-layer control systems combine a promoter–operator system on a transcriptional level with a riboswitch for translational control. Additionally, replicational control is ensured by using a strain that reduces the plasmid copy number. The use of weaker promoters (such as P_BAD or PfdeA) in combination with the effective theophylline riboswitch is essential for cloning genes that encode notoriously toxic proteins that directly target translation and transcription. Controlled overexpression is possible, allowing the system to be used for evaluating in vivo effects of the toxin. Systems with a stronger promoter can be used for successful overexpression and purification of the desired protein but are limited to toxins that are more moderate and do not interfere with their own production.

1. Introduction

Cloning and production of recombinant proteins are well-established techniques in molecular biology. They are routinely carried out in a variety of both prokaryotic and eukaryotic hosts. Escherichia coli (E. coli) is often the preferred host organism because of its short generation time of 20 min, high ability of exogeneous DNA uptake and efficient protein expression [1,2,3]. Still, cloning of genes encoding proteins that interfere with bacterial growth or otherwise exhibit toxic effects often remains challenging.

One way to circumvent toxic effects is by using bacterial strains that are resistant to a particular toxin. This has for example been proven successful for toxins CcdB and VapC, where efficient cloning and production of the wild-type toxins was possible [4,5]. Unfortunately, such resistant strains are more than often not available. In particular, endoribonucleases pose problems as it is unfeasible to mutate their RNA targets. Moreover, the development of a suitable resistant strain can be time-consuming as it requires prior insight into the toxin–target relationship.

A different way to manage cloning of weakly toxic genes is to lower the copy number of their harboring plasmid. Regulation of plasmid replication can be accomplished by using low copy-number vectors that tightly regulate the toxin’s expression, a well-known example being the pBAD vectors [6]. Alternatively, one can consider the use of low copy number strains such as the Copycutter^TM EPI400^TM E. coli strain, which is optimized for cloning toxic genes. Such strains reduce the copy number of pUC- or pET-vectors to only 10 copies per cell, but upon induction, the copy number will increase significantly, resulting in higher yields of toxin protein [7].

However, even with low plasmid copy numbers, leaky expression might still pose problems and needs to be suppressed. This can be achieved on both the transcriptional and/or translational levels. Most gene expression control systems are solely based on transcriptional regulation. The use of an inducible promoter regulates transcription of the downstream gene(s) stringently in time and space. Common examples of chemically inducible promoters are the strong IPTG-inducible Plac or its stronger derivative Ptac and the weaker arabinose-inducible P_BAD, where expression can be repressed by glucose, reducing leaky transcription [6,8,9]. In practice, however, such systems are not tight ON/OFF switches and leaky expression is almost inevitable. Besides chemical inducers, temperature-inducible promoters known for limited leakiness also exist. However, there is often a stress burden linked to the shifts in temperature [10]. The promoter region can also be mutated as such to reduce its activity and thus leaky expression as described by [11]. There, a two-thymidine deletion in the −35 region of the T5 promoter led to the successful cloning of the ϕ174 lysis gene E. As a last resort, site-specific point mutations in the toxin gene that render the toxin harmless for the cell can be introduced to enable the cloning and overexpression of the non-toxic protein. Examples of such non-toxic mutants are E. coli MazF^E24A (EcMazF^E24A) or bacteriophage P1 Doc^H66Y (P1Doc^H66Y) [12,13]. Nonetheless, mutating the toxin often results in loss of functionality, limiting the usefulness of downstream experiments severely.

In addition to transcriptional control, regulation at the translational level is described in literature. These include ribozymes that are activated by bound ligands enabling site-specific digestion of RNA to control gene expression, antisense RNAs or the incorporation of site-specific unnatural amino acids [14,15,16,17]. Another well-known translational control element is the riboswitch. This is an RNA element that functions by regulating protein expression in response to the presence of a certain metabolite. Riboswitches consist of two domains, called the aptamer and the expression platform. The aptamer domain selectively binds a metabolite, thereby causing the formation of a terminator structure in the expression platform. This conformational change in RNA structure controls the expression of the downstream gene [18]. Different riboswitches have been discovered, engineered or synthesized in the past. Examples are the adenine riboswitch, vitamin B₁₂ riboswitch, theophylline riboswitch and many more [19,20,21].

Altogether, for all the strategies described above, several disadvantages remain. Controlling expression on either the transcriptional or the translational level often seems insufficient to avoid leaky expression of highly toxic genes. Therefore, a combination of both is frequently desired. Combined transcription–translation regulating systems have already been developed and reported in the past (for a review, see [22]). A dual-control system named RiboTite, using inducible promoters and a riboswitch, was reported by Morra et al. [23]. Other authors make use of antisense RNA (asRNA) regulators that are configured in such a way that it targets both transcriptional and translational regulation to increase the control over gene expression [15]. Lee et al. furthermore discussed the combined use of asRNA and small transcription-activating RNA for deactivation or activation of gene expression, respectively [24]. The use of asRNA has also been combined with the use of a strong repressible promoter [25]. Additionally, dual control over gene expression has been achieved by constructing tandem theophylline riboswitches and the RepA protein degradation tag, targeting both transcription and post-translational regulation [26].

Among the most difficult toxic genes to clone are those encoded by bacterial toxin–antitoxin (TA) systems. The toxins on their own can almost never be cloned without introducing mutations; even cloning the operon, including both toxin and antitoxin genes, can sometimes be cumbersome, e.g., for the phd/doc homolog tasAB [27]. Here, we describe and evaluate a novel multi-control system where TA toxins are cloned and expressed in the absence of their cognate antitoxin. This model system inhibits leaky expression on various levels: (1) on the replicational level using a strain that reduces the plasmid copy number, (2) on the transcriptional level by a tightly controllable inducible promoter and (3) on the translational level using a ligand-dependent riboswitch.

2. Results and Discussion

2.1. Choice of Toxins

The initial motivation for developing this cloning strategy was our search to clone the extremely potent parE2 toxin gene from Vibrio cholerae. To demonstrate the broader applicability of our multi-control system, we selected a set of seven toxins with distinct activities and levels of toxicity to evaluate its usefulness for cloning toxins. Six out of the seven toxins are part of a toxin–antitoxin system: Escherichia coli MazF (EcMazF), Vibrio cholerae HigB2 (VcHigB2) bacteriophage P1 Doc (P1Doc), E. coli O157 and V. cholerae ParE2 (EcParE2 and VcParE2) and F-plasmid CcdB (FCcdB). These toxins represent three different activities: ribonuclease (RNase), translation-inhibiting kinase and gyrase poisoning activity. MazF toxins are endoribonucleases (RNases) that cut mRNA at 5′ ACA sites, while HigB2 toxins are ribosome-dependent RNases that cut mRNA, which is actively being translated [28,29]. Doc inhibits translation by phosphorylating elongation factor Tu, and CcdB and ParE2 toxins interfere with transcription and replication by poisoning gyrase [30,31,32,33]. In addition, two non-toxic point mutants were added as controls: H66Y for P1Doc and E24A for EcMazF. These point mutants can be overexpressed in the absence of their cognate antitoxin and produced with high yields [12,13]. Finally, barnase was included in our screen. This scavenging ribonuclease from Bacillus amyloliquefaciens is exported but gets protected via its interaction with its inhibitor barstar while inside the cell [34].

2.2. Design of Different Multi-Control Systems

Two different riboswitches were evaluated for their ability to control translation tightly: a vitamin B₁₂ riboswitch and a synthetic theophylline riboswitch. The vitamin B₁₂ riboswitch originates from the btuB gene encoding the BtuB receptor protein located in the outer membrane of E. coli [20]. When vitamin B₁₂ is present, it binds to the aptamer domain of the riboswitch (Figure 1A,B). This results in a conformation where the ribosome binding site (RBS) on the transcript is shielded, causing translational repression (OFF-state). Once vitamin B₁₂ is removed, translation is initiated and ribosomal access to the RBS is restored (ON-state). The synthetic theophylline riboswitch was initially created for tightly regulated expression of chloroplast genes [21]. It works in the opposite way compared to vitamin B₁₂: the presence of theophylline ensures translation of the downstream gene(s) as the RBS is accessible (Figure 1C,D).

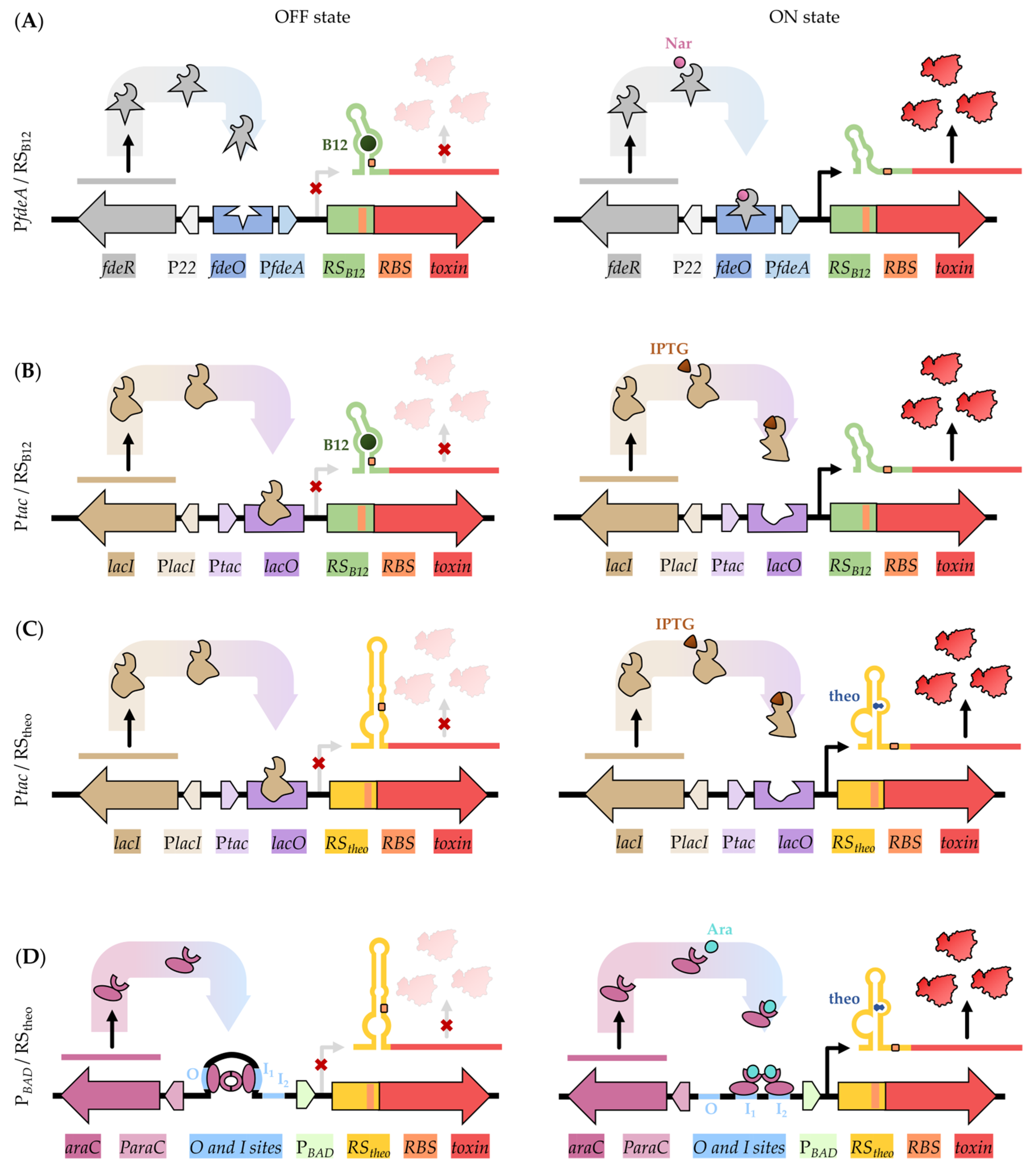

To add a transcriptional layer of control, the riboswitches described above were combined with different promoter–operator systems. In the first system (Figure 1A), the vitamin B₁₂ riboswitch was combined with the naringenin-inducible promoter PfdeA to regulate gene expression on a transcriptional level [35]. In the presence of naringenin, the transcriptional activator FdeR binds to the operator site fdeO, thereby initiating transcription.

As the PfdeA promoter is rather weak for overexpression of the toxin, a second system was designed where PfdeA was exchanged for the stronger IPTG-inducible tac promoter (Ptac) (Figure 1B). This hybrid promoter combines the −35 region of the trp promoter with the −10 region of the lacUV5 promoter–operator region [9]. As Ptac is a strong promoter, it is mainly of interest when aiming for protein production. Similar to PfdeA, Ptac is a negatively inducible promoter that is controlled by the inactivation of the LacI repressor via allolactose or its analog isopropyl β-D-1-thiogalactopyranoside (IPTG). The presence of the latter compounds changes the conformation of the LacI repressor, which restrains its binding to the lacO operator and consequently allows transcription. In order to compare the efficiency of both the B₁₂ and theophylline riboswitches, a similar system combining Ptac with the theophylline riboswitch was designed (Figure 1C).

Finally, the tightly regulated arabinose-inducible promoter (P_BAD) was included in this study in combination with the theophylline riboswitch (Figure 1D). P_BAD is regulated by the activator AraC. In the absence of arabinose, AraC binds to the O and I1 sites, thereby preventing transcription. Only when arabinose is bound to AraC, transcription is initiated as AraC binds to the I1 and I2 sites.

As an extra layer of control, all systems were inserted in CopyCutter E. coli EPI400 cells (LGC Biosearch Technologies, Teddington, England). These cells have the ability to lower the plasmid copy number, which helps to reduce leaky expression levels of the toxic genes. This extra layer showed to be relevant, as transformation of toxin-carrying systems in E. coli NEB5α cells did not result in any transformants. The use of this strain has the additional advantage that the same plasmid can be used for both cloning and expression purposes. While non-induced, the low copy number helps for successful cloning of the more problematic toxins, but at the same time, protein production can be attempted after inducing the copy number without the need to reclone the toxin in a higher copy number plasmid (which may be problematic).

All three different layers of control mentioned above were combined to increase cloning efficiency. When gene expression is desired, the toxin production can be induced on transcriptional, translational and replicational levels.

2.3. Cloning Efficiency of the Different Systems

Regulation through the use of both the naringenin-inducible PfdeA promoter and the vitamin B₁₂ riboswitch led to successful cloning of most of the toxic genes: for all toxins except the highly toxic VcParE2, mutation-free transformants were obtained in E. coli CopyCutter EPI400 cells (

Table 1. Overview of toxins cloned in four different gene expression systems. +: mutation-free clone; -: no clone; $~$ : toxic clone with mutation; NT: not tested.

Toxins	Accession Number Uniprot	PfdeA—RSB12	Ptac—RSB12	Ptac—RStheo	PBAD—RStheo
P1Doc	Q06259 DOC_BPP1	+	-	$~$	NT
P1DocH66Y	/	+	+	+	NT
EcMazF	P0AE70 MAZF_ECOLI	+	+	+	NT
EcMazFE24A	/	+	+	+	NT
EcParE2	A0A0H3JHG3 A0A0H3JHG3_ECO57	+	-	+	NT
FCcdB	P62554 CCDB_ECOLI	+	-	$~$	NT
VcHigB2	Q9KMA6·HIGB2_VIBCH	+	-	+	NT
barnase	P00648 RNBR_BACAM	+	-	$~$	NT
VcParE2	Q9KMJ0 Q9KMJ0_VIBCH	-	-	-	+

). This was confirmed by colony PCR and Sanger sequencing.

The stronger tac promoter (Ptac) was combined with the vitamin B₁₂ riboswitch to evaluate the effect of producing more toxin proteins per cell. Here, only clones of non-toxic mutants and the weak toxin EcMazF could be obtained.

However, inserting all toxins in a system harboring Ptac and the theophylline riboswitch appeared to be more successful. For this system, a combination of mutation-free toxins (EcMazF, EcParE2, VcHigB2) and toxins that carry point mutations, albeit still significantly toxic (P1Doc, FCcdB_, barnase), as shown later, were successfully cloned. These mutations include Doc N69H and the double mutant A32T/A63V. For CcdB, we recovered the S22I point mutant and for barnase either I52T or S93R. Later, the point mutants Doc^N69H, CcdB^S22I and barnase^I52T will be used for further experiments on this system. From now on, we will refer to them as P1Doc*, FCcdB* and barnase*.

The higher success rate for cloning toxic genes in the Ptac—RS_theo system compared to Ptac—RS_B12 indicates that the theophylline riboswitch suppresses translation in a more efficient manner than the vitamin B₁₂ riboswitch.

Cloning of VcParE2 failed for all the above strategies, as frameshift mutations were repeatedly encountered. Therefore, the VcParE2 gene was inserted in a system combining the efficient theophylline riboswitch with the tighter controlled and weaker arabinose-inducible promoter (P_BAD). This ultimately led to the successful cloning of a mutation-free VcParE2 in the absence of its cognate ParD2 antitoxin.

2.4. Assessing Toxicity upon Inducing Gene Expression

2.4.1. Combination of the PfdeA Promoter with the RS_B12 Riboswitch

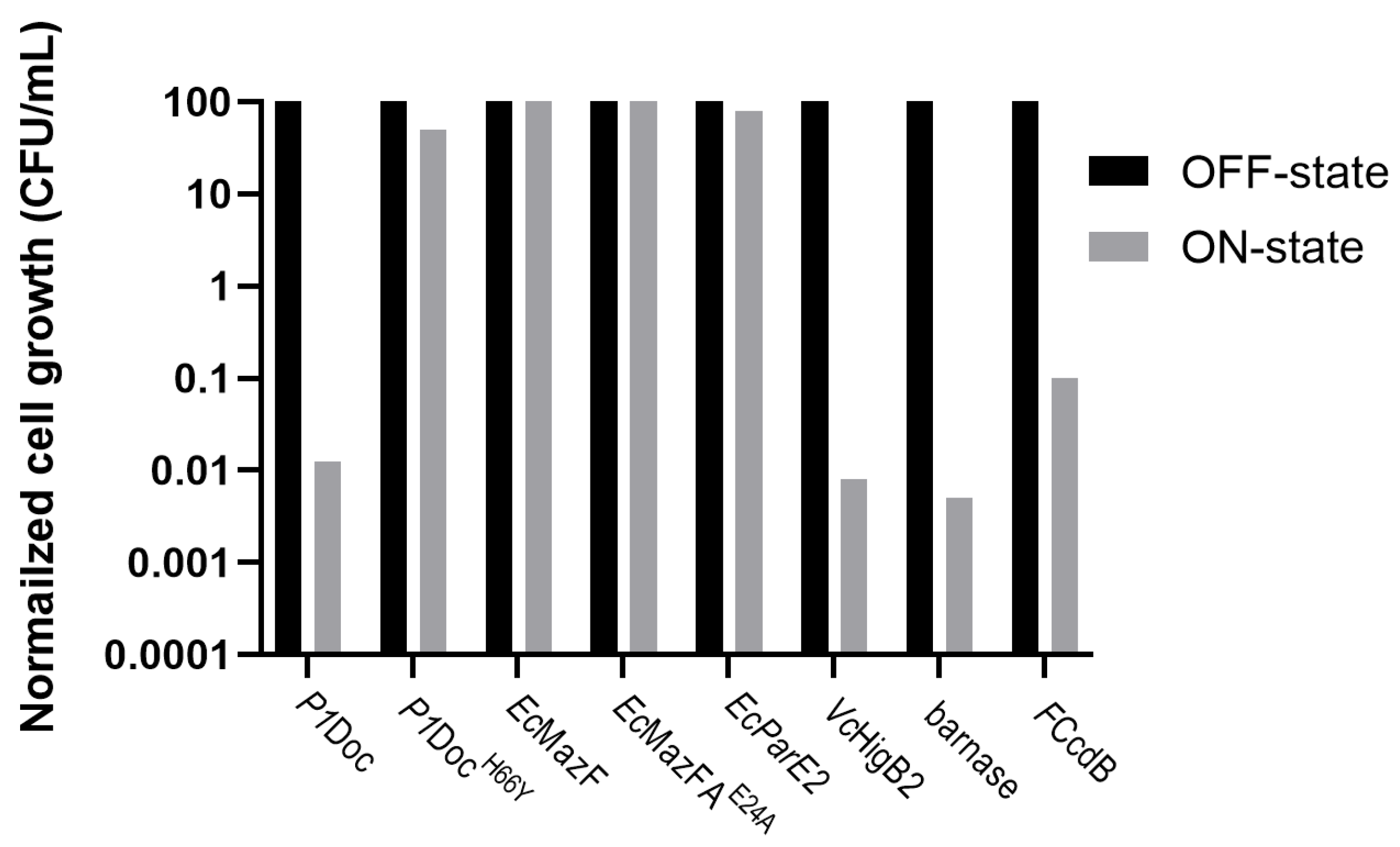

During the OFF-state (Figure 2A, black bars on Figure 3), where vitamin B₁₂ was added to the plates and gene expression was inhibited, the growth of all toxin-harboring cultures was around 10⁹ CFU/mL. This is also what we would expect for overnight-grown E. coli in optimal growth conditions [36]. This indicates that growth when gene expression of the toxins is not induced reaches the optimal conditions. Inducing gene expression (Figure 2B, grey bars on Figure 3), by adding naringenin and removing vitamin B₁₂ from the plate media, resulted in a detrimental effect on the host growth for most of the toxins (P1Doc, VcHigB2, barnase and FCcdB). This caused a reduction of growth with a factor of 10⁴ for barnase, P1Doc and VcHigB2 and a factor of 10³ for FCcdB (Table S1). In contrast, no effect on growth was observed upon induction of EcMazF or EcParE2. For some potent toxins (such as P1Doc, VcHigB2, barnase and FCcdB), only a few proteins are enough to kill the cell, while for other toxins (such as EcMazF and EcParE2) overexpression of the toxin appears to be needed to intervene with cell viability. This all depends on the mode of action of the toxins as well as the stoichiometry of interaction between the toxin and its target inside the cell. In case of MazF, the reduced toxic effect can additionally be explained by the production of the MazE antitoxin by the E. coli strain, inhibiting MazF’s action. When comparing Figure 2C with Figure 2D, where gene expression was only partly induced, we can conclude that adding naringenin to the plate had a more significant effect on cell growth compared to the removal of vitamin B₁₂ from the plate. This suggests the minor role of the vitamin B₁₂ riboswitch in this strategy. For controls, P1Doc^H66Y and EcMazF^E24A, no reduction in growth was observed over the different plates.

2.4.2. Combination of the Ptac Promoter with the RS_theo Riboswitch

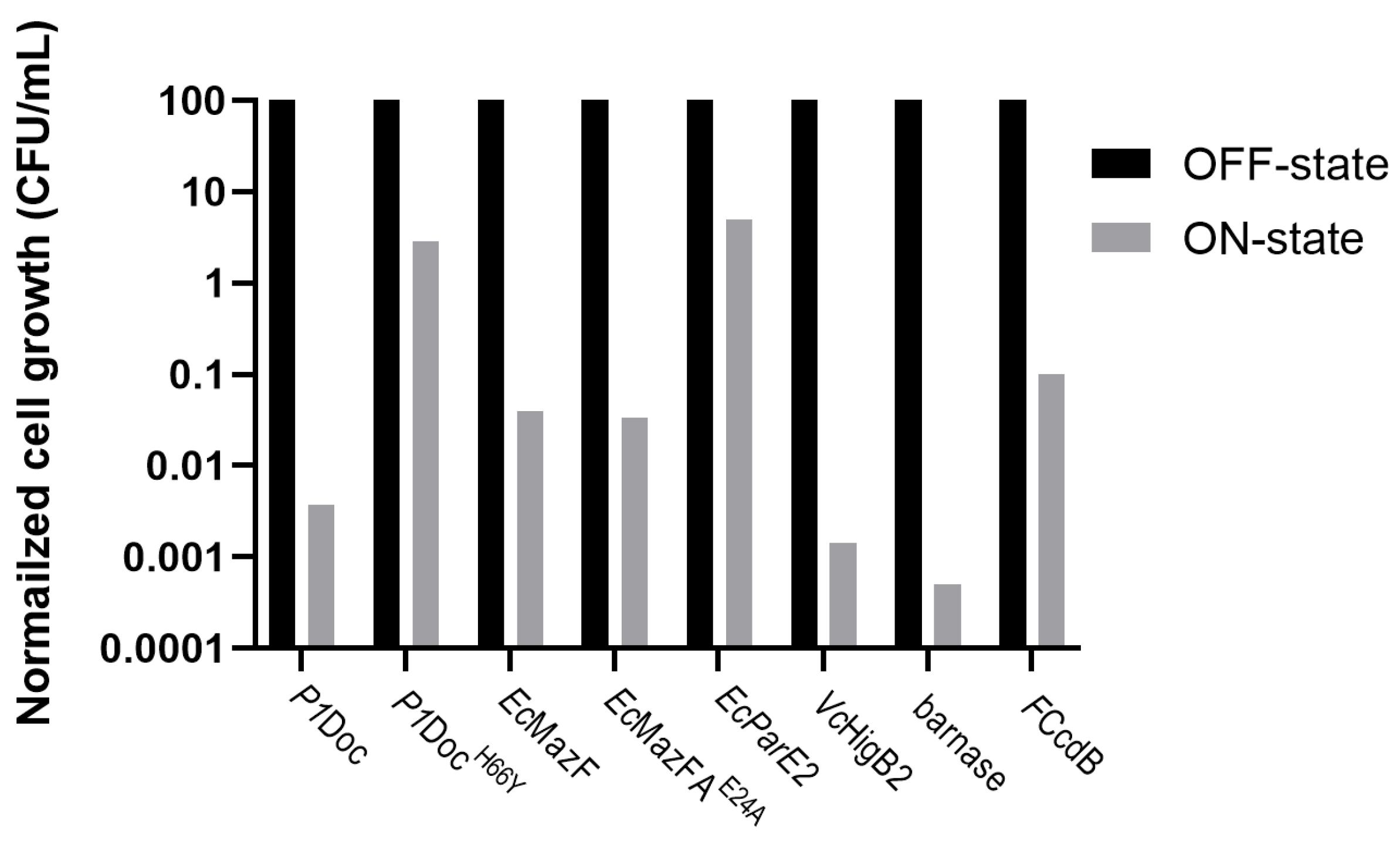

The same screen was performed for the Ptac—theophylline system (Figure 4 and Figure 5), where we observed a dramatic effect on cell growth for all toxins when supplementing inducing agents IPTG and theophylline to the LB ampicillin plates (Figure 4A,B). This decrease in growth corresponds to an average of 10⁴ orders of magnitude for P1Doc* and EcMazF, for P1Doc^H66Y and EcParE2 only a 10- to 100-fold reduction, for EcMazF^E24A and FCcdB approximately 3 orders of magnitude and for VcHigB2 and barnase the biggest effect is observed with a 10⁵-fold decrease compared to the OFF-state (Table S2). When comparing the sole effect of IPTG and theophylline, one can conclude that their contribution to growth reduction is notable and comparable (which was not the case for the PfdeA-RS_B12 system). Additionally, they clearly work synergistically as the combined effect of both agents is much higher than when applied separately (Figure 4C,D). In contrast to the PfdeA-RS_B12 system, a clear toxic effect is observed for EcMazF and EcParE2 when both IPTG and theophylline are combined, most likely because the strong inducible tac promoter ensures higher transcription levels. For the controls, however, a decrease in growth was also observed, with a greater effect for EcMazF^E24A than for P1Doc^H66Y. This different observation might be due to the nature of these mutants. While the P1Doc^H66Y mutant has a point mutation in one of the catalytic residues, the EcMazF^E24A mutant is inoperative in recognizing its mRNA substrate sites [13,37]. This mutation increases the cell’s viability drastically compared to wild-type MazF with ten times reduced RNase activity [12]. However, this activity is possibly still high enough once a sufficient number of proteins is produced to impact the host’s survival upon overexpression under the control of the strong Ptac.

The theophylline riboswitch was shown in the past to tightly control translation of proteins with very low leakiness [26,38]. This agrees with our own result, where the theophylline riboswitch seems to work more stringently than the vitamin B₁₂ riboswitch. The system works best in combination with the strong inducible Ptac. Nevertheless, we must consider that this promoter can have up to 2% leaky expression [8], which might cause difficulties when working with extremely toxic genes.

2.4.3. Combination of the P_BAD Promoter with the RS_theo Riboswitch

One way to circumvent this issue of leakiness is by using a weaker inducible promoter, namely P_BAD, having a 20-fold decrease in leaky expression [6]. When combining the theophylline riboswitch with the weaker arabinose promoter, the reduction in growth for E. coli EPI400 harboring pJYP4_VcParE2 upon induction of gene expression was in the range of 10⁴ orders of magnitude (Figure 6). This combination seems to surpass all other systems, as the potent VcParE2 was successfully cloned only under these stringent conditions.

2.5. Applicability of the Ptac—Theophylline System for Protein Production

Next, we wanted to know if our multi-layer control systems also allow for successful overexpression and protein production after induction. We chose the Ptac—theophylline system as this combines the strongest promoter with the most successful riboswitch. We first evaluated the use of the E. coli EPI400 CopyCutter strain to increase the copy number of the expression plasmid upon induction. Depending on the plasmid used, a 2- to 20-fold increase in copy number is typically reported [7]. We therefore determined this increase for pJYP2_doc* and pJYP2_doc^H66Y via qPCR. In both cases, we observed an approximately 50-fold increase in plasmid copy number upon induction (see Supplementary qPCR results for details: Figure S2 and Tables S3–S6). This not only allows for plasmid preparation at higher yields, but also suggests that useful overexpression may be obtained.

To assess the levels of protein synthesis in the Ptac—theophylline system, small-scale expression tests were performed for C-terminally histidine-tagged P1Doc* and P1Doc^H66Y. For non-toxic P1Doc^H66Y, a clear signal can be detected on western blot four hours after induction, suggesting that significant overexpression is obtained (Figure 7). For P1Doc* on the other hand, no signal was obtained in western blot. Most likely, this is caused by the activity of the protein itself: by directly inhibiting translation, it inhibits its own production. Given that P1Doc is an enzyme, even a few molecules are likely sufficient to shut down the translation machinery. When monitoring the growth of E. coli EPI400 cells containing pJYP2_doc* and pJYP2_doc^H66Y, induction of expression via IPTG, theophylline and CopyCutter Induction Solution did not affect the growth of cells harboring plasmids encoding P1Doc^H66Y, and also the growth of non-induced cells harboring P1Doc* was not affected (Figure S1). In contrast, upon induction of P1Doc*, growth initially slowed down but caught up afterwards, likely due to mutations in doc, as we also observed in the spot tests (Figure S1).

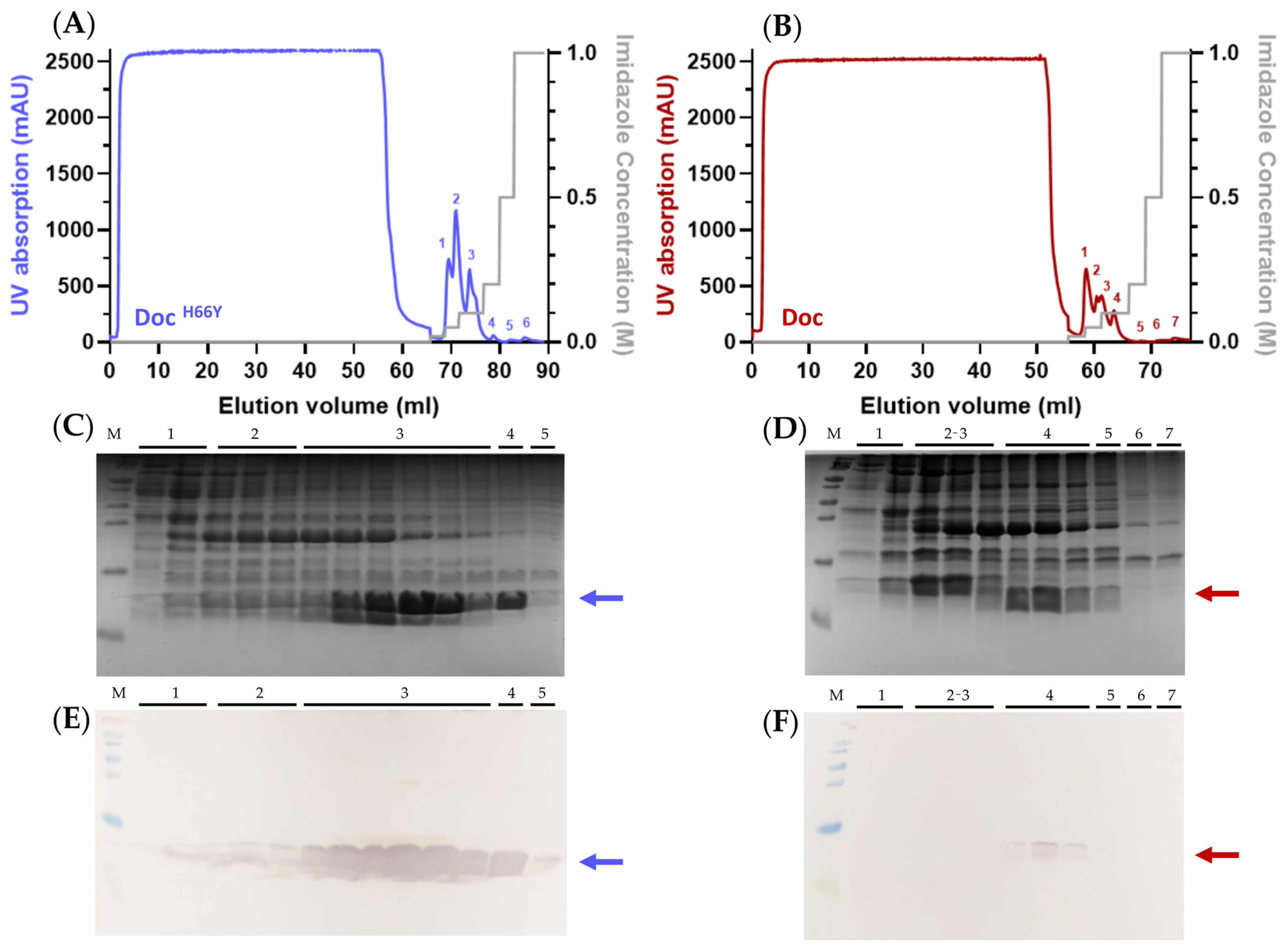

To assess the potential of the Ptac—RS_theo system for protein production, large-scale overexpression of his-tagged P1Doc and P1Doc^H66Y was attempted. Using material from larger volumes allowed western blot signals to be obtained for both P1Doc* and P1Doc^H66Y. The signal for P1Doc* remained nonetheless significantly weaker than that for the non-toxic variant (Figure 8). Hence, overexpression and purification in reasonable amounts are difficult when the protein of interest directly targets the transcription or translation machinery. Consequently, our approach is still most useful for cloning particularly potent toxins and performing in vivo activity assays but less so for producing protein for biochemical or biophysical studies.

3. Conclusions

We evaluated different controlling systems for the cloning of highly toxic genes, minimizing leaky expression to almost zero. It must be noted that this is the first time that the highly toxic barnase and VcParE2 were cloned in the absence of their cognate inhibitors barstar and VcParD2, respectively. However, for overexpression and production purposes of the toxin protein, the yields remain low. However, with the evolving techniques, the amount might be sufficient for downstream study experiments on the toxin protein. Although this system was evaluated for toxins for which antitoxins exist, the antitoxins are not needed in this strategy, allowing the expansion of this strategy for all toxins. We designed a model system to efficiently clone toxic or unstable genes which might be optimized to overexpress and produce toxic/unstable proteins in the future.

4. Materials and Methods

4.1. Cloning and Transformation

4.1.1. PfdeA Promoter

The pET22b expression vector was modified by inserting the FdeR transcriptional activator and promoter–operator region (PfdeA—fdeO) followed by a vitamin B₁₂ riboswitch (RS_B12) into the HpaI and XhoI site (Table S7). The resulting pJYP1 (Accession Number: OQ725380) vector contains a BglII restriction site downstream of the riboswitch to allow toxin cloning. Synthetic genes coding for different toxins were obtained via Twist Bioscience (San Francisco, CA, USA). The primers used for amplification of the different toxins prior to cloning are listed in

Table 2. Primers used for Gibson assembly of toxins in pJYP1.

Toxin	Primer	Sequence
EcMazF-His	MazFHis_F1	5′-ccttcttctattgtggatgctttacaatggtaagccgatacgtacccg-3′
	MazFHis_R1	5′-tccccactcgccagatttacgaagatcagtgatgatgatgatgatggctgc-3′
His-barnase	Hisbarnase_F1	5′-ccttcttctattgtggatgctttacaatgggcagcagccatcacc-3′
	Hisbarnase_R1	5′-tccccactcgccagatttacgaagagatctttatctgatttttgtaaaggtctgataatggtccg-3′
barnase-His	barnaseHis_F1	5′-ccttcttctattgtggatgctttacaatggcacaggttatcaacacgtttgacgg-3′
	barnaseHis_R1	5′-tccccactcgccagatttacgaagatcagtgatgatgatgatgatggctgc-3′
His-VcHigB2	HisHigB2_F1	5′-ccttcttctattgtggatgctttacaatgggcagcagccatcacc-3′
	HisHigB2_R1	5′-tccccactcgccagatttacgaagatcacgattgctcattgcgc-3′
VcParE2-His	VcParE2His_F1	5′-ccttcttctattgtggatgctttacaatgaaaccatttaatcttaccgtcgccgc-3′
	VcParE2His_R1	5′-tccccactcgccagatttacgaagatcagtgatgatgatgatgatgtgcg-3′
P1Doc-His	DocHis_F1	5′-ccttcttctattgtggatgctttacaatgaggcatatatcaccggaagaac-3′
	DocHis_R1	5′-tccccactcgccagatttacgaagatcagtgatgatgatgatgatggctgc-3′
EcParE2-His	EcParE2His_F1	5′-ccttcttctattgtggatgctttacaatgttacccgtgttatggcttgaaagcgc-3′
	EcParE2His_R1	5′-tccccactcgccagatttacgaagatcagtgatgatgatgatgatggctgc-3′
FCcdB	CcdB_F1 CcdB_R1	5′-cttcttctattgtggatgctttacaatgcagtttaaggtttacacctata-3′ 5′-cactcgccagatttacgaagagatcttatattccccagaacatcaggtta-3′

. A polyhistidine-tag was placed N- or C-terminally, based on known purification strategies for the respective toxins (

Table 3. Plasmids used in this study. Toxins cloned in pJYP1 are P1Doc, P1Doc^H66Y, EcMazF, EcMazF^E24A, EcParE2, VcHigB2, barnase and FCcdB. For pJYP2: P1Doc*, P1Doc^H66Y, EcMazF, EcMazF^E24A, EcParE2, VcHigB2, barnase* and FCcdB*. For pJYP3: P1Doc^H66Y, EcMazF and EcMazF^E24A.

Plasmids	Description
pJYP1_toxin	FdeR—PfdeA—RSB12—toxin in HpaI/XhoI site of pET22b
pJYP2_toxin	LacI—Ptac—RStheo—toxin in BglII/XhoI site of pET22b
pJYP3_toxin	LacI—Ptac—RSB12—toxin in BglII/XhoI site of pET22b
pJYP4_VcParE2	AraC—PBAD—RStheo—VcParE2 in BglII/XhoI site of pET22b

). The lyophilized synthetic DNA was dissolved to a concentration of 20 ng/μL. Using HiFi DNA assembly (New England Biolabs, Ipswich, MA, USA), all toxin genes were cloned in pJYP1 digested with BglII, resulting in different pJYP1_toxin vectors. CaCl₂-competent EPI400 E. coli cells (mcrA ∆(mrr-hsdRMS-mcrBC) φ80dlacZ∆M15 ∆lacX74 recA1 endA1 araD139 ∆(ara, leu)7697 galU galK λ–rpsL nupG tonA ∆pcnB dhfr) were then transformed with the assembled DNA [39]. The competent cells were thawed on ice before adding 2 μL of the assembled DNA mixture. After 30 min incubation on ice, a heat shock was performed at 42 °C for 1 min. The transformation mixture was diluted by adding 1 mL of LB medium (Bertani, 1951) supplemented with 50 nM vitamin B₁₂ after which it was incubated while shaking at 37 °C for 4 h to allow phenotypic expression. Hundred μL of the culture was spread on an LB plate supplemented with 100 μg/mL of ampicillin and 50 nM of vitamin B₁₂ before overnight incubation at 37 °C. Transformants were first tested for the presence of an intact toxin by comparing the growth of the colonies on both LB agar plates supplemented with 100 µg/mL ampicillin and 50 nM of vitamin B₁₂ and LB agar plates supplemented with 100 µg/mL ampicillin and 100 µg/mL naringenin as inducer. The colonies that showed reduced growth for the latter conditions were further screened through sequencing from miniprepped plasmids. The plasmids were recovered by preparing an overnight culture of E. coli EPI400 (pJYP1_toxin) in LB supplemented with 100 μg/mL of ampicillin and 50 nM vitamin B₁₂. This was used to inoculate 10 mL of fresh LB with 100 μg/mL of ampicillin, 1× CopyCutter Induction Solution (LGC Biosearch Technologies, Teddington, England) and 50 nM vitamin B₁₂, which was added to reach an OD₆₀₀ of 0.2. This culture was incubated for 4 h at 37 °C shaking, after which plasmid DNA was purified following the Monarch^® Plasmid Miniprep Kit (NEB, Ipswich, MA, USA). Sequencing was performed using primers Seq_Primer25 (5′-ttgagcctggccatgacaac-3′) and Seq_Primer26 (5′-ccagcctacacgggagagtg-3′).

4.1.2. Tac Promoter

Restriction digestion with BglII and XhoI (NEB) for 1 h at 37 °C was performed to remove the T7 promoter and lac operator of vector pET22b. Synthetic DNA fragments comprising the tac promoter (Ptac) and lac operator followed by the theophylline (RS_theo) or vitamin B₁₂ (RS_B12) riboswitch upstream of a C- or N-terminal his-tagged toxin gene and 25 bp overlap with the pET22b vector for Gibson assembly cloning were designed (Table 3 and Table S7) and ordered via Twist Bioscience (San Francisco, CA, USA). Gibson assembly was performed to insert the construct at the BglII and XhoI restriction sites of vector pET22b, resulting in the pJYP2_toxin and pJYP3_toxin constructs, for the theophylline and vitamin B₁₂ riboswitch, respectively. The assembled DNA was subsequently transformed into CaCl₂-competent E. coli EPI400 cells, as described above. An LB agar plate supplemented with 100 µg/mL ampicillin was plated with 100 µL of the transformation product and incubated overnight at 37 °C. A first screening for positive transformants was performed by comparing the growth of the colonies on both LB agar plates supplemented with 100 µg/mL ampicillin and LB agar plates supplemented with 100 µg/mL ampicillin, 0.5 mM IPTG and 2 mM theophylline (60 mg/mL stock dissolved in 200 mM NaOH). The colonies that showed reduced growth for the latter conditions were further screened by colony PCR and sequencing, using primers Seq_Primer37 (5′-gatcttccccatcggtgatg-3′) and Seq_Primer38 (5′-gcagcagccaactcagcttc-3′).

4.1.3. Arabinose Promoter

Analogously to the tac system, a synthetic construct containing araC and the C-terminally his-tagged Vibrio cholerae parE2 toxin gene under the control of P_BAD in combination with the theophylline riboswitch (Table 3 and Table S7) was cloned in the pET22b vector digested with BglII/XhoI.

4.2. Spot Test

An overnight culture of the positive transformants was prepared in 5 mL of LB medium supplemented with 100 µg/mL ampicillin (and 50 nM of vitamin B₁₂ for the RS_B12 constructs). The next day, a serial dilution of the overnight culture was made in LB medium (10⁰–10⁻⁶). Five µL of each dilution was spotted on square 50 mL LB plates supplemented with 100 µg/mL ampicillin (non-induced) and on LB agar plates supplemented with 100 µg/mL ampicillin, 2 mM theophylline and 0.5 mM IPTG (induced) or either one of each inducing agent (partly induced) for the Ptac—RS_theo strategy. For the PfdeA—RS_B12 strategy, spots were placed on LB agar plates supplemented with 100 µg/mL ampicillin and 50 nM vitamin B₁₂ (non-induced) and LB agar plates supplemented with 100 µg/mL ampicillin and 100 µg/mL naringenin (induced), as well as LB agar plates with only 100 µg/mL ampicillin, or with both 50 nM vitamin B₁₂ and 100 µg/mL naringenin (partly induced).

4.3. Plate Reader Experiment

Overnight cultures were prepared for E. coli EPI400 pJYP2_doc* and pJYP2_doc^H66Y in 5 mL LB medium supplemented with 100 µg/mL ampicillin. Cultures were brought to an OD of 2. A 96-well plate was prepared by adding 2 µL of the cultures and 178 µL of LB ampicillin medium. The OD₆₀₀ was measured every 20 min using the Biotek Synergy H1 (BioSPX, Abcoude, The Netherlands) microplate reader while shaking at 425 cpm—37 °C. Once an OD of approximately 0.2 was measured, 2 mM theophylline, 0.5 mM IPTG and 1× CopyCutter^TM Induction Solution was added for the induced samples, and an equal volume of LB medium was added for the non-induced samples. Cultures were further grown in the same conditions for a total of 16 h.

4.4. Expression Test

Expression was first tested on a small scale. Individual colonies of E. coli EPI400 carrying the pJYP2_doc* and pJYP2_doc^H66Y plasmid were picked to start an overnight preculture of 10 mL of LB enriched with 100 µg/mL ampicillin at 37 °C. A main culture of 80 mL of LB supplemented with 100 µg/mL ampicillin, 1× CopyCutter^TM Induction Solution and a 20-fold dilution of the preculture was grown until OD₆₀₀ = 1. Next, protein expression was induced by adding 0.5 mM IPTG and 2 mM theophylline. Samples of 10 mL collected before and 4 h after induction were centrifuged for 9 min at 2500× g, and the pelletized cells were resuspended in 200 µL B-PER^TM bacterial protein extraction reagent (ThermoFisher, Waltham, MA, USA) After 10 min of incubation, the cell lysis product was centrifuged for 5 min at 17,000× g. The resulting supernatant was used for SDS-PAGE and anti-his-tag Western blot analysis [40,41]. For western blot, proteins were transferred from the SDS-PAGE gel to a blotting membrane (Trans-Blot Turbo Transfer System, Bio-Rad, Hercules, CA, USA) by applying 25V for 5 min. The membrane was blocked for 45 min in 5% milk powder in 1X TBS, followed by a 1 h incubation with 10 µL mouse anti-his (Bio-Rad) in 10 mL 5% milk in 1X TBS. After washing the membrane with 1X TBS, a second incubation step of 40 min was performed with goat-anti-mouse IgG (Merck, Darmstadt, Germany) in 10 mL 5% milk in 1X TBS. Subsequently, the membrane was washed 3 times with 1X TBS, and protein visualization was obtained by a final 15 min incubation of the membrane in 10 mL of western blot buffer (100 mM Tris, 50 mM MgCl2, 100 mM NaCl) combined with 50 µL NBT-BCIP substrate.

For large-scale protein purification, an overnight preculture containing 250 mL of LB, 100 µg/mL ampicillin and a picked colony was grown at 37 °C. A 50-fold dilution of this preculture was used to inoculate 12 L of the main culture (12X 1 L LB enriched with 100 mg/mL ampicillin and 1× CopyCutter^TM Induction Solution). The main culture was grown at 37 °C until OD₆₀₀ = 0.8, after which 0.5 mM IPTG and 2 mM theophylline were added to induce protein expression. Cultures were grown for 4 h at 28 °C, and cells were harvested by centrifugation for 15 min 6200 g. The resulting pellet was dissolved in 20 mM Tris pH 8, 500 mM NaCl supplemented with a protease inhibitor (cOmplete^TM ULTA tablets, EDTA free, Roche, Basel, Switzerland), flash-frozen using liquid nitrogen and stored at −80 °C.

4.5. qPCR

Similar to Anindyajati et al., qPCR was performed to determine the primer efficiency [42]. Primer sets that target (1) the origin of replication (ori) in pET22b and (2) the d-1-deoxyxylulose 5-phosphate synthase gene (dxs) in the E. coli chromosome (

Table 4. Plasmid specific (ori) and genome specific (dxs) primer sets used for qPCR.

Primer Name	Primer Sequence	Primer Length	Product Size	Source
ori.FW	ATACCTGTCCGCCTTTCTCC	20 nt	86 bp	[42]
ori.RV	GAACGACCTACACCGAACTGAG	22 nt	86 bp	[42]
dxs.FW	CGAGAAACTGGCGATCCTTA	20 nt	113 bp	[43]
dxs.RV	CTTCATCAAGCGGTTTCACA	20 nt	113 bp	[43]

) were used for qPCR on two technical replicates of the template with concentrations ranging from 0.00002 to 0.02 ng/µL (pET22b) and 0.00002 to 2 ng (genomic DNA). EPI400 E. coli chromosome was isolated with the genomic DNA preparation kit (Qiagen, Hilden, Germany), and pET22b was extracted using the Monarch^® Plasmid Miniprep Kit (NEB, Ipswich, MA, USA). Primer efficiency (E) was determined by applying equation 1 after fitting a regression curve through the obtained Ct values as a function of the log of the starting quantity.

$$\mathrm{E}={10}^{-1/\mathrm{s}\mathrm{l}\mathrm{o}\mathrm{p}\mathrm{e}}$$

(1)

Cell lysates from four overnight cultures of EPI400 E. coli cells carrying pJYP2-doc* and pJYP2-doc^H66Y grown in the absence (non-induced) and presence (induced) of 1× CopyCutter Induction Solution were extracted as follows: 1 mL of overnight cell culture at OD₆₀₀ = 2 was centrifuged for 1 minute at 16,000× g. Hereafter, the pellet was resuspended in 1 mL of milli-Q water, incubated at 95 °C for 10 min and again centrifuged at 16,000× g for 2 minutes. The resulting supernatant was collected, and a 10-fold dilution was prepared in milli-Q water for qPCR. A 1 µL volume of each 10-fold dilution was combined with 2× GoTaq qPCR Master Mix (Promega) and both ori and dxs primers in separate reactions. For each condition, 6 replicates and 2 negative controls were subjected to the following amplification: 5.5 min at 95 °C, 40 cycles consisting of 10 s denaturation at 95 °C and 30 s annealing at 55 °C.

To gain an idea of how much more plasmid is present in the induced state compared to the non-induced state, the ratio of plasmid to chromosome per cell (P/C) was calculated by applying following equation:

$$\frac{Numberofplasmid}{Numberofchromosome}=\frac{{{\mathrm{E}}_{\mathrm{C}}}^{{\mathrm{C}\mathrm{t}}_{\mathrm{C}}}}{{{\mathrm{E}}_{\mathrm{P}}}^{{\mathrm{C}\mathrm{t}}_{\mathrm{P}}}}$$

(2)

Here, E_C represents the primer efficiency of the primer set targeting the chromosome (dxs), Ct_C the threshold value measured with the dxs primers, E_P the primer efficiency of the primer set targeting the plasmid (ori) and Ct_P the threshold value measured with the ori primers. To quantify the effect of induction with CopyCutter Induction Solution, P/C values from the induced state were divided by the ones from the non-induced state for pJYP2_doc* and pJYP2_doc^H66Y.

4.6. Protein Purification

The resuspended pellets from 12 L of cell culture were thawed and DNase I (50 µg/mL) and MgCl₂(5 mM) were added. Cells were lysed using the cell cracker at 20 KPSI, and the resulting cell lysate was centrifuged at 46,000× g. The supernatant was filtered through a 0.45 µm filter and loaded on a 1 mL HisTrap HP column (Cytiva, Marlborough, MA, USA) equilibrated with 20 mM Tris pH 8, 500 mM NaCl. A step gradient of 20 mM Tris pH 8, 500 mM NaCl, 1 M imidazole (0–2–5–10–20–50–100%, 3 column volumes each) was applied. The progress of purification was visualized with SDS-PAGE and anti-his-tag Western blot.
