A Digital Microfluidic RT-qPCR Platform for Multiple Detections of Respiratory Pathogens
by
,
Huitao Huang
1,†,
Kaisong Huang
1,†,
Yun Sun
2,
Dasheng Luo
2,
Min Wang
2,
Tianlan Chen
2,3,
Mingzhong Li
4,
Junwei Duan
5,
Liqun Huang
1 and
Cheng Dong
6,* 1
Zhuhai Center for Disease Control and Prevention, Zhuhai 519087, China
2
Digifluidic Biotech Ltd., Zhuhai 519000, China
3
Guangzhou Nansha IT Park Postdoctoral Programme, Guangzhou 511466, China
4
State Key Laboratory of Analog and Mixed-Signal VLSI, University of Macau, Macao 999078, China
5
College of Information Science and Technology, Jinan University, Guangzhou 510632, China
6
School of Intelligent Systems Science and Engineering/JNU-Industry School of Artificial Intelligence, Jinan University, Zhuhai 519000, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Micromachines 2022, 13(10), 1650; https://doi.org/10.3390/mi13101650
Submission received: 24 August 2022
/
Revised: 24 September 2022
/
Accepted: 27 September 2022
/
Published: 30 September 2022
Abstract
:The coronavirus disease 2019 pandemic has spread worldwide and caused more than six million deaths globally. Therefore, a timely and accurate diagnosis method is of pivotal importance for controlling the dissemination and expansions. Nucleic acid detection by the reverse transcription-polymerase chain reaction (RT-PCR) method generally requires centralized diagnosis laboratories and skilled operators, significantly restricting its use in rural areas and field settings. The digital microfluidic (DMF) technique provides a better option for simultaneous detections of multiple pathogens with fewer specimens and easy operation. In this study, we developed a novel digital microfluidic RT-qPCR platform for multiple detections of respiratory pathogens. This method can simultaneously detect eleven respiratory pathogens, namely, mycoplasma pneumoniae (MP), chlamydophila pneumoniae (CP), streptococcus pneumoniae (SP), human respiratory syncytial virus A (RSVA), human adenovirus (ADV), human coronavirus (HKU1), human coronavirus 229E (HCoV-229E), human metapneumovirus (HMPV), severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2), influenza A virus (FLUA) and influenza B virus (FLUB). The diagnostic performance was evaluated using positive plasmids samples and clinical specimens compared with off-chip individual RT-PCR testing. The results showed that the limit of detections was around 12 to 150 copies per test. The true positive rate, true negative rate, positive predictive value, negative predictive value, and accuracy of DMF on-chip method were 93.33%, 100%, 100%, 99.56%, and 99.85%, respectively, as validated by the off-chip RT-qPCR counterpart. Collectively, this study reported a cost-effective, high sensitivity and specificity on-chip DMF RT-qPCR system for detecting multiple respiratory pathogens, which will greatly contribute to timely and effective clinical management of respiratory infections in medical resource-limited settings.
1. Introduction
Acute respiratory diseases caused by viral or bacterial infections have brought a tremendous strain on healthcare systems worldwide due to their high incidence and mortality [1,2]. These infectious agents include 2019 novel coronavirus (SARS-CoV-2), severe acute respiratory syndrome coronavirus (SARS-CoV), Middle East respiratory syndrome coronavirus (MERS-CoV) and influenza A virus (FLUA), and so forth. They all had once put an extreme burden on the pandemic zones’ emergency, hospital and public health systems. Therefore, a fast, sensitive and accurate diagnosis method will significantly contribute to effective disease dissemination surveillance and pandemic expansion prevention [3,4].
Conventional diagnosis strategies include virus culture and serological methods, such as microscopic analysis, colloidal gold immunochromatography, enzyme-linked immunosorbent assay and direct chemiluminescence immunoassay (CLIA), and so forth. However, they are generally time-consuming and labor-intensive or have limited sensitivity and lower specificity issues [4,5,6,7]. In contrast, the molecular diagnosis method, reverse transcription-polymerase chain reaction (RT-PCR), which not only holds a high sensitivity and specificity, but also runs in a rapid speed, has gradually become the primary testing method for detecting and identifying respiratory pathogens worldwide. Nevertheless, this method can only be applied in centralized laboratories due to the tedious procedures and dedicated special instruments requirements [8,9,10,11,12]. In addition, when it comes to multiple detection, the design of multiple primers becomes a huge challenge because the chances of hybridization of primers increase with the number of primers.
Microfluidic technology provides a suitable option for multiple detection with parallel operations. By isolating into different independent micro units, a microsystem can easily perform multiple operations without internal interference. However, most of reported microfluidic devices with multiple detection lean upon channel-based microfluidic technology, whereby auxiliary fluid-handling elements and sophisticated networks of channels are needed to control the motion of an unremitting fluid [13,14]. In contrast, digital microfluidic (DMF) technology uses the electric field to control picoliter- to microliter-sized droplets [15], thus manipulating droplets in an unsurpassed flexible way without complicated networks and auxiliary elements. By virtue of accurate fluid manipulation and low sample volume consumption traits, DMF has made clinical biomedical testing simpler and more accessible in the field setting. Additionally, the required time for amplification and analysis steps can also be reduced due to the microfluidic system’s rapid mass and heat transfer [16].
Conventional RT-PCR testing generally involves multiple separated procedures such as nucleic acid extraction, reverse transcription, PCR amplification and data analysis, where an experienced expert is needed to avoid operation mistakes [17,18,19]. Nevertheless, all these biological procedures can be integrated and automated into the DMF chip by designing multiple independent reaction chambers in the DMF system, thus simplifying the operation process. Therefore, DMF technology has recently been widely applied to immunological, biochemical and molecular diagnostics tests [20,21,22]. However, simultaneous detection of more than ten respiratory pathogens by quantitative real-time RT-PCR (RT-qPCR) on the DMF platform is yet to be reported.
This study sought to develop an eleven-respiratory pathogens detection method based on RT-qPCR and DMF technology. The eleven common respiratory pathogens are Mycoplasma pneumonia (MP), Chlamydophila pneumoniae (CP), Streptococcus pneumonia (SP), human respiratory syncytial virus A (RSVA), human adenovirus (ADV), human coronavirus HKU1 (HCoV-HKU1), human coronavirus 229E (HCoV-229E), human metapneumovirus (HMPV), SARS-CoV-2, FLUA and influenza B virus (FLUB). In our DMF cartridge, they can be detected in a run by using 12 reaction spots on a single DMF chip (Figure 1). The performance characteristics of this DMF device have been evaluated by comparing it with off-chip testing and using clinical sample analysis. Furthermore, due to the pre-programmed configuration, this device can be operated by non-professional individuals and used in field conditions, thus providing a powerful tool for respiratory pathogen detection in medical resource-limited settings.
2. Materials and Methods
2.1. Samples
The positive plasmids harboring the targeted gene regions are synthesized by Sangon Biotech (Shanghai) Co., Ltd. (Shanghai, China) (Table 1). In addition, 40 clinical nasal or throat swab specimens (1 SP and HMPV-positive sample, 3 MP-positive samples, 1 SP-positive sample, 3 RSV-positive samples, 3 ADV-positive samples, 1 HMPV-positive sample, 2 SARS-CoV-2-positive samples, 7 FLUA-positive samples, 6 FLUB-positive samples and 13 negative samples from healthy individuals), were collected from 2019 to 2021 in strict accordance with the standard clinical sample collection protocol, with written consent from the patients and the volunteers and ethical approval from Zhuhai CDC ethic committee respectively.
2.2. RNA Extraction
The total nucleic acid of clinical specimens is extracted using the RaPure Viral RNA/DNA Kit (Magen, Guangzhou, China) according to the manufacturer’s instructions. Briefly, 250 μL of sample stocks are mixed with 500 μL of Buffer GRP and incubated for 10 min. Then, the lysates are fractionated, and the nucleic acid is subsequently eluted from cationic resin columns in Nuclease Free Water. Finally, the extracted nucleic acid is used for on-chip and off-chip RT-qPCR testing.
2.3. Primer and Probe Sequences
The primers and probes sets targeting the matrix gene 1 & 2 of FLUA, the hemagglutinin of FLUB and the ORF1ab and Nucleocapsid gene of SARS-CoV-2 are developed as previously reported [23,24]. The primer–probe sets for the other eight respiratory pathogens are designed using the Primer Premier 5 software according to the corresponding conserved region sequence. All primers and probes are commercially synthesized from Sangon Biotech (Shanghai, China) Co., Ltd. and are dissolved in molecular grade RNAse-free water (Sigma, St. Louis, MO, USA) at 10 μM. The detailed oligonucleotide primers and probes and their sequences are listed in Table 1.
2.4. System Configuration
An overview of the proposed DMF system is shown in Figure 2. The DMF RT-qPCR system consists of the DMF chip (Figure 2c), control electronics in the device (Figure 2a), and programmable control software on a personal computer (PC) (Figure 2b). On the DMF chip, the primer–probe solution is spotted at the reaction spots on the bottom plate and dehydrated as in Section 2.6 (Figure 2d).
The control electronics device integrates a microcontroller unit (MCU), an electrode actuation module, a thermal control module and a fluorescence module. The MCU communicates with the PC through a blue tooth data link by a transceiver module, which transmits the real-time data collected by the device and receives commands sent by the PC. The operation controller module controls the rest of the hardware to perform operations according to the commands. Electrode driving potentials are generated by a DCAC converter (direct current to alternating current converter) and amplified by a voltage transformer. The amplified potentials of 260 Vrms are applied for the generation and transportation of the liquid droplets through an array of physical relays controlled by the I/O signal from the MCU. A fluorescence detector is installed on the top of reaction spots of the DMF chip for real-time signal collection, which is then transformed into an electrical signal by a photo-diode. After signal amplification and digitalization, the final fluorescence data are transmitted to the MCU. The thermistor mounted under the PCB is connected to the temperature sensing circuit. A pulse width modulation (PWM) signal is generated according to the proportion integration differentiation (PID) controller with two inputs: the real-time temperature and the target temperature. The PWM signal is connected to the resistive thin-film heater after amplification by a power amplifier for temperature control.
The customized and user-programmable software on the PC enables users to monitor and control the status of the DMF chip in real time through a graphical user interface (GUI). In addition, it provides droplet operation, temperature control, fluorescence sensing, timing, and data analysis capabilities.
2.5. RT-qPCR Off-Chip
RT-qPCRs are conducted in a 25 μL reaction mixture containing 5 μL RNA/DNA, 0.5 μL forward primers, 0.5 μL reverse primers, 0.25 μL probes, 5 μL RNAse-free water, 12.5 μL 2× One Step Q Probe Mix and 1.25 μL One Step Q Probe Enzyme Mix (HiScript II One Step qRT-PCR Probe Kit, Vazyme, Nanjing, China). The mixes contain all components necessary for RT-qPCR amplifications except primers, templates and water. Thermal cycling parameters are 15 min at 50 °C, followed by 30 s at 95 °C, and a subsequent 45 cycles of 95 °C for 10 s and 60 °C for 30 s. The AGS4800 quantitative real-time PCR is performed using the quantitative PCR thermocycler instrument (Daan Gene, Guangzhou, China).
2.6. Prestorage of Primer-Probes On-Chips
In order to detect multiple items, the 12 primer–probe sets of respiratory pathogens are pre-stored in DMF chips. The prestorage solution consists of 1 μL of 10 μM forward primers, 1 μL of 10 μM Reverse primers, 0.5 μL of 10 μM probes, 2.5 μL of 10% PEG6000 (Sigma, St. Louis, MO, USA) and 20 μL of RNAse-free water (Sigma, St. Louis, MO, USA). The prestorage solution is divided into 2 μL to the corresponding reaction point in DMF chips. The chips with prestorage solution are placed in Shanghai Yiheng electric heating blast drying oven DHG-9075A at 50 °C/20% rh for 15 min. Afterward, the dried chips are taken out for packaging. The DMF chip with pre-stored primer–probe sets is shown in Figure 2.
2.7. RT-qPCR On-Chip
All RT-qPCRs on the chip are performed using the DMF nucleic acid detector and HiScript II One Step qRT-PCR Probe Kit (Vazyme, Nanjing, China) following the manufacturer’s instructions. First, the amplification mixture is prepared by using 5 μL RNA, 6.25 μL RNAse-free water, 12.5 μL 2× One Step Q Probe Mix and 1.25 μL One Step Q Probe Enzyme Mix (HiScript II One Step qRT-PCR Probe Kit, Vazyme). Then, the DMF chip with pre-stored primer–probe sets is placed into a metal cartridge. Next, 530 μL of silicone oil is slowly added to the oil inlet of the DMF chip, and 16 μL of the amplification mixture is instilled into the sample inlet of the DMF chip. The cartridge with the DMF chip is inserted into the DMF nucleic acid detector, which automatically completes the pipetting, amplification, and detection procedure. During the pipetting process, 2 μL amplification mixture is transferred to each reaction chamber on the chip. The amplification reaction procedure is the same as the RT-qPCR off-chip in Section 2.5. Cycle 3 to 15 is taken as the baseline period by default, and the threshold value is set at ten times the standard deviation above the mean baseline value. Cycle threshold (Ct) values are calculated according to this standard in subsequent experiments. Forty samples from Section 2.1 are extracted to perform RT-qPCR assay both on-chip and off-chip, as mentioned in Section 2.5 and Section 2.7.
2.8. Data Analysis
The coefficient of variance (CV) is calculated based on Ct values. Repeatability (three replicates for one experiment) and reproducibility (three-time experiments) of on-chip RT-qPCRs are shown as CV values.
The screening testing results present as true positive (TP), false positive (FP), true negative (FN) and false negative (TN). The true positive rate (TPR) is calculated as TPR = TP/(TP + FN) × 100%. The true negative rate (TNR) is calculated as TNR = TN/(FP + TN) × 100%. The positive predictive value (PPV) is calculated as PPV = TP/(TP + FP) × 100%. The negative predictive value (NPV) is calculated as NPV = TN/(FN + TN) × 100%. Accuracy (ACC) is calculated as ACC = (TP + TN)/(TP + TN + FP + FN).
Kappa test is performed with SPSS v16.0 software to estimate the degree of consistency between RT-qPCRs on-chip and off-chip. The Kappa statistic is interpreted as follows: <0, as poor; 0–0.20, as slight; 0.21–0.40, as fair; 0.41–0.60, as moderate; 0.61–0.80, as substantial; and 0.81–1.00, as almost perfect agreement [25].
3. Results
3.1. Optimization of RT-qPCR Reaction
This study aims to detect and differentiate respiratory pathogens using RT-qPCR technology and DMF technology. To verify the amplification performance of each primer–probe set, RT-PCR oligomers are tested with 10 pg/μL of corresponding plasmids using AGS4800 real-time fluorescence quantitative PCR instrument with reference to HiScript II One Step qRT-PCR Probe Kit. For the twelve primer–probe sets, most of the amplification reactions reach the threshold at around 20 cycles, and no false-positive reactions are observed until 45 cycles. The maximum relative fluorescence intensity (RFI) of the twelve primer–probe set amplification reactions is distinct when they reach a plateau. The larger the variance of fluorescence intensity in the plateau phase, the less the accuracy of the fluorescence system is presented. To make the endpoints of the graph relatively concentrated for twelve primer–probe sets on the same chip, the probe concentration is adjusted under the condition that the concentration of forward and reverse primers remain unchanged (Table 2). After adjustment, the maximum RFI of each primer–probe in the plateau phase is about 1.3~1.8. The threshold value is unified and the accuracy of the fluorescence system is improved. In addition, the primers are dehydrated on the chip to reduce the operating time for fluid preparation of testers, leading to improved convenience.
3.2. Sensitivity of RT-qPCR On-Chip and Off-Chip
After the final concentration of primers and probes is established, we evaluate the sensitivity of primer–probe sets in detecting different diluted QC plasmids concentrations of 11 respiratory diseases both off-chip and on-chip. It should be noticed that among those 11 respiratory diseases, we have 12 target genes since two gene regions (ORF1ab and N) are selected for SARS-CoV-2 detection. It is first evaluated using plasmids ranging from 1.5 × 101 to 1.5 × 107 copies per test for off-chip testing (Figure 3a–l) and then from 1.2× 101 to 1.2 × 106 copies per test for on-chip testing (Figure 4a–f). There are amplification curves in the concentrations from 1.2 × 102 to 1.2 × 106 copies per test in all 12 detection tunnels (Figure 4a–e), and the amplification efficiency of each reaction is 90 ± 5%. CV values vary from 0.28% to 3.12% at the concentrations from 1.5 × 103 to 1.5 × 107 copies per test off-chip, while CV values range from 0.32% to 4.46% at the concentrations from 1.2 × 103 to 1.2 × 106 copies per test on-chip. The intra-assay variation for repeatability is 0.32% to 3.78%, and the inter-assay variation for reproducibility is 0.43% to 4.46%. Additionally, for each pathogen, over 95% of replicates (≥19 out of 20 replicates) can be detected at each detection limit, suggesting a high sensitivity for the RT-qPCR on the DMF chip. The high linearity of all 12 standard curves off-chip (Table 3) and on-chip (Table 4) also demonstrates the feasibility of using this RT-qPCR assay for the quantification of pathogen nucleic acid in clinical samples.
3.3. Specificity of RT-qPCR On-Chip
The specificity of RT-qPCR on the chip is evaluated using the QC plasmids. Firstly, the negative and different target-positive QC plasmids are employed to test the sensitivity of RT-qPCR assay on the developed DMF system. Each of the twelve different primer–probe sets only shows a positive amplification in its corresponding QC plasmid group, and a negative result in the negative QC and other remaining pathogen QC plasmid groups (Table S1). On the other hand, six QC plasmids harboring the targeted gene regions such as Middle East respiratory syndrome (MERS) and human parainfluenza virus (PIV), which was not incorporated into our system, are also tested to be negative, as shown in No.13 to No.18 (Table S1). No.19 to No.38 are blank control groups adding ddH2O instead of plasmids. These results demonstrate the high specificity of our DMF system.
3.4. Evaluation of On-Chip RT-qPCR Assays Using Clinical Samples
Thirteen clinical nasal or throat swab samples from healthy controls and twenty-seven samples from patients with the previously confirmed presence of one of the 11 pathogens are used to verify the reliability of our methods in practical use. After RNA extraction in Section 2.2, parallel experiments were performed simultaneously, both on-chip and off-chip (Table S2), for verification purposes, as mentioned in Section 2.5 and Section 2.7. Table 5 summarizes the screening result, with a total of 30 positive testing results and 450 negative testing results confirmed. For detecting these 11 target respiratory pathogens, TPR, TNR, PPV, NPV and ACC measures are utilized for detection performance evaluation. According to the evaluation method in Section 2.8, the results are TPR 93.33%, TNR 100%, PPV 100%, NPV 99.56%, and ACC 99.58%, respectively. The results suggest that the on-chip method can effectively identify 11 pathogens with high accuracy. In addition, the testing results comparison between the two approaches is analyzed using the Kappa coefficient. The Kappa value is 0.963, and the approximate significance (Approx.Siq.) is less than 0.5 (Table 6). These results prove that the RT-PCR testing on-chip and off-chip is highly consistent in clinical practice.
4. Discussion
Most respiratory pathogen infections cause similar clinical symptoms characterized by fever, headache, cough, and so forth. Nevertheless, some pathogens are more contagious and can process to be severe acute respiratory syndrome with a high fatality rate. The traditional RT-qPCR detection method needs to configure multiple reaction systems when aiming to detect multiple items, leading to a time-consuming and laborious process. However, a digital microfluidic RT-qPCR chip can integrate numerous qPCR reactions step into the independent spots, thus achieving the simultaneous detection of multiple pathogens. Therefore, in contrast to the traditional RT-qPCR detection method, the DMF RT-qPCR chip provides the advantages of automatic operation and simultaneous detection of more items.
The novelty of this work lies in the implementation of our automated DMF platform and optimized RT-qPCR reaction for simultaneous diagnosis of multiple respiratory pathogens. Compared to conventional diagnosis methods (Table 7), such as bacterial culture, immunofluorescence and enzyme linked immunosorbent assay (ELISA), with which it is generally difficult to reach a balance between high sensitivity, high specificity and rapid diagnosis [26], the digital microfluidic RT-qPCR platform offers a simple operating process, i.e., loading nucleic acid for just one time, as well as high sensitivity and accuracy. While other microfluidic devices with isothermal amplifications (such as loop-mediated isothermal amplification, LAMP for short) generally cannot achieve multiple detection and distinguish pathogenic microorganisms from resident ones [27], our DMF platform with RT-qPCR demonstrates a simultaneous screening of eleven respiratory pathogens. The clinical evaluation illustrates that the PPV is 93.33% and NPV is 100%. Two clinical samples out of thirty were tested to yield a false negative using the off-chip method. We speculate that the decreased sensitivity can be attributed to the fewer nucleic acid template in the reactions. In the RT-qPCR reaction mixture formula, the sample volume for nucleic acid extraction in these two methods is the same. However, the DMF on-chip RT-qPCR only adds 0.4 μL of extracted nucleic acid for each reaction, while the conventional off-chip RT-qPCR method adds 5 μL of extracted nucleic acid instead. This is 12.5 times higher than that of the on-chip way. With a very small sample volume, the DMF on-chip RT-qPCR method can significantly decrease the risk of human contact during sampling. In addition, the use of small sample volumes is also conducive in the case of limited samples in clinical settings.
In conclusion, the digital microfluidic RT-qPCR method designed in this study can rapidly detect multiple common respiratory pathogens with a reduced sample consumption in a fully integrated manner. Additionally, this method shows a comparable amplification performance to the traditional RT-PCR approach using benchtop qPCR instruments instead. Therefore, this DMF system can be applied to rapid contagious disease diagnosis in resource-limited settings, where centralized laboratories and skilled technicians are missing.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/mi13101650/s1, Table S1: Specificity of RT-qPCR on-chip in the study. Table S2: Test result of clinical samples using both off-chip and on-chip RT-qPCR methods.
Author Contributions
Conceptualization and methodology, H.H. and K.H.; validation, Y.S. and M.W.; formal analysis, H.H., K.H. and D.L.; investigation, M.W.; resources, T.C.; data curation, D.L.; writing—original draft preparation, H.H., K.H., Y.S. and C.D.; writing—review and editing, H.H., K.H., M.L., J.D. and L.H.; visualization, Y.S. and C.D.; supervision, C.D.; project administration, T.C.; funding acquisition, H.H. All authors have read and agreed to the published version of the manuscript.
Funding
This work is supported by Zhuhai “COVID-19 infection prevention” Emergency Science and Technology Research Project under Grant No. ZH22036302200052PWC, Guangdong Basic and Applied Basic Research Foundation under Grant No. 2021A1515110623 and 2021A1515011999, Zhuhai Industry-university-research Cooperation Project under Grant ZH22017002200012PWC, National Key Research and Development Program of China under Grant No. 2018YFC2002500 and Guangdong Provincial Key Laboratory of Traditional Chinese Medicine Informatization under Grant No. 2021B1212040007.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
Not applicable.
Conflicts of Interest
The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.
References
- Beck, E.T.; Henrickson, K.J. Molecular diagnosis of respiratory viruses. Future Microbiol. 2010, 5, 901–916. [Google Scholar] [CrossRef] [PubMed]
- Gibson, G.J.; Loddenkemper, R.; Lundbäck, B.; Sibille, Y. Respiratory health and disease in Europe: The new European Lung White Book. Eur. Respir. J. 2013, 42, 559–563. [Google Scholar] [CrossRef] [PubMed]
- Rai, P.; Kumar, B.K.; Deekshit, V.K.; Karunasagar, I.; Karunasagar, I. Detection technologies and recent developments in the diagnosis of COVID-19 infection. Appl. Microbiol. Biotechnol. 2021, 105, 441–455. [Google Scholar] [CrossRef]
- Babady, N.E.; Mead, P.; Stiles, J.; Brennan, C.; Li, H.; Shuptar, S.; Stratton, C.W.; Tang, Y.W.; Kamboj, M. Comparison of the Luminex xTAG RVP Fast assay and the Idaho Technology FilmArray RP assay for detection of respiratory viruses in pediatric patients at a cancer hospital. J. Clin. Microbiol. 2012, 50, 2282–2288. [Google Scholar] [CrossRef] [PubMed]
- Salez, N.; Vabret, A.; Leruez-Ville, M.; Andreoletti, L.; Carrat, F.; Renois, F.; de Lamballerie, X. Evaluation of Four Commercial Multiplex Molecular Tests for the Diagnosis of Acute Respiratory Infections. PLoS ONE 2015, 10, e0130378. [Google Scholar] [CrossRef]
- Pérez-Ruiz, M.; Pedrosa-Corral, I.; Sanbonmatsu-Gámez, S.; Navarro-Marí, M. Laboratory detection of respiratory viruses by automated techniques. Open Virol. J. 2012, 6, 151–159. [Google Scholar] [CrossRef] [PubMed]
- Ginocchio, C.C. Detection of respiratory viruses using non-molecular based methods. J. Clin. Virol. Off. Publ. Pan. Am. Soc. Clin. Virol. 2007, 40, S11–S14. [Google Scholar] [CrossRef]
- Kehl, S.C.; Kumar, S. Utilization of nucleic acid amplification assays for the detection of respiratory viruses. Clin. Lab. Med. 2009, 29, 661–671. [Google Scholar] [CrossRef]
- Hymas, W.C.; Mills, A.; Ferguson, S.; Langer, J.; She, R.C.; Mahoney, W.; Hillyard, D.R. Development of a multiplex real-time RT-PCR assay for detection of influenza A, influenza B, RSV and typing of the 2009-H1N1 influenza virus. J. Virol. Methods 2010, 167, 113–118. [Google Scholar] [CrossRef]
- Rogan, D.T.; Kochar, M.S.; Yang, S.; Quinn, J.V. Impact of Rapid Molecular Respiratory Virus Testing on Real-Time Decision Making in a Pediatric Emergency Department. J. Mol. Diagn. JMD 2017, 19, 460–467. [Google Scholar] [CrossRef] [Green Version]
- Rappo, U.; Schuetz, A.N.; Jenkins, S.G.; Calfee, D.P.; Walsh, T.J.; Wells, M.T.; Hollenberg, J.P.; Glesby, M.J. Impact of Early Detection of Respiratory Viruses by Multiplex PCR Assay on Clinical Outcomes in Adult Patients. J. Clin. Microbiol. 2016, 54, 2096–2103. [Google Scholar] [CrossRef] [PubMed]
- Ling, L.; Kaplan, S.E.; Lopez, J.C.; Stiles, J.; Lu, X.; Tang, Y.W. Parallel Validation of Three Molecular Devices for Simultaneous Detection and Identification of Influenza A and B and Respiratory Syncytial Viruses. J. Clin. Microbiol. 2018, 56, e01691-17. [Google Scholar] [CrossRef]
- Park, B.H.; Oh, S.J.; Jung, J.H.; Choi, G.; Seo, J.H.; Kim, D.H.; Lee, E.Y.; Seo, T.S. An integrated rotary microfluidic system with DNA extraction, loop-mediated isothermal amplification, and lateral flow strip based detection for point-of-care pathogen diagnostics. Biosens. Bioelectron. 2017, 91, 334–340. [Google Scholar] [CrossRef] [PubMed]
- Sayad, A.; Ibrahim, F.; Mukim Uddin, S.; Cho, J.; Madou, M.; Thong, K.L. A microdevice for rapid, monoplex and colorimetric detection of foodborne pathogens using a centrifugal microfluidic platform. Biosens. Bioelectron. 2018, 100, 96–104. [Google Scholar] [CrossRef]
- Choi, K.; Ng, A.H.; Fobel, R.; Wheeler, A.R. Digital microfluidics. Annu. Rev. Anal. Chem. 2012, 5, 413–440. [Google Scholar] [CrossRef] [PubMed]
- Janasek, D.; Franzke, J.; Manz, A. Scaling and the design of miniaturized chemical-analysis systems. Nature 2006, 442, 374–380. [Google Scholar] [CrossRef] [PubMed]
- Kirby, A.E.; Wheeler, A.R. Digital microfluidics: An emerging sample preparation platform for mass spectrometry. Anal. Chem. 2013, 85, 6178–6184. [Google Scholar] [CrossRef]
- Bruijns, B.; van Asten, A.; Tiggelaar, R.; Gardeniers, H. Microfluidic Devices for Forensic DNA Analysis: A Review. Biosensors 2016, 6, 41. [Google Scholar] [CrossRef]
- Kanagal-Shamanna, R. Digital PCR: Principles and Applications. Methods Mol. Biol. 2016, 1392, 43–50. [Google Scholar] [CrossRef]
- Sista, R.S.; Eckhardt, A.E.; Wang, T.; Graham, C.; Rouse, J.L.; Norton, S.M.; Srinivasan, V.; Pollack, M.G.; Tolun, A.A.; Bali, D.; et al. Digital microfluidic platform for multiplexing enzyme assays: Implications for lysosomal storage disease screening in newborns. Clin. Chem. 2011, 57, 1444–1451. [Google Scholar] [CrossRef]
- Ng, A.H.; Lee, M.; Choi, K.; Fischer, A.T.; Robinson, J.M.; Wheeler, A.R. Digital microfluidic platform for the detection of rubella infection and immunity: A proof of concept. Clin. Chem. 2015, 61, 420–429. [Google Scholar] [CrossRef] [PubMed]
- Wulff-Burchfield, E.; Schell, W.A.; Eckhardt, A.E.; Pollack, M.G.; Hua, Z.; Rouse, J.L.; Pamula, V.K.; Srinivasan, V.; Benton, J.L.; Alexander, B.D.; et al. Microfluidic platform versus conventional real-time polymerase chain reaction for the detection of Mycoplasma pneumoniae in respiratory specimens. Diagn. Microbiol. Infect. Dis. 2010, 67, 22–29. [Google Scholar] [CrossRef] [PubMed]
- Center, C.N.l. Technical Guidelines for National Influenza Surveillance. Available online: http://ivdc.chinacdc.cn/cnic/zyzx/jcfa/201709/P020170930331067634607.pdf (accessed on 30 March 2017). (In Chinese).
- China, N.o.P.R. Technical guidance for laboratory testing of 2019-nCoV infection (Third Edition). Biosaf. Health 2020, 2, 3–5. [Google Scholar] [CrossRef]
- Liu, J.; Kabir, F.; Manneh, J.; Lertsethtakarn, P.; Begum, S.; Gratz, J.; Becker, S.M.; Operario, D.J.; Taniuchi, M.; Janaki, L.; et al. Development and assessment of molecular diagnostic tests for 15 enteropathogens causing childhood diarrhoea: A multicentre study. Lancet. Infect. Dis. 2014, 14, 716–724. [Google Scholar] [CrossRef]
- Tarim, E.A.; Karakuzu, B.; Oksuz, C.; Sarigil, O.; Kizilkaya, M.; Al-Ruweidi, M.; Yalcin, H.C.; Ozcivici, E.; Tekin, H.C. Microfluidic-based virus detection methods for respiratory diseases. Emergent. Mater. 2021, 4, 143–168. [Google Scholar] [CrossRef] [PubMed]
- Gradisteanu Pircalabioru, G.; Iliescu, F.S.; Mihaescu, G.; Cucu, A.I.; Ionescu, O.N.; Popescu, M.; Simion, M.; Burlibasa, L.; Tica, M.; Chifiriuc, M.C.; et al. Advances in the Rapid Diagnostic of Viral Respiratory Tract Infections. Front. Cell. Infect. Microbiol. 2022, 12, 807253. [Google Scholar] [CrossRef]
- Basiri, A.; Heidari, A.; Nadi, M.F.; Fallahy, M.T.P.; Nezamabadi, S.S.; Sedighi, M.; Saghazadeh, A.; Rezaei, N. Microfluidic devices for detection of RNA viruses. Rev. Med. Virol. 2021, 31, 1–11. [Google Scholar] [CrossRef]
Figure 1.
Schematic illustration of the processes of the DMF system for detecting multiple respiratory pathogens using the RT-qPCR method. (a) Clinical sample collection. (b) Off-chip nucleic acid extraction. (c) 3D schematic representation of the PCR thermocycling instrument. (d) Detailed illustration of the DMF chip with dried and rehydrated primer probes. (e) 3D schematic illustration of the DMF chip. (f) Schematic representation of RT-qPCR process. (g) The photograph of the DMF nucleic acid detector that is used to drive the DMF chip. (h) A custom software on a computer for controlling the device and collecting data. (i) Amplification curve obtained from RT-qPCR amplification.
Figure 1.
Schematic illustration of the processes of the DMF system for detecting multiple respiratory pathogens using the RT-qPCR method. (a) Clinical sample collection. (b) Off-chip nucleic acid extraction. (c) 3D schematic representation of the PCR thermocycling instrument. (d) Detailed illustration of the DMF chip with dried and rehydrated primer probes. (e) 3D schematic illustration of the DMF chip. (f) Schematic representation of RT-qPCR process. (g) The photograph of the DMF nucleic acid detector that is used to drive the DMF chip. (h) A custom software on a computer for controlling the device and collecting data. (i) Amplification curve obtained from RT-qPCR amplification.

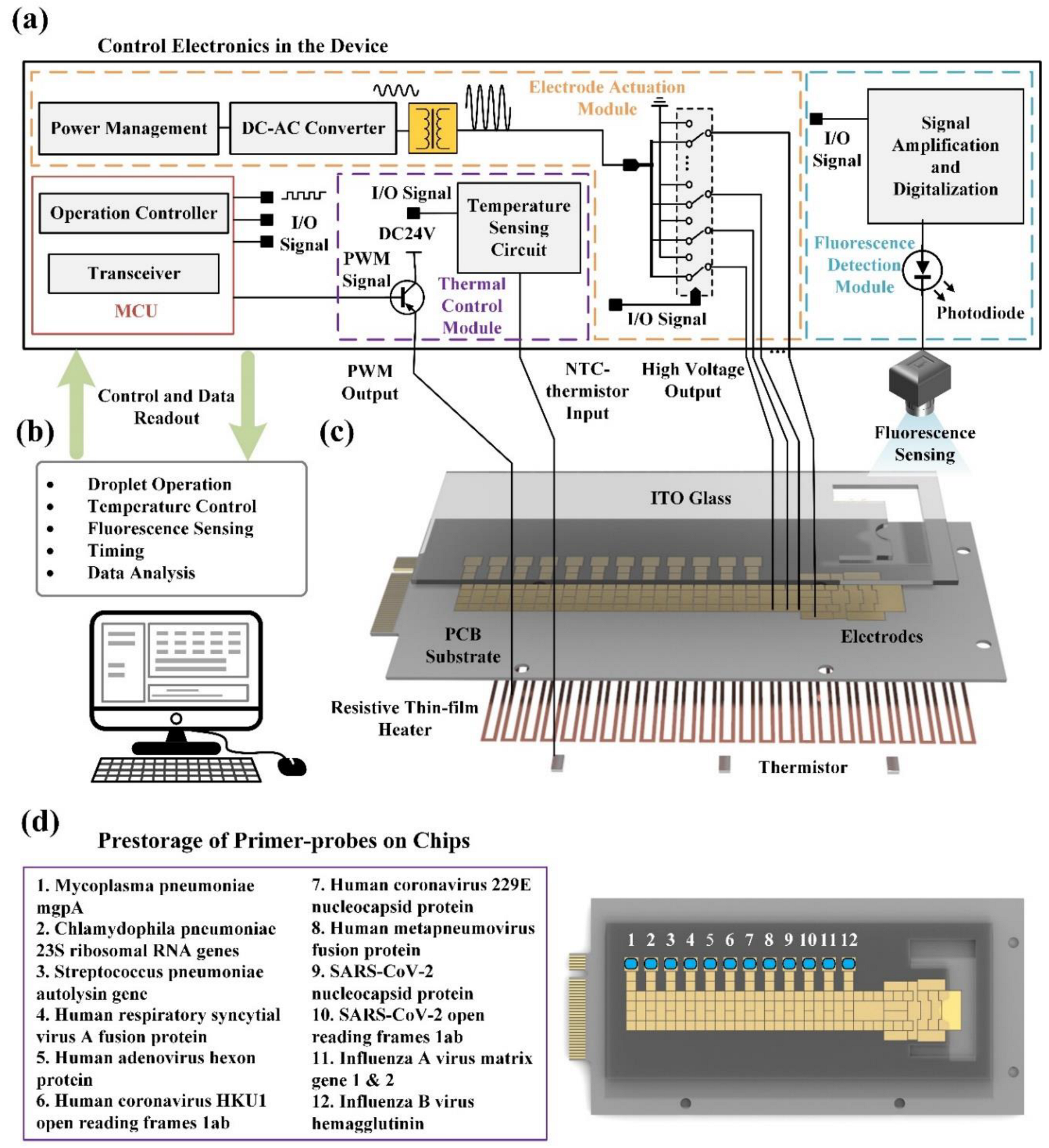

Figure 2.
The overview of the DMF system configuration. (a) The control electronics in the device; (b) The customized and user-programmable software on the PC; (c) A 3D explosion diagram of the proposed DMF chip; (d) The prestorage of corresponding primer–probe pairs on-chip.
Figure 2.
The overview of the DMF system configuration. (a) The control electronics in the device; (b) The customized and user-programmable software on the PC; (c) A 3D explosion diagram of the proposed DMF chip; (d) The prestorage of corresponding primer–probe pairs on-chip.

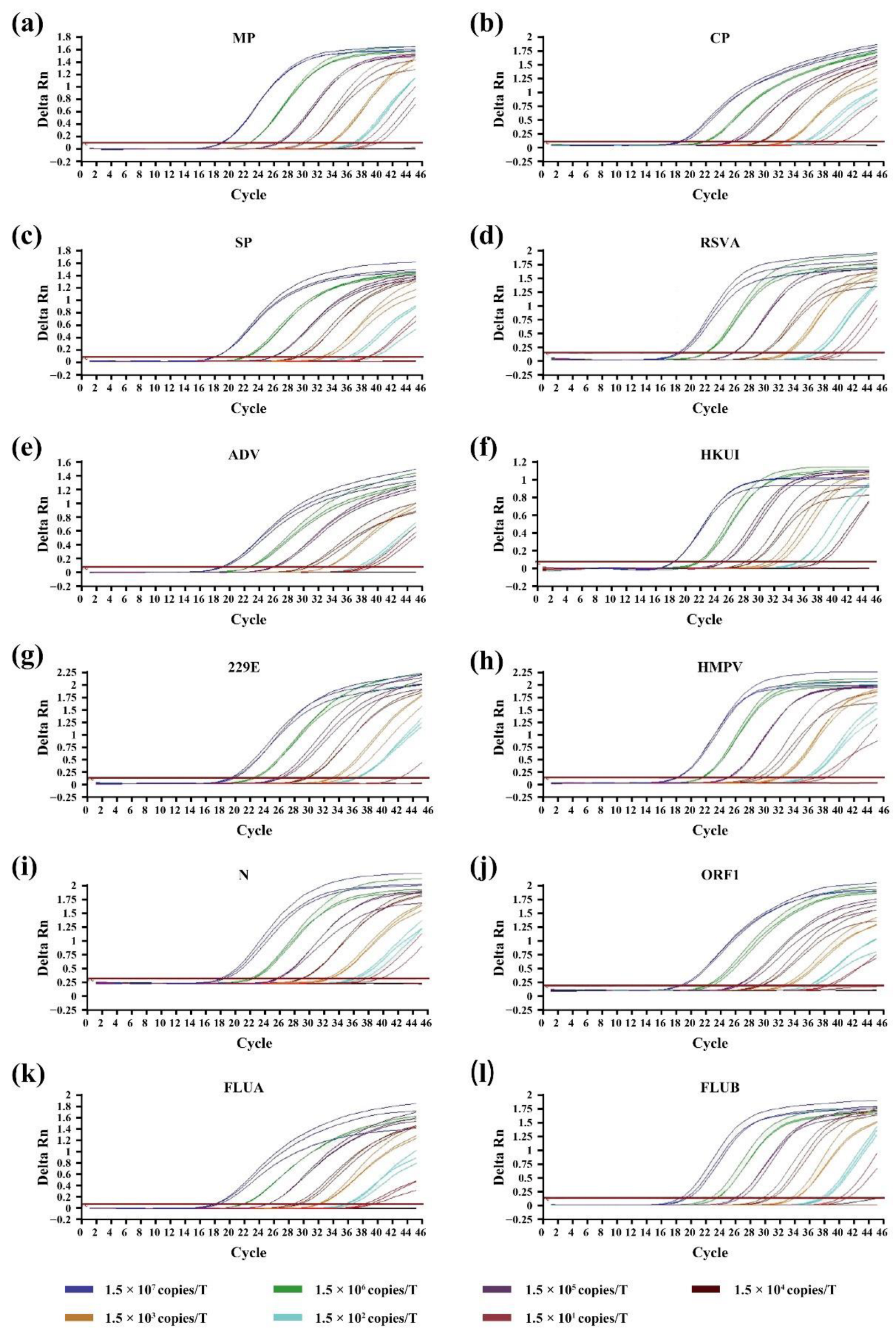

Figure 3.
The sensitivity of the microfluidic RT-qPCR assays off-chip. Amplification curves show the detection of pathogens plasmids of (a) MP, (b) CP, (c) SP, (d) RSVA, (e) ADV, (f) HKU1, (g) 229E, (h) HMPV, (i) N, (j) ORF1, (k) FLUA and (l) FLUB.
Figure 3.
The sensitivity of the microfluidic RT-qPCR assays off-chip. Amplification curves show the detection of pathogens plasmids of (a) MP, (b) CP, (c) SP, (d) RSVA, (e) ADV, (f) HKU1, (g) 229E, (h) HMPV, (i) N, (j) ORF1, (k) FLUA and (l) FLUB.

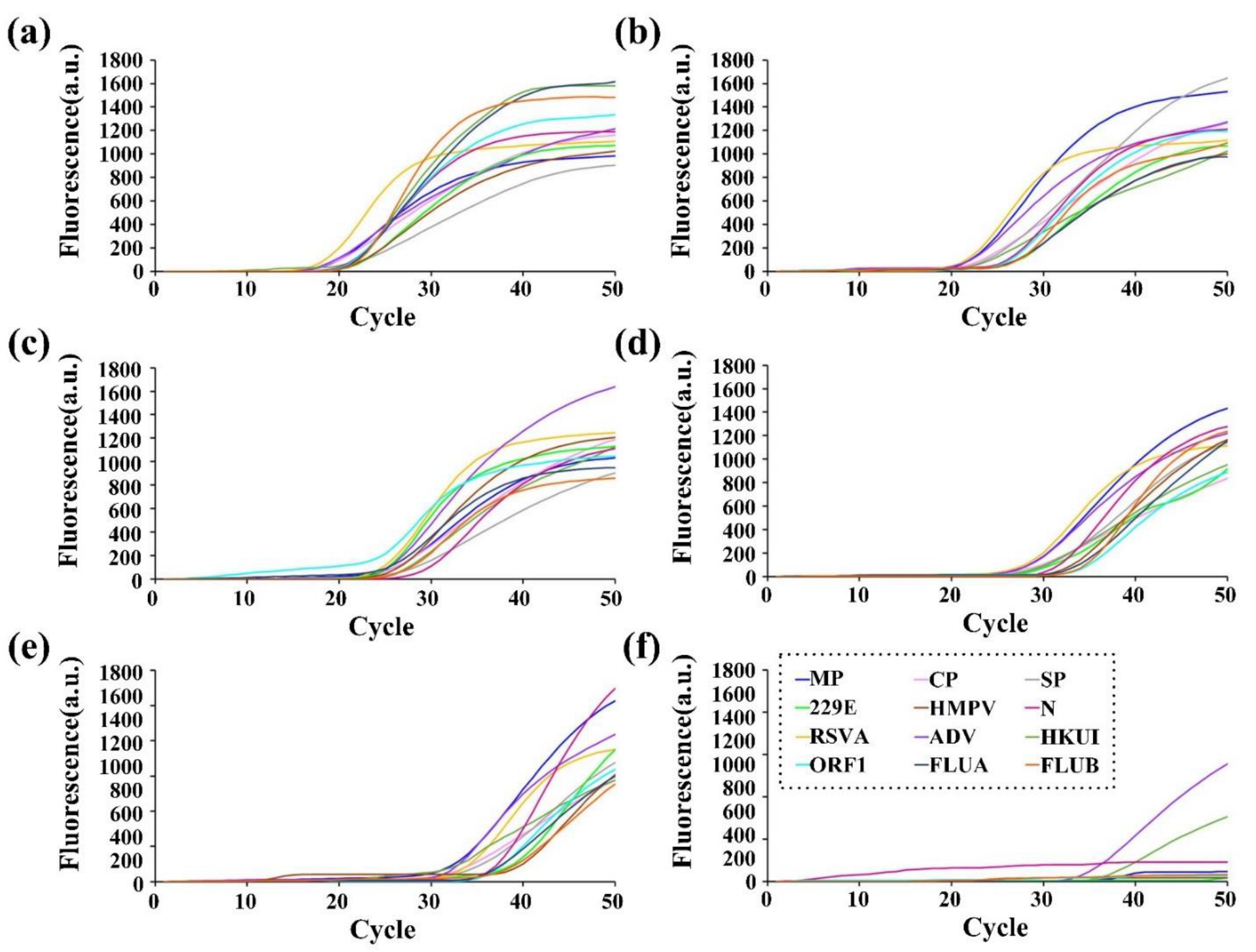

Figure 4.
The sensitivity of the microfluidic RT-qPCR assay on-chip. Amplification curves of MP, CP, SP, RSVA, ADV, HKU1, 229E, HMPV, N, ORF1, FLUA and FLUB are shown in detection of (a) 1.2 × 106 copies/T, (b) 1.2 × 105 copies/T, (c) 1.2 × 104 copies/T, (d) 1.2 × 103 copies/T, (e) 1.2 × 102 copies/T and (f) 1.2 × 101 copies/T.
Figure 4.
The sensitivity of the microfluidic RT-qPCR assay on-chip. Amplification curves of MP, CP, SP, RSVA, ADV, HKU1, 229E, HMPV, N, ORF1, FLUA and FLUB are shown in detection of (a) 1.2 × 106 copies/T, (b) 1.2 × 105 copies/T, (c) 1.2 × 104 copies/T, (d) 1.2 × 103 copies/T, (e) 1.2 × 102 copies/T and (f) 1.2 × 101 copies/T.
Table 1.
RT-qPCR primers and probes used in the study.
| Spot | Target Region | Primer Source | Label | Sequence |
|---|---|---|---|---|
| 1 | Mycoplasma pneumoniae mgpA | designed in Primer Premier 5 | MP-FP | AGAATCTACCCTTTAACAATAACCG |
| MP-RP | CCGCTAAAACGAGTTCCCTA | |||
| MP-P | FAM-TACCACGGATGGCAGTTGCTGG-BHQ1 | |||
| 2 | Chlamydophila pneumoniae 23S ribosomal RNA genes | designed in Primer Premier 5 | CP-FP | TATGACCCGGAGGTATCCG |
| CP-RP | CGGGTGTCGCCTTATATGC | |||
| CP-P | HRF550-TGGGGCAACCCGATAGACTAATAG-BHQ1 | |||
| 3 | Streptococcus pneumoniae autolysin gene | designed in Primer Premier 5 | SP-FP | CGAACTCTTACGCAATCTAGCA |
| SP-RP | TTCGTGCAATACTCGTGCG | |||
| SP-P | HRF550-CCAGCTAAACTCCCTGTATCAAGCG-BHQ1 | |||
| 4 | Human respiratory syncytial virus A fusion protein | designed in Primer Premier 5 | RSVA-FP | AAACAGATGTAAGCAGCTCCGT |
| RSVA-RP | CGATTTTTATTGGATGCTGTACAT | |||
| RSVA-P | FAM-ACATCTCTAGGAGCCATTGTGTCATG-BHQ1 | |||
| 5 | Human adenovirus hexon protein | designed in Primer Premier 5 | ADV-FP | CTCGGAGTACCTGAGTCCGG |
| ADV-RP | CGTGGGATTTCTAAACTCATTTC | |||
| ADV-P | HRF550-CGCCACAGACACCTACTTCAATCTG-BHQ1 | |||
| 6 | Human coronavirus HKU1 open reading frames 1ab | designed in Primer Premier 5 | HKU1-FP | CACATGGTGATAGATTTTATCGC |
| HKU1-RP | ATAATAGCAACCGCCACACAT | |||
| HKU1-P | HRF550-CTTGCGAATGAATGTGCTCAAGTTT-BHQ1 | |||
| 7 | Human coronavirus 229E nucleocapsid protein | designed in Primer Premier 5 | 229E-FP | CAGAAAACGAAAGATTGCTTCA |
| 229E-RP | CAAGCAAAGGGCTATAAAGAGA | |||
| 229E-P | HRF550-ATGGCTACAGTCAAATGGGCTGATGC-BHQ1 | |||
| 8 | Human metapneumovirus fusion protein | designed in Primer Premier 5 | HMPV-FP | CTGTCAGCTTCAGTCARTTCAAC |
| HMPV-RP | CAATGATATTGCYGGTGTTAT | |||
| HMPV-P | FAM-TGTTGTGCGGCAGTTTTCAGACAAT-BHQ1 | |||
| 9 | SARS-CoV-2 nucleocapsid protein | NHC of P.R. China, 2020 | N-FP | GGGGAACTTCTCCTGCTAGAAT |
| N-RP | CAGACATTTTGCTCTCAAGCTG | |||
| N-P | FAM-TTGCTGCTGCTTGACAGATT-TAMRA | |||
| 10 | SARS-CoV-2 open reading frames 1ab | NHC of P.R. China, 2020 | ORF1-FP | CCCTGTGGGTTTTACACTTAA |
| ORF1-RP | ACGATTGTGCATCAGCTGA | |||
| ORF1-P | FAM-CCGTCTGCGGTATGTGGAAAGGTTATGG-BHQ1 | |||
| 11 | Influenza A virus matrix gene 1 & 2 | Chinese National lnfluenza Center, 2017 | FLUA-FP | GACCRATCCTGTCACCTCTGAC |
| FLUA-RP | GGGCATTYTGGACAAAKCGTCTACG | |||
| FLUA-P | FAM-TGCAGTCCTCGCTCACTGGGCACG-BHQ1 | |||
| 12 | Influenza B virus hemagglutinin | Chinese National lnfluenza Center, 2017 | FLUB-FP | AGACCAGAGGGAAACTATGCCC |
| FLUB-RP | TCCGGATGTAACAGGTCTGACTT | |||
| FLUB-P1 | FAM-CAGACCAAAATGCACGGGGAAHATACC-BHQ1 | |||
| FLUB-P2 | FAM-CAGRCCAATGTGTGTGGGGAYCACACC-BHQ1 |
Table 2.
Final concentration of primers and probes used in the study.
| Target | Primer F Final Concentration | Primer R Final Concentration | Primer P Final Concentration | Maximum RFI |
|---|---|---|---|---|
| MP | 0.4 μM | 0.4 μM | 133 nM | 1.6 |
| CP | 0.4 μM | 0.4 μM | 200 nM | 1.6 |
| SP | 0.4 μM | 0.4 μM | 200 nM | 1.5 |
| RSVA | 0.4 μM | 0.4 μM | 240 nM | 1.8 |
| ADV | 0.4 μM | 0.4 μM | 400 nM | 1.5 |
| HKUI | 0.4 μM | 0.4 μM | 200 nM | 1.3 |
| 229E | 0.4 μM | 0.4 μM | 160 nM | 1.8 |
| HMPV | 0.4 μM | 0.4 μM | 100 nM | 1.8 |
| N | 0.4 μM | 0.4 μM | 200 nM | 1.6 |
| ORF1ab | 0.4 μM | 0.4 μM | 260 nM | 1.8 |
| FLUA | 0.4 μM | 0.4 μM | 160 nM | 1.7 |
| FLUB | 0.4 μM | 0.4 μM | 200 nM | 1.5 |
Adjustments of final concentration of primers and probes are shown. The concentrations of forward and reverse primers are 0.4 μM and the concentration of probes is adjusted until the maximum RFI is about 1.3–1.8.
Table 3.
Summary of sensitivity of off-chip RT-qPCR.
| Type of Infection | Dynamic Range | Standard Curve | Rsq | Mean Ct | Detection Limit (Copies/T) |
|---|---|---|---|---|---|
| MP | 1.5 × 101 to 1.5 × 107 | y = −3.4256x + 41.514 | 0.995 | 22.50 | 15 |
| CP | 1.5 × 102 to 1.5 × 107 | y = −3.4841x + 41.053 | 0.998 | 21.75 | 150 |
| SP | 1.5 × 102 to 1.5 × 107 | y = −3.7385x + 42.311 | 0.998 | 22.06 | 150 |
| RSV | 1.5 × 101 to 1.5 × 107 | y = −3.6142x + 41.853 | 0.999 | 21.95 | 15 |
| ADV | 1.5 × 101 to 1.5 × 107 | y = −3.4086x + 41.313 | 0.989 | 22.51 | 15 |
| HKUI | 1.5 × 102 to 1.5 × 107 | y = −3.4600x + 39.304 | 0.999 | 21.99 | 150 |
| 229E | 1.5 × 102 to 1.5 × 107 | y = −3.4672x + 39.896 | 0.998 | 22.36 | 150 |
| HMPV | 1.5 × 102 to 1.5 × 107 | y = −3.4859x + 38.982 | 0.998 | 21.29 | 150 |
| N | 1.5 × 102 to 1.5 × 107 | y = −3.5771x + 41.425 | 0.999 | 22.01 | 150 |
| ORF1ab | 1.5 × 102 to 1.5 × 107 | y = −3.4684x + 41.344 | 0.998 | 22.30 | 150 |
| FLUA | 1.5 × 101 to 1.5 × 107 | y = −3.4674x + 40.598 | 0.999 | 21.59 | 15 |
| FLUB | 1.5 × 102 to 1.5 × 107 | y = −3.7135x + 43.109 | 0.999 | 23.04 | 150 |
Table 4.
Summary of sensitivity of on-chip RT-qPCR.
| Type of Infection | Dynamic Range | Standard Curve | Rsq | Mean Ct | Detection Limit (Copies/T) |
|---|---|---|---|---|---|
| MP | 1.2 × 102 to 1.2 × 106 | y = −3.5667x + 38.085 | 0.986 | 20.76 | 120 |
| CP | 1.2 × 102 to 1.2 × 106 | y = −3.9103x + 40.054 | 0.984 | 21.13 | 120 |
| SP | 1.2 × 102 to 1.2 × 106 | y = −3.5293x + 40.611 | 0.939 | 23.36 | 120 |
| RSV | 1.2 × 102 to 1.2 × 106 | y = −3.7060x + 37.213 | 0.996 | 18.91 | 120 |
| ADV | 1.2 × 101 to 1.2 × 106 | y = −3.6477x + 38.470 | 0.981 | 21.26 | 12 |
| HKUI | 1.2 × 101 to 1.2 × 106 | y = −3.4883x + 38.630 | 0.971 | 21.63 | 12 |
| 229E | 1.2 × 102 to 1.2 × 106 | y = −3.7153x + 41.180 | 0.933 | 22.80 | 120 |
| HMPV | 1.2 × 102 to 1.2 × 106 | y = −4.2580x + 44.229 | 0.977 | 23.32 | 120 |
| N | 1.2 × 102 to 1.2 × 106 | y = −4.3620x + 42.910 | 0.994 | 21.15 | 120 |
| ORF1ab | 1.2 × 102 to 1.2 × 106 | y = −3.9967x + 42.816 | 0.947 | 24.22 | 120 |
| FLUA | 1.2 × 102 to 1.2 × 106 | y = −3.0850x + 40.021 | 0.958 | 25.34 | 120 |
| FLUB | 1.2 × 102 to 1.2 × 106 | y = −3.6880x + 42.363 | 0.982 | 24.69 | 120 |
Table 5.
Summary of testing results of 40 clinical samples by RT-qPCR in both off-chip and on-chip mode.
Table 5.
Summary of testing results of 40 clinical samples by RT-qPCR in both off-chip and on-chip mode.
| RT-qPCR Off-Chip | ||||
|---|---|---|---|---|
| Positive | Negative | Total | ||
| RT-qPCR On-Chip | Positive | 28 | 0 | 28 |
| Negative | 2 | 450 | 452 | |
| Total | 30 | 450 | 480 | |
Table 6.
Symmetric measures of RT-qPCR off-chip and on-chip on 40 clinical samples.
| Value | Asymp. Std. Error 1 | Approx. T 2 | Approx. Siq. | |
|---|---|---|---|---|
| Measure of Agreement Kappa | 0.963 | 0.026 | 21.119 | 0.000 |
| N of Valid Cases | 480 |
1 The null hypothesis is not assumed. 2 The asymptotic standard error is used to assume the null hypothesis.
Table 7.
Comparison of available diagnostic assays for respiratory pathogens.
| Method | Multiple Detection | Within 2 h | High Sensitivity | High Specificity | |
|---|---|---|---|---|---|
| Conventional diagnosis [26,27,28] | Bacterial culture | × | × | √ | √ |
| Immunofluorescence | × | √ | × | × | |
| ELISA | × | √ | × | × | |
| Molecular diagnostics [26,27,28] | DMF with LAMP | × | √ | √ | √ |
| DMF with RT-qPCR | √ | √ | √ | √ | |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Huang, H.; Huang, K.; Sun, Y.; Luo, D.; Wang, M.; Chen, T.; Li, M.; Duan, J.; Huang, L.; Dong, C. A Digital Microfluidic RT-qPCR Platform for Multiple Detections of Respiratory Pathogens. Micromachines 2022, 13, 1650. https://doi.org/10.3390/mi13101650
AMA Style
Huang H, Huang K, Sun Y, Luo D, Wang M, Chen T, Li M, Duan J, Huang L, Dong C. A Digital Microfluidic RT-qPCR Platform for Multiple Detections of Respiratory Pathogens. Micromachines. 2022; 13(10):1650. https://doi.org/10.3390/mi13101650
Chicago/Turabian StyleHuang, Huitao, Kaisong Huang, Yun Sun, Dasheng Luo, Min Wang, Tianlan Chen, Mingzhong Li, Junwei Duan, Liqun Huang, and Cheng Dong. 2022. "A Digital Microfluidic RT-qPCR Platform for Multiple Detections of Respiratory Pathogens" Micromachines 13, no. 10: 1650. https://doi.org/10.3390/mi13101650
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
