A Volume-Tuning Capillary Gripper That Enhances Handling Capabilities and Enables Testing of Micro-Components

Abstract

Capillary forces are shown to be extremely effective for micro-assembly and pick-and-place processes, especially for their ability to self-align the handled objects. However, in today’s machines, micro-objects are submitted to high loads, such as compressions for the electrical testing of the micro-components, or inertial forces coming from the high accelerations of the machines. There, capillary grippers may show some limits. These issues, as well as the difficulty to perform precise visual inspections (due to the tilt of the handled micro-object that can occur after a perturbation, such as the displacement of the gripper), can all be solved by temporarily removing the liquid meniscus. Therefore, we present a novel volume-tuning capillary gripper that provides a solution to these limitations without adding additional significant complexities or changes to the existing pick-and-place machines. A multi-scale prototype was dimensioned and produced by using fast prototyping methods, such as a femtosecond laser-assisted chemical etching process for fused silica. Models bringing a deeper understanding of the subsystems are presented. The proof of concept was extensively tested. Its picking capabilities and enhancements of the handling capabilities during horizontal motions, as well as the repeatability of the tuning of the volume of liquid, are presented.

1. Introduction

Handling objects at and below the millimeter scale is a challenging process. Pick-and-place machines (currently mainly using vacuums as gripping principles to handle and test the micro-components at the end of their manufacturing processes) start showing some limits when the micro-components reach a few hundreds of micrometers. These limits are due to the constraints of the number: in some cases, one high-speed pick-and-place machine can have to process 1 million components a day; 12 parts a second, per machine. The machine must perform visual and electrical inspections, looking for defects. Pick-and-place machines, which put together the micro-components in the final product, are also concerned by this constraint of operating at high rates. Reaching such rates is only possible by means of high accelerations, up to dozens of times the gravitational acceleration. Vacuum grippers operate well at these accelerations.

Among all the other handling principles (acoustic levitation, friction gripping, etc.) [1], capillary grippers (exploiting the surface tension forces of the meniscus of a liquid to handle the micro-objects) are shown to be promising candidates to replace the market-leading vacuum technology. However, they are not yet mature enough in their current forms when considering high dynamics pick-and-place processes. Capillary forces rely on the effect of surface tension to create an elastic liquid bond between two objects (here, the gripper and the component to handle). The capillary force can be described as the sum of two terms: the Laplace force, which depends on the curvature of the liquid joint, and can either be attractive or repulsive; and the tension force, which pulls on the triple line interface, tangentially to the latter. The tension force is always attractive.

The primary idea of exploiting capillary forces to handle micro-objects dates back to the works by Bark et al. [2] and Grutzeck et al. [3]. One objective of the capillary gripper is to take advantage of the self-alignment effect, to obtain a micrometric precision on the placement of the components. The self-alignment effect relies on the capillary forces that are opposed to the deformations of the meniscus. The result is that, in the right wetting conditions, the equilibrium position (aligned and centered with the gripper) will be retrieved after a displacement of the component [4]. No need to use precise positioning actuators anymore. To achieve this, lubrication by the liquid meniscus is necessary. However, this lubrication layer is counterproductive when it comes to fighting high inertial forces: dry friction would help to avoid the loss of the micro-object. Cherville et al. [5] proposed. a solution to enhance the handling capabilities by exploiting a vertical wall to generate a reaction force opposing the inertial force.

The work by Zhang et al. [6] let us imagine that the permanent friction and the reaction forces that their capillary gripper can deploy could be an asset concerning the handling capabilities.

Even though these grippers have not been designed with this transport issue in mind (most of the time, they are aimed at changing the intensities of the capillary forces for the release of the components), the literature provides us with leads and objects of reflection to create a gripper optimized for the lateral transport phase. The tuning of the capillary forces can be obtained by monitoring the wettability. For instance, capillary forces can be tuned thanks to the electro-wetting effect [7,8,9]. A gripper made of a rough elastic membrane able to modify its wettability by stretching was proposed by Fantoni et al. [10]. Based on Israelachvili’s model [11], Biganzoli et al. [12] and Pagano et al. [13] investigated the changes in conformity of their grippers thanks to inflatable membranes, distorting their grippers from flat to hemispherical. Such mechanisms allow decreasing the gripping forces and, therefore, releasing the picked objects. Iazzolino et al. [14] have shown that the tuning of the capillary forces can be obtained by tuning the volume of the liquid meniscus. In this case, the objective is the release by evaporation, based on a change in the contact conformity that decreases the capillary forces. Lambert et al. [15], in whose work the conical cavity of the gripper was used to generate larger capillary forces, also exploited the conformity concept and enhanced the gripping capabilities. In addition to being a limitation during transportation, the presence of a liquid layer is also an issue in two other situations:

• In pick-and-place processes, components must be visually inspected for any structural defects. For this operation, the horizontality default of the component under the gripper must typically be below $5^{\circ }$, or the component’s shape will be too distorted (due to the perspective) and discarded by the machine. This is of course no problem with the vacuum grippers, where the dry and flat contact ensures the horizontal positioning. However, for liquid menisci, as the wedge configuration is found to be stable [16], the horizontal configuration may not be obtained after a perturbation such as a high acceleration. Depending on the volume of the liquid meniscus, it may yield wedge angles above $5^{\circ }$.
• Some components must also be electrically tested by compressing on micro-connecting terminals, after having been aligned correctly. The typical pressure to be applied by the gripper on the component is 2 N·mm${}^{-2}$. For a regular passive capillary gripper, the lubrication layer would be squished, and the liquid would overflow, disrupting the rest of the process.

A solution is to design a system that can produce the liquid meniscus (to produce the self-alignment effect) and remove it when required (for transportation, tests, inspections, etc.). Many authors have explored volume-tuning solutions for the generation of droplets on their grippers. However, they have not considered the possibilities it offers in terms of the handling capabilities, or testing of the micro-components.

A widely used solution involves relying on pressure or volume controllers [2,3,15,17], or on a Peltier element that can be used to control the volume of liquid by condensation and evaporation [18].

However, these solutions present a drawback: they depend on the responsiveness of their actuators to create and remove the liquid menisci, which can limit the production rate of the machines. Moreover, removing vacuum gripper heads from the system to add new liquid volume controllers may sound counterproductive in terms of cost and complexity.

This work was driven by the need to solve the previously mentioned issues, (handling capabilities, visual inspection, and electrical testing) by proposing a novel passive handling solution. By this, we mean a system where no additional actuator would be required besides existing positioning ones. This capillary gripper was designed to exploit the structural elasticity of flexible sub-systems to control the available amount of liquid. One advantage of using such flexible sub-systems, which will be presented later, is that all hysteresis sources are removed from the design, allowing its open-loop actuation, and increasing its precision.

The passive capillary gripper that will be presented here can be filled with liquid in one simple operation and can pick components by dispensing a controlled amount of this liquid.

With this design, the amount of liquid remains zero while the gripper moves to enhance the handling during the transport phase. Once in the lower position, the volume of the liquid can be tuned by using the vertical actuator. As will be shown later, this alone allows the capillary gripper to correctly perform visual and electrical tests.

2. Sequential Actuation

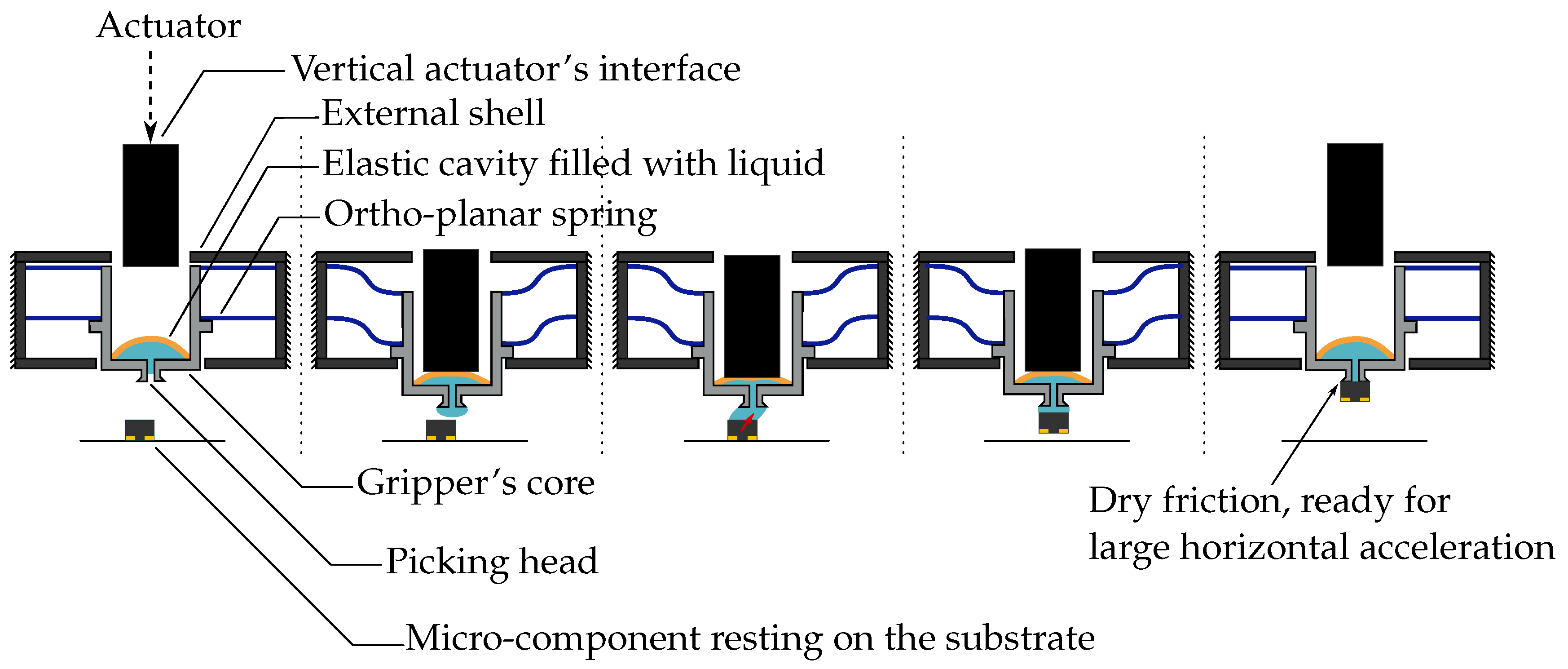

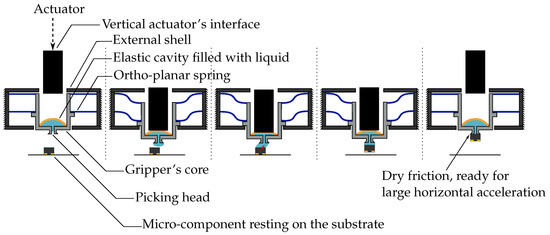

As presented in Figure 1, the capillary gripper consists of one external shell relative to which a vertical actuator’s interface can move. The height of the shell represents the working height of the capillary gripper. The actuator’s interface is a secondary guiding system that allows making this passive capillary gripper compatible with the existing positioning systems. It is made based on the concept of double parallelogram beams as studied by Patil et al. [19]. A view of the vertical actuator will be shown in Section 4.

The machine’s vertical actuator meets this interface to move the gripper’s core. There, the actuator’s interface meets a stiff cavity and exerts pressure on it. In a competition of stiffnesses $k_{\mathrm{c}}$ and $k_{\mathrm{OPS}}$, respectively, the cavity and ortho-planar spring stiffnesses, we aimed to have minimal compression of the cavity during the vertical motion, i.e., most of the stress must be transmitted to the two parallel ortho-planar springs.

To ensure a total stroke $\Delta$, a force F must be applied to the vertical actuator’s interface, so that F yields a compression of the cavity $\delta =\left|\right|(l_0-u+\Delta )-l_0\left|\right|=u-\Delta$, where u is the general compression height of the system and $\Delta$ is the elongation of the ortho-planar springs (see Figure 2a). The force F to be applied to the system writes:

$$F=k_{\mathrm{c}}(u-\Delta )=2k_{\mathrm{OPS}}\Delta ,$$

(1)

and the resulting compression height u writes:

$$u=\Delta {\displaystyle \frac{2k_{\mathrm{OPS}}+k_{\mathrm{c}}}{k_{\mathrm{c}}}},\mathrm{and}{u}^{*}={\Delta }_{\max }{\displaystyle \frac{2k_{\mathrm{OPS}}+k_{\mathrm{c}}}{k_{\mathrm{c}}}},$$

(2)

when the lower stops are reached, i.e., the gap is zero (typically, ${\Delta }_{\max }=0.85$ mm, it is enough to work at a reasonable distance from the potential obstacles).

As we want $\Delta \gg \delta$, as long as the lower stops are not met, the vertical stiffness of the cavity $k_{\mathrm{c}}$ must be large, relative to the stiffness of ortho-planar springs $k_{\mathrm{OPS}}$.

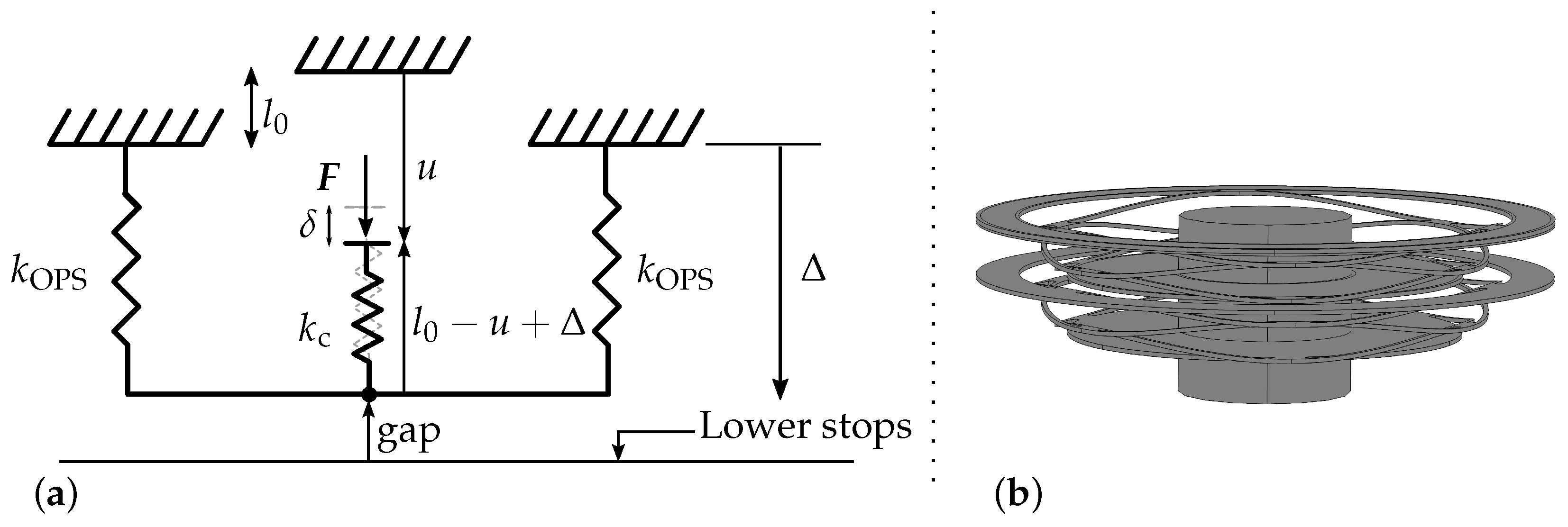

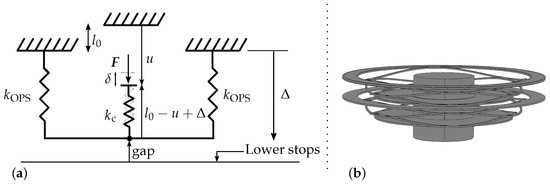

This internal degree of freedom, represented in Figure 2b, will guide the gripper’s core to its low position, where it will meet the lower part of the external shell that will block the motion. As the shell and the stops are considered rigid in comparison with the cavity, the pressure applied by the actuator will deform the membrane and dispense the liquid.

Similarly, the upper part of the shell is used to stop the ascending motion of the ortho-planar springs, in order to perform the electrical compressive tests. Therefore, the shell is designed to hold the loads of the vertical actuator and the micro-connection terminals.

3. Design Overview and Assembly Process

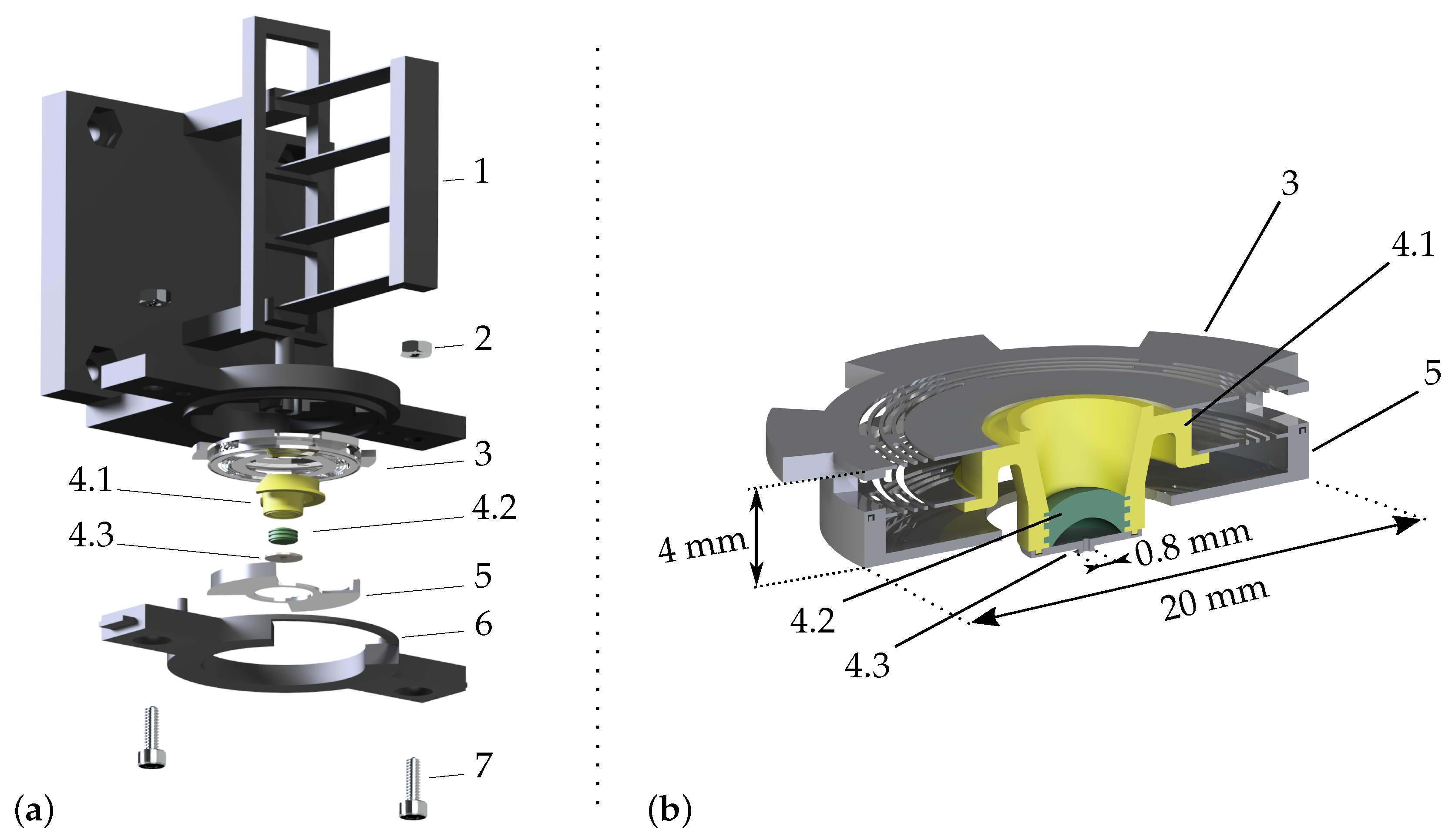

As this design is a multi-scale design, the manufacturing of the prototype was performed in several steps (with different techniques) and assembled. Figure 3a shows the manufactured parts with the order of assembly.

A closer view of part numbers 3, 4.1, 4.2, 4.3, and 5 is shown in Figure 3b.

The parts were assembled with the gripper upside down so that the parts could lay on each other during the assembly. Interface 1 is composed of compensated parallel beams as discussed in Section 2. The upper stops used to block the ascending motion of the gripper during the compressive electrical test (see Section 6.4) are part of the interface. Note that the choice of design made for the vertical actuator’s interface ensures a quasi-purely vertical application of the load on the membrane. This guiding system indeed presents a minimal parasitic deflection in the orthogonal directions, which therefore minimizes the radial stress transmitted to the ortho-planar springs. The parallel ortho-planar springs 3 were placed on 1. The gripper’s core 4 was mounted in the center of 3. These parts were assembled using UV glue.

The gripper’s core is made of a body 4.1, in which membrane 4.2 was molded thanks to its two negative molds (not represented). Grooves in the body keep the membrane in place and ensure the water tightness of the cavity.

The cavity was then closed by the micro-metric picking head 4.3 using UV glue.

The lower stops 5, on which the gripper’s core is compressed to generate the droplet of liquid, was assembled with 4 and glued. The system was sealed by screwing the lower casing 6 on the interface with the screws 7 and bolts 2.

4. Manufacturing Techniques

Considering the different requirements for each part, different manufacturing choices were made. They are presented in

Table 1. Overview of the manufactured parts and their respective manufacturing techniques. The choice was based on the footprint of the parts (i.e., their overall size), the accuracy needed for certain features, and certain mechanical specificities, such as superior elastic properties.

Part Number	Footprint	Required Accuracy	Required Specificities	Manufacturing Technique
1	${10}^{-2}$ m	${10}^{-4}$ m	Printing of long and thin layers in suspension	Multi-material fused deposition modeling (FDM, tough PLA & PVA)
2	–	–	–	–
3	${10}^{-2}$ m	${10}^{-6}$ m	Excellent elastic properties, complex structure	Femtosecond laser-assisted chemical etching of fused silica
4.1	${10}^{-2}$ m	${10}^{-5}$ m	Compatibility with the molding process	Stereolithography (SLA) and coating protecting against curing-inhibition of silicone
4.2	${10}^{-2}$ m	${10}^{-5}$ m	Low Young’s modulus	Micro-molding of silicone from SLA molds
4.3	${10}^{-3}$ m	${10}^{-6}$ m	High Young’s modulus	Femtosecond laser-assisted chemical etching process of fused silica
5	${10}^{-2}$ m	${10}^{-5}$ m	High Young’s modulus	Femtosecond laser-assisted chemical etching process of fused silica
6	${10}^{-2}$ m	${10}^{-4}$ m	–	FDM (Tough PLA)
7	–	–	–	–

along with the requirements that led to these choices.

4.1. Manufacturing of the Fused Silica Parts

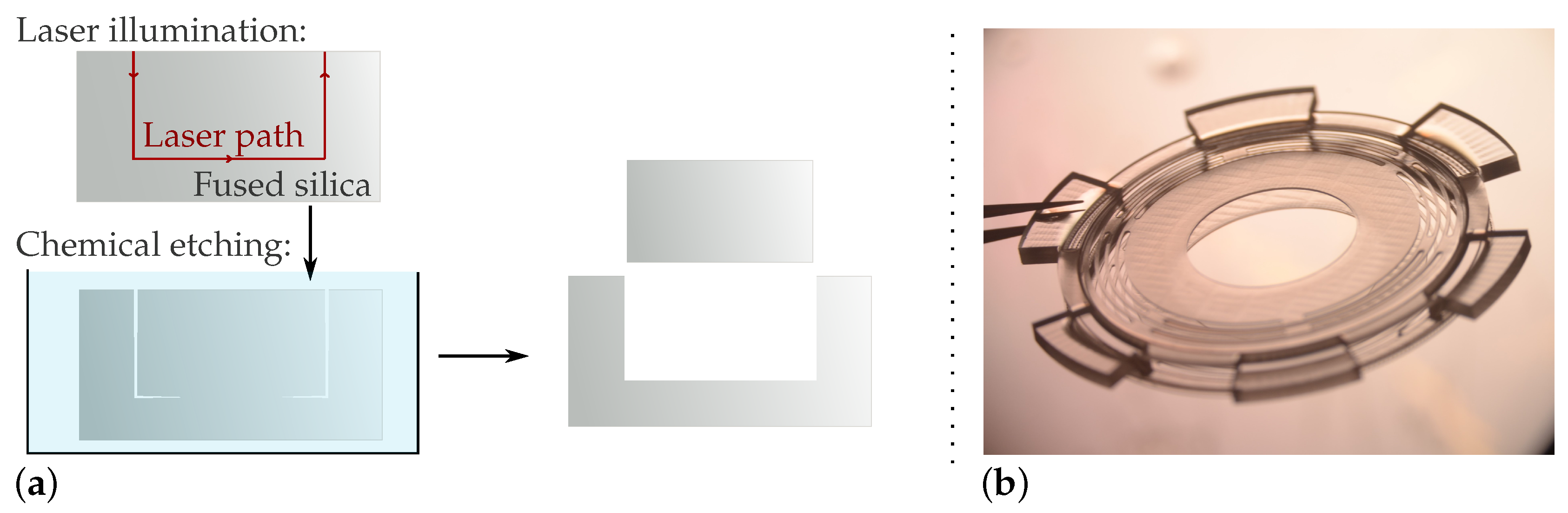

Manufacturing of the fused silica parts 3, 4.3, and 5 was performed by means of a femtosecond laser-assisted chemical etching process. The laser was used to locally illuminate the glass. This operation alters the material, which becomes more easily etchable in acids or bases (typically highly concentrated hydrofluoric acid or potassium hydroxide solutions). By illuminating complete areas, blocks of fused silica can be detached in order to produce the desired part. Figure 4a illustrates the laser illumination and etching processes.

This process allows precision at the micrometer scale and the rapid manufacturing of complex monolithic parts. Fused silica is an excellent material for thin flexible structures. It is a perfectly elastic material that does not yield. With its Young’s modulus of 72 GPa, the material is as rigid as aluminum. Its fragile behavior involves that the characterization of the structure must be rigorously performed and that strong safety coefficients must be taken. Figure 4b shows the final prototype of the monolithic parallel ortho-planar springs after etching (outer radius: 10 mm, thickness of the two springs: 0.144 mm).

The shape of the final prototype, presented in Figure 4b, was optimized to ensure a uniform chemical etching and the correct clamping of the springs’ outer radii. A cut view is shown in Figure 3b. After manufacturing, careful observations with a confocal microscope were performed in order to measure the thickness of the springs and the size of their features. These measurements were input in the numerical and analytical models presented in Appendix A.1, and used for the characterization of the system presented in Section 6.

4.2. Micro-Molding of Silicone Rubber in SLA Molds

The body 4.1 along with the two molds required to create the membrane were printed with a stereolithography machine. However, most UV-sensitive liquid resins contain compounds that will inhibit the curing of silicone rubbers. As the curing inhibition effect is limited when the resin is fully polymerized, the walls were made thin enough to minimize the volume of resin to post-cure. A close view of the part is available in Figure 3b. Furthermore, a transparent resin was used, and the parts were designed to allow the UV light to reach most of the surfaces by considering conical shapes instead of cylindrical ones. The printed parts were properly rinsed out with isopropyl alcohol and water before being dried and overexposed to UV light (exposure time: 30 min). The parts were then coated by misting several isolating layers of transparent mat finish acrylic varnish on all the surfaces. The two molds only were sprayed with a release agent.

A tin cure silicone rubber with a Shore-A 40 hardness was used to create the deformable cavity, as tin cure rubbers are less sensitive to curing inhibition agents than the platinum cure ones. The two compounds (the rubber base and curing agent) were mixed by weight (1:10 ratio). After a droplet of silicone was pipetted in the mold, the latter was left open and degassed. The mold was then closed and left to cure for a minimum of 16 h.

To avoid air trapping while closing the mold, the droplet of resin was deposited in the body, on the concave part of the mold before degassing, and the mold was then closed with the convex part. Cavities (with thicknesses of 0.5, 1, and 2 mm) were manufactured this way, with no curing issues.

5. Materials and Methods for the Characterization of the Capillary Gripper

The gripper’s characterization and validation of the proof of concept were performed on a test bench that includes a module for the filling of the cavity, in which a droplet of pure water was deposited with a micro-pipette to control the volume. Two cavity-filling procedures were considered (the module could be tuned in height for one of them). The procedures are explained in detail in Section 6.1.

At each cycle, a component resting on a transparent substrate was picked by the gripper. The latter was guided over the test bench by a linear stage. It was actuated vertically by a second linear stage, applying pressure on the actuator’s interface. Below the transparent substrate, a 45${}^{\circ }$ mirror, in conjunction with a side view camera, allowed complete observation of the picking and self-alignment motions.

A compression module (presented in Appendix B) allowed the application of a known load on the component handled by the gripper. In this way, a pressure of 2 N·m${}^{-2}$ could be applied to the component.

As it is reasonable to consider that the release will be operated by a feature of the pick-and-place machine (shearing in a carrier tape, soldering on an electronic card, release on a vacuum nest, or an adhesive wafer), this point was not studied further: the release was performed here on an adhesive substrate for illustrative purposes. Except for the shearing in the carrier tape, one should note that these release strategies preserve the alignment provided by the surface energy minimization of the liquid meniscus.

Note that a residual amount of liquid is transferred to the component when the liquid bridge breaks.

6. Results and Discussion

6.1. Characterization of the Silicone Cavity

6.1.1. Stiffness of the Cavity

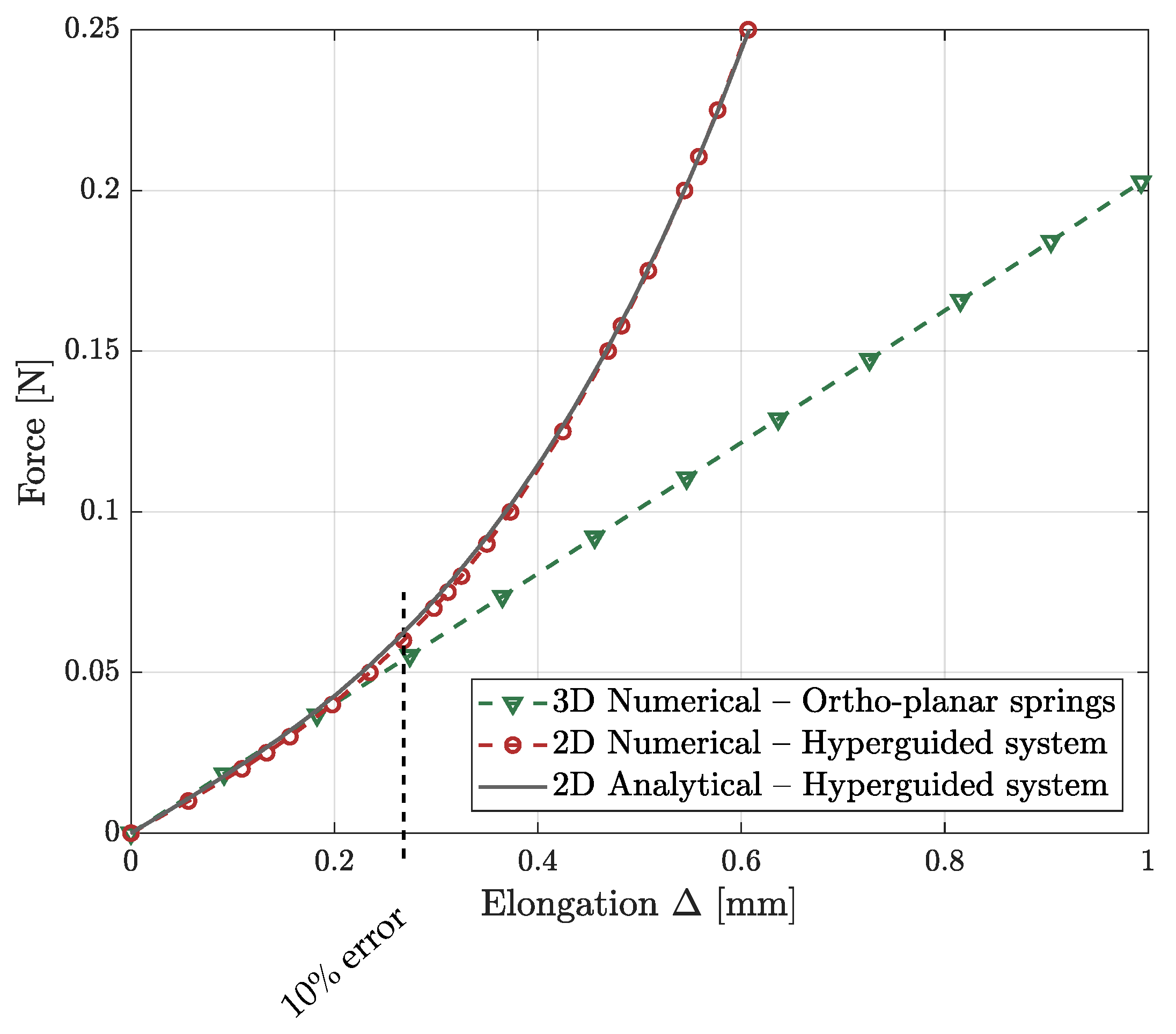

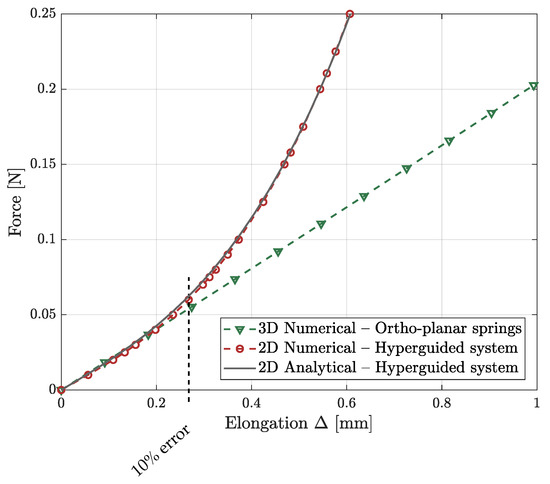

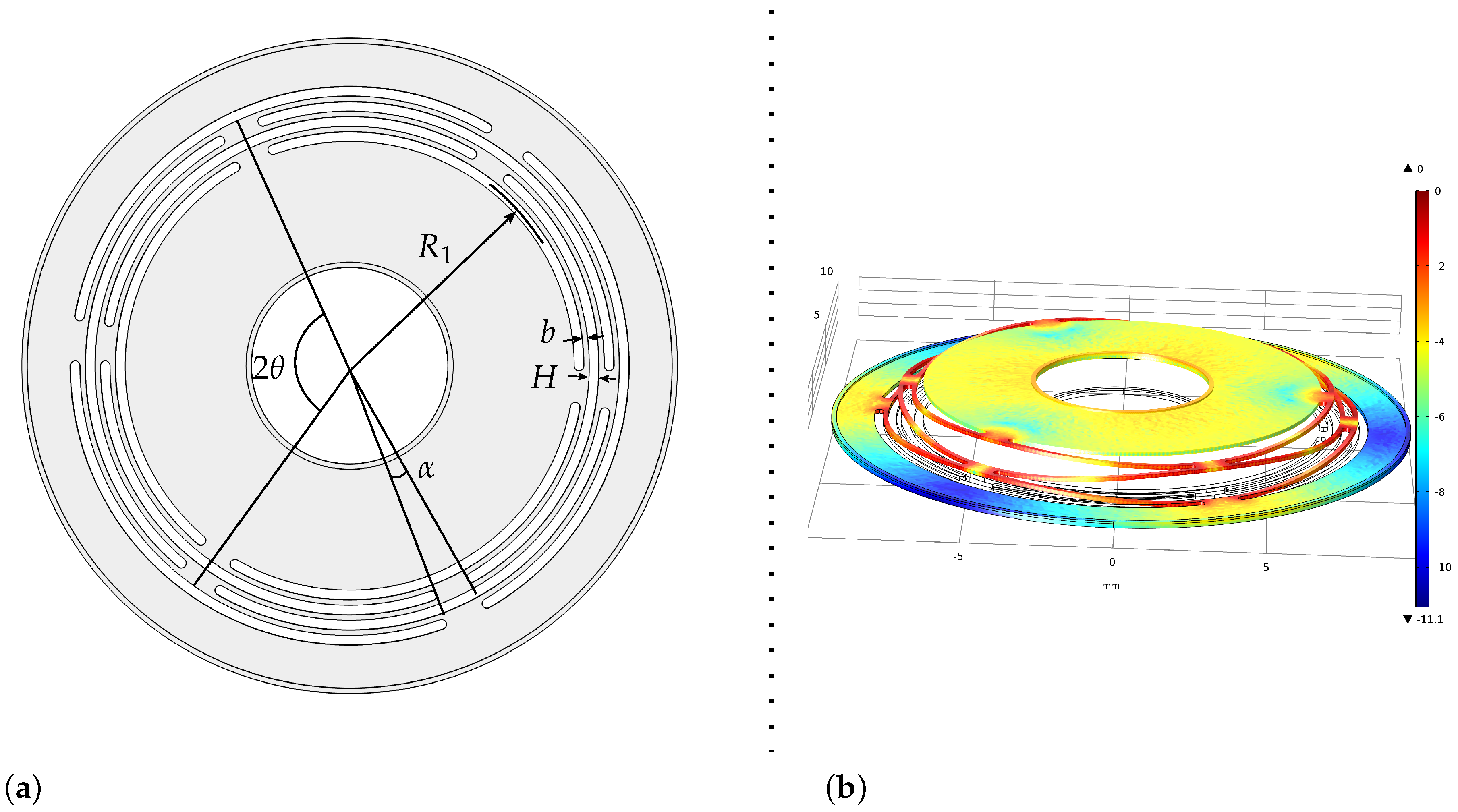

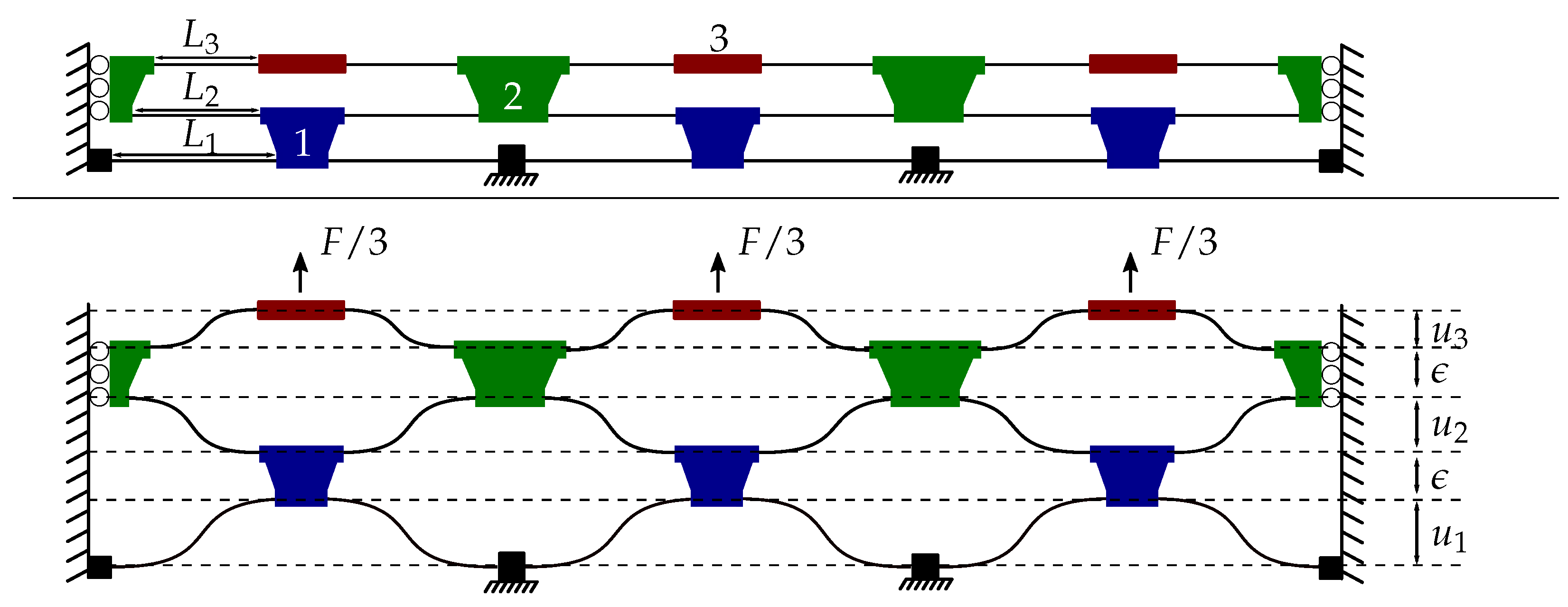

The ortho-planar springs, which are mounted in series with the elastic cavity according to Figure 2, have known stiffnesses. The latter is obtained by modeling this subsystem. Two models are presented in Appendix A.1. One uses a finite element method and includes 3D geometrical non-linearities, while the second is a 2D simplification for which an analytical expression is proposed for small elongations. The stiffness of the cavity can therefore be experimentally determined by varying the compression height u and measuring the axial elongation of the ortho-planar springs $\Delta$. For a given compression height $u_i$, the duty point of the system is given by the intersection of $u=u_i-\Delta$ and $F=-2k_{\mathrm{OPS}}u+2k_{\mathrm{OPS}}{u}_i$. The intersection of the dashed lines in Figure 5a shows the duty point for $u_i=1.04$ mm, yielding an elongation of the ortho-planar springs $\Delta =0.83$ mm. u is incrementally changed, 40 μm at a time, and $\Delta$ is tracked thanks to an algorithm based on Shi et al.’s tracking algorithm [20]. The experiment was reproduced three times; the averages and the standard deviations for each value of u are displayed in Figure 5a.

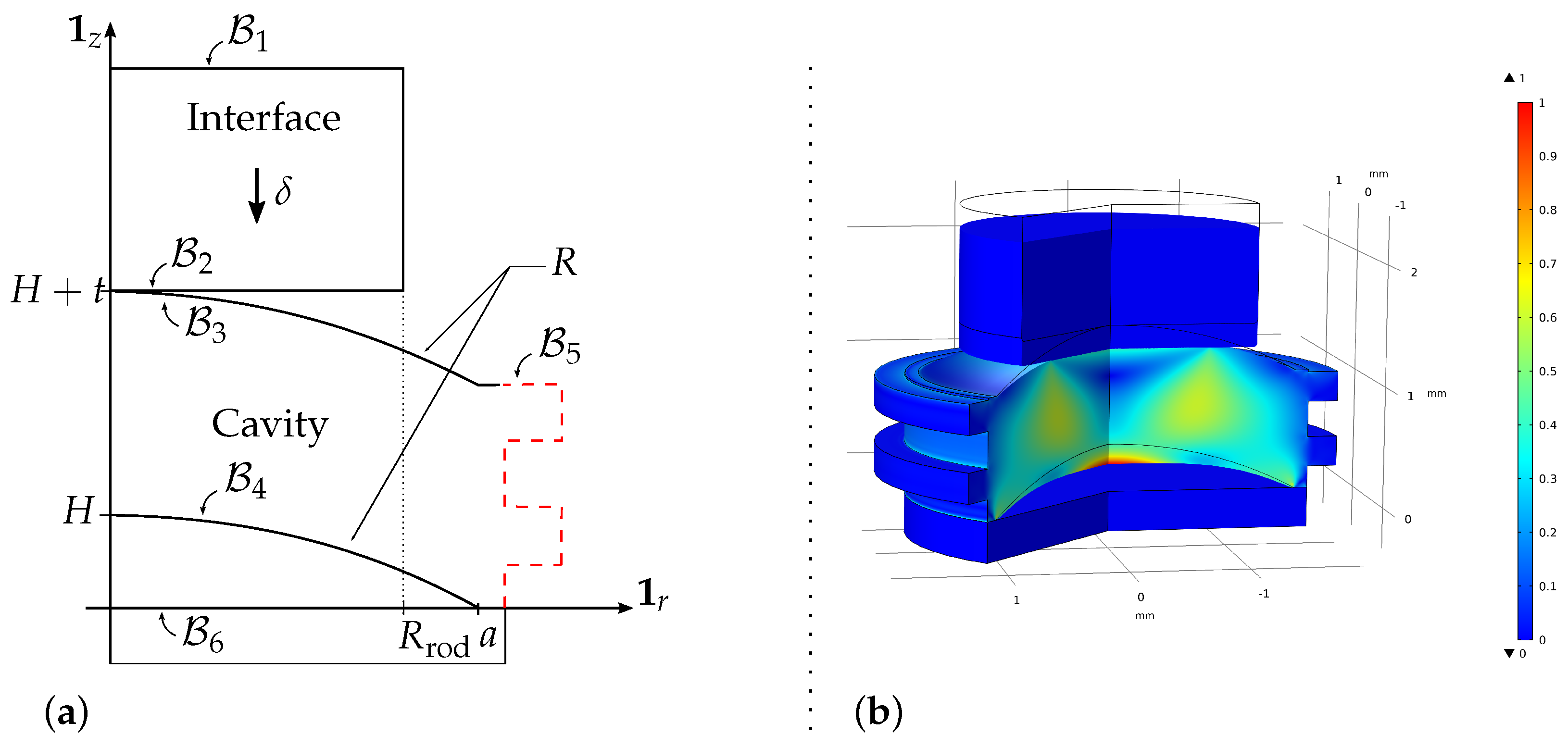

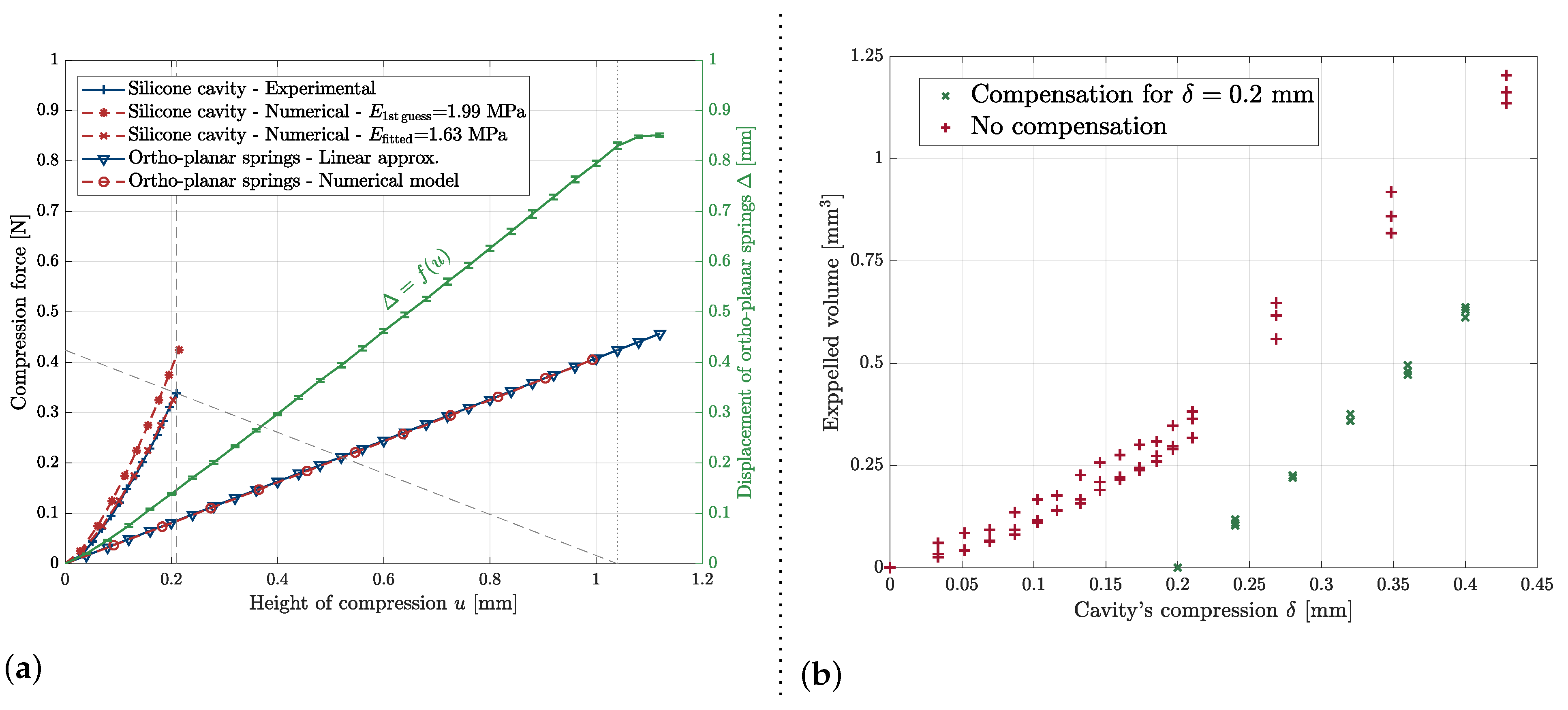

The experimentally-obtained force–compression characterization for the cavity is compared with the solution of a 2D axisymmetric finite element model presented in Appendix A.2. Our first guess for the Young’s modulus of the silicone (1.99 MPa) is thus assessed. A more satisfying fit was obtained for $E_{\mathrm{fitted}}=1.63$ MPa, which gives a relative error of 18% relative to our first estimation from an empirical model.

6.1.2. Tuning of the Liquid Volume by Controlling the Vertical Positioning Actuator

The silicone cavity is filled by compressing it between the actuator’s interface and the lower stops. However, as developed in Section 2, the silicone cavity undergoes a parasitic compression as the gripper’s core is moved towards the component. As this effect might require avoidance, in this section, we propose a strategy to avoid the generation of a parasitic droplet during the vertical motion of the capillary gripper.

With a cavity full of liquid, a compression would result in the generation of a droplet during the motion of the gripper’s core towards the component. Although this parasitic dispensed volume does not prevent the proper use of the gripper, it might be unintended in some cases.

To compensate for the parasitic compression, the possibility of allowing a certain volume free of liquid was studied. In this case, the cavity was compressed, touched the mother droplet on the substrate, and was then decompressed until a certain point to suck in the liquid. Then, the liquid bridge between the mother droplet and the gripper was broken by moving the mother droplet down, and the cavity was fully decompressed. By doing so, the gripper sucked in a volume of air. The latter was released first at the next compression, and no parasitic droplet was observed. In practice, Figure 5a shows that compensation for a parasitic compression of $\delta$ = 0.2 mm should prevent parasitic droplets.

The liquid generation was experimentally studied by following this sequence. The experimental generation of droplets is shown in Figure 5b. The experiment was repeated three times by increasing the height of compression u with a pitch of 40 μm, and the repeatability was satisfactory. No parasitic volume was observed before the lower stops were reached.

To characterize the volumes accessible over the full range of compressions $\delta$, the experiment was also conducted without compensating for the parasitic volume (see Figure 5b—“No compensation”). The experiment was repeated three times.

In conclusion, the gripper can be filled, and a controlled and precise volume of liquid can be generated by applying the right over-pressure with the actuator once the lower position of the gripper is reached. When the gripped is refilled during the process, the same volume can be obtained by applying the same pressures, which makes the liquid generation predictable and repeatable. Although we believe the parasitic liquid generation described earlier is not an issue for the process, it can be compensated by only partially filling the cavity.

6.2. Picking and Self-Alignment of the Components

To show the gripping capabilities of the gripper, square components of varying sizes and masses were considered. The meshing of the experimental space was obtained by varying the thickness of the components for a given surface. These components were made by laser assisted chemical etching of fused silica, and 24 different components were manufactured.

Before each trial, the gripper was positioned above the component with a miss-alignment representing 30% of the component’s size. The working distance was 2 mm. Note that the latter is defined as the distance between the top of the component and the gripper head at rest, i.e., when no pressure is applied by the vertical actuator.

The test is composed of assessing whether the component can be picked with the considered working distance and whether it is self-aligned.

Note that the working distance strongly influences the gripper’s capabilities to pick components: the smaller the working distance, the higher the picking forces. However, the choice of the 2 mm gap was based on the fact that the gripper should keep a safe distance from the ground and the potential obstacles when it is horizontally moved.

One should also note that the picking head is square. This allows controlling the alignment of the rectangular component modulo ${90}^{\circ }$ through the surface energy minimization of the liquid meniscus, allowing two equilibrium configurations.

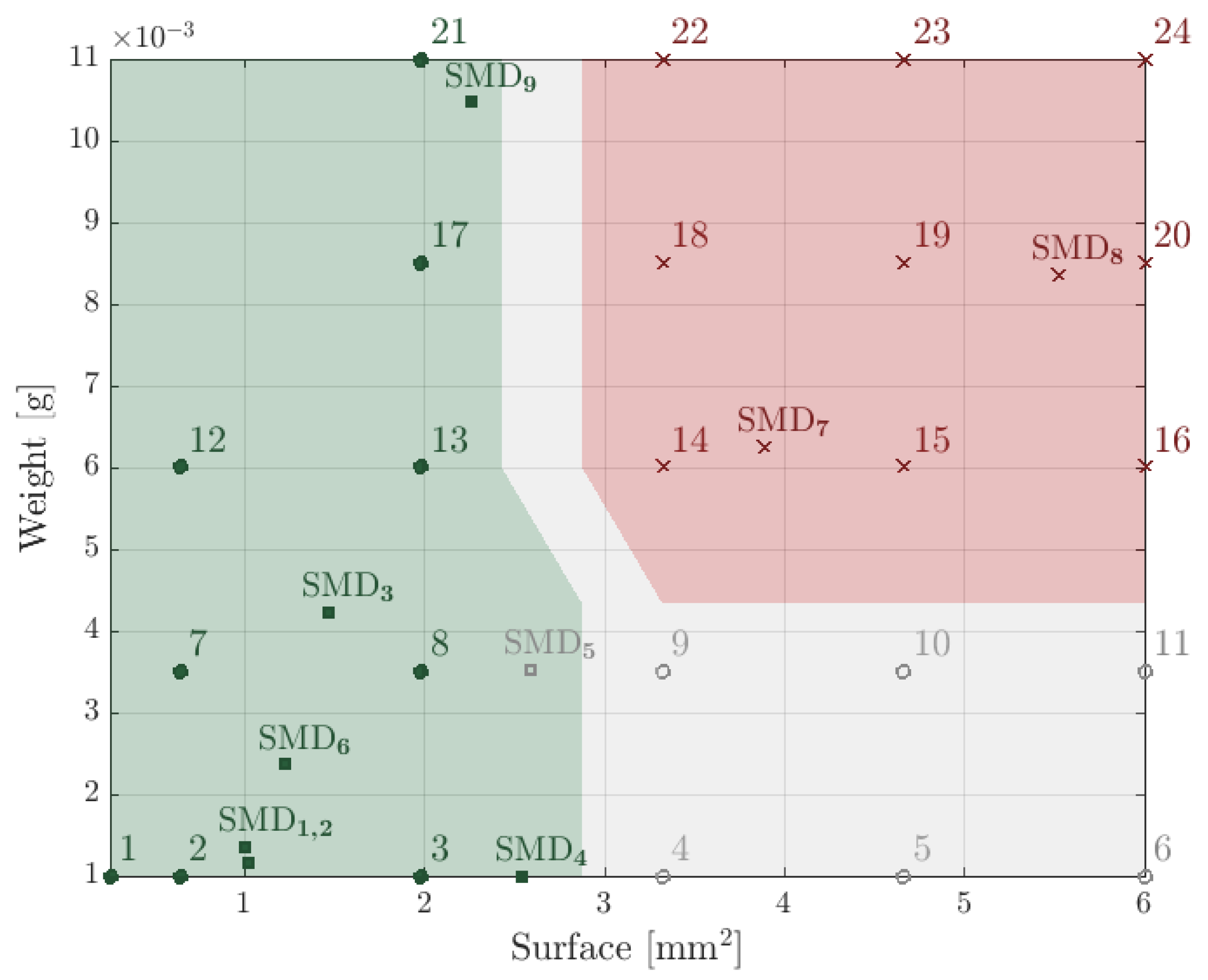

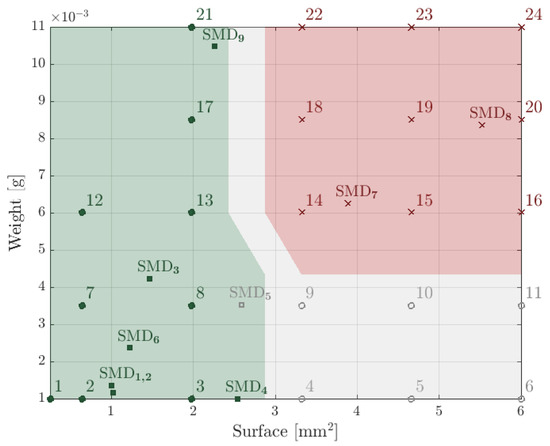

Figure 6 shows the results of the picking tests. The meshing of the experimental space is materialized by the glass components ranging from 1 to 24, the surfaces and masses of which can be read on the axes. The green area represents the dimensions for which the picking and self-alignment were successful for the glass components; the gray area codes for the dimensions for which only the picking occurred, and finally, the components in the red area were not self-aligned nor picked. The components at the border between the areas were tested three times each to assess the repeatability. For each one of the tested components, the conclusions were the same for each trial.

A clear boundary is visible, and the results are consistent with the physics they arise from. The smallest and lightest components were picked. Increasing the surface at a constant weight will result in partial wetting on the surface and, thus, in no self-alignment. Larger weights will overcome the capillary forces, resulting in no picking, although this was not observed for the smallest areas, where increasing the weight did not result in a picking failure. However, further tests in an expanded experimental space (with heavier components) might yield these expected results for the smallest components.

In addition, surface-mounted devices were tested and superimposed to the results of the fused silica components. In the case of SMD${}_5$, on the boundary between the green and gray areas, wetting defects yielded self-alignment failure. SMD${}_5$ is indeed an overmolded component with a surface made of epoxy. While the edges of SMD${}_4$ (made of external metallic electrodes) were sufficiently wetted to cause its alignment, the edges of SMD${}_5$ were not reached by the liquid during the picking, causing an alignment failure (a criterion for the success of the self-alignment is presented in the work of Mastrangeli et al. (2017) [4]).

To better evaluate these results, one should finally note that we present the picking and self-alignment capabilities for one size of the gripper head. Given its area ($0.8\times 0.8$ mm${}^2$), the gripper is better suited for components of approximately the same size. Therefore, it shows limits for much larger and much smaller components. However, the design of the gripper head can easily be adapted to operate with components of other sizes.

6.3. Components Transportation

This section presents qualitative results highlighting the enhanced handling capabilities of the passive capillary gripper. There, the gripper was used in two configurations. In the first (and intended) configuration, the component is picked, and the actuator relieves the pressure it applies to the system. The liquid is therefore sucked into the cavity, and the capillary forces at contact (in addition to the suction exerted by the silicone cavity in the case of a potential lack of liquid) create a friction force that acts against the inertial force induced by the horizontal motion of the gripper.

In the second configuration, constant pressure is kept on the membrane during the horizontal motion, resulting in a thin layer of liquid between the gripper and the component. This layer was made as thin as possible to have the highest lateral restoring forces, without friction between the component and the gripper head. This configuration aimed at mimicking a simple passive capillary gripper with no cavity, where the liquid meniscus would therefore need to be present during the whole process to ensure the self-alignment effect. Note that, in this case, no friction could occur and only the capillary forces acted against the inertial force.

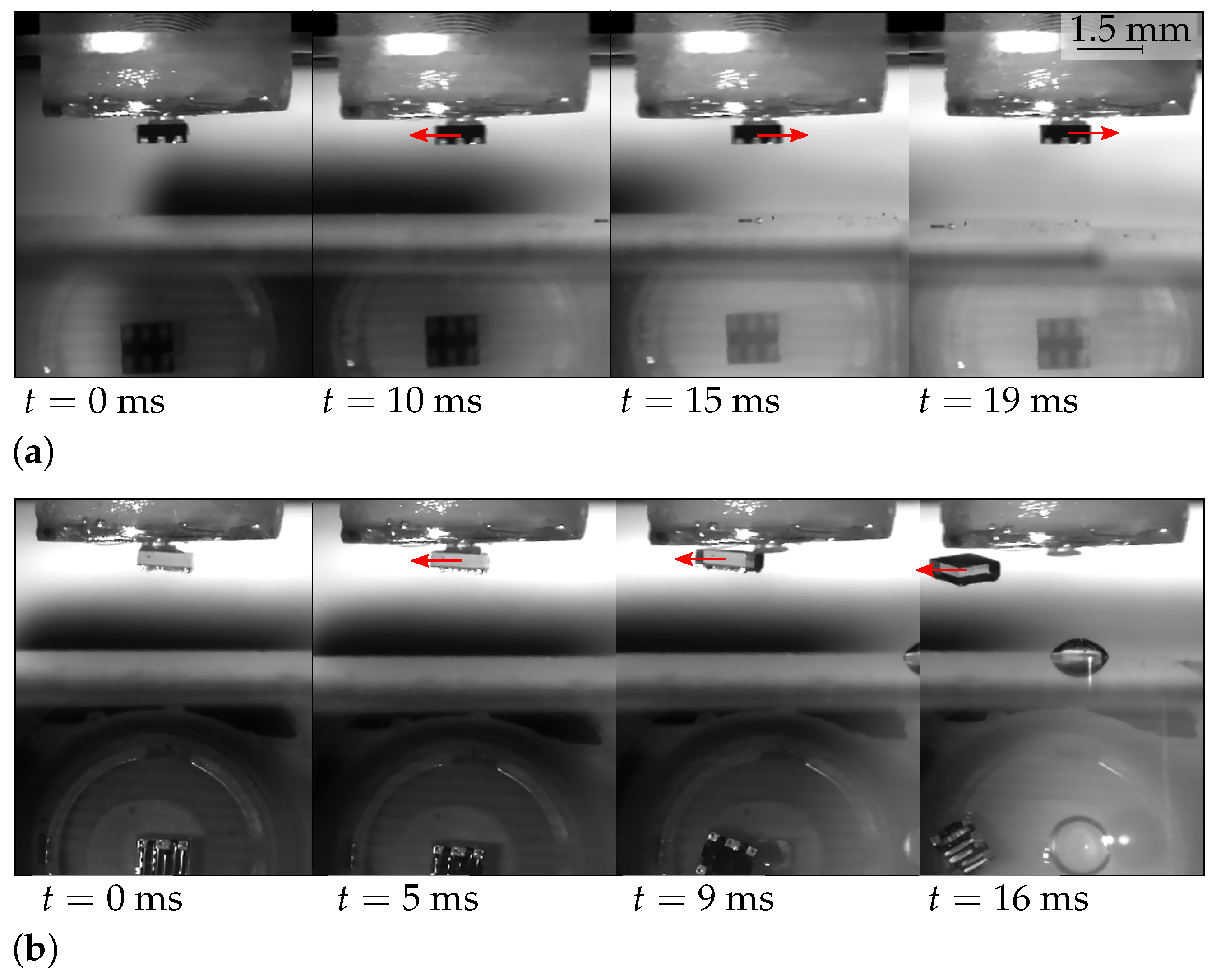

Figure 7a,b show the comparisons between the results of these two configurations. The red arrows in each frame depict the inertial force directions. In the lower half of the pictures is shown the gripper seen from below, by reflection on the ${45}^{\circ }$ mirror, through the transparent substrate.

For the same acceleration profile (with acceleration and deceleration peaks of 44 m·s${}^{-2}$), the results strongly differ. In Figure 7b, the component was lost backward (during the acceleration), due to too low lateral restoring forces and the absence of friction. In Figure 7a (i.e., where the handling capabilities were enhanced by taking advantage of the gripper’s design) the component did not move relative to the gripper during the acceleration, nor during the deceleration.

Although this test highlights the handling enhancement induced by our design, compared to a standard capillary gripper without control of the liquid meniscus volume, it does not quantitatively characterize the maximal handling capability of the gripper, and further developments should focus on these quantitative tests.

6.4. Compression of Components

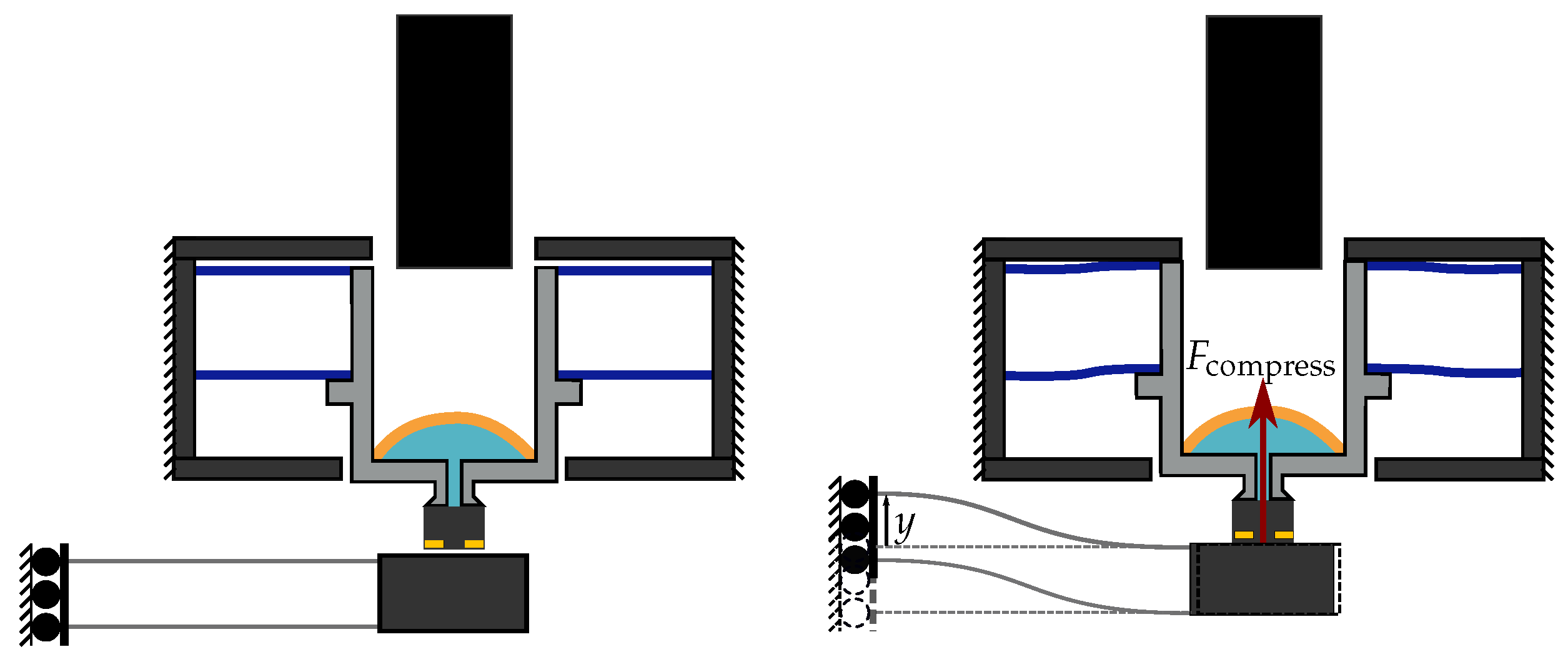

The component’s compression against the gripper was tested thanks to a compression module made of a table guided by two parallel deformable beams. The test was composed of picking the component, self-aligning it, and compressing it with a pressure of 2 N·mm${}^{-2}$. Eventually, the meniscus was regenerated by compressing the cavity, to proceed to further alignment operations.

Details on the compression module are available in Appendix B.

6.5. Proof of Concept Videos

A video showing the elongation of one ortho-planar spring made of fused silica is available in the supplementary material. This differently-scaled version (smaller in diameter and thinner) is representative of the kinematics of the design discussed in the article.

The compression test, together with the other steps of the process (droplet generation, picking, self-alignment, transport, and an example of release), are presented in the proof of concept video, available in the supplementary material.

7. Conclusions

A passive capillary gripper designed to address unanswered concerns about capillary grippers by providing a novel technical solution was presented.

This gripper was designed to create a passive system (no additional actuator, no additional controller on the pick-and-place arm) able to enhance the handling capabilities of capillary grippers. Although the tests performed show the difference between standard passive capillary grippers and this novel design in terms of handling capabilities, further work could focus on providing a finer characterization by varying the inertial force and assessing the limitations of the gripper in terms of handling capabilities.

Common passive capillary grippers would require presenting a liquid meniscus at all times in order to self-align a component in one particular step of the process. The design presented here allows the withdrawal of the liquid once the self-alignment step is performed, thanks to a compressible cavity. This passive mechanism allows operations which had not been demonstrated to be possible so far for capillary grippers (e.g., electrical testing of components by compression, visual inspection with a systematic horizontal positioning of the micro-object).

The passive aspect of the design is essential, as it implies that the already existing horizontal and vertical positioning actuators of the machine control:

• The horizontal positioning;
• The vertical displacement of the gripper;
• The generation of the volume of liquid, making possible the visual inspections and compressive tests, and enhancing the handling capability by creating friction;
• The alignment of the component under the gripper.

The design was manufactured with different techniques, depending on the requirements (FDM, SLA, micro-molding, subtractive manufacturing of fused silica parts). These multi-scale parts were assembled to create a working proof of concept.

The functions of the gripper were tested, including the compression. The enhancements of the handling capabilities were highlighted by a comparative test. Quantitative experimental results were delivered for the picking and the self-alignment of components, and the generation of liquid from the compression of the cavity. The ortho-planar springs and the cavity were modeled numerically in order to dimension the prototype. A 2D analytical simplification of the ortho-planar springs was proposed for the axial actuation and the range of validity was discussed.
