Critical Salt Loading in Flexible Poly(vinyl alcohol) Sensors Fabricated by an Inkjet Printing and Plasma Reduction Method
Abstract
:1. Introduction
2. Materials and Methods
2.1. Solvent Casting of Poly(Vinyl Alcohol) Films and Their Derivatives
2.2. Mechanical Testing of Cast PVA Films
2.3. Experimental Test Methods
2.3.1. Drop Casting
2.3.2. Inkjet Printing
2.3.3. Plasma Treatment
3. Results

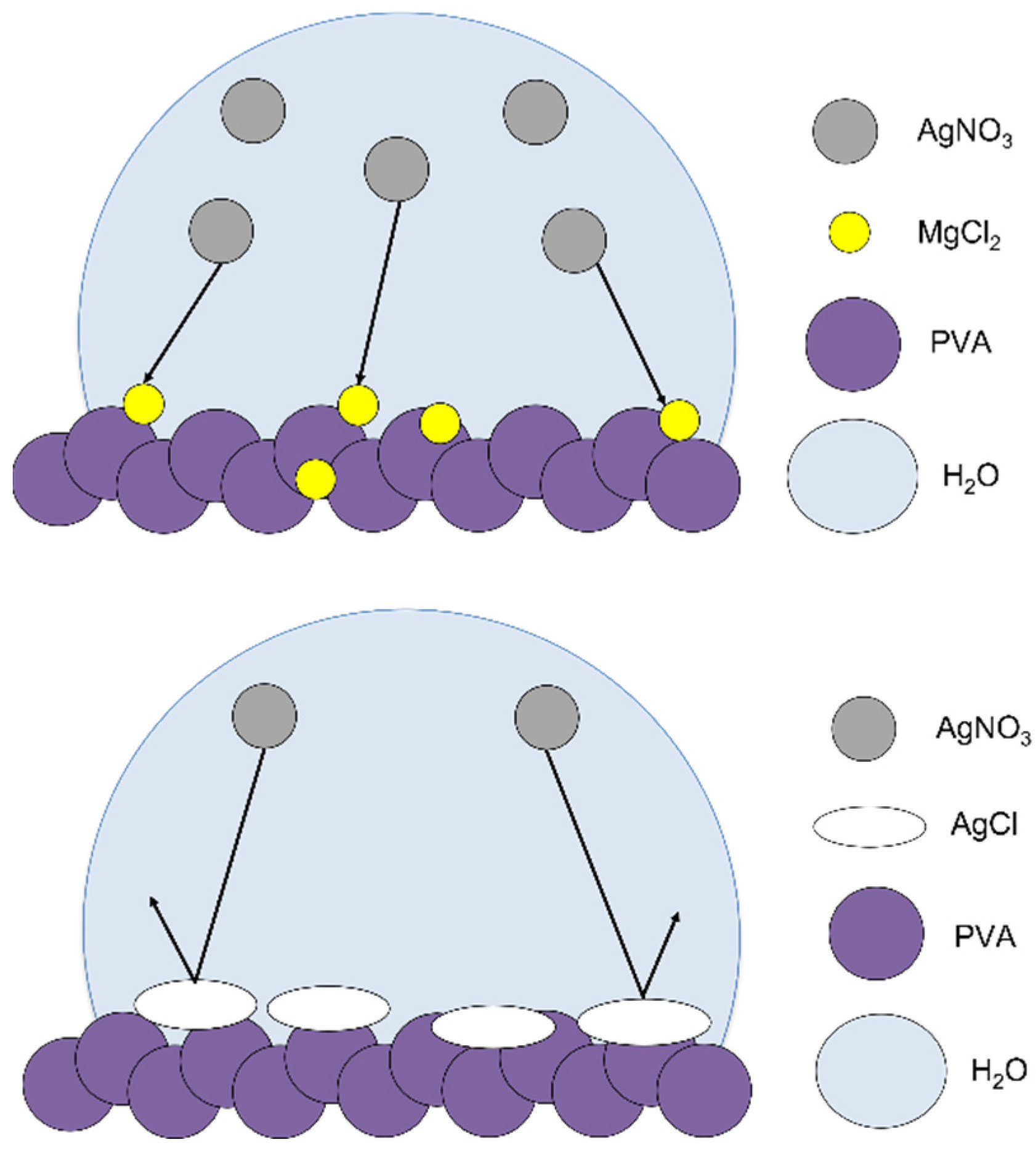

3.1. Silver Nitrate Staining of PVA Film

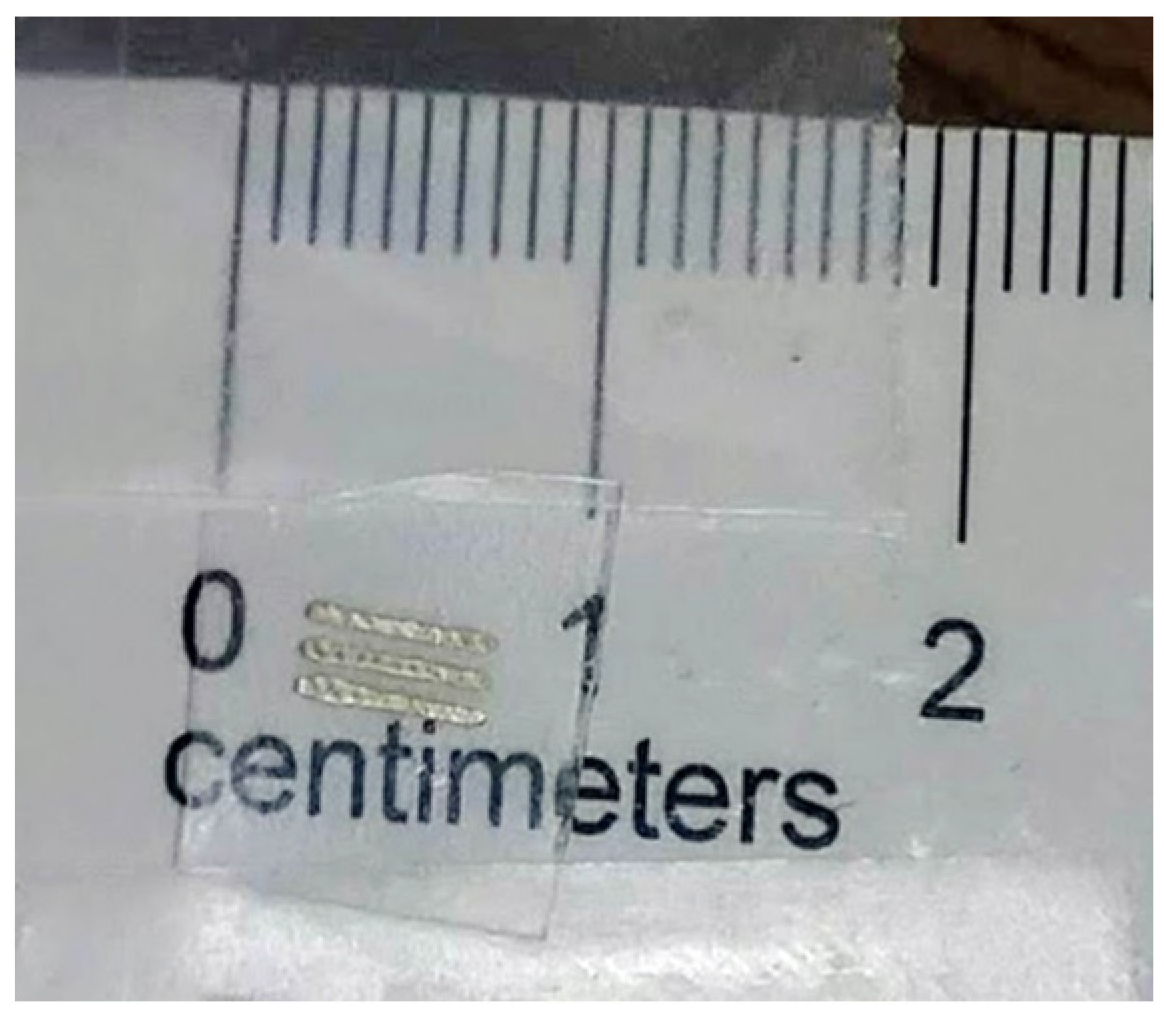

3.2. Inkjet Printing and Plasma Treatment

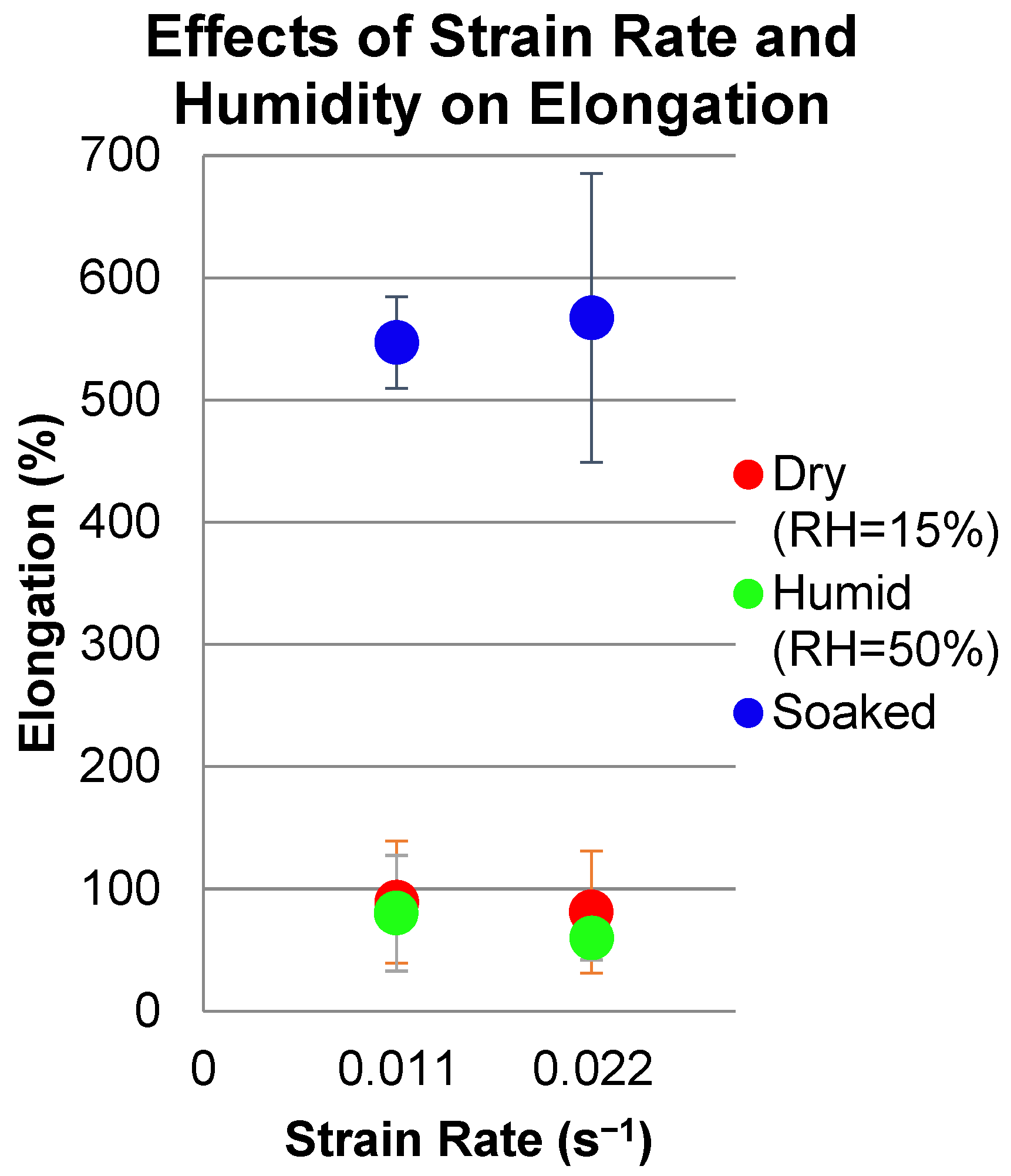

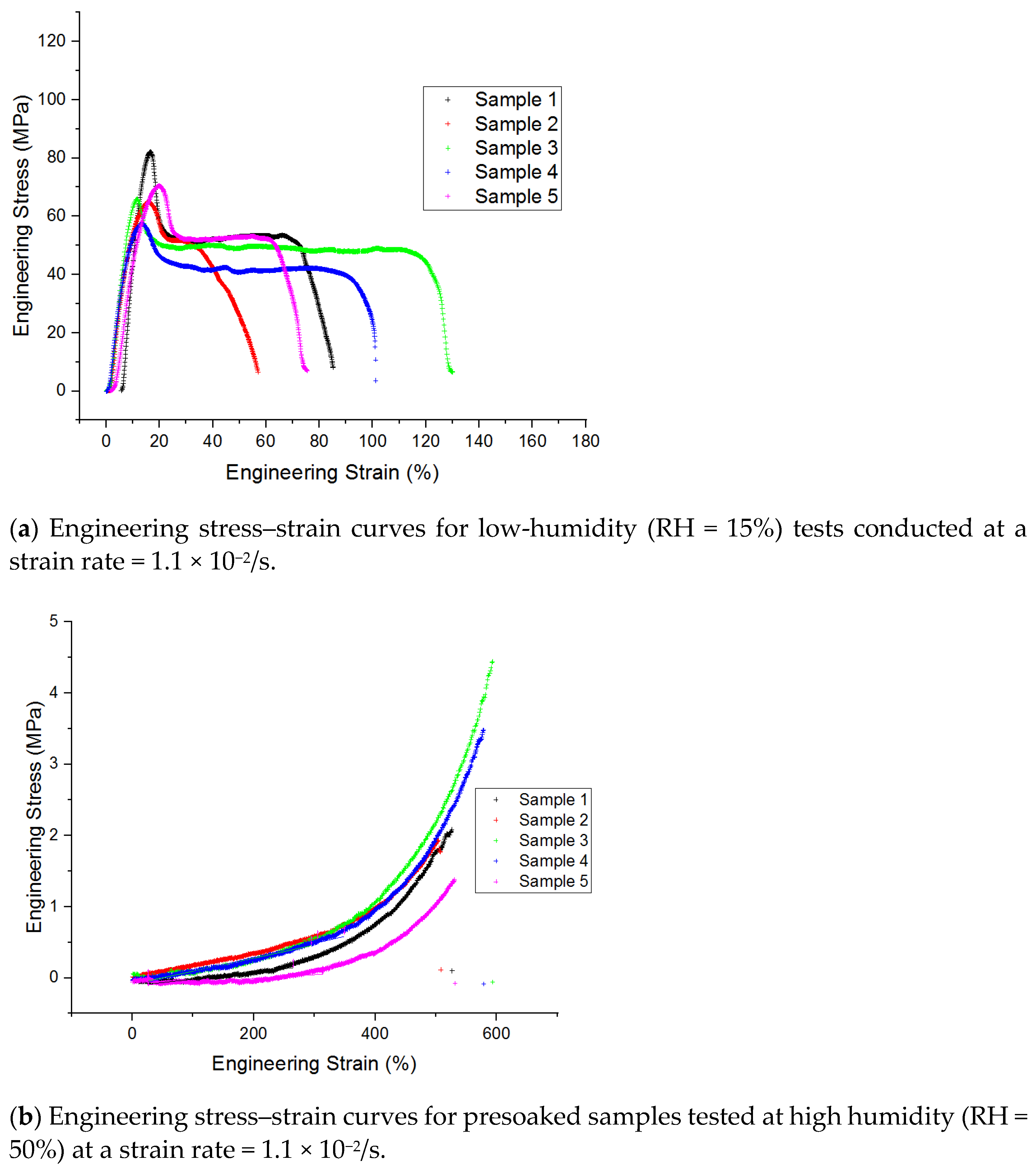

3.3. Mechanical and Electrical Properties
4. Discussion
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Hu, Y.; Zhao, T.; Zhu, P.; Zhu, Y.; Shuai, X.; Liang, X.; Sun, R.; Lu, D.D.; Wong, C.P. Low cost and highly conductive elastic composites for flexible and printable electronics. J. Mater. Chem. C 2016, 4, 5839. [Google Scholar] [CrossRef]
- Harris, K.D.; Elias, A.L.; Chung, H.J. Flexible Electronics under strain: A review of mechanical characterization and durability enhancement strategies. J. Mater. Sci. 2016, 51, 2771–2805. [Google Scholar] [CrossRef]
- Rogers, J.; Lu, N.; Lu, C.; Yang, S. Highly Sensitive Skin-Mountable Strain Gauges Based Entirely on Elastomers. Adv. Func. Mat. 2012, 22, 4044–4050. [Google Scholar]
- Brown, T.M.; Zardetto, V.; Reale, A.; Carlo, A.D. Substrates for flexible electronics: A practical investigation on the electrical, film flexibility, optical, temperature, and solvent resistance properties. J. Polym. Sci. Part B Polym. Phys. 2011, 49, 638–648. [Google Scholar]
- Khan, S.; Lorenzelli, L. Recent advances of conductive nanocomposites in printed and flexible electronics. Smart Mater. Struct. 2017, 26, 083001. [Google Scholar] [CrossRef]
- Noh, J.S. Conductive Elastomers for Stretchable Electronics, Sensors, and Energy Harvesters. Polymers 2016, 8, 123. [Google Scholar] [CrossRef] [PubMed]
- Miyamoto, A.; Lee, S.; Cooray, N.F.; Lee, S.; Mori, M.; Matsuhisa, N.; Jin, H.; Yoda, L.; Yokota, T.; Itoh, A.; et al. Inflammation-free, gas-permeable, lightweight, stretchable on-skin electronics with nanomeshes. Nat. Nanotechnol. 2017, 12, 907–913. [Google Scholar] [CrossRef]
- Magdassi, S.; Saada, G.; Layani, M.; Chernevousky, A. Hydroprinting Conductive Patterns onto 3D Structures. Adv. Mater. Technol. 2017, 2, 1600289. [Google Scholar]
- Niittynen, J.; Abbel, R.; Mäntysalo, M.; Perelaer, J.; Schubert, U.S.; Lupo, D. Alternative sintering methods compared to conventional thermal sintering for inkjet printed silver nanoparticle ink. Thin Solid Film. 2014, 556, 452–459. [Google Scholar] [CrossRef]
- Javey, A.; Fan, Z.; Ho, J.C.; Takahashi, T.; Yerushalmi, R.; Takei, K.; Ford, A.C.; Chueh, Y.L. Toward the Development of Printable Nanowire Electronics and Sensors. Adv. Mater. 2009, 21, 3730–3743. [Google Scholar]
- Sui, Y.; Dai, Y.; Liu, C.C.; Sankaran, R.M.; Zorman, C.A. A New Class of Low-Temperature Plasma-Activated, Inorganic Salt-Based Particle-Free Inks for Inkjet Printing Metals. Adv. Mater. Technol. 2019, 4, 1900119. [Google Scholar] [CrossRef]
- Marten, F.L. (Ed.) Vinyl Alcohol Polymers. In Encyclopedia of Polymer Science and Technology; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2002. [Google Scholar]
- Jiang, X.; Jiang, T.; Gan, L.; Zhang, X.; Dai, H.; Zhang, X. The plasticizing mechanism and effect of calcium chloride on starch/poly(vinyl alcohol) films. Carbohydr. Polym. 2012, 90, 1677–1684. [Google Scholar] [CrossRef]
- An, R.; Liu, W.; Wang, C.; Zheng, Z.; Tian, Y.; Xu, R.; Wang, Z. Recent Progress in Rapid Sintering of Nanosilver for Electronics Applications. Micromachines 2018, 9, 346. [Google Scholar]
- ASTM Standard D638-14, 2022; Standard Test Method for Tensile Properties of Plastics. ASTM International: West Conshohocken, PA, USA, 2015. [CrossRef]
- Costa, J.C.; Spina, F.; Lugoda, P.; Garcia-Garcia, L.; Roggen, D.; Münzenrieder, N. Flexible Sensors—From Materials to Applications. Technologies 2019, 7, 35. [Google Scholar] [CrossRef] [Green Version]
- Singler, T.J.; Bromberg, V.; Ma, S.; Egitto, F.D. Highly conductive lines by plasma-induced conversion of inkjet-printed silver nitrate traces. J. Mater. Chem. C 2013, 1, 6842. [Google Scholar]
- Sagitha, P.; Sarada, K.; Muraleedharan, K. One-pot synthesis of poly vinyl alcohol (PVA) supported silver nanoparticles and its efficiency in catalytic reduction of methylene blue. Trans. Nonferrous Met. Soc. China 2016, 26, 2693–2700. [Google Scholar] [CrossRef]
- Siddiqui, M.R.; Syed, F.; Nour, K.; Assal, M.; Al-Warthan, A. Ionic liquid behavior and high thermal stability of silver chloride nanoparticles: Synthesis and characterization. Arab. J. Chem. 2013, 6, 435–438. [Google Scholar] [CrossRef]
- Ricciardi, R.; Auriemma, F.; De Rosa, C.; Lauprêtre, F. X-ray Diffraction Analysis of Poly(vinyl alcohol) Hydrogels, Obtained by Freezing and Thawing Techniques. Macromolecules 2004, 37, 1921–1927. [Google Scholar] [CrossRef]
- Alkan, C.; Döğüşcü, D.K.; Gottschalk, A.; Ramamoorthi, U.; Kumar, A.; Yadav, S.K.; Yadav, A.S.; Adıgüzel, E.; Altıntaş, A.; Damlıoğlu, Y.; et al. Polyvinyl alcohol-salt hydrate mixtures as passive thermal energy storage systems. Energy Procedia 2016, 91, 1012–1017. [Google Scholar] [CrossRef]
- Du, W.; Jiang, L.; Shi, M.; Yang, Z.; Zhang, X. The modification mechanism and the effect of magnesium chloride on poly(vinyl alcohol) films. RSC Adv. 2019, 9, 1602. [Google Scholar] [CrossRef]
- Tang, J.; Guo, H.; Zhao, M.; Yang, J.; Tsoukalas, D.; Zhang, B.; Liu, J.; Xue, C.; Zhang, W. Highly Stretchable Electrodes on Wrinkled Polydimethylsiloxane Substrates. Sci. Rep. 2015, 5, 16527. [Google Scholar] [CrossRef] [PubMed]
- Lacour, S.P.; Jones, J.; Wagner, S.; Suo, Z. Stretchable wavy metal interconnects. J. Vac. Sci. Technol. A 2004, 22, 1723. [Google Scholar]
- Xiang, L.; Wang, Z.; Liu, Z.; Weigum, S.E.; Yu, Q.; Chen, M.Y. Inkjet-Printed Flexible Biosensor Based on Graphene Field Effect Transistor. IEEE Sens. 2016, 16, 8359–8364. [Google Scholar] [CrossRef]
- Chung, W.H.; Hwang, H.J.; Lee, S.H.; Kim, H.S. In situ monitoring of a flash light sintering process using silver nano-ink for producing flexible electronics. Nanotechnology 2012, 24, 035202. [Google Scholar] [CrossRef] [PubMed]
- Cochrane, C.; Koncar, V.; Lewandowski, M.; Dufour, C. Design and Development of a Flexible Strain Sensor for Textile Structures Based on a Conductive Polymer Composite. Sensors 2007, 7, 473–492. [Google Scholar] [CrossRef]
- Ota, H.; Chen, K.; Lin, Y.; Kiriya, D.; Shiraki, H.; Yu, Z.; Ha, T.-J.; Javey, A. Highly deformable liquid-state heterojunction sensors. Nat. Commun. 2014, 5, 5032. [Google Scholar] [CrossRef]
- Su, Q.; Zou, Q.; Li, Y.; Chen, Y.; Teng, S.Y.; Kelleher, J.T.; Nith, R.; Cheng, P.; Li, N.; Liu, W.; et al. A stretchable and strain-unperturbed pressure sensor for motion interference-free tactile monitoring on skins. Sci. Adv. 2021, 7, eabi4563. [Google Scholar] [CrossRef]
- Zhang, S.; Yang, C.; Gong, J.; Zeng, P.; Yang, X.; Liang, R.; Ou, Q. Fast room-temperature reduction of graphene oxide by methane/argon plasma for flexible electronics. Appl. Surf. Sci. 2018, 452, 481–486. [Google Scholar]
- Mariatti, M.; Hidayah, I.N.; Htwe, Y.Z.N. Performance of inkjet-printed strain sensor based on graphene/silver nanoparticles hybrid conductive inks on polyvinyl alcohol substrate. J. Mater. Sci. Mater. Electron. 2020, 31, 15361–15371. [Google Scholar]
- Zhang, L.; Ji, H.; Huang, H.; Yi, N.; Shi, X.; Xie, S.; Li, Y.; Ye, Z.; Feng, P.; Lin, T.; et al. Wearable Circuits Sintered at Room Temperature Directly on the Skin Surface for Health Monitoring. ACS Appl. Mater. Interfaces 2020, 12, 45504–45515. [Google Scholar] [CrossRef]
Sample | Thickness (mm) | Width (mm) | Length (mm) |
---|---|---|---|
2 (dry: <15% RH) | 0.11 | 3.10 | 7.62 |
4 (humid: 50% RH) | 0.11 | 3.53 | 7.62 |
6 (soaked + 50% RH) | 0.99 | 4.83 | 18.0 |
Composition | Resistance (kΩ) |
---|---|
Stock PVA | 3.64 |
15-1 | 7.00 |
15-3 | 0.015 |
15-8 | 0.020 |
Sample | SRL (Ω/□) | SRW (Ω/□) | SRD (Ω/□) |
---|---|---|---|
Prestretched PVA | 0.4406 | 0.5126 | 0.7512 |
Unstretched PVA | 0.2635 | ||
Prestretched PVA-Mg | 0.2746 | 0.2170 | 0.2475 |
Unstretched PVA-Mg | 0.2024 | 0.2139 | 0.2073 |
Literature References | SR (Ω/□) |
---|---|
Inkjet graphene biosensor [25] | 110 |
Silver on PET [26] | 0.95 (light anneal), 2.03 (thermal anneal) |

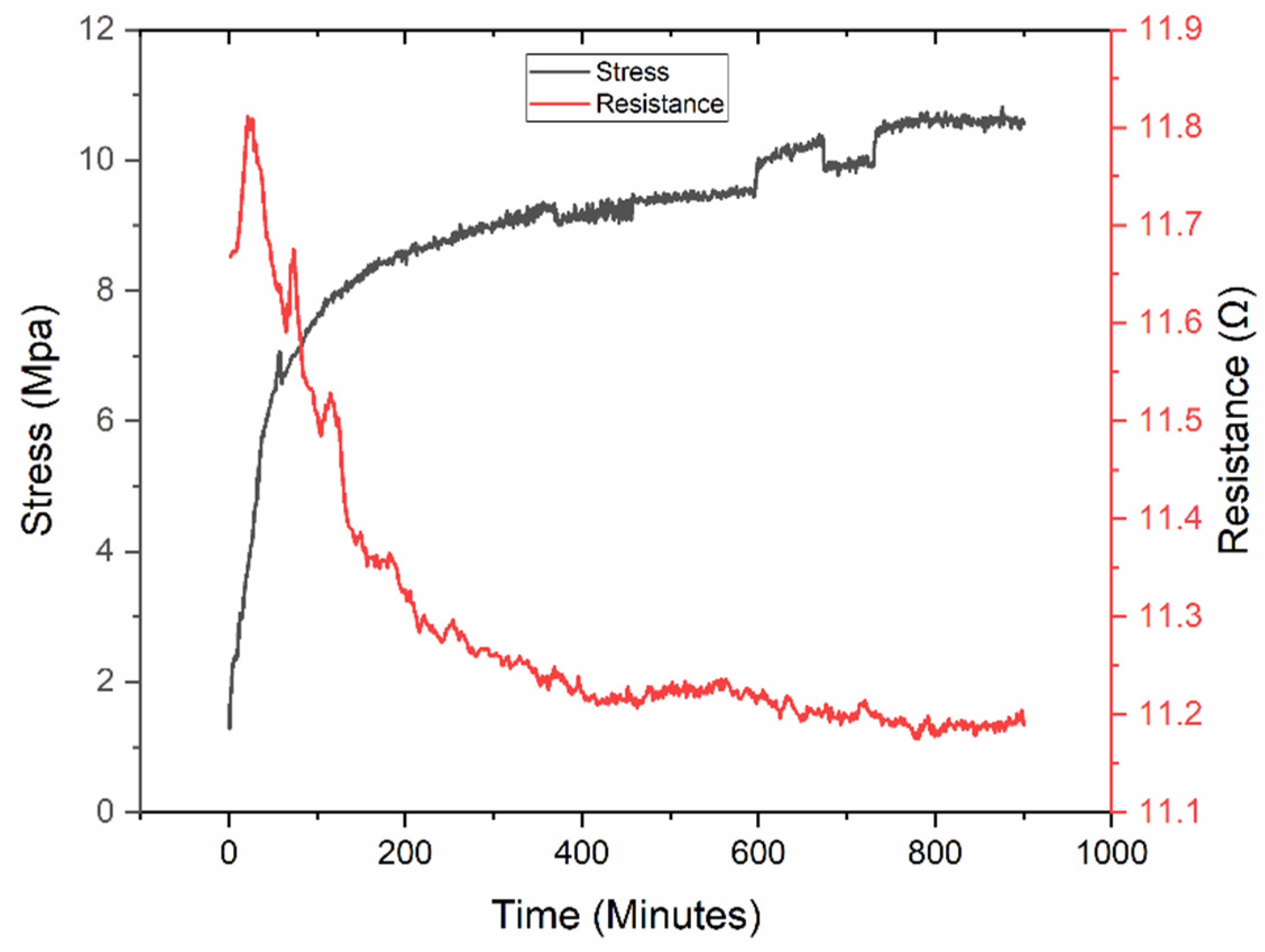

Resistance at 0% Strain (Ω) | Resistance at 6% Strain (Ω) | |
---|---|---|
Cycle 1 | 7.0 | 8.9 |
Cycle 2 | 8.3 | 8.9 |
Cycle 3 | 8.3 | 8.9 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Chou, E.; Sui, Y.; Chong, H.; Brancel, C.; Lewandowski, J.J.; Zorman, C.A.; Wnek, G.E. Critical Salt Loading in Flexible Poly(vinyl alcohol) Sensors Fabricated by an Inkjet Printing and Plasma Reduction Method. Micromachines 2022, 13, 1437. https://doi.org/10.3390/mi13091437
Chou E, Sui Y, Chong H, Brancel C, Lewandowski JJ, Zorman CA, Wnek GE. Critical Salt Loading in Flexible Poly(vinyl alcohol) Sensors Fabricated by an Inkjet Printing and Plasma Reduction Method. Micromachines. 2022; 13(9):1437. https://doi.org/10.3390/mi13091437
Chicago/Turabian StyleChou, Evan, Yongkun Sui, Hao Chong, Christina Brancel, John J. Lewandowski, Christian A. Zorman, and Gary E. Wnek. 2022. "Critical Salt Loading in Flexible Poly(vinyl alcohol) Sensors Fabricated by an Inkjet Printing and Plasma Reduction Method" Micromachines 13, no. 9: 1437. https://doi.org/10.3390/mi13091437
