1. Introduction
Particle Reinforced Metal Matrix Composites (PRMMCs) consist of matrix metal and reinforcement particles. The particles of the reinforced phase are often composed of titanium carbide or alumina, while the matrix material is typically composed of aluminum, titanium, and magnesium. The manufacturing costs for this material are decreased, the process is easy, and typical methods, such as rolling and forging, can be employed for further processing. A material that is macroscopically isotropic is a promising innovation. Particle-reinforced titanium matrix composites (PTMCs) are used extensively in aerospace, automotive, and electrical applications [
1,
2]. On the machined surface of particle-reinforced composites, the inclusion of high-hardness reinforcing phases causes defects such as microcracks, shallow cavities, particle fracture, matrix tearing, matrix hardening, and scratches. These issues are significant obstacles to the widespread adoption of PTMCs. In order to promote the application of PTMCs, it is crucial to investigate the effect of the particle fracture process on the production of machined surface defects in PTMCs.
The addition of reinforcement particles has resulted in PRMMCs being machined with poor machined surface finish and numerous forms of surface flaws [
3]. On the machined surface of in situ aluminum matrix composites, the flaws such as pits, voids, microcracks, protrusions, matrix smears, matrix tears and feed marks are identified during cutting experiments conducted by Xiong et al. [
4]. Qiao et al. [
5] conducted performed single-factor turning experiments on A03190/304 composite material in a single-factor turning test. Reducing the feed rate and depth of cut, or raising the cutting speed, is shown to reduce machined surface flaws. Huo et al. [
6] conducted a significant number of turning tests on PTMCs and discovered that the machined surface roughness Ra could be kept below 0.5 μm using cutting parameters in the range of v = 80~100 m/min, ap = 0.30~0.60 mm, and f = 0.006~0.10 mm/r.
Finite element simulation is a useful and effective methodology for studying the cutting process. Cutting simulation has several advantages, such as making it simple to monitor the micro-cutting process, collecting data on cutting force heat immediately, and conserving materials, et al. [
7]. Combining simulation and testing, Elkaseer et al. [
8] investigated the surface creation during the precise turning of 316L stainless steel. Chen et al. [
9] established a macroscopic equivalent homogeneous material 3D finite element cutting simulation model based on quasi-static and SHPB tests to describe the machining process of SiCp/Al6063/30P composites. The error between the simulated cutting forces and experimental results was within 20%. Nonetheless, the analogous homogeneous model was unable to study the removal of material at the microstructure level.
It is possible to model the impact of particle and interfacial layer failure on the particle-cutting process by simulating single particle-cutting operations for PRMMCs. For SiCp/Al particle-reinforced composites with a body fraction ratio of 45%, Liu et al. [
10] created a single-particle cutting model. When the tool cut the upper portion of the particle, the particle fractured brittlely, and the depth of surface defects decreased as the cutting speed increased; when the tool cut the lower portion of the particle, the removal of the particle changed from being pulled out to be crushed as the cutting speed increased. There are two mechanisms for particle breaking, according to Wu et al. [
11]. One is caused by the cutting edge making direct contact with the particle, while the other is caused by the tool and particle interacting indirectly with the matrix. Laghari et al. [
12] quantitatively examined the impact of interfacial characteristics on the strengthening effect of SiCp/Al composites by adding an interfacial layer to a single particle cutting simulation model. It is demonstrated that the stiff interface model had a stronger enhancing impact than the flexible interface model as the thickness of the interface increased. When simulating the cutting of particle-reinforced composites using finite elements, Ghandehariun et al. [
13] and Meng et al. [
14] both added viscous domain units. In order to analyze the matrix deformation and the interactions between tool particles during machining, Pramanik et al. [
15] employed a finite element method, in which physical processes such as wear, particle debonding, displacement, and non-uniform deformation of the matrix material are investigated.
Zhang et al. [
16] found that for SiC particle sizes between 10 and 30 μm, the principal cutting force decreased as the cutting speed increased; Throughout the cutting process, the contact area between the tool’s front edge surface and the second deformation zone frequently exhibited the greatest equivalent force. In order to increase the accuracy of the cutting model, Wang et al. [
17] analyzed the surface contours machined by turning tests and formulated the size of the particles in the cutting model based on the crater depth of the turning surface. Huan et al. [
18] studied the impact of the relative position relationship between the tool and the particles in the form of TiC particle removal while including particles with three different cutting depths in the same model to prevent boundary conditions from impacting simulation findings, the findings of which showed that the errors in cutting temperatures and forces are within 15%.
Numerous researchers have investigated increased particle random distribution cutting simulation models in order to increase the realism of cutting models. In order to investigate the primary formation mechanisms of surface defects in SiCp/Al composites at high-volume fractions, Wang et al. [
19] developed randomly distributed circular SiC particle models and polygonal SiC particle models. The results showed that SiC rotation, pull-out, large unraveling, microfracture, and cut-through are the primary mechanisms of surface defect formation. Wu et al. [
20] evaluated 2D and 3D cutting simulation models and discovered that while the 2D model could reflect some aspects of material removal, it had limited ability to forecast microstructural changes. Fan et al. [
21] created a cutting simulation model with a random distribution of polyhedral SiC particles. The cutting surface shape is shown to be significantly influenced by the SiC particle failure mode.
In conclusion, referring to the previous works, the formation of surface defects on PRMMCs using simulation techniques and tests is studied. During the processing of PRMMCs, the mechanism of particle shattering and surface creation is discovered. Analyses are carried out on the interactions between tool-particle, tool-matrix, and matrix-particle throughout the machining process. Combining SEM results and using programming languages to improve the accuracy of cutting models.

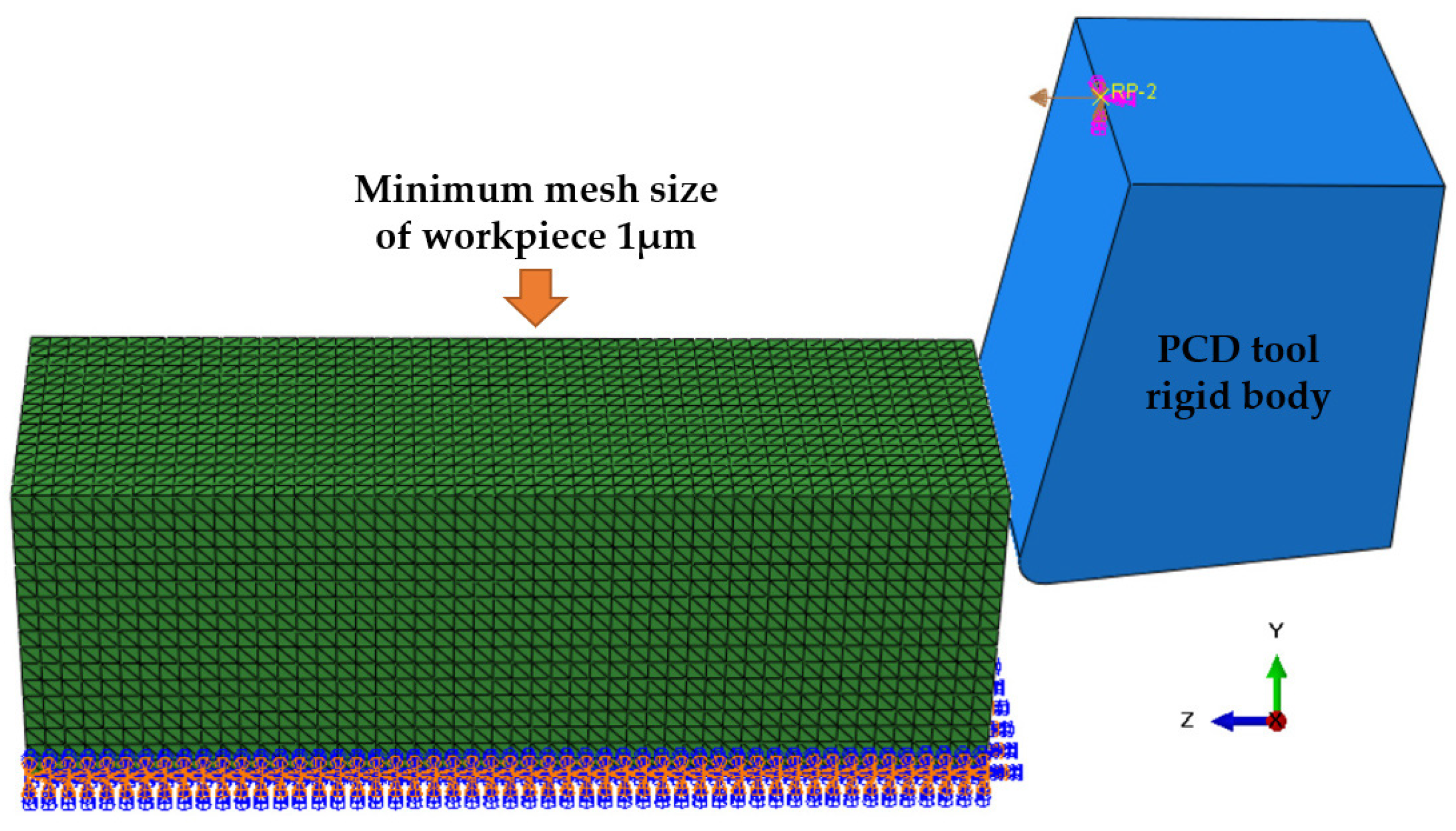

However, there are only two-dimensional cutting simulation studies for PTMCs, and the simulation models lack the interface between the particles and the substrate. In order to explore the material removal during the processing of PTMCs and to overcome the shortcomings of the 2D orthogonal cutting simulation model, this paper simplifies the TiC particles into spheres and constructs a 3D microstructure-based orthogonal cutting simulation model. To study the formation process of brittle fracture, debonding, and particle fracture, an effort to disclose the forming mechanism of surface defects in TiCp/TC4 composites is performed.
5. Conclusions
In this paper, three-dimensional orthogonal cutting simulation models of TiCp/TC4 composites with single particles and randomly distributed particles, as well as turning tests, are developed. The removal process of TiC particles and its effect on the forming mechanism of machined surface defects are explored under varying relative positions of cutting tools and particles. The following are the conclusions:

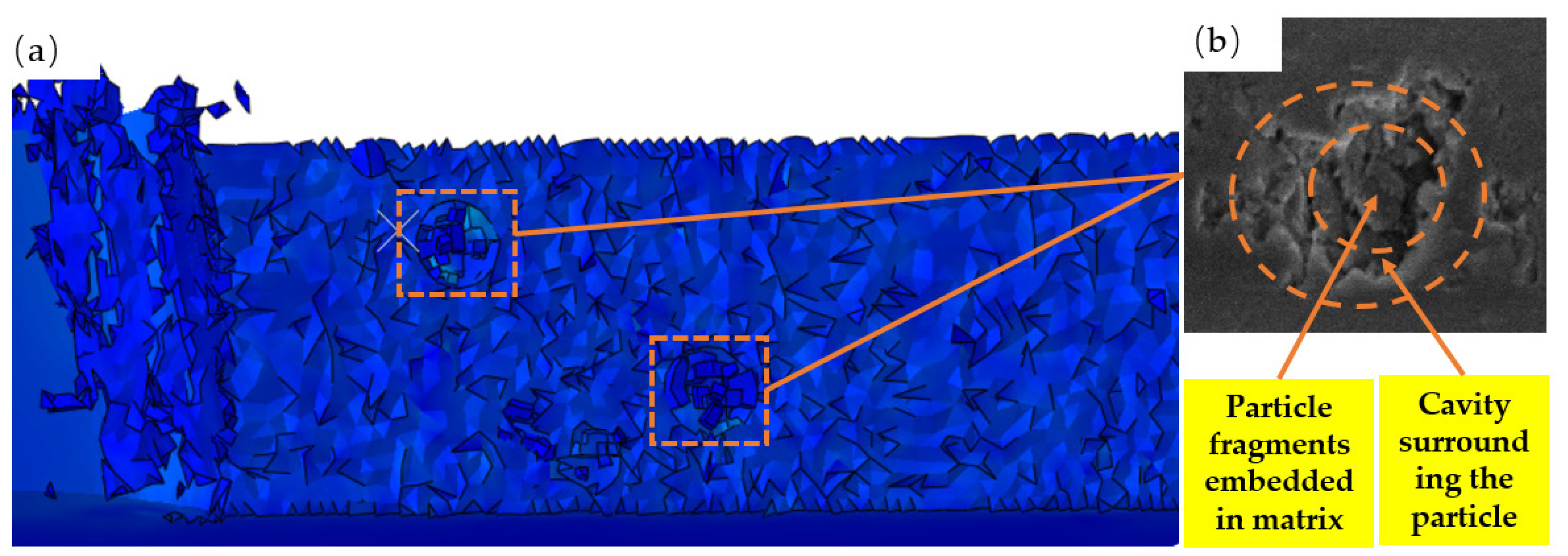

(1) Through the analysis of the turning test surface of TiCp/TC4 composite material, the removal form of TiC particles is mainly cutting, crushing, brittle fracture, and debonding, and the corresponding microcracks and cavity appear on the machined surface. Consistent with the cutting simulation surface defects, 3-D simulation has a certain accuracy.

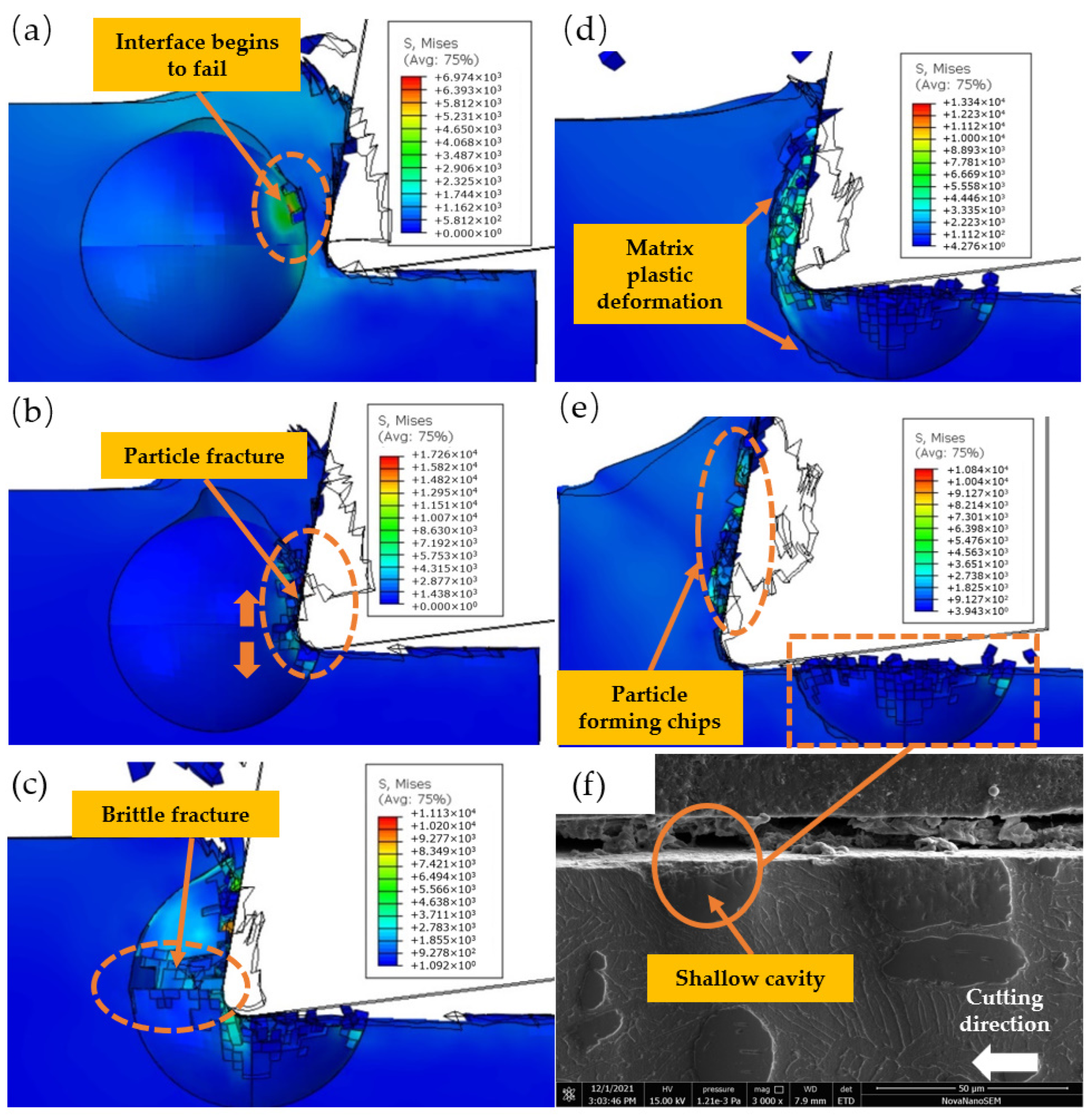

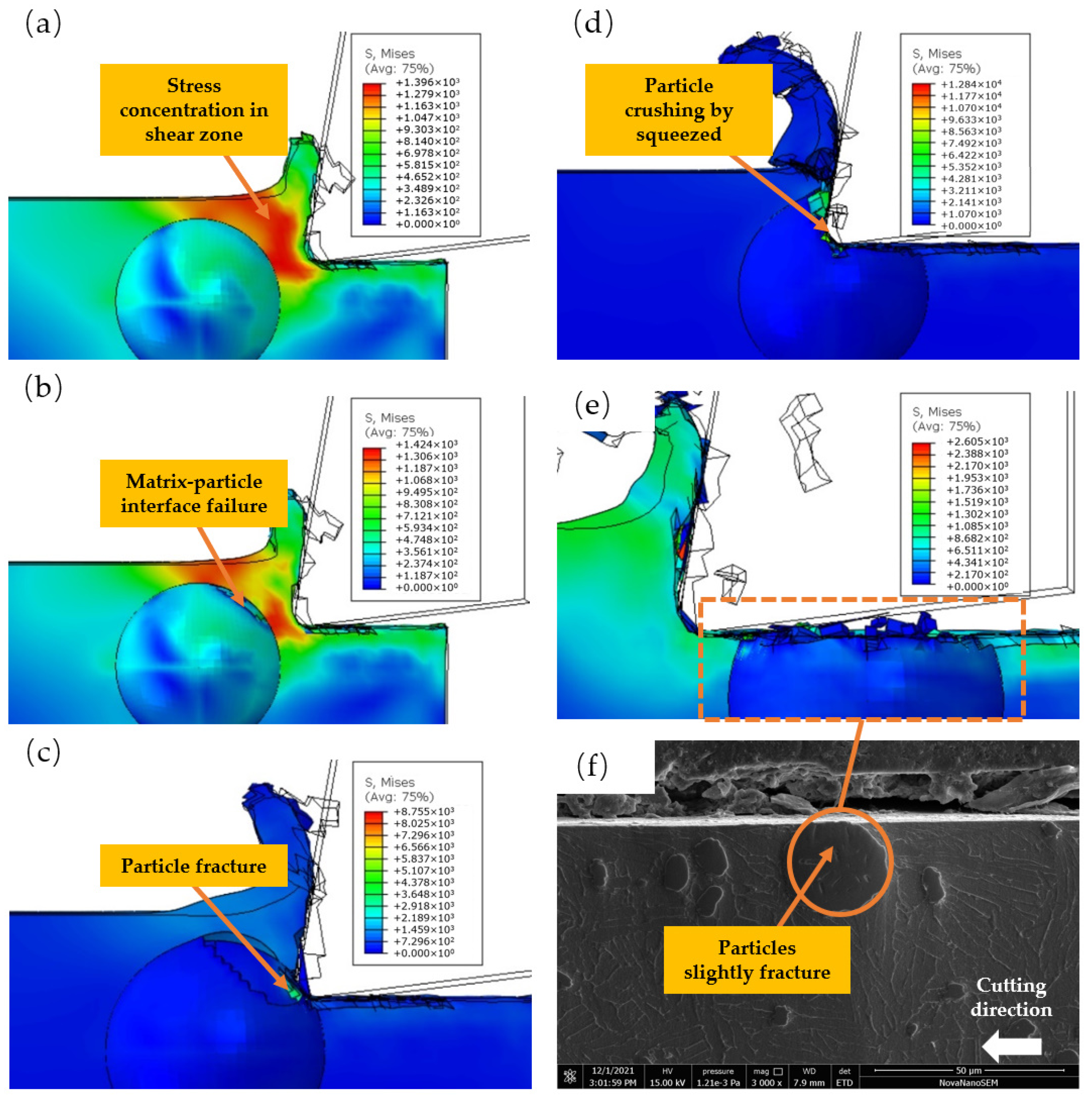

(2) To examine the mechanism of surface defect formation in TiCp/TC4 composites, simulated studies categorize the positional interaction between the PCD tool and TiC particles into three groups. When the cutting tool cuts the upper portion of the particles, the particles are somewhat broken or crushed, the machining surface exhibits microcavities or microcracks, and the quality of the machined surface is optimal. Due to the uneven stress of the particles, when the tool is cut through the center of the particles, the machining surface appears to be a shallow cavity embedded with reinforced particles, cracks occur in the matrix around the cavity, and the machined surface is relatively poor. When the tool reaches the lowest portion of the particles, the machining surface resembles the particle size of the cavity, and the cavity side is marred with scratches, severely degrading the surface quality.
(3) When cutting the upper portion of the particles, a compressive stress of more than 5000 MPa is generated by the direct contact between the rake face and the particles, causing them to fracture slightly. When the PCD cuts through the middle of the particles, the unequal distribution of particle stress leads to the brittle fracture of particles in stress regions above 4000 MPa. When the tool comes into touch with the lower portion of the particles, the stress suddenly increases, and the particles become debonded.
In this paper, a three-dimensional simulation model of cut TiCp/TC4 composites is developed. The significance of the results is that the mechanism of surface defects in TiCp/TC4 composites can be explained. However, as the particle distribution of the cutting simulation model is random, the matrix is difficult to divide into a hexahedral structure, and a more accurate cutting simulation model can subsequently be developed. Cutting speed has an effect on the surface formation of particle-reinforced composites, and in this paper, only the case of 45 m/min is compared between simulated and experimental results. The effect of cutting speed on the formation of surface defects can continue to be investigated in the future.
