Paper-Based Analytical Device for Zinc Ion Quantification in Water Samples with Power-Free Analyte Concentration

Abstract

Insufficient sensitivity is a general issue of colorimetric paper-based analytical devices (PADs) for trace analyte detection, such as metal ions, in environmental water. This paper demonstrates the colorimetric detection of zinc ions (Zn²⁺) on a paper-based analytical device with an integrated analyte concentration system. Concentration of Zn²⁺ ions from an enlarged sample volume (1 mL) has been achieved with the aid of a colorimetric Zn²⁺ indicator (Zincon) electrostatically immobilized onto a filter paper substrate in combination with highly water-absorbent materials. Analyte concentration as well as sample pretreatment, including pH adjustment and interferent masking, has been elaborated. The resulting device enables colorimetric quantification of Zn²⁺ in environmental water samples (tap water, river water) from a single sample application. The achieved detection limit of 0.53 μM is a significant improvement over that of a commercial colorimetric Zn²⁺ test paper (9.7 μM), demonstrating the efficiency of the developed analyte concentration system not requiring any equipment.

1. Introduction

Zinc ions (Zn²⁺) are a major metal contaminant in environmental water originating for example from mine drainage, industrial waste water, and galvanized steel pipes, among others. Environmental standards defining maximum allowable concentrations of Zn²⁺ are provided by various organizations. For instance, the WHO guideline for drinking water defines the standard value as 3 mg·L⁻¹ (46 μM) [1]. In Japan, the maximum permissive concentration in drinking water of 1.0 mg·L⁻¹ (15 μM) is set by the Ministry of Health, Labor, and Welfare [2]. In addition, the recommended water quality criteria for aquatic life provided by the EPA is even more strict (120 μg·L⁻¹; 1.8 μM of Zn²⁺) [3]. Conventional analytical techniques such as inductively coupled plasma-mass spectrometry (ICP-MS) [4] and atomic absorption spectrometry (AAS) [5,6] enable selective detection of trace amounts of Zn²⁺. However, the necessity of sophisticated analytical instruments operated by trained specialists at relatively high running costs hampers their field use in routine environmental monitoring.

In 2007, the Whitesides group has introduced microfluidic paper-based analytical devices (μPADs) as a novel chemical analysis platform [7]. Aside from advantages such as low-cost, light-weight, and safe disposability by incineration, the availability of capillary action allowing spontaneous sample transportation in paper channels has made μPADs simple, yet highly-functional analytical tools. From the original purpose of medical diagnosis [7], the application of μPADs has been expanded to a variety of fields [8,9,10,11,12,13,14], including environmental monitoring [15]. Examples of μPAD analysis of trace metal contaminants in environmental water include electrochemical lead detection [16], colorimetric iron detection [17], and a lateral flow immunoassay for cadmium detection [18]. Despite its importance, the demonstration of Zn²⁺ quantification on μPADs remains scarce. Although not being applied to environmental monitoring, electrochemical measurement of Zn²⁺ on a μPAD has been reported with a limit of detection of 1.0 μg·L⁻¹ (15 nM) [19]. In an example of a colorimetric detection approach, Feng and co-workers have achieved the detection of 50 μM (3.3 mg·L⁻¹) of Zn²⁺ with the aid of hierarchical cluster analysis (HCA) [20].

The current work demonstrates the colorimetric detection of Zn²⁺ on a paper-based analytical device equipped with a target analyte concentration system to achieve sufficient detection sensitivity for environmental monitoring. Although colorimetric methods offer an easily detectable signal observable by the naked eye, their limited detection sensitivity is a general issue for the quantification of low analyte concentrations [21]. Several reports describe target analyte concentration approaches on PADs, for example by using heating [22], ion concentration polarization [23], or a pumping system [24]. Most notably, Satarpai et al. have demonstrated the colorimetric detection of low levels of Pb²⁺ in environmental water by using a peristaltic pumping system [24]. In the current work, concentration of Zn²⁺ from a comparably large amount of sample has been achieved by simple stacking of multiple layers of cellulosic porous substrates and a filter paper layer for colorimetric detection. Compared to conventional μPADs, the overlaid highly liquid absorbent cellulose pads allow wicking of an enlarged sample volume (1 mL), enabling external power-free concentration of Zn²⁺ from the sample into the colorimetric detection area. In addition, the requirement for sample pretreatment has been overcome by integrating the necessary reagents into the sample application area. Most importantly, the influence of Cu²⁺, a major interfering metal ion of the used Zincon colorimetric indicator, has been eliminated up to a concentration of 50 μM. The developed PAD has been applied to Zn²⁺ quantification in tap water and river water samples.

2. Materials and Methods

2.1. Reagents and Equipment

All reagents were used as received without further purification. ZnCl₂, CaCl₂, MgCl₂, MnCl₂, CuCl₂, NiCl₂, FeCl₃, and standard solutions of Pb(NO₃)₂, Cd(NO₃)₂, and HgCl₂ were purchased from Wako Pure Chemical Industries (Osaka, Japan). Tetramethylammonium hydroxide·5H₂O (TMAOH), N-Tris(hydroxymethyl)methyl-3-aminopropanesulfonic acid (TAPS) and poly(diallyldimethylammonium chloride) (PDDA) were purchased from Sigma-Aldrich (St. Louis, MO, USA). Salicylaldoxime was obtained from TCI (Tokyo, Japan). 1-(2-Hydroxycarbonylphenyl)-5-(2-hydroxy-5-sulfophenyl)-3-phenylformazan, sodium salt (Zincon) was obtained from Dojindo (Kumamoto, Japan). Whatman No. 1 filter paper (460 mm × 570 mm) and CF7 absorbent pads (22 mm × 50 m) were purchased from GE Healthcare Life Sciences (Buckinghamshire, UK). Glass fiber (GFDX203000) and cellulose pads (GFCP103000) were purchased from Merck Milllipore (Darmstadt, Germany). Baking paper was purchased from Toyo Aluminium Ekco Products Co., Ltd. (Osaka, Japan). Ultrapure water ( >18 MΩ·cm) was obtained from a PURELAB flex water purification system (ELGA, Veolia Water, Marlow, UK) and used for the preparation of all solutions.

A Xerox ColorQube 8570 wax printer (Xerox, Norwalk, CT, USA) was used to print hydrophobic barriers designed in Adobe Illustrator CC software. An iP2700 inkjet printer (Canon, Tokyo, Japan) was used to deposit the colorimetric assay reagent and the polymeric additive (Zincon and PDDA). For this purpose, standard Canon ink cartridges have been cut open and the sponges inside were removed, followed by washing with copious amounts of ultrapure water. A Silhouette Cameo electronic knife blade cutting device (Silhouette, Lehi, UT, USA) in double cutting mode was used to cut glass fiber disks into the desired sizes. Hot lamination was performed on a QHE325 laminator (Meiko Shokai, Tokyo, Japan) set for plain copy paper and a total thickness of 100 μm. A 9000F MARK II color scanner (Canon, Tokyo, Japan) was used to acquire images for quantitative evaluation of colorimetric response and numerical color intensity values were measured by the Image J color analysis software (NIH, Bethesda, MD, USA). An Objet30 Prime (Stratasys, Eden Prairie, MN, USA) 3D-printer was used to fabricate the device holder designed on 123D design software (Autodesk, San Rafael, CA, USA). A potentiometric Ca²⁺ monitoring device (LAQUA twin) was purchased from Horiba (Kyoto, Japan). Zinc test paper was purchased from Kyoritsu Chemical-Check Lab., Corp. (Tokyo, Japan).

2.2. Investigation of Reaction Time of Cu²⁺-Salicylaldoxime Chelation

150 μL of aqueous CuCl₂ solution (50 μM) and 150 μL of salicylaldoxime solution (7.15 mM) in TAPS/TMAOH buffer (pH 8.5, 400 mM) were mixed in a micro centrifuge tube. 200 μL of the mixed solution was added to a microtiter plate well containing 10 μL of Zincon solution (1.6 mM) immediately (for a reaction time of 0 min) or 1 min after mixing (for a reaction time of 1 min). Absorption spectra were acquired with a Varioskan^TM Flash multi spectra microplate reader (Thermo Fisher Scientific, Waltham, MA, USA).

2.3. Device Fabrication

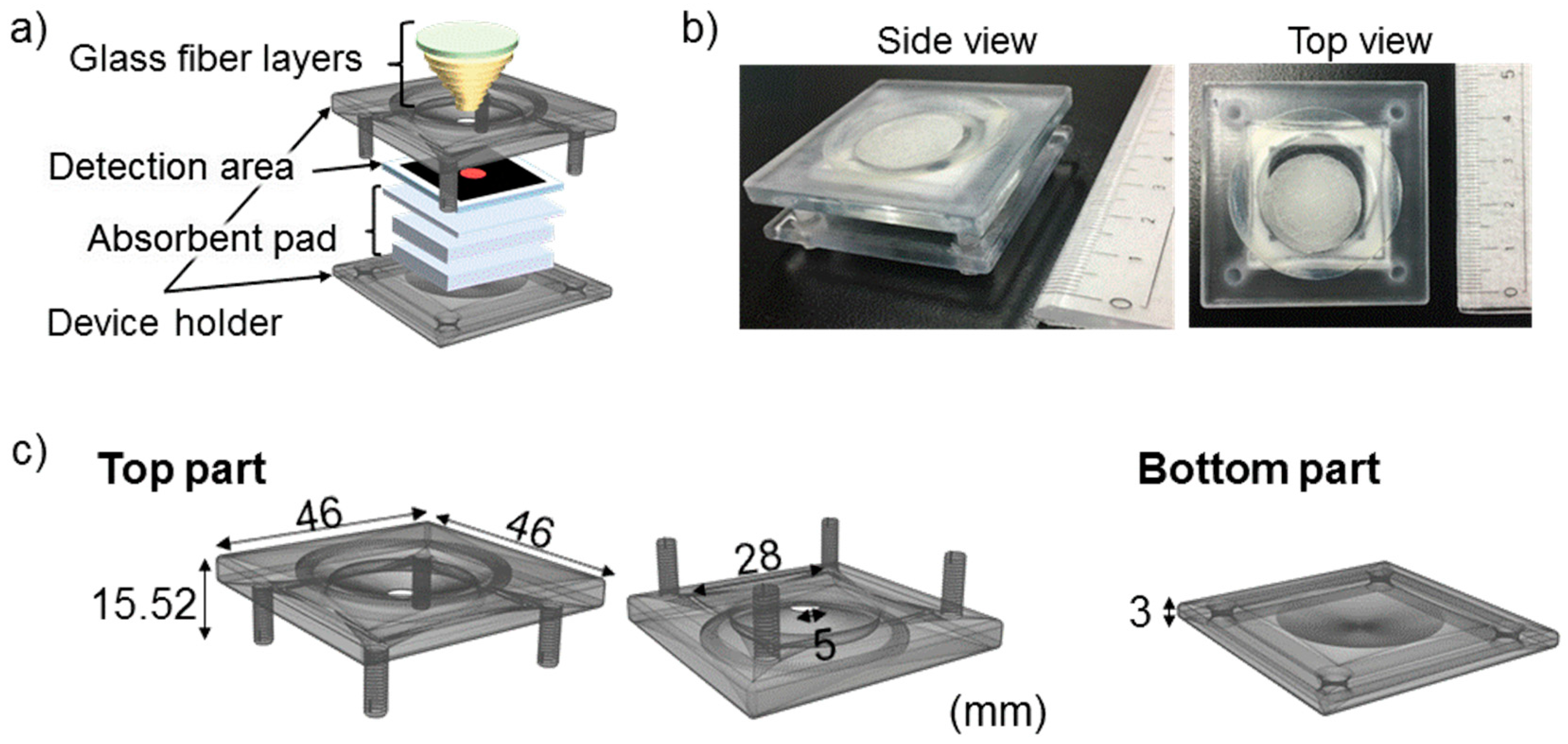

As shown in Figure 1a,b, the device for the detection of low Zn²⁺ concentrations is composed of four sections: Glass fiber layers, colorimetric detection area, absorbent pad layers, and a device holder. The glass fiber layers were prepared by stacking seven glass fiber disks with different diameters (5, 6, 8, 11, 14, 17, and 20 mm from the bottom to top). Before stacking, salicylaldoxime solution (14.3 mM), and aqueous CuCl₂ solution (100 μM) were pipetted onto the glass fiber disks (detailed conditions are summarized in

Table 1. Summary of reagents added onto the glass fiber layers.

Glass Fiber Disk Diameter	Added Reagent	Pipetting Amount
5 mm	14.3 mM of salicylaldoxime in buffer solution (TAPS/TMAOH, pH 8.5, 400 mM)	10.0 μL
6 mm		14.4 μL
8 mm		25.6 μL
11 mm		50.0 μL
14 mm		80.0 μL
17 mm		116.0 μL
20 mm	100 μM of aqueous CuCl2 solution	160.0 μL

), followed by drying at 40 °C for 1 h.

The detection area was prepared by using the wax printing technique [25,26]. Whatman No. 1 filter paper was cut into A4 size and fed into the ColorQube 8570 printer to print black wax on both sides of the filter paper in greyscale printing mode. A single detection area consists of an unmodified hydrophilic circular paper region (4 mm diameter) surrounded by a 20 × 20 mm² solid black square-shaped hydrophobic wax region. Seventy detection areas were printed on a single A4 sheet. In order to achieve penetration of the printed wax throughout the paper thickness, the filter paper sandwiched by baking paper was passed through a hot laminator [27]. Finally, aqueous solutions of PDDA (1 wt %) and Zincon (1.6 mM) were inkjet-printed onto the hydrophilic circular area in 10 print cycles from the black and magenta ink reservoirs of the Canon printer, respectively.

Absorbent pad layers were prepared by using two types of cellulose pads (CFSP223000 and CF7). One sheet of CFSP223000 (cut into 30 × 30 mm²) and two sheets of CF7 (cut into 22 × 30 mm²) were manually piled up.

Finally, all porous substrate materials were assembled with the aid of a 3D-printed device holder composed of two parts (Figure 1c). The glass fiber pads were sequentially put onto the funnel-shaped pocket prepared on the top side of the holder. Patterned filter paper, CFSP223000, and CF7 were manually stacked and sandwiched by the screwed 3D-printed parts.

2.4. Detection and Quantification Method

Colorimetric detection was carried out by depositing 1 mL of sample onto the sample application area. After the entire liquid volume was absorbed by the absorbent pad layers (approximately 3 min after sample introduction), the detection filter paper was removed from the assembled device for color observation. For quantitative evaluation of colorimetric response, the detection filter paper was attached to a sheet of copy paper with double-sided tape and dried for 15 min at room temperature, followed by scanning at 600 dpi resolution and software-based digital color analysis of the photograph.

3. Results and Discussion

3.1. Roles of the 3D-PAD Components

In order to achieve a low detection limit for Zn²⁺ with a simple colorimetric indicator on paper, a sample volume as large as 1 mL has been handled throughout this research, which is significantly larger than in common μPAD analyses (typically up to several tens of μL). Concentration of Zn²⁺ is achieved by the vertical passage of a large sample volume through the filter paper detection area with the Zincon colorimetric indicator. For ease of operation, the colorimetric detection of Zn²⁺ with an integrated concentration system requiring only a single sample application has been targeted in this work. The elaborated PAD consists of a filter paper-based colorimetric detection area and additional functional parts: glass fiber layers, absorbent pad layers, and device holder.

3.1.1. Filter Paper Detection Area

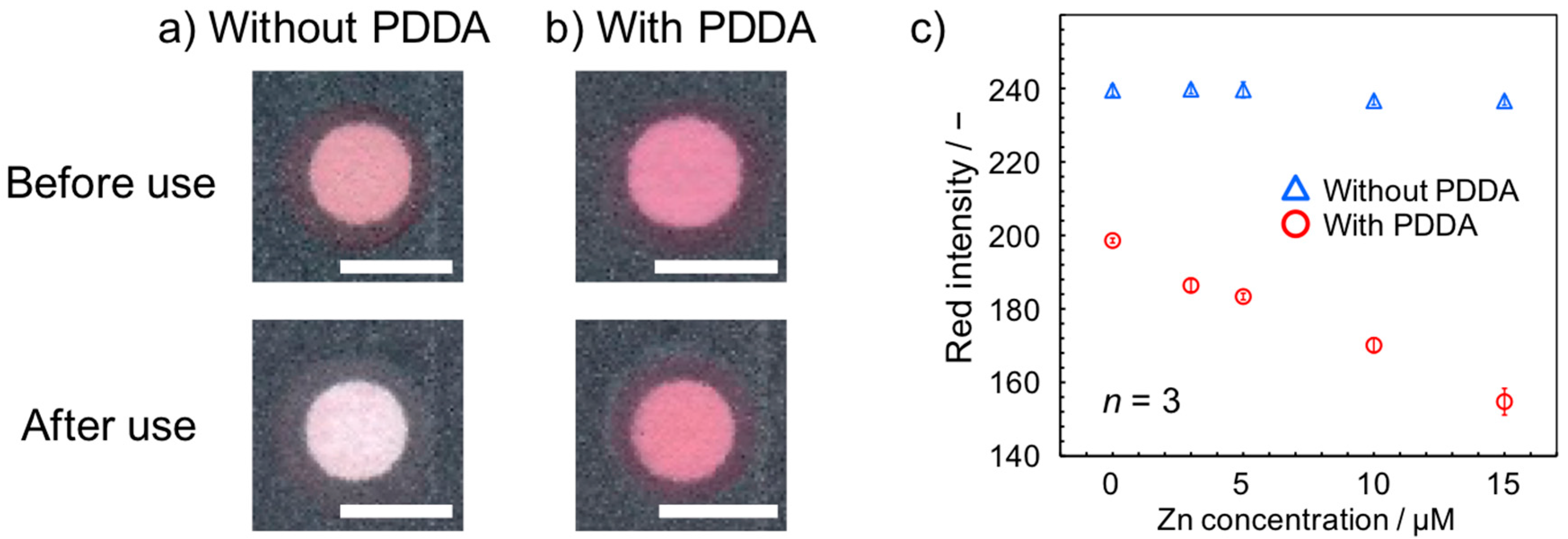

The colorimetric Zn²⁺ assay was carried out by using the Zincon indicator. For this purpose, Zincon was deposited by means of an inkjet printer onto a circular detection region (3.85 ± 0.03 mm diameter after wax perfusion; n = 5) prepared on filter paper. However, an additional immobilizing agent was necessary, because of the water-solubility of Zincon. With the current device design where up to 1 mL of sample liquid is passed through the colorimetric sensing layer, it is essential to immobilize the indicator and its Zn²⁺ complex formed during the assay. In our previous study, a cationically-charged nanoparticle has been employed for anchoring sulfonated colorimetric indicators onto a filter paper substrate [28]. The use of a piezoelectrically-actuated inkjet printer was inevitable for dispensing of the nanoparticle ink. In the present study, a water-soluble cationic polymer (PDDA) [29] was employed in place of the cationically-charged nanoparticle. Since aqueous solutions of PDDA are compatible with the thermally-actuated printer used, this allows for the colorimetric indicator and the immobilizing agent to be deposited by using a single inkjet printer. As compared to the state before sample liquid introduction, Zincon was completely washed away after introduction of 1 mL of water in the absence of PDDA (Figure 2a). With 10 printing cycles of PDDA solution (1 wt %), the pink color of Zincon was maintained after exposure to 1 mL of water (Figure 2b). It is postulated that the positive charge of the quaternary amino groups of PDDA allows electrostatic attractive interaction with both the negatively charged cellulosic paper surface [30] and the sulfonate groups of Zincon. The importance of the PDDA immobilizing agent has been quantitatively evaluated (Figure 2c). In contrast to the Zn²⁺ concentration-dependent color change with PDDA (red markers), the absence of PDDA resulted in no colorimetric response (blue markers). The increased red color intensity reflects the whiteness of the detection area due to washing out of the Zincon colorimetric indicator.

The reproducibility of inkjet-deposition of the Zincon colorimetric indicator has been examined in a quantitative manner. For this purpose, digital color analysis of an inkjet printed PDDA-Zincon spot before exposure to a sample was performed. The measured red intensity was found to be 208 ± 1.47 (n = 34). The small standard deviation clearly indicates the reproducibility of reagent deposition by inkjet printing.

3.1.2. Glass Fiber Layers

The glass fiber layers on the top of the PAD serve as an inlet with integrated sample pretreatment function. Among various possible interferences in a Zincon-based Zn²⁺ assay, colorimetric response to copper ions (Cu²⁺) is most cumbersome owing to the overlapping working pH range (8.5−9.5 for Zn²⁺; 5.5−9.5 for Cu²⁺)[31] and similar maximum absorption wavelength of the colored metal-indicator complexes (620 nm for Zn²⁺, 600 nm for Cu²⁺)[31]. Salycilaldoxime, known as an effective chelating agent for Cu²⁺[32,33,34] as well as effective masking agent for other metal ions interfering the Zincon-based colorimetric Zn²⁺ detection including Fe²⁺[35,36,37] and Ni²⁺[35,37], has been deposited on the glass fiber layers together with the buffer components (TAPS/TMAOH, pH = 8.5). Additionally, CuCl₂ has been placed on the topmost glass fiber layer for further suppressing interference from Cu²⁺ (details are discussed in Section 3.2). Glass fiber has been selected as the substrate material of choice for the sample pretreatment region, due to its ability of smooth reagent release.

3.1.3. Absorbent Pad Layers

Cellulose pad materials (CFSP223000 and CF7) placed at the bottom of the PAD beneath the detection layer work as a “wicking pad” as seen in lateral flow immunoassay devices. Two sheets of CF7 cellulose pad provide high absorption capacity of waste sample. The CFSP223000 cellulose pad, placed between the detection filter paper layer and the CF7 pads, results in moderate sample transportation rate, ensuring sufficient reaction time for Zn²⁺ and Zincon.

3.1.4. Device Holder

There exist several approaches to fabricate μPADs composed of stacked multiple paper layers (3D-μPADs). In 2008, Martinez et al. first reported a 3D-μPAD assembled by using double-side adhesive tape and cellulose powder [38]. In 2011, the Crooks group utilized an aluminum housing to support an origami 3D-μPAD [39]. In 2012 and 2013, sprayed adhesive [40] and toner [41] have been employed to attach multiple layers of paper substrates. In the current study, a 3D-printed device holder has been prepared to assemble the 3D-PAD, since no modification of substrate surfaces is involved. The 3D-printed holder consists of two (top and bottom) parts fastened by screws (Figure 1c). The top part bears a funnel-shaped pocket to accommodate the seven layers of glass fiber substrates serving as an inlet and sample pretreatment region.

3.2. Suppression of Cu²⁺ Interference

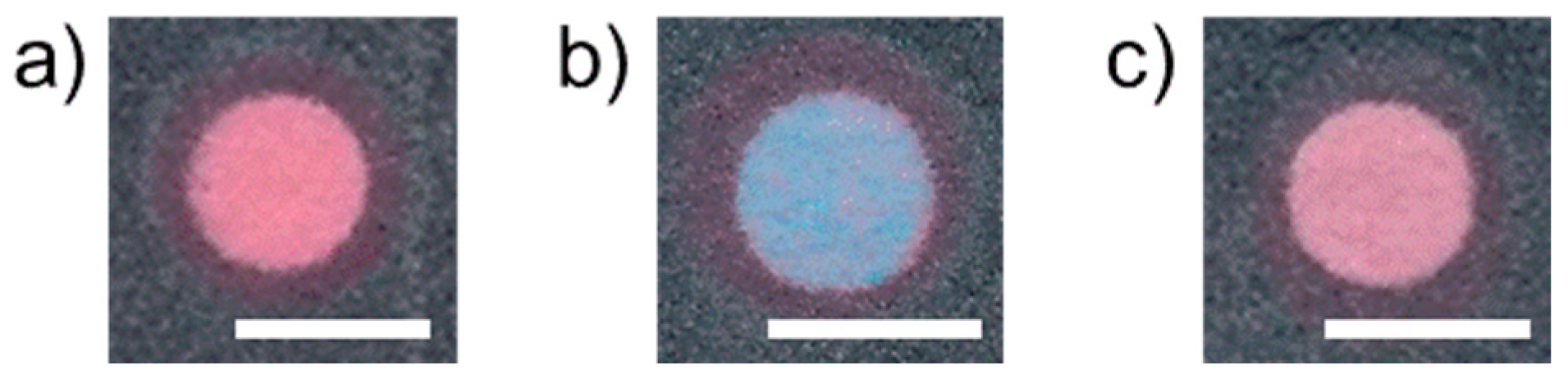

At first, the effect of Cu²⁺ masking by salicylaldoxime was confirmed by comparing the colorimetric response obtained for devices with and without the masking agent impregnated glass fiber layers. As compared to the pink color observed after application of a pure water sample (Figure 3a), the presence of 50 μM Cu²⁺ resulted in a color change of the detection area to blue (Figure 3b) in the absence of the glass fiber layers. On the other hand, the color change was significantly suppressed in the presence of the glass fiber layers impregnated with salicylaldoxime and the buffer components (Figure 3c), indicating successful Cu²⁺ masking.

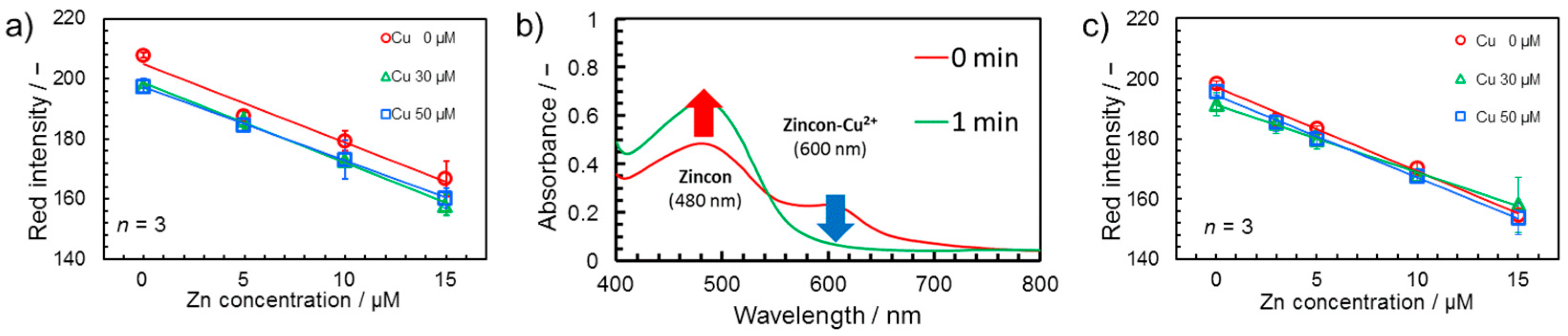

However, deposition of salicylaldoxime and buffer components was not sufficient to allow accurate Zn²⁺ quantification in the presence of Cu²⁺. Typical calibration curves for Zn²⁺ still differed in the absence (0 μM) or presence (30, 50 μM) of a Cu²⁺ background in the sample (Figure 4a). Interestingly, no differences were observed between the presence of 30 and 50 μM of Cu²⁺. Based on the observed downward shift of the y-intercept of the calibration curve with identical slope upon the initial addition of Cu²⁺ only and no further shifts at increased Cu²⁺ background concentration, it was postulated that a constant amount of unmasked Cu²⁺ reaches the detection area despite the presence of the masking agent in the glass fiber areas. To evaluate the possible cause behind this experimentally observed behavior, a simple solution-based experiment was performed. Although the reported complex formation constant is higher for Cu²⁺-salicyladoxime (log K = 7.94) [42] compared to Cu²⁺-Zincon (log K = 7.5) [43,44], there is a difference in binding kinetics. As shown in Figure 4b, a significant absorbance peak at 600 nm, representing the Cu²⁺-Zincon complex, is observed immediately after mixing of reagents, while this peak is completely suppressed and the resulting spectra overlapping the metal free absorption spectrum of Zincon (480 nm) when allowing Cu²⁺ and salicylaldoxime to interact for 1 min before addition to the Zincon indicator solution. This indicates a fast interaction of Cu²⁺ ions with Zincon, followed by the slower displacement with the thermodynamically more stable salicyladoxime complex. The fact that the chelation of Cu²⁺ present in the sample solution by salicylaldoxime is not instantaneous results in a certain amount of free Cu²⁺ reaching the colorimetric detection area of the device, inducing a colorimetric signal. To reduce the shift in the calibration curve caused by this phenomenon, it was attempted to pre-deposit CuCl₂ as a sample-independent source of Cu²⁺ on the topmost glass fiber layer. Calibration curves obtained using devices with pre-deposited Cu²⁺ (Figure 4c) demonstrate that, through this strategy, the influence of different Cu²⁺ background concentrations in samples (0, 30, and 50 μM) were finally significantly reduced.

3.3. Selectivity Study

3.3.1. Primary Heavy Metal Contaminants

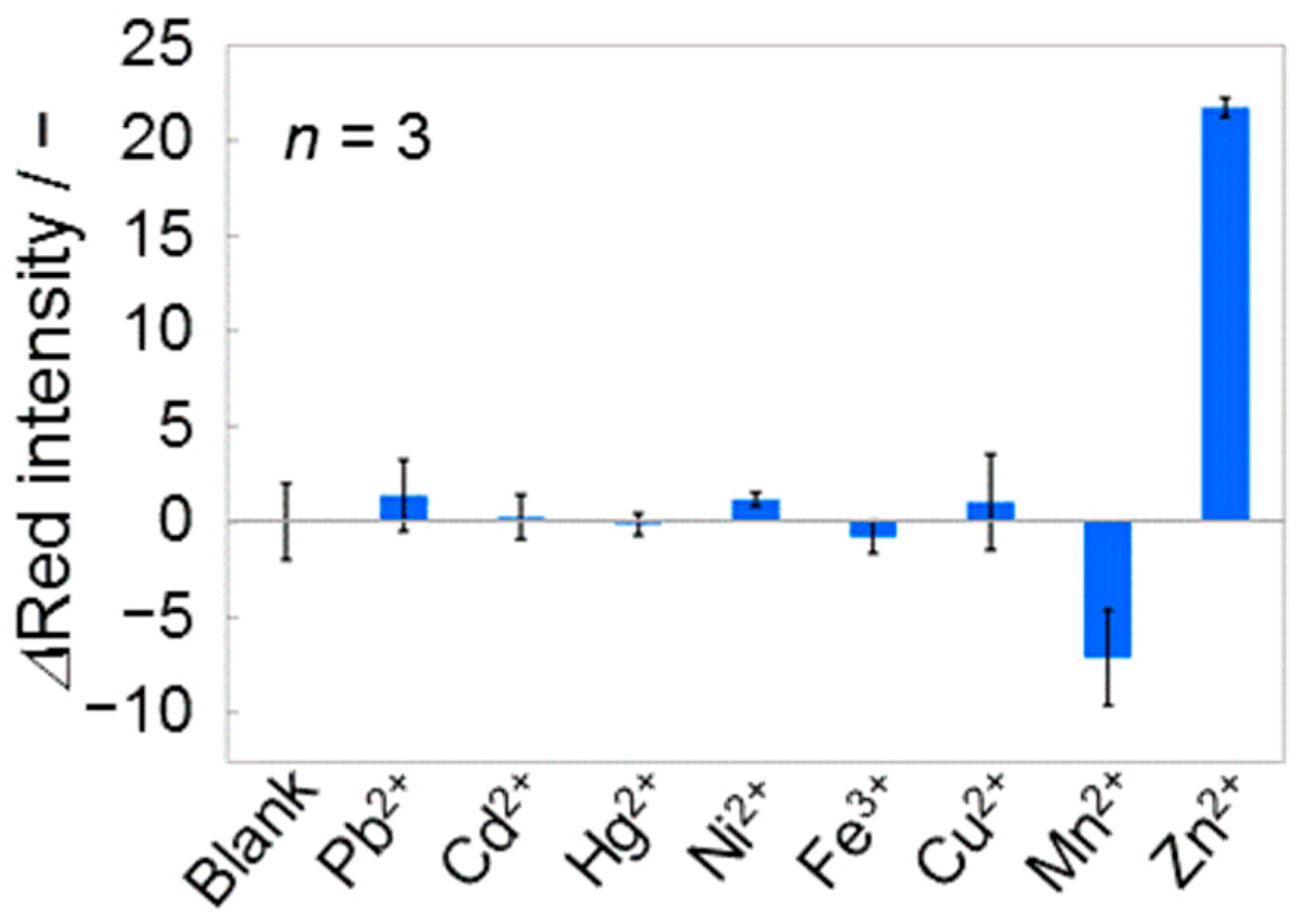

The selectivity of the Zn²⁺ detecting 3D-PAD has been evaluated using heavy metal ions known as primary contaminants in environmental water samples (Pb²⁺, Cd²⁺, Hg²⁺, Ni²⁺, Fe³⁺, Cu²⁺, and Mn²⁺). The metal ion samples have been prepared in water at 10 μM, whereas Zn²⁺ was tested at 7.5 μM (Figure 5). Among the tested heavy metal ions, the presence of Mn²⁺ exhibited significantly lowered red color intensity. This result is attributed to the inability of Mn²⁺ masking due to its poor binding property with salicylaldoxime [35], and the weaker absorbance of the Zincon-Mn²⁺ complexes compared to that of free Zincon [45].

3.3.2. Influence of Ca²⁺

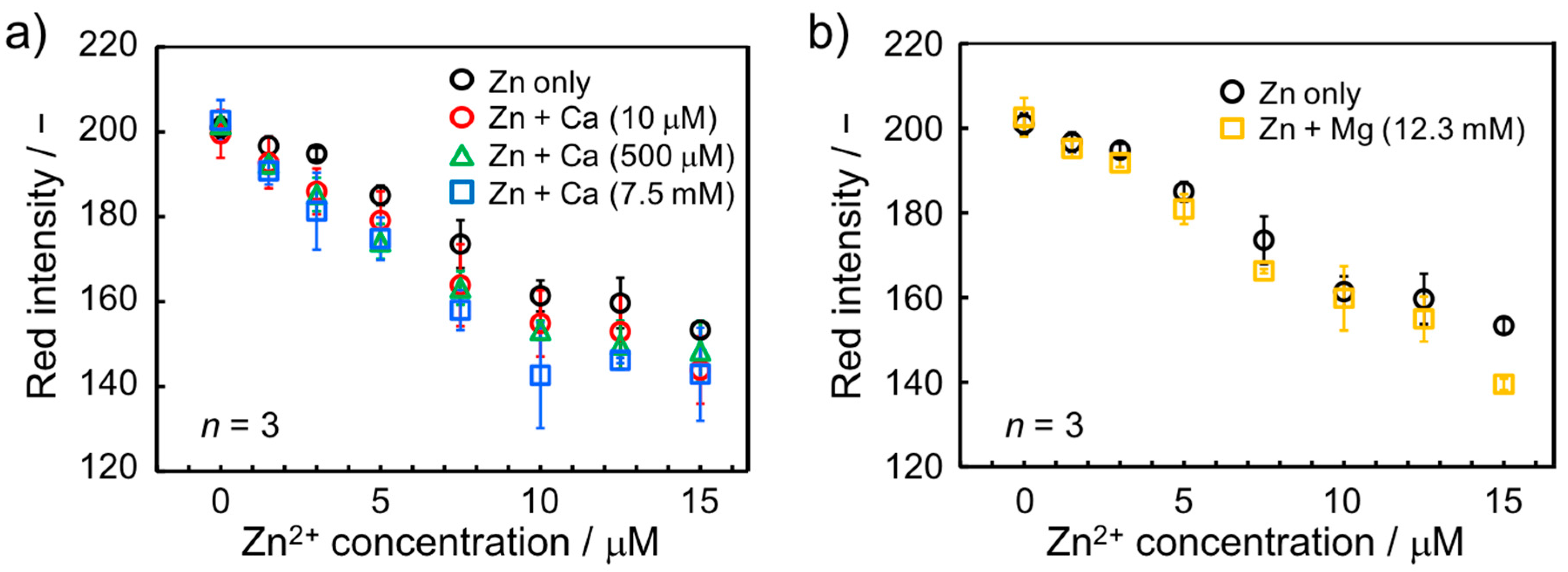

It is well known that Ca²⁺ ions undergo significant interaction with Zincon and that the chelation of Ca²⁺ induces UV/VIS spectral changes [31,45]. Nevertheless, this does not pose a problem for Zincon-based Zn²⁺ assays in solution, since selectivity can be readily achieved by the selection of a suitable measurement wavelength. Zn²⁺ and Ca²⁺ complexes with the indicator show distinguishable spectral behavior. In the case of a paper-based Zn²⁺ assay however, a specific wavelength selection is not achievable through visual inspection or simple colorimetric data analysis and therefore, the presence of Ca²⁺ interferes with Zn²⁺ detection. Considering the inability of selective Ca²⁺ masking and its abundance in environmental water samples, the effect of the presence of Ca²⁺ on quantitative Zn²⁺ detection with the current paper-based device was investigated. On the basis of the Japanese criteria for total water hardness of < 300 mg·L⁻¹, [46] the investigated maximum Ca²⁺ concentration has been selected as 7.5 mM (300 mg·L⁻¹). As expected, the presence of Ca²⁺ exhibited a significant influence on colorimetric Zn²⁺ detection (Figure 6a). On the other hand, Mg²⁺ showed no significant interference when present at concentration up to 12.3 mM (300 mg·L⁻¹) (Figure 6b), reflecting the reported absence of UV/VIS spectral response of Zincon towards that cation [31,45]. The different calibration curves recorded in the presence of Ca²⁺ are attributed to its hypochromic spectral change [31], where Zincon-Ca²⁺ complexes exhibit decreased absorbance and thus show a weaker color intensity than metal-free Zincon. It was postulated that the decrease of the pink color due to the presence of Ca²⁺-bound Zincon leads to an increased sensitivity of the Zn²⁺ concentration-dependent calibration curve. On the other hand, the experimental results shown in Figure 6a demonstrate that Ca²⁺ background concentrations of 500 µM and 7.5 mM result in identical response curves for Zn²⁺. Therefore, Ca²⁺ concentration-independent colorimetric Zn²⁺ measurements with the paper-based device are achievable in water samples with a presence of 500 µM to 7.5 mM Ca²⁺ if calibration is performed accordingly. While this might not allow the application of the present device in all types of water samples, it can reasonably be assumed to be useful in common environmental water samples including tap water, as demonstrated in the following section.

3.4. Application in Environmental Water Sample Matrix

Quantitative Zn²⁺ concentration measurements with the paper-based device developed in this study were performed in real sample matrices by spiking of 5.0 and 10.0 μM of Zn²⁺ into tap water and river water (Yagami River, Yokohama, Japan) samples. Recovery values were calculated based on a calibration curve obtained from aqueous Zn²⁺ solutions with a 500 μM Ca²⁺ background (red line in Figure 7) under the assumption that the Ca²⁺ concentration in the real sample matrix is within the range of 500 μM and 7.5 mM. This assumption was experimentally confirmed by direct measurements of Ca²⁺ in the collected samples using a potentiometric Ca²⁺ monitoring device. The recovery values summarized in

Table 2. Quantification of Zn²⁺ in spiked tap water and river water samples (n = 3).

Sample	Added Zn/μM	Found Zn/μM	Recovery/%
Tap water	0	Not detectable	-
	5	5.76 ± 1.04	115
	10	8.93 ± 1.08	89
River water	0	Not detectable	-
	5	6.48 ± 0.72	129
	10	10.6 ± 0.47	106

suggest that reasonable Zn²⁺ quantification was possible regardless of varying Ca²⁺ concentrations (0.825 mM for tap water, 1.65 mM for river water).

Finally, to demonstrate the superior sensitivity and lower detection limit of the current device compared to a common Zn²⁺ test paper, a calibration curve in the presence of Ca²⁺ was also recorded (green line in Figure 7) with a commercially available test strip. In comparison with the conventional Zn²⁺ test paper based on the same Zincon indicator, the current device exhibited a significantly improved sensitivity (slope of the calibration curves: −4.8 for the current device; −0.95 for the test paper). The achieved detection limit of 0.53 μM allows the detection of Zn²⁺ even below the environmental standard provided by the EPA (1.8 μM), in contrast to the much higher detection limit obtained with a Zn²⁺ test paper currently on the market (9.7 μM). The material cost has been calculated as $0.398 for a single 3D-PAD and $14.0 for the 3D-printed device holder (calculation details on 3D-PAD and 3D-printed device holder are available in Tables S1 and S2 of the Supplementary Materials). Considering their relatively high-cost, re-use of the 3D-printed device holders is desired in practical use.

4. Conclusions

This work has demonstrated concentration and colorimetric detection of Zn²⁺ on a paper-based analytical device. Integration of multiple layers of porous substrates, including glass fiber for sample pre-treatment and cellulose pads for liquid absorption, enables power-free concentration of the analyte from a single sample application. Importantly, the influence of Cu²⁺ possessing an identical working pH range and colorimetric response with Zn²⁺ has been significantly suppressed with the aid of the salicylaldoxime masking agent. Although successful application to Zn²⁺ determination in environmental water matrix has been achieved, challenges remain in real sample analysis under more extreme conditions, such as high heavy metal ion contamination or extremely low concentration of Ca²⁺. However, it is believed that the current analyte concentration approach requiring no electrical power source is compatible with the inherent simplicity of paper-based analytical devices. We hope that the current system helps to overcome the inherently limited sensitivity of simple colorimetric devices and contributes to the expanded applicability of paper-based analytical devices for rapid and simple colorimetric detection of trace metals.
