Effect of Molecular Structure of Organic Acids on the Crystal Habit of α-CaSO4·0.5H2O from Phosphogypsum

by
Xianbo Li
1,2,3 and
Qin Zhang
1,2,3,*
1
Mining College, Guizhou University, Guiyang 550025, China
2
National & Local Joint Laboratory of Engineering for Effective Utilization of Regional Mineral Resources from Karst Areas, Guiyang 550025, China
3
Guizhou Key Lab of Comprehensive Utilization of Nonmetallic Mineral Resources, Guiyang 550025, China
*
Author to whom correspondence should be addressed.
Crystals 2020, 10(1), 24; https://doi.org/10.3390/cryst10010024
Submission received: 22 November 2019 / Revised: 4 January 2020 / Accepted: 4 January 2020 / Published: 6 January 2020
Browse Figures
Versions Notes

Abstract

:
The organic acid crystal modifiers play an important role in the control of the crystal habit of α-hemihydrate gypsum (α-CaSO4·0.5H2O) from phosphogypsum, but the molecular structure characteristics of crystal modifiers have not been clarified, which makes it difficult to judge whether an organic acid has the ability to regulate the crystal habit of α-CaSO4·0.5H2O directly. In this work, the effect of organic acids with different molecular structures on the crystal habit of α-CaSO4·0.5H2O and its adsorption differences onto the α-CaSO4·0.5H2O surface were explored. The results show that the molecular structure characteristics of crystal modifiers contain two or more carboxylic groups (COOH) that are separated by two methylene or methine groups. Furthermore, organic acids with the regulation ability can adsorb on the surface of α-CaSO4·0.5H2O and change its growth habit. With the increase in the crystal modifier concentration, the α-CaSO4·0.5H2O crystals are shortened in length and enlarged in width, resulting in the decrease in aspect ratio and the increase in compressive strength. Conversely, when the adsorption of ineffective organic acids on the surface of α-CaSO4·0.5H2O was not detected, the α-CaSO4·0.5H2O crystals remained long hexagonal prisms. These results have guiding significance for the screening of novel organic acid crystal modifiers.

1. Introduction

Phosphogypsum (PG) is an industrial solid waste produced during the production of phosphoric acid from phosphate ore [1,2], which is an important renewable gypsum resource. The main constituent of PG is calcium sulfate dihydrate (CaSO4·2H2O), but it also contains impurities such as soluble phosphate, co-crystallized phosphorus, soluble fluoride, and organic matters as well as heavy metals and radionuclides [3,4,5,6]. The utilization of PG is severely restricted by these harmful impurities, so the comprehensive utilization rate is only 39.7% [7]. Currently, the preparation of α-hemihydrate gypsum (α-CaSO4·0.5H2O) using PG as the raw material is an important direction for its high value-added utilization. α-CaSO4·0.5H2O has excellent mechanical strength, work performance, and environmental performance, which has been widely used in precision casting, high-end ceramics, functional filler, decorative materials, and so on [8,9]. However, the impurities have a detrimental effect on the preparation of α-CaSO4·0.5H2O; the soluble phosphate and co-crystallized phosphorus can decrease the slurry pH and retard the hydration of α-CaSO4·0.5H2O, and then reduce the strength of hardened gypsum. Similarly, the soluble fluoride can decrease the gypsum strength [10]. Therefore, PG should be pretreated to remove the soluble impurities. In addition, the radionuclides of PG are derived from phosphate ores, mainly Ra226, Th232, and K40, and the radioactivity of PG must meet the standard of GB 6566-2010 (limits of radionuclides in building materials) in order for it to be used as a building material. Notably, the crystal habit is one of the most important factors for affecting the mechanical strength of α-CaSO4·0.5H2O [11,12,13,14]. Compared with the needle-shaped α-CaSO4·0.5H2O, the short columnar α-CaSO4·0.5H2O with a low aspect ratio and a large width shows better mechanical strength [15]. Therefore, the key to the preparation of α-CaSO4·0.5H2O is to select a suitable crystal modifier to control the crystal habit of α-CaSO4·0.5H2O.
Many studies have proven that some organic acids can be used as a crystal modifier to regulate the crystal shape of α-CaSO4·0.5H2O particles. For instance, the short hexagonal prism α-CaSO4·0.5H2O, with an aspect ratio of 1.0–1.4, could be obtained by adding succinic acid (C4H6O4) [15,16,17,18] and sodium succinate (C4H4O4Na2·6H2O) [19]. The pilot scale tests further demonstrated that α-CaSO4·0.5H2O with an aspect ratio of 2.8–3.2 can be synthesized by adding a small amount of C4H6O4 and sodium borate (Na2B4O7·5H2O) [20]. In the presence of maleic acid (C4H4O4), the crystal habit of α-CaSO4·0.5H2O evolved from a needle-like whisker to a short equiaxial crystal [21]. The crystal habit of α-CaSO4·0.5H2O crystals can be influenced by adding citric acid (C6H8O7·H2O) [22] and sodium citrate (Na3C6H5O7·2H2O) [12,13]; the aspect ratio of α-CaSO4·0.5H2O crystal is decreased from 10.3 to 0.6 with the increase in the sodium citrate dosage from 0 to 0.045 wt% [23]. Recently, Li et al. [24] found that L-aspartic acid (C4H7NO4) is an effective crystal modifier for regulating the crystal shape of α-CaSO4·0.5H2O. Additionally, Wang et al. [25] demonstrated that disodium ethylenediamine tetraacetate (C10H14N2Na2O8) influences the crystal habit and nucleation of α-CaSO4·0.5H2O. In particular, Badens et al. [26] investigated the influence of different organic additives on the morphology of gypsum crystals where the results showed that there is an obvious relationship between the rate retarding effect and structural matching between the crystal faces involved and the conformation of the molecule of the additive. The acicular gypsum crystals in pure solution transformed into flat crystals with much more twinned crystals in the presence of malic acid at 1000 ppm.
Nevertheless, not all organic acids possess the ability to control the crystal shape of α- CaSO4·0.5H2O, and only a few reports have been published regarding the molecular structure characteristics of organic acids as crystal modifiers. This makes it difficult to determine, without testing, whether an organic acid has the ability to regulate the crystal habit of α-CaSO4·0.5H2O, and a considerable amount of experimental work is needed to confirm the effectiveness of organic acids. Therefore, the effects of organic acids with different molecular structures on the crystal habit and mechanical properties of α-CaSO4·0.5H2O were systematically investigated. The organic acids used in this paper can be divided into three families: benzenedicarboxylic acids, amino acids, and straight-chain dicarboxylic acids. According to the comparative research of benzenedicarboxylic acids and straight-chain dicarboxylic acids, the effect of different carbon chain lengths between two carboxylic groups (COOH) on the crystal habit of α-CaSO4·0.5H2O can be clarified. Based on the amino acids, the effect of the number of COOH and the feasibility of the amino group (NH2) instead of a hydroxyl group (OH) linked to the carbonyl group (C=O) on the crystal morphology can be clearly defined. Furthermore, the adsorption differences of organic acids on the surface of α-CaSO4·0.5H2O particles were also discussed. The findings have a certain guiding significance for the screening or design and synthesis of novel organic acid crystal modifiers purposefully.

2. Materials and Methods

2.1. Materials

Analytical grade calcium chloride (CaCl2) and organic acids were obtained from Sinopharm Chemical Reagent Co. Ltd., Shanghai, China. PG was collected from the Wengfu (Group) Co. Ltd., Guizhou Province, China. The x-ray diffraction analysis indicated that the main phase of PG is CaSO4·2H2O with a little quartz (SiO2) and co-crystallized phosphorus (CaHPO4·2H2O). The contents of the CaSO4·2H2O, soluble phosphate and soluble fluorine were 91.32 wt%, 0.18 wt%, and 0.01 wt%, respectively [21]. In order to reduce the influence of soluble impurities on the preparation process and mechanical strength of α-CaSO4·0.5H2O, the soluble phosphate and soluble fluoride were solidified by adding 0.6 wt% quicklime (mass ratio of lime to PG), and the removal rates were 90.45% and 36.36%, respectively.
Radionuclides exceeding the standard of GB 6566-2010 are one of the important factors restricting the utilization of solid waste resources. PG generally contains a small amount of radionuclides, and the radioactivity level of PG varies from region to region. Therefore, the specific activity of PG should be tested before it is used. The results are shown in Table 1 where it can be seen that the radioactivity of PG meets the requirements of the main materials for building and class A decorative materials (GB 6566-2010). Therefore, PG can be used to prepare α-CaSO4·0.5H2O cementitious materials.

2.2. Preparation of α-CaSO4·0.5H2O Crystals

The atmospheric salt solution method was adopted to prepare α-CaSO4·0.5H2O powders. The hydrothermal reaction was carried out in the CaCl2 solution, and the original solution pH was 8.6. First, 1.5 L of 2.97 M CaCl2 and different concentrations of organic acid mixed solutions were preheated by oil bath in a 2.0 L three-mouth flask. The solution temperature was monitored by a thermometer inserted into the reactor and maintained with a deviation of ±0.5 °C. Then, 500 g of pretreatment PG was added into the mixed solutions when the temperature reached 95 °C, and the slurry in the reactor was stirred at a rate of 200 r/min. During the experiments, 10 mL of the suspension was sampled at 30 min intervals to observe the crystal habit of the reaction product.

2.3. Characterization Methods

The crystal habit of the α-CaSO4·0.5H2O particles was observed by a scanning electronic microscope (SEM, SU8010, Hitachi, Japan). The length and width of the α-CaSO4·0.5H2O particles were measured by the image analysis software Image-Pro Plus, and at least 100 particles were counted to calculate the average aspect ratio of α-CaSO4·0.5H2O particles. The length, width, and aspect ratio data are shown as the “mean value ± standard deviation of the mean”.
Fourier transform infrared spectroscopy (FTIR, VERTEX 70, Bruker, Germany) was adopted to clarify the adsorption of organic acids on the surface of α-CaSO4·0.5H2O particles. The α-CaSO4·0.5H2O powders prepared with different organic acids were further ground to ~5 μm and then mixed with KBr. The spectra were recorded with a scanning range from 400 to 4000 cm−1 at room temperature. The adsorption of the organic acids on the surface of the α-CaSO4·0.5H2O particles was analyzed by the change in the characteristic adsorption peaks in the spectra.
The as-prepared α-CaSO4·0.5H2O powders were mixed with deionized water to form a slurry. Then, the slurry was poured into iron molds, which were vibrated ten times to remove bubbles in the slurry. After being maintained for 2 h, the iron molds were removed, and the plasters were cured for 24 h at 20 ± 2 °C and 65 ± 5% RH. Finally, the plasters were dried to a constant weight in an oven with the temperature set to 40 ± 1 °C, and the compressive strength of the hardened pastes were determined by a microcomputer-controlled compressive testing machine (YAW-300B, Zhejiang Yingsong Instrument and Equipment Manufacturing Co. Ltd., China).

3. Results and Discussion

3.1. Effect of Benzenedicarboxylic Acid on the Crystal Habit of α-CaSO4·0.5H2O

The benzenedicarboxylic acid (BA, HOOCC6H4COOH) has three kinds of isomers: phthalic acid (PA), isophthalic acid (IPA), and terephthalic acid (TA), the molecular structural formulas of which are shown in Figure 1. The PA, IPA, and TA molecules contain two COOH, but the separation between the two COOH are different. At this time, using BA as a crystal modifier for the preparation of α-CaSO4·0.5H2O has not been reported yet, based on the available literature.
The effects of BA on the crystal habit and size of α-CaSO4·0.5H2O crystals are presented in Figure 2 and Table 2, respectively. The crystal habit of α-CaSO4·0.5H2O crystals were significantly affected by PA concentration. In the absence of PA, α-CaSO4·0.5H2O exists as a long columnar crystal, the average length and width of which were 59.04 ± 14.08 μm and 11.04 ± 3.64 μm, respectively, while the aspect ratio reached 5.74 ± 1.84. In addition, the XRD pattern of the reaction product matched well with the standard pattern of α-CaSO4·0.5H2O (Joint Committee on Powder Diffraction Standards (JCPDS) card 41-0224), and no characteristic peaks of CaSO4·2H2O (JCPDS card 33-0311) were present (Figure 3). The results indicate that the PG was completely transformed into α-CaSO4·0.5H2O.
The α-CaSO4·0.5H2O crystals were shortened in length and enlarged in width with an increase in PA concentration. In the presence of 0.07 mM PA, the average length of the α-CaSO4·0.5H2O particles shortened to 42.56 ± 10.02 μm, the width increased to 16.09 ± 3.55 μm, and the aspect ratio was decreased to 2.72 ± 0.70. With a further increase in PA concentration to 0.20 mM, the average length and width of the α-CaSO4·0.5H2O particles were 32.19 ± 6.87 μm and 20.73 ± 5.26 μm, respectively, and the corresponding aspect ratio decreased to 1.61 ± 0.39. Accordingly, it can be concluded that PA is an effective crystal modifier to control the crystal habit of α-CaSO4·0.5H2O. However, it is interesting to note that the growth habits of α-CaSO4·0.5H2O were nearly unchanged at 0.20 mM IPA and TA; α-CaSO4·0.5H2O remained a long columnar crystal, the average width was close to 10 μm, and the aspect ratios were 4.24 ± 1.43 and 4.54 ± 1.60, respectively. Consequently, the crystal shape of α-CaSO4·0.5H2O particles cannot be regulated by IPA and TA.
The effect of the BA concentration on the compressive strength of hardened gypsum (CaSO4·2H2O) hydrated from α-CaSO4·0.5H2O is shown in Figure 4. As shown in Figure 4, it is beneficial to improve the compressive strength of α-CaSO4·0.5H2O prepared with PA. Compared with the blank experiment, the compressive strength increased from 13.1 MPa to 22.5 MPa with a PA concentration of 0.20 mM. However, when the concentration of IPA or TA was 0.20 mM, the compressive strength was only 10 MPa. Therefore, the addition of IPA or TA cannot improve the mechanical strength of α-CaSO4·0.5H2O, and they are not appropriate as crystal modifiers for the preparation of α-CaSO4·0.5H2O by atmospheric salt solution.

3.2. Effect of Amino Acid on the Crystal Habit of α-CaSO4·0.5H2O

In order to investigate the feasibility of amino acids as crystal modifiers, L-aspartic acid (L-Asp, HOOC–CH(NH2)–CH2–COOH), L-glutamic acid (L-Glu, HOOC–CH(NH2)–(CH2)2–COOH), and L-asparagine (L-Asn, O=C (NH2) CH2 CH(NH2)–COOH) were applied to regulate the crystal habit of α-CaSO4·0.5H2O. The molecular structural formulas are shown in Figure 5. The L-Asp contains one NH2 and two COOH, and the two COOH are separated by a –CH2–CH(NH2)– group. Compared with the L-Asp, the only difference is that the two COOH are separated by a –(CH2)2-CH(NH2)– group for the L-Glu molecule. The L-Asn contains a COOH and a C=O, and the two functional groups are separated by a –CH2–CH(NH2)– group. In fact, the only difference between L-Asn and L-Asp is a NH2 instead of an OH linked to the C=O function. Although we reported earlier that L-Asp is an effective crystal modifier [24], L-Glu and L-Asn with similar structures have not been investigated.
The crystal habit and size variations of α-CaSO4·0.5H2O at different amino acid concentrations are presented in Figure 6 and Figure 7, respectively. Clearly, the crystal habit of α-CaSO4·0.5H2O is significantly affected by L-Asp. In the presence of 2.50 mM L-Asp, the average width of α-CaSO4·0.5H2O particles increased to 27.63 ± 7.52 μm, and the aspect ratio decreased to 1.21 ± 0.30. Therefore, it is inferred that L-Asp has the ability to control the crystal habit of α-CaSO4·0.5H2O. Interestingly, although the concentrations of L-Glu and L-Asn were obviously greater than that of L-Asp, they could not change the crystal habit of α-CaSO4·0.5H2O. The average width was about 11 μm, and the range of aspect ratio was 5–6. Like IPA, even if the L-Glu contains two COOH, it cannot regulate the crystal habit of α-CaSO4·0.5H2O from acicular crystal to short columnar crystal when the two COOH are separated by more than two methylene/methine groups. Inversely, Teng et al. [27] synthesized α-CaSO4·0.5H2O whiskers with high aspect ratios of 200 at atmospheric pressure with the assistance of L-Glu. Therefore, the L-Glu is unable to convert the morphology of α-CaSO4·0.5H2O from needle-like shape to a short columnar shape. Furthermore, although the COOH and C=O are separated by a –CH2–CH(NH2)– group like the L-Asp, L-Asn also cannot regulate the crystal habit of α-CaSO4·0.5H2O because the NH2 group does not have the same role as the OH group. Similarly, Tan et al. [22] found that long columnar crystals with uniform diameters could be obtained by adding acrylic acid (CH2=CH–COOH), which contained only one COOH and could not convert the α-CaSO4·0.5H2O from long columnar whiskers to short columnar crystals. However, the crystal habit of α-CaSO4·0.5H2O can be controlled by citric acid and ethylene diamine tetraacetic acid (EDTA) [28], which contain three and four COOH, respectively. Thus, it can be concluded that the crystal modifier must contain two or more COOH, and the separation between two COOH in the crystal modifier molecule cannot be more than two methylene/methine groups.
The effect of L-Asp, L-Glu, and L-Asn on the compressive strength of the hardened pastes hydrated from α-CaSO4·0.5H2O is shown in Figure 8. The results show that the compressive strength increases with an increase in the L-Asp concentration. In the presence of 2.50 mM L-Asp, the compressive strength of α-CaSO4·0.5H2O reached 30.2 MPa. On the contrary, the compressive strength decreased along with the increase in L-Glu or L-Asn concentrations, with the value being lower than 10 MPa. Therefore, the addition of L-Glu or L-Asn does not improve the mechanical strength.

3.3. Effect of Straight-Chain Dicarboxylic Acid on the Crystal Habit of α-CaSO4·0.5H2O

Dicarboxylic acids with different lengths of carbon chain such as oxalic acid (OA), propanedioic acid (PD), succinic acid (SA), and maleic acid (MA) are shown in Figure 9. What these dicarboxylic acids all have in common is that they contain two COOH, but the separation between the two COOH are different, being separated by zero, one methylene group, and two methylene groups for OA, PD, and SA, respectively. Compared with SA, the only difference in the MA is that it contains a double bond.
The effect of dicarboxylic acids on the crystal habit of α-CaSO4·0.5H2O is presented in Figure 10, and the corresponding length, width, and aspect ratio are shown in Table 3. In the presence of 0.11 mM OA and PD, the corresponding aspect ratios of α-CaSO4·0.5H2O particles were 5.58 ± 1.85 and 5.19 ± 1.45, respectively, with the average width of 10 μm. Therefore, the OA and PD cannot regulate the crystal habit of α-CaSO4·0.5H2O, and we can infer that the separation between the two COOH in the crystal modifier molecule cannot be lower than two methylene groups. The results agree with previously studies, for example, Liu et al. [29] also found that OA did not modify the crystal morphology of α-CaSO4·0.5H2O, which was still acerose or linear clavate, and the crystal morphology of α-CaSO4·0.5H2O had no significant changes with the addition of PD. However, when the concentration of SA was 0.11 mM, the average width enlarged to 17.67 ± 6.71 μm, and the aspect ratio decreases to 3.12 ± 1.10. With a further increase in SA concentration to 0.22 mM, the particle size of α-CaSO4·0.5H2O decreased rapidly, the average width reduced to 1.47 ± 0.54 μm, and the aspect ratio reached up to 9.40 ± 3.10. When the concentration of MA was 0.17 mM, the average width enlarged to 18.15 ± 7.24 μm, with the lower aspect ratio of 2.42 ± 1.09. Hence, SA and MA can be used as crystal modifiers, and the cis-conformation MA shows a better control effect. The reason is that the double bond helps to improve the complexing electron coordination ability of COOH and Ca on the crystal surface of α-CaSO4·0.5H2O [30,31]. Furthermore, the concentration of SA should be controlled within a certain range.
The effect of OA, PD, SA, and MA on the compressive strength of hardened pastes is shown in Figure 11. The results show that the compressive strength of α-CaSO4·0.5H2O prepared with OA and PD was less than 10 MPa. Hence, the addition of OA or PD does not improve the mechanical strength. It is worth noting that the compressive strength increased to 25.3 MPa in the presence of 0.11 mM SA, but with a further increase in SA concentration to 0.22 mM, the particle size and compressive strength of α-CaSO4·0.5H2O sharply decreased. In addition, the compressive strength of α-CaSO4·0.5H2O prepared with 0.17 mM MA reached 30.4 MPa.
In conclusion, when the separation between the two COOH in the molecular structure of organic acids is lower or higher than two methylene or methine groups and the number of COOH is less than two, the organic acids do not have the ability to regulate the crystal habit of α-CaSO4·0.5H2O. That is to say, the molecular structure characteristics of organic acid crystal modifiers are that they contain two or more COOH and the two COOH are separated by two methylene or methine groups.

3.4. Control Mechanism of Organic Acids for the Crystal Habit of α-CaSO4·0.5H2O

The FTIR spectra of α-CaSO4·0.5H2O particles prepared with different crystal modifiers are presented in Figure 12. As shown in Figure 12a, the peak at 1622 cm−1 belongs to the bending vibrations of water molecules in α-CaSO4·0.5H2O, and the two peaks positioned at 3557 cm−1 and 3610 cm−1 are attributed to the O–H stretching vibration [32]. The peak at 466 cm−1 is the symmetrical bending vibration of υ2 SO42−. The peaks located at 1152 cm−1 and 1093 cm−1 are ascribed to the asymmetrical stretching vibration of υ3 SO42−. The peaks at 660 cm−1 and 599 cm−1 are the asymmetrical bending vibrations of υ4 SO42− [33]. In addition, the peak at 799 cm−1 is the stretching vibration peak of P–O [22].
The spectra of α-CaSO4·0.5H2O prepared with L-Asp are presented in Figure 12b. The peak appearing at 1443 cm−1 can be assigned to the symmetric stretching vibration of COO− in amino acid. The peak located at 779 cm−1 is due to the bending vibration of COO−, which is considered to be the characteristic absorption peak of short-chain fatty acids [24]. As can be seen from Figure 12c,d, the peak at 1421 cm−1 is the symmetric stretching vibration peak of COO−, indicating that the crystal modifiers have been adsorbed on the surface of the α-CaSO4·0.5H2O particles.
As PD, IPA, L-Glu, and L-Asn do not have the ability to control the crystal shape of α-CaSO4·0.5H2O particles, FTIR was also used to analyze the adsorption of these organic acids on the surface of α-CaSO4·0.5H2O. The results are shown in Figure 13. Compared with the FTIR spectra of α-CaSO4·0.5H2O prepared without a crystal modifier, the positions and numbers of the characteristic absorption peaks of α-CaSO4·0.5H2O prepared with PD, IPA, L-Glu, and L-Asn did not change, indicating that they could not be adsorbed onto the surface of α-CaSO4·0.5H2O particles or adsorbed by physical absorption.
To further reveal the microcosmic differences between organic acids with and without the ability to regulate the crystal habit of α-CaSO4·0.5H2O, the separation between the COOH (dCOOH–COOH) in different organic acids was measured using the Cambridge Serial Total Energy Package (CASTEP) of Materials Studio 8.0 software based on the density functional theory (DFT), the results of which are shown in Table 4. As can be seen from Table 4, the dCOOH-COOH of crystal modifiers with the ability to regulate the shape of α-CaSO4·0.5H2O such as SA, MA, PA, and L-Asp were 4.327 Å, 3.785 Å, 3.946 Å, and 4.154 Å, respectively, which were close to the separation between Ca atoms (dCa-Ca = 4.187 Å) on the end surface of α-CaSO4·0.5H2O (1 1 1), and the difference value (∆d = dCa-Ca − dCOOH-COOH) was not more than 0.5 Å. However, the dCOOH-COOH of OA and PD were obviously less than 4.187 Å, and the ∆d values reached 1.517 Å and 1.322 Å, respectively. Conversely, the dCOOH-COOH of IPA, TA, and L-Glu were significantly greater than dCa-Ca, and the ∆d values reached 0.933 Å, 2.831 Å, and 1.746 Å, respectively. Therefore, when the dCOOH-COOH of organic acids is distinctly lower (Figure 14a) or higher than (Figure 14b) dCa-Ca, the organic acids cannot interact with Ca atoms on the (111) face of α-CaSO4·0.5H2O, and only when the dCOOH-COOH matches the dCa-Ca do the organic acids possess the ability to regulate the crystal habit of α-CaSO4·0.5H2O. Similarly, Badens et al. [26] found that the separation between calcium ions of the faces (120) and (111) of crystal gypsum (4.0 Å) matched the distance between two oxygen ions of the two carboxylic groups of the molecule of citric acid and MA, and the distance between the two oxygen ions of the active sites was much more important than the distance of two first neighbors of calcium ions on the gypsum crystal. Furthermore, although the dCOOH-C=O of L-Asn (4.073 Å) was close to dCa-Ca, the L-Asn contained only one COOH, so it cannot stably adsorb on the (111) face by two COOH. These analysis results are in agreement with the SEM observation and FTIR tests.
The model of α-CaSO4·0.5H2O crystal habit regulated by the crystal modifier is shown in Figure 15. In our previous study, the adsorption of the MA molecule on the (111), (110), and (010) crystal faces of α-CaSO4·0.5H2O were studied using DFT calculations, and the results indicated that the (111) face was the most stable chemical adsorption surface and presented the strongest bonding interaction with MA, and the adsorption of MA on the (110) and (010) faces was relatively weak [21]. Therefore, the crystal modifier can preferentially adsorb on the (111) face and retard its growth in the length direction. Moreover, with an increase in the crystal modifier concentration, the α-CaSO4·0.5H2O crystals are shortened in length and enlarged in width, resulting in the decrease in aspect ratio.

4. Conclusions

Organic acids with different molecular structures were adopted to regulate the crystal habit of α-CaSO4·0.5H2O, and the adsorption differences of organic acids on the surface of α-CaSO4·0.5H2O particles were clarified. The conclusions are as follows.
The molecular structure characteristics of organic acid crystal modifiers are that they contain two or more COOH and that the two COOH are separated by two methylene or methine groups. The crystal modifiers can adsorb on the surface of α-CaSO4·0.5H2O particles and change its growth habit. With the increase in the crystal modifier concentration such as PA, L-Asp, SA, and MA, the α-CaSO4·0.5H2O crystals are shortened in length and enlarged in width, resulting in the decrease in aspect ratio and the increase in compressive strength. Organic acids without the control ability such as PD, IPA, L-Glu, and L-Asn neither adsorb on the surface of α-CaSO4·0.5H2O particles, nor change its crystal habit and improve the compression strength.

Author Contributions

X.L. performed the experiments and wrote the manuscript. Q.Z. conceived and designed the experiments. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant number U1812402.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Hammas, I.; Horchani-Naifer, K.; Férid, M. Solubility study and valorization of phosphogypsum salt solution. Int. J. Miner. Process. 2013, 123, 87–93. [Google Scholar] [CrossRef]
  2. Romero-Hermida, I.; Morales-Flórez, V.; Santos, A.; Villena, A.; Esquivias, L. Technological proposals for recycling industrial wastes for environmental applications. Minerals-Basel 2014, 4, 746–757. [Google Scholar] [CrossRef] [Green Version]
  3. Rashad, A.M. Phosphogypsum as a construction material. J. Clean. Prod. 2017, 166, 732–743. [Google Scholar] [CrossRef]
  4. Islam, G.M.S.; Chowdhury, F.H.; Raihan, M.T.; Amit, S.K.S.; Islam, M.R. Effect of phosphogypsum on the properties of portland cement. Procedia Eng. 2017, 171, 744–751. [Google Scholar] [CrossRef]
  5. Hua, S.D.; Wang, K.J.; Yao, X. Developing high performance phosphogypsum-based cementitious materials for oil-well cementing through a step-by-step optimization method. Cem. Concr. Compos. 2016, 72, 299–308. [Google Scholar] [CrossRef]
  6. Yang, L.; Zhang, Y.S.; Yan, Y. Utilization of original phosphogypsum as raw material for the preparation of self-leveling mortar. J. Clean. Prod. 2016, 127, 204–213. [Google Scholar] [CrossRef]
  7. Ye, X.D. Current situation, existing problems and suggestions of phosphogypsum utilization in China in 2018. Phosphate Compound Fert. 2018, 34, 1–4. [Google Scholar]
  8. Jiang, G.M.; Wang, H.; Chen, Q.S.; Zhang, X.M.; Wu, Z.B.; Guan, B.H. Preparation of alpha-calcium sulfate hemihydrate from FGD gypsum in chloride-free Ca(NO3)2 solution under mild conditions. Fuel 2016, 174, 235–241. [Google Scholar] [CrossRef]
  9. Guan, B.H.; Yang, L.; Fu, H.L.; Kong, B.; Li, T.Y.; Yang, L.C. α-calcium sulfate hemihydrate preparation from FGD gypsum in recycling mixed salt solutions. Chem. Eng. J. 2011, 174, 296–303. [Google Scholar] [CrossRef]
  10. Zhang, R.; Li, Y.J.; Liu, J.; Zhao, Y.Y.; Jiang, Y.D. Utilization of phosphogypsum and treatment of the impure elements. Conserv. Utilization Miner. Resour. 2015, 50–54. [Google Scholar] [CrossRef]
  11. Guan, Q.J.; Sun, W.; Hu, Y.H.; Yin, Z.G.; Zhang, C.H.; Guan, C.P.; Zhu, X.N.; Ahmed Khoso, S. Simultaneous control of particle size and morphology of α-CaSO4·½H2O with organic additives. J. Am. Ceram. Soc. 2019, 102, 2441–2449. [Google Scholar]
  12. Shen, Z.X.; Guan, B.H.; Fu, H.L.; Yang, L.C. Effect of potassium sodium tartrate and sodium citrate on the preparation of α-calcium sulfate hemihydrate from flue gas desulfurization gypsum in a concentrated electrolyte solution. J. Am. Ceram. Soc. 2009, 92, 2894–2899. [Google Scholar] [CrossRef]
  13. Duan, Z.Y.; Li, J.X.; Li, T.G.; Zheng, S.R.; Han, W.M.; Geng, Q.Y.; Guo, H.B. Influence of crystal modifier on the preparation of α-hemihydrate gypsum from phosphogypsum. Constr. Build. Mater. 2017, 133, 323–329. [Google Scholar] [CrossRef]
  14. Li, F.; Liu, J.L.; Yang, G.Y.; Pan, Z.Y.; Ni, X.; Xu, H.; Huang, Q. Effect of pH and succinic acid on the morphology of α-calcium sulfate hemihydrate synthesized by a salt solution method. J. Cryst. Growth 2013, 374, 31–36. [Google Scholar] [CrossRef]
  15. Guan, Q.J.; Sun, W.; Hu, Y.H.; Yin, Z.G.; Guan, C.P. Synthesis of α-CaSO4·0.5H2O from flue gas desulfurization gypsum regulated by C4H4O4Na2·6H2O and NaCl in glycerol-water solution. RSC Adv. 2017, 7, 27807–27815. [Google Scholar] [CrossRef] [Green Version]
  16. Guan, Q.J.; Tang, H.H.; Sun, W.; Hu, Y.H.; Yin, Z.G. Insight into influence of glycerol on preparing α-CaSO4·1/2H2O from flue gas desulfurization gypsum in glycerol–water solutions with succinic acid and NaCl. Ind. Eng. Chem. Res. 2017, 56, 9831–9838. [Google Scholar] [CrossRef]
  17. Mi, Y.; Chen, D.Y.; Wang, S.Z. Utilization of phosphogypsum for the preparation of α-calcium sulfate hemihydrate in chloride-free solution under atmospheric pressure. J. Chem. Technol. Biotechnol. 2018, 93, 2371–2379. [Google Scholar] [CrossRef]
  18. Shao, D.D.; Zhao, B.; Zhang, H.Q.; Wang, Z.G.; Shi, C.J.; Cao, J.L. Preparation of large-grained α-high strength gypsum with FGD gypsum. Cryst. Res. Technol. 2017, 52, 1700078. [Google Scholar] [CrossRef]
  19. Lu, W.D.; Ma, B.G.; Su, Y.; He, X.Y.; Jin, Z.; Qi, H.H. Preparation of α-hemihydrate gypsum from phosphogypsum in recycling CaCl2 solution. Constr. Build. Mater. 2019, 214, 399–412. [Google Scholar] [CrossRef]
  20. Guan, B.H.; Kong, B.; Fu, H.L.; Yu, J.; Jiang, G.M.; Yang, L. Pilot scale preparation of α-calcium sulfate hemihydrate from FGD gypsum in Ca–K–Mg aqueous solution under atmospheric pressure. Fuel 2012, 98, 48–54. [Google Scholar] [CrossRef]
  21. Li, X.B.; Zhang, Q.; Ke, B.L.; Wang, X.C.; Li, L.J.; Li, X.H.; Mao, S. Insight into the effect of maleic acid on the preparation of α-hemihydrate gypsum from phosphogypsum in Na2SO4 solution. J. Cryst. Growth 2018, 493, 34–40. [Google Scholar] [CrossRef]
  22. Tan, H.; Dong, F. Morphological regulation of calcium sulfate hemihydrate from phosphogypsum. Materialwissenschaft und Werkstofftechnik 2017, 48, 1191–1196. [Google Scholar] [CrossRef]
  23. Ma, B.G.; Lu, W.D.; Su, Y.; Li, Y.B.; Gao, C.; He, X.Y. Synthesis of α-hemihydrate gypsum from cleaner phosphogypsum. J. Clean. Prod. 2018, 195, 396–405. [Google Scholar] [CrossRef]
  24. Li, X.B.; Zhang, Q.; Shen, Z.H.; Li, L.J.; Li, X.H.; Mao, S. L-aspartic acid: A crystal modifier for preparation of hemihydrate from phosphogypsum in CaCl2 solution. J. Cryst. Growth 2019, 511, 48–55. [Google Scholar] [CrossRef]
  25. Wang, X.S.; Zhou, M.; Ke, X.; Tan, R.Q.; Chen, Y.C.; Hou, H.B. Synthesis of alpha hemihydrate particles with lithium and carboxylates via the hydrothermal method. Powder Technol. 2017, 317, 293–300. [Google Scholar] [CrossRef]
  26. Badens, E.; Veesler, S.; Boistelle, R. Crystallization of gypsum from hemihydrate in presence of additives. J. Cryst. Growth 1999, 198, 704–709. [Google Scholar] [CrossRef]
  27. Teng, W.; Wang, J.; Wu, J.; Du, Y.; Jia, X.; Li, H.; Wang, T. Rapid synthesis of alpha calcium sulfate hemihydrate whiskers in glycerol-water solution by using flue-gas-desulfurization gypsum solid waste. J. Cryst. Growth 2018, 496–497, 24–30. [Google Scholar] [CrossRef]
  28. Jia, C.Y.; Chen, Q.S.; Zhou, X.; Wang, H.; Jiang, G.M.; Guan, B.H. Trace NaCl and Na2EDTA mediated synthesis of α-calcium sulfate hemihydrate in glycerol–water solution. Ind. Eng. Chem. Res. 2016, 55, 9189–9194. [Google Scholar] [CrossRef]
  29. Liu, X.F.; Peng, J.H.; Zhang, J.X.; Qu, J.D.; Li, M. Effect of organic diacid carbon chain length on crystal morphology of α-calcium sulfate hemihydrate in preparation from flue gas desulphurization gypsum. Appl. Mech. Mater. 2012, 253–255, 542–545. [Google Scholar] [CrossRef]
  30. Zhao, Z.M.; Luan, Y.; Quan, S.C.; Wu, J.L. The effect of functional groups for the organic acid on the crystal transition of phosphogypsum crystal. J. Build. Mater. 2018, 21, 247–252. [Google Scholar]
  31. Peng, J.H.; Chen, M.F.; Zhang, J.X.; Qu, J.D.; Zou, C.Y. Influnce of organic acid structure on crystal morphology of α-hemihydrate desulfurization gypsum and Its crystal modification mechanism. J. Sichuan Univ. (Eng. Sci. Ed.) 2012, 44, 116–172. [Google Scholar]
  32. Mandal, P.K.; Mandal, T.K. Anion water in gypsum (CaSO4·2H2O) and hemihydrate (CaSO4·1/2H2O). Cem. Concr. Res. 2002, 32, 313–316. [Google Scholar] [CrossRef]
  33. Mao, J.W.; Jiang, G.M.; Chen, Q.S.; Guan, B.H. Influences of citric acid on the metastability of α-calcium sulfate hemihydrate in CaCl2 solution. Colloid. Surface. A Physicochem. Eng. Asp. 2014, 443, 265–271. [Google Scholar] [CrossRef]
Crystals 10 00024 g001 550

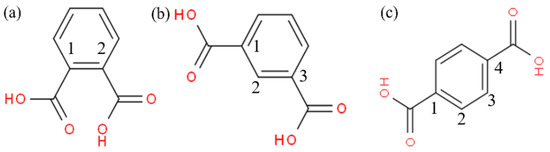

Figure 1. Molecular structural formula of (a) PA, (b) IPA, and (c) TA.
Figure 1. Molecular structural formula of (a) PA, (b) IPA, and (c) TA.
Crystals 10 00024 g001
Crystals 10 00024 g002 550
Figure 2. Effect of BA on the crystal habit of CaSO4·0.5H2O. (a) 0 mM; (b) PA: 0.07 mM; (c) PA: 0.13 mM; (d) PA: 0.20 mM; (e) IPA: 0.20 mM; (f) TA: 0.20 mM.
Figure 2. Effect of BA on the crystal habit of CaSO4·0.5H2O. (a) 0 mM; (b) PA: 0.07 mM; (c) PA: 0.13 mM; (d) PA: 0.20 mM; (e) IPA: 0.20 mM; (f) TA: 0.20 mM.
Crystals 10 00024 g002
Crystals 10 00024 g003 550
Figure 3. XRD patterns of (a) the JCPDS card of α-CaSO4·0.5H2O and (b) the reaction product prepared without organic acid.
Figure 3. XRD patterns of (a) the JCPDS card of α-CaSO4·0.5H2O and (b) the reaction product prepared without organic acid.
Crystals 10 00024 g003
Crystals 10 00024 g004 550
Figure 4. Effect of BA concentration on the compressive strength of CaSO4·0.5H2O.
Figure 4. Effect of BA concentration on the compressive strength of CaSO4·0.5H2O.
Crystals 10 00024 g004
Crystals 10 00024 g005 550
Figure 5. Molecular structural formulas of (a) L-Asp, (b) L-Glu, and (c) L-Asn.
Figure 5. Molecular structural formulas of (a) L-Asp, (b) L-Glu, and (c) L-Asn.
Crystals 10 00024 g005
Crystals 10 00024 g006 550

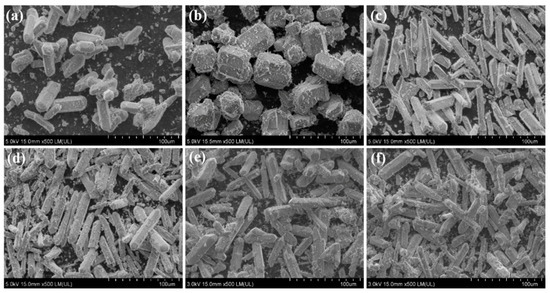

Figure 6. Effect of amino acid concentration on the crystal habit of CaSO4·0.5H2O. (a) L-Asp: 1.25 mM; (b) L-Asp: 2.50 mM; (c) L-Glu: 4.44 mM; (d) L-Glu: 8.88 mM; (e) L-Asn: 2.52 mM; (f): L-Asn: 12.60 mM.
Figure 6. Effect of amino acid concentration on the crystal habit of CaSO4·0.5H2O. (a) L-Asp: 1.25 mM; (b) L-Asp: 2.50 mM; (c) L-Glu: 4.44 mM; (d) L-Glu: 8.88 mM; (e) L-Asn: 2.52 mM; (f): L-Asn: 12.60 mM.
Crystals 10 00024 g006
Crystals 10 00024 g007 550
Figure 7. Effect of amino acids on the length, diameter, and aspect ratio of CaSO4·0.5H2O.
Figure 7. Effect of amino acids on the length, diameter, and aspect ratio of CaSO4·0.5H2O.
Crystals 10 00024 g007
Crystals 10 00024 g008 550
Figure 8. Effect of amino acid concentration on the compressive strength of CaSO4·0.5H2O.
Figure 8. Effect of amino acid concentration on the compressive strength of CaSO4·0.5H2O.
Crystals 10 00024 g008
Crystals 10 00024 g009 550
Figure 9. Molecular structural formula of (a) OA, (b) PD, (c) SA and (d) MA.
Figure 9. Molecular structural formula of (a) OA, (b) PD, (c) SA and (d) MA.
Crystals 10 00024 g009
Crystals 10 00024 g010 550
Figure 10. Effect of straight-chain dicarboxylic acid on the crystal habit of CaSO4·0.5H2O. (a) OA: 0.11 mM; (b) PD: 0.11 mM; (c) SA: 0.11 mM; (d) SA: 0.22 mM; (e) MA: 0.06 mM; (f): MA: 0.17 mM.
Figure 10. Effect of straight-chain dicarboxylic acid on the crystal habit of CaSO4·0.5H2O. (a) OA: 0.11 mM; (b) PD: 0.11 mM; (c) SA: 0.11 mM; (d) SA: 0.22 mM; (e) MA: 0.06 mM; (f): MA: 0.17 mM.
Crystals 10 00024 g010
Crystals 10 00024 g011 550

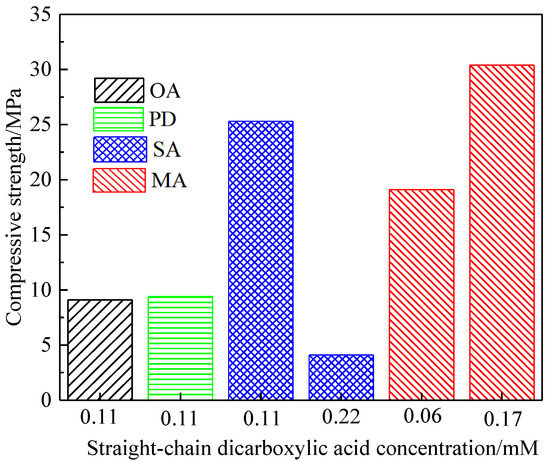

Figure 11. Effect of straight-chain dicarboxylic acid concentration on the compressive strength of α-CaSO4·0.5H2O.
Figure 11. Effect of straight-chain dicarboxylic acid concentration on the compressive strength of α-CaSO4·0.5H2O.
Crystals 10 00024 g011
Crystals 10 00024 g012 550
Figure 12. Fourier transform infrared spectroscopy (FTIR) spectra of CaSO4·0.5H2O particles prepared with different crystal modifiers. (a) Blank test; (b) L-Asp; (c) PA; and (d) MA.
Figure 12. Fourier transform infrared spectroscopy (FTIR) spectra of CaSO4·0.5H2O particles prepared with different crystal modifiers. (a) Blank test; (b) L-Asp; (c) PA; and (d) MA.
Crystals 10 00024 g012
Crystals 10 00024 g013 550
Figure 13. FTIR spectra of CaSO4·0.5H2O particles prepared with different organic acids. (a) Blank test; (b) PD; (c) IPA; (d) L-Glu; and (e) L-Asn.
Figure 13. FTIR spectra of CaSO4·0.5H2O particles prepared with different organic acids. (a) Blank test; (b) PD; (c) IPA; (d) L-Glu; and (e) L-Asn.
Crystals 10 00024 g013
Crystals 10 00024 g014 550

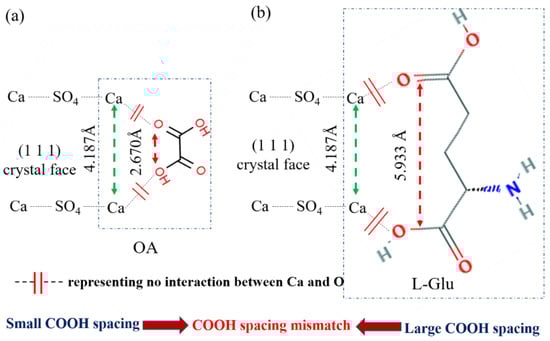

Figure 14. Schematic diagram of OA (a) and L-Glu (b) on the (111) surface of CaSO4·0.5H2O.
Figure 14. Schematic diagram of OA (a) and L-Glu (b) on the (111) surface of CaSO4·0.5H2O.
Crystals 10 00024 g014
Crystals 10 00024 g015 550

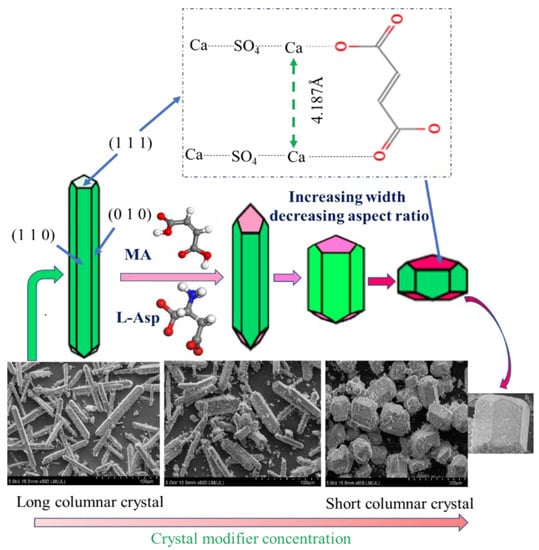

Figure 15. Model of CaSO4·0.5H2O crystal habit regulated by the crystal modifier.
Figure 15. Model of CaSO4·0.5H2O crystal habit regulated by the crystal modifier.
Crystals 10 00024 g015
Table
Table 1. Radioactivity of phosphogypsum (PG).
Table 1. Radioactivity of phosphogypsum (PG).
ItemsRadioactivity Nuclide Specific ActivityInternal Exposure IndexExternal Exposure Index
226Ra232Th40K
PG61.02.33.30.310.17
Main materials for building ≤1.0≤1.0
Class A decorative materials ≤1.0≤1.3
Table
Table 2. Effect of benzenedicarboxylic acid (BA) on the length, width, and aspect ratio of α-CaSO4·0.5H2O particles.
Table 2. Effect of benzenedicarboxylic acid (BA) on the length, width, and aspect ratio of α-CaSO4·0.5H2O particles.
BA Concentration/(mM)Average Length/μmAverage Width/μmAspect Ratio
PA059.04 ± 14.0811.04 ± 3.645.74 ± 1.84
0.0742.56 ± 10.0216.09 ± 3.552.72 ± 0.70
0.1339.39 ± 9.6318.02 ± 4.912.36 ± 0.91
0.2032.19 ± 6.8720.73± 5.261.61 ± 0.39
IPA0.2041.83 ± 12.7210.60 ± 3.814.24 ± 1.43
TA0.2040.30 ± 11.519.46 ± 2.964.54 ± 1.60
Table
Table 3. Effect of straight-chain dicarboxylic acid on the length, diameter, and aspect ratio of α-CaSO4·0.5H2O particles.
Table 3. Effect of straight-chain dicarboxylic acid on the length, diameter, and aspect ratio of α-CaSO4·0.5H2O particles.
Dicarboxylic Acids Concentration/mMAverage Length/μmAverage Width /μmAspect Ratio
OA0.1151.31 ± 12.179.86 ± 2.745.58 ± 1.85
PD0.1151.87 ± 10.1710.53 ± 2.755.19 ± 1.45
SA0.1150.14 ± 10.8717.67 ± 6.713.12 ± 1.10
0.2213.89 ± 7.331.47 ± 0.549.40 ± 3.10
MA0.0659.19 ± 11.1113.68 ± 4.104.68 ± 1.52
0.1739.35 ± 14.6918.15 ± 7.242.42 ± 1.09
Table
Table 4. COOH separation of different organic acids.
Table 4. COOH separation of different organic acids.
Organic AcidOAPDSAMAPAIPATAL-AspL-AsnL-Glu
COOH separation /Å2.6702.8654.3273.7853.9465.1207.0184.1544.0735.933

Share and Cite

MDPI and ACS Style

Li, X.; Zhang, Q. Effect of Molecular Structure of Organic Acids on the Crystal Habit of α-CaSO4·0.5H2O from Phosphogypsum. Crystals 2020, 10, 24. https://doi.org/10.3390/cryst10010024

AMA Style

Li X, Zhang Q. Effect of Molecular Structure of Organic Acids on the Crystal Habit of α-CaSO4·0.5H2O from Phosphogypsum. Crystals. 2020; 10(1):24. https://doi.org/10.3390/cryst10010024

Chicago/Turabian Style

Li, Xianbo, and Qin Zhang. 2020. "Effect of Molecular Structure of Organic Acids on the Crystal Habit of α-CaSO4·0.5H2O from Phosphogypsum" Crystals 10, no. 1: 24. https://doi.org/10.3390/cryst10010024

APA Style

Li, X., & Zhang, Q. (2020). Effect of Molecular Structure of Organic Acids on the Crystal Habit of α-CaSO4·0.5H2O from Phosphogypsum. Crystals, 10(1), 24. https://doi.org/10.3390/cryst10010024

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
