Preparation of Cellulose Nanocrystal-Reinforced Physical Hydrogels for Actuator Application

Abstract

In the present investigation, we prepared cellulose nanocrystal (CNC)-reinforced polyvinyl alcohol-cellulose (PVA-Cell) physical hydrogels using a simple blending method for actuator application. The prepared hydrogels were characterized by Fourier transform infrared spectroscopy, X-ray diffraction, and the surface and cross-section were studied by scanning electron microscopy. CNCs were well dispersed in the PVA-Cell hydrogel. In the preparation process, surface hydroxyl groups of the CNC and PVA-Cell matrix hydroxyl groups were interacted to produce uniform dispersion of CNCs in the hydrogels. Swelling behavior and compression studies revealed that the increase of the CNCs reinforced the crosslinking. The actuation test of the prepared hydrogels showed that the displacement linearly increased with the voltage, and the immense output displacement was observed at low CNC concentration. The prepared hydrogels are applicable for soft robot actuators and active lens.

1. Introduction

In the last few decades, researchers have focused on synthesizing nanocomposite hydrogels for tissue engineering, drug delivery, antimicrobial, bioactive electrode coatings, actuators, and sensors [1,2,3,4]. Nanocomposite hydrogels are advantageous with softness, biocompatibility, multi-functionality, and adaptability. For making nanocomposite hydrogels, nanosized materials are reinforced with the materials. Generally, clay [5], silica, carbon nanotubes [6], gold [7], silver [2], and magnetic materials [8] are used as reinforcement materials that should be well dispersed in the hydrogel matrices. Beyond these reinforcement materials, cellulose nanocrystal (CNC) use gained much interest because of its renewable behavior [9,10].

CNC is a rod/needle-shaped crystalline cellulose material, which is produced by acid hydrolysis of cellulose. Cellulose has both amorphous and crystalline regions in microfibrils. In acid hydrolysis, most of the amorphous regions of the cellulose microfibrils are removed by acid degradation and over the crystalline domains, which remain intact as they have a higher resistance to acid degradation [11,12]. The final acid hydrolysis residue gives a nanosized CNC suspension. Generally, CNC is less than 300 nm in length and 20 nm in width. This property depends on the source of cellulose raw materials [13]. CNCs can be used to improve the performance of a broad range of materials such as emulsions and foams, biomedical devices, electronics and sensors, high-viscosity fluids, and polymer composites. The raw materials are eco-friendly, with low-cost, and broadly available in nature. In addition, due to the mechanical properties of CNCs equal to metal, CNCs have potential applications. In composite areas, CNCs are used as reinforcing as fillers. For example, CNC-reinforced waterborne epoxy nanocomposites showed better tensile strength (60 MPa) than the neat epoxy matrix (40 MPa) [14]. Recently, new strategies are being used to reinforce hydrogels by using CNC to increase their properties to apply for drug delivery, tissue engineering, and biomedical applications [13,14,15,16]. For example, CNC-reinforced gelatin hydrogels were reported for controlled drug delivery applications using rice husks as a raw material [15]. CNC-reinforced alginate hydrogel beads were fabricated for methylene blue adsorption [17]. Recently, CNC-reinforced poly (diethylene glycol adipate) (PDEGA) nanocomposites were reported for reconfigurable microlens applications [18,19]. The addition of CNC in hydrogels improves its mechanical properties and enhances its dielectric properties to strengthen its actuation behavior without sacrificing its transparency [20]. However, the required electric field is still high.

To further extend the CNC reinforcement in hydrogels, this paper reports CNC reinforcement on polyvinyl alcohol (PVA)-cellulose (PVA-Cell) based hydrogels. In recent works, we reported PVA-Cell and PVA-CNC based physical hydrogels and investigated their electroactive behaviors [21,22]. The PVA-Cell hydrogel, an ionic gel, showed its maximum actuation strain, 1525 ppm, under a 0.25 V/mm electric field. The actuation mechanism is a combination of electrostriction and ion migration effect. Similarly, the PVA-CNC hydrogel exhibited its maximum actuation strain, 2870 ppm under 0.25 V/m electric field. The PVA-CNC hydrogel was believed to be a non-ionic gel. Thus, the actuation mechanism might be an electrostatic effect. It is curious what would happen if these two hydrogels were mixed. Therefore, this paper investigated CNC reinforcement on PVA-Cell based physical hydrogels to further extend the CNC reinforcement in PVA-Cell hydrogel. In this research, the hydrophilic CNC-reinforced PVA-Cell (PCC) hydrogels were prepared via the physical blends method. Initially, the PVA and cellulose solution were mixed to form the PVA-Cell hydrogel matrix, and nanosized CNC was reinforced into the PVA-Cell matrix that will form a crosslinked hydrogel with a unique network. It results in PCC hydrogel. The prepared hydrogels were confirmed from Fourier transform infrared (FTIR) and X-ray diffraction (XRD) studies. Furthermore, the prepared PCC hydrogels’ actuation behavior was tested by applying AC voltage in a hydrated state.

2. Materials and Methods

2.1. Materials

Cotton pulp (MVE, DP-4580) was supplied by Buckeye Technologies Co. Ltd. (Memphis, TN, USA) and polyvinyl alcohol (PVA = 89,000–98,000 g mole⁻¹, 99% hydrolyzed). Extra pure lithium chloride (LiCl, Daejung Chemical, Gyeonggi-Do, Korea) was carefully dried using an oven at 110 °C, 2 h before use. N, N-dimethylacetamide (DMAc), sulfuric acid (H₂SO₄), and sodium hydroxide were purchased from Sigma-Aldrich, Gyeonggi-Do, Korea. Deionized (DI) water was used throughout the experiment.

2.2. Preparation of Cellulose Nanocrystal

In this study, CNC was prepared by the acid hydrolysis treatment [20,22], and here is a brief explanation. The pure cotton pulp (20.0 g) dispersed in H₂SO₄ (175 mL of 30% (v/v) aqueous) under mechanical stirring (200 rpm, 4 h) at 60 °C. Before starting the acid hydrolysis process, an alkaline (1 M NaOH) treatment was carried out on the cotton cellulose to remove the non-cellulosic components and get the high yield of CNC prior. The hydrolysis left a suspension solution, which was further centrifuged with adding excess DI water to attain neutrality (pH 7), followed by homogenization and dialysis. A certain amount of homogenized CNC was dispersed in 25 mL of DMAc and sonicated for 1 h. Finally, 1% CNC solution was obtained and stored at room temperature until to use.

2.3. Preparation of Cellulose and PVA Solutions

The cellulose solution was prepared according to our previous work, and here is a brief explanation [23]. The 1.5 g of pure cotton pulp was dispersed in 8.5 wt.% LiCl/DMAc solvent and stirred by using a magnetic stirrer at room temperature over 5 days. After completing this process, the solution was centrifuged to remove an undissolved portion of the cellulose, and, finally, 1.5 wt.% of the cellulose solution obtained. A similar approach was followed in the preparation of 3 wt.% PVA.

2.4. Preparation of CNC-Reinforced PVA-Cell Hydrogels

Initially, a 1:1 ratio of PVA and cellulose solutions was mixed and stirred at room temperature 24 h. After getting a homogeneous solution, a different amount of CNC (in mL) was added to the solution and stirred again. The well-dispersed CNC-reinforced solution was poured into a Petri dish and kept in an oven at 30 °C for 3 days. After that, a transparent hydrogel was formed, then it was immersed in 500 mL beakers containing 250 mL of DI water. The water was repeatedly changed every 6 h for 5 days to remove LiCl/DMAc and unreacted materials from the hydrogel.

Table 1. Feed composition and properties of CNC-reinforced PVA-Cell hydrogels.

Hydrogel Ccode	PVA Solution (3 wt.%) g	Cellulose Solution (1.5 wt.%) g	1 wt.% CNC mL	Swelling Ratio (Sg/g)	Compressive Modulus kPa
PCC0	50	50	-	13.2	99.1
PCC1	50	50	1	14.8	65.8
PCC2	50	50	2	14.6	66.3
PCC3	50	50	3	13.4	88.5

shows the feed composition of the prepared PCC hydrogels.

3. Characterization

FTIR spectrophotometer was used to study the chemical bondings of CNC-reinforced PVA-Cell hydrogels. Before the FTIR analysis, the samples were completely dried in a vacuum oven at 60 °C for 6 h, and the spectra were recorded on the FTIR spectroscopy ranging from 400 to 4000 cm⁻¹ (Bruker Optics, Billerica, MA, USA) by using the KBr disk pellet method with averaging 16 scans. XRD analysis was performed on the CNC, PCC0, and PCC3. An X-ray diffractometer (DMAX 2500, RIGAKU, Tokyo, Japan) was used to record the XRD graph using a Cu Kα radiation source (λ = 0.1542 nm) at 40 kV and 300 mA. The running speed of the scan 2° per min and the spectra of 2θ (Bragg angle) range from 5 to 45°. A scanning electron microscopy (SEM) was used to observe the morphology aspects of the prepared hydrogels. Before the SEM analysis, the samples were freeze-dried and coated with platinum. The images were taken using an SEM (S-4000, Hitachi, Tokyo, Japan) at an accelerating 15 kV voltage. The PCC hydrogels’ optical transparency was measured using a UV-visible spectrophotometer (HP8452A, Agilent, Santa Clara, CA, USA). For the measurement, the hydrogel specimen was cut into the desired shape, and the wavelength range was 400–800 nm. The compression stress test was conducted in a fully hydrated stage using a compression test machine with 10 N loadcell and a compressing speed of 0.0005 mm/s. The hydrogel samples (2 × 2 × 0.4 cm³) were kept in between two plates; the upper plate presses the specimen until it reaches the bottom fixed plate. The overall compression test was conducted at room temperature.

Actuation Test

The actuation test was carried out by using a computerized measurement system. The experimental setup was explained in our previous work, and here is a brief explanation [22,24]. Before conducting the test, the desired hydrogels (10 × 10 × 4 mm³) were equilibrated in DI water for 24 h. After reaching the equilibration, the swollen hydrogels were kept in between two electrodes (polyimide tape attached indium tin oxide (ITO) glass), and then an electric field was applied between the electrodes. A high voltage amplifier (20/20, Trek, Waterloo, WI, USA) was connected to a function generator (33220A, Agilent, Santa Clara, CA, USA) for applying a high voltage to the electrode. The experiment was conducted in an environmental chamber, and the chamber temperature and humidity were maintained constant (25 °C, 95% RH) throughout the experiment. Displacement of the hydrogels was measured using a laser displacement sensor (LK-G85, Keyence, Tokyo, Japan) and a data acquisition system (Pulse, B & K, Nærum, Denmark).

4. Results and Discussion

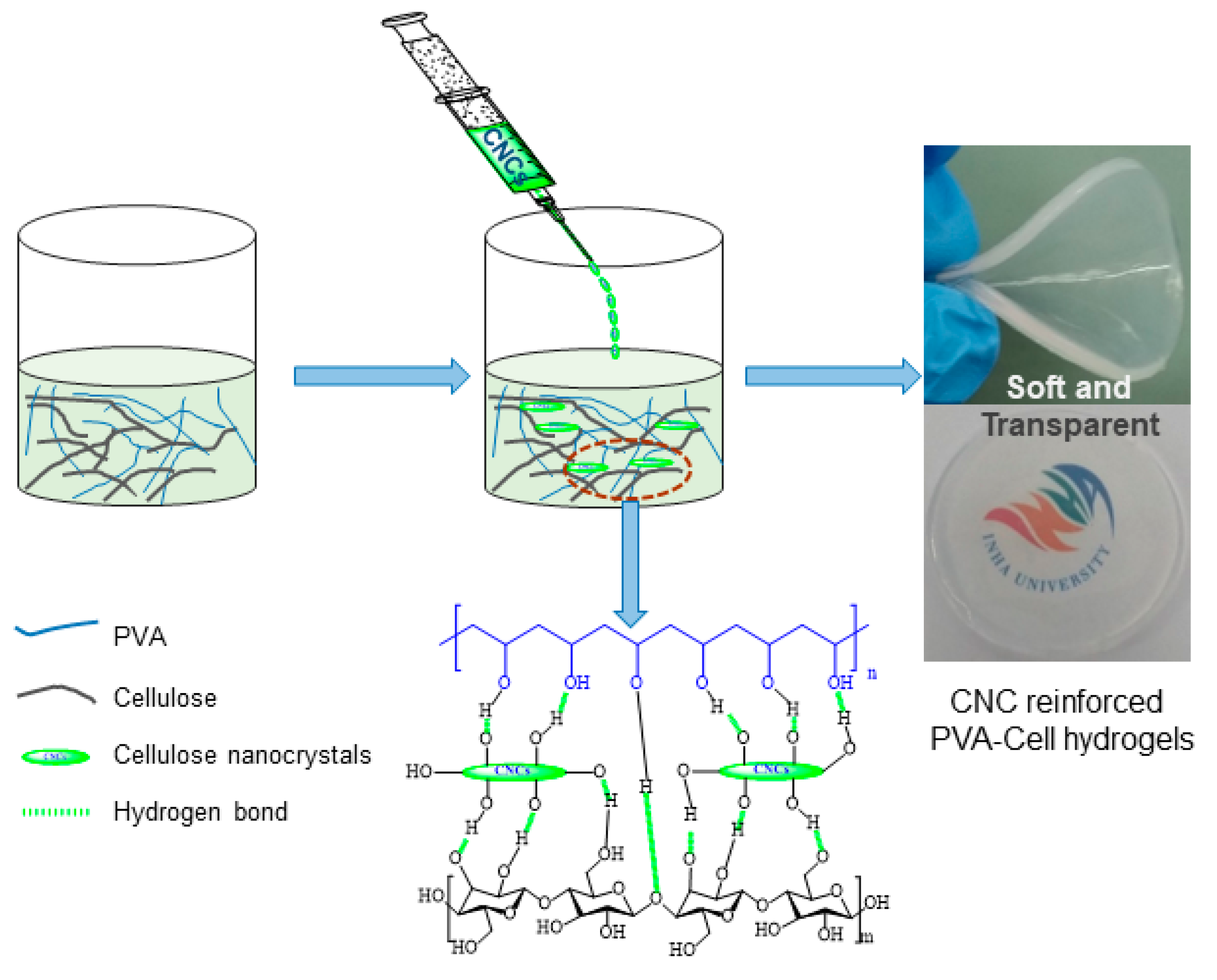

The PCC hydrogels were prepared by a physical blending method. Figure 1 shows the formation of the hydrogels. For the hydrogel preparation, a 1:1 wt.% ratio of 3% PVA and 1.5% cellulose solutions were mixed and stirred until getting the homogeneous solution. A different amount of CNC solution was added to the PVA-cellulose solution, followed by stirring. The homogeneous solution was poured into a Petri dish and kept in an oven at 30 °C for 3 days. During this step, intermolecular hydrogen bonds can occur because all the materials have hydroxyl groups.

4.1. FTIR Analysis

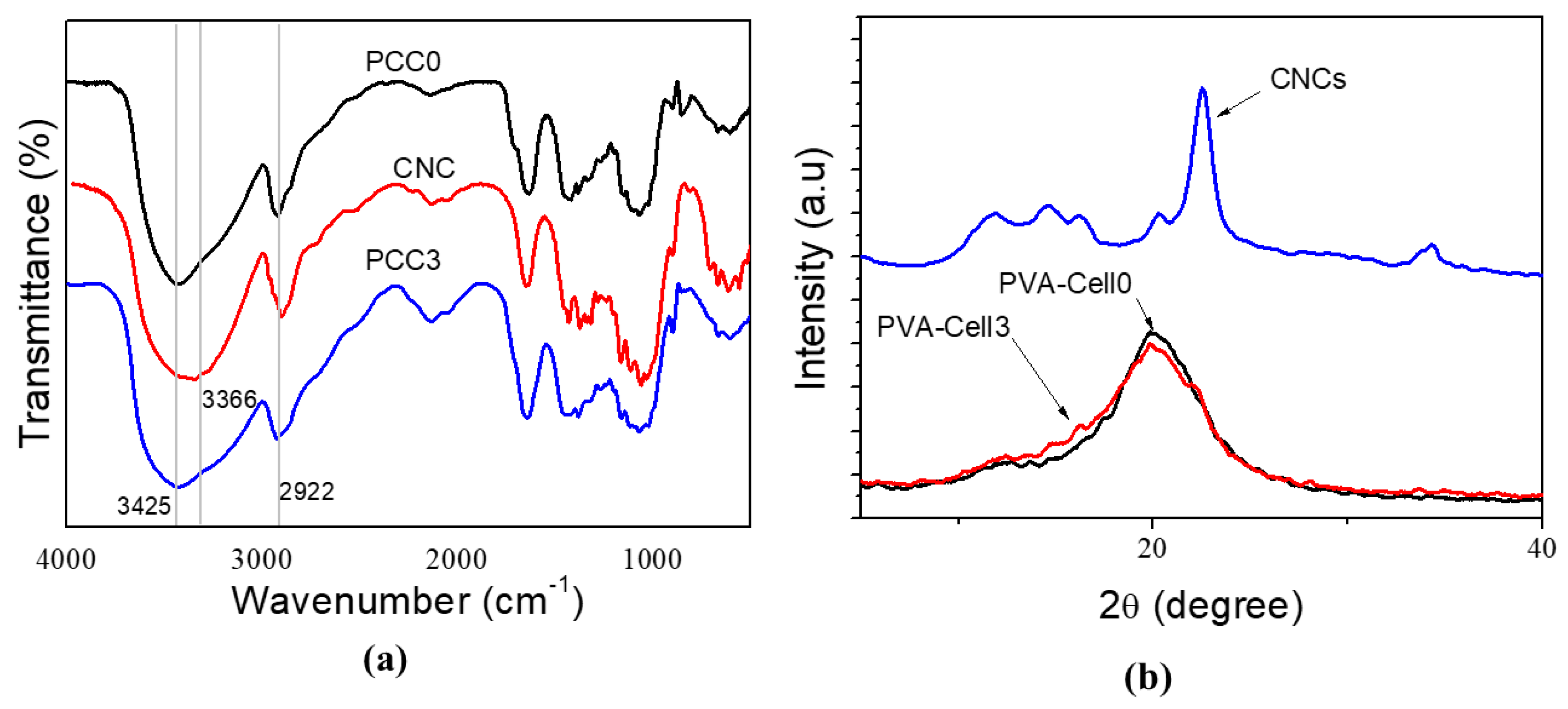

The formation of the CNC-reinforced PVA-Cell hydrogels was confirmed from the FTIR spectra. Figure 2a illustrates the CNC, PVA-Cell (PCC0) hydrogel, and PCC3 hydrogel. The broad absorption peak at 3425 cm⁻¹ corresponds to the –OH stretching vibration of the pure PVA. The characteristic peaks at 1070 cm⁻¹ and 2922 cm⁻¹ are related to stretching vibrations of the C-O and C-H [25]. The CNC shows a broad peak at 3366 cm⁻¹, which is related to the O-H stretching vibration. The C-H stretching vibration peak is shown at 2901 cm⁻¹. The peak at 1628 cm⁻¹ is related to an acetyl group (C=O), which is induced from the preparation of PVA. A bending vibration related to CH2 groups is observed in the region of 1430–1446 cm⁻¹. The prominent peak observed at 1060 cm⁻¹ is associated with the C-O-C pyranose ring skeletal vibrations [26]. In the case of PCC3 hydrogels, all of the above characteristic peaks are shown, and there is no difference when compared to the PVA-Cell hydrogel. It means that the reinforcement of CNC doesn’t affect the PVA-Cell hydrogels’ chemical structure.

4.2. XRD Studies

The XRD curves of CNC, PVA-Cell (PCC0) hydrogel, and PCC3 hydrogel are shown in Figure 2b. CNC exhibits four well-defined diffraction peaks at 2θ = 14.6, 16.2, 22.5, and 34.4°, which are supposed to represent the typical cellulose-I structure [27]. The PVA-Cell hydrogel shows two peaks at 2θ = 20.0° and 12.3°, between the PVA and cellulose peaks explained in the previous work [21], which might be due to the intermolecular bond formation between hydroxyl groups of PVA and cellulose. In the case of PCC3 hydrogel, similar peaks of the PVA-Cell hydrogel are shown but less intensity of these peaks in the PCC3 hydrogel. This is because CNCs are well dispersed in the PVA-Cell hydrogel to form intermolecular hydrogen bonds uniformly between the reactant materials. An additional peak at 22.5° also corresponds to the distribution of CNC in the PVA-Cell hydrogel. An SEM analysis was taken to confirm the uniform dispersion of CNCs.

4.3. Surface Morphology

The SEM cross-sectional images of the PVA-Cell and PCC3 hydrogels are presented in Figure 3. The SEM observation reveals that both hydrogels show a similar structure: no changes induced by CNC into PVA-Cell hydrogels. Figure 3a shows that the PCC0 hydrogel possesses a rough layer by layer structure, and this layer by layer structure was condensed by the addition of CNC, as shown in Figure 3b. It indicates that CNCs are well dispersed in the hydrogel matrix through intermolecular hydrogen bonds. This result was confirmed by the previous FTIR and XRD studies.

4.4. Optical Transparency

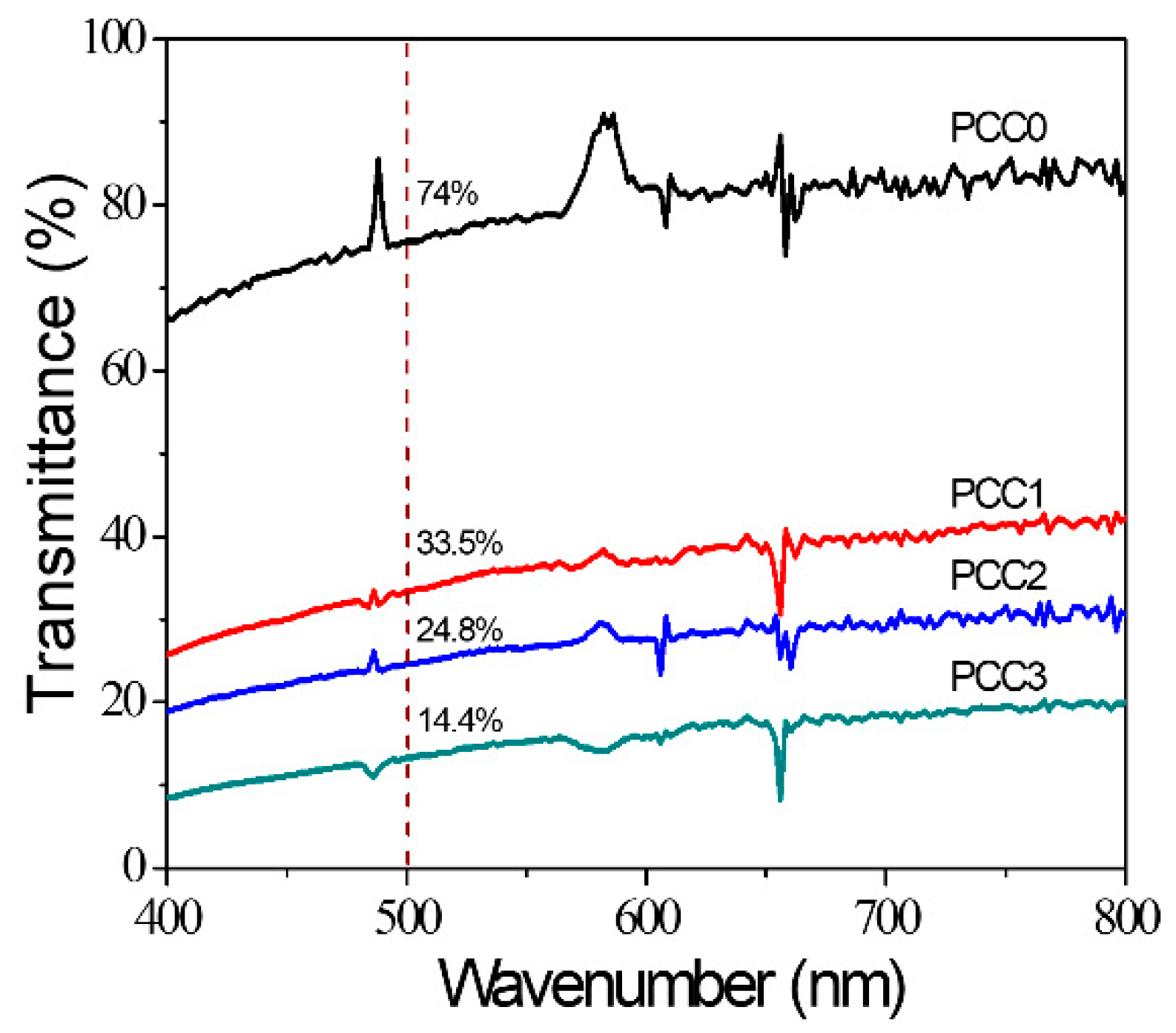

Optical transparency of the PCC hydrogels was measured using UV-vis spectroscopy in a fully hydrated state, and the results are shown in Figure 4. The hydrogel thickness was 2 ± 0.2 mm. The transparency decreases as the CNC concentration increased. It depends on the composition of CNC reinforcement in the hydrogel matrix. It was reported that a higher concentration of CNC decreases transparency [18,22].

4.5. Mechanical Properties and Swelling Behaviors

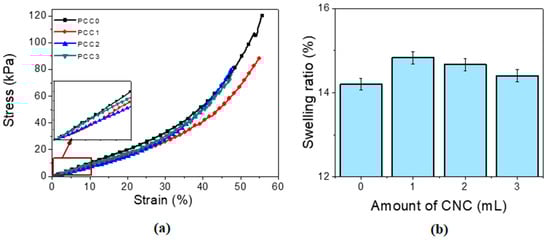

Mechanical properties of the prepared hydrogels were measured using the compression test under a fully hydrated stage, and results are shown in Figure 5a. The last column of Table 1 shows the results. All prepared hydrogels show almost linear stress–strain curves at a low strain range, below 20%. The compression modulus of the PCC0 shows 99.1 kPa, and this compression modulus value decreases by the addition of CNC. For example, the compression modulus of PCC1 hydrogel is reduced to 65.8 kPa. When CNC concentration is increased to 3 mL (PCC3), the compression modulus is increased to 88.5 kPa, associated with the expanded crosslinking network. The overall compression modulus of PCC hydrogels is shown to be lower than the PCC0 hydrogel, and the order of the CNC-reinforced PVA-Cell hydrogels follows in this manner: PCC1 < PCC2 < PCC3 < PCC0. Note that these values are larger than the PVA-CNC hydrogels (7–40 kPa) [22] and a bit smaller than the PVA-Cell hydrogels (90–170 kPa) [21]. This compression modulus behavior was further confirmed by swelling behavior.

The CNC-reinforced PVA-Cell hydrogels’ swelling test was carried out using the analytical method [27]. Pre-weighed air-dried hydrogels were immersed in DI water at room temperature until their (48 h) swelling was saturated to measure the prepared hydrogels’ swelling ratio. The swollen hydrogels were weighed after removing excess water using a filter paper. The equilibrium swelling ratio was calculated using the following equitation:

Swelling ratio S_g/g = (W_s − W_o)/W_o

(1)

where W_o and W_s correspond to the weight of dry and swollen states of the hydrogels, respectively. The swelling behavior plays a vital role in hydrogel technology. It entirely depends on the crosslinking structure. Therefore, the swelling behavior is quite the opposite of crosslinking, which means that as the crosslinking increases, the swelling behavior decreases.

The swelling experiment was carried out at room temperature and repeated three times to reduce errors. Figure 5b shows the swelling behavior of the PCC hydrogels. Table 1 also shows the result. Swelling ratios of PCC hydrogels were larger (14–15) than the PVA-CNC hydrogels (2.3–2.5) [22] and comparable with the PVA-Cell hydrogels (12–14) [21]. When the CNC is added, the molecular entanglement between cellulose and PVA is weakened, which leads to water molecules get trapped in the available free volumes of the hydrogels. It resulted in improved swelling ratios of the PCC1 hydrogel. However, further addition of CNC in the hydrogel decreases the functional groups’ availability, which interacts with water molecules, reducing the hydrogels’ swelling ratio [28,29,30].

4.6. Actuation Test

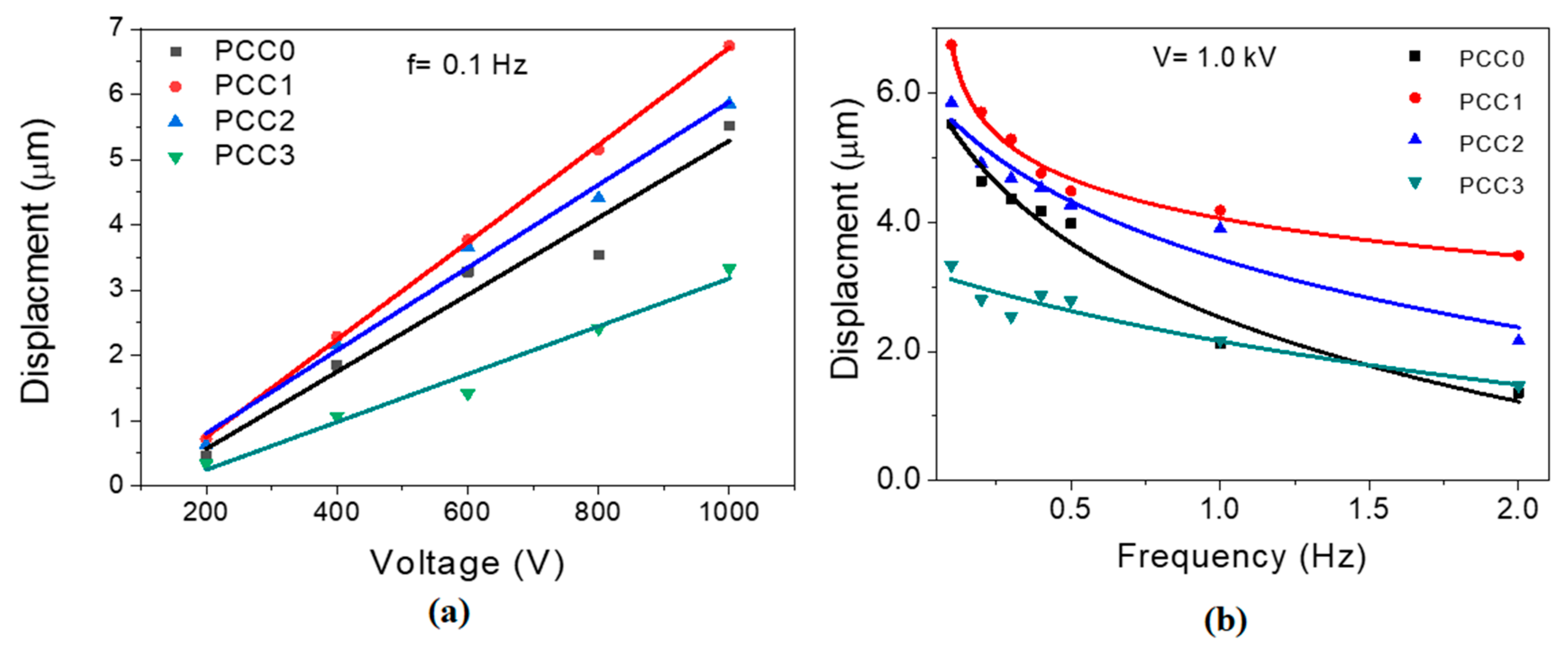

In the current research, the active behavior of the prepared PCC hydrogels was measured as a function of displacement in the presence of an electric field. The displacement performance was investigated in terms of frequency and voltage change. Figure 6 shows the displacement outputs of the prepared PCC hydrogels at a constant frequency of 0.1 Hz with different voltages (Figure 6a) and a constant voltage with different frequencies (Figure 6b). The displacement outputs linearly increase with increasing the voltage in all the samples. The maximum displacement values of PCC0, PCC1, PCC2, and PCC3 hydrogels are 5.51, 6.74, 5.85, and 3.33 µm, respectively, at 1.0 kV. The maximum displacement of PCC1 corresponds to the 1690 ppm strain under 0.25 V/m. Note that, from the maximum displacement and compression modulus of PCC1, the force output can be 111.2 N/m, which corresponds to 1.1 N, the net force output. However, the net force output of PVA-CNC (PCC3) was 0.2 N, and the PVA-Cell was 2.6 N. Figure 6b shows the frequency-dependent displacement values at constant voltage (1.0 kV). The displacement output mostly decreases with increasing the frequency.

The trend seems to have manifested according to the CNC properties such as nanosize, pH sensitivity, and dielectric [9,20]. These results indicate that the 1% concentration of CNC exhibits the best actuation output. PVA-Cell is an ionic hydrogel [21]; meanwhile, PVA-CNC is a non-ionic one [22]. Since PCC hydrogel is a combination of PVA-Cell and PVA-CNC, its actuation mechanism is associated with the combination of electrostatic effect and ion migration effect. The actuation performance of PCC hydrogels is associated with its dielectric behavior as well as its softness. The dielectric behavior can be enhanced by adding CNC because of the interfacial polarization of CNC and PVA. However, it can adversely stiffen the hydrogel, which hinders deformation under actuation. Thus, there is an optimum CNC content that maximizes the actuation performance. We believe that PCC1 is an optimum condition for actuation. The PCC1 showed the smallest compression modulus and the highest swelling behavior. Low compression modulus and high swelling ratio are beneficial for improving the actuation displacement.

5. Conclusions

Successfully, we prepared hydrophilic CNC-reinforced PVA-Cell hydrogels via a physical blending method. The chemical formation and physical structure of the prepared hydrogels were confirmed using FTIR and XRD. SEM cross-sectional images revealed that CNCs were well dispersed in the PVA-Cell hydrogel matrix. Optical transparency decreased upon increasing the CNC concentration. The CNC concentration affected the swelling behavior and compression modulus: the swelling behavior initially increased by expanding the CNC concentration and decreased.

Meanwhile, the compression modulus initially decreased and rose again. The swelling behavior was inversely proportional to the compression modulus. The actuation test of the hydrogels revealed that the lower concentration of CNC showed higher displacement output. The prepared hydrogels can be applied to soft robot actuators such as an active lens.
