A Novel Halogen Bond Acceptor: 1-(4-Pyridyl)-4-Thiopyridine (PTP) Zwitterion

by
Xin Ding
,
Matti Tuikka
and
Matti Haukka
*
Department of Chemistry, University of Jyväskylä, P.O. Box 35, FI-40014 Jyväskylä, Finland
*
Author to whom correspondence should be addressed.
Crystals 2020, 10(3), 165; https://doi.org/10.3390/cryst10030165
Submission received: 7 February 2020 / Revised: 28 February 2020 / Accepted: 29 February 2020 / Published: 3 March 2020
(This article belongs to the Section Crystal Engineering)
Browse Figures
Versions Notes

Abstract

:
Sulfur is a widely used halogen bond (XB) acceptor, but only a limited number of neutral XB acceptors with bifurcated sp3-S sites have been reported. In this work a new bidentate XB acceptor, 1-(4-pyridyl)-4-thiopyridine (PTP), which combines sp3-S and sp2-N acceptor sites, is introduced. Three halogen bonded cocrystals were obtained by using 1,4-diiodobenzene (DIB), 1,4-diiodotetrafluorobenzene (DIFB), and iodopentafluorobenzene (IPFB) as XB donors and PTP as acceptor. The structures of the cocrystals showed some XB selectivity between the S and N donors in PTP. However, the limited contribution of XB to the overall molecular packing in these three cocrystals and the results from DSC measurements clearly point out the synergetic influence and interplay of all noncovalent interactions in crystal packing of these compounds.

1. Introduction

Halogen bond (XB) is a noncovalent interaction occurring between an electrophilic region (σ-hole) of a halogen atom (XB donor) in a molecular moiety and a nucleophilic atom (XB acceptor) in the same or another moiety [1]. The major force in XB is electrostatic by nature [2], but charge transfer, polarization, and dispersion forces all play important roles in XB contacts [3,4]. The strength of a typical XB is comparable with the hydrogen bonds (HB) and in some cases is even stronger than HB [5]. Just like the hydrogen bond, XB is also highly directional [6,7,8]. Due to these characteristics, XB has emerged as a prominent tool in crystal engineering [9,10,11,12,13], organic synthesis [14,15], and biochemistry [16,17], etc.
Commonly used XB acceptors include sp2 oxygen atoms (sp2-O) [18,19], sp3 oxygen atoms (sp3-O) [20,21,22], sp2 sulfur atoms (sp2-S) [23,24,25,26], sp3 sulfur atoms (sp3-S) [27,28,29], and sp2 nitrogen atoms (sp2-N) [30,31,32,33,34]. Unlike the sp2-N, both sp2-S and sp3-S can act as bifurcated XB acceptors in three-centered halogen bonds, due to the two available lone pairs on sulfur [9]. Similarly, both sp2-O and sp3-O can function as multidentate XB acceptors. However, a CCDC survey (C-X⋯S, C-X⋯O, X=Br, I; no organometallic complexes; CSD version 5.41, November 2019) gave 539 structures with C-X⋯S, of which 403 have sp3-S as the XB acceptor, but only 20 structures include bifurcated sp3-S. Eight of these structures involve SCN- and 10 C-S-C synthon as the XB acceptor. Altogether 4799 structures with C-X⋯O were found in the CCDC survey with 1249 sp3-O as the XB acceptor. However, only 39 structures have multidentate sp3-O, of which 24 are N-O synthons and 12 are C-O synthons. Clearly, compared with the oxygen atom as XB acceptor, the sulfur atom is less commonly studied.
Thus, our aim was to develop a new neutral bidentate S-N-type XB acceptor capable of forming three-centered XBs via S and two-centered XBs through N. PTP, in Figure 1, was synthesized for such purpose. Unlike in the C-S-C synthon, the sp3-S pendant in PTP is not sterically hindered and the sp2-N at the other end of the PTP molecule assures the 1:1 ratio interaction with XB donors. Since the PTP is a neutral zwitterionic molecule, it is possible to avoid introducing any undesirable cations into the system. I2 is the simplest bidentate XB donor, which can be used to link organic molecules together via XB [35,36,37,38,39,40]. However, I2 is not always the most ideal linker due to its redox properties, which easily lead to unwanted side reactions. Therefore, we chose less redox active organic iodides—1,4-diiodobenzene (DIB) and 1,4-diiodotetrafluorobenzene (DITFB) as the bidentate and iodopentafluorobenzene (IPFB) as monodentate XB donors—in this work (Figure 1).
The ultimate goal of this study was to investigate the ability of PTP to form robust supramolecular structures via XB interactions. Furthermore, the possible preferences between the S and N acceptors in XB formation were also investigated.

2. Materials and Methods

Materials. 4-Mercaptopyridine (95%), sodium hydroxide (98%), DIB (99%), DITFB (98%), and IPFB (99%) were from Sigma-Aldrich. Dichloromethane (99%) and acetonitrile (99.8%) were obtained from VWR Chemicals. Silica-gel 60 (0.04–0.06 mm) was received from Merck. All reagents were used as received.
Solution Crystallization. Crystals of PTP were obtained by slowly evaporating the solution of 5 mg PTP + XB donor dissolved in 6 mL DCM at room temperature. The impact of the PTP/XB donor ratio on the cocrystal formation was studied using solutions with molar ratios of 1:1, 1:2, and 1:4 (PTP:XB donor). The X-ray quality crystals were typically obtained in 3 to 7 days when the solution was evaporated until crystals formed, but not completely dry. Analysis of all crystals obtained showed that the 1:1 ratio only yielded crystals of the starting materials, whereas the 1:2 and 1:4 ratios both gave similar assemblies of the same cocrystal structures.
Physical Properties Measurements. Melting point was measured with a Stuart Scientific Melting Point Apparatus SMP 3. Differential scanning calorimetry (DSC) data were obtained using Perkin Elmer STA600 (40 μL platinum pans, 20–600 °C, heating rate at 10.0 °C/min, Pyris Series software for data processing). Elemental analyzes were carried out by analytical services at the Department of Chemistry, University of Jyväskylä.
Single Crystal X-Ray Measurements. Crystals were measured at 120 K on a Rigaku Oxford Diffraction Supernova diffractometer (Oxford Diffraction, Woodlands, Tex, USA), using Cu Kα (λ = 1.54184 Å) radiation. The CrysAlisPro (Version 1. 171. 39. 43C) package was used for cell refinements and data reductions. Multi-scan (1, 2) or analytical (3) absorption corrections (CrystAlisPro, Yarnton, Oxfordshire, England) were applied to the intensities before structure solutions. The structures were solved by the intrinsic phasing method using SHELXT [41]. All structures were refined by using SHELXL program. Crystal data of cocrystal 1–3 are listed in Table 1.
Synthesis of 1-(4-bipyridyl)-4-thionpyridine (PTP) Zwitterion. 4-Mercaptopyridine (100 mg) was heated at 67 °C for 16 hours with constant stirring until the color turned to orange-yellow. It was then dissolved in 5 mL of boiling water. Saturated NaOH aqueous solution was added in the solution dropwise until pH 10 was reached. The solution was filtered to remove any particulate matter. The filtrate was extracted with dichloromethane (DCM) (6 × 10 mL). The organic phase from the extraction was reduced to 5 mL in rotary evaporation. The reduced solution was further purified through a chromatography column with acetonitrile as the eluent, followed by drying in vacuum. The solid, pale greenish yellow PTP was obtained with yield of 16.1%. mp 155.3–157.1 °C. Anal. Calcd for C10H8N2S: C, 63.82; H, 4.29; N, 14.89. Found: C, 63.62; H, 4.29; N, 14.81. 1H NMR (CDCl3, 300MHz): δ- 8.83 (dd, 2H, J = 4.6), 7.53 (d, 2H, J = 7.4), 7.43 (d, 2H, J = 7.4), 7.34 (dd, 2H, J = 4.6). 13C NMR (CDCl3, 300 MHz): δ- 152.52, 132.21, 131.31, 116.05.
PTP/DIB (1). PTP (5 mg) and 16.5 mg DIB were dissolved in 6 mL DCM in a vial covered with a layer of parafilm and let stand at room temperature. After 3 days, light yellow crystals suitable for single X-ray diffraction were harvested. Anal. Calcd for C13H10IN2S: C, 44.21; H, 2.85; N, 7.93. Found: C, 44.19; H, 2.84; N, 7,91.
PTP/DITFB (2). PTP (5 mg) and 21.5 mg DITFB were dissolved in 6 mL DCM in a vial covered with a layer of parafilm and allowed to stand at room temperature for 5 days. Yellow crystals suitable for single X-ray diffraction were obtained. Anal. Calcd for C39H18Cl2F12I6N4S2: C, 28.08; H, 1.09; N, 3.36. Found: C, 28.08, H, 1.08; N, 3.34.
PTP/IPFB (3). PTP (5 mg) and 15.5 mg IPFB were dissolved in 6 mL DCM in a vial sealed with a layer of parafilm and evaporated at room temperature for a week to obtain greenish yellow crystals suitable for single X-ray diffraction. Anal. Calcd for C28H8F15I3N2S: C, 34.04; H, 1.04; N, 3.61. Found: C, 34.09; H, 1.02; N, 3.64.

3. Results

The PTP molecule formed halogen bonded cocrystals with all three XB donors: PTP/DIB (1), PTP/DITFB (2), and PTP/IPFB (3).
The asymmetric unit of 1 contains one complete PTP molecule and half of the DIB molecule. The N-atom in PTP is engaged with one I-atom from DIB forming halogen bond [dN…I 2.968(3)Å and <C-I…N 177.01°]. In this structure the DIB molecule act as a symmetric ditopic XB donor bridging two PTP molecules through N-atoms. The S-atom of PTP is not involved in XB bonds. Instead it interacts with two neighboring PTP and one nearby DIB via weak C-H⋯S hydrogen bonds [dS…C5 3.808Å, <C5-H…S 155.3°; dS…C7 3.795Å, <C7-H…S 164.97°; dS…C12 3.712Å, <C12-H…S 136.09°] (Figure 2). Such an arrangement could indicate that the N atom of PTP is favored over S in XB formation.
The asymmetric unit of 2 is comprised of two complete PTP molecules, one complete DITFB molecule, four halves of DITFB molecules, and a complete CH2Cl2 solvent molecule. In this structure both the S-atom and the N-atom of PTP interact with DITFB molecules by XBs. One DITFB molecule bridges two PTP molecules by N⋯I halogen bonds [dN2…I1 2.845(6)Å and <C-I1…N2 171.4(2)°; dN4…I2 2.915(6) and <C-I2…N4 176.7(2)°]. At the same time the S-atom of PTP also acts as a bifurcated bridging point binding two other DITFB molecules [dS1…I3 3.096(1) and <C-I3…S1 174.6(1)Å; dS1…I6 3.215 and <C-I6…S1 171.8(1)°; dS2…I4 3.137(1) and <C-I4…S2 172.6(1); dS2…I5 3.300(1) and <C-I5…S2 171.7(1)°], as shown in Figure 3a. Noticeably, two PTP molecules are connected via S1⋯H-C [dS1…C 2.929Å, <S1…H-C 162.89°] and I4 simultaneously connects a neighboring PTP molecule via I4⋯H3-C3 [dI4…C3 3.927Å, <I4…H3-C3 136.98°]. The key feature of this structure is that through the I⋯N and the bifurcated I⋯S XBs twelve membered rings are formed, giving an expanded wavy 2D network structure with S as the node (Figure 3). Furthermore, 2D networks are connected with adjacent units via F⋯H, F⋯C and S⋯H intermolecular contacts to form a five-folded interpenetrated 3D network. No solvent occupied channels edged by PTP/DITFB are formed.
The asymmetric unit of 3 has one PTP molecule and two IPFB units. XB interactions only take place through the S-atom of PTP, which forms a pair of bifurcated XBs [dS1…I1 3.1224(8)Å and <C-I1…S1 175.47(7)°; dS2…I2 3.1122(8) and <C-I2…S1 176.9(1)°]. In this structure the N-atom interacts with two adjacent PTP molecules via weak C-H⋯N contacts [dN…C 3.423Å, <N…H-C2 132.55°; dN…C9 3.259Å, <N…H-C9 117.59°; dN…C10 3.250Å, <N…H-C10 117.38°] (Figure 4). The relatively large deviation from 180° of all three <N…H-C is may be affected by the dispersion interactions, which can have an impact on the geometry of HBs in bulky systems [42]. Unlike in 1, in 3 the XB formation favors I⋯S interactions. It could indicate that the stronger XB donor IPFB forms XBs with S-atom more easily than iodine in the DIB donor. The structure is further expanded through F⋯H and S⋯H contacts.
Based on the DSC measurements, shown in Table 2, the order of the thermal stability of cocrystals 1–3 are 1 > 2 > 3. Both 1 and 2 contain I⋯N halogen bonds. In 3 there are only bifurcated I⋯S interactions. This could indicate that formation of I⋯N interactions are stabilizing the structure of the cocrystals. However, it is likely that HBs between XB donor and the S-atom of the acceptor in 1 also play an important role in the overall packing. The results suggest that other type of intermolecular interactions than XBs could be the dominating factors behind the thermal stability in cocrystals 1–3.

4. Discussion

The relative strength of XB is often described using the halogen bonding interaction ratio, RXB, which is defined as RXB = dXB/(XvdW + BvdW) (dXB is the distance between a halogen atom X and the acceptor atom B in Å). Typically, Bondi vdW radii are used for both XvdW and BvdW) [43,44,45,46,47,48]. A smaller value of RXB indicates stronger XB strength. The key structure parameters of XBs in cocrystal 1–3 are listed in Table 3.
According to this qualitative RXB values, the strongest XB is an I⋯N contact found in 2. On the other hand, the weakest contact is an I⋯S interaction. This time it is found in the second thermally most stable 2. All in all, the variations in RXB values are quite small and obviously they cannot alone explain the favored packing patterns. The roles of the other non-covalent interactions, especially hydrogen bonds, are also important forces in determination of the final packing pattern.
The N⋯I length ranges from 2.845 Å to 2.968 Å in cocrystals 1–3. To compare these values with other reported N⋯I distances, a CCDC survey was carried out (C=N, I-C, no organometallic complexes, N and I contact distance <3.53 Å, CSD version 5.41, November 2019). The survey gave a median value of dN…I of 3.050 Å. Thus, the I⋯N in crystals 1–3 are shorter than most reported ones, indicating a stronger I⋯N halogen bond. Moreover, RXB of 1 is 0.839, while the RXB of the two I⋯N in 2 are 0.806 and 0.826, respectively, indicating that both I⋯N in 2 are stronger than the one found in 1. Such a result is expected, as the iodine atom in DITFB is more electronegative compared to the corresponding value in DIB due to the fluorine substituents.
To compare the I⋯S found in cocrystals 2 and 3 with the previously reported sp3-S contacts, another CCDC survey was performed (C-S and S is in sp3 hybridization, I-C, no organometallic complexes, S and I contact distance <3.78 Å, CSD version 5.41, November 2019). dI…S in 2 and 3 were in the range of 3.096–3.300 Å, which was shorter than the median of 3.668 Å found from the CCDC survey, indicating again stronger XBs in 2 and 3. In 2 the average dI…S1 was 3.155 Å and the average dI…S2 was 3.219 Å, while in 3 the average dI…S1 was 3.117 Å. This suggested that I⋯S interactions in 3 were stronger than in 2. Such difference in I⋯S strength is probably due to the fact that iodine is in a stronger electron withdraw environment in IPFB than in DITFB.
Clearly, PTP demonstrates its ability as an acceptor to form strong XBs through both its acceptor atoms. However, both N and S acceptors were not involved in XB interactions in all structures. In 1, only the N-atom of PTP was acting as a XB acceptor interacting with the DIB, the weakest XB donor used in this study. Whereas in 2 both S-atom and N-atom interact with DITFB, a stronger XB donor than DIB, to form XBs. On the contrary to 1, in 3 only the S-atom was involved in XB with IPFB, the strongest XB donor in this study. Such a trend could indicate some selectivity in the XB formation. The hard-soft acid-base (HSAB) theory, which gives a plausible explanation for the competition between XB and HB regarding S and N [49], fails to explain the XB selectivity in 1–3, because the I-atom in IPFB, the hardest I-atom compared with that in DIB and DITFB due to the strongest polarization caused by F substitutions, chooses the soft S instead of the hard N. However, though I-atom in IPFB is the hardest among the three XB donors, it is still soft in nature, especially when compared to N. Thus, the apparent selectivity can be influenced by other noncovalent interactions. To estimate the contribution of XB to the total molecular interactions in 1–3, Hirshfeld surface analyses was used, which is a method to analyze the interactions in molecular packing and comparison of crystal structures [50,51]. CrystalExplorer 17.5 [52] was used to create Hirshfeld surfaces around PTP in 1–3 in Figure 5. The contribution of XB to the Hirshfeld surface of each crystal structure is summarized in Table 4.
The difference in intensity in these fingerprints reveals the difference in XB bond length in the obtained cocrystals; the increase in intensity around di/de≈ 1.2 Å/1.65 Å in N⋯I of 2 compared to that of 1 shows that N⋯I in 2 is shorter than in 1. Similarly, the increased intensity around di/de≈ 1.5 Å/1.7 Å in I⋯S of 3 compared to that of 2 arises from the much shorter S⋯I in 3. Moreover, the different fingerprint patterns also reveal that the PTP molecule is in different immediate polymorph environment in 1–3 [51]. Fingerprints plot with HB contacts highlighted (Supplementary Material Figure S6.) illustrate each type of HB contacts with distinctive patterns. The strongest intensities can be found around di/de ≈ 1.0-1.2 Å/1.4-2.4 Å region. S⋯H in 1 has strong intensity around di/de≈ 1.1 Å/1.8 Å, while in 2 the strongest region is di/de≈ 1.2 Å/1.9 Å. The F⋯H in 2, compared with that in 3, reaches a shorter di region and has weaker intensity around di/de ≈ 1.2 Å/1.4 Å. Moreover, the I⋯H in 2 demonstrates the strongest interactions around di/de≈ 1.2 Å/2.1 Å. Noticeably, the same type of HB contact in different cocrystals has different fingerprints patterns, due to the sensitivity of fingerprints plot to the environment surrounding PTP molecules [51]. Based on the analysis, the XB contribution to the Hirshfeld surface is small, less than 10% in all three cocrystals, indicating that XB is not the prominent crystal stabilizing force. The DSC results yield similar conclusions as well; the weakest XB donor forms the most thermally stable crystal, while the strongest XB donor yields the most thermally unstable one, suggesting other types of intermolecular interactions play more pivotal roles in these crystal structures.

5. Conclusions

Bidentate, neutral 1-(4-pyridyl)-4-thiopryine (PTP), was synthesized and used as a XB acceptor in this study. Three cocrystals were obtained with comparatively strong XBs, showing that PTP is capable of forming robust XBs. Moreover, with DITFB as the XB donor, PTP demonstrated its ability to form bifurcated XBs on S and single XBs on N simultaneously, generating wavy continuous network structures. The analysis of XBs, together with the Hirshfeld surface analyses and DSC measurements, indicates that the formation of halogen bonds is not necessarily the dominating driving force in the formation of cocrystals. Other non-covalent interactions play key roles in the final arrangement of molecules. In order to build systematic supramolecular constructions, all intermolecular interactions must always be considered. It is challenging to predict what types of intermolecular interactions will be the dominate ones and this hampers the prediction of non-covalent assemblies.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4352/10/3/165/s1, Table S1: Descriptive statistics of CCDC survey of sp2-N, Table S2: Descriptive statistics of CCDC survey of sp3-S, Figure S1: TGA/DSC spectrum of cocrystal 1, Figure S2: TGA/DSC measurements of cocrystal 2, Figure S3: TGA/DSC spectrum of cocrystal 3, Figure S4: 1H NMR of PTP, Figure S5: 13C NMR of PTP, Figure S6: 2D fingerprints plot resolved in S⋯H in 1, F⋯H, S⋯H and I⋯H in 2, F⋯H and N⋯H in 3. The crystallographic data can also be obtained free of charge in cif format by request from the Cambridge Crystallographic Data Centre at www.ccdc.cam.ac.uk/data_request/cif. The CCDC numbers of compounds 1-3 are 982538, 1982539, and 1982540 respectively.

Author Contributions

Synthesis, initial X-ray structure characterization and draft preparation: X.D.; X-structure characterization: M.T.; project planning, supervision, funding acquisition and project administration, manuscript review and editing: M.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Academy of Finland, grant number 130571 and 295881.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Desiraju, G.R.; Ho, P.S.; Kloo, L.; Legon, A.C.; Marquard, R.; Metrangolo, P.; Politzer, P.; Resnati, G.; Rissanen, K. Definition of the Halogen Bond (IUPAC Recommendations 2013). Pure Appl. Chem. 2013, 85, 1711–1713. [Google Scholar] [CrossRef]
  2. Forni, A.; Franchini, D.; Dapiaggi, F.; Pieraccini, S.; Sironi, M.; Scilabra, P.; Pilati, T.; Petko, K.; Resnati, G.; Yagupolkii, Y.L. Featuring I…N Halogen Bond and Weaker Interactions in Iodoperfluoroalkylimidazoles: An Experimental and Theoretical Charge Density Study. Cryst. Growth Des. 2019, 19, 1621–1631. [Google Scholar] [CrossRef] [Green Version]
  3. Awwadi, F.F.; Willett, R.D.; Peterson, K.A.; Twamley, B. The Nature of Halogen⋯Halides Synthons: Theoretical and Crystallographic Studies. J. Phys. Chem. A 2007, 111, 2319–2328. [Google Scholar] [CrossRef] [PubMed]
  4. Awwadi, F.F.; Taher, D.; Haddad, S.F.; Turnbull, M.M. Competition between Hydrogen and Halogen Bonding Interactions: Theoretical and Crystallographic Studies. Cryst. Growth Des. 2014, 14, 1961–1971. [Google Scholar] [CrossRef]
  5. Stilinovi ć, V.; Horvat, G.; Hrenar, T.; Nemec, V.; Cinčić, D. Halogen and Hydrogen Bonding between (N-Halogeno-)-succinimides and Pyridine Derivatives in Solution, the Solid State and In Silico. Chem. Eur. J. 2017, 23, 5244–5257. [Google Scholar] [CrossRef] [PubMed]
  6. Politzer, P.; Murray, J.S.; Clark, T. Halogen Bonding: An Electrostatcially-Driven Highly Directional Noncovalent Interaction. Phys. Chem. Chem. Phys. 2010, 12, 7748–7757. [Google Scholar] [CrossRef] [PubMed]
  7. Priimagi, A.; Cavallo, G.; Metrangolo, P.; Resntai, G. The Halogen Bond in the Design of Functional Supramolecular Materials: Recent Advances. Acc. Chem. Res. 2013, 46, 2686–2695. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Clark, T. Halogen bonds and σ-holes. Faraday Discuss. 2017, 203, 9–27. [Google Scholar] [CrossRef] [PubMed]
  9. Rowe, R.K.; Ho, P.S. Relationships between Hydrogen Bonds and Halogen Bonds in Biological Systems. Acta Cryst. 2017, B73, 255–264. [Google Scholar] [CrossRef] [PubMed]
  10. Gunawardana, C.A.; Desper, J.; Sinha, A.S.; Đaković, M.; Aakeröy, C.B. Competition and Selectivity in Supramolecular Synthesis: Structural Landscape around 1-(Pyridylmethyl)-2,2′-biimidazoles. Faraday Discuss. 2017, 203, 371–388. [Google Scholar] [CrossRef]
  11. Pfrunder, M.C.; Brock, A.J.; Brown, J.J.; Grosjean, A.; Ward, J.; McMurtrie, J.C.; Clegg, J.J. A Three-dimensional Cubic Halogen-bonded Network. Chem. Commun. 2018, 54, 3874–3976. [Google Scholar] [CrossRef] [PubMed]
  12. Ding, X.; Tuikka, M.J.; Hirva, P.; Kukushkin, V.Y.; Novikov, A.S.; Haukka, M. Fine-tuning Halogen Bonding Properties of Diiodine through Halogen-halogen Charge Transfer-Extended [Ru(2,2′-bipyridine)(CO)2X2]•I2 Systems (X=Cl, Br, I). CrystEngComm 2016, 18, 1987–1995. [Google Scholar] [CrossRef]
  13. Pfrunder, M.C.; Micallef, A.S.; Rintoul, L.; Arnold, D.P.; McMurtrie, J. Interplay between the Supramolecular Motifs of Polypyridyl Metal Complexes and Halogen Bond Networks in Cocrystals. Cryst. Growth Des. 2016, 16, 681–695. [Google Scholar] [CrossRef] [Green Version]
  14. Chan, Y.-C.; Yeung, Y.-Y. Halogen Bond Catalyzed Bromocarbocyclization. Angew. Chem. Int. Ed. 2018, 57, 3483–3487. [Google Scholar] [CrossRef]
  15. Carreras, L.; Serrano-Torné, M.; van Leeuwen, P.W.N.M.; Vidal-Ferran, A. XBpos-Rh: A Halogen-bond Assembled Supramolecular Catalyst. Chem. Sci. 2018, 9, 3644–3648. [Google Scholar] [CrossRef] [Green Version]
  16. Lim, J.Y.C.; Marques, I.; Félix, V.; Beer, P.D. Enantioselective Anion Recognition by Chiral Halogen-Bonding [2]Rotaxanes. J. Am. Chem. Soc. 2017, 139, 12228–12239. [Google Scholar] [CrossRef]
  17. Cavallo, G.; Metrangolo, P.; Milani, R.; Pilati, T.; Priimagi, A.; Resnati, G.; Terraneo, G. The Halogen Bond. Chem. Rev. 2016, 116, 2478–2601. [Google Scholar] [CrossRef] [Green Version]
  18. Riel, A.M.S.; Decato, D.A.; Sun, J.; Massena, C.J.; Jessop, M.J.; Berryman, O.B. The Intramolecular Hydrogen Bonded-halogen Bond: A New Strategy for Preorganization and Enhanced Binding. Chem. Sci. 2018, 9, 5828–5836. [Google Scholar] [CrossRef] [Green Version]
  19. Dichiarante, V.; Kaiho, T.; Metrangolo, P.; Pilati, T.; Resnati, G.; Terraneo, G.; Ursini, M. The Diiodomethyl-sulfonyl Moiety: An Unexplored Halogen Bond-donor Motif. Chem. Commun. 2019, 55, 4234–4237. [Google Scholar] [CrossRef]
  20. Carletta, A.; Zbačnik, M.; Vitković, M.; Tumanov, N.; Stilinović, V.; Wouters, J.; Cinčić, D. Halogen-bonded Cocrystals of N-salicylidene Schiff Bases and Iodoperfluorinated Benzenes: Hydroxyl Oxgen as A Halogen Bond Acceptor. CrystEngComm 2018, 20, 5332–5339. [Google Scholar] [CrossRef]
  21. Zbačnik, M.; Vitković, M.; Vulić, V.; Nogalo, I.; Cinčić, D. Competiton between Halogen Bonds in Cocrystals of Imines Derived from o-Vanillin. Cryst. Growth Des. 2016, 16, 6381–6389. [Google Scholar] [CrossRef]
  22. Carletta, A.; Zbačnik, M.; Gysel, M.V.; Vitković, M.; Tumanov, N.; Stilinović, V.; Wouters, J.; Cinčić, D. Playing with Isomerism: Cocrystallization of Isomeric N-Salicylideneaminopyridines with Perfluorinated Compounds as Halogen Bond Donors and Its Impact on Photochromism. Cryst. Growth Des. 2018, 18, 6833–6842. [Google Scholar] [CrossRef]
  23. Koskinen, L.; Jääskeläiinen, S.; Hirva, P.; Haukka, M. Tunnable Interaction Strength and Nature of the S⋯Br Halogen Bonds in [(Thione)Br2] Systems. Cryst. Growth Des. 2015, 15, 1160–1167. [Google Scholar] [CrossRef]
  24. Koskinen, L.; Hirva, P.; Hasu, A.; Jääskeläinen, S.; Koivistoinen, J.; Petterson, M.; Haukka, M. Modification of the Supramolecular Structure of [(Thione)IY] (Y=Cl, Br) Systems by Cooperation of Strong Halogen Bonds and Hydrogen Bonds. CrystEngComm 2015, 17, 2718–2727. [Google Scholar] [CrossRef]
  25. Eccles, K.S.; Morrison, R.E.; Sinha, A.S.; Maguire, A.R.; Lawrence, S.E. Investigating C=S⋯I Halogen Bonding for Cocrystallization with Primary Thionamides. Cryst. Growth Des. 2015, 15, 3442–3451. [Google Scholar] [CrossRef]
  26. Le Gal, Y.; Lorcy, D.; Jeannin, O.; Barrière, F.; Dorcet, V.; Lieffrig, J.; Fourmigué, M. C=S⋯I Halogen Bonding Interactions in Crystalline Iodinated Dithiole-2-thiones and Thiazole-2-thiones. CrystEngComm 2016, 8, 5474–5481. [Google Scholar] [CrossRef]
  27. Cauliez, P.; Polo, V.; Roisnel, T.; Llusar, R.; Fourmigué, M. The Thiocyanate anion as a polydentate halogen bond acceptor. CrystEngComm 2010, 12, 558–566. [Google Scholar] [CrossRef] [Green Version]
  28. Cinčić, D.; Friščić, T.; Joens, W. Experimental and Database Studies of Three-centered Halogen Bonds with Bifurcated Acceptors Present in Molecular Crystals, Cocrystals and Salts. CrystEngComm 2011, 13, 3224–3231. [Google Scholar] [CrossRef]
  29. Goud, N.R.; Bolton, O.; Burgess, E.C.; Matzger, A.J. Unprecedented Size of the σ-Holes on 1,3,5-Triiodo-2,4,6-trinitrobenzene Begets Unprecedented Intermolecular Interactions. Cryst. Growth Des. 2016, 16, 1765–1771. [Google Scholar] [CrossRef]
  30. Pigge, F.C.; Kapadia, P.P.; Swenson, D.C. Halogen Bonded Networks from Pryidyl-substituted Tetraarylethylenes and Diiodotetrafluorobenzenes. CrystEngComm 2013, 15, 4386–4391. [Google Scholar] [CrossRef]
  31. Ravat, P.; Lekshmi, S.S.; Biswas, S.N.; Nandy, P.; Varughese, S. Equivalence of Ethylene and Azo-Bridges in the Modular Design of Molecular Complexes: Role of Weak Interactions. Cryst. Growth Des. 2015, 15, 2389–2401. [Google Scholar] [CrossRef]
  32. Aakeröy, C.B.; Spartz, C.L.; Dembowski, S.; Dwyre, S.; Desper, J. A Systematic Structural Study of Halogen Bonding versus Hydrogen Bonding within Competitive Supramolecular Systems. IUCrJ 2015, 2, 498–510. [Google Scholar]
  33. Bosch, E.; Kruse, S.J.; Groeneman, R.H. Infinite and Discrete Halogen Bonded Assemblies Based upon 1, 2-Bis(iodoethynyl)benzene. CrystEngComm 2019, 21, 990–993. [Google Scholar] [CrossRef]
  34. Peterson, A.; Kaasik, M.; Metsala, A.; Järving, I.; Adamson, J.; Kanger, T. Tunable chiral triazole-based halogen bond donors: Assessment of donor strength in solution with nitrogen-containing acceptors. RSC Adv. 2019, 9, 11718–11721. [Google Scholar] [CrossRef] [Green Version]
  35. Lee, S.; Chen, B.; Fredrickson, D.C.; DiSalvo, F.J.; Lobkovsky, E.; Adams, J. Crystal Structures of (Pyrene)10(I3-)4(I2)10 and [1, 3, 6, 8-Tetrakis(methylthio)pyrene]3(I3-)3(I2)7: Structural Trends in Fused Aromatic Polyiodides. Chem. Mater. 2003, 15, 1420–1433. [Google Scholar] [CrossRef]
  36. Tamilselvi, A.; Mugesh, G. Interaction of Heterocyclic thiols/thiones eliminated from cephalosporins with iodine and its biological implications. Bioorg. Med. Chem. Lett. 2010, 20, 3692–3697. [Google Scholar] [CrossRef]
  37. Mancini, A.; Pala, L.; Aragoni, M.C.; Arca, M.; Devillanova, F.A.; Hursthouse, M.B.; Light, M.E.; Skabara, P.J.; Bricklebank, N. Structural and DFT Studies of Dibromine and Diiodine Adducts of a Sulfur-Rich Thiocarbonyl Donor. Eur. J. Inorg. Chem. 2012, 2373–2380. [Google Scholar] [CrossRef]
  38. Eichstaedt, K.; Wasilewska, A.; Wicher, B.; Gdaniec, M.; Połoński, T. Supramolecular Synthesis Based on a Combination of Se⋯N Secondary Bonding Interactions with Hydrogen and Halogen Bonds. Cryst. Growth Des. 2016, 16, 1282–1293. [Google Scholar] [CrossRef]
  39. Montis, R.; Arca, M.; Aragoni, M.C.; Bauzá, A.; Demartin, F.; Frontera, A.; Isaia, F.; Lippolis, V. Hydrogen- and Halogen-bond Cooperativity in Determining the Crystal Packing of Dihalogen Charge-transfer Adducts: A Study Case from Heterocyclic Pentatomic Chalcogenone Donors. CrystEngComm 2017, 19, 4401–4412. [Google Scholar] [CrossRef] [Green Version]
  40. Ivolgina, V.A.; Chernov’yants, M.S.; Popov, L.D.; Suslonov, V.V.; Borodkin, G.S.; Luanguzov, N.V.; Avtushenko, N.A. Perspective Anti-thyroid Druy 2-thioxo-5-(3, 4, 5-trimethoxybenzylidene) thiazolidine-4-one: X-ray and Thermogravimetric Characterization of Two Novel Molecular Adducts, Obtained by Interaction with I2. J. Mol. Struct. 2019, 1180, 629–635. [Google Scholar] [CrossRef]
  41. Sheldrick, G.M. Crystal Structure Refinement with SHELXL. Acta Cryst. 2015, C71, 3–8. [Google Scholar]
  42. Van der Lubbe, S.C.C.; Guerra, C.F. The Nature of Hydrogen Bonds: A Delineation of the Role of Different Energy Components on Hydrogen Bond Strengths and Lengths. Chem. Asian J. 2019, 14, 2760–2769. [Google Scholar] [PubMed] [Green Version]
  43. Bondi, A. van der Waals Volumes and Radii. J. Phys. Chem. 1964, 68, 441–451. [Google Scholar] [CrossRef]
  44. Lommerse, P.M.; Stone, A.J.; Taylor, R.; Allen, F.H. The Nature and Geometry of Intermolecular Interactions Between Halogen and Oxygen or Nitrogen. J. Am. Chem. Soc. 1996, 118, 3108–3116. [Google Scholar] [CrossRef]
  45. Brammer, L.; Bruton, E.A.; Sherwood, P. Understanding the Behavior of Halogens as Hydrogen Bond Acceptors. Cryst. Growth Des. 2001, 1, 277–290. [Google Scholar] [CrossRef]
  46. Zordan, F.; Brammer, L.; Sherwood, P. Supramolecular Chemistry of Halogens: Complementary Features of Inorganic (M-X) and Organic (C-X′) halogens Applied to M-X⋯X′-C Halogen Bond Formation. J. Am. Chem. Soc. 2005, 127, 5979–5989. [Google Scholar] [CrossRef]
  47. Johnson, M.T.; Džolić, Z.; Cetina, M.; Wendt, O.F.; Öhrström, L.; Rissanen, K. Neutral Organometallic Halogen Bond Acceptors: Halogen Bonding in Complexes of PCPPdX (X=Cl, Br, I) with Iodine (I2), 1,4-Diiodotetrafluorobenzene (F4DIBz), and 1,4-Diiodooctafluorobutane (F8DIBu). Cryst. Growth Des. 2012, 12, 362–368. [Google Scholar] [CrossRef] [Green Version]
  48. Ding, X.; Tuikka, M.; Rissanen, K.; Haukka, M. Extended Assemblies of Ru(bpy)(CO)2X2 (X=Cl, Br, I) Molecules Linked by 1,4-Diiodotetrafluoro-Benzene (DITFB) Halogen Bond Donors. Crystals 2019, 9, 319. [Google Scholar] [CrossRef] [Green Version]
  49. Riel, A.M.S.; Jessop, M.J.; Decato, D.A.; Massena, C.J.; Nascimento, V.R.; Berryman, O.B. Experimental Investigation of Halogen-bond Hard-soft Acid-base Complementarity. Acta Cryst. 2017, B73, 203–209. [Google Scholar] [CrossRef]
  50. Spackman, M.A.; Jayatilaka, D. Hirshfeld Surface Analysis. CrystEngComm 2009, 11, 19–32. [Google Scholar] [CrossRef]
  51. Yang, P.; Qin, C.; Du, S.; Jia, L.; Qin, Y.; Gong, J.; Wu, S. Crystal Structure, Stability and Desolvation of the Solvates of Sorafenib Tosylate. Crystals 2019, 9, 367. [Google Scholar] [CrossRef] [Green Version]
  52. Turner, M.J.; McKinnon, J.J.; Wolff, S.K.; Grimwood, D.J.; Spackman, M.A. CrystalExplorer Model Energies and Ergy Frameworks: Extension to Metal Coordination Compounds, Organic Salts, Solvates and Open-shell Systems. ICUrJ 2017, 4, 547–587. [Google Scholar]
Crystals 10 00165 g001 550

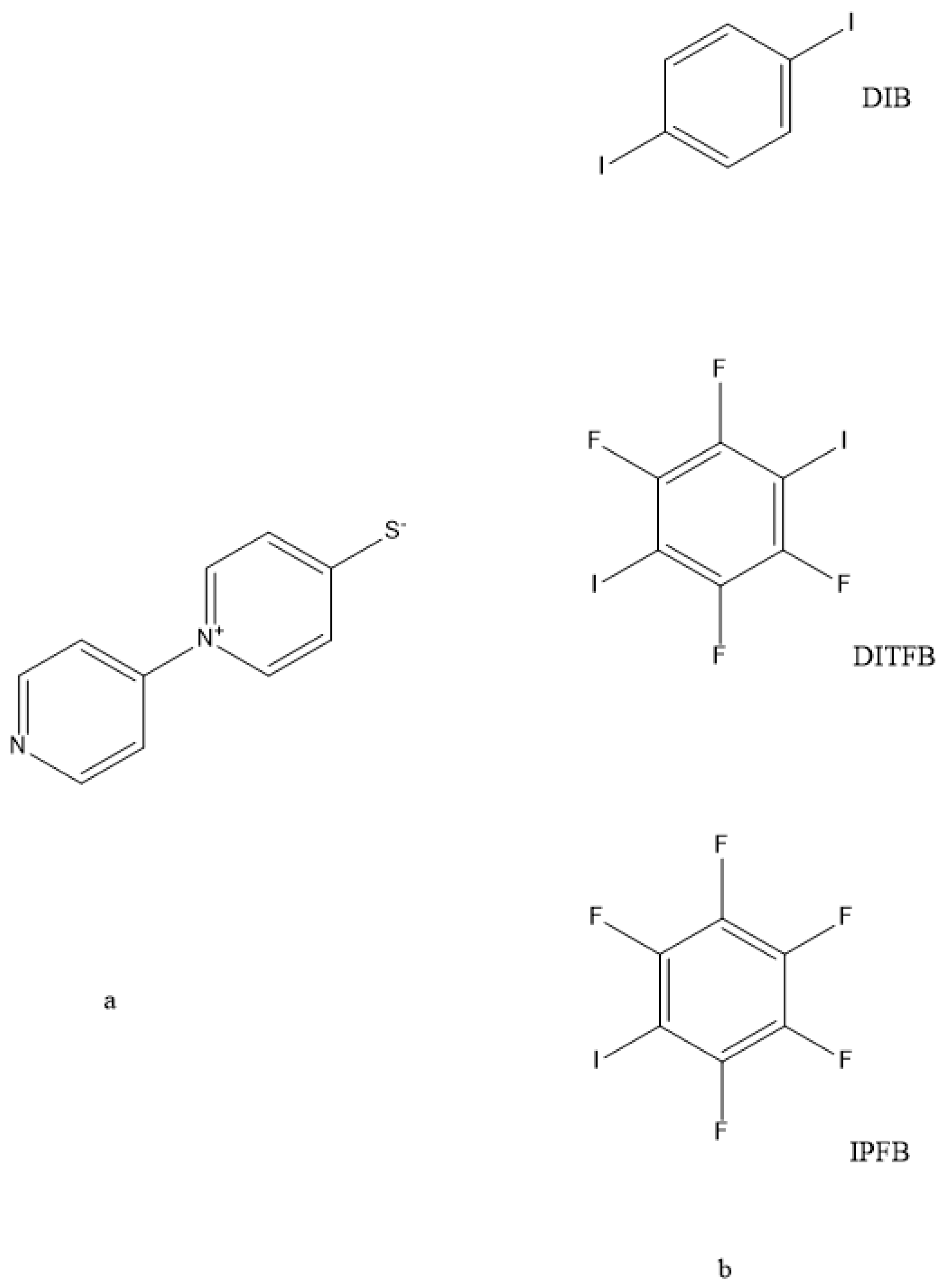

Figure 1. Schematic structure of XB acceptor and donors. (a) The schematic structure of PTP; (b) the schematic structure of 1,4-diiodobenzene (DIB), of 1,4-diiodotetrafluorobenzene (DITFB), and of iodopentafluorobenzene (IPFB).
Figure 1. Schematic structure of XB acceptor and donors. (a) The schematic structure of PTP; (b) the schematic structure of 1,4-diiodobenzene (DIB), of 1,4-diiodotetrafluorobenzene (DITFB), and of iodopentafluorobenzene (IPFB).
Crystals 10 00165 g001
Crystals 10 00165 g002 550

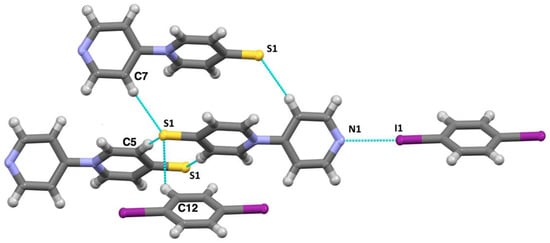

Figure 2. N⋯I XB and S⋯H contacts in 1.
Figure 2. N⋯I XB and S⋯H contacts in 1.
Crystals 10 00165 g002
Crystals 10 00165 g003 550

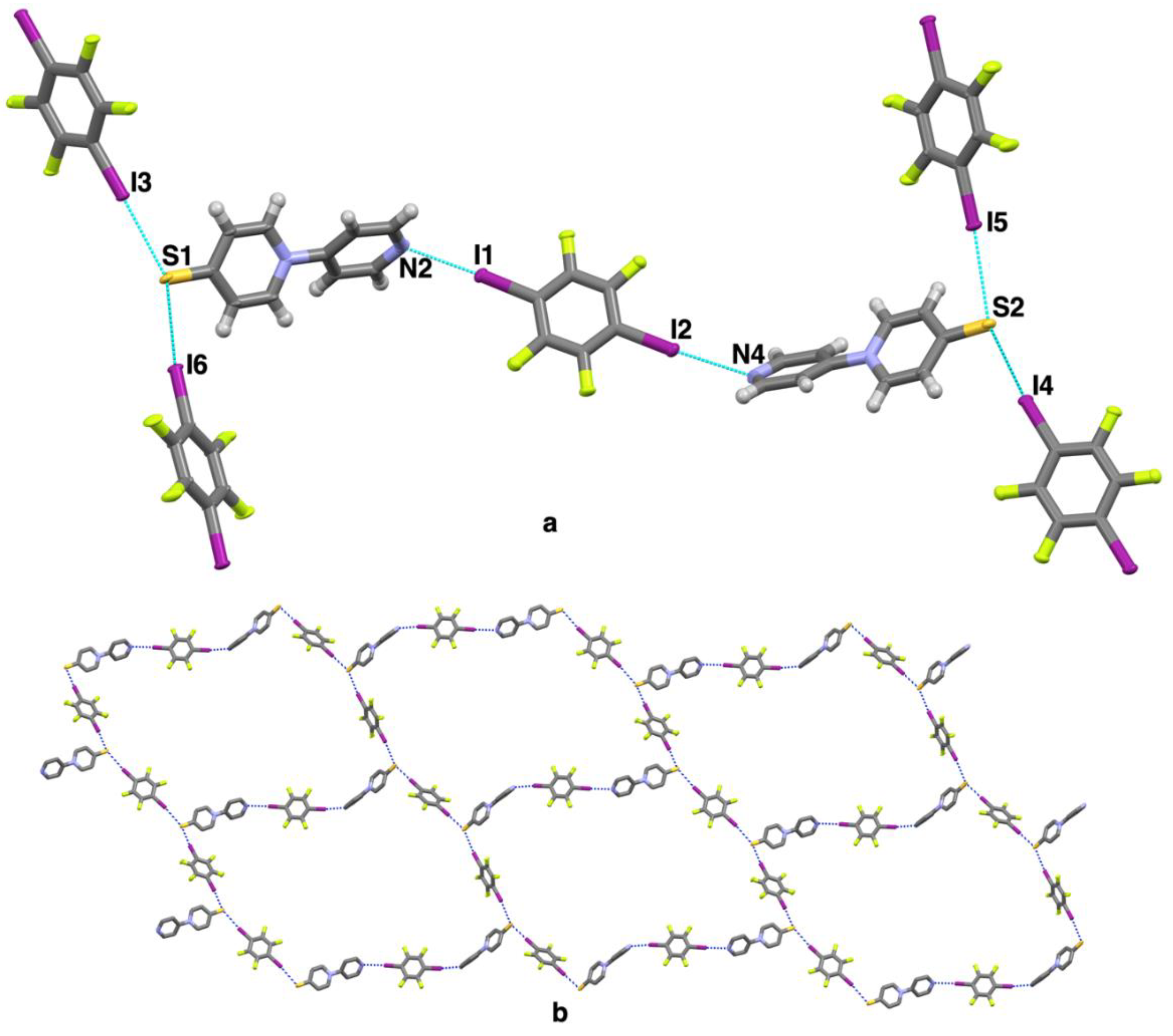

Figure 3. XBs and extended structure of 2. (a) XBs on S and N; (b) extended 2D structure of 2. Solvent CH2Cl2 and hydrogen atoms are omitted for clarity.
Figure 3. XBs and extended structure of 2. (a) XBs on S and N; (b) extended 2D structure of 2. Solvent CH2Cl2 and hydrogen atoms are omitted for clarity.
Crystals 10 00165 g003
Crystals 10 00165 g004 550

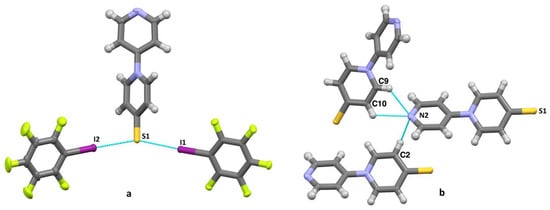

Figure 4. Nonvalent interactions in 3 involving S and N acceptors. (a) XBs on S; (b) H⋯N contacts.
Figure 4. Nonvalent interactions in 3 involving S and N acceptors. (a) XBs on S; (b) H⋯N contacts.
Crystals 10 00165 g004
Crystals 10 00165 g005 550

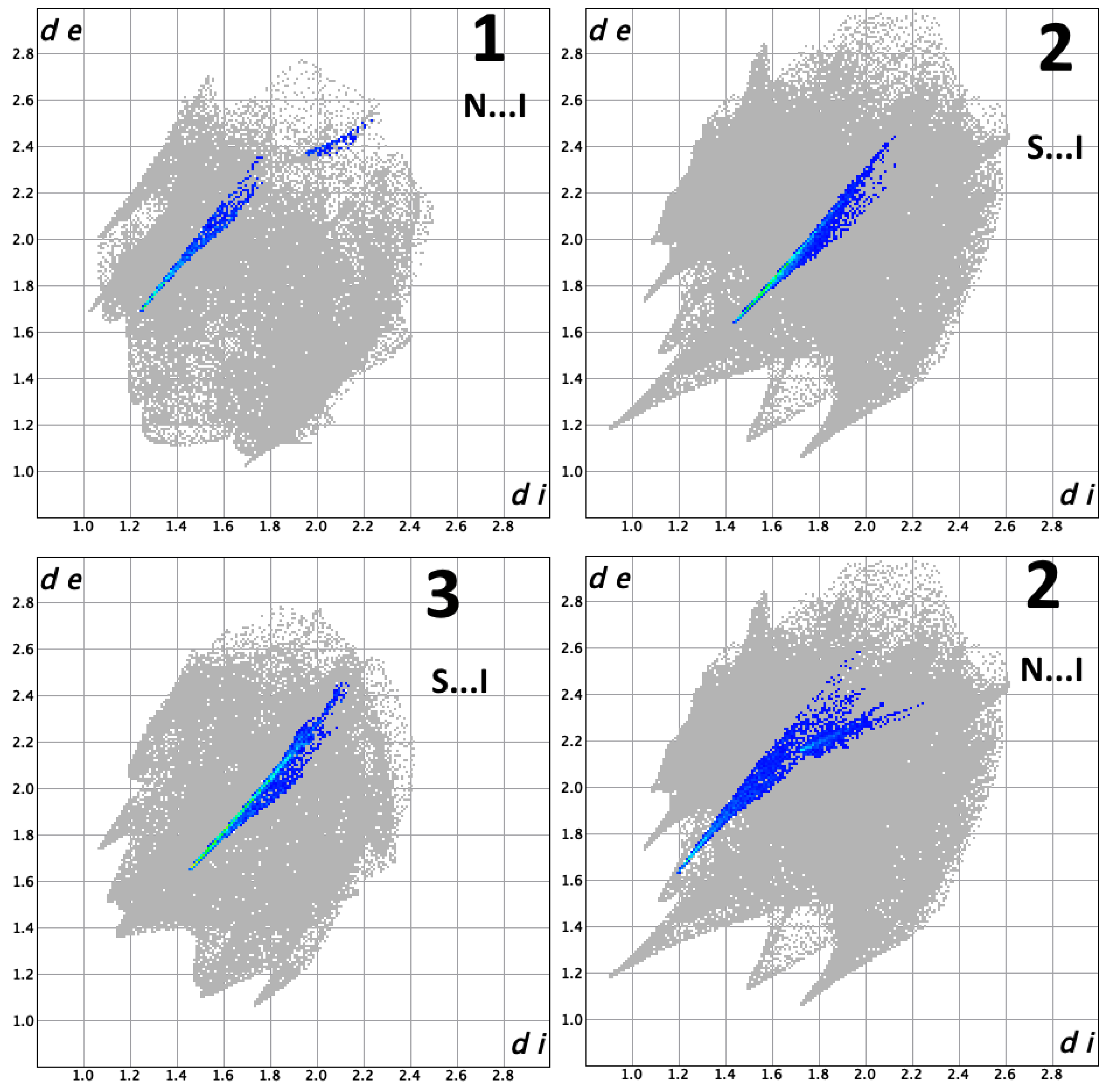

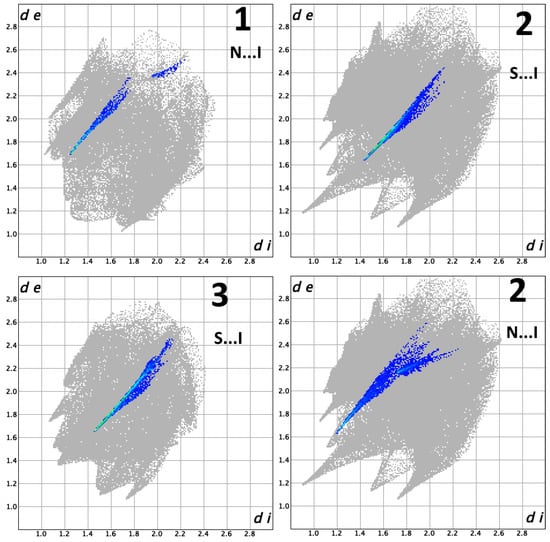

Figure 5. 2D fingerprint plots resolved into N⋯I in 1, S⋯I and N⋯I in 2, and S⋯I in 3. The full fingerprints appear in each plot as grey.
Figure 5. 2D fingerprint plots resolved into N⋯I in 1, S⋯I and N⋯I in 2, and S⋯I in 3. The full fingerprints appear in each plot as grey.
Crystals 10 00165 g005
Table
Table 1. Crystal data 1–3.
Table 1. Crystal data 1–3.
123
Formula moiety(C10H8N2S), 0.5(C6H4I2)2(C10H8N2S), 3(C6F4I2), (CH2Cl2)(C10H8N2S), 2(C6F5I)
Empirical formulaC13H10IN2SC39H18Cl2F12I6N4S2C22H8F10I2N2S
Molecular weight353.191666.99776.16
Crystal systemTriclinicTriclinicMonoclinic
Space groupP-1P-1P21/c
a, Å7.0677(3)11.1401(3)22.6204(3)
b, Å8.6967(4)15.9270(4)8.53950(10)
c, Å11.1576(5)16.2566(4)13.00460(10)
α, °100.990(4)63.216(3)90
β,°100.380(4)76.370(2)103.5430(10)
γ, °104.057(4)71.299(2)90
Volume, Å634.33(5)2424.76(13)2442.21(5)
Z224
Density, g/cm31.8492.2832.111
T, K120(2)120(2)123(2)
μ (Kα) (mm-1)21.18532.72921.895
No. relns.644658,19216,460
θ Range (°)4.155-76.7513.063-76.9764.02-76.948
Unique reflns.264910,1755149
GOOF (F2)1.0561.0481.040
Rint0.03450.04880.0387
R1(I ≥ 2σ)0.02740.03110.0262
wR2 (I ≥ 2σ)0.07440.08270.0629
Table
Table 2. DSC measurements.
Table 2. DSC measurements.
CrystalsTc /°C
1127.67
2114.46
385.36
Table
Table 3. Halogen bonds in 1–3.
Table 3. Halogen bonds in 1–3.
Crystal *I⋯Ad (I⋯A) Å<C-I⋯A
°		Symmetry OperationsRXB
1I⋯N2.968(3)177.01(9)x, y, z0.839
2I1⋯N22.845(6)171.4(2)x, y, z0.806
I2⋯N42.915(6)176.7(2)x, y, z0.826
I3⋯S13.096(1)174.6(1)1−x, 1−y, 2−z0.819
I6⋯S13.215(1)171.8(1)1+x, y, z0.851
I4⋯S23.137(1)172.6(1)−1+x, y, −1+z0.830
I5⋯S23.300(1)171.7(1)−x, 1−y, 1−z0.873
3I1⋯S13.1224(8)175.47(7)2−x, 2−y, 1−z0.826
I2⋯S13.1122(8)176.9(1)1−x, −1/2+y, 1/2−z0.823
Table
Table 4. Contributions of XBs to Hirshfeld surfaces in 1–3.
Table 4. Contributions of XBs to Hirshfeld surfaces in 1–3.
CocrystalXBContribution/%
1N⋯I2.1
2N⋯I3.2
2S⋯I3.4
3S⋯I5.2
