Synthesis, Characterization and Biological Studies of Ether–Based Ferrocenyl Amides and their Organic Analogues

Abstract

Ferrocenyl amides (FB1-FB13) and their organic analogues (BZ1-BZ13) were prepared by a low-temperature condensation method. Ferrocenyl amides were synthesised using 4-ferrocenylbenzoyl chloride and ether-based amines and diamines. Benzoyl chloride was used to synthesise organic analogues by reacting with various amines. The synthesised compounds were characterised by elemental, spectroscopic (FT-IR and NMR) and single crystal X-ray diffraction methods. Crystal structures of the representative organic analogues (BZ2 and BZ6) were solved by single crystal X-ray diffraction. BZ2 crystallises in the triclinic space group P$\overline{1}$ with a unit cell volume of V = 1056.6(3) ų and with two formula units per unit cell. Whereas BZ6 assembles in the orthorhombic space group Pbca with four formula units per unit cell and a unit cell volume of V = 1354.7(2) ų. Spectral studies confirmed the presence of amide linkages in the synthesised compound with a strong N—H·····O=C hydrogen bonding network established between amide groups of neighbouring molecular scaffolds further stabilising the molecular stacking in accordance with the archetypal crystal structures. The bioactive nature of each compound was assessed by DPPH (2,2-diphenyl-1-picrylhydrazyl) free radical scavenging activity, hydrogen peroxide scavenging activity and total antioxidant activity. Antidiabetic, anticholinesterase enzyme inhibition tests, as well as antibacterial activities, were performed showing significant biological activity for ferrocenyl amides as compared to their organic analogues.

1. Introduction

Ferrocene has gained immense importance among the metallocenes because of its unique properties and wide range of applications. The ferrocene derivatives are recognised for their stability in the biological medium and for their lipophilic, nontoxic, and reversible redox properties [1,2,3]. Ferrocene has a wide variety of applications from antiknock agents to polymerisation catalysts. Due to the favourable electronic properties of ferrocene derivatives and their easy functionalisation, these compounds have a wide range of applications in material science including sensors, catalytic materials, electroactive materials and aerospace materials [4,5]. Ferrocene and its derivatives can also be utilised as efficient medicinal substances for novel drug discovery. Furthermore, the electrochemical properties of ferrocene containing nucleic acids can be utilised for bioelectronics and glucose biosensors [6,7]. Ferrocenyl analogues of tamoxifen also show potential activity against hormone-dependent cancer cells as well as hormone-independent cancer cells for which tamoxifen is biologically inactive [8]. Other primary attributes of ferrocene are its non-cytotoxicity to human cells, stability in aqueous media, aromaticity, tunable redox activity and its potential to form reactive oxygen species. Ferrocene is also known to undergo reversible single-electron oxidation to the ferrocenium cation that prompts subsequent adjustment in hydrogen bonding interactions that results in a redox-dependent conformational switch. The synthetic systems that show conformational dynamism in response to oxidation state are finding increasing application in solid-state electronic devices and sensors [7,9].

Amides are very important to sustain life as they are the building blocks of proteins which make up our systems. Amides play a major role in natural products and agrochemicals. The structures of amides show that electrons are delocalised over the N-C-O bond. Due to this property secondary structures are formed in proteins. The flexibility of the peptide bond facilitates both cis and trans conformations, however, trans conformation is observed more owing to its greater stability [10]. Amide gets resonance stabilised due to intensive conjugation which renders it more resistant towards nucleophilic agents and in ascertaining its chemical reactivity [11,12]. Aromatic amides have significant applications in the field of pharmaceuticals, especially bis-benzamides are active anti-inflammatory agents [13]. Amide bonds have a greater contribution to biological systems as they play an important role in drug molecular design [14]. Amides like teduglutide and linaclotide are used to treat gastrointestinal disorders, respiratory distress syndrome in premature infants is prevented using lucinactant which is a lung surfactant. Dialysis patients suffering from anaemia can be treated using peginesatide. Pasireotide is used to treat adult patients with Cushing’s disease with no surgical option and Carfilzomib is a treatment for haematological cancer [15].

Among others, ferrocenyl amides have attracted a lot of attention due to their inherent ability to form supramolecular assemblies through non-covalent interactions, namely hydrogen bonding [16]. With the onset of external stimulus, the strength and selectivity of hydrogen bonded interactions in synthetic host–guest systems can be reversibly modulated mimicking biological systems, that plays a pivotal role in dictating the properties of natural and synthetic materials. In such assemblies, the amide linkage in the chain provides orientation stability and hydrogen bonding that further increases the mechanical strength of the assembly [17]. Similar studies on ferrocenyl amide systems show that the oxidation of ferrocene withdraws electron density from the neighbouring amide NH bond resulting in a stronger H-bond donor. Hydrogen bonding in ferrocenyl amides can also be utilised to form hydrogen-bonded templates which effectively transfer electrons along the intermolecular hydrogen bonds. Their redox potential is lowered due to the presence of the aromatic linker between ferrocene and the peptide unit.

The potential at which ferrocene is interconverted to a ferrocenium cation lies in the range of biologically accessible potentials [9]. Thus, incorporation of a ferrocene moiety into a bioactive organic molecule often imparts biological activity because of different membrane permeation properties and anomalous metabolism, consequently considered as an appealing strategy to find new compounds for the treatment of various ailments [18]. For instance, consider the precedent of protein functionality in biological systems modulated through the redox-sensing switches of cysteine and disulfide bond. Understanding the intrinsic conformational dynamism within the protein structure is essential to the survival of living organisms. Cysteine plays structural and regulatory roles and in particular, the thiol side chain in cysteine groups can undergo numerous modifications, making cysteine a unique molecular switch that often provokes mutations in the amino acid sequence and can ultimately trigger disease [18]. These natural mechanisms of control inspired us to inspect the preliminary structure—activity relationship in the analogous synthetic systems that can transform the H-bonded scaffold into a redox-dependent switch.

In the present investigation, we have synthesised a series of ferrocenyl amides (FB1-FB13) and their organic analogues (BZ1-BZ13). The crystal structure of two of the representative compounds namely BZ2 and BZ6 were determined via single crystal X-ray diffraction analyses. Elemental and spectroscopic (FT-IR and NMR) techniques further validated the structural model of all the compounds stabilised by a strong hydrogen bonding network between the amide groups of neighbouring molecular stacking. The compounds under investigation showed profound bioactivity which was analysed via free radical and H₂O₂ scavenging activity, total antioxidant activity, enzyme inhibition, and antibacterial activity. A significant thrust in biological activities was also observed for pristine ferrocenyl amides when compared with organic analogues.

2. Materials and Methods

2.1. Reactants and Instrumentation

For the synthesis of amides, all the reagents and chemicals used were of analytical grade. Ferrocene, hexadecyltrimethylammonium bromide (PTC), hydrogen chloride, 4-amino benzoic acid, triethylamine, n-hexane and sodium nitrate were purchased from Fluka, Buchs, Switzerland. Aniline, thionyl chloride, diethyl ether, acetone, chloroform, ethyl acetate, dimethyl sulfoxide (DMSO), dichloromethane and methanol were acquired from Merck, Darmstadt, Germany. Benzoyl chloride was obtained from Panreac, Castellar del Vallès, Spain. Ethanol, N,N-dimethyl formamide (DMF) and tetrahydrofuran (THF) were purchased from Riedel-de Haen, Seelze, Germany. The reactions were carried out in an inert atmosphere of nitrogen. Synthetic progress of the ferrocene-based amides and their organic analogues were monitored by thin layer chromatography.

Melting points of the synthesised compounds were determined using an MPD Mitamura Riken Kogyo (Japan) electrothermal melting point apparatus. FTIR spectra were recorded on a Bruker Tensor II (Germany) spectrometer in the frequency range of 4000–400 cm⁻¹. ¹H NMR (300 MHz) and ¹³C NMR (75 MHz) spectra were recorded on a Bruker NMR Spectrometer.

Single crystal X-ray diffraction analyses were performed for the structural elucidation and conformational analysis of the organic analogues BZ2 and BZ6. Low-temperature (100 K) X-ray diffraction data comprising φ- and ω-scans were collected using a MACH3 kappa goniometer coupled to a Bruker Apex II CCD detector with a Bruker-Nonius FR591 rotating anode X-ray source producing Cu Kα radiation (λ = 1.54178 Å). The Bruker APEX3 suite was used to process the data; reflection intensities were integrated through the program SAINT, and appropriate absorption corrections were applied to the intensities via a multi-scan method using the program SADABS.

The structures were solved using dual-space methods in SHELXT [19] and refined against F2 on all data by full-matrix least squares with SHELXL-2014 [20] using established refinement strategies [21]. All non-hydrogen atoms were refined anisotropically. The positions of all hydrogen atoms bound to carbon were calculated geometrically and refined using a riding model. The positions of hydrogen atoms bound to nitrogen groups were taken from the difference Fourier synthesis and subsequently refined semi-freely with the help of appropriate distance restraints. The isotropic displacement parameters of all hydrogen atoms were constrained to be 1.2 times the Ueq value of the atom to which they are bound. Details of the crystal structures of compounds BZ2 and BZ6 are listed in

Table 1. Crystal data and structure refinement for BZ2 and BZ6.

Empirical Formula	C27H22N2O2	C16H16N2O2
Formula weight	406.46	268.31
Temperature	100(2) K	100(2) K
Wavelength	1.54178 Å	1.54178 Å
Crystal system	Triclinic	Orthorhombic
Space group	P$\overline{1}$	Pbca
Unit cell dimensions	a = 5.7281(9) Å, α = 88.675(9)° b = 9.5981(10)Å, β = 82.397(10)° c = 20.016(3) Å, γ = 75.618(10)°	a = 8.9703(9) Å, α = 90° b = 9.9594(10) Å, β = 90° c = 15.1634(16) Å, γ = 90°
Volume	1056.6(3) Å3	1354.7(2) Å3
Z	2	4 (8, for asymmetric unit)
Density (calculated)	1.278 Mg/m3	1.316 Mg/m3
Absorption coefficient	0.643 mm−1	0.710 mm−1
F(000)	428	568
Crystal size	0.280 × 0.160 × 0.050 mm3	0.340 × 0.190 × 0.180 mm3
Theta range for data collection	4.457 to 68.649°	5.836 to 68.333°
Index ranges	−6 <= h <= 6, −11 <= k <= 10, −24 <= l <= 23	−10 <= h <= 10, −11 <= k <= 11, −18 <= l <= 17
Reflections collected	25,227	15,989
Independent reflections	3852 [R(int) = 0.0588]	1236 [R(int) = 0.0447]
Completeness to theta = 67.679°	99.8%	99.9%
Absorption correction	Semi-empirical from equivalents	Semi-empirical from equivalents
Refinement method	Full-matrix least-squares on F2	Full-matrix least-squares on F2
Data/restraints/parameters	3852/2/286	1236/67/95
Goodness-of-fit on F2	1.042	1.039
Final R indices [I > 2sigma(I)]	R1 = 0.0363, wR2 = 0.0904	R1 = 0.0308, wR2 = 0.0783
R indices (all data)	R1 = 0.0450, wR2 = 0.0956	R1 = 0.0313, wR2 = 0.0788
Extinction coefficient	n/a	0.0046(6)
Largest diff. peak and hole	0.166 and −0.204 e·Å−3	0.196 and −0.159 e·Å−3

.

2.2. Biological Activity

For DPPH free radical scavenging activity, 10 µL of sample solution (1000 µg/mL) was added to 190 µL DPPH (150 µM) in DMSO and incubated for 30 min at 37 °C. The control solution contained DPPH without the sample. The absorbance of the mixture was measured at 517 nm that decreased due to the quenching of DPPH free radicals and the percentage of inhibition was calculated [22].

For total antioxidant activity, 100 µL of sample and 3.9 mL of reagent solution (0.6 M H₂SO₄, 28 mM sodium phosphate, 4 mM ammonium molybdate) were mixed and boiled at 95 °C for 90 min and the absorbance was measured at 695 nm. The control solution contained the reagent without the sample [16].

For hydrogen peroxide scavenging activity, 100 µL of sample solution was mixed with H₂O₂ (2.4 mL, 4mM) in phosphate buffer (pH = 7, 0.1 M). Incubation was done at room temperature for 10 min and absorbance was taken at 230 nm against a blank solution.

In the case of alpha amylase enzyme inhibition activity, 1.2 mL of starch in phosphate buffer containing 6.7 mM of NaCl was added to 600 µL of the sample stock (50, 100, 200 ppm). The reaction was initiated by adding 600 µL porcine pancreatic amylase and incubated at 37 °C. This mixture along with reagent solution [1 g of DNSA (3,5-dinitrosalicylic acid), 30 g of potassium tartrate and 20 mL of NaOH (2N)] was prepared in distilled water and was kept in a hot water bath for 15 min. The reaction mixture was diluted with water (2.7 mL) and the absorbance was evaluated at 540 nm [22].

In the alpha glucosidase enzyme inhibition assay, alpha glucosidase was dissolved in 0.1 units/mL of buffer A [(0.1 mol/L) potassium phosphate, (3.2 mmol/L) MgCl₂, (pH = 6.8)]. 6 mmol/L p-nitrophenyl-glucopyranoside was prepared in the same buffer (pH = 6.8). 102 µL of buffer B was prepared using 5 mol/L potassium phosphate, 16 mmol/L MgCl₂ having a pH of 6.8. The sample (0.6 mg/mL) was prepared in DMSO. Sample solution along with buffer A, 282 µL of water and 200 µL of substrate were mixed. The mixture was incubated for 5 min at 37 °C and then the enzyme solution (200 µL) was added. This reaction was carried out for 30 min and then glycine buffer was added to terminate the reaction. The absorbance was subsequently measured at 410 nm [23].

For butyrylcholinesterase enzyme inhibition activity, the enzyme was prepared in phosphate buffer (pH 8.0) along with 100 mM of sodium phosphate buffer (180 µL). Ellman’s reagent (DTNB, 5-5-dithio-bis[2-nitrobenzoic acid] prepared in buffer (10 µL) and sample solution (10 µL) were added to each of the solutions. All these solutions were mixed well and incubated for 15 min at 25 °C. The reaction started upon the addition of 10 µL of substrate solution (butyrylcholine iodide, 10 mM) and absorbance was taken at 412 nm after 10 min [23].

For acetylcholinesterase enzyme inhibition activity, enzyme (100 U [enzyme unit (U) = 1 µmol min⁻¹]) was dissolved in tris-hydrochloric acid buffer of pH 7.8. Bovine serum albumin was added to stabilise this solution. TLC plates were loaded with sample solution (0.01–1000 ng/spot) and sprayed with the solution of the enzyme (3.33 µ/mL). These plates were dried and incubated for 20 min at 37 °C. A solution of 1-naphthyl acetate (0.25%) in ethanol and 0.25% of Fast Blue B salt (20 mL) was sprayed on the plates to detect the enzyme activity. Inhibitors of these enzymes appeared as clear zones on purple coloured background [24].

For antibacterial activity, the agar diffusion disc-variant method was employed. Different dilutions of sample solution 100, 80, 60, 40 mg/mL were prepared. Whatman filter paper no.3 (7 mm) was impregnated with different dilutions of the sample solution (20 mL). Diluent was evaporated at room temperature and was refrigerated for further use. These paper discs were placed on the surface of agar while Kanamycine was used as a positive control [25].

2.3. Synthesis of 4-Ferrocenyl Benzoic Acid

4-Amino benzoic acid (7 g, 50 mmol) was dissolved in a mixture of water (80 mL) and concentrated hydrochloric acid (12 mL) at 0–5 °C in a two necked round bottom flask. A solution of sodium nitrite (3.5 g, 50 mmol) was prepared in water (20 mL) and dropwise addition of this solution was done to the above-mentioned mixture with a stirring of 30 min. The product formed was diazonium salt which was kept at low temperature (5 °C) for further use. In a two necked round bottom flask, ferrocene (10 g, 50 mmol) was dissolved in diethyl ether (100 mL) at 0 °C along with the addition of 0.5 g of hexadecyltri-methylammonium bromide (PTC) with stirring. Diazonium salt was added dropwise at low temperature. This reaction mixture was stirred for 24 h after the completion of the reaction. Diethyl ether was evaporated and a dark brown solid was obtained which was dissolved in distilled water (500 mL) containing NaOH (5 g) at 90 °C. This mixture was filtered hot. Unreacted ferrocene was recovered as a result of this filtration. Upon cooling of the filtrate, dark brown precipitates of 4-ferrocenyl benzoic acid were obtained by gradual addition of HCl which was filtered off and washed several times with water. Yield = 64%, m.p. = 240–241 °C (decomposition).

2.4. Synthesis of 4-Ferrocenyl Benzoyl Chloride

4-Ferrocenyl benzoic acid (5 g, 20 mmol) dissolved in THF (200 mL) was added to a two-necked round bottom flask containing magnetic stirrer and attached to a vacuum line assembly under inert conditions. The temperature was kept low (57 °C) and SOCl2 (14.5 mL, 20 mmol) was added dropwise with continuous stirring for 3 h. After the completion of the reaction, THF was rotary evaporated and the solid product obtained was dissolved in diethyl ether which was separated using cannula filtration. Diethyl ether was evaporated and a dark brown solid i.e., ferrocenyl benzoyl chloride was obtained [26] (Scheme 1).

2.5. Synthesis of Ferrocenyl Amides (FB1-FB13)

In a two-necked flask equipped with magnetic stirrer and condenser, 0.5 g (1.80 mmol) of respective amine was taken. A mixture of THF (10 mL) and triethylamine (10 mL) was added to the flask at freezing temperature in an ice bath. Acid chloride dissolved in THF was added dropwise to this reaction mixture while stirring for 24 h. Salts were removed after the completion of the reaction by filtration. The solvent was removed by rotary evaporator and a non-solvent (n-hexane) was added to get the product (Scheme 2).

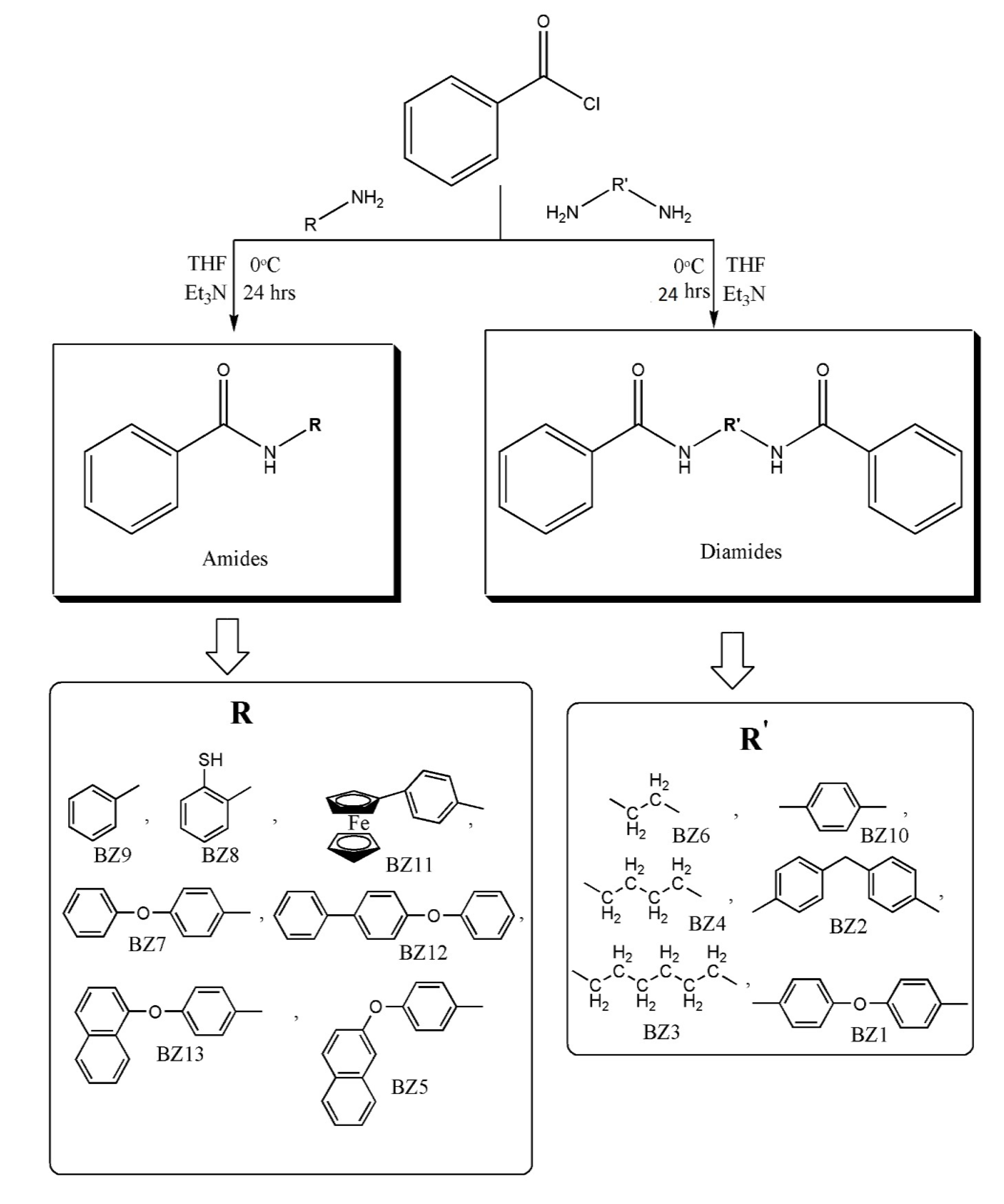

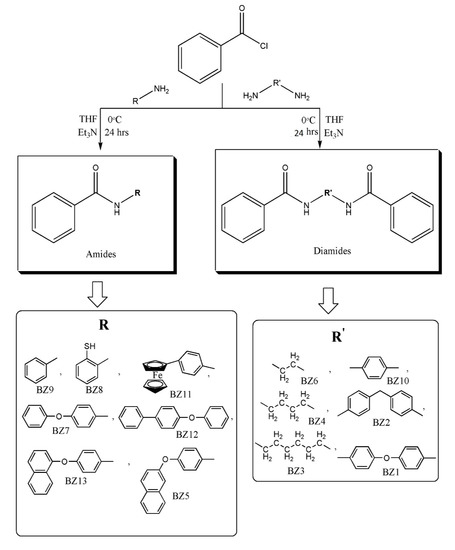

2.6. Synthesis of Organic Analogues (BZ1-BZ13)

In a 500 mL two-necked flask, respective amines (1.8 mmol), THF (10 mL) and triethylamine (10 mL) were added at 0 °C in an ice bath. Benzoyl chloride (1.8 mmol) was added to the reaction mixture and stirring was done for 24 h. Completion of the reaction was monitored by TLC. After the completion of the reaction, the reaction mixture was filtered to remove salts. The solvent was removed under vacuum and non-solvent (n-hexane) was added to get the product. All organic analogues were synthesised employing the procedure as depicted in Scheme 3.

3. Results and Discussion

Two series of amides, i.e., ferrocenyl amides (FB1-FB13) and their organic analogues (BZ1-BZ13) were synthesised using benzoyl chloride and 4-ferrocenyl benzoyl chloride as starting precursors, respectively. Systematic spectroscopic analysis of the synthesised compounds was performed using FTIR, NMR and elemental analysis techniques. The functional group’s allotment was in good compliance with the proposed structure elucidated through single crystal X-ray diffraction. Comparison between the biological/antibacterial activity of both series shows a significant biological activity of ferrocene-based amides.

3.1. Single Crystal X-ray Diffraction Analysis

Crystal structures of the organic analogues namely BZ2 and BZ6 were determined at a temperature of 100 K by single crystal X-ray diffraction. At this temperature BZ2 crystallises in the triclinic space group P$\overline{1}$ with lattice parameters a = 5.7281(9) Å, b = 9.5981(10) Å, c = 20.016(3) Å, α = 88.675(9)°, β = 82.397(10)° and γ = 75.618(10)°, a unit cell volume of V = 1056.6(3) ų and with two formula units per unit cell. In contrast to BZ2, BZ6 assembles in the orthorhombic space group Pbca with four formula units per unit cell and lattice parameters of a = 8.9703(9) Å, b = 9.9594(10) Å, c = 15.1634(16) Å, and with a unit cell volume of V = 1354.7(2) ų. Remarkable for the crystal structure of BZ6 is, that a centre of inversion of the unit cell is congruent with the centre of inversion of a single BZ6 molecule, which results in an asymmetric unit cell which consists of only half a molecule. Taking into account the general multiplicity of 8 of the Pbca space group, this results in four complete molecules per unit cell. Further details of the refinements, as well as the R-factors and the goodness-of-fit, can be found in Table 1.

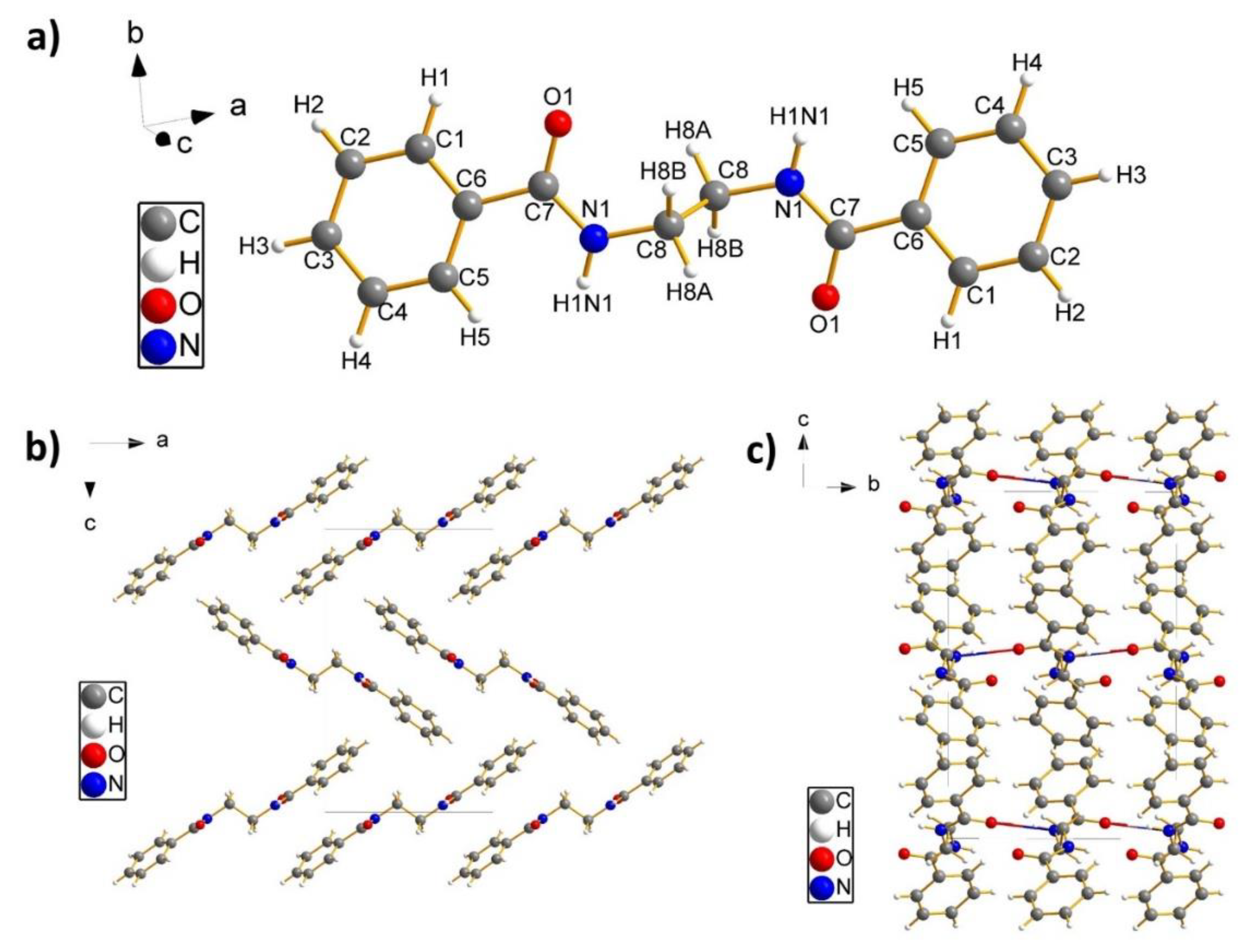

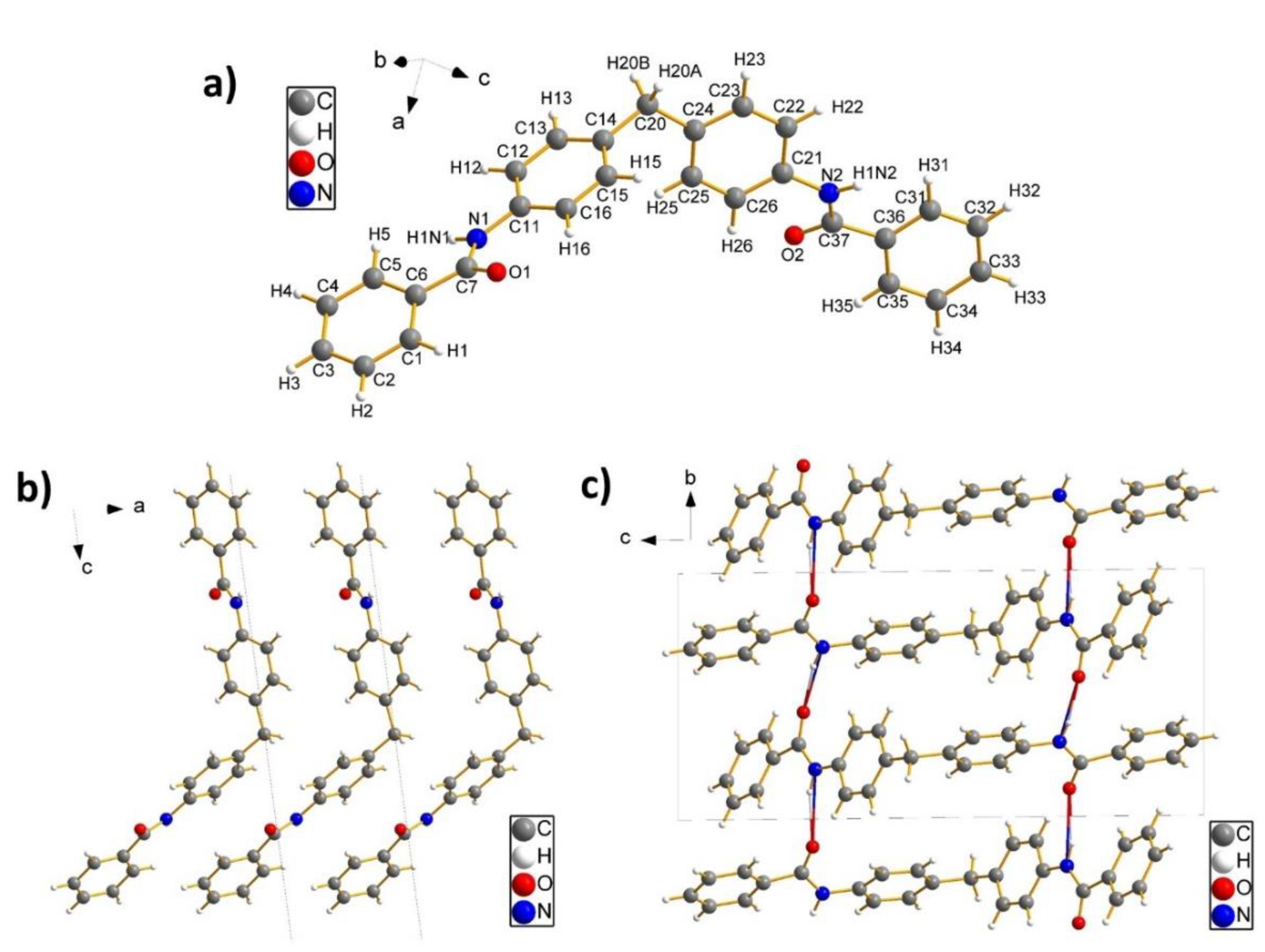

Perspective views of the molecules BZ2 and BZ6 together with riding H-atoms can be found in Figure 1a and Figure 2a, respectively. The molecule geometry of BZ2 consists of four phenyl rings, of which two phenyl rings are planar connected by an amide group. Both groups are then connected by a methylene group which leads to a bend configuration at an angle of 115.6(1)° and a torsion angle between the phenyl rings of 70.1(2)°. In the configuration of the BZ6 molecule, a phenyl ring is almost planar linked with an amide group, leading to a benzamide group. Two of these benzamide groups are then connected by an ethylene group both at an angle of 111.8(1)°. This leads finally to a configuration where both benzamide groups are aligned parallel to each other.

The packing scheme of the crystal structure of BZ2 is given by densely stacked BZ2 molecules along the a-direction (Figure 2b), whereas in the b-direction no dense packing of molecules is observed (Figure 2c). In the a-direction phenyl rings of adjacent molecules try to arrange parallel to each other, which is in contrast to the b-direction, where the phenyl rings of adjacent molecules are organised in a more orthogonal manner. The same orthogonal configuration of the phenyl rings of neighbouring molecules can be found in the c-direction. In the b-direction, the stacking is stabilised not only by van-der-Waals interactions but also by a hydrogen bonding network (two-coloured bonds in Figure 2c) which is established between an oxygen atom (acceptor) from the amide group of one molecule to the N-H group (donor group) of the amide group of a neighbouring molecule (for the hydrogen bond distances see

Table 2. Hydrogen bonds for BZ2 and BZ6 [Å and °].

	D-H···A	d(D-H)	d(H···A)	d(D···A)	<(DHA)
BZ2	N(1)-H(1N1)···O(2)#1	0.900(13)	2.070(13)	2.9358(14)	161.3(13)
	N(2)-H(1N2)···O(1)#2	0.899(13)	1.988(13)	2.8742(14)	168.1(14)
BZ6	N(1)-H(1N1)···O(1)#2	0.885(12)	1.965(12)	2.8420(12)	170.5(12)

Symmetry transformations used to generate equivalent atoms: #1 −x + 1, −y + 2, −z + 1 #2 −x + 1, −y + 1, −z + 1.

). Since the BZ2 molecule consists of two amide fragments, the most stable configuration along the b-direction can be reached, if the phenyl rings take an orthogonal arrangement as this allows the formation of two hydrogen bonds between the four amide groups of two adjacent molecules.

For the crystal structure of BZ6, a different packing scheme can be found. In the a-direction, the molecules adopt a dense stacking sequence of parallel aligned molecules, whereas in the c-direction an orthogonal arrangement of adjacent molecules is obtained (Figure 2b). In the b-direction, the stacking of the molecules is stabilised by a hydrogen bonding network (two-coloured bonds in Figure 2c), which runs along the crystallographic b-axis and which connects the molecules in two adjacent planes orthogonal to the b-direction in a zig-zag-type manner: one amide group of a molecule in plane 1 is hydrogen bonded to the amide group of a neighbouring molecule in plane 2, whereas the second amide group of the molecule in plane 1 is connected to the amide group of a third molecule, which also lies in plane 2. This zig-zag-type arrangement of the molecules leads to an orthogonal configuration of the molecules in the b-direction and explains also the dense parallel packing along the a-direction. Corresponding bond lengths for the donor-acceptor distances are given in Table 2.

3.2. Spectral Studies

The presence of different functional groups in both series was confirmed using spectroscopic techniques (FTIR, ¹H and ¹³C NMR). FTIR spectral data of ferrocenyl amides and organic analogues was in accordance with the archetypal crystal structures as tabulated in Tables S1 and S2.

In ferrocenyl amides, N-H stretch was observed in the range of 3304–3390 cm⁻¹ confirming the amide linkage while aromatic CH in the region of 2956–3095 cm⁻¹. The reduction in the value of carbonyl stretch confirms the presence of an amide linkage which is in the range of 1628–1651 cm⁻¹. Fe-Cp stretch appeared in the range of 500–512 cm⁻¹ (Table S1).

FTIR spectral data of organic analogues showed that an N-H peak appeared in the range of 3300–3391 cm⁻¹ which confirms the presence of an amide linkage in the respective product. C=C of aromatic rings appeared in the region of 1487–1601 cm⁻¹ while an aromatic CH stretch emerged in the region of 3047–3070 cm⁻¹ (Table S2). The successful synthesis of corresponding amides is also envisaged by close inspection of the stretching modes associated with the acyl halide precursors. The carbonyl stretch for acid halides appears at 1775–1810 cm⁻¹ in the starting precursors, which in the case of amide formation appeared in the region of 1630–1670 cm⁻¹. The reduction of the carbonyl stretching mode associated with the amide linkages which is higher in the case of acyl halides confirms the successful synthesis of the desired product. Besides, the C—Cl stretch in the acyl halide appears in the range of 550–730 cm⁻¹ and it disappeared upon product formation further endorsing the formation of the respective amide.

Further confirmation of the amide linkage within the scaffold was examined using ¹H and ¹³C NMR spectroscopic techniques. Due to issues with low solubility, NMR spectral data could not be acquired for all compounds, therefore data of a few representative compounds of the series is given in the Supplementary Information (Tables S3 and S4).

The proton NMR spectral data was in accordance with the proposed structures. The signal of amide protons was observed at 10.5 ppm in ferrocenyl amides confirming the formation of the synthesised compound. Ferrocene protons appeared at 4.2–4.6 ppm comprising of three signals i.e., a singlet for unsubstituted Cp ring and two triplets for the substituted Cp ring. Aromatic protons appeared in the range of 6.6–8.3 ppm.

In organic analogues, signals of amide protons appeared in the range of 10 ppm whereas aromatic protons appeared in the range of 7–8 ppm. The shift of the amide proton signal in the downfield region confirms the presence of hydrogen bonding within the amide linkage.

The ¹³C NMR spectral data of ferrocenyl amide describes the carbonyl carbon gives the most downfield signal appearing at 164 ppm. The carbon attached to the ether appeared at 141 ppm and the rest of aromatic carbons appeared at 137–116 ppm. The carbon of ferrocene appeared at 86.7 ppm. The unsubstituted Cp ring appeared at 69 ppm while the substituted Cp ring showed two signals at 68 and 65 ppm. In the organic analogues, the carbonyl carbon was observed in the range of 165.7–166 ppm. This carbon is the most downfield confirming the presence of an amide group.

3.3. Biological Activities

Ferrocene and its derivatives are well suited for biological applications in conjugation with biomolecules because of their non-toxicity, membrane penetration of ferrocenyl group, stability, easy accessibility and promising electrochemical properties [27,28]. Different biological tests were performed like antioxidant activities, enzyme inhibition activities and antibacterial activities. The results of an overall comparative trend of different biological activities of ferrocenyl amides (FB1-FB13) and organic analogues (BZ1-BZ13) are presented in

Table 3. Biological activities of ferrocenyl amides (FB1-FB13) and organic analogues (BZ1-BZ13).

Sample	Antioxidant Activity at 200 ppm (%)		Enzyme Inhibition Activity at 200 ppm (%)				Antimicrobial Activity at 200 ppm (Zone of Inhibition in mm)
	DPPH Assay	H2O2 Assay	GLU Assay	AMY Assay	ACE Assay	BCE Assay	S. aureus	E. coli	M. luteus	E. aerogenes
FB1	95.7	45.0	51.9	42.7	0.0	5.2	15.0	5.0	0.0	0.0
FB2	85.0	30.8	56.1	37.4	0.0	2.2	8.0	8.0	5.0	4.0
FB3	96.5	80.0	68.6	61.5	0.0	1.3	5.0	8.0	4.0	4.0
FB4	53.2	74.9	43.9	33.0	0.0	8.1	5.0	7.0	4.0	4.0
FB5	90.0	68.8	47.5	40.6	0.6	3.4	6.0	5.0	0.0	4.0
FB6	85.5	52.6	19.2	42.8	0.0	11.7	4.0	4.0	0.0	4.0
FB7	89.6	76.0	46.4	36.9	0.0	2.1	6.0	5.0	0.0	0.0
FB8	81.2	42.7	49.6	37.0	3.4	10.5	8.0	8.0	5.0	4.0
FB9	82.2	45.1	52.0	29.0	0.0	2.3	4.0	5.0	0.0	0.0
FB10	91.6	60.5	52.5	25.8	0.0	2.2	14.0	5.0	0.0	0.0
FB11	85.3	68.5	28.7	64.7	0.0	9.0	10.0	5.0	0.0	5.0
FB12	86.9	6.5	63.3	36.4	11.7	3.9	5.0	6.0	10.0	5.0
FB13	84.2	53.2	80.8	17.9	12.6	3.4	8.0	4.0	0.0	4.0
BZ1	82.1	70.2	69.0	14.8	31.4	9.9	0.0	0.0	0.0	0.0
BZ2	76.3	56.4	70.5	24.0	22.5	46.7	0.0	0.0	0.0	0.0
BZ3	82.8	79.9	86.6	5.9	37.9	0.1	0.0	0.0	0.0	0.0
BZ4	83.2	70.9	62.5	7.9	33.9	0.1	0.0	0.0	0.0	0.0
BZ5	81.2	86.3	4.5	8.6	7.1	0.0	0.0	0.0	0.0	0.0
BZ6	82.5	88.3	60.4	13.3	39.2	0.0	0.0	0.0	0.0	0.0
BZ7	83.9	75.6	67.0	17.2	13.0	0.0	0.0	0.0	0.0	0.0
BZ8	75.4	77.5	48.9	20.9	21.8	0.0	0.0	0.0	0.0	0.0
BZ9	75.9	85.6	24.6	5.8	28.1	0.0	0.0	0.0	0.0	0.0
BZ10	85.1	86.1	23.5	8.2	19.0	6.0	0.0	0.0	0.0	0.0
BZ11	77.3	44.7	71.6	14.8	23.9	0.0	0.0	0.0	0.0	0.0
BZ12	83.4	77.0	73.0	17.2	24.5	2.7	0.0	0.0	0.0	0.0
BZ13	79.0	77.7	56.3	20.9	12.2	0.3	0.0	0.0	0.0	0.0
Ascorbic acid	94.2	91.4	NA	NA	NA	NA	NA	NA	NA	NA
Acarbose	NA	NA	95.4	94.3	NA	NA	NA	NA	NA	NA
Galantamine hydrobromide	NA	NA	NA	NA	94.7	91.5	NA	NA	NA	NA
Kanamycin	NA	NA	NA	NA	NA	NA	25.0	20.0	26.0	22.0

Where NA, GLU, AMY, ACE, BCE, S. aureus, E. coli, M. luteus and E. aerogenes represents not applicable, α-glucosidase, α-amylase, acetylcholinesterase, butyrylcholinesterase, Staphylococcus aureus, Escherichia coli, Micrococcus luteus and Enterobacter aerogenes (also known as Klebsiella aerogenes) respectively.

.

Antioxidant activity was determined by DPPH and hydrogen peroxide free radical scavenging assay and the results are presented in Figures S1 and S2. All of the compounds exhibited significant activities in both assays, however, ferrocenyl amides showed more activity as compared to the organic analogues. The highest activity was exhibited by FB3 (96.5%) and BZ6 (88.6%) respectively for ferrocenyl amides and organic analogues as compared to ascorbic acid (94.2%) used as a positive control. The products which are sterically less hindered can easily donate their labile protons subsequently showing higher activities [29,30].

Alpha glucosidase and alpha amylase enzyme inhibition activity are carried out to slow down the absorption of glucose in the blood by blocking the binding sites of these enzymes as high activity of these enzymes may result in chronic diseases like diabetes. In alpha glucosidase enzyme inhibition, FB12 (80.8%) and BZ3 (86.6%) exhibited prominent activities being highest in their respective groups. These results were compared to acarbose served as a positive control with 95.4% inhibition (Figures S3 and S4). These activities might be due to the presence of aliphatic as well as ether-based linkages in the compounds. On the other hand, in alpha amylase assay the highest activity was observed in the case of FB11 (64.7%) and FB3 (61.5%) Figure S5, while organic analogues did not show significant activity compared to ferrocenyl amides owing to the absence of the ferrocene moiety, Figure S6.

Acetylcholinesterase and Butyrylcholinesterase hydrolyse acetylcholine which is necessary for the proper functioning of the autonomic nervous system. During the neurodegenerative disorders like Alzheimer’s disease, cholinergic transmission in synapsis, is suppressed. Acetylcholine is produced in lower amounts in these patients. Therefore, the production of these enzymes is inhibited to increase the amount of acetylcholine in the body. Acetylcholinestrase inhibitors block this enzyme thus inhibiting the hydrolysis of acetylcholine into acetate and choline hence prolonging its duration of action. In the case of ferrocenyl amides, slight inhibition activity was observed for FB13 (11.7%) and FB12 (12.6%). On the other hand, the organic analogues showed comparatively better enzyme inhibition activities as compared to ferrocenyl amides being highest for BZ6 (39.2%). These results were compared to galantamine hydrobromide used as a positive control with 94.7% enzyme inhibition. If the substitution is changed, there may be an increase in activity, Figure S7. While in the butyrylcholinesterase assay, only FB2 showed moderate activity which might be due to the presence of reactive ferrocene moiety and flexibility in the structure due to aromatic rings separated by a methyl group, Figure S8 [23].

Lastly, antibacterial activity was observed using two types of Gram-positive bacteria i.e., Staphylococcus aureus and Micrococcus luteus and two types of Gram-negative bacteria i.e., Escherichia coli and Enterobacter aerogenes (also known as Klebsiella aerogenes) at 200 ppm concentration. Gram-positive bacteria were observed to have more activity as compared to Gram-negative bacteria owing to the difference in their cell walls properties. Organic analogues showed no activity as compared to ferrocenyl amides as organometallic forms are more toxic in comparison to their organic equivalents (Figure S9 and Figure S10) [31]. In ferrocenyl amides, the highest activity was observed for the compound FB1 with a 15 mm zone of inhibition for Gram-positive bacteria. Sidewise, in the case of Gram-negative bacteria, the compound FB10 exhibited highest antibacterial activity with a 10 mm zone of inhibition. Kanamycin was used as a positive control which showed a 25 mm and a 25 mm zone of inhibitions for Gram-positive and Gram-positive bacteria, respectively.

4. Conclusions

Two series of amides were synthesised successfully by using a condensation method. The synthesised amides were characterised by elemental, spectroscopic (FT-IR and NMR), and single crystal X-ray diffraction analyses. Ferrocenyl amides and their organic analogues were investigated for various biological activities. The highest activity was observed for BZ5 while BZ9 and FB8 also showed moderate activities for DPPH free radical scavenging activity. Total antioxidant capacity was the highest for FB1 and FB3. BZ5, BZ9 and BZ10 showed enhanced activities in response to H₂O₂ scavenging activity. In the alpha glucosidase enzyme inhibition assay, maximum activity was observed for FB13 and BZ3 for their respective series whereas FB3 and FB12 also showed reasonable activities. In the case of the alpha amylase enzyme inhibition assay, FB3, FB11 and BZ2 showed marked activities. AChE and BChE enzyme inhibition activities showed evident results in case of BZ3, BZ6 and BZ2. Ferrocenyl amides were observed to have stronger antibacterial properties as compared to the organic analogues and pronounced activities were observed in case of Gram-positive bacteria as compared to Gram-negative bacteria.

Crystal structures of the organic analogues BZ2 and BZ6 were solved by single crystal X-ray diffraction. BZ2 crystallises in the triclinic crystal system, whereas BZ6 crystallises in the orthorhombic crystal system. The packing scheme of the molecules in both crystal structures is defined and can be explained by hydrogen bonding networks and additional van-der-Waals interactions. Although the crystal structures of similar BZ analogues could not be determined, it can be expected that the molecular arrangements are determined in a similar manner by hydrogen bonding networks.

As crystal structures could only be solved for BZ2 and BZ6, a direct linkage between crystal structures and biological activities could not be drawn, since BZ2 and BZ6 do not show any prominent difference in their biological activity in comparison to the other organic analogues. Therefore, further investigation of the crystal structures of ferrocenyl amides and their organic analogues is required in order to determine the exact molecular configuration which could then be linked to the observed biological activities.
