N-Acetyl Indole Linked to a Fused Triazolo/Thiadiazole Scaffold: Synthesis, Single Crystal X-Ray Structure, and Molecular Insight

Abstract

The designed target compound of N-acetyl indole linked to a fused triazolo/thiadiazole scaffold was synthesized via the reaction of 4-amino-5-(1H-indol-2-yl)-1,2,4-triazol-3(2H)-thione as the starting material with acetic anhydride under reflux conditions for 6 h, resulting in an excellent and pure chemical yield. The structural features of the designed compound were confirmed using spectroscopic tools including single crystal X-ray diffraction analysis along with ¹H-NMR, ¹³C-NMR, 2D-NMR, and high resolution mass spectrometry. Using Hirshfeld analysis, we determined the molecular packing depends on strong interactions (O···H and N···H) along with weak interactions (S···H, C···H and H···H). The shortest contacts corresponding to the N3···H12 (2.490 Å), N2···H5 (2.503 Å), and O1···H2 (2.490 Å) interactions were confirmed based on the Hirshfeld analysis. The calculated dipole moment was 6.6557 Debye. The atomic charge distribution, molecular electrostatic potential map, and reactivity descriptors are also discussed. The computed NMR spectra of the requisite compound correlated well with the results obtained experimentally. The UV-Vis electronic spectra of the requisite compound were simulated using the TD-DFT method and compared with the experimental data. The different σ→σ*, π→π*, n→σ*, and n→π* donor–acceptor interactions and their interaction energies stabilized the studied system to 9.84, 20.65, 29.33, and 45.82 kcal/mol, respectively.

1. Introduction

Heterocyclic compounds are of great importance in our daily life. Almost all basic biochemical processes of living cells are mediated by biomolecules that contain these ring systems, such as enzymes, coenzymes, heme, hormones, vitamins, chlorophyll, amino acids, carbohydrates (in cyclic forms), and nucleic acids. Therefore, many synthetic heterocyclic scaffolds are designed to mimic the structure of natural metabolites, peptides, or proteins in 3D space in order to interact with the biological targets. Additionally, heterocyclic frameworks, notably those containing nitrogen and/or oxygen atoms, are considered as valuable sources for new synthetic drug candidates of high functional specialization and are targeted by drug discovery and development research programs to fight diseases. They are extensively used in agriculture as fungicides, herbicides, and insecticides. N/S-heterocycles have many industrial applications including as electron transport materials for phosphorescent organic light-emitting diodes (ETMs for PHOLEDs), as corrosion inhibitors for mild steel, and as light stabilizers of plastic materials. Moreover, many commercially significant dyestuffs contain mainly nitrogen-based heterocycles [1].

Specifically, the substituted 4-amino-1,2,4-triazole-3-thiones scaffold exhibits a wide range of pharmacological patterns such as antimicrobial [2], antimalarial [3], anti-cancer [4], antiproliferative [5], and anticonvulsant agents [6]; it also inhibits enzymes such as ureases [7], acetylcholinesterase (AChE) [8], dizinc metallo-β-lactamase [9], and protein tyrosine phosphatase 1B [10].

Indeed, the indole nucleus is a fused bicyclic compound derived by fusion of the benzene ring with the pyrrole ring. Pharmacologically, indole is a privileged core structure embedded in a very interesting group of polycyclic alkaloids that exhibit a wide spectrum of important biological activities including anti-human immunodeficiency virus (anti-HIV) [11], anti-inflammatory [12], anti-malarial [13], anti-microbial [14], anti-vascular [15], anti-convulsant [16], and α-glucosidase inhibiting [17] properties; ischemia/reperfusion injury [18]; and anti-proliferative activity for EGFR and PARP-1 potential inhibitors [19,20,21].

In continuation of our research program [22,23,24,25,26] to design a new scaffold that may be useful for material science, we have reported here a new motif-attributed indole synthon linked with a fused triazolo/thiadiazole scaffold at position 2 of the indole nucleus. The structural features of the designed compound were assigned based on single crystal X-ray diffraction techniques and a set of spectroscopic and spectrophotometric techniques. The molecular insight of the target molecule was also explored.

2. Materials and Methods

2.1. General

“Melting points were measured via a melting-point apparatus (SMP10) in open capillaries and are uncorrected. The progress of the reaction was observed by thin layer chromatography (TLC) using MeOH/CH₂Cl₂ 1:9 as the eluent. Detection was achieved by UV light. Nuclear magnetic resonance (¹H-NMR, ¹³C-NMR, and 2D-NMR) spectra were determined in DMSO-d₆ and were recorded on Bruker AC 400 MHz spectrometers in the presence of tetramethylsilane as an internal standard. Chemical shifts are described in δ (ppm) and coupling constants are given in Hz. HREI mass spectra as recorded with a Finnigan MAT 95XP instrument. X-ray crystallographic analysis was collected by using a Bruker SMART APEX II D8 Venture diffractometer at Karachi University. λmax was measured using a T90 + UV/VIS spectrometer.”

2.2. Synthesis of 1-(2-(6-methyl-[1,2,4]triazolo[3,4-b][1,3,4]thiadiazol-3-yl)-1H-indol-1-yl)ethan-1-one

First, 4-Amino-5-(1H-indol-2-yl)-1,2,4-triazol-3(2H)-thione (1.0 mmol) was heated under reflux in acetic anhydride (10 mL) for 6 h, after cooling to RT then cooled water was added. Then, the solid product was obtained by filtration, kept to dry, and finally recrystallized from EtOH.

Yield: 72% as colorless needle crystals (EtOH). M.p. 208–210 °C; ¹H-NMR (400 MHz, DMSO-d₆) δ 2.52 (s, 3H, CH₃), 2.73 (s, 3H, CH₃), 7.34–7.39 (m, 2H, H-3_indole, H-5_indole), 7.45-7.51 (m, 1H, H–6_indole), 7.78 (d, 1H, J_4,5 = 7.7 Hz, H-4_indole), 8.10 (d, 1H, J_6,7 = 8.4 Hz, H-7_indole); ¹³C-NMR (100 MHz, DMSO-d₆) δ 17.95 (CH₃), 26.35 (COCH₃), 114.94 (C-3 _indole), 115.16 (C-7_indole), 121.99 (C-4_indole), 123.27 (C-2_indole), 123.71 (C-5_indole), 126.40 (C-6_indole), 128.22 (C-3a_indole), 136.37 (C-7a_indole), 140.47 (C-3_{triazolo-thiadiazole}), 154.76 (C-7a_{triazolo-thiadizole}), 167.38 (C-6_{triazolo-thiadizole}), 170.03 (C=O); HRMS (EI) calculated for C₁₄H₁₁N₅OS (M+): 297.0684. Found: 297.0664.

2.3. Single-Crystal X-Ray Diffraction Analysis

X-ray diffraction data of the target molecule were collected on a Bruker D8 Venture Diffractometer with the aid of Cu Kα (λ = 1.54178 Å) radiation source and CMOS Photon 100 detector 100 (2). Data integration and reduction were carried out with an APEX 3 software package (version 1, Bruker Scientific Instruments, Billerica, MA, USA) [27] followed by use of the SHELXL programs to solve and refine the final structure [28] (

Table 1. Experimental crystal dataset of the target molecule.

Compound Description
Chemical formula	C14H11N5OS
Formula weight	297.34
Temperature	104(2) K
Wavelength	1.54184 A
Crystal system	Monoclinic
Space group	Cc
Unit cell dimensions	a = 10.9381(19)Å b = 11.2508(19)Å c = 11.289 (2)Å β = 101.404 (13)°
Volume	1361.8(4) A3
Z	4
Calculated density	1.450 Mg/m3
Absorption coefficient	2.175 mm−1
F (000)	616
Crystal size	0.40 × 0.14 × 0.13
Theta range for data collection	7.425 to 68.432°
Limiting indices	−13 <= h <= 13, −13 <= k <= 13, −13 <= l <= 12
Reflections collected	15863
Completeness to theta = 67.684	98.5%
Refinement method	Full-matrix least-squares on F2
Independent reflections	2410
Data/restraints/parameters	2410/2/193
Goodness-of-fit on F2	1.019
Flack parameter	0.067(5)
R indices (all data)	R1 = 0.0254, wR2 = 0.0697
Final R indices (I > 2sigma (I))	R1 = 0.0256, wR2 = 0.0701
Largest diff. peak and hole	0.119 and −0.152 eA−3
CCDC	2010068

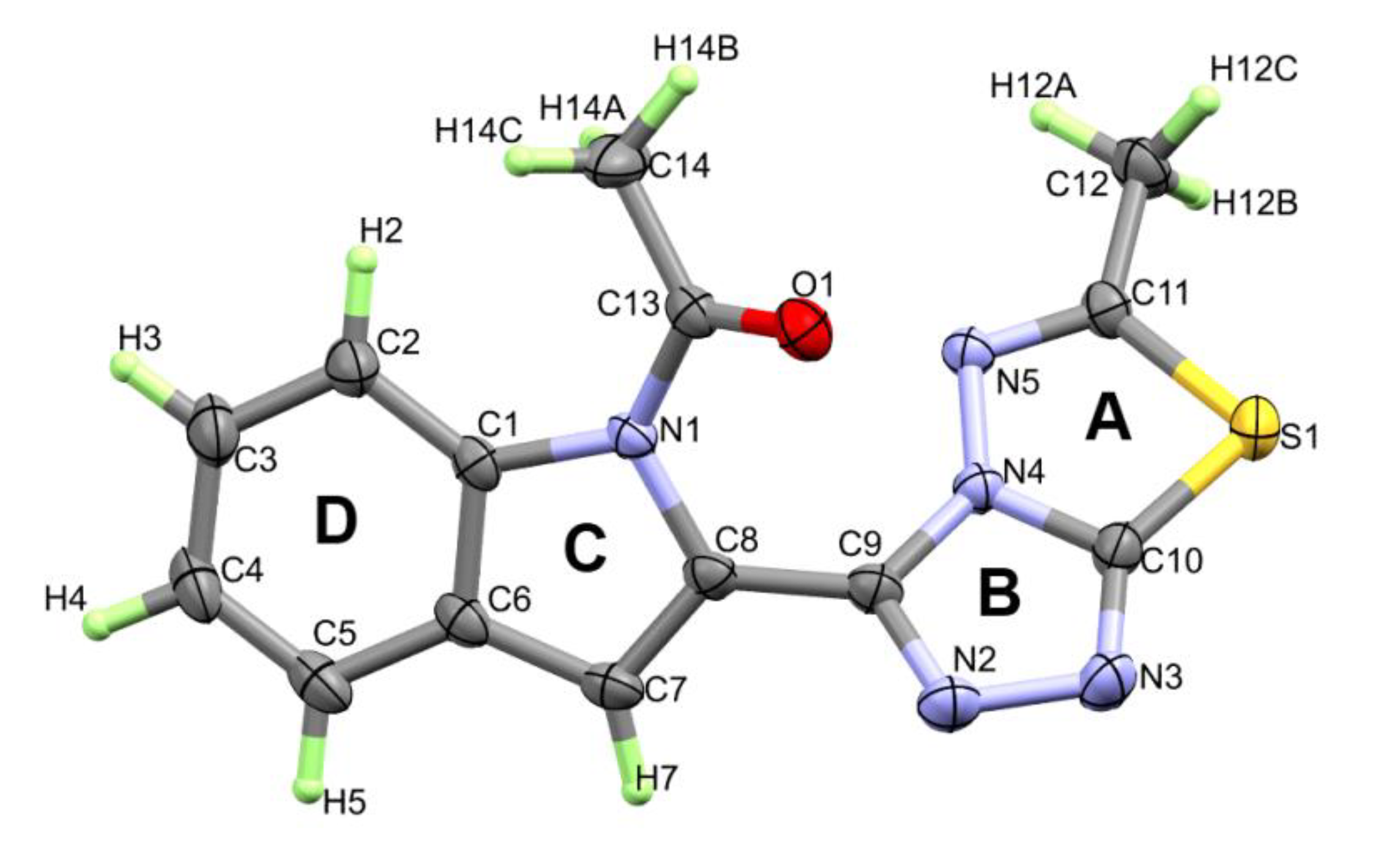

). Geometrical calculations and intermolecular interaction studies were performed on PLATON and Mercury 3.10.1, respectively [29,30]. An ORTEP diagram (Figure 1) described the three-dimensional representation of the title compound. Methyl hydrogen atoms were located from difference Fourier maps or from geometrical considerations and then were refined at idealized positions riding on the carbon atoms with isotropic displacement parameters U_iso(H) = 1.2U_eq(C) or 1.5U_eq(methyl) and C–H 0.95–0.98 Å. The Crystal Explorer 17.5 program was employed to explore the topology analyses of the requisite compound [31].

2.4. Computational Methods

“All DFT calculations were performed using the Gaussian 09 software package [32] and utilizing the B3LYP/6-31G(d,p) method. Natural bond orbital analyses were performed using the NBO 3.1 program as implemented in the Gaussian 09W package [33]. The self-consistent reaction filed (SCRF) method [34,35] was used to model the solvent (DMSO) effects when calculating the optimized geometries in solution. Then, the NMR chemical shifts for the protons and carbons were computed using the GIAO method in the same solvent (DMSO) [36]. Similarly, the structure was optimized in a solution of compound using ethanol as the solvent, then the optimized molecular structure was used to calculate the electronic spectra using the time-dependent density functional theory (TD-DFT).

3. Results and Discussion

3.1. Synthesis of the Target Compound

The target het 1-(2-(6-methyl-[1,2,4]triazolo[3,4-b][1,3,4]thiadiazol-3-yl)-1H-indol-1-yl)ethan-1-one was synthesized from the reaction of 4-amino-5-(1H-indol-2-yl)-1,2,4-triazol-3(2H)-thione with 10 mL acetic anhydride for 6 h, resulting in acetylation of the indole nitrogen in addition to a new thiadiazole ring closure (Scheme 1).

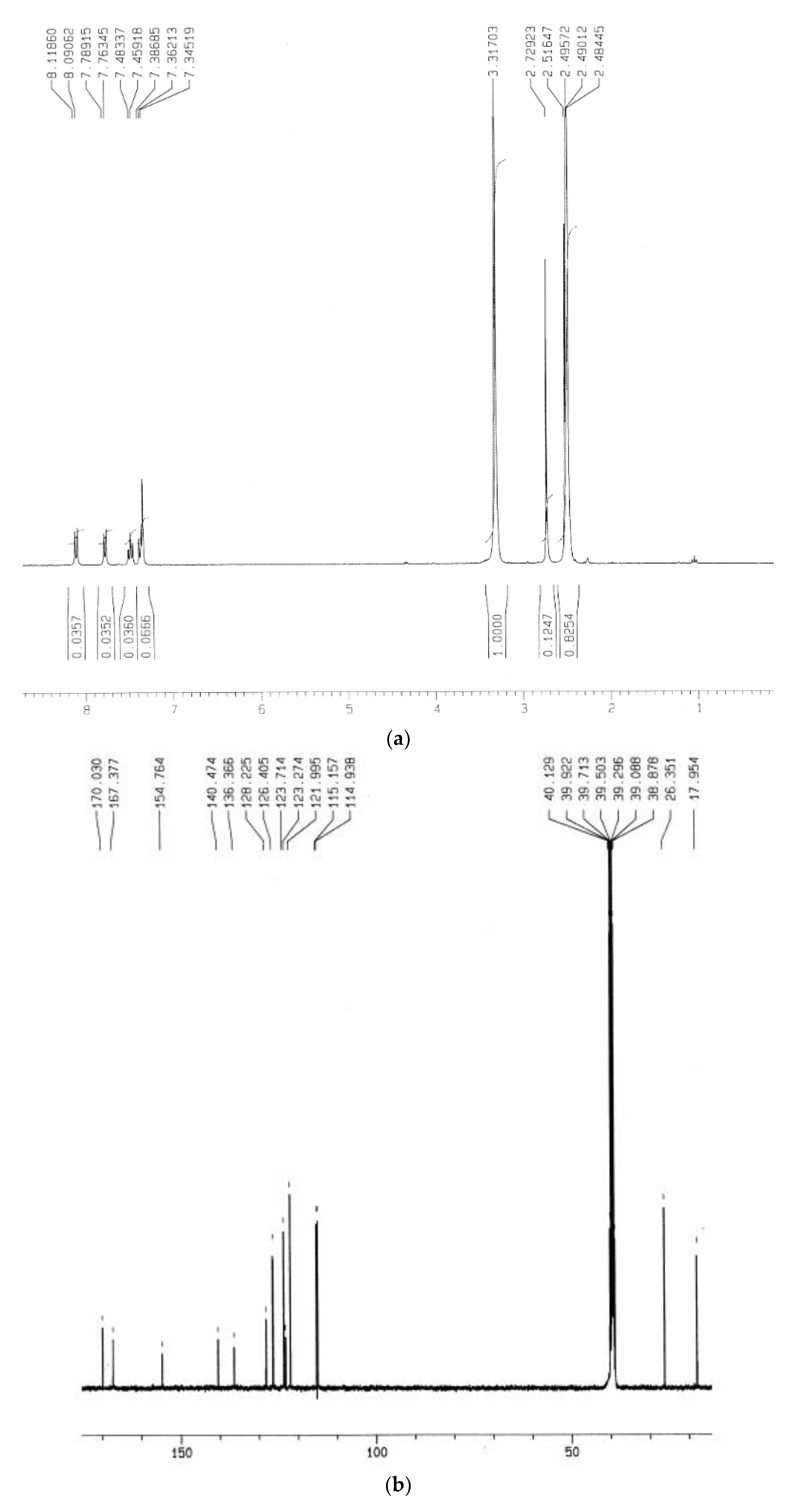

The structure of the target compound was elucidated based on ¹H-NMR, which showed five aromatic protons at δ 7.34, 7.36, 7.48, 7.78, and 8.10 ppm for five indole protons in addition to two methyl group signals at δ 2.52 and 2.73 ppm. ¹³C-NMR displayed five CH aromatic signals at δ 114.94, 115.16, 121.99, 123.71, and 126.40 ppm corresponding to five indole CH carbons. The indole quaternary carbons appeared at δ 123.27, 128.22, and 136.37 ppm. The triazole-thiadiazole quaternary carbons appeared at δ 140.47, 154.76, and 167.38 ppm. Additionally, the carbonyl carbon appeared at 170.03 ppm. Finally, the two methyl carbons appeared at δ 17.95 and 26.35 ppm.

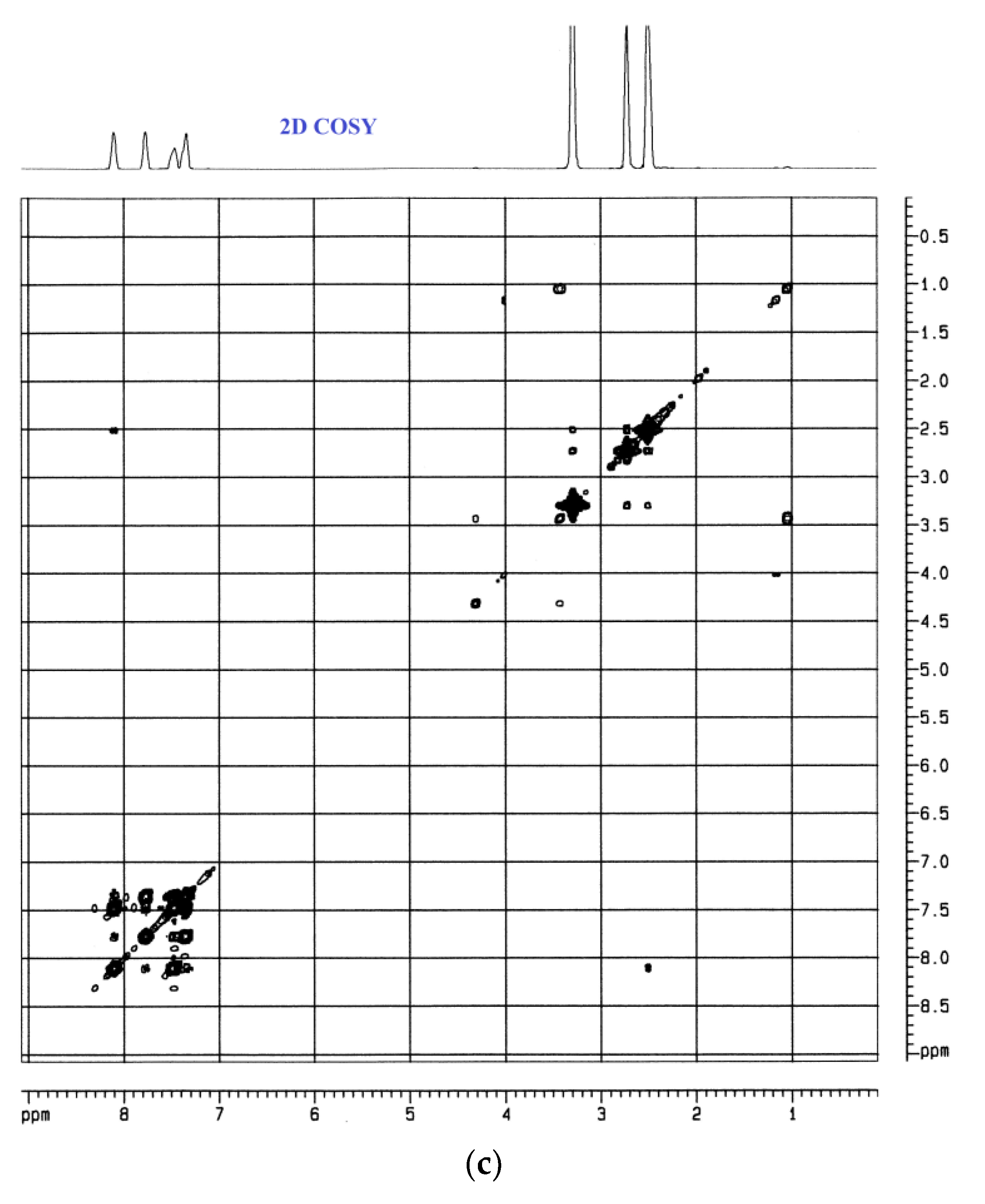

¹H–¹H correlation spectroscopy (COSY) helped in assigning the positions of the indole vicinal protons, which demonstrated ³J_H,H coupling correlations between the protons at δ 7.78 and 7.36 ppm, the latter also correlated with the proton at δ 7.48 ppm, and this proton also coupled with the proton at 8.14 ppm. The 2D-HMQC NMR was used for assigning the correlation and position of each CH and CH₃.

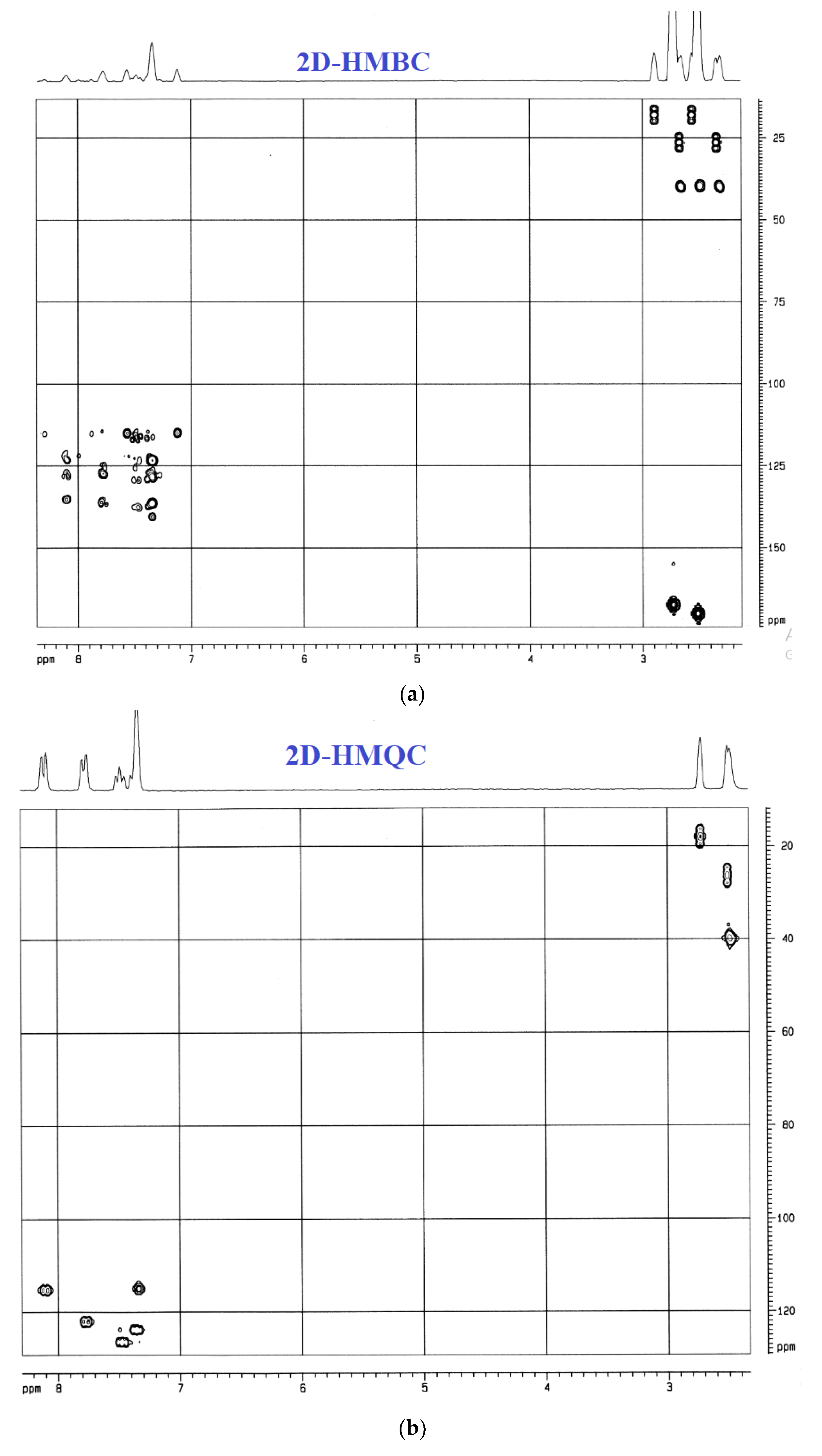

To assign the position of quaternary carbons, 2D-HMBC NMR spectroscopy was used, which displayed ²J_C,H coupling correlations between the methyl protons at δ 2.52 ppm and the carbon at 170.03 ppm. The methyl protons at δ 2.73 ppm displayed a ²J_C,H correlation with the carbon at δ 167.38 ppm. The proton at δ 7.34 ppm displayed a ³J_C,H coupling correlation with carbon at δ 140.47 ppm. The indole proton at δ 7.78 ppm demonstrated a ²J_C,H coupling correlation with carbon at δ 128.33 ppm. The proton at 8.14 ppm showed a ²J_C,H coupling correlation with carbon at δ 136.37 ppm (Figure 1 and Figure 2).

3.2. Structural Features of the Target Compound

The compound crystallized in the NA-space group Cc with Z = 4, and the correct absolute structure was confirmed by the Flack parameter of 0.067(5). Structurally, it consists of a perfectly planar fused triazolo-thiadiazole system, i.e., rings A and B attach with the perfectly planar indole moiety (rings C and D) (Figure 3). The triazolo-thiadiazole and the substituted indole moieties are not coplanar where the angle between the mean plane passing through them is 41.82°.

Figure 4 illustrates all contacts found in the crystal lattice of title compound (

Table 2. Hydrogen bonding of the target compound.

D—H···A	D—H	H···A	D···A	D—H···A
C2—H2···O1 (i)	0.950	2.590	3.397(3)	142.00
C5—H5···N2 (ii)	0.950	2.620	3.522(3)	158.00
C12—H12A···N3 (i)	0.980	2.560	3.528(4)	168.00

Symmetry codes: (i) x, −y + 1, z + 1/2; (ii) x, −y, z + 1/2.

). The intermolecular hydrogen bonds C5–H5···N2 and C–H12A···N3 with H···N distances of 2.62 and 2.56 Å, respectively, as well as C2–H2···O1 with 2.59 Å link molecules stabilize the crystal packing as depicted in Figure 4. Cg···Cg contacts between ring B and ring C further enhance the crystal stability with a centroid···centroid distance of 3.769 Å, stacking the layers along the c axis.

3.3. Hirshfeld Analysis of Molecular Packing

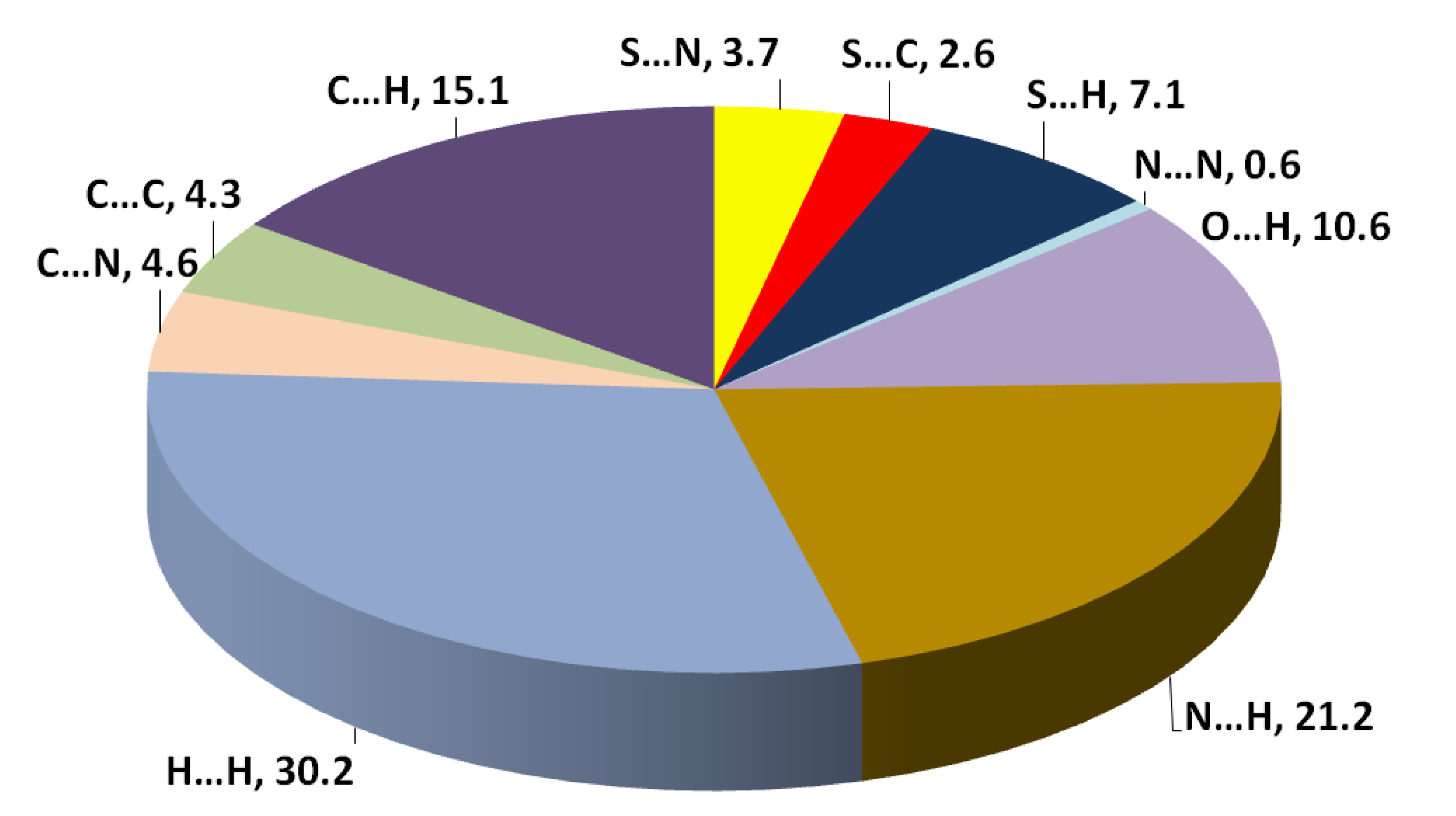

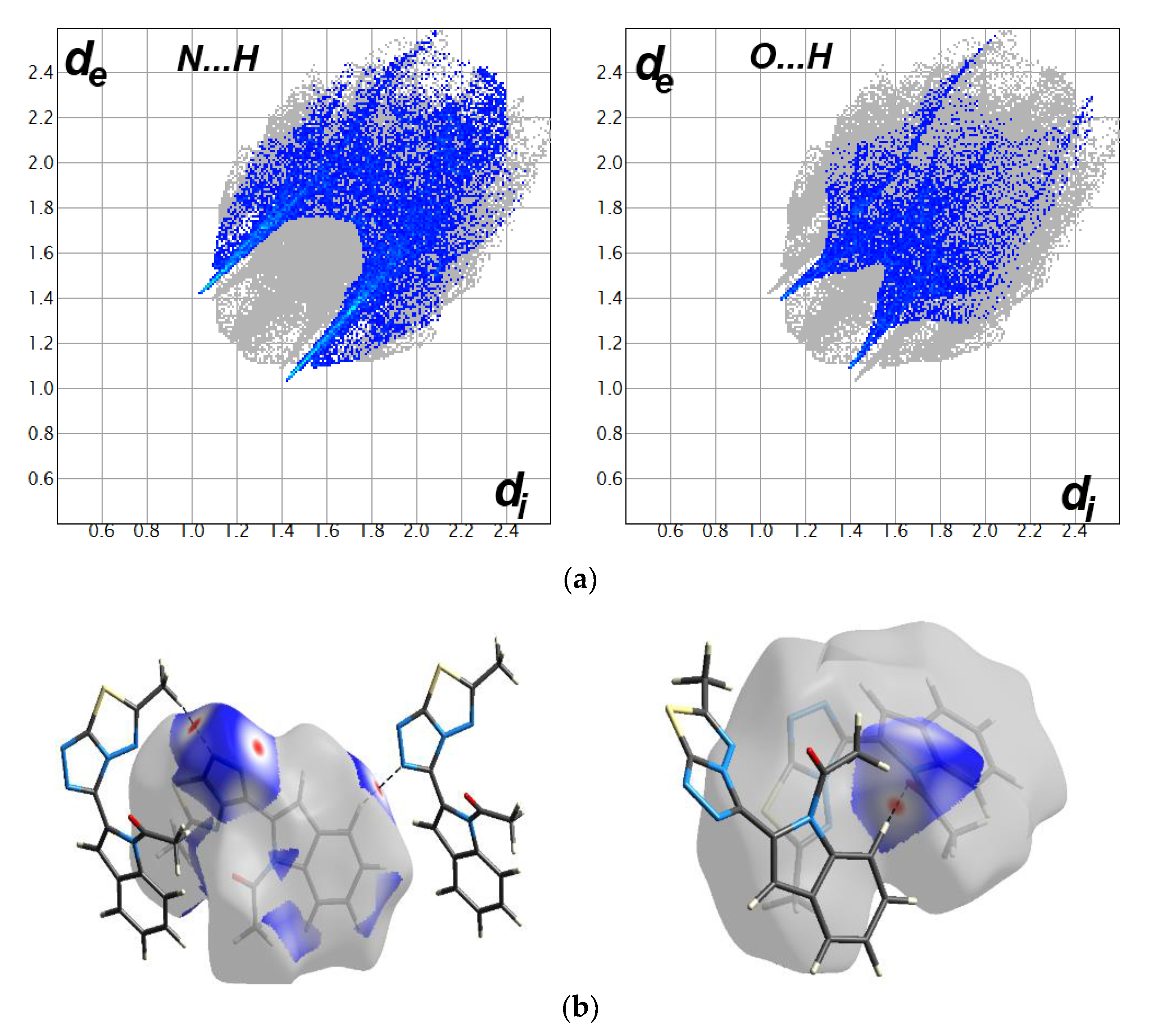

The different contacts in the crystal structure of the target molecule based on a Hirshfeld analysis are shown in Figure 5. The packing of molecules in the crystal is mainly dependent on strong O···H and N···H contacts. The shortest N···H hydrogen bonds are N3···H12 (2.490 Å) and N2···H5 (2.503 Å) while the O1···H2 (2.490 Å) is the shortest among the O···H contacts based on the Hirshfeld analysis. The O···H and N···H hydrogen bonding interactions are manifested as spots of red color in the d_norm and intense spikes in the fingerprint plot (Figure 6). The O···H and N···H contacts contribute 10.6 and 21.2% from the overall interactions, respectively. In addition, the S···H, C···H, and H···H contacts are weak, as indicated from the blue or white regions and less sharp spikes in the corresponding d_norm maps and fingerprint plots, respectively (Figures S1 and S2, Supplementary data). Their percentage contributions are 7.1, 15.1, and 30.2%, respectively. The rest of the observed contacts have less significance in the molecular packing.

In addition, the shape index map indicated the characteristics of blue/red triangles corresponding to π-π stacking interactions (Figure 7). The shortest non-bonding distances are C3···N4 (3.423(4) Å), C4···C11 (3.565(4) Å), C2···C9 (3.570(3) Å), and C3···C9 (3.579(4) Å), which indicate weak π-π stacks.

3.4. DFT Studies

3.4.1. Optimized Geometry

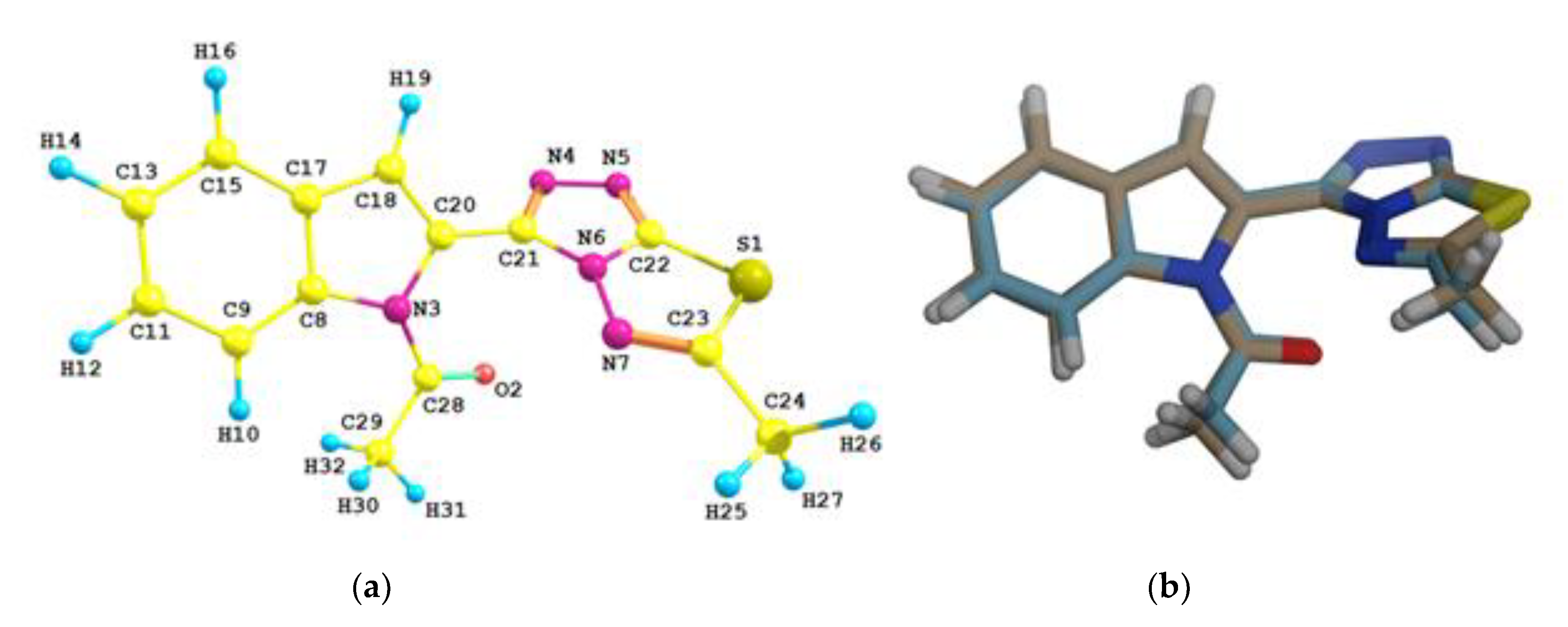

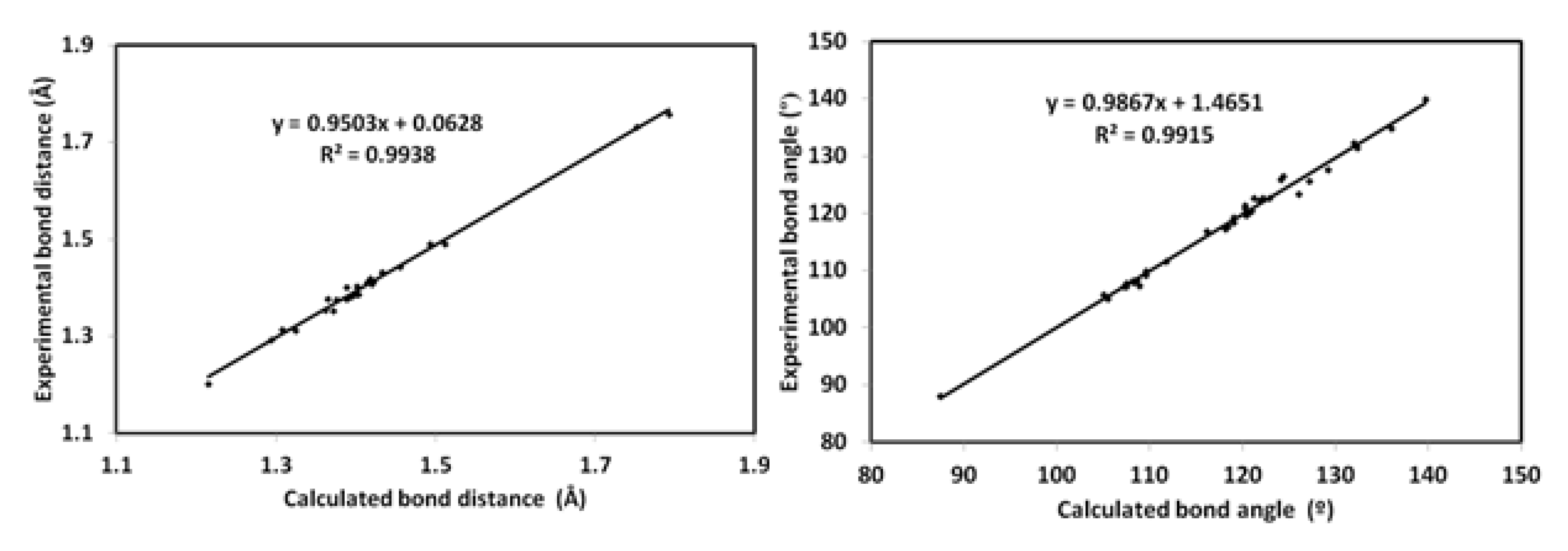

The calculated geometry of the studied molecule matches very well with the X-ray one (Figure 8, Figure S3). Furthermore, the calculated bond distances and angles are in good agreement (Table S1) and correlated very well with the corresponding geometric parameters obtained from the X-ray structure with correlation coefficients of 0.9938 and 0.9915 for bond distances and angles, respectively (Figure 9). The distribution of the natural charges and the molecular electrostatic potential are shown in Figure 10. It is clear that the highest negative charges are related to the nitrogen and oxygen sites, while positive charges are related to the hydrogen and sulphur atoms. As a result of this charge distribution, the calculated dipole moment is 6.6557 Debye. The direction of the dipole moment vector is predicted towards the fused triazole ring (Figure 10). In addition, the red (nitrogen and oxygen sites) and blue (protons) regions in the MEP map indicated the most proper regions as hydrogen bond acceptor and hydrogen bond donor, respectively.

3.4.2. Reactivity Studies

The reactivity indices were calculated using Equations (1)–(5) based on the HOMO and LUMO energies of the studied compound [37,38,39,40,41,42,43].

I = −E_HOMO

(1)

A = −E_LUMO

(2)

η = (I−A)/2

(3)

μ = −(I + A)/2

(4)

ω = μ²/2η

(5)

The HOMO and LUMO energies were calculated to be −5.8535 and −1.4346 eV, respectively. As a result, the ionization potential (I) and electron affinity (A) were 5.8535 and 1.4346 eV, respectively. In addition, the hardness (η = 4.4189), electrophilicity index (ω = 1.5025 eV), and chemical potential (μ = −3.6440 eV) were also computed using the frontier molecular orbitals energies. The presented descriptors have strong relation to the chemical reactivity of the compound. In addition, the HOMO is localized over the triazolo-thiadiazole moiety as a starting demand for the intramolecular charge transfer to the LUMO level (Figure 11). The latter is disseminated over the π-system of the triazole and indole moieties. Hence, the HOMO-LUMO charge transfer is mainly π→π* excitation and the energy of this intramolecular charge transfer is 4.4189 eV.

3.4.3. NBO Analysis

The analysis of the different charge transfer interactions within the molecule using second order perturbation theory [44,45] within the framework of the natural bond orbital calculations shed light on the different electron delocalization processes that stabilize the molecular system. The stabilization energies (E⁽²⁾) of the different intramolecular charge transfer interactions within the requisite molecule are listed in

Table 3. The stabilization energies E⁽²⁾ (kcal/mol) and the charge transfer interactions in the target compound ^a.

Donor NBO	Acceptor NBO	E(2)	Donor NBO	Acceptor NBO	E(2)
σ→σ*			n→σ*
BD(1)S1–C23	BD*(1)N5–C22	6.39	LP(1)O2	BD*(1)N3–C28	29.33
BD(1)N4–N5	BD*(1)S1–C22	9.84	LP(1)O2	BD*(1)C28–C29	18.88
BD(1)N4–N5	BD*(1)C20–C21	5.35	LP(1)N4	BD*(1)N5–C22	5.30
BD(1)N4–C21	BD*(1)N6–N7	5.29	LP(1)N4	BD*(1)N6–C21	8.43
BD(1)N6–C22	BD*(1)C20–C21	4.89	LP(1)N5	BD*(1)N4–C21	5.69
BD(1)N7–C23	BD*(1)N6–C21	4.93	LP(1)N5	BD*(1)N6–C22	8.73
BD(1)C9–C11	BD*(1)N3–C8	6.82	LP(1)N7	BD*(1)S1–C23	14.68
BD(1)C17–C18	BD*(1)C20–C21	5.81	LP(1)N7	BD*(1)N6–C22	7.94
BD(1)C18–C20	BD*(1)C15–C17	4.90
π→π*			n→π*
BD(2)N4–C21	BD*(2)N5–C22	12.82	LP(2)S1	BD*(2)N5–C22	26.15
BD(2)N4–C21	BD*(2)C18–C20	5.40	LP(2)S1	BD*(2)N7–C23	26.45
BD(2)N5–C22	BD*(2)N4–C21	13.12	LP(1)N3	BD*(2)O2–C28	44.97
BD(2)C8–C17	BD*(2)C9–C11	19.38	LP(1)N3	BD*(2)C8–C17	29.26
BD(2)C8–C17	BD*(2)C13–C15	18.54	LP(1)N3	BD*(2)C18–C20	25.74
BD(2)C8–C17	BD*(2)C18–C20	16.47	LP(1)N6	BD*(2)N4–C21	40.63
BD(2)C9–C11	BD*(2)C8–C17	19.34	LP(1)N6	BD*(2)N5–C22	45.82
BD(2)C9–C11	BD*(2)C13–C15	17.83	LP(1)N6	BD*(2)N7–C3	27.30
BD(2)C13–C15	BD*(2)C8–C17	19.07
BD(2)C13–C15	BD*(2)C9–C11	20.65
BD(2)C18–C20	BD*(2)N4–C21	9.96
BD(2)C18–C20	BD*(2)C8–C17	15.43

^a Atom numbering refers to Figure 8.

. The system is stabilized by different types of intramolecular charge transfer interactions such as σ→σ*, π→π*, n→σ*, and n→π* electron delocalization processes. The energies of these charge transfer interactions stabilized the studied molecule up to 9.84, 20.65, 29.33, and 45.82 kcal/mol, respectively.

3.4.4. UV-Vis and NMR Spectra

The experimental UV-Vis charts were recorded in ethanol and showed absorption bands at 239 nm in addition to the split band at 293 and 301 nm. In order to assign the origin of these electronic transitions, a TD-DFT calculation was performed by applying the ethanol solvent model. The bands assignment is given in

Table 4. The calculated and experimental electronic spectra of the target molecule.

No.	(λmax)calc	fosc a	Assignment	(λmax)observ
I	307.4	0.4712	HOMO→LUMO (94%)	301
II	283.6	0.0674	H−1→LUMO (83%)	293
III	245.1	0.1208	H−1→L+1 (16%), HOMO→L+2 (65%)	239

^a Oscillator strength.

. The simulated and experimental electronic spectra are assigned in Figure 12. The experimentally observed bands were calculated at 245.1 nm (f = 0.1208), 283.6 nm (f = 0.0674), and 307.4 nm (f = 0.4712), respectively. The complete assignments of the molecular orbitals included in these electronic transitions are presented graphically in Figure 13.

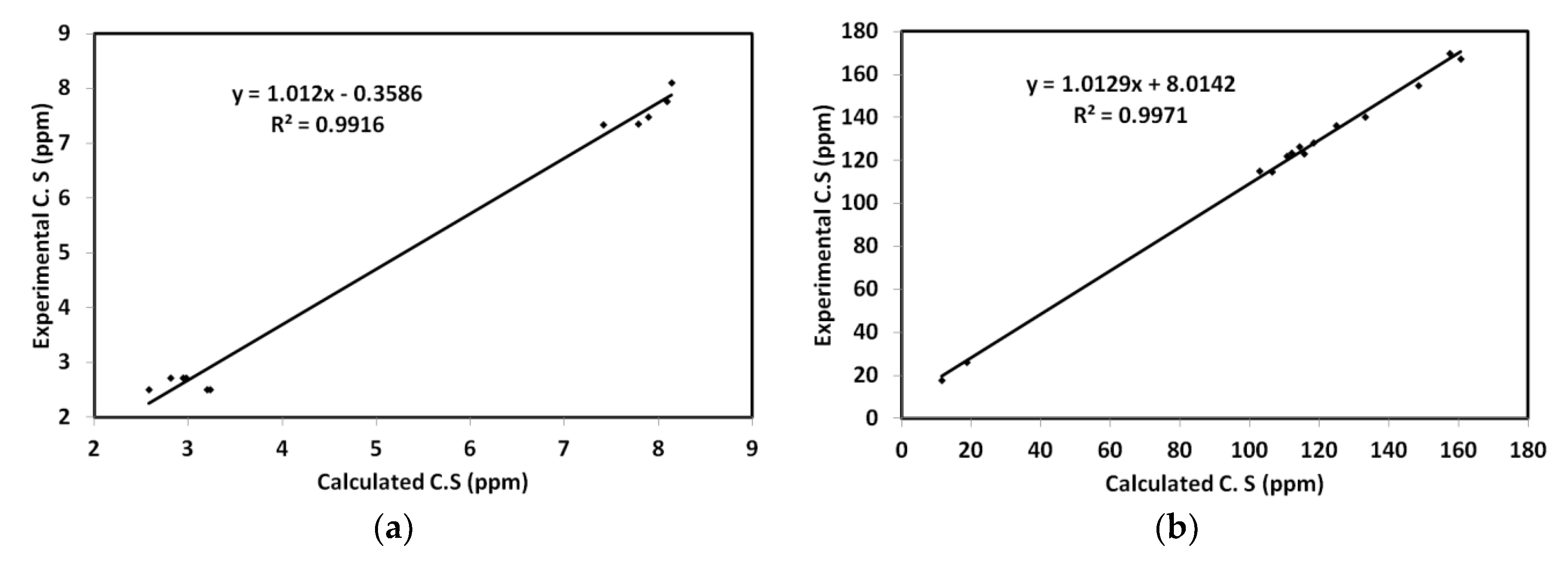

Finally, the chemical shifts (C.S.) of ¹H and ¹³C were computed and the experimental results are listed in the Supplementary data (Table S2). It is clear from Figure 14 that there is a good relation between the calculated and experimental C.S. values. The correlation coefficients are 0.9916 for ¹H-NMR and 0.9971 for ¹³C-NMR.

4. Conclusions

We describe a new compound based on an acetylated N-indole linked with fused triazolo/thiadiazole motifs. The molecular features and chemical insight of the studied compound are outlined. The supramolecular structure of the desired molecule was analyzed by employing Hirshfeld calculations. In addition, calculated NMR spectra exhibited good harmony with the obtained experimental results. The electronic spectral bands observed experimentally were assigned using TD-DFT calculations. The different electron delocalization processes that stabilize the studied system were analyzed using NBO calculations. In addition, the electronic, and reactivity descriptors were also explored. The utility of the synthesized compound for application will be explored in the near future.
