Optically Monitored Electric-Field-Induced Phase Transition in Vanadium Dioxide Crystal Film

Abstract

Vanadium dioxide (VO₂), due to its electrically induced metal-to-insulator transition with dramatic changes in electrical and optical properties, is considered to be a powerful material for electro-optical devices. However, there are still some controversies about phase transition mechanism under voltage. Here, based on optical characterizations on VO₂ crystal nanofilm during the whole process of phase transition, temporal evolution and spatial distribution of changes in electricity, optic and temperature are investigated simultaneously, to explore the mechanism. The variations of Raman spectrum and reflected spectrum, and changes in current and temperature are evidences for occurrence of phase transition, which exhibit different changing behaviors with time and space. These results offer a better understanding of the phase transition mechanism, implying that lattice structure of VO₂ changes gradually after applying voltage until the structure is completely converted to metallic structure, which causes a rapid increase in carrier density, resulting in a rapid change in current, reflected spectrum and temperature. Temperature rise before phase transition and applied electric field alone are not enough for triggering metal-insulator transition, but these two factors can act synergistically on structural transformation to induce phase transition.

1. Introduction

For a long time, phase transition, especially metal-insulator transition (MIT), has been an important research topic for many researchers [1]. As a classic correlated oxide, vanadium dioxide (VO₂) undergoes a first-order phase transition from insulator to metal at near room temperature, accompanied by a structural change from the monoclinic structure of insulator to the rutile structure of metal [2,3], and has attracted long-standing interest in the condensed matter materials sciences. The significant change in the resistivity and long-wave transmittance [4,5,6] makes it have great potential in the electronic and optical field [7]. Nowadays, it has been applied to thermal sensors [8], chemical sensors [9], electrical oscillators [10], electronic switches [11,12], memristive device [13], smart windows [14] and so on. There are many kinds of external stimuli that can drive phase transition of VO₂. Besides temperature, the MIT of VO₂ can also be triggered by voltage [15,16,17], strain [18] and ultrafast laser excitation [19]. The trigger of phase transition by voltage is very important for the benefit of convenient integration with modern technology and large-scale application. However, the phase transition triggered by voltage is closely associated with heat generation [20], which leads to some controversial understanding of its internal physical mechanism, and limits its further development.

The exploration on the physical mechanism of phase transition has been a challenging subject, and sometimes poses controversial theoretical, as well as experimental problems. The focus of the debate is whether phase transition under voltage comes from electric-field mechanism involving injection of charge carriers from electrode or thermal switching mechanism involving inhomogeneous Joule heating, both of which have supportive theoretical or experimental results. The results that support the electronic mechanism as reason for phase transition are as follows: (1) it is experimentally determined that the time of phase transition under the effect of voltage can be on the order of nanoseconds or picoseconds, and it is generally believed that the Joule heat effects does not have such a fast speed [17,21,22]; (2) some modeling results point out that the heat generated by high-resistance VO₂ under voltage is relatively small, just resulting in a small increase in temperature that is not enough to reach phase-transition temperature [23]. The proof that the effect of Joule heating cannot be ignored shows that the temperature of VO₂ film under voltage, with the help of Poole–Frenkel mechanism and self-accelerating heating mechanism, can be raised to the required temperature for phase transition in nanosecond or picosecond [20,24,25]. The theories of Mott phase transition and Peierls phase transition are attempting to elucidate the mechanism, but cannot completely solve all phase-transition problems [26]. There are a few difficulties that arise when trying to determine whether thermal or electronic process are primarily responsible for voltage-induced conductivity switching in VO₂ films. The main difficulties include a simple visualization of the phase transition region to determine location and volume of the region and direct synchronous measurement of important parameters during phase-transition process, such as temperature, current and transmittance at sufficient spatial and temporal resolution [20].

In this study, a small-size device based on VO₂ crystal nanofilm are well prepared to observe and explore phase transition. Optical methods, such as microscopic spectroscopy imaging and infrared thermography, are adopted to characterize the changes of VO₂ nanofilm in Raman spectrum, reflected spectrum and temperature from the beginning moment, when voltage is applied on the nanofilm, to the occurrence of phase transition of the nanofilm, and finally to the return of the film to its initial state after voltage is removed. The location and area of phase-transition region are exactly determined through simple microscopic imaging ways and phase-transition region can be simply modulated by changing external resistor and voltage. The characterizations of the phase-transition region and non-phase-transition region, are successfully carried out from the perspective of temporal evolution and spatial distribution. The collaborative analysis of the characterization results, in terms of time and space, and the comparative discussion of characterization results at different regions, provide more experimental proofs to help us reveal the phase transition of VO₂ under voltage.

2. Materials and Methods

2.1. Fabrication of Vanadium Nanofilm

The film is grown on c-cut sapphire substrate by a simple method using sputtering then oxidation in air. A vacuum chamber is filled with working gas Ar (99.99% purity, Beijing, China). Under the conditions of 1.2 × 10⁻¹ Pa and 136 W, metal vanadium nanofilm (99.99% purity, Shanghai, China) is deposited on the substrate through DC sputtering. The distance between the target and substrate is fixed at 120 mm. The substrate is rotated at 13 rpm to ensure uniformity of thin film deposition. In order to eliminate contamination on the target surface, pre-sputtering of the vanadium metal target is performed for 10 min, before depositing the metallic vanadium nanofilms. The thicknesses of vanadium thin films can be controlled with deposition time.

2.2. Fabrication of VO₂ Nanofilm and Electrodes

Vanadium nanofilm is put into the annealing furnace for further oxidation at the temperature of 470 °C. The oxidation is carried out in air conditions. To control the oxidation process, the Ar gas (99.99% purity, Beijing, China) is filled into the annealing furnace at a speed of 70 mL/min. Then two uniform gold thin films (99.9% purity, Beijing, China) with spacing of 75 μm, width of 110 μm and thickness of 35 nm, are evaporated on VO₂ nanofilm as electrodes under the vacuum of 10⁻³ Pa. For the measurement of temperature, a device with electrode spacing of 3 mm and width of 10 mm is also prepared using the same method.

2.3. Characterization

Electric measurements of VO₂ device are measured by Source-Meter (Keithley 2400, Shanghai, China). Optical micrograph images, Raman spectrums and reflected spectrums are carried out with multifunctional and high resolution near-field optoelectronic and spectroscopic imaging microscope (Alpha300RAS, WITec, Beijing, China). The linearly polarized 532-nm laser is used as light source for the Raman spectrum. The diameter of laser spot is 300 nm and the adopted laser power is 5 mW. A halogen lamp is used as light source to measure reflected spectrum. The beam of white light emitted from Halogen lamp has a diameter of about 1 μm and power of about 10 mW. The infrared thermography and temperature measurements are carried out with dedicated type thermal imager (GF706, DALI Technology, Hangzhou, China).

3. Results and Discussion

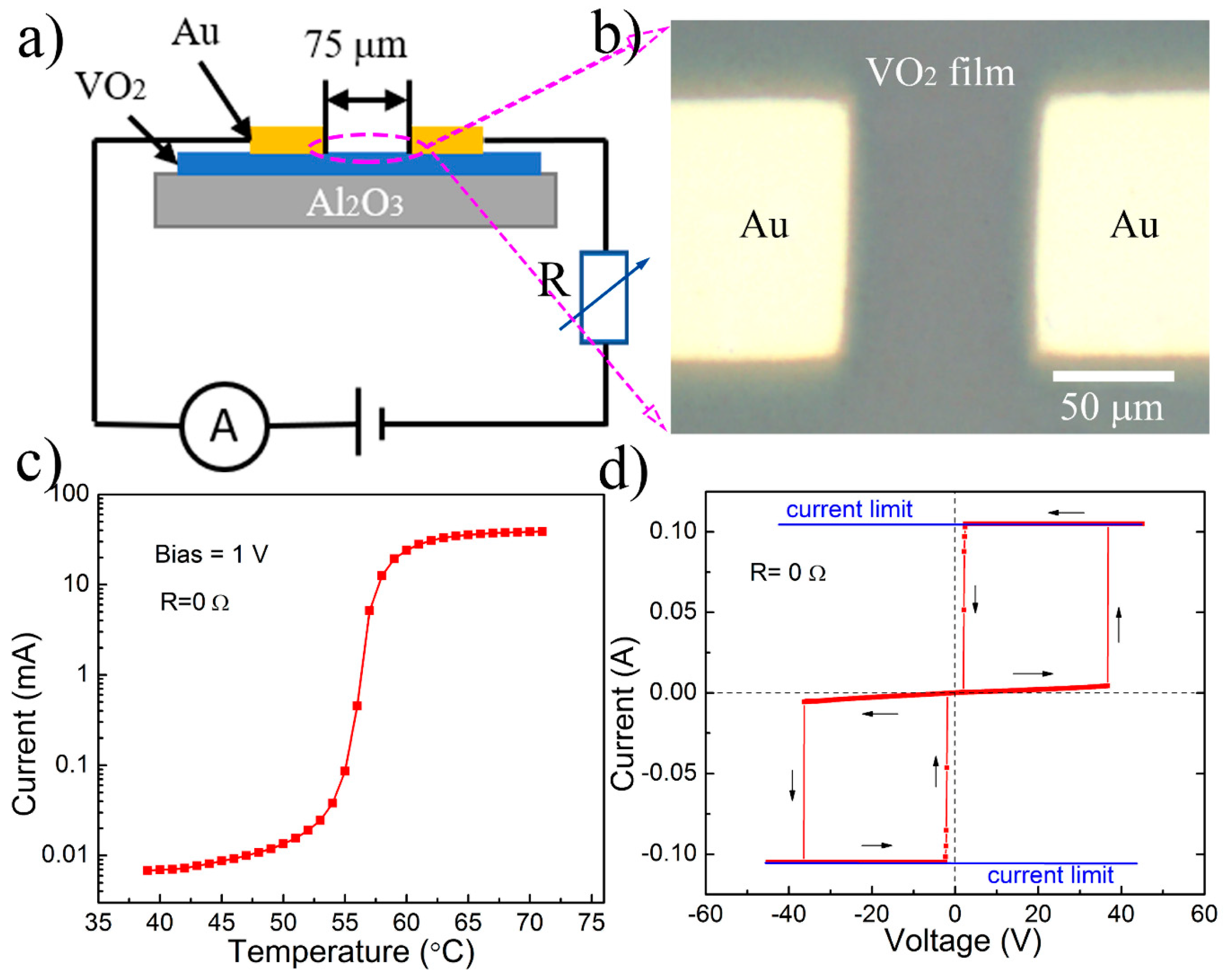

In order to observe and investigate the phase transition process and the mechanism of VO₂ nanofilm under external voltage by utilizing optical methods in detail, a VO₂ nanofilm on the sapphire substrate is prepared as described in Materials and Methods section. Although vanadium has many oxides with different ratios of vanadium and oxygen, the production of other oxides can be reduced in the preparation process by controlling the oxygen conditions, resulting in relatively pure VO₂ nanofilm. The 62-nm-thick VO₂ nanofilm is composed of grains with an average diameter of 55.4 nm, with a root-mean square (RMS) surface roughness of about 6.97 nm and a high crystal orientation (020). The other detailed characterization on the prepared VO₂ nanofilm can be seen in our previous work [27], and the results tell us that the VO₂ nanofilm is well prepared without obvious defects. Figure 1a,b show schematic diagram of measuring device and optical microscopic image of real sample respectively. The changes in electric parameters of VO₂ nanofilm such as flowing current and resistance, are measured since voltage is applied. From multiple experiments, we found that high voltage can damage nanofilm after phase transition of VO₂ nanofilm occurs, so an external resistor is necessary to connect with nanofilm in series, for the protection of VO₂ nanofilm and the acquisition of phase-change data. The value of external resistor depends on applied voltage and resistance of VO₂ nanofilm. As can be seen from Figure 1c, temperature drives the MIT of prepared VO₂ sample at approximately 56 °C, and the temperature range required by phase transition is about 5 K, which is consistent with reported results [26,28,29]. The temperature point where phase transition occurs can be influenced by many factors, such as doping, stoichiometry and strain, so acceptable differences in phase-transition temperature exist for different samples. After phase transition, the resistance of VO₂ film changes from 203 KΩ at low temperature to 25 Ω at high temperature, with a change of about four orders in magnitude. Figure 1d exhibits the phase transition of VO₂ nanofilm under voltage when external resistor is 0 Ω. As voltage increases from 0 V, flowing current increases slowly with voltage, and then an abrupt jump of current occurs at about 38 V, where the corresponding electric filed is about 10⁵ V/m (electrode spacing is 75 μm, indicating that the film experiences phase transition and turns into metal phase. For the subsequent decreasing process of voltage, the metal phase can remain until the voltage decreases to 4 V. The similarity of the phase-transition curve on the positive and negative sides of the coordinate axis proves the symmetrical device structure and good film quality.

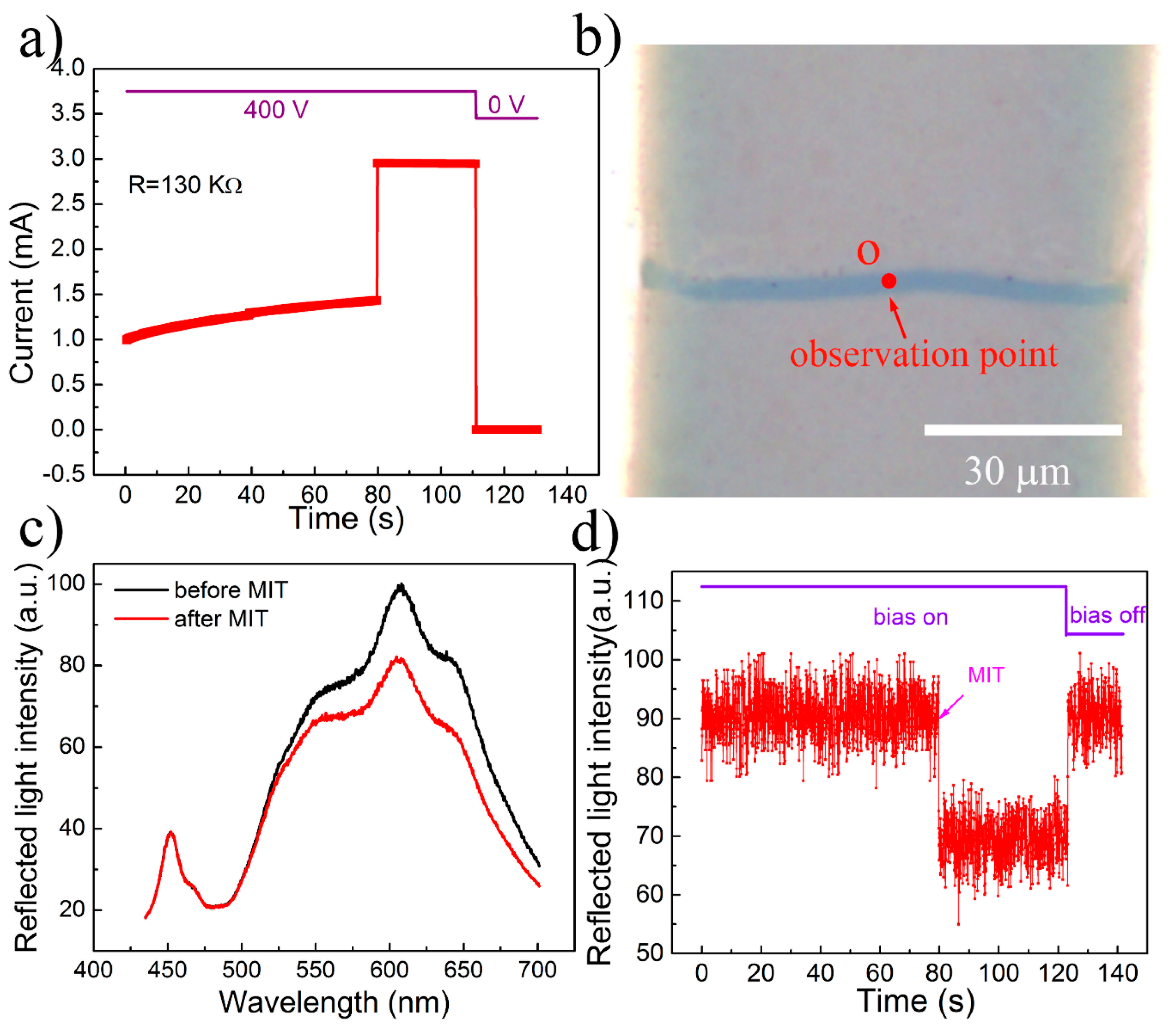

For the measurements shown in Figure 2, the external resistor is 130 KΩ, and a source-drain voltage of 400 V is applied in the circuit to trigger phase transition. As shown in the Figure 2a, VO₂ nanofilm undergoes phase transition after an incubation time of about 80 s since voltage is applied. The incubation time would become shorter with the increase of voltage, as shown in Figure S1 in Supplementary Materials. An optical microscope is used to observe the real-time image of VO₂ nanofilm after application of voltage. When flowing current of nanofilm jumps, a long blue region with a width of 1.9 μm appears on the film, connecting the source and drain electrodes (Figure 2b). The emerging blue region remains stable and does not change with the duration of voltage. If the external resistor does not change, the position and shape of the blue region will not change, even if the voltage is reapplied after being removed. The width of the blue region can be modulated by changing the external resistor and source-drain voltage as shown in Figure S2. We select position “O” (shown in Figure 2b) in the blue region as observation point for following measurements. A beam of white light (Halogen lamp as light source) with a diameter of about 1 μm is illuminated on the position “O”, and the reflected spectrum of visible light from 430 nm to 700 nm is collected (Figure 2c). It can be found that the intensity of reflected short-wavelength light stays unchanged and the intensity of reflected long-wavelength light decreases after phase transition. That is also why this region becomes blue, as observed in Figure 2b. Further, we observe the change of reflected light intensity during the process of applying/removing of voltage (Figure 2d). The evolution of the reflected light intensity with time has a sudden drop when the phase transition occurs and a sudden recovery when voltage is removed, which is consistent with the change of current in Figure 2a.

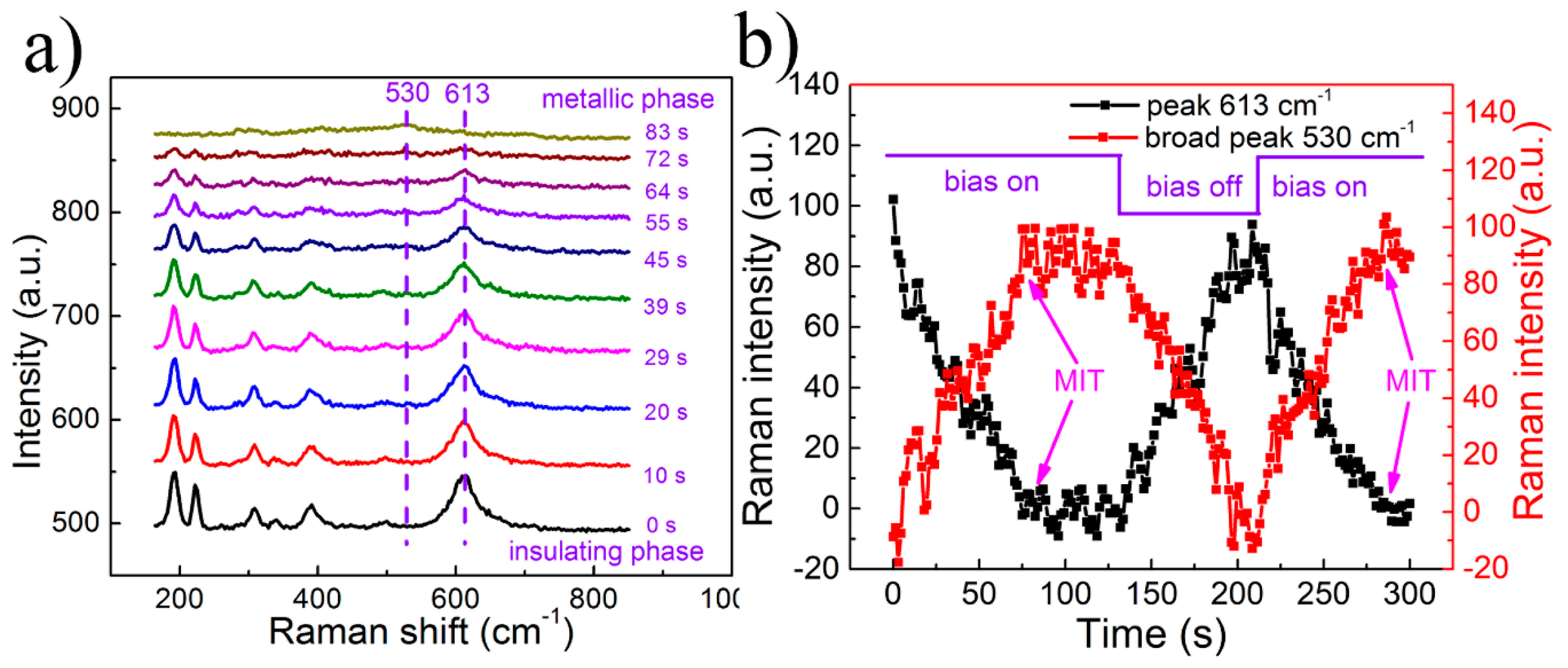

Next, we observe the evolution of Raman spectrum with time at point “O” when voltage is applied or removed on the VO₂ nanofilm (Figure 3). Like reflected spectrum, Raman spectrums are measured at the same device and the same observation point under the same voltage. When no voltage is applied, the nanofilm is in the insulating phase and the Raman spectrum is the black line shown in the Figure 3a. The black line has seven distinct peaks, including 193, 223, 309, 340, 392, 499 and 613 cm⁻¹ peaks, which are consistent with the previous report [30]. After applying voltage, the intensities of all the peaks gradually decrease with the increase of time, but the peak positions and widths do not have an obvious change. This is an evidence that transition is going on [31]. When phase transition occurs, all the seven peaks finally disappear, and a broad peak is obviously observed at 530 cm⁻¹, which is a characteristic peak of metallic VO₂ [30]. We select the areas of 613 cm⁻¹ peak (representing insulating phase of VO₂) and 530 cm⁻¹ peak (representing metallic phase of VO₂) as variables, and monitor their changes during the process of applying and removing the voltage (Figure 3b). It can be found that the area of 613 cm⁻¹ peak continuously decreases after the voltage is applied. The zero intensity is observed at the time of phase transition and remains unchanged afterwards. Correspondingly, the area of the 530 cm⁻¹ peak continuously increases from zero to the maximum value and then remains stable. The evolution process of Raman peaks indicates that VO₂ nanofilm experiences changes from the beginning of applying voltage. After the voltage is removed, the Raman spectrum gradually return to the initial state. Compared with recovery of reflected light in Figure 2d, more time is needed for recovery of Raman spectrum, due to the high temperature formed by high voltage and low resistance of metallic VO₂. The recovery process is dominated by a slow dissipation of heat to external environment. The changes in Raman spectrum can be cycled with the applying and removing of voltage.

From the above results, we know that the blue region appears with the jump of current, and it possesses the changes in the reflected spectrum and the Raman spectrum, proving that the blue region is the phase-transition region. The reflected spectrum and the Raman spectrum of this region have different changing behavior after application of voltage, especially gradual change of the Raman spectrum and sudden change of reflected spectrum. The observed gradual transition of the Raman spectrum indicates that the VO₂ nanofilm starts to undergo some changes as soon as the electric field is applied, which is an interesting phenomenon to be explored. On the one hand, through the previous characterizations, we know that the prepared VO₂ nanofilm is composed of crystal grains with the similar orientation. As proved in reported work [32], the phase transition of the whole VO₂ nanofilm is made up of stepwise phase transition of different crystal grains. For VO₂ nanofilm under voltage, a stepwise phase transition of grains is much faster than the change of Raman spectrum shown in Figure 3b [32], thus, the process of grains’ stepwise phase transition is not the reason for the gradual change of the Raman spectrum. On the other hand, we know that the Raman spectrum reflects the information of lattice structure through detecting lattice vibration modes, so the change of the VO₂ nanofilm revealed by the Raman spectrum should be about structure [4]. Meanwhile, the 530 cm⁻¹ peak as a symbol of metallic phase of VO₂, increases as soon as the electric field is applied [33,34], and further supports the judgement about structural change. When the voltage is applied to the VO₂ nanofilm, some ions and electrons in the lattice of VO₂ move, resulting in the slow transition of the monoclinic structure of VO₂ in the insulating phase. The crystal structures of VO₂ within incubation time are intermediate states. The deviation of intermediate state from the insulating monoclinic state or metal rutile state determines the intensities of the corresponding Raman spectrums. The gradual change of lattice structure is companied with gradual increase of flowing current, as shown in the Figure 2a, suggesting that electron conductivity is also gradually increasing. The bandgap of initial insulating phase changes with the transition of lattice structure. When the lattice structure of VO₂ finally turns into rutile structure, the carrier density has a sudden increase due to disappear of bandgap, resulting in sudden increase in electrical conductivity. The reflected spectrum is associated with lattice structure and carrier density, and different electronic states present a difference in optical color [26]. Thus, a change in reflected spectrum would occur when carrier density has obvious difference, as shown in Figure 2c,d. When voltage is removed, the metal phase of the VO₂ nanofilm disappears, so carrier density decreases, resulting in a sudden change of electrical conductivity and the reflected spectrum. The accurate measurement of lattice change under voltage is very difficult. The great challenge for accurate characterization on VO₂ lattice structure comes from the limitation of currently available characterizations, in that it is indeed hard to capture intermediate electronic states in spatial isolation because of their transient occurrence [26].

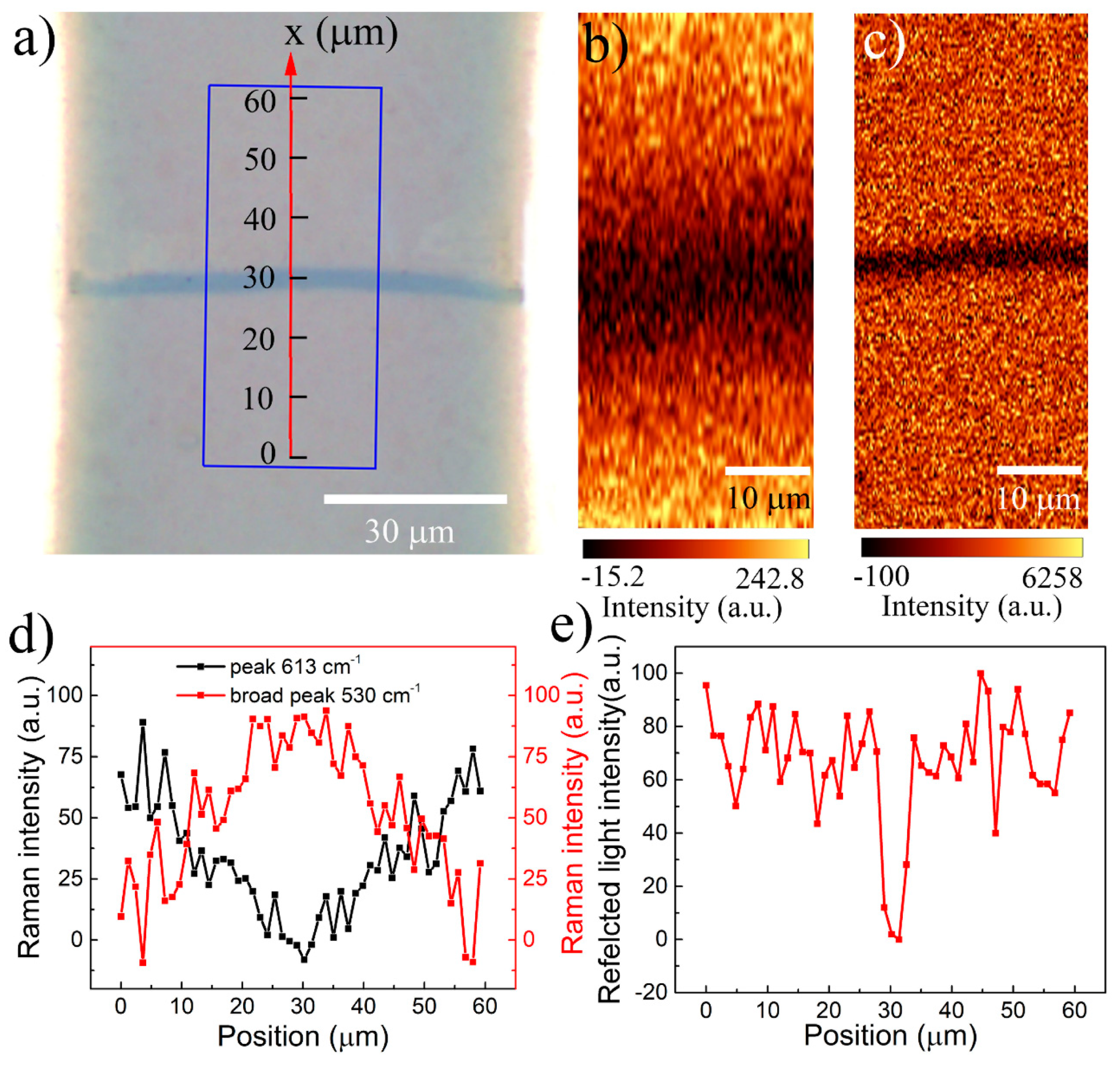

Further, we characterized the spatial distribution of the Raman spectrum and reflected spectrum on the VO₂ nanofilm after phase transition occurs (Figure 4). Similarly, with an external resistor of 130 KΩ, a voltage of 400 V results in phase transition of VO₂ nanofilm and blue region appears on the film (Figure 4a). The blue box shown in Figure 4a are measuring area where the Raman spectrum and reflected spectrum are respectively collected through a way of point-by-point scanning. The detailed Raman spectrums at different positions can be seen in Figure S3. Figure 4b shows the mapping of the Raman peak area of 613 cm⁻¹. Figure 4c shows the mapping of intensity of reflected light from 430 nm to 700 nm. To better observe the changes of two spectrums in space, the distribution of peak areas of 613 cm⁻¹ and 530 cm⁻¹ (Figure 4d), and the reflected light intensity (Figure 4e), along the red line in Figure 4a, are respectively exhibited. The width of the blue region in Figure 4a is about 1.9 μm, and the width of the black band in Figure 4c is also about 1.9 μm. From Figure 4e, we can obtain that the curve of reflected light intensity drops near the position coordinate of 30 μm, and the full width at half height of the peak is also about 1.9 μm. These results consistently show that only blue region with a width of about 1.9 μm have a transition from an insulating phase to a metallic phase. Therefore, phase-transition region can be directly determined through the optical microscope. Raman spectral imaging of the 613 cm⁻¹ peak in Figure 4b, and the intensity distributions of the 613 cm⁻¹ peak and 530 cm⁻¹ peak in Figure 4d along with the red line, show that the lattice structure of VO₂ is distorted in space under the action of voltage within the region, with a width of about 50 μm, centered at the position coordinate of 30 μm. The area of the 613 cm⁻¹ peak is zero within the blue region. Both sides of blue region are accompanied with regions where peak area of 613 cm⁻¹ gradually increases with the increase of distance from blue region; correspondingly, the peak area of 530 cm⁻¹ gradually decreases from the maximum value. We call the region with above changes the slowly-changing region of Raman. Within the slowly-changing region, on the one hand, the unchanging reflected spectrum indicates that it does not have the properties of metallic rutile phase; on the other hand, the gradual changing of areas of 530 cm⁻¹ and 613 cm⁻¹ peaks with distance tells us that slowly-changing region have changes in lattice structure. Further, the slowly changing region lies between phase-transition region and unaffected region, connecting the rutile structure and the monoclinic structure. It is reasonable that the structure in the slowly-changing region have a gradual transition in the lattice structure from rutile phase to monoclinic phase with the increase of distance from phase-transition region to achieve a smooth transition of the two structures in space.

There are many factors that can have an influence on the occurrence of phase transition. On the one hand, the long-time illumination of 532-nm laser used to measure the Raman spectrum and white light used to measure the reflected spectrum on the VO₂ nanofilm, as shown in Figure S4, only caused a small increase in the current flowing through the film and did not trigger the phase transition, so the effect of illumination, such as heating, can be ignored. On the other hand, temperature and electric field both can act as triggers for phase transition. For VO₂ nanofilm under voltage, temperature increase caused by Joule heating and high electric field caused by high voltage are both involved in the process of phase transition. More experiments are needed, and detailed discussion about the mechanism phase transition can be seen below.

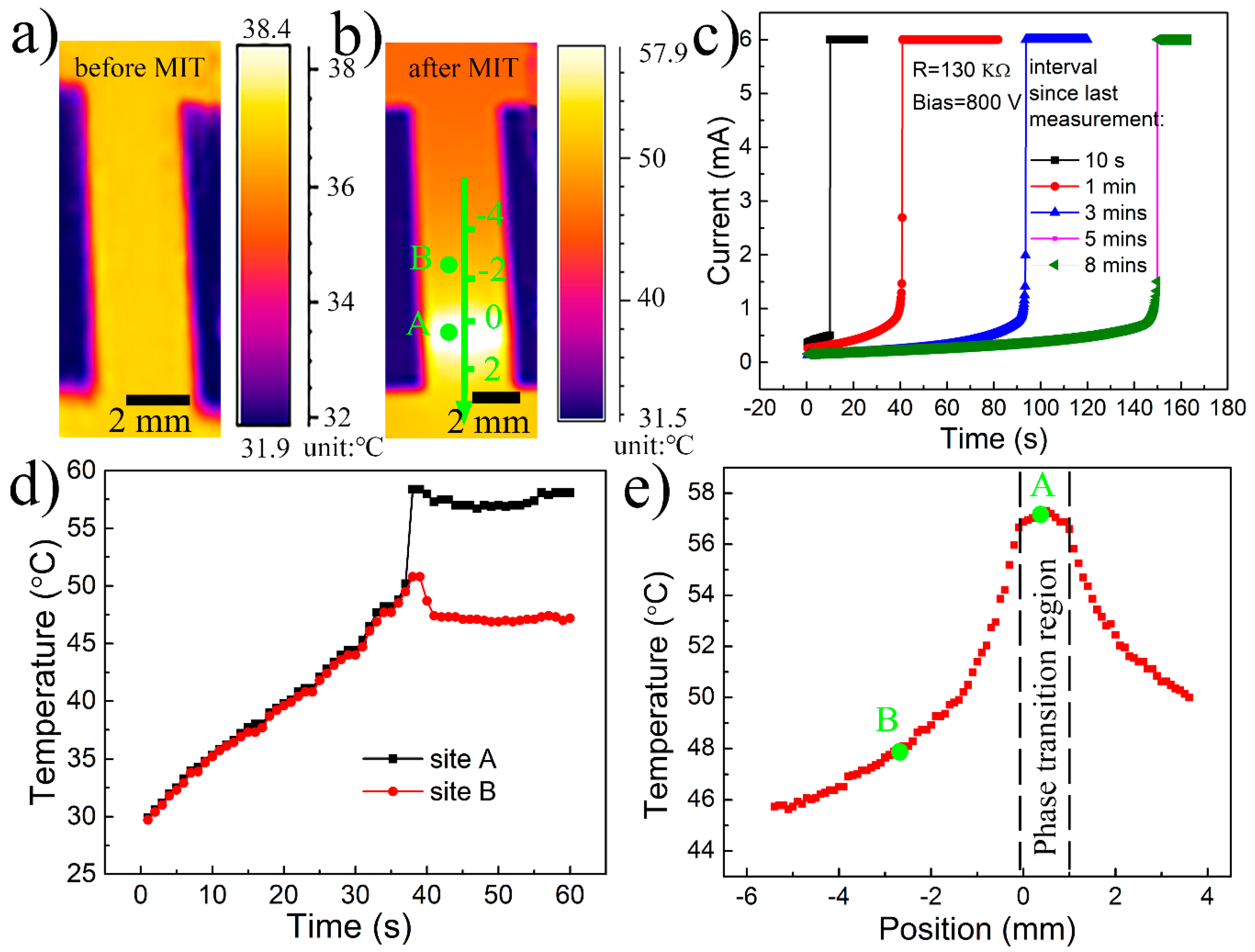

In order to explore the driving mechanism of phase transition under voltage, the temperature of VO₂ nanofilm is characterized. Limited by the spatial resolution of infrared camera (pixel size 100 μm), we expanded the electrode spacing to 3 mm, which is about ten times bigger than before, to better obtain the change of temperature with time and space. All other conditions for the nanofilm remained unchanged. Unlike the obvious changes in defect concentration and scattering efficiency from the dimensional change of VO₂ materials [26,35], the increase of electrode spacing mainly changes the resistance of VO₂ nanofilm. The applied voltage becomes 800 V, which is larger than before due to larger resistance. Figure 5a exhibit the temperature of nanofilm before phase transition. The temperature of the whole nanofilm between Au electrodes has a roughly uniform rise from room temperature to 37 °C during the incubation time. After the phase transition occurs, as we can see in the Figure 5b, blue phase-transition region appears, and the position of the phase-transition region is not located in the middle of the counter electrode, because the phase transition occurs preferentially in the path with the closest electrode spacing. The width of phase-transition region is 1.8 mm, which is 100 times larger than pixel size of infrared camera, so sufficient data can be obtained to accurately characterize the temperature change. Comparing the test condition with the previous in Figure 2a, we can see that the electric field and flowing current density through VO₂ nanofilm have both decreased, and, thus, the maximum value of incubation time of phase transition expands to 150 s (Figure 5c). When applying an external electric field to observe the phase-transition behavior of the VO₂ sample, the influence of the time interval between two adjacent measurements on its incubation time must be fully considered. Due to the expansion of the device size, two consecutive measurements need a longer interval time, otherwise, the residual temperature of the previous measurement will affect the incubation time of the next measurement. Figure 5d shows that from the beginning of applying voltage, the temperature of the sample slowly and linearly rises to around 50 °C from room temperature, and then the phase transition suddenly occurs. In the region where point A is, the temperature of VO₂ nanofilm after the phase transition rises rapidly to about 58 °C, due to the Joule heating caused by a sudden large current. Correspondingly, the temperature in non-phase-transition region (such as the region where point B is) has a small decrease. The decrease originates from the change in the flowing current. Although the total flowing current in VO₂ nanofilm increases, the conductive path formed by phase-transition region accounts for most of it, and the flowing current in the non-phase-transition region becomes smaller compared to before. The temperature at sites A (phase-transition region) and B (non-phase-transition region) each stably stays 58 °C and 45.3 °C, respectively. Figure 5e shows that the temperature symmetrically decreases on both sides of the phase transition region.

As shown in Figure 5d, for the VO₂ nanofilm under a voltage of 800 V, the temperature has a linear increase during the incubation time. The phenomenon that the temperature of VO₂ sample in different areas shows a synchronous and linear increase, proves that only the Joule heating of flowing current is working for the temperature that increases to 48.2 °C. The other mechanisms that can accelerate the increase of temperature is not obvious in this incubation time. The whole nanofilm, whether it’s the area where point A or point B is, has the same temperature and keeps the temperature increasing synchronously before the phase transition, as shown in Figure S5. On the one hand, If the Joule heating mechanism causes the sample to undergo phase transition, the phase change at these two sites should happen at the same time. In fact, this is not the case. On the other hand, if phase transition of different grains in nanofilm starts to occur at 48.2 °C under voltage, Joule heating may dominate the process of phase transition. However, two observed experimental results do not support this proposal. First, the spatial distribution of temperature in Figure 5e indicates that the width of the region where the temperature is higher than 48.2 °C would reach 7 mm, which is 7 times wider than the observed width of phase-transition region in Figure 5b. Second, phase-transition region is accompanied with the change in reflected spectrum. The region with temperature changes from 48.2 °C to 56 °C should have a gradual change in the number of phase-transition grains as reported work [32], which would result in the gradual change of reflected light intensity with space. However, this phenomenon is not observed in Figure 4c,e. Thus, the starting temperature of phase transition would not be 48.2 °C. The deceived results based on Joule heating mechanism are not consistent with the observed results, so Joule heating would not be the mechanism of phase transition. Then the attention is put on the electric field. In our device, on the one hand, the applied electric field is about 10⁵ V/m (Figure 2) or less (Figure 5), which is less than the estimated critical electric field (50 V/μm) required to induce MIT under the effect of electric field in three-terminal devices [31]. On the other hand, the incubation stage exists for the nanofilm under voltage in our two-terminal device. Generally, the structural phase transition and electronic phase transition of VO₂ nanofilm occur nearly at the same time due to intense electron-lattice coupling [26]. Temperature and electric field both have been proven to be efficient ways for structural phase transition. After applying voltage on the film, electric field and Joule heating exist at the same time, and these two factors have a synergistic effect, which can reduce the requirements of individual factors on triggering phase transition. Therefore, we think that the two factors together induce phase transition. As voltage is applied, the lattice structure of VO₂ film starts to change. The electric field drives the relative movement of some ions on lattice points of VO₂. At the same time, electric field will drive charged carriers in the VO₂ film to move, and the generated current will cause Joule heating, which will cause the local temperature of the film to rise. The expansion of vanadium oxide films caused by temperature rise is beneficial for further structural and electronic transition. The lattice structure parameter of the VO₂ film changes slowly until it is completely in the rutile phase and the metal phase forms. As soon as phase transition occurs, the resistance rapidly decreases by several orders of magnitude, accompanying with the sudden change in reflectivity and temperature. When the voltage is removed, the metallic rutile phase disappears, and the current jumps to zero, resulting in the change of the reflectivity to its initial value. Without production of heat, the VO₂ nanofilm dissipate heat slowly, so the lattice structure parameters will change slowly, and finally return to the initial state.

4. Conclusions

In summary, by means of the experimental characterizations of the Raman spectrum, the reflected spectrum and temperature on VO₂ crystal nanofilm prepared by a simple method using sputtering and oxidation, we explored the process of phase transition under voltage. From the temporal evolution and spatial distribution of Raman spectrums, reflected spectrums and temperature, the process of phase transition under voltage is proved, which starts with gradual change in the lattice structure accompanying with changes in electrical, optical and thermal properties. The occurrence of the phase transition prompts the formation of the metal phase, leading to a sudden change in every aspect, including the reflected spectrum, current and temperature. The measurements of temperature and voltage show that the temperature increase before the phase transition and applied electric field are finite and not enough to drive the occurrence of phase transition alone, thus, indicating that two factors act synergistically on structural transformation to trigger phase change. As a controllable and convenient means, a better understanding of electrical control on the phase transition of VO₂ nanofilm means it has great prospects in the application of ultrafast electronic devices.
