Real Space Quantum Cluster Formulation for the Typical Medium Theory of Anderson Localization

Abstract

We develop a real space cluster extension of the typical medium theory (cluster-TMT) to study Anderson localization. By construction, the cluster-TMT approach is formally equivalent to the real space cluster extension of the dynamical mean field theory. Applying the developed method to the 3D Anderson model with a box disorder distribution, we demonstrate that cluster-TMT successfully captures the localization phenomena in all disorder regimes. As a function of the cluster size, our method obtains the correct critical disorder strength for the Anderson localization in 3D, and systematically recovers the re-entrance behavior of the mobility edge. From a general perspective, our developed methodology offers the potential to study Anderson localization at surfaces within quantum embedding theory. This opens the door to studying the interplay between topology and Anderson localization from first principles.

1. Introduction

The localization problem in disordered electronic systems was introduced in Anderson’s seminal paper [1] in the late fifties, and it still remains in the forefront of research in materials science and condensed matter physics [2,3,4,5].

In disordered media, the scattering of charge carriers off random impurities may inhibit their propagation across the sample leading to a spatial confinement of carriers, a phenomenon known as Anderson localization [1]. Weak localization and strong Anderson localization have been conjectured and subsequently observed in experiments [6,7,8,9,10]. As a wave phenomenon, Anderson localization has been demonstrated for electrons [11,12,13,14,15,16], sound [17], photons [18,19,20,21,22,23,24,25], and ultra cold atoms [26].

To model disorder, Anderson proposed a simplified model of electrons hopping between lattice sites being subject to static scattering processes on locally disordered centers. The stochastic character of the problem is encoded into the on-site energies (disordered scattering centers) considered as random variables distributed according to a chosen probability distribution. The Green’s function imaginary part, the local density of states (LDOS), turns out to be an important quantity which characterizes the disordered system. For example, the LDOS is finite for extended states, while the spectrum of localized states is discrete. A decade later, an approach based on the distribution of the site and energy dependent self-energies was formulated [27]. This approach leads to a self-consistent equation for the self-energy, which can be solved on a Cayley tree (Bethe lattice). However, for general lattices, only an approximate solution can be provided.

Computations for substitutionally disordered three-dimensional materials with ordinary lattice structures are therefore difficult to perform within the framework of tight-binding models [1,27]. Suitable modeling in such cases can be constructed based on effective medium theories. Among them, single site effective medium methods, such as the coherent potential approximation (CPA) [28,29,30,31,32,33,34,35] and the typical medium theory (TMT) [36], proved to be simple and transparent theories that are able to capture important features of the disorder effects in electron systems. Common to these two methods is the mapping of the lattice problem into the impurity placed in a self-consistently determined effective medium. In both methods, the measured quantity is the disorder averaged Green’s function; however, in CPA, the Green’s function is linearly (algebraically) averaged, while, in the TMT, the geometric average of the LDOS is used. This difference in disorder averaging defines the average and the typical effective media, respectively.

Unlike the algebraically averaged Green’s function of the CPA effective medium, the geometric averaged LDOS, called the typical density of states (TDOS), drops to zero [36,37,38,39,40,41,42,43,44,45,46,47], at the Anderson transition. The geometrically averaged TDOS is an approximation to the most probable value in the distribution of the LDOS. At the Anderson transition, the system is not self-averaged, hence the distribution of the LDOS is highly skewed with long tails [37,48]. Therefore, the average and most probable values of the LDOS will be very different close to the transition [37,49,50,51]. Dobrosavljevic et al. [36] incorporated such statistical properties of the LDOS within an effective medium approach, called the TMT. They showed that the TDOS successfully captures the main signatures of the Anderson localization transition, with the TDOS being an order parameter to detect the localized states. In Refs. [52,53,54], the momentum-space cluster extension of the TMT [54], the typical medium dynamical cluster approximation (TMDCA) has been developed. The TMDCA is the typical medium extension of the Dynamical Cluster Approximation (DCA) [55,56], a momentum-space cluster extension of the CPA. The TMDCA overcomes the shortcomings of the local single site TMT and accurately predicts the critical disorder strength of the Anderson localization transition in a single-band Anderson model. For model Hamiltonian systems, the TMDCA has been applied to non-interacting and weakly interacting disordered three-dimensional systems [52,53,57,58], systems with off-diagonal disorder [59], phonon localization [60,61], and multi-orbital models [62]. Some of the methods inspired by the typical medium theories have been combined with first-principles calculations [63,64,65].

Complementary to the momentum space cluster methods, described above, techniques using embedding in real space provide an interesting alternative. This constitutes the aim of the present work. We have previously formulated the embedding into the effective typical medium which allows for addressing the Anderson localization transition in the framework of a locally self-consistent approach [66]. In addition, the locally self-consistent formulation opens up the possibility to formulate linear scaling methods. Unlike the previous typical medium cluster extensions of TMT, formulated in the momentum space (TMDCA) [54,67], or in a mixed representation (locally self-consistent approach) [66,68], here we propose an exclusively real space cluster extension of TMT (cluster-TMT). This construction is formally equivalent to the real space cluster extension of the dynamical mean field theory (DMFT) [69,70,71,72,73].

The key accomplishment of the present study is the development of a cluster mean field theory for the description of Anderson localization. The developed cluster version is based on a real-space approach, and presents an alternative to the existing momentum space version of TMDCA. To demonstrate the validity of the method, we apply it to the three-dimensional Anderson model with box disorder distribution, and reproduce the full phase diagram and the critical disorder strength, $W_c$, for the metal-insulator transition. The cluster mean field theory we designed is an extension of the local single site typical medium theory. The developed real space cluster extension method incorporates the spatial non-local effects systemically; therefore, the re-entrance behavior of the 3D Anderson model is recovered. We find that cluster extensions of TMT are necessary to properly capture the non-local effects in the Anderson transition. Quantitatively, our results are in good agreement with the existing data in the literature. In particular, we find that the converged cluster value of $W_c\approx 17.05$ is superior to the value of $13.4$ provided by single site TMT calculations. We demonstrate that non-local spatial correlations are significant in the 3D Anderson model, and hence going beyond a single site approximation is necessary to properly describe the metal-insulator transition. Unlike the single site TMT, the present real-space cluster computation captures the re-entrance behavior driven by non-local multiple scattering effects which are missing in local approximations [5,36,48,74]. In addition, just like the TMDCA, the real space cluster-TMT allows for a computationally efficient treatment of the non-local effects in Anderson localization. In addition, however, the real-space cluster TMT opens the door to treating problems with open boundary conditions, which offers the possibility to study the localization of surface states. One potential application of this capability would be the search for a material realization of the topological Anderson insulator [75] via first principles calculations. In addition, the presented formalism being a real space cluster opens venues for an easier embedding with ab initio Green’s function electronic structure methods, which offer a more natural approach (in contrast to the momentum space TMDCA) to disordered real materials, including high entropy alloys and disordered metals [63,64,65].

It is worth noting that there is a long history of applications of the CPA both as a tool for model calculations and in computational studies of real materials. We refer the interested readers to the review of Yonezawa and Morigaki [76]. An extensive review of the early development of the DMFT method can be found in Georges et al. [77], and a review of more recent cluster extensions can be found in Maier et al. [78]. A review of current research on the Anderson localization using cluster methods can be found in Terletska et al. [54].

This paper is organized as follows: in Section 2, we present the Anderson model. In Section 3, we first briefly review the algorithm of the single site TMT and discuss the algorithm for the real-space cluster extension of the TMT. In Section 4, we present the results obtained with our cluster-TMT for the 3D Anderson model with box disorder distribution. We conclude in Section 5 and discuss possible future developments.

2. Model

Anderson proposed [1] that non-interacting electrons on site-disordered lattices may localize because of the destructive interference of wave functions. Subsequent theoretical and numerical studies [79] support the picture that, in three dimensions and for large enough disorder strength, single particle wave functions are localized and decay exponentially on the scale of the localization length.

The Anderson model Hamiltonian has the form:

$$H=-t\sum _{<i,j>,\sigma }(c_{i\sigma }^{†}{c}_{j\sigma }+H.c.)+\sum _{i,\sigma }{V}_i{n}_{i\sigma },$$

(1)

where $c_{i\sigma }^{†}$ and $c_{i\sigma }$ are the creation and annihilation operators for electrons at site i with spin $\sigma$. $n_{i\sigma }$ is the number operator for site i of spin $\sigma$; t is the hopping energy between nearest neighbors. We consider a 3D simple cubic lattice. We set $t=1$ to serve as the energy scale. The local random disorder is given by $V_i$. Here, we consider a so-called box disorder with $P\left(V_i\right)=\frac{1}{W}\mathsf{\Theta }(W-V_i)$. This allows the disorder strength to be characterized by W. Other distributions are also considered in the literature; some common ones included bi-modal, Gaussian, and Lorentzian distributions [53,80].

The Anderson model has been the focus of numerous studies of the disorder-induced electron localization. Highly accurate numerical calculations based on the transfer matrix method and multifractal analysis have been used to study the model extensively, especially for zero energy [5,74,81,82,83,84,85,86,87,88,89,90].

Relatively few studies have been devoted to energy away from zero. A prominent feature at higher energy is the re-entrance from a metal to an insulator to a metal, as the disorder strength increases [74,82,91,92]. A heuristic argument for the nature of the re-entrance behavior is based on the tunneling mechanism for energies beyond the bandwidth of the hopping model. The width of the density of states increases as the disorder increases, though the states are localized. At sufficiently large disorder, the localized density of states is large enough to allow tunneling. The tunneling could become sufficiently long range that the localized states become extended, thus the insulator becomes a metal. This explains the lower transition in the re-entrance. Further increasing the disorder strength, the localized state will be more sparse in energy and tunneling becomes less likely to happen and insulating state resumes.

The above argument depends on the distribution of disorder, and the tunneling effect is maximised when the localized states are close in energy. A bounded random distribution is favored as compared to other distributions which are more widely spread over a range of energies, such as the Lorentzian distribution. The tunneling argument can only be supported in a system with multiple sites. For example, the TMT, which is a single site approximation, does not capture the re-entrance behavior. Thus, the capability of describing the re-entrance can serve as a good test for our real space cluster-TMT.

3. The Real Space Quantum Cluster Extension of TMT

3.1. Typical Medium Theory: TMT

To set the stage for the discussion of the real-space cluster extension of the TMT, here we briefly review the main steps of the TMT analysis. The TMT can be considered as a typical medium generalization of the CPA [28,29,30,31,32,33,34]. In a similar way to the CPA, the TMT employs the mapping of the original lattice problem into the impurity placed in a self-consistently determined effective medium. However, in the TMT, the typical (geometrically averaged over disorder) local density of states is used to construct the mean field bath for the effective impurity problem.

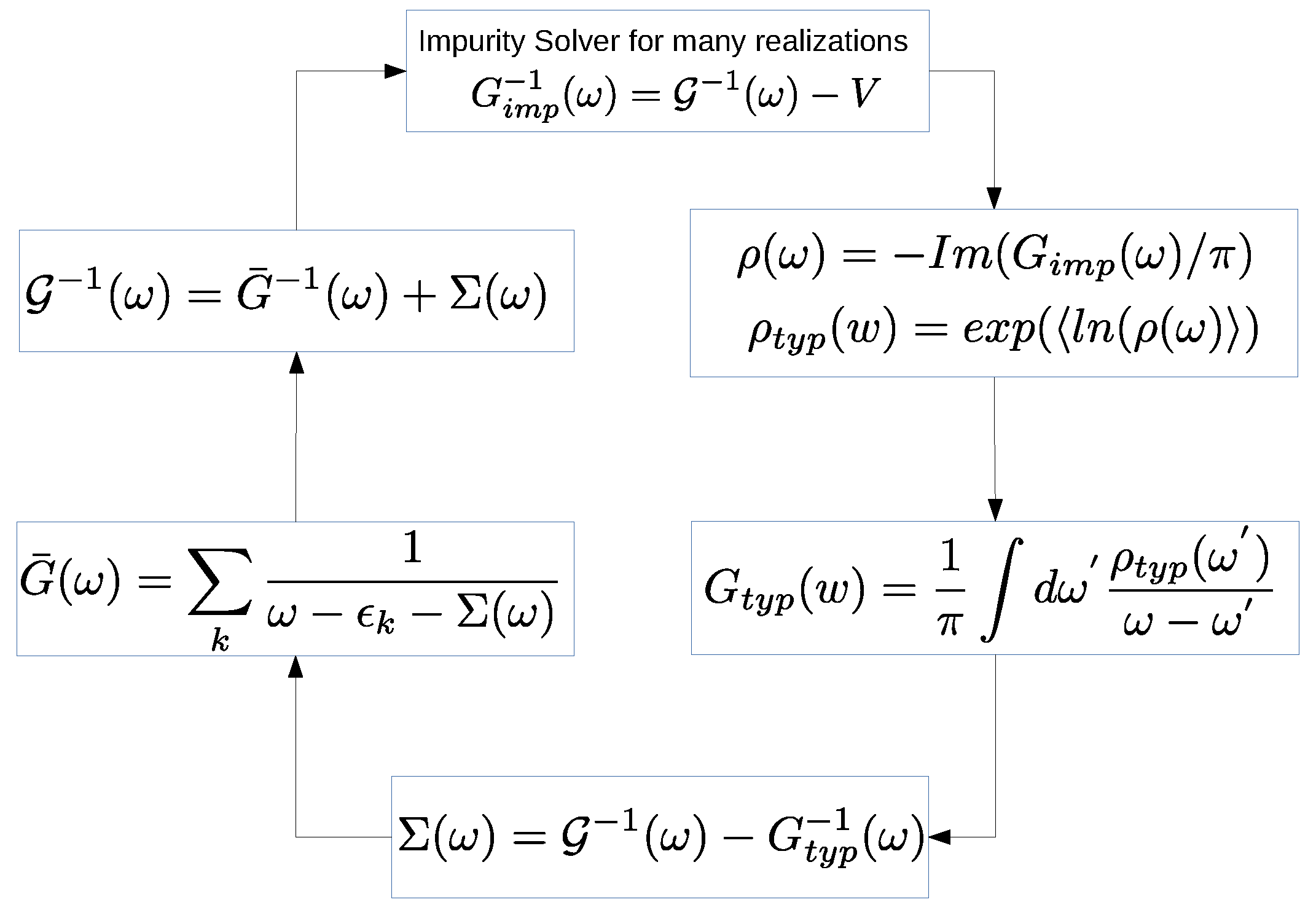

The numerical algorithm for the TMT procedure is shown in Figure 1. First, the guess for the effective medium self-energy $\mathsf{\Sigma }\left(\omega \right)$ is made, usually zero. Then, the local (coarse-grained) lattice Green’s function is calculated as $\overline{G}\left(\omega \right)=\frac{1}{N}{\sum }_k\frac{1}{\omega -{ϵ}_k-\mathsf{\Sigma }\left(\omega \right)}$. Using the Dyson’s equation, we then obtain the impurity-excluded Green’s function (bath Green’s function) ${\mathcal{G}}^{-1}\left(\omega \right)={\overline{G}}^{-1}\left(\omega \right)+\mathsf{\Sigma }\left(\omega \right)$.

The next step is to solve the impurity problem. For each randomly chosen disorder configuration V, we calculate the impurity Green’s function $G_{imp}(\omega ,V)={({\mathcal{G}}^{-1}\left(\omega \right)-V)}^{-1}$. From this quantity, we obtain the typical (geometrically averaged density of states) ${\rho }_{typ}\left(\omega \right)$, which is constructed as ${\rho }_{typ}\left(\omega \right)=e^{\langle ln\left(\rho \right(\omega ,V\left)\right)\rangle }$. Here, $\rho (\omega ,V)=-\frac{1}{\pi }\Im G_{imp}(\omega ,V)$, and $\langle \dots \rangle$ stands for the disorder averaging. In general, the geometrical average is not equivalent to the typical value. However, for log-normal distributions, the geometrical average is the same as the typical value and, since numerical studies have shown that near the localization transition the local density of states is log-normal distributed [37], this assumption is appropriate.

The output of the TMT impurity solver is the typical Green’s function which is obtained using the Hilbert transform: $G_{typ}\left(w\right)=\frac{1}{\pi }\int d{\omega }^{{}^{\prime }}\frac{{\rho }_{typ}\left({\omega }^{{}^{\prime }}\right)}{\omega -{\omega }^{{}^{\prime }}}$. This step is the only difference between the CPA and the TMT self-consistency loop. For example, in the CPA, instead of the typical, the algebraically average DOS is calculated ${\rho }_{ave}=\langle \rho (\omega ,V)\rangle$, with the average Green’s function $G_{ave}\left(w\right)=\frac{1}{\pi }\int d{\omega }^{{}^{\prime }}\frac{{\rho }_{ave}\left({\omega }^{{}^{\prime }}\right)}{\omega -{\omega }^{{}^{\prime }}}$ being the output of the CPA impurity solver. Note that, for the CPA case, one can just do the disorder averaging over Green’s function without the Hilbert transform of the average density.

Finally, the TMT self-consistency loop is closed by getting a new estimate of the self-energy $\mathsf{\Sigma }(\omega )={\mathcal{G}}^{-1}\left(\omega \right)-G_{typ}^{-1}\left(\omega \right)$, which is then used to calculate the coarse-grained local lattice Green’s function. The whole procedure then repeats, until convergence is reached at which the impurity and the local lattice Green’s function are equal within the desired accuracy.

3.2. Real Space Cluster-TMT

To properly capture the effect of multiple impurities scattering in the disorder-driven Anderson localization, the cluster extension of the TMT is needed. Here, we present the real-space cluster extension of the TMT. Such real space variant of the cluster extension of the TMT is formally equivalent to the cluster DMFT solver, which has been extensively used in strongly-correlated electron systems to study non-local effects beyond DMFT. Here, we use the cluster DMFT approach as a tool to capture spacial non-local correlations beyond the TMT in disordered non interacting systems.

In the real space cluster-TMT, the infinite lattice in real space is tiled with identical clusters of size $N_c$ [93]. In such construction, the scattering of electrons by impurities within a cluster is treated exactly, while the effects of impurities outside the cluster are replaced by the non-disordered effective medium (bath) that is determined self-consistently. There is no implicit assumption that the translational invariance is obeyed within the cluster. Therefore, the Green’s function of the cluster is represented by an $N_c\times N_c$ matrix, which we denote as ${\widehat{G}}_c\left(\omega \right)$. For the same reason, the self-energy and the bath Green’s function are also represented in terms of matrices.

The self-consistency procedure for our real space cluster-TMT is shown in Figure 2. First, we start with the guess of the self-energy matrix $\widehat{\mathsf{\Sigma }}\left(\omega \right)$ (usually zero). Then, we calculate the lattice Green’s function projected onto the cluster space ${\displaystyle \widehat{\overline{G}}\left(\omega \right)=\frac{N_c}{N}\sum _{\mathbf{k}\in R.B.Z.}{[\omega -\widehat{t}\left(\mathbf{k}\right)-\widehat{\mathsf{\Sigma }}\left(\omega \right)]}^{-1}}$, where R.B.Z. stands for the reduced Brillouin Zone of the cluster with $-\frac{2\pi }{L_c}<k_x,k_y,k_z<\frac{2\pi }{L_c}$. In addition, $\widehat{t}\left(\mathbf{k}\right)$ is the dispersion of the lattice model expressed as a partial Fourier transform over the reduced Brillouin zone. Any element of this dispersion matrix is given as $t_{\mathbf{r},{\mathbf{r}}^{{}^{\prime }}}\left(\mathbf{k}\right)\equiv {\sum }_{\mathbf{R}}exp(i\mathbf{k}·(\mathbf{R}+\mathbf{r}-{\mathbf{r}}^{{}^{\prime }}))t_{\mathbf{r},{\mathbf{r}}^{{}^{\prime }}+\mathbf{R}}$, where $\mathbf{R}$ is the location vector of the super-cell, and $\mathbf{r}$ and ${\mathbf{r}}^{{}^{\prime }}$ are the vectors for the location of each site within a super-cell [93].

Next, using the Dyson’s equation, we calculate the bath Green’s function matrix, ${\widehat{\mathcal{G}}}^{-1}\left(\omega \right)={\widehat{\overline{G}}}^{-1}\left(\omega \right)+\widehat{\mathsf{\Sigma }}\left(\omega \right)$, which is used to construct the cluster problem. Then, for each disorder configuration V, we calculate the cluster Green’s function by solving the matrix equation $G_c^{-1}(\omega ,i,j)={\mathcal{G}}^{-1}(\omega ,i,j)-V(i,j){\delta }_{ij}$.

The key to incorporate the typical medium into the analysis is to connect the Green’s function matrix to the typical density of states. For this, we generalize the procedure we used for the multi-orbital problem of the TMDCA [62], and define the typical density of states matrix in a similar way:

$$\begin{array}{cc}\hfill {\widehat{\rho }}_{typ}\left(\omega \right)\equiv & \left(\begin{array}{ccc}{e}^{〈|ln{\rho }_{11}\left(\omega \right)|〉}\frac{\langle {\rho }_{11}\rangle }{\langle \left|{\rho }_{11}\right|\rangle }& \cdots & e^{〈ln|{\rho }_{1N_c}\left(\omega \right)|〉}\frac{\langle {\rho }_{1N_c}\rangle }{\langle \left|{\rho }_{1N_c}\right|\rangle }\\ .& .& .\\ .& .& .\\ .& .& .\\ e^{〈ln|{\rho }_{N_{c}1}\left(\omega \right)|〉}\frac{\langle {\rho }_{N_{c}1}\rangle }{\langle \left|{\rho }_{N_{c}1}\right|\rangle }& \cdots & e^{〈ln|{\rho }_{N_c{N}_c}\left(\omega \right)|〉}\frac{\langle {\rho }_{N_c{N}_c}\rangle }{\langle \left|{\rho }_{N_c{N}_c}\right|\rangle }\end{array}\right.,\\ \hfill \end{array}$$

(2)

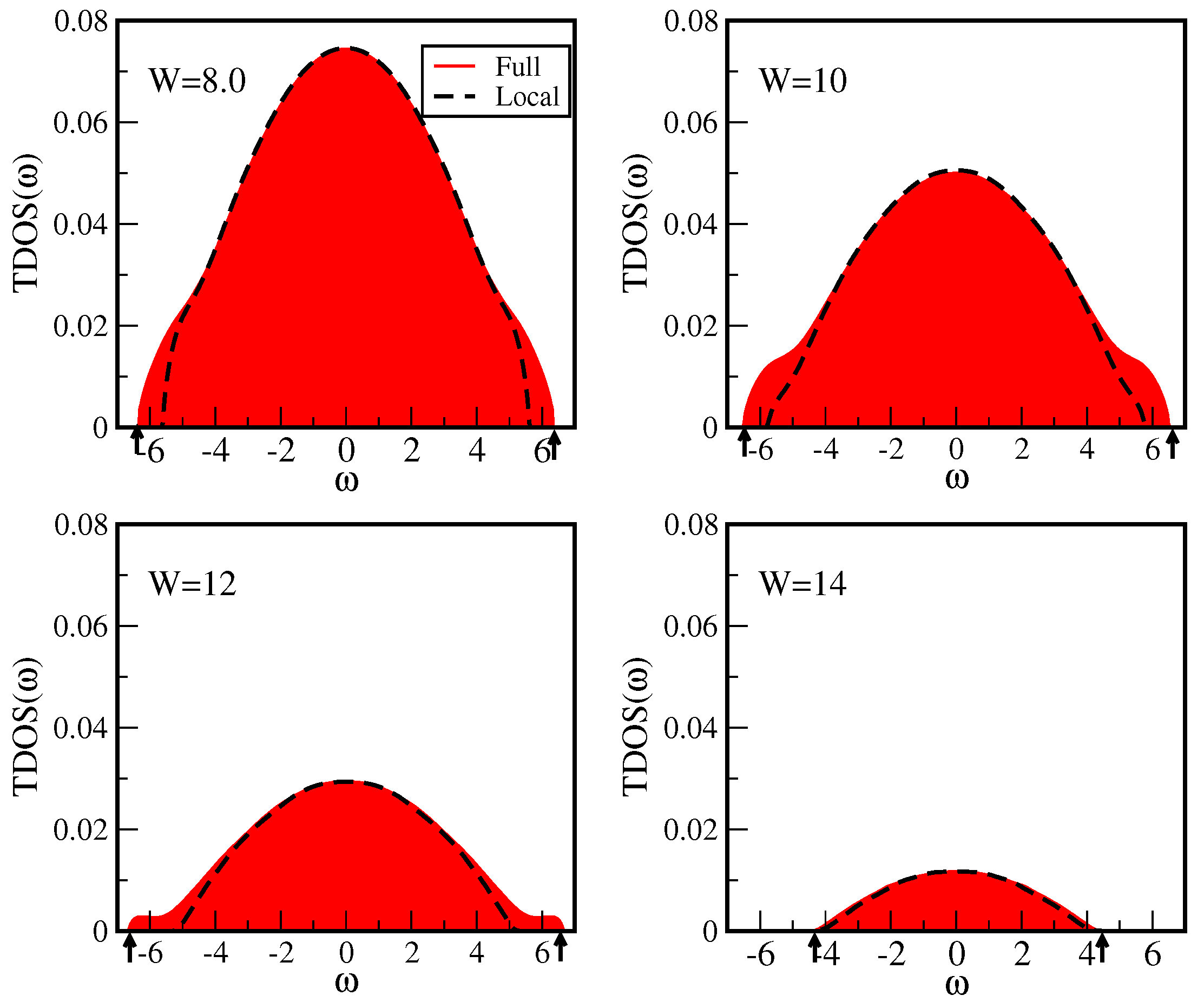

Here, the diagonal entries will be just equal to $e^{〈{\rho }_{ii}\left(\omega \right)〉}$ because ${\rho }_{ii}>0$ is always positive definite; ${\rho }_{ii}=-\frac{1}{\pi }\Im \left[G_{ii}\left(\omega \right)\right]$; and for the off-diagonal terms ${\rho }_{ij}=\frac{i}{2\pi }[G_{ij}\left(\omega \right)-G_{ji}\left(\omega \right)]$ [94]. The role of the non-local off-diagonal components in the geometrically averaged cluster Green’s function is explained in the Appendix A.

Notice that the real space cluster extension of the CPA, with the average effective medium, can be obtained by replacing the typical DOS with the linearly average DOS in the above Equation (2), i.e.,

$$\begin{array}{ccc}\hfill & & {\widehat{\rho }}_{ave}\left(\omega \right)\equiv \left(\begin{array}{ccc}\langle {\rho }_{11}\left(\omega \right)\rangle & \cdots & \langle {\rho }_{1N_c}\left(\omega \right)\rangle \\ .& .& .\\ .& .& .\\ .& .& .\\ \langle {\rho }_{N_{c}1}\left(\omega \right)\rangle & \cdots & \langle {\rho }_{N_c{N}_c}\left(\omega \right)\rangle \end{array}\right..\hfill \\ \hfill \end{array}$$

(3)

The ${\widehat{\rho }}_{typ}\left(\omega \right)$ of Equation (2) possesses the following properties: (1) for $N_c=1$, it reduces to the local TMT with ${\rho }_{typ}\left(\omega \right)=e^{\langle \left|ln\rho \right(\omega \left)\right|\rangle }$; (2) At small disorder strength $W\ll W_c$, we observe numerically that $<ln\rho \left(\omega \right)>\approx ln<\rho \left(\omega \right)>$, i.e., the typical density of states (DOS) reduces to the average DOS calculated using algebraic averaging over disorder: ${\rho }_{typ}\to {\rho }_{ave}\left(\omega \right)$. Hence, in this regime, the typical DOS obtained with the cluster-TMT is expected to be close in magnitude to the one obtained with the real-space cluster-CPA with averaged effective medium. Such real space cluster extension of CPA is different from other existing cluster extensions, including the DCA [55,56] and non-local CPA [95]. The difference is that, in the real space cluster-CPA, all the quantities are matrices in the real space, and the coarse-graining step for $\widehat{\overline{G}}$ uses a projected lattice dispersion which is constrained to the real space cluster space.

In the next step of the cluster-TMT self-consistency loop, we must calculate the cluster typical Green’s function ${\widehat{G}}_{typ}$ (${\widehat{G}}_{ave}$ for the cluster-CPA) using the Hilbert transform. The Hilbert transform is performed for each matrix element individually, $G_{typ,ij}\left(w\right)=\frac{1}{\pi }\int d{\omega }^{{}^{\prime }}\frac{{\rho }_{typ,ij}\left({\omega }^{{}^{\prime }}\right)}{\omega -{\omega }^{{}^{\prime }}}$.

Next, using the Dyson’s equation, we get the updated self-energy $\widehat{\mathsf{\Sigma }}\left(\omega \right)={\widehat{\mathcal{G}}}^{-1}\left(\omega \right)-{\widehat{G}}_{typ}^{-1}\left(\omega \right)$, which is then used to calculate the coarse-grained lattice Green’s functions matrix $\widehat{\overline{G}}$. The whole procedure then repeats, until convergence is reached with the desired accuracy.

4. Results

We start the discussion of our results for the 3D Anderson model (for a box disorder distribution) by first focusing in panel a of Figure 3. This panel displays the $N_c=3^3$ cluster average DOS (ADOS=$\frac{1}{N_c}{\mathsf{\Sigma }}_i\left(\frac{-1}{\pi }\right)\Im {\widehat{G}}_{c,ii}\left(\omega \right)$) obtained using the average effective medium (constructed from Equation (3)) in the cluster self-consistent loop. These results correspond to the real-space cluster extension of the CPA. The data show that, as disorder strength W increases, the ADOS broadens and gets smaller, but does not go through significant qualitative changes when the metal-insulator transition is approached.

To demonstrate why the ADOS fails to describe the Anderson transition, we display the probability distribution of the local density of states in panel b of Figure 3. At small disorder $W=2$, the distribution of the LDOS is Gaussian-like. However, as disorder strength increases, the probability distribution becomes skewed with long tails (indicating that the system is not self-averaging). At even larger disorder strength ($W=18$), the probability distribution peaks at values very close to zero. Such skewness of the distribution functions for large disorder strengths implies that the average and the most probable (typical) values of the DOS will differ significantly, and hence the numerical algorithms that employ the globally averaged Green’s function in the self-consistency loop (e.g., the CPA, the DCA) will fail to describe the Anderson transition.

These results clearly demonstrate that the typical medium treatment is required to capture the non self-averaging behavior through the Anderson transition. To show this, in Figure 4, we compare the data for the energy resolved ADOS and the TDOS calculated for a cluster of $N_c=3^3$ sites. The TDOS$\left(\omega \right)=exp\left(\frac{1}{N_c}{\mathsf{\Sigma }}_{i}ln(\left(\frac{-1}{\pi }\right)\Im {\overline{G}}_{c,ii}\left(\omega \right))\right)$ is obtained from the present real-space cluster-TMT procedure which employs the geometric averaging in the self-consistency loop. At weak disorder strength $(W=2.5)$, as expected from our analytical arguments, both ADOS and TDOS are practically the same, indicating that, when $W\ll W_c$, the real space cluster-TMT reduces to the cluster-CPA scheme. As disorder strength increases, the ADOS and TDOS behave very differently. While the ADOS$\left(\omega \right)$ broadens and remains finite, the TDOS$\left(\omega \right)$ gets continuously suppressed ($W=10$) and vanishes at even larger disorder strength ($W=16$). Such vanishing of the TDOS at strong disorder values indicates that geometrically average DOS can be used as an order parameter for the Anderson localized states.

Notice that, below the Anderson transition, for $W\ll W_c$, localization of states starts at the band tails. This is indicated by the vanishing TDOS$\left(\omega \right)$ and the finite ADOS$\left(\omega \right)$ at higher frequencies $\omega$. The mobility edge (shown by arrows), i.e., the energy which separates the extended (with a finite TDOS) from the localized states (with zero TDOS) follows the expected re-entrance trajectory [52]: the mobility edge first expands beyond the zero disorder edge boundary, and then retracts at larger disorder strengths.

Next, we consider the evolution of the critical disorder strength $W_c$ for the Anderson transition as a function of the cluster size $N_c$. The critical disorder $W_c$ is extracted from the vanishing TDOS at the band center (TDOS$(\omega =0)$). In Figure 5, we plot TDOS$(\omega =0)$ as a function of disorder strength W for several cluster sizes $N_c=1,2,3,2^3,3^3,4^3$. For $N_c=1$ (the local TMT case), the critical disorder is $W_c\approx 13.4$. Since TMT is a mean field theory, it is expected that the critical disorder strength is underestimated and thus it is lower than the exact value. As the cluster size $N_c$ increases, more spatial fluctuations are taken into account, which improves the value of $W_c$. With increasing $N_c$, the $W_c$ converges quickly to $W_c\approx 17.05$ (see the inset of Figure 5), which is in good agreement with the values of $W_c$ reported in the literature [90]. In addition, notice that, unlike the TDOS, the ADOS$(w=0)$ (shown by the dashed line in Figure 5) remains finite as the disorder strength W increases, indicating that it can not be used as an order parameter for the Anderson transition, and hence the typical medium treatment is needed.

Finally, in Figure 6, we present the disorder strength W vs. frequency $\omega$ phase diagram. Here, we plot the cluster size $N_c$ dependence of the mobility edge boundaries at different disorder strengths W obtained by our real space cluster-TMT formalism. In addition, we also show the band edges, which are defined by the frequencies at which ADOS$\left(w\right)=0$. As we discussed above, a signature of the cluster mean field theory is the re-entrance at high energy. At $N_c>1$, the mobility edge boundaries first expand and then retract back with increasing W. As Figure 6 displays, such re-entrance behavior is missing in the single site ($N_c=1$) TMT case, and is recovered for $N_c>1$ clusters. This indicates that non-local spacial correlations and multiple-scattering effects in the Anderson transition are important, and capturing such effects requires the usage of finite cluster methods. To benchmark our results even further, we also present the mobility edge trajectories obtained from the highly accurate transfer matrix method (TMM) [54]. For $N_c=4^3$, the cluster-TMT results are already rather close to those of the TMM. These results demonstrate that our cluster-TMT method can be used to successfully describe the electron localization in the 3D Anderson model.

5. Conclusions

We develop a real space quantum cluster theory based on the typical medium theory for random disorder systems. Unlike the coherent potential approximation with the algebraically average effective medium, the TMT captures the localization transition by considering the geometrically averaged local density of states to construct an effective medium. However, being a single site theory, the TMT underestimates the critical disorder strength of the transition, and misses the re-entrance behavior, which is due to the combined effects from multiple scattering sites. Recent studies based on the dynamical cluster approximation already confirmed that such non-local effects can be captured by considering momentum-space clusters extension of TMT [54].

In this paper, we construct the real space variant of the cluster-TMT. This method by construction is similar to the cellular dynamical mean field theory [72], which is a popular cluster method effectively used for strongly interacting electron systems. Here, we adopt such a real space cluster approach to disordered systems. Applying our real-space cluster-TMT approach to the 3D Anderson model with a box distribution, we demonstrate that the cluster-TMT is a successful self-consistent numerical approach to capture the Anderson localization transition. Performing $N_c$ cluster-size analysis, we demonstrate the importance of including non-local spacial effects to properly describe the Anderson localization physics. Quantitatively, our results are in good agreement with existing data; in particular, we find that the converged cluster value of $W{c}^{cluster-TMT}\approx 17.05$ is superior to the value predicted by single-site TMT, $W^{TMT}\approx 13.4$. Unlike the single site approach, the present real-space cluster-TMT captures the re-entrance behavior and correctly reproduces the phase diagram of the 3D Anderson model. The method, in principle, can also be used to calculate two particle quantities [96]. Furthermore, while the cluster TMT in this study has been restricted to periodic boundary conditions, the same methodology can be used to simulate Anderson localization in surfaces. This will be relevant, for example, to unraveling the role of disorder in topological materials [75,97]. Another interesting topic is to combine this approach with the multiple scattering theory [58], and the locally self-consistent multiple scattering method [66] for the study of materials with random disorder.
