Surface Porosity of Natural Diamond Crystals after the Catalytic Hydrogenation

Abstract

The study of diamond surfaces is traditionally undertaken in geology and materials science. As a sample material, two natural diamond crystals of type Ia were selected, and their luminescence and nitrogen state was characterized. In order to etch the surface catalytic hydrogenation was performed using Fe particles as an etchant. Micromorphology of the surface was investigated by scanning electron and laser confocal microscopy. It was demonstrated that etching occurred perpendicular to the crystal surface, with no signs of tangential etching. The average depth of caverns did not exceed 20–25 μm with a maximal depth of 40 μm. It is concluded that catalytic hydrogenation of natural type Ia diamonds is effective to produce a porous surface that can be used in composites or as a substrate material. Additionally, the comparison of results with porous microsculptures observed on natural impact diamond crystals from the Popigai astrobleme revealed a strong resemblance.

1. Introduction

The study of diamond surfaces is traditionally undertaken in geology and materials science. The main trends of post-growth changes during transportation by kimberlite melts have been demonstrated [1,2,3,4,5] as well as the conditions of diamond preservation in the deeper mantle [6,7,8]. In materials science, such studies are mainly aimed at using diamonds as a substrate [9,10,11,12,13] or part of a composite [14,15], and in novel applications such as in the elements of biosensors [16]. The use of diamond as a substrate is mainly limited by the fact that most metals slightly wet the diamond surface, and only by the addition of carbide-forming metals to the alloys can the contact angle be significantly decreased [17]. In most cases, a weak contact between the diamond and metal occurs, and as a consequence, the lack of a strong application of metal particles to the diamond surface limits progress in this field. At the same time, diamond is a very interesting material as a substrate, because it has many unique properties, such as extreme chemical, mechanical, and radiation resistance, as well as high thermal conductivity and optical transparency [18].

In order to produce a certain degree of surface roughness, different etching procedures are used. The most effective are oxygen [19,20,21] or hydrogen [22] plasma treatment and contact etching by metals in a solid state [23,24,25,26,27,28]. These treatments produce numerous etching pits, thus forming a cavernous surface on the diamond. Recent experiments demonstrated that even synthetic HPHT (high-pressure high-temperature) diamond single crystals can become a porous substrate through catalytic hydrogenation [26]. A new, interesting example of a porous diamond is HPHT diamond synthesis in metal melt, obtained by varying the growing medium [29]. Our recently obtained results as well demonstrated the growth of HPHT diamonds with numerous caverns which were formed by the presence of solid components in the metal melt [30], as predicted earlier [31]. It is worth noting that several kinds of diamond materials are available today: natural crystals extracted from kimberlite deposits, several types of synthetic diamond produced by HPHT and Chemical Vapour Deposition (CVD) technologies, and synthetic detonation diamonds. The majority of experiments are carried out with synthetic diamond varieties, while studies of the etching of natural diamond by modern techniques are less common. However, this remains relevant not only for the industrial application of natural diamond but also for understanding the conditions of formation of rare types of natural diamond. An example is the impact diamond from the Popigai astrobleme (Russia) [32], and its variety “Yakutite” [33]. The surface of impact diamonds most often includes complex microrelief elements while their genesis is not yet clarified. It should be added that the diamond resources at impact locations such as the Popigai deposit are enormous, estimated at 140 billion carats with an average grade of 23.23 carats per ton [34], though their use is very limited now. The present paper reports the results of catalytic hydrogenation of natural diamond crystals and their detailed characterization, aiming to obtain a highly porous surface of natural diamond and to compare the surface micromorphology with that of diamond crystals from the Popigai astrobleme.

2. Materials and Methods

As a sample material, we selected two natural flat-shaped diamond crystals of octahedral habit (samples PA-1-19 and PA-2-19). Both diamonds were colorless crystals, about 2 mm in size. They were free of internal fractures, inclusions, or other visible imperfections. Natural diamond crystals of the Popigai astrobleme were selected from the collection of V.S. Sobolev Institute of geology and mineralogy SB RAS. The transparent crystals were characterized. A detailed study of the physical properties of such diamonds was performed earlier [35,36].

The photoluminescence patterns for the samples were obtained by UV excitation of 365 nm from a 120 W mercury lamp. The absorption spectra were recorded using a Fourier-transform Infralum 801 spectrometer. Calibration of the absorption spectra was made by taking the proper absorption in the diamond lattice at the point 2000 cm⁻¹ equal to 12.31 cm⁻¹ [37]. The absorption spectra in the one-phonon region of the spectrum were decomposed into individual A and B components. The concentration of impurity nitrogen in the form of A centers (a pair of substitution nitrogen atoms in adjacent positions in the diamond lattice) and B centers (nitrogen vacancy complex N₄V) were estimated using the following formulas:

N_A (ppm) = 17.5 µ₁₂₈₂ (cm⁻¹)

in Reference [38] and

N_B (ppm) = 35 µ₁₁₇₅ (cm⁻¹)

in Reference [39].

Here N_A and N_B are nitrogen concentrations in ppm, whereas μ₁₂₈₂ and μ₁₁₇₅ are the absorption coefficients in the characteristic absorption bands. Estimated concentrations of nitrogen in the form of A and B-centers are the following:

Diamond PA-1-19: N_A = 438 ppm, N_B = 140 ppm;

Diamond PA-2-19: N_A = 613 ppm, N_B = 280 ppm.

In order to produce a porous surface, catalytic hydrogenation was carried out using a laboratory-made high-temperature water-cooled microfurnace according to the state assignment of the Institute of Geology and Mineralogy SB RAS. Fe particles were used as an etchant, and the procedure is described in our earlier publications [24,40,41,42]. Hydrogenation is a chemical reaction between molecular hydrogen (H₂) and another compound (in particular graphite or diamond), usually in the presence of a catalyst such as Fe, Co, Ni, Pt, Pd. The process is commonly employed to reduce or saturate organic compounds (methane and other hydrocarbons). This process generally involves four steps: (1) diamond dissolution and incorporation of carbon atoms into the surface layer of the metallic catalyst, (2) carbon diffusion in the bulk of the metal, (3) gasification of the carbon dissolved in the metal via the formation of gaseous hydrocarbons, and (4) the removal of the gaseous carbon-containing compounds from the reaction zone [43,44,45]. The mechanism of catalytic hydrogenation of diamond is influenced by the diamond structure (crystallographic orientation of the faces on which the etching occurs), as well as the presence of defects in the form of dislocations, and the size of the catalyst particles [46,47]. After etching, the diamond crystals were cleaned in a mixture of HCl and HNO₃ to remove the metal, as well as in an oxidative mixture consisting of 10% aqueous solution of K₂Cr₂O₇ and concentrated H₂SO₄ at a ratio of 1:3. This is a conventional procedure to remove graphite and organic compounds, whereas diamond is not oxidized [48].

The diamond surface was examined in CKP “Nanostruktury” (Novosibirsk, Russia) using a scanning electron microscope (LEO 1430 and 1540 XB Crossbeam, Zeiss, Stuttgart, Germany) and laser confocal microscope (LSM 800 MAT, Zeiss, Tokyo, Japan). The confocal microscopy images were obtained using a 405 nm laser and the pinhole was set to 1 Airy unit. The topology image of the etching area was obtained by stitching 4 × 4 tile dataset with 50 z-stacks per tile, the tile grid had a 10% overlap between neighboring tiles in the XY plane. The topology image of single caverns was obtained from the z-stack confocal image with 150 slices. Surface topology analysis was carried out by using ConfoMap (Zeiss, Jena, Germany).

3. Results

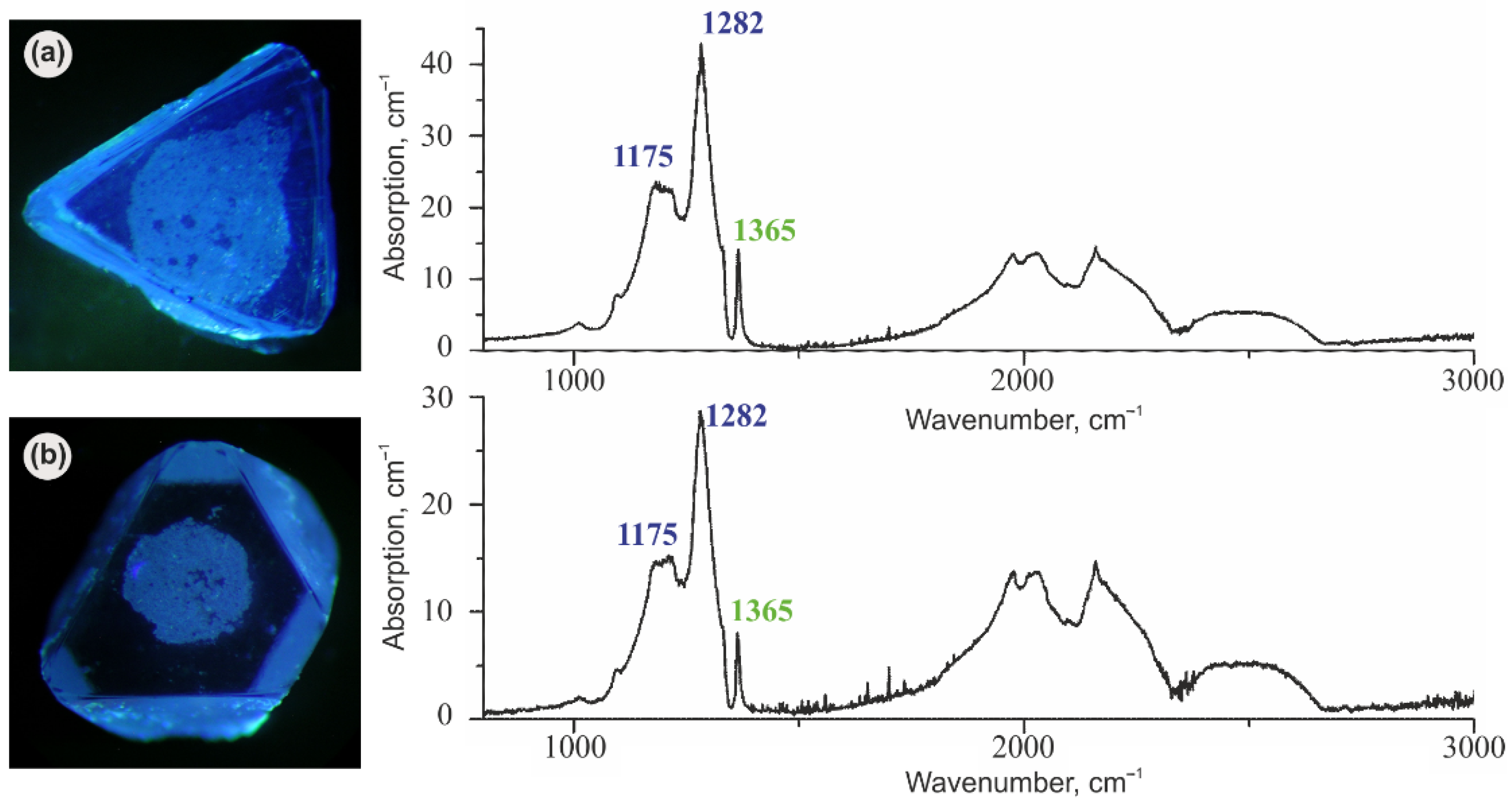

In Figure 1 the photoluminescence patterns for the crystals PA-1-19 and PA-2-19 obtained by UV excitation of 365 nm from a 120 W mercury lamp are given: these are (a) and (b) sections, respectively. On the right, the optical absorption spectra in the mid-IR range for the corresponding crystals are shown. The spectra demonstrate the characteristic absorption of the diamond lattice in the range 1800–2800 cm⁻¹. In the one-phonon region, intense absorption of nitrogen centers A and B is seen with major maxima of about 1282 and 1175 cm⁻¹, respectively.

In the absorption spectra shown in Figure 1, there is also a fairly intense line (8 to 14 cm⁻¹) of about 1365 cm⁻¹ associated with lamellar structural defects (platelets or B’ centers) in diamonds. Thus, these crystals are characterized as Ia-type diamonds in frames of the physical classification [49]. As seen in Figure 1 diamonds are dominated by blue photoluminescence, uniformly distributed in the volume of the samples. Such a blue luminescence pattern is common for most natural kimberlite diamonds. The luminescence spectrum is dominated by a vibronic N3 system with the zero-phonon line at 415.2 nm. This system is associated with the complicated nitrogen-vacancy complex N₃V, where N is nitrogen and V is vacancy [37]. There are several excellent reviews of diamond spectroscopy [37,50,51,52], and a very nice color chart [53].

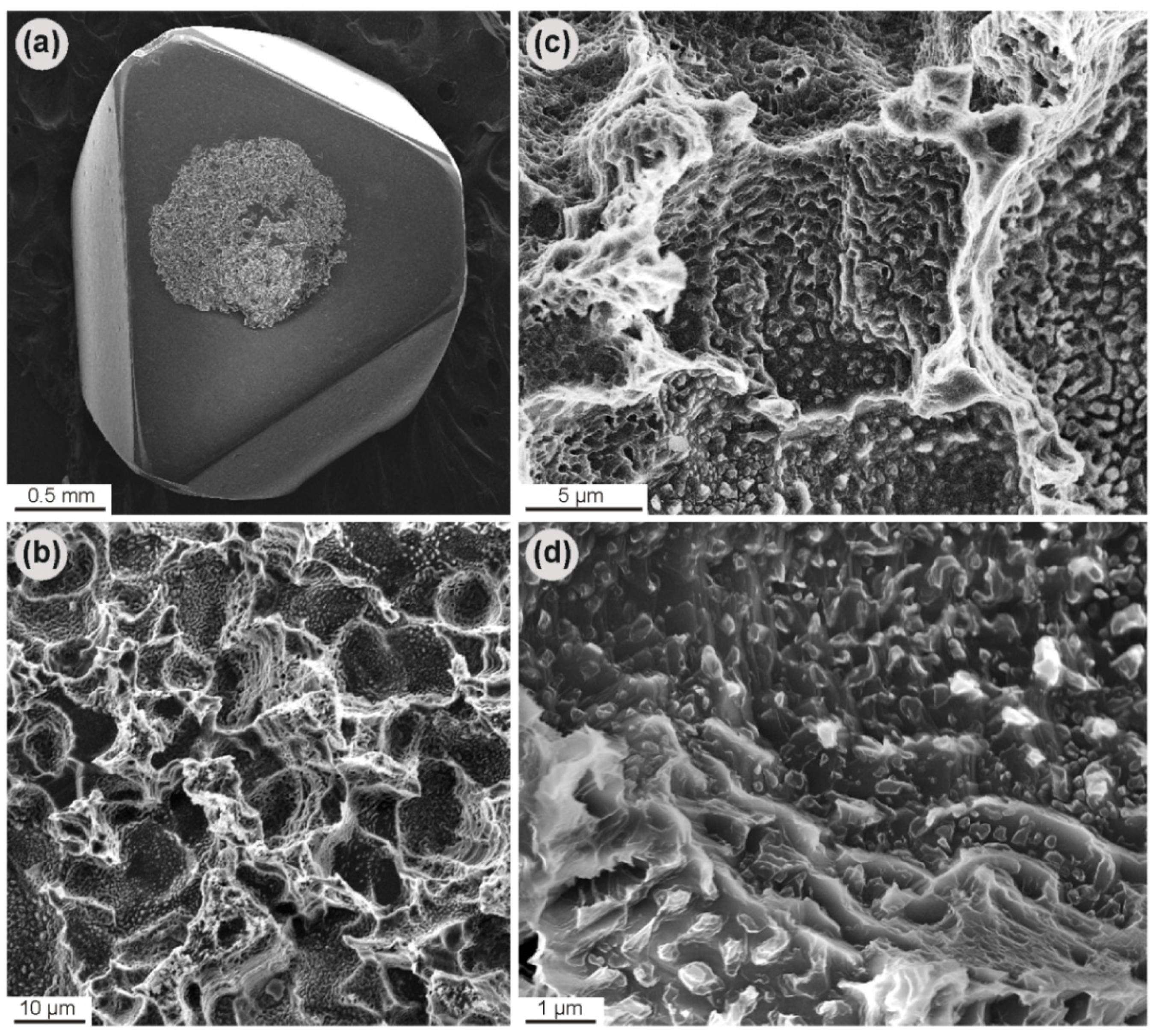

After the etching of the diamond crystals by Fe particles, their surface became roughly cavernous throughout the area where the reagent was applied (Figure 2a). The procedure produced etching of a normal type, perpendicular to the diamond face (Figure 2b). We found no tangential-type of etching, which is characterized by channels parallel to diamond faces [24,46]. The microrelief consisted of numerous etching pits and caverns of a pseudo-rounded shape; the width of such individual caverns was in most cases about 10 μm (Figure 2b,c). A detailed study of the micromorphology of the caverns confirmed they contained smaller relief elements: the walls of each cavern consisted of numerous etching pits and hillocks thus forming a highly porous surface even within a single cavern (Figure 2c,d).

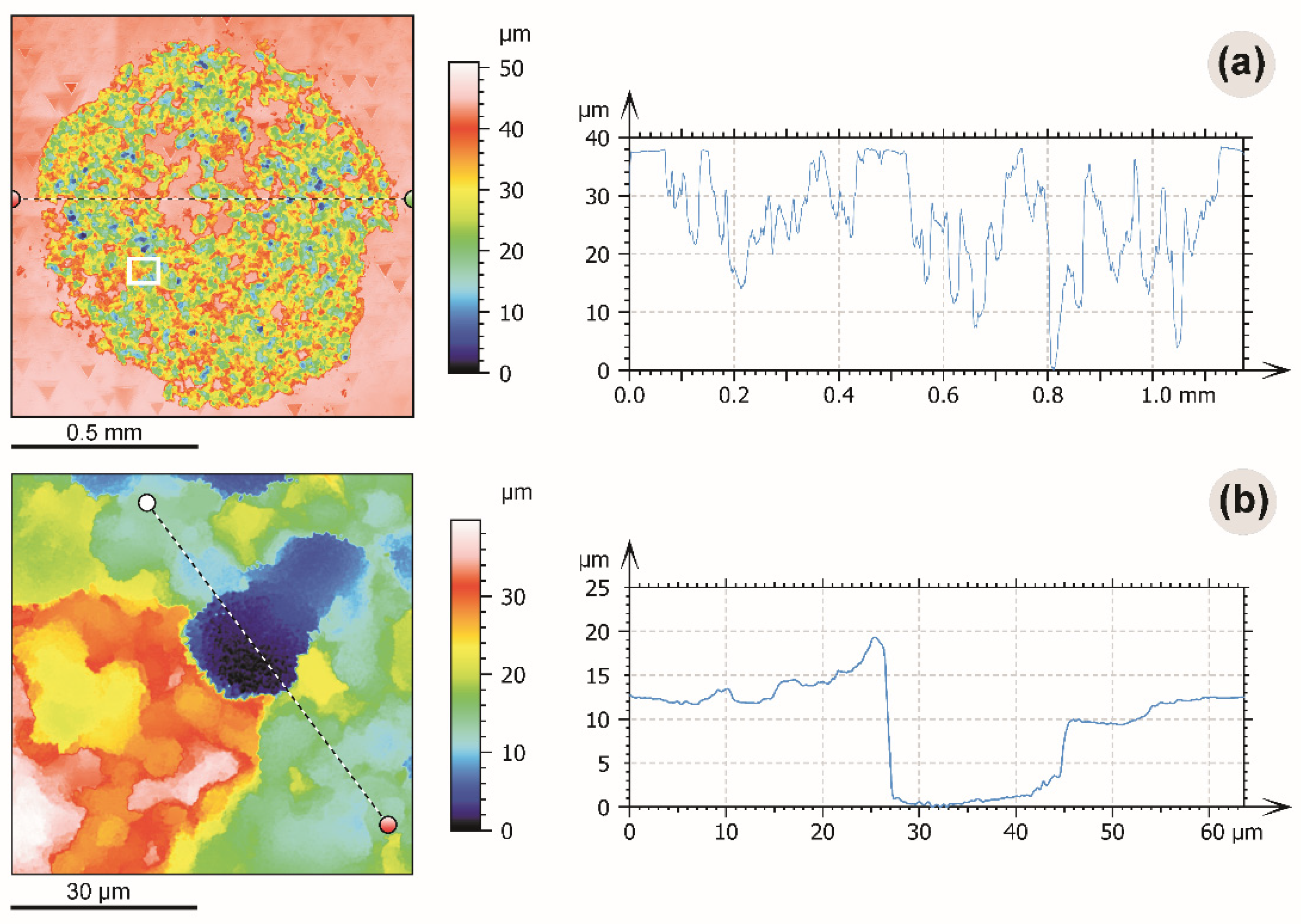

The average depth of caverns in most cases did not exceed 20–25 μm with a maximal depth reaching 40 μm (Figure 3a). The caverns have almost vertical walls (Figure 3b).

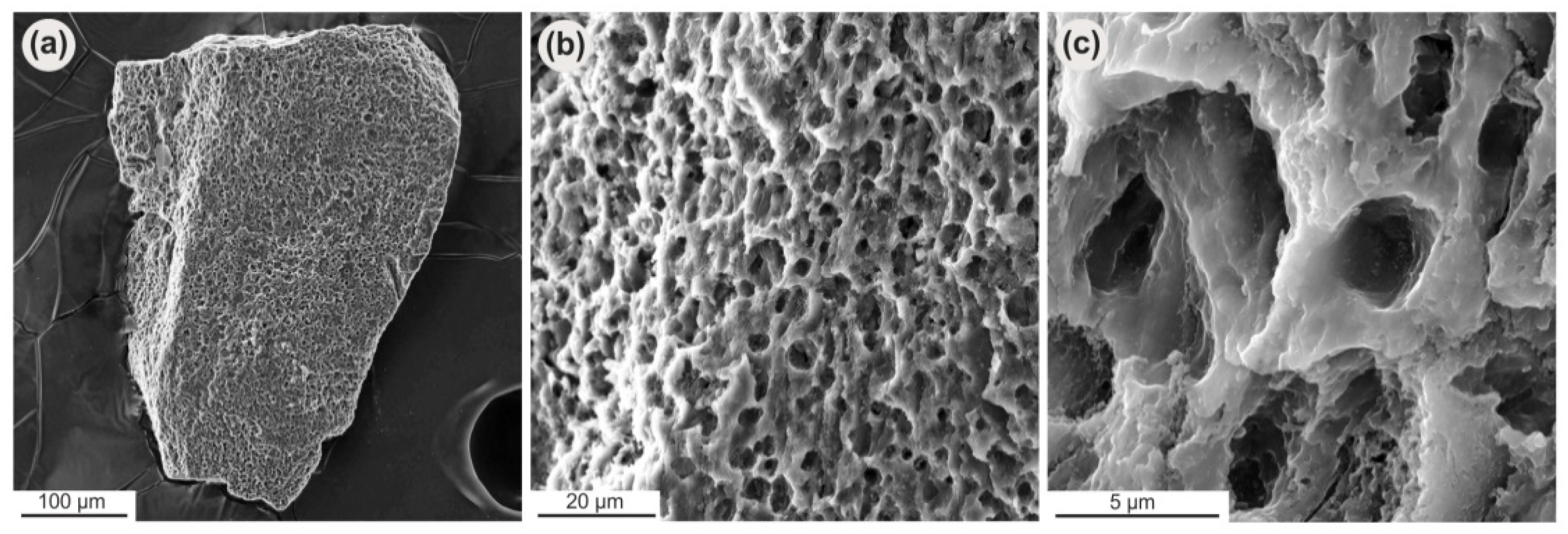

The selected natural impact diamonds were typical small grains without facets (Figure 4a). They show a porous surface that covers almost the whole crystal (Figure 4b). The porosity consists of oval or irregular-shaped caverns (Figure 4c).

4. Discussion

In this study, we aimed to perform etching and characterization of the surface of a natural diamond. In order to treat the crystals, we used hydrogenation by Fe particles. This technique has already demonstrated high etching rates on other diamond types [24,40,41,42], while the distribution of metal particles on the diamond and the characteristics of the etched surface depend mainly upon the method of preparation of the etchant [47]. Our recent study on synthetic diamond crystals confirmed that the size of the pits can be decreased significantly [26]. In the present experiment, we used a similar procedure, but a natural diamond was the sample material. It is worth noting that the porous surface obtained after the removal of Fe particles in acids consisted completely of diamond. As a result, the etching occurred perpendicular only to the crystal surface, but the caverns obtained were larger (Figure 2 and Figure 3). They had a depth of up to 40 μm (Figure 3) which means the depth of Fe particles penetration into the diamond. It is important to add that for the present experiment we selected the most common type Ia nitrogen-containing diamonds which make up about 99% of all natural diamonds mined worldwide [54]. The selected crystals were very similar to each other from a physical point of view, as they contained almost the same total amount of nitrogen, which concentrates mainly in the form of A-centers. Both crystals had typical blue luminescence (Figure 1).

The larger size of the caverns is probably a result of the presence of numerous dislocations in these natural crystals. This is supported by the presence of triangular-shaped etching pits of a natural origin (Figure 3a) and is considered the main reason natural kimberlite diamonds are easily etched by the thermochemical process [40]. In addition, it can be suggested that the etching of common synthetic HPHT diamond forms smaller caverns since it contains fewer dislocations. As a result, its etched surface consists of smaller elements [26]. The mechanism was discussed in detail and compared the etching relief with that of an as-grown HPHT diamond. In the present study, each cavern wall consisted of numerous smaller relief elements (Figure 2), which are probably a result of etching by tiny individual Fe nanoparticles of a submicron size. This submicroscopic relief expanded in all directions within the cavern. Therefore, it can be concluded that porous natural diamond etched by hydrogenation can be used in composites or as a substrate material.

Not much information is available in the literature about surface etching of impact diamond, which is another kind of natural diamond. This variety consists of a combination of cubic and hexagonal carbon and thus contains more structural defects [35,55]. Its surface microrelief also includes specific microsculptures [36] which are a vivid example of porous diamond (Figure 4). The surface of thermochemically etched crystals from the present experiment demonstrated similar relief elements to those found on impact diamond crystals from the Popigai astrobleme; small oval or irregular-shape caverns with numerous smaller relief elements within (Figure 3).

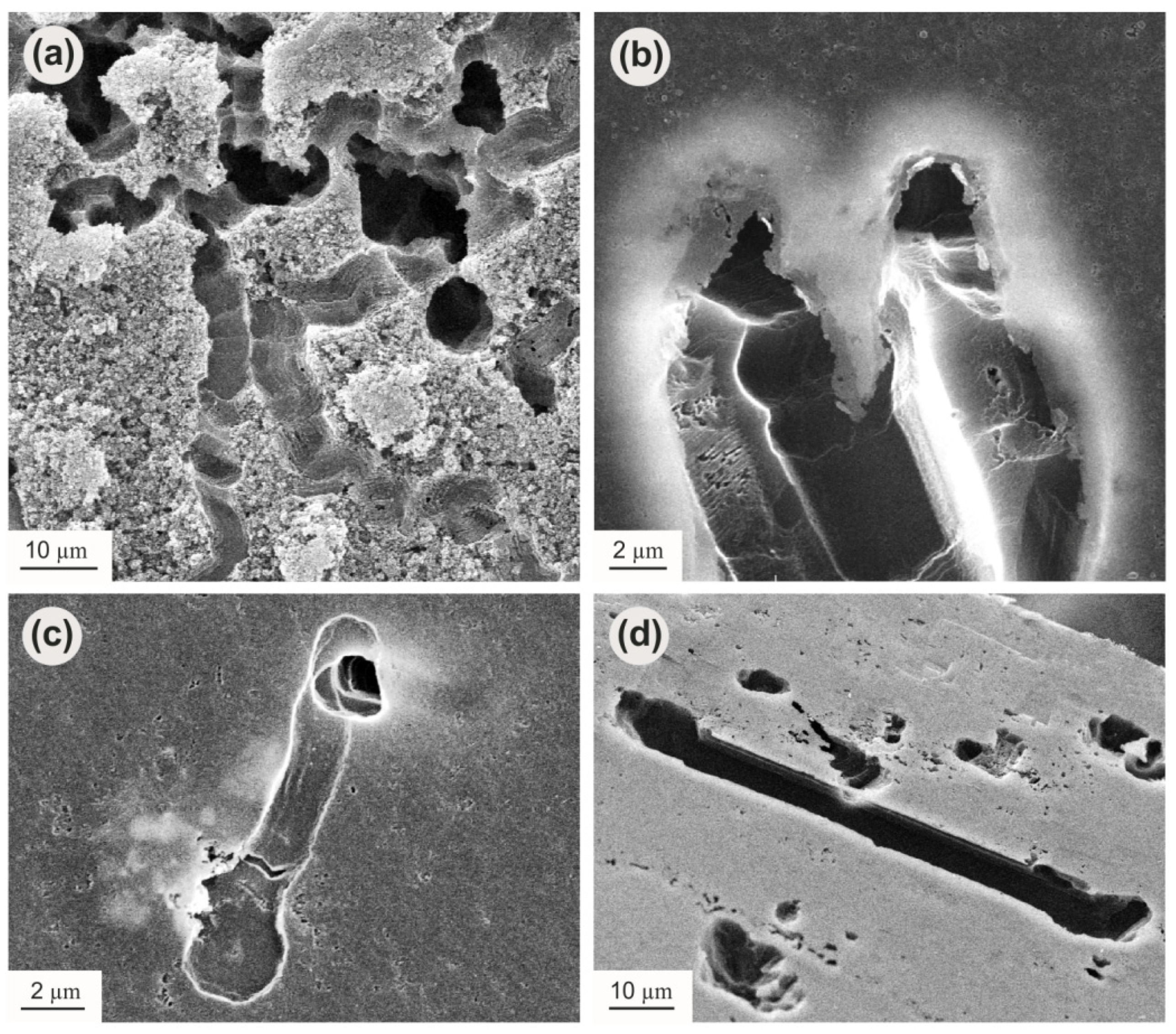

Elemental carbon (graphite or diamond) is a strong reducing agent at a normal pressure (0.1 MPa), capable of reducing Fe from silicate and oxide phases [56]. Such conditions could have existed after the impact event in the heated rocks of the Popigai crater. As a result, iron particles may have appeared on the surface of impact diamond crystals. Spherules of Ni-Fe have been found in the impact tuffisites of the Popigai crater [57], indicating a highly reduced environment. Metallica iron particles were also identified in rocks of the Janisjärvi impact crater in Karelia (Russia). Furthermore, specific linear or fan-like channels up to several microns wide, as well as numerous tube-shaped tunnels [58] and round or irregular etching pits were observed on the surface of impact diamonds from that crater. Similar textures were reported for diamonds from the Ries [59,60] and Popigai [61] impact craters. At high magnification, the channels have a flat bottomed U-shape that is a typical result of migration of metallic particles over the surface during catalytic hydrogenation of diamond. It should be noted that, along with the oxidation process, the C-O-H system equilibrated with diamond (graphite) can experience a Fe- or Ni-catalyzing hydrogenation in the presence of molecular hydrogen. As a result, the micrometer sized iron particles can produce etching channels along the crystal surface [24], as well as tunnels [40,42], as shown in Figure 5.

It is widely accepted that most natural diamonds are etched by H₂O or CO₂ fluids, and the main elements produced are rounded surfaces with striation and numerous etching pits in the form of triangles [62]. In the case of impact diamonds, such features are also observed, and it is supposed these diamonds remained at a high P-T for some time after the impact event. The environment was likely a complex heterogeneous system consisting of melt, solid components, and fluid. However, many impact diamonds have a porous surface. Therefore, it can be suggested that the similar appearance of porous surfaces of thermochemically treated diamonds and impact diamonds from the Popigai astrobleme could be attributed to the effect of metallic agents in the form of micro- or nano-sized objects.

5. Conclusions

A porous surface of diamond was investigated. First, natural crystals were selected and characterized. Second, their surface was etched by catalytic hydrogenation using Fe particles as an etchant. The result was a porous surface throughout the area where the reagent was applied. The etching occurred perpendicular to the crystal surface, with no signs of a tangential etching, and consisted of caverns with a maximal depth of 40 μm. It is concluded that the porous natural diamond treated by catalytic hydrogenation can be used in composites or as a substrate material. Additionally, the microsculptures obtained were compared with those of natural impact diamond crystals from the Popigai astrobleme. Both diamond types had a strong resemblance in their microrelief elements, indicating a similar mechanism of etching. These findings give new insight into the problem of the post-growth history of impact diamonds, and their industrial uses.
