Simulation and Analysis of Microring Electric Field Sensor Based on a Lithium Niobate-on-Insulator

Abstract

With the increasing sensitivity and accuracy of contemporary high-performance electronic information systems to electromagnetic energy, they are also very vulnerable to be damaged by high-energy electromagnetic fields. In this work, an all-dielectric electromagnetic field sensor is proposed based on a microring resonator structure. The sensor is designed to work at 35 GHz RF field using a lithium niobate-on-insulator (LNOI) material system. The 2.5-D variational finite difference time domain (varFDTD) and finite difference eigenmode (FDE) methods are utilized to analyze the single-mode condition, bending loss, as well as the transmission loss to achieve optimized waveguide dimensions. In order to obtain higher sensitivity, the quality factor (Q-factor) of the microring resonator is optimized to be 10⁶ with the total ring circumference of 3766.59 μm. The lithium niobate layer is adopted in z-cut direction to utilize TM mode in the proposed all-dielectric electric field sensor, and with the help of the periodically poled lithium niobate (PPLN) technology, the electro-optic (EO) tunability of the device is enhanced to 48 pm·μm/V.

1. Introduction

As a key component of modern photonic integrated circuits, microring resonator (MRR) shows great performance in filtering [1,2], sensing [3,4,5,6], ultra-fast electro-optic modulation (EOM) [7,8,9,10], optical frequency comb generation [11,12] and wavelength division multiplexing [13] due to its unique characteristics such as wavelength selection, compact structure and high quality factor (Q-factor). In the past decades, various material systems of MRR structures have been investigated for opto-electric applications, including graphene [14,15], silicon (Si) [16,17,18], indium phosphide (InP) [19], polymer [20] and lithium niobate [8,10,21]. Among these materials, Si and InP structures rely on plasma dispersion effect and quantum-confined Stark effect, respectively, which are not suitable for ultra-high-speed data transmission purposes. For graphene, the technical difficulty lies in the separation of monolayer structure and limitation for mass production [15], which makes it hard for commercialization. In addition, although the EO polymer has high EO coefficient, the thermal instability might cause the material decrease gradually with time. Lithium niobate (LiNbO₃, LN) is a synthetic material with excellent electro-optic, acoustic-optic, nonlinear-optic properties and good transmittance in the near-infrared band [22]. Lithium niobate-on-insulator (LNOI) has been developed as the platform for a variety of waveguide structures, such as LN waveguide [8,23,24], proton-exchange waveguide [25] and strip-loaded waveguide [26]. Due to the high electro-optic coefficient (γ₃₃ = 31 pm/V) and large refractive index (n_e = 2.138 and n_o = 2.21 at 1550 nm), lithium niobate-based EOM devices have been developed rapidly in recent years. In addition, several hybrid waveguide modulators have been proposed, such as Si-LiNbO₃ [9], Si₃N₄-LiNbO₃ [27]. However, as the RI of Si-Si₃N₄ is higher than or close to LN, the proportion of optical modes in LN will be decreased, reducing the interaction between electric and optical field, lowering the overall EO modulation efficiency of the device. In order to fabricate LN structure directly from the thin film, a series of work has been carried out to process this hard-to-etch material, and to date, ultra-low-loss LiNbO₃ waveguide has been proved to be as low as 2.7 dB/m [24,28].

With the miniaturization of electronic devices, the maximum voltage they can withstand is constantly reduced, which makes them very vulnerable to damage by high electromagnetic energy; therefore, several all-dielectric receivers based on bulk LN crystals have been investigated [29,30]. They use all dielectric antenna to receive the RF electric field in space, and then amplify by dielectric resonant antenna (DRA) resonance and utilize a LN disc resonator to modulate the optical field. However, this bulk structure is not conducive for integration. Another all-dielectric microring electric field sensor device proposed by Chen et al. using Si₃N₄-LiNbO₃ heterostructure has shown the ability for the detection of electric field of 1.86 GHz [3]. However, due to the small proportion of light which can propagate in the LN layer, it will lead to a lower EO overlap factor, giving rise to lower sensitivity of the device.

In this paper, LNOI structure is used as an EO platform to analyze the single-mode conditions, transmission loss, optical power distribution in LN, cladding thickness and finally determine the waveguide size, so that it has high EO overlap factor and low transmission loss. After strict theoretical calculation and software simulation, the design of microring electric field sensor which works at 35 GHz can be achieved. In order to avoid the phenomenon that net modulation is zero, a traditional receiving front end adopts the method of adjusting the distribution of resonant electrodes [31]. There are also proposed electrode-free front-ends to avoid zero modulation by exposing half of the receiving unit to the electric field [29,30]. However, neither of these two methods makes full use of the electro-optical performance of the RF receiving unit. Unlike any traditional methods, PPLN technology is introduced in this design. It makes full use of the electro-optical characteristics of the entire microring and improves the electro-optical tuneability to 48 pm·μm/V. Compared with the traditional electro-optic modulator with electrodes, the designed microring sensor does not involve any metal structure, which is able to avoid serious damages caused by external high-energy electromagnetic field.

2. Structure

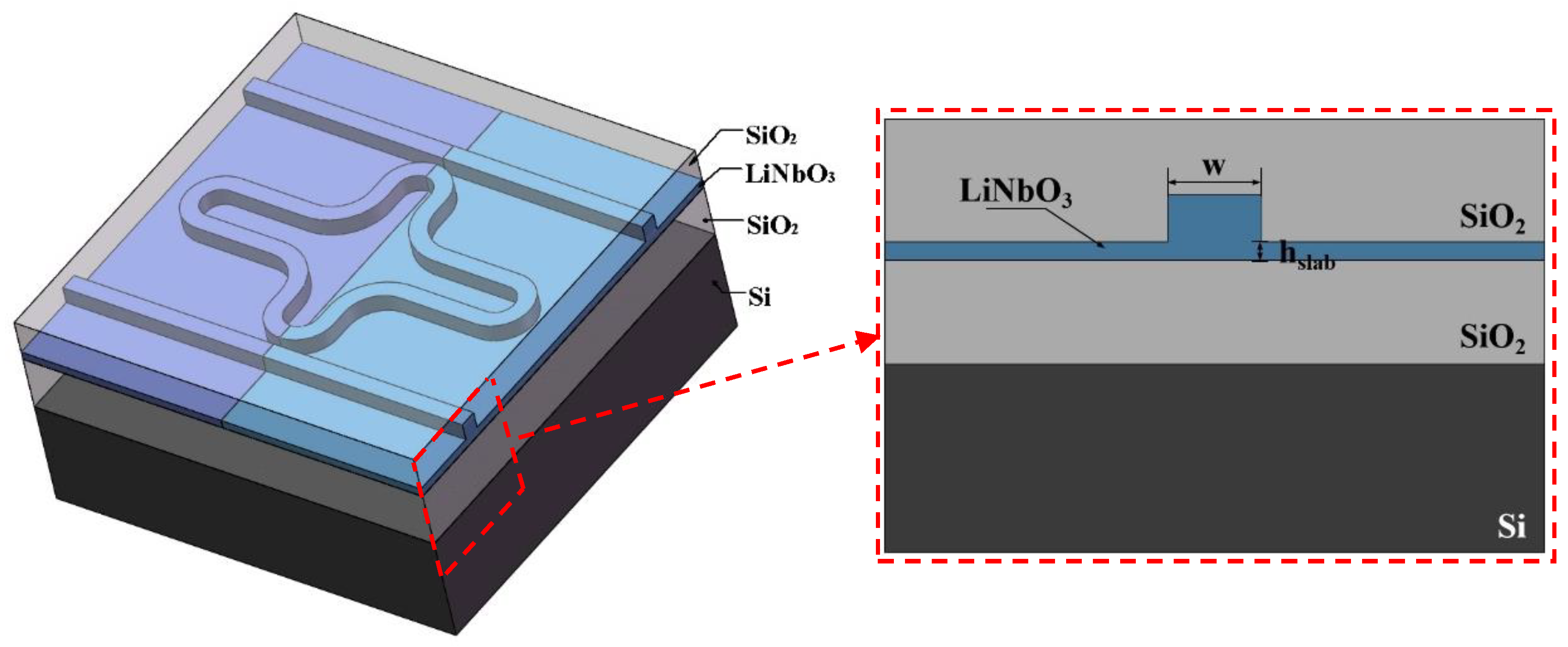

The structure of the proposed device is illustrated in Figure 1. In this design, Si is used as the bottom substrate with a 2 μm thick SiO₂ layer on top as the lower cladding. A layer of z-cut lithium niobate film is selected as the core layer of the waveguide whose refractive index can vary with applied electric field. A layer of SiO₂ is covered on top of the whole device as a protection layer. The resonator is designed as an add-drop structure, the light satisfying the resonance condition oscillates continuously in the ring and interacting with the external electric field, thus realizing the efficient electro-optical modulation.

The variational finite difference time domain (varFDTD) method as a new solution for solving complex Maxwell equations can efficiently model microring resonators and have better time efficiency compared with 3-D FDTD. Finite difference eigenmode (FDE) is considered to be the most effective way to analyze mode distribution and calculate bending loss. In both cases, rectangular Cartesian grids are used to divide the waveguide geometry, and perfectly matched layer (PML) is used as the boundary condition. In order to ensure the accuracy of the results, the grid density is increased in the region with large refractive index change.

3. Results and Discussion

In this work, a 1550 nm laser is adopted as carrier wave. At this wavelength, the extraordinary and ordinary refractive indices of LN are n_e = 2.138 and n_o = 2.211 [32], respectively, and the refractive index of SiO₂ is 1.444. The waveguide structure has a strong restriction on light energy due to the high-refractive-index difference (>0.7) of LNOI. The parameters of 600 nm LNOI film, which is used as the basic platform for the design, comes from NANOLN company (Jinan, China). To ensure that the signal will not decay due to modal dispersion, the single-mode condition in the waveguide should be satisfied. Firstly, the effect of the LN slab thickness on the effective refractive index n_eff is calculated, as shown in Figure 2a. With h_TE-slab < 0.5 μm and h_TM-slab < 0.6 μm, the transverse electric (TE) and transverse magnetic (TM) modes can be realized in the vertical direction for single-mode transmission, respectively. Figure 2b shows the bending loss corresponding to different LN slab thickness with fixed 0.8 μm waveguide width and 100 μm bending radius. It can be found that the reduction in the thickness of the slab area can lead to enhanced waveguide mode confinement and reduced bending loss; however, at the same time it can also cause difficulty in coupling between waveguides. In order to obtain the same coupling efficiency, the coupling distance gap is usually small, which requires complex fabrication procedures for the etching of the LN films. Figure 2c shows the results of the previous analysis, where it can be found that the coupling efficiency gradually descends with decreasing h_slab. By considering both the low-loss transmission in the waveguide and the effective coupling between waveguides, a thickness of 0.22 μm of the slab area of LN layer is eventually chosen to achieve better optical carrier transmission characteristics.

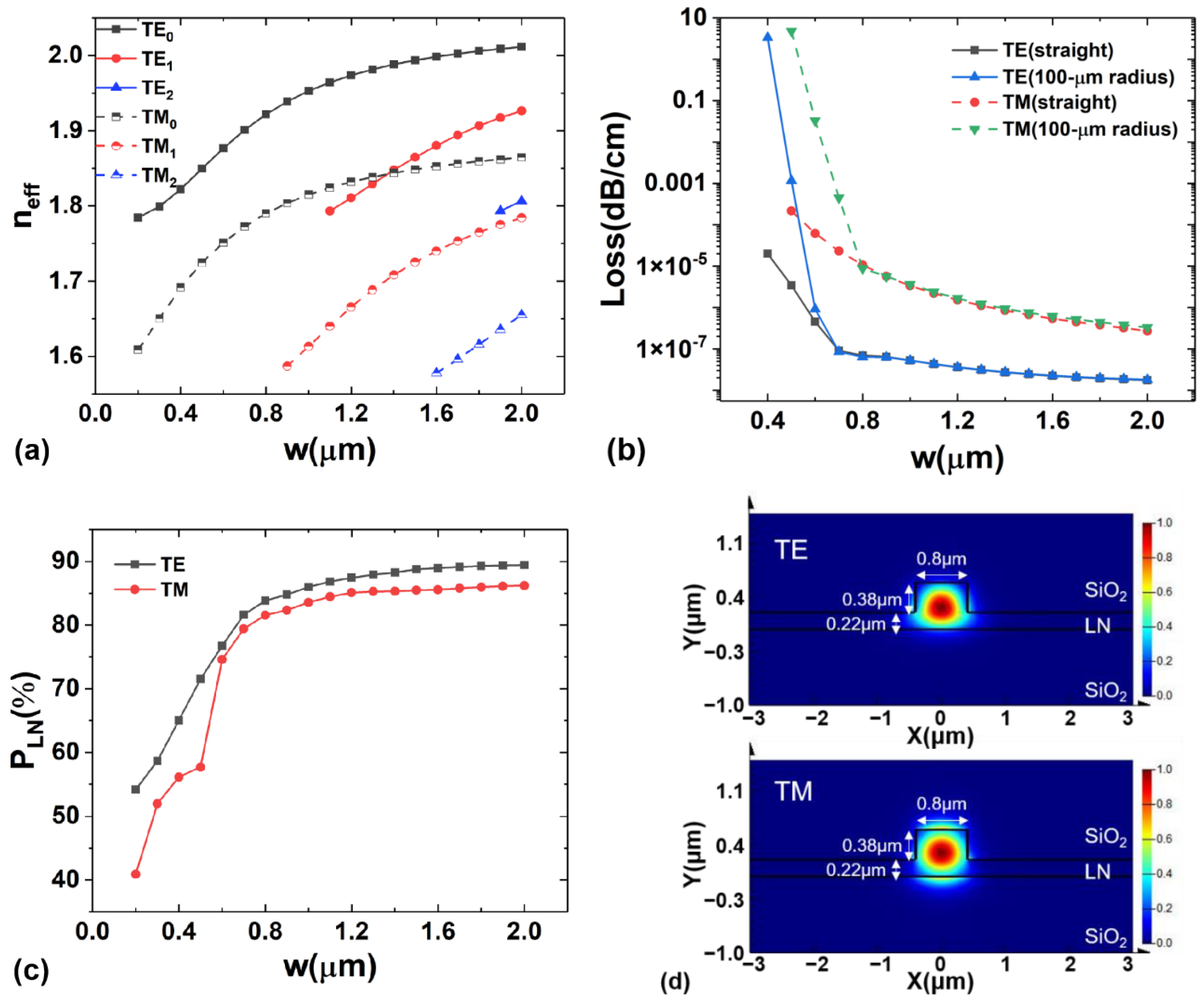

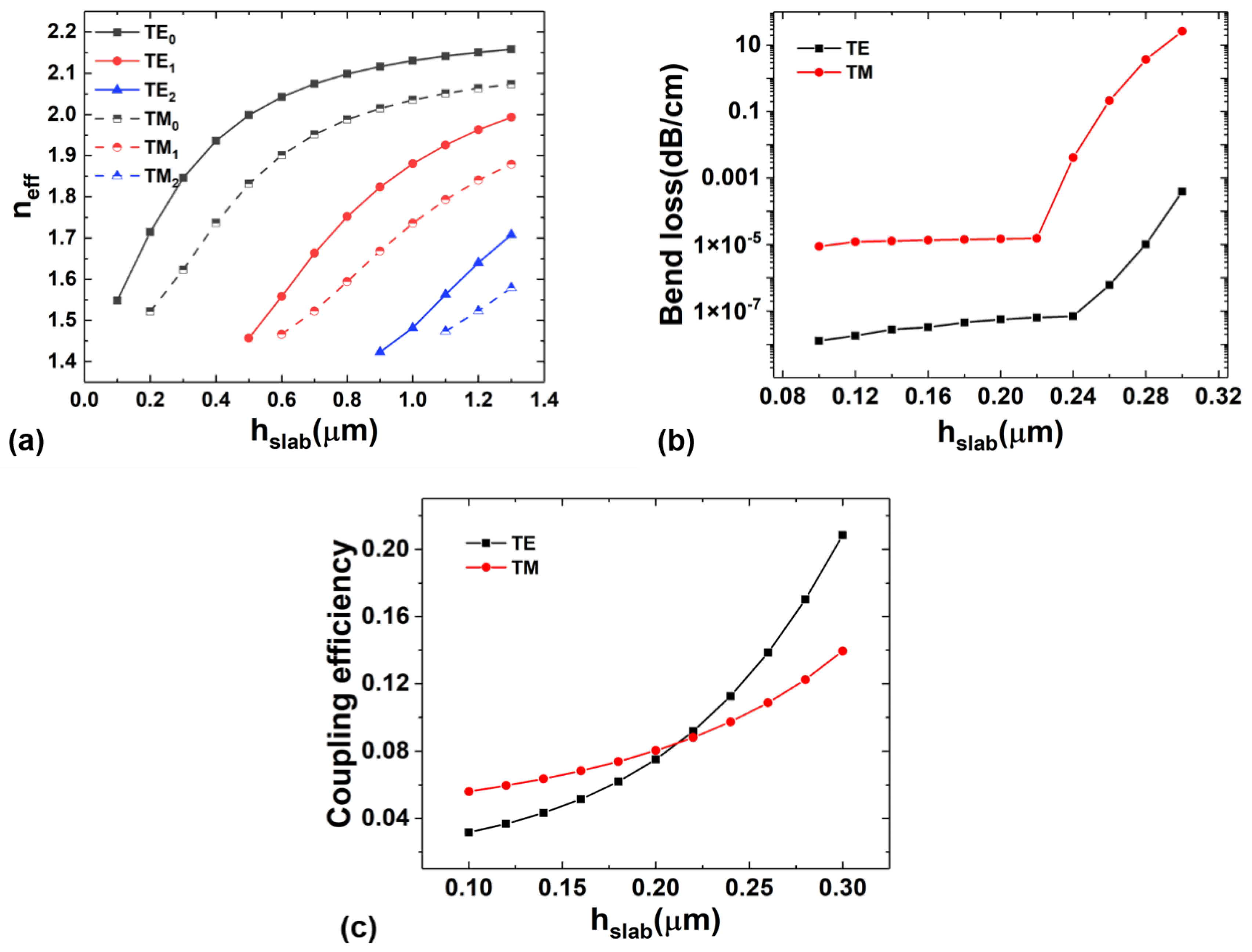

The thickness of the LN slab area is fixed at 0.22 μm, and the dependence of the effective refractive index on the ridge waveguide width w is shown in Figure 3a. The effective refractive index increases with increasing width of the waveguide, generating higher-order of waveguide modes. For TE and TM, the single-mode and multi-mode critical values appear near w = 1.1 μm and 0.9 μm, respectively. Therefore, it is necessary to select w smaller than the critical value to satisfy the single-mode condition. At the same time, since the transmission loss and the optical power in the lithium niobate showed a positive trend with the increase of w, it is necessary to choose a larger w so that the waveguide has low transmission loss and high mode confinement, as shown in Figure 3b. The higher the ratio of optical power in lithium niobate P_LN is, the larger the photo-electric overlap factor is, resulting in the greater electro-optical modulation efficiency of the device [26], as shown in Figure 3c. By weighing the relationship between the parameters, the waveguide width is determined to be 0.8 μm, and more than 80% of optical power is confined in LN waveguide area. Therefore, the TE and TM optical mode-field profile of the finally designed LiNbO₃ ridge waveguide are obtained as shown in Figure 3d. It can be seen that this structure has good capability of modal constraint. For z-cut LN film, TE and TM mode accesses electro-optic coefficients γ₁₃ = 8 pm/V and γ₃₃ = 31 pm/V, respectively [33], so we choose 1550 nm TM polarized light as the carrier. In this case, the effective refractive index n_eff = 1.78596, group refractive index n_g = 2.27407, transmission loss can be calculated as 1.06670 × 10⁻⁵ dB/cm, and the optical power in lithium niobate P_LN = 81%.

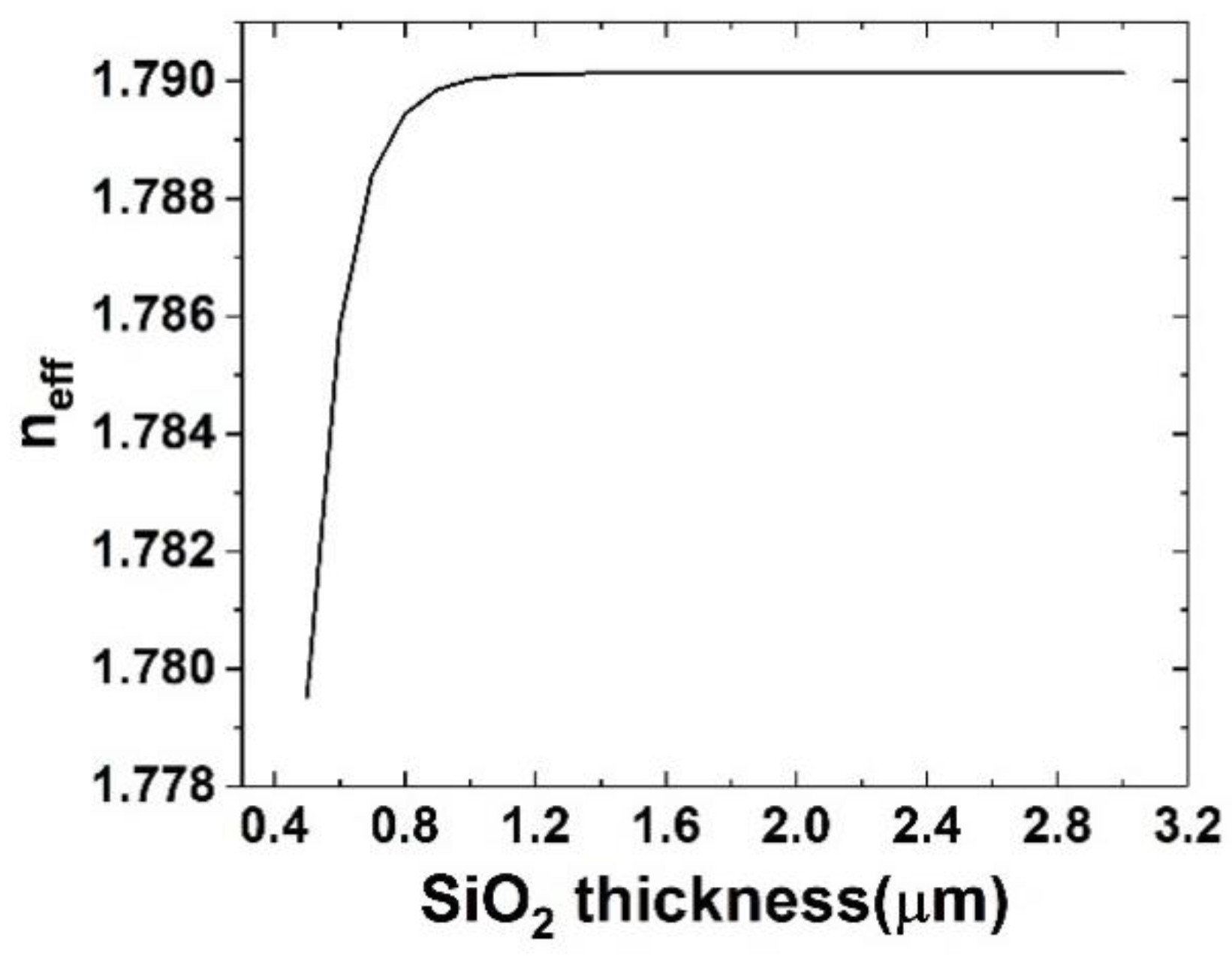

In order to prevent external dust, humidity and other pollutants from changing the effective refractive index of the waveguide and thus affecting the performance of the microring, an upper cladding layer of SiO₂ is adopted on top of the LN film as the protection layer to increase the stability of the device. The effect of SiO₂ thickness on the effective refractive index is also simulated, as shown in Figure 4. When the SiO₂ thickness is more than 1 μm, n_eff tends to be stable, therefore, the thickness of SiO₂ protection layer is set to be 3 μm.

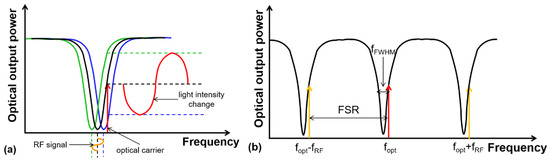

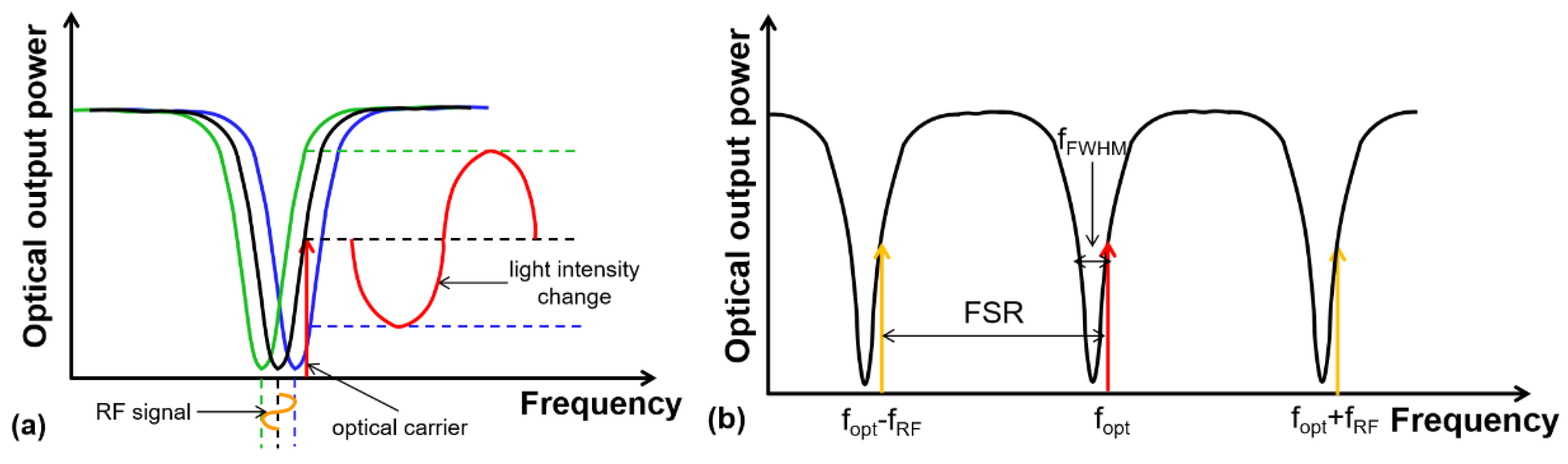

As the radio frequency field is incident on the LNOI microring resonator, the output light intensity will change with the RF field intensity, as shown in Figure 5a. For better detection sensitivity, the input light needs to be set at the maximum slope of the resonance peak, so that even if the received RF signal is very weak, the modulated light intensity can still have a large variation. Figure 5b shows that when f_RF = f_FSR, RF modulation can be achieved as long as the modulation sidebands are located in the adjacent resonances.

The free spectrum range (FSR) of the LN waveguide microring resonator is also analyzed. FSR represents the distance between two adjacent resonance peaks, which can be expressed as:

$$f_{FSR}=\frac{{\lambda }^2}{L·n_g},$$

(1)

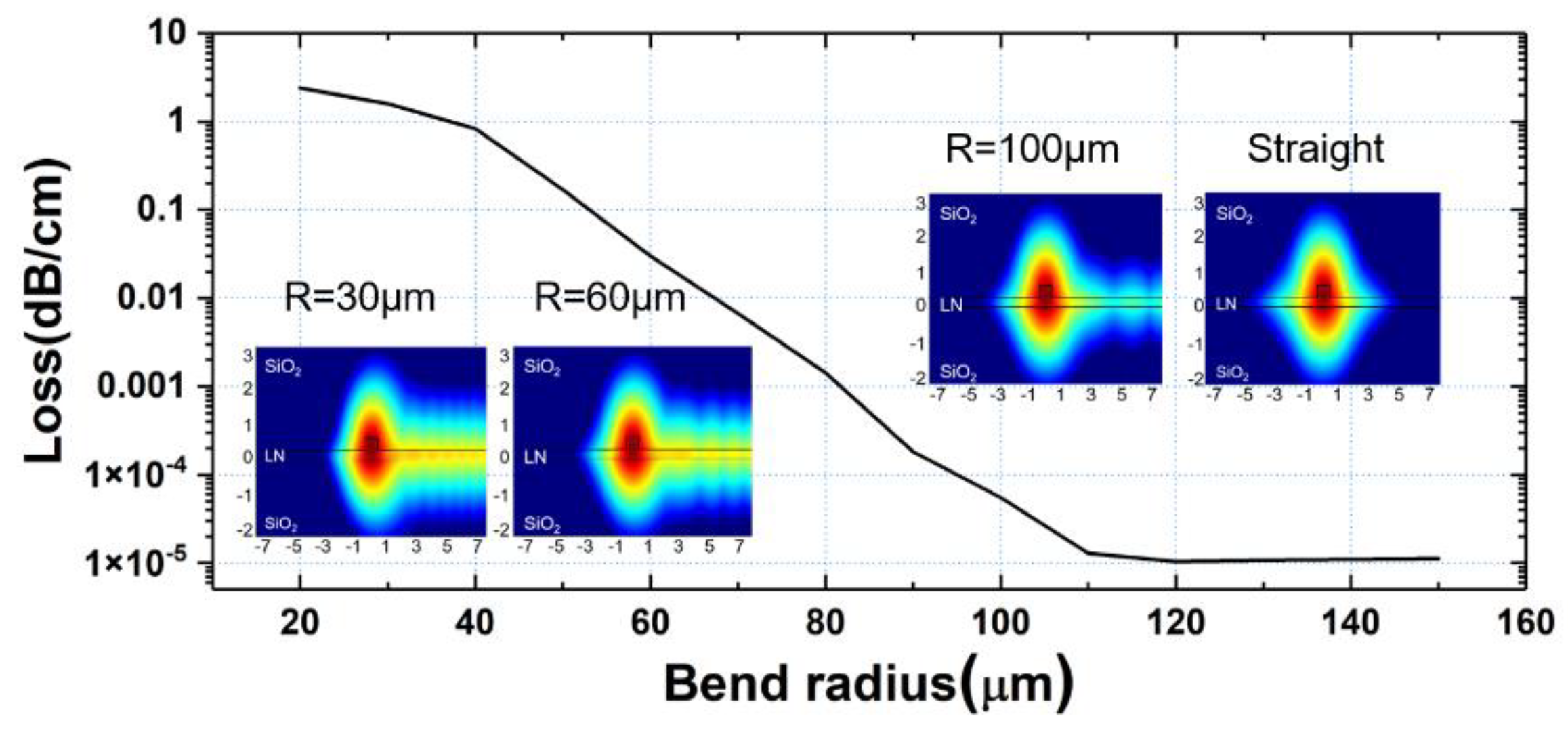

where L is the circumference of the microring, n_g is the group refractive index and λ is the optical carrier wavelength. For the radio frequency at 35 GHz, the calculated perimeter L = 3766.59 μm. In order to concentrate the electric field on the microring, special design is needed for the shape of the microring, as shown in Figure 1. It has several arcs with small bending radii and several straight lines. The bending loss of the structure is simulated, as shown in Figure 6. In order to show the influence of the bending radius R on the optical mode field distribution more intuitively, the logarithmic mode profile corresponding to R = 30 μm, 60 μm, 100 μm and straight waveguide is simulated. With the increasing of bending radius, the symmetry of the profile becomes better and closer to the case of straight waveguide. When the bending radius is greater than 100 μm, the loss tends to be flat and close to the straight waveguide loss. Therefore, the bending radius of 100 μm is finally selected.

As another important parameter of the microring, quality factor Q indicates the ability of the microring to store photons. As for a RF receiver, Q-factor can reflect the interaction between the carrier light wave and the incident RF electric field, where a high Q value means sharper resonance peaks, which can lead to longer lifetime of the photon in the ring and further generate strong interactions between the light field, enhancing the electric field, which ultimately make a higher sensitivity of the receiver. The value of Q can be expressed as:

$$Q=\frac{\pi n_{g}L}{\lambda }\frac{\sqrt{A\left(1-{\kappa }^2\right)}}{1-A\left(1-{\kappa }^2\right)},$$

(2)

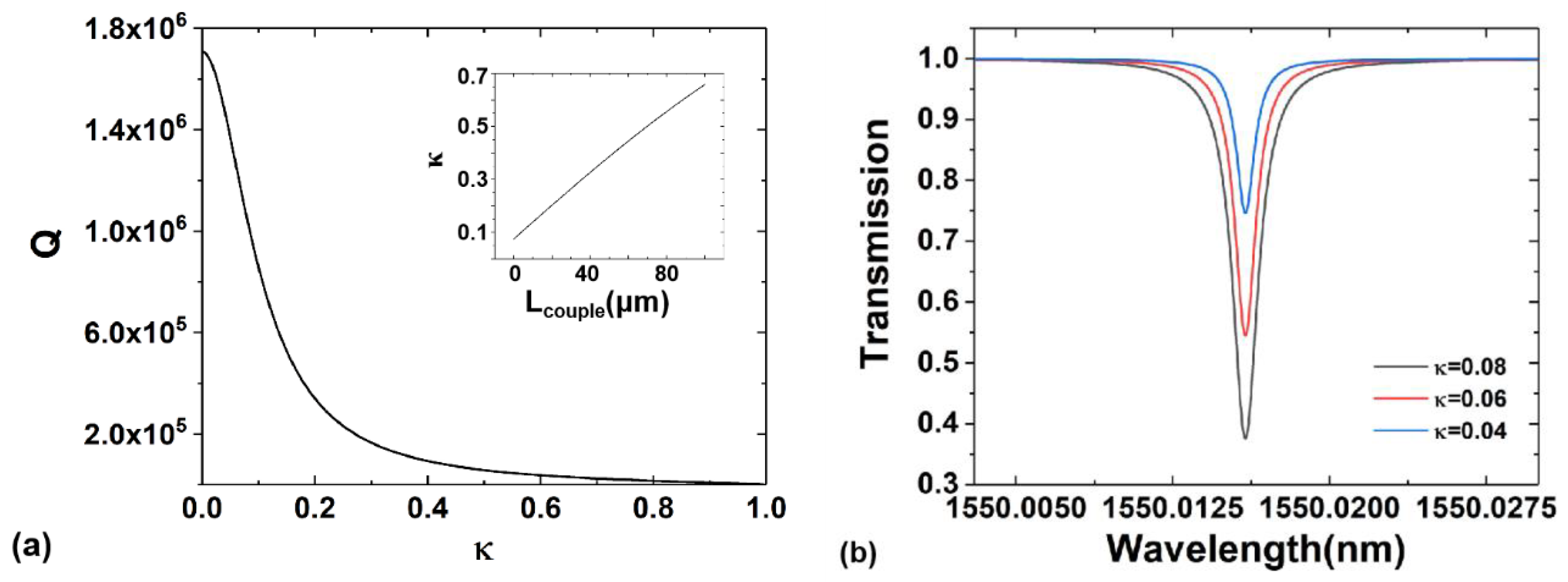

where A = exp(−αL) is the loss coefficient, α is the transmission loss of the waveguide and κ is the coupling coefficient. For the device design, the transmission loss is set to be 2.7 dB/m [24] which is the minimum loss value that can be achieved by the current processing technology, and the relationship between quality factor Q and coupling coefficient κ can be analyzed, see Figure 7a. In the case of fixed gap, the length of coupling region L_couple is directly affected by the value of κ. As the coupling coefficient increased, Q showed a downward trend. To obtain a high-quality-factor, a smaller coupling coefficient should be selected, but this is at the cost of decreasing extinction ratio, as shown in Figure 7b. As the coupling coefficient is set to be κ = 0.08, the corresponding Q-factor is calculated to be around 10⁶, and the coupling length L_couple = 0.7 μm.

After the analysis and design mentioned above, the parameters of each part of the microring have been determined. It should be noted that when the modulated electric field is uniformly distributed on the microring, zero modulation phenomenon will occur [34], and the phase change of photons moving around in the ring is represented by [29]:

$$\Delta \phi =-\frac{\pi n_{eff}^3{\gamma }_{33}{E}_{z}L\Gamma }{\lambda },$$

(3)

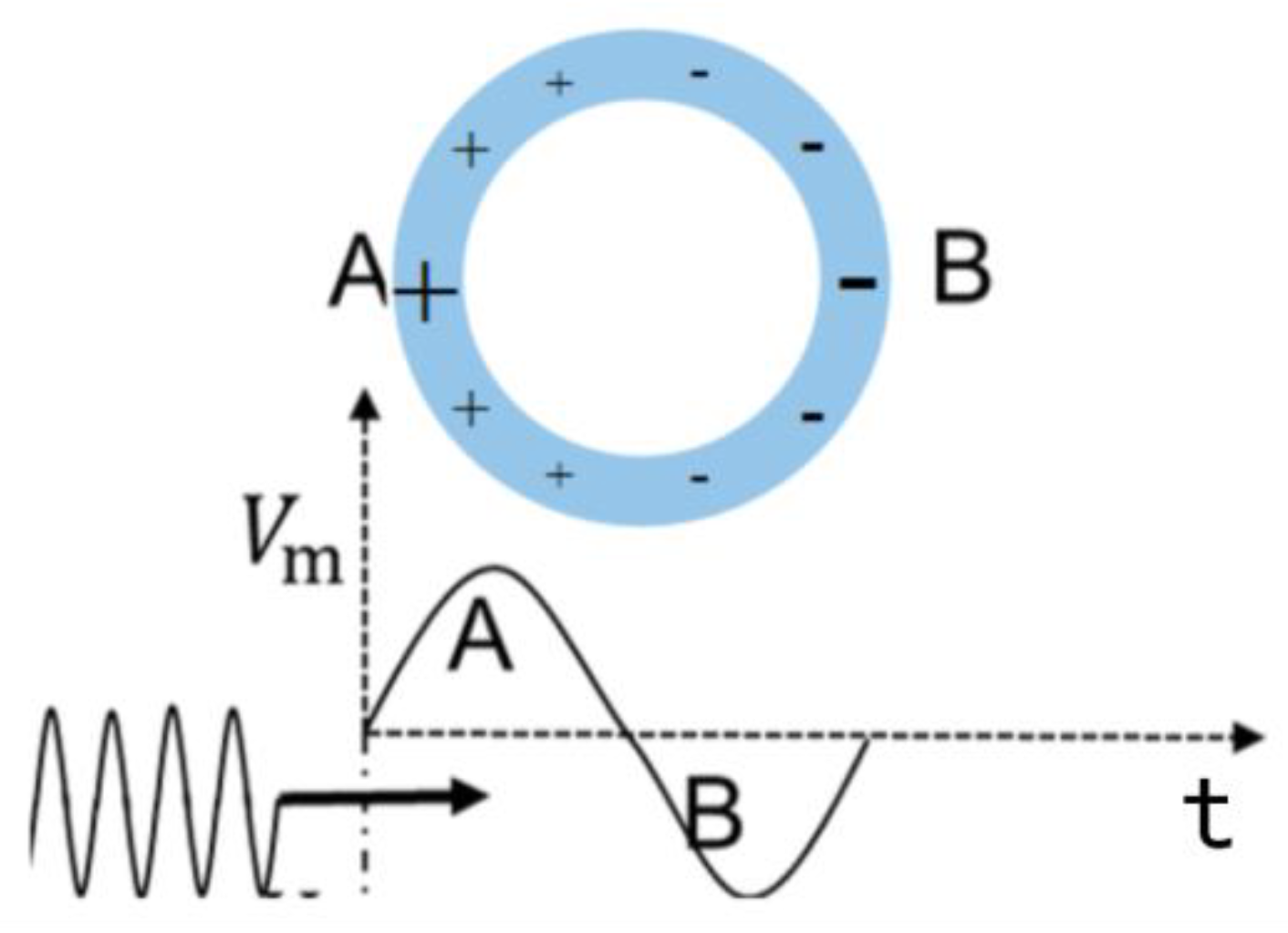

where E_z is the z-component of the electric with the direction perpendicular to the device surface, and Γ is the electro-optic overlap factor. Since f_FSR = f_RF, the time for the photon to travel a week in the ring is exactly equal to the time for the RF electric field to change for one cycle, resulting in zero phase change, as shown in Figure 8. In this work, a PPLN thin film is introduced to have the left and right parts of the microring polarized with opposite directions, so that the maximum electro-optic modulation efficiency can be achieved. When a vertical electric field is applied to the surface of the chip, the modulated effective refractive index of the waveguide can be given by [35]:

$$n_{eff}=n_{eff0}-\frac{n_{eff0}^3{\gamma }_{33}{E}_z\Gamma }{2},$$

(4)

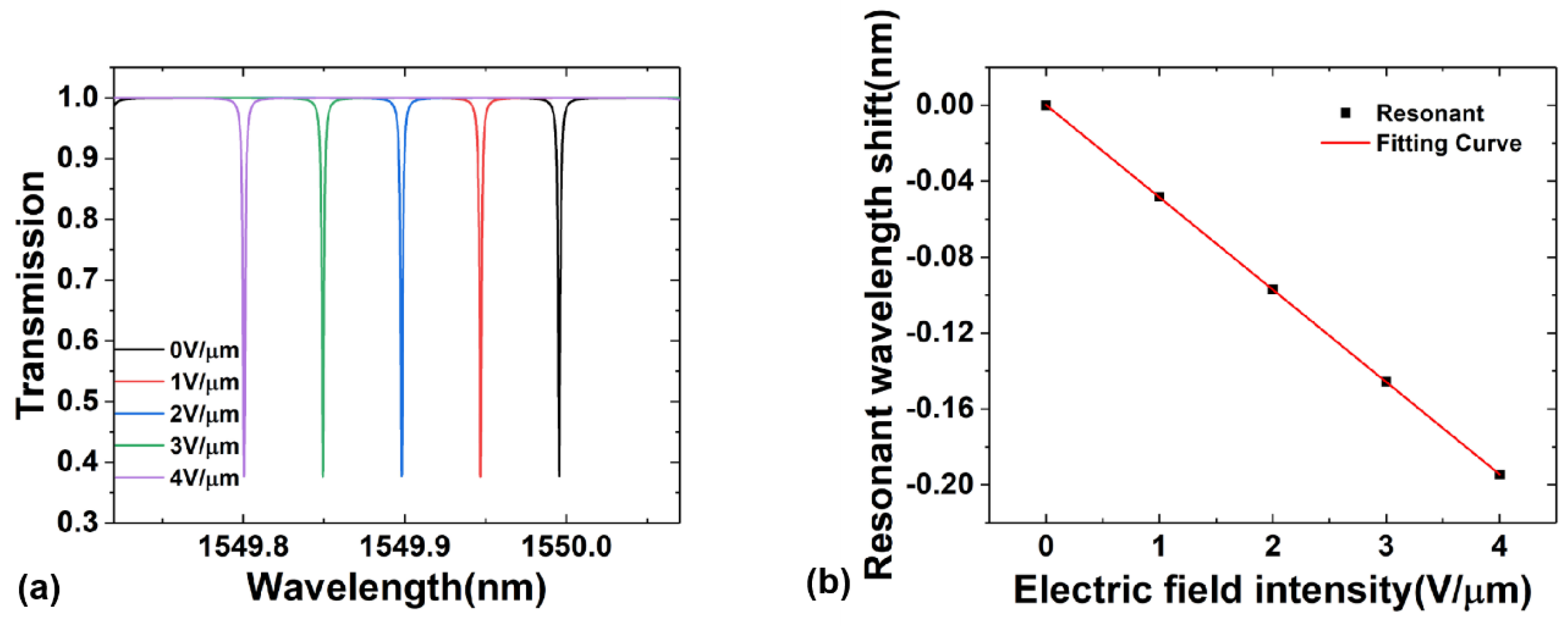

where n_eff0 is the effective refractive index of waveguide without electric field. The simulation is performed using the following parameters: γ₃₃ = 31 pm/V, n_eff0 = 1.78596, Γ = 0.81. To observe the electro-optic effect, assuming that the applied electric field is uniform, the drift of the resonance peak near 1550 nm is investigated at different electric field intensities of 0 V/μm, 1 V/μm, 2 V/μm, 3 V/μm and 4 V/μm, respectively, as shown in Figure 9a,b, the electro-optical tunability of the RF receiver can be determined as 48 pm·μm/V, which is comparable to that of the structure with electrodes [36,37].

4. Conclusions

In conclusion, a microring-based electrode-free radio frequency receiver is designed using varFDTD and FDE solution methods, operating at 35 GHz RF electric field. Key parameters such as the coupling length of single-mode conditional transmission loss are analyzed and calculated. The Q-factor of the resonator is up to 10⁶ and the total length of the ring is 3766.59 μm. PPLN technology is used to improve the electro-optic modulation efficiency, and the electro-optic tuneability reaches 48 pm·μm/V. This proposed device can be used with all dielectric antenna as a metal-free receiving front-end which will eliminate the weakness of traditional receivers and expect to play a key role in the field of anti-electromagnetic damage.
