Expected and Unexpected Products in Half Curcuminoid Synthesis: Crystal Structures of But-3-en-2-ones and 3-Methylcyclohex-2-enones

Abstract

The expected (E)-but-3-en-2-ones compounds I and II (half curcuminoids) were obtained by the Claisen–Schmidt reaction between aldehydes 3,4-dimethoxybenzaldehyde or 4-nitrobenzaldehyde with acetone. Concomitantly, 3-methylcyclohex-2-enones compounds III and IV arose from an unexpected reaction of but-3-en-2-ones in the cascade reaction of a Michael-type addition of a second molecule of acetone followed by Robinson annulation under strong basic conditions. Both enones exhibit the (E)-configuration, compound I displays s-trans conformation, whereas compound II exhibits conformational disorder as solid solution of s-cis and s-trans conformations. The related 3-methylcyclohex-2-enones exhibit envelope conformation. Compound III constitutes an example of the rarest case of racemic solid solution (pseudoracemate), where a lack of chiral discrimination with respect to the two enantiomers leads to an enantiomeric disorder of a racemic mixture with different occupancies at the reference site. Due to the lack of strong hydrogen-bond donors in all compounds, the crystal packing is mainly stabilized by weak intermolecular C-H···O interactions between the molecules. The present work provides a new perspective on the search for by-products normally overlooked in Claisen–Schmidt condensations.

1. Introduction

Half curcuminoids [1,2,3] are typically prepared employing the classical Claisen–Schmidt condensation using strong base catalysis [4]. The resulting product is an α,β-unsaturated ketone, usually an E-enone. However, the outcome in chalcone and half-curcuminoid reactions may vary due to several side reactions. A common reaction observed is the tandem Claisen–Schmidt condensations, leading to mono- and di-benzylidene acetone by-products (Scheme 1, Path I). The prop-2-en-1-one moiety also provides a chemically reactive function for Michael-type additions [4,5,6,7,8], leading to the formation of cyclic structures through a domino reaction [9,10] (Scheme 1, Path II) in the presence of catalysts other than a strong base. Enones and cyclohexenones are the building blocks or synthons [10,11] important in the synthesis of natural products and a wide range of biological activities have been associated with them, such as anti-inflammatory and anticancer effects [12,13]. Furthermore, they are used as food additives and in the synthesis of pheromones [14].

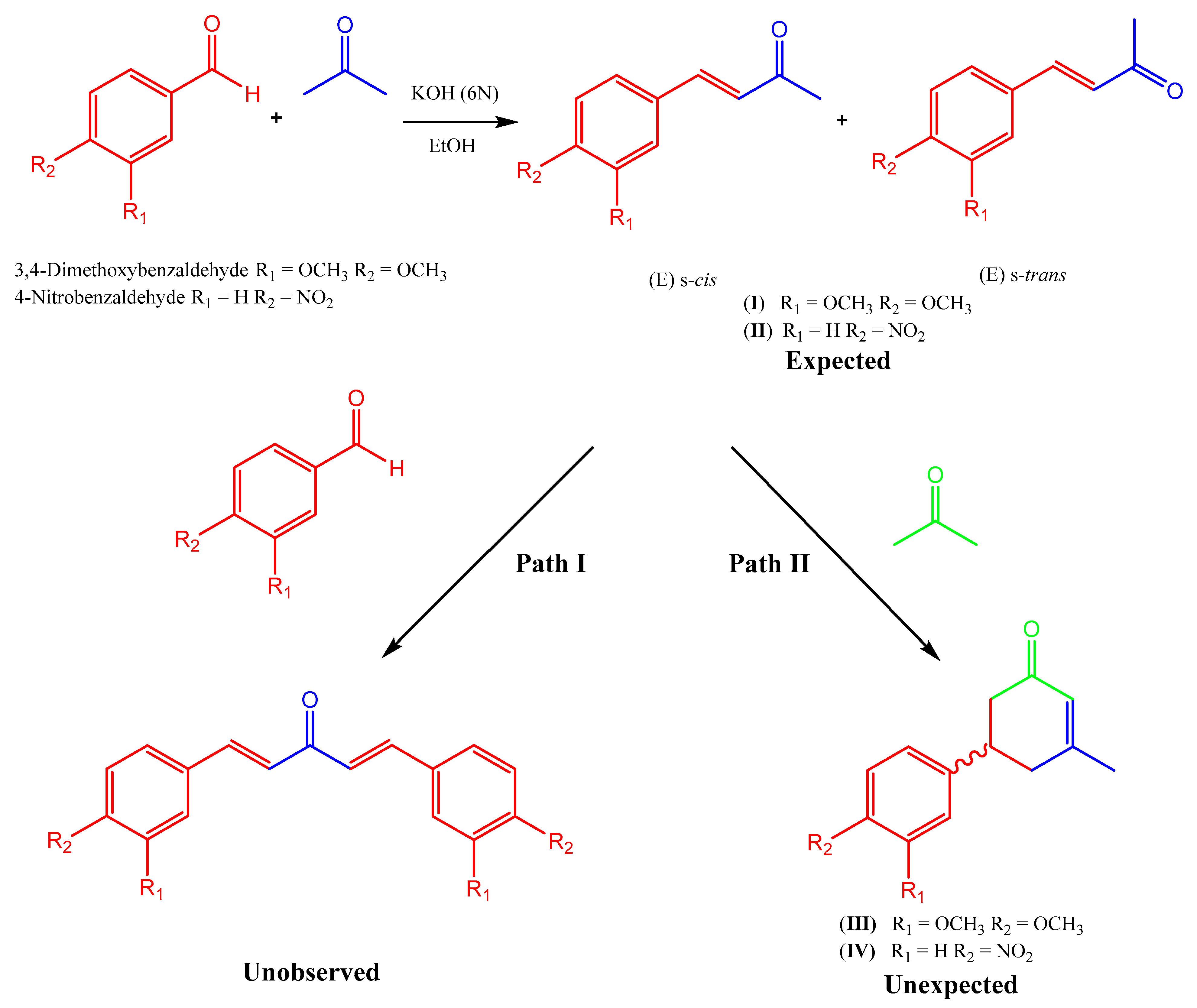

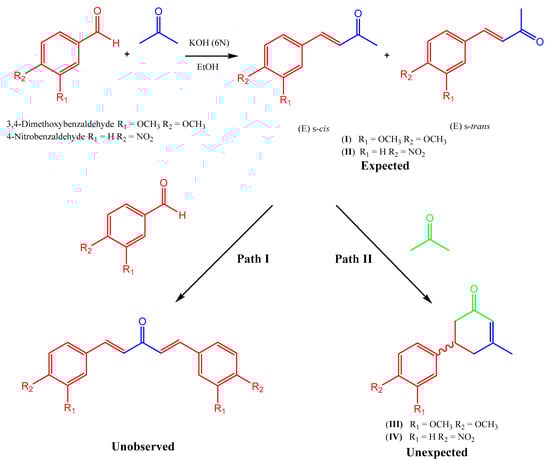

In our study, the mono Claisen–Schmidt condensation (half-curcuminoids I and II) and the cascade-like Robinson annulation products (compounds III and IV) (Scheme 1, Path II) between two substituted aromatic aldehydes and acetone catalyzed with potassium hydroxide were obtained in a one-pot mode reaction. We report herein the characterization by spectroscopic techniques (NMR ¹H, ¹³C, and IR), mass spectrometry, and X-ray diffraction of compounds I–IV.

2. Materials and Methods

All chemicals were purchased from Sigma-Aldrich. Melting points were determined on an Electrothermal IA9100 digital melting point apparatus (USA) in open capillary tubes and are uncorrected. IR absorption spectra were recorded in the 4000–400 cm⁻¹ range as KBr pellets on a Perkin Elmer 283-B spectrophotometer (USA). ¹H and ¹³C NMR spectra were recorded in CDCl₃ with a Bruker 500 MHz spectrometer (Bruker Mexicana S.A. de C. V., Mexico, CDMX) using Tetramethylsilane as an internal reference. NMR spectra were processed with MNova 12.0.0 software [15]. The Mass Spectra data were recorded on an MStation JMS-700 (JEOL Mexico S.A of C.V., México, CDMX) or Jeol SX 102A instrument, using electron ionization impact (See supplementary materials). Single-crystal X-ray diffraction was carried out using a Bruker diffractometer (Bruker Mexicana S.A. de C. V., Mexico, CDMX), model Smart Apex, or D8 Venture, equipped with Mo Kα, λ = 0.71073 Å. The data were collected and reduced using APEX and SAINT-Plus programs. The structures were solved by direct methods and non-hydrogen atoms were refined by a full-matrix least-squares procedure on F² with anisotropic temperature factors using SHELX programs [16]. The positions of all H atoms were calculated geometrically, and a riding model was used in the refinement, with C–H distances in the range of 0.93–0.97 Å and U_iso(H) = 1.2U_eq (C). As disorder was found for compounds II and III, the site occupancy factors (sof) of disordered atoms were refined, and disordered moieties were refined using distance restraints (SADI, SAME) and ADP restraints (DELU, SIMU, and ISOR). Mercury 4.2 software was used to prepare the graphs for publication [17]. The rather high R merge values and the lower than 10 ratios of observed reflections to parameters for the four structures can be attributed to a combination of crystals poorly scattering to the Mo radiation, disorder in the structures, and the almost planar conformation of compounds.

Synthesis and Crystallization

In a 250 mL round bottom flask, 250 mg of 3,4-dimethoxybenzaldehyde, 1.5 mmol; or 4-nitrobenzaldehyde, 1.65 mmol, were dissolved in 50 mL of acetone; then, 3 mL of a 6 N potassium hydroxide (KOH) solution in ethanol (EtOH) was added dropwise (Scheme 1). The reaction mixture was stirred at room temperature and monitored by Thin Layer Chromatography (TLC; silica gel 60 Å F₂₅₄ plates, Merck) eluting with hexane-ethyl acetate (7:3). After completion of the reaction (ca. 24 h), the acetone was evaporated in vacuo and the reaction mixture was poured over ice and acidulated with diluted hydrochloric acid (HCl) to pH = 5. The reaction mixture was extracted three times with EtOAc (3 × 15 mL). The combined organic extracts were dried over anhydrous Na₂SO₄, then filtered and the solvent was removed in vacuo. Finally, the crude reaction mixture was purified by column chromatography using Sigma silica gel 60 Å mesh 70–230, eluting with a gradient of hexane-ethyl acetate (7:3). Adequate crystals for X-ray studies of the four compounds were obtained by slow evaporation from ethyl acetate at room temperature.

(E)-4-(3,4-dimethoxyphenyl)but-3-en-2-one (I), white solid (217 mg, 70%), m.p. 84 °C. IR 3012-2917.01, 1664.01, 1617.06, 1592.30, 1509.52, 1420.58, 1222.80, 1159.99,1136.69, 1016.92, 975.28 cm⁻¹. ¹H NMR: δ_H (500 MHz, CDCl₃) 7.46 (d, J = 16.2 Hz, 1H), 7.13 (ddd, J = 8.3, 2.1, 0.5 Hz, 1H), 7.08 (d, J = 2.1 Hz, 1H), 6.88 (d, J = 8.3 Hz, 1H), 6.61 (d, J = 16.2 Hz, 1H), 3.92 (s, 6H), 2.37 (s, 3H).¹³C NMR: δ_C (125MHz, CDCl₃) 198.28, 151.40, 149.33, 143.73, 127.37, 125.28, 123.00, 111.14, 109.70, 56.00, 55.92, 27.35. (MS): M/z = 206.

(E)-4-(4-nitrophenyl)but-3-en-2-one (II), yellow pale solid (126 mg, 40%), m.p 106 °C. IR 3456.35, 3112.33, 2926.22, 1665.44, 1594.95, 1517.16, 1345.61, 1259.71, 1108.52, 977.24 cm⁻¹. ¹H NMR: δ_H (500 MHz, CDCl₃) 8.31–8.21 (m, 2H), 7.75–7.66 (m, 2H), 7.54 (d, J = 16.3 Hz, 1H), 6.83 (d, J = 16.3 Hz, 1H), 2.43 (s, 3H). ¹³C NMR: δ_C (125 MHz, CDCl₃) 197.49, 148.62, 140.69, 140.05, 130.40, 128.81, 124.20, 28.04. (MS): M/z 191.

5-(3,4-dimethoxyphenyl)-3-methylcyclohex-2-enone (III), yellow solid (92 mg, 25%), m.p. 89 °C. IR 2916.80, 2836.63, 1657.54, 1590.17, 1512.54, 1590.17, 1512.61, 1245.13, 1139.33, 1021.15 cm⁻¹. ¹H NMR: δ_H (500 MHz, CDCl₃) 6.86–6.83 (m, 1H), 6.79 (ddd, J = 8.2, 2.1, 0.6 Hz, 1H), 6.76–6.75 (m, 1H), 5.97 (m, 1H), 3.88 (s, 3H), 3.87 (s, 3H), 3.32–3.23 (m, 1H), 2.64 (ddt, J = 16.2, 3.7, 0.7 Hz, 1H), 2.56–2.49 (m, 3H), 2.01 (dt, J = 1.4, 0.8 Hz, 3H).¹³C NMR: δ_C (125 MHz, CDCl₃) 199.09, 161.57, 149.08, 147.97, 136.05, 126.53, 118.45, 111.43, 110.18, 55.97, 55.92, 44.19, 40.40, 39.23, 24.34. (MS): M/z = 246.

3-methyl-5-(4-nitrophenyl)cyclohex-2-enone (IV), pale yellow solid (75 mg, 20%), m.p. 120 °C. IR 3425.99, 2939.55, 1660.39, 1600.31, 1518.1, 1344.17, 1107.30 cm⁻¹. ¹H NMR: δ_H (500 MHz, CDCl₃) δ 8.28–8.17 (m, 2H), 7.50–7.39 (m, 2H), 6.08–5.96 (m, 1H), 3.64–3.39 (m, 1H), 2.73–2.63 (m, 1H), 2.63–2.52 (m, 3H), 2.04 (dd, J = 1.4, 0.8 Hz, 3H).¹³C NMR: δ_C (125MHz, CDCl₃) 197.61, 160.81, 150.52, 147.00, 127.70, 126.74, 124.09, 43.20, 40.55, 38.25, 24.32. (MS): M/z = 231.

3. Results

The geometry of the molecules of compounds I–IV are shown in Figure 1, Figure 2, Figure 3 and Figure 4, respectively, and they are in agreement with analogous structures reported in the literature. Refinement parameters are show in

Table 1. Experimental details.

Compound	I	II	III	IV
Crystal system	Monoclinic	Monoclinic	Monoclinic	Monoclinic
Unit cell parameters [Å,°]	a = 9.6000(7) b = 5.3426(4) c = 22.353(2) β = 97.307(2)	a = 7.4561(4) b = 7.2591(4) c = 17.7744(10) β = 94.505(2)	a = 13.0205(10) b = 8.0494(6) c = 14.1040(11) β = 114.852(2)	a = 4.9301(18) b = 23.652(9) c = 10.014(4) β = 97.692(12)
Volume [Å3]	1137.17(14)	959.06(9)	1341.32(18)	1157.2(8)
Z/Calculated density [mg/m3]	4/1.205	4/1.324	4/1.220	4/1.327
Z′	1	1	1	1
Absorption coefficient [mm−1]	0.086	0.099	0.084	0.095
Space group, F (000)	P21/n, 440	P21/n, 400	P21/c, 528	P21/c, 488
Index ranges	−11 ≤ h ≤ 11 −6 ≤ k ≤ 6 −25 ≤ l ≤ 26	−8 ≤ h ≤ 9 −9 ≤ k ≤ 9 −23 ≤ l ≤ 21	−15 ≤ h ≤ 15 −8 ≤ k ≤ 9 −11 ≤ l ≤ 16	−6 ≤ h ≤ 6 −30 ≤ k ≤ 30 −13 ≤ l ≤ 13
Reflections collected	6066	16,684	5906	31,441
Independent reflections	2071 [R(int) = 0.0722]	2446 [R(int) = 0.0940]	2442 [R(int) = 0.1320]	2663 [R(int) = 0.1187]
Observed reflections (I ≥ 2σ(I))	1100	935	1383	1290
Completeness to θ = 25.10	99.6%	99.8%	99.6%	99.7%
Data/restraints/parameters	2071/0/139	2194/247/441	2442/ 72/195	2663/0/155
Final R indices (I ≥ 2σ(I))	R1 = 0.0482 wR2 = 0.1026	R1 = 0.0532 wR2 = 0.1047	R1 = 0.0631 wR2 = 0.1370	R1 = 0.0516 wR2 = 0.0907
R indices (all data)	R1 = 0.1005 wR2 = 0.1304	R1 = 0.1416 wR2 = 0.1670	R1 = 0.1204 wR2 = 0.1712	R1 = 0.1469 wR2 = 0.1203
Goodness-of-fit on F2	0.940	0.995	1.025	1.005
Largest diff. peak/hole [e·Å−3]	0.197/−0.172	0.114/−0.131	0.198/−0.268	0.174/−0.139
CCDC deposit number	2075964	2075965	2075966	2075970

.

4. Discussion

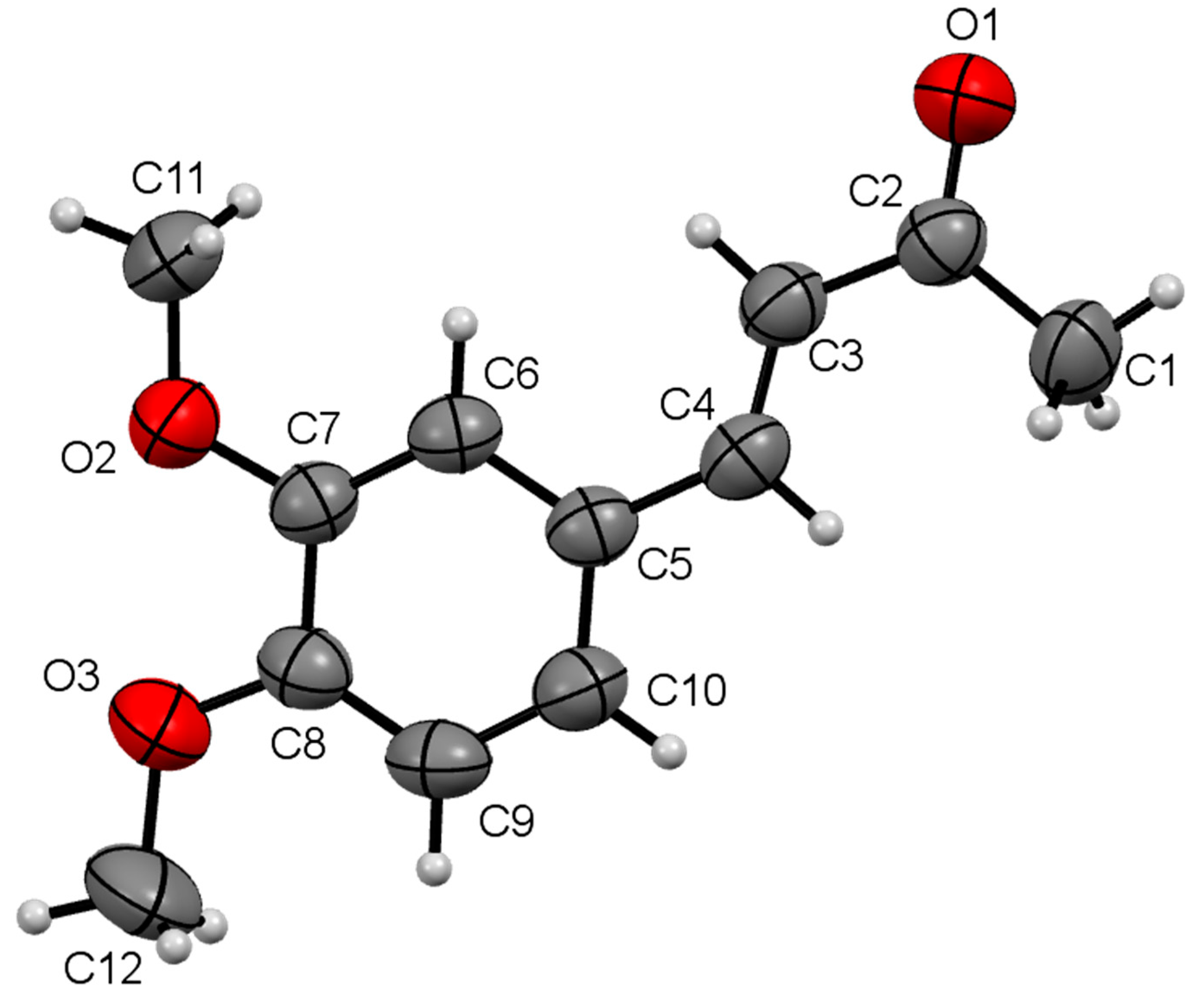

The molecular structure of Compound I is shown in Figure 1. This structure is essentially planar and has (E) configuration for the C=C double bond and an s-trans conformation between the double C=C bond and the carbonyl group. A cluster analysis applied to the conformational analysis of enones and enimines in the crystalline solid state, using structural information mined from the Cambridge Structural Database [18], revealed that trans s-trans enones are less commonly observed than trans s-cis enones; however, this trend is reversed for the subgroup of 4-R-but-3-en-2-ones for which the trans s-trans (−4.02 Kcal·mol⁻¹) is theoretically predicted [19] as the most stable form with respect to trans s-cis (−1.83 Kcal mol⁻¹) and the relative energy of trans s-cis-geometry with respect to trans s-trans is ca. 2 Kcal mol⁻¹ [19].

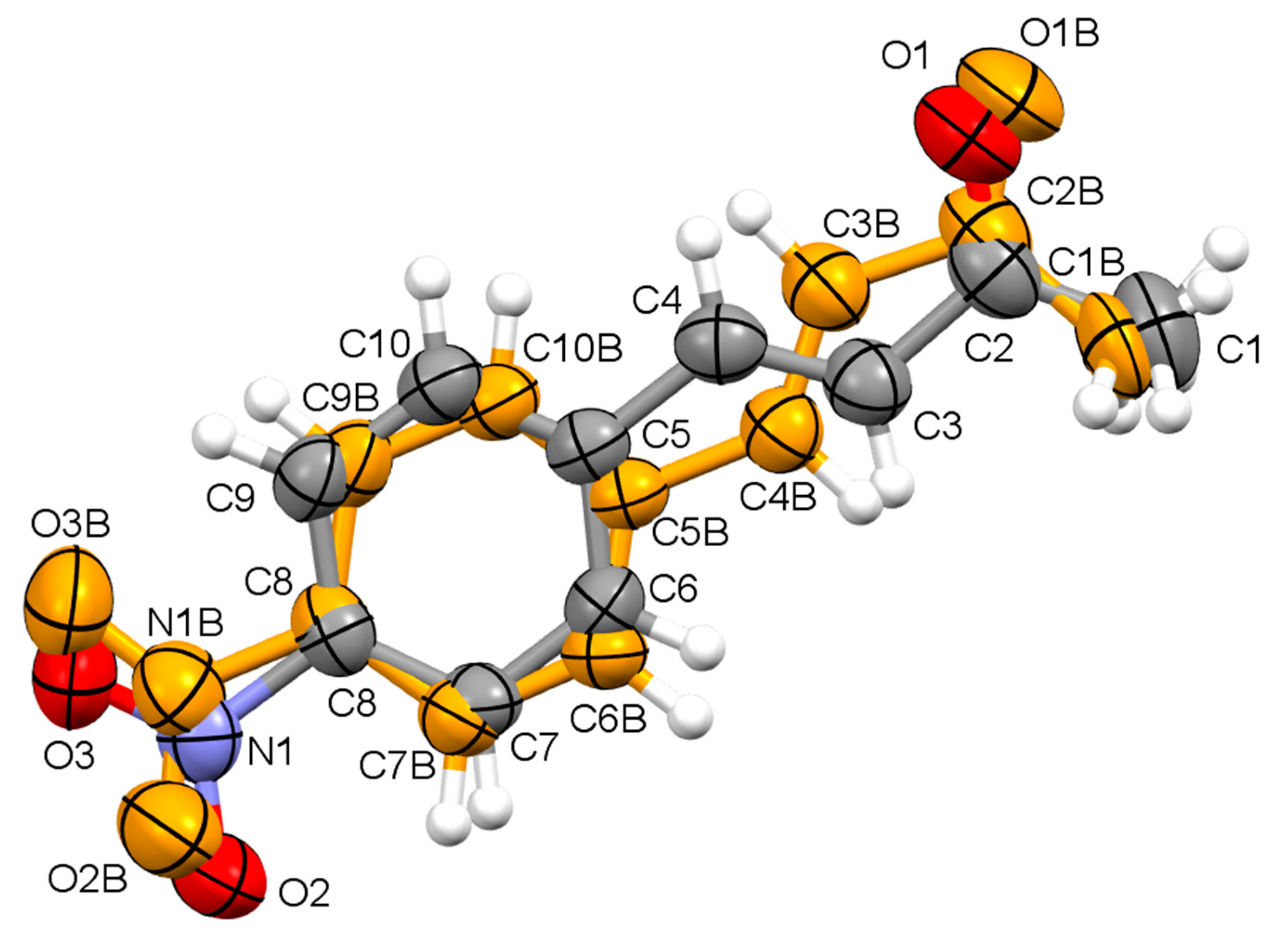

At an early stage of refinement of compound II, it was apparent that the molecule was rather disordered over two sets of overlapping atomic sites (Figure 2) having unequal occupancies. On this basis, the occupancies of the two disordered components refined to 0.703(4) and 0.297(4), the major disordered component corresponds to the trans s-cis conformation, and the minor component to the trans s-trans conformation of the but-3-en-2-one moiety, rendering a solid solution of conformers. A rather similar disorder was reported by Zhang et al. [20] for (E)-2-methoxy-4-(3-oxobut-1-enyl)phenyl acetate approaching a near equimolecular ratio of conformers favoring slightly the trans s-trans conformation. The s-trans and s-cis conformations in solid and liquid state are different, although in the solid state, molecules can exist in the crystal in either s-trans or s-cis conformations depending on the temperature at which crystals are grown [21]. However, in liquid state the s-trans conformer is the dominant one at room temperature [22], with a conformational barrier going from the s-trans to the s-cis conformer of 8.9 Kcal mol⁻¹ in acrolein [23].

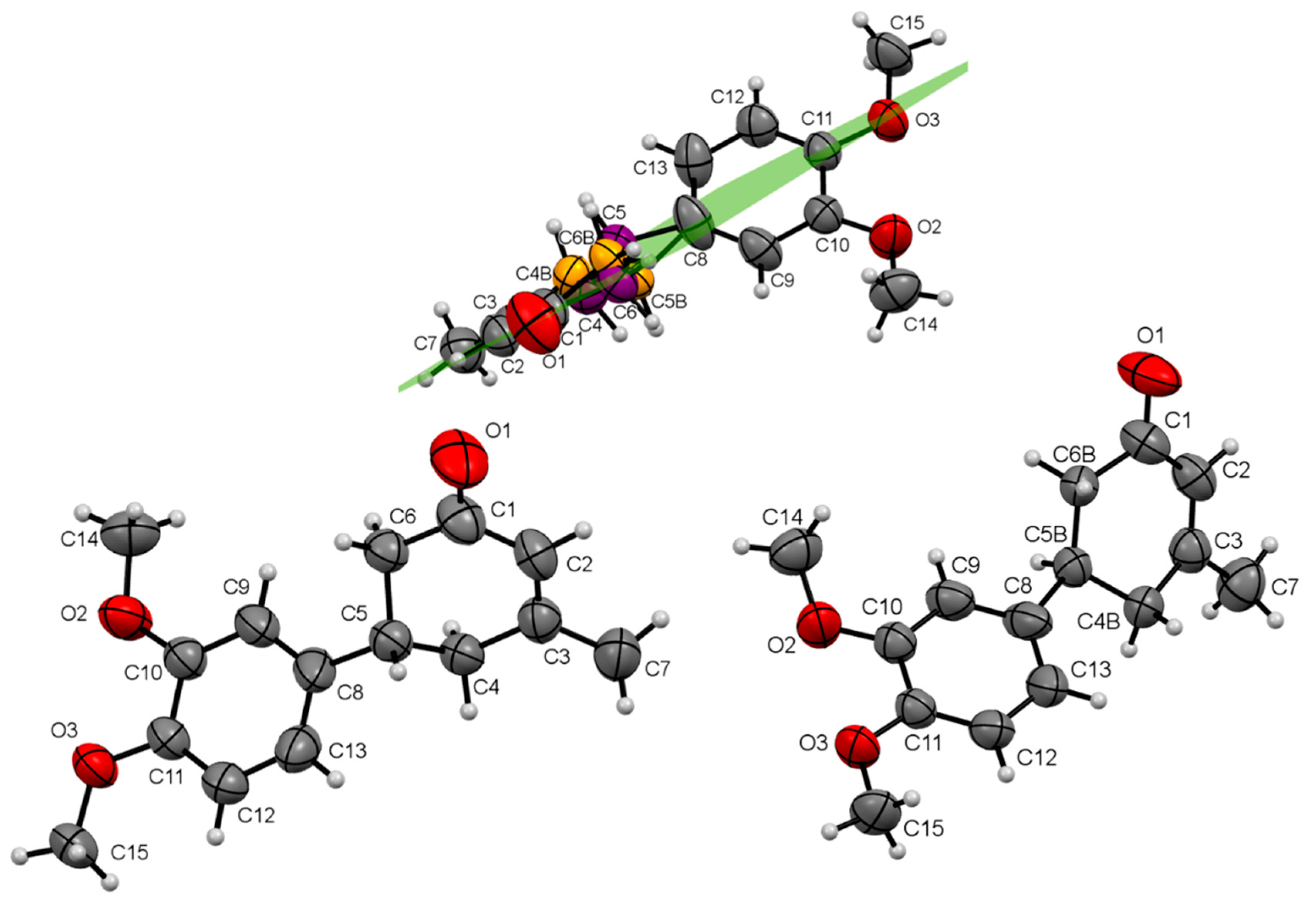

Compound III (Scheme 1) contains a stereogenic center at position five of the cyclohexenone ring, and the systematic absences in the diffraction data were uniquely consistent for the space group P2₁/c, confirming that this compound crystallizes as a racemic mixture of (5R) and (5S) enantiomers. However, with Z’ = 1, the compound exhibits enantiomeric disorder such that both enantiomers R and S are superimposed, each adopting opposite conformations. The static disorder in compound III can be represented by atoms C4, C5, and C6 having two almost mirror-related positions, while the other atoms have single positions; the refined occupancy of the split atoms leads to 0.537(10) for S and 0.463(10) for the crystal selected for data collection. Non-centrosymmetric space groups (Pn and P2₁) were then tested, without improvement in the refinements: in Pn, the results were very similar both for the disorder distribution and for the residual factors, but with high parameter correlation and non-definite atomic displacement tensors. Consequently, the structure was considered as centrosymmetric. In the major conformational component, the ring puckering parameters [24] calculated for the atom sequence C1–C2–C3–C4–C5–C6 are Q = 0.472(11) Å, θ = 46.3(10)°, and ϕ = 238.8(15)°, which indicate an approximate envelope conformation with C5 as a flap. The corresponding ring puckering parameters for the minor component, calculated for the atom sequence C1–C2–C3–C24B–C25B–C26B are Q = 0.512(12) Å, θ = 134.7(11)°, and ϕ = 62.2(17)°, confirming the change in enantiomorph. At C5 the dimethoxyphenyl substituent occupy the equatorial position making a dihedral angle of 54.5° with the mean plane of the methylcyclohexenone. The shape of the molecules in the crystal structure of the enantiomers disorder almost has a symmetry plane (Figure 3).

These structural features show that both enantiomers have a high degree of isosterism, minimizing the relative importance of chirality in the geometry of enantiomers while opening the possibility of exchange among the crystals, thus leading to formation of solid solutions [25,26,27].

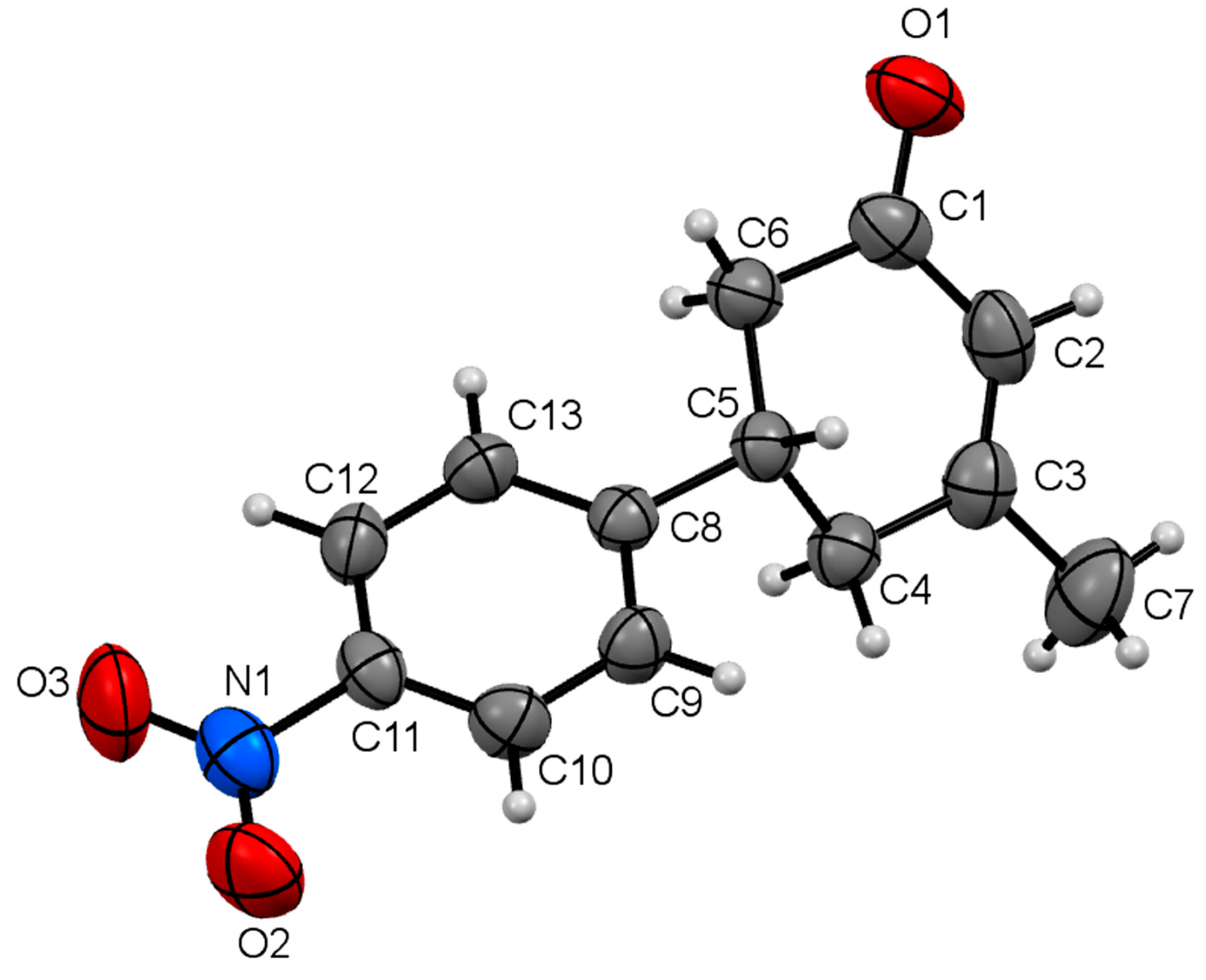

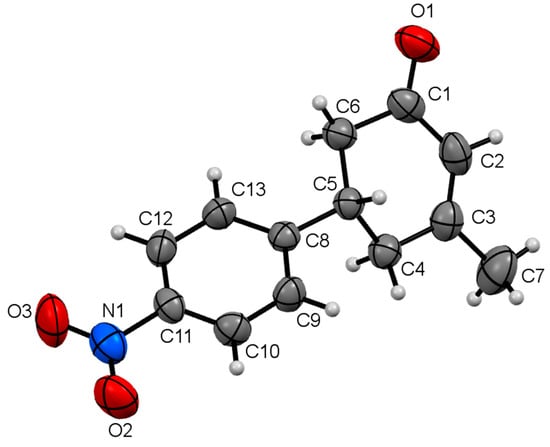

In compound IV (Scheme 1 and Figure 4), the six-membered ring puckering parameters [24] calculated for the atom sequence C1–C2–C3–C4–C5–C6 are Q = 0.461(2) Å, θ = 52.7(2)°, and ϕ = 253.6(3)°, which indicate an approximate envelope conformation with C5 as a flap with the phenyl in equatorial position forming a dihedral angle of 44.10(8)°.

Crystal Packing

Due to the lack of strong hydrogen bond donors in all compounds, the crystal packing is mainly stabilized by weak intermolecular C–H···O interactions and eventually C–H···π interactions (

Table 2. Geometry of the hydrogen bonding interactions (Å,°) for compounds I–IV.

Compound	D-H···A	D-H	H···A	D···A	D-H···A	Symmetry Code
I	C1–H1A···O1 C3–H3···O1 C6–H6···O1 C11–H11B···Cg1 C9–H9···Cg1 C12–H12C···C3,4	0.960 0.930 0.930 0.960 0.930 0.960	2.61 2.60 2.62 2.84 3.05 2.84	3.529(3) 3.503(2) 3.545(3) 3.724(2) 3.733(2) 3.751(2)	160.3 162.4 173.8 154.0 131.9 143.3	x, −1+y, z 1−x, 1−y, 1−z 1−x, 1−y, 1−z x, 1+y, z 1/2−x, −1/2+y, 1/2−z 1/2−x, −1/2+y, 1/2−z
II	C7–H7···O2 C9–H9···O3 C4-H4···O1 C10–H10···O1	0.930 0.930 0.930 0.930	2.57 2.57 2.72 2.72	3.327(9) 3.301(9) 3.559(7) 3.539(6)	138.9 135.8 150.0 147.9	−x, −y, 1−z −x+1/2, y+1/2, −z+3/2 1−x, 2−y, 1−z 1−x, 2−y, 1−z
III	C6–H6A···O1 C9–H9···O1 C15–H15A··· O2 C15–H15A···O3 C14–H14A···O1 C4B–H4C···O3	0.970 0.930 0.960 0.960 0.960 0.970	2.59 2.65 2.62 2.80 2.86 2.66	3.539(10) 3.467(3) 3.519(3) 3.446(3) 3.806(3) 3.585(10)	164.5 146.3 155.5 126.0 170.0 159.0	−x, −y+1, −z+1 1−x, y+1/2, −z+1/2 −x, 1−y, 1−z −x, 1−y, 1−z 1−x, 1−y, 1−z x, 1/2−y, −1/2+z
IV	C6–H6A···O1 C6–H6B···O1 C7–H7B···O3 C12–H12···O1 C4–H4A···O2 C9–H9···O3 C5–H5···Cg1 C4–H4B···C2,3	0.970 0.970 0.960 0.930 0.970 0.930 0.980 0.970	2.64 2.88 2.68 2.66 2.72 2.73 2.98 2.84	3.581(3) 3.829(3) 3.467(3) 3.343(3) 3.327(3) 3.630(3) 3.824(3) 3.788(3)	162.7 166.0 139.0 131.0 121.0 162.0 145.0 165.0	−1+x, y, z −x, 1−y, 1−z −1+x, y,1+z 1−x,1−y, 1−z −1+x, 1/2−y, 1/2+z −1+x, 1/2−y, 1/2+z −1+x, y, z −1+x, y, z

). Besides planar nature of compounds and the presence of phenyl rings, stacking was observed only in one case (compound II) π···π.

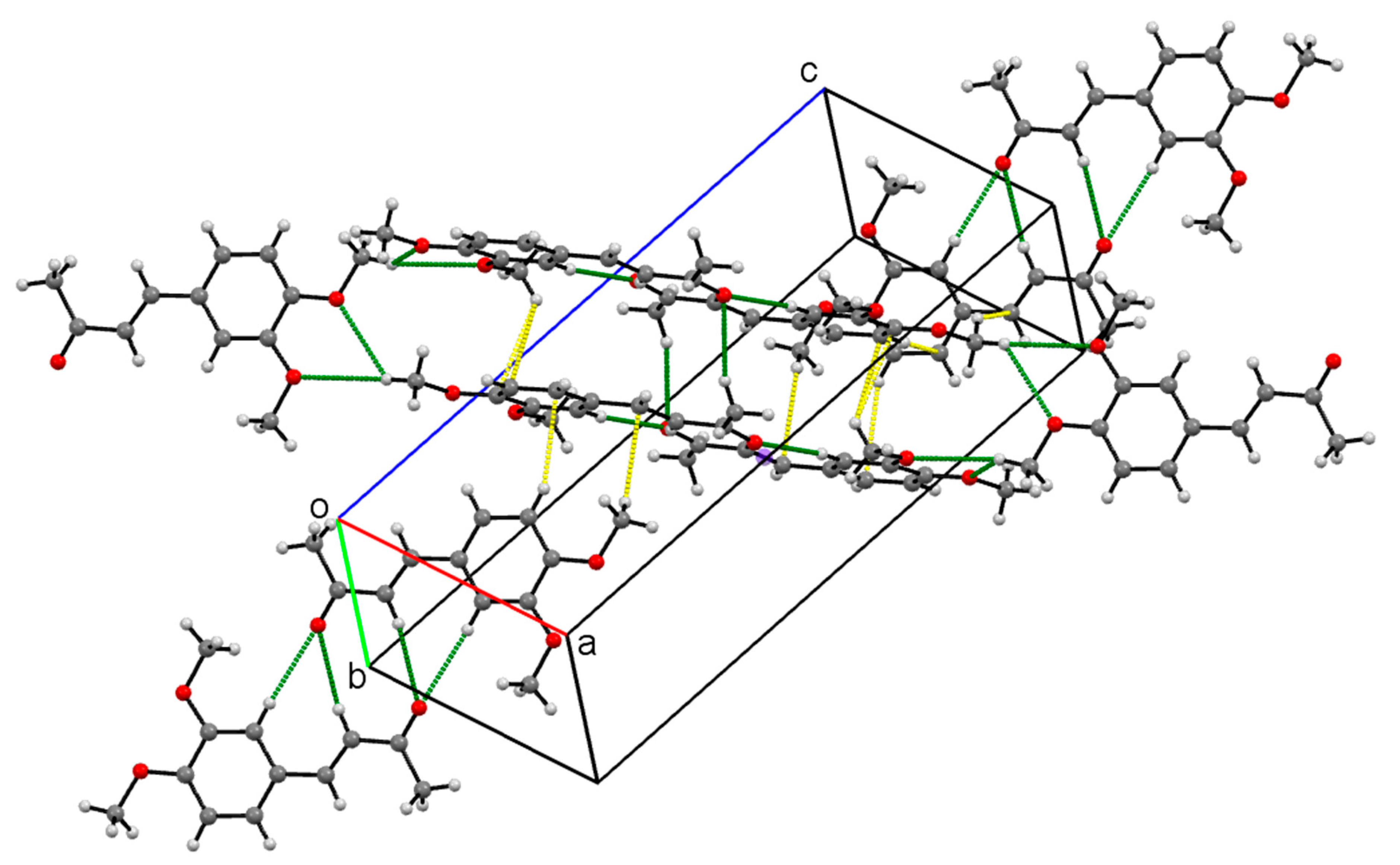

The crystal packing of compound I is shown in Figure 5. Double-strand twisted ribbons are formed by C–H···O interactions (Table 2), which are held together by C-H···π (average C–H···Cg separation = 3.729(2) Å, average C–H···C=C separation = 3.751(2) Å).

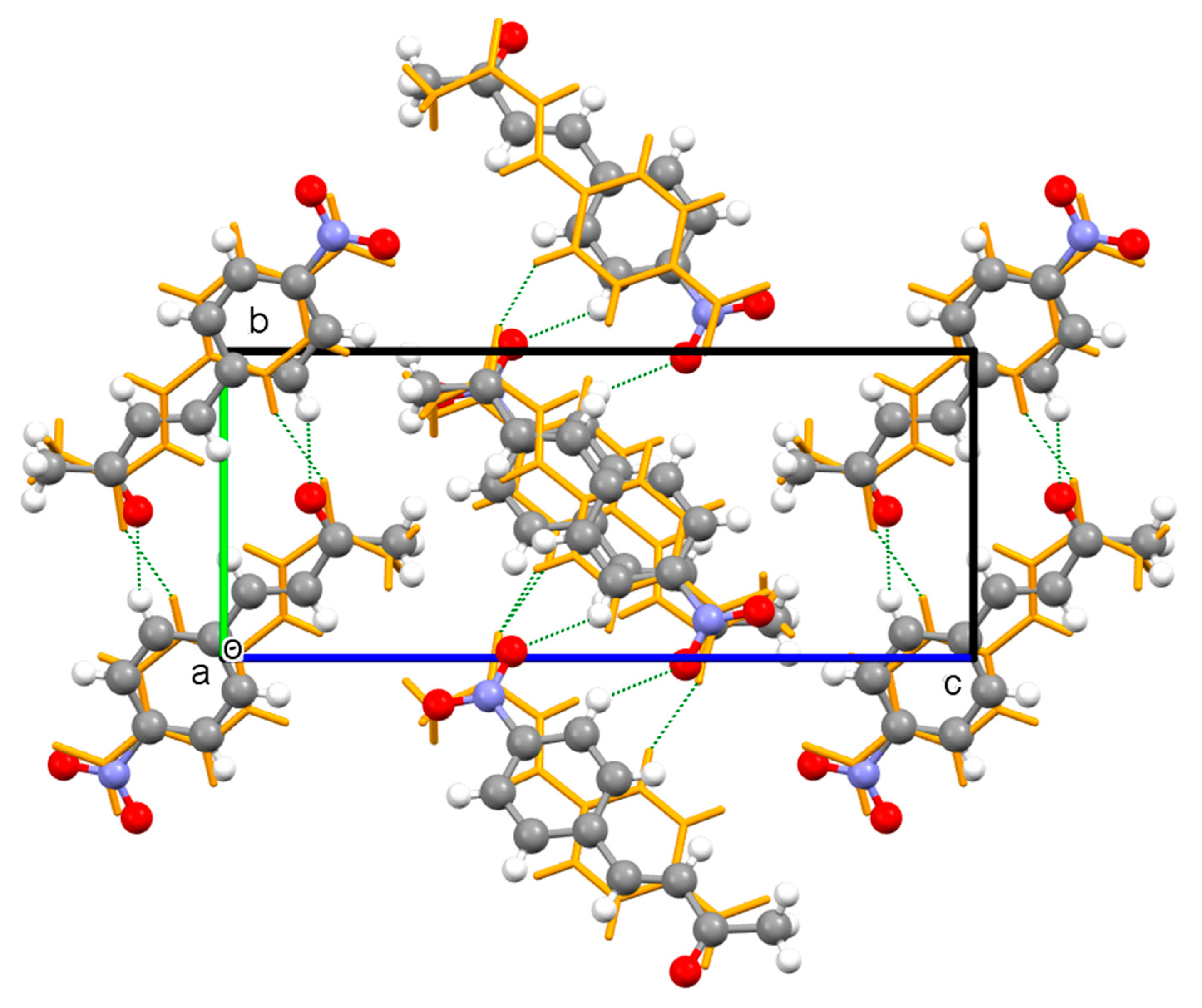

Figure 6 clearly shows the effect of isosterism of both conformations upon the crystal packing of compound II; essentially the same kind of interactions are observed among molecules. Columns of π···π stacking molecules along the a-axis (average Cg···Cg separation = 3.843(4) Å, average Cg···C=C separation = 3.468(11) Å) are interconnected by C–H···O interactions involving aromatic and olefinic hydrogens and the oxygen atoms of ketone and nitro moieties (Table 2).

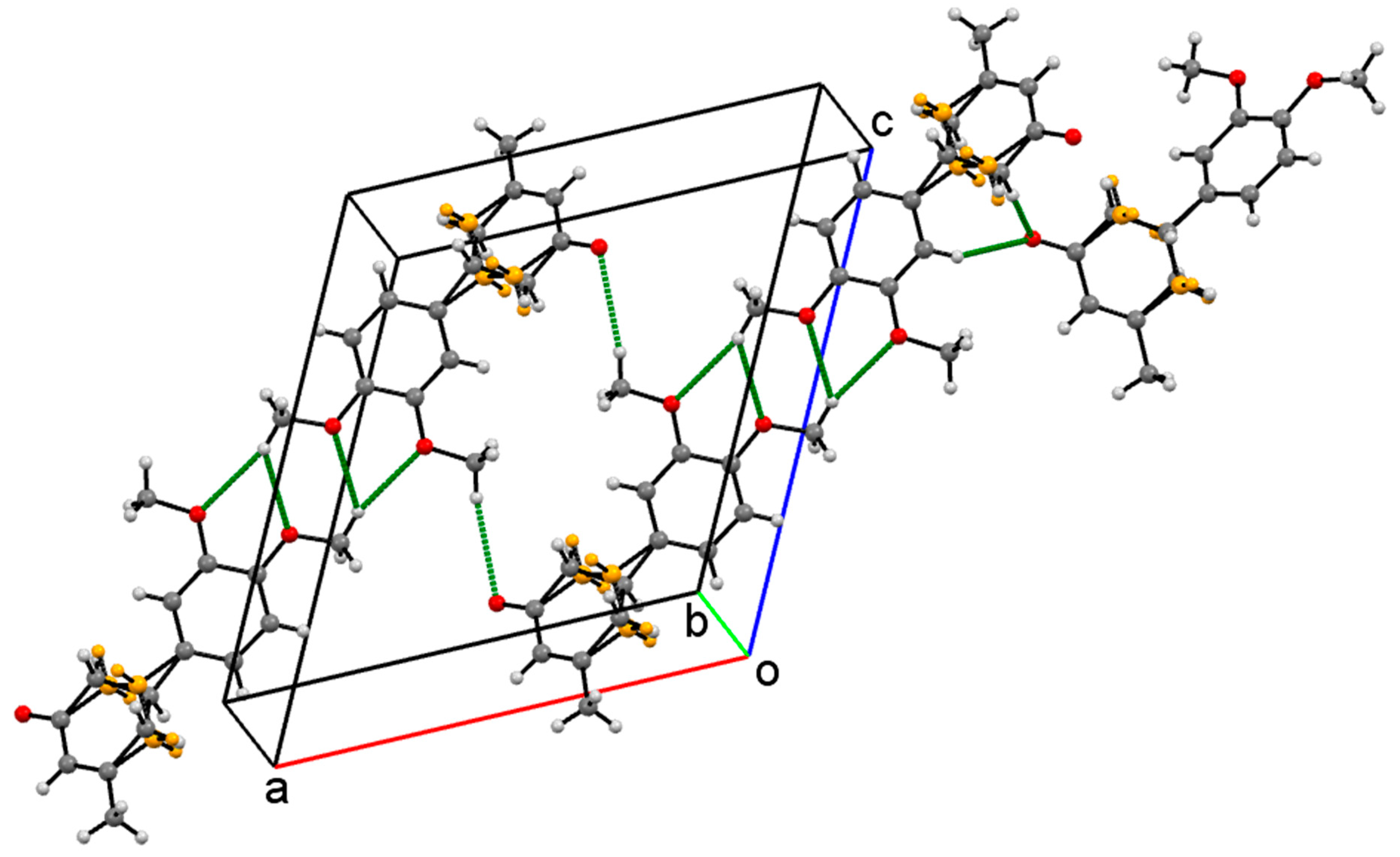

Packing for compound III: The smallest intermolecular contact for the non-disordered common part of enantiomers is between the methoxy substituents leading to formation of centrosymmetric dimers. This implies that R and S enantiomers of compound III should be involved, but by virtue of the observed isosterism, the interchanging of enantiomers is possible. These dimers are extended into ribbons along the [$\overline{1} 0 1$] direction by C–H···O interactions (C6–H6A···O1 and C9–H9···O1) and the ribbons weakly interconnected by C14–H14A···O1 interactions (Figure 7, Table 2).

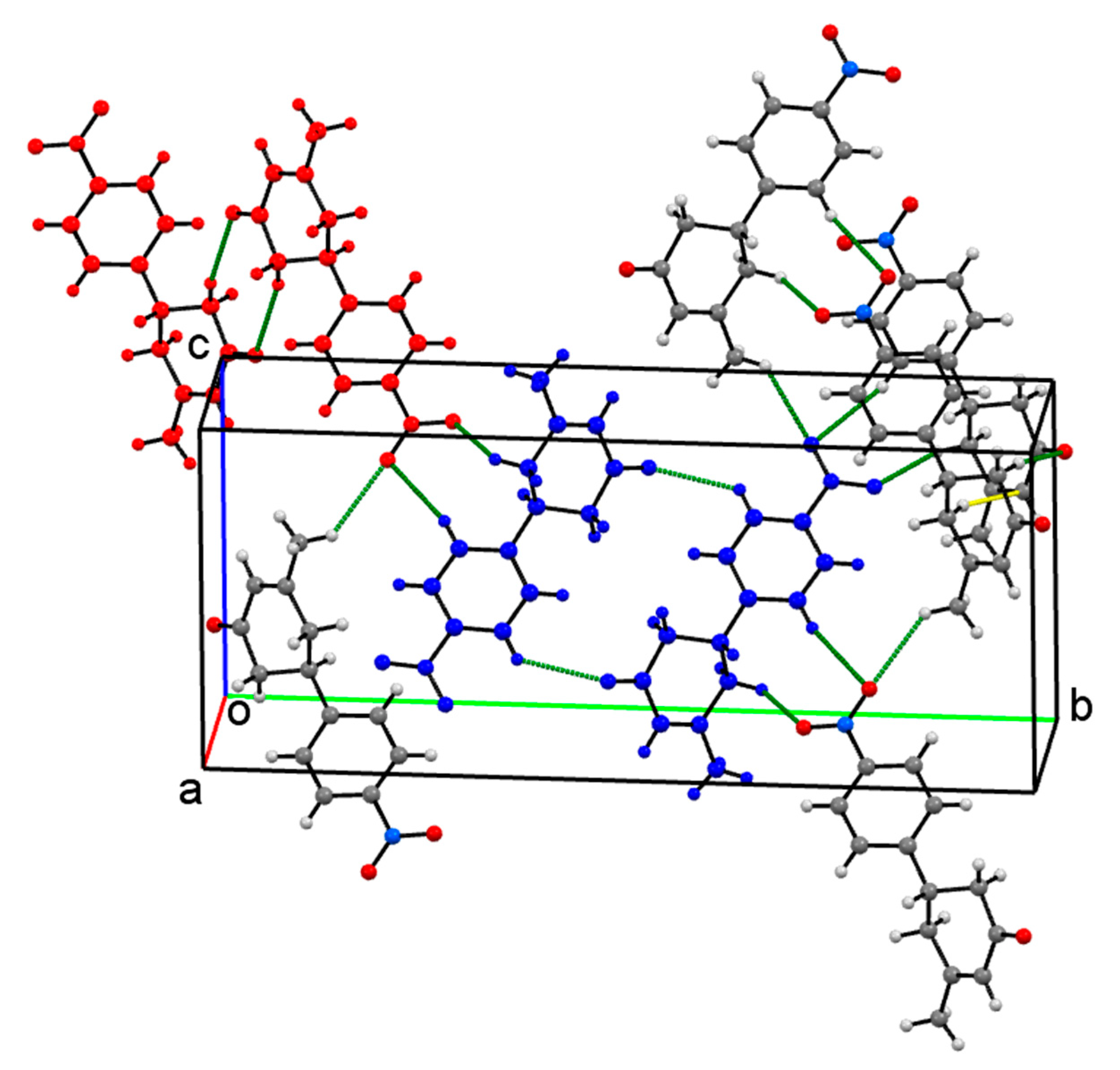

Finally, in compound IV, centrosymmetric dimers are built from interaction of the oxygen of the carbonyl group and the α-methylene of cyclohexenone (Figure 8, red molecules) and with an aromatic hydrogen (Figure 8, blue molecules) interconnected by the nitro group into a tridimensional network, reinforced by C–H···π and additional C–H···O1 interactions (Table 2).

Compounds I and II were previously reported [28,29,30] from different synthetic routes, whereas compounds III and IV were reported using different reaction conditions [31]. A major disadvantage described for the Claisen–Schmidt reaction is the dominance of polymerization by-products [32,33] with a remarkably high variation in yield from 10% to ca. 100% [33].

5. Conclusions

A basic Claisen–Schmidt condensation of aromatic aldehydes with acetone yield the expected products of mono-condensation (E)-but-3-en-2-ones. Concomitantly, the unexpected 3-methylcyclohex-2-enones were obtained by a cascade Robinson annulation reaction. The single-crystal structure determinations of compounds I and IV showed the expected structural and crystallographic features; the analysis of anisotropic displacement ellipsoids and the difference electron density map confirmed that such molecules are not disordered. Thus, the crystals of compounds I and IV belong to a typical case of a racemic compound, whereas in compounds II and III, unexpected and unique features were found. These compounds crystallize as co-crystals (solid solutions) of statistical disorder of trans s-cis/trans s-trans conformers (compound II) and the rarest case of enantiomeric disorder of a racemic mixture, pseudoracemate (compound III). Our work shows how the Claisen–Schmidt condensation step continues in cascade toward annulation, thus giving room for discussion and deeper understanding of this apparently straightforward reaction. In addition, an interesting question arises from the low yields often reported in the literature for the Claisen–Schmidt reaction potentially overlooking important and unexpected cyclic products.
