1. Introduction
Due to its superior thermal conductivity and electrical conductivity, excellent corrosion resistance and high fatigue resistance, the Au-20Sn solder has been widely used in the packaging of the military electronic products and some other high-end electronic products [
1,
2,
3,
4]. With the continuous increase in power and package density of the electronic products, the requirement on the reliability of the Au-Sn/Cu solder joints in these electronic products is more and more strict. A series of investigations on the manufacturing processes of the Au-20Sn solder and its key properties such as wettability and solderability have been conducted [
5,
6,
7]; especially, the reliability of the Au-Sn/Cu solder joints has become a hotspot of the electronic packaging field.
The Au-Sn solder has good oxidation resistance and theoretically can meet the requirement of fluxless packaging, if the oxygen content in the solder is low enough. However, during the manufacture, transportation, storage, application and other processes, inevitably a trace oxygen will enter the solder. In this regard, a lot of research focuses on the effects of oxygen on solderability and reliability of the Au-Sn solder have been conducted. With the increased content of oxygen, surface tension of the liquid solder increases and the wettability decreases obviously [
8,
9]. Besides, the oxygen entrained into the solder also results in a large number of defects in the solder joint, which decreases the reliability of the package products [
10,
11]. Kuhmann et al. revealed the oxidation and reduction kinetics of the Au-20Sn solder and found that the Au-20Sn solder shows good wettability when it is used in fluxless soldering in H
2 atmosphere [
12]. Although some measures such as using flux can reduce the oxygen content in the soldering system, fluxless packaging will be inevitable for some key electronic components, such as flip chip, power-integrated circuit module and MEMS devices [
5,
13,
14]. Since the oxygen content in the Au-Sn solder is a key factor that dominates the quality of fluxless soldering, it is essential to clarify the effects of oxygen content on reliability of the fluxless packaged Au-20Sn solder joints. As a basic basis to evaluate the packaging quality, it is of great academic and practical importance to investigate the effects of oxygen content in the Au-Sn solder on the ratio of the soldering area, mechanical properties and gas tightness of the solder joints.
In this study, the oxygen contents of the Au-20Sn solders from different manufacturers were measured firstly, then these Au-Sn solders were chosen for soldering, and the influences of oxygen content on wettability and spreading performance of the solder, the interfacial microstructure, joint strength, gas tightness and ratio of soldering area of the Au-Sn/Cu solder joints were studied. Based on that, the relationship between oxygen content and reliability of the Au-Sn/Cu solder joint was evaluated.
2. Experimental Procedure
The Au-20Sn solders used in this study were purchased from different manufacturers. Before the experiments, the oxygen contents in these solders were detected firstly by a LECO-ONH836 NHO analyzer, and the result is shown in
Table 1. Then, the Au-20Sn solders with different oxygen contents were selected for further experiments.
The wetting and spreading tests of the Au-20Sn solder were operated according to China’s national standard GB/T11364-2008. The substrate is Cu plates with a size of 40 × 40 × 1 mm3. Before the wetting test, the Cu plates were cleaned in ethanol for 5 min by an ultrasonic cleaning machine (ST13, GT Sonic Co., Ltd, Shenzhen, China). The Au-20Sn solder blocks each weight 0.2 g were placed at the center of the Cu plates, and then, the Cu plates were put into a vacuum furnace(CUT180, Acxvac Co., Ltd, Kunshan, China) and held at 310 °C for 1 min. After cooling, the samples were photographed and the spreading areas were measured using an Image Pro Plus software (Media Cybernetics Co., Ltd, Rockville, MD, USA). Three specimens were tested for each kind of solder to get an average value.
The size of the Cu strips for preparation of the lap solder joints used as shear specimens is 30 × 5 × 1 mm3. Before soldering, the Cu substrate was ground by SiC abrasive paper and cleaned in an acetone solution.
All the soldering processes were conducted by a vacuum furnace at a vacuum degree of 1 × 10−4 mbar and a soldering temperature of 310 °C, and the heating rate is 10 °C/min. Cross sections of some solder joints were carefully ground and polished, then the microstructures of the joint interfaces were observed by a field emission scanning electron microscope (FE-SEM, ZEISS ΣIGMA 500, Jena, Germany), and the composition at different areas of the solder joints were analyzed by an X-ray energy dispersive spectrometer (EDS, INCA X-Act, Bradford, British) equipment on the SEM. Shear tests of the solder joints were carried out according to the China’s National Standard GB/T11363-2008 using a SANS-CMT5105 microcomputer (Shenzhen SANS Testing Machine Co., Ltd., Shenzhen, China) controlled electronic universal tensile testing machine, and the beam movement rate was 2 mm/min. Five parallel shear samples were tested for each group.
The chips and flat sapphire optical windows were packaged under the same conditions of the solder joints. The gas tightness of the packaged optical windows was detected by a ZQJ-542 helium mass spectrometer leak detector (Guangzhou Minder-Highetech Co., Ltd., Guangzhou, China) and the leakage rate was recorded and compared with the reference values specified in the China’s National Military Standard GJB548B-2005. X-ray fluoroscopy was used to get the perspective images of solder layers in the chips, and the ratio of soldering area was calculated by dividing the actual soldering area on the X-ray projection images to the theoretical soldering area.
3. Results and Discussion
3.1. Effect of Oxygen Content on Wettability of the Solder
Generally, when a liquid solder can react with the substrate to form solid solution or intermetallic compounds (IMC), the solder can wet and spread on the substrate smoothly, because the formation of the new phases will decrease the system Gibbs free energy. Whereas, the oxides on the surface of the solder will show a very negative effect during the wetting and spreading processes of the solder on the substrate.
Figure 1 shows the spreading morphologies of the Au-20Sn solders with different oxygen contents. Obviously, with the increase in oxygen content, the spreading area decreased significantly and the edge of the solder became less smooth. The measured spreading areas of the Au-20Sn solders on the Cu plate are shown in

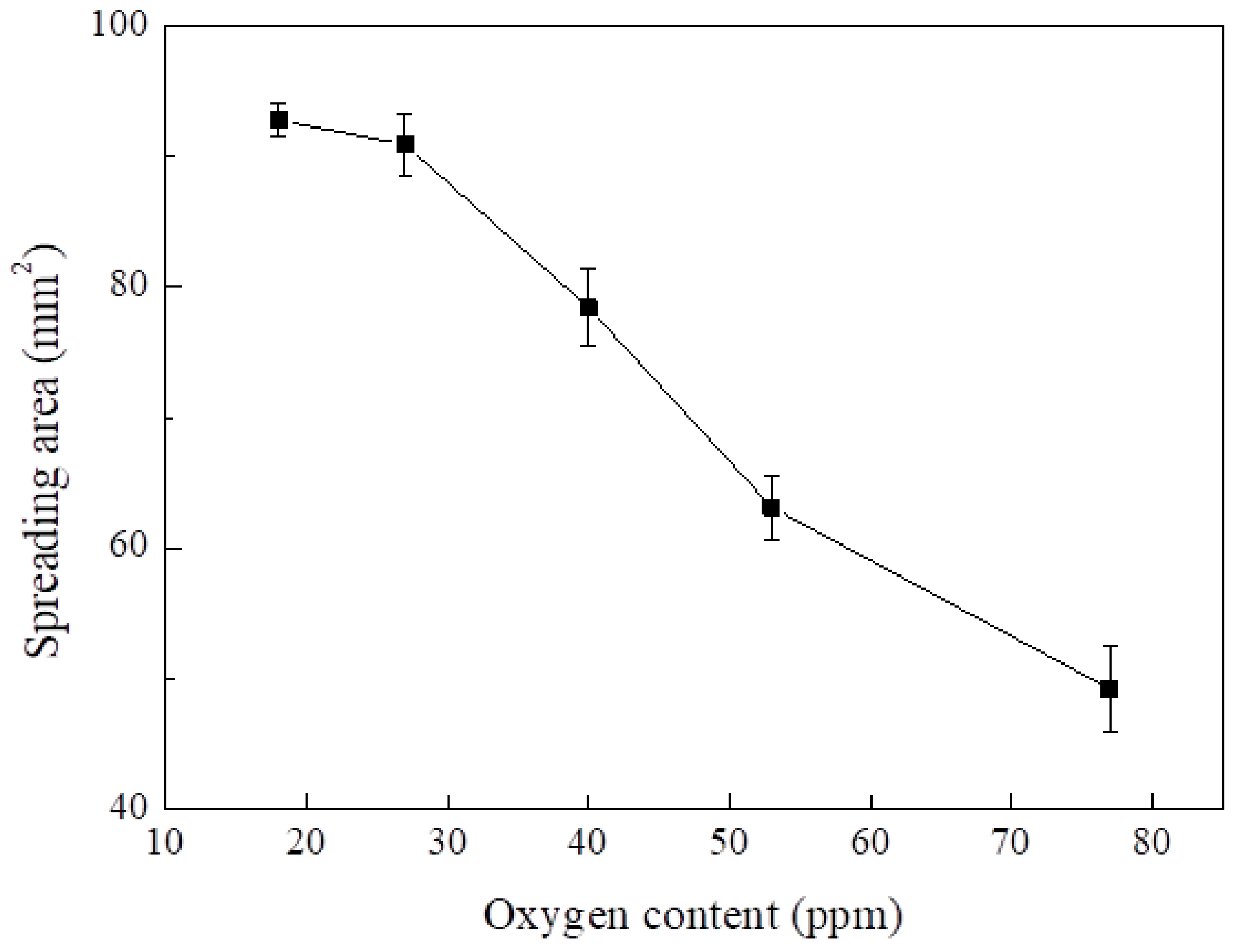

Figure 2, in which it can be found that the spreading area decreases continuously with increasing oxygen content. When the oxygen content was 18 ppm, the spreading area reached the highest value of 92.8 mm
2 and decreased to 90.9 mm
2 when the oxygen content increased to 27 ppm. For the solder with 40 ppm of oxygen, the spreading area decreased to 78.4 mm
2, 15.5% lower than that of the solder with 18 ppm of oxygen. With a further increase in oxygen content, the spreading area decreased sharply. When the oxygen content increased to 77 ppm, the spreading area was 47% lower than that of the solder with 18 ppm of oxygen, only 49.2 mm
2.
Previous investigations have demonstrated that the oxygen at the surface of the Au-Sn solder exists mainly in the forms of SnO and SnO
2 [
15]. On one hand, the oxide film at the surface of the liquid Au-Sn solder increases the surface tension and decreases the wetting and spreading tendency. On the other hand, the oxides with high melting points increase the viscosity of the liquid solder and decrease the fluidity, which becomes a blocking force for spreading, making the flow of the liquid solder slow down or even stop [
16]. Therefore, the wettability and spreading performance of the Au-20Sn solder decreases with the increase in oxygen content.
3.2. Effects of Oxygen Content on Interfacial Microstructure and Strength of Solder Joints

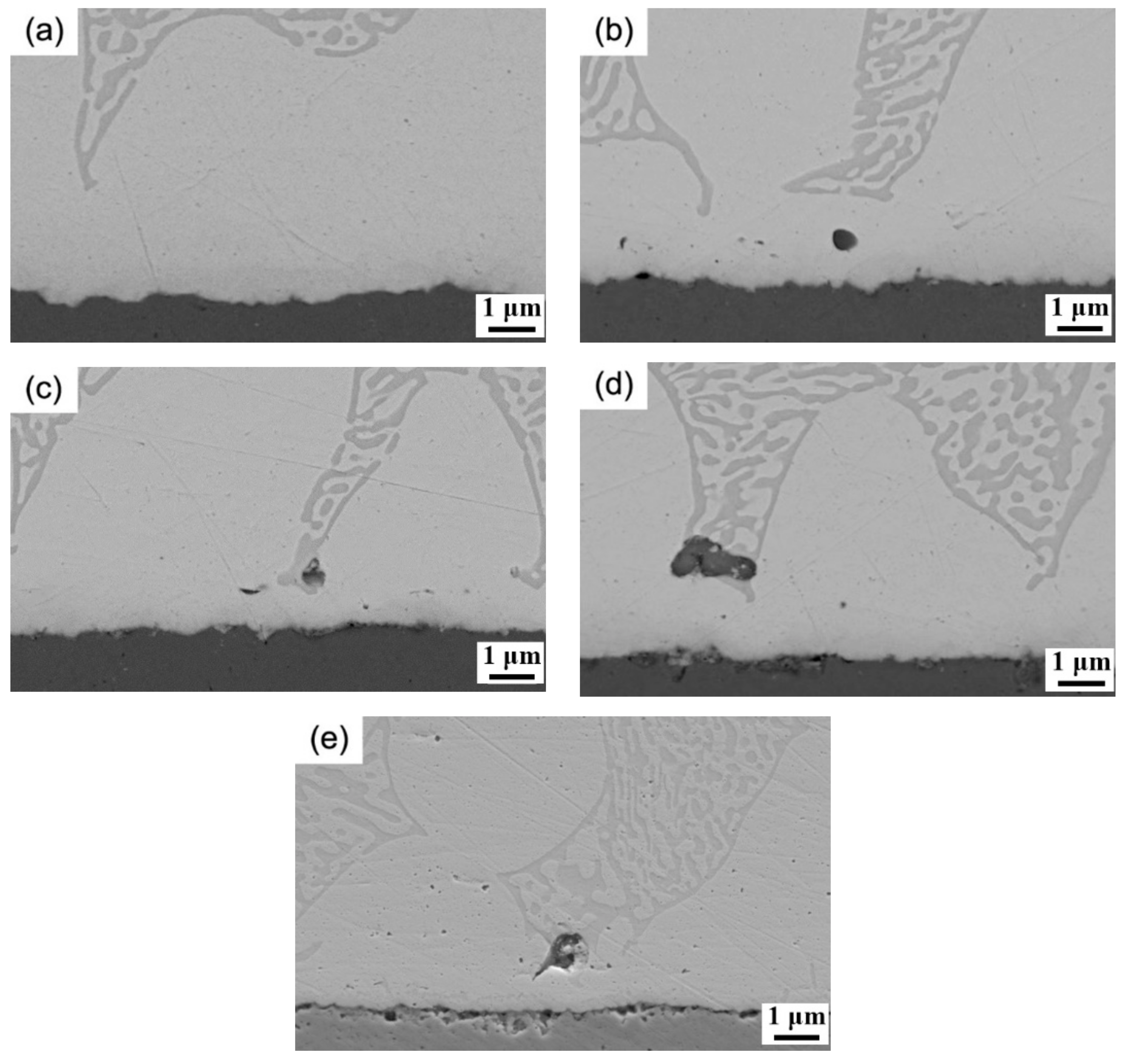

The cross-sectional images of the Au-Sn/Cu solder joints prepared using Au-20Sn solders with different oxygen contents are shown in
Figure 3. It can be found that IMC layers are formed at all the Au-20Sn/Cu interfaces, which were identified to be ζ-(Au, Cu)
5Sn by EDS and consistent with the previous reports [
17]. For the interface soldered by the Au-Sn solder containing 18 ppm of oxygen, no obvious pores or microcracks were observed, as in
Figure 3a, while a few micropores have appeared at the interface prepared by the solder with 27 ppm of oxygen (see
Figure 3b). When the oxygen content increased to 40 ppm, more pores appeared around the joint interface, as presented in
Figure 3c. With further increase in oxygen content, the size of the pores increased gradually. Moreover, the adjacent pores propagate and connect with each other, forming cracks along the joint interface, as shown in
Figure 3d,e. These findings suggest that a small change in oxygen content in the Au-20Sn solder will have a significant effect on microstructure of the fluxless packaged solder joint. As the oxygen in the solder exists mainly as oxides that covers the solder surface, if there is no flux, the oxides film will not be eliminated after melting of the solder and exist between the solder and the substrate, forming inclusions at the joint interface after solidification. Meanwhile, the gas elements dissolved into the solder cannot escape from the molten solder during the soldering process, resulting in the formation of the small pores. These defects can easily transform into microcracks under residual stress.
Shear strength of the Au-20Sn/Cu solder joints prepared with solders containing different amounts of oxygen is exhibited in

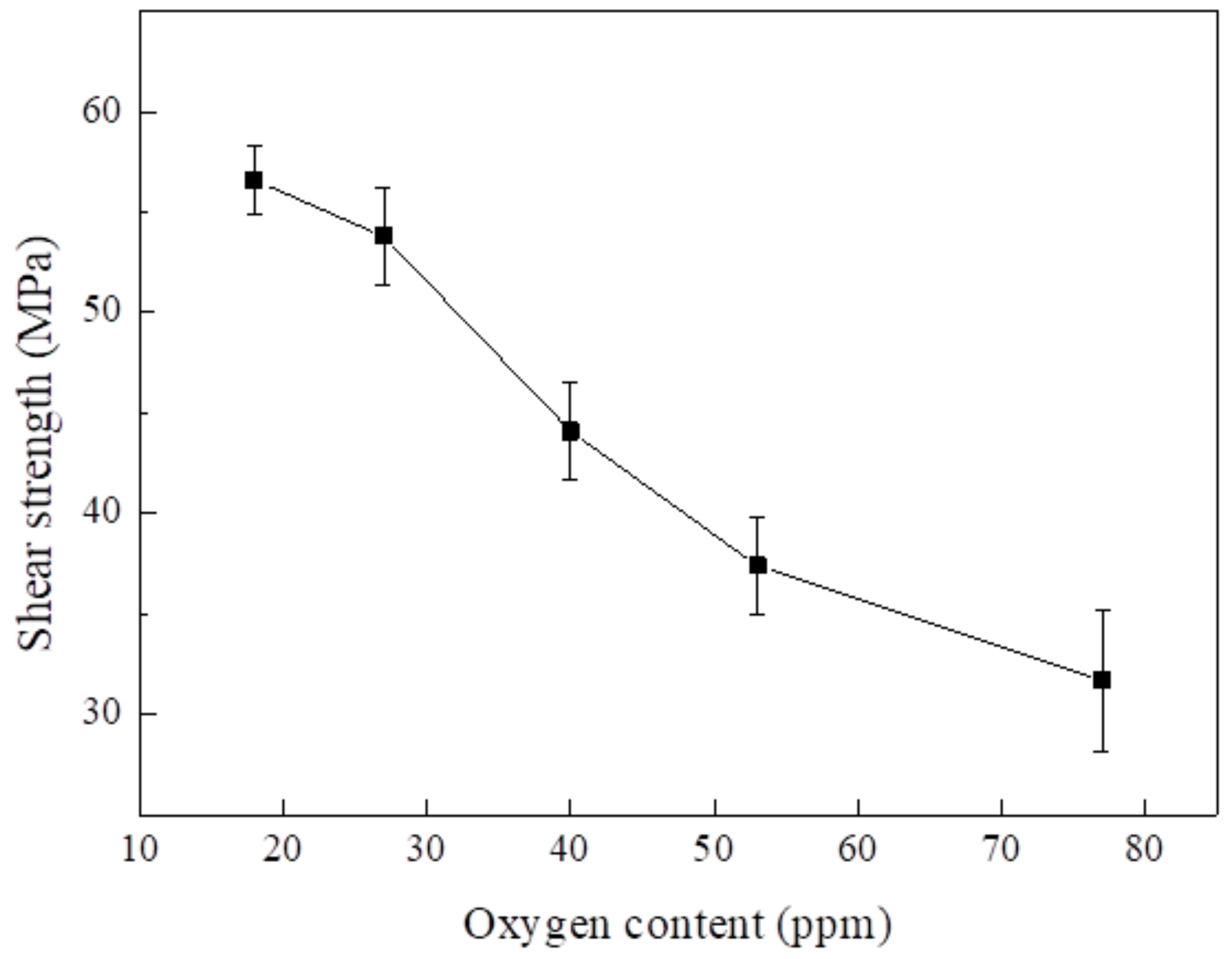

Figure 4. With the oxygen content increased from 18 to 77 ppm, the shear strength decreased by 44%, from the top value of 56.6 to 31.7 MPa, which is consistent with the deterioration trend in the microstructure of the solder joints. Besides, the shear strength was close to the results reported by some early literatures, although the test conditions were not so identical [
18,
19]. The pores and microcracks greatly decrease the bonding strength between the solder, interfacial IMC and the substrate and further decrease the shear strength, which can also be proved by the fracture morphologies shown in

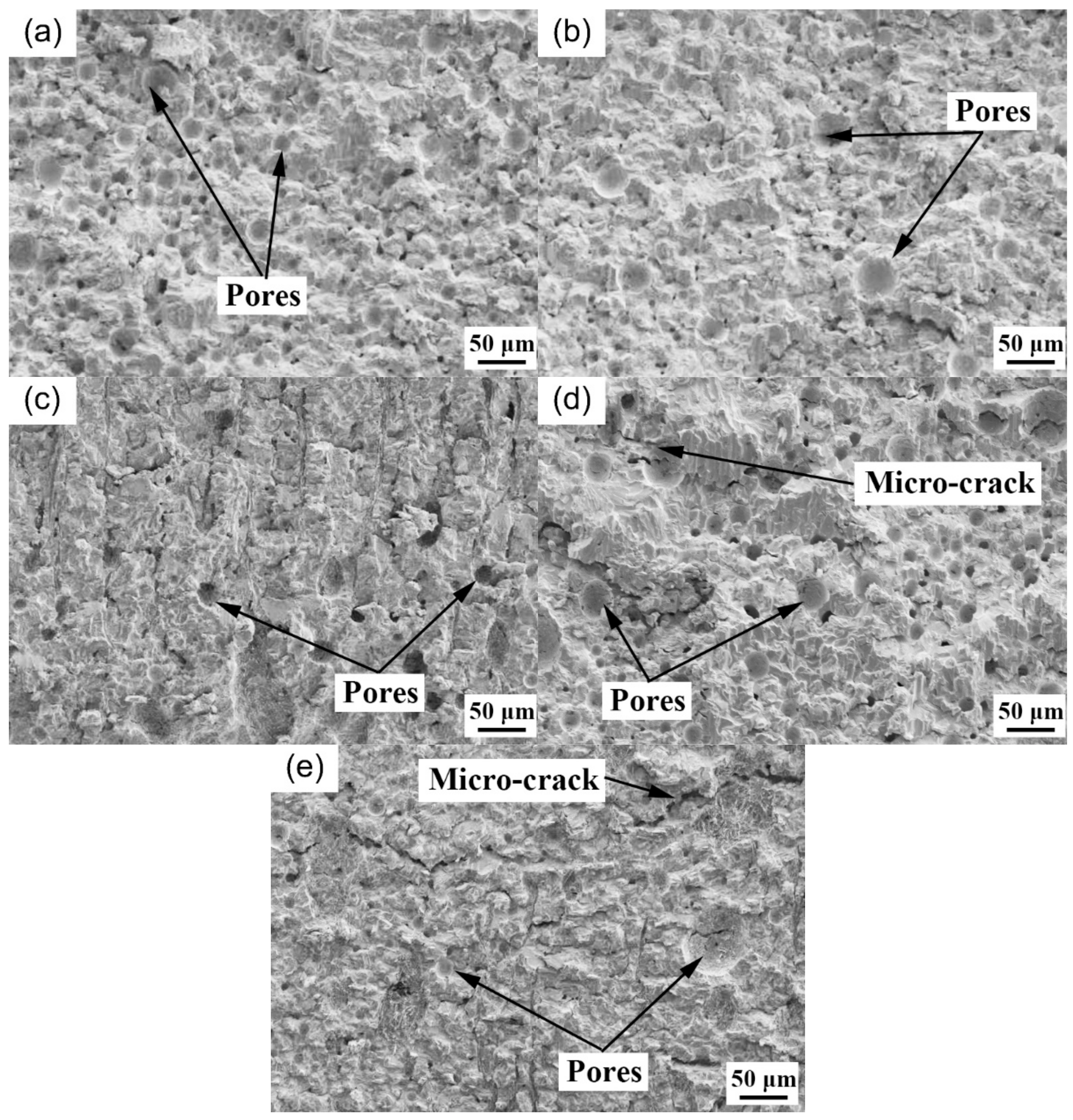

Figure 5. As shown in
Figure 5a, there were many small pores on the fracture surface when the oxygen content was only 18 ppm. With increasing oxygen content, the number and size of pores were gradually raised. When the oxygen content was above 40 ppm, not only pores but also micro-cracks formed, as shown in
Figure 5d,e, which corresponds to the microstructure observation.
3.3. Effect of Oxygen Content on Air Tightness
The power devices applied in space environment or military field usually need to service in harsh conditions such as high temperature, high humidity or acid-base conditions for a long time, and excellent radiation resistance and adverse environment resistance are required for the hybrid microelectronic modules. Therefore, hermetical packaging is necessary for these modules, in order to ensure the performance and reliability of the internal circuits and components in the service environment [
20,
21].
Table 2 lists the leakage rates of the devices packaged using Au-20Sn solders with different contents of oxygen. As in the table, the helium leakage rate increases with increasing oxygen content, i.e., the gas tightness of the package devices decreases gradually. When the oxygen content was lower than 27 ppm, the leakage rate was more than two orders of magnitude lower than the reference value, showing superior gas tightness. For the device packaged using the solder containing 40 ppm of oxygen, the leakage rate was close to the reference value, but we cannot guarantee the qualified rate of the package devices in practical production. When the oxygen content was higher, the gas tightness decreased sharply and will not fulfill the requirement of China’s National Military Standard GJB548B-2005 “Test methods and procedures for microelectronic devices” on package gas tightness.
3.4. Effect of Oxygen Content on Ratio of Soldering Area
The reliability of solder joints is decisive for lifetime of the power devices. Although the Au-20Sn solder has good thermal conductivity and can act as a heat dissipation carrier when it is directly connected to the chip, it will be difficult for the solder to fully play its good heat dissipation property if the ratio of the soldering area is not ideal. The ratio of the soldering area of a solder joint is the ratio of the actual soldering area to the theoretical soldering area, which is an important index to judge the soldering quality and has an important influence on the physical and mechanical properties of the solder joints [
22]. Therefore, the reliability of a solder joint is closely related to its ratio of soldering area. According to China’s National Military Standard GJB548B-2005, when the ratio of void in a solder joint is higher than 50%, or a single void crosses the whole length/width of a semiconductor chip exceeds 10% of the whole predetermined contact area, the soldering product will be considered to be unqualified.
To reveal the effect of oxygen content in the Au-20Sn solder on reliability of the solder joint, X-ray inspection of the solder joints was conducted to get their ratio of soldering area.

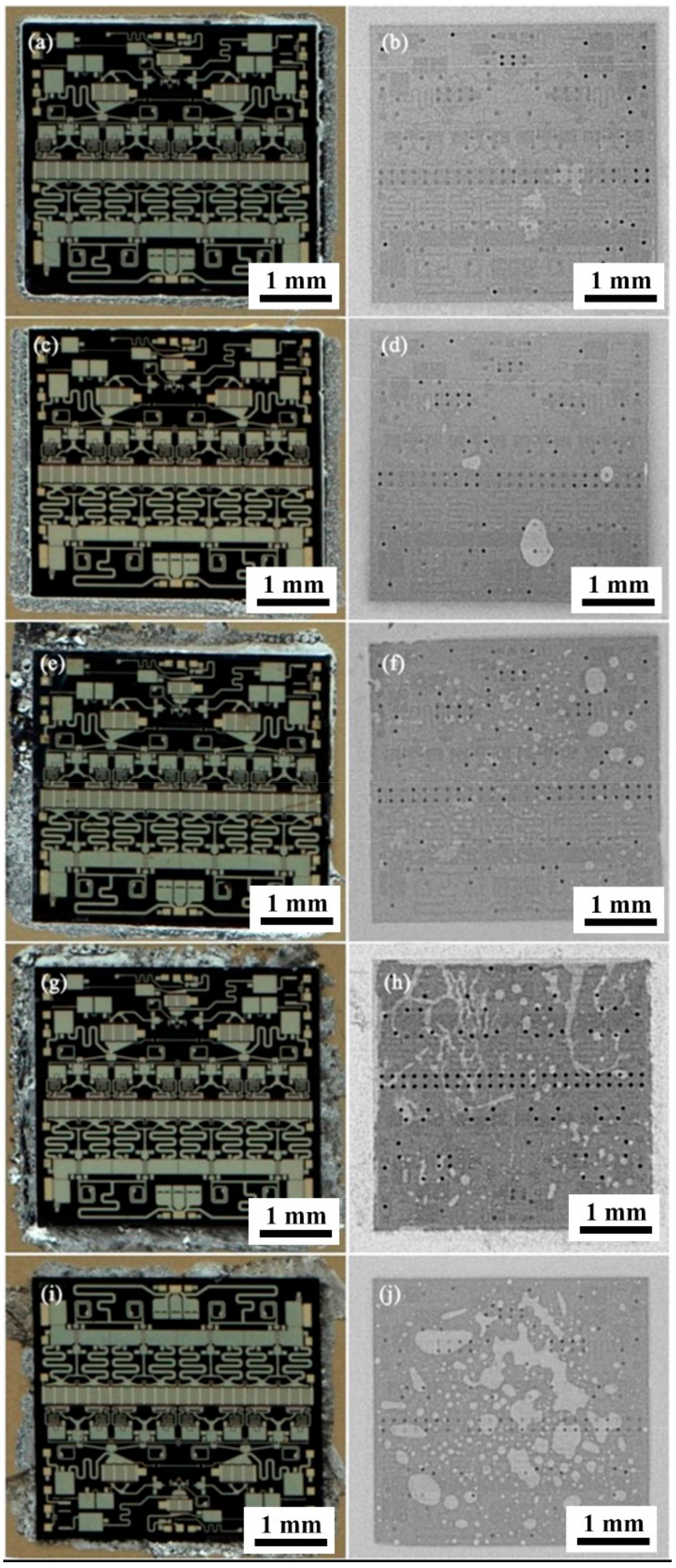

Figure 6a,c,e,g,i show the appearances of chips packaged with Au-Sn solders with different oxygen contents. When the oxygen contents were 18 and 27 ppm, the appearances of the chips were fine and clean, and the solder at the edge was smooth and continuous, with no obvious overflow or oxidation. With increasing oxygen content, the appearance of cleanliness on the chip gradually became worse, and the solder edge became uneven. In addition, surface oxidation of solder was more and more obvious, and the soldering quality worsened. The X-ray flaw detection images corresponding to the chip appearance are presented in
Figure 6b,d,f,h,j, in which the gray-white area indicates the void area in the solder layer. It is obvious that with increasing oxygen content, the void area and size of each void increase. The ratio of soldering area of the chips packaged using solders with different oxygen contents is shown in

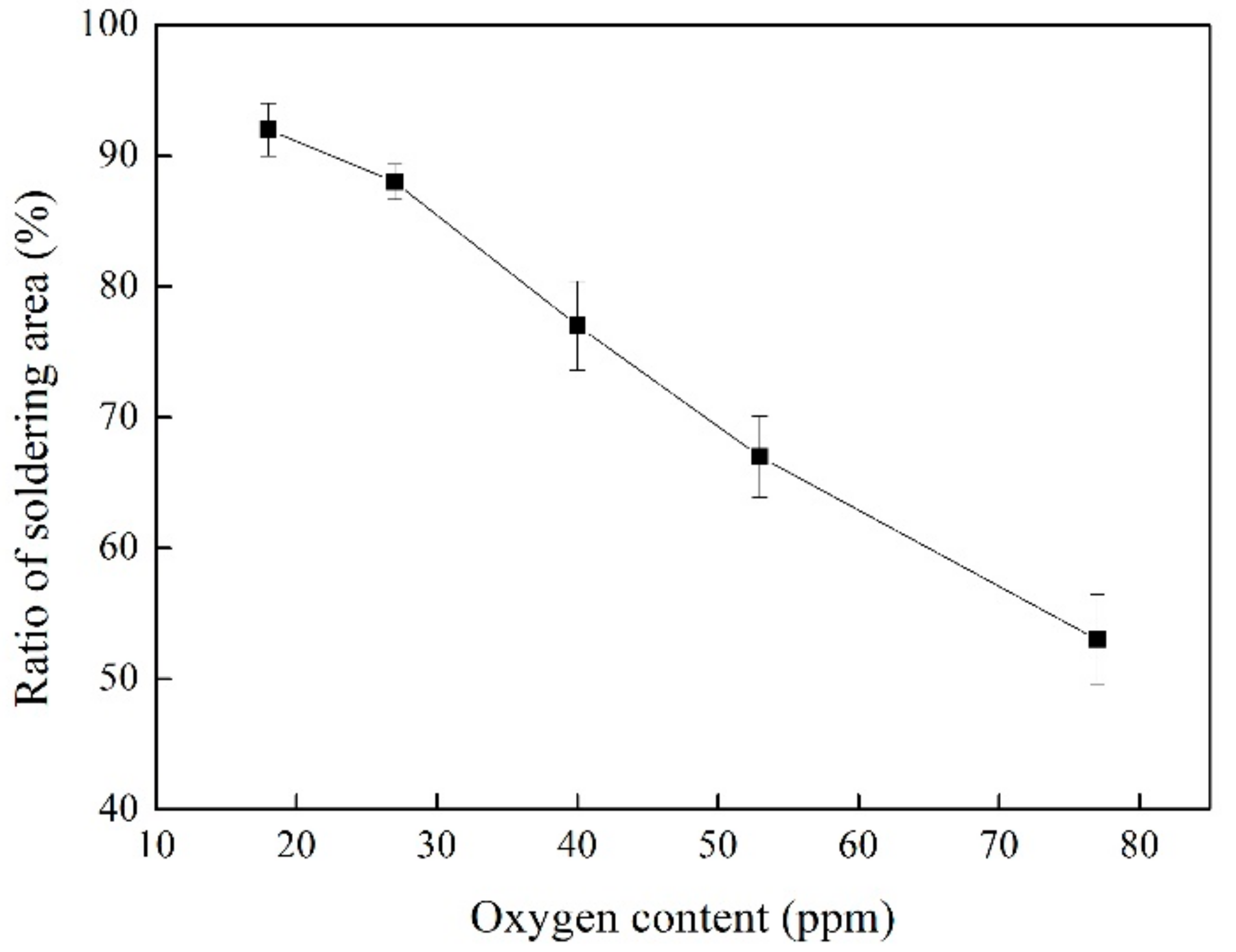

Figure 7. When the oxygen contents were 18 and 27 ppm, the ratio of the soldering area was 92 and 88%, respectively, indicating that the soldering quality is quite high. With a further increase in oxygen content, the ratio of soldering area decreased sharply. For the chip prepared using solder with 77 ppm of oxygen, the ratio of the soldering area decreased to 53%, and the structure continuity of the solder joints decreased greatly.
4. Conclusions
The effects of a trace content of oxygen on performances of the Au-20Sn solder and Au-Sn/Cu solder joint were comprehensively investigated. Based on the experimental results and discussions, the following conclusions can be drawn:
- (1)
The wettability and spreading performances of the Au-20Sn solder deteriorates sharply with the increasing oxygen content, because the Sn-O oxides film at the surface of the liquid solder increases the surface tension and decreases the fluidity. When the oxygen content increased from 18 to 77 ppm, the spreading area of the solder on Cu decreased sharply by 47%.
- (2)
Pores and microcracks appeared in the solder joint interface packaged using solders with a relatively high content of oxygen, which were induced by the included oxides and gas elements. These interfacial defects made the shear strength of the Au-Sn/Cu solder joint decrease from 56.6 to 31.7 MPa when the oxygen content increased from 18 to 77 ppm.
- (3)
The package gas tightness decreases with increasing oxygen content. Using a Au-20Sn solder containing higher than 40 ppm of oxygen, the leakage rate of the packaged flat sapphire optical window was overly high and unqualified.
- (4)
The increasing trace oxygen content in the Au-20Sn solder made more voids appear in the solder layer of the fluxless soldered chip and resulted in an obvious decrease in the ratio of soldering area; meanwhile, the solder edge became uneven, and more obvious surface oxidation occurred.
