Catalytic Effect of Ti or Pt in a Hexagonal Boron Nitride Surface for Capturing CO₂

Abstract

We investigated the effect of doping a hexagonal boron nitride surface (hBN) with Ti or Pt on the adsorption of CO₂. We performed first-principles molecular dynamics simulations (FPMD) at atmospheric pressure, and 300 K. Pristine hBN shows no interaction with the CO₂ molecule. We allowed the Ti and Pt atoms to interact separately, with either a B-vacancy or an N-vacancy. Both Ti and Pt ended chemisorbed on the surface. The system hBN + Ti always chemisorbed the CO₂ molecule. This chemisorption happens in two possible ways. One is without dissociation, and in the other, the molecule breaks in CO and O. However, in the case of the Pt atom as dopant, the resulting system repels the CO₂ molecule.

1. Introduction

Hexagonal boron nitride (hBN) is part of the layered, 2D van der Waals materials similar to graphene. It is an ultrathin sp²-hybridized material. The B-N bond is only 1.8% larger than the C-C bond in graphene. The properties of the surface of hexagonal boron nitride are a feature of interest in many applications. It is very stable chemically, not easy to oxidize. It presents a bandgap of around 5.971 eV [1]. This compound has excellent optical [1,2] and mechanical [3] properties, high thermal conductivity, and chemical inertness. It has raised interest about its capability of adsorption of some pollutant gases, like CO₂.

Carbon dioxide is a greenhouse gas that contributes heavily to climate change. There is a worldwide interest in capturing CO₂ molecules. Many researchers focus their efforts on finding ways of absorbing it and potentially using it as a source of energy to reduce the polluting effects this gas has on the environment [4].

Several studies have been made on using BN-based systems for the capture of CO₂. For instance, boron-enriched boron nitride nanotubes (BNNT) can chemisorb CO₂ at ambient conditions via a boron antisite BN [5]. Furthermore, some reports show with DFT studies that boron fullerenes with an encapsulated Li atom (Li@B₄₀) adsorb a CO₂ molecule. The Li atom acts as a catalyst in this case [6]. The capabilities to absorb CO₂ increase with changes in the charge state of pristine hBN sheets, BN nanotubes, and BN fullerenes [7,8]; besides, investigations on different hBN nanomaterials like foams and porous BN (hpBN) explored their CO₂ absorption capabilities as well [9,10].

Considering these studies, we explore a possible option for CO₂ absorption using boron nitride, titanium, and platinum. The last two are transition metals commonly used for varied industrial applications. We study the role of Ti and Pt as catalysts for the capture of CO₂. The results of this work can help enlighten the understanding of the mechanisms of CO₂ capture for environmental uses.

2. Materials and Methods

First-principles molecular dynamics (FPMD) calculations were performed, using the density functional theory (DFT) and the pseudopotential formalism [11,12]. We used the Quantum ESPRESSO suite code for all the simulations [13,14] and Xcrysden for visualization [15]. The pseudopotentials used are of the norm-conserving Troullier–Martins [16], projector augmented wave (PAW) type [17], in the entirely separable Kleinman-Bylander form [18]. We used the Perdew–Burke–Ernzerhof (PBE) approximation for the generalized gradient approximation (GGA) [19]. The calculations were non-spin polarized and non-relativistic, as our system is in general non-magnetic. The spin-polarization should be considered when there is an interest on its band structure or the magnetic properties, which is not the case for this work. Additionally, it has been shown that spin-polarization does not affect the binding energies [20].

We took as valence electronic states for boron: 2s²2p¹; for nitrogen: 2s²2p³; for titanium: 3s²3p⁶3d²4s²; for platinum: 6s¹5d⁹; for carbon: 2s²2p² and for oxygen: 2s²2p⁴. The k-point mesh consisted of 40 k points within the Monkhorst-Pack scheme [21]. The energy cutoff was 100 Ry or around 1360 eV. Velocity rescaling was used for the temperature control in the FPMD calculations, which were performed at 300 K.

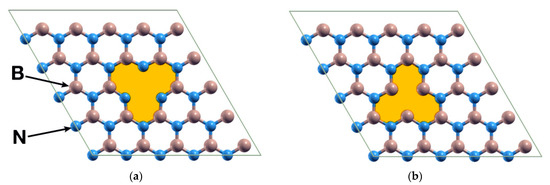

The system consists of an hBN hexagonal unit cell containing 50 atoms when pristine, using periodic boundary conditions. The cell parameters are a = b = 12.49 Å and c = 26.39 Å, the latter being large enough to avoid spurious interactions between repetitions of the cell along the c direction. We considered two different cases: (a) a B vacancy and (b) an N vacancy (Figure 1). We explored the interaction between a Ti atom or a Pt atom and the system with a vacancy. Afterward, we calculated the interaction between the resulting systems and a CO₂ molecule.

We calculated the absorption energies using the following formula:

$${\mathrm{E}}_{\mathrm{ads}}={\mathrm{E}}_{\mathrm{system}1+\mathrm{system}2}-{\mathrm{E}}_{\mathrm{system}1}-{\mathrm{E}}_{\mathrm{system}2}$$

(1)

The term ${\mathrm{E}}_{\mathrm{system}1+\mathrm{system}2}$ is the average total energy of the combined system after the FPMD calculation run. The following two terms refer to the average total energy of the separate systems after a similar calculation is run on each of them separately. The border between physisorption and chemisorption is not an exact one, but it is usually considered to be around 0.5 eV per molecule. This corresponds to binding energies not much larger than 100 meV [22].

3. Results

The pseudopotentials were tested and validated by performing a structural relaxation of the corresponding structures. For instance, with the pseudopotentials for B and N, we calculated the B-N bond length in the hBN surface, obtaining a value of 1.447 Å, compared with the experimental value of 1.446 Å. For the lattice parameter c, we got 6.6607 Å, compared to the reported observed value of 6.661 Å [23]. In the case of the CO₂ molecule, we obtained a C-O bond length of 1.1708 Å and 1.1710 Å, and an angle of 179.999°, compared with the experimental values of 1.163 Å and 180°, respectively [24]. For the α-Ti phase, we calculated a cell parameter of 2.931 Å, compared with the value of 2.9064 Å reported in the literature [25]. For platinum, we got 4.077 Å compared to the experimental value of 3.9218 Å [26].

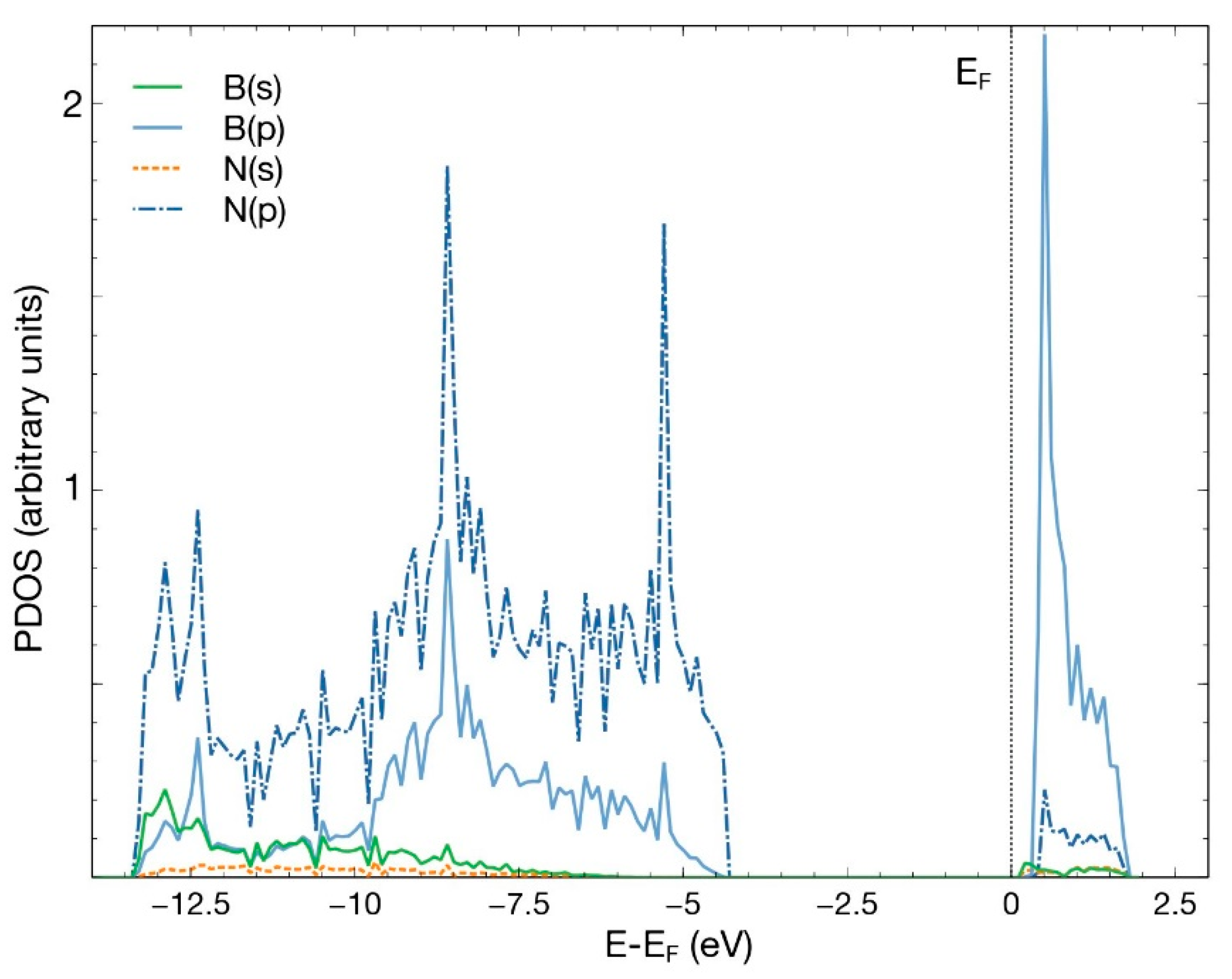

After an FPMD calculation, we obtained that the pristine hBN surface does not interact with a CO₂ molecule. The same occurred when we removed either one boron atom or one nitrogen atom to create a vacancy. This result agrees with previous studies [4]. Figure 2 shows the PDOS for the pristine 50-atoms hBN cell. Notice the hybridization of states s and p of boron and nitrogen to form the hBN surface. The B–N bond results from the sp2 hybridization, like in graphene atoms.

3.1. hBN Surface with a B Vacancy

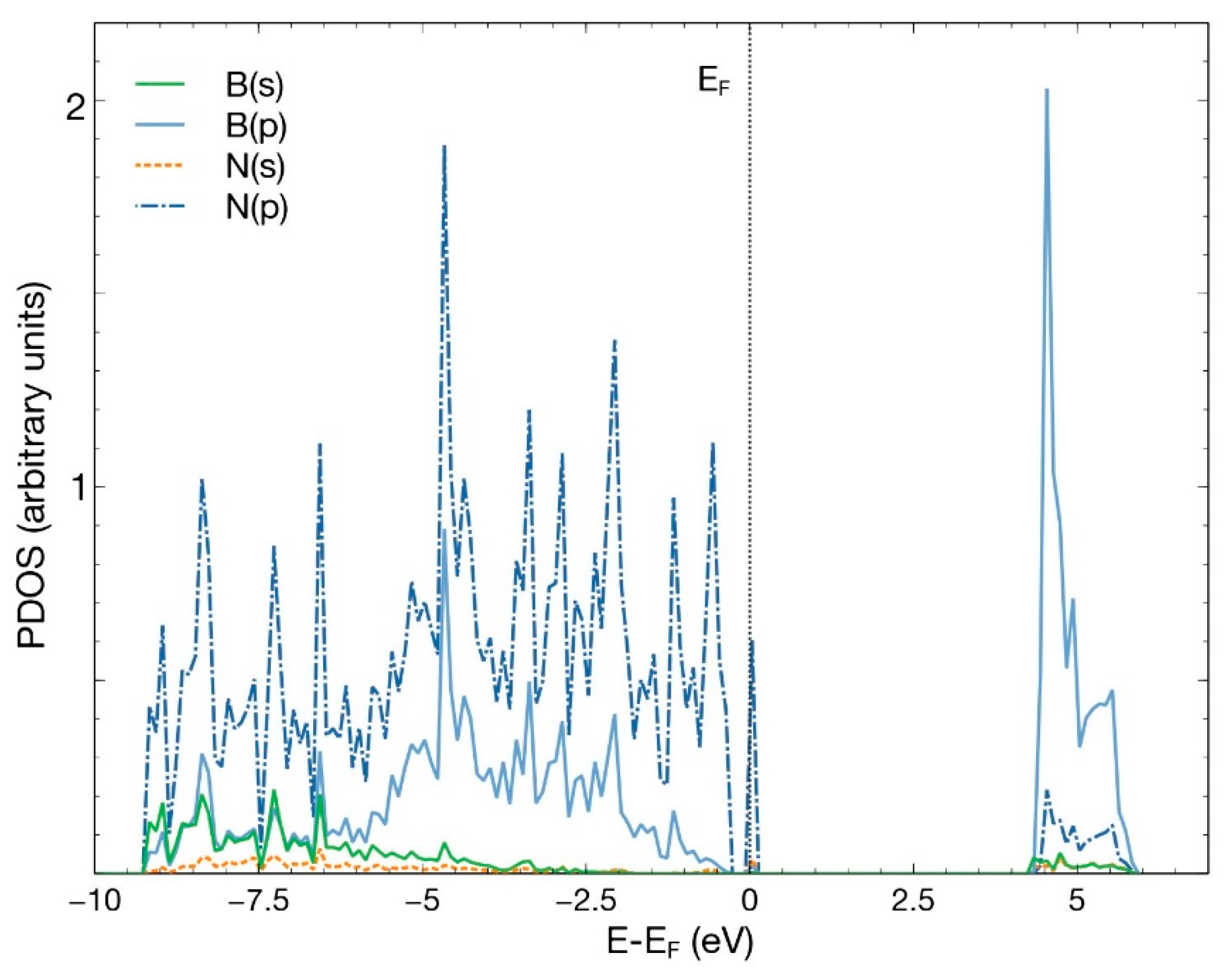

To explore different ways of catalyzing the absorption of the CO₂ molecule, we considered a Ti atom or a Pt atom as candidates to occupy the vacancy created after removing a B atom (Figure 1a). Figure 3 presents the PDOS of this system. From this figure, we notice the hybridization of orbitals s and p, with a minor contribution from orbitals s from boron and nitrogen.

3.1.1. Ti Absorption on a B Vacancy

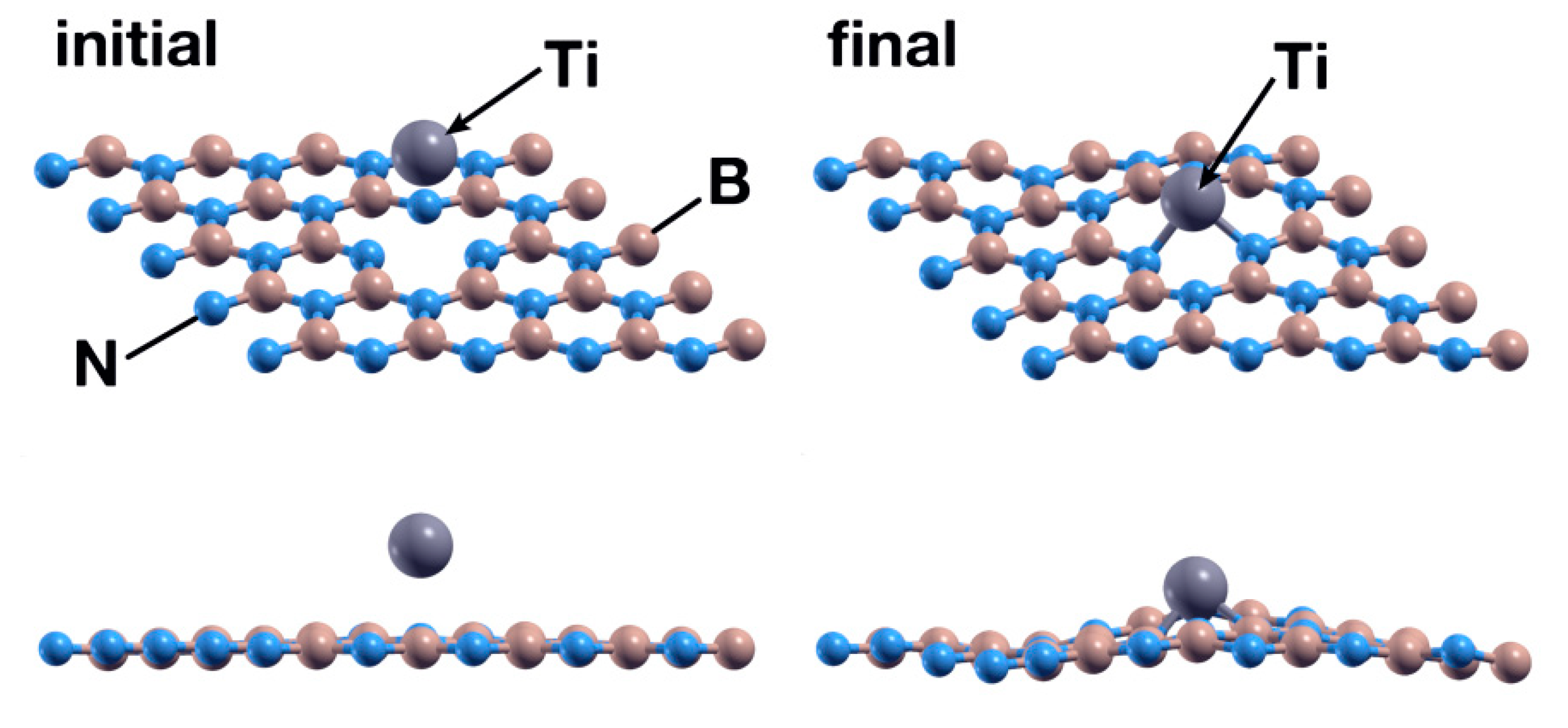

The Ti atom was the first to be studied in this system. We placed a Ti atom 2.5 Å above the surface, directly over the vacancy site. After 547 steps, the FPMD calculation shows at 300 K and atmospheric pressure that the Ti atom chemisorbs with an absorption energy of −11.39 eV. Figure 4 shows the initial and final configuration for this case. A Löwdin charge analysis shows that the Ti atom transfers 1.03 electrons to the surface, particularly to the nitrogen atoms surrounding it. Figure 5 shows the PDOS for the titanium atom absorbed in a B vacancy site on the hBN surface.

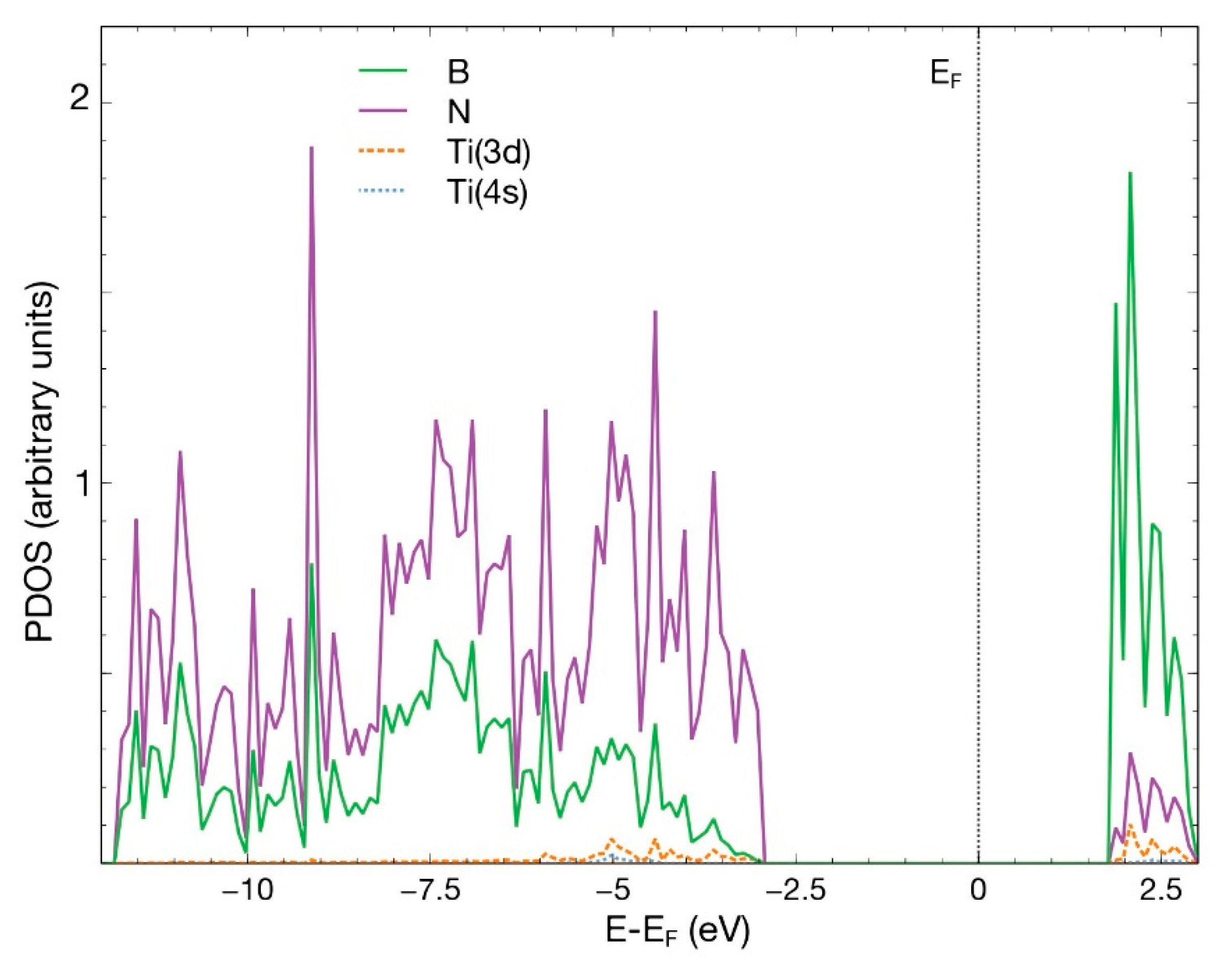

Figure 5 displays the p orbitals for boron and nitrogen, and the s and d orbitals for Ti. For energies below −2.5 eV, notice the hybridization of the p orbitals of boron and nitrogen and the titanium 4s and 3d orbitals. The contribution of the titanium orbitals is rather small. A similar behavior occurs for energies above 1.5 eV. Some states appear around the Fermi energy.

3.1.2. CO₂ Absorption on an hBN Surface + Ti Absorbed in a B Vacancy

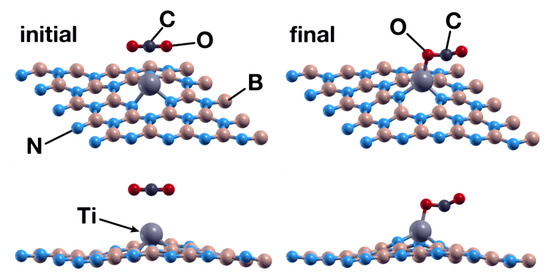

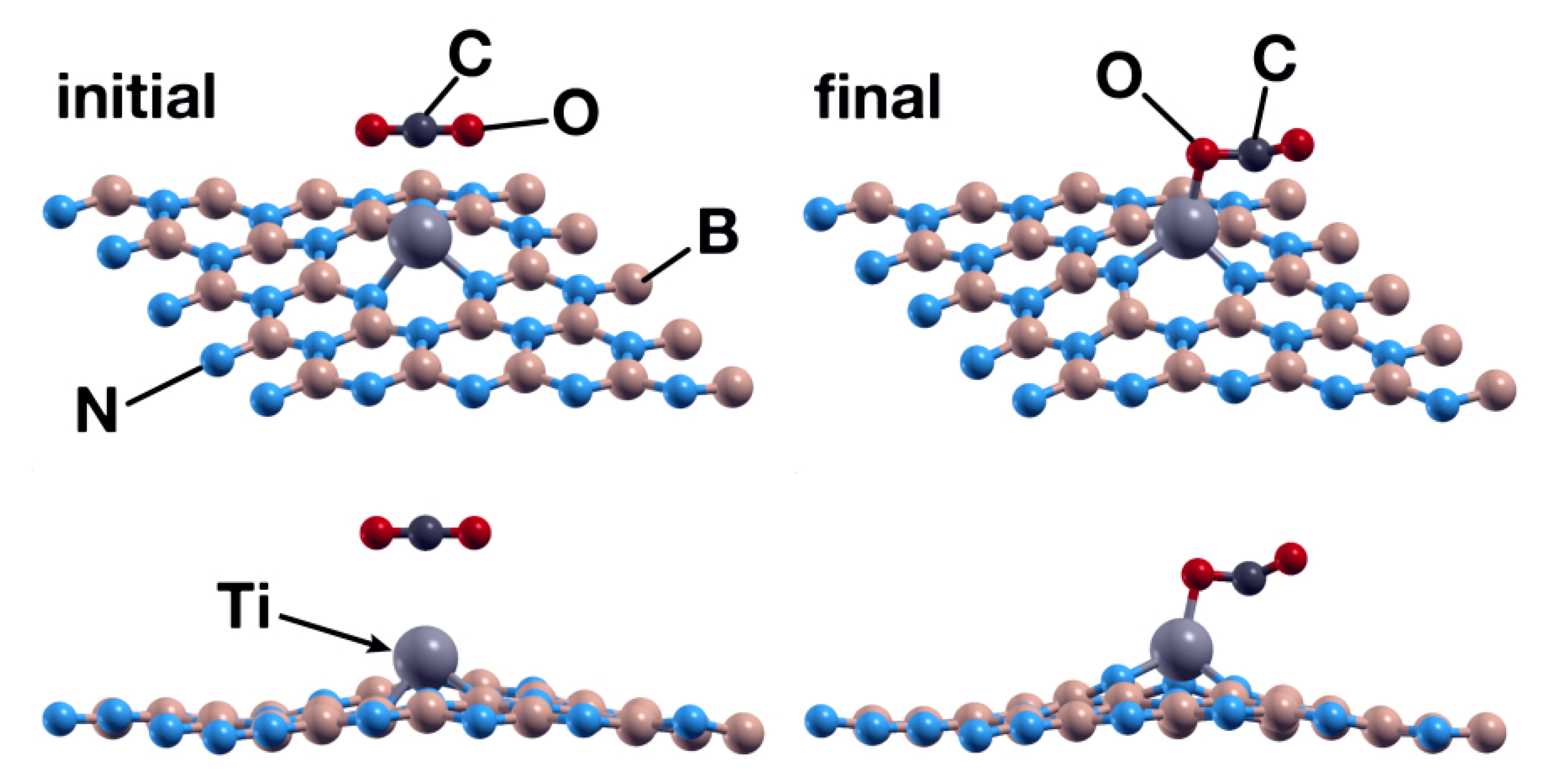

Taking the previous case as the starting point, we now placed a CO₂ molecule 3 Å above the Ti atom. The carbon dioxide molecule is linear, and it was oriented parallel to the surface. We obtained that the Ti atom traps the CO₂ molecule via an oxygen atom (Figure 6). The adsorption energy is −1.04 eV. Besides, the angle O-C=O changes from 180° to 141.2°. However, we found null interaction with the pristine hBN and with hBN with vacancies. The Ti atom donates 0.37 to the CO₂ molecule in this process of chemisorption.

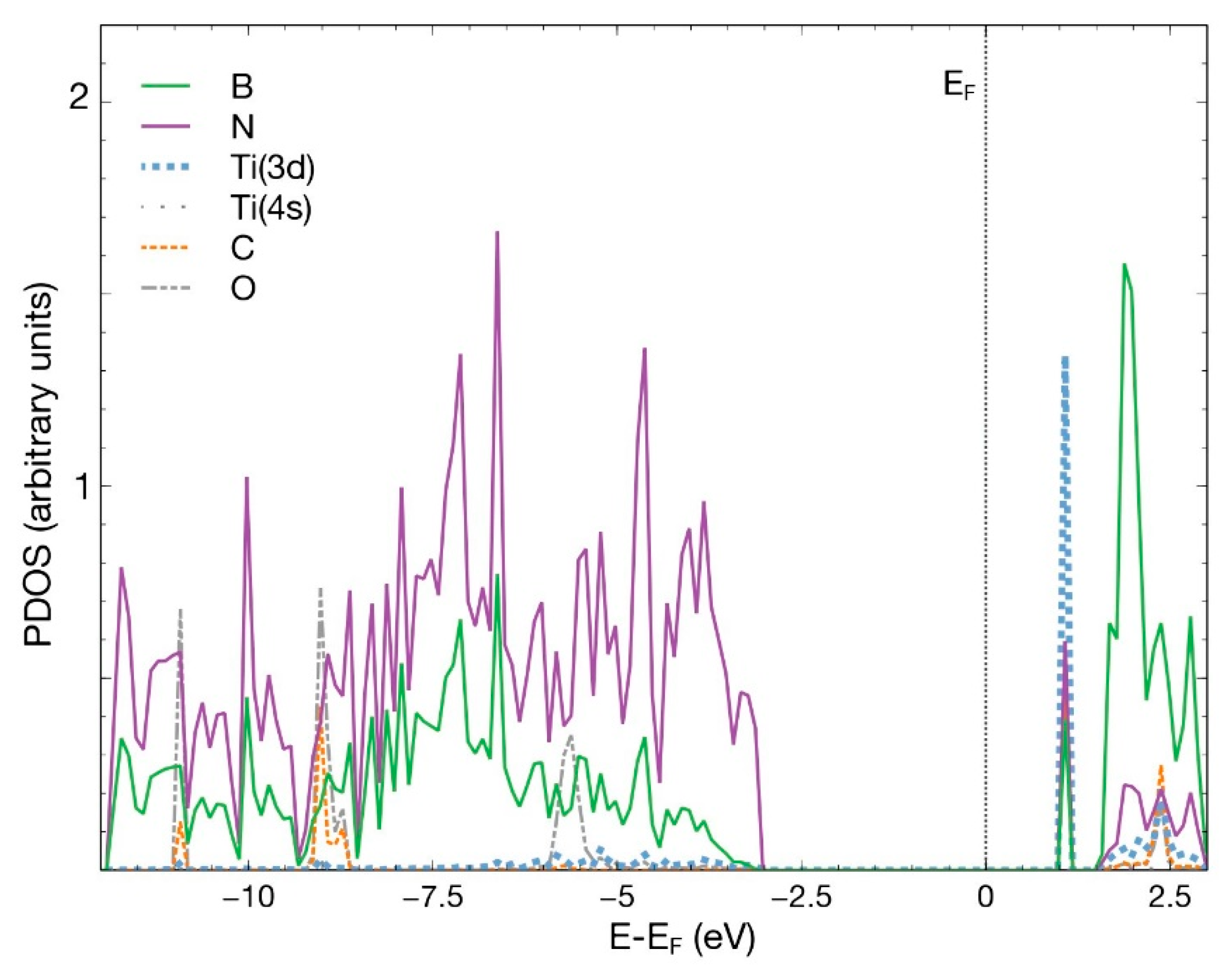

In Figure 7, we notice the hybridization of the 3d orbital from Ti and the p orbitals from B, N, C, and O below −2.5 eV and above +1.0 eV.

3.1.3. Pt Absorption on an hBN Surface with a B Vacancy

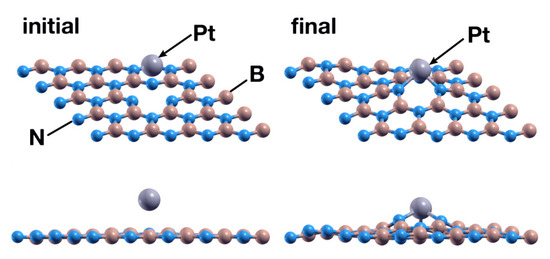

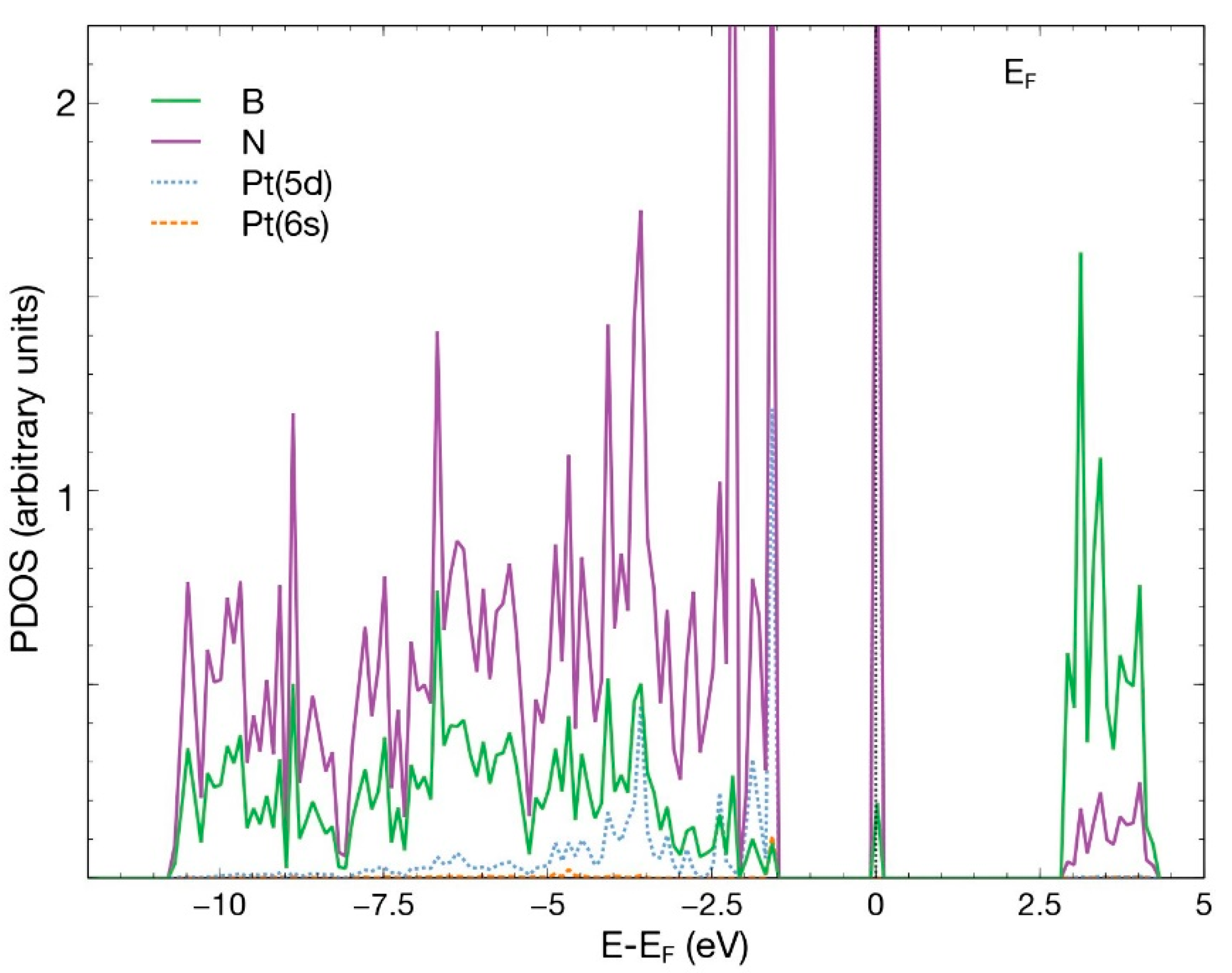

As in the first case, we placed the platinum atom at 2.5 Å above the surface, directly over the vacancy site. In the same way, and after 441 steps, the Pt atom chemisorbs with an absorption energy of −6.93 eV (Figure 8). The charge population analysis shows that the Pt atom donates 0.46 electrons to the surface, particularly to the N atoms surrounding it. Figure 9 shows the PDOS of the resulting system.

There is an evident hybridization of the 5d and 6s orbitals from Pt and p orbitals from B and N. The contribution of the 6s orbital of Pt is small. A prominent and narrow peak appears around the Fermi energy.

3.1.4. Interaction between CO₂ and the hBN Surface + Pt in a B Vacancy

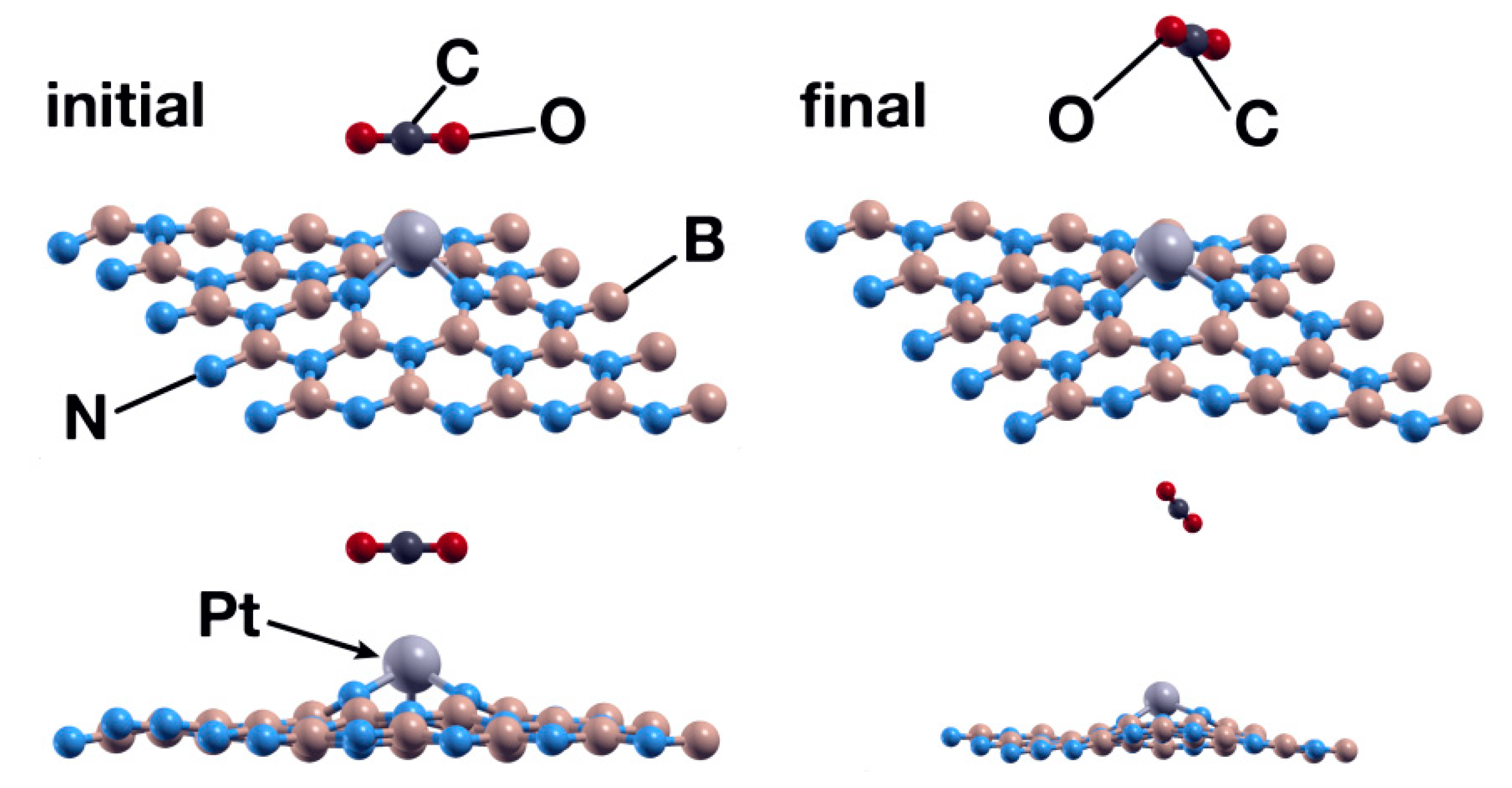

The exploration of the interaction between a CO₂ molecule and the system obtained in the previous case showed that the Pt atom is not a good enough catalyst for the absorption of the molecule. After 969 steps, the surface repels the CO₂ molecule (see Figure 10).

3.2. hBN Surface with an N Vacancy

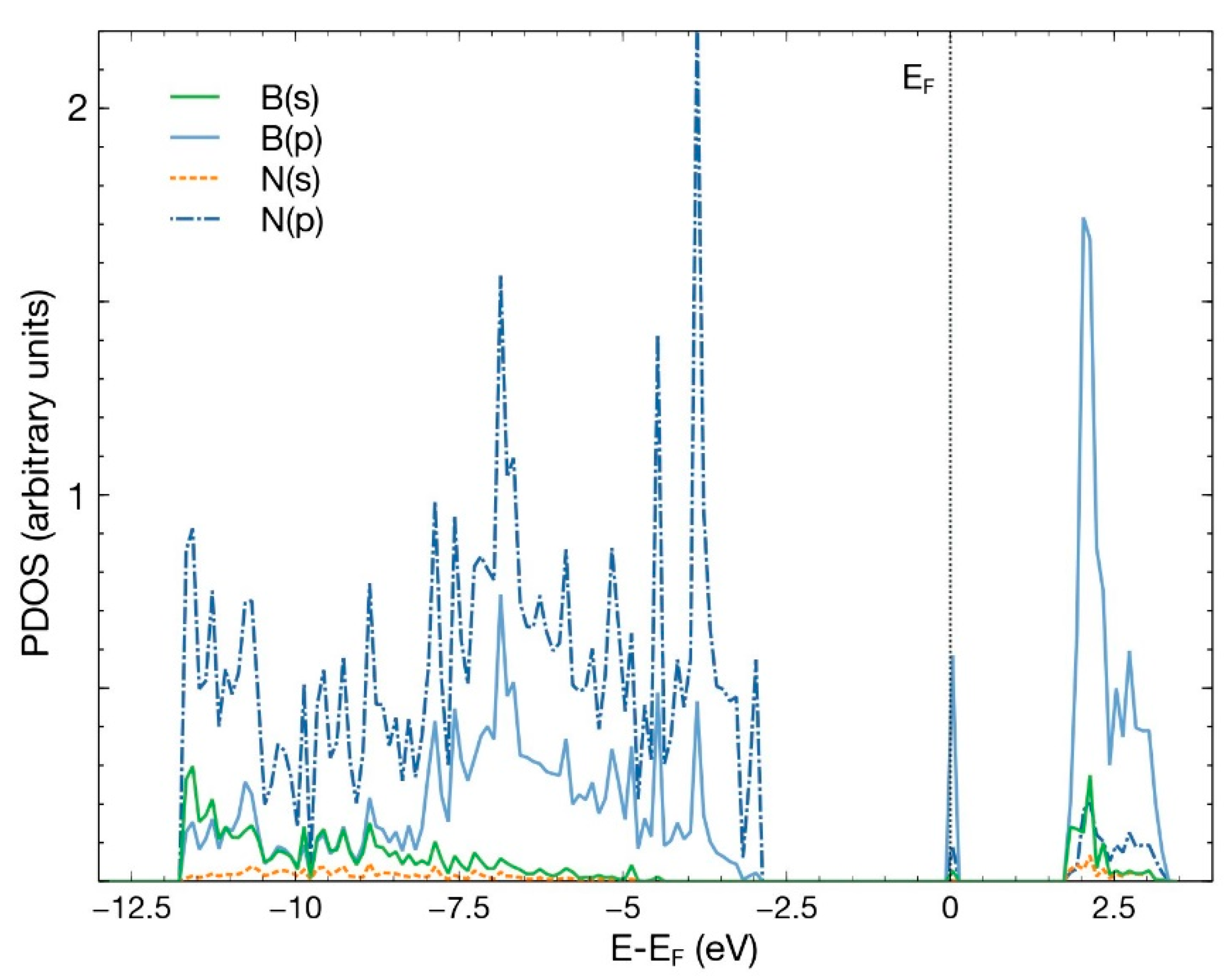

We present this case in Figure 1b. From the PDOS shown in Figure 11, we can see that some states appear around the Fermi energy, and the hybridizations of s and p are below −2.5 eV and above 1.5 eV.

3.2.1. Ti Absorption on an N Vacancy

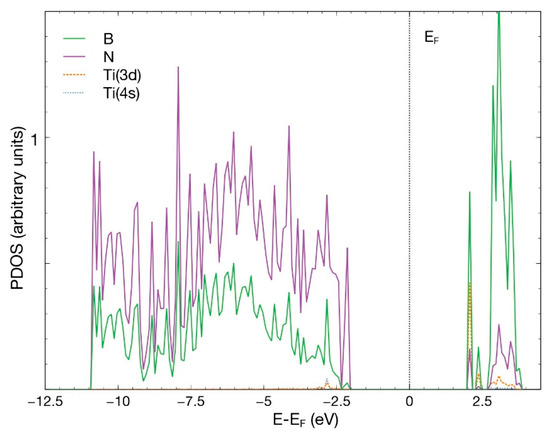

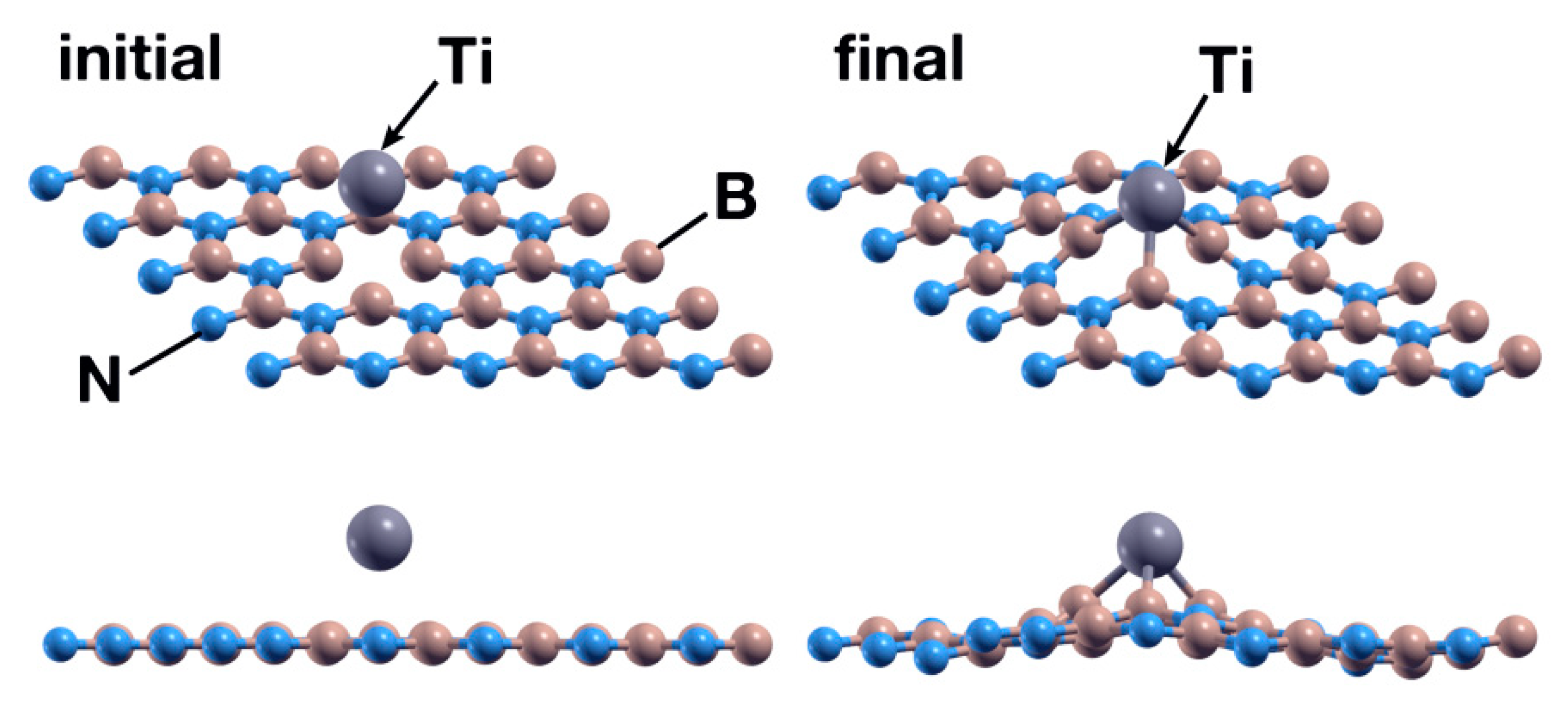

We placed a Ti atom in conditions analogous to those of Section 3.1.1. After 1089 steps, the Ti atom chemisorbs at the vacancy site, with absorption energy of −2.62 eV. Figure 12 shows the initial and final configuration for this case. There is a transfer of 0.89 electrons from Ti to its neighbors, less than the quantity observed in Section 3.1.1. This reduction may explain the smaller value of the absorption energy compared with the section above. Figure 13 shows the PDOS for this case. We can see a hybridization of the 4s and 3d orbitals from Ti with the p orbitals from B and N below −2.5 eV and above +2.5 eV.

3.2.2. CO₂ Absorption on an hBN Surface + Ti Absorbed in an N Vacancy

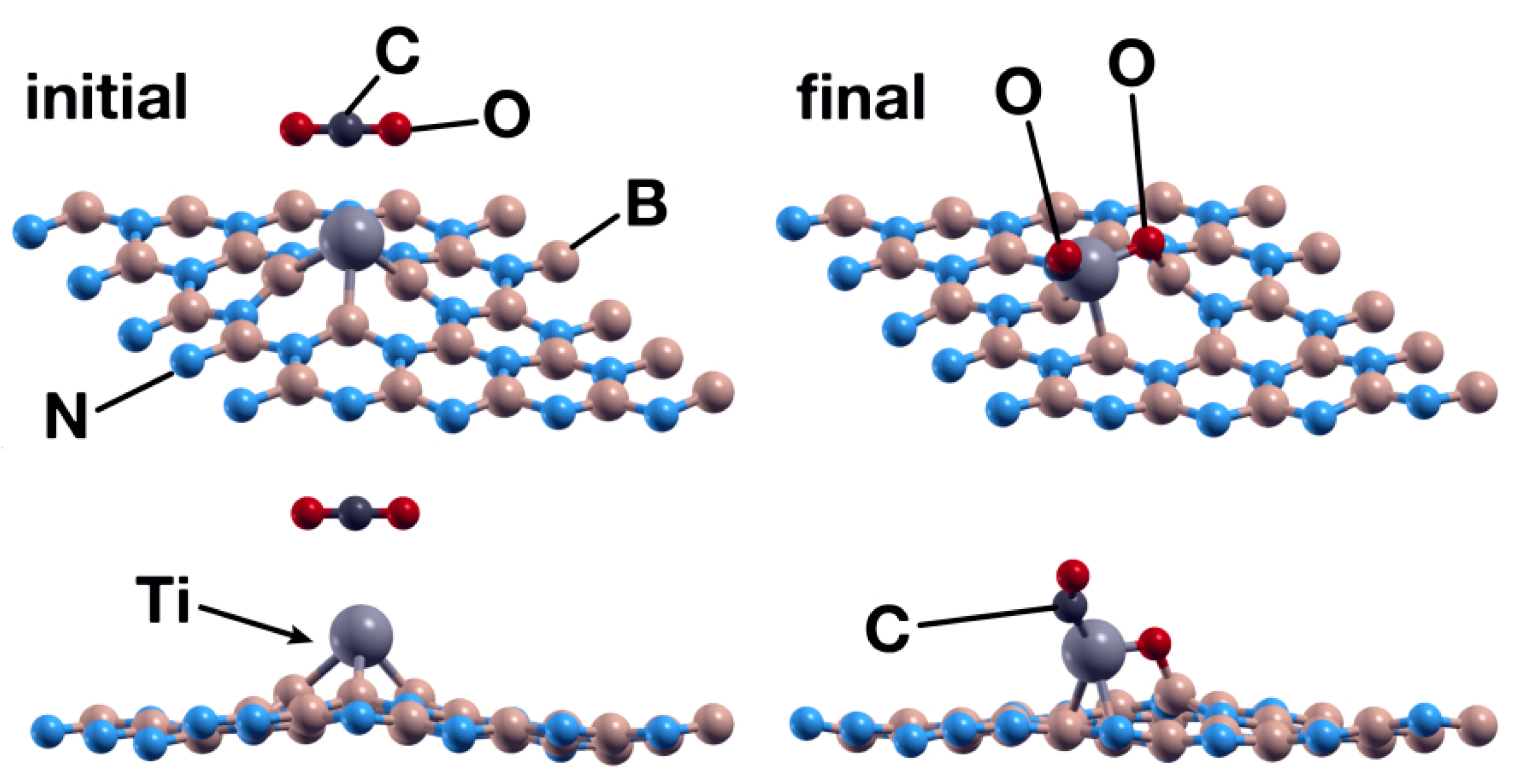

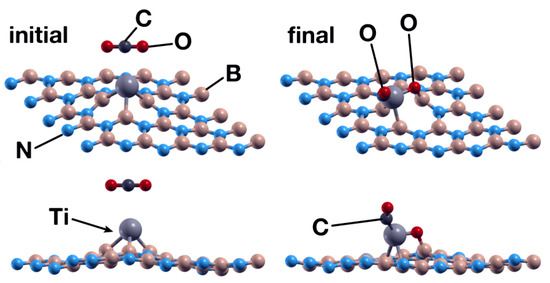

The Ti atom acts as a catalyst in this case as well. With the same initial orientation and vertical distance as the analogous case in Section 3.1.2, the CO₂ molecule is chemisorbed by the surface, with energy of −3.95 eV. However, there was a qualitative difference, as in this case, the CO₂ molecule dissociated in two fractions: CO and O. One oxygen atom bounds to a boron atom and the Ti atom, as shown in Figure 14. The C atom also bounds to the Ti atom. The Ti atom transfers 0.35 electrons to the CO₂ molecule, and the O atom bound to boron and titanium received 0.23 electrons.

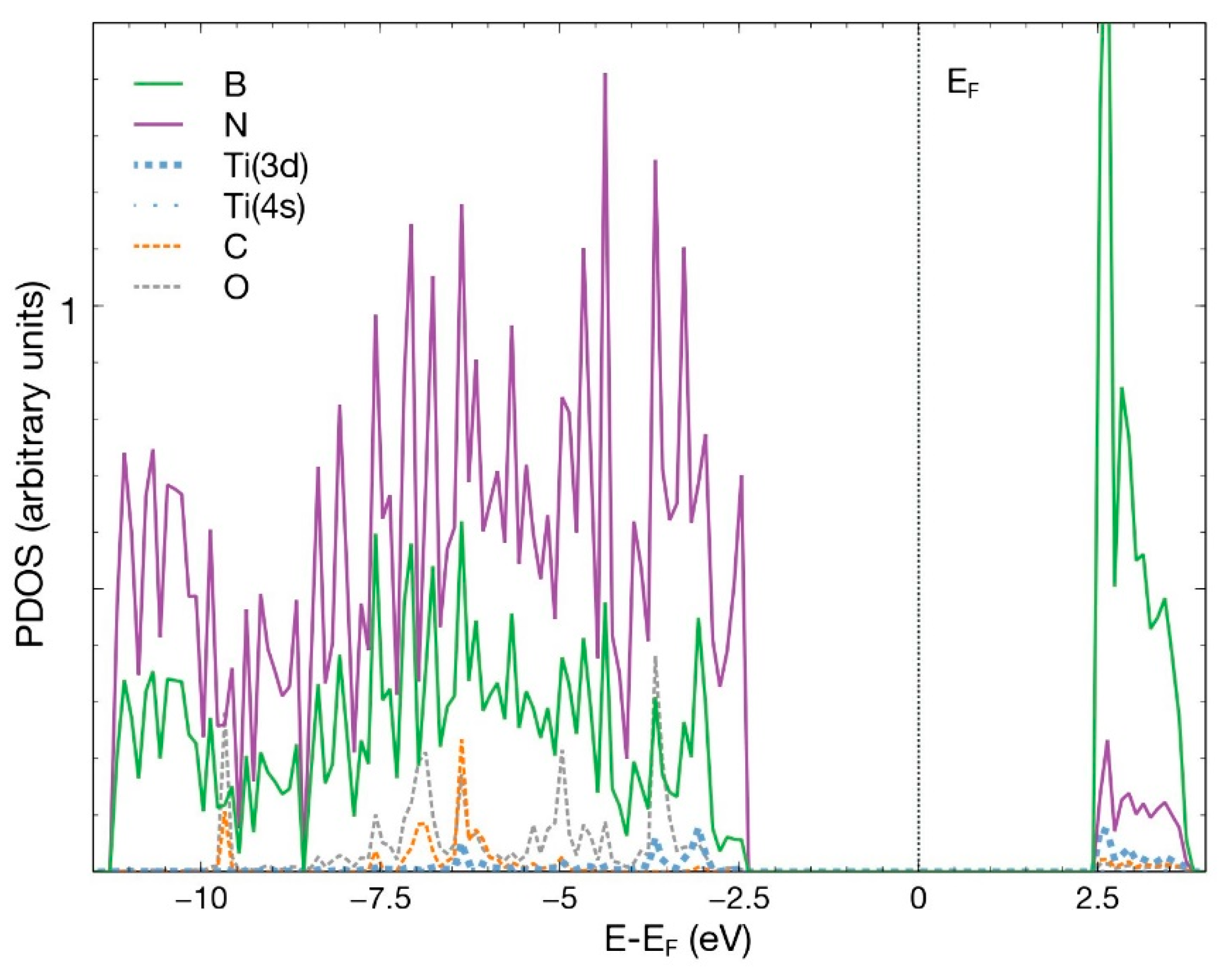

Figure 15 shows the PDOS for this case. We notice a hybridization of the 3d orbital from titanium and the p orbitals from boron, nitrogen, carbon, and oxygen, below −2.5 eV and above +2.5 eV. The contribution from the 4s orbital of Ti is minimal.

3.2.3. Pt Absorption on an hBN Surface with an N Vacancy

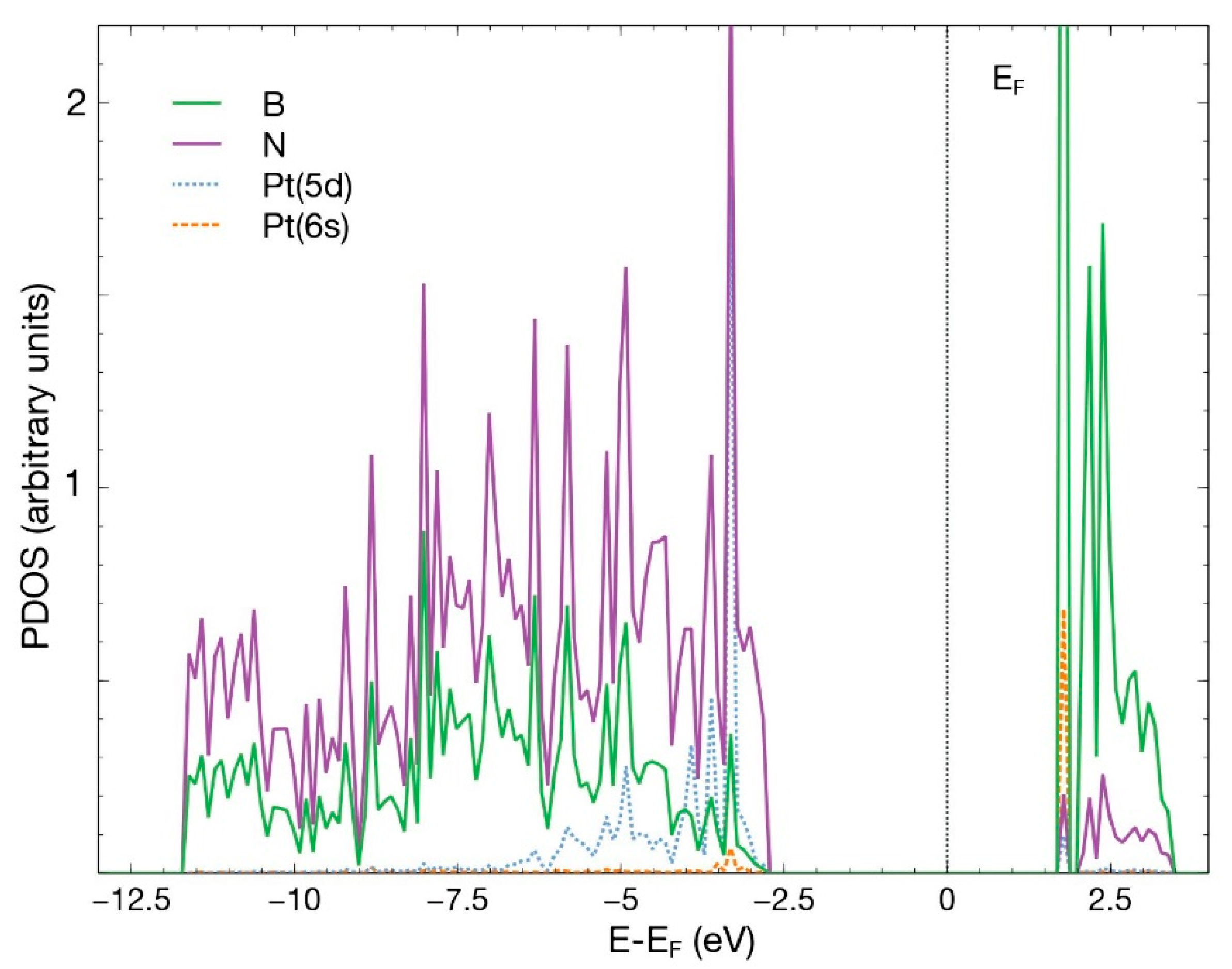

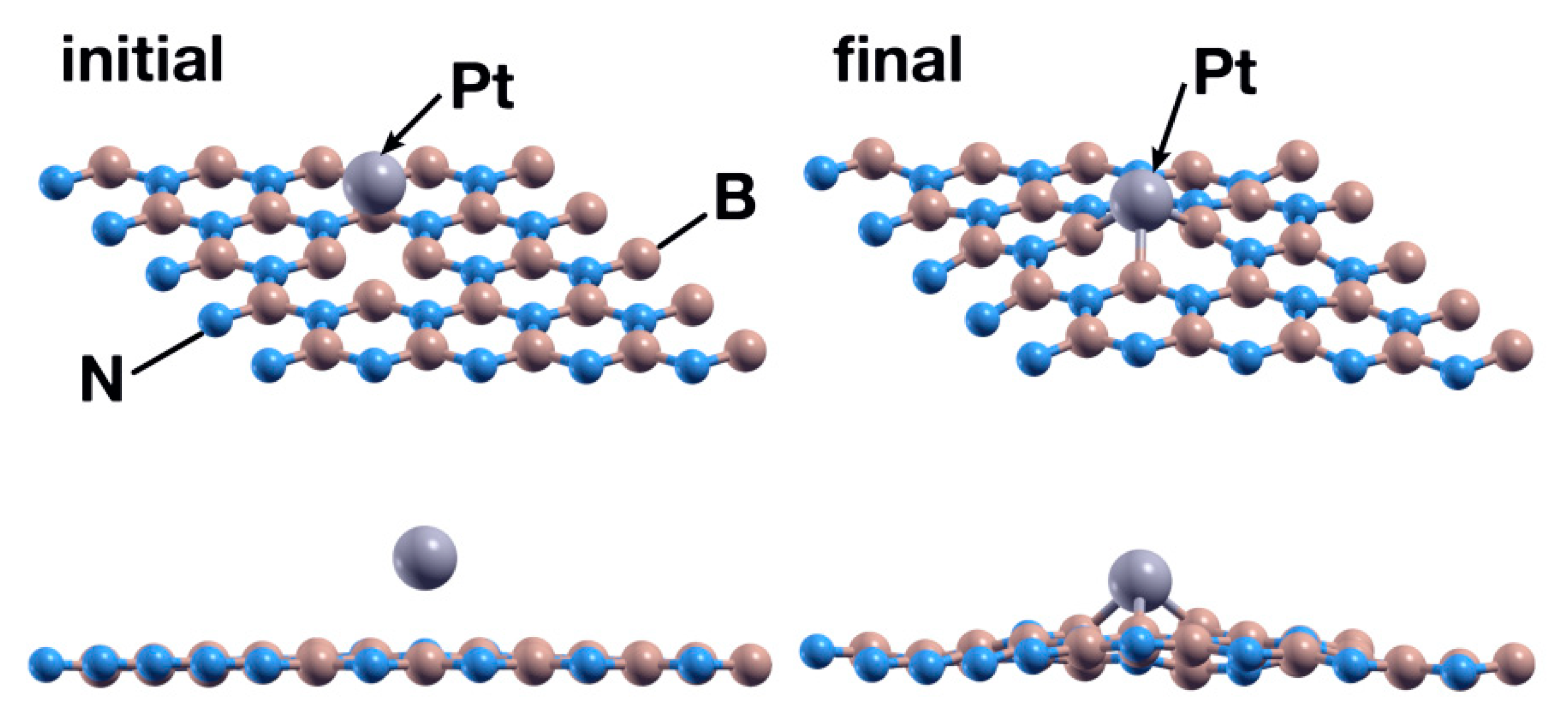

The Pt atom, placed at 2.5 Å above the surface, directly over the vacancy site, is also absorbed with an energy of −6.59 eV. Figure 16 shows the initial and final configurations after 879 steps. The Pt atom donates 0.1 electrons to the surface, a smaller amount than the analogous case involving titanium (0.89) from Section 3.2.1. Figure 17 shows the PDOS of the combined system.

Interaction between CO₂ and the hBN Surface + Pt in an N Vacancy

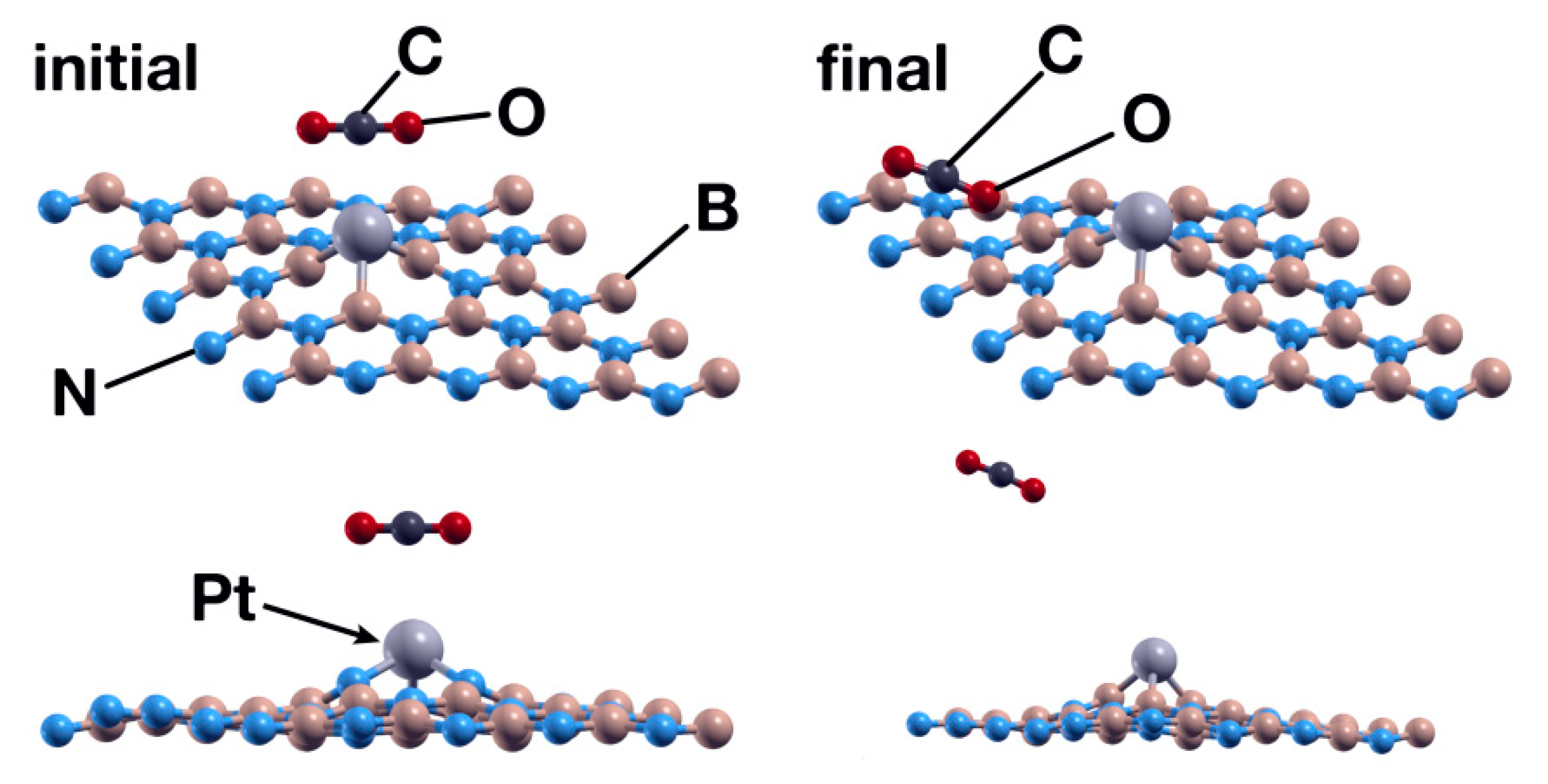

The final case considered saw no interaction between the CO₂ molecule and the surface. The MD run was 1894 steps long. We show the initial and final configurations in Figure 18.

Table 1. Absorption energies (in eV) for the interaction between the hBN surface and a Ti atom or a Pt atom and the subsequent interaction with a CO₂ molecule.

System	Eabs
Ti absorbed on hBN with B vacancy	−11.39
CO2 absorbed on hBN + Ti on B vacancy	−1.04
Pt absorbed on hBN with B vacancy	−6.93
CO2 absorbed on hBN + Pt on B vacancy	No absorption
Ti absorbed on hBN with N vacancy	−2.62
CO2 absorbed on hBN + Ti on N vacancy	−3.95
Pt absorbed on hBN with N vacancy	−6.59
CO2 absorbed on hBN + Pt on N vacancy	No absorption

summarizes the absorption energies or lack of interaction of the eight cases considered in this work.

4. Discussion

We performed FPMD simulations at 300 K and atmospheric pressure. We found that the pristine hBN surface shows no interaction with the CO₂ molecule, and this situation did not change with a vacancy either of a boron or a nitrogen atom. The titanium and platinum atoms chemisorb on the surface only in the presence of a vacancy. However, only the Ti atom could absorb the CO₂ molecule. This fact is probably due to the amount of charge exchanged between the Ti atom and the hBN surface, in both cases considered. The number of exchanged electrons was more significant for Ti than for Pt always.

The absorption of the CO₂ molecule occurs in two ways. One is without dissociation, and, in the other, the molecule breaks in CO and O.

In the two cases where the CO₂ chemisorbs on the hBN + Ti surface, the energies are more significant than the standard free energy for gaseous CO₂ at room temperature, which is 0.67 eV [2]. This fact suggests that the combined hBN-Ti systems may capture CO₂ at ambient conditions.

These results are consistent with previous studies we made, where we found that both the Ti and Pt atoms can absorb a CO molecule in similar conditions [27]. The more considerable amount of charge involved in the absorption process for the CO₂ molecule may have inhibited the catalyst action of the Pt atom.
