2. Flame Measurement by Compton Scattered X-rays
A Compton-scattered X-ray spectrum provides an electron momentum distribution, which is called Compton profile,
J(
pz), under the impulse approximation described as follows.
Here,
p (=(
px,
py,
pz)) denotes the momentum of an electron in a target material.
E1 and
E2 denote an incident and scattered X-ray energy with a scattering angle
θ, respectively. The electron mass and the velocity of light are denoted by
m and
c. Since the molecules are oriented randomly in the space, we can regard
pz =
px =
py. An electron momentum density is denoted by
n(
p).
ψi(r) and
χi(
p) denote the wavefunction of the
i-th electronic state in real space and momentum space, respectively. Therefore, we can obtain information on a wavefunction, in other words, measurements on the chemical states from a Compton profile (electron momentum distribution) [
4].
The intensity of Compton-scattered X-rays for monochromatic X-ray beams, d
N, is expressed by the following:
where
Φ0 denotes the incident photon flux into a target object,
t1 denotes the incident X-ray transmittance to a probing volume in the object,
t2 denotes the scattered X-ray transmittance from the probing volume to an X-ray detector,
ρe denotes the average electron density over the probing volume d
V, and d
σKN/d
Ω denotes the Klein–Nishina differential cross section [
5]. In the case of light element gases,
t1 and
t2 can be regarded as constant values. The intensity of Compton scattered X-rays, d
N, corresponds to the electron density
ρe. A ratio of a molecular density to an electron density,
α, is defined by the following equation.
Here,
ρm is a molecular density. Since the flame system can be regarded as the ideal gas law [
6], the temperature distribution is obtained from the electron density as described as follows.
Here,
ρm =
n/
V denotes the molecular density while
T and
R denotes the temperature and the ideal gas constant, respectively. The ratio of the molecular density to the electron density,
α, is obtained by assuming a combustion reaction. Here, we regard
α as a constant value of
αair = 0.0693 within an error of 2% in the combustion reaction [
3]. The ambient pressure,
P, is regarded as a constant. The ambient temperature of the air is 298 K. Therefore, we can estimate the temperature distribution from the Equation (7).
4. Results and Discussions

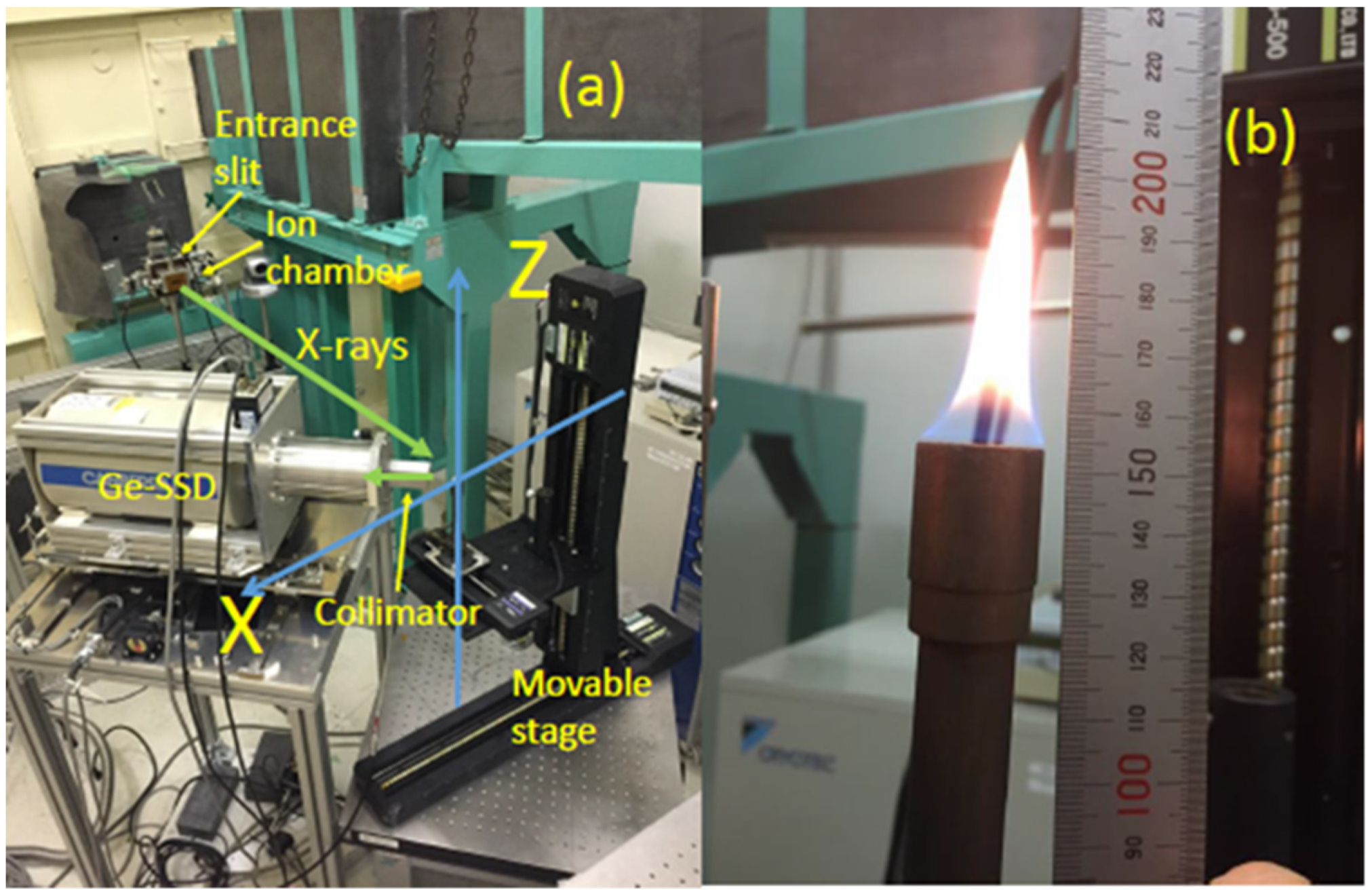

Figure 1b shows the side-view photograph of the laminar diffusion flame as explained previously. The flame shows an asymmetrical shape for the cylindrical axis of the burner. This comes from a self-induced air flow by the asymmetrical setup of the experimental system. The bright light emission of the flame corresponds to a thermal radiation of soot particles with a high temperature.

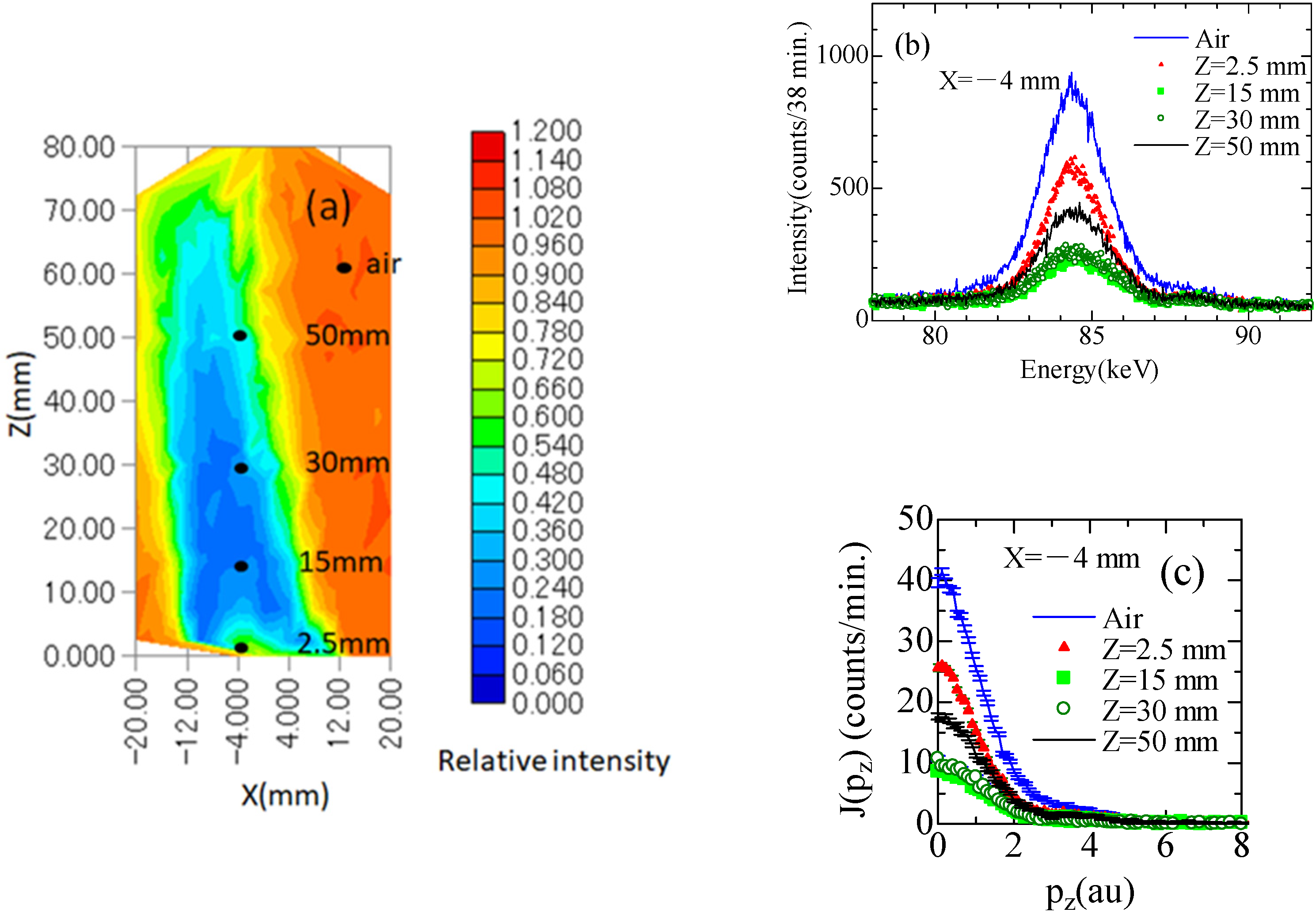

Figure 2a shows a cross sectional map of Compton scattered X-ray intensities for the flame shown in
Figure 1b. The intensities are normalized to those of the air. The red region shows strong X-ray intensities and the blue region shows weak intensities. The line of
x = −4 mm corresponds to the cylindrical axis of the burner. The relative intensity shows an asymmetrical shape for the cylindrical axis of the burner, which reflects the asymmetrical shape of the flame shown in
Figure 1b.
Figure 2b shows Compton scattered X-ray spectra from positions of (
x,
z) = (−4 mm, 2.5 mm), (−4 mm, 15 mm), (−4 mm, 30 mm), (−4 mm, 50 mm), and (12 mm, 60 mm), which are shown as dots in
Figure 2a. The position of (
x,
z) = (12 mm, 60 mm) corresponds to the ambient atmosphere of air. The position of (
x,
z) = (−4 mm, 2.5 mm) corresponds to pure propane. The intensities remarkably decrease at z=15mm and 30mm compared to that of air, which reflects a high temperature region of the flame. The Compton scattered X-ray spectra can be converted into electron momentum distributions,
J(
pz), as shown in
Figure 2c. Since Compton profiles probe the wavefunctions in the momentum space as shown in Equations (1)–(3), shapes of Compton profiles reflect the chemical states as explained previously.
In order to highlight the change of the shape in the Compton profiles, we obtain a difference of Compton profiles as described as follows.
Here a Compton profile,
J(
pz), shown in
Figure 2c is normalized into
J’(
pz), which has a unit area as Equation (8).
J’ zmm(
pz) denotes a normalized Compton profile at
z mm.
J’air(
pz) denotes the normalized Compton profile of air.

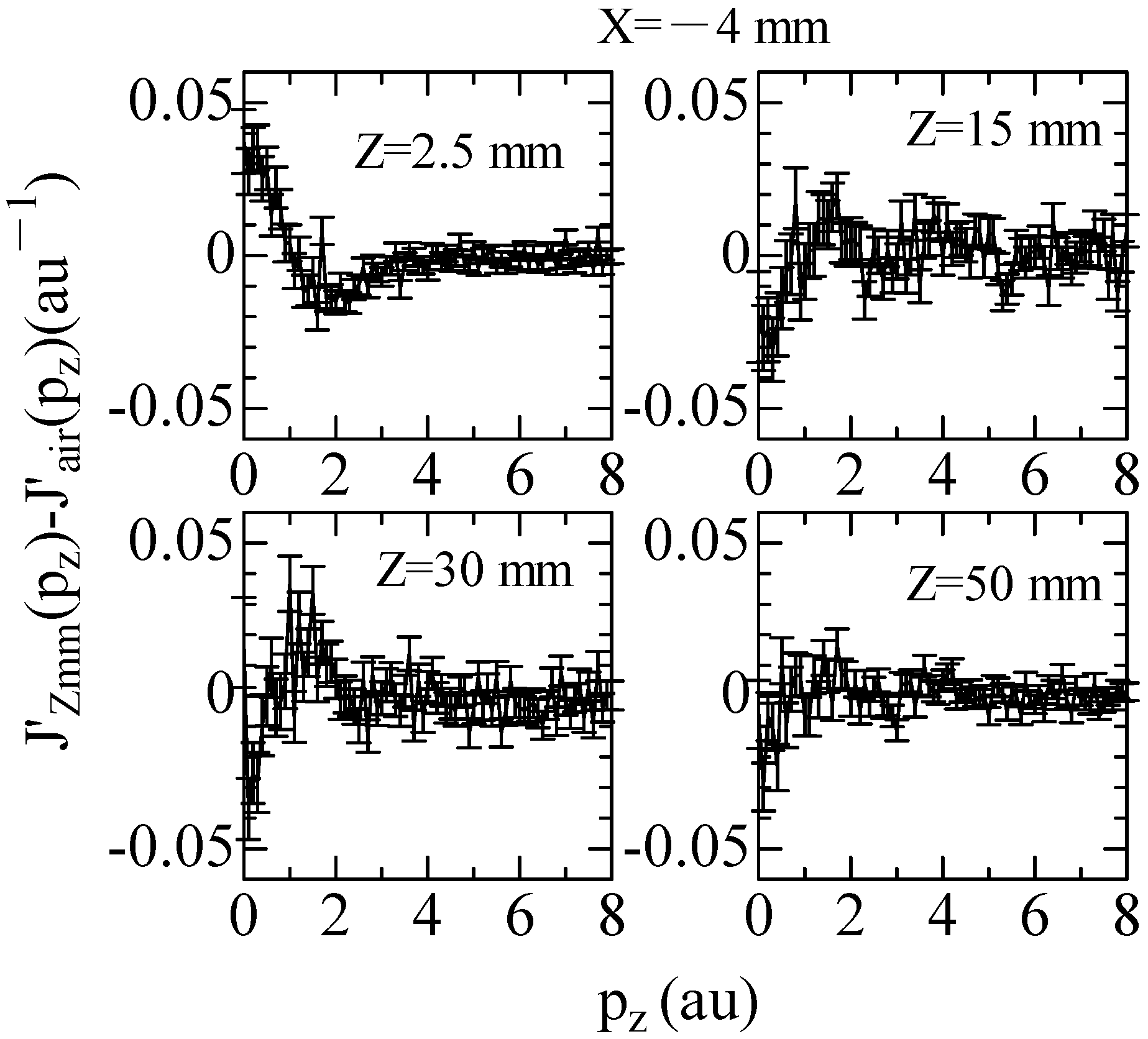

Differences of Compton profiles, Δ
J(
pz), in Equation (9) are shown in
Figure 3. The difference Compton profile between the propane and air (
z = 2.5 mm) shows positive value around
pz = 0 au. This indicates that the Compton profile of the propane has a rather acute shape than compared to air. The difference in Compton profiles at
z = 15 mm and 30 mm show negative values around
pz = 0 au, which indicates that the Compton profiles at
z = 15 mm and 30 mm have rather obtuse shape than compared to air.

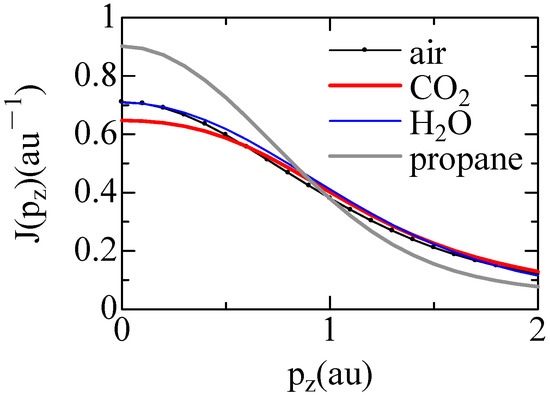

This situation can be understood from theoretical calculations of Compton profiles relative to air, propane, H
2O, and CO
2 by Crystal14 code [
10], as shown in
Figure 4, in which the Kohn–Sham DFT Hamiltonian with the basis function of the STO-3G was used. Here, molecular directions are spherically averaged. The calculated Compton profiles are normalized to have a unit area. The Compton profiles of propane and CO
2 have rather acute and obtuse shapes, respectively, than compared with air, which are consistent with
Figure 3. This indicates that the obtuse shapes of the Compton profiles at
z = 15 mm and 30 mm are ascribed to the feature of the Compton profile for CO
2 molecules.
If we assume the system as an ideal gas [
6], we can estimate the temperature of the flame from Equation (7).

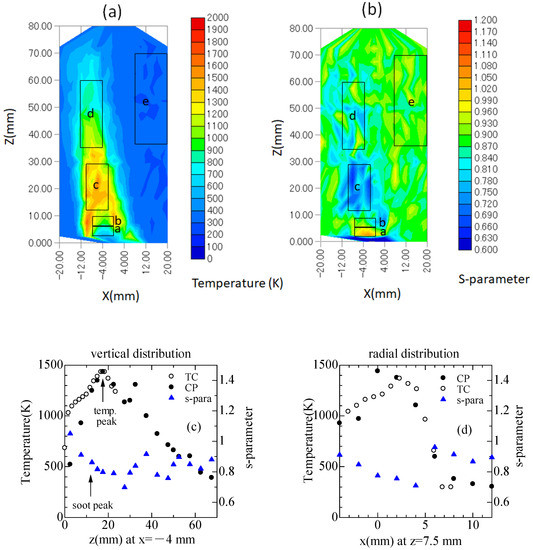

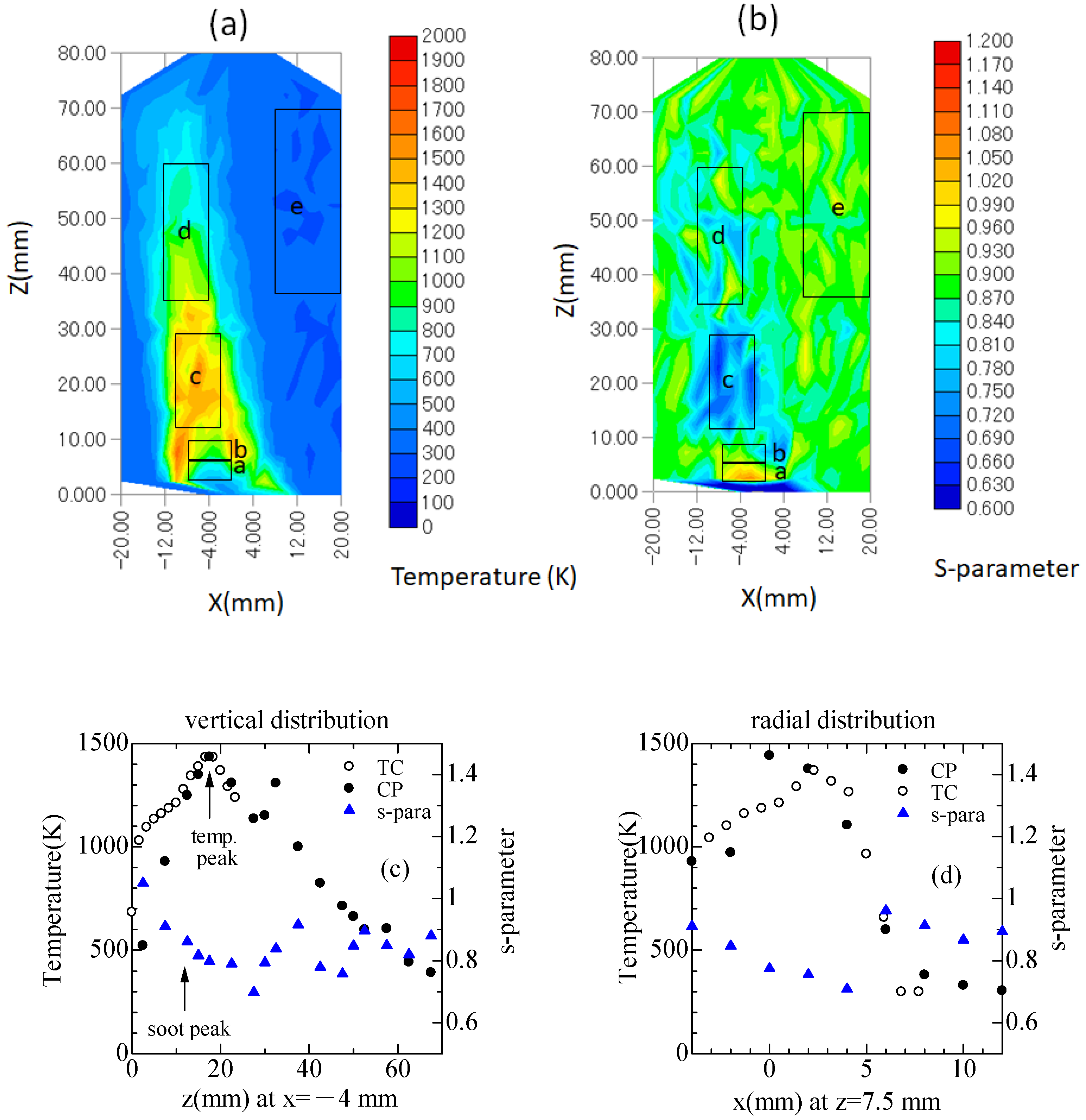

Figure 5a shows the estimated temperature of the flame. Here the air, shown as region
e, is regarded to have the average temperature of 298 K. The estimated temperature in region
a is about 500 K, which includes
z = 2.5 mm and is dominated by propane molecules just prior to the combustion. The region
b has the temperature of approximately 1000 K and corresponds to the transition area of the combustion reaction from propane to CO
2 in which soot generation was reported [
11,
12]. The highest temperature region (shown as the region
c), which includes
z = 15 mm and 30 mm, shows about 1500 K. The region
d, which includes
z = 50 mm, corresponds to the mixing region of the high temperature combustion gas and air and the temperature decreases as
z increases. These results indicate that the temperature distribution should have a relation to the distribution of chemical states as discussed in
Figure 3.
In order to obtain the distribution of the chemical state, we analyzed the shape of the Compton profile by the s-parameter analysis [
13,
14]. The cross section of Compton scattering is dominated by the electron density as shown in Equation (5). Therefore, it is not easy to distinguish the elements from the Compton scattering intensities. However, an electron momentum distribution is sensitive to the chemical states, including the element composition. A shape analysis of the Compton scattered X-ray spectrum is useful. We confirmed the linearity of the s-parameter against the Li concentration and succeeded in obtaining in operando Li concentrations in a Li ion battery [
13,
14]. The s-parameter can be sensitive to the chemical states of the combustion reaction. Therefore, we tried the s-parameter analysis as the first step.
The s-parameter is defined as the follows.
Here,
SL and
SH are the areas of a Compton profile, which correspond to the low-momentum and high-momentum regions. The low and high momentum regions are defined as |
pz|≤
d and
d≤ |
pz |≤
r, respectively. In this study,
d = 1 atomic units (au) and
r = 5 au are used. The acute shape provides a higher s-parameter and the obtuse shape provides a lower s-parameter.
Figure 5b shows the s-parameter distribution of the flame. The highest s-parameter values are observed in region
a, which corresponds to the acute shape of the Compton profile for propane molecules, as discussed in
Figure 3 (
z = 2.5 mm). The s-parameter becomes lower value in region
b, which corresponds to the collapse of propane molecules coinciding with the soot generation. The s-parameters are the lowest in region
c, which correspond to the obtuse shape of the Compton profile for CO
2, as discussed in
Figure 3 (
z = 15 mm and 30 mm). The s-parameter converges to the value of air in region
d.
Figure 5c shows a comparison of measured temperatures between the present Compton scattering and a thermocouple along the
z direction at x = −4 mm (vertical distribution). The s-parameter distribution is also shown. The measured temperatures by Compton scattering almost agree with those measured by the thermocouple. The tendency of the temperature distributions in
Figure 5c agrees with recent simulated temperature distributions in a laminar diffusion flame [
1,
15]. The highest s-parameter values of 1.05 is observed at
z = 2.5 mm, which corresponds to propane molecules just before combustion around 500 K, as shown in
Figure 5a,b. The s-parameter value is about 0.85 and the temperature is about 1000 K at
z = 12 mm, which corresponds to the collapse of propane molecules coinciding with the soot generation maximum [
12,
13]. The lowest s-parameter value of 0.8 and the highest temperature around 1500 K are observed at
z = 18 mm, which indicates the amount of CO
2 generation, as discussed before.
Figure 5d shows a comparison of measured temperatures between the present Compton scattering (
z = 7.5 mm) and a thermocouple (
z = 6 mm) along the radial direction (
x direction). The s-parameter distribution is also shown. The measured temperatures almost agree between the Compton scattering and the thermocouple. The tendency of the radial distributions on the temperature shown in
Figure 5d agrees with recent reports [
15,
16]. The maximum temperature about 1500 K is observed around
x = 0–2 mm with the lowest s-parameter values corresponding to the amount of CO
2 generation. The flame front is observed around
x = 5 mm, where the s-parameter increases suddenly.

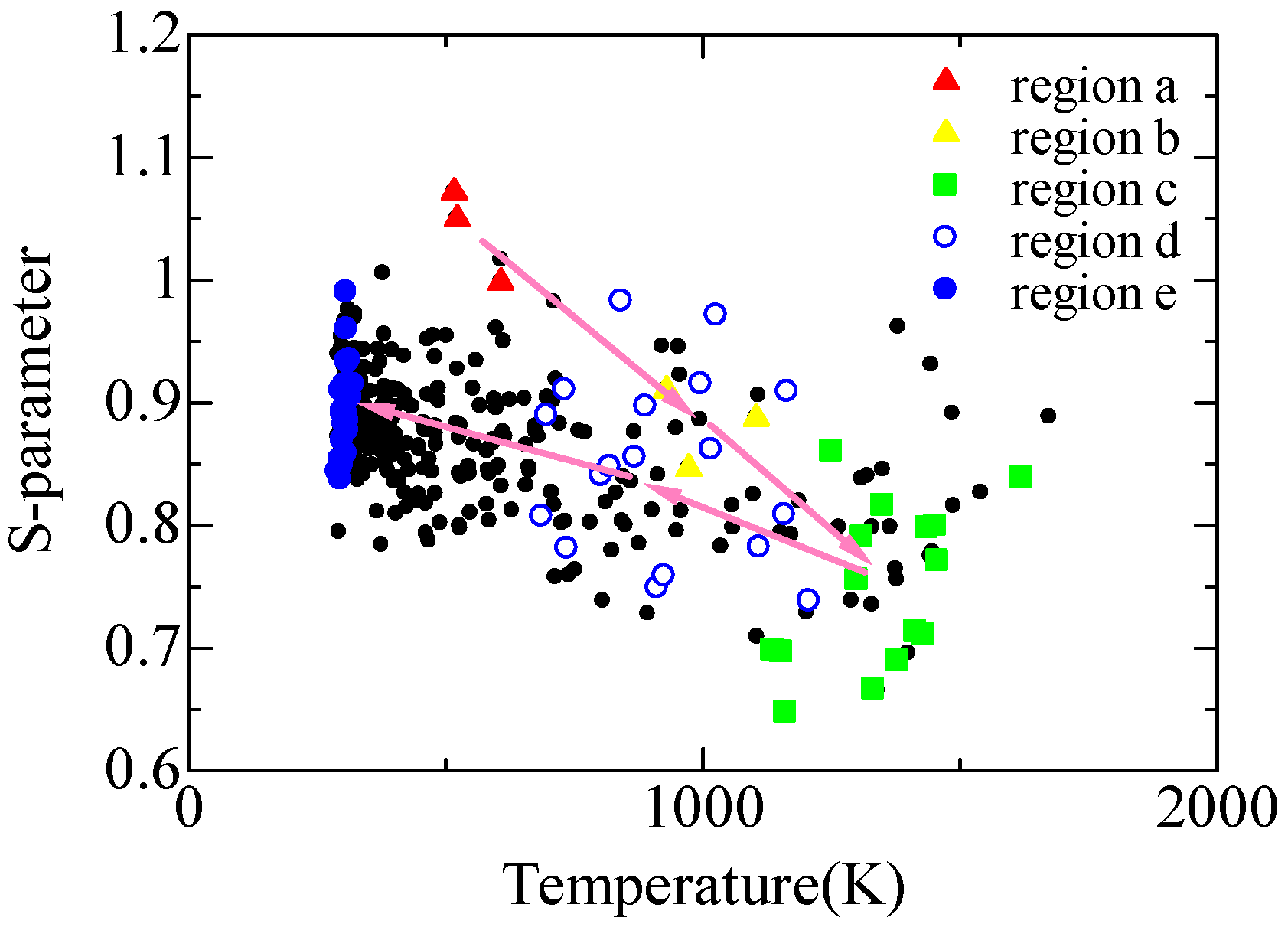

Figure 6 shows a relation of temperature in
Figure 5a and s-parameter in
Figure 5b. The propane molecules just prior to the combustion in region
a (temperature 500 K) induces combustion reactions and immediately collapses in region
b, coinciding with soot generation (temperature 1000 K). The temperature increases up to 1500 K and s-parameter decreases in region
c. The decrease in the s-parameter corresponds to the obtuse shape of Compton profiles, which reflects a large amount of CO
2 generation. Afterwards, the combustion gas mix with air in region
d. The temperature decreases and s-parameter converges relative to the value of the air (region
e).
