Effect of Al Content on the Microstructure and Tensile Properties of Zr-Co-Al Alloy Prepared by Rapid Solidification

by
Zixiang Wu
1,2,
Wenfei Lu
1,2,
Caiju Li
1,2,*,
Peng Gao
1,
Xin You
1,2 and
Jun Tan
3,*
1
Faculty of Materials Science and Engineering, Kunming University of Science and Technology, Kunming 650093, China
2
Key Laboratory (MOE) of Advanced Materials of Rare and Precious and Nonferrous Metals, Kunming University of Science and Technology, Kunming 650093, China
3
College of Materials Science and Engineering, Chongqing University, Chongqing 400044, China
*
Authors to whom correspondence should be addressed.
Crystals 2022, 12(10), 1483; https://doi.org/10.3390/cryst12101483
Submission received: 28 September 2022 / Revised: 13 October 2022 / Accepted: 16 October 2022 / Published: 19 October 2022
(This article belongs to the Special Issue Advances in Zr-Based Alloys)
Browse Figures
Versions Notes

Abstract

:
The Zr50−x/2Co50−x/2Alx (x = 0, 4, 5, 6, 7, 8) alloy sheets were prepared by copper mold suction casting, and the effect of Al content on the mechanical properties and the strengthening mechanism was thoroughly investigated. With Al addition, a Zr5Co7Al3 intermetallic compound formed and precipitated at the grain boundaries or inside the grains, which produced strong synergistic effects of secondary phase strengthening, fine grain strengthening and solid solution strengthening. However, the precipitation of intermetallic compounds can lead to the formation of shrinkage cavities at grain boundaries, and the negative effect of adding too much Al is greater than the strengthening effect, resulting in a gradual decrease in strength. Therefore, the best synergistic strengthening effect is achieved when the Al content is 5 at.%, the grain size of the alloy is reduced from 60 μm to 4 μm, and the room temperature tensile strength is increased from 240 MPa to 464 MPa.

1. Introduction

Zr-Co(-Al) alloys have attracted attention in the fields of structural materials, biological materials and green-energy material because of their remarkable properties, including high mechanical strength, high corrosion resistance, good biocompatibility and potential for use in hydrogen storage [1,2,3].
The B2 phase, with a relatively simple structure (CsCl structure), is conventionally considered to have poor plasticity at room temperature due to limited slip systems [4,5,6]. However, B2-ZrCo is a stable and inherent ductile phase at room temperature [7]. During deformation, the B2 phase is transformed into the B33 phase by martensitic phase transformation, which enhances the mechanical properties of alloys [8,9,10]. Jansson et al. investigated the effect of different Co/Zr ratios on the structure and properties of alloys, and large Co/Zr ratios were prone to the formation of B33 phases [11]. Chen et al. found noticeable plasticity and work-hardening in Zr-Co-Al bulk metallic glass composites (BMGCs), which was attributed to the higher volume fraction of the B2-ZrCo phase [12]. The same conclusion was obtained for Zr-Cu-Al BMGCs by Kosiba et al. [13].
Alloying is an extremely effective means of toughening intermetallic compounds. By adding a certain amount of solid solution alloying elements to binary alloys, the solute atoms will distort the lattice of the parent phase and act as pinning sites for dislocations, causing a solid solution strengthening effect. When the added solute element exceeds the solid solution degree, the solute element precipitates out as a new phase, which has a precipitation strengthening effect. Li et al. found that minor Al on Zr-Co alloys significantly improved the compressive strength and plasticity of Zr-Co alloys [14]. Li investigated the effect of Cu on the microstructure and mechanical properties of Zr-Co alloys [15]. The addition of Cu elements led to the precipitation of the B33 phase at grain boundaries, and the minor addition of Cu increased the yield strength, the elastic limit and the Young’s modulus of the alloy [15]. Hossain et al. showed that the addition of different amounts of Ni or Pd elements to ZrCo alloy resulted in different mechanical properties, with a maximal tensile elongation of 22% achieved in Zr50Co40Pd10 [4,5,6,16,17]. The addition of Co and Zn elements to Zr-Cu alloy can enhance the formation ability of the B2 phase [18,19]. The addition of certain amounts of alloying elements such as Cu, Cr, Fe, and Co to NiAl alloy for microalloying will produce disordered γ-phases at the grain boundary between the β-phases with B2 structure, which can coordinate the deformation between adjacent grains and thus improve the plasticity of NiAl alloys [20,21]. Liu et al. found that the addition of Cr effectively increased the decoupling strength of Fe3Al intermetallic compounds, reduced the antiphase boundary (APB) energy and long-range ordering, and altered the dislocation motion and decomposition, which significantly promoted the occurrence of slip bands and cross-slips and improved the plasticity of alloys [22,23]. The minor addition of B element to polycrystalline Ni3Al significantly eliminates brittle intergranular fracture and further improves room temperature plasticity [24]. Similarly, the minor addition of rare earth elements to NiAl alloy can significantly improve its strength and plasticity [25,26,27,28]. Wu et al. found that Al elements promoted the formation of the B2 phase in Zr50Cu50 alloy and enhanced its mechanical properties [29].
The addition of alloying elements to intermetallic compounds can change the glass forming ability (GFA), the microstructure and the mechanical properties of the alloy. The addition of Al elements to ZrCo alloy was found to change the GFA of the alloy and resulted in Zr-Co(-Al) alloys with different structures ranging from fully amorphous to fully ultrafine crystalline with various mechanical properties [10,30,31,32]. In Zr-Co-Al alloy systems, higher Al content (more than 14 at.%) usually leads to the formation of fully amorphous structure, while lower Al content (less than 10 at.%) results in full crystallization, and medium Al content results in amorphous matrix composites. The brittleness, work-softening and limited dimensions of BMG and BMGCs prevent engineering applications, and BMGCs always contain a large number of brittle phases [7].
Previous studies on Zr-Co-Al alloys have focused on the GFA and compressive properties of bulk metallic glasses with high Al content. The regulation mechanism of Al on structure and tensile properties in Zr-Co-Al alloys with low Al composition is still unclear. In this work, the microstructure and tensile properties of Zr-Co(-Al) alloys were studied by changing the Al element content. Furthermore, the Strengthening mechanism of mechanical properties was investigated.

2. Experimental Procedures

The Zr50−x/2Co50−x/2Alx (x = 0, 4, 5, 6, 7, 8) master alloys were prepared by arc melting in a Ti-gettered high purity argon atmosphere and were remelted four times to ensure composition homogeneity. The master alloy was suck-casted into a 2 mm × 10 mm × 90 mm alloy sheet by water-cooled copper mold. The phase compositions of the specimens were examined by an X-ray diffractometer (XRD, X’Pert3 Power, PANalytical, Eindhoven, The Netherlands) with Cu Kα radiation (λ = 1.54056 Å) with a 2θ range of 20°–120°. The microstructure and tensile fracture morphology of the Zr-Co(-Al) alloy were observed and analyzed using an optical microscope (OM, Axion Scope A1, Carl Zeiss, Oberkochen, Germany), a scanning electron microscope (SEM, VEGA3 SBH, Tescan, Brno, Czech Republic), a transmission electron microscope (TEM, Tecnai G2 F30 S-Twin, FEI, Hillsboro, ON, USA), and Energy Dispersive Spectroscopy (EDS). The Vickers microhardness tester (HVST-1000Z, ZhuoTai, Zhengzhou, China) was used to test the microhardness of the Zr-Co(-Al) alloy specimens. The load of the diamond indenter was 10 g and the holding time was 15 s. Fifteen points were randomly selected on the surface of each sample and the average value was taken as the microhardness of the alloy. The tensile of the Zr-Co(-Al) alloy at room temperature was tested using a universal mechanical testing machine (AG-X-100KN, Shimadzu, Kyoto, Japan). A specimen of the Zr-Co(-Al) alloy was machined into a tensile specimen with a pitch section of 13.3 mm × 2 mm × 2 mm using a wire cutter.

3. Results and Discussion

3.1. Microstructure

In order to determine the deviation between the actual and nominal composition of Zr-Co-Al alloys, Zr47Co47Al6 was selected as a representative sample because the raw materials and preparation process of the alloy were identical. The actual elemental mass ratio of a Zr47Co47Al6 alloy after melting is Zr:Co:Al = 58.8%:37.5%:2.36% as determined by inductively coupled plasma optical emission spectrometer (ICP-OES). The loss of alloying elements after melting is ignored and basically satisfies the nominal composition.
Figure 1 and Figure 2 show the OM images and the SEM images of the Zr-Co(-Al) alloys’ microstructures, respectively. The Zr50Co50 binary alloy with equal atomic content is composed of a single phase. The grains near the copper die are small, while the internal grains are columnar grains that grow perpendicular to the fine-grained region. The average radial size of these columnar crystals is about 60 μm and the axial size exceeds 1000 μm.
With the increase in Al content, the grain size decreased and then increased. Zr47Co47Al6 alloy has the smallest grain size, which reaches about 4 μm. The addition of the appropriate amount of Al element significantly refined the grain size of the alloy, which indicates that Al element plays a significant role in grain refinement in Zr-Co based alloys. Figure 1e,f suggests the formation of dendrites in the Zr46.5Co46.5Al7 and Zr46Co46Al8 alloys.
The size and number of intergranular shrinkage cavities (blue arrows) increased with increasing Al content, as shown in Figure 2. In addition, the quantity and size of the secondary phase (green circles) precipitated at the grain boundaries (GBs) of the Zr50−x/2Co50−x/2Alx (x = 5, 6, 7, 8) alloys were proportional to the increase in Al content. The second phase was identified as a Zr5Co7Al3 intermetallic phase by an Energy Dispersive X-ray Detector [14]. No secondary phase was observed in the Zr48Co48Al4 alloy due to its low Al elemental content and rapid solidification, resulting in less precipitation of Al atoms in the matrix. When Al element content exceeded the solid solubility in the ZrCo matrix, solute atoms gathered at the solid–liquid interface, leading to increased constitutional undercooling levels. The convex grains at the solid–liquid interface extended into the melt at large undercooling levels, while forming secondary dendrites in the lateral direction. The crystal branches of the ZrCo phase, grown in a dendritic way, crossed and blocked each other, and the isolated melt was not replenished during solidification, thereby forming a shrinkage cavity.
Figure 3 shows the XRD patterns of Zr50−x/2Co50−x/2Alx (x = 0, 4, 5, 6, 7, 8) alloys. The Zr50Co50 alloy mainly consists of the B2-ZrCo phase and a small quantity of ZrCo2 (2θ = 93°) and Zr2Co (2θ = 37°, 50°, 65°) intermetallic compounds. After adding Al, the Zr5Co7Al3 brittle phase was precipitated in the Zr50−x/2Co50−x/2Alx (x = 4, 5, 6, 7, 8) alloy, which is in full agreement with the results observed in OM and SEM above. The mixing enthalpy of Al and Zr is the lowest in the Zr-Co-Al system (Zr-Co: −41 kJ/mol, Zr-Al: −44 kJ/mol, Co-Al: −19 kJ/mol), and Zr and Co are more likely to form intermetallic compounds [7]. The weaker intensity of the Zr5Co7Al3 peak is due to the minor addition of Al elements and rapid cooling, which increases the solid solubility of Al elements in the B2-ZrCo matrix, further reducing the precipitation of Al-containing intermetallic compounds.

3.2. Hardness

The Vickers microhardness of the Zr50−x/2Co50−x/2Alx (x = 0, 4, 5, 6, 7, 8) alloys is shown in Figure 4. As the Al content increased from 0 to 8 at.%, the microhardness increased from 183 HV to 471 HV, indicating that the addition of Al significantly enhanced the hardness of Zr-Co-Al alloys. The addition of Al elements caused lattice distortion and produced solid solution strengthening. In addition, intermetallic compounds also produced a secondary phase strengthening effect, resulting in a significant increase in the hardness of the alloys.

3.3. Tensile Mechanical Properties

The engineering stress–strain curves of Zr50−x/2Co50−x/2Alx (x = 0, 4, 5, 6, 7, 8) alloys at room temperature are shown in Figure 5. The Al element adjusts the hardness, the strength, and the elongation of Zr50−x/2Co50−x/2Alx alloy. Zr50−x/2Co50−x/2Alx alloys have poor plasticity due to internal defects and precipitation at grain boundaries. The ultimate tensile strength (UTS) and ultimate failure strain (UFS) of these alloys are listed in Table 1.
The max room temperature tensile strain of the Zr50Co50 alloy prepared by rapid cooling was 6.99%, which is slightly higher than the 6% strain obtained by Matsuda et al. in their study of the Zr-Co-Ni alloy [6,33]. A 4% addition of Al increased the UTS of the alloy from 240 ± 20 MPa to 304 ± 20 Mpa during room-temperature tensile, but the UFS was decreased to 3.75%. Compared with compression, the initiation and expansion of cracks during the tensile process are more sensitive to shrinkage cavities caused by rapid cooling, and are more likely to generate stress concentration at shrinkage cavities that can cause specimen fracture and reduce its elongation. The UTS of the Zr47.5Co47.5Al5 alloy reached a maximum of 464 Mpa when the Al content was 5 at.%, while maintaining a UFS of 3.39%. Further addition of Al led to a degradation in both the UTS and the UFS of the alloys. The Zr47.5Co47.5Al5 alloy showed enhanced strength due to a combination of fine grain strengthening, solid solution strengthening, secondary phase strengthening and possibly stress-induced phase transformation and phase transformation-induced plasticity. In the field of structural materials, several traditional common materials are selected to compare with the tensile properties of the materials in this study, such as composite materials, which are currently the most popular to research. Guan et al. prepared Fe-based metallic glass particles that carry carbon nanotubes to reinforce Al matrix composites with a tensile strength of 284 Mpa and elongation of 6%; Liu et al. prepared a carbon nanotube-reinforced Cu matrix nanolaminated composite with 392.3 Mpa tensile strength. Carbon nanotube-reinforced copper matrix composites with 307.4 Mpa strength were prepared by Deng et al. [34,35,36]. The addition of low content Al significantly enhanced the mechanical properties of ZrCo alloy.
Although fine grain size enhances the strength of an alloy, excessive Al content (more than 5 at.%) increases the size and number of shrinkage cavities at the second phase. The microdefects cause stress concentration and induce crack initiation, leading to a decrease in both the strength and the plasticity of the alloy. It is worth noting that although the increase in Al content decreases the plasticity of the alloys, the UTS of Zr48Co48Al4, Zr47.5Co47.5Al5, Zr47Co47Al6, Zr46.5Co46.5Al7, and Zr46Co46Al8 alloys is still higher than that of Zr50Co50 alloy, which can be attributed to the synergistic effects of secondary phase strengthening, fine-grain strengthening, and solid solution strengthening.
SEM images of the fractured surface after tensile testing are shown in Figure 6. There were no obvious plastic fracture characteristics on the fractography. On the contrary, a large number of cleavage fracture surfaces (red arrows) and holes after grain pullout (yellow arrows) with different sizes were observed, showing a typical brittle intergranular fracture. With the increase in Al content, the cleavage planes gradually decreased and more holes remained after grain pullout, indicating that the plasticity of the alloy gradually deteriorated, which is consistent with the previous characterization results of tensile mechanical properties.
Figure 7 and Figure 8 show the TEM images of Zr50Co50 and Zr46.5Co46.5Al7 alloys, respectively. The Zr50Co50 alloy has no third group of alloying elements, and therefore, no solid solution strengthening. However, many precipitated particles of about 30–40 μm are uniformly distributed at the grain boundaries, and these particles were determined to be hard and brittle ZrO2 by EDS, as shown in Figure 7c. During the tensile process, stress concentration was easily generated near the ZrO2 particles, and a large number of microcracks were generated at the interface between the B2 phase and ZrO2 particles, which generated large plasticity through the “microcrack toughening mechanism”. In Figure 8a, the Zr46.5Co46.5Al7 alloy matrix contains many continuous precipitated phases, the EDS results showed that the composition of the precipitated phases was Zr:Co:Al = 38.3%:44.38%:17.3%, and the composition of the matrix was Zr:Co:Al = 51.96%:46.5%:1.52%. Li et al. analyzed the precipitated phase and matrix by energy spectroscopy and SAED and found that the precipitated phase was Zr5Co7Al3 and the matrix was Zr50Co50 [10]. The addition of Al caused the Zr5Co7Al3 intermetallic compound precipitated at grain boundaries or inside the grains of the Zr-Co-Al alloy, and its content was inversely proportional to the elongation of the Zr-Co-Al alloy. The XRD results showed that the content of the brittle phase Zr5Co7Al3 increased with the increase in Al content. The addition of Al element led to precipitate a large amount of brittle phases in the alloy, and the rupture of the brittle phase during the tensile process led to the fracture of the alloy.

4. Conclusions

In this work, the following conclusions were obtained by investigating the effect of Al addition on the phase composition and mechanical properties of Zr-Co alloys.
The Zr-Co alloy, fabricated by copper mold suction casting, consists of a single B2 phase matrix with many ZrO2 particles uniformly distributed at the grain boundaries as observed in TEM image. After the addition of Al, the grain size decreased from 60 μm to 4 μm with the Al content increased from 0 at.% to 8 at.%. The best combination of mechanical properties (464 MPa of UTS and 3.4% of UFS, respectively) was achieved with 5 at.% addition of Al. The excessive addition of Al element results in the precipitation of a brittle Zr5Co7Al3 phase at the grain boundaries or inside the grains of the Zr-Co-Al alloy. Al atoms exceeded the solid solubility of ZrCo phase accumulate at the solid–liquid interface, forming constitutional undercooling and leading to the formation of dendrites and shrinkage cavities. The strengthening mechanism of Zr-Co-Al alloy mainly included fine grain strengthening, solid solution strengthening of Al elements and secondary phase precipitation strengthening.

Author Contributions

Z.W. investigated the relationship between microstructure and mechanical properties and wrote the manuscript. W.L. measured the mechanical properties. C.L. analyzed the strengthening mechanisms. P.G. and X.Y. prepared the samples. J.T. revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

The National Natural Science Foundation of China (52061021, 51861016), Yunnan Major Scientific and Technological Projects (202202AG050004, 202002AB080001), and the Young and middle-aged academic and technical leaders reserve talent project (202005AC160039).

Data Availability Statement

Data available on request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hua, N.; Pang, S.; Li, Y.; Wang, J.; Li, R.; Georgarakis, K.; Yavari, A.R.; Vaughan, G.; Zhang, T. Ni- and Cu-free Zr–Al–Co–Ag bulk metallic glasses with superior glass-forming ability. J. Mater. Res. 2011, 26, 539–546. [Google Scholar] [CrossRef]
  2. Wada, T.; Qin, F.; Wang, X.; Yoshimura, M.; Inoue, A.; Sugiyama, N.; Ito, R.; Matsushita, N. Formation and bioactivation of Zr-Al-Co bulk metallic glasses. J. Mater. Res. 2011, 24, 2941–2948. [Google Scholar] [CrossRef]
  3. Tan, J.; Pan, F.S.; Zhang, Y.; Sun, B.A.; He, J.; Zheng, N.; Stoica, M.; Kühn, U.; Eckert, J. Formation of Zr–Co–Al bulk metallic glasses with high strength and large plasticity. Intermetallics 2012, 31, 282–286. [Google Scholar] [CrossRef]
  4. Matsuda, M.; Nishimoto, T.; Matsunaga, K.; Morizono, Y.; Tsurekawa, S.; Nishida, M. Deformation structure in ductile B2-type Zr–Co–Ni alloys with martensitic transformation. J. Mater. Sci. 2011, 46, 4221–4227. [Google Scholar] [CrossRef]
  5. Matsuda, M.; Nishimoto, T.; Morizono, Y.; Tsurekawa, S.; Nishida, M. Enhancement of ductility in B2-type Zr–Co–Pd alloys with martensitic transformation. Intermetallics 2011, 19, 894–899. [Google Scholar] [CrossRef]
  6. Matsuda, M.; Iwamoto, Y.; Morizono, Y.; Tsurekawa, S.; Takashima, K.; Nishida, M. Enhancement of ductility in B2-type Zr–Co–Ni alloys with deformation-induced martensite and microcrack formation. Intermetallics 2013, 36, 45–50. [Google Scholar] [CrossRef]
  7. Chen, Y.; Tang, C.; Jiang, J.-Z. Bulk metallic glass composites containing B2 phase. Prog. Mater. Sci. 2021, 121, 100799. [Google Scholar] [CrossRef]
  8. Zhou, J.; Wu, H.; Wu, Y.; Song, W.; Chen, R.; Tan, C.; Xie, G.; Cao, D.; Wang, H.; Liu, X.; et al. Enhancing dynamic mechanical properties of bulk metallic glass composites via deformation-induced martensitic transformation. Scr. Mater. 2020, 186, 346–351. [Google Scholar] [CrossRef]
  9. Lu, W.F.; Li, C.J.; Sarac, B.; Şopu, D.; Yi, J.H.; Tan, J.; Stoica, M.; Eckert, J. Structural, elastic and electronic properties of CoZr in B2 and B33 structures under high pressure. J. Alloys Compd. 2017, 705, 445–455. [Google Scholar] [CrossRef]
  10. Li, X.; Lu, W.F.; Li, C.J.; Yuan, Q.; Wu, Z.X.; Tan, J.; Gao, P.; You, X.; Yi, J.H. Effect of Al content on the mechanical properties and toughening mechanism of Zr-Co-Al alloys prepared by rapid solidification. Mater. Sci. Eng. A 2022, 831, 142237. [Google Scholar] [CrossRef]
  11. Jansson, K.; Nygren, M.; Östlund, Å. Crystallization behaviour of amorphous Zr1-xCox alloys with 0.20 ≤ x ≤ 0.41. Mater. Res. Bull. 1984, 19, 1091–1104. [Google Scholar] [CrossRef]
  12. Chen, Y.; Jiang, J.-Z. Formation of the B2–ZrCo phase and micro-hardness evolution in Zr–Co–Al BMGs via conventional and flash annealing. J. Alloys Compd. 2020, 834, 154230. [Google Scholar] [CrossRef]
  13. Kosiba, K.; Scudino, S.; Kobold, R.; Kühn, U.; Greer, A.L.; Eckert, J.; Pauly, S. Transient nucleation and microstructural design in flash-annealed bulk metallic glasses. Acta Mater. 2017, 127, 416–425. [Google Scholar] [CrossRef]
  14. Li, C.J.; Tan, J.; Zhu, X.K.; Zhang, Y.; Stoica, M.; Kuhn, U.; Eckert, J. On the transformation-induced work-hardening behavior of Zr47.5Co47.5Al5 ultrafine-grained alloy. Intermetallics 2013, 35, 116–119. [Google Scholar] [CrossRef]
  15. Li, P.Y. Microstructure and mechanical properties of novel B2-type ductile Zr-Co-Cu alloys containing the B33 phase. Mater. Res. Express. 2017, 4, 086505. [Google Scholar] [CrossRef]
  16. Hossain, D.; Harris, I.R.; Barraclough, K.G. A study of ZrCo and related ternary phases represented by the general formula, Zr50Co50 xNix. J. Less Common Met. 1974, 37, 35–57. [Google Scholar] [CrossRef]
  17. François, A.; Veyssière, P. A TEM investigation of the deformation microstructure of CoZr and Co40Ni10Zr50 ordered alloys. Intermetallics 1994, 2, 9–22. [Google Scholar] [CrossRef]
  18. Wu, D.Y.; Song, K.K.; Gargarella, P.; Cao, C.D.; Li, R.; Kaban, I.; Eckert, J. Glass-forming ability, thermal stability of B2 CuZr phase, and crystallization kinetics for rapidly solidified Cu–Zr–Zn alloys. J. Alloys Compd. 2016, 664, 99–108. [Google Scholar] [CrossRef]
  19. Javid, F.A.; Mattern, N.; Pauly, S.; Eckert, J. Effect of Cobalt on Phase Formation, Microstructure, and Mechanical Properties of Cu50−xCoxZr50 (x = 2, 5, 10, 20 at.%) Alloys. Metall. Mater. Trans. A Phys. Metall. Mater. Sci. 2011, 43, 2631–2636. [Google Scholar] [CrossRef]
  20. Ishida, K.; Kainuma, R.; Ueno, N.; Nishizawa, T. Ductility enhancement in NiAl (B2)-base alloys by microstructural control. Metall. Trans. A 1991, 22, 441–446. [Google Scholar] [CrossRef]
  21. Zeumer, B.; Sauthoff, G. Deformation behaviour of intermetallic NiAl Ta alloys with strengthening Laves phase for high-temperature applications III. Effects of alloying with Cr. Intermetallics 1998, 6, 451–460. [Google Scholar] [CrossRef]
  22. McKamey, C.G.; Horton, J.A.; Liu, C.T. Effect of chromium on properties of Fe3Al. J. Mater. Res. 2011, 4, 1156–1163. [Google Scholar] [CrossRef]
  23. Nowak, K.; Kupka, M. High-temperature oxidation behaviour of B2 FeAl based alloy with Cr, Zr and B additions. Mater. Chem. Phys. 2012, 132, 902–908. [Google Scholar] [CrossRef]
  24. Aoki, K.; Izumi, O. Improvement in Room Temperature Ductility of the Intermetallic Compound Ni3Al by Ternary Trace Element Addition. J. Jpn. Inst. Met. 1979, 43, 358–359. [Google Scholar] [CrossRef] [Green Version]
  25. Wollmershauser, J.A.; Kabra, S.; Agnew, S.R. In situ neutron diffraction study of the plastic deformation mechanisms of B2 ordered intermetallic alloys: NiAl, CuZn, and CeAg. Acta Mater. 2009, 57, 213–223. [Google Scholar] [CrossRef]
  26. Mulay, R.P.; Agnew, S.R. The fracture behavior of B2 structured MgR intermetallics. Scr. Mater. 2009, 61, 1036–1039. [Google Scholar] [CrossRef]
  27. Russell, A.M.; Zhang, Z.; Lograsso, T.A.; Lo, C.C.H.; Pecharsky, A.O.; Morris, J.R.; Ye, Y.; Gschneidner, K.A.; Slager, A.J. Mechanical properties of single crystal YAg. Acta Mater. 2004, 52, 4033–4040. [Google Scholar] [CrossRef]
  28. Stumphy, B.; Mudryk, Y.; Russell, A.; Herman, D.; Gschneidner, K. Oxidation resistance of B2 rare earth–magnesium intermetallic compounds. J. Alloys Compd. 2008, 460, 363–367. [Google Scholar] [CrossRef]
  29. Wu, Y.; Wang, H.; Wu, H.H.; Zhang, Z.Y.; Hui, X.D.; Chen, G.L.; Ma, D.; Wang, X.L.; Lu, Z.P. Formation of Cu–Zr–Al bulk metallic glass composites with improved tensile properties. Acta Mater. 2011, 59, 2928–2936. [Google Scholar] [CrossRef]
  30. Li, C.J.; Tan, J.; Wang, G.; Bednarčík, J.; Zhu, X.K.; Zhang, Y.; Stoica, M.; Kühn, U.; Eckert, J. Enhanced strength and transformation-induced plasticity in rapidly solidified Zr–Co–(Al) alloys. Scr. Mater. 2013, 68, 897–900. [Google Scholar] [CrossRef]
  31. Tan, J.; Zhang, Y.; Stoica, M.; Kuhn, U.; Mattern, N.; Pan, F.S.; Eckert, J. Study of mechanical property and crystallization of a ZrCoAl bulk metallic glass. Intermetallics 2011, 19, 567–571. [Google Scholar] [CrossRef]
  32. Dong, Q.; Pan, Y.J.; Tan, J.; Qin, X.M.; Li, C.J.; Gao, P.; Feng, Z.X.; Calin, M.; Eckert, J. A comparative study of glass-forming ability, crystallization kinetics and mechanical properties of Zr55Co25Al20 and Zr52Co25Al23 bulk metallic glasses. J. Alloys Compd. 2019, 785, 422–428. [Google Scholar] [CrossRef]
  33. Matsuda, M.; Hayashi, K.; Nishida, M. Ductility Enhancement in B2-Type Zr-Co-Ni Alloys with Martensitic Transformation. Mater. Trans. 2009, 50, 2335–2340. [Google Scholar] [CrossRef] [Green Version]
  34. Guan, H.D.; Li, C.J.; Peng, Y.Z.; Gao, P.; Feng, Z.X.; Liu, Y.C.; Li, J.N.; Tao, J.M.; Yi, J.H. Fe-based metallic glass particles carry carbon nanotubes to reinforce Al matrix composites. Mater. Charact. 2022, 189, 112006. [Google Scholar] [CrossRef]
  35. Liu, J.; Fan, G.; Tan, Z.; Guo, Q.; Su, Y.; Li, Z.; Xiong, D.-B. Mechanical properties and failure mechanisms at high temperature in carbon nanotube reinforced copper matrix nanolaminated composite. Compos. Part A Appl. Sci. Manuf. 2019, 116, 54–61. [Google Scholar] [CrossRef]
  36. Deng, H.; Yi, J.; Xia, C.; Yi, Y. Mechanical properties and microstructure characterization of well-dispersed carbon nanotubes reinforced copper matrix composites. J. Alloys Compd. 2017, 727, 260–268. [Google Scholar] [CrossRef]
Crystals 12 01483 g001 550
Figure 1. OM images of rapid cooling Zr-Co(-Al) alloys sheet microstructure: (a) Zr50Co50 alloy; (b) Zr48Co48Al4 alloy; (c) Zr47.5Co47.5Al5 alloy; (d) Zr47Co47Al6 alloy; (e) Zr46.5Co46.5Al7 alloy; (f) Zr46Co46Al8 alloy.
Figure 1. OM images of rapid cooling Zr-Co(-Al) alloys sheet microstructure: (a) Zr50Co50 alloy; (b) Zr48Co48Al4 alloy; (c) Zr47.5Co47.5Al5 alloy; (d) Zr47Co47Al6 alloy; (e) Zr46.5Co46.5Al7 alloy; (f) Zr46Co46Al8 alloy.
Crystals 12 01483 g001
Crystals 12 01483 g002 550

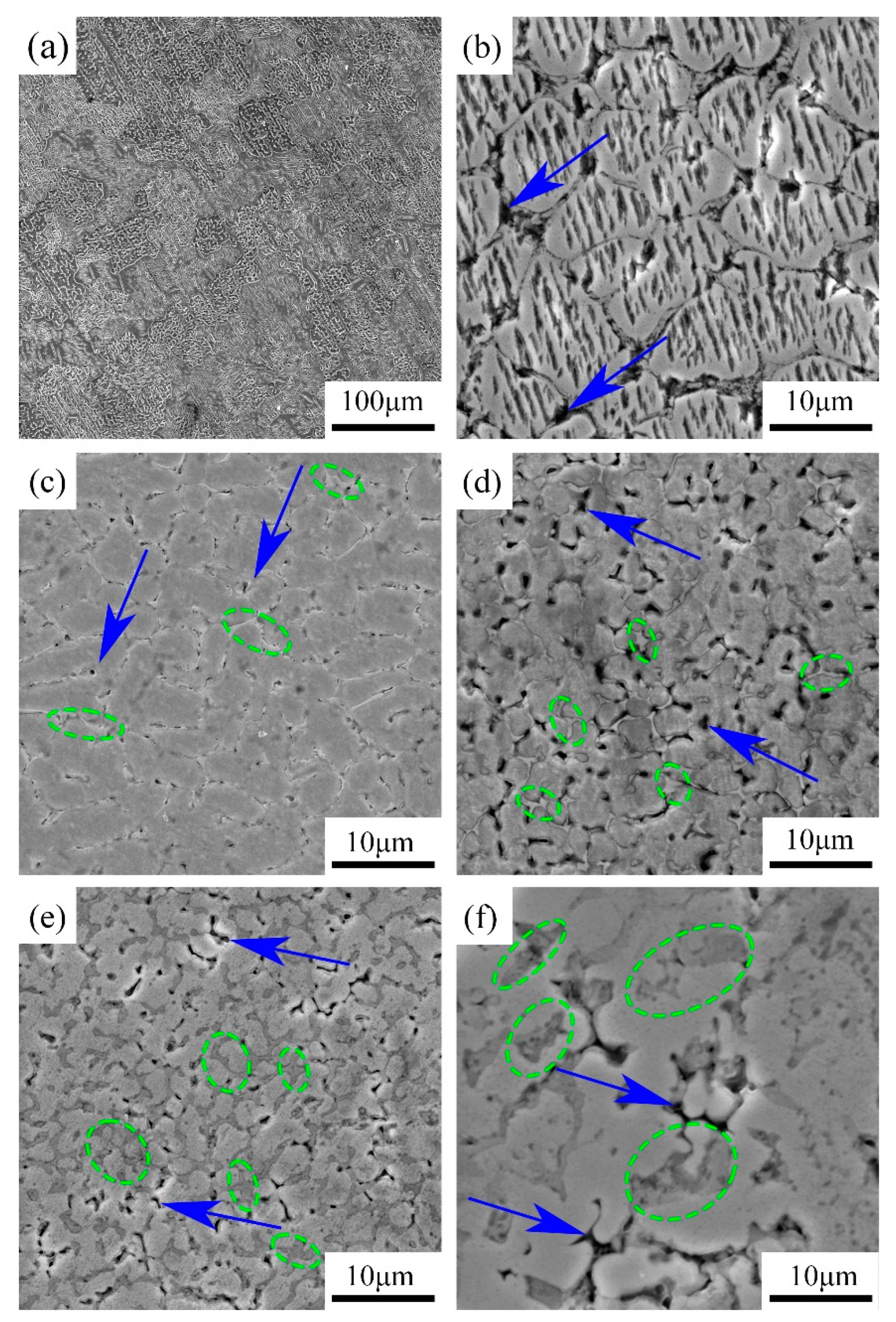

Figure 2. SEM images of rapid cooling Zr-Co(-Al) alloys microstructure: (a) Zr50Co50 alloy; (b) Zr48Co48Al4 alloy; (c) Zr47.5Co47.5Al5 alloy; (d) Zr47Co47Al6 alloy; (e) Zr46.5Co46.5Al7 alloy; (f) Zr46Co46Al8 alloy. The green circles indicate the secondary phase particles, and the blue arrows indicate the shrinkage cavity at the grain boundaries.
Figure 2. SEM images of rapid cooling Zr-Co(-Al) alloys microstructure: (a) Zr50Co50 alloy; (b) Zr48Co48Al4 alloy; (c) Zr47.5Co47.5Al5 alloy; (d) Zr47Co47Al6 alloy; (e) Zr46.5Co46.5Al7 alloy; (f) Zr46Co46Al8 alloy. The green circles indicate the secondary phase particles, and the blue arrows indicate the shrinkage cavity at the grain boundaries.
Crystals 12 01483 g002
Crystals 12 01483 g003 550
Figure 3. XRD patterns of Zr50−x/2Co50−x/2Alx (x = 0, 4, 5, 6, 7, 8) alloys.
Figure 3. XRD patterns of Zr50−x/2Co50−x/2Alx (x = 0, 4, 5, 6, 7, 8) alloys.
Crystals 12 01483 g003
Crystals 12 01483 g004 550
Figure 4. Vickers microhardness of Zr50−x/2Co50−x/2Alx (x = 0, 4, 5, 6, 7, 8) alloys.
Figure 4. Vickers microhardness of Zr50−x/2Co50−x/2Alx (x = 0, 4, 5, 6, 7, 8) alloys.
Crystals 12 01483 g004
Crystals 12 01483 g005 550
Figure 5. Engineering stress–strain curves of Zr50−x/2Co50−x/2Alx (x = 0, 4, 5, 6, 7, 8) alloys.
Figure 5. Engineering stress–strain curves of Zr50−x/2Co50−x/2Alx (x = 0, 4, 5, 6, 7, 8) alloys.
Crystals 12 01483 g005
Crystals 12 01483 g006 550
Figure 6. The fracture surface morphology of Zr50−x/2Co50−x/2Alx alloys after tension at ambient temperature: (a) Zr50Co50; (b) Zr48Co48Al4; (c) Zr47.5Co47.5Al5; (d) Zr47Co47Al6; (e) Zr46.5Co46.5Al7; (f) Zr46Co46Al8. Holes formed by grain pull-out indicated by yellow arrows, and cleavage planes indicated by red arrows.
Figure 6. The fracture surface morphology of Zr50−x/2Co50−x/2Alx alloys after tension at ambient temperature: (a) Zr50Co50; (b) Zr48Co48Al4; (c) Zr47.5Co47.5Al5; (d) Zr47Co47Al6; (e) Zr46.5Co46.5Al7; (f) Zr46Co46Al8. Holes formed by grain pull-out indicated by yellow arrows, and cleavage planes indicated by red arrows.
Crystals 12 01483 g006
Crystals 12 01483 g007 550

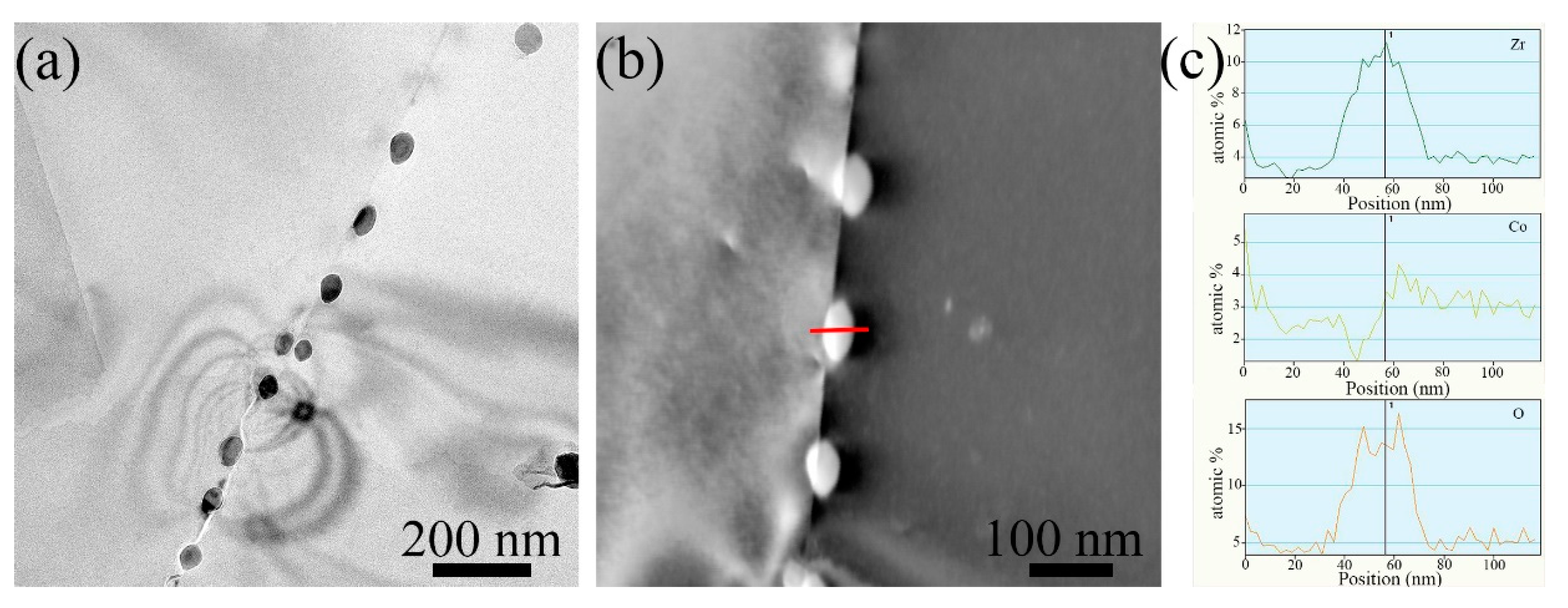

Figure 7. TEM images of Zr50Co50 alloys: (a) microstructure of the as-cast alloy; (b) second phase particles along the GBs; (c) EDS pattern.
Figure 7. TEM images of Zr50Co50 alloys: (a) microstructure of the as-cast alloy; (b) second phase particles along the GBs; (c) EDS pattern.
Crystals 12 01483 g007
Crystals 12 01483 g008 550

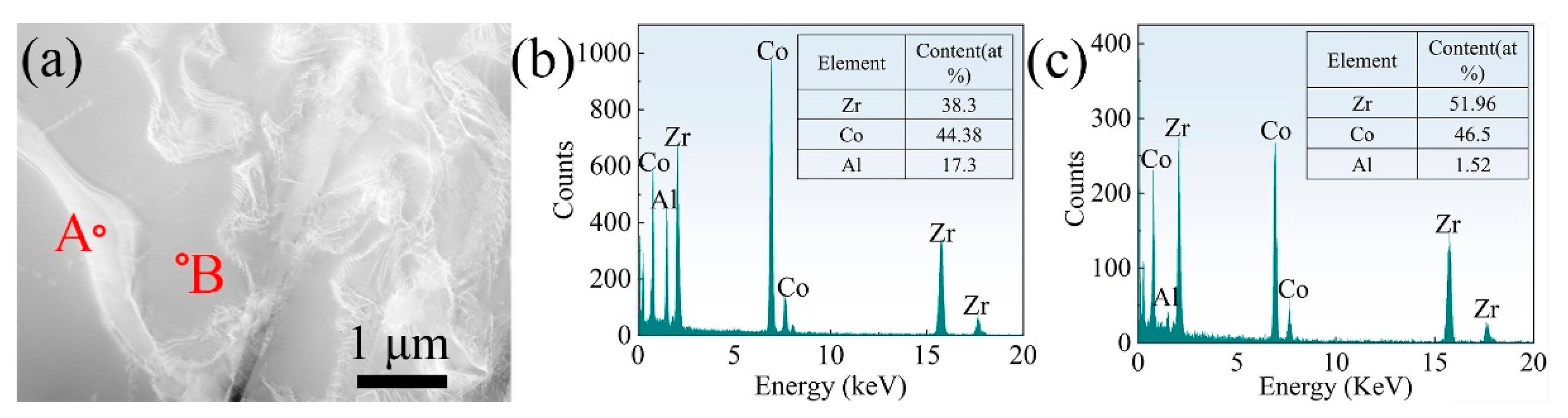

Figure 8. TEM images of Zr46.5Co46.5Al7 alloys: (a) microstructure of the as-cast alloy; (b) EDS pattern of point A; (c) EDS pattern of point B.
Figure 8. TEM images of Zr46.5Co46.5Al7 alloys: (a) microstructure of the as-cast alloy; (b) EDS pattern of point A; (c) EDS pattern of point B.
Crystals 12 01483 g008
Table
Table 1. Mechanical properties of Zr50−x/2Co50−x/2Alx (x = 0, 4, 5, 6, 7, 8) alloys including the ultimate tensile strength (UTS) and ultimate failure strain (UFS).
Table 1. Mechanical properties of Zr50−x/2Co50−x/2Alx (x = 0, 4, 5, 6, 7, 8) alloys including the ultimate tensile strength (UTS) and ultimate failure strain (UFS).
AlloysUTS (MPa)UFS (%)
Zr50Co50240 ± 206.99
Zr48Co48Al4304 ± 203.75
Zr47.5Co47.5Al5464 ± 203.93
Zr47Co47Al6396 ± 203.30
Zr46.5Co46.5Al7390 ± 203.28
Zr46Co46Al8363 ± 203.06
