Enhanced Light Extraction Efficiency and Modulation Bandwidth of Deep-Ultraviolet Light-Emitting Diodes with Al Nanospheres

Abstract

Planar, nanopillar and Al nanosphere structure AlGaN-based deep-ultraviolet light-emitting diodes (DUV-LEDs) were numerically investigated via a three-dimensional finite difference time domain (3D FDTD) method. The three types of DUV-LEDs were compared and analyzed in terms of light extraction efficiency (LEE), Purcell factor (F_P) and modulation bandwidth. The results showed that nanopillar structure DUV-LEDs with optimal nanopillar height, width and spacing can enhance transverse electric (TE)-polarized LEE to 39.7% and transverse magnetic (TM)-polarized LEE to 4.4%. The remarkable improvement was mainly due to the increased scattering effect, decreased absorption of the p-GaN layer and total internal reflection (TIR) effect. After adopting the Al nanospheres, the TE-polarized modulation bandwidth was increased by 71 MHz and the TM-polarized LEE was enhanced approximately 4.3-fold as compared to the nanopillar LED structure, while the Al nanosphere diameter was 120 nm. The reasons for promotion are mainly attributed to the coupling behavior of diploe and localized surface plasmon induced by Al nanospheres. The designed structures provide a meaningful solution for realization of high-efficiency DUV-LEDs.

1. Introduction

In recent years, AlGaN-based deep-ultraviolet (DUV) light-emitting diodes (LEDs) have been greatly developed because of their wide-ranging applications, including water and air purification [1], disinfection [2] and DUV communications [3]. Nevertheless, the performance of traditional planar DUV-LEDs is limited due to low external quantum efficiency (EQE) for shorter emission wavelengths [4,5]. EQE is the product of two independent factors: the internal quantum efficiency (IQE) and the light extraction efficiency (LEE). The LEE of DUV-LEDs is only in the range of 7–9% [6], and contributes to poor EQE. There are many factors that affect the LEE. On the one hand, there is strong light absorption in the p-GaN layer of DUV-LEDs. On the other hand, as the Al component in AlGaN-based quantum gradually increases [7], transverse magnetic (TM) polarization of DUV-LEDs accounts for the main part of transverse electric (TE) polarization. In addition, it is difficult for the photons to escape from the device due to the strong total internal reflection (TIR) effect. Therefore, improving LEE of DUV-LEDs is necessary, and several strategies have been proposed including nanowire structure [8], patterned sapphire substrates [9], surface roughing [10] and photonic crystal patterns [11]. Another effective way that placing metal nanoparticles on the p-GaN contact layer to stimulate localized surface plasmons (LSPs) coupling behavior is beneficial is that it enhances spontaneous emission rate and light extraction [12,13,14]. Based on the above methods, LEE can be effectively extracted. In addition, it is reported by Lee et al. in 2020 that the internal quantum efficiency is enhanced by 57.7% due to the LSPs for the Al nanospheres adjacent to the active region [15]. Furthermore, the DUV-LEDs are also used in light communications [16,17]. High modulation bandwidth is important for UV communication with high data transmission rate. It is recently reported that the modulation bandwidth of DUV-LEDs is 153 MHz [16]. At present, there are reports on the relationship among spontaneous emission, modulation speed, and surface plasmons only for the InGaN-based LEDs [18,19]. In fact, apart from the LEE, $F_P$ related to spontaneous emission and modulation bandwidth of the device are extremely important for AlGaN-based DUV-LEDs. However, simultaneous discussion for LEE, Purcell factor ($F_P$), and modulation bandwidth of InGaN-based LEDs has been reported [20], but has not been investigated for AlGaN-based LEDs. How to enhance these optical characteristics for DUV-LEDs is also worthy of study.

In this work, nanopillar and Al nanosphere structure DUV-LEDs were designed and numerically investigated by FDTD simulation method. In terms of nanopillar structure DUV LEDs, the optimized parameters include the nanopillar height, width and spacing. The purpose was to improve the LEE of LED by decreasing the absorption of p-GaN layer, TIR effect and enhancing the scattering effect. For the Al nanosphere structure, QW-LSP coupling effect induced by Al nanospheres have intention of improving the overall LEE, $F_P$ and LEE of TE and TM-polarized DUV-LEDs. Moreover, the modulation bandwidths of planar and proposed structures are theoretically calculated and demonstrated. The optical characteristics, such as LEE, $F_P$ and modulation bandwidth, are carefully discussed for nanopillar and Al nanosphere structure DUV-LEDs.

2. Device Structures and Parameters

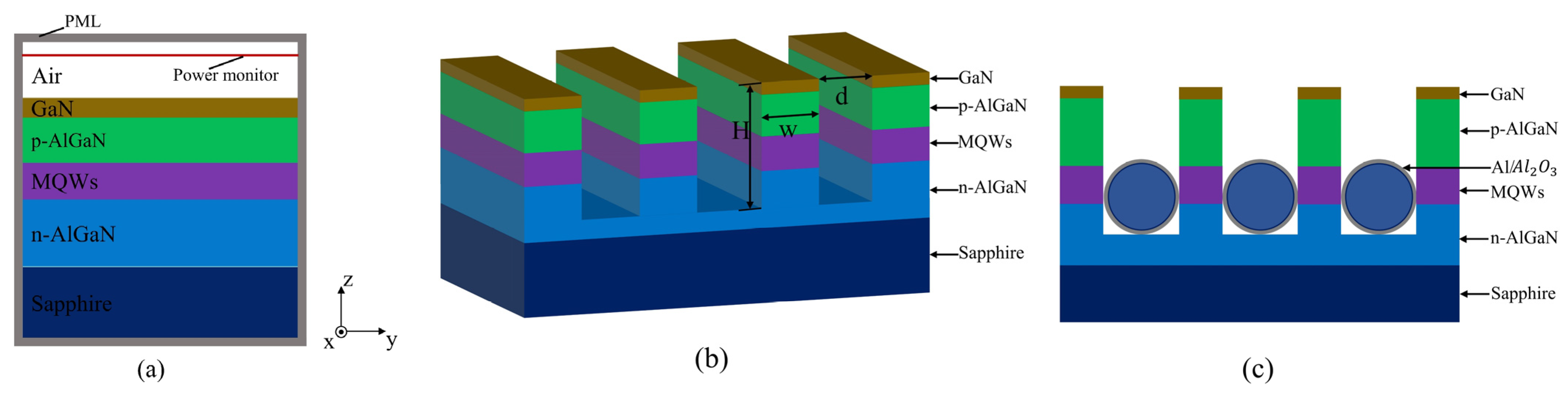

The simulated structures of the DUV-LEDs were carried by using a three-dimensional finite difference time-domain (3D FDTD) method, which solves the differential forms of Maxwell’s equations to calculate electromagnetic field distributions [21]. Figure 1 shows a schematic diagram for three different DUV-LEDs. In Figure 1a, a simulated model of the planar DUV-LEDs is displayed. The layer structures were composed of a sapphire substrate, a 1000-nm-thick n-AlGaN layer, 50-nm-thick AlGaN multiple quantum wells (MQWs) active layers, a 100-nm-thick p-AlGaN layer, and a 10-nm-thick GaN layer. Meanwhile, if there were five quantum wells, the thickness of the total quantum well was 50 nm, and a single dipole source was at the center of the quantum well, which is 25 nm. The spectrum of the dipole source was a Gaussian shape, and the center wavelength and full width at half maximum of the spectrum were 270 nm and 40 nm, respectively. For the polarized dipole source, the dipole in the x- and z-axis directions represent TE polarization and TM polarization, respectively. The refractive index of materials for the sapphire layer, the AlGaN layer and GaN layer was set at 1.8, 2.6 and 2.9, respectively, [22,23], the absorption coefficients of the GaN layer, the AlGaN layer and MQWs were assumed to be 170,000 cm⁻¹, 10 cm⁻¹ and 1000 cm⁻¹. The large absorption coefficient caused light to be strongly absorbed in the GaN layer. The dimension of the simulated structure was 1000 nm × 1000 nm × 800 nm for x-, y- and z-directions, respectively. The boundary conditions of the simulation area were set as a perfectly matched layer (PML), which absorbed electromagnetic energy. The mesh of the simulation model was set as 5 nm to ensure its accuracy to calculate the quantum efficiency. A power box monitor was placed near the dipole source to obtain the dipole-radiated power, and an x-y plane power monitor at 100 nm above the p-GaN layer was placed to obtain the radiation power of light escaping from the upper layer to the air interface. The value of LEE was defined as the ratio of the total extracted power collected from the power monitor to the dipole-radiated power. The Purcell factor (F_P) was defined as the ratio of the corresponding powers from the dipole inside the device and the emitter inside bulk material [24]. F_P was obtained from the dipole source via the FDTD method. Figure 1b describes the nanopillar structure of the DUV-LEDs. As compared to the planar structure, there were three other parameters change: the height (H), the width (w) of the nanopillar and the spacing (d) between adjacent nanopillars, which had an important impact on LEE and F_P for the nanopillar structure of DUV-LEDs. A similar structure with different material layers has also been reported in InGaN-based LEDs [25]. Metal nanoparticles were placed into the nanopillar structure as shown in Figure 1c, and Al nanospheres were used for enhancing LEE due to effectively scattering [26], reducing p-GaN absorption, improving TM-polarized emission, and could be used for inducing an LSP coupling effect at a deep ultraviolet spectral range [27]. Thus, an Al nanosphere structure was selected, and their diameters were equal to the spacing between two adjacent nanopillars (d). Since metal Al is easily oxidized, the Al nanosphere structure was composed of a 3 nm thick Al₂O₃ shell with Al as the core. Therefore, LEE, F_P and the modulation bandwidth of the three DUV-LEDs structures will be analyzed with the aid of the FDTD method.

3. Results and Discussion

3.1. Planar Structure

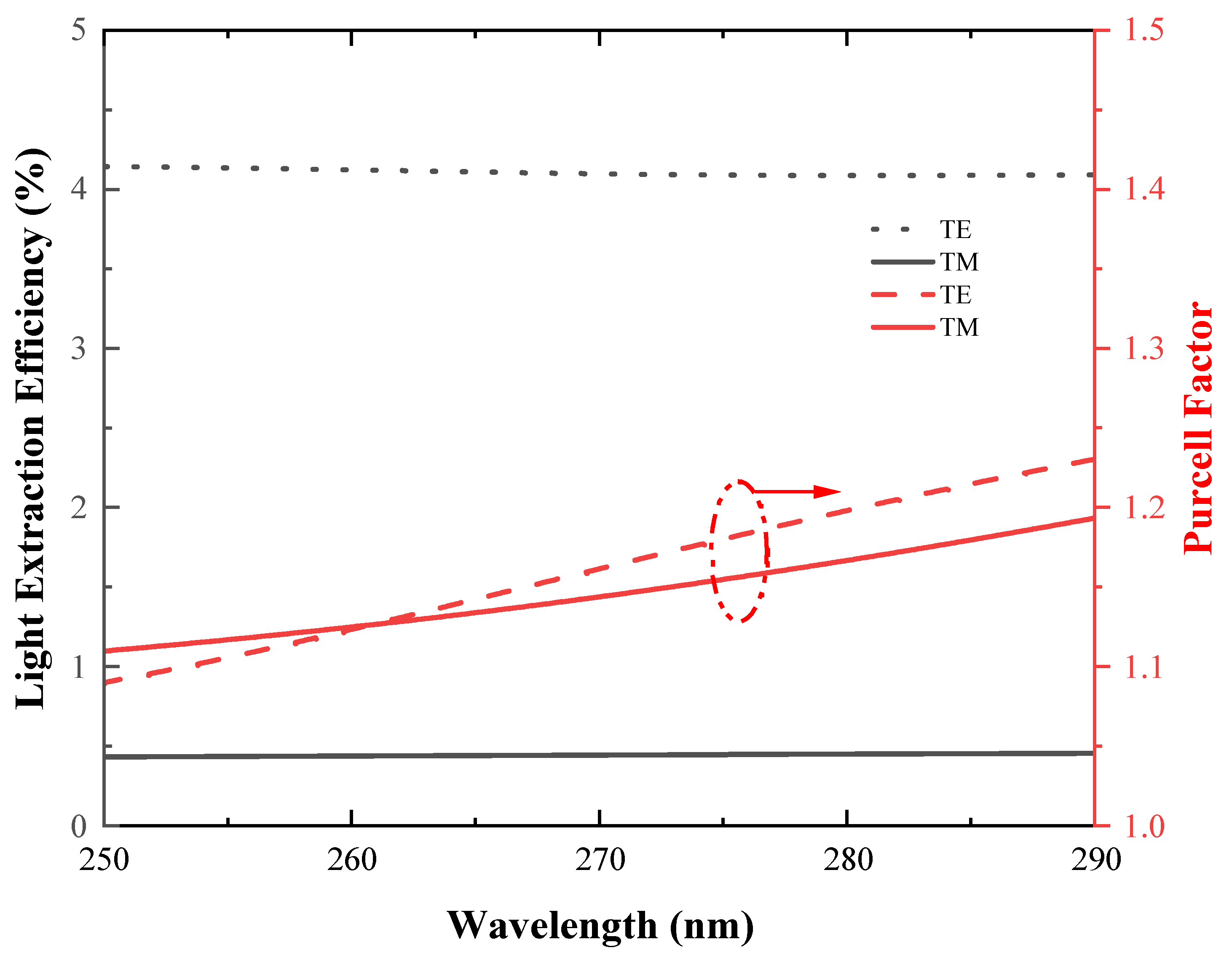

This section depicts simulation results of planar structure DUV-LEDs. As shown in Figure 2, LEE and F_P for the planar structure DUV-LEDs in TE-polarized and TM-polarized light were calculated with various wavelengths ranging from 250 to 290 nm. Note that the dashed and solid lines in the picture represent TE and TM polarization, and the black and red curves indicate LEE and F_P of the DUV-LED, respectively. Within the emission wavelength change, the curves are flat and there is almost no fluctuation for LEE in different polarization. However, in terms of TE-polarized LEE, it is low and approximately 4.2%, mainly due to the absorption of the p-GaN layer and the TIR effect. At the same time TM-polarized LEE is even lower at below 0.5%, the reason being that the total TIR effect becomes much stronger, and it is more difficult for the TM-polarized photons. LEE for TM polarization is about one tenth that for TE polarization, and the TM-polarized emission dominates in the AlGaN MQWs especially for the deep ultraviolet wavelength. In addition, the two red curves indicate that when the emission wavelength increases, TE-polarized F_P and TM-polarized F_P both increase from approximately 1.1 to 1.23. It is found that the LEE and F_P of the planar structure DUV-LEDs are low. Therefore, improvement of LEE and F_P become very urgent.

3.2. Nanopillar Structure

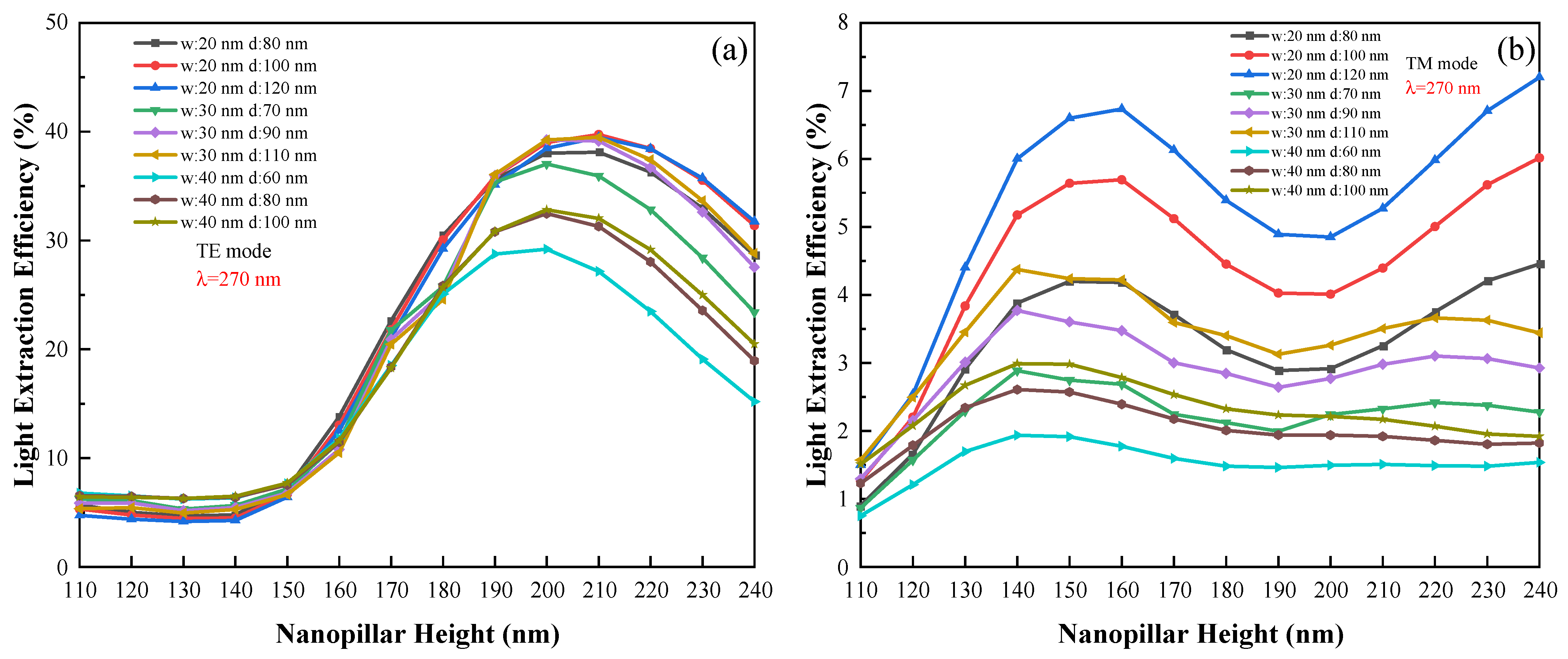

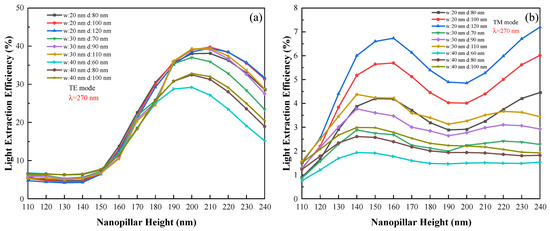

In order to enhance the TE-polarized and TM-polarized LEE, the DUV-LEDs nanopillar structures are explored. The schematic diagram of the nanopillar structure DUV-LEDs is shown in Figure 1b. Three key parameters of nanopillar structure include nanopillar height, width and spacing between adjacent nanopillars, which are optimized to increase LEE. Figure 3 shows TE-polarized and TM-polarized LEE of DUV-LEDs nanopillar structure with various nanopillar height. The selected emission wavelength is 270 nm and the nanopillar height is modified from 110 nm to 240 nm. The nanopillar widths of 20 nm, 30 nm and 40 nm were chosen to match the emission wavelength. Moreover, the period of nanopillar was set to 100 nm, 120 nm and 140 nm, which represent the sum of the nanopillar width and the spacing of adjacent nanopillar. The epilayers including the p-GaN layer, the p-AlGaN layer, the MQWs layer and part of n-AlGaN layer were designed as nanopillar shapes. Figure 3a depicts that TE-polarized LEE with various nanopillar height and width. Note that the LEE is approximately 6% when the nanopillar height is less than 140 nm. It is observed that the LEE was enhanced significantly as the height increases in the range of 140−210 nm for all DUV-LEDs. Then the LEE began to decrease while the height of nanopillar continued to increase. TE-polarized LEE reached the maximum at 39.4% when the nanopillar height was 210 nm, the width was 20 nm and the spacing was 100 nm. Compared with planar DUV-LEDs, there is a great improvement, about nine-fold, for TE-polarized LEE in terms of nanopillar structure. Similarly, a. TM-polarized LEE with the same parameter changes is shown in Figure 3b. As the nanopillar height increased, the TM-polarized LEE starts increased, then slowly decreased, and finally remained stable. However, when the nanopillar width was 20 nm, TM-polarized LEE kept improving when the nanopillar height exceeded 200 nm. Furthermore, the highest TM-polarized LEE was 7.2% when the nanopillar height, width and spacing were 240 nm, 20 nm and 120 nm, respectively. TM-polarized LEE of the nanopillar structure was 18 times higher than that of the planar DUV-LEDs. In addition, the TE-polarized LEE reached its maximum which the nanopillar height, width and spacing were 210 nm, 20 nm and 100 nm, respectively. At the same time, the TM-polarized LEE also reached 4.4% and greatly improved compared to planar DUV-LEDs, which means more photons could escape and be collected. On the one hand, the filling area of the p-GaN layer was reduced, and as a result of the absorption was reduced; on the other hand, there was more possibility for the light generated by the dipole source to escape to the air interface, breaking the TIR effect and increasing the scattering effect.

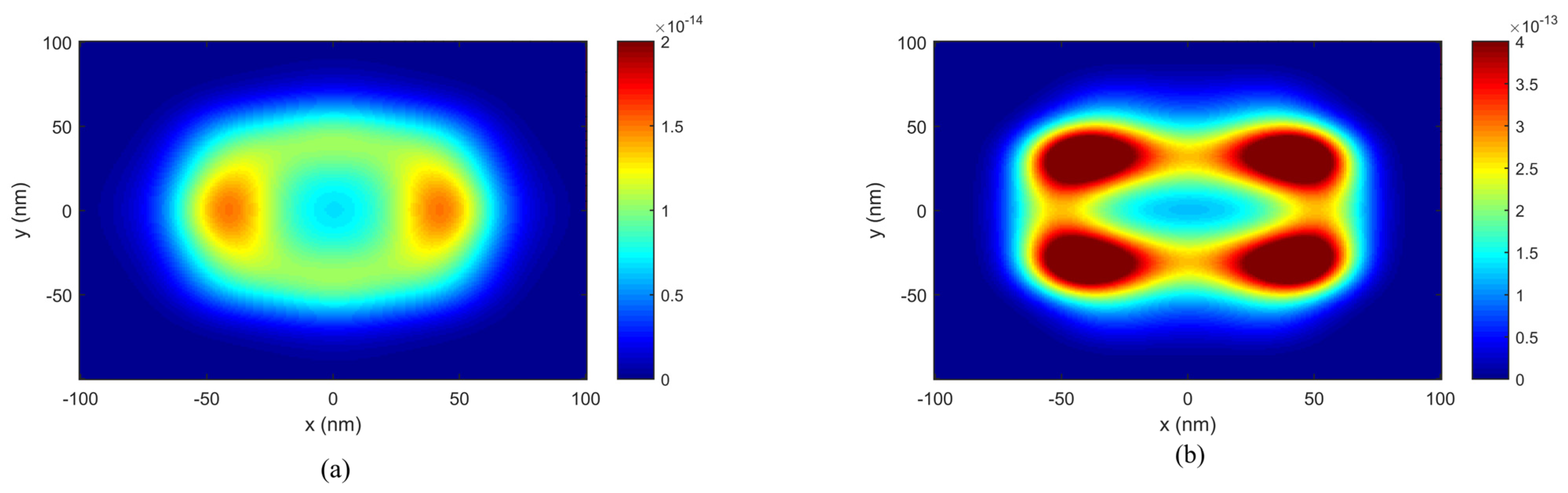

TE-polarized far-field patterns for planar DUV-LEDs and the nanopillar structure with a height of 210 nm are shown in Figure 4a,b, respectively. It can be observed that the electric intensity of the DUV-LEDs with nanopillar structure is stronger and is an order of magnitude higher than that of the planar DUV-LEDs. The strong electric field intensity distribution means that more photons could escape and be extracted, leading to an improvement in LEE. It is speculated that the proposed nanopillar method would improve the scattering effect. In addition, the TE and TM-polarized $F_P$ of the nanopillar structure DUV-LEDs are investigated, and the results are shown in

Table 1. Comparison on different polarized LEE, Purcell factor and modulation bandwidth for planar, nanopillar and Al nanosphere structure DUV-LEDs.

Structure	Polarization	LEE (%)	FP	Bandwidth (MHz)
Planar	TE	4.1	1.162	375.30
	TM	0.4	1.144	374.97
Nanopillar	TE (H = 210 nm)	39.7	0.186	357.13
	TM (H = 210 nm)	4.4	0.924	370.88
Al nanosphere	TE (H = 180 nm D = 120 nm)	20.7	4.009	428.30
	TM (H = 180 nm D = 120 nm) TE (H = 240 nm D = 120 nm) TM (H = 240 nm D = 120 nm)	2.1 9.4 19.1	1.666 0.348 1.123	384.69 360.16 374.58

.

3.3. Al Nanosphere Structure

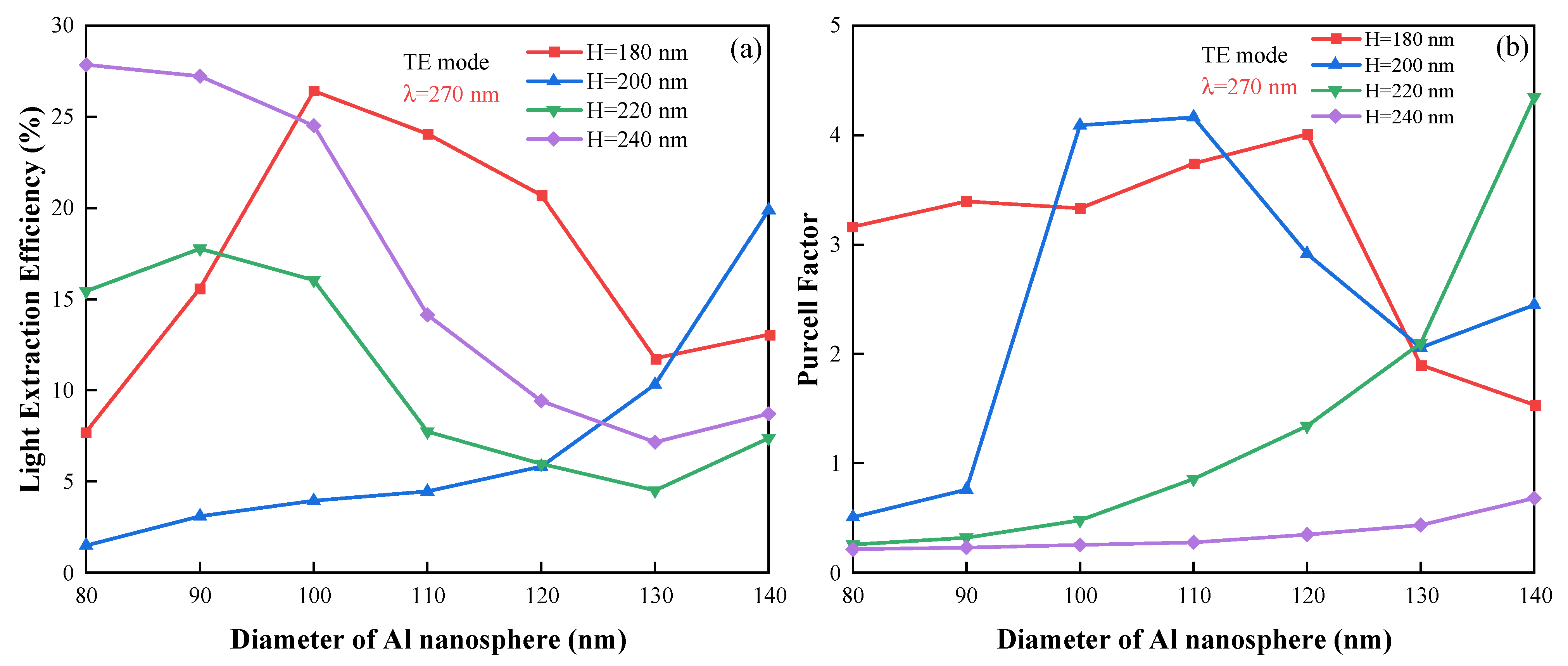

Here, Al nanospheres were placed into the nanopillar structure, as shown in Figure 1c. Photons and excitons in MQWs were effectively scattered to the air interface by Al nanospheres with the right coupling condition. Thus, it is beneficial to the improvement of LEE and $F_P$ for DUV-LEDs. In particular, the diameter of the Al nanosphere was equal to the spacing between the adjacent nanopillar. The purpose of this was to be more conductive to coupling with Al nanosphere and MQWs when the coupling distance was shortened. Figure 5a,b show TE-polarized LEE and $F_P$ for the Al nanosphere structure with various diameters, from 80 nm to 140 nm, when the nanopillar height was set to 180 nm, 200 nm, 220 nm and 240 nm, respectively. When the nanopillar height was 180 nm or 240 nm, it had a better enhancement in the TE-polarized LEE. However, the results for high $F_P$ were at the nanopillar heights of 180 nm or 200 nm. Therefore, a reasonable height is 180 nm for high TE-polarized LEE and $F_P$. When the Al nanosphere diameter was 110 nm, the LEE reached 24.1% and $F_P$ was 3.7. TE-polarized LEE and $F_P$ were increased approximately 6 times and 3 times simultaneously as compared to the planar DUV-LED. At different nanopillar heights, LEE and $F_P$ varied greatly with diameter of Al nanospheres, mainly due to various spacing between the dipole source and Al nanospheres. This resulted in different localized surface plasmon intensities. When the nanopillar height was 180 nm, the LSP effect was significant, and improvement of LEE and $F_P$ was also obvious. Furthermore, the $F_P$ of Al nanosphere structure was enlarged by more than 20 times compared to the nanopillar structure for TE-polarized DUV-LEDs. Both LEE and $F_P$ of TE polarization were significantly improved.

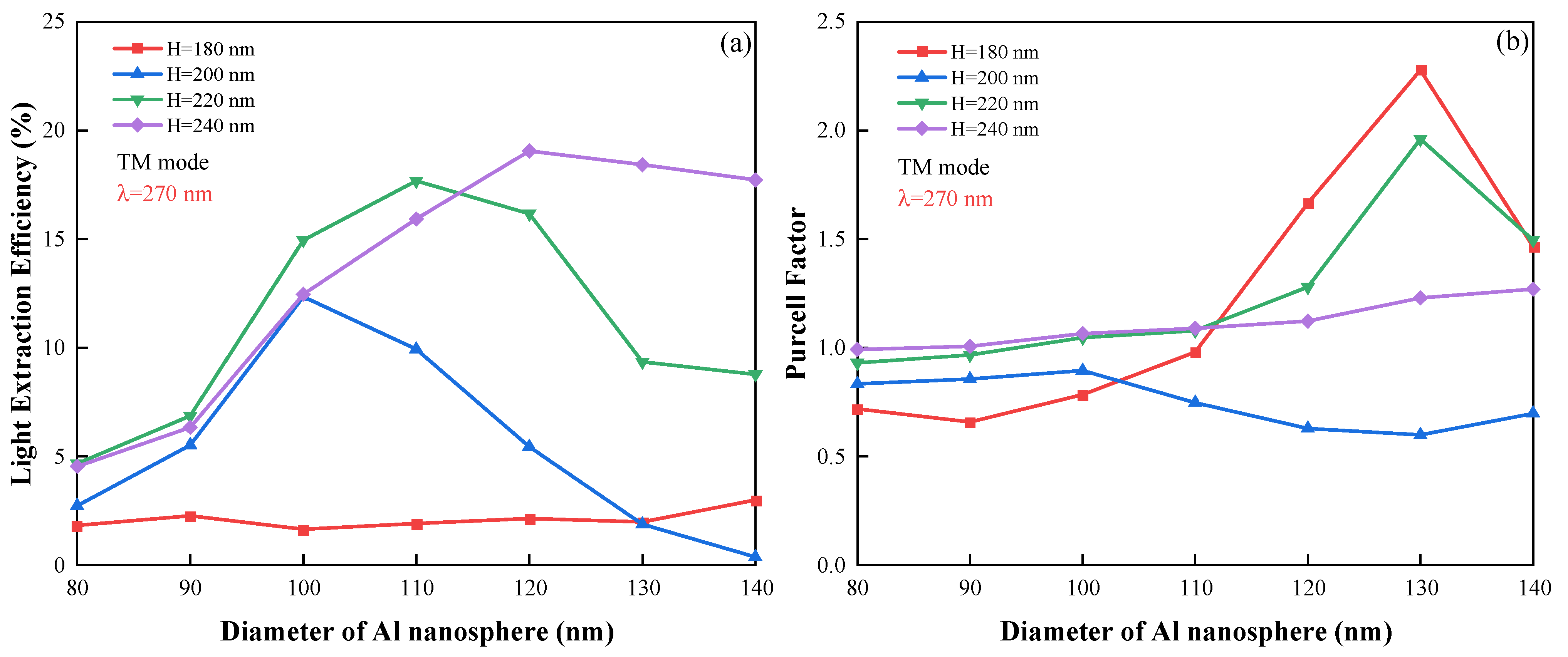

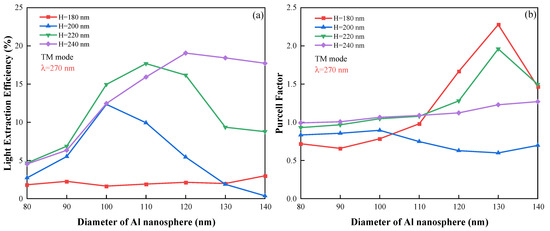

Similarly, the TM-polarized LEE and $F_P$ of Al nanosphere structure are exhibited in Figure 6a,b, respectively. TM-polarized LEE significantly increased under Al nanosphere structure, when the height was 200 nm, 220 nm and 240 nm. Moreover, when the Al nanosphere diameter was 120 nm and the height was 240 nm, the maximum LEE of TM polarization was 19.1%. Compared with nanopillar structure, LEE was enhanced four-fold, and the corresponding $F_P$ was not reduced. Except for the diameter of 130 nm, $F_P$ had a large increase, and it remained stable under other Al nanosphere diameters. In the Al nanosphere structure, the LEE of TM polarization was extremely improved. Furthermore, it is inferred that coupling Al nanospheres and MQWs with LSP mode can generate obvious improvement of LEE, because nanopillar structure increased the scattering effect and broke the limit of TIR. For TM-polarized LEE and $F_P$, with different nanopillar heights, the LSP coupling strength of Al nanospheres and the dipole source was different. It led to a high LEE when the nanopillar height was 240 nm. $F_P$ had a tendency to increase due to the volume reduction when nanopillar height increased.

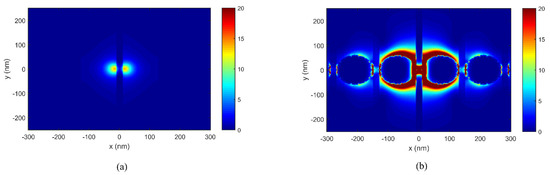

Figure 7 shows the electric field intensity distribution for the nanopillar and Al nanosphere structure DUV-LEDs in TM polarization with 240-nm-high nanopillar height and 120-nm-wide nanosphere diameter. A notable increase of local electromagnetic field along the edge of Al nanospheres can be seen, and the strongest enhancement occurs at the interface between Al nanospheres and the nanopillar. The electric field with Al nanospheres distributes more widely, and more light escapes into the air, increasing the LEE compared to the nanopillar structure. This confirms that the increase in TM-polarized LEE comes from strong QW-LSP coupling process.

3.4. Modulation Bandwidth

Finally, in order to study the influence of nanopillar and QW-LSP coupling on the spontaneous emission rate, modulation bandwidth of DUV-LEDs is analyzed. In terms of carriers in QW LEDs, the effective carrier lifetime modified by Purcell effect can be expressed as [28]:

$$\frac{1}{{\tau }_{eff}}=\frac{F_P}{{\tau }_r}+\frac{1}{{\tau }_{nr}}$$

(1)

where ${\tau }_{eff}$ is the effective recombination lifetime, ${\tau }_r$ is radiative recombination lifetime, ${\tau }_{nr}$ is the nonradiative recombination lifetime, for a bi-molecular recombination mechanism, from [29] the modulation bandwidth is expressed as:

$$f_{3 \mathrm{dB}}=\frac{1}{2\pi {\tau }_{eff}}$$

(2)

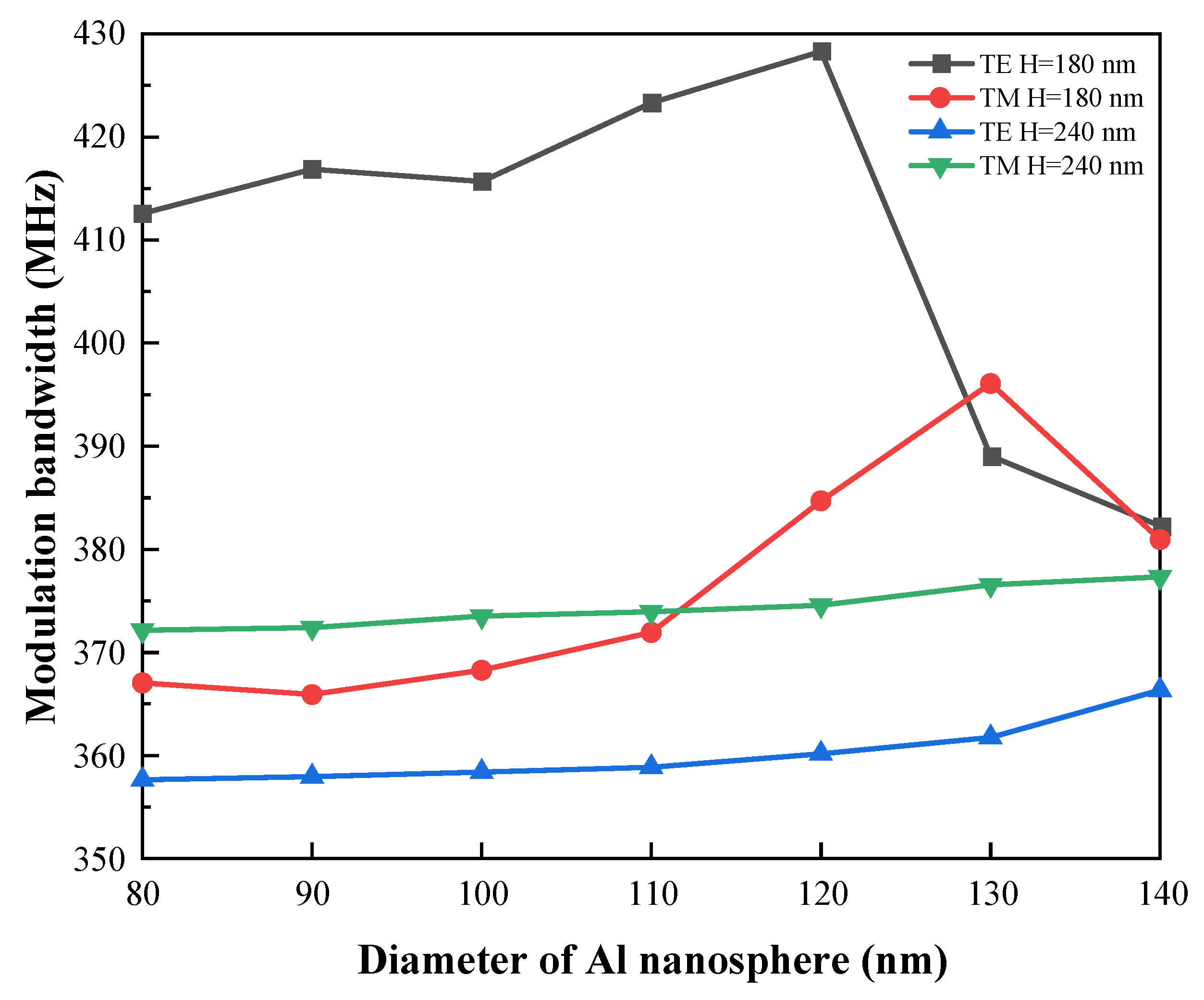

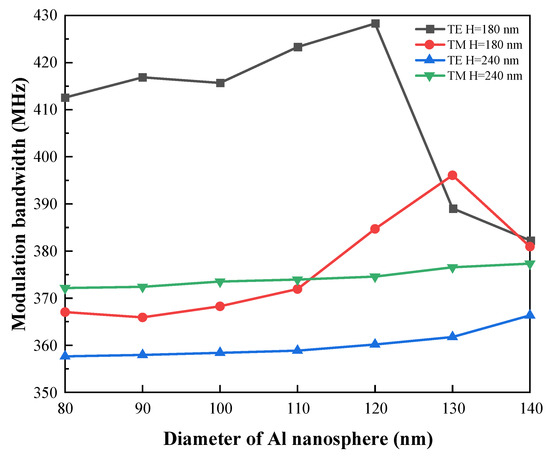

The radiative recombination lifetime of planar LED is selected as ${\tau }_r=5.8 \mathrm{ns}$, which is measured in [30]. Using light induced transient gratins (LITG) transients’ technology, the non-radiative recombination lifetime is obtained for ${\tau }_{nr}=0.45 \mathrm{ns}$ as studied in [31]. According to the above Formulas (1) and (2), the radiation recombination lifetime parameters and simulated $F_P$ value, we evaluated the modulation bandwidth for the designed DUV-LEDs. Figure 8 shows the modulation bandwidth of Al nanosphere structure with various diameter, as the nanopillar height is 180 nm and 240 nm. The LEE is relatively high at this height. Note that both TE and TM polarization achieve high modulation bandwidth at the height of 180 nm. The modulation bandwidth reaches 428.3 MHz for TE polarization at the diameter of 120 nm and 396 MHz for TM polarization at the diameter of 130 nm. It is observed that DUV-LEDs with design of Al nanosphere structure can achieve high LEE, $F_P$ and significantly enhance modulation bandwidth.

In addition to the above calculation of the modulation bandwidth of Al nanosphere structure, Table 1 presents a comparison of TE-polarized and TM-polarized LEE, $F_P$ and modulation bandwidths of three types of DUV-LEDs. It is found that the LEE of the planar structure is very low. Under the optimization of the nanopillar structure, the LEE of TE polarization was greatly improved but hindered by poor $F_P$. Moreover, the proposed Al nanosphere structure can simultaneously improve the LEE, $F_P$ and modulation bandwidth. For DUV-LEDs with Al nanospheres, the TE-polarized modulation speed increased by 71 MHz compared to the nanopillar structure. The modulation speed remained stable for TM polarization, but the LEE was greatly enhanced and reached 19% due to the QW-LSP coupling effect. More details show that the addition of Al nanospheres not only improves LEE of DUV-LED but also increases its modulation speed. The designed nanopillar and Al nanosphere structure are helpful to improve the overall performance of DUV-LEDs.

4. Conclusions

In summary, TE and TM- polarized LEE, $F_P$ and modulation bandwidths of planar, nanopillar and Al nanosphere structure DUV-LEDs, respectively, were simulated using the FDTD method. Relative to the planar structure DUV-LED, the designed nanopillar structure with various heights, width and spacing greatly improved the TE and TM-polarized LEE. The three key parameters played important roles in enhancing LEE by contributing to reducing the absorption of the p-GaN layer, raising the scattering ability and interrupting the TIR effect. The results indicate that TE-polarized LEE is 39.7% and TM-polarized LEE is 4.4%. An Al nanosphere structure is proposed on the basis of nanopillar structure. It is proved that LEE, $F_P$ and modulation bandwidths of both polarizations are enhanced at the same time by QW-LSP coupling induced on Al nanospheres. When Al nanospheres’ diameter was 120 nm, TE-polarized modulation bandwidth speed reached 428.3 MHz, TM-polarized LEE was 19.1%. Compared with the planar structure DUV-LEDs, TM-polarized LEE was improved 48-fold for Al nanosphere structure DUV-LEDs. It is believed that the Al nanosphere structure is a superior solution for achieving high-efficiency and high-bandwidth DUV-LEDs in the future.
