An Enhanced Oxidation of Formate on PtNi/Ni Foam Catalyst in an Alkaline Medium

by
Antanas Nacys
*,
Dijana Šimkūnaitė
,
Aldona Balčiūnaitė
,
Aušrinė Zabielaitė
,
Daina Upskuvienė
,
Benjaminas Šebeka
,
Vitalija Jasulaitienė
,
Vitalij Kovalevskij
,
Eugenijus Norkus
and
Loreta Tamašauskaitė-Tamašiūnaitė
*
Center for Physical Sciences and Technology, Sauletekio Avenue 3, LT-10257 Vilnius, Lithuania
*
Authors to whom correspondence should be addressed.
Crystals 2022, 12(3), 362; https://doi.org/10.3390/cryst12030362
Submission received: 2 February 2022 / Revised: 6 March 2022 / Accepted: 7 March 2022 / Published: 8 March 2022
(This article belongs to the Special Issue Advances in Functional Inorganic Materials Prepared by Wet Chemical Methods (Volume II))
Browse Figures
Versions Notes

Abstract

:
In this study, a platinum-coated Ni foam catalyst (denoted PtNi/Ni foam) was investigated for the oxidation of the formate reaction (FOR) in an alkaline medium. The catalyst was fabricated via a two-step procedure, which involved an electroless deposition of the Ni layer using sodium hypophosphite as a reducing agent and the subsequent electrodeposition of the platinum layer. The PtNi/Ni foam catalyst demonstrated enhanced electrocatalytic activity for the FOR in an alkaline medium compared to the Ni/Ni foam catalyst and pure Pt electrode. Moreover, the PtNi/Ni foam catalyst promoted the FOR at more negative potentials than the Pt electrode. This contributed to a significant negative shift in the onset potential, indicating the high activity of the catalyst. Notably, in alkaline media with the PtNi/Ni foam catalyst, the FOR proceeds via a direct pathway mechanism without significant accumulation of poisonous carbonaceous species on the PtNi/Ni foam catalyst.

1. Introduction

The large-scale commercialization of formic acid (FA)/formate-based fuel cells is challenging because of the unavailability of highly active, durable, and low-cost catalysts for anodic oxidation reactions. The most promising are based on Pt or Pt-group materials (PGMs) [1,2,3,4,5]. Pd and Pd-based catalysts are the most widely studied and are currently regarded as state-of-the-art electrocatalysts for FA/formate oxidation because of their high catalytic activity and good anti-poisoning properties in acidic and alkaline media [6,7,8]. Combining Pd with other metals or metal nanoparticles, such as Ag [8,9,10], Cu [10,11], Ni [9], CeO2 [12], In [13], and B [14], improves the characteristics of the catalysts while simultaneously reducing the cost. In some cases, especially under alkaline conditions, Pd-based catalysts are even more active and less prone to deactivation by carbon monoxide (CO) than Pt-based catalysts [15]; however, their insufficient stability remains a major concern. Meanwhile, significantly less attention has been paid to Pt-based electrodes for the FOR. However, further development is required to mitigate the high cost and low performance of Pt-based catalysts owing to the fast deactivation of the in situ-generated poisonous carbonaceous intermediates, such as CO, and to develop CO-tolerant catalysts. Some efficient ways to overcome the present drawbacks are to decrease the Pt loading and fabricate nanostructured materials with Pt to exploit its mass activity and stability, or decorate and modify catalysts with Pt heteroatoms for better poison resistance [8,16,17]. Another way to enhance Pt electrocatalysis is to control the acidity of fuel solutions by maintaining a low concentration of FA and a high concentration of formate, which results in a smaller volume of FA being adsorbed. This contributes to a lower level of severe Pt poisoning by the adsorbed CO [18]. However, decreasing FA concentration is closely related to decreases in the current density of FA oxidation. Recently, free formate was demonstrated to promote anode oxidation in acidic solutions and suppress the poisoning pathway [18]. The FOR demonstrates faster reaction kinetics, a lower overpotential, and less poisoning of the anode catalyst in an alkaline media than in an acidic media [19,20,21,22].
Several conventional design principles for catalysts have been applied to improve their poisoning resistance. The following two strategies have been used: (1) Pt is coupled with other metals such as Ni [23,24,25,26], Au [8,27], Bi [28,29], Sb [30], and Rh [31], to prevent CO adsorption on the Pt surface through so-called ensemble and electronic effects, and (2) oxidative removal of adsorbed CO from the Pt surface is facilitated at low potentials by enriching the surface with oxygen-containing species via a bifunctional mechanism. This may be achieved by alloying Pt with oxophilic transition metals or metal oxides, such as NiOx [32,33,34,35], CoOx [32], Cu2O [36], FeOx [37], MnOx [38,39], and SnO2 [40]. The presence of oxophilic materials, including Ni-oxy species, in the catalyst composition can assist with the electrochemical dissociation of water to form OH– ions at a more negative potential than that required for OH– to be formed in the presence of bare Pt [32,41,42,43]. This phenomenon aids in the removal of adsorbed surface CO (COads) by oxidation, allowing for the development of CO-tolerant catalysts. In addition, the β-NiOOH phase, which originates from the oxidation of the lower oxidation state Ni or NiO through Ni(OH)2, is considered to be the active anti-poison site, and can act as a catalytic mediator through a reversible Ni (II)/Ni (III) redox system to facilitate a charge transfer for the FA oxidation reaction [32]. Moreover, Ni-based oxides/hydroxides are of significant interest as electrocatalysts because of their low price, nontoxicity, and earth-abundant resources. Recently, the spontaneous deposition of Pt on commercial Ni foams (Nifoam) was used to produce Pt-modified 3D Ni electrodes, which are perfect candidates for efficient catalysis owing to the high surface area and synergistic effects between the Pt nanoparticles and the supporting material [44]. This unique three-dimensional structure benefits significantly from the use of noble metals. As a result, Ni foams with a particular architecture and excellent conductivity have been successively used as supports for the preparation of catalysts for various electrochemical reactions, such as hydrogen evolution [45], water splitting in alkaline media [46], direct ammonia oxidation [47], methanol oxidation [48], ethanol oxidation [49], sodium borohydride hydrolysis [50], borohydride oxidation [51], hydrazine oxidation [52], and urea oxidation [53]. However, there are no reports of Ni foam as a support for FA oxidation.
Large surfaces are important for the good spacious dispersion of heterogeneous catalysts, as they provide an increased contact area for reactants to facilitate catalysis. Therefore, we deposited a Ni layer on the Ni foam surface (Ni/Nifoam) using the electroless deposition technique. Subsequently, a thin Pt layer was electrochemically deposited on the surface. The electrocatalytic activity of the PtNi/Nifoam catalysts for FOR was evaluated in alkaline media. Owing to the synergy between the active sites of Pt, the porous structure of the Ni-oxy species layer on the Ni foam, and the extremely high specific surface area of the catalyst, the prepared catalyst demonstrated advanced activity in alkaline media and pronounced resistance to poisoning by carbonaceous species.

2. Materials and Methods

The Ni foam with 20 pores/cm, a bulk density of 0.45 g cm−3, and a thickness of 1.6 mm was purchased from GoodFellow GmbH Supplier (Hamburg, Germany). The thin Ni layer was deposited on Ni foam, using sodium hypophosphite as a reducing agent described in detail in Ref. [50].
The Pt thin layer was electroplated on Ni/Nifoam using the electrolyte containing PtCl2(NH3)2, NH4NO3, NH4OH, and NaNO2 (pH 8) at the current density of 1 A dm−2 for 40 min. The temperature of the electrolyte was kept at a temperature of 95 °C.
The chemical composition of the samples was analyzed using the X-ray photoelectron spectroscopy method employing Kratos AXIS Supra+ spectrometer (Kratos Analytical, Manchester, UK, 2019) with monochromatic Al Kα (1486.6 eV) X-ray radiation powered at 225 W. The base pressure in the analysis chamber was less than 1 × 10−8 mbar and a low electron flood gun was used as a charge neutralizer. The survey spectra for each sample were recorded at a pass energy of 80 eV with a 1 eV energy step and high-resolution spectra (pass energy—10 eV, in 0.1 eV steps) over individual element peaks. The binding energy scale was calibrated by setting the adventitious carbon peak at 284.8 eV. XPS data were converted to VAMAS format and processed using the Avantage Software (Thermo Scientific, East Grinstead, UK).
The morphology and composition of the prepared coatings were investigated by scanning electron microscopy (SEM) using a SEM/FIB workstation Helios NanoLab 650 with an energy dispersive X-ray (EDX) spectrometer INCA Energy 350 X-Max 20. Pt loading was determined by inductively coupled plasma optical emission spectrometry (ICP-OES). It was determined that the Pt loading in the PtNi/Nifoam catalyst was ca. 71 μg cm−2.
The oxidation of formate (FOR) was investigated using a Zennium electrochemical workstation (ZAHNER-Elektrik GmbH & Co.KG, Kronach, Germany). A conventional three-electrode cell was used for electrochemical measurements. The Ni/Nifoam and PtNi/Nifoam catalysts with a geometric area of 2.45 cm2 were employed as working electrodes. An Ag/AgCl/KCl (3 M KCl) electrode was used as a reference, Pt sheet with a geometric area of 4 cm2 was used as a counter electrode. For comparison, the Pt bulk electrode with a geometric area of 1 cm2. Cyclic voltammograms (CVs) were recorded at a potential scan rate of 50 mV s−1 from the open-circuit potential value in the anodic voltammetric scan up to +0.6 V unless otherwise stated in a 1 M NaOH solution containing FA concentration in the range of 0.1–0.7 M at a temperature of 25 °C. All reported potential values are referred to as “Ag/AgCl”.
Chronoamperometric measurements were carried out at a constant electrode potential of −0.6 V for 2600 s.

3. Results

3.1. Characterization of the Electrodes

X-ray photoelectron spectroscopy (XPS) was performed to analyze the electronic state of the surface composition of the as-prepared PtNi/Nifoam. The Pt 4f spectra reveal a doublet consisting of high-energy (Pt 4f5/2) and low-energy (Pt 4f7/2) bands (Figure 1a). Deconvolution of the latter reveals two peaks centered at 70.9 and 72.4 eV, indicating that Pt is in two different oxidation states, Pt (0) and Pt (II), respectively, and the lower binding energy (BE) peak at 70.9 eV is clearly dominant. This indicates that almost all Pt species grown on Ni/Nifoam exist in a metallic state. The higher BE peak (72.4 eV) represents PtO or Pt(OH)2 [54].
The Ni 2p3/2 XPS spectrum splits into three resolved peaks centered at 852.3 eV, 853.9, and 855.8 eV, indicating the presence of Ni, NiO, and Ni(OH)2 species, respectively, on the Nifoam surface (Figure 1b). The dominant BE peak at 855.8 eV indicates that the Ni(OH)2 species predominates in the catalyst composition. Moreover, the BE peak of Pt 4f7/2 for the PtNi/Nifoam catalyst shifted from 71.20 to 70.91 eV when compared to that for metallic Pt, suggesting that Pt undergoes electronic structural changes when it is coupled with Ni(OH)2 [55]. This shift implies that the Ni atoms occupy the Pt lattice and that the metallic grains are intermixed with Ni(OH)2 [56,57]. Furthermore, the O 1s XPS spectrum reveals three resolved peaks centered at 529.8, 531.3, and 532.8 eV (Figure 1c). The lowest energy contributions at 529.8 and 531.3 eV were assigned to oxide/hydroxide species such as NiO and Ni(OH)2, respectively [45]. The highest BE value (532.8 eV) generally corresponds to physically adsorbed water molecules [58,59]. The coexistence of Pt and Ni(OH)2 species was determined by XPS analysis and is supported by cyclic voltammetry measurements.
The cyclic voltammograms (CVs) of the bare Pt and PtNi/Nifoam electrodes in 1 M NaOH solution measured at a potential scan rate of 50 mV s−1 are displayed in Figure 2. The existence of a pair of coupled peaks at ca. +0.46 V is generally attributed to the reversible transformation of Ni (II)/Ni (III) species via the redox reaction between Ni(OH)2 and NiOOH, according to the following Equation (1) [60]:
Ni(OH)2 + OH− ↔ NiOOH + H2O + e−
The presence of Pt on the surface of the Ni/Nifoam electrode was confirmed by the cathodic peak located at ca. −0.4 V in the alkaline 1 M NaOH solution. The electrochemically active surface areas (ECSAs) of the prepared Pt and PtNi/Nifoam catalysts were determined from the CVs recorded in a deaerated 0.5 M H2SO4 solution at a scan rate of 50 mV s−1 (Figure S1, Supplementary Material) by calculating the charge associated with hydrogen adsorption at 210 μC cm−2 [61]. The ECSA for the PtNi/Nifoam electrode is 71 cm2, and that for the bare Pt substrate is 1.5 cm2. The above results reveal that the PtNi/Nifoam electrode has significantly higher current values and a larger surface area than the bare Pt substrate, and it outperforms the Pt electrode ca. 47-fold.
The electrochemical performance of the Pt and PtNi/Nifoam catalysts was evaluated by progressively increasing the anodic reverse potential limit (Era). A series of CVs for Pt and PtNi/Nifoam catalysts were recorded in a 1 M NaOH solution at different Era values at a scan rate of 50 mV s−1 (Figure 3). The CV curves of the bare Pt electrodes (Figure 3a) are consistent with those typically found for bare Pt electrodes in an alkaline solution. They are characterized by the following three potential regions: (a) a hydrogen adsorption/desorption region (−0.9 < E < −0.6 V), (b) a double layer region (−0.6 < E < −0.45 V), and (c) a hydroxide–oxide formation region (−0.45 < E < +0.6 V) [62,63,64]. The applied potential region can generate two types of oxygen-containing species, namely, PtOH and PtO [65]. This common potential domain, up to ca. −0.10 V, is attributed to OH− ion electroabsorption with charge transfer and the formation of surface hydroxides (OH− → OHad + e− in alkaline solutions) [63,66,67]. This potential domain is associated with reversible and weak OHad adsorption before the oxide layer formation. A more positive E domain represents the only somewhat reversible formation of strongly bound OHad species and high-valent oxides. The most positive potential region up to +0.6 V is attributed to stoichiometrically different Pt-OH species that transform into Pt-O−, Pt=O, or Pt2=O, depending on the surface coverage of strongly adsorbed OHad.
The cathodic peak generated in the backward (cathodic voltammetric) scan when the electrode potential was scanned at progressively more positive values was attributed to the reduction of Pt oxides, which increased and shifted to more negative potential values, indicating the formation of irreversible oxide species.
Meanwhile, the hydrogen adsorption/desorption peaks at the bare Pt electrode changed significantly less in response to the applied Era than those of Pt oxides. However, the processes mentioned above in an alkaline medium are not well separated in potential ranges, as in the case of an acidic medium [68,69]. The coupled H and OH adsorption/desorption processes in alkaline media are thought to occur reversibly up to ca. +0.65 V vs. RHE for Pt (100) and Pt (110), respectively. The OH− adsorption on Pt in an alkaline medium begins quite low at (ca. +0.35 V vs. RHE) [68,69], as soon as the desorption of hydrogen ceases. Notably, the presence of small quantities of adsorbed OHad species on the Pt surface was confirmed, even in the Hupd region in alkaline solutions [64,66]. Thus, the coupled competing adsorption/desorption processes of Hupd and OHad proceeded in the Hupd region.
Similarly, CVs were recorded for the PtNi/Nifoam electrode with a gradual increase in the upper Era (up to +0.6 V, Figure 3b). In contrast to the CVs determined for the Pt electrode, those for PtNi/Nifoam reveal a pronounced redox current peak pair at ca. +0.46 V, which was attributed to the reversible transformation of Ni (II)/Ni (III) species during the anodic and cathodic scans. With an increase in the upper Era, a slight negative shift of the Pt oxide formation/reduction potentials was observed, together with an increase in the corresponding current peak values during both anodic and cathodic scans. Meanwhile, almost complete suppression of the peak current was observed in the hydrogen adsorption/desorption domain, unlike in bulk Pt. The corresponding Pt oxide reduction current density peak values (jpc) for the Pt and PtNi/Nifoam catalysts determined in a 1 M NaOH solution with increasing Era are presented in Table 1. The results clearly reveal that jpc shifted to more negative potential regions. The reduction current density peak values for the PtNi/Nifoam catalysts increased by ca. 39.78 and 46.49 times compared to those for the bare Pt electrode, with increases in Era of +0.5 or +0.6 V, respectively. These data indicate that when the oxidation of Ni2+ to Ni3+ is achieved, the reduction of more Pt oxides to metallic Pt are revealed on the backward scan, demonstrating the synergy between the Pt and Ni species.

3.2. Electrocatalytic Evaluation for Formate Oxidation

The electrocatalytic activity of the Pt and PtNi/Nifoam catalysts in a 1 M NaOH solution containing 0.3 M or 0.5 M FA with different Era was evaluated by the CV measurements at a potential scan rate of 50 mV s−1 (Figure 4). Stabilized CVs of FOR for the Pt catalyst plotted in Figure 4a,b reveal one broad peak on the anodic scan, followed by another on the backward scan, regardless of the Era applied. Meanwhile, the first scans presented in Figure S2 (Supplementary Material) for different FA concentrations are significantly different from the stabilized ones. Three current peaks (labeled Peak I, Peak II, and Peak III) can be observed in the positive-going potential scan (solid lines), and one more peak (labeled Peak IV, dashed lines) appears in the negative-going potential scan. The nature of those peaks can be interpreted regarding the fact that all FA solutions with different concentrations studied in our work are strongly alkaline, and that the pKa of HCOOH is well above ~3.8; therefore, it is inevitable that a formate (HCOO−) oxidation reaction will occur [19]. A dual-pathway mechanism, analogous to FAO in acidic media, takes place for formate oxidation in alkaline media on polycrystalline Pt at pH ≈ 14 [19]. Formate typically undergoes oxidation through a reactive intermediate either directly to CO2, or indirectly through a strongly chemisorbed intermediate (COad) that is further oxidized to CO2 at higher potentials. Additionally, a third independent pathway, involving formate oxidation via the formation of less-active surface formate (HCOOads), and its oxidation to CO2 on the Pt surface at significantly higher potentials, should be considered [70].
The first peak (I) at ca. −0.5 V in Figure S2 was assigned to the direct oxidation of formate, and a second hardly discernible peak (II) at ca. −0.35 V was attributed to the indirect oxidation pathway via the strongly chemisorbed intermediate COads [19]. The third peak (III) at ca. +0.00 V indicates an independent pathway of formate oxidation via the formation of the less active surface formate (HCOOads) and its oxidation to CO2 [70]. At ca. −0.5 V, the last peak (IV) on the reverse potential scan developed in the electrode potential region where no surface hydrogen adsorption occurs. The oxide was reduced almost to completion. The properties of peak IV depend on several factors, such as the reduction of surface oxides, CO adsorption on the electrode surface, and mass transfer limitation [70]. As the catalyst active sites were cleaned of adsorbed intermediates at high potentials and the Pt oxides/hydroxides were reduced, this peak is most likely related to the direct oxidation pathway (dehydrogenation). Moreover, the presence of this peak and the potential region of peak I both suggest a similar reaction pathway. Peak IV might have been influenced by the oxidation of adsorbed residual species in this potential region, but this does not seem likely under the conditions of our experiment.
An increase in the number of applied scan cycles leads to a change in the slight shape transformation of the stabilized CVs, resulting in a broader formate oxidation current density peak on the bare Pt electrode (Figure 4a,b). Current density peaks for FO on forward (anodic voltammetric) and backward scans are denoted (jpf) and (jpb), respectively. It is impossible to propose an unambiguous treatment of the origin of the oxidation peak obtained in the case of stabilized CVs on the bare Pt electrode, as the overlapping of the peaks is not excluded, and the merging of direct and indirect FO pathways is presumable.
The stabilized CVs (Figure 4a,b) clearly reveal that a progressive increase in the upper anodic potential limit accelerates the formation of Pt oxides and results in higher Pt oxide reduction peak values on the negative-going potential scans and higher FO current density peak values on the forward-going potential scans of the Pt electrode. These results are similar to those obtained when the FA concentration is increased from 0.3 to 0.5 M.
The increase in the current density peak value for the Pt oxide reduction to metallic Pt occurs with a reduction potential shift to a more negative value. This indicates a more difficult reduction of Pt oxides. Meanwhile, the FO potential for both jpf and jpb remains almost unchanged regardless of the applied Era value. The jpf value triples if Era is changed from −0.2 to +0.6 V for FO at the Pt electrode in 0.3 M FA + 1 M NaOH solution (Figure 4a) and is ca. 1.40 times higher in 0.5 M FA + 1 M NaOH solution (Table 2).
The presence of an extremely clean metallic Pt surface thermodynamically improves the oxidation reaction of COads. However, the decrease in jpb with increasing Era in the forward scan in 0.3 M FA + 1 M NaOH solution is associated with the oxidation of residual incompletely oxidized carbon species on the catalyst surface rather than the oxidation of freshly chemisorbed species. Meanwhile, the absence of a clear correlation between the change in jpb value and the Era in 0.5 M FA + 1 M NaOH solution could be explained by the competitive oxidation between residual incompletely oxidized carbon species and freshly chemisorbed species due to the activation of the surface by the reduction of Pt oxides and/or hydroxides. The presence of Pt oxides and/or hydroxide oxides (such as PtO2) on the catalyst surface is thought to help oxidize the COad, and thus, reduce catalyst poisoning, similar to the case of PdO2 and Au2O3 in an alkaline media [6,70,71,72]. Nevertheless, the scope of the results indicates that the increase in the upper Era appears to favor the direct oxidation pathway in all cases for peaks I and IV.
Similarly, stabilized CVs were recorded for the PtNi/Nifoam catalyst with increasing Era (Figure 4c,d). One broad current density peak was generated in the negative potential region of the PtNi/Nifoam catalyst, characterized by FO via a direct pathway that was followed by a clear current density peak at positive potentials corresponding to the Ni(OH)/NiOOH surface transformation. The formate oxidation current density peak values increased tremendously with increases in the positively going potential limit. Current density peak values ca. 400 times higher than those obtained with the bare Pt electrode were observed, confirming that the ECSAs of PtNi/Nifoam are much larger and that there are many more active sites that facilitate significantly improved FO catalytic reactions owing to the synergy between the Pt and the porous Ni-coated foam substrate. The increase in FA concentration contributes similarly to current growth. A summary of the electrochemical measurements of the PtNi/Nifoam catalyst in 1 M NaOH with 0.3 or 0.5 M FA (Figure 4c,d) is presented in Table 3 and Table 4. The jpf value increased ca. 1.4 or 1.8 times for the PtNi/Nifoam catalyst in 1 M NaOH containing 0.3 M or 0.5 M FA, respectively, when the Era was changed from −0.2 to +0.6 V. The jpf/jpb ratio varied from ca. 1.0–0.8, confirming that the incorporation of Ni oxy-species effectively improves the electrocatalytic kinetics of the Pt-based catalysts and can prevent the accumulation of incompletely oxidized carbonaceous species (COads), directing the FOR toward the dehydrogenation pathway.

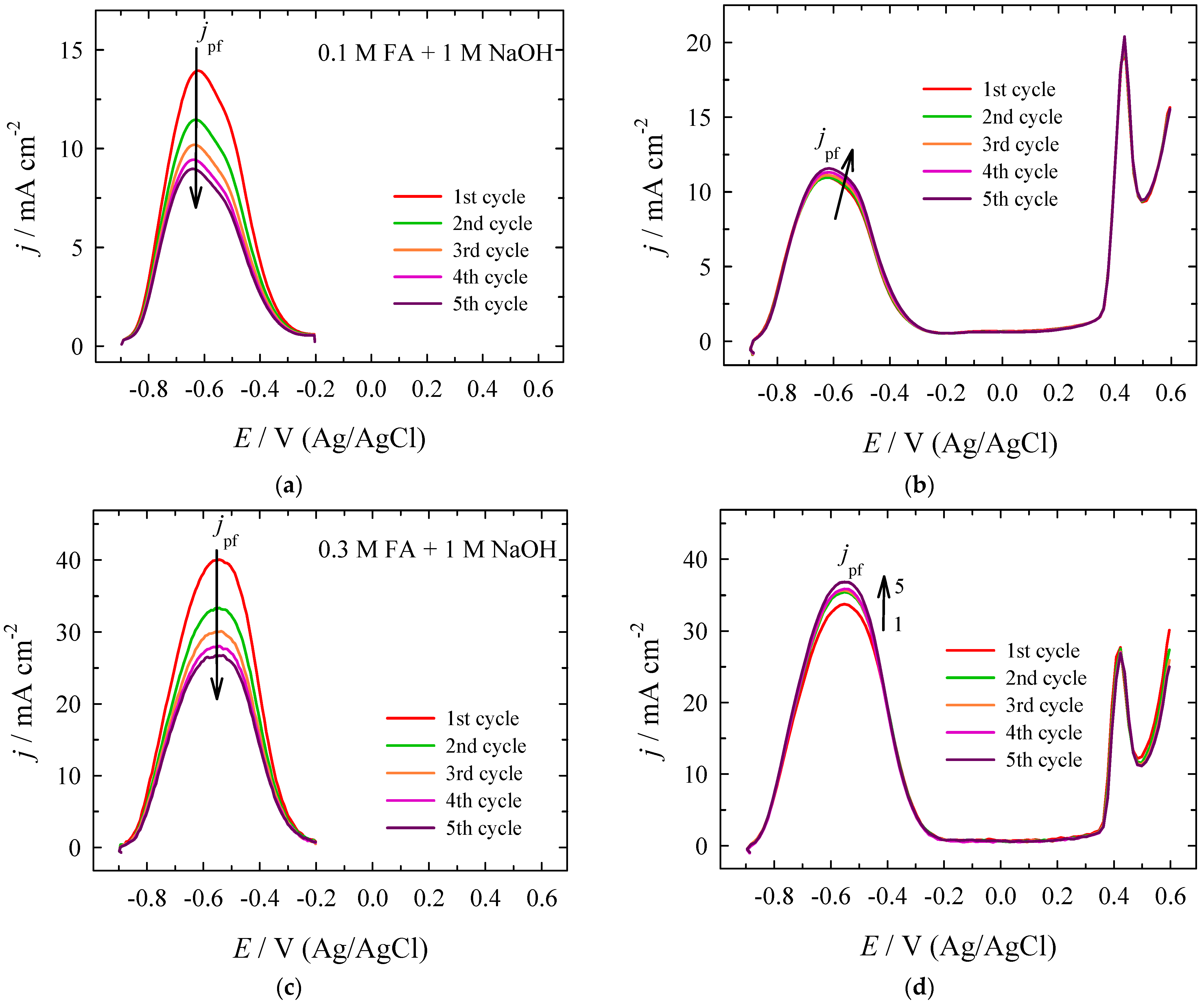

The influence of the first applied potential scan cycles recorded for the PtNi/Nifoam catalyst for different Era values in alkaline FA was investigated. For the sake of simplicity, only the positive-going potential CVs with two different Eras (−0.2 and +0.6 V) for the PtNi/Nifoam catalyst in a 1 M NaOH solution, containing different FA concentrations of 0.1, 0.3, and 0.5 M, are presented in Figure 5. Successive cycling in the potential region with an Era of −0.2 V resulted in an apparent jpf decrease at all FA concentrations applied to the PtNi/Nifoam catalyst. Meanwhile, when the Era was decreased to −0.6 V to include the potential window for the oxidation of Ni2+ to Ni3+, the jpf increased (unlike when Era = −0.2 V) and increased further with increasing FA concentration, indicating an improvement in FO. Changing the Era from −0.2 to +0.6 V resulted in increases of ca. 1.3, 1.4, and even 1.8 times for the Ipf values, for 0.1, 0.3, and 0.5 M FA containing alkaline solutions, respectively, on the PtNi/Nifoam catalyst. An increase in FA concentration from 0.1 to 0.5 M led to ca. 4.4–6.1-fold increased jpf values when the upper potential limit was −0.2 V or +0.6 V. Furthermore, a decrease in jpb values can be observed on the negative-going potential scans presented in Figure S3 (Supplementary Material), regardless of the Era value applied. Notably, when Era = −0.6 V, the forward and backward-going current density peak values become closer to each other, indicating better catalyst tolerance to the accumulation of carbonaceous species.
FO improves with increasing (more positive) Era because of the impact of the oxophilic transition metal component in the catalyst composition, which involves the potential region in which the Ni(OH)/NiOOH surface transformation takes place and provides an additional quantity of oxygen-containing species at low potentials, which contributes to the oxidation of adsorbed CO, thus decreasing the catalytic poisoning of the catalyst. In general, nickel hydroxide nanostructures play a crucial role in facilitating the dissociative adsorption of water molecules in alkaline media and the subsequent oxidative removal of carbonaceous poisons from neighboring platinum sites [33,34,35].

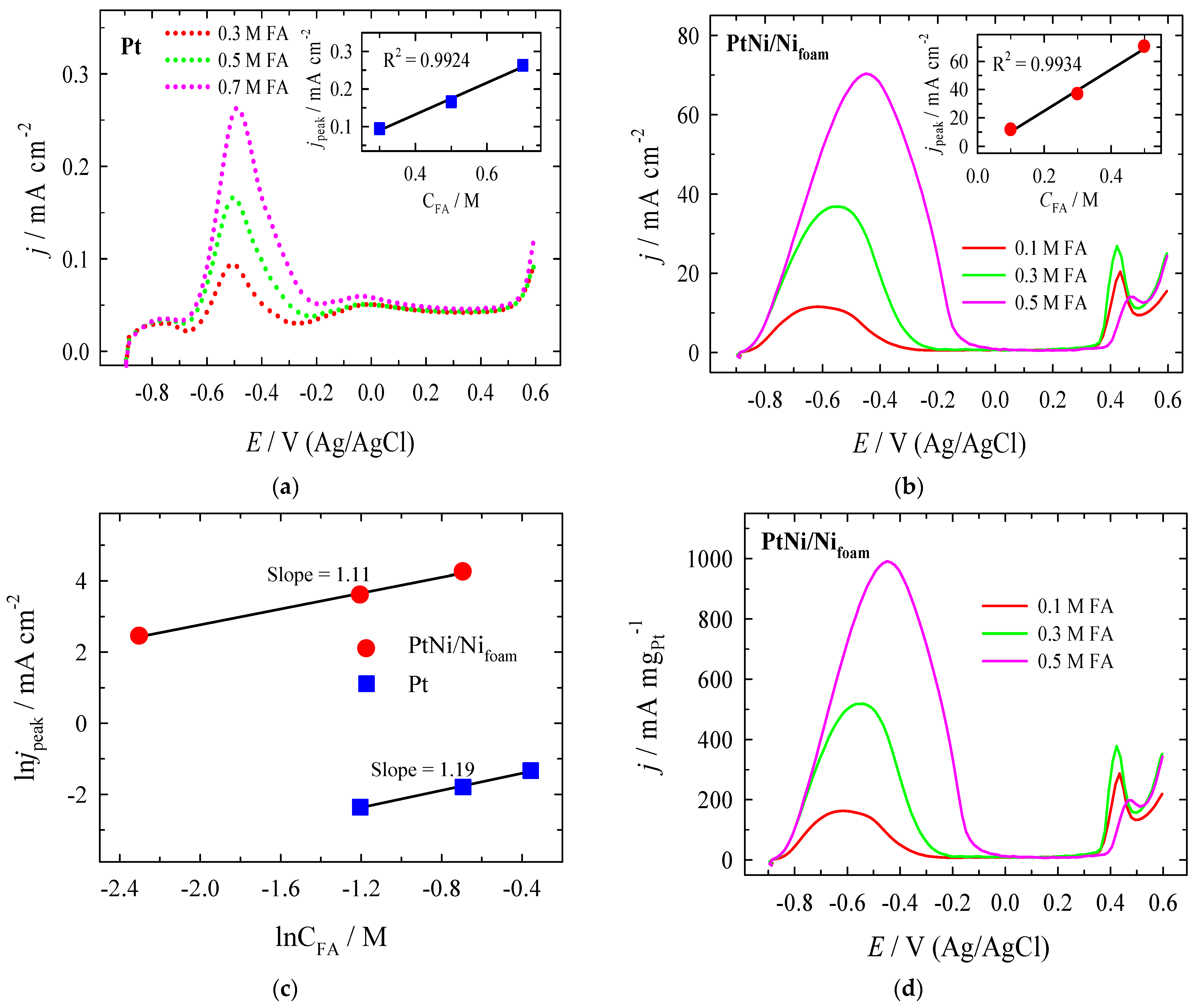

The electrocatalytic activity of the investigated catalysts toward FO on FA concentrations is shown in Figure 6. The insets in Figure 6a,b represent the linear relationship between jpeak and CFA, indicating the irreversible electrochemical process kinetics on both Pt and PtNi/Nifoam catalysts [73]. Moreover, the peak potential slightly shifted to the positive potential values with increasing FA concentration (Figure 6a,b). The reaction order of FO oxidation was determined by the slopes of lnjpeak vs. lnCFA (Figure 6c) using Equation (2) [73].
jpeak = zCβFA
where jpeak is the peak current density (mA cm−2), z is a constant, C refers to the FA concentration (mol L−1), and β the reaction order concerning CFA. The value of β is obtained as 1.11 on the PtNi/Nifoam catalyst and 1.19 on the bare Pt electrode (Figure 6c). The determined values corresponded to a first-order reaction.
Nevertheless, increasing the FA concentration from 0.3 to 0.5 M led to a ca. 1.8-times increase in jpf on both catalysts (Figure 6a,b). However, at all FA concentrations, the jpf on PtNi/Nifoam notably outperforms those on the bare Pt electrode. This result was more than ca. 390–420 times higher in alkaline media on PtNi/Nifoam than on bare Pt. The onset potential of the PtNi/Nifoam (ca. −0.9 V) electrode shifted significantly to a more negative potential region than that of the bare Pt electrode (ca. −0.7 V). The large difference in Eonset indicates higher PtNi/Nifoam electrocatalytic activity than that of Pt. Moreover, the obtained characteristics of the PtNi/Nifoam catalyst are consistent with those of the state-of-the-art PGM catalysts for formate oxidation. A comparison of their properties with those of Pt-and Pt-based electrocatalysts used for formate oxidation in alkaline media is presented in Table 5. The results reveal that the developed PtNi/Nifoam catalyst is competitive with state-of-the-art PGM catalysts and outperforms them in many cases. Such favorable results are attributed to the synergy between the Pt and the Ni-coated porous structure of the Nifoam substrate, which prevented the accumulation of incompletely oxidized carbonaceous species (COads), directing the FO reaction toward the dehydrogenation pathway.
To evaluate the mass activity of the investigated PtNi/Nifoam catalyst toward FO, the current density values for different FA concentrations in alkaline media were normalized with reference to the Pt loading for the PtNi/Nifoam catalysts (Figure 6d). The highest FO mass activity of the PtNi/Nifoam catalyst is ca. 990 mA mgPt−1, larger than Pt/C (ca. 225 mA mgPt−1) [40], Pt/C (391.2 mA mgPt−1) [11], and PtSnO2/C (ca. 600 mA mgPt−1) [40].

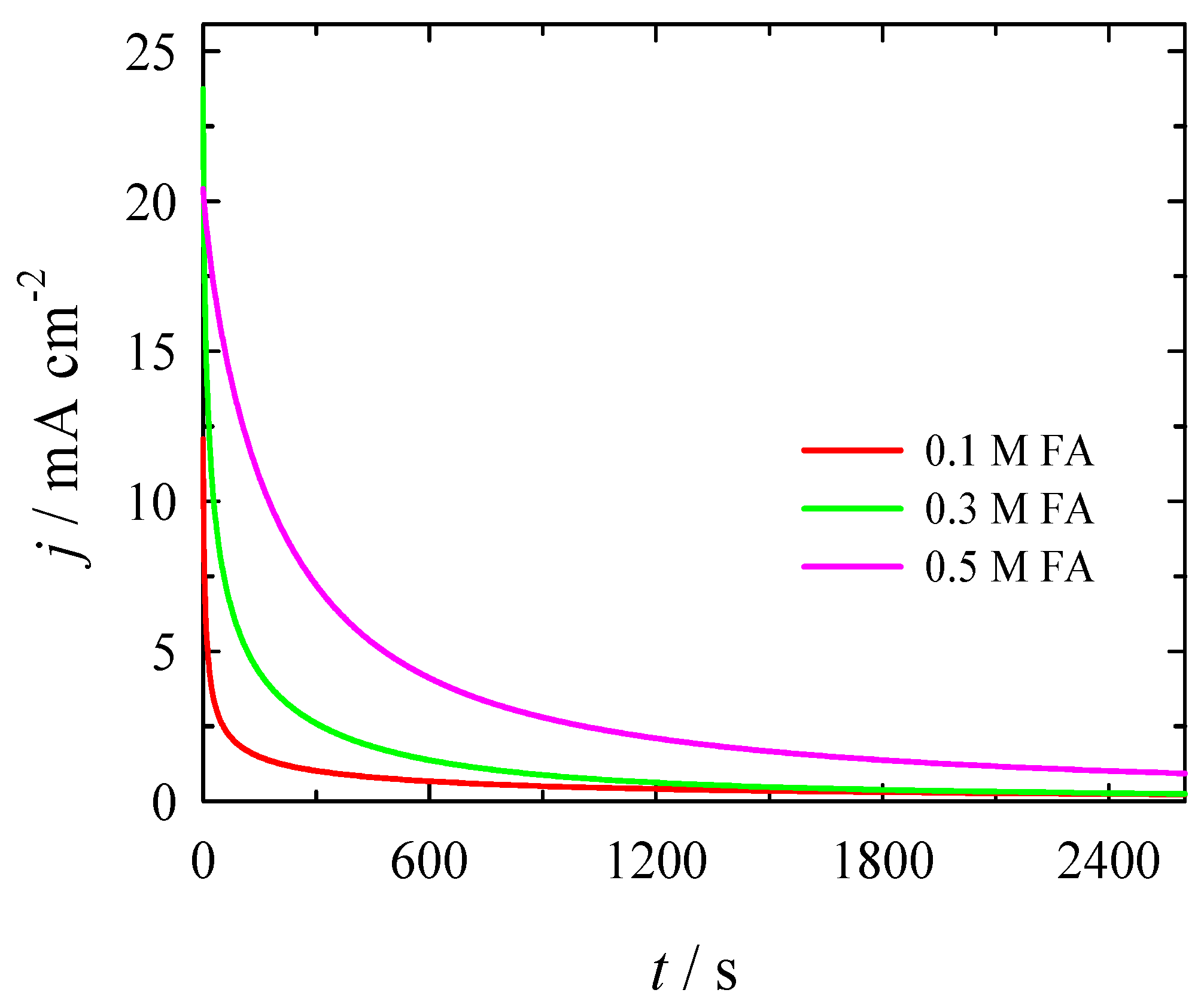

The stability of the PtNi/Nifoam catalyst was examined by chronoamperometry in 1 M NaOH solutions containing 0.1, 0.3, and 0.5 M FA (Figure 7). As illustrated, the FOR current density for the PtNi/Nifoam catalyst was the highest in 0.5 M FA + 1 M NaOH media; meanwhile, the current density disappeared completely after only 2000 s in a solution containing a lower concentration of FA. This indicates that an increase in the FA concentration increases the stability of the PtNi/Nifoam catalyst.
Additionally, the morphological measurements confirmed the stability of the PtNi/Nifoam catalyst. Figure S4 (Supplementary Material) shows an SEM view of a thin Ni layer deposited on the Nifoam substrate, using sodium hypophosphite as a reducing agent before the electrochemical deposition of Pt. The Ni layer accurately replicates the three-dimensional network structure of the Nifoam backbone with micro-open cages and wide flow channels inside them (Figure S4a). The SEM image of the Pt layer on the Ni/Nifoam surface after continuous electrode cycling in 0.5 M FA + 1 M NaOH in the potential region from –0.9 to +0.6 V vs. Ag/AgCl is displayed in Figure S4b,c (Supplementary Material). Bright spots of Pt the size of about 12–18 nm are evenly distributed over the entire Ni/Nifoam surface, as depicted in Figure S4c (Supplementary Material). The presence of Pt is further supported by EDX data indicating that the amount of deposited Pt in the PtNi/Nifoam catalyst reaches 39.63 at%. Meanwhile, the amount of Ni is 60.37 at%. Continuous cycling in FA solution does not significantly change the surface morphology of the catalyst, indicating the high stability and activity of the PtNi/Nifoam catalyst.
To confirm the better tolerance toward catalyst poisoning by adsorbed carbonaceous species on the PtNi/Nifoam catalyst compared to that on the bare Pt electrode, the CO stripping parameters were adjusted. The obtained data are shown in Figure 8.
A prominent COads oxidation current density peak was observed during the positive potential scan of the bare Pt electrode in 1 M NaOH. Concurrently, the same peak for the PtNi/Nifoam catalyst completely disappeared, indicating that the PtNi/Nifoam catalyst has almost total CO poisoning tolerance in an alkaline medium, unlike bare Pt. The results indicate that the oxidative removal of carbonaceous poisoning species from adjacent Pt sites by Ni(OH)2 was facilitated by the presence of a stable and reversible Ni (II)/Ni (III) redox transformation in alkaline media, as shown in Equation (1). The improvement in the formate oxidation reaction could be explained by the presence of a Ni-oxy species that can act as catalytic mediators via the abovementioned reaction by facilitating a charge transfer during the direct oxidation of formate to CO2, simultaneously oxidizing CO at a low potential throughout subsequent reactions [32,42,43].

4. Conclusions

A promising novel binary catalyst composed of a Pt-modified Ni layer coated on Nifoam was proposed for efficient formate oxidation in an alkaline medium. The PtNi/Nifoam catalyst was found to have a significantly high FO mass activity (990 mA mgPt−1). Moreover, it exhibited enhanced electrocatalytic activity toward formate oxidation via a direct pathway in an alkaline medium, unlike the pure Pt electrode. The prepared PtNi/Nifoam catalyst was tolerant to CO poisoning in an alkaline medium and demonstrated high poison removal ability. It shows rather negative onset potential on the bare Pt. The significant improvement in the Eonset to ca. −0.9 V for PtNi/Nifoam, compared to ca. −0.7 V for bare Pt, indicates that the PtNi/Nifoam electrode is competitive with the benchmark Pt and Pt-based electrocatalysts for formate oxidation in alkaline media. The improvement in electrocatalytic activity is a result of synergy between Pt and the porous structure of the Ni-oxy species layer on the Nifoam, which is intended to assist in the oxidative removal of the accumulated carbonaceous species from the surface by acting as a catalytic mediator for charge transfer in the oxidation process.
The PtNi/Nifoam catalyst appears to be a promising anode material for application in direct liquid FA fuel cells.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cryst12030362/s1, Figure S1: CVs of Pt (dotted lines) and PtNi/Nifoam (blue solid line) recorded in a 0.5 M H2SO4 solution at a scan rate of 50 mV s−1; Figure S2: CVs at the Pt electrode recorded in a 1 M NaOH solution (red solid line) and that containing 0.3, 0.5, and 0.7 M FA (anodic potential scan—solid lines and cathodic potential scan—dotted lines) at a scan rate 50 mV s−1; Figure S3: Negative-going potential CVs of PtNi/Nifoam recorded at anodic potential limit of 0.2 (a,c,e) and 0.6 V (b,d,f) in a 1 M NaOH solution containing 0.1 (a,b), 0.3 (c,d), and 0.5 (e,f) M FA at a scan rate of 50 mV s−1; Figure S4: SEM views of as-prepared Nifoam substrate coated by a Ni layer (a) and PtNi/Nifoam electrode at different magnifications (b,c) after continuous cycling in 0.5 M FA + 1 M NaOH in a potential region from −0.9 to +0.6 V vs. Ag/AgCl at a scan rate of 50 mV s−1. (d) The corresponding EDX spectra for PtNi/Nifoam electrode.

Author Contributions

This study was conducted through the contributions of all authors. Conceptualization, L.T.-T., A.N. and E.N.; Methodology, D.U., V.K. and V.J.; Investigation, B.Š., A.B. and A.Z.; formal analysis, B.Š. and A.B.; Validation, A.Z., D.Š.; Writing—Original Draft Preparation, A.N. and D.Š.; Writing—Review and Editing, L.T.-T. and E.N.; Visualization, D.U., V.K. and V.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by European Union Structural Funds project “Development of Doctoral Studies” under grant No. 09.3.3.-ESFA-V-711-01-0001.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fang, Z.; Chen, W. Recent advances in formic acid electro-oxidation: From the fundamental mechanism to electrocatalysts. Nanoscale Adv. 2021, 3, 94–105. [Google Scholar] [CrossRef]
  2. Folkman, S.J.; González-Cobos, J.; Giancola, S.; Sánchez-Molina, I.; Galán-Mascarós, J.R. Benchmarking Catalysts for Formic Acid/Formate Electrooxidation. Molecules 2021, 26, 4756. [Google Scholar] [CrossRef] [PubMed]
  3. Shen, T.; Zhang, J.; Chen, K.; Deng, S.; Wang, D. Recent Progress of Palladium-Based Electrocatalysts for the Formic Acid Oxidation Reaction. Energy Fuels 2020, 34, 9137–9153. [Google Scholar] [CrossRef]
  4. An, L.; Chen, R. Direct formate fuel cells: A review. J. Power Sources 2016, 320, 127–139. [Google Scholar] [CrossRef]
  5. Uwitonze, N.; Chen, Y.X. The study of Pt and Pd based anode catalysis for formic acid fuel cell. Chem. Sci. J. 2017, 8, 167. [Google Scholar] [CrossRef]
  6. Mao, H.; Huang, T.; Yu, A. Electrochemical surface modification on CuPdAu/C with extraordinary behavior toward formic acid/ formate oxidation. Int. J. Hydrogen Energy 2016, 41, 13190–13196. [Google Scholar] [CrossRef]
  7. Ding, J.; Liu, Z.; Liu, X.; Liu, J.; Deng, Y.; Han, X.; Zhong, C.; Hu, W. Mesoporous decoration of freestanding palladium nanotube arrays boosts the electrocatalysis capabilities toward formic acid and formate oxidation. Adv. Energy Mater. 2019, 9, 1900955. [Google Scholar] [CrossRef]
  8. Wang, J.; Chen, F.; Jin, Y.; Guo, L.; Gong, X.; Wanga, X.; Johnston, R.L. In situ high-potential-driven surface restructuring of ternary AgPd-Pt dilute aerogels with record-high performance improvement for formate oxidation electrocatalysis. Nanoscale 2019, 11, 14174–14185. [Google Scholar] [CrossRef]
  9. Wang, Q.; Chen, F.; Tang, Q.; Guo, L.; Gebremarian, T.; Jin, T.; Liu, H.; Kou, B.; Li, Z.; Bian, W. Transition from core-shell to janus segregation pattern in AgPd nanoalloy by Ni doping for the formate oxidation. Appl. Catal. B Environ. 2020, 270, 118861. [Google Scholar] [CrossRef]
  10. Wang, Q.; Chen, F.; Guo, L.; Jin, T.; Liu, H.; Wang, X.; Gong, X.; Liu, Y. Nanoalloying effects on the catalytic activity of the formate oxidation reaction over AgPd and AgCuPd aerogels. J. Mater. Chem. A 2019, 7, 16122–16135. [Google Scholar] [CrossRef]
  11. Chen, Y.; Niu, H.; Feng, Y.; Wu, J.; Wang, A.; Huang, H.; Feng, J. Three-dimensional hierarchical urchin-like PdCuPt nanoassembles with zigzag branches: A highly efficient and durable electrocatalyst for formic acid oxidation reaction. Appl. Surf. Sci. 2020, 510, 145480. [Google Scholar] [CrossRef]
  12. Tang, Q.; Chen, F.; Jin, T.; Guo, L.; Wang, Q.; Liu, H. Alloying in inverse CeO2/Pd nanoparticles to enhance the electrocatalytic activity for the formate oxidation reaction. J. Mater. Chem. A 2019, 7, 22996–23007. [Google Scholar] [CrossRef]
  13. Hwang, E.; Park, H.; Kim, H.; Ahn, S.H.; Kim, S.K. Electrochemically fabricated Pd–In catalysts for carbon dioxide- formate/formic acid inter-conversion. Bull. Korean Chem. Soc. 2017, 38, 607–613. [Google Scholar] [CrossRef]
  14. Hong, S.; Chung, S.; Park, J.; Hwang, J.; Lee, C.; Uhm, S.; Bong, S.; Lee, J. Contribution of interstitial boron in a boron-incorporated palladium catalyst toward formate oxidation in an alkaline direct formate fuel cell. ACS Catal. 2021, 11, 4722–4729. [Google Scholar] [CrossRef]
  15. Yang, L.; Li, G.; Chang, J.; Ge, J.; Liu, C.; Vladimir, F.; Wang, G.; Jin, Z.; Xing, W. Modification of palladium nanocrystals with single atom platinum via an electrochemical self-catalysis strategy for efficient formic acid electrooxidation. Appl. Catal. B 2020, 260, 118200. [Google Scholar] [CrossRef]
  16. da Silva, S.G.; Silva, J.C.M.; Buzzo, G.S.; Neto, A.O.; Assumpção, M.H.M.T. Use of PtAu/C electrocatalysts toward formate oxidation: Electrochemical and fuel cell considerations. Mater. Renew. Sustain. Energy 2016, 5, 15. [Google Scholar] [CrossRef] [Green Version]
  17. Han, S.-H.; Liu, H.-M.; Bai, J.; Tian, X.L.; Xia, B.Y.; Zeng, J.-H.; Jiang, J.-X.; Chen, Y. Platinum-silver alloy nanoballoon nanoassemblies with super catalytic activity for the formate electrooxidation. ACS Appl. Energy Mater. 2018, 1, 1252–1258. [Google Scholar] [CrossRef]
  18. Yang, Z.; Wang, Y.; Dong, T.; Yuan, X.; Lv, L.; Wei, X.; Wang, J. Formate: A possible replacement for formic acid in fuel cells. Austral. J. Chem. 2017, 70, 757–763. [Google Scholar] [CrossRef]
  19. John, J.; Wang, H.; Rus, E.D.; Abruna, H.D. Mechanistic studies of formate oxidation on platinum in alkaline medium. J. Phys. Chem. C 2012, 116, 5810–5820. [Google Scholar] [CrossRef]
  20. Joo, J.; Uchida, T.; Cuesta, A.; Koper, M.T.M.; Osawa, M. Importance of acid-base equilibrium in electrocatalytic oxidation of formic acid on platinum. J. Am. Chem. Soc. 2013, 135, 9991–9994. [Google Scholar] [CrossRef] [Green Version]
  21. Li, Y.; Feng, Y.; Sun, X.; He, Y. A sodium-ion-conducting direct formate fuel cell: Generating electricity and producing base. Angew. Chem. 2017, 129, 5828–5831. [Google Scholar] [CrossRef]
  22. Yu, X.; Manthiram, A. Catalyst-selective, scalable membraneless alkaline direct formate fuel cells. Appl. Catal. B Environ. 2015, 165, 63–67. [Google Scholar] [CrossRef]
  23. Themsirimongkon, S.; Pongpichayakul, N.; Fang, L.; Jakmunee, J.; Saipanya, S. New catalytic designs of Pt on carbon nanotube-nickel-carbon black for enhancement of methanol and formic acid oxidation. J. Electroanal. Chem. 2020, 876, 114518. [Google Scholar] [CrossRef]
  24. Kiani, M.; Zhang, J.; Luo, Y.; Chen, Y.; Chen, J.; Fan, J.; Wang, G.; Wang, R. Facile synthesis and enhanced catalytic activity of electrochemically dealloyed platinum-nickel nanoparticles towards formic acid electro-oxidation. J. Energy Chem. 2019, 35, 9–16. [Google Scholar] [CrossRef] [Green Version]
  25. Zhang, B.-W.; Zhang, Z.-C.; Liao, H.-G.; Gong, Y.; Gu, L.; Qu, X.-M.; You, L.-X.; Liu, S.; Huang, L.; Tian, X.-C.; et al. Tuning Pt-skin to Ni-rich surface of Pt3Ni catalysts supported on porous carbon for enhanced oxygen-reduction reaction and formic electro-oxidation. Nano Energy 2016, 19, 198–209. [Google Scholar] [CrossRef]
  26. Pei, A.; Ruan, L.; Liu, B.; Chen, W.; Lin, S.; Chen, B.; Liu, Y.; Zhu, L.H.; Chen, B.H. Ultra-low Au decorated PtNi alloy nanoparticles on carbon for high-efficiency electro-oxidation of methanol and formic acid. Int. J. Hydrogen Energy 2020, 45, 22893–22905. [Google Scholar] [CrossRef]
  27. Lee, J.; Yoo, J.K.; Lee, H.; Kim, S.H.; Sohn, Y.; Rhee, C.K. Formic acid oxidation on Pt deposit model catalysts on Au: Single-layered Pt deposits, plateau-type Pt deposits, and conical Pt deposits. Electrochim. Acta 2019, 310, 38–44. [Google Scholar] [CrossRef]
  28. Perales-Rondón, J.V.; Ferre-Vilaplana, A.; Feliu, J.M.; Herrero, E. Oxidation mechanism of formic acid on the bismuth adatom-modified Pt(111) surface. J. Amer. Chem. Soc. 2014, 136, 13110–13113. [Google Scholar] [CrossRef]
  29. Wang, C.Y.; Yu, Z.-Y.; Li, G.; Song, Q.-T.; Li, G.; Luo, C.-X.; Yin, S.-H.; Lu, B.-A.; Xiao, C.; Xu, B.-B.; et al. Intermetallic PtBi nanoplates with high catalytic activity towards electrooxidation of formic acid and glycerol. ChemElectroChem 2020, 7, 239–245. [Google Scholar] [CrossRef]
  30. Zhang, Y.; Qiao, M.; Huang, Y.; Zou, Y.; Liu, Z.; Tao, L.; Li, Y.; Dong, C.L.; Wang, S. In situ exfoliation and Pt deposition of antimonene for formic acid oxidation via a predominant dehydrogenation pathway. Research 2020, 2020, 5487237. [Google Scholar] [CrossRef] [Green Version]
  31. Sawy, E.N.E.; Pickup, P.G. Carbon monoxide and formic acid oxidation at Rh@Pt nanoparticles. Electrochim. Acta 2019, 302, 234–240. [Google Scholar] [CrossRef]
  32. El-Nagar, G.A.; Mohammad, A.M.; El-Deab, M.S.; El-Anadouli, B.E. Electrocatalysis of formic acid electro-oxidation at platinum nanoparticles modified surfaces with nickel and cobalt oxides nanostructures. In Progress in Clean Energy; Dincer, I., Colpan, C., Kizilkan, O., Ezan, M., Eds.; Springer International Publishing: Cham, Switzerland, 2015; Volume 1. [Google Scholar] [CrossRef]
  33. El-Nagar, G.A.; Mohammad, A.M. Enhanced electrocatalytic activity and stability of platinum, gold, and nickel oxide nanoparticles based ternary catalyst for formic acid electro-oxidation. Int. J. Hydrogen Energy 2014, 39, 11955–11962. [Google Scholar] [CrossRef]
  34. Mohammad, A.M.; El-Nagar, G.A.; Al-Akraa, I.M.; El-Deab, M.S.; El-Anadouli, B.E. Towards improving the catalytic activity and stability of platinum-based anodes in direct formic acid fuel cells. Int. J. Hydrogen Energy 2015, 40, 7808–7816. [Google Scholar] [CrossRef]
  35. El-Refaei, S.M.; El-Nagar, G.A.; Mohammad, A.M.; El-Deab, M.S.; El-Anadouli, B.E. Electrocatalytic activity of NiOx nanostructured modified electrodes towards oxidation of small organic molecules. In Springer Proceedings in Energy, Proceedings of the 2nd International Congress on Energy Efficiency and Energy Related Materials (ENEFM2014), 16–19 October 2014; Oral, A., Bahsi Oral, Z., Ozer, M., Eds.; Springer: Cham, Switzerland, 2015. [Google Scholar] [CrossRef]
  36. El-Nagar, G.A.; Mohammad, A.M.; El-Deab, M.S.; El-Anadouli, B.E. Propitious dendritic Cu2O-Pt nanostructured anodes for direct formic acid, Fuel cells. ACS Appl. Mater. Interf. 2017, 9, 19766–19772. [Google Scholar] [CrossRef]
  37. Ali Al-Qodami, B.; Farrag, H.H.; Sayed, S.Y.; Allam, N.K.; El-Anadouli, B.E.; Mohammad, A.M. Bifunctional tailoring of platinum surfaces with earth abundant iron oxide nanowires for boosted formic acid electro-oxidation. J. Nanotechnol. 2018, 2018, 4657040. [Google Scholar] [CrossRef] [Green Version]
  38. Mohammad, A.M.; Al-Akraa, I.M.; El-Deab, M.S. Superior electrocatalysis of formic acid electrooxidation on a platinum, gold and manganese oxide nanoparticle-based ternary catalyst. Int. J. Hydrogen Energy 2018, 43, 139–149. [Google Scholar] [CrossRef]
  39. Asal, Y.M.; Al-Akraa, I.M.; Mohammad, A.M.; El-Deab, M.S. A competent simultaneously co-electrodeposited Pt-MnOx nanocatalyst for enhanced formic acid electro-oxidation. J. Taiwan Inst. Chem. Eng. 2019, 96, 169–175. [Google Scholar] [CrossRef]
  40. Santos, A.O.; Silva, J.C.M.; Antoniassi, E.R.M.; Ponzio, A.; Alves, O.C. The formate electrooxidation on Pt/C and PtSnO2/C nanoparticles in alkaline media: The effect of morphology and SnO2 on the platinum catalytic activity. Int. J. Hydrogen Energy 2020, 45, 33895–33905. [Google Scholar] [CrossRef]
  41. Subbaraman, R.; Tripkovic, D.; Chang, K.-C.; Strmcnik, D.; Paulikas, A.P.; Hirunsit, P.; Chan, M.; Greeley, J.; Stamenkovic, V.; Markovic, N.M. Trends in activity for the water electrolyser reactions on 3d M(Ni Co, Fe, Mn) hydr(oxy)oxide catalysts. Nat. Mater. 2012, 11, 550–557. [Google Scholar] [CrossRef]
  42. El-Nagar, G.A.; Mohammad, A.M.; El-Deab, M.S.; El-Anadouli, B.E. Facilitated electrooxidation of formic acid at nickel oxide nanoparticles modified electrodes. J. Electrochem. Soc. 2012, 159, F249–F254. [Google Scholar] [CrossRef]
  43. El-Nagar, G.A.; Mohammad, A.M.; El-Deab, M.S.; El-Anadouli, B.E. Electrocatalysis by design: Enhanced electrooxidation of formic acid at platinum nanoparticles–nickel oxide nanoparticles binary catalysts. Electrochim. Acta 2013, 94, 62–71. [Google Scholar] [CrossRef]
  44. Fiameni, S.; Herraiz-Cardona, I.; Musiani, M.; Pérez-Herranz, V.; Vázquez-Gómez, L.; Verlato, E. The HER in alkaline media on Pt-modified three-dimensional Ni cathodes. Int. J. Hydrogen Energy 2012, 37, 10507–10516. [Google Scholar] [CrossRef]
  45. Gu, Y.; Wang, Y.; Shi, J.; Yang, M.; Rui, Y.; An, W.; Men, Y. Well-dispersed Pt nanodots interfaced with Ni(OH)2 on anodized nickel foam for efficient hydrogel evolution reaction. Int. J. Hydrogen Energy 2020, 45, 27067–27077. [Google Scholar] [CrossRef]
  46. Yuan, S.; Cui, L.; He, X.; Zhang, W.; Asefa, T. Nickel foam-supported Fe, Ni-Polyporphyrin microparticles: Efficient bifunctional catalysts for overall water splitting in alkaline media. Int. J. Hydrogen Energy 2020, 45, 28860–28869. [Google Scholar] [CrossRef]
  47. Wang, R.; Liu, H.; Zhang, K.; Zhang, G.; Lan, H.; Qu, J. Ni(II)/Ni(III) redox couple endows Ni foam-supported Ni2P with excellent capability for direct ammonia oxidation. Chem. Eng. J. 2021, 404, 126795. [Google Scholar] [CrossRef]
  48. Yuan, G.; Wang, L.; Zhang, X.; Wang, Q. Self-supported Pt nanoflakes-doped amorphous Ni(OH)2 on Ni foam composite electrode for efficient and stable methanol oxidation. J. Colloid Interf. Sci. 2019, 536, 189–195. [Google Scholar] [CrossRef]
  49. Sheng, S.; Song, Y.; Sha, L.; Ye, K.; Zhu, K.; Gao, Y.; Yan, J.; Wang, G.; Cao, D. Simultaneous hydrogen evolution and ethanol oxidation in alkaline medium via a self-supported bifunctional electrocatalyst of Ni-Fe phosphide/Ni foam. Appl. Surf. Sci. 2021, 561, 150080. [Google Scholar] [CrossRef]
  50. Tamašauskaitė-Tamašiūnaitė, L.; Zabielaitė, A.; Balčiūnaitė, A.; Šebeka, B.; Stanionienė, I.; Buzas, V.; Mačiulis, L.; Tumonis, L.; Norkus, E. Deposition of Pt nanoparticles on Ni foam via galvanic displacement. J. Electrochem. Soc. 2017, 164, D53–D56. [Google Scholar] [CrossRef]
  51. Song, C.; Wang, G.; Li, B.; Miao, C.; Ma, K.; Zhu, K.; Cheng, K.; Ye, K.; Yan, J.; Cao, D.; et al. A novel electrode of ternary CuNiPd nanoneedles decorated Ni foam and its catalytic activity toward NaBH4 electrooxidation. Electrochim. Acta 2019, 299, 395–404. [Google Scholar] [CrossRef]
  52. Lei, Y.; Liu, Y.; Fan, B.; Mao, L.; Yu, D.; Huang, Y.; Guo, F. Facile fabrication of hierarchically porous Ni foam@Ag-Ni catalyst for efficient hydrazine oxidation in alkaline medium. J. Taiwan Inst. Chem. Eng. 2019, 105, 75–84. [Google Scholar] [CrossRef]
  53. Chen, N.; Wang, Y.; Du, X.; Zhang, X. Facile synthesis of Ni doped CoWO4 nanoarrays grown on nickel foam substrates for efficient urea oxidation. Int. J. Hydrogen Energy 2021, 46, 25114–25120. [Google Scholar] [CrossRef]
  54. NIST X-ray Photoelectron Spectroscopy Database. NIST Standard Reference Database Number 20; National Institute of Standards and Technology: Gaithersburg, MD, USA, 2000; p. 20899. [Google Scholar] [CrossRef]
  55. Igarashi, H.; Fujino, T.; Zhu, Y.; Uchida, H.; Watanabe, M. CO tolerance of Pt alloy electrocatalysts for polymer electrolyte fuel cells and the detoxification mechanism. Phys. Chem. Chem. Phys. 2001, 3, 306–314. [Google Scholar] [CrossRef]
  56. Zhao, Y.; Yifeng, E.; Fan, L.; Qiu, Y.; Yang, S. A new route for the electrodeposition of platinum-nickel alloy nanoparticles on multi-walled carbon nanotubes. Electrochim. Acta 2007, 52, 5873–5878. [Google Scholar] [CrossRef]
  57. Kim, K.S.; Winograd, N. X-ray photoelectron spectroscopic studies of nickel oxygen surfaces using oxygen and argon ion-bombardment. Surf. Sci. 1974, 43, 625–643. [Google Scholar] [CrossRef]
  58. Wittstok, G.; Strübing, A.; Szargan, R.; Werner, G. Glucose oxidation at bismuth-modified platinum electrodes. J. Electroanal. Chem. 1998, 444, 61–73. [Google Scholar] [CrossRef]
  59. Blasini, D.R.; Rochefort, D.; Fachini, E.; Aldena, L.R.; DiSalvo, J.F.; Cabrera, C.R.; Abruna, H.D. Surface composition of ordered intermetallic compounds PtBi and PtPb. Surf. Sci. 2006, 600, 2670–2680. [Google Scholar] [CrossRef]
  60. Eiler, K.; Krawiec, H.; Kozina, I.; Sort, J.; Pellicer, E. Electrochemical characterisation of multifunctional electrocatalytic mesoporous Ni-Pt thin films in alkaline and acidic media. Electrochim. Acta 2020, 359, 136952. [Google Scholar] [CrossRef]
  61. Trasatti, S.; Petrii, O.A. Real surface area measurements in electrochemistry. Pure Appl. Chem. 1991, 63, 711–734. [Google Scholar] [CrossRef]
  62. Daubinger, P.; Kieninger, J.; Unmussig, T.; Urban, G.A. Electrochemical characteristics of nanostructured platinum electrodes A cyclic voltammetry study. Phys. Chem. Chem. Phys. 2014, 16, 8392–8399. [Google Scholar] [CrossRef]
  63. Dražić, D.M.; Tripković, A.V.; Popović, K.D.; Lović, D.J. Kinetic and mechanistic study of hydroxyl ion electrosorption at the Pt(111) surface in alkaline media. J. Electroanal. Chem. 1999, 466, 155–164. [Google Scholar] [CrossRef]
  64. Schmidt, T.J.; Ross, P.N.; Marković, N.M. Temperature-dependent surface electrochemistry on Pt single crystals in alkaline electrolyte: Part 1: CO oxidation. J. Phys. Chem. B 2001, 105, 12082–12086. [Google Scholar] [CrossRef]
  65. Tilak, B.V.; Conway, B.E.; Angerstain-Kozlowska, H. The real condition of oxidized Pt electrodes: Part III. Kinetic theory of formation and reduction of surface oxides. J. Electroanal. Chem. 1973, 48, 1–23. [Google Scholar] [CrossRef]
  66. Marković, N.M.; Schmidt, T.J.; Grgur, B.N.; Gasteiger, H.A.; Ross, P.N.; Behm, R.J., Jr. Effect of temperature on surface processes at the Pt(111)-liquid interface: Hydrogen adsorption, oxide formation, and CO oxidation. J. Phys. Chem. B. 1999, 103, 8568–8577. [Google Scholar] [CrossRef]
  67. Tripković, A.V.; Popović, J.K.D.; Lović, D.J. The influence of the oxygen-containing species on the electrooxidation of the C1–C4 alcohols at some platinum single crystal surfaces in alkaline solution. Electrochim. Acta 2001, 46, 3163–3173. [Google Scholar] [CrossRef]
  68. Marković, N.M.; Gasteiger, H.A.; Ross, P.N. Oxygen reduction on platinum low-index single-crystal surfaces in alkaline solution: Rotating ring diskPt(hkl) studies. J. Phys. Chem. B 1996, 100, 6715–6721. [Google Scholar] [CrossRef]
  69. Marković, N.M.; Sarraf, S.T.; Gasteiger, H.A.; Ross, P.N. Hydrogen electrochemistry on platinum low-index single-crystal surfaces in alkaline solution. J. Chem. Soc., Faraday Trans. 1996, 92, 3719–3725. [Google Scholar] [CrossRef]
  70. Jiang, J.; Scott, J.; Wieckowski, A. Direct evidence of triple-path mechanism of formate electrooxidation on Pt black in alkaline media at varying temperature. Part I: The electrochemical studies. Electrochim. Acta 2013, 104, 124–133. [Google Scholar] [CrossRef]
  71. Yan, L.; Yao, S.; Chang, J.; Liu, C.; Xing, W. Pd oxides/hydrous oxides as highly efficient catalyst for formic acid electrooxidation. J. Power Sources 2014, 250, 128–133. [Google Scholar] [CrossRef]
  72. Okamoto, H.; Kon, W.; Mukouyama, Y. Five current peaks in voltammograms for oxidations of formic acid, formaldehyde, and methanol on platinum. J. Phys. Chem. B 2005, 109, 15659–15666. [Google Scholar] [CrossRef]
  73. Šljukić, B.; Milikić, J.; Santos, D.M.F.; Sequeira, C.A.C.; Macciò, D.; Saccone, A. Electrocatalytic performance of Pt–Dy alloys for direct borohydride fuel cells. J. Power Sources 2014, 272, 335–343. [Google Scholar] [CrossRef]
  74. Han, L.; Gonzįlez-Cobos, J.; Sįnchez-Molina, I.; Giancola, S.; Folkman, S.; Tang, P.; Heggen, M.; Dunin-Borkowski, R.; Arbiol, J.; Giménez, S.; et al. Cobalt hexacyanoferrate as a selective and high current density formate oxidation electrocatalyst. ACS Appl. Energy Mater. 2020, 3, 9198–9207. [Google Scholar] [CrossRef]
  75. Galvan, V.; Glass, D.E.; Baxter, A.F.; Surya Prakash, G.K. Reduced graphene oxide supported palladium nanoparticles for enhanced electrocatalytic activity toward formate electrooxidation in an alkaline medium. ACS Appl. Energy Mater. 2019, 2, 7104–7111. [Google Scholar] [CrossRef]
  76. Song, S.; Hwang, H.; Kim, J.W.; Lee, J. The effect of synthesis temperature on Pd-H catalyst structure for alkaline direct formate fuel cells. ECS Trans. 2018, 85, 149–158. [Google Scholar] [CrossRef]
  77. Sankar, S.; Anilkumar, G.M.; Tamaki, T.; Yamaguchi, T. Binary Pd–Ni nanoalloy particles over carbon support with superior alkaline formate fuel electrooxidation performance. ChemCatChem 2019, 11, 4731–4737. [Google Scholar] [CrossRef]
Crystals 12 00362 g001 550
Figure 1. High-resolution XPS spectra of PtNi/Nifoam: (a) Pt 4f; (b) Ni 2p; (c) O1s.
Figure 1. High-resolution XPS spectra of PtNi/Nifoam: (a) Pt 4f; (b) Ni 2p; (c) O1s.
Crystals 12 00362 g001
Crystals 12 00362 g002 550
Figure 2. CVs of Pt (red dotted line) and PtNi/Nifoam (solid blue line) were recorded in 1 M NaOH solution at a scan rate of 50 mV s−1.
Figure 2. CVs of Pt (red dotted line) and PtNi/Nifoam (solid blue line) were recorded in 1 M NaOH solution at a scan rate of 50 mV s−1.
Crystals 12 00362 g002
Crystals 12 00362 g003 550
Figure 3. The CVs of Pt (a) and PtNi/Nifoam (b) catalysts at the different anodic potential limit (Era) were recorded in 1 M NaOH solution at a scan rate of 50 mV s−1.
Figure 3. The CVs of Pt (a) and PtNi/Nifoam (b) catalysts at the different anodic potential limit (Era) were recorded in 1 M NaOH solution at a scan rate of 50 mV s−1.
Crystals 12 00362 g003
Crystals 12 00362 g004a 550Crystals 12 00362 g004b 550

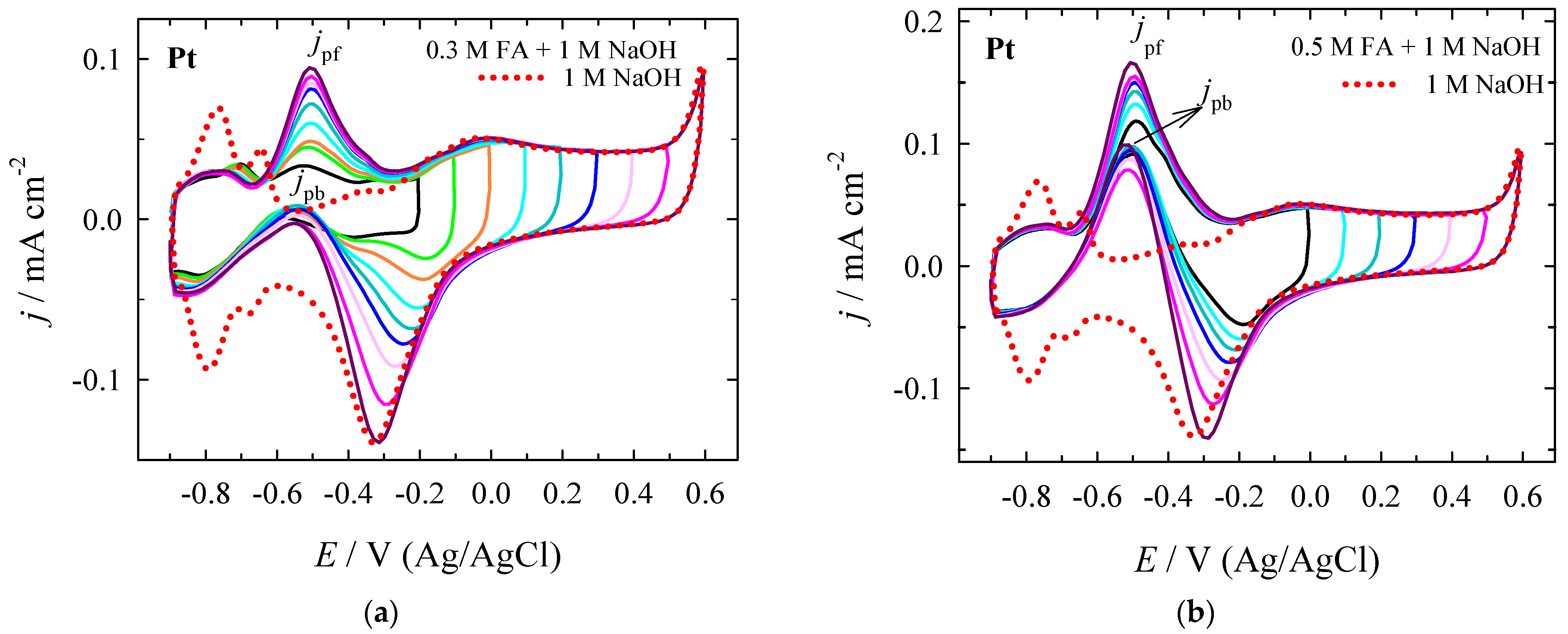

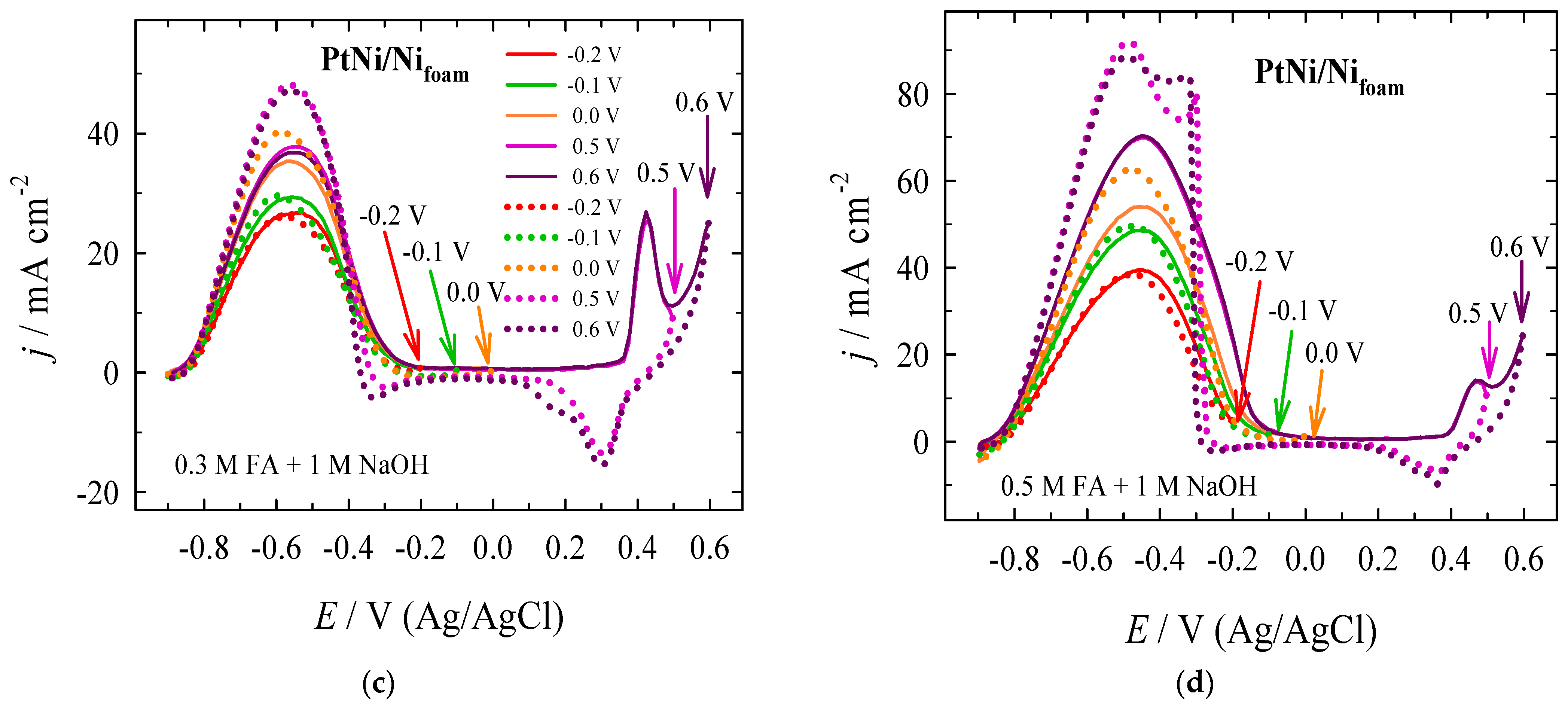

Figure 4. Stabilized CVs of the Pt (a,b) and PtNi/Nifoam (c,d) catalysts at different Era recorded in a 1 M NaOH solution containing different FA concentrations of 0.3 M (a,c) or 0.5 M (b,d) at a scan rate of 50 mV s−1. (a,b) The dotted lines indicate the stabilized CV curve of Pt recorded in a 1 M NaOH solution at a scan rate of 50 mV s−1. (c,d) Solid lines and dotted lines represent the anodic and cathodic potential scans, respectively, in the CVs.
Figure 4. Stabilized CVs of the Pt (a,b) and PtNi/Nifoam (c,d) catalysts at different Era recorded in a 1 M NaOH solution containing different FA concentrations of 0.3 M (a,c) or 0.5 M (b,d) at a scan rate of 50 mV s−1. (a,b) The dotted lines indicate the stabilized CV curve of Pt recorded in a 1 M NaOH solution at a scan rate of 50 mV s−1. (c,d) Solid lines and dotted lines represent the anodic and cathodic potential scans, respectively, in the CVs.
Crystals 12 00362 g004aCrystals 12 00362 g004b
Crystals 12 00362 g005a 550Crystals 12 00362 g005b 550
Figure 5. Positive-going potential scans of PtNi/Nifoam recorded at anodic potential limit of +0.2 (a,c,e) and +0.6 V (b,d,f) in a 1 M NaOH solution, containing 0.1 (a,b), 0.3 (c,d) and 0.5 (e,f) M FA, at a scan rate of 50 mV s−1.
Figure 5. Positive-going potential scans of PtNi/Nifoam recorded at anodic potential limit of +0.2 (a,c,e) and +0.6 V (b,d,f) in a 1 M NaOH solution, containing 0.1 (a,b), 0.3 (c,d) and 0.5 (e,f) M FA, at a scan rate of 50 mV s−1.
Crystals 12 00362 g005aCrystals 12 00362 g005b
Crystals 12 00362 g006 550
Figure 6. Positive-going potential scans of Pt (a) and PtNi/Nifoam (b) for different FA concentrations with the corresponding jpeak vs. E (the insets) and lnjpeak vs. lnCFA (c). (d) The current density peak values normalized with reference to the Pt loading for PtNi/Nifoam.
Figure 6. Positive-going potential scans of Pt (a) and PtNi/Nifoam (b) for different FA concentrations with the corresponding jpeak vs. E (the insets) and lnjpeak vs. lnCFA (c). (d) The current density peak values normalized with reference to the Pt loading for PtNi/Nifoam.
Crystals 12 00362 g006
Crystals 12 00362 g007 550
Figure 7. CA data for the PtNi/Nifoam catalyst were recorded in a 1 M NaOH solution containing 0.1, 0.3 and 0.5 M FA, at a constant potential value E = −0.6 V for 2600 s.
Figure 7. CA data for the PtNi/Nifoam catalyst were recorded in a 1 M NaOH solution containing 0.1, 0.3 and 0.5 M FA, at a constant potential value E = −0.6 V for 2600 s.
Crystals 12 00362 g007
Crystals 12 00362 g008 550
Figure 8. CVs for the oxidative CO stripping from the Pt (a) and PtNi/Nifoam (b) catalysts surface in 1 M NaOH at a scan rate of 50 mV s−1. CO was adsorbed at −0.9 V from 1 M NaOH for 15 min; a potential sweep was carried out in an N2-saturated solution.
Figure 8. CVs for the oxidative CO stripping from the Pt (a) and PtNi/Nifoam (b) catalysts surface in 1 M NaOH at a scan rate of 50 mV s−1. CO was adsorbed at −0.9 V from 1 M NaOH for 15 min; a potential sweep was carried out in an N2-saturated solution.
Crystals 12 00362 g008
Table
Table 1. Comparison of electrochemical activities for the bare Pt and PtNi/Nifoam catalysts in a 1 M NaOH solution with respect to different anodic potential limits (Era).
Table 1. Comparison of electrochemical activities for the bare Pt and PtNi/Nifoam catalysts in a 1 M NaOH solution with respect to different anodic potential limits (Era).
Era, VEpc, Vjpc, mA cm−2Epc, Vjpc, mA cm−2jpc PtNi/Nifoam/jpc Pt
PtPtNi/Nifoam
+0.1−0.205−0.069−0.235−2.15130.77
+0.2−0.221−0.079−0.256−2.50831.39
+0.3−0.252−0.090−0.288−2.98833.13
+0.4−0.281−0.105−0.321−3.71135.32
+0.5−0.303−0.125−0.356−5.00439.78
+0.6−0.332−0.139−0.389−6.48946.49
Table
Table 2. Summary of electrochemical measurements at Pt catalyst in 1 M NaOH + 0.5 M FA from the data in Figure 4b.
Table 2. Summary of electrochemical measurements at Pt catalyst in 1 M NaOH + 0.5 M FA from the data in Figure 4b.
Era, VEpf, Vjpf, mA cm−2Epb, Vjpb, mA cm−2jpf/jpbjpf at X V/jpf at +0.0 V
+0.0−0.4930.1185−0.4970.09131.301.00
+0.1−0.4900.1322−0.5000.09761.351.12
+0.2−0.5000.1423−0.5070.09781.461.20
+0.3−0.4950.1501−0.5010.09431.591.27
+0.4−0.4990.1537−0.5070.08751.761.30
+0.5−0.4930.1549−0.5090.07851.971.31
+0.6−0.5070.1661−0.5120.09891.681.40
Table
Table 3. Summary of electrochemical measurements at PtNi/Nifoam catalyst in 1 M NaOH + 0.3 M FA from the data in Figure 4c.
Table 3. Summary of electrochemical measurements at PtNi/Nifoam catalyst in 1 M NaOH + 0.3 M FA from the data in Figure 4c.
Era, VEpf, Vjpf, mA cm−2Epb, Vjpb, mA cm−2jpf/jpbjpf at X V/jpf at −0.2 V
−0.2−0.53026.75−0.59125.991.031.00
−0.1−0.56329.30−0.59729.570.991.10
+0.0−0.57035.38−0.58240.100.881.32
+0.5−0.54937.77−0.56548.040.791.41
+0.6−0.55236.80−0.55747.220.781.38
Table
Table 4. Summary of electrochemical measurements at PtNi/Nifoam catalyst in 1 M NaOH + 0.5 M FA for the data in Figure 4d.
Table 4. Summary of electrochemical measurements at PtNi/Nifoam catalyst in 1 M NaOH + 0.5 M FA for the data in Figure 4d.
Era, VEpf, Vjpf, mA cm−2Epb, Vjpb, mA cm−2jpf/jpbjpf at X V/jpf at −0.2 V
−0.2−0.46139.48−0.47838.401.031.00
−0.1−0.44648.73−0.49049.550.981.23
+0.0−0.45454.00−0.48362.530.861.37
+0.5−0.45169.91−0.48191.950.761.77
+0.6−0.44970.32−0.49688.610.791.78
Table
Table 5. Comparison of Pt and the Pt-based electrocatalysts for formic acid/formate oxidation at ambient conditions in an alkaline media with respect to the onset potential (Eonset) and maximum current density (Imax, normalized by electrode geometric area) obtained on anodic peaks (at a peak potential (Epeak)). The data are adopted from [4,8,9,11,12,14,22,70,74,75,76,77].
Table 5. Comparison of Pt and the Pt-based electrocatalysts for formic acid/formate oxidation at ambient conditions in an alkaline media with respect to the onset potential (Eonset) and maximum current density (Imax, normalized by electrode geometric area) obtained on anodic peaks (at a peak potential (Epeak)). The data are adopted from [4,8,9,11,12,14,22,70,74,75,76,77].
CatalystConditions of ExperimentEonset
(V vs. RHE)		Imax (mA cm−2)
at Epeak (V vs.
RHE)		Ref.
Pt disk0.2 M HCOONa + 1 M NaOH
(pH ≈ 14.0) 20 mV s−1		+0.30.1 mA cm−2
(+0.5 V vs. RHE)		[19]
Pt disk0.4 M HCOO- + 1 M KNO3
(pH 13) 5 mV s−1		+0.53.1 mA cm−2
(+1.1 V vs. RHE)		[74]
Pt
nanoparticles
(Pt black)		0.5 M HCOOK + 0.5 M KOH
(pH ≈ 13.7) 50 mV s−1		+0.20.2 mA cm−2
(+0.5 V vs. RHE)		[70]
Pt (40%)/
Vulcan carbon		1 M HCOOK + 1 M KOH
(pH ≈ 14.0) 20 mV s−1		+0.414.6 mA cm−2
(+0.6 V vs. RHE)		[22]
Pt (50%)/C0.5 M HCOOH + 0.5 M KOH
(pH ≈ 13.7) 50 mV s−1		+0.833.9 mA cm−2
(+1.2 V vs. RHE)		[11]
PtAg alloy
nanoballoon
nanoassembly		1 M HCOOK + 1 M KOH
(pH ≈ 14.0) 50 mV s−1		+0.232.6 mA cm−2
(+0.7 V vs. RHE)		[17]
Pd black0.5 M HCOOH + 0.5 M KOH
(pH ≈ 13.7) 50 mV s−1		+0.827.3 mA cm−2
(+1.2 V vs. RHE)		[11]
Pd/C1 M HCOOK + 1 M KOH
(pH ≈ 14.0) 50 mV s−1		+0.1108.8 mA cm−2
(+0.7 V vs. RHE)		[4]
Pd (20%)-H/Vulcan
carbon		0.5 M HCOOK + 1 M KOH
(pH ≈ 14.0) 20 mV s−1		+0.271.0 mA c cm−2
(+0.8 V vs. RHE)		[76]
Pd (20%)/C1 M HCOONa + 1 M NaOH
(pH ≈ 14.0) 20 mV s−1		+0.240.0 mA cm−2
(+0.8 V vs. RHE)		[75]
Pd (25%)/Vulcan
carbon		1 M HCOOK + 1 M KOH
(pH ≈ 14.0) 50 mV s−1		+0.24.6 mA cm−2
(+0.7 V vs. RHE)		[8]
Pd (40%)/Vulcan
carbon		1 M HCOOK + 1 M KOH
(pH ≈ 14.0) 20 mV s−1		+0.2102.0 mA cm−2
(+1.0 V vs. RHE)		[22]
Pd/Vulcan
carbon		1 M HCOOK + 1 M KOH
(pH ≈ 14.0) 50 mV s−1		+0.423.0 mA cm−2
(+0.8 V vs. RHE)		[77]
Pd (20%)/Reduced
graphene oxide		1 M HCOONa + 1 M NaOH
(pH ≈ 14.0) 20 mV s−1		+0.257.0 mA cm−2
(+0.8 V vs. RHE)		[75]
Pd54Ag46 (core-shell)1 M HCOOK + 1 M KOH
(pH ≈ 14.0) 50 mV s−1		+0.231.0 mA cm−2
(+0.7 V vs. RHE)		[8]
Pd70Cu30/Vulcan
carbon		1 M HCOOK + 1 M KOH
(pH ≈ 14.0) 50 mV s−1		+0.24.3 mA cm−2
(+0.6 V vs. RHE)		[12]
Pd72Ce28/Vulcan
carbon		1 M HCOOK + 1 M KOH
(pH ≈ 14.0) 50 mV s−1		+0.119.4 mA cm−2
(+0.6 V vs. RHE)
Pd2.3Co/Vulcan
carbon		1 M HCOOK + 1 M KOH
(pH ≈ 14.0) 50 mV s−1		+0.338.0 mA cm−2
(+0.8 V vs. RHE)
PdNi/Vulcan carbon1 M HCOOK + 1 M KOH
(pH ≈ 14.0) 50 mV s−1		0.274.0 mA cm−2
(+0.8 V vs. RHE)
PdNi/Ketjen carbon1 M HCOOK + 1 M KOH
(pH ≈ 14.0) 50 mV s−1		0.2117.0 mA cm−2
(+0.8 V vs. RHE)		[77]
Pd60Ag20Ni20
(alloyed)		1 M HCOOK + 1 M KOH
(pH ≈ 14.0) 50 mV s−1		0.299.6 mA cm−2
(+0.8 V vs. RHE		[9]
Pd2Ag1 aerogel0.5 M HCOOK + 0.5 M KOH
(pH ≈ 13.7) 50 mV s−1		0.227.5 mA cm−2
(+0.8 V vs. RHE)		[8]
Pd2Ag1Pt0.25 aerogel0.5 M HCOOK + 0.5 M KOH
(pH ≈ 13.7) 50 mV s−1		0.160.0 mA cm−2
(+0.7 V vs. RHE)
Pd (interstitial B)0.5 M HCOOK + 1 M KOH
(pH ≈ 14.0) 100 mv s−1		0.290 mA cm−2
(+0.8 V vs. RHE)		[14]
PdCuPt (hierarchical zigzag-branched urchin-like superstructure0.5 M HCOOH + 0.5 M KOH
(pH ≈ 13.7) 50 mV s−1		0.5102.4 mA cm−2
(+1.2 V vs. RHE)		[11]
Pt0.5 M HCOOH + 1 M NaOH
(pH ≈ 14.0) 50 mV s−1		0.340.17 mA cm−2
(+0.53 V vs. RHE)		Our work
PtNi/Nifoam 0.5 M HCOOH + 1 M NaOH
(pH ≈ 14.0) 50 mV s−1		0.1470.32 mA cm−2
(+0.59 V vs. RHE		Our work
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Nacys, A.; Šimkūnaitė, D.; Balčiūnaitė, A.; Zabielaitė, A.; Upskuvienė, D.; Šebeka, B.; Jasulaitienė, V.; Kovalevskij, V.; Norkus, E.; Tamašauskaitė-Tamašiūnaitė, L. An Enhanced Oxidation of Formate on PtNi/Ni Foam Catalyst in an Alkaline Medium. Crystals 2022, 12, 362. https://doi.org/10.3390/cryst12030362

AMA Style

Nacys A, Šimkūnaitė D, Balčiūnaitė A, Zabielaitė A, Upskuvienė D, Šebeka B, Jasulaitienė V, Kovalevskij V, Norkus E, Tamašauskaitė-Tamašiūnaitė L. An Enhanced Oxidation of Formate on PtNi/Ni Foam Catalyst in an Alkaline Medium. Crystals. 2022; 12(3):362. https://doi.org/10.3390/cryst12030362

Chicago/Turabian Style

Nacys, Antanas, Dijana Šimkūnaitė, Aldona Balčiūnaitė, Aušrinė Zabielaitė, Daina Upskuvienė, Benjaminas Šebeka, Vitalija Jasulaitienė, Vitalij Kovalevskij, Eugenijus Norkus, and Loreta Tamašauskaitė-Tamašiūnaitė. 2022. "An Enhanced Oxidation of Formate on PtNi/Ni Foam Catalyst in an Alkaline Medium" Crystals 12, no. 3: 362. https://doi.org/10.3390/cryst12030362

APA Style

Nacys, A., Šimkūnaitė, D., Balčiūnaitė, A., Zabielaitė, A., Upskuvienė, D., Šebeka, B., Jasulaitienė, V., Kovalevskij, V., Norkus, E., & Tamašauskaitė-Tamašiūnaitė, L. (2022). An Enhanced Oxidation of Formate on PtNi/Ni Foam Catalyst in an Alkaline Medium. Crystals, 12(3), 362. https://doi.org/10.3390/cryst12030362

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
