Chemical Composition and Crystal Structure of Kenoargentotetrahedrite-(Fe), Ag₆Cu₄Fe₂Sb₄S₁₂, from the Bajiazi Pb-Zn Deposit, Liaoning, China

Abstract

Kenoargentotetrahedrite-(Fe) is observed as greenish-grey anhedral grains, 50–150 μm in size, in association with galena, sphalerite and chalcopyrite in the Bajiazi Pb-Zn deposit of magmatic-hydrothermal type, Liaoning, China. The empirical formula from electron microprobe analyses is Ag_5.50Cu_4.17Fe_1.75Zn_0.31Sb_3.96As_0.04S_12.08, corresponding to the ideal formula Ag₆Cu₄Fe₂Sb₄S₁₂. The crystal structure of kenoargentotetrahedrite-(Fe) has been determined and refined by single-crystal X-ray diffraction with R₁ = 0.0192 for 1866 (404 unique) reflections. It is cubic, space group I$\overline{4}$3m with unit cell parameters a = 10.4928(2) Å, V = 1155.26(7) ų and Z = 2. The structure of kenoargentotetrahedrite-(Fe) is characterized by a poor occupancy of 0.05 of the octahedral S(2) site with the S(2)-M(2) bonding length of 1.9994(8) Å. The six Ag atoms at M(2) around S(2) form an octahedron cluster (Ag₆)⁴⁺ with the valence state of +4 and Ag-Ag distance of 2.8276(1) Å. The structure is identical to that by Rozhdestvenskaya et al., being composed of a collapsed sodalite-like framework of corner-connected M(1)S₄ tetrahedron forming cages containing M(2)₆-octahedron cluster, encircled by four SbS₃ trigonal pyramids. It is related to the tetrahedrite group minerals with the existence of the (Ag₆)⁴⁺ cluster replacing the S(2)-centered Ag₆ octahedron according to the substitution mechanism 6^M(2)Ag⁺ + ^S(2)S²⁻=^M(2)(Ag₆)⁴⁺ + ^S(2) S.

1. Introduction

Tetrahedrite, as a common sulfur salt mineral in nature, plays an important role in the study of the distribution of metallogenic elements. Theoretically, the standard structural chemical formula of tetrahedrite can be written as M(2)₆M(1)₆X(3)₄S(1)₁₂S(2) (Z = 2) [1]. The crystal structure of tetrahedrite was proposed by Machatschki [2,3], and the ideal chemical formula was Cu₃SbS₃. It was not until 1964 that a more precise crystal structure of tetrahedrite was given by a scholar [4]. Tetrahedrite is cubic, with space group symmetry I$\overline{4}$3m. The crystal structure could be described as a sulfidic sodalite-like architecture with Laves truncated tetrahedra holes [5]. The tetrahedrite can convert thermal energy into electricity because of its thermoelectric properties, and it contains many trace elements in nature, which may improve its thermoelectric properties.

The kenoargentotetrahedrite belongs to a mineral species of the tetrahedrite group. If the A in the tetrahedrite (^M(2)A₆^M(1)(B₄C₂)^X(3)D₄^S(1)Y12^S(2)Z) is Ag⁺, that is, the chemical formula is Ag₆Cu₄Fe₂Sb₄S₁₃, it can be called argentotetrahedrite. If A₆ is (Ag₆)⁴⁺ clusters and Z is a vacancy, that is, the chemical formula is Ag₆Cu₄Fe₂Sb₄S₁₂, it can be called kenoargentotetrahedrite.

The definition and nomenclature of kenoargentotetrahedrite are highly controversial. Since the mid-1980s, the discussion of related terms has been uninterrupted, and it is often confused with silver-rich tetrahedrite and argentotetrahedrite. It took a long and complex process from the first proposal of the name of kenoargentotetrahedrite to the final determination of its formal official name [1]. The earliest name of kenoargentotetrahedrite was “Freibergite”, which was proposed by Kenngott when studying the silver-rich tetrahedrite from Freiberg in 1853 [6], but later researchers found that the “Freibergite” here is not a kenoargentotetrahedrite, but an argentotetrahedrite (Ag_5.74Cu_4.61Fe_2.12Zn_0.30Sb_4.00S_13.06) in the process of recalculating its chemical composition. Similarly, Peterson and Miller studied natural samples from Keno Hill, Yukon(Canada), and found the existence of argentotetrahedrite in 1986 [7]. The name used at that time was also “Freibergite”, which was confirmed by Welch et al. [8]. In 1993, Rozhdestvenskaya et al. reported the crystal structure of kenoargentotetrahedrite for the first time and found that when most or all of the copper at the M(2) site was replaced by silver, the S(2) site of the octahedral coordination would be vacant [9]. It was proposed that the ideal chemical formula of kenoargentotetrahedrite was Ag₆(Cu₄Fe₂)Sb₄S₁₂, which was completely different from argentotetrahedrite. In 2018, Welch et al. refined the crystal structure of kenoargentotetrahedrite with Fe and Zn as divalent cations [8]. The name “Freibergite” was used for the kenoargentotetrahedrite in the above research work, but they are actually two different types of minerals, which would cause some confusion for future research. Therefore, in 2020, Cristian Biagioni et al. summarized the systematic nomenclature and classification of the tetrahedrite group minerals and named the minerals with the chemical formula Ag₆(Cu₄Me₂)Sb₄S_13-x as “Freibergite”, which had the unknown occupancy rate of the S(2) site [1]. When x was equal to 0, the chemical formula was Ag₆(Cu₄Me₂)Sb₄S₁₃, the mineral species was named “argentotetrahedrite-(Me)”. When x was equal to 1, the chemical formula was Ag₆(Cu₄Me₂)Sb₄S₁₂, and the mineral species was named “kenoargentotetrahedrite-(Me)”, if Fe was the main component of Me, the mineral species could be precisely named “kenoargentotetrahedrite-(Fe)”, and this paper focuses on the study of this mineral. If Zn was the main component of Me, the mineral species could be precisely named “kenoargentotetrahedrite-(Zn)”. In the formal official name of “kenoargentotetrahedrite-(Fe)”, the prefix “keno-” means that the S(2) site is empty, the prefix “argento-” represents that the mineral is silver-rich, and the suffix “-(Fe)” indicates that the divalent cations at M(1) site are mainly Fe.

This paper will be the first detailed research and report on the kenoargentotetrahedrite-(Fe) after its official name. In this paper, the chemical composition and crystal structure of kenoargentotrtrahedrite-(Fe) were accurately tested by advanced rock and mineral testing and analysis technology, and a more detailed chemical composition and crystal structure data filled some vacancies in the crystal database, which is helpful for the interpretation of its crystal structure.

2. Samples and Experimental Methods

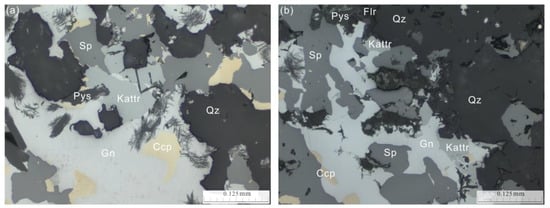

The kenoargentotetrahedrite-(Fe) samples were collected from the Bajiazi magmatic-hydrothermal Pb-Zn deposits in Liaoning Province, China (30°40′ N, 119°10′ E). The polished sections of the kenoargentotetrahedrite-(Fe) samples were observed using a Leica DM2500p microscope manufactured by the Shimadzu company of Japan (Figure 1). The kenoargentotetrahedrite-(Fe) is anhedral granular, and its particle size is 50–150 μm. It is sporadically distributed in quartz, pyrosmalite-(Mn) and fluorite, which is associated with galena, sphalerite and chalcopyrite. In plane-polarized light, kenoargentotetrahedrite-(Fe) is greenish-grey, and its reflectivity is between galena and sphalerite.

The compositions of kenoargentotetrahedrite-(Fe) were analyzed with a Shimadzu-1720 electron probe microanalyzer (EPMA) at accelerating voltage 15 kV and beam size 1 μm. Pure materials of Ag and Cu, ZnS, FeS₂, CdSe, Sb₂S₃, FeAsS and FeS₂ were used as standards for the quantification of Ag(Lα), Cu(Kα), Zn(Kα), Fe(Kα), Cd(Lα), Sb(Lα), As(Lα) and S(Kα) using ZAF correction. The composition data listed in

Table 1. Chemical data (wt. %) for kenoargentotetrahedrite-(Fe) (N = 9).

Constituent	Mean	Range	Stand. Dev. (σ)	apfu. *	Standards
Ag	31.78	29.33–32.63	1.06	5.50	Pure Ag
Cu	14.19	13.38–15.98	0.86	4.17	Pure Cu
Zn	1.10	0.56–1.80	0.56	0.31	ZnS
Fe	5.23	4.69–5.60	0.30	1.75	FeS2
Cd	0.02	0–0.08	0.02	-	CdSe
Sb	25.84	25.42–26.06	0.21	3.96	Sb2S3
As	0.14	0.08–0.22	0.04	0.04	FeAsS
S	20.73	20.51–20.96	0.15	12.08	FeS2
Total	99.03			27.81

* Calculated based on As + Sb = 4.

were derived from analyzing nine positions on the kenoargentotetrahedrite-(Fe) sample.

The single-crystal diffraction data were collected using a Rigaku XtaLAB Synergy-DW diffractometer with microfocus sealed Mo anode tubes at 50 kV and 1 mA. The specific experimental steps are as follows: (a) Under the stereoscope, the kenoargentotetrahedrite-(Fe) particle was picked out with a diamond knife, loaded into a 100 μm glass loop, and fixed with crystal oil. (b) The glass loop loaded with the kenoargentotetrahedrite-(Fe) particle was mounted on the sample, and the positions were adjusted in two vertical directions of 0° and 90° to ensure the crystal grain was in the center of the X-ray. (c) The pre-experiment was performed on the sample to obtain multiple crystal diffraction pictures. (d) According to the crystal size and X-ray tube intensity collected from the pre-experiment, the exposure time per frame was 20 s for the sample from Bajiazi to gather hundreds of diffraction data.

The experimental data were treated with CrysAlisPro, and all reflections were indexed on the basis of a cubic unit cell (

Table 2. Summary of crystal data and refinement.

Crystal Data
Sample source	Bajiazi
Empirical formula	Ag5.70Cu4.26Fe1.74Zn0.30Sb4S12.05
Formula weight	1875.65
Crystal size/mm3	0.075*0.050*0.050
Crystal system	cubic
Space group	$I\overline{4}$3m
Temperature °K	293
a Å	10.4928(2)
V Å3	1155.26(7)
Z	2
ρcalc g/cm3	5.392
μ/mm−1	15.567
Data collection
Instrument	Rigaku Synergy
Radiation (λ Å)	Mo Kα (0.71073)
2θ range °	5.49 to 67.058
Absorption correction	ABSPACK
Reflections collected	1866
Independent reflections	404
Reflections with I > 2σ(I)	392
Rint	0.0245
Rsigma	0.0183
Indices range of h	–14 ≤ h ≤ 15
Indices range of k	–16 ≤ k ≤ 9
Indices range of l	–16 ≤ l ≤ 8
Refinement
No. of parameters, restraints	18, 0
R1, wR2 [I > 2σ(I)]	0.0186, 0.0421
R1, wR2 (all data)	0.0192, 0.0422
Goodness-of-fit	1.068
Δρmax, Δρmin (e− Å−3)	0.98, –0.62

). The intensity data were corrected for X-ray absorption using the Rigaku program ABSPACK. The systematic absence of reflections is suggestive of the space group I$\overline{4}$3m. The crystal structure was then solved for the space group I$\overline{4}$3m with SHELXT and refined with SHELXL [10,11], both included in the freeware Olex2 [12]. The structure model and site labels of Cristian Biagioni et al. were adopted (

Table 3. Fractional atomic coordinates and displacement parameters (Ų) of atoms in kenoargentotetrahedrite-(Fe) from Bajiazi.

Site	Wyckoff	Atom/Occup.	x	y	z	Ueq
M(1)	12d	Cu0.66Fe0.29Zn0.05	1/2	1	3/4	0.0196(3)
M(2)	12e	Ag0.95Cu0.05	1/2	0.69055(7)	1/2	0.0278(2)
X(3)	8c	Sb1.00	0.77036(4)	0.77036(4)	0.77036(4)	0.01612(16)
S(1)	24g	S1.00	0.62044(10)	0.86480(15)	0.62044(10)	0.0146(3)
S(2)	2a	S0.05	1/2	1/2	1/2	0.030(30)
Site	U11	U22	U33	U23	U13	U12
M(1)	0.0181(3)	0.0181(3)	0.0225(6)	0	0	0
M(2)	0.0322(3)	0.0185(3)	0.0322(3)	0	−0.0092(4)	0
X(3)	0.01612(16)	0.01612(16)	0.01612(16)	−0.00204(14)	−0.00204(14)	−0.00204(14)
S(1)	0.0153(4)	0.0131(6)	0.0153(4)	0.0000(3)	0.0000(5)	0.0000(3)
S(2)	0.030(40)	0.030(40)	0.030(40)	0	0	0

) [1]. The positions of atoms and anisotropic displacement parameters were refined with full occupancies for X(3) and S(1), free occupancies for S(2), manual occupancies for Ag and Cu at M(2) sites and manual occupancies for Cu, Fe and Zn at M(1) sites. The structures were illustrated with the freeware VESTA [13].

3. Results and Discussion

The earlier investigators usually calculated the formula unit of the tetrahedrite family mineral on the basis of S = 13 to obtain the empirical chemical formula [14,15]. Nevertheless, the miscalculation of the formula unit will be caused by using 13 S atoms as the standard for the kenoargentotetrahedrite-(Fe), which only contains 12 S atoms. In this paper, 4 atoms(As + Sb) are used as the standard to calculate the chemical formula. From the data in Table 1, it is not difficult to find that the chemical composition of kenoargentotetrahedrite-(Fe) is relatively stable and evenly distributed, on the other hand, the content of some metal elements(Ag, Cu, Fe and Zn) changes slightly, which is mainly caused by isomorphic replacement. Based on the composition data of kenoargentotetrahedrite-(Fe), it can be concluded that its empirical chemical formula is Ag_5.50Cu_4.17Fe_1.75Zn_0.31Sb_3.96As_0.04S_12.08, the corresponding ideal chemical formula is Ag₆Cu₄(Fe,Zn)₂Sb₄S₁₂. On account of the existence of some trace elements that are lower than the detection limit of the EPMA, the total metal atoms number is 11.73 instead of 12 in the formula unit. The kenoargentotetrahedrite-(Fe) is obviously different from argentotetrahedrite-(Fe) (Ag₆Cu₄(Fe,Zn)₂Sb₄S₁₃) because of the unequal S atoms number. They belong to the same mineral family but different mineral species.

The cell parameters and the structural chemical formula of kenoargentotetrahedrite-(Fe) are calculated by refining the data obtained by the single-crystal diffraction technique. The kenoargentotetrahedrite-(Fe) is cubic with a I$\overline{4}$3m space group and unit cell parameters a = 10.4928(2) Å, V = 1155.26(7) ų and Z = 2. Its structural chemical formula is Ag_5.70Cu_4.26Fe_1.74Zn_0.30Sb₄S_12.05. Due to the widespread existence of isomorphism between metal cations in the kenoargentotetrahedrite-(Fe), the different elements may appear at the same site, and the same elements may appear at the different sites. Moreover, the natural sample has a large number of trace elements. Therefore, the chemical formula obtained by single-crystal diffraction cannot be completely consistent with the ideal chemical formula. According to the above data, it can be directly seen that the relationship between the cell parameters and Ag content [16,17] in kenoargentotetrahedrite-(Fe) just falls in the “freibergite trend” region [8,9,18,19,20,21], which was summarized by Cristian Biagioni et al. [1], illustrating the objective existence of the “freibergite trend”. Comparing the cell parameters of kenoargentotetrahedrite-(Fe) in this paper with those obtained by Welch et al. [8] and Rozhdestvenskaya et al. [9], it is not difficult to find that the unit cell parameters of the three studies are almost the same, while the 2θ range tested in this paper is wider, ranging from 5.49° to 67.058°, and the collected diffraction data are more detailed. More importantly, the R₁ value calculated in this study, which represents that the quality of refinement is 0.0187, is smaller than the other two. It shows that the crystal structure solved in this paper is more accurate.

Due to the widespread existence of isomorphism between metal cations in the kenoargentotetrahedrite-(Fe), the different elements may appear at the same site in its crystal structure, especially at the M(1) and M(2) sites. Combined with the elements’ data measured by the electron probe, it can be known that Cu, Fe and Zn atoms are distributed at the M(1) site, Ag and Cu atoms are distributed at the M(2) site, and Sb atoms are fully distributed at the X(3) site. The fact that Cu atoms are distributed at two different sites in the crystal structure cannot be concluded from the electron microprobe data and can only be summarized from the data of single-crystal diffraction. In the process of solving and refining the crystal structure of kenoargentotetrahedrite-(Fe), the M(1) and M(2) sites of atoms are refined with fully free occupancies firstly, but the R₁ values obtained by this method are relatively large. In order to reduce the R₁ value and improve the accuracy of crystal structure refinement, the elements at the M(1) and M(2) sites are accurately assigned with the manual occupancies. Through continuous attempts, the occupancy rate of each element at the M(1) and M(2) site is finally determined with the R₁ = 0.0198 at this moment. The As atoms are also added to the X(3) site in the structure refinement process, but this cannot reduce the R₁ value. The specific values can be observed in Table 3, and the crystal structure can be seen in Figure 2a. Cu atoms are distributed at both M(1) and M(2) sites, the occupancy rate of Cu at the M(1) site is 0.66, and the occupancy rate of Cu at the M(2) site is 0.05. The S(2) site is refined with the free occupancies, and the occupancy rate of S at the S(2) site is 0.05 with R₁ = 0.0192, which is smaller. It illustrates that the crystal structure of kenoargentotetrahedrite-(Fe) with the vacancy S(2) site is more accurate (Figure 2c).

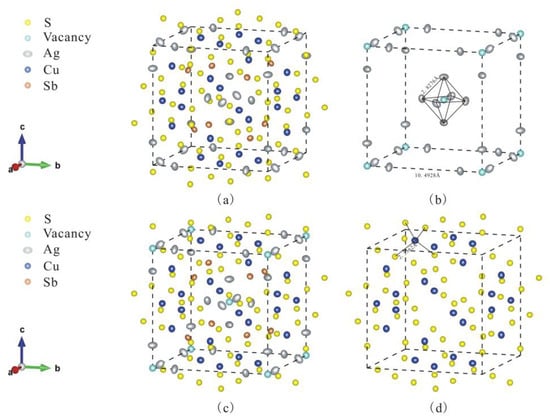

Based on the crystal structure diagram (Figure 2 and Figure 3), the coordination polyhedron formed between each metal atom and S atoms can be intuitively discovered. Among them, the coordination tetrahedron centered on the metal atoms is formed by metal atoms (Cu, Fe and Zn) at the M(1) site and S atoms, and the coordination number of metal atoms is 4; the triangular plane with the metal atoms as the center, two S atoms and one S atoms vacancy as the vertex is composed of metal atoms (Ag and Cu) at the M(2) site and S atoms, and the coordination number of metal atoms is 3; the triangular pyramid with the metal atom as the vertex is made up of Sb atoms at the X(3) site and S atoms, and the coordination number of Sb atoms is 3. Combined with the bond lengths (

Table 4. Bond lengths and bond valence sum (v.u.) of atoms in kenoargentotetrahedrite-(Fe).

Bond	Length	Bond Valence (sum)	Occupancy
M(1)-S(1)×4	2.3362(10)	1.59	Cu1+0.66Fe2+0.29Zn2+0.05
M(2)-S(1)×2	2.5567(18)	0.69	Ag1+0.95Cu1+0.05
-S(2)×1	1.9995(8)
X(3)-S(1)×3	2.4355(15)	3.33	Sb3+1.00
S(1)-M(1)×2	2.3362(10)	2.22	S2−1.00
-X(3)×1	2.4355(15)
-M(2)×1	2.5567(18)

) between the metal atom and S atom in each coordination polyhedron, the valence state of each element can be calculated using the bond valence sum formula [22], in which the valence of Cu at the M(1) site is +1, the valence of Fe and Zn at the M(1) site is +2, the valence of Sb at the X(3) site is +3, while the valence of Ag at the M(2) site is not +1. In argentotetrahedrite, the valence of the Ag atom at the M(2) site is +1, and the lengths of the Ag-Ag bond is 3.24 Å [8]. In kenoargentotetrahedrite-(Fe), due to the empty of S atom at the center point, the distance of the Ag-Ag bond is only 2.8277(11) Å, which is shorter than that in argentotetrahedrite. It indicated that Ag and Ag are connected by metal bonds, and six Ag atoms form an octahedron cluster. According to the law of conservation of electricity valence, the valence state of the octahedron cluster is +4, and it can be written as (Ag₆)⁴⁺.

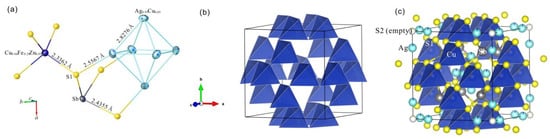

The crystal structure of kenoargentotetrahedrite-(Fe) can be explained from two different models, which are the coordination polyhedron model and the space-filling model (Figure 3). In the literature, the crystal structure of tetrahedrite (and those of its isotypes) is an example of a sulfidic sodalite-like (SOD) framework, with cavities that can be described as Laves truncated tetrahedra [5]. Using the coordination polyhedron model, the crystal structure of kenoargentotetrahedrite-(Fe) can be interpreted as follows: it is made up of a collapsed sodalite-like framework of corner-connected M(1)S₄ tetrahedron with cages containing a M(2)₆-octahedron cluster, encircled by four SbS₃ trigonal pyramids. The chemical formula of kenoargentotetrahedrite-(Fe) is Ag₆Cu₄(Fe,Zn)₂Sb₄S₁₂, and the chemical formula of argentotetrahedrite-(Fe) is Ag₆Cu₄(Fe,Zn)₂Sb₄S₁₃. The S(2) site of the kenoargentotetrahedrite-(Fe) is empty in the crystal structure, which is different from the argentotetrahedrite-(Fe). The valence of Ag in argentotetrahedrite-(Fe) is +1, and the valence of Ag₆ in kenoargentotetrahedrite-(Fe) is +4. Therefore, the kenoargentotetrahedrite-(Fe) has a close relation with the tetrahedrite group minerals, with the existence of the (Ag₆)⁴⁺ cluster replacing the S(2)-centered Ag₆ octahedron, according to the substitution mechanism 6^M(2)Ag⁺ + ^S(2)S²⁻ = ^M(2)(Ag₆)⁴⁺ + ^S(2)□ [8,9]. Applying the space-filling model, the crystal structure of kenoargentotetrahedrite-(Fe) can be clarified as follows: the structure is composed of sulfur layers perpendicular to the three coordinate axes with interstices occupied by a large number of metal atoms. Among them, most of the Cu atoms and all the Fe, Zn atoms are distributed on the surface of the unit cell with the coordination number of 4, which form a M(1)S₄ tetrahedron; the Sb atoms are distributed in the body of the unit cell with the coordination number of 3, which form SbS₃ trigonal pyramids; the Ag and Cu atoms with the coordination number of 3 (one of them is almost empty) form a M(2)S₃ triangular plane.

4. Conclusions

From this single-crystal X-ray diffraction study of samples from Bajiazi magmatic-hydrothermal Pb-Zn deposits, we confirmed the cubic structure of kenoargentotetrahedrite-(Fe), the occupancy rate of S at the S(2) site is 0.05 rather than 0, which is refined with R₁ = 0.0192, and six Ag atoms form an octahedron cluster with the valence state of +4, which can be written as (Ag₆)⁴⁺. We also proposed two different structure models: (a) Using the coordination polyhedron model, the structure is made up of a collapsed sodalite-like framework of corner-connected M(1)S₄ tetrahedron with cages containing M(2)₆-octahedron cluster, encircled by four SbS₃ trigonal pyramids. (b) Applying the space-filling model, the structure is composed of sulfur layers perpendicular to the three coordinate axes with interstices occupied by a large number of metal atoms.

The kenoargentotetrahedrite-(Fe) is an important metal sulfide mineral owing to its thermoelectric properties, and it has been reported for the first time in China. It has been identified that the mode of occurrence of Ag is an independent mineral called kenoargentotetrahedrite-(Fe), which provides a new idea for mineral exploration in this mining area and a new challenge for mineral processing technology.
