Measurement of Multi-Stokes Ultrashort Pulse Shapes of Synchronously Pumped Stimulated Raman Scattering on Combined Vibrational Modes in a BaWO₄ Crystal

Abstract

Multi-Stokes ultrashort pulse shapes and their relative positions of synchronously pumped stimulated Raman scattering (SRS) on combined primary and secondary vibrational modes in a BaWO₄ crystal are investigated. An original method of its simultaneous measurement with the help of a streak camera has been developed. The structure of SRS pulses at the pulse shortening effect down to the pulse duration, close to the dephasing time of the secondary Raman mode of the BaWO₄ crystal, is registered and analyzed for the detuning of the Raman laser cavity length.

1. Introduction

Crystalline Raman lasers are reliable sources of coherent radiation at wavelengths inaccessible to conventional lasers. According to the magnitude of the Raman gain (g), barium tungstate (BaWO₄) crystals (g = 8.5 cm/GW at the Raman shift of 925 cm⁻¹ under 1.06 μm pumping [1]) are among the top three active crystals for Raman lasers, along with CVD-diamond (g = 17 cm/GW at the Raman shift of 1333 cm⁻¹ under 1.06μm pumping [2]) and Ba(NO₃)₂ (g = 11 cm/GW at the Raman shift of 1047 cm⁻¹ under 1.06μm pumping [1]). Moreover, unlike them but similar to the other tetragonal crystals, BaWO₄has not only one, but two (primary and secondary) intense lines in a spontaneous Raman spectrum. These lines in BaWO₄ correspond to stretching (wavenumber ν₁ = 925 cm⁻¹, linewidth Δν₁ = 1.6 cm⁻¹) and bending (wavenumber ν₂ = 332 cm⁻¹, linewidth Δν₂ = 3.8 cm⁻¹) modes of internal vibrations of anionic groups [3]. It was in BaWO₄ that stimulated Raman scattering (SRS) with a combined frequency shift of ν₁ + ν₂ was previously observed for the first time [4]. After that, similar effects were studied for many other crystals having a lower Raman gain, including KGd(WO₄)₂, GdVO₄, YVO₄, SrWO₄, SrMoO₄, Ca₃(VO₄)₂, PbMoO₄, and Pb(MoO₄)_0.2(WO₄)_0.8 [5,6,7,8,9,10,11]. These effects were experimentally realized in schemes of Raman lasers with a high-Q optical cavity compensating a lower Raman gain at the secondary Raman mode rather than at the primary Raman mode. In the case of ultrashort pulse pumping, the method [12] of synchronous pumping by repetitive laser pulses with a repetition period synchronized with the Raman laser cavity round-trip time was used. Synchronously pumped SRS with the combined frequency shift was realized for the first time again in a high-gain BaWO₄ crystal using linear [13] and ring [14] optical cavities, and then in other crystals [8,9,10,11]. The interest in such synchronously pumped crystalline Raman lasers is due to the observed phenomenon of the strong shortening of SRS pulses with a combined frequency shift down to the dephasing time τ₂ = 1/(πcΔν₂) of the secondary Raman mode. Therefore, the SRS pulse duration becomes shorter than the primary Raman mode dephasing time τ₁ = 1/(πcΔν₁), and it amounts ~1 ps and shorter under pumping by 36 ps pulses [8,9,10,11,13,14]. This phenomenon so far has only a qualitative explanation as a combination of several optical effects. It can be explained not only by the combination of effects of group velocity walk-off and strong pump pulse depletion [15,16] (it was studied only for the first Stokes pulse), but also by the formation of ultrashort SRS pulses under intracavity excitation [17]. The latter should cause strong shortening of the second Stokes pulse with a combined (ν₁ + ν₂) frequency shift under intracavity pumping by the first ν₁-shifted Stokes component. However, in [13], it was also shown that the intracavity oscillated second Stokes component with the primary Raman mode double shift (ν₁ + ν₁), like the first ν₁-shifted Stokes component in BaWO₄, had no such strong pulse shortening. Therefore, the combined Raman shift is apparently fundamental to obtain strong pulse shortening under synchronous pumping. A study of the pulse shortening mechanism requires simultaneous measurement of not only the durations, but also of the shapes and relative positions of the pulses of different Stokes components. Such a study can be carried out using a streak camera, but in previous works the laser pulse energies (~300 nJ) were not sufficiently high for this.

In the present work, we used the pump 1079 nm, 64 ps Nd:YAP laser with a 1000 times higher pulse energy of 300 μJ for the experimental study of the output of multi-Stokes ultrashort pulse shapes of the synchronously pumped Raman laser on combined vibrational modes in a BaWO₄ crystal. An original method of simultaneous measurement of pulse shapes and relative temporal positions of several Stokes components of the Raman laser with the help of a streak camera was developed.

2. Experimental Setup

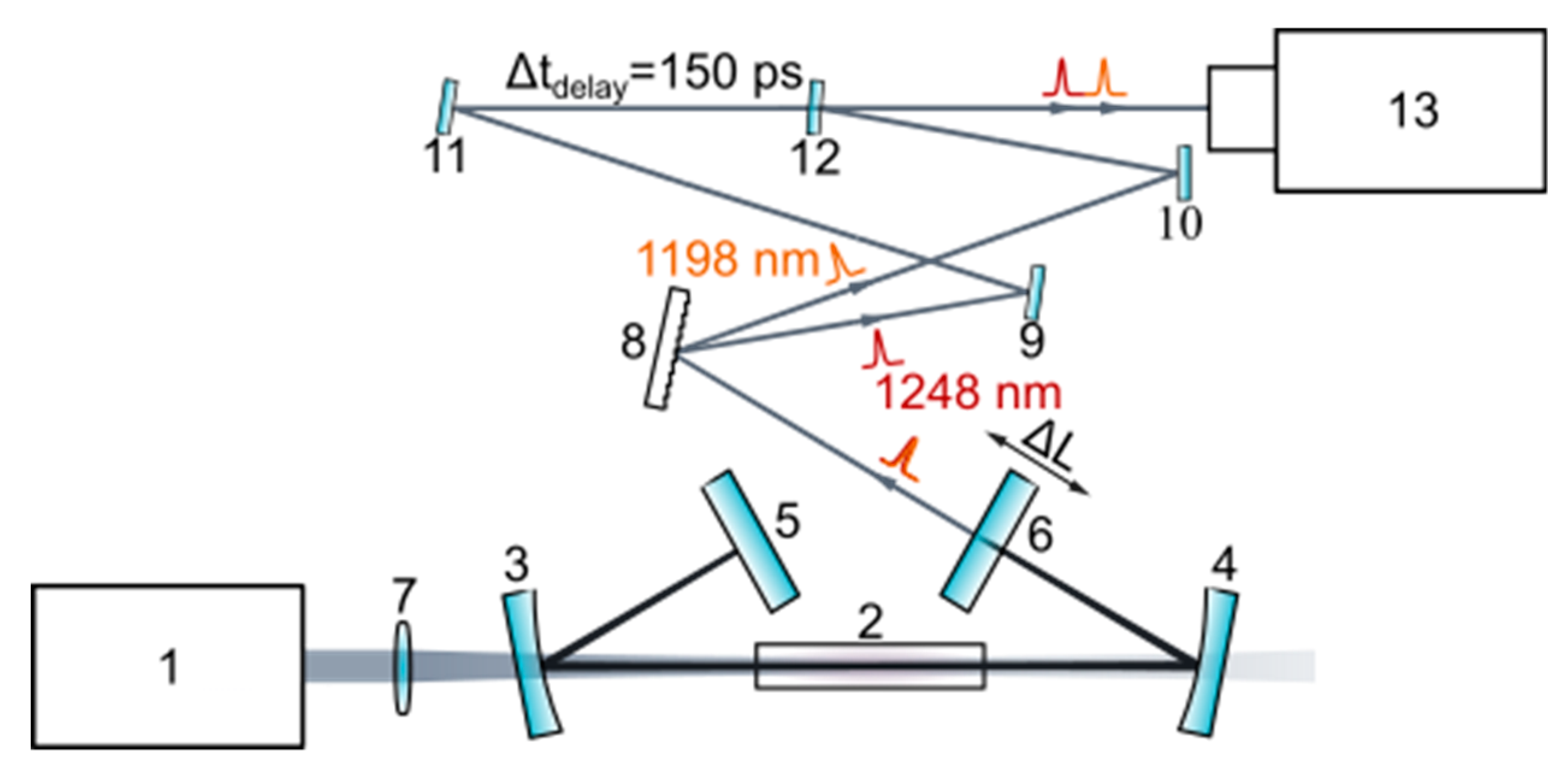

The experimental setup of the synchronously pumped Raman laser with the system of measurement of the individual pulse shapes and relative temporal positions for the multi-Stokes output laser radiation is shown in Figure 1.

The laboratory-designed master oscillator power amplifier Nd:YAP laser system, at a wavelength of λ₀ = 1079 nm, was used as the pump laser (1) [18]. The pump laser master oscillator operated in a hybrid mode-locking regime with a passive negative feedback element based on a GaAs crystal [19] to form a long laser pulse train of ~200 pulses. The Pockels cell-based pulse extraction system controlled by signals from the DG645 digital delay generator (Stanford Research Systems, Sunnyvale, CA, USA) provided the extraction of a laser pulse train of 56 pulses. It also allowed obtaining equal durations of pulses of 7 ± 0.5 ps at a repetition period of 8 ns in the 56 pulses train. The laser pulse train was directed to a volume Bragg grating [20] with a period varying linearly along the light propagation direction. As a result, the laser pulses reflected by the volume Bragg grating were negatively chirped and stretched in time from 7 ± 0.5 ps up to 64 ± 4.5 ps. Then, the chirped laser pulse train was directed to a four-stage amplifier system based on Nd:YAP crystals, increasing the individual, 64 ps, 1079 nm pulse energy up to 300 μJ. The pump laser system was isolated from the Raman laser under study using a Faraday isolator.

The a-cut 43 mm-long BaWO₄ crystal (2), grown by the Czochralski technique at Prokhorov General Physics Institute of the Russian Academy of Sciences, was used as the Raman-active medium. The crystal had no antireflection coatings. The crystal’s optical axis (c) was oriented for pumping at E||c, enabling the access of the maximum intensities of both the ν₁ and ν₂ Raman modes [8]. The BaWO₄ crystal was placed in an external linear (z-fold) cavity with a round-trip time synchronized with the pump pulse repetition period (8 ns) by tuning the Raman laser cavity length. The Raman laser cavity consisted of two concave mirrors (3 and 4) and two flat mirrors (5 and 6). The concave (a curvature radius of r = 500 mm) mirrors had high reflection for the SRS radiation at wavelengths in a range of 1198–1248 nm and high transmission for the pump radiation (1079 nm) and for the SRS components with wavelengths longer than 1248 nm. One of the flat mirrors (5) had high reflection, at 1198–1248 nm. The second (6) was an output coupler with a reflectivity of R₁₁₉₈ = 99.5% at the 1198 nm and R₁₂₄₈ = 96% at 1248 nm, and with high transmission for longer wavelength SRS components. It was placed on a precise translation stage for the tuning of the Raman laser cavity length (ΔL). The pump radiation was focused by a lens (7) with a focal length of 1.2 m into the BaWO₄ crystal to a spot with a radius of 300 μm, matched with the Raman laser cavity mode.

The measurement system was installed at the laser output behind the output coupler (6). To measure different characteristics of the output laser radiation, we used different tools of measurement (spectrometer, oscilloscope, streak-camera, etc.). Figure 1 shows only the most important system, measuring the laser pulse shapes and its relative temporal positions. The scheme of simultaneous streaking of two light sources used earlier, for example, for electron-beam diagnostics studies [21], was refined here for the characterization of a one multiwavelength Raman laser. To perform this, the output radiation of the Raman laser was split into Stokes components (1198 nm and 1248 nm) by a reflective diffraction grating (8); a system of mirrors (9–11), which formed a delay line (Δt_delay = 150 ps); and a semi-transmitting mirror (12), which combined the Stokes components into one beam for measurement by the PS-1/S1 streak camera (13) with a time resolution of 1.5 ps, developed at the Prokhorov General Physics Institute of the Russian Academy of Sciences, Russia [22].

3. Experimental Results

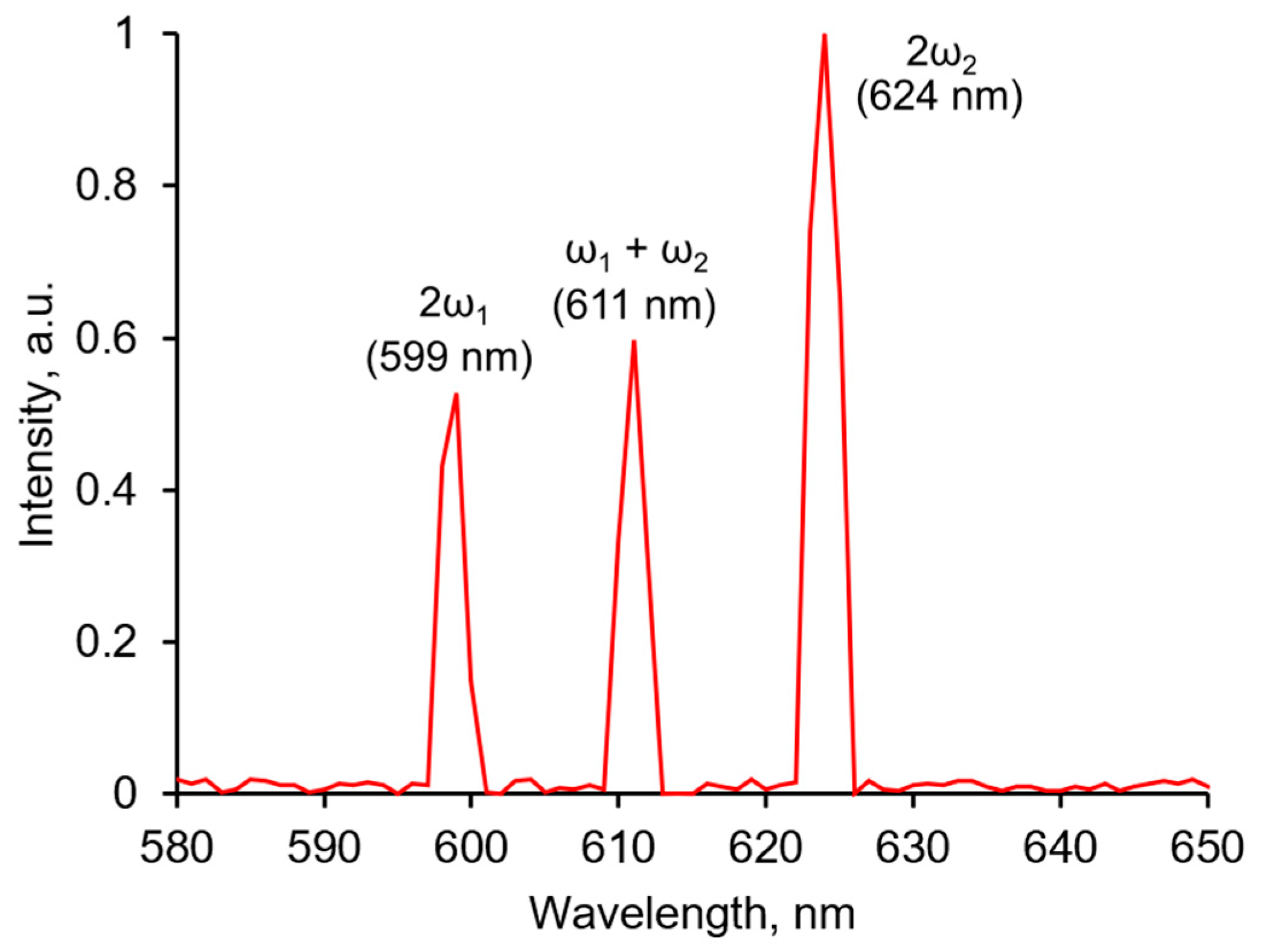

Initially, we visualized the output SRS radiation and registered its spectrum. We focused the output SRS radiation using a lens with a focal length of 10 cm into a frequency doubler based on a LiIO₃ crystal (having low difference of phase-matching angles of 2.9° for frequency doubling of the radiations at 1198 and 1248 nm), and we registered the converted visible radiation using the spectrometer Ocean Optics HR2000 (wavelength range 200–1100 nm, resolution <2 nm) (Ocean Insight, Orlando, FL, USA). Figure 2 demonstrates the characteristic registration result. We can see three spectral lines in an orange-red spectral range. The 599 nm and 624 nm lines can be identified as the second harmonics of the first ν₁-shifted Stokes SRS component at a wavelength of λ₁ = (λ₀⁻¹ − ν₁)⁻¹ = 1198 nm and the second Stokes SRS component with the combined (ν₁ + ν₂) frequency shift at a wavelength of λ₂ = [λ₀⁻¹ − (ν₁ + ν₂)]⁻¹ = 1248 nm, respectively. The intermediate 611 nm line does not correspond to any other SRS component, but it is a sum frequency from the first and second Stokes SRS components. Generation of higher order SRS components with longer wavelengths did not occur because of the selectivity of the Raman laser cavity.

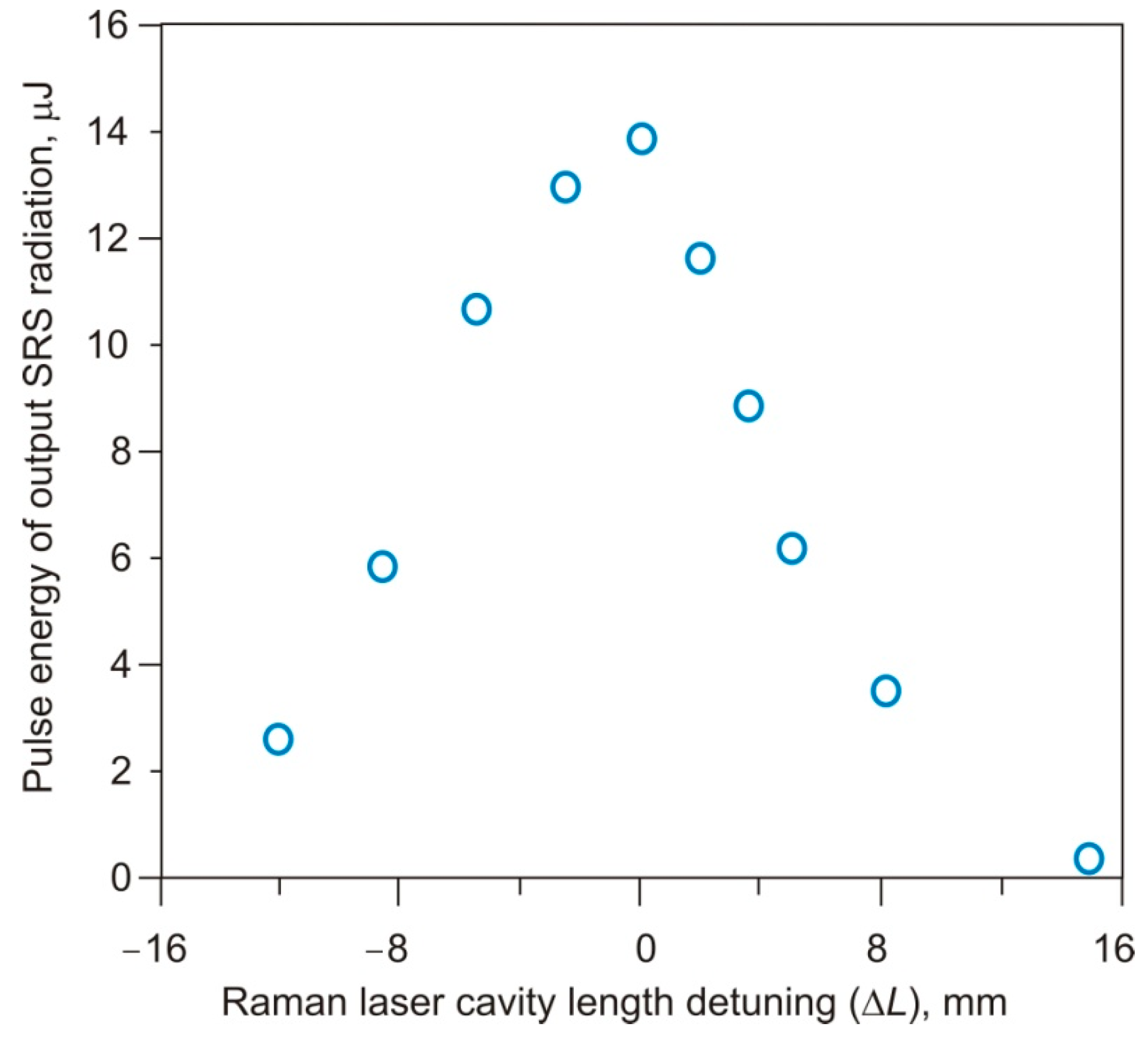

Figure 3 demonstrates the results of detuning the Raman laser cavity length (ΔL). We should note that the detuning curve is more symmetric than for the cases of low-intensity synchronous pumping, in which positive detuning is more critical than negative ones [13,15], and the detuning scale is an order of magnitude wider. We obtained the same character of detuning as in [23], in which similar conditions of high-intensity synchronous pumping were realized for a LiIO₃ crystal. In Figure 3, zero detuning corresponds to a maximum pulse energy of the output SRS radiation of 14 µJ (12% at 1198 nm and 88% at 1248 nm) at a conversion efficiency of 4.7% (the input pump pulse energy was 300 µJ). Pulse energy was measured by the energy meter StarLite (Ophir-Spiricon, LLC, North Logan, UT, USA).

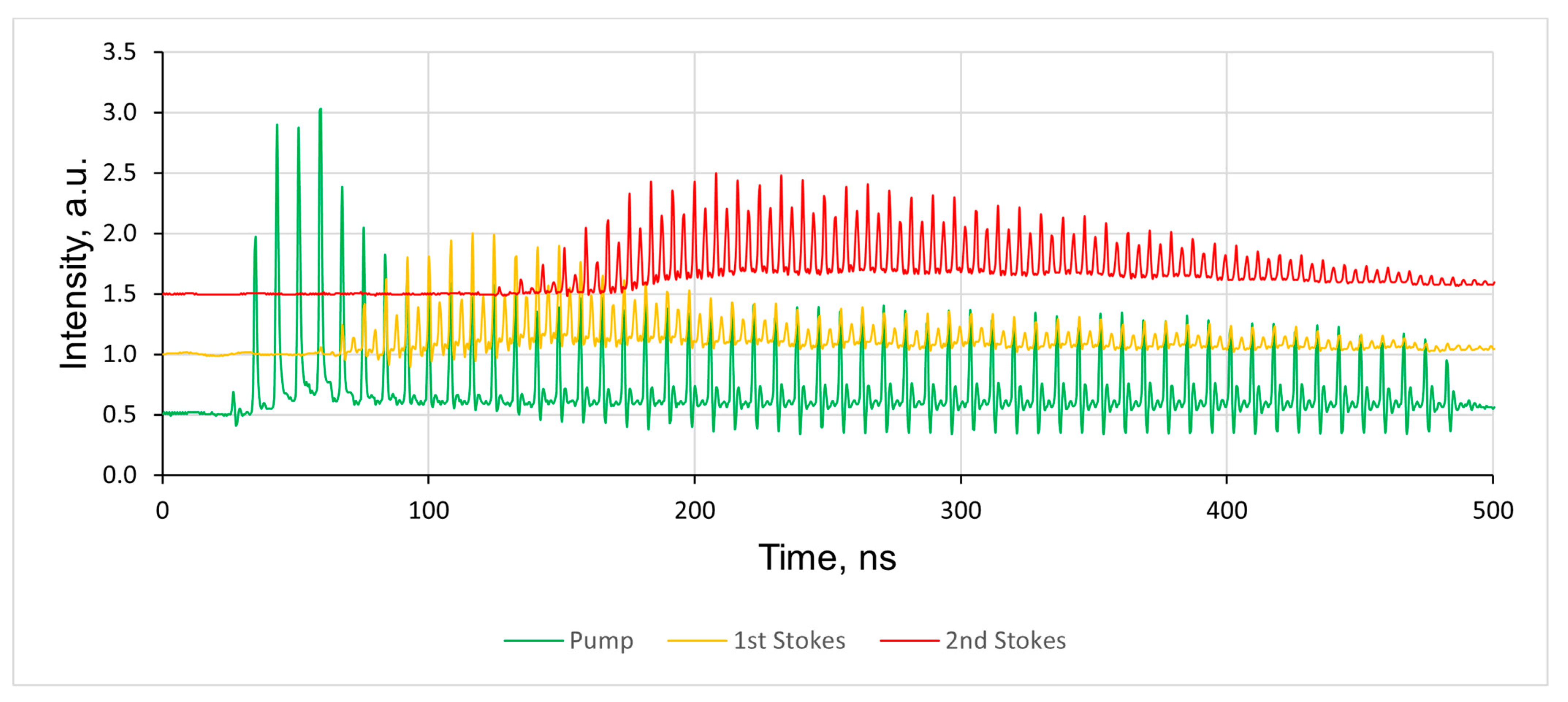

Then, shapes of the laser pulse trains were recorded using three avalanche photodiodes separately for each laser radiation component (including the residual 1079 nm pump behind the mirror (4) in Figure 1) and displayed on a four-channel oscilloscope LeCroy WaveSurfer 3054 (bandwidth 500 MHz) (Teledyne LeCroy, Inc., Milpitas, CA, USA). The characteristic result is shown in Figure 4.

It can be seen from Figure 4 that cascade-like SRS conversion occurred firstly from the pump (green line) into the first Stokes SRS component (yellow line), and secondly from the first Stokes into the second Stokes SRS component (red line), which is usual. However, SRS radiation pulse trains (yellow and red lines) have a pulse repetition rate that doubles in comparison with that of the pump pulse train (green line). This is unusual and has not previously been observed in synchronously pumped Raman lasers. More precisely, the double repetition rate SRS pulse train consists of two sub-trains with the 8 ns pulse period. The first sub-train (in yellow or red line) is synchronous with the pump pulse train (green line) and has higher intense pulses. The second sub-train is delayed by half of the 8 nm period and has less intense pulses. In the first Stokes pulse train (yellow line), the second sub-train has an intensity of pulses of about 50% of the first sub-train pulse intensity. In the second Stokes pulse train (red line), the second sub-train intensity is even higher—about 70% of the first sub-train pulse intensity. The second sub-train can be explained by backward SRS in addition to forward SRS in the first sub-train. Therefore, a higher intensity of backward SRS at the second Stokes pulse train compared to that of the first Stokes pulse train is caused by intense multi-pass intracavity pumping of the second Stokes oscillation by the first Stokes component, in contrast to single-pass pumping of the first Stokes oscillation.

The reason for the observation of synchronously pumped backward SRS in BaWO₄ can be that the pump pulse duration has a 3.3 times higher ratio compared to the crystal transit time (it is critical for stimulated backscattering [24]) and that it has an order of magnitude of greater intensity of pump pulses (SRS oscillation threshold takes place already at the fourth pulse of the pump pulse train in Figure 4) in comparison with previous similar works with BaWO₄ [13,14].

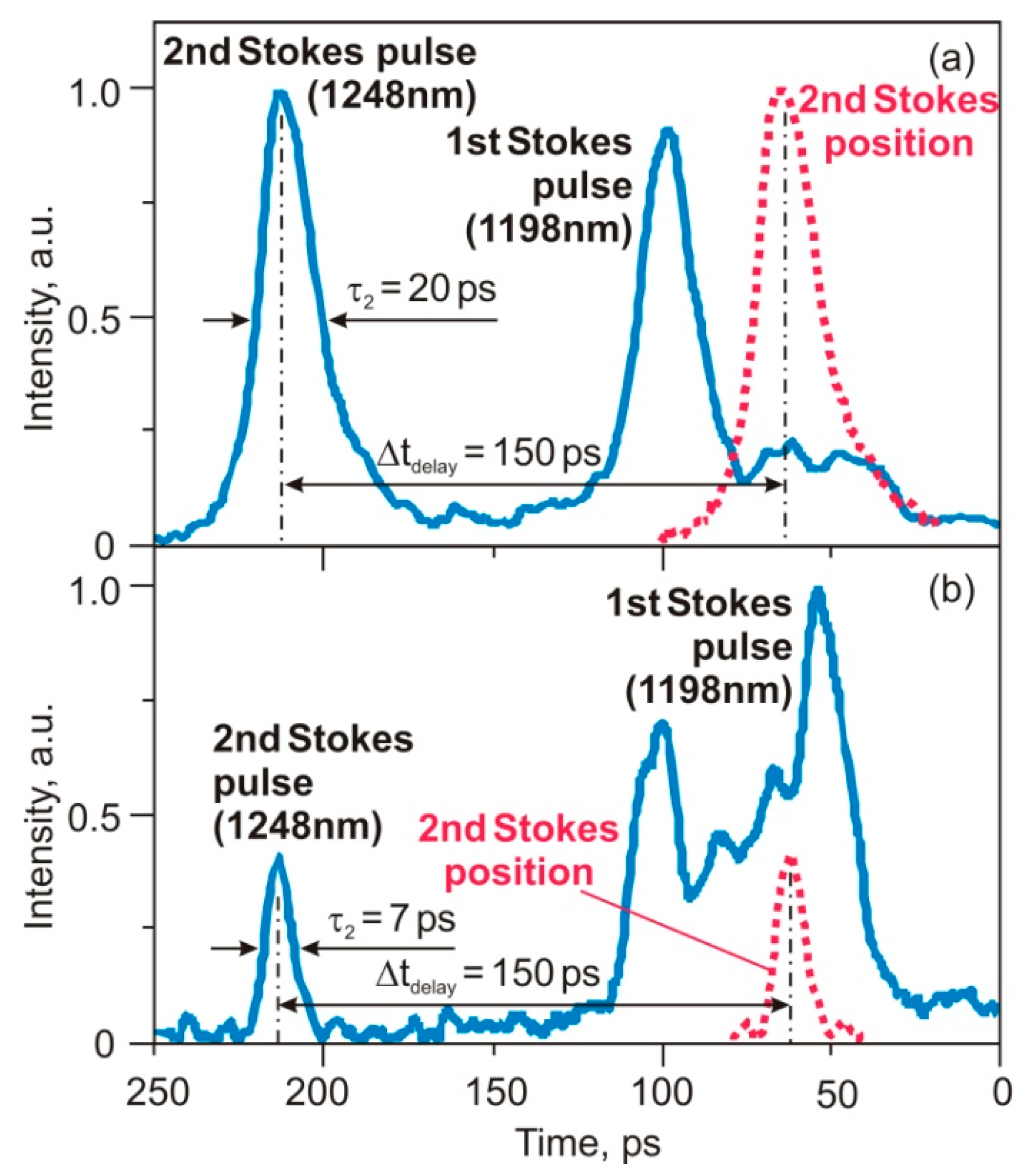

Figure 5 demonstrates the individual SRS pulse shapes and their relative positions measured with the help of the streak camera at various values of detuning of the Raman laser cavity length. The demonstrated picture was synchronous with the 36th pump pulse in the pump pulse train (Figure 4), and it corresponded to the forward SRS sub-train.

As one can see from Figure 5a, the zero detuning case corresponds to efficient conversion into the 1248 nm second Stokes component with a combined frequency shift at the pulse duration of τ₂ = 20 ps and strong depletion of the 1198 nm first Stokes pulse. The first Stokes pulse depletion took place at its leading edge. This can be explained by higher group velocity for the second Stokes component compared to the first Stokes component due to positive dispersion of the active crystal.

It can be seen from Figure 5b that positive detuning (ΔL = +8 mm) of the Raman laser cavity length led to strong shortening of the second Stokes component with a combined frequency shift down to τ₂ = 7 ps. This agrees with previous works [13,14]. At this point, the structure of pulses at the shortening effect can be observed. The depleted part of the first Stokes pulse is longer than the second Stokes pulse duration because the second Stokes pulse has a higher group velocity moving to the leading edge of the first Stokes pulse during the multi-pass oscillation process.

Increasing the cavity length detuning from 0 (maximum conversion) up to 15 mm (conversion close to 0) resulted in shortening of the 1248 nm second Stokes pulses from 20 ps down to 4 ps (close to inverse linewidth of secondary Raman mode of BaWO₄ [3]) for keeping the Gaussian shape, as can be seen in Figure 5 with decreasing conversion efficiency due to temporal walk-off between the pump, the first Stokes pulse, and the second Stokes pulse. We should also note that the shortened pulse duration is comparable with the initial pulse duration (7 ps) of the pump laser master oscillator. Therefore, an additional reason for pulse shortening at the negatively chirped pumping is that this chirp compensates by positive dispersion of the BaWO₄ crystal in conditions of multi-pass SRS oscillation. Earlier, in theoretical works [15,16], the effect of shortening a first Stokes pulse in synchronously pumped Raman lasers for positive cavity length detuning was explained by a delay of the first Stokes pulse relative to the pump pulse when the cavity round-trip time was longer than the pump pulse repetition period. Now, we can observe (Figure 5b) a stronger shortening effect for the second (ν₁ + ν₂)-shifted Stokes pulse under intracavity pumping by the first ν₁-shifted Stokes pulse. It can be additionally explained by the mechanism of ultrashort pulse formation under intracavity pumping, as predicted in another theoretical work [17].

4. Conclusions

In conclusion, multi-Stokes ultrashort pulse shapes and their relative positions of synchronously pumped stimulated Raman scattering on combined vibrational modes in a BaWO₄ crystal were investigated. The SRS pulse’s structure at the pulse shortening effect down to the dephasing time of the secondary Raman mode of the BaWO₄ crystal was registered and analyzed for the detuning of the Raman laser cavity length. The information obtained opens new possibilities for explaining the mechanism of pulse shortening in ultrafast synchronously pumped crystalline Raman lasers and can be used in future works.
