The Potential Effect of Annealing Mesostructured Titanium Dioxide Electrode in a Closed Box Furnace on the Concentration of Lead (II) Iodide Solution Required for Optimal Performance of Mesoscopic Perovskite Solar Cells

Abstract

Highly reproducible mesoscopic perovskite solar cells (PSCs) can be fabricated using two-step sequential deposition of organo-lead halide (perovskite) active layer. However, differences in the processing conditions of individual layers which are subsequently assembled to construct the ultimate device can result in variations in the solar cell performance. For instance, here we report trends in the device performance as a function of PbI₂ solution concentration, where the compact and mesoporous TiO₂ layers were annealed in a closed box furnace (instead of doing it in open air). We observed that the devices prepared using 1.2 M PbI₂ solution concentration performed better than those prepared from 0.8 M and 1 M PbI₂ solutions. Generally, the researchers use the hot plate in an open-air environment or use a special hot plate where a continuous flow of air is ensured while annealing TiO₂ electron selective layers (ESL) for perovskite solar cells. In this case, the highest possible device efficiencies are achieved using 1 M concentration of PbI₂ solution. Although the influence of PbI₂ solution concentration has been previously studied in detail, here our prime focus is to briefly comment on slight differences in the device performance trends which we observed in comparison to the previously reported results, where TiO₂ layers were calcined in open air.

1. Introduction

Solar energy is freely and abundantly available form of energy which can be effectively used for electricity generation using solar cells. The solar cells based on crystalline silicon are well commercialized and known to be reliable because they are technologically mature in comparison to other types of photovoltaic devices. However, highly energy intensive and expensive processing methods required for manufacturing silicon wafers have pushed the scientific community to look for some other alternatives such as perovskite solar cells (PSCs). The high-power conversion efficiencies (PCEs) of PSCs are known to be very comparable to those of silicon-based solar cells. The fabrication of PSCs is also known to be very cost-effective due to their solution-processability. Earlier research in this area depended on one-step deposition of perovskite active layer, in which a mixed precursor single solution was spin-coated on top of the substrate [1]. The synthesis of the active layer using a one-step approach would result in its highly non-uniform coverage on top of the substrate, thus large number of parallel shunts would deteriorate the device performance and its reproducibility. The introduction of two-step sequential deposition of the perovskite active layer by Burschka et al. [2] significantly solved this problem. In this method, the lead halide solution was spin-coated, followed by dropping the Methylammonium halide solution on top of the rotating substrate [3,4] or immersing the lead halide coated substrate into the Methylammonium halide solution [2]. There were still issues with this method, because to bring their PCEs beyond 15 to 16% required major modifications, such as interdiffusion strategy. This is generally because of the incomplete conversion of PbI₂ to perovskite upon reaction with MAI, which results in a considerable amount of unreacted PbI₂ in the deeper regions of perovskite active layer [5]. To further enhance the device efficiencies, one-step deposition was again introduced, but this time it involved dropping the Chlorobenzene [6,7] or Toluene [8] as anti-solvents on top of the rotating substrate comprising of single precursor solution. The anti-solvent approach potentially produces high-efficiency devices, but still suffers from reproducibility issues. This is because this route is highly delicate and sensitive to handling and deposition conditions [9]. Thus, the two-step deposition technique is relatively more tolerant to such issues and therefore highly reproducible, with some compromise on the device efficiencies owing to the presence of residual PbI₂ in the perovskite active layer.

On the other hand, this unreacted PbI₂ is also known to be beneficial for the passivation of interfacial defects at the perovskite/metal oxide electrode interface [10]. However, there is always some critical amount of unconverted PbI₂ in the perovskite active layer beyond which device performance starts to deteriorate. The amount of unconverted PbI₂ in the perovskite can be controlled either by controlling the PbI₂ solution concentration while keeping the concentration of MAI solution constant, or vice versa [11]. The optimal device performance with the two-step approach can be achieved by keeping the PbI₂ and MAI solution concentrations as 1 M and 0.063 M, respectively. Tuning the MAI solution concentration significantly influences the crystal size of the perovskite active layer, thus bulk recombination can be somehow minimized by reducing the number of grain boundaries. On the other hand, the PbI₂ concentration influences the morphology of the perovskite capping layer on top of the mesostructured substrate [11,12].

Several research works performed in the past few years investigated the influence of PbI₂ and MAI solution concentrations. Here, we also present the effect of PbI₂ solution concentration on the device performance, though we will discuss some differences in trends we observed as a function of PbI₂ concentration in comparison to the previously reported results which suggested that 1 M PbI₂ solution is most suitable for the optimal device performance. We used three different concentrations of the PbI₂ solution, i.e., 0.8 M, 1 M and 1.2 M, respectively. The solar cells prepared using 1.2 M PbI₂ solution were found to perform unexpectedly better than the devices prepared using 1 M PbI₂ solution. However, it is a well-known fact that 1 M concentration of PbI₂ solution is best for the optimal performance of PSCs. Our XRD results also revealed that the residual PbI₂ content in the perovskite films prepared using 1.2 M PbI₂ solution is significantly higher. Thus, one should expect that the lower perovskite content in 1.2 M sample should ideally not be able to give enough photogenerated electricity. Surprisingly, the V_OC values of the devices based on 1.2 M PbI₂ concentration were found to be significantly higher than those prepared using 1 M concentration of PbI₂ solution. We suspect that the mesoporous TiO₂ used as a scaffold in this work contains very high concentration of oxygen vacancies because we used a closed box furnace for its calcination with no continuous air flow. This has been previously demonstrated by Ho et al. [13], that a continuous oxygen-rich air flow is required during the calcination of TiO₂ films to minimize oxygen defects which can be the ultimate source of surface recombination at the TiO₂/Perovskite interface [14]. Oxygen defects at the surface of TiO₂ thin films can also be reduced using UV-ozone treatment [15]. The presence of oxygen vacancies tends to disrupt the entire stoichiometric balance on both sides of the TiO₂/Perovskite interface. This results in partial breaking up of Pb-I bonds of the perovskite close to the interface. Thus, there are defects in the perovskite as well as in the TiO₂. The defects in perovskite tend to capture the photogenerated electrons within the perovskite, which can potentially reduce the J_SC. On the other hand, interfacial trap states due to the oxygen vacancies in TiO₂ captures the injected electrons which subsequently recombine with the holes in VB of the perovskite (because of electron back transfer) which ultimately reduces the V_OC [14]. Since we expect that our (compact and mesoporous) TiO₂ comprises of higher density of oxygen vacancies, their effective passivation requires much larger quantity of unreacted (or residual) PbI₂ at the perovskite/TiO₂ interface. This is possible by using higher PbI₂ solution concentration (such as 1.2 M) than previously optimized concentration (i.e., 1 M).

2. Materials and Methods

2.1. Materials

Fluorine-doped Tin Oxide coated glass substrates (TCO22-15) were purchased from Solaronix (Aubonne, Switzerland). TiCl₄ (>99%) was bought from Fluka (Seelze, Germany). Pluronic F127 block co-polymers, tetrahydrofuran (THF, >99%), N,N-dimethylformamide (DMF, 99.8%), 2-propanol (99.5%), chlorobenzene (99.8%), acetonitrile (99.8%), and Lithium bis(trifluoromethane)sulfonimide (Li-TFSI), were purchased from Sigma Aldrich (St. Louis, MO, USA). The PbI₂ (99.99%) and Methylammonium Iodide, MAI (>98%) were acquired from TCI Europe (Zwijndrecht, Belgium) and spiro-OMeTAD from Feiming Chemicals Ltd (Shenzhen, China). The cobalt (III) tri[bis-(trifluromethane]sulfonamide) (FK209 Cobalt (III) salt) and 30 NR-D TiO₂ paste were obtained from Greatcell (Queanbeyan, Australia). Ethanol (EtOH, >99.5%) was bought from ALTIA Plc, Helsinki, Finland.

2.2. Preparation of Compact and Mesoporous TiO₂ Films

The compact TiO₂ (c-TiO₂) dip coating solution was prepared as previously reported by Masood et al. [16]. For this, a TiCl₄/EtOH stock solution was prepared by dropwise addition of 18.97 g of TiCl₄ into 23.04 g of EtOH while stirring in an ice bath. Another solution comprising of 0.0152 g of F127 block co-polymer, 12.34 g of EtOH, 0.21 g of deionized water and 1.717 g of THF was prepared. Thereafter, 2.50 g of the TiCl₄/EtOH stock solution was added dropwise into the second solution and kept for stirring for at least 30 min before dip coating the FTO coated glass substrates.

The FTO coated glass substrates were cut into 4 cm × 2 cm pieces. A 1.5 cm × 2 cm area was etched from one side of the FTO substrates using Zn powder and 4 M aqueous solution of HCl. The substrates were sonicated in 2% aqueous Halmanex III solution, de-ionized water, Acetone and 2-propanol for 10 min each. After drying the substrates by blowing dry Nitrogen, they were further subjected to plasma treatment for 5 min before dip-coating in the c-TiO₂ solution. For dip-coating, the withdrawal speed of 85 mm/min was used without allowing any dwell time in the solution. The c-TiO₂ substrates were then dried on the hot plate at 125 °C followed by direct calcination at 500 °C for 30 min in the closed box furnace. To study the perovskite filled mesostructured TiO₂ (by XRD, UV-Vis and FE-SEM), the unetched FTO coated glass substrates were used. The subsequent mesoporous TiO₂ layer was deposited as a scaffold, thus preparing the mp-TiO₂/c-TiO₂/FTO/glass substrates. For this purpose, the suspension of TiO₂ nanoparticles was prepared by dissolving 30 NR-D TiO₂ paste (from Greatcell) in Ethanol (EtOH) to maintain the concentration of 0.15 g/mL. After applying plasma treatment on top of c-TiO₂/FTO/glass substrates, the mesoporous TiO₂ solution was spin-coated using 4000 rpm spin speed for 10 s. The spin acceleration was set to 2000 rpm/s. The films were then dried on the hot plate at 120 °C for 10 min before calcination at 450 °C for 30 min by following the previously reported heating ramp [16,17].

2.3. Deposition of the Perovskite Active Layer

Next, 0.8 M, 1 M and 1.2 M PbI₂ solutions were prepared in anhydrous DMF while stirring at 100 °C on hot plate. The solutions were kept at 100 °C throughout the experiment to prevent precipitation of PbI₂ crystals within the solutions. The PbI₂ solutions were spin-coated on the mesostructured TiO₂ substrates with a spin speed of 6000 rpm for 30 s using 6100 rpm/s acceleration rate. The PbI₂-coated substrates were dried on a hot plate at 100 °C for 30 min. Upon subsequent cooling to room temperature, the substrates were dipped in 10 mg/mL solution of MAI dissolved in anhydrous isopropanol followed by quick rinsing in isopropanol to remove excess MAI. The substrates were again dried at 100 °C for 30 min on the hot plate.

2.4. Characterization

The Grazing incidence X-ray diffraction (GI-XRD) was performed on all the perovskite infiltrated mesostructured TiO₂ (i.e., mp-TiO₂/c-TiO₂/unetched-FTO/glass) substrates. This was carried out to verify the differences in the relative amount of perovskite with respect to the unreacted PbI₂ as a function of PbI₂ solution concentration. This was achieved using Bruker AXS D8 Discover instrument (Billerica, MA, USA). The Bragg’s angle scan was performed between 10° to 20° using 0.04° step size at grazing incidence angle of 1°. The UV-visible (UV-vis) absorption scan was also performed on these samples between 300 to 900 nm wavelength range using Perkin Elmer Lambda 900 UV-vis near infrared spectrometer (Waltham, MA, USA). The slit size was kept at 2 mm and the measurements were performed in the presence of certified reflectance standards. The UV-Vis measurements were also performed on PbI₂ infiltrated mesostructured TiO₂ (mp-TiO₂/glass) substrates as a reference.

To assess the morphology of PbI₂ and perovskite capping layers on top of the mesostructured TiO₂ layer, the field emission scanning electron microscopy (LEO, Oberkochen, Germany) was performed. For this purpose, the 50 k times magnification, 2.70 kV electron high tension and an aperture size of 10 μm were used.

2.5. Device Fabrication

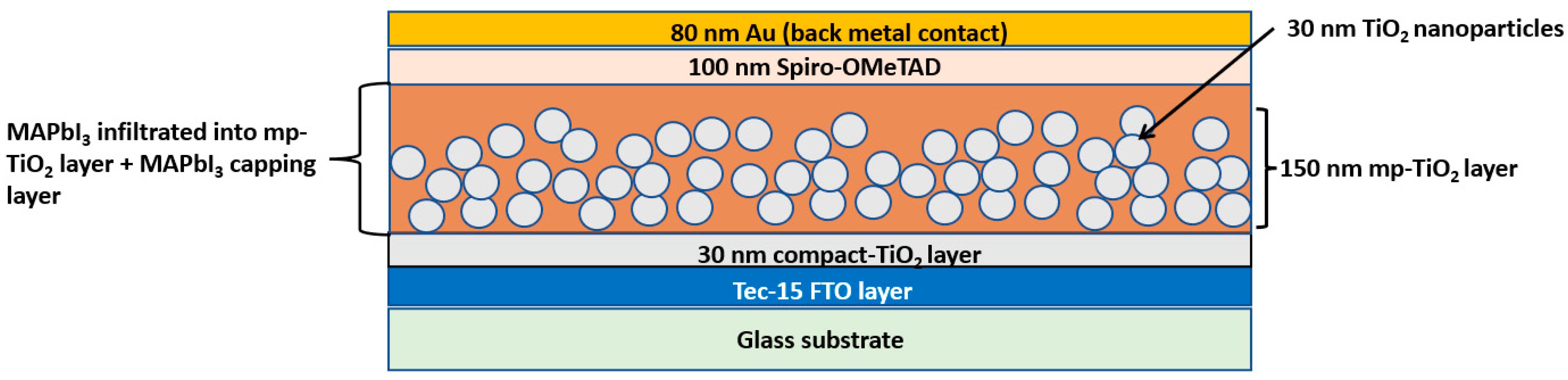

The lab-scale devices were prepared using different PbI₂ concentrations by following our previously reported protocol [16]. Figure 1 schematically shows the structure of our typical device.

The etching of FTO, and the deposition of compact and mesoporous TiO₂ layers has already been explained in Section 2.2. Three to four devices for each PbI₂ concentration were fabricated. After depositing the perovskite active layer, as mentioned in Section 2.3, the spiro-OMeTAD and 4-tertbutyilpyridine were dissolved in chlorobenzene. On the other hand, the solutions of Lithium bis(trifluoromethylsulfonyl)imide and FK209 Co(III) were prepared by dissolving them in acetonitrile. These solutions were then added to the solution of Spiro-MeTAD. This was carried out to maintain the molar ratio of 1.0:0.5:2.5 × 10⁻²:3.3:131.5:7.2 (spiro-MeTAD: Li-TFSI: FK209 Co (III): 4-tertbutylpyridine: chlorobenzene: acetonitrile). The final solution was then spin-coated on top of the perovskite active layer using a spin speed of 4000 rpm for 30 s with 4000 rpm/s spin acceleration. The circular gold back metal contacts of area 0.283 cm² were deposited on top of the Sprio-OMeTAD layer. This was achieved by evaporating gold at an evaporation rate of about 0.01 nm/s while keeping the vacuum pressure of about 2 × 10⁻⁵ mbar.

2.6. Device Characterization

The J-V curves were measured in ambient conditions under illumination using a simulated sunlight at AM 1.5 with 100 mW/cm² intensity (Oriel Class ABB solar simulator, 150 W, 2″ × 2″). A circular aperture with the size of about 0.126 cm² was used to mask the devices. The J-V scan was performed using a 2636 Series Source Meter (Keithley instruments, Cleveland, OH, USA)—The scan was started from −0.3 V to 1.1 V in forward sweep followed by 1.1 V to −0.3 V in reverse sweep using a scan speed of about 10 mV/S [17]. For each PbI₂ concentration at least 3 to 4 devices were characterized to determine the photovoltaic parameters.

3. Results

3.1. Determining the Perovskite Content Using GI-XRD

We started by analyzing the influence of PbI₂ solution concentration on PbI₂-to-MAPbI₃ conversion efficiency in PbI₂ infiltrated mesostructured TiO₂ substrates (when dipped in 0.063 M MAI solution, as discussed in Section 2.3). This was carried out by performing GI-XRD using 1° incident angle upon each sample after it was converted to the perovskite. The diffractograms from GI-XRD were then normalized to further determine the relative amounts of remnant PbI₂ and the perovskite. The samples in the subsequent text are named according to the concentration of PbI₂ solutions. The samples without conversion to the perovskite were named as 0.8 M PbI₂, 1.0 M PbI₂ and 1.2 M PbI₂. The samples after conversion to the perovskite were named as 0.8 M MAPbI₃, 1.0 M MAPbI₃ and 1.2 M MAPbI₃.

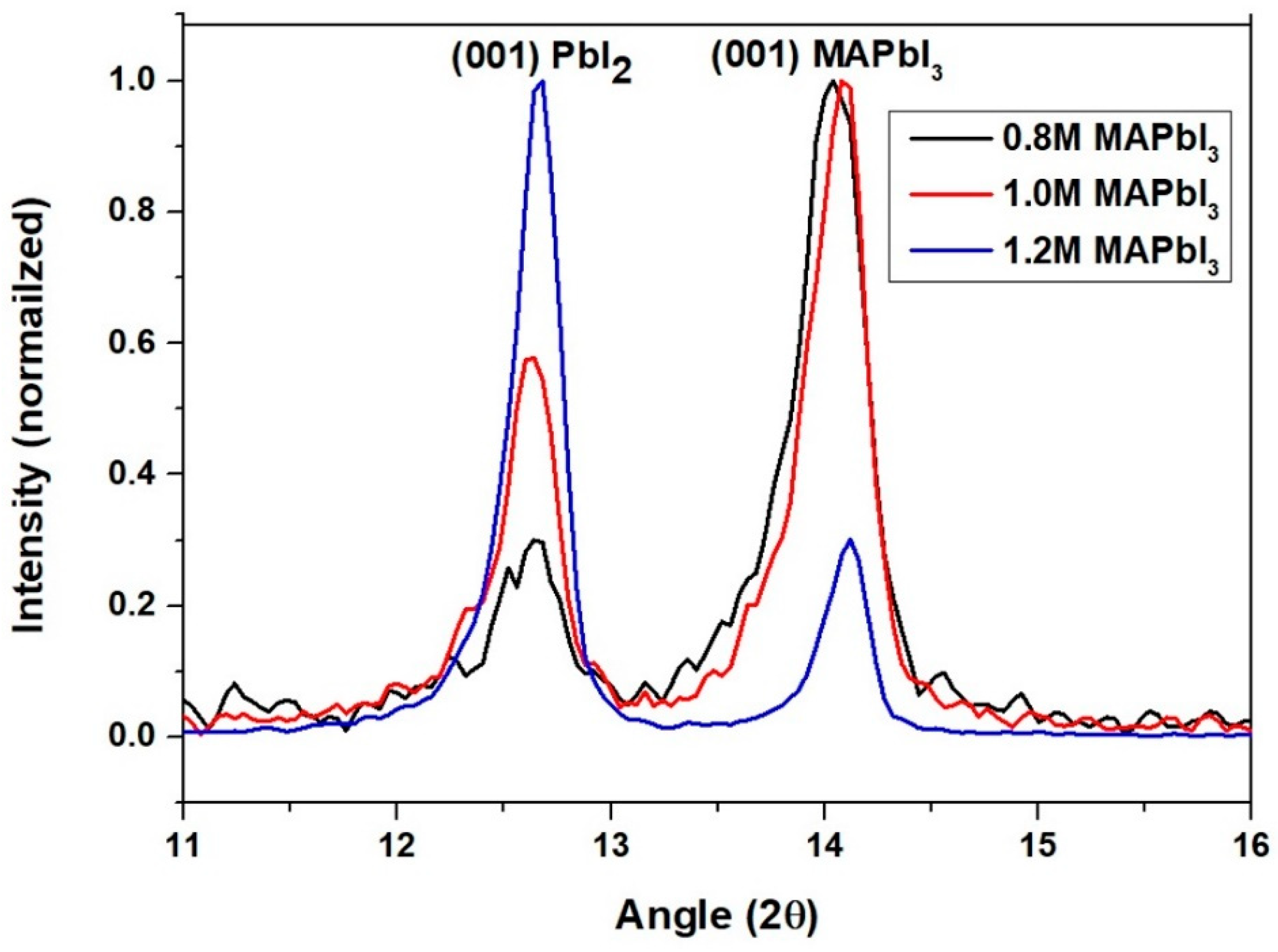

The normalized GI-XRD diffractograms are shown in Figure 2, where all the perovskite samples contain both the perovskite (MAPbI₃) and the unreacted residual PbI₂. This is evident from PbI₂ (001) and MAPbI₃ (110) reflections at 12.6° and 14.1° angles, respectively.

The unreacted PbI₂ is left in the deeper regions of all the perovskite samples because MAI is not able to reach those areas to react and form MAPbI₃ [17]. Using areas under each reflection, we calculated the percentage of perovskite (MAPbI₃) in each sample based on different PbI₂ solution concentrations. Areas under each reflection were calculated by integration and then by using the following formula, and the percentage of perovskite in each sample was calculated:

$$\% Perovskite=\frac{Area under MAPb{I}_3\left(110\right) peak}{Area under MAPb{I}_3\left(110\right) peak+Area under Pb{I}_2\left(001\right)peak}\times 100\%$$

(1)

The percentage perovskite can be used as a measure of PbI₂-to-MAPbI₃ conversion efficiency. A higher percentage of perovskite (MAPbI₃) peak is a sign of better conversion efficiency and vice versa.

Table 1. Percentage of perovskite (MAPbI₃) content in the samples as a function of PbI₂ solution concentration.

PbI2 Concentration	% Perovskite
0.8 M	74.48
1.0 M	62.89
1.2 M	23.62

shows the percentage perovskite values calculated from Figure 2.

The trend in these values demonstrates that that the PbI₂-to-MAPbI₃ conversion is suppressed upon increasing the concentration of PbI₂ solution, which is absolutely expected. This is because, moving towards increased concentration of PbI₂ solution means increased and dense crystallization of PbI₂ within the mesostructured layer. Therefore, PbI₂ in the deeper regions of mesostructured TiO₂ is not accessible for Methylammonium Iodide (MAI) (when dipped in the MAI solution). An elaborate discussion regarding the PbI₂-to-MAPbI₃ conversion can be found in one of our previous works [17].

3.2. Influence of PbI₂ on the Absorbance before and after Conversion to MAPbI₃

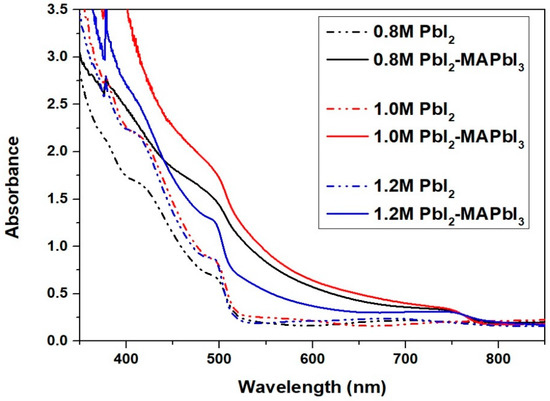

The samples were further analyzed using UV-Vis spectroscopy and the resulting spectra are shown in Figure 3.

The dotted lines show the spectra corresponding to the mesostructured TiO₂ substrates infiltrated with PbI₂ by spin-coating solutions of different PbI₂ concentrations. The same figure also shows the spectra of MAPbI₃ corresponding to the samples with three different PbI₂ concentrations. The spectra corresponding to the PbI₂ loaded films reveals that increasing PbI₂ concentration from 0.8 to 1 M results in a significant increase in the absorbance below 500 nm wavelength. However, further increase in the concentration to 1.2 M does not result in any noticeable change. This is probably because increasing the PbI₂ concentration results in increased loading of mesostructured TiO₂ with PbI_2, which is densely crystallized within the porous channels and in the form of capping layer. Going beyond 1 M concentration results in the removal of excess PbI₂ during spinning process. In other words, there is a limit, beyond which further loading of mesostructured TiO₂ films with PbI₂ is not possible, hence we do not see any further increase in absorbance when moving from 1 to 1.2 M PbI₂ loaded mesostructured TiO₂. Contrary to this, using lower concentrations of PbI₂ (such as 0.8 M) probably results in sparse crystallization of PbI₂ within the porous channels of mesostructured TiO₂.

The perovskite (MAPbI₃) corresponding to the 1 M PbI₂ concentration shows highest absorbance over the entire wavelength range while lowest absorbance (above 440 nm wavelength) is achieved for the perovskite prepared from 1.2 M PbI₂ solution. Our results agree with Wang et al. [11], who also performed similar measurements on ZnO doped TiO₂ nanostructured films loaded with MAPbI₃ prepared from different PbI₂ concentrations.

In general, these results suggest that 1 M PbI₂ concentration is most suitable for optimal conversion to MAPbI₃ using 0.063 M MAI solution. Although the highest PbI₂-to-MAPbI₃ conversion percentage is achieved for 0.8 M MAPbI₃ sample (based on GI-XRD results), its absorbance is still lower in comparison to the1 M MAPbI₃. This indicates that the overall amount of perovskite in the 0.8 M MAPbI₃ is still lower in comparison to the perovskite prepared using 1 M PbI₂ concentration. The absorbance of 1.2 M MAPbI₃ is even inferior to 0.8 M MAPbI₃ and 1 M MAPbI₃ samples within the visible range. This is due to its poorest PbI₂-to-MAPbI₃ conversion efficiency. Thus, it can be stated for sure that the overall amount of perovskite in 1 M MAPbI₃ sample is still higher than the perovskite in 0.8 M and 1.2 M samples.

3.3. Morphology of the Capping Layer before and after Conversion to MAPbI₃

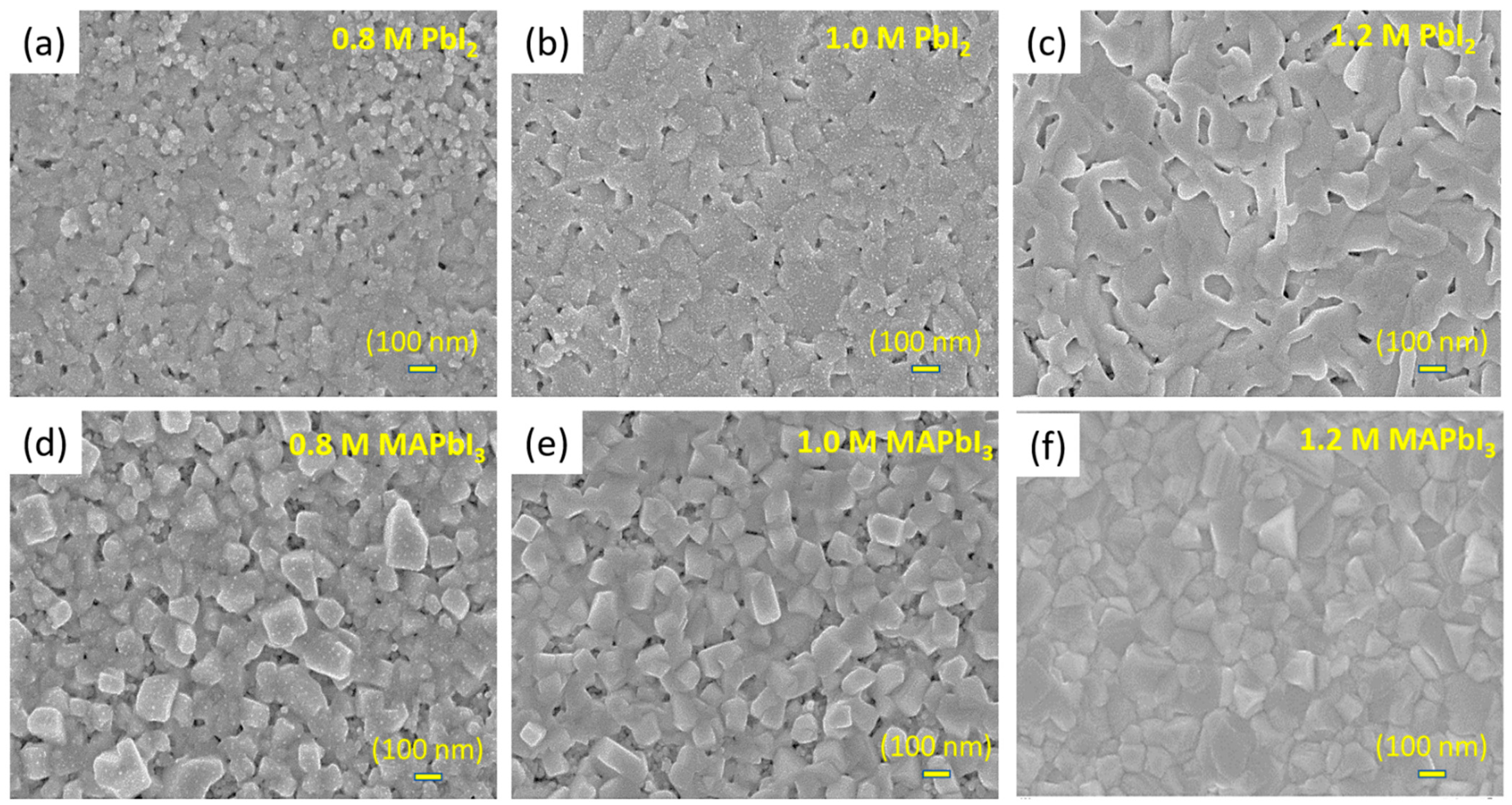

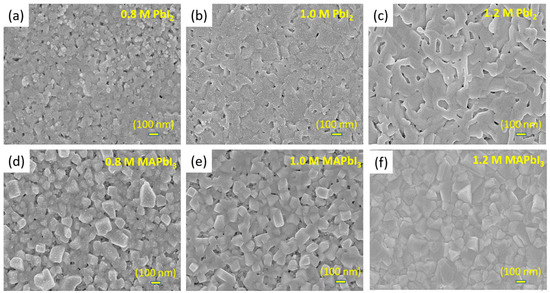

Figure 4 shows the SEM images of PbI₂ coated mesostructured TiO₂ substrates prepared using three different PbI₂ concentrations and their corresponding MAPbI₃ perovskite samples (after conversion).

It is evident from Figure 4a that the complete coverage of PbI₂ capping layer could not be achieved in 0.8 M PbI₂ sample. This is because this PbI₂ concentration is barely sufficient to fill in the pores while its capping layer can partially cover the mesoporous TiO₂ layer. The underlying TiO₂ nanoparticles left uncovered by PbI₂ capping layer are also visible as white spots in Figure 4a. For 1 M and 1.2 M PbI₂ samples (shown in Figure 4b,c, respectively), the PbI₂ capping layer completely covers the underlying mesostructured TiO₂.

The SEM images of corresponding 0.8 M, 1 M and 1.2 M MAPbI₃ samples are shown in Figure 4d–f, respectively. The pinholes in the perovskite capping layer are clearly visible for 0.8 M and 1 M MAPbI₃ samples. These pinholes may allow the infiltration of subsequent hole selective layer (HSL) down to the underlying mesostructured TiO₂ during its deposition process and enable the formation of parallel shunts to deteriorate the device performance. However, the complete coverage of the perovskite capping layer is achieved using 1.2 M concentration of PbI₂ (i.e., for 1.2 M MAPbI₃ sample shown in Figure 4f). This could possibly have significant contribution to the trends in the device performance as a function of PbI₂ concentration (typically the V_OC values).

Based on GI-XRD, UV-Vis and SEM results, increased PbI₂ concentration results in increased loading of mesostructured TiO₂. In other words, filling up of the empty spaces within the mesostructured TiO₂ by PbI₂ is proportional to the PbI₂ solution concentration. PbI₂ may also densely fill in the voids between TiO₂ nanoparticles upon using even higher concentration of PbI₂ solution such as 1.2 M.

Increased loading of PbI₂ within the mesostructured TiO₂ can be beneficial in terms of achieving higher perovskite content, provided that the PbI₂ is not densely crystallized within the porous channels. This is because PbI₂ in deeper regions should be accessible for effective reaction with MAI to form MAPbI₃. If PbI₂ is densely crystallized within the pores, MAI will not be able to reach PbI₂ lying in the deeper regions of mesostructured TiO₂ for complete reaction. It is also possible that the conversion is even restricted to the capping layer region with little conversion near the pore openings. This seems to be more obvious for 1.2 M MAPbI₃ sample in Figure 2 (GI-XRD diffractogram). On the other hand, using lower PbI₂ concentration (such as 0.8 M) may result in sparse crystallization of PbI₂ within the pores. Therefore, PbI₂ crystallized in deeper region of the porous channels are more accessible for MAI to react. Therefore, the conversion of PbI₂-to-MAPbI₃ is more efficient for lower PbI₂ concentration, and vice versa.

3.4. The Influence of PbI₂ Concentration on the Device Performance

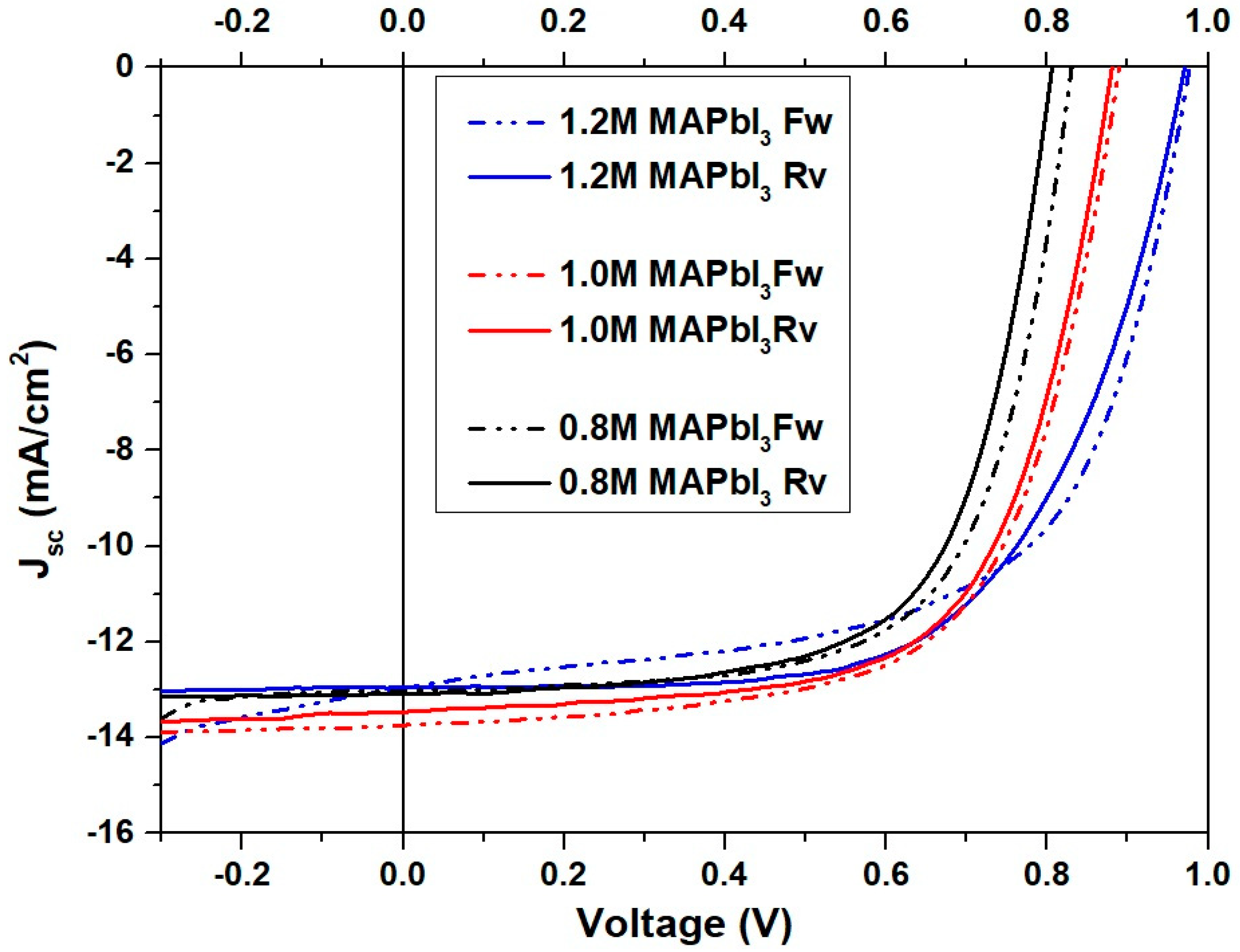

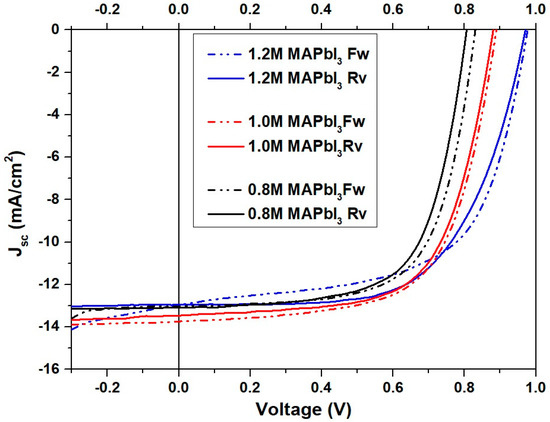

The devices were prepared using a perovskite absorber based on three different PbI₂ concentrations. Figure 5 shows the light J-V curves under forward and reverse sweep for the devices performing close to average power conversion efficiencies (PCEs). Three to four devices were analyzed for each PbI₂ concentration to tabulate the mean and standard deviation for each photovoltaic parameter shown in

Table 2. Mean and standard deviations of photovoltaic parameters measured in (a) forward and (b) reverse sweep for the PSCs prepared from different PbI₂ concentration.

(a) Forwards Sweep
PbI2 Concentration	JSC (mA/cm2)	VOC (V)	FF	PCE (%)
0.8 M	13.115 ± 0.374	0.839 ± 0.013	0.673 ± 0.025	7.425 ± 0.485
1.0 M	13.850 ± 0.365	0.891 ± 0.017	0.620 ± 0.024	7.655 ± 0.342
1.2 M	13.507 ± 0.939	0.975 ± 0.004	0.617 ± 0.006	8.120 ± 0.607
(b) Reverse Sweep
PbI2 Concentration	JSC (mA/cm2)	VOC (V)	FF	PCE (%)
0.8 M	13.155 ± 0.392	0.829 ± 0.021	0.693 ± 0.022	7.579 ± 0.532
1.0 M	13.395 ± 0.556	0.880 ± 0.022	0.635 ± 0.017	7.470 ± 0.321
1.2 M	13.407 ± 0.800	0.972 ± 0.008	0.620 ± 0.010	8.130 ± 0.638

.

The table shows decreasing trends in the fill factor with increase in PbI₂ concentration. This decreasing trend is more obvious upon increasing PbI₂ concentration from 0.8 to 1 M. This means that an increased amount of unreacted PbI₂ in the perovskite light absorber tends to reduce the photoconversion upon illumination as a function of PbI₂ concentration. Conversely, lower content of unreacted PbI₂ tends to positively influence the fill factor, and vice versa. The enhancement in V_OC due to increased concentration of PbI₂ solution can be attributed to the increased coverage of perovskite capping layer. We already mentioned this while discussing the SEM images. Despite drastic increase in the unreacted PbI₂ content with increased PbI₂ solution concentration (especially in the case of the 1.2 M MAPbI₃ sample), the V_OC tends to increase, which positively influences the PCE. Upon increasing the PbI₂ concentration from 0.8 to 1 M, an average V_OC of our solar cells in reverse sweep increases by 6.15%. It was very surprising that, upon increasing PbI₂ concentration from 1 to 1.2 M, the average V_OC in reverse sweep increases by 10.5%. This sudden increase in V_OC, despite limited amount of light harvesting MAPbI₃ phase in the 1.2 M MAPbI₃ sample can be attributed to the passivating effect of unreacted PbI₂ which potentially passivates all kinds of interfacial defects at the perovskite/TiO₂ interface [18,19]. This might also include physical or chemical passivation of oxygen vacancies acting as mid bandgap recombination centers at the perovskite/TiO₂ interface. This raises a question that why there is a significant increase in V_OC despite the presence of high content of unreacted PbI₂ in 1.2 M sample (i.e., around 76%). This relative amount of unreacted PbI₂ should ideally create a potential barrier for electron injection into TiO₂ and significantly reduce the V_OC and FF values. FF is somehow reduced, but why is V_OC enhanced?

4. Discussion

We speculate that there is a higher concentration of oxygen vacancies on the surface of TiO₂ nanoparticles because we performed the calcination of mesoporous TiO₂ layer in a closed box furnace instead of in the open air or in an environment with continuous air flow. Calcination of TiO₂ in open air or under continuous air flow can significantly reduce the oxygen vacancies and thus minimize the stochiometric imbalance on the surface of TiO₂ nanoparticles. The surface of TiO₂ (nanoparticles) directly establishes its interface with the subsequently deposited layer, such as the perovskite (in this case). Ho et al. analyzed the performance of PSCs as a function of calcination in oxygen-rich and oxygen-deficient environments, respectively. They confirmed that annealing TiO₂ films under oxygen-deficient environment significantly gives rise to higher concentration of oxygen vacancies on TiO₂ surface and deteriorates the device performance [13]. Saliba et al. strongly recommend the use of a hot plate with continuous air flow for calcination instead of using closed box furnace to ensure high efficiency of PSCs [8]. It is also recommended to perform UV-ozone or TiCl₄ treatments of the TiO₂ scaffold prior to the deposition of perovskite to remove oxygen defects at the perovskite/TiO₂ interface [15,18]. In such conditions, the best device performance can possibly be achieved using 1 M PbI₂ concentration when using 2-step sequential deposition of perovskite on top of mesoporous TiO₂. However, in our case, we only had the facility to perform calcination of compact and mesoporous TiO₂ in the closed box furnace.

We propose that annealing TiO₂ samples in closed box furnace could have resulted in higher content of oxygen vacancies than if the annealing was performed on hot plate in open air. This is a well-known fact; that cooler air is denser than the hotter air. Upon using a hot plate in the open air, only the substrates are at annealing temperature (i.e., around 450 °C), while the air on top of the substrates is cooler and is at room temperature. Thus, when TiO₂ coated substrates are annealed in open air, their surfaces are expected to have continuous exposure to the oxygen because the cooler air on top of the substrates is denser. This can potentially reduce the amount of oxygen vacancies in the surface region of TiO₂ films (during annealing process). On the other hand, when the closed box furnace is used for calcination, both the samples and the air inside the furnace chamber are at a higher temperature (i.e., at 450 °C). The hot air inside the closed box furnace is lighter and probably does not make substantial contact on top of the TiO₂ surface. Thus, the samples’ surfaces do not have sufficient exposure to oxygen during annealing in a closed box furnace, and we would ideally expect higher concentration of oxygen vacancies close to the TiO₂ film surface.

There could be another explanation; that while annealing the samples in closed box furnace, there is no continuous exchange of air between the calcination chamber (where the samples are placed) and the region outside the furnace. In contrast, the substrates being annealed on the hot plate in open air are expected to be exposed to an infinite amount of air which continuously supplies oxygen molecules to the sample surface, which can potentially play an important role in minimizing the oxygen vacancies. Since our samples were calcined in a closed box furnace, we expect more oxygen defects at the perovskite/TiO₂ interface than if the calcination was performed on hot plate in open air. Thus, our sample devices probably require more unreacted PbI₂ for defects passivation than what is achieved using 1 M PbI₂ concentration. Thus, using 1.2 M concentration of PbI₂ solution, gives significantly large amount of unreacted PbI₂ which establishes a large interfacial contact with TiO₂ nanoparticles. This restricts the electron injection into TiO₂ within few areas where perovskite is directly able to establish its interface with TiO₂. This also limits the oxygen vacancies coming in the path of photogenerated electrons being injected into TiO₂. In other words, the amount of residual PbI₂ required for passivation of oxygen vacancies is proportional to the oxygen vacancy concentration in TiO₂.

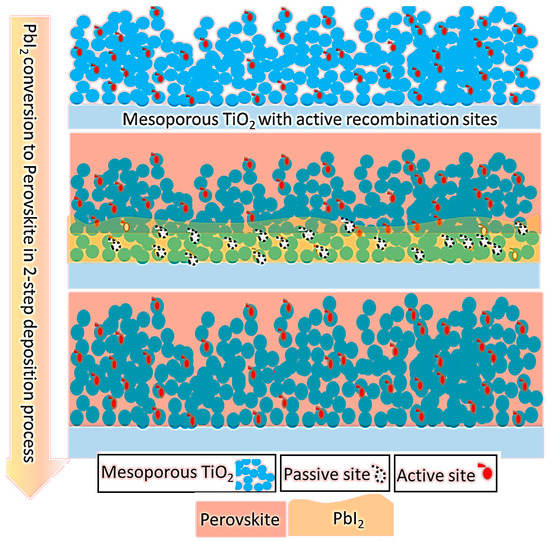

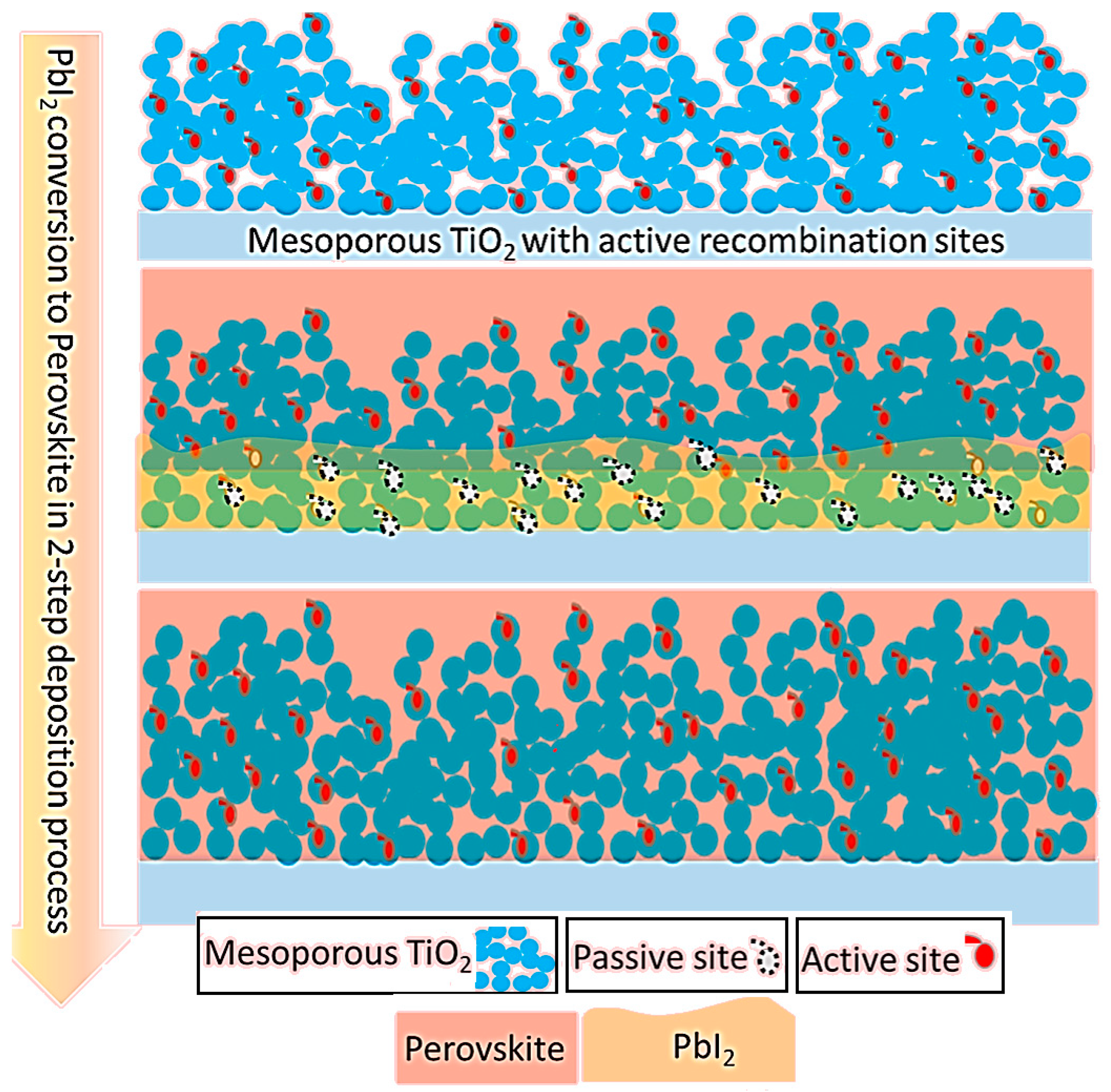

The passivation of oxygen defects by residual PbI₂ in the mesostructured TiO₂ is schematically explained in Figure 6, where oxygen vacancies are marked as active sites (in red). These defects will be coming in the path of injected electrons and behave as mid-gap states. These states tend to trap many injected electrons, which subsequently recombine with the holes in the perovskite valance band. This phenomenon is also known as electron back-transfer [14,20] and sometimes called the surface recombination [21]. Excess or unreacted PbI₂ in the embedded perovskite is able make such oxygen vacancies inactive or passivated, which are marked in white color.

If PbI₂-to-MAPbI₃ conversion is more complete, then there is large interfacial contact area between the perovskite and TiO₂, which means that more mid-gap active defects are also expected to be encountered by injected electrons. If the density of such active defects is very high, then it is useful to deactivate them by passivation using relatively higher concentration of PbI₂ solution such as 1.2 M. We believe that 1.2 M concentration of PbI₂ solution (instead of 1 M concentration) helped us to minimize the active defect sites to increase the V_OC. It is also important to keep in mind that very high content of unreacted PbI₂ is also not desirable because it may not leave any region where the perovskite may establish its interface with TiO₂. In that case, the remnant PbI₂, which establishes its interface with TiO₂, may only act as a potential barrier against electron injection.

Since the conversion initiates from the top and proceeds towards the bottom, the perovskite/TiO₂ interface seems to be more concentrated close to the topmost portion of the mesostructured TiO₂ layer while the deeper region mostly comprises of PbI₂/TiO₂ interfaces due to the incomplete conversion.

It is also possible that the oxygen defects are more concentrated in the deeper regions of the mesostructured TiO₂ layer due to the restricted transportation of oxygen in that region during calcination in the closed box furnace. When using the closed box furnace with no continuous air flow, the fixed amount of oxygen in this environment is probably just able to minimize the defects close to the surface of mesostructured TiO₂ film (i.e., the area which is most accessible for oxygen). Thus, in such circumstances, the efficient conversion of PbI₂ to the perovskite is not ideal for fabricating efficient devices. Rather, a large portion of unreacted PbI₂ is important, which can be ensured by using the PbI₂ solutions with concentrations above 1 M; although this concentration is well-known to be optimal for PSCs when using two-step sequential deposition of perovskite photoactive layer.

5. Conclusions

The influence of PbI₂ solution concentration on the performance of PSCs (when using two-step sequential deposition of perovskite) has been frequently reported in the past, where 1 M PbI₂ concentration is well-known to be suitable for optimal device performance. In this work, we found that the devices prepared from 1.2 M concentration of PbI₂ solution perform better than those prepared from 1 M PbI₂ solution, owing to the enhancement in V_OC. Increased PbI₂ solution concentration resulted in increased remnant PbI₂ content in the perovskite (MAPbI₃), which plays a crucial role in the enhancement of V_OCs. Lower unreacted PbI₂ content (upon using lower PbI₂ concentration such as 0.8 M) was observed to positively influence the fill factor. However, significant increase in the V_OC, when using PbI₂ concentration beyond its optimal limit of 1 M was a bit surprising. We speculate that apart from enhanced coverage of perovskite capping layer for 1.2 M sample, higher unreacted PbI₂ content plays an important role in interfacial defects passivation. In our case, the mesostructured TiO₂ was calcined in a closed environment without any air flow, which might have resulted in higher density of oxygen vacancies at the perovskite/TiO₂ interface than if we were able to perform calcination in an open-air environment or at least under continuous air flow. Therefore, it is most likely that relatively more PbI₂ is required to passivate them which is possible by using higher PbI₂ solution concentration than 1 M. Thus, by increasing the residual PbI₂ content between TiO₂ and perovskite, the interfacial area for the current extraction is significantly reduced. This potentially reduces a large number of oxygen vacancies coming in the path of injected electrons. Thus, the photogenerated electrons in the perovskite can only be injected into TiO₂ via restricted regions, where perovskite forms direct interface with TiO₂. By restricting the interfacial contact area between the perovskite and TiO₂, defect density coming along the path of injected electrons is significantly reduced. Reduced number of trap-states can be quickly saturated in the beginning of device operation under illumination. Thus, the only trajectory left for the electrons would be to smoothly be injected into TiO₂ via limited regions of perovskite/TiO₂ interface and be extracted into the external circuit via conductive FTO.
