Li4Ln[PS4]2Cl: Chloride-Containing Lithium Thiophosphates with Lanthanoid Participation (Ln = Pr, Nd and Sm)

by
Pia L. Lange
1,
Sebastian Bette
2,
Sabine Strobel
1,
Robert E. Dinnebier
2 and
Thomas Schleid
1,*
1
Institute for Inorganic Chemistry, University of Stuttgart, Pfaffenwaldring 55, 70569 Stuttgart, Germany
2
Max Planck Institute for Solid State Research, Heisenbergstraße 1, 70569 Stuttgart, Germany
*
Author to whom correspondence should be addressed.
Crystals 2023, 13(10), 1408; https://doi.org/10.3390/cryst13101408
Submission received: 18 August 2023 / Revised: 19 September 2023 / Accepted: 20 September 2023 / Published: 22 September 2023
(This article belongs to the Special Issue Optical and Spectroscopic Properties of Rare-Earth-Doped Crystals (2nd Edition))
Browse Figures
Versions Notes

Abstract

:
The synthesis and structural analysis of three new chloride-containing lithium thiophosphates(V) Li4Ln[PS4]2Cl with trivalent lanthanoids (Ln = Pr, Nd and Sm) are presented and discussed. Single crystals of Li4Sm[PS4]2Cl were obtained and used for crystal structure determination by applying X-ray diffraction. The other compounds were found to crystallize isotypically in the monoclinic space group C2/c. Thus, Li4Sm[PS4]2Cl (a = 2089.31(12) pm, b = 1579.69(9) pm, c = 1309.04(8) pm, β = 109.978(3)°, Z = 12) was used as a representative model to further describe the crystal structure in detail since Li4Pr[PS4]2Cl and Li4Nd[PS4]2Cl were confirmed to be isotypic using powder X-ray diffraction measurements (PXRD). In all cases, a trigonal structure in the space group R 3 ¯ (e.g., a = 1579.67(9) pm, c = 2818.36(16) pm, c/a = 1.784, Z = 18, for Li4Sm[PS4]2Cl) displaying almost identical building units worked initially misleadingly. The structure refinement of Li4Sm[PS4]2Cl revealed bicapped trigonal prisms of sulfur atoms coordinating the two crystallographically distinct (Sm1)3+ and (Sm2)3+ cations, which are further coordinated by four anionic [PS4]3− tetrahedra. The compounds also contain chloride anions residing within channel-like pores made of [PS4]3− units. Eight different sites for Li+ cations were identified with various coordination environments (C.N. = 4–6) with respect to chlorine and sulfur. EDXS measurements supported the stoichiometric formula of Li4Ln[PS4]2Cl, and diffuse reflectance spectroscopy revealed optical band gaps of 2.69 eV, 3.52 eV, and 3.49 eV for Li4Sm[PS4]2Cl, Li4Nd[PS4]2Cl, and Li4Pr[PS4]2Cl, respectively. The activation energy for Li+-cation mobility in Li4Sm[PS4]2Cl was calculated as Ea(Li+) = 0.88 eV using BVEL, which indicates potential as a Li+-cation conductor.

1. Introduction

Lithium-containing ternary ortho-thiophosphates(V) with their complex [PS4]3− anions were first reported in 1982 [1]. A whole lot more compounds and structures are known for quaternary derivatives, whether by introducing new cations, such as rare-earth metals [2], for example, or by adding further anions, like halogenides [3]. Li6PS5Cl [4] (= Li6[PS4]SCl) derived from argyrodite (Ag8[GeS4]S2) [5], a silver mineral, where the halogenide anions build a tetrahedral close packing with the [PS4]3− units in the tetrahedral voids [6], is a promising material for Li+-cation conducting all solid-state batteries as electrolyte [6]. Compounds like these often provide enough flexibility by being disordered to allow for ion mobility within their structures.
The search for a suitable solid electrolyte for all solid-state lithium-ion batteries is fueling the progress in this field of research. Beginning with the ternary Li3[PS4] [1], which already provides relatively good Li+-cation conductivity [7], but not quite as good as when halogenides are introduced as, for example, in Li6PS5X (X = Cl, Br, I) [4].
The rich structural variety of compounds in the realm of alkali metal-containing ortho-thiophosphate realm with rare-earth metal participation, especially within the (A3[PS4])x(RE[PS4])y (A = alkali metal) system, has been thoroughly addressed already [8]. Those ortho-thiophosphates(V) are especially known for the heavier alkali metals such as cesium [9,10,11] potassium [12] or mixed cations like Cs2NaRE[PS4]2 [9]. Interestingly, rubidium-containing rare-earth metal thiophosphates contain both [PS4]3− and [P2S6]4− complex anions, for example, in RbLa[P2S6] [13], Rb3Sm[PS4]2 [10] or Rb4Ln[P2S6][PS4]2 [14]. On the other hand, when only sodium is used as a monovalent cation, exclusively thiophosphate(IV) groups [P2S6]4− are present as complex counter ions [13,15,16]. This seems to be a special case for sodium, as the lightest alkali metal lithium yields compounds with compositions like Li9RE2[PS4]5 (x = 3, y = 2) [17,18], Li6RE3[PS4]5 (x = 2, y = 3) [2,18] or Li15RE7[PS4]12 (x = 5, y = 7) [19], where again only ortho-thiophosphate(V) anions [PS4]3− are present. Recently, the first thiophosphate with the lightest lanthanoid, namely Li3La[PS4]2 (x = y = 1) [20], has been published. To synthesize this compound, the lanthanoid trichloride was used as the starting material, though no chlorine was observed in this compound, as confirmed by EDXS measurements. The synthetic route pursued in this paper was similar to the one that led to Li3La[PS4]2. However, this time, chlorine did implement itself into the products.
When lanthanum is used as a rare-earth metal, this leads to the formation of orthorhombic Li3La[PS4]2 [20]. On the other hand, when Ln = Nd and Sm–Lu are employed, the resulting lithium compounds, either with the phase compositions Li9Ln2[PS4]5, Li6Ln3[PS4]2 [2,18] or Li15Ln7[PS4]12 [19] crystallize in a monoclinic lattice. However, while examining the lighter lanthanoid systems, including chlorine, such as for Ln = Pr, Nd and Sm, crystal formation with an intriguing phenomenon of twinning arises. It appears that the monoclinic structure of the title compounds Li4Ln[PS4]2Cl mimics a trigonal substructure. Regrettably, no compounds have been discovered so far that incorporate all the elements lithium, cerium, phosphorus and sulfur at once, so further investigation is required to address this matter. Here, we present the first chloride- and lanthanoid-containing lithium thiophosphates(V) with the structured formula Li4Ln[PS4]2Cl with Ln = Pr, Nd and Sm.

2. Experimental Section

2.1. Solid-State Synthesis

The synthesis of the title compounds Li4Ln[PS4]2Cl (Ln = Pr, Nd and Sm) was conducted starting from the lanthanoid trichlorides (LnCl3, Ln = Pr, Nd and Sm: ChemPur, Karlsruhe, Germany, 99.9%), phosphorus(V) sulfide (P2S5: Acros Organics, Geel, Belgium, 98%) and lithium sulfide (Li2S: Sigma Aldrich, Taufkirchen, Germany, 99.9%) in a stoichiometric ratio of 1:1:3, following reaction Equation (1), but originally scheduled to yield the chloride-free thiophosphates Li3Ln[PS4]2 in analogy to Li3La[PS4]2 [20].
RECl3     +     P2S5     +     3 Li2S     →     Li4RE[PS4]2Cl     +     2 LiCl
All substances were handled inside an argon-filled glove box and under strict exclusion of ambient air. The starting materials were placed inside glassy silica ampoules and sealed under a dynamic vacuum. A muffle furnace (Nabertherm, Lilienthal, Germany) was programmed to heat the ampoules to 600 °C within 48 h, keep the temperature for 10 h, and then cool gradually back to room temperature over a period of 43 h with 5 h plateaus at 560, 530 and 450 °C.

2.2. Thermal Analysis (DSC)

Differential scanning calorimetric measurements (DSC) were performed on a Netzsch 404 calorimeter. The starting materials NdCl3, P2S5 and Li2S were thoroughly ground and filled into a glassy silica ampoule. The temperature program for the measurement was set to ramp from 30 to 800 °C with a rate of 5 °C/min under a constant argon gas flow.

2.3. Single-Crystal X-ray Diffraction (SCXRD)

The synthesis using samarium as lanthanoid yielded crystals sufficient for a single-crystal X-ray diffraction experiment. This measurement was performed on a Bruker-Nonius κ-CCD diffractometer applying monochromatized Mo-Kα radiation (λ = 71.07 pm). Through direct-method calculations using SHELXS-97 and refining the calculation via SHELXL-97 [21,22,23], the crystal structure could be solved first in the trigonal space group R 3 ¯ and later in the correct monoclinic space group C2/c. Further details on the measurement can be retrieved from FIZ Karlsruhe, 76344 Eggenstein-Leopoldshafen, Germany (E-mail: [email protected]) under the deposition number CSD 2282010.

2.4. Powder X-ray Diffraction (PXRD)

As only the syntheses with samarium led to single crystals suitable for SCXRD, the isotypic structure of Li4Nd[PS4]2Cl was confirmed by powder X-ray diffractometry. X-ray powder diffraction patterns (PXRD) for the crystal structure refinement were collected on a laboratory powder diffractometer in Debye–Scherrer geometry (Stadi P-diffractometer, Stoe & Cie, Darmstadt, Germany, Mo-Kα1 radiation from primary Ge(111)-Johann-type monochromator, a triple array of Mythen 1 K detectors, Dectris, Baden, Switzerland). The sample was sealed in a 0.5 mm diameter borosilicate glass capillary (Hilgenberg glass, Malsfeld, Germany, no. 0140), which was spun during the measurements, applying a scan time of 16 h.
The program TOPAS 6.0 [24] was used to refine the crystal structure of Li4Nd[PS4]2Cl. Two crystal structure models were extracted from single-crystal XRD data obtained from poor-quality crystals and evaluated using PXRD. The peak profile was described using the fundamental parameter approach of TOPAS [25,26], and the background modeled by Chebychev polynomials of 6th order. Both the trigonal and monoclinic cell metrics were evaluated as suitable using Le Bail fits [27]. Hence, we performed fully weighted Rietveld [28] refinements in order to evaluate both structure models. During the refinements, the thiophosphate-related phosphorus and sulfur positions were constrained using rigid bodies in z-matrix notation. Bond lengths and angles were refined, restraining them to reasonable values.

2.5. Energy-Dispersive X-ray Spectroscopy (EDXS)

Several crystals from each reaction were selected, and their elemental composition was determined using an energy-dispersive X-ray spectrometer (Cameca, Gennevilliers, France, SX-100, electron microprobe). The samples were placed on a conductive carbon tape (Plano G3347, Wetzlar, Germany) and sputtered with carbon to ensure conductive surfaces. The acceleration voltage at which the measurement was conducted was 15.0 keV with a pick-up angle of 40°. The SEM image was taken from the same crystal Li4Sm[PS4]2Cl used for SXRD on the device with the same conditions applied for the EDXS measurements.

2.6. Diffuse Reflectance Spectroscopy (DRS)

To determine the location of the optical band gap of the title compounds, diffuse reflectance spectroscopy was applied. The samples were measured with an integrating sphere at a 45° angle on a J&M Tidas (Essingen, Germany) device. The obtained spectra have been analyzed via the Kubelka-Munk function [29] to transform reflectance into absorbance.

2.7. Bond-Valence Energy-Landscape (BVEL) Calculations

For the evaluation of possible ion-conducting pathways, theoretical bond-valence energy-landscape calculations were conducted. The program softBV (GUI Version 1.0) [30,31] was used for the calculation, and the program VESTA (Version 3.5.7) [32] took care of the visualization.

3. Results and Discussion

3.1. Material and Synthesis

Attempts to synthesize new representatives of the composition of Li3Ln[PS4]2 in analogy to the previously published Li3La[PS4]2 [20] following the reaction (2) led to the new compounds Li4Ln[PS4]2Cl (Ln = Pr, Nd and Sm) with one formally added LiCl equivalent.
RECl3     +     P2S5     +     3 Li2S     →     Li3RE[PS4]2     +     3 LiCl
The oven program used for their synthesis is explained in the experimental section and follows the results obtained from thermoanalytical measurements. It differs slightly from the procedure used to prepare Li3La[PS4]2 in that the reaction temperature was 150 °C less than for the lanthanum compound and ran significantly shorter although having more plateaus.
After the reaction process, single crystals were found and selected for Ln = Sm under the argon atmosphere of a glove box, which were solved for their crystal structure using SCXRD data. The structure refinement of Li4Sm[PS4]2Cl served as a starting point for the structure solution of the compounds incorporating Ln = Pr and Nd, where no suitable single crystals could be selected. However, powder X-ray diffraction measurements (PXRD) were utilized to confirm whether the structures are isotypic. The refinement of Li4Nd[PS4]2Cl is shown in detail below; however, due to unknown by-products, the refinement could not be accomplished reliably for Li4Pr[PS4]2Cl.
As expected from the stoichiometry of the starting materials and from the experience with the Li3La[PS4]2 [20] synthesis, lithium chloride was found as by-product. Additionally, small amounts of the ternary thiophosphates Ln[PS4] and some unidentified by-products could be observed in a few of the powder diffractograms.

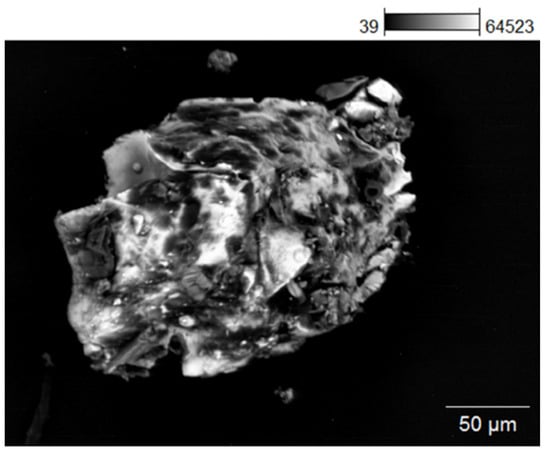

To prove the stoichiometric formula resulting from the single-crystal X-ray diffraction experiments to be correct, especially concerning phosphorus, sulfur and chlorine in the compound, EDXS measurements were performed for the samarium-containing single crystal. The results are presented in Table 1 and support the formula of Li4Sm[PS4]2Cl very well. The observed oxygen content may be due to the short time when the sample was not protected by inert-gas conditions during its transfer. The vulnerability of the crystal towards ambient conditions could also be observed in the taken SEM picture (Figure 1), as the surface of the sample looks rather rough. The moisture sensitivity was also confirmed by PXRD measurements. A sample of the bulk material was measured directly after storage under an argon atmosphere and for two consecutive days after being removed from the glove box. The loss of intensity of the reflection over a period of two days stemming from the target compound versus the stable intensities of lithium chloride hinted at a severe degradation of Li4Sm[PS4]2Cl.

3.2. Structure Description from Single-Crystal XRD Data and Discussion of PXRD

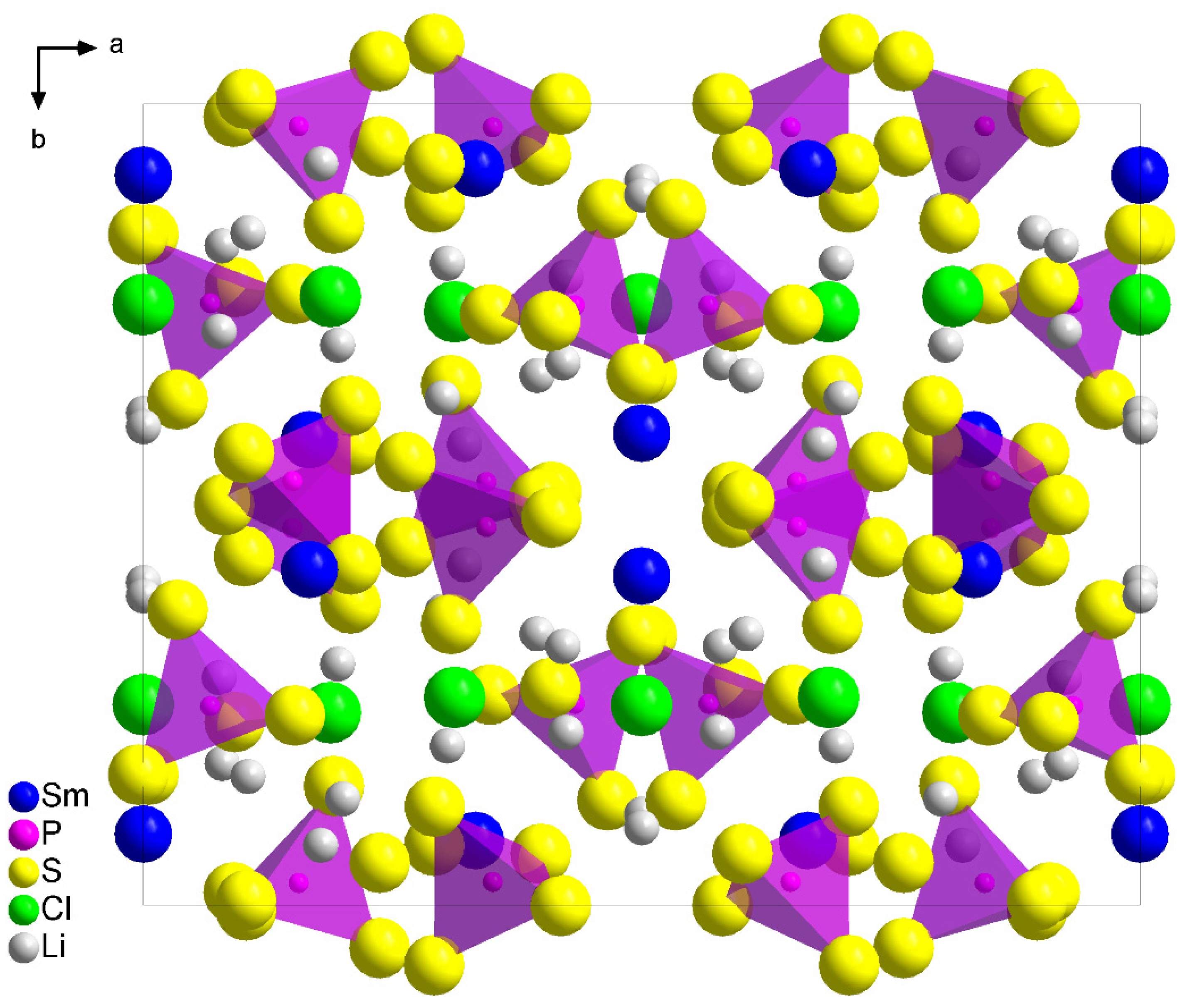

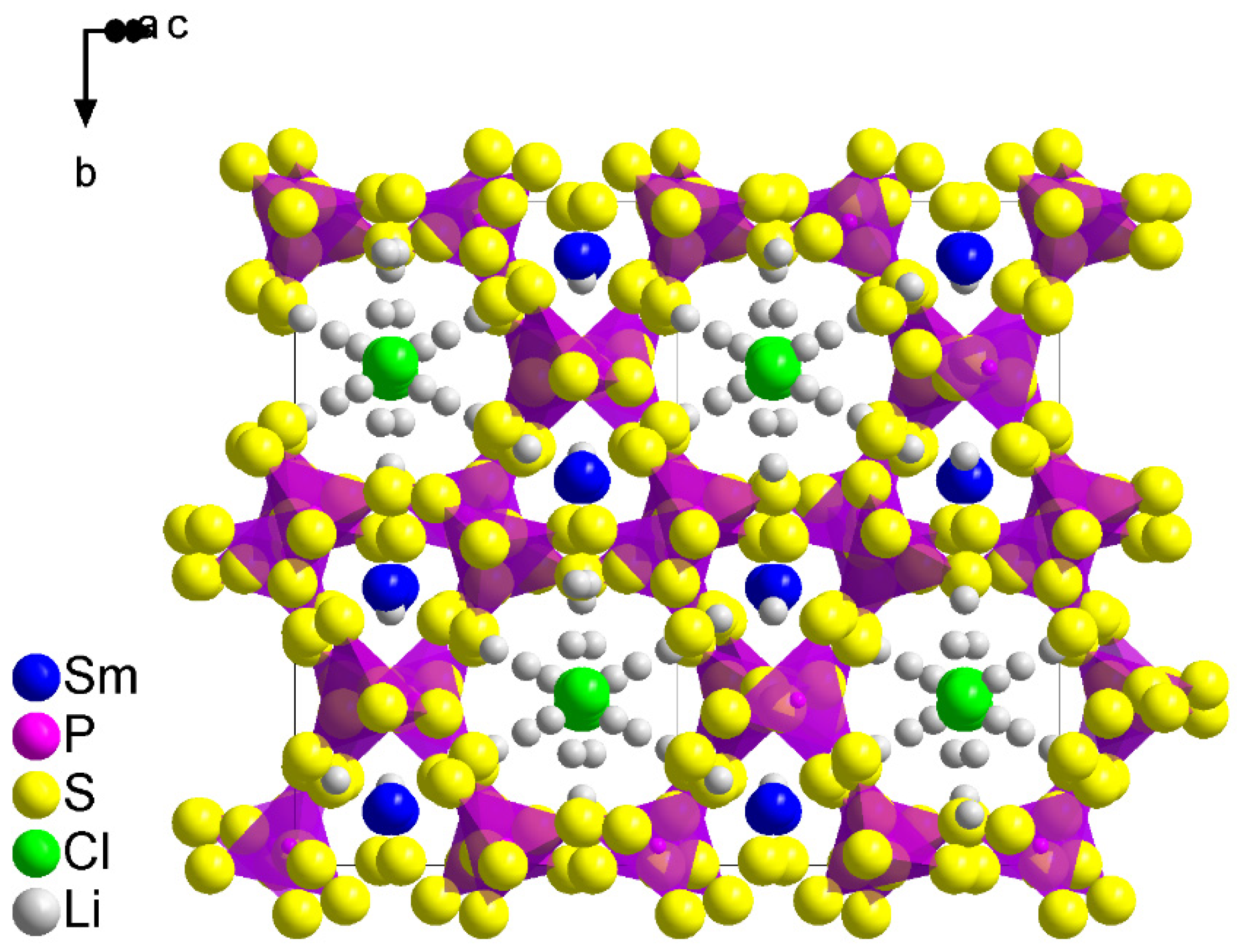

The title compounds with the structured formula Li4Ln[PS4]2Cl with Ln = Pr, Nd and Sm crystallize isotypically in the monoclinic space group type C2/c with the lattice parameters shown in Table 2 and Table 3, allowing twelve formula units in the unit cell. A picture of the extended unit-cell content of Li4Sm[PS4]2Cl as a representative of all three Li4Ln[PS4]2Cl compounds viewed along the c-axis and highlighting the complex [PS4]3− anions is presented in Figure 2.
The single-crystal structure refinement could only be solved satisfyingly by introducing the two-fold twinning law (−0.5 −0.5 1; −0.5 −0.5 −1; 0.5 −0.5 0) into the calculation. Without this implementation, the structure solution appears to be also possible using the trigonal space group R 3 ¯ , due to generating symmetry on all three axes. The calculated solution in R 3 ¯ seemed chemically very plausible; however, the weighted R2-value was far too high (wR2 ≈ 0.43), as well as other refinement values (Table 2). This supported the solution in the monoclinic space group C2/c, which led to the data presented in this article with the quality indices shown in Table 2. The concept of the trigonal lattice, as well as an explanation for the tendency of crystals to form twins, becomes clear when observing the 2 × 2 × 2 unit cell from the viewing direction of [1 0 1 ¯ ]. The threefold axis through all chloride anions suggests trigonal symmetry (Figure 3).

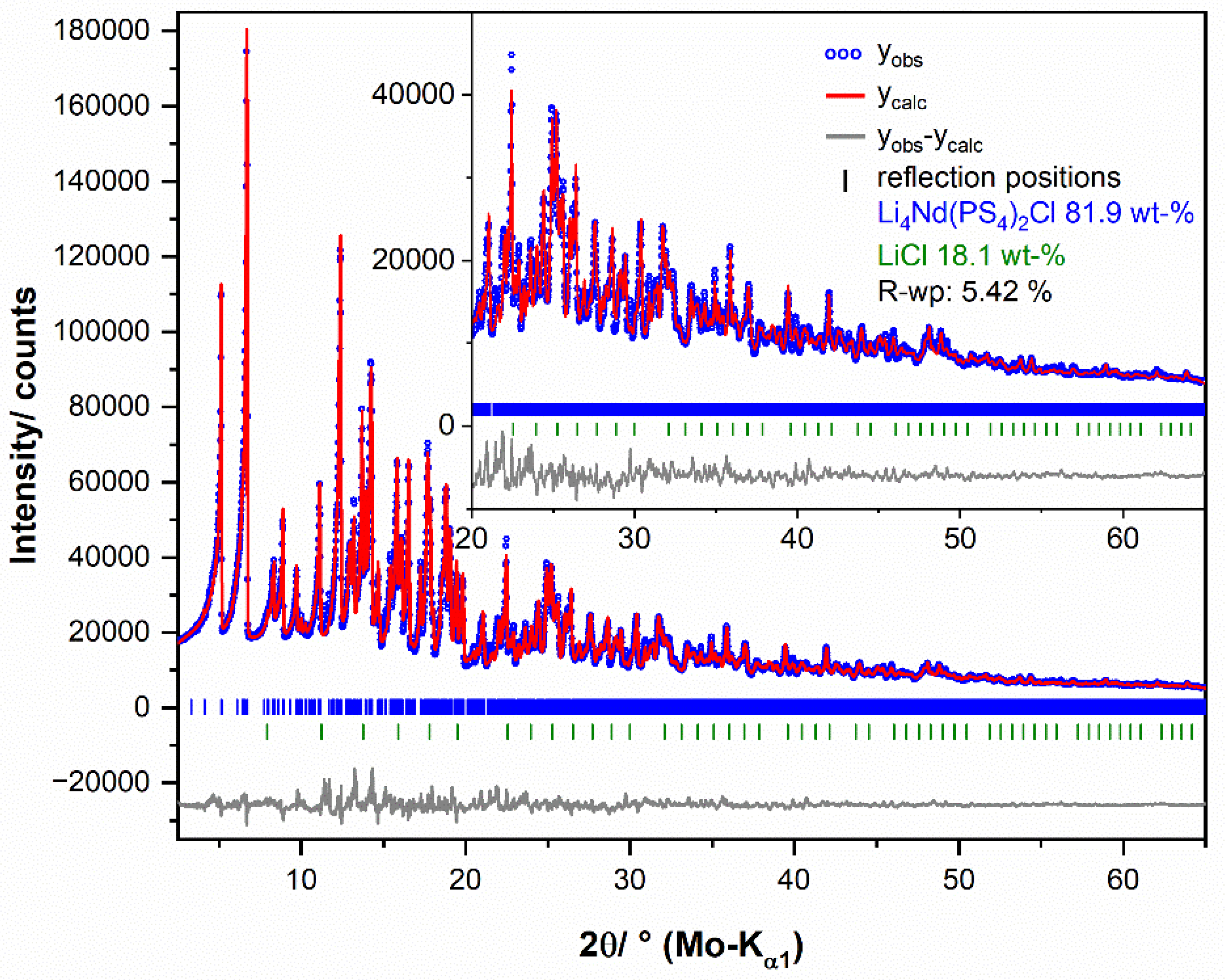

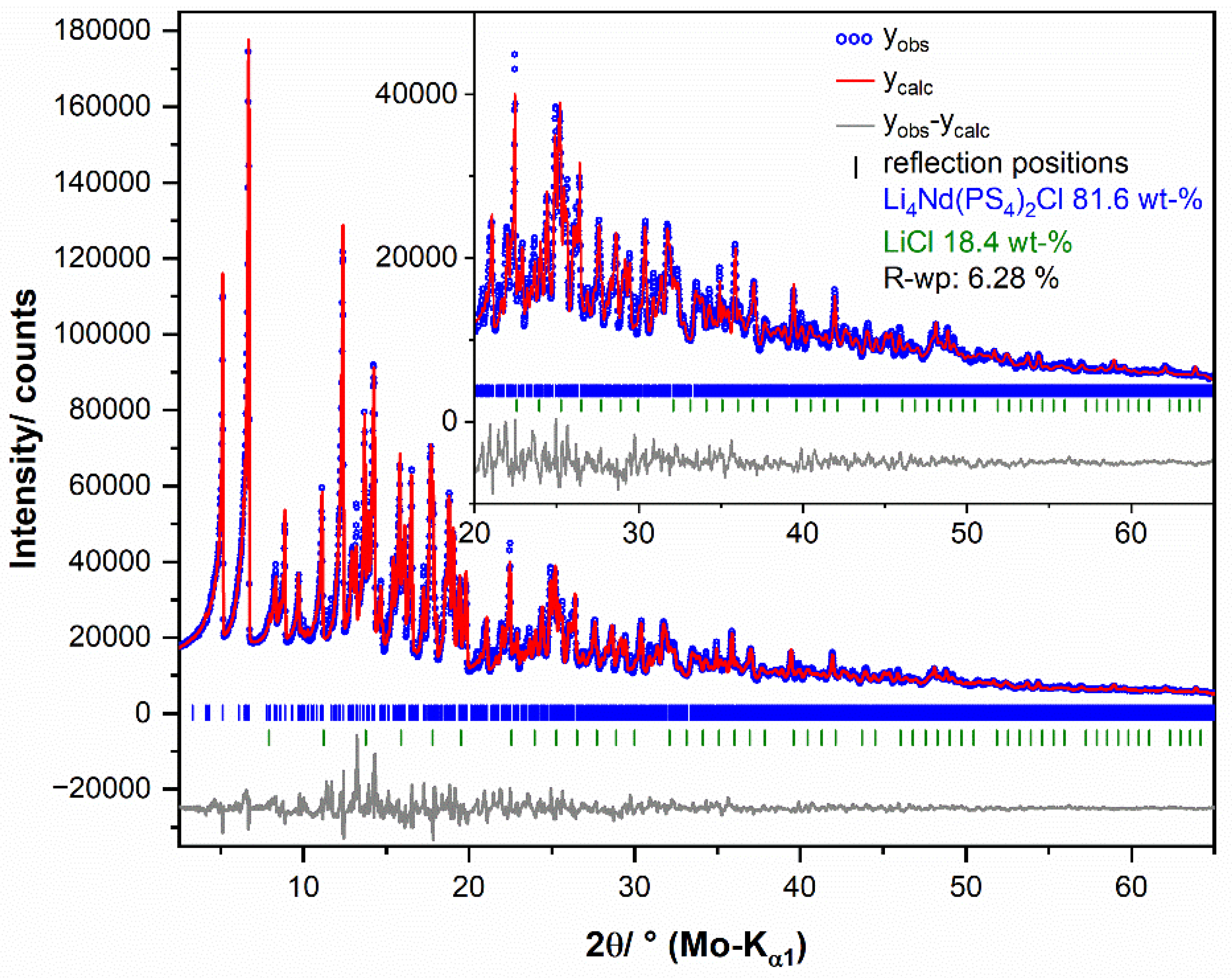

The graphical results of the PXRD refinements for the neodymium-containing phase are presented in Figure 4 for the trigonal setting and Figure 5 for the monoclinic one. Both structure models led to acceptable residuals (trigonal structure: R = 6.3%, monoclinic structure: R = 5.4%). The graphical result of the fit using the monoclinic structure model is clearly better than the fit for the trigonal one, in particular in the range between 2θ = 10 and 20°. Although this is partially attributed to the increased number of parameters used for the refinement (monoclinic model: 94 independent parameters, trigonal model: 75 independent parameters), we evaluate the monoclinic structure model as more suitable. We suggest that the monoclinic structure refinement as a superstructure reflects the actual crystal structure of Li4RE[PS4]2Cl better than the trigonal setting. The crystallographic data are given in Table 3.

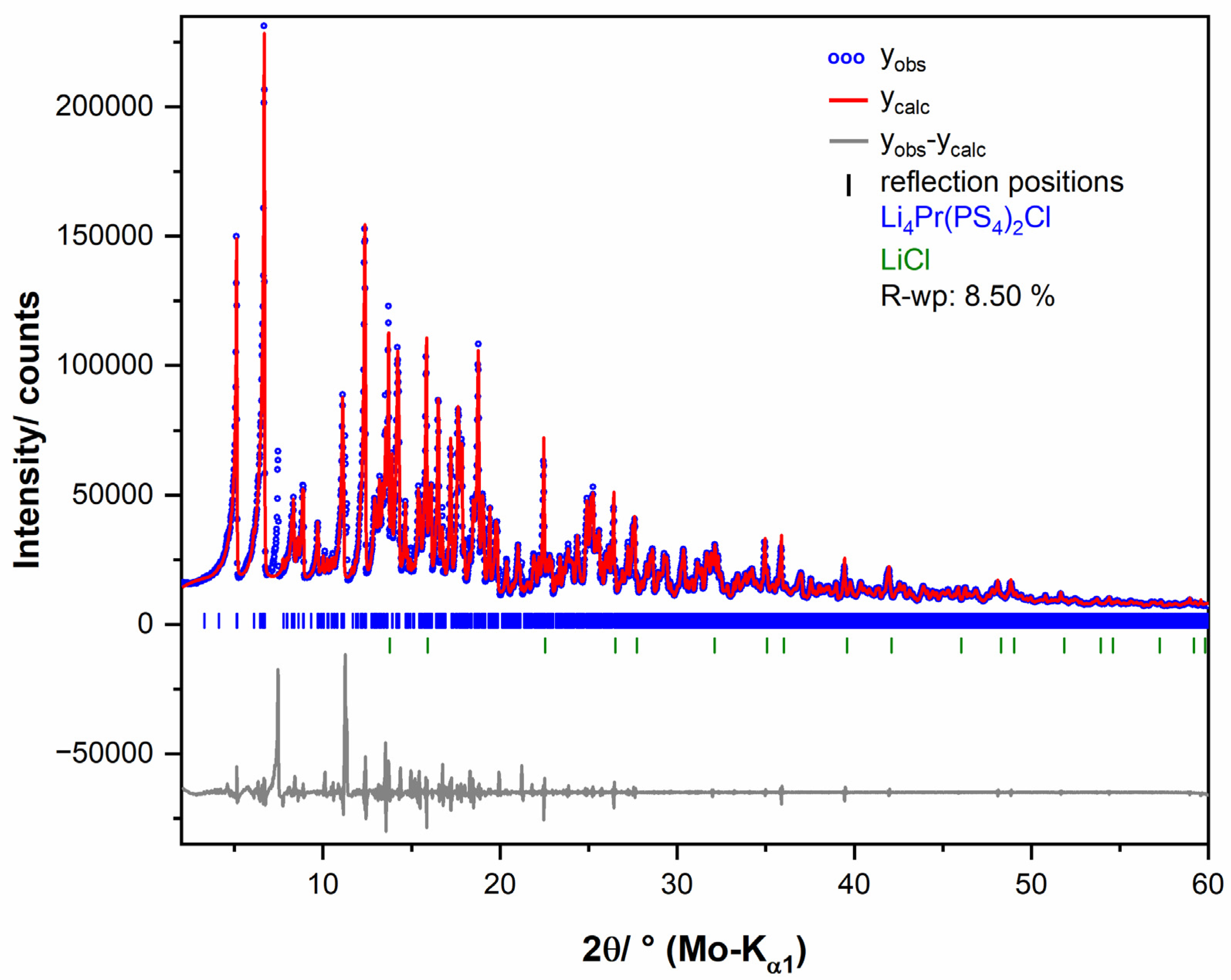

The PXRD pattern of Li4Pr[PS4]2Cl shows vast similarities to the neodymium analog; hence, we expected this phase to crystallize in the same monoclinic structure. A close inspection of the diffraction data revealed the presence of LiCl (Figure 6, green tick marks) and of unindexed reflections (Figure 6, grey line, e.g., at 2θ = 7.5, 13.5 and 13.7°). As the diffractogram cannot be indexed, including these reflections, and as a symmetry reduction or using a reasonable supercell, does not lead to a proper description of these peaks, we assigned them to an unidentified by-product. Due to peak overlaps, we were not able to perform a fully weighted Rietveld [28] refinement of Li4Pr[PS4]2Cl, so we extracted the lattice parameters from a Le Bail fit [27]. Thus, Li4Pr[PS4]2Cl crystallizes in the space group C2/c with a = 2104.5(6) pm, b = 1581.3(3) pm, c = 1322.3(5) pm and β = 110.02(3)° for Z = 12 (Table 4). These axes would correspond to a = 1581–1590 pm and c = 2842 pm, if the structure were set up trigonally. The a- and b-axis differ slightly as these values are recalculated from the monoclinic results, showing once more that the monoclinic version is indeed more precise. The exact peak positions and integral peak intensities of the unknown by-product were extracted by single line fits (Table 5). These peaks do not match any reference data of known lithium or praseodymium chlorides, thiophosphates, phosphates or mixed chloride thiophosphate phases.
In total, there are 27 different crystallographic sites within the monoclinic structure presented in Table 6 for the single-crystal X-ray diffraction experiment of Li4Sm[PS4]2Cl. For comparison, the 19 crystallographic sites of the trigonal representation are depicted in Table 7. The crystallographic coordinates for Li4Nd[PS4]2Cl from the powder X-ray diffraction experiments are shown in Table 8.

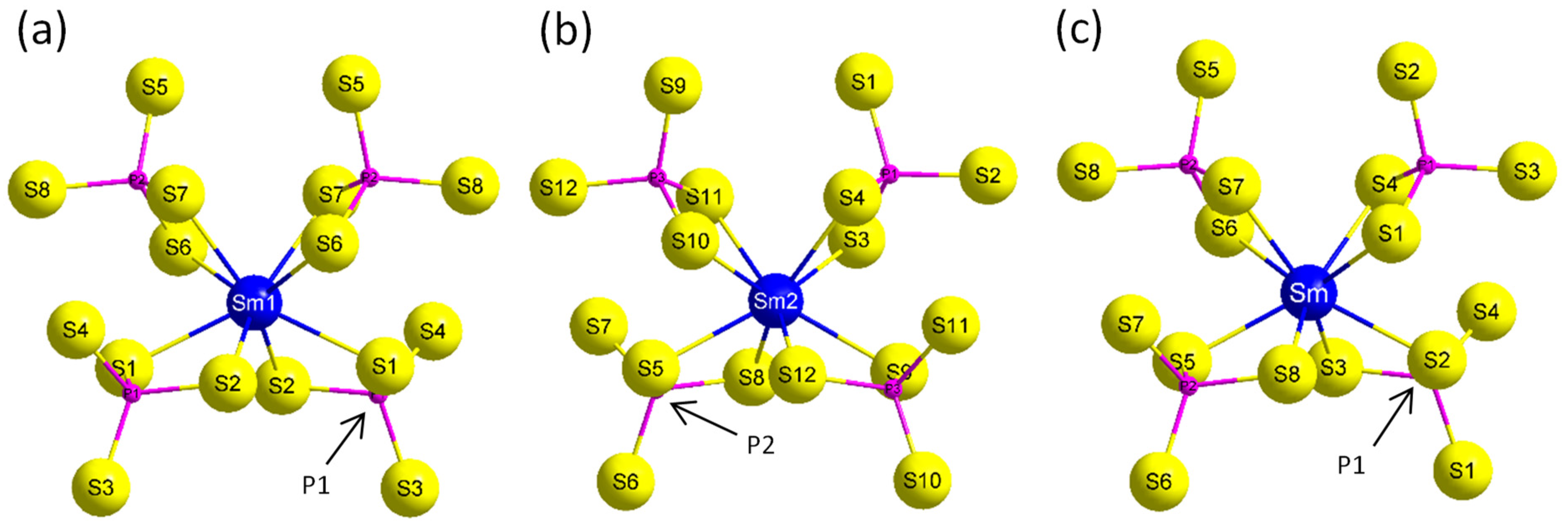

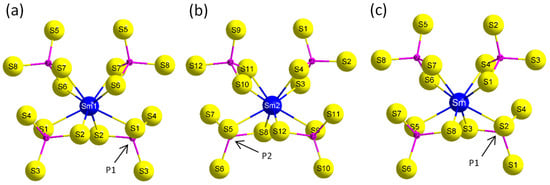

There are two crystallographically different samarium sites. Both Sm1 and Sm2 are coordinated by eight sulfur atoms in the shape of bicapped trigonal prisms, with distances as presented in Table 9.
This appears quite usual for lanthanoids; however, it is slightly different than in the ternary thiophosphates Ln[PS4] [33] or in Li3La[PS4]2 [20], where the eightfold coordinated Ln3+ cations are centering trigonal dodecahedra. The bond lengths are within the usual range of [LnS8]13− polyhedra with d(Sm–S) = 280–299 pm comparing well with those in Sm[PS4] (285–294 pm) [33]. The coordination polyhedron around Sm2 is slightly more distorted than the one for Sm1. These bicapped trigonal prisms of sulfur are constructed by [PS4]3− tetrahedra, whose ligands surround the three different phosphorus sites. The P–S distances are very much in the usual range for the complex [PS4]3− anions with bond lengths between 200 and 207 pm along with “tetrahedral” angles ranging from 106 to 112°.
Table 6. Atomic coordinates and equivalent isotropic displacement parameters for Li4Sm[PS4]2Cl (monoclinic, C2/c).
Table 6. Atomic coordinates and equivalent isotropic displacement parameters for Li4Sm[PS4]2Cl (monoclinic, C2/c).
AtomWyckoff sitex/ay/bz/cUeq */pm2
Sm14e1/20.41098 (8)1/40.0201 (4)
Sm28f0.33338 (5)0.08096 (6)0.42856 (6)0.0186 (3)
P18f0.1558 (3)0.0280 (3)0.3298 (3)0.0198 (11)
P28f0.4330 (3)0.2513 (3)0.3808 (3)0.0204 (11)
P38f0.1494 (3)0.4707 (3)0.2997 (3)0.0205 (12)
Cl14e00.2506 (6)1/40.076 (3)
Cl28f0.1877 (3)0.2405 (4)0.0696 (3)0.0413 (14)
S18f0.3969 (3)0.4938 (3)0.3252 (3)0.0284 (13)
S28f0.0906 (3)0.0161 (3)0.4135 (3)0.0277 (13)
S38f0.1912 (3)0.1490 (3)0.3394 (3)0.0243 (12)
S48f0.2629 (3)0.4468 (3)0.1049 (3)0.0287 (12)
S58f0.4657 (3)0.1312 (3)0.4187 (3)0.0297 (13)
S68f0.4948 (2)0.3369 (3)0.0384 (3)0.0236 (11)
S78f0.4083 (3)0.2711 (3)0.2176 (3)0.0333 (15)
S88f0.3479 (3)0.2629 (3)0.4239 (3)0.0252 (12)
S98f0.2077 (3)0.3768 (3)0.3852 (3)0.0338 (14)
S108f0.1011 (3)0.4356 (3)0.1436 (3)0.0255 (12)
S118f0.2918 (3)0.0745 (3)0.2011 (3)0.0281 (13)
S128f0.4188 (3)0.0008 (3)0.1243 (3)0.0266 (13)
Li14e00.403 (3)1/40.048 (13)
Li24e1/20.114 (3)1/40.056 (14)
Li3 †8f0.076 (7)0.284 (7)0.079 (8)0.11 (4)
Li4 †8f0.105 (7)0.161 (8)0.132 (9)0.12 (4)
Li58f0.305 (2)0.199 (3)0.093 (3)0.063 (11)
Li68f0.079 (2)0.177 (3)0.401 (3)0.068 (11)
Li78f0.178 (3)0.075 (4)0.064 (5)0.12 (2)
Li88f0.300 (5)0.367 (5)0.329 (6)0.13 (2)
* 1/3[U22 + 1/sin2β (U11 + U33 + 2U13cosβ)] [34], † fixed site occupancy of 1/2.
Table 7. Atomic coordinates and equivalent isotropic displacement parameters for Li4Sm[PS4]2Cl (trigonal, R 3 ¯ ).
Table 7. Atomic coordinates and equivalent isotropic displacement parameters for Li4Sm[PS4]2Cl (trigonal, R 3 ¯ ).
AtomWyckoff sitex/ay/bz/cUeq */pm2
Sm18f0.33662 (18)0.33405 (17)0.08330 (8)0.0309 (7)
P118f0.3743 (7)0.1807 (6)0.0036 (3)0.0204 (19)
P218f0.5131 (7)0.0391 (8)0.1629 (3)0.023 (2)
Cl16c000.0689 (6)0.028 (3)
Cl26c000.2447 (6)0.045 (5)
Cl36c000.4374 (5)0.038 (4)
S118f0.3287 (7)0.4771 (7)0.0168 (3)0.026 (2)
S218f0.0951 (10)0.4181 (10)0.0075 (4)0.043 (3)
S318f0.3496 (7)0.1588 (7)0.0746 (4)0.026 (2)
S418f0.1578 (8)0.2475 (9)0.0322 (5)0.049 (4)
S518f0.0117 (8)0.2500 (12)0.1593 (4)0.045 (3)
S618f0.1854 (6)0.1897 (7)0.1503 (3)0.0231 (19)
S718f0.2406 (12)0.4196 (10)0.1340 (6)0.056 (4)
S818f0.4929 (7)0.0140 (7)0.0911 (3)0.024 (2)
Li118f0.515 (4)0.186 (4)0.091 (2)0.016 (11)
Li218f0.165 (6)0.023 (6)0.065 (3)0.036 (17)
Li318f0.030 (4)0.334 (4)0.0916 (17)0.008 (9)
Li418f0.171 (5)0.550 (5)0.067 (3)0.032 (15)
* 1/3[U33 + 4/3 (U11 + U22 − U12)] [34].
Table 8. Atomic coordinates of monoclinic Li4Nd[PS4]2Cl stemming from the powder X-ray diffraction data.
Table 8. Atomic coordinates of monoclinic Li4Nd[PS4]2Cl stemming from the powder X-ray diffraction data.
AtomWyckoff sitex/ay/bz/c
Nd14e1/20.4146 (8)1/4
Nd28f0.3342 (4)0.0813 (1)0.4287 (6)
P18f0.1587 (19)0.024 (2)0.339 (2)
P28f0.4365 (17)0.255 (3)0.393 (3)
P38f0.15663 (18)0.481 (2)0.310 (3)
Cl14e00.229 (2)1/4
Cl28f0.1833 (12)0.245 (2)0.055 (2)
S18f0.200 (7)0.149 (5)0.345 (9)
S28f0.112 (5)0.015 (7)0.184 (4)
S38f0.096 (4)0.014 (6)0.424 (6)
S48f0.263 (3)0.430 (5)0.103 (7)
S58f0.497 (4)0.339 (6)0.028 (5)
S68f0.360 (3)0.266 (6)0.445 (5)
S78f0.415 (6)0.278 (6)0.224 (5)
S88f0.471 (4)0.127 (4)0.430 (6)
S98f0.119 (5)0.440 (7)0.162 (4)
S108f0.296 (5)0.088 (5)0.200 (7)
S118f0.220 (5)0.380 (6)0.400 (6)
S128f0.412 (4)0.017 (7)0.125 (7)
Li14e00.4021/4
Li24e1/20.1201/4
Li3 †8f0.0790.2750.097
Li4 †8f0.1040.1680.120
Li58f0.3030.1980.094
Li68f0.0760.1760.403
Li78f0.1740.0780.071
Li88f0.3060.3820.321
† fixed site occupancy of 1/2.
Table 9. Selected interatomic distances (d/pm) for Li4Sm[PS4]2Cl (monoclinic, C2/c). For further details on the remaining distances as well as the angles between the atoms, see the entries in the ICSD.
Table 9. Selected interatomic distances (d/pm) for Li4Sm[PS4]2Cl (monoclinic, C2/c). For further details on the remaining distances as well as the angles between the atoms, see the entries in the ICSD.
Atomsd/pmAtomsd/pm
Sm1–S2285.5 (4)Sm2–S11280.4 (4)
Sm1–S2285.5 (4)Sm2–S4285.1 (5)
Sm1–S7286.0 (5)Sm2–S12288.0 (4)
Sm1–S7286.0 (5)Sm2–S8289.3 (5)
Sm1–S1296.1 (5)Sm2–S5292.0 (6)
Sm1–S1296.1 (5)Sm2–S9292.5 (5)
Sm1–S6297.5 (4)Sm2–S10298.7 (5)
Sm1–S6297.5 (4)Sm2–S3299.5 (5)
P1–S1202.3 (5)P2–S5201.9 (6)
P1–S2202.7 (7)P2–S6203.3 (6)
P1–S3203.8 (6)P2–S7204.3 (5)
P1–S4206.8 (7)P2–S8205.0 (7)
P3–S9200.2 (6)
P3–S10202.3 (5)
P3–S11205.0 (7)
P3–S12205.2 (7)
Cl1–Li6239 (4)Cl2–Li5240 (4)
Cl1–Li6239 (4)Cl2–Li5244 (5)
Cl1–Li1241 (5)Cl2–Li3248 (13)
Cl2–Li4249 (14)
Cl2–Li7262 (6)
In the trigonal setting, there is only one Sm3+ site present, as expected, also coordinated by eight sulfur atoms with d(Sm–S) = 284–300 pm, which belong to only two crystallographically distinct [PS4]3− tetrahedra. The three resulting samarium surroundings, two from the monoclinic refinement and one from the trigonal one, are depicted in Figure 7 for comparison, but all show the edge-grafting of four [PS4]3− units at the Sm3+ centers.
In the monoclinic structure solution, the [(Sm2)S8]13− polyhedra, linked via [(P3)S4]3− anions, developed infinite strands along the c-axis. These strands are connected via [(P1)S4]3−, [(Sm1)S8]13− and [(P2)S4]3− polyhedra along [110], forming the three-dimensional network Sm [ PS 4 ] 2 3 − ∞ 3 (Figure 8) of the Li4Sm[PS4]2Cl structure.

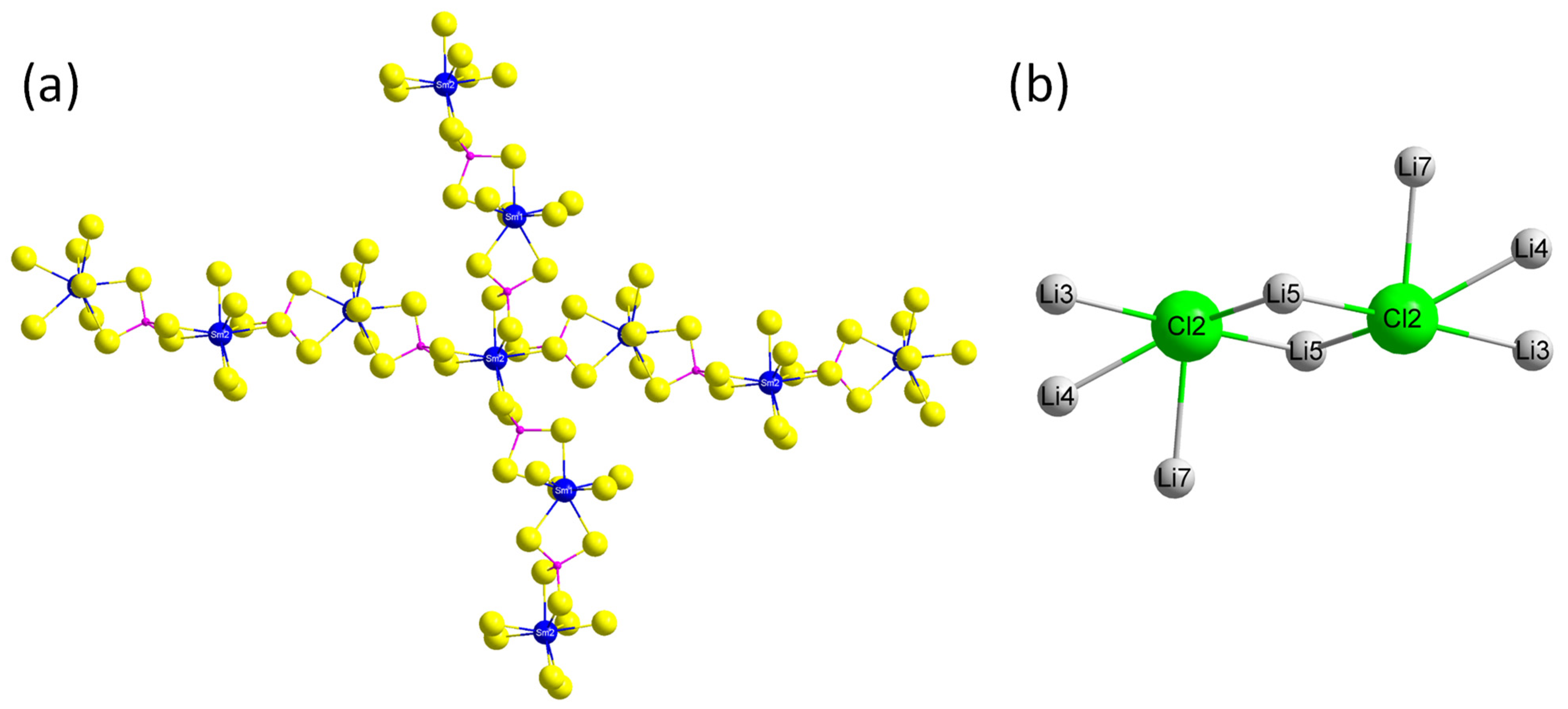

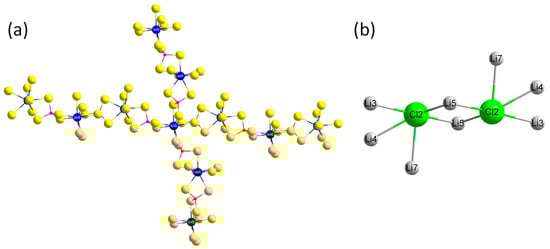

Moreover, there are two different chlorine sites, with Cl1 having three lithium atoms in closer proximity (d((Cl1)–Li) = 239–241 pm) and Cl2 with five of them. However, around (Cl2)−, one of the Li+ cations is further away; thus, describing the coordination sphere as a 4 + 1 environment might seem more plausible. The distances between (Cl2)− and Li+ are d((Cl2)–Li) = 240–249 pm plus 261 pm). The (Cl2)− anions form interesting dimers (Figure 8), where it almost seems like the Li+ cations meander around the two chloride anions. The Cl− anions are bridged by two (Li5)+ cations and end in three terminal lithium ions on either side. Finally, the (Cl1)− anions separate these dimers from each other.
The chlorine positions themselves, however, are quite interesting as they appear to be residing within channel-like pores made of [PS4]3− tetrahedra, quite similar to the Li6[PS4]SCl [6] case. These channels can best be seen, when viewing the monoclinic unit cell along [1 0 1 ¯ ] direction (Figure 3).
There are eight crystallographically distinct Li+-cation positions within the crystal structure of Li4Sm[PS4]2Cl. (Li1)+, which is surrounded by four sulfur atoms and one Cl− anion, as well as (Li6)+ and (Li7)+; however, the shape of the [LiS4Cl]8− polyhedra differ strongly from each other. Two of the bonds from (Li1)+ to S2− are rather long (295 pm), and the coordination polyhedron can therefore be described as [(Li1)S2+2Cl]8−. This is not the case for (Li6)+, where there are also longer bonds (292 and 276 pm), but there is no clear cutoff as there is for (Li1)+. The shape of the polyhedron surrounding (Li7)+ is more closely related to the (Li6)+-centered polyhedron, but now the angles are slightly different. The distances between the central lithium and the adjacent sulfur range from 244 to 289 pm. For all three lithium cations, (Li1)+, (Li6)+ and (Li7)+, the distances to the chloride ligand range between 236 and 260 pm. The coordination surrounding (Li2)+ is rather unique as there are six sulfur atoms surrounding it in the shape of a heavily distorted octahedron. However, there are four shorter distances (256–262 pm) and two much longer ones (2 × 307 pm). On the other hand, (Li8)+ is coordinated by four sulfur atoms, though strongly distorted, so it somehow bridges the relation between (Li2)+ and (Li6)+ as it does not show the two extra sulfur ligands at rational distances and the four coordinating sulfur atoms are 210–304 pm apart. Two chlorine and two sulfur ligands coordinate the (Li5)+ cation in the shape of a distorted tetrahedron. The bond lengths between lithium and chlorine range from 238 to 245 pm, and the distance between the (Li5)+ and sulfur is 249 pm. (Li3)+ is coordinated by one chlorine and three sulfur ligands. This [LiS3Cl]6− polyhedron is a motif also present for (Li4)+. The shape of these coordination environments is a chair-like geometry showing for both (Li3)+ and (Li4)+, very similar with distances ranging from 247 to 286 pm with the Li–Cl bond being the shortest one in the case of (Li3)+.
Only four crystallographically distinct sites in the trigonal refinement host Li+ cations achieve charge neutrality (Table 8). If some of them might suffer from only partial occupation, two more show up in the difference Fourier map of the final refinement. Both refer to the special positions 9e (1/2, 0, 0) and 9f (1/2, 0, 1/2), which could represent pseudo-octahedral migration pathway stops with six distances from lithium to the involved sulfur atoms between 243 and 258 pm for each one of them. Attempts for their inclusion in the structure refinements did not reduce the residuals and resulted in unstable values for their calculated occupation factors and Ueq parameters. Since locating lithium atoms from X-ray diffraction experiments is already challenging, there remains, of course, no physical evidence to support this claim. However, it further strengthens the argumentation for the monoclinic description being more feasible.

3.3. Diffuse Reflectance Spectroscopy

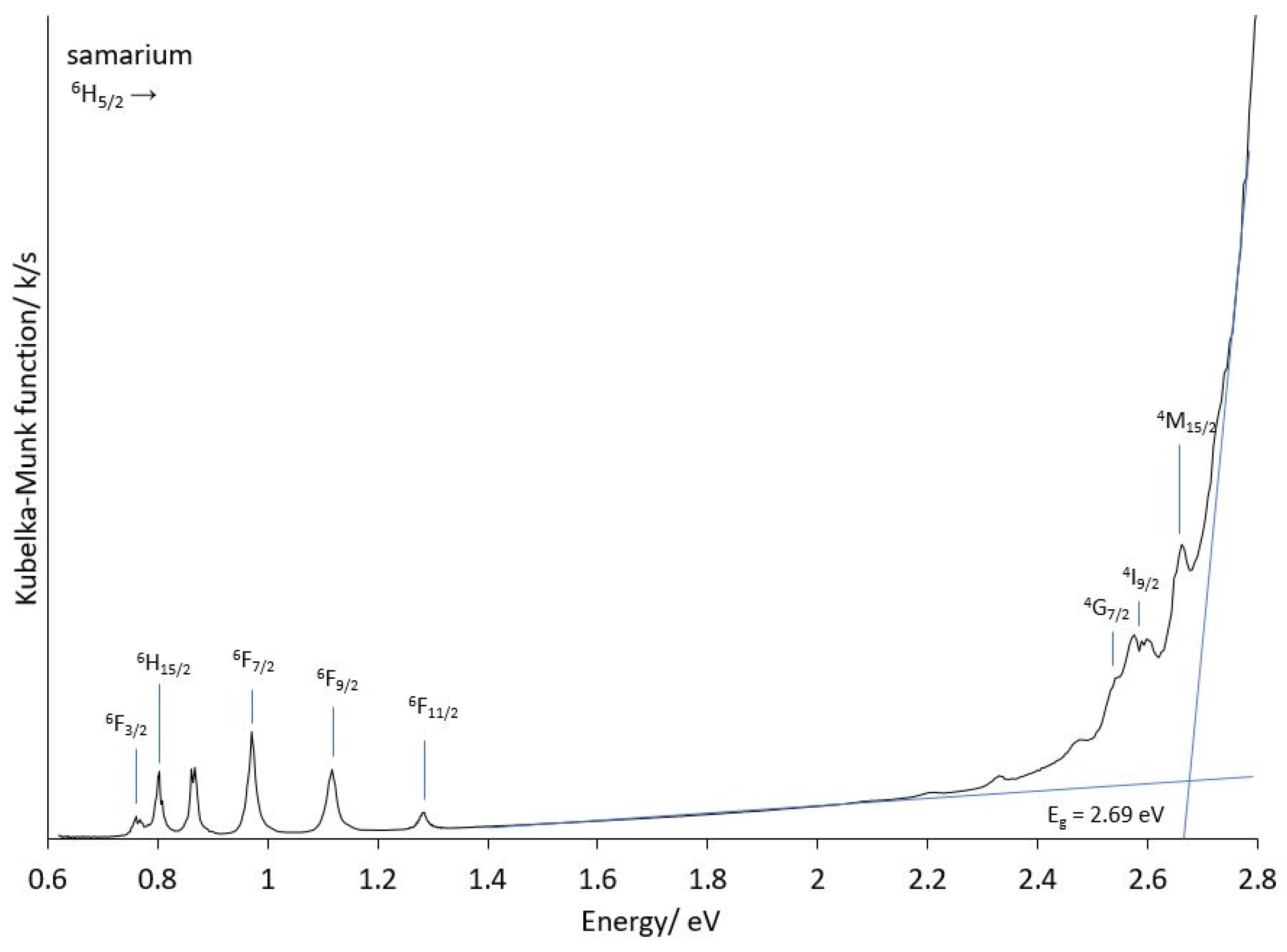

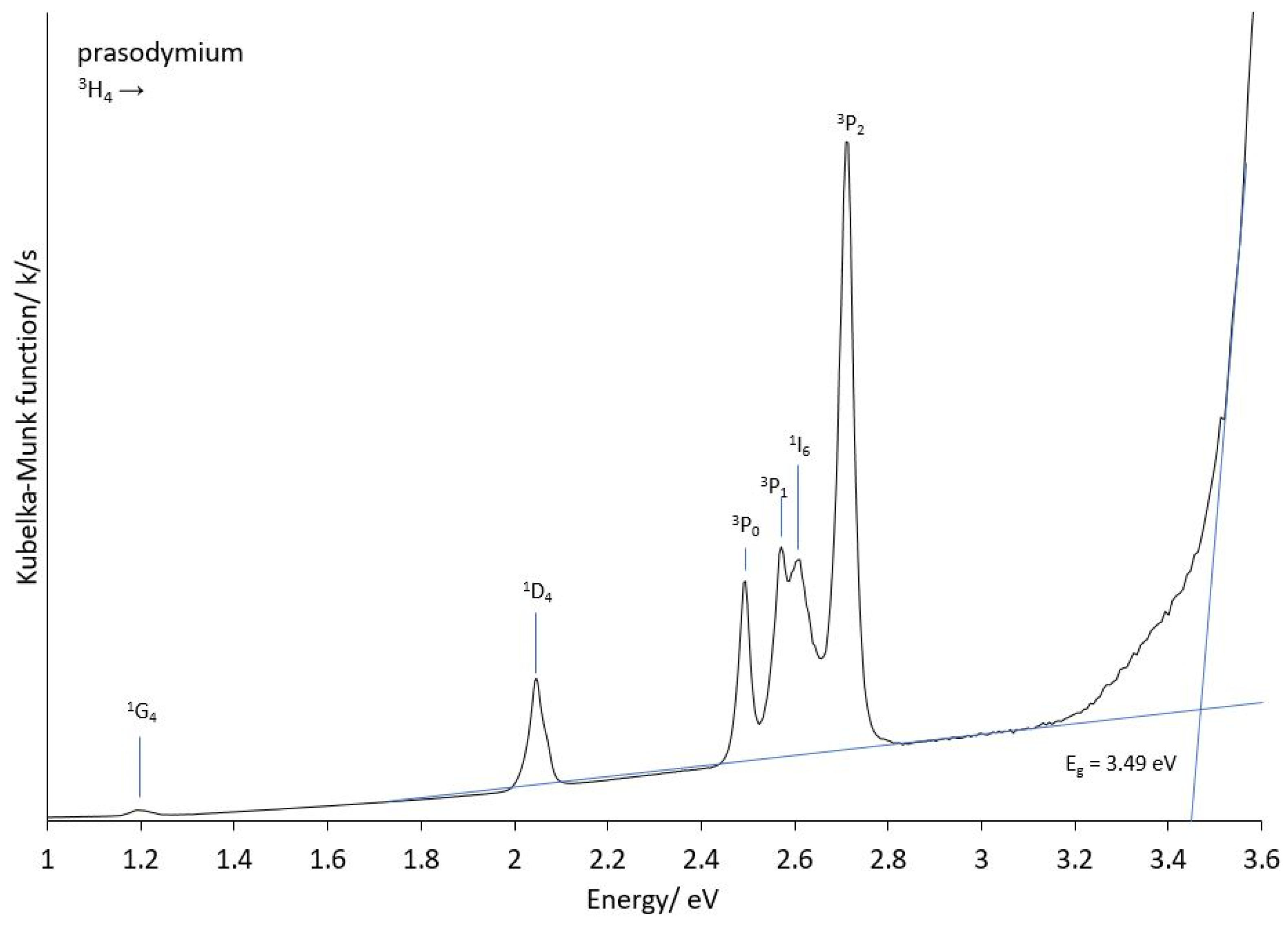

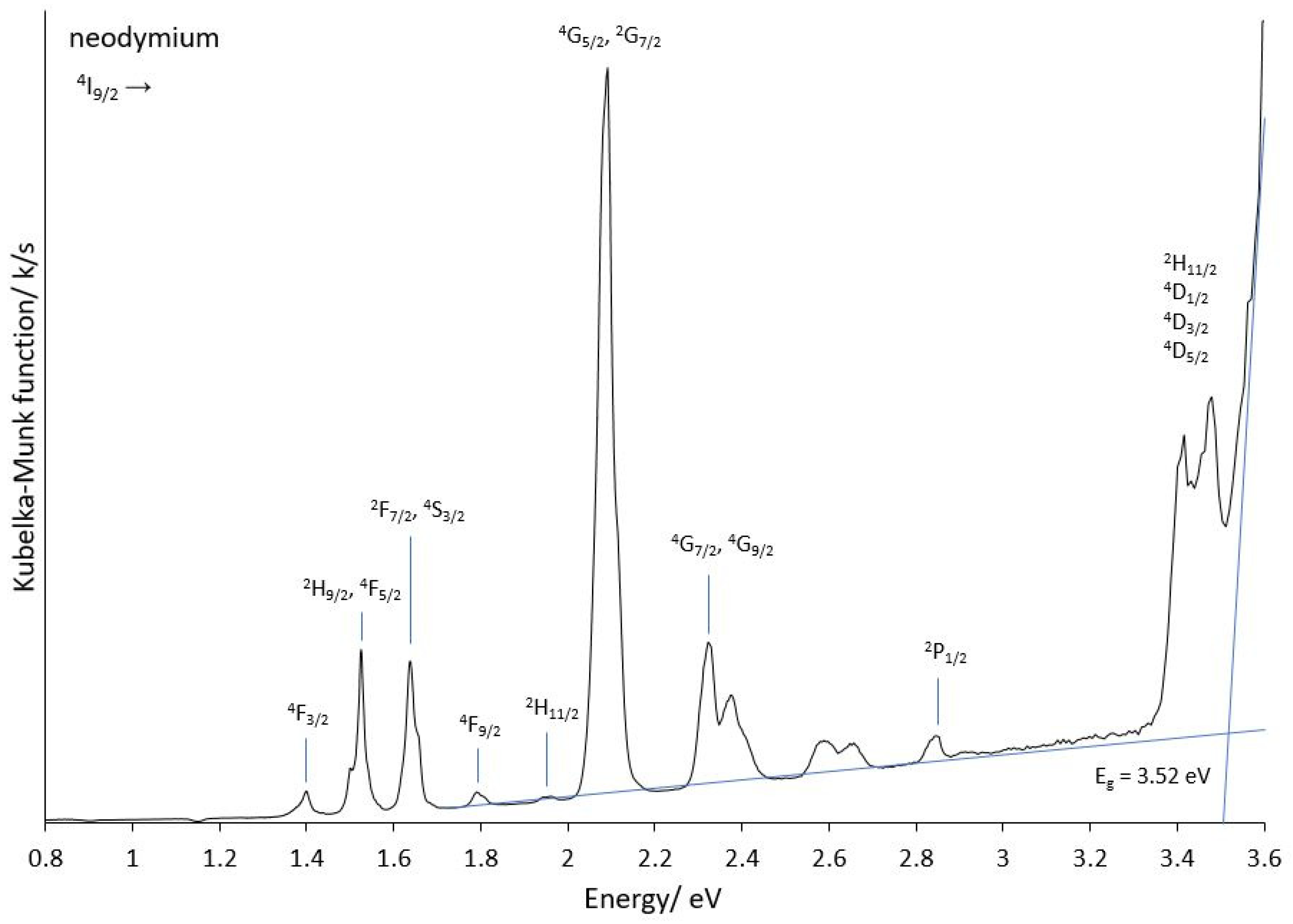

To determine the location of the optical band gap of the three title compounds Li4Ln[PS4]2Cl (Ln = Pr, Nd and Sm) diffuse reflectance spectroscopy was applied, and Figure 9, Figure 10 and Figure 11 show the obtained plots. The band gap can be read off as the x-value at the intersection of the tangents before and after the step. However, one has to keep in mind that there are by-products present that potentially change the location of the band gaps slightly. The band gaps for the three bulk products are Eg = 3.49 eV (≙ λ = 355 nm) for the mint green praseodymium, Eg = 3.52 eV (≙ λ = 352 nm) for the pastel blue neodymium and Eg = 2.69 eV (≙ λ = 461 nm) for the yellow samarium compound. Also, within these spectra, sharp and characteristic f → f transitions are visible. They can be attributed using the Dieke diagram [35] and correspond well to the ones of the respective f-element trication Ln3+.

3.4. Bond-Valence Energy-Landscape (BVEL) Calculations

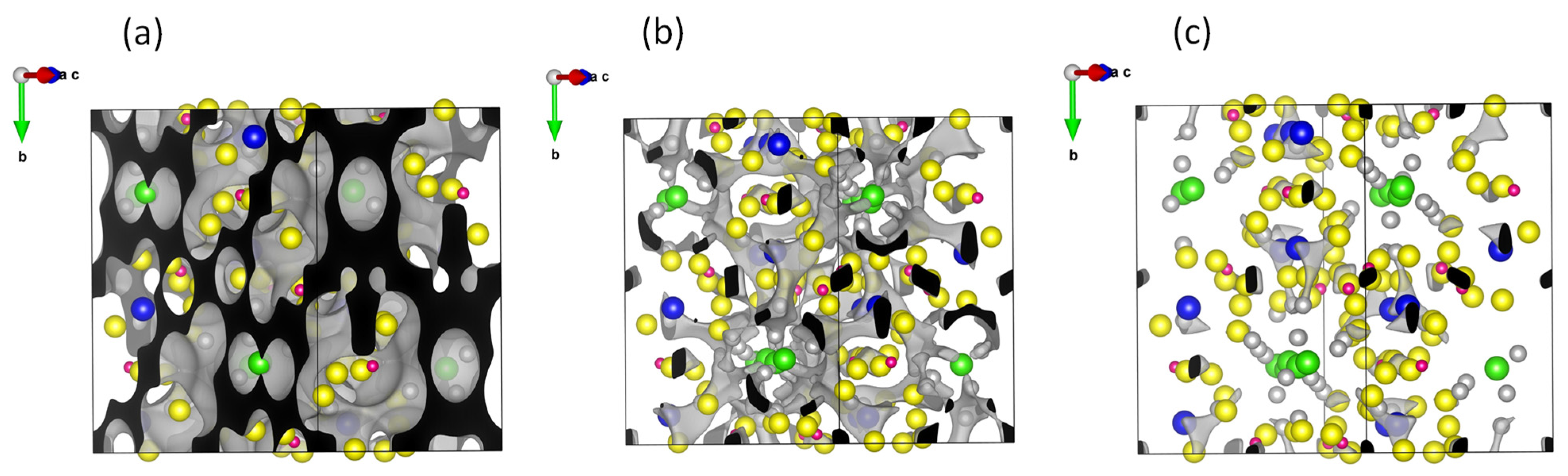

The bond-valence energy landscapes were calculated as stated in the experimental section in order to find the most probable diffusion pathways of the Li+ cations within the crystal structure model of Li4Sm[PS4]2Cl, as obtained from the SCXRD experiments, giving a glimpse at the potential performance of the material as an ion conductor. The diffusion pathways can be plotted as isosurfaces at different levels using VESTA [32] (Figure 12).
The calculated activation energies for the one-dimensional pathways for the Li+-cation mobility is Ea(Li+) = 0.88 eV. This appears to be quite high, though reasonable, keeping in mind that the lithium cations are mostly bound to the chloride anions sitting in what can be described as tunnels in the structure. In other lithium-containing rare-earth metal thiophosphates(V), for example, Li3La[PS4]2 (1D-Ea(Li+) = 0.44 eV) [20] or Li9Ho2[PS4]5 (1D-Ea(Li+) = 0.38 eV) [19], the energy barrier is lower than the chloride-containing one, as expected, due to only one sort of anion being present. The bond-valence energy landscapes give a direction on what could be the diffusion behavior of the ions, but experimental data are crucial. So, taking a look at the ionic conductivity of these materials has to be carried out in the next step once phase pure samples are available.

4. Conclusions

The synthesis of three new compounds with the structured formula Li4Ln[PS4]2Cl (Ln = Pr, Nd and Sm) was performed through reactions of LnCl3, P2S5 and Li2S. Single crystals were obtained only for the samarium compound, and the crystal structure was determined using SCXRD. EDXS measurements supported the stoichiometric formula of Li4Sm[PS4]2Cl. For Ln = Nd and Pr, powder X-ray diffraction measurements confirmed the isotypic nature of all three compounds. Expected by-products, including LiCl and RE[PS4] as expected, however, were observed in the bulk samples, impeding the exact analysis of the praseodymium representative. The compounds crystallize in the monoclinic space group C2/c. A threefold axis through the chloride anions is indicated in the crystal structure. Thus, a trigonal substructure is observed, but both SCXRD and PXRD refinements suggest the monoclinic structure model is more suitable than the trigonal one. Both Sm3+-cation sites are coordinated by eight sulfur atoms in a bicapped trigonal prismatic configuration, while three distinct [PS4]3− tetrahedra result from the twelve sulfur atoms surrounding the three different phosphorus sites. The compounds form a three-dimensional network through the connection of [(Sm2)S8]13−- and [(P3)S4]3−-containing strands cross-linked via [(P1)S4]3−, [(Sm1)S8]13− and [(P2)S4]3− units. Two distinct chloride sites exhibit interesting dimeric arrangements involving the bridging Li+ cations. The latter shows irregular coordination figures varying from six sulfur atoms to a mixture of two chlorides and two sulfur ligands.
In conclusion, the structure solution of the new Li4Ln[PS4]2Cl compounds could be successfully performed with single-crystal X-ray diffraction data obtained for Ln = Sm, and isotypic behavior was confirmed for Ln = Nd and Pr by PXRD. All compounds crystallize monoclinically in the space group C2/c with apparent channel-like features in the structure, thus hinting at possible diffusion pathways for both Li+ and Cl− ions. BVEL calculations were performed, but further investigations and analyses are required to explore the properties and potential applications of these newly synthesized materials.

Author Contributions

Conceptualization, writing original draft, preparation, SCXRD, EDXS, DRS, BVEL, synthesis, P.L.L.; PXRD, writing, reviewing, S.B.; support in crystallography, reviewing and editing S.S.; supervision and reviewing, R.E.D.; supervision, writing and editing, T.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Data will be made available on request.

Acknowledgments

We are grateful for the financial support from the Federal State of Baden-Württemberg (Stuttgart). Furthermore, we thank Falk Lissner for the single-crystal X-ray diffraction, Patrik Djendjur for the DSC as well as Yanina Dreer and Alexandra Friedly for EDXS measurements.

Conflicts of Interest

The authors declare no conflict of interest regarding this article.

References

  1. Mercier, R.; Malugani, J.-P.; Fahys, B.; Robert, G.; Douglade, J. Structure du tetrathiophosphate de lithium. Acta Crystallogr. 1982, B38, 1887–1890. [Google Scholar] [CrossRef]
  2. Müller, C.; Jörgens, S.; Mewis, A. Neue Thiophosphate: Die Verbindungen Li6Ln3(PS4)5 (Ln: Y, Gd, Dy, Yb, Lu) und Ag3Y(PS4)2. Z. Anorg. Allg. Chem. 2007, 633, 1633–1638. [Google Scholar] [CrossRef]
  3. Deiseroth, H.-J.; Kong, S.-T.; Eckert, H.; Vannahme, J.; Reiner, C.; Zaiss, T.; Schlosser, M. Li6PS5X: A class of crystalline Li-rich solids with an unusually high Li+ mobility. Angew. Chem. Int. Ed. 2008, 47, 755–758. [Google Scholar] [CrossRef] [PubMed]
  4. Kraft, M.A.; Culver, S.P.; Calderon, M.; Böcher, F.; Krauskopf, T.; Senyshyn, A.; Dietrich, C.; Zevalkink, A.; Janek, J.; Zeier, W.G. Influence of Lattice Polarizability on the Ionic Conductivity in the Lithium Superionic Argyrodites Li6PS5X (X = Cl, Br, I). J. Am. Chem. Soc. 2017, 139, 10909–10918. [Google Scholar] [CrossRef] [PubMed]
  5. Eulenberger, G. Die Kristallstruktur der Tieftemperaturmodifikation von Ag8GeS6. Monatsh. Fr. Chem. 1977, 108, 901–913. [Google Scholar] [CrossRef]
  6. Minafra, N.; Kraft, M.A.; Bernges, T.; Li, C.; Schlem, R.; Morgan, B.J.; Zeier, W.G. Local Charge Inhomogeneity and Lithium Distribution in the Superionic Argyrodites Li6PS5X (X = Cl, Br, I). Inorg. Chem. 2020, 59, 11009–11019. [Google Scholar] [CrossRef]
  7. Homma, K.; Yonemura, M.; Kobayashi, T.; Nagao, M.; Hirayama, M.; Kanno, R. Crystal structure and phase transitions of the lithium ionic conductor Li3PS4. Solid State Ion. 2011, 182, 53–58. [Google Scholar] [CrossRef]
  8. Wu, Y.; Bensch, W. Structural diversity of rare earth and transition metal thiophosphates. Cryst. Eng. Comm. 2010, 12, 1003–1015. [Google Scholar] [CrossRef]
  9. Klepov, V.V.; Pace, K.A.; Breton, L.S.; Kocevski, V.; Besmann, T.M.; zur Loye, H.C. Nearly Identical but Not Isotypic: Influence of Lanthanide Contraction on Cs2NaLn(PS4)2 (Ln = La–Nd, Sm, and Gd–Ho). Inorg. Chem. 2020, 59, 1905–1916. [Google Scholar] [CrossRef]
  10. Milot, S.; Wu, Y.; Näther, C.; Bensch, W.; Klepp, K.O. Two New Quaternary Thiophosphates with Pseudo One-dimensional Structures: Syntheses and Crystal Structures of Cs3Sm[PS4]2 and Rb3Sm[PS4]2. Z. Anorg. Allg. Chem. 2008, 634, 1575–1580. [Google Scholar] [CrossRef]
  11. Wu, Y.; Bensch, W. Syntheses, structures, and spectroscopic properties of K9Nd[PS4]4, K3Nd[PS4]2, Cs3Nd[PS4]2, and K3Nd3[PS4]4. Inorg. Chem. 2008, 47, 7523–7534. [Google Scholar] [CrossRef] [PubMed]
  12. Evenson IV, C.R.; Dorhout, P.K. Thiophosphate phase diagrams developed in conjunction with the synthesis of the new compounds KLaP2S6, K2La[P2S6]0.5[PS4], K3La[PS4]2, K4La0.67[PS4]2, K9–xLa(1+x/3)[PS4]4 (x = 0.5), K4Eu[PS4]2, and KEuPS4. Inorg. Chem. 2001, 40, 2884–2891. [Google Scholar] [CrossRef] [PubMed]
  13. Schoop, L.M.; Eger, R.; Kremer, R.K.; Kuhn, A.; Nuss, J.; Lotsch, B.V. Structural Stability Diagram of ALnP2S6 Compounds (A = Na, K, Rb, Cs; Ln = Lanthanide). Inorg. Chem. 2017, 56, 1121–1131. [Google Scholar] [CrossRef] [PubMed]
  14. Aslani, C.K.; Breton, L.S.; Klepov, V.V.; zur Loye, H.C. A series of Rb4Ln2(P2S6)(PS4)2 (Ln = La, Ce, Pr, Nd, Sm, Gd) rare earth thiophosphates with two distinct thiophosphate units P(V)S43− and P(IV)2S64−. Dalton Trans. 2021, 50, 1683–1689. [Google Scholar] [CrossRef] [PubMed]
  15. Goh, E.-Y.; Kim, E.-J.; Kim, S.-J. Structure Modification on Quaternary Rare Earth Thiophosphates: NaYbP2S6, NaSmP2S6, and KSmP2S7. J. Solid State Chem. 2001, 160, 195–204. [Google Scholar] [CrossRef]
  16. Klepov, V.V.; Breton, L.S.; Pace, K.A.; Kocevski, V.; Besmann, T.M.; zur Loye, H.C. Size-Driven Stability of Lanthanide Thiophosphates Grown from an Iodide Flux. Inorg. Chem. 2019, 58, 6565–6573. [Google Scholar] [CrossRef]
  17. Komm, T.; Schleid, T. Li9Nd2[PS4]5: A new lithium lanthanoid(III) thiophosphate(V). J. Alloys Compd. 2006, 418, 106–110. [Google Scholar] [CrossRef]
  18. Lange, P.L.; Schleid, T. Li9Yb2[PS4]5 and Li6Yb3[PS4]5: Two lithium-containing ytterbium(III) thiophosphates(V) revisited. Z. Naturforsch. 2021, 76b, 281–291. [Google Scholar] [CrossRef]
  19. Lange, P.L.; Komm, T.; Schleid, T. Two Hitherto Unknown Lithium Holmium(III) Ortho-Thiophosphates(V): Li9Ho2[PS4]5 and Li15Ho7[PS4]12. Z. Anorg. Allg. Chem. 2021, 647, 2113–2121. [Google Scholar] [CrossRef]
  20. Lange, P.L.; Schleid, T. Li3La[PS4]2: The First Lithium Lanthanum Ortho-Thiophosphate. Eur. J. Inorg. Chem. 2021, 2021, 3247–3254. [Google Scholar] [CrossRef]
  21. Sheldrick, G.M. SHELXS-97 and SHELXL-97: Programs for Solution and Refinement of Crystal Structures from X-ray Diffraction Data; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
  22. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122. [Google Scholar] [CrossRef]
  23. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8. [Google Scholar]
  24. Coelho, A.A. TOPAS and TOPAS-Academic: An optimization program integrating computer algebra and crystallographic objects written in C++. J. Appl. Crystallogr. 2018, 51, 210–218. [Google Scholar] [CrossRef]
  25. Cheary, R.W.; Coelho, A.A. Fundamental parameters approach to X-ray line-profile fitting. J. Appl. Crystallogr. 1992, 1992, 109–121. [Google Scholar] [CrossRef]
  26. Cheary, R.W.; Coelho, A.A.; Cline, J.P. Fundamental Parameters Line Profile Fitting in Laboratory Diffractometers. J. Res. Natl. Inst. Stand. Technol. 2004, 109, 1–25. [Google Scholar] [CrossRef]
  27. Le Bail, A.; Duroy, H.; Fourquet, J.L. Ab-initio structure determination of LiSbWO6 by X-ray powder diffraction. Mater. Res. Bull. 1988, 1988, 447–452. [Google Scholar] [CrossRef]
  28. Rietveld, H.M. A profile refinement method for nuclear and magnetic structures. J. Appl. Crystallogr. 1969, 1969, 65–71. [Google Scholar] [CrossRef]
  29. Kubelka, P.; Munk, F.Z. Ein Beitrag zur Optik der Farbanstriche. Technol. Phys. 1931, 12, 593–601. [Google Scholar]
  30. Chen, H.; Wong, L.L.; Adams, S. SoftBV–a software tool for screening the materials genome of inorganic fast ion conductors. Acta Crystallogr. 2019, 75, 18–33. [Google Scholar] [CrossRef]
  31. Chen, H.; Adams, S. Bond softness sensitive bond-valence parameters for crystal structure plausibility tests. IUCrJ 2017, 4, 614–625. [Google Scholar] [CrossRef]
  32. Momma, K.; Izumi, F.J. VESTA 3 for three-dimensional visualization of crystal, volumetric and morphology data. J. Appl. Crystallogr. 2011, 44, 1272–1276. [Google Scholar] [CrossRef]
  33. Komm, T.; Gudat, D.; Schleid, T. Die Lanthanid(III)-ortho-Thiophosphate(V) vom Typ M[PS4] (M = La–Nd, Sm, Gd–Er): Synthese, Kristallstruktur und 31P-NMR-Untersuchungen. Z. Naturforsch. 2006, 61b, 766–774. [Google Scholar] [CrossRef]
  34. Fischer, R.X.; Tillmanns, E. The equivalent isotropic displacement factor. Acta Crystallogr. 1988, C44, 775–776. [Google Scholar] [CrossRef]
  35. Dieke, G.H. Spectra and Energy Levels of Rare Earth Ions in Crystals; Interscience Publishers, Wiley & Sons: New York, NY, USA, 1968. [Google Scholar]
Crystals 13 01408 g001
Figure 1. SEM picture of the Li4Sm[PS4]2Cl crystal after the X-ray diffraction experiment. The crystal was exposed for a short time to ambient air.
Figure 1. SEM picture of the Li4Sm[PS4]2Cl crystal after the X-ray diffraction experiment. The crystal was exposed for a short time to ambient air.
Crystals 13 01408 g001
Crystals 13 01408 g002
Figure 2. Extended unit-cell content of Li4Sm[PS4]2Cl with highlighted [PS4]3− tetrahedra as viewed along the c-axis.
Figure 2. Extended unit-cell content of Li4Sm[PS4]2Cl with highlighted [PS4]3− tetrahedra as viewed along the c-axis.
Crystals 13 01408 g002
Crystals 13 01408 g003
Figure 3. Extended unit-cell content of Li4Sm[PS4]2Cl with highlighted [PS4]3− tetrahedra as viewed along [1 0 1 ¯ ] to visualize the putative trigonal symmetry leading to twinning.
Figure 3. Extended unit-cell content of Li4Sm[PS4]2Cl with highlighted [PS4]3− tetrahedra as viewed along [1 0 1 ¯ ] to visualize the putative trigonal symmetry leading to twinning.
Crystals 13 01408 g003
Crystals 13 01408 g004
Figure 4. Graphical result of the final Rietveld refinement of Li4Nd[PS4]2Cl using the trigonal structure model with space group R 3 ¯ and a = 1584.09(8) pm, c = 2834.49(15) pm for Z = 18. The high-angle part starting at 2θ = 20° is enlarged for clarity.
Figure 4. Graphical result of the final Rietveld refinement of Li4Nd[PS4]2Cl using the trigonal structure model with space group R 3 ¯ and a = 1584.09(8) pm, c = 2834.49(15) pm for Z = 18. The high-angle part starting at 2θ = 20° is enlarged for clarity.
Crystals 13 01408 g004
Crystals 13 01408 g005
Figure 5. Graphical result of the final Rietveld refinement of Li4Nd[PS4]2Cl using the monoclinic structure model with space group C2/c and a = 2098.54(11) pm, b = 1580.60(8) pm, c = 1318.02(9) pm, β = 110.018(4)° for Z = 12. The high-angle part starting at 2θ = 20° is enlarged for clarity.
Figure 5. Graphical result of the final Rietveld refinement of Li4Nd[PS4]2Cl using the monoclinic structure model with space group C2/c and a = 2098.54(11) pm, b = 1580.60(8) pm, c = 1318.02(9) pm, β = 110.018(4)° for Z = 12. The high-angle part starting at 2θ = 20° is enlarged for clarity.
Crystals 13 01408 g005
Crystals 13 01408 g006
Figure 6. Graphical result of the final Le Bail fit [27] for Li4Pr[PS4]2Cl.
Figure 6. Graphical result of the final Le Bail fit [27] for Li4Pr[PS4]2Cl.
Crystals 13 01408 g006
Crystals 13 01408 g007
Figure 7. Coordination environments for the Sm3+-cation sites in the monoclinic structure refinement of Li4Sm[PS4]2Cl (Sm1, (a); Sm2, (b) and for the trigonal refinement for the single Sm3+ site, (c).
Figure 7. Coordination environments for the Sm3+-cation sites in the monoclinic structure refinement of Li4Sm[PS4]2Cl (Sm1, (a); Sm2, (b) and for the trigonal refinement for the single Sm3+ site, (c).
Crystals 13 01408 g007
Crystals 13 01408 g008
Figure 8. (a) [PS4]3−-connected network of [SmS8]13− polyhedra in both structure descriptions of Li4Sm[PS4]2Cl and (b) dimers of (Cl2)−-centered (Li+)5 square pyramids sharing an edge.
Figure 8. (a) [PS4]3−-connected network of [SmS8]13− polyhedra in both structure descriptions of Li4Sm[PS4]2Cl and (b) dimers of (Cl2)−-centered (Li+)5 square pyramids sharing an edge.
Crystals 13 01408 g008
Crystals 13 01408 g009
Figure 9. Kubelka-Munk plot from DRS data to determine the optical band gap to be 3.49 eV with assigned f → f transitions for the bulk praseodymium material Li4Pr[PS4]2Cl.
Figure 9. Kubelka-Munk plot from DRS data to determine the optical band gap to be 3.49 eV with assigned f → f transitions for the bulk praseodymium material Li4Pr[PS4]2Cl.
Crystals 13 01408 g009
Crystals 13 01408 g010
Figure 10. Kubelka-Munk plot from DRS data to determine the optical band gap to be 3.52 eV with assigned f → f transitions for the bulk neodymium material Li4Nd[PS4]2Cl.
Figure 10. Kubelka-Munk plot from DRS data to determine the optical band gap to be 3.52 eV with assigned f → f transitions for the bulk neodymium material Li4Nd[PS4]2Cl.
Crystals 13 01408 g010
Crystals 13 01408 g011
Figure 11. Kubelka-Munk plot from DRS data to determine the optical band gap to be 2.69 eV with assigned f → f transitions for the bulk samarium material Li4Sm[PS4]2Cl.
Figure 11. Kubelka-Munk plot from DRS data to determine the optical band gap to be 2.69 eV with assigned f → f transitions for the bulk samarium material Li4Sm[PS4]2Cl.
Crystals 13 01408 g011
Crystals 13 01408 g012
Figure 12. Bond-valence energy-landscape isosurfaces with different depth levels for Li4Sm[PS4]2Cl (monoclinic, C2/c) with levels 0.3 (a), 1.9 (b) and 2.3 (c).
Figure 12. Bond-valence energy-landscape isosurfaces with different depth levels for Li4Sm[PS4]2Cl (monoclinic, C2/c) with levels 0.3 (a), 1.9 (b) and 2.3 (c).
Crystals 13 01408 g012
Table 1. Quantitative results of the EDXS element mapping for Li4Sm[PS4]2Cl.
Table 1. Quantitative results of the EDXS element mapping for Li4Sm[PS4]2Cl.
Element, X-ray Absorption EdgeAtom Concentration [%]Weight Concentration [%]
O, K27.30 ± 0.7811.75 ± 0.11
P, K11.73 ± 0.349.87 ± 0.10
S, K47.19 ± 0.6341.11 ± 0.18
Cl, K6.51 ± 0.246.27 ± 0.08
Sm, L7.37 ± 0.2730.12 ± 0.37
others0.16 ± 0.150.88 ± 0.26
Table 2. Crystallographic data for the single-crystal measurement of Li4Sm[PS4]2Cl and their determination.
Table 2. Crystallographic data for the single-crystal measurement of Li4Sm[PS4]2Cl and their determination.
Structured formulaLi4Sm[PS4]2Cl
Molar mass, Mm/g∙mol−1532.05
Measurement temperature/K293(2)
Crystal systemmonoclinictrigonal (substructure)
Space groupC2/c (no. 15)R 3 ¯ (no. 148)
a/pm2089.31(12)1579.67(9)
b/pm1579.67(9)1579.67(9)
c/pm1309.04(8)2818.36(16)
α/°9090
β/°109.978(3)90
γ/°90120
Number of formula units, Z1218
Calculated density, Dx/g∙cm−32.6112.611
Unit-cell volume, Vuc/nm34060.46090.6
Molar volume, Vm/cm3∙mol−1203.76(9)203.76(9)
Data range, 2Θmax/°55.7455.76
Index range, ±h, ±k, ±l21/19/1620/20/36
F(000)/e−29884482
Absorption coefficient, μ/mm−15.965.96
BASF *0.17909−
Data residuals, Rint/Rσ0.087/0.0520.248/0.110
Structure residuals, R1/wR20.057/0.1350.214/0.423
Goodness of Fit (GooF)1.0561.337
Residual electron density
(max./min. )/e−∙106 pm−31.03/−1.342.71/−4.42
CSD number2282010−
* For the monoclinic refinement, the twining law (−0.5 −0.5 1; −0.5 −0.5 −1; 0.5 −0.5 0) was applied.
Table 3. Crystallographic data and Rietveld refinement data of Li4Nd[PS4]2Cl.
Table 3. Crystallographic data and Rietveld refinement data of Li4Nd[PS4]2Cl.
Structured formulaLi4Nd[PS4]2Cl
Molar mass, Mm/g∙mol−1525.963
Measurement temperature/K295(2)
Crystal systemmonoclinic
Space groupC2/c (no. 15)
a/pm2098.5(1)
b/pm1580.6(1)
c/pm1318.0(1)
β/°110.017(5)
Number of formula units, Z12
Unit-cell volume, Vuc/nm34.108(4)
Molar volume, Vm/cm3∙mol−1206.13(6)
Calculated density, ρcalc/g·cm−32.552
Wavelength/pm70.93
R-p/% *3.83
R-wp/% *5.42
R-F2/% *2.08
Starting angle (°, 2θ)0
Final angle (°, 2θ)110
Step width (°, 2θ)0.01
Time/scan (h)16
Number of variables94
CSD number2282748
* R-p, R-wp and R-F2 as defined in TOPAS (Bruker AXS) [24].
Table 4. Crystallographic data of Li4Pr[PS4]2Cl.
Table 4. Crystallographic data of Li4Pr[PS4]2Cl.
Structured formulaLi4Pr[PS4]2Cl
Molar mass, Mm/g∙mol−1525.963
Measurement temperature/K295(2)
Crystal systemmonoclinic
Space groupC2/c (no. 15)
a/pm2104.5(6)
b/pm1581.3(3)
c/pm1322.3(5)
β/°110.02(3)
Number of formula units, Z12
Unit-cell volume, Vuc/nm34.134(3)
R-wp/%8.50
Table 5. List of peak positions and integral peak intensities of the unidentified by-product in the Li4Pr[PS4]2Cl sample.
Table 5. List of peak positions and integral peak intensities of the unidentified by-product in the Li4Pr[PS4]2Cl sample.
Peak NumberPeak Positiond/pmRelative Integral Peak Intensity
17.468544.541.0
28.414483.58.6
310.112402.412.7
410.571385.010.4
510.865374.64.0
610.925372.65.7
711.257361.675.1
811.345358.849.2
913.126310.322.7
1013.433303.219.8
1113.522301.2100.0
1213.715297.096.8
1314.376283.437.2
1414.966272.331.6
1515.187268.415.1
1615.241267.413.5
1715.435264.143.4
1816.747243.571.9
1916.973240.310.5
2017.184237.471.6
2117.368234.90.9
2218.304223.050.5
2318.468221.064.6
2419.948204.842.0
2521.227192.658.6
2621.799187.616.3
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lange, P.L.; Bette, S.; Strobel, S.; Dinnebier, R.E.; Schleid, T. Li4Ln[PS4]2Cl: Chloride-Containing Lithium Thiophosphates with Lanthanoid Participation (Ln = Pr, Nd and Sm). Crystals 2023, 13, 1408. https://doi.org/10.3390/cryst13101408

AMA Style

Lange PL, Bette S, Strobel S, Dinnebier RE, Schleid T. Li4Ln[PS4]2Cl: Chloride-Containing Lithium Thiophosphates with Lanthanoid Participation (Ln = Pr, Nd and Sm). Crystals. 2023; 13(10):1408. https://doi.org/10.3390/cryst13101408

Chicago/Turabian Style

Lange, Pia L., Sebastian Bette, Sabine Strobel, Robert E. Dinnebier, and Thomas Schleid. 2023. "Li4Ln[PS4]2Cl: Chloride-Containing Lithium Thiophosphates with Lanthanoid Participation (Ln = Pr, Nd and Sm)" Crystals 13, no. 10: 1408. https://doi.org/10.3390/cryst13101408

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
