Next Article in Journal
Simple Synthesis of 3D Ground-Moss-Shaped MnO@N-C Composite as Superior Anode Material for Lithium-Ion Batteries
Next Article in Special Issue
From the Fibonacci Icosagrid to E8 (Part I): The Fibonacci Icosagrid, an H3 Quasicrystal
Previous Article in Journal
Use of X-ray Microscopy for Confirmation of Crystallinity Detection in Amorphous Formulations by Electrospray Laser Desorption Ionization Mass Spectrometry Imaging


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Analytical Solution of the Interference between Elliptical Inclusion and Screw Dislocation in One-Dimensional Hexagonal Piezoelectric Quasicrystal

School of Mathematics and Statistics, Ningxia University, Yinchuan 750021, China
*
Authors to whom correspondence should be addressed.
Crystals 2023, 13(10), 1419; https://doi.org/10.3390/cryst13101419
Submission received: 26 August 2023 / Revised: 22 September 2023 / Accepted: 23 September 2023 / Published: 24 September 2023
(This article belongs to the Special Issue Structures, Properties and Applications of Quasicrystals)

Abstract

:
This study examines the interference problem between screw dislocation and elliptical inclusion in one-dimensional hexagonal piezoelectric quasicrystals. The general solutions are obtained using the complex variable function method and the conformal transformation technique. When the screw dislocation is located outside or inside the elliptical inclusion, the perturbation method and Laurent series expansion are employed to derive explicit analytical expressions for the complex potentials in the elliptical inclusion and the matrix, respectively. Considering four types of far-field force and electric loading conditions, analytical solutions for various specific cases are obtained by using matrix operations. Expressions for the phonon field stress, phason field stress, and electric displacement are given for special cases, including the absence of a dislocation, the presence of an elliptical hole, and the interference between a screw dislocation and circular inclusion, as well as the case of a circular hole. The design and analysis of quasicrystal inclusion structures can benefit from the results of this work.

1. Introduction

As a new type of functional and structural material, quasicrystals can be widely used in engineering applications [1,2,3,4,5,6]. Different kinds of defects, such as dislocations, cracks, and inclusions, greatly affect their properties and coupling behavior under loading [7,8,9,10,11]. Exploration of the mechanisms controlling the interaction between inclusions and dislocations in quasicrystal materials can improve our understanding of the deformation strengthening and failure mechanisms of components. Therefore, it is important to study the interference of dislocations and inclusions in quasicrystals under the piezoelectric effect.
For elastic materials, Eshelby [12] asserted that there are interior and exterior elastic fields for ellipsoidal inclusions with eigenstrains. When the eigenstrain or external loading is uniform, the elastic field inside the inclusion is also uniform, which is a classic axiom of inclusion research. Smith [13] studied the interference between screw dislocations located in a matrix and elliptical holes or rigid elliptical inclusions and obtained a complex solution for the potential of a corresponding elastic field. Gong and Meguid [14] studied the interference between dislocations and elastic elliptical inclusions, although they assessed the force of dislocations at specific positions. Meguid and Zhong [15] analyzed the electric and elastic fields of piezoelectric elliptical inclusions. Deng and Meguid [16] studied the electroelastic coupling between elliptical inclusions and screw dislocations in piezoelectric materials.
The mechanics of quasicrystal materials with inclusions or dislocations have also attracted the attention of scholars [17,18,19,20,21,22,23]. Using analytical continuation and conformal mapping methods, Wang [24] studied Eshelb’s problem of two-dimensional (2D) inclusions with arbitrary shapes contained in 2D decagonal quasicrystals on a plane or half-plane. Shi [25] studied the problem of collinear periodic cracks/rigid inclusions in sliding modes in one-dimensional (1D) hexagonal quasicrystals. Using the displacement function method, Gao and Ricoeurb [26] studied the 3D problem of ellipsoidal inclusions in an infinite body of 2D quasicrystals. Yang et al. [27] used the generalized Stroh formula to obtain the electroelastic field induced by straight dislocations parallel to the periodic axis of 1D quasicrystals. Guo et al. [28] used a conformal mapping technique to analyze the problem of elliptical inclusions in an infinite 1D hexagonal piezoelectric quasicrystal matrix. Li and Liu [29] employed the Stroh formula to analyze the electroelasticity of icosahedral quasicrystals with straight dislocations. Fan et al. [30] deduced a basic solution for extended dislocations in 1D hexagonal piezoelectric quasicrystals. Lou et al. [31] studied a thin elastic inclusion in infinite 1D hexagonal quasicrystals using a hypersingular integral equation. Zhang et al. [32] studied the infinite bodies of 1D hexagonal piezoelectric quasicrystals with ellipsoidal inclusions. By selecting a suitable potential function, the analytical solutions for the electric displacement, phonon field stress, and phason field stress in a matrix and inclusion were obtained. They also analyzed special cases for ellipsoidal voids and coin-shaped cracks. Hu et al. [33] extended the Eshelby tensor from elastic isotropic inclusions to piezoelectric quasicrystal inclusions. By introducing eigenstrain and Green’s function, a simple explicit expression of the 1D Eshelby tensor was obtained. Other studies [34,35] examined partially debonded circular inclusions and cylindrical inclusions in piezoelectric quasicrystal materials. Zhai et al. [36] studied the planes of 2D decagonal quasicrystals with rigid arc inclusions under the action of infinite tension and concentrated force.
The presence or evolution of inclusions has a strong perturbation effect on the surrounding media that is counteracted by dislocations, microcracks, holes, and heterogeneous materials in the matrix. This interaction can be used to analyze the relationship between the material strength, modulus, plasticity, and toughness. It can also be used to better understand the strengthening or hardening mechanism of a material and further explain the failure mechanism to improve the processing and service performance of the material. Hu et al. [37] used a complex variable function to study the interference between screw dislocations and circular inclusions in 1D hexagonal quasicrystal materials and obtained boundary conditions represented by the complex potential function and the analytical expression between the stress field and the dislocation force. They also discussed how different dislocation positions and material parameters affect the dislocation force and equilibrium position. Li and Liu [38] studied the interactions between dislocations and elliptical holes in icosahedral quasicrystals. Zhao [39] studied the interactions between screw dislocations and wedge-shaped cracks in 1D hexagonal piezoelectric quasicrystal bimaterials. Lv and Liu [40] used complex variable function theory and the conformal transformation method to study the interaction between multiple parallel dislocations and wedge-shaped cracks in 1D hexagonal piezoelectric quasicrystals and their collective response to the applied generalized stress. Pi et al. [41] studied the interactions between screw dislocations in 1D hexagonal piezoelectric quasicrystal bimaterials and two unequal interfacial cracks with elliptical shapes.
Quasicrystal materials are characterized by a light weight, high brittleness, high hardness, and low friction, and they are very sensitive to defects such as dislocations and inclusions. These materials can be used to describe inclusions simplified as elliptical shapes with various 2D scale ratios (circular and linear), including cracks and rigid line inclusions, which can all be degenerated from elliptical inclusions. In addition, the function describing an elliptical shape is relatively simple, and it is easier to perform various operations for elliptical shapes than for arbitrary shapes to obtain a closed-form solution to a problem. Therefore, this study investigates the interaction between screw dislocation and elliptical inclusion in 1D hexagonal piezoelectric quasicrystals and reduces the problem to several special cases, obtaining the analytical solutions for the corresponding problems.

2. Basic Equations

For a 1D hexagonal piezoelectric quasicrystal, the anti-plane phonon field displacement u z and phason field displacement w z are coupled with the electric fields E x and E y in the plane and are irrelevant to the vertical co-ordinate z , i.e., u z = u z ( x , y ) , w = w ( x , y ) , E x = E x ( x , y ) , and E y = E y ( x , y ) . The basic equation is as follows [8,28,30].
The equilibrium equation can be expressed as follows:
x Λ 1 + y Λ 2 = 0 ,
where:
Λ 1 = [ σ z x H z x D x ] T , Λ 2 = [ σ z y H z y D y ] T ,
Here, σ m n ( m = x , y , z ; n = x , y , z ) is the phonon field stress, H m n is the phason field stress, and D n is the electric displacement.
The relationship between generalized strain and displacement expressed by the displacement and electric potential is as follows:
[ 2 ε z x ω z x E x ] T = x [ u z w ϕ ] T = x u , [ 2 ε z y ω z y E y ] T = y [ u z w ϕ ] T = y u ,
where:
u = [ u z w ϕ ] T ,
Here, ε m n is the phonon field strain, ω m n is the phason field strain, u z is the phonon field displacement, w is the phason field displacement, E n is the electric field, and ϕ is the electric potential.
If we ignore the effect of the generalized body force, then the generalized stress–strain relationship of a 1D hexagonal piezoelectric quasicrystal is as follows:
Λ 1 = D [ ε z x ω z x E x ] T , Λ 2 = D [ ε z y ω z y E y ] T ,
where:
D = [ 2 C 44 R 3 e 15 2 R 3 K 2 d 15 2 e 15 d 15 λ 11 ] ,
Here, C 44 is the elastic constant of the phonon field, R 3 is the elastic constant of the phason field, K 2 is the coupling elastic constant of the phonon and phason fields, e 15 and d 15 are the piezoelectric coefficients, and λ 11 is the dielectric coefficient.
By substituting Equation (2) into Equation (3), the constitutive relation represented by displacement and electric potential can be obtained as follows:
Λ 1 = C [ u z x w x ϕ x ] T = C x u , Λ 2 = C [ u z y w y ϕ y ] T = C y u ,
where:
C = [ C 44 R 3 e 15 R 3 K 2 d 15 e 15 d 15 ε 11 ] .
Substituting Equation (4) into Equation (1) gives:
x Λ 1 + y Λ 2 = C 2 u = 0 ,
where 2 = 2 x 2 + 2 y 2 is the 2D Laplace operator.
| C | 0 and | | are matrix determinants. Thus, Equation (5) can be written as:
2 u z = 0 , 2 w = 0 , 2 ϕ = 0 .
If u z , w , and ϕ are selected as the real parts of the analytic function, Equation (6) can be satisfied.
By introducing Ψ ( t ) , Θ ( t ) , and Φ ( t ) as analytic functions, one obtains:
u = C 1 [ Re Ψ ( t )   Re Θ ( t )   Re Φ ( t ) ] T ,
Here, t = x + i y is the complex variable, and i 2 = 1 and i are imaginary units. Re represents the real part of the complex variable function. C 1 is given in Appendix A (Equation (A1)).
Substituting Equation (7) into Equation (4) yields:
Λ 1 = 1 2 C C 1 [ Ψ ( t ) Θ ( t ) Φ ( t ) ] T , Λ 2 = i 2 C C 1 [ Ψ ( t ) Θ ( t ) Φ ( t ) ] T .
According to Equations (2) and (7), the electric field represented by the analytic function Φ ( t ) is given by:
[ E x E y ] T = 1 ε 11 [ x y ] T Re Φ ( t ) = 1 2 ε 11 [ 1   i ] T Φ ( t ) .
Hence, the phonon field stress, phason field stress, electric displacement, and electric field intensity can be expressed as follows:
Λ 1 i Λ 2 = C C 1 [ Ψ ( t ) Θ ( t ) Φ ( t ) ] T , E x i E y = 1 ε 11 Φ ( t ) ,
where the apostrophe denotes the derivative of the analytic function with respect to independent variable t .
With Equation (8), the resultant force of phonon field stress and phason field stress along the integral curve A B and the integral value of the normal component of electric displacement can be calculated as follows:
Σ = [ A B ( σ z x d y σ z y d x ) A B ( H z x d y H z y d x ) A B ( D x d y D y d x ) ] T = C C 1 [ [ Im Ψ ( t ) ] A B [ Im Θ ( t ) ] A B [ Im Φ ( t ) ] A B ] T ,
where Im denotes the imaginary part of the complex variable function and [ ] A B is the changing value of the function within the bracket along the integral curve from point A to point B .

3. Problem Description

Considering the presence of an elliptical inclusion in the 1D hexagonal piezoelectric quasicrystal, the major axis of the elliptical inclusion is 2 a , and the minor axis is 2 b , as shown in Figure 1. The area occupied by the matrix is Ω I , and that occupied by the inclusion is Ω II . L is the elliptical interface between the elliptical inclusion and the matrix. Assume that the matrix and the inclusion are well bonded at the interface. In the Cartesian co-ordinate system ( x , y , z ) , the atomic arrangement of the matrix and the inclusion is quasiperiodic along the axis of z , while the atoms are arranged periodically on the x y plane. The generalized screw dislocation is located at an arbitrary point z 0 in the matrix. The Burgers vector is B = [ 0 0 b z b b ϕ ] T , which is linear and infinitely extended along the z - axis. b z is the screw dislocation of the phonon field, b is the screw dislocation of the phason field, and b ϕ is the dislocation of electric potential. The superscript ‘ T ’ indicates the transpose of the vector or matrix. This paper considers two cases, where the dislocation is located outside the inclusion and inside the inclusion. First, we consider the first case.
The following mapping function [16] is introduced:
t = Ω ( ζ ) = c 2 ( R ζ + 1 R ζ ) ,
where:
R ζ = 1 c ( t + t 2 c 2 ) , 1 R ζ = 1 c ( t t 2 c 2 ) , ζ = ξ + i η , R = a + b a b = 1 + ε 1 ε , c = a 2 b 2 = a 1 ε 2 ,   ε = b a ,
In Equation (12), the area Ω I on the t - plane is mapped as the external area Γ I of the unit circle Γ 1 ( ρ = 1 ) on the ζ - plane, and the area Ω II is mapped as the circular area Γ II composed of circle Γ 2 ( ρ = 1 / R ) and unit circle Γ 1 . Γ 2 indicates cutting from x = c to + c on the z - plane when y = 0 . Figure 2 presents the conformal mapping plane where the screw dislocation is located in the matrix.
Substituting Equation (12) into Equations (7) and (11) yields:
u = C 1 [ Re Ψ ( ζ )   Re Θ ( ζ )   Re Φ ( ζ ) ] T ,
and:
Σ = C C 1 [ [ Im Ψ ( ζ ) ] A B [ Im   Θ   ( ζ ) ] A B [ Im Φ ( ζ ) ] A B ] T ,
where:
[ Ψ ( ζ ) Θ ( ζ ) Φ ( ζ ) ] T = [ Ψ ( Ω ( ζ ) ) Θ ( Ω ( ζ ) ) Φ ( Ω ( ζ ) ) ] T .
According to perturbation theory [42], the general solution of Equation (13) in the matrix can be expressed as follows:
u I = C 1 I [ Re ( Ψ 0 ( ζ ) + Ψ I ( ζ ) ) Re ( Θ 0 ( ζ ) + Θ I ( ζ ) ) Re ( Φ 0 ( ζ ) + Φ I ( ζ ) ) ] ,   ζ Γ I .
The general solutions of the generalized displacement and electric potential within the inclusion are:
u II = C 1 II [ Re Ψ II ( ζ )   Re Θ II ( ζ )   Re Φ II ( ζ ) ] T ,   ζ Γ II .
where C 1 I and C 1 II are given in Appendix A (Equation (A2)).
In the matrix, the resultant force of the phonon field stress and phason field stress along the integral curve A B and the integral value of the normal component of electric displacement can be represented as follows:
Σ I = C I C 1 I [ [ Im Ψ 0 ( ζ ) + Im Ψ I ( ζ ) ] A B [ Im Θ 0 ( ζ ) + Im Θ I ( ζ ) ] A B [ Im Φ 0 ( ζ ) + Im Φ I ( ζ ) ] A B ] ,   ζ Γ I .
Within the inclusion, the resultant force of the phonon field stress and phason field stress along the integral curve A B and the integral value of the normal component of electric displacement can be represented as follows:
Σ II = C II C 1 I [ [ Im Ψ II ( ζ ) ] A B [ Im Θ II ( ζ ) ] A B [ Im Φ II ( ζ ) ] A B ] T , ζ Γ II .
where C 1 I and C 1 II can be found in Appendix A (Equation (A3)).
The subscripts (or superscripts) I and II indicate that the material constants and physical quantities come from the area Ω I ( Γ I ) of the matrix and the area Ω II ( Γ II ) of the inclusion, respectively. Ψ 0 ( ζ ) , Θ 0 ( ζ ) , and Φ 0 ( ζ ) represent the field potentials of the stress and electric potential in the matrix without inclusion, which are not disturbed by inclusion. The whole area can be analytically described, except for the singular point. Ψ I ( ζ ) , Θ I ( ζ ) , and Φ I ( ζ ) are the field potentials of the stress and electric potential resulting from the influence of inclusion in the matrix. They are analytically described in area Γ I . Ψ II ( ζ ) , Θ II ( ζ ) , and Φ II ( ζ ) , representing the field potentials of stress and electric potential within the inclusion, are analytically described in area Γ II .
Assume the interface Γ 1 is completely bonded, without any free charge and stress, and the normal components of displacement, electric potential, stress, and electric displacement passing through the elliptical interface are continuous. The condition of continuity can be represented as follows:
u I = u II ,   ζ Γ 1 ( ζ = σ = e i θ ) ,
and:
Σ I = Σ II ,   ζ Γ 1 ( ζ = σ = e i θ ) .
Substituting Equations (15) and (16) into Equation (19), one has:
C 1 I [ Re Ψ 0 ( σ ) + Re Ψ I ( σ ) Re Θ 0 ( σ ) + Re Θ I ( σ ) Re Φ 0 ( σ ) + Re Φ I ( σ ) ] = C 1 II [ Re Ψ II ( σ ) Re Θ II ( σ ) Re Φ II ( σ ) ] .
Substituting Equations (17) and (18) into Equation (20) yields:
C I C 1 I [ Im Ψ 0 ( σ ) + Im Ψ I ( σ ) Im Θ 0 ( σ ) + Im Θ I ( σ ) Im Φ 0 ( σ ) + Im Φ I ( σ ) ] = C II C 1 II [ Im Ψ II ( σ ) Im Θ II ( σ ) Im Φ II ( σ ) ] .
Additionally, on the interface Γ 2 , the following conditions are satisfied:
[ Ψ II ( σ R ) Θ II ( σ R ) Φ II ( σ R ) ] T = [ Ψ II ( σ ¯ R ) Θ II ( σ ¯ R ) Φ II ( σ ¯ R ) ] T .
On the t - plane, when y = 0 , points σ / R and σ ¯ / R within the range from x = c to + c are the same point. Notably, both force and electric loads are uniform in the far field. When the screw dislocation is located at point t 0 = Ω ( ζ 0 ) , then Ψ 0 ( ζ ) , Θ 0 ( ζ ) , and Φ 0 ( ζ ) can be represented as follows:
[ Ψ 0 ( t ) Θ 0 ( t ) Φ 0 ( t ) ] T = C 2 I B 1 2 π i ln ( t t 0 ) + [ p 0 g 0 q 0 ] T t .
Substituting Equation (12) into Equation (24), one obtains:
[ Ψ 0 ( ζ ) Θ 0 ( ζ ) Φ 0 ( ζ ) ] T = C 2 I B 1 2 π i ln ( Ω ( ζ ) Ω ( ζ 0 ) ) + [ p 0 g 0 q 0 ] T Ω ( ζ ) ,
where C 2 , C 2 I , and C 2 II are provided in Appendix A (Equation (A4)).
Here, p 0 , g 0 , and q 0 are complex constants that can be determined by the force and electric loading in the far field or are equivalent to far-field force and electric fields as follows:
[ Ψ 0 ( ) Θ 0 ( ) Φ 0 ( ) ] T = [ p 0 g 0 q 0 ] T .
According to Ref. [43], there are four possible combinations of far-field force and electric loading:
Combination 1: far-field phonon field strain ε z x I and ε z y I , far-field phason field strain ω z x I and ω z y I , and far-field electric field intensity E x I and E y I .
According to Equation (15), one obtains:
[ 2 ε z x I ω z x I E x I ] T = 1 2 C 1 I [ Ψ 0 ( ) Θ 0 ( ) Φ 0 ( ) ] T , [ 2 ε z y I ω z y I E y I ] T = i 2 C 1 I [ Ψ 0 ( ) Θ 0 ( ) Φ 0 ( ) ] T .
Substituting Equation (26) into Equation (27) and performing matrix operations, one obtains:
[ p 0 g 0 q 0 ] T = ( C 1 I ) 1 [ 2 ε z x I 2 i ε z y I ω z x I i ω z y I E x I + i E y I ] T .
Combination 2: far-field phonon field stress σ z x I and σ z y I , far-field phason field stress H z x I and H z y I , and far-field electric field intensity D x I and D y I .
According to Equations (8) and (15), one gives:
[ σ z x I H z x I D x I ] T = 1 2 C I C 1 I [ Ψ 0 ( ) Θ 0 ( ) Φ 0 ( ) ] T , [ σ z y I H z y I D y I ] T = i 2 C I C 1 I [ Ψ 0 ( ) Θ 0 ( ) Φ 0 ( ) ] T .
Substituting Equation (26) into Equation (28) and performing matrix operations, the following can be obtained:
[ p 0 g 0 q 0 ] T = ( C I C 1 I ) 1 [ σ z x I i σ z y I H z x I i H z y I D x I i D y I ] T .
Combination 3: far-field phonon field strain ε z x I and ε z y I , far-field phason field strain ω z x I and ω z y I , and far-field electric displacement D x I and D y I .
According to Equations (8) and (15), one obtains:
[ 2 ε z x I ω z x I D x I ] T = 1 2 C 3 I C 1 I [ Ψ 0 ( ) Θ 0 ( ) Φ 0 ( ) ] T , [ 2 ε z y I ω z y I D y I ] T = i 2 C 3 I C 1 I [ Ψ 0 ( ) Θ 0 ( ) Φ 0 ( ) ] T ,
where C 3 and C 3 I are provided in Appendix A (Equation (A5)).
Substituting Equation (26) into Equation (29) and performing matrix operations, the following can be obtained:
[ p 0 g 0 q 0 ] T = ( C 3 I C 1 I ) 1 [ 2 ε z x I 2 i ε z y I ω z x I i ω z y I D x I i D y I ] T .
Combination 4: far-field phonon field stress σ z x I and σ z y I , far-field phason field stress H z x I and H z y I , and far-field electric field intensity E x I and E y I .
According to Equations (8) and (15), one obtains:
[ σ z x I H z x I E x I ] T = 1 2 C 4 I C 1 I [ Ψ 0 ( ) Θ 0 ( ) Φ 0 ( ) ] T , [ σ z y I H z y I E y I ] T = i 2 C 4 I C 1 I [ Ψ 0 ( ) Θ 0 ( ) Φ 0 ( ) ] T ,
where C 4 and C 4 I are provided in Appendix A (Equation (A6)).
Substituting Equation (26) into Equation (30) yields:
[ p 0 g 0 q 0 ] T = ( C 4 I C 1 I ) 1 [ σ z x I i σ z y I H z x I i H z y I E x I i E y I ] T .
Using the mapping function (12), the following relation exists:
ln ( 1 ζ ) = k = 1 ζ k k ,   | ζ | < 1 .
Equation (25) can be expanded into the general form of a Laurent series.
[ Ψ 0 ( ζ ) Θ 0 ( ζ ) Φ 0 ( ζ ) ] = [ k = 0 ( a k 0 ζ k + 1 + b k 0 1 ζ k + 1 ) k = 0 ( c k 0 ζ k + 1 + d k 0 1 ζ k + 1 ) k = 0 ( e k 0 ζ k + 1 + f k 0 1 ζ k + 1 ) ] ,   1 | ζ | < | ζ 0 | .
The constant terms of the corresponding field potential and rigid displacement are ignored. Coefficients a k 0 , b k 0 , c k 0 , d k 0 , e k 0 , and f k 0 can be represented as follows:
a k 0 = { b z C 44 I 2 π i 1 ζ 0 + p 0 c 2 R , k = 0 , 1 k + 1 b z C 44 I 2 π i 1 ζ 0 k + 1 , k = 1 , 2 , , b k 0 = { b z C 44 I 2 π i 1 R 2 ζ 0 + p 0 c 2 R , k = 0 , 1 k + 1 b z C 44 I 2 π i 1 R 2 k + 2 ζ 0 k + 1 , k = 1 , 2 , , c k 0 = { b K 2 I 2 π i 1 ζ 0 + g 0 c 2 R , k = 0 , 1 k + 1 b K 2 I 2 π i 1 ζ 0 k + 1 , k = 1 , 2 , , d k 0 = { b K 2 I 2 π i 1 R 2 ζ 0 + g 0 c 2 R , k = 0 , 1 k + 1 b K 2 I 2 π i 1 R 2 k + 2 ζ 0 k + 1 , k = 1 , 2 , , e k 0 = { b φ ε 11 I 2 π i 1 ζ 0 + q 0 c 2 R , k = 0 , 1 k + 1 b φ ε 11 I 2 π i 1 ζ 0 k + 1 , k = 1 , 2 , , f k 0 = { b φ ε 11 I 2 π i 1 R 2 ζ 0 + q 0 c 2 R , k = 0 , 1 k + 1 b φ ε 11 I 2 π i 1 R 2 k + 2 ζ 0 k + 1 , k = 1 , 2 , .
Then, it is necessary to determine the complex potentials Ψ j , Θ j , and Φ j ( j = I , II ) so that they can meet the conditions of continuity (19), (20) and (23).
On the ζ - plane, Ψ I ( ζ ) , Θ I ( ζ ) , and Φ I ( ζ ) are analytic functions in area Γ I , and Ψ II ( ζ ) , Θ II ( ζ ) , and Φ II ( ζ ) are analytic functions in area Γ II ; thus, they can be represented by the Laurent expansion as follows:
[ Ψ I ( ζ ) Θ I ( ζ ) Φ I ( ζ ) ] T = [ k = 0 b k I 1 ζ k + 1 k = 0 d k I 1 ζ k + 1 k = 0 f k I 1 ζ k + 1 ] T ,   ζ Γ I ,
and:
[ Ψ II ( ζ ) Θ II ( ζ ) Φ II ( ζ ) ] = [ k = 0 ( a k II ζ k + 1 + b k II 1 ζ k + 1 ) k = 0 ( c k II ζ k + 1 + d k II 1 ζ k + 1 ) k = 0 ( e k II ζ k + 1 + f k II 1 ζ k + 1 ) ] , ζ Γ II .
Substituting Equation (34) into Equation (23) yields:
[ a k II c k II e k II ] T = R 2 ( k + 1 ) [ b k II d k II f k II ] T .
Thus, Equation (34) is rephrased as follows:
[ Ψ II ( ζ ) Θ II ( ζ ) Φ II ( ζ ) ] = [ k = 0 a k II ( ζ k + 1 + 1 R 2 k + 2 ζ k + 1 ) k = 0 c k II ( ζ k + 1 + 1 R 2 k + 2 ζ k + 1 ) k = 0 e k II ( ζ k + 1 + 1 R 2 k + 2 ζ k + 1 ) ] ,   ζ Γ II .
where ζ = σ = 1 / σ ¯ is on the unit circle Γ 1 . According to Equations (31), (33) and (35), Equation (21) can be represented as follows:
C 1 I [ a k 0 I + b ¯ k 0 I + b ¯ k I c k 0 I + d ¯ k 0 I + d ¯ k I e k 0 I + f ¯ k 0 I + f ¯ k I ] = C 1 II [ a k II + 1 R 2 k + 2 a ¯ k II c k II + 1 R 2 k + 2 c ¯ k II e k II + 1 R 2 k + 2 e ¯ k II ] .
According to the theory of analytic function, Ψ ( ζ ) , Θ ( ζ ) , and Φ ( ζ ) are analytic functions in area Γ I , and Ψ ( 1 / ζ ¯ ) ¯ , Θ ( 1 / ζ ¯ ) ¯ , and Φ ( 1 / ζ ¯ ) ¯ are analytic functions in area Γ II . Therefore, if Γ 0 represents the internal area of the circle Γ 2 , Γ 0 + Γ II indicates the entire area inside the unit circle, and [ θ 1 ( ζ ) θ 2 ( ζ ) θ 3 ( ζ ) ] T can be represented as follows:
[ θ 1 ( ζ ) θ 2 ( ζ ) θ 3 ( ζ ) ] = C 1 I [ k = 0 b ¯ k I ζ k + 1 k = 0 d ¯ k I ζ k + 1 k = 0 f ¯ k I ζ k + 1 ] C 1 II [ k = 0 a k II ζ k + 1 k = 0 c k II ζ k + 1 k = 0 e k II ζ k + 1 ] C 1 II [ k = 0 a ¯ k II ζ k + 1 R 2 k + 2 k = 0 c ¯ k II ζ k + 1 R 2 k + 2 k = 0 e ¯ k II ζ k + 1 R 2 k + 2 ] + C 1 I [ k = 0 ( a k 0 I + b ¯ k 0 I ) ζ k + 1 k = 0 ( c k 0 I + d ¯ k 0 I ) ζ k + 1 k = 0 ( e k 0 I + f ¯ k 0 I ) ζ k + 1 ] ,   ζ Γ 0 + Γ II ,
[ θ 1 ( ζ ) θ 2 ( ζ ) θ 3 ( ζ ) ] = C 1 II [ k = 0 a k II 1 R 2 k + 2 ζ k + 1 k = 0 c k II 1 R 2 k + 2 ζ k + 1 k = 0 e k II 1 R 2 k + 2 ζ k + 1 ] + C 1 II [ k = 0 a ¯ k II 1 ζ k + 1 k = 0 c ¯ k II 1 ζ k + 1 k = 0 e ¯ k II 1 ζ k + 1 ] C 1 I [ k = 0 b k I 1 ζ k + 1 k = 0 d k I 1 ζ k + 1 k = 0 f k I 1 ζ k + 1 ] C 1 I [ k = 0 ( a ¯ k 0 I + b k 0 I ) 1 ζ k + 1 k = 0 ( c ¯ k 0 I + d k 0 I ) 1 ζ k + 1 k = 0 ( e ¯ k 0 I + f k 0 I ) 1 ζ k + 1 ] ,   ζ Γ I .
Equations (36a) and (36b) are holomorphic and single-valued on the whole plane. Thus, [ θ 1 ( ζ ) θ 2 ( ζ ) θ 3 ( ζ ) ] T 0 can be obtained according to the Liouville theorem. With this result, the following can be obtained from Equation (36a,b):
[ b k I d k I f k I ] = D 3 [ a k 0 I c k 0 I e k 0 I ] + D 4 [ a ¯ k 0 I c ¯ k 0 I e ¯ k 0 I ] [ b k 0 I d k 0 I f k 0 I ] .
Similarly, we can obtain the following based on the condition of continuity in Equation (20):
[ a k II c k II e k II ] = D 5 [ a k 0 I c k 0 I e k 0 I ] + D 6 [ a ¯ k 0 I c ¯ k 0 I e ¯ k 0 I ] ,
where D i ( i = 1 , 2 , , 6 ) is given in Appendix A (Equation (A7)).
Let
D 3 = [ I k 2 K k 2 M k 2 I k 4 K k 4 M k 4 I k 6 K k 6 M k 6 ] , D 4 = [ J k 2 L k 2 N k 2 J k 4 L k 4 N k 4 J k 6 L k 6 N k 6 ] , D 5 = [ I k 1 K k 1 M k 1 I k 3 K k 3 M k 3 I k 5 K k 5 M k 5 ] , D 6 = [ J k 1 L k 1 N k 1 J k 3 L k 3 N k 3 J k 5 L k 5 N k 5 ] .
The next step is to determine the coefficients of the expanded complex series. For a given k , six systems of linear equations with six unknowns a k II , c k II , e k II , b k I , d k I , and f k I can be obtained according to Equations (37) and (38). These unknown coefficients to be solved are represented by specific coefficients a k 0 , b k 0 , c k 0 , d k 0 , e k 0 , and f k 0 :
[ a k II c k II e k II ] = [ I k 1 a k 0 + K k 1 c k 0 + M k 1 e k 0 + J k 1 a ¯ k 0 + L k 1 c ¯ k 0 + N k 1 e ¯ k 0 I k 3 a k 0 + K k 3 c k 0 + M k 3 e k 0 + J k 3 a ¯ k 0 + L k 3 c ¯ k 0 + N k 3 e ¯ k 0 I k 5 a k 0 + K k 5 c k 0 + M k 5 e k 0 + J k 5 a ¯ k 0 + L k 5 c ¯ k 0 + N k 5 e ¯ k 0 ] ,
and:
[ b k I d k I f k I ] = [ I k 2 a k 0 + K k 2 c k 0 + M k 2 e k 0 + J k 2 a ¯ k 0 + L k 2 c ¯ k 0 + N k 2 e ¯ k 0 b k 0 I k 4 a k 0 + K k 4 c k 0 + M k 4 e k 0 + J k 4 a ¯ k 0 + L k 4 c ¯ k 0 + N k 4 e ¯ k 0 d k 0 I k 6 a k 0 + K k 6 c k 0 + M k 6 e k 0 + J k 6 a ¯ k 0 + L k 6 c ¯ k 0 + N k 6 e ¯ k 0 f k 0 ] .
By substituting Equation (32) into Equations (40) and (41), all coefficients in the series expansion Equations (33) and (34), i.e., Ψ I ( ζ ) , Θ I ( ζ ) , Φ I ( ζ ) , Ψ II ( ζ ) , Θ II ( ζ ) , and Φ II ( ζ ) , can be determined. Then, the problem is solved.

4. Typical Case of Dislocation Located Outside Inclusion

In special cases, the series solutions (33) and (34) can be given in a simpler form or their expressions can be obtained by summing. In this section, we address and discuss some special cases: without considering the dislocation or electric field, considering the interference between the screw dislocation and elliptical hole, considering the interference between the screw dislocation and circular inclusion, and considering the interference between the screw dislocation and circular hole.

4.1. No Dislocation

Without considering dislocation, i.e., the Burgers vector B = [ 0   0   0   0   0 ] T , the problem degenerates into a 1D hexagonal piezoelectric quasicrystal with an elliptical inclusion.
In the matrix, one has:
Λ 1 I i Λ 2 I = 1 2 C I C 1 I ( R 2 D 3 E ) [ p 0 g 0 q 0 ] t t 2 c 2 1 2 C I C 1 I R 2 D 4 [ p ¯ 0 g ¯ 0 q ¯ 0 ] t t 2 c 2 + 1 2 C I C 1 I ( R 2 D 3 + E ) [ p 0 g 0 q 0 ] + 1 2 C I C 1 I R 2 D 4 [ p ¯ 0 g ¯ 0 q ¯ 0 ] ,   t Ω I , E x I i E y I = R 2 2 ε 11 I ( p 0 I 06 + g 0 K 06 + q 0 M 06 + p ¯ 0 J 06 + g ¯ 0 L 06 + q ¯ 0 N 06 ) ( t t 2 c 2 1 ) q 0 2 ε 11 I ( t t 2 c 2 + 1 ) ,   t Ω I .
In the inclusion, one obtains:
Λ 1 II i Λ 2 II = C II C 1 II D 5 [ p 0 g 0 q 0 ] T + C II C 1 II D 6 [ p ¯ 0 g ¯ 0 q ¯ 0 ] T , E x II i E y II = 1 ε 11 II ( I 05 p 0 + K 05 g 0 + M 05 q 0 + J 05 p ¯ 0 + L 05 g ¯ 0 + N 05 q ¯ 0 ) .
where D i ( i = 3 , 4 , 5 , 6 ) is provided in Appendix A (Equation (A8)).
It can be discerned that the phonon field stress, phason field stress, electric field intensity, and electric displacement in the elliptical inclusion are uniform.

4.2. Interference between the Screw Dislocation and Elliptical Hole

The elliptical inclusion can be reduced to an elliptical hole, i.e., C 44 II = R 3 II = K 2 II = d 15 II = e 15 II = 0 and ε 11 II = ε 0 .
The coefficients a k II , b k I , c k II , d k I , e k II , and f k I can be represented as follows:
[ b k I d k I f k I ] = [ 4 R 2 k + 2 ( R 4 k + 4 + 1 ) ( R 3 I d 15 I e 15 I K 2 I ) M 4 ε 11 I ( M 1 2 R 4 k + 4 M 2 2 ) ( R 4 k + 4 1 )   4 R 2 k + 2 ( R 4 k + 4 + 1 ) ( R 3 I e 15 I C 44 I d 15 I ) M 4 ε 11 I ( M 1 2 R 4 k + 4 M 2 2 ) ( R 4 k + 4 1 ) 4 R 2 k + 2 ε 0 ( R 3 I 2 C 44 I K 2 I ) M 3 M 1 2 R 4 k + 4 M 2 2 ] e k 0 I [ b k 0 I d k 0 I f k 0 I ] + [ a ¯ k 0 I + 2 C 44 I ε 0 ( R 3 I d 15 I K 2 I e 15 I ) ( 2 ε 0 M 5 R 4 k + 4 + M 1 R 8 k + 8 + M 2 ) ε 11 I ( M 1 2 R 4 k + 4 M 2 2 ) ( R 4 k + 4 1 ) e ¯ k 0 I c ¯ k 0 I + 2 K 2 I ε 0 ( R 3 I e 15 I C 44 I d 15 I ) ( 2 ε 0 M 5 R 4 k + 4 + M 1 R 8 k + 8 + M 2 ) ε 11 I ( M 1 2 R 4 k + 4 M 2 2 ) ( R 4 k + 4 1 ) e ¯ k 0 I M 1 M 2 ( R 4 k + 4 1 ) M 1 2 R 4 k + 4 M 2 2 e ¯ k 0 I ] ,
and:
[ a k II c k II e k II ] = [ 0 0 2 R 4 k + 4 ε 0 M 1 M 3 ε 11 I ( M 1 2 R 4 k + 4 M 2 2 ) e k 0 I ] + [ 0 0 2 R 2 k + 2 ε 0 M 2 M 3 ε 11 I ( M 1 2 R 4 k + 4 M 2 2 ) e ¯ k 0 I ] .
where M i ( i = 1 , 2 , , 5 ) is provided in Appendix A (Equation (A9)).
If Equation (32) is substituted into Equations (42) and (43), all coefficients in the series expansion Equations (33) and (34), i.e., Ψ I ( ζ ) , Θ I ( ζ ) , Φ I ( ζ ) , Ψ II ( ζ ) , Θ II ( ζ ) , and Φ II ( ζ ) , can be determined. Then, the problem is solved.
Equation (43) shows that the phonon field stress and phason field stress in the elliptical hole are equal to zero.

4.3. Interference between the Screw Dislocation and Circular Inclusion

The elliptical inclusion can be reduced to a circular hole, i.e., a = b .
In the matrix, the expressions of the phonon field stress, phason field stress, electric field intensity, and electric displacement are as follows:
Λ 1 I i Λ 2 I = C I C 1 I [ p 0 g 0 q 0 ] + 1 2 π i C I C 1 I [ b z C 44 I b K 2 I b φ ε 11 I ] 1 t t 0 C I C 1 I [ J 02 p ¯ 0 + L 02 g ¯ 0 + N 02 q ¯ 0 J 04 p ¯ 0 + L 04 g ¯ 0 + N 04 q ¯ 0 J 06 p ¯ 0 + L 06 g ¯ 0 + N 06 q ¯ 0 ] a 2 t 2 + i 2 π C I C 1 I [ b z C 44 I J 02 + b K 2 I L 02 + b φ ε 11 I N 02 b z C 44 I J 04 + b K 2 I L 04 + b φ ε 11 I N 04 b z C 44 I J 06 + b K 2 I L 06 + b φ ε 11 I N 06 ] a 2 t ( t ¯ 0 t a 2 ) , t Ω I , E x I i E y I = 1 ε 11 I q 0 b φ 2 π i 1 t t 0 + 1 ε 11 I ( J 06 p ¯ 0 + L 06 g ¯ 0 + N 06 q ¯ 0 ) a 2 t 2 i 2 π 1 ε 11 I ( b z C 44 I J 06 + b K 2 I L 06 + b φ ε 11 I N 06 ) a 2 t ( t ¯ 0 t a 2 ) , t Ω I .
In the circular inclusion, one has:
Λ 1 II i Λ 2 II = i 2 π C II C 1 II [ b z C 44 I I 01 + b K 2 I K 01 + b φ ε 11 I M 01 b z C 44 I I 03 + b K 2 I K 03 + b φ ε 11 I M 03 b z C 44 I I 05 + b K 2 I K 05 + b φ ε 11 I M 05 ] 1 t t 0 + 1 a C II C 1 II [ I 01 p 0 + K 01 g 0 + M 01 q 0 I 03 p 0 + K 03 g 0 + M 03 q 0 I 05 p 0 + K 05 g 0 + M 05 q 0 ] ,   t Ω II , E x II i E y II = i 2 π 1 ε 11 II ( b z C 44 I I 05 + b K 2 I K 05 + b φ ε 11 I M 05 ) 1 t t 0 1 a ε 11 II ( I 05 p 0 + K 05 g 0 + M 05 q 0 ) , t Ω II .
Clearly, the phonon field stress, phason field stress, and electric field intensity within the inclusion all show typical screw dislocation behavior, i.e., a singularity of 1 / ( t t 0 ) at point t = t 0 .

4.4. Interference between Screw Dislocation and Circular Hole

If the circular inclusion reduces into a circular hole, then a = b , C 44 II = R 3 II = K 2 II = d 15 II = e 15 II = 0 , and ε 11 II = ε 0 .
In the matrix, the expressions of the phonon field stress, phason field stress, electric field intensity, and electric displacement are as follows:
Λ 1 I i Λ 2 I = C I C 1 I [ p 0 g 0 q 0 ] + 1 2 π i C I C 1 I [ b z C 44 I b K 2 I b φ ε 11 I ] 1 t t 0 a 2 q ¯ 0 N k 6 C I C 1 I [ 0 0 1 ] 1 t 2 ,   t Ω I , E x I i E y I = 1 ε 11 I ( q 0 + b φ ε 11 I 2 π i 1 t t 0 a 2 q ¯ 0 N k 6 1 t 2 ) ,   t Ω I .
In the circular hole, the expressions of the phonon field stress, phason field stress, electric field intensity, and electric displacement are as follows:
Λ 1 II i Λ 2 II = C II C 1 II [ 0 0 M k 5 q 0 ] T , t Ω II ,   E x II i E y II = 1 ε 11 II M k 5 q 0 , t Ω II .
where M k 5 and N k 6 are provided in Appendix A (Equation (A10)).
Apparently, the phonon field stress, phason field stress, and electric field intensity in the matrix are all affected by the dislocation, equivalent far-field phonon field, phason field, and electric field. The phonon field stress and phason field stress in the circular hole are equal to zero, and the electric field strength is affected by the equivalent far-field electric field q 0 rather than dislocation. In addition, the electric field strength and electric displacement in the circular hole are uniform.

4.5. No Electric Field

Without considering the electric field, the problem reduces to the interference between screw dislocation and elliptical inclusion in the matrix in a 1D hexagonal quasicrystal. The elastic constants of the 1D hexagonal quasicrystal are shown in Appendix B (Equations (A11) and (A12)).
By substituting the elastic constants of the 1D hexagonal quasicrystal, the series expansion coefficients of Ψ I ( ζ ) , Θ I ( ζ ) , Ψ II ( ζ ) , and Θ II ( ζ ) are as follows:
[ Ψ I ( ζ ) Θ I ( ζ ) ] = 1 2 π i [ k = 0 1 k + 1 ( b z C 44 I ( I k 2 ζ 0 k + 1 + J k 2 ζ ¯ 0 k + 1 + 1 ( R 2 ζ 0 ) k + 1 ) + b K 2 I ( K k 2 ζ 0 k + 1 + L k 2 ζ ¯ 0 k + 1 ) ) 1 ζ k + 1 k = 0 1 k + 1 ( b z C 44 I ( I k 4 ζ 0 k + 1 + J k 4 ζ ¯ 0 k + 1 + 1 ( R 2 ζ 0 ) k + 1 ) + b K 2 I ( K k 4 ζ 0 k + 1 + L k 4 ζ ¯ 0 k + 1 ) ) 1 ζ k + 1 ] + c 2 [ R ( I 02 p 0 + J 02 p ¯ 0 + K 02 g 0 + L 02 g ¯ 0 ) p 0 R R ( I 04 p 0 + J 04 p ¯ 0 + K 04 g 0 + L 04 g ¯ 0 ) g 0 R ] 1 ζ ,   ζ Γ I .
[ Ψ II ( ζ ) Θ II ( ζ ) ] = 1 2 π i [ k = 0 1 k + 1 ( b z C 44 I ( I k 1 ζ 0 k + 1 + J k 1 ζ ¯ 0 k + 1 ) + b K 2 I ( K k 1 ζ 0 k + 1 + L k 1 ζ ¯ 0 k + 1 ) ) ( ζ k + 1 + 1 ( R 2 ζ ) k + 1 ) k = 0 1 k + 1 ( b z C 44 I ( I k 3 ζ 0 k + 1 + J k 3 ζ ¯ 0 k + 1 ) + b K 2 I ( K k 3 ζ 0 k + 1 + L k 3 ζ ¯ 0 k + 1 ) ) ( ζ k + 1 + 1 ( R 2 ζ ) k + 1 ) ] + [ ( I 01 p 0 c 2 R + J 01 p ¯ 0 c 2 R + K k 1 g 0 c 2 R + L k 1 g ¯ 0 c 2 R ) ( ζ + 1 R 2 ζ ) ( I k 3 p 0 c 2 R + J k 3 p ¯ 0 c 2 R + K k 3 g 0 c 2 R + L k 3 g ¯ 0 c 2 R ) ( ζ + 1 R 2 ζ ) ] ,   ζ Γ II .
Then, the problem is solved.

5. Dislocation Located within an Inclusion

Now let us consider the second case: a generalized screw dislocation with Burgers vector B = [ 0 0 b z b b ϕ ] T is located at point t = t 0 in the elliptical inclusion, as shown in Figure 3.
The perturbation technique [42] can be employed to represent the displacement in the matrix as follows:
u I = C 1 I [ Re Ψ I ( ζ ) Re Θ I ( ζ ) Re Φ I ( ζ ) ] T , ζ Γ I .
In the inclusion, the displacement can be expressed as follows:
u II = C 1 II [ Re Ψ II ( ζ ) Re Θ II ( ζ ) Re Φ II ( ζ ) ] T ,   ζ Γ II .
In the matrix, the complex potentials of stress are:
Σ I = C I C 1 I [ [ Im Ψ I ( ζ ) ] A B [ Im Θ I ( ζ ) ] A B [ Im Φ I ( ζ ) ] A B ] T ,   ζ Γ I .
In the inclusion, the complex potentials of stress are:
Σ II = C II C 1 I [ [ Im Ψ II ( ζ ) ] A B [ Im Θ II ( ζ ) ] A B [ Im Φ II ( ζ ) ] A B ] T , ζ Γ II .
In area Γ I , complex potentials Ψ I ( ζ ) , Θ I ( ζ ) , and Φ I ( ζ ) are analytic functions, while, in area Γ II , the analytic functions include Ψ II ( ζ ) , Θ II ( ζ ) , and Φ II ( ζ ) .
Substituting Equations (44) and (45) into Equation (19) yields:
C 1 I [ Re Ψ I ( σ ) Re Θ I ( σ ) Re Φ I ( σ ) ] T = C 1 II [ Re Ψ II ( σ ) Re Θ II ( σ ) Re Φ II ( σ ) ] T .
Substituting Equations (46) and (47) into Equation (20) yields:
C I C 1 I [ Im Ψ I ( σ ) Im Θ I ( σ ) Im Φ I ( σ ) ] = C II C 1 II [ Im Ψ II ( σ ) Im Θ II ( σ ) Im Φ II ( σ ) ] .
In the matrix, the complex potential can be expanded to the Laurent series as follows:
[ Ψ I ( ζ ) Θ I ( ζ ) Φ I ( ζ ) ] = [ k = 0 ( a k 0 I ζ k + 1 + b k 0 I 1 ζ k + 1 ) k = 0 ( c k 0 I ζ k + 1 + d k 0 I 1 ζ k + 1 ) k = 0 ( e k 0 I ζ k + 1 + f k 0 I 1 ζ k + 1 ) ] + [ k = 0 b k I 1 ζ k + 1 k = 0 d k I 1 ζ k + 1 k = 0 f k I 1 ζ k + 1 ] ,   ζ Γ I .
In the inclusion, the complex potentials are expanded to the Laurent series as follows:
[ Ψ II ( ζ ) Θ II ( ζ ) Φ II ( ζ ) ] = [ k = 0 ( a k 0 II ζ k + 1 + b k 0 II 1 ζ k + 1 ) k = 0 ( c k 0 II ζ k + 1 + d k 0 II 1 ζ k + 1 ) k = 0 ( e k 0 II ζ k + 1 + f k 0 II 1 ζ k + 1 ) ] + [ k = 0 ( a k II ζ k + 1 + b k II 1 ζ k + 1 ) k = 0 ( c k II ζ k + 1 + d k II 1 ζ k + 1 ) k = 0 ( e k II ζ k + 1 + f k II 1 ζ k + 1 ) ] , ζ Γ II .
The constant terms of the corresponding potential field and rigid displacement are ignored. Coefficients a k 0 I , b k 0 I , c k 0 I , d k 0 I , e k 0 I , and f k 0 I can be represented as follows:
a k 0 I = { b z C 44 I 2 π i 1 ζ 0 + p 0 c 2 R , k = 0 , 1 k + 1 b z C 44 I 2 π i 1 ζ 0 k + 1 , k = 1 , 2 , , b k 0 I = { b z C 44 I 2 π i 1 R 2 ζ 0 + p 0 c 2 R , k = 0 , 1 k + 1 b z C 44 I 2 π i 1 R 2 k + 2 ζ 0 k + 1 , k = 1 , 2 , c k 0 I = { b K 2 I 2 π i 1 ζ 0 + g 0 c 2 R , k = 0 , 1 k + 1 b K 2 I 2 π i 1 ζ 0 k + 1 , k = 1 , 2 , , d k 0 I = { b K 2 I 2 π i 1 R 2 ζ 0 + g 0 c 2 R , k = 0 , 1 k + 1 b K 2 I 2 π i 1 R 2 k + 2 ζ 0 k + 1 , k = 1 , 2 , , e k 0 I = { b φ ε 11 I 2 π i 1 ζ 0 + q 0 c 2 R , k = 0 , 1 k + 1 b φ ε 11 I 2 π i 1 ζ 0 k + 1 , k = 1 , 2 , , f k 0 I = { b φ ε 11 I 2 π i 1 R 2 ζ 0 + q 0 c 2 R , k = 0 , 1 k + 1 b φ ε 11 I 2 π i 1 R 2 k + 2 ζ 0 k + 1 , k = 1 , 2 , .
Coefficients a k 0 II , b k 0 II , c k 0 II , d k 0 II , e k 0 II , and f k 0 II can be represented as follows:
a k 0 II = 1 k + 1 b z C 44 II 2 π i 1 ζ 0 k + 1 , k = 0 , 1 , 2 , , b k 0 II = 1 k + 1 b z C 44 II 2 π i 1 R 2 k + 2 ζ 0 k + 1 , k = 0 , 1 , 2 , , c k 0 II = 1 k + 1 b K 2 II 2 π i 1 ζ 0 k + 1 , k = 0 , 1 , 2 , , d k 0 II = 1 k + 1 b K 2 II 2 π i 1 R 2 k + 2 ζ 0 k + 1 ,   k = 0 , 1 , 2 , , e k 0 II = 1 k + 1 b φ ε 11 II 2 π i 1 ζ 0 k + 1 , k = 0 , 1 , 2 , , f k 0 II = 1 k + 1 b φ ε 11 II 2 π i 1 R 2 k + 2 ζ 0 k + 1 , k = 0 , 1 , 2 , .
Then, complex potentials Ψ j , Θ j , and Φ j ( j = I , II ) need to be determined so that they can meet the conditions of continuity in Equations (19), (20) and (23).
Substituting Equation (49) into Equation (23) yields: [ a k 0 II + a k II c k 0 II + c k II e k 0 II + e k II ] T = R 2 ( k + 1 ) [ b k 0 II + b k II d k 0 II + d k II f k 0 II + f k II ] T .
Thus, Equation (49) is rephrased as follows:
[ Ψ II ( ζ ) Θ II ( ζ ) Φ II ( ζ ) ] = [ k = 0 ( a k 0 II + a k II ) ( ζ k + 1 + 1 R 2 k + 2 ζ k + 1 ) k = 0 ( c k 0 II + c k II ) ( ζ k + 1 + 1 R 2 k + 2 ζ k + 1 ) k = 0 ( e k 0 II + e k II ) ( ζ k + 1 + 1 R 2 k + 2 ζ k + 1 ) ] , ζ Γ II .
According to Equations (48) and (52), there is ζ = σ = 1 / σ ¯ on the unit circle Γ 1 .
With Equation (19), on the elliptical interface, the conditions of continuity for displacement and potential can be represented as follows:
C 1 I [ a k 0 I + b ¯ k 0 I + b ¯ k I c k 0 I + d ¯ k 0 I + d ¯ k I e k 0 I + f ¯ k 0 I + f ¯ k I ] = C 1 II [ a k 0 II + a k II c k 0 II + c k II e k 0 II + e k II ] + 1 R 2 k + 2 C 1 II [ a ¯ k 0 II + a ¯ k II c ¯ k 0 II + c ¯ k II e ¯ k 0 II + e ¯ k II ] .
According to the theory of analytic function, in area Γ I , Ψ ( ζ ) , Θ ( ζ ) , and Φ ( ζ ) are analytic functions, and, in area Γ II , Ψ ( 1 / ζ ¯ ) ¯ , Θ ( 1 / ζ ¯ ) ¯ , and Φ ( 1 / ζ ¯ ) ¯ serve as analytic functions.
If Γ 0 represents the internal area of the circle Γ 2 , then Γ 0 + Γ II represents the entire area inside the unit circle. We can obtain a function vector defined in the whole area [ θ 1 ( ζ ) θ 2 ( ζ ) θ 3 ( ζ ) ] T :
[ θ 1 ( ζ ) θ 2 ( ζ ) θ 3 ( ζ ) ] = C 1 I [ k = 0 b ¯ k I ζ k + 1 k = 0 d ¯ k I ζ k + 1 k = 0 f ¯ k I ζ k + 1 ] + C 1 I [ k = 0 ( a k 0 I + b ¯ k 0 I ) ζ k + 1 k = 0 ( c k 0 I + d ¯ k 0 I ) ζ k + 1 k = 0 ( e k 0 I + f ¯ k 0 I ) ζ k + 1 ] C 1 II [ k = 0 a ¯ k II ζ k + 1 R 2 k + 2 k = 0 c ¯ k II ζ k + 1 R 2 k + 2 k = 0 e ¯ k II ζ k + 1 R 2 k + 2 ] C 1 II [ k = 0 a k 0 II ζ k + 1 k = 0 c k 0 II ζ k + 1 k = 0 e k 0 II ζ k + 1 ] C 1 II [ k = 0 a ¯ k 0 II ζ k + 1 R 2 k + 2 k = 0 c ¯ k 0 II ζ k + 1 R 2 k + 2 k = 0 e ¯ k 0 II ζ k + 1 R 2 k + 2 ] C 1 II [ k = 0 a k II ζ k + 1 k = 0 c k II ζ k + 1 k = 0 e k II ζ k + 1 ] ,   ζ Γ 0 + Γ II ,
[ θ 1 ( ζ ) θ 2 ( ζ ) θ 3 ( ζ ) ] = C 1 II [ k = 0 a k II R 2 k + 2 ζ k + 1 k = 0 c k II R 2 k + 2 ζ k + 1 k = 0 e k II R 2 k + 2 ζ k + 1 ] + C 1 II [ k = 0 a ¯ k II ζ k + 1 k = 0 c ¯ k II ζ k + 1 k = 0 e ¯ k II ζ k + 1 ] C 1 I [ k = 0 b k I ζ k + 1 k = 0 d k I ζ k + 1 k = 0 f k I ζ k + 1 ] + C 1 II [ k = 0 a k 0 II R 2 k + 2 ζ k + 1 k = 0 c k 0 II R 2 k + 2 ζ k + 1 k = 0 e k 0 II R 2 k + 2 ζ k + 1 ] + C 1 II [ k = 0 a ¯ k 0 II ζ k + 1 k = 0 c ¯ k 0 II ζ k + 1 k = 0 e ¯ k 0 II ζ k + 1 ] C 1 I [ k = 0 a ¯ k 0 I + b k 0 I ζ k + 1 k = 0 c ¯ k 0 I + d k 0 I ζ k + 1 k = 0 e ¯ k 0 I + f k 0 I ζ k + 1 ] ,   ζ Γ I .
With Equations (20), (48) and (52), on the elliptical interface, the conditions of continuity for the normal components of stress and electric displacement can be ex-pressed as follows:
C 1 I C 1 I b ¯ k 0 I + b ¯ k I a k 0 I d ¯ k 0 I + d ¯ k I c k 0 I f ¯ k 0 I + f ¯ k I e k 0 I = 1 R 2 k + 2 C II C 1 II a ¯ k 0 II + a ¯ k II c ¯ k 0 II + c ¯ k II e ¯ k 0 II + e ¯ k II Cl II C 1 II a k 0 II + a k II c k 0 II + c k II e k 0 II + e k II ·
Similarly, from the conditions of continuity for stress and electric displacement, a function vector equation [ θ 4 ( ζ ) θ 5 ( ζ ) θ 6 ( ζ ) ] T defined in the whole area can also be obtained as follows:
[ θ 4 ( ζ ) θ 5 ( ζ ) θ 6 ( ζ ) ] = C I C 1 I [ k = 0 ( b ¯ k 0 I + b ¯ k I a k 0 I ) ζ k + 1 k = 0 ( d ¯ k 0 I + d ¯ k I c k 0 I ) ζ k + 1 k = 0 ( f ¯ k 0 I + f ¯ k I e k 0 I ) ζ k + 1 ] C II C 1 II [ k = 0 ( 1 R 2 k + 2 ( a ¯ k 0 II + a ¯ k II ) ( a k 0 II + a k II ) ) ζ k + 1 k = 0 ( 1 R 2 k + 2 ( c ¯ k 0 II + c ¯ k II ) ( c k 0 II + c k II ) ) ζ k + 1 k = 0 ( 1 R 2 k + 2 ( e ¯ k 0 II + e ¯ k II ) ( e k 0 II + e k II ) ) ζ k + 1 ] ,   ζ Γ 0 + Γ II ,
[ θ 4 ( ζ ) θ 5 ( ζ ) θ 6 ( ζ ) ] = C I C 1 I [ k = 0 ( a ¯ k 0 I b k 0 I b k I ) 1 ζ k + 1 k = 0 ( c ¯ k 0 I d k 0 I d k I ) 1 ζ k + 1 k = 0 ( e ¯ k 0 I f k 0 I f k I ) 1 ζ k + 1 ] + C II C 1 II [ k = 0 ( ( a ¯ k 0 II + a ¯ k II ) 1 R 2 k + 2 ( a k 0 II + a k II ) ) 1 ζ k + 1 k = 0 ( ( c ¯ k 0 II + c ¯ k II ) 1 R 2 k + 2 ( c k 0 II + c k II ) ) 1 ζ k + 1 k = 0 ( ( e ¯ k 0 II + e ¯ k II ) 1 R 2 k + 2 ( e k 0 II + e k II ) ) 1 ζ k + 1 ] ,   ζ Γ I .
Equations (53a), (53b), (54a) and (54b) are holomorphic and single-valued on the whole plane.
[ θ 1 ( ζ ) θ 2 ( ζ ) θ 3 ( ζ ) ] T 0 can be obtained according to the Liouville theorem. With this result, we can obtain the following from Equations (53a) and (53b):
[ b k I d k I f k I ] = D 3 [ a k 0 I c k 0 I e k 0 I ] + D 4 [ a ¯ k 0 I c ¯ k 0 I e ¯ k 0 I ] [ b k 0 I d k 0 I f k 0 I ] .
[ θ 4 ( ζ ) θ 5 ( ζ ) θ 6 ( ζ ) ] T 0 can also be obtained according to the Liouville theorem. With this result, we can obtain the following from Equations (54a) and (54b):
[ a k II c k II e k II ] = D 5 [ a k 0 I c k 0 I e k 0 I ] + D 6 [ a ¯ k 0 I c ¯ k 0 I e ¯ k 0 I ] [ a k 0 II c k 0 II e k 0 II ] ,
The next step is to determine the coefficients of the expanded complex series. For the given k , six systems of linear equations with six unknowns a k II , c k II , e k II , b k I , d k I , and f k I can be obtained according to Equations (55) and (56). These unknown coefficients that can be solved are represented by specific coefficients a k 0 I , b k 0 I , c k 0 I , d k 0 I , e k 0 I , and f k 0 I :
[ a k II c k II e k II ] = [ I k 1 a k 0 I + J k 1 a ¯ k 0 I + K k 1 c k 0 I + L k 1 c ¯ k 0 I + M k 1 e k 0 I + N k 1 e ¯ k 0 I a k 0 II I k 3 a k 0 I + J k 3 a ¯ k 0 I + K k 3 c k 0 I + L k 3 c ¯ k 0 I + M k 3 e k 0 I + N k 3 e ¯ k 0 I c k 0 II I k 5 a k 0 I + J k 5 a ¯ k 0 I + K k 5 c k 0 I + L k 5 c ¯ k 0 I + M k 5 e k 0 I + N k 5 e ¯ k 0 I e k 0 II ] ,
and:
[ b k I d k I f k I ] = [ I k 2 a k 0 I + J k 2 a ¯ k 0 I + K k 2 c k 0 I + L k 2 c ¯ k 0 I + M k 2 e k 0 I + N k 2 e ¯ k 0 I b k 0 I I k 4 a k 0 I + J k 4 a ¯ k 0 I + K k 4 c k 0 I + L k 4 c ¯ k 0 I + M k 4 e k 0 I + N k 4 e ¯ k 0 I d k 0 I I k 6 a k 0 I + J k 6 a ¯ k 0 I + K k 6 c k 0 I + L k 6 c ¯ k 0 I + M k 6 e k 0 I + N k 6 e ¯ k 0 I f k 0 I ] .
By substituting Equations (50) and (51) into Equations (57) and (58), all coefficients of Ψ I ( ζ ) , Θ I ( ζ ) , Φ I ( ζ ) , Ψ II ( ζ ) , Θ II ( ζ ) , and Φ II ( ζ ) can be determined. Then, the problem is solved.

6. Typical Case of Dislocation Located within an Inclusion

In some special cases, the series solutions in Equations (48) and (49) can be provided in a simpler form or their expressions can be obtained by summing. In this section, special cases such as not considering a dislocation, considering an elliptical hole, and not considering the electric field are solved and discussed.

6.1. Elliptical Hole

If an elliptical inclusion reduces into an elliptical hole, then C 44 II = R 3 II = K 2 II = d 15 II = e 15 II = 0 , B = [ 0   0   0   0   0 ] T , and ε 11 II = ε 0 .
In the matrix, the following can be obtained:
Λ 1 I i Λ 2 I = C I C 1 I [ p 0 g 0 q 0 ] t + t 2 c 2 t 2 c 2 + R 2 C I C 1 I [ p ¯ 0 g ¯ 0 q ¯ 0 ] t t 2 c 2 t 2 c 2 + ε 11 I ε 0 C I C 1 I [ 0 0 ( M 05 q 0 + N 05 q ¯ 0 ) + ( M 05 q ¯ 0 + N 05 q 0 ) R 2 ] t t 2 c 2 t 2 c 2 , E x I i E y I = 1 ε 11 I ( q 0 t + t 2 c 2 t 2 c 2 + R 2 q ¯ 0 t t 2 c 2 t 2 c 2 ) 1 ε 0 ( ( M 05 q 0 + N 05 q ¯ 0 ) + ( M 05 q ¯ 0 + N 05 q 0 ) R 2 ) t t 2 c 2 t 2 c 2 .
In the elliptical hole, one has:
Λ 1 II i Λ 2 II = C II C 1 II [ 0   0   M 05   q 0 + N 05 q ¯ 0 ] T , E x II i E y II = 1 ε 0 ( M 05 q 0 + N 05 q ¯ 0 ) .
where M 05 and N 05 are provided in Appendix C (Equation (A13)).
The phonon field stress and phason field stress in the elliptical hole are equal to zero, and the electric field intensity and electric displacement are uniform.

6.2. Interference between Screw Dislocation and Circular Inclusion

An elliptical inclusion can be reduced to a circular hole, i.e., a = b .
In the matrix, the exact solutions for the phonon field stress, phason field stress, electric field intensity, and electric displacement are as follows:
Λ 1 I i Λ 2 I = C I C 1 I [ p 0 g 0 q 0 ] + 1 2 π i C I C 1 I [ b z C 44 I b K 2 I b φ ε 11 I ] 1 t t 0 C I C 1 I [ J 02 p ¯ 0 + L 02 g ¯ 0 + N 02 q ¯ 0 J 04 p ¯ 0 + L 04 g ¯ 0 + N 04 q ¯ 0 J 06 p ¯ 0 + L 06 g ¯ 0 + N 06 q ¯ 0 ] a 2 t 2 + 1 2 π i C I C 1 I [ b z C 44 I J 02 + b K 2 I L 02 + b φ ε 11 I N 02 b z C 44 I J 04 + b K 2 I L 04 + b φ ε 11 I N 04 b z C 44 I J 06 + b K 2 I L 06 + b φ ε 11 I N 06 ] a 2 t ( t ¯ 0 t a 2 ) , t Ω I , E x I i E y I = 1 ε 11 I q 0 b φ 2 π i 1 t t 0 + 1 ε 11 I ( J 06 p ¯ 0 + L 06 g ¯ 0 + N 06 q ¯ 0 ) a 2 t 2 1 2 π i 1 ε 11 I ( b z C 44 I J 06 + b K 2 I L 06 + b φ ε 11 I N 06 ) a 2 t ( t ¯ 0 t a 2 ) , t Ω I .
The exact solutions for each field in the circular inclusion are:
Λ 1 II i Λ 2 II = 1 2 π i C II C 1 II [ b z C 44 I I 01 + b K 2 I K 01 + b φ ε 11 I M 01 b z C 44 I I 03 + b K 2 I K 03 + b φ ε 11 I M 03 b z C 44 I I 05 + b K 2 I K 05 + b φ ε 11 I M 05 ] 1 t t 0 + C II C 1 II [ I 01 p 0 + K 01 g 0 + M 01 q 0 I 03 p 0 + K 03 g 0 + M 03 q 0 I 05 p 0 + K 05 g 0 + M 05 q 0 ] ,   t Ω II , E x II i E y II = 1 2 π i 1 ε 11 II ( b z C 44 I I 05 + b K 2 I K 05 + b φ ε 11 I M 05 ) 1 t t 0 1 ε 11 II ( I 05 p 0 + K 05 g 0 + M 05 q 0 ) , t Ω II .
Clearly, the phonon field stress, phason field stress, and electric field intensity within the inclusion all show typical screw dislocation behavior, i.e., the singularity of 1 / ( t t 0 ) at point t = t 0 .

6.3. Circular Hole

An inclusion can be reduced to a circular hole, i.e., C 44 II = R 3 II = K 2 II = d 15 II = e 15 II = 0 , B = [ 0   0   0   0   0 ] T , and ε 11 II = ε 0 . Next, it is necessary to solve the problem of a 1D hexagonal piezoelectric quasicrystal with a circular hole.
In area Ω I , the expressions of complex potentials Ψ I ( t ) , Θ I ( t ) , and Φ I ( t ) can be obtained as follows:
[ Ψ I ( t ) Θ I ( t ) Φ I ( t ) ] = t [ p 0 g 0 q 0 ] + [ 0 0 N k 6 a 2 q ¯ 0 t ] ,   t Ω I .
In area Ω II , the expressions of complex potentials Ψ II ( t ) , Θ II ( t ) , and Φ II ( t ) can be obtained as follows:
[ Ψ II ( t ) Θ II ( t ) Φ II ( t ) ] = [ 0 0 M k 5 q 0 t ] , t Ω II .
where M k 5 and N k 6 are provided in Appendix C (Equation (A14)).
It is obvious that, in the circular hole, both the phonon field stress and phason field stress are zero, the electric potential is a linear function of the independent variable t , and the electric field is uniform.

6.4. No Electric Field

Without considering the electric field, the problem reduces to the interference between an elliptical inclusion and a screw dislocation in a 1D hexagonal quasicrystal, and the dislocation is located in the inclusion.
In the matrix, the following can be obtained:
[ Ψ I ( ζ ) Θ I ( ζ ) ] = [ k = 0 ( a k 0 I ζ k + 1 + b k 0 I ζ k + 1 ) k = 0 ( c k 0 I ζ k + 1 + d k 0 I ζ k + 1 ) ] + [ k = 0 I k 2 a k 0 I + K k 2 c k 0 I + J k 2 a ¯ k 0 I + L k 2 c ¯ k 0 I b k 0 I ζ k + 1 k = 0 I k 4 a k 0 I + K k 4 c k 0 I + J k 4 a ¯ k 0 I + L k 4 c ¯ k 0 I d k 0 I ζ k + 1 ] ,   ζ Γ I .
In the inclusion, one has:
[ Ψ II ( ζ ) Θ II ( ζ ) ] = [ k = 0 ( I k 1 a k 0 I + K k 1 c k 0 I + J k 1 a ¯ k 0 I + L k 1 c ¯ k 0 I ) ( ζ k + 1 + 1 ( R 2 ζ ) k + 1 ) k = 0 ( I k 3 a k 0 I + K k 3 c k 0 I + J k 3 a ¯ k 0 I + L k 3 c ¯ k 0 I ) ( ζ k + 1 + 1 ( R 2 ζ ) k + 1 ) ] , ζ Γ II .
Thus, the problem mentioned above is solved, and the complex potentials Ψ I ( ζ ) , Θ I ( ζ ) , Ψ II ( ζ ) , and Θ II ( ζ ) are irrelevant to the coefficients a k 0 II , b k 0 II , c k 0 II , and d k 0 II .

7. Conclusions

This study uses a complex variable function and the conformal transformation technique to investigate the interference between screw dislocation and elliptical inclusion in 1D hexagonal piezoelectric quasicrystals. The anti-plane elastic equation of a 1D hexagonal piezoelectric quasicrystal is represented in matrix form, which simplifies the expression. The unknown variables are solved by applying matrix operations. For the dislocation in the matrix or inclusion, a general series solution for a corresponding field in the matrix and inclusion is given using the perturbation method. Special cases are addressed and discussed, such as the absence of dislocation, the interference between an elliptical hole, a screw dislocation, and a circular inclusion, the presence of a circular hole, and the absence of an electric field. The results show that the electric potential inside a circular hole is a linear function of the independent variable. Regarding the interference between a screw dislocation and circular inclusion, the phonon field stress, phason field stress, and electric field intensity in the inclusion show typical screw dislocation behavior, i.e., a 1 / ( t t 0 ) singularity at point t = t 0 . The results of this study can reveal the mechanism of the interaction between inclusion and dislocation, providing an important theoretical basis for exploring the strengthening and hardening mechanisms of quasicrystal components.

Author Contributions

Z.Z.: Formal analysis, investigation, writing—original draft, writing—review and editing. X.L.: writing—review and editing, funding acquisition, supervision. S.D.: Conceptualization, methodology, formal analysis, writing—original draft, writing—review and editing. This research received no external funding. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (12262033, 12272195, 12062021, and 12062022), the Ningxia Hui Autonomous Region Science and Technology Innovation Leading Talent Training Project (2020GKLRLX01), and the Natural Science Foundation of Ningxia (2022AAC03068, 2022AAC03001).

Data Availability Statement

No data was used for the research described in the paper.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

C 1 = [ 1 C 44 0 0 0 1 K 2 0 0 0 1 ε 11 ] ,
C 1 I = [ 1 C 44 I 0 0 0 1 K 2 I 0 0 0 1 ε 11 I ] , C 1 II = [ 1 C 44 II 0 0 0 1 K 2 II 0 0 0 1 ε 11 II ] .
C I = [ C 44 I R 3 I e 15 I R 3 I K 2 I d 15 I e 15 I d 15 I ε 11 I ] ,   C II = [ C 44 II R 3 II e 15 II R 3 II K 2 II d 15 II e 15 II d 15 II ε 11 II ] .
C 2 = [ C 44 0 0 0 K 2 0 0 0 ε 11 ] , C 2 I = [ C 44 I 0 0 0 K 2 I 0 0 0 ε 11 I ] , C 2 II = [ C 44 II 0 0 0 K 2 II 0 0 0 ε 11 II ] ,
C 3 = [ 1 0 0 0 1 0 e 15 d 15 ε 11 ] , C 3 I = [ 1 0 0 0 1 0 e 15 I d 15 I ε 11 I ] .
C 4 = [ C 44 R 3 e 15 R 3 K 2 d 15 0 0 1 ] , C 4 I = [ C 44 I R 3 I e 15 I R 3 I K 2 I d 15 I 0 0 1 ] .

Appendix B

D 1 = 1 R 2 k + 2 ( ( C I C 1 I ) 1 C II C 1 II ( C 1 I ) 1 C 1 II ) , D 2 = ( C 1 I ) 1 C 1 II + ( C I C 1 I ) 1 C II C 1 II , D 3 = 4 R 2 k + 2 ( C 1 I ) 1 C 1 II ( D 1 2 D 2 2 ) 1 ( C I C 1 I ) 1 C II C 1 II , D 4 = ( 2 ( C 1 I ) 1 C 1 II ( D 1 2 D 2 2 ) 1 ( 1 R 2 k + 2 D 1 + D 2 ) + E ) , D 5 = 2 ( D 1 2 D 2 2 ) 1 D 2 , D 6 = 2 ( D 1 2 D 2 2 ) 1 D 1 ,
Here, E is the third-order identity matrix.
D 3 = [ I 02 K 02 M 02 I 04 K 04 M 04 I 06 K 06 M 06 ] , D 4 = [ J 02 L 02 N 02 J 04 L 04 N 04 J 06 L 06 N 06 ] , D 5 = [ I 01 K 01 M 01 I 03 K 03 M 03 I 05 K 05 M 05 ] , D 6 = [ J 01 L 01 N 01 J 03 L 03 N 03 J 05 L 05 N 05 ] .
M 1 = ( ε 0 + ε 11 I ) ( R 3 I 2 C 44 I K 2 I ) + 2 R 3 I d 15 I e 15 I C 44 I d 15 I 2 K 2 I e 15 I 2 , M 2 = ( ε 0 ε 11 I ) ( R 3 I 2 C 44 I K 2 I ) 2 R 3 I d 15 I e 15 I + C 44 I d 15 I 2 + K 2 I e 15 I 2 , M 3 = ( R 3 I 2 C 44 I K 2 I ) ε 11 I + 2 R 3 I d 15 I e 15 I C 44 I d 15 I 2 K 2 I e 15 I 2 , M 4 = R 3 I 2 ε 0 2 C 44 I C 44 I 2 ε 0 2 K 2 I , M 5 = R 3 I 2 C 44 I K 2 I .
M k 5 = 2 ε 0 ( d 15 I d 15 I C 44 I + C 44 I K 2 I ε 11 I R 3 I R 3 I ε 11 I 2 e 15 I R 3 I d 15 I + e 15 I e 15 I K 2 I ) ε 11 I ( d 15 I d 15 I C 44 I + C 44 I K 2 I ε 11 I R 3 I R 3 I ε 11 I R 3 I R 3 I ε 0 2 e 15 I R 3 I d 15 I + e 15 I e 15 I K 2 I ) , N k 6 = 4 R 3 I R 3 I ε 0 d 15 I d 15 I C 44 I + C 44 I K 2 I ε 11 I R 3 I R 3 I ε 11 I R 3 I R 3 I ε 0 2 e 15 I R 3 I d 15 I + e 15 I e 15 I K 2 I .
The elastic constant of a 1D hexagonal quasicrystal can be represented by a matrix as follows:
C = [ C 44 R 3   R 3 K 2 ] , C I = [ C 44 I R 3 I R 3 I K 2 I ] , C II = [ C 44 II R 3 II R 3 II K 2 II ] ,
C 1 = [ 1 C 44 0 0 1 K 2 ] , C 1 I = [ 1 C 44 I 0 0 1 K 2 I ] , C 1 II = [ 1 C 44 II 0 0 1 K 2 II ] .

Appendix C

M 05 = M 1 M 2 , N 05 = N 1 N 2 , M 2 = N 2 ,
where:
M 1 = 2 R 4 ε 0 ( ( R 3 I 2 C 44 I K 2 I ) ε 11 I C 44 I ( d 15 I 2 + K 2 I ε 0 ) + R 3 I 2 ε 0 + 2 R 3 I d 15 I e 15 I e 15 I 2 K 2 I ) * ( ( R 3 I 2 C 44 I K 2 I ) ε 11 I + 2 R 3 I d 15 I e 15 I e 15 I 2 K 2 I C 44 I d 15 I 2 )   * ( R 3 I 2 ε 11 I + 2 R 3 I d 15 I e 15 I ( d 15 I 2 + ε 11 I K 2 I ) C 44 I e 15 I 2 K 2 I ) 2 , N 1 = 2 R 2 ε 0 ( ( C 44 I K 2 I R 3 I 2 ) ε 11 I + C 44 I ( d 15 I 2 K 2 I ε 0 ) + R 3 I 2 ε 0 2 R 3 I d 15 I e 15 I + e 15 I 2 K 2 I )   * ( ( R 3 I 2 C 44 I K 2 I ) ε 11 I + 2 R 3 I d 15 I e 15 I e 15 I 2 K 2 I C 44 I d 15 I 2 )   * ( R 3 I 2 ε 11 I + 2 R 3 I d 15 I e 15 I ( d 15 I 2 + ε 11 I K 2 I ) C 44 I e 15 I 2 K 2 I ) 2 , M 2 = ε 11 I ( ( R 3 I 2 C 44 I K 2 I ) ε 11 I + 2 R 3 I d 15 I e 15 I e 15 I 2 K 2 I C 44 I d 15 I 2 ) 2 * ( ( d 15 I 2 + ε 11 I K 2 I ε 0 K 2 I ) C 44 I + R 3 I 2 ε 0 R 3 I 2 ε 11 I 2 R 3 I d 15 I e 15 I + e 15 I 2 K 2 I ) 2 R 4 ε 11 I ( ( R 3 I 2 C 44 I K 2 I ) ε 11 I ( d 15 I 2 + ε 0 K 2 I ) C 44 I + R 3 I 2 ε 0 + 2 R 3 I d 15 I e 15 I e 15 I 2 K 2 I ) 2 * ( R 3 I 2 ε 11 I + 2 R 3 I d 15 I e 15 I ( d 15 I 2 + ε 11 I K 2 I ) C 44 I e 15 I 2 K 2 I ) 2 .
M k 5 = 2 ε 0 ( d 15 I d 15 I C 44 I + C 44 I K 2 I ε 11 I R 3 I R 3 I ε 11 I 2 e 15 I R 3 I d 15 I + e 15 I e 15 I K 2 I ) ε 11 I ( d 15 I d 15 I C 44 I + C 44 I K 2 I ε 11 I R 3 I R 3 I ε 11 I R 3 I R 3 I ε 0 2 e 15 I R 3 I d 15 I + e 15 I e 15 I K 2 I ) , N k 6 = 4 R 3 I R 3 I ε 0 d 15 I d 15 I C 44 I + C 44 I K 2 I ε 11 I R 3 I R 3 I ε 11 I R 3 I R 3 I ε 0 2 e 15 I R 3 I d 15 I + e 15 I e 15 I K 2 I .

References

  1. Tsai, A.P.; Guo, J.Q.; Abe, E.; Takakura, H.; Sato, T.J. A stable binary quasicrystal. Nature 2000, 408, 537–538. [Google Scholar] [CrossRef]
  2. Wang, N.; Chen, H.; Kuo, K.H. Two-dimensional quasicrystal with eightfold rotational symmetry. Phys. Rev. Lett. 1987, 59, 1010–1013. [Google Scholar] [CrossRef]
  3. Fu, X.; Mu, X.; Zhang, J.; Zhang, L.; Gao, Y. Green’s functions of two-dimensional piezoelectric quasicrystal in half-space and biomaterials. Appl. Math. Mech. (Engl. Ed.) 2023, 44, 237–254. [Google Scholar] [CrossRef]
  4. Ahn, S.J.; Moon, P.; Kim, T.H.; Kim, H.W.; Shin, H.C.; Kim, E.H.; Cha, H.W.; Kahng, S.J.; Kim, P.; Koshino, M.; et al. Dirac electrons in a dodecagonal graphene quasicrystal. Science 2018, 361, 782–786. [Google Scholar] [CrossRef]
  5. Zhang, M.; Guo, J.; Li, Y. Bending and vibration of two-dimensional decagonal quasicrystal nanoplates via modified couple-stress theory. Appl. Math. Mech. (Engl. Ed.) 2022, 43, 371–388. [Google Scholar] [CrossRef]
  6. Mu, X.; Xu, W.; Zhu, Z.; Zhang, L.; Gao, Y. Multi-field coupling solutions of functionally graded two-dimensional piezoelectric quasicrystal wedges and spaces. Appl. Math. Model. 2022, 109, 251–264. [Google Scholar] [CrossRef]
  7. Yu, J.; Guo, J. Analytical solution for a 1D hexagonal quasicrystal strip with two collinear mode-III cracks perpendicular to the strip boundaries. Crystals 2023, 13, 661. [Google Scholar] [CrossRef]
  8. Loboda, V.; Komarov, O.; Bilyi, D.; Lapusta, Y. An analytical approach to the analysis of an electrically permeable interface crack in a 1D piezoelectric quasicrystal. Acta Mech. 2020, 231, 3419–3433. [Google Scholar] [CrossRef]
  9. Dang, H.; Lv, S.; Fan, C.; Lu, C.; Ren, J.; Zhao, M. Analysis of anti-plane interface cracks in one-dimensional hexagonal quasicrystal coating. Appl. Math. Model. 2020, 81, 641–652. [Google Scholar] [CrossRef]
  10. Hu, K.; Yang, W.; Fu, J.; Chen, Z.; Gao, C.-F. Analysis of an anti-plane crack in a one-dimensional orthorhombic quasicrystal strip. Math. Mech. Solids 2022, 27, 2467–2479. [Google Scholar] [CrossRef]
  11. Ma, Y.; Zhou, Y.; Yang, J.; Zhao, X.; Ding, S. Interface crack behaviors disturbed by Love waves in a 1D hexagonal quasicrystal coating-substrate structure. ZAMP Z. Angew. Math. Phys. 2023, 74, 61. [Google Scholar] [CrossRef]
  12. Eshelby, J.D. The determination of the elastic field of an ellipsoidal inclusion, and related problems. Proceedings of the Royal Society of London. Ser. A Math. Phys. Sci. 1957, 241, 375–396. [Google Scholar]
  13. Smith, E. The interaction between dislocations and inhomogeneities—I. Int. J. Eng. Sci. 1968, 6, 129–143. [Google Scholar] [CrossRef]
  14. Gong, S.; Meguid, S. A screw dislocation interacting with an elastic elliptical inhomogeneity. Int. J. Eng. Sci. 1994, 32, 1221–1228. [Google Scholar] [CrossRef]
  15. Meguid, S.; Zhong, Z. Electroelastic analysis of a piezoelectric elliptical inhomogeneity. Int. J. Solids Struct. 1997, 34, 3401–3414. [Google Scholar] [CrossRef]
  16. Deng, W.; Meguid, S. Analysis of a screw dislocation inside an elliptical inhomogeneity in piezoelectric solids. Int. J. Solids Struct. 1999, 36, 1449–1469. [Google Scholar] [CrossRef]
  17. Gutkin, M.; Ovid’Ko, I. Edge dislocations in nanoquasicrystalline materials. Nanostruct. Mater. 1998, 10, 493–501. [Google Scholar] [CrossRef]
  18. Wang, J.; Mancini, L.; Wang, R.; Gastaldi, J. Phonon- and phason-type spherical inclusions in icosahedral quasicrystals. J. Phys. Condens. Matter 2003, 15, L363–L370. [Google Scholar] [CrossRef]
  19. Wang, X.; Schiavone, P. Dislocations, imperfect interfaces and interface cracks in anisotropic elasticity for quasicrystals. Math. Mech. Complex Syst. 2013, 1, 1–17. [Google Scholar] [CrossRef]
  20. Li, L.; Li, X.; Li, L. Study on effective electroelastic properties of one-dimensional hexagonal piezoelectric quasicrystal containing randomly oriented inclusions. Mod. Phys. Lett. B 2023, 37, 2350043. [Google Scholar] [CrossRef]
  21. Hu, Z.; Feng, X.; Mu, X.; Song, G.; Zhang, L.; Gao, Y. Eshelby tensors and effective stiffness of one-dimensional orthorhombic quasicrystal composite materials containing ellipsoidal particles. Arch. Appl. Mech. 2023, 93, 3275–3295. [Google Scholar] [CrossRef]
  22. Fan, T.Y. Application I—Some dislocation and interface problems and solutions in one-and two-dimensional quasicrystals. In Mathematical Theory of Elasticity of Quasicrystals and Its Applications; Springer: Singapore, 2016; pp. 109–135. [Google Scholar]
  23. Wang, X.; Schiavone, P. Two non-elliptical decagonal quasicrystalline inclusions with internal uniform hydrostatic phonon stresses. ZAMM-J. Appl. Math. Mech. Z. Angew. Math. Mech. 2018, 98, 2027–2034. [Google Scholar] [CrossRef]
  24. Wang, X. Eshelby’s problem of an inclusion of arbitrary shape in a decagonal quasicrystalline plane or half-plane. Int. J. Eng. Sci. 2004, 42, 1911–1930. [Google Scholar] [CrossRef]
  25. Shi, W.C. Collinear periodic cracks and/or rigid line inclusions of antiplane sliding mode in one-dimensional hexagonal quasicrystal. Appl. Math. Comput. 2009, 215, 1062–1067. [Google Scholar]
  26. Gao, Y.; Ricoeur, A. Three-dimensional analysis of a spheroidal inclusion in a two-dimensional quasicrystal body. Philos. Mag. 2012, 92, 4334–4353. [Google Scholar] [CrossRef]
  27. Yang, L.-Z.; Gao, Y.; Pan, E.; Waksmanski, N. Electric-elastic field induced by a straight dislocation in one-dimensional quasicrystals. Acta Phys. Pol. A 2014, 126, 467–470. [Google Scholar] [CrossRef]
  28. Guo, J.; Zhang, Z.; Xing, Y. Antiplane analysis for an elliptical inclusion in 1D hexagonal piezoelectric quasicrystal composites. Philos. Mag. 2016, 96, 349–369. [Google Scholar] [CrossRef]
  29. Li, L.; Liu, G. Study on a straight dislocation in an icosahedral quasicrystal with piezoelectric effects. Appl. Math. Mech. 2018, 39, 1259–1266. [Google Scholar] [CrossRef]
  30. Fan, C.; Chen, S.; Xu, G.; Zhang, Q. Fundamental solution for extended dislocation in one-dimensional piezoelectric quasicrystal and application to fracture analysis. ZAMM-Z. Angew. Math. Mech. 2019; 99, e201800232. [Google Scholar]
  31. Lou, F.; Cao, T.; Qin, T.; Xu, C. Plane analysis for an inclusion in 1D hexagonal quasicrystal using the hypersingular integral equation method. Acta Mech. Solida Sin. 2019, 32, 249–260. [Google Scholar] [CrossRef]
  32. Zhang, Z.; Ding, S.; Li, X. A spheroidal inclusion within a 1D hexagonal piezoelectric quasicrystal. Arch. Appl. Mech. 2020, 90, 1039–1058. [Google Scholar] [CrossRef]
  33. Hu, Z.M.; Zhang, L.L.; Gao, Y. Eshelby tensors for one-dimensional piezoelectric quasicrystal materials with ellipsoidal inclusions. In Proceedings of the 2020 15th Symposium on Piezoelectrcity, Acoustic Waves and Device Applications (SPAWDA), Zhengzhou, China, 16–19 April 2021; IEEE: Piscataway, NJ, USA, 2021; pp. 474–479. [Google Scholar]
  34. Hu, K.Q.; Meguid, S.A.; Zhong, Z.; Gao, C.-F. Partially debonded circular inclusion in one-dimensional quasicrystal material with piezoelectric effect. Int. J. Mech. Mater. Des. 2020, 16, 749–766. [Google Scholar] [CrossRef]
  35. Hu, K.; Meguid, S.A.; Wang, L.; Jin, H. Electro-elastic field of a piezoelectric quasicrystal medium containing two cylindrical inclusions. Acta Mech. 2021, 232, 2513–2533. [Google Scholar] [CrossRef]
  36. Zhai, T.; Ma, Y.; Ding, S.; Zhao, X. Circular inclusion problem of two-dimensional decagonal quasicrystals with interfacial rigid lines under concentrated force. ZAMM-Z. Angew. Math. Mech. 2021, 101, e202100081. [Google Scholar] [CrossRef]
  37. Hu, Y.Q.; Xia, P.; Wei, K.X. The interaction between a dislocation and circular inhomogeneity in 1D hexagonal quasicrystals. Appl. Mech. Mater. 2010, 34–35, 429–434. [Google Scholar] [CrossRef]
  38. Li, L.H.; Liu, G.T. Interaction of a dislocation with an elliptical hole in icosahedral quasicrystals. Philos. Mag. Lett. 2013, 93, 142–151. [Google Scholar] [CrossRef]
  39. Li, L.H.; Zhao, Y. Interaction of a screw dislocation with interface and wedge-shaped cracks in one-dimensional hexagonal piezoelectric quasicrystals bimaterial. Math. Probl. Eng. 2019, 2019, 1037297. [Google Scholar] [CrossRef]
  40. Lv, X.; Liu, G.-T. Exact solutions for interaction of parallel screw dislocations with a wedge crack in one-dimensional hexagonal quasicrystal with piezoelectric effects. Math. Probl. Eng. 2020, 2020, 4797413. [Google Scholar] [CrossRef]
  41. Pi, J.; Zhao, Y.; Li, L. Interaction between a screw dislocation and two unequal interface cracks emanating from an elliptical hole in one dimensional hexagonal piezoelectric quasicrystal bi-material. Crystals 2022, 12, 314. [Google Scholar] [CrossRef]
  42. Hwu, C.; Yen, W.J. On the anisotropic elastic inclusions in plane elastostatics. J. Appl. Mech. 1993, 60, 626–632. [Google Scholar] [CrossRef]
  43. Pak, Y.E. Force on a piezoelectric screw dislocation. J. Appl. Mech. 1990, 57, 863–869. [Google Scholar] [CrossRef]

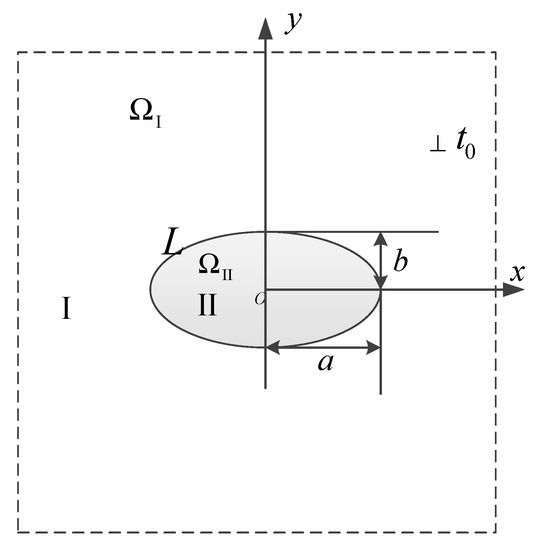

Figure 1. Schematic diagram of a screw dislocation in a 1D hexagonal piezoelectric quasicrystal matrix.
Figure 1. Schematic diagram of a screw dislocation in a 1D hexagonal piezoelectric quasicrystal matrix.
Crystals 13 01419 g001

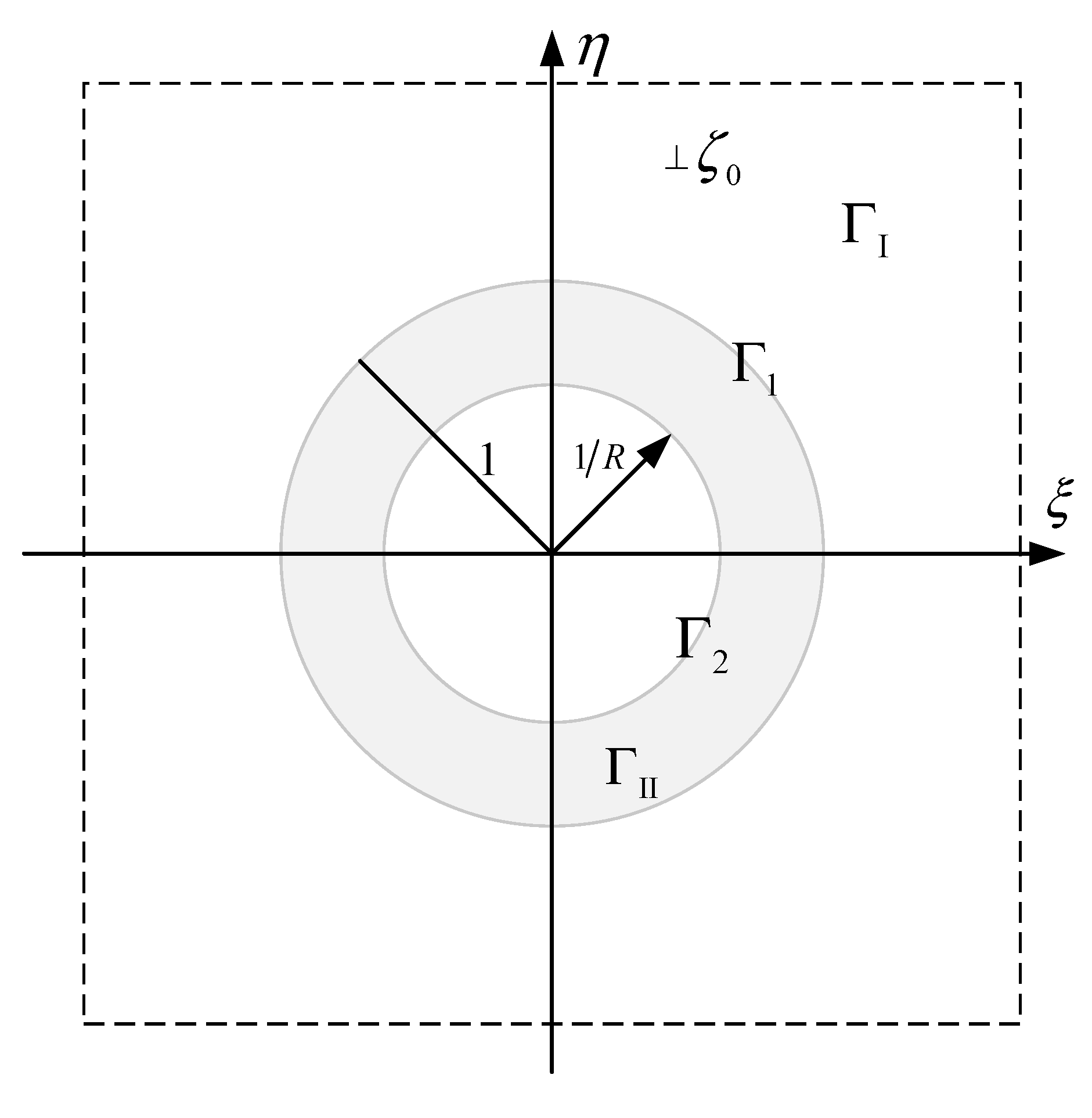

Figure 2. Conformal mapping plane for screw dislocation in a 1D hexagonal piezoelectric quasicrystal matrix.
Figure 2. Conformal mapping plane for screw dislocation in a 1D hexagonal piezoelectric quasicrystal matrix.
Crystals 13 01419 g002

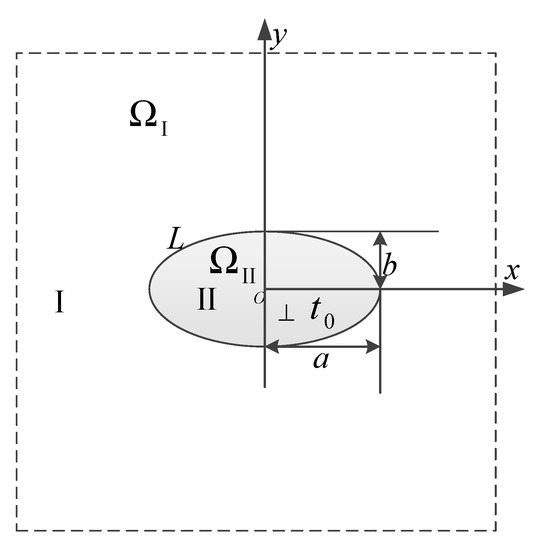

Figure 3. Schematic diagram for a screw dislocation located within an inclusion.
Figure 3. Schematic diagram for a screw dislocation located within an inclusion.
Crystals 13 01419 g003
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, Z.; Li, X.; Ding, S. Analytical Solution of the Interference between Elliptical Inclusion and Screw Dislocation in One-Dimensional Hexagonal Piezoelectric Quasicrystal. Crystals 2023, 13, 1419. https://doi.org/10.3390/cryst13101419

AMA Style

Zhang Z, Li X, Ding S. Analytical Solution of the Interference between Elliptical Inclusion and Screw Dislocation in One-Dimensional Hexagonal Piezoelectric Quasicrystal. Crystals. 2023; 13(10):1419. https://doi.org/10.3390/cryst13101419

Chicago/Turabian Style

Zhang, Zhiguo, Xing Li, and Shenghu Ding. 2023. "Analytical Solution of the Interference between Elliptical Inclusion and Screw Dislocation in One-Dimensional Hexagonal Piezoelectric Quasicrystal" Crystals 13, no. 10: 1419. https://doi.org/10.3390/cryst13101419

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
