Impact of Structural Strain in Perovskite Epitaxial Thin Films on Their Functional Properties

Abstract

The strain engineering effects induced by different means, e.g., the substrate lattice mismatch and/or chemical doping, on the functional properties of perovskite thin films have triggered interest in the use of these materials in different applications such as energy storage/generation or photonics. The effects of the film’s thickness and strain state of the structure for the lead-free perovskite ferrite-based materials (BiFeO₃-BFO; Y-doped BiFeO₃-BYFO; LaFeO₃-LFO) on their functional properties are highlighted here. As was previously demonstrated, the dielectric properties of BFO epitaxial thin films are strongly affected by the film thickness and by the epitaxial strain induced by the lattice mismatch between substrate and film. Doping the BiFeO₃ ferroelectric perovskite with rare-earth elements or inducing a high level of structural deformation into the crystalline structure of LaFeO₃ thin films have allowed the tuning of functional properties of these materials, such as dielectric, optical or photocatalytic ones. These changes are presented in relation to the appearance of complex ensembles of nanoscale phase/nanodomains within the epitaxial films due to strain engineering. However, it is a challenge to maintain the same level of epitaxial strain present in ultrathin films (<10 nm) and to preserve or tune the positive effects in films of thicknesses usually higher than 30 nm.

1. Introduction

Ferroelectricity is the ability of some materials to present spontaneous electric polarization, reversible when an external electric field is applied. The ferroelectric materials undergo spontaneous polarization below a temperature limit called the Curie temperature. Materials having the ability to generate an internal electric field, when a mechanical pressure or strain is applied, are piezoelectric materials. The most known piezoelectric material is lead zirconate titanate Pb(Zr_1−xTi_x)O₃ (PZT), a solid-mixture solution of PbZrO₃ and PbTiO₃ with piezoelectric properties, which generates electrical charges under mechanical stress (direct effect) or produces structural deformation when an electrical field is applied (converse effect) [1]. In the paraelectric state, where no spontaneous polarization and no piezoelectric effects are present, PZT has a cubic ABO₃ crystalline perovskite structure (the same as the initial two compounds), where Pb²⁺ ions occupy the A-site, while the B-site is randomly occupied by Zr⁴⁺ and Ti⁴⁺. For a certain range of compositions, and for temperatures lower than the Curie temperature (T_c, which can vary from 220 °C to 490 °C, depending on the chemical composition) [2], PZT in the ferroelectric phase exhibits a tetragonal structure, which transforms into a rhombohedral phase by varying the cations’ proportion in the solid solution. Compared to the cubic structure, in the tetragonal phase, the octahedron formed by oxygen anions is moved off from the center of the cube formed by Pb²⁺ cations, and the B-site cations in the center of the oxygen octahedron are also shifted [3,4,5], giving rise to a spontaneous polarization. The direction of the spontaneous polarization changes in the rhombohedral phase. Thus, in the PZT solid solution, a phase boundary between rhombohedral and tetragonal phases (called morphotropic phase boundary) is found in a narrow composition range. According to the results reported by Jaffe et al., the morphotropic phase boundary (MPB) is obtained at room temperature when Ti percentage, x, equals 48% [2]. The dielectric and piezoelectric properties are maximized at MPB, due to the multiple possible directions allowed for the polarization orientation. PZT-type materials present the maximum absorption of the light in the UV region, having a large band gap, around 3.2–3.7 eV which can differ depending on the composition or the used dopant [6]. In terms of energy production, PZT materials are used, principally, for vibration energy harvesting, where, by applying mechanical/vibrational stress, electrical energy is generated as an effect of the strong piezoelectric properties of this material [1]. However, the main component of PZT (PbO) is toxic, and its toxicity is pronounced because of its volatility at high temperatures during material processing. More than that, Pb is a serious chronic poison with long-term exposure, even in small quantities [7]. It is therefore desired to develop new alternatives of lead-free piezoelectric materials and to transfer them into technologies to substitute PZT compounds. BiFeO₃ (BFO) is one of the most studied multiferroic materials due to its excellent electrical properties, high Curie temperature (T_C ∼ 830 °C) and Néel temperature (T_N ∼ 370 °C). It shows a slightly distorted perovskite structure, with a rhombohedral R3c ground state at room temperature, but it turns into the paraelectric orthorhombic (O) Pnma phase above T_C temperature [8]. The highest spontaneous polarization is oriented along the pseudocubic [111] directions and the largest ionic displacements from the centrosymmetric positions are pointed along the same directions. One way to improve the physicochemical properties of BFO is by chemical doping, where generally Bi is replaced by rare earth elements and Fe by transitional metal elements. Recent studies of doped BFO have primarily concentrated on investigating the physicochemical characteristics of thin films where rare earth (RE) elements are incorporated into the BFO structure. Researchers have noted a strong correlation with the ionic radius of the substituted elements. Notably, when considering the average radius of the A-site cations, a structural transition involving the rhombohedral–orthorhombic phases was consistently observed at the same average radius value. This transition was found to be independent of the specific type of rare earth ion used [9,10,11,12,13]. Usually, the substitution of Bi cations leads to a decrease in the leakage current density, which improves the ferroelectric and piezoelectric properties [14,15,16,17,18]. For example, Nb-doped BFO films grown on PtSi substrates by PLD show saturated hysteresis loops with a remnant polarization of 86.4 µC/cm² [19]. Smooth surfaces with fine microstructures and low leakage currents were reported for polycrystalline Sm-doped BFO films grown by PLD on Pt electrode/glass substrate. These films show remnant polarization ranging from 66–150 µC/cm² [20]. A low leakage current was reported for single-phase Ca and Mn co-doped BFO grown on STO substrates with remnant polarization of 92.5 µC/cm² [21].

The strain engineering was also demonstrated to be an excellent method for tailoring the functional properties of different material classes (ferroelectric oxides, nitrides, oxinitrides, etc.) [22,23,24].

Thus, in Ref. [22], a very large remnant polarization (≅60 μC/cm²) was reported for epitaxial BFO thin films deposited by PLD on SRO/STO. The improved polarization was correlated to the compressive stress induced by the SRO layer [22]. Over the years, numerous strategies were used to improve the electrical properties of BFO thin films, and these results will be discussed in detail in the next sections. Besides its excellent electrical properties, BFO shows enhanced photocatalytic (PC) and photoelectrochemical (PEC) activities. The small value of the direct band gap (2.69–2.71 eV) propels BFO-based devices for use as photocatalysts and photoelectrodes with great capabilities to absorb visible light [25]. It has also the advantage that the self-polarization, which induces the internal electric field, can improve the charge separation through the chemical potential modulation and surface band-bending, which will further enhance the photoelectrochemical properties [26].

Similar effects on the functional properties have been noted for ferroelectric titanate-based materials. A promising lead-free ferroelectric material is barium titanate (BaTiO₃), a perovskite-type material showing relatively good dielectric, ferroelectric and piezoelectric properties. BaTiO₃ is the first discovered ferroelectric perovskite oxide material. The ferroelectric phase is formed when the temperature decreases below the Curie temperature, and it changes through several phase transitions, transforming from the cubic (centrosymmetric phase) to tetragonal, orthorhombic and rhombohedral phases. The displacement of Ti⁴⁺ cations and the orientation of the formed spontaneous polarizations are along [001], [101] and [111] directions, when the ferroelectric phase symmetry changes from tetragonal to orthorhombic and rhombohedral, respectively [27]. Moreover, besides these electric properties, BaTiO₃ has increased thermal and chemical stability and can be used in large application domains. The Curie temperature of BaTiO₃ is 120 °C. Above this temperature, the material is in the paraelectric state and has a cubic structure stable up to 1460 °C [28]. Different BaTiO₃-based materials have been developed by doping with various elements. An example is (Ba,Ca)(Zr,Ti)O₃ (BCTZ), which has a perovskitic structure similar to BaTiO₃. The doping of Ba and Ti sites with Ca and Zr improves the electrical properties, making the resulting material appropriate for applications in energy harvesting, sensing, etc. The BCTZ formula can be easily written as a two end-materials combination, usually as (1−x)Ba(Ti_0.8Zr_0.2)O_3−x(Ba_0.7Ca_0.3)TiO₃. The morphotropic phase boundary (MPB), where BCTZ shows the highest dielectric, ferroelectric, and piezoelectric properties, is obtained for x ≅ 0.5 [8,29,30]. As was previously demonstrated, the dielectric properties of BCTZ epitaxial thin films are strongly affected by the film thickness and by the epitaxial strain induced by the lattice mismatch between substrate and film [31]. For higher thickness values (> 35 nm), the misfit strain relaxes and the tetragonality ratio and dielectric permittivity are heavily affected [32]. While these ferroelectric perovskite materials are briefly mentioned here for completeness, in the following the attention will be focused on other types of lead-free materials, namely BiFeO₃ and LaFeO₃.

Being part of the wide series of rare-earth orthoferrites, LaFeO₃ (LFO), having at room temperature a distorted perovskite structure, is an interesting material, especially for its various properties including an antiferromagnetic insulator character (with high T_N ≅ 740 °C), the coexistence of coupled ferroelectric and antiferromagnetic orderings, and photoelectrochemical activity [33,34]. It shows an orthorhombic symmetry with lattice parameters a = 5.557 Å, b = 5.5652 Å, and c = 7.8542 Å, belonging to the Pbmn space group [35]. LFO possesses increased photostability, as well as high stability in both reducing and oxidizing chemical media. It was found that the chemical substitution of LaFeO₃ cations improves its physicochemical features, leading to a material with enhanced electrical conductivity and thermal stability, a large dielectric constant and low dielectric loss, good permittivity, ferroelectricity and piezoelectricity [30,36,37]. The optical band gap (E_g ≅ 2.07) coupled to the energy bands position of LFO-based materials make them excellent p-type photocathodes for oxygen and water reduction [38,39,40].

Within this paper, the effects of the film thickness and strain state of the structure for the lead-free perovskite ferrite-based (BiFeO₃-BFO; Y-doped BiFeO₃-BYFO; LaFeO₃-LFO) materials on their functional properties are presented, for different synthesis routes of the thin films.

2. Structural and Functional Properties of Lead-Free Ferrite-Based Perovskite Thin Films

2.1. BiFeO₃ (BFO)

Bismuth ferrite (BFO) has received substantial attention in the realm of multiferroic materials and stands out as the most extensively studied due to its exceptional ability to simultaneously exhibit polar and magnetic orders at room temperature. This distinctive property has peaked considerable interest for potential applications in areas such as piezoelectric devices, nonvolatile storage technologies, spintronics, and more [9,41]. An interesting study focused on antiferromagnetic and ferroelectric properties of BFO-based thin films grown on STO substrates by PLD for spintronics devices was reported by Bea et al. [42]. Ultrathin BFO films coupled with Co and La_2/3Sr_1/3MnO₃ (LSMO) ferromagnetic electrodes were used as tunnel barriers in magnetic tunnel junctions, and a large tunnel magnetoresistance was recorded due to their insulating and ferromagnetic properties [42]. An asymmetric superlattice, with high crystalline quality, made of 10 series of BFO (6 nm)/STO (1–2.5 nm) films grown on Nb-doped STO substrates, was obtained using magnetron sputtering [43]. It was observed that the in-plane strain is very high for samples having the STO sublayer in the 1 and 1.5 nm thickness range and the films start to be much more relaxed for STO thicknesses higher than 1.75 nm. The electrical polarizations of BFO/STO-based superlattices decrease with the increase in the STO sublayer thickness, the highest values being obtained for samples having 1 nm and 1.5 nm of STO. These results were attributed to the highly compressive strained structure and great crystalline quality of samples with very thin STO layers. The piezoelectric coefficient d₃₃ and remnant polarization follow the same trend and decrease with the structural strain, especially for samples having a STO sublayer equal to or thicker than 1.75 nm [43].

Thin films exhibit varied growth patterns depending on the type of collector substrates they are deposited on. The growth mechanism, their surface characteristics, and their physicochemical attributes are significantly influenced by the properties of the substrate they adhere to. The strain observed within the material structure is a consequence of the difference between the lattice constants of the material and the substrate, commonly referred to as a “mismatch.” When a material undergoes epitaxial growth on a substrate, it tends to conform to the symmetry of the substrate. In the case of a crystalline substrate with a lattice constant (a_s) greater than that of the growing material (a_m), the growth results in tensile strain. To achieve a perfectly elastic system, the out-of-plane parameter decreases while maintaining the unit cell volume unchanged. Conversely, when a_s < a_m, a compressive strain occurs, causing the out-of-plane parameter to increase [44,45]. An interesting study related to the influence of the substrate on the optical and structural properties of BFO grown by PLD was reported by Himcinschi et al. The authors have grown BFO films having different thicknesses on STO, Nb-doped STO and DyScO₃ (DSO) [44]. Clear interference fringes were observed for a thin BFO film grown on a STO substrate, meaning that the film is fully strained, and by increasing the film thickness, the strain is relaxed [46,47,48]. On the other hand, the behavior of thick BFO film grown on a DSO substrate follows a completely different trend, the film remaining epitaxially strained even at 135 nm thickness. This happens due to the lower difference between the lattice constants of BFO (3.96 Å) and DSO (3.951 Å) compared to STO (3.905 Å) [22,46,49]. A similar feature was reported for BFO films grown on LaAlO₃ (LAO) substrates (lattice constant of LAO ~ 3.80 Å) with the presence of a large compressive strain even for thicker films (118 nm) [50]. Series of thin films made of BFO, BiFeO₃/NiFe₂O₄ (BFO/NFO), BiFe_0.94 Mn_0.04 O₃/NiFe₂O₄ (BFMO/NFO) and BiFe_0.94Mn_0.04Cr_0.02O₃/NiFe₂O₄ (BFMCO/NFO) were grown by sol–gel on FTO/glass substrates [51].

A massive structural distortion from rhombohedral to tetragonal phases is observed for BFMO/NFO and BFMCO/NFO samples, these samples having the highest structural stress because of the ion doping and the structural transformation. The highest ferroelectricity and the lowest leakage current density is observed for the same samples, meaning that the structural strain strongly affects their physicochemical properties [51]. BFO films with thicknesses ranging from 1 nm to 150 nm were deposited on STO substrates with a bottom layer of LSMO through PLD, and their structural and piezoelectric properties were studied in detail [52]. It was found that the structural strain of BFO-based films is almost constant for thicknesses ≤30 nm, but the structure starts to be relaxed above this thickness. The piezoelectric coefficient d₃₃ slowly decreases with the film thickness decrease due to the clamping effect of the substrate to the film and depolarization [52].

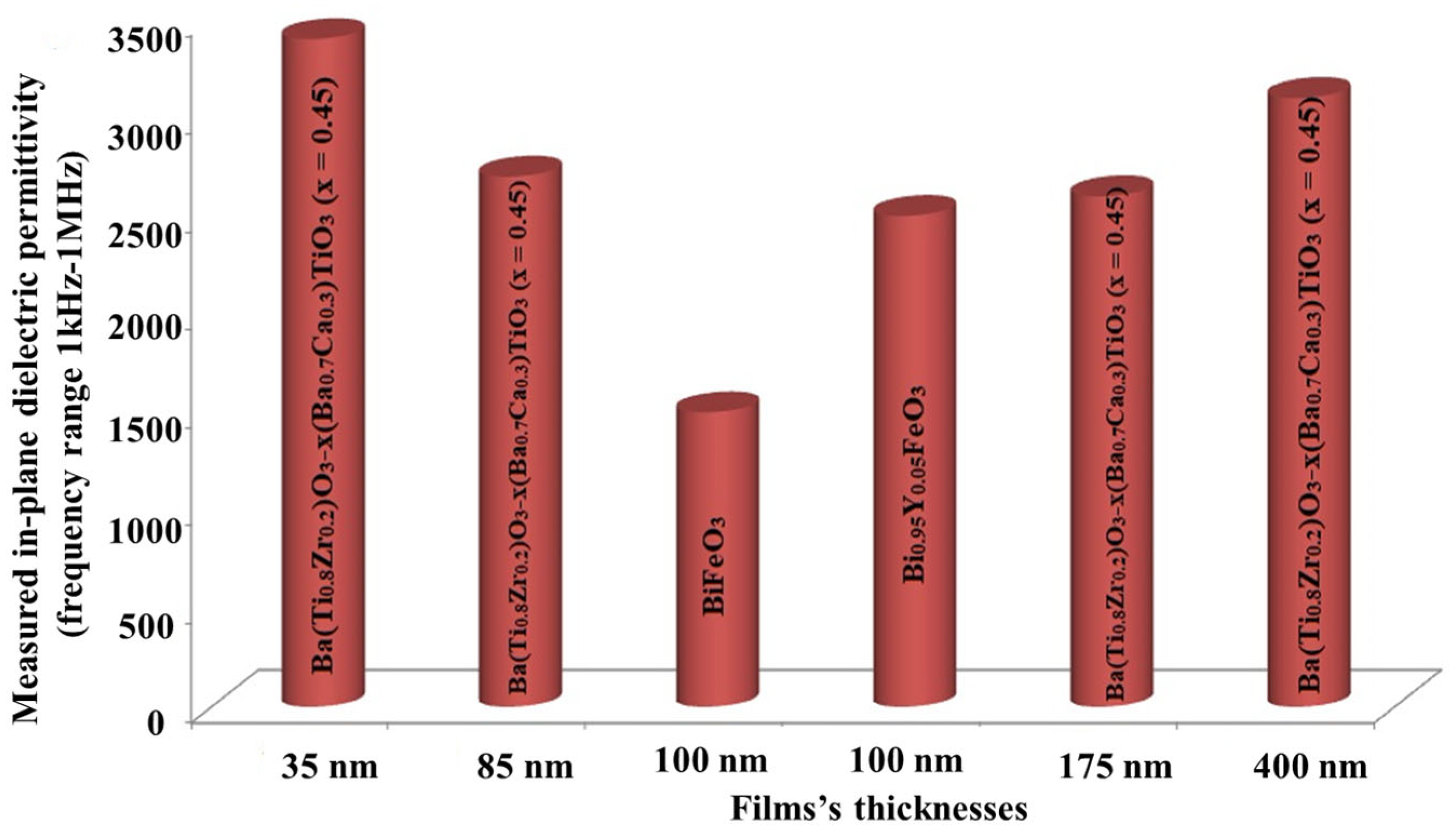

High-quality epitaxial BFO and Y-doped BFO (Y-BFO; Bi_0.95Y_0.05FeO₃) films were grown on STO substrates through the PLD technique [9]. The Y-BFO film shows the out-of-plane parameter (4.0042 Å) slightly larger than that obtained for BFO film (3.9983 Å). The in-plane parameter of Y-BFO (3.9266 Å) is quite close to the lattice parameter of the cubic substrate (3.905 Å). The compressive in-plane strain induced by the STO substrate is responsible for the difference between the out-of-plane and in-plane parameters because the cell is expanded in the out-of-plane direction (monoclinic distortion). This monoclinic distortion is also evidenced by the rocking curve measurements, where the full width at half maximum (FWHM) values appears to be larger for Y-BFO films compared to those obtained for BFO films. The formation of an interesting tilted-stripe nanodomain structure, where the compressive and tensile strains alternate, was evidenced for Y-BFO films, they being absent for pure BFO films. Huge in-plane dielectric permittivity (≅ 2500) and low dielectric loss (<0.01) were obtained for Y-BFO films, and these excellent features were attributed to the appearance of a complex stripe nanodomain structure with monoclinic symmetry and to the chemical doping [9]. Values of dielectric permittivity obtained for Y-BFO films are much higher than values obtained for (undoped) BFO films and similar to those obtained for BCTZ 45 ((1−x)Ba(Ti_0.8Zr_0.2)TiO₃ − x(Ba_0.7Ca_0.3)TiO₃, x = 0.45 (BCZT 45)) films with appropriate thicknesses, as can be seen in Figure 1. It is clear that the epitaxial strain plays an important role in the improvement of the dielectric behavior of different types of lead-free ferroelectric materials, as depicted in Figure 1. However, the addition of chemical pressure due to a dopant within the BFO thin film structure will induce supplementary constraints on the crystalline structure of the BFO film, leading to the appearance of peculiar “stripe-looking” nanodomains which are enhancing the dielectric response of the Y-BFO films [9].

The photoelectrochemical performance of Y-BFO and BFO films grown on Nb-STO substrates by Pulsed Laser Deposition technique, as a function of their thicknesses, was investigated as well [25]. It was observed that the FWHM values of the thicker Y-BFO films are higher than those obtained for the thinnest film, meaning that the mosaicity of thin films is less influenced by defects and dislocations and the parallel coherence length is maintained on higher nanodomains. The fully strained state is obtained for the thinnest Y-BFO film (22 nm), which shows the highest out-of-plane parameter and an in-plane parameter almost equal to the lattice parameter of the Nb-STO substrate. The increase in film thickness is accompanied by a structural relaxation of the grown film and at 145 nm Y-BFO can be considered fully relaxed. The highest photoelectrochemical activity was obtained for the thinnest Y-BFO/STON film with a resulting photocurrent density of 0.72 mA/cm² at 1.4 V vs. RHE. The photocurrent density decreases with the increase in the film thickness, while all samples show excellent photoelectrochemical stabilities in time [25].

2.2. LaFeO₃ (LFO)

The photoelectrochemical properties of LFO thin films have been investigated. The photocatalyst was irradiated with a light source of 400 W output power, and an amount of 3315 μmol g⁻¹ h⁻¹ of hydrogen was generated [37]. Nanoporous p-type LFO photocathodes prepared by electrochemical co-deposition show high resistance to photocorrosion [53]. Plasmonic Ag and Ni nanoparticles were integrated into LFO through spin coating, the resulting photocathode showing enhanced absorption and photocatalytic properties due to the surface plasmon resonances. The generated volume of hydrogen obtained with the modified LFO electrodes is several times higher than that obtained for the bare LFO [41,42]. Highly oriented (00l) heteroepitaxial LFO films were grown on STON substrates by PLD at different oxygen partial pressures, and the influence of oxygen content on their photoelectrochemical properties was evaluated [34]. A small tensile stress along the c-axis was evidenced for LFO films prepared at oxygen pressures lower than 0.9 mbar, and at PO₂ ≥ 0.9 mbar no noticeable structural strain was observed. The highest crystalline quality with a very sharp interface and flat surface is obtained for LFO film grown at 0.6 mbar O₂. The same sample shows the lowest values of the microstrain and mean mosaic tilt angles, and giant lateral coherence length. The maximum photocurrent is obtained for LFO/STON film prepared at 0.6 mbar due to its high oxygen content and low number of oxygen vacancies, which decrease the free charge carrier’s recombination [34].

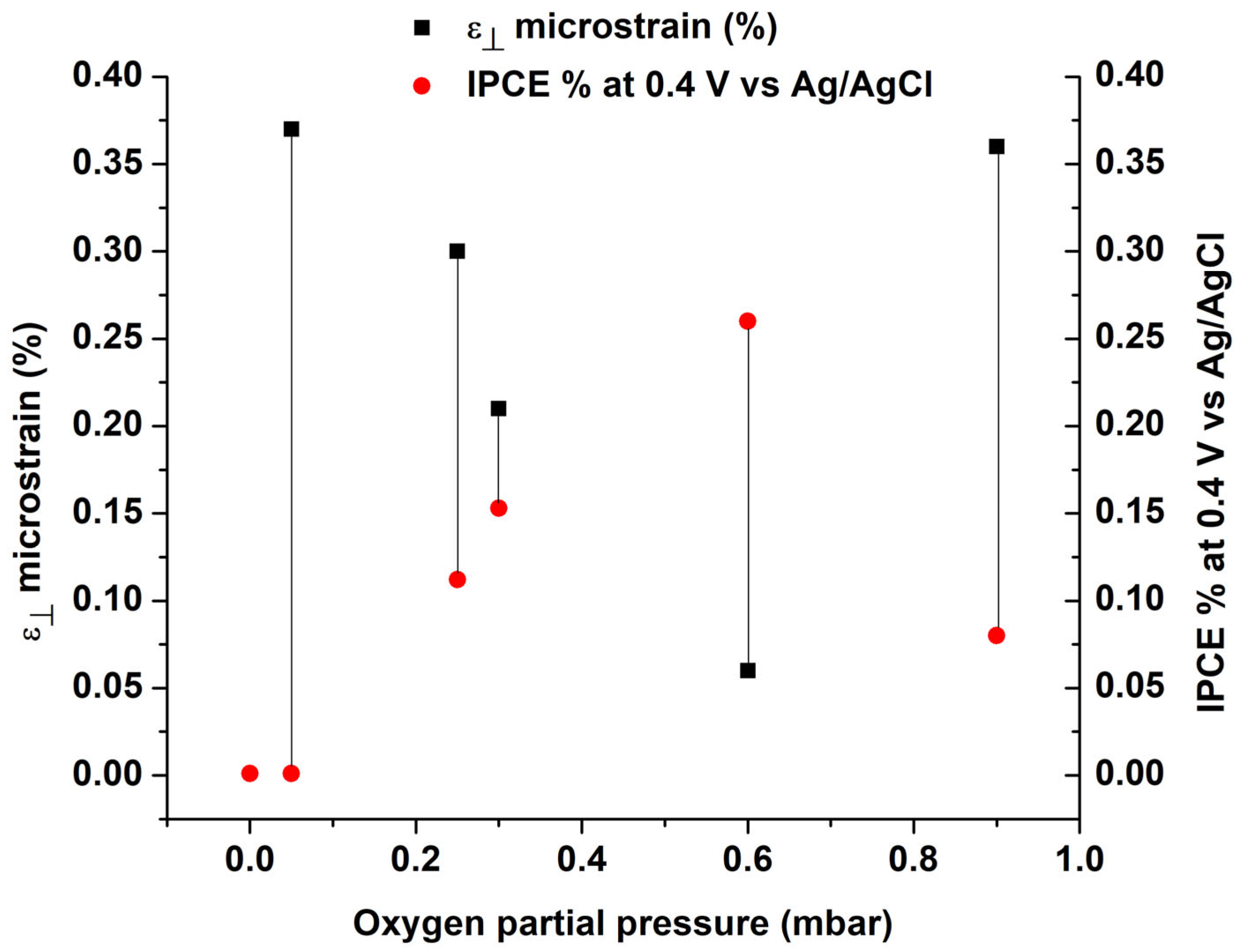

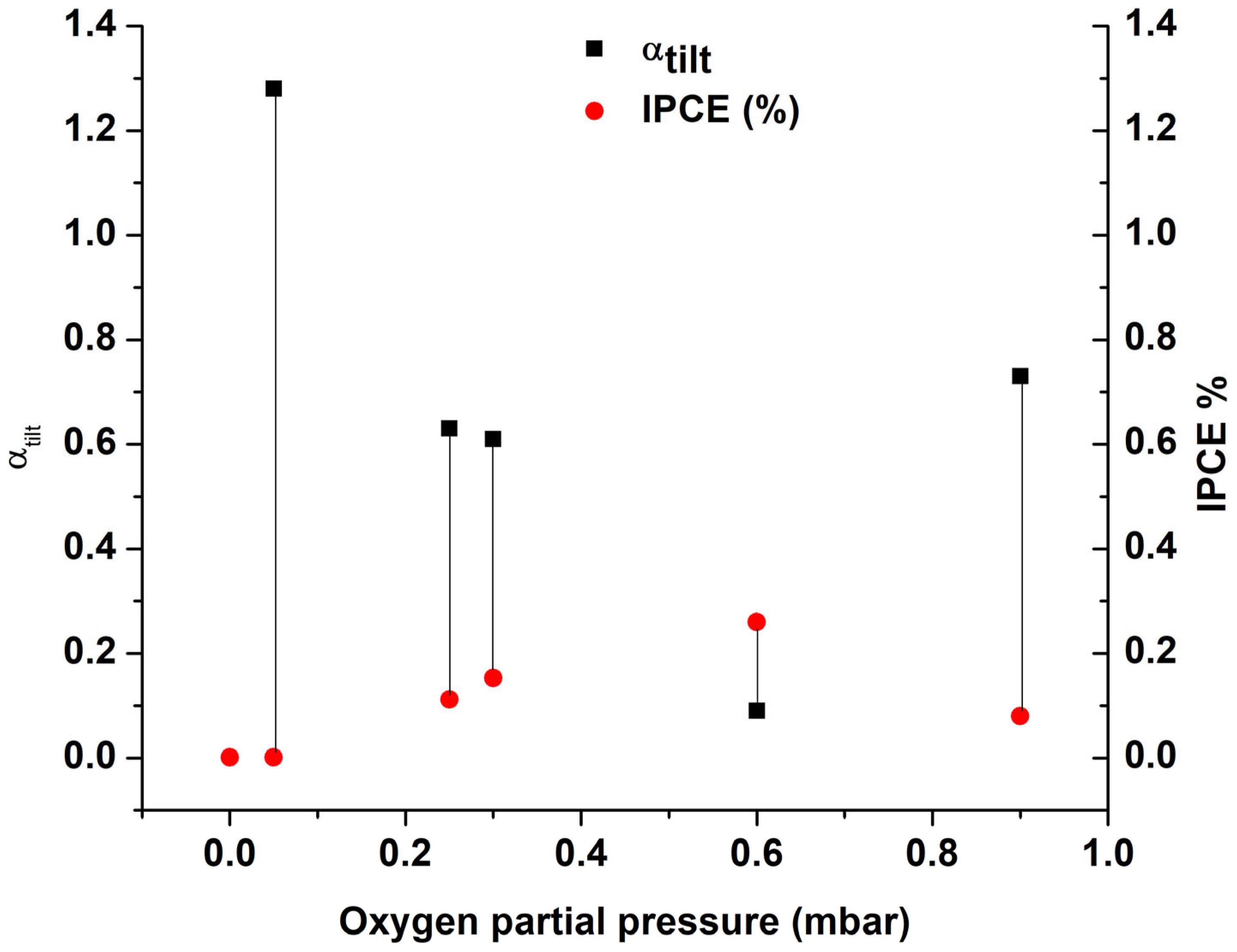

The photoelectrochemical efficiency is strongly affected by the structural properties of prepared LFO films. The perpendicular microstrain, which is a measure of defects along the growth direction, decreases with the increase in the oxygen partial pressure, and the IPCE efficiency is improved with the defect’s concentration decrease, as can be seen in Figure 2 [34]. Above 0.6 mbar O_2, this tendency is changed, the microstrain severely increases and the IPCE efficiency is diminished. Mean mosaic tilt angles follow the same trend with the oxygen partial pressure as the perpendicular microstrain, as presented in Figure 3 [34].

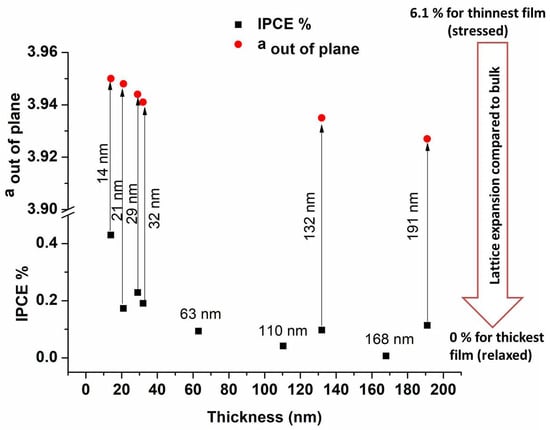

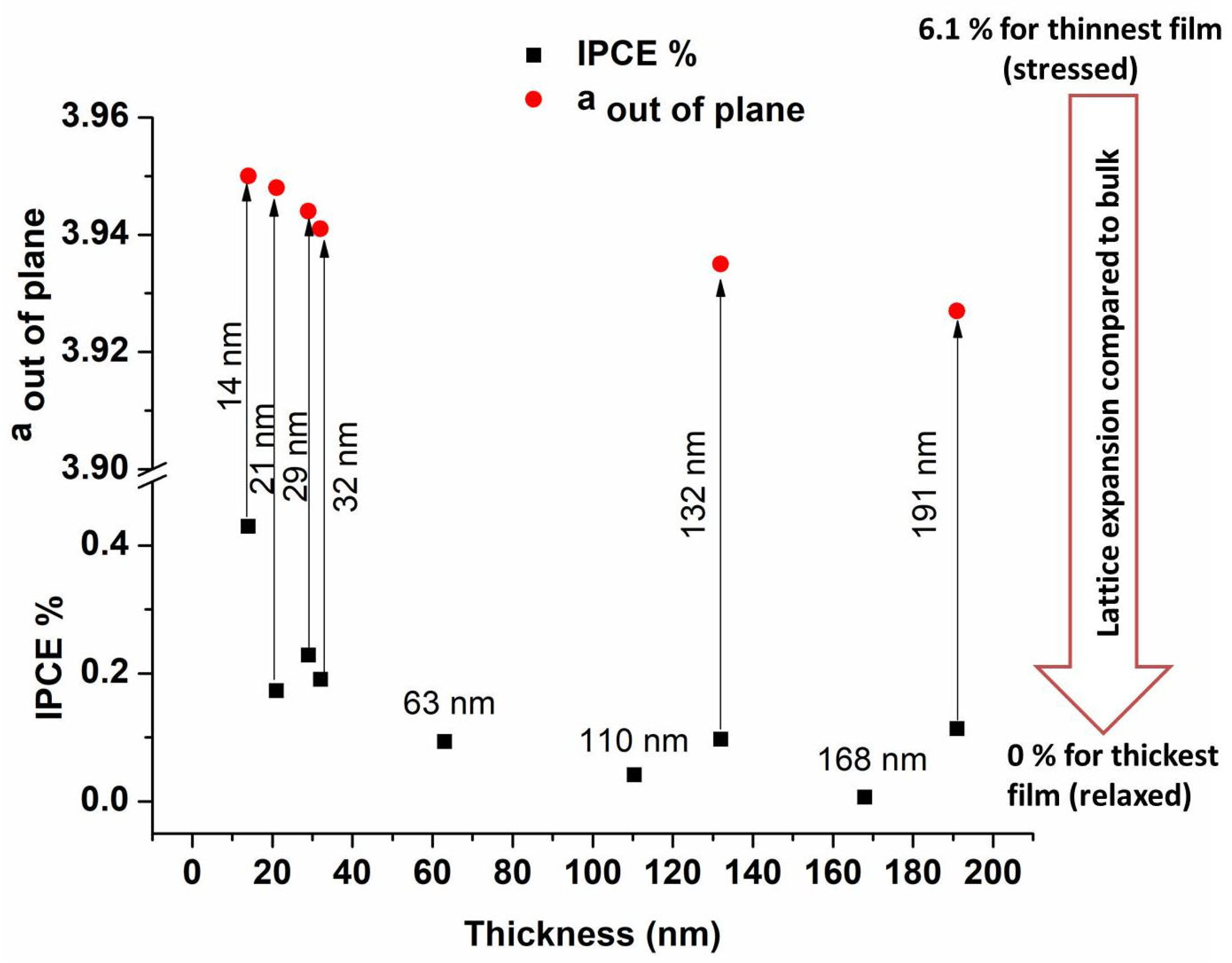

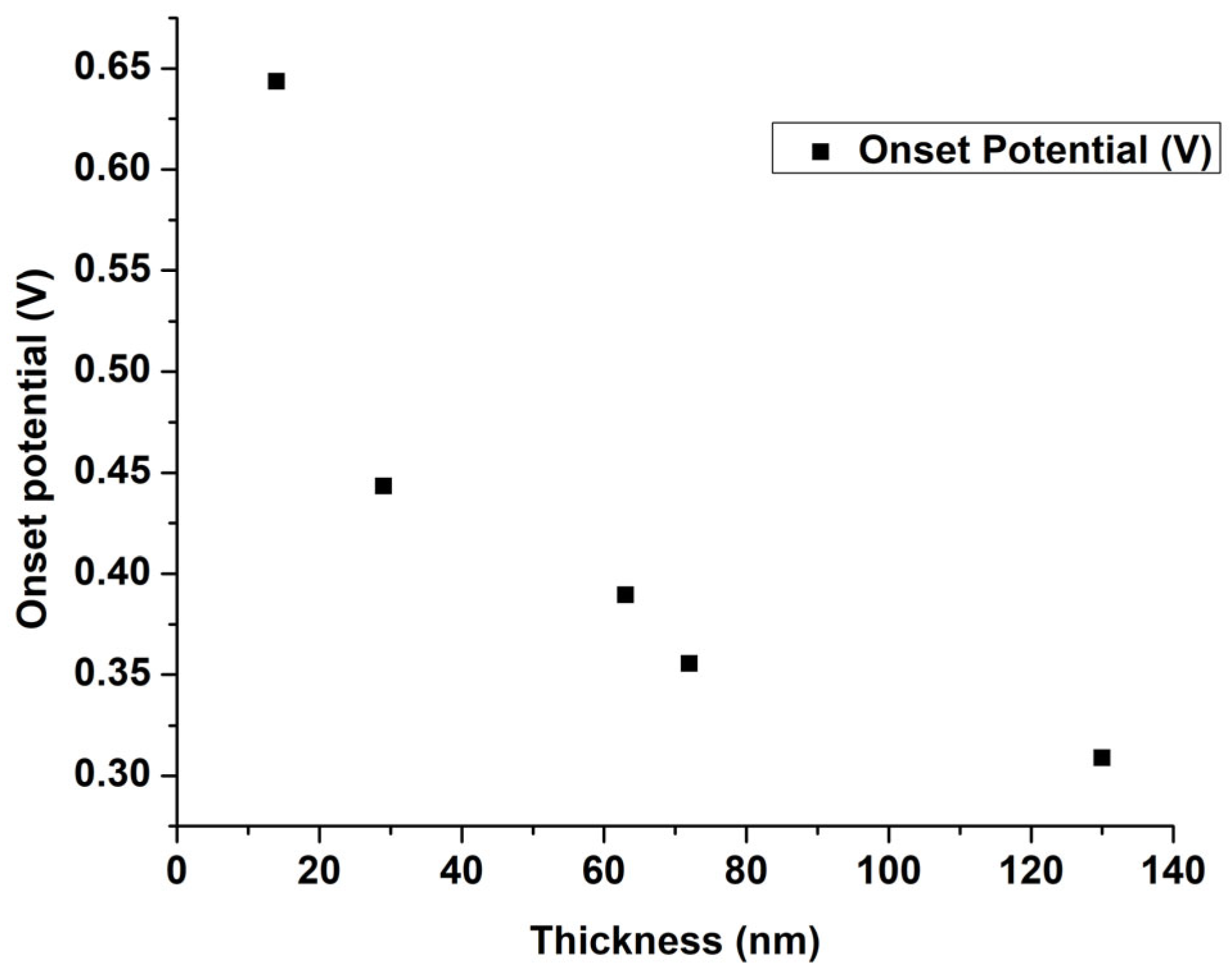

A detailed study related to the influence of ultra-thin LFO/STON film thicknesses (2–25 nm) on their photoelectrochemical performance was reported [54]. During the cyclic voltammetry measurements, all LFO films show asymmetric currents with regard to forward and reverse potentials, this behavior being correlated to the n-p heterojunction created between the substrate and film. All samples show a photoanodic response; the photocathodic response is observed, instead, only for samples having 10–25 nm thicknesses [54]. The effect of thicker LFO films (14–192 nm) prepared by PLD on their photoelectrochemical performances was also reported [55]. The out-of-plane parameters increase with the film thickness, and this increase is assisted by a decrease in the lattice expansion, in contrast to bulk LFO, as presented in Figure 4. Supplementarily, the incident photon-to-current efficiencies decrease with the increase in film thickness. The onset potentials are, also, affected by the thicknesses of LFO films, as can be seen in Figure 5. For thinner films, the onset potential is higher and it decreases with the increase in the film thickness [55].

An excellent quality of LFO films is obtained, especially for the thinner films, the thicker films showing a more defective structure. Several crevasse-like defects filled with amorphous material which penetrate the film to a depth of 8–9 nm are observed for film having 25 nm thickness, the film-substrate interface region being defectless. For the thickest film (140 nm), some nanopyramid-like structures appear, and these are detrimental for the photoelectrochemical activity of LFO films, because they act as leakage channels, increasing the free charge recombination.

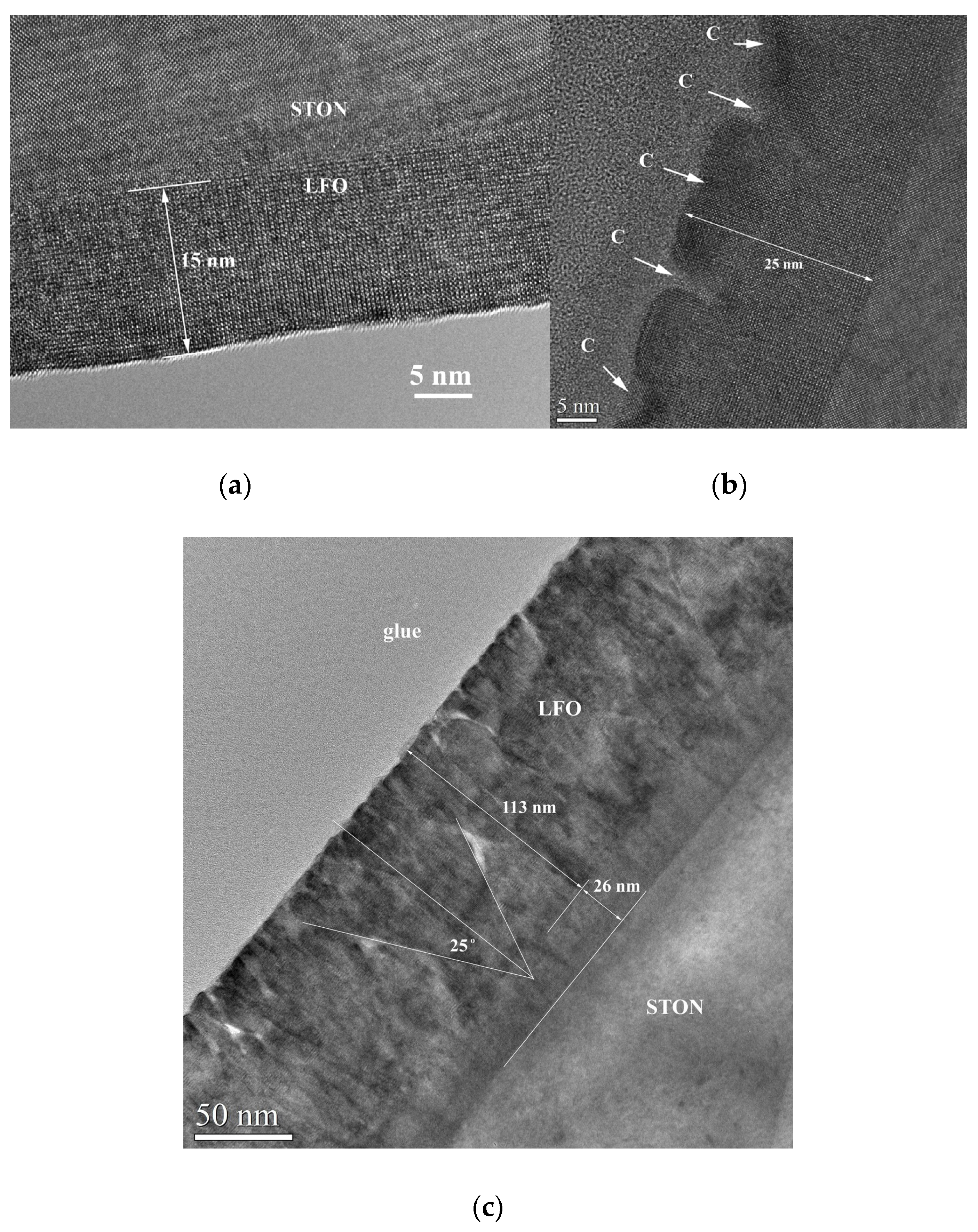

These tendencies, namely the crevasse-like defect appearance, have been also confirmed from the structural point of view by HR-TEM analyses reported on LFO/STON thin films with different thicknesses, as can be seen from Figure 6 [55]. In Figure 6a,b, the appearance of the defects (noted “c”, for crevasse-like) for the LFO films above 15–16 nm is visible and is leading to nanopyramid structures toward the film surface in the case of thicker LFO/STON films (roughly 130 nm). The 130 nm-thick films exhibit a highly disordered structure, with defects stretching into the film volume and limiting the pyramid structure expansion.

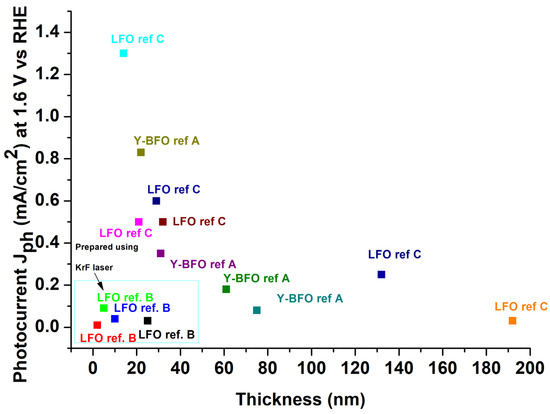

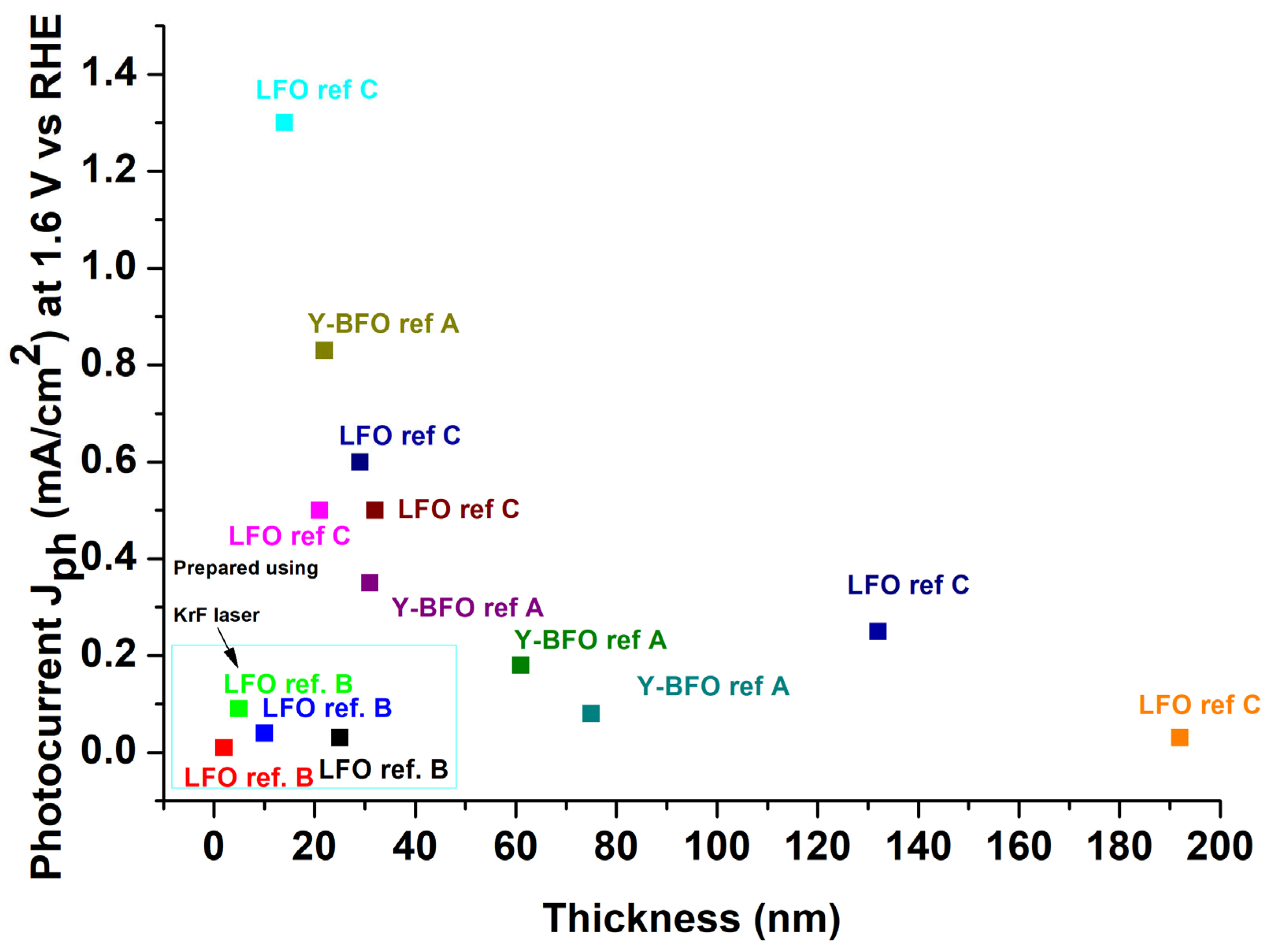

The highest photoelectrochemical performance was obtained for the thinnest film with the maximum value of photocurrent of J_ph = 1.23 mA/cm² at 1.6 V applied potential vs. RHE [42]. Moreover, unassisted hydrogen was produced for the thinnest film, an amount of 6.5 μmole/cm² of hydrogen being produced after 4 h [55]. Both LFO and Y-BFO films prepared by using an ArF excimer laser (193 nm) show better photoelectrochemical performances than LFO films prepared by a KrF excimer laser (248 nm), as can be observed in Figure 7. However, the highest photogenerated current is obtained for the LFO film having a thickness of 14 nm, no BFO film with the same thickness being available for comparison.

Excellent photocatalytic activities were obtained in an artificial Z-scheme system with the decoration of a LFO-graphitic carbon nitride (g-C₃N₄)-BFO photocatalyst with Au nanoparticles. A huge amount of hydrogen (698.4 μmol·h⁻¹·g⁻¹) was generated in this configuration due to the high surface plasmon resonance (SPR) effect of Au nanoparticles [56].

LFO films with different thicknesses (33–120 nm) on Nb-STO substrates were grown by PLD, starting from a ceramic LFO target. The electrolyte solutions in which photoelectrodes are tested play an important role in the overall photoelectrochemical activity. The photoelectrochemical performance of LFO films in different electrolytes solutions is reported. In an alkaline electrolyte with pH = 13.5 (0.5 M NaOH), the generated current density under dark conditions is almost 0 along the entire potential range, as presented in Figure 8a. The values of current densities obtained without illumination in an acidic electrolyte, pH = 5.6 (Na₂SO₄ 1M adjusted with H₂SO₄ 0.5 M), are much higher for all thicknesses in both cathodic and anodic regions (Figure 8b). Even though, in some cases, the values are almost six times higher than those obtained in alkaline conditions, the catalytic activity in the absence of light can be considered negligible.

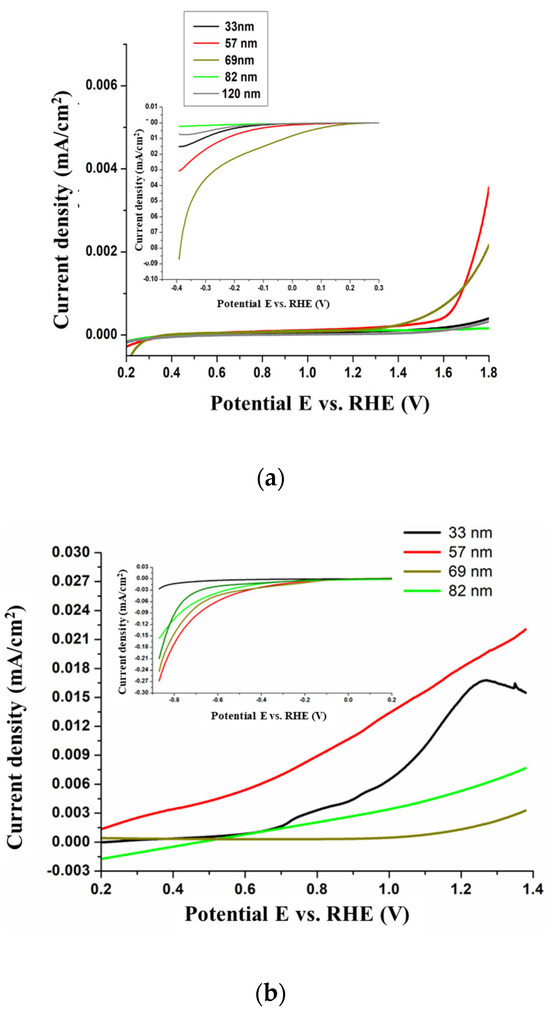

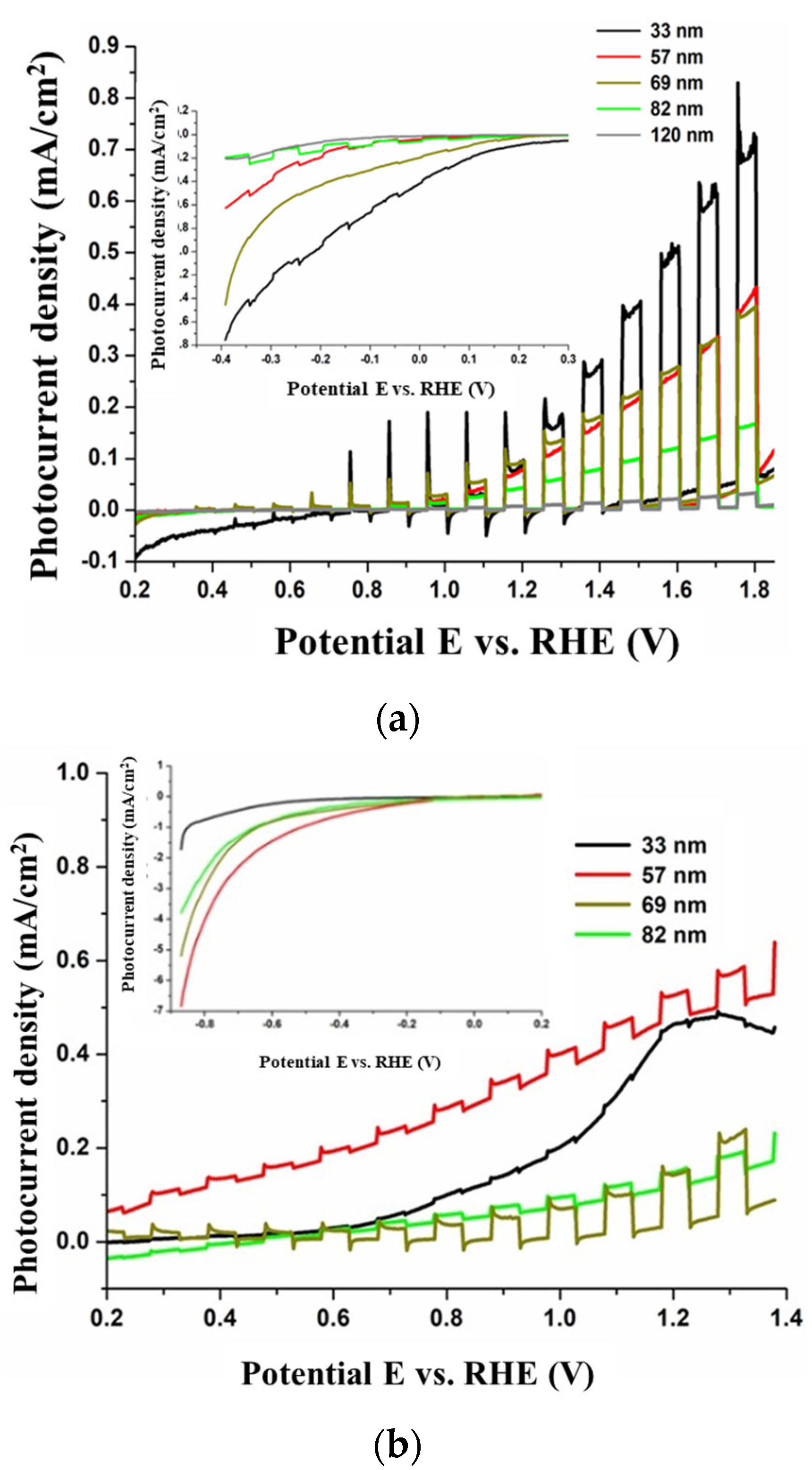

During the potentiodynamic measurements in alkaline conditions, both photocathodic and photoanodic currents are observed, the intensities of oxidation photocurrents being much higher (Figure 9a). The highest photocurrent density is obtained for the thinnest LFO with a value of around 0.75 mA/cm² at 1.8 V vs. RHE, and it decreases with the increase in film thickness. This behavior is due to the more defective structure of thicker films, these defects acting as recombination traps for photogenerated electrons and positive holes, as already discussed earlier in this review. In an acidic medium, the photoelectrochemical response of LFO films is completely different, only photooxidation activity being observed (Figure 9b). Moreover, the performance of the thinnest LFO film is almost absent, the highest response being obtained for the film with 69 nm thickness. The leakage currents severely increase during the irradiation procedure, excepting the same sample with 69 nm thickness.

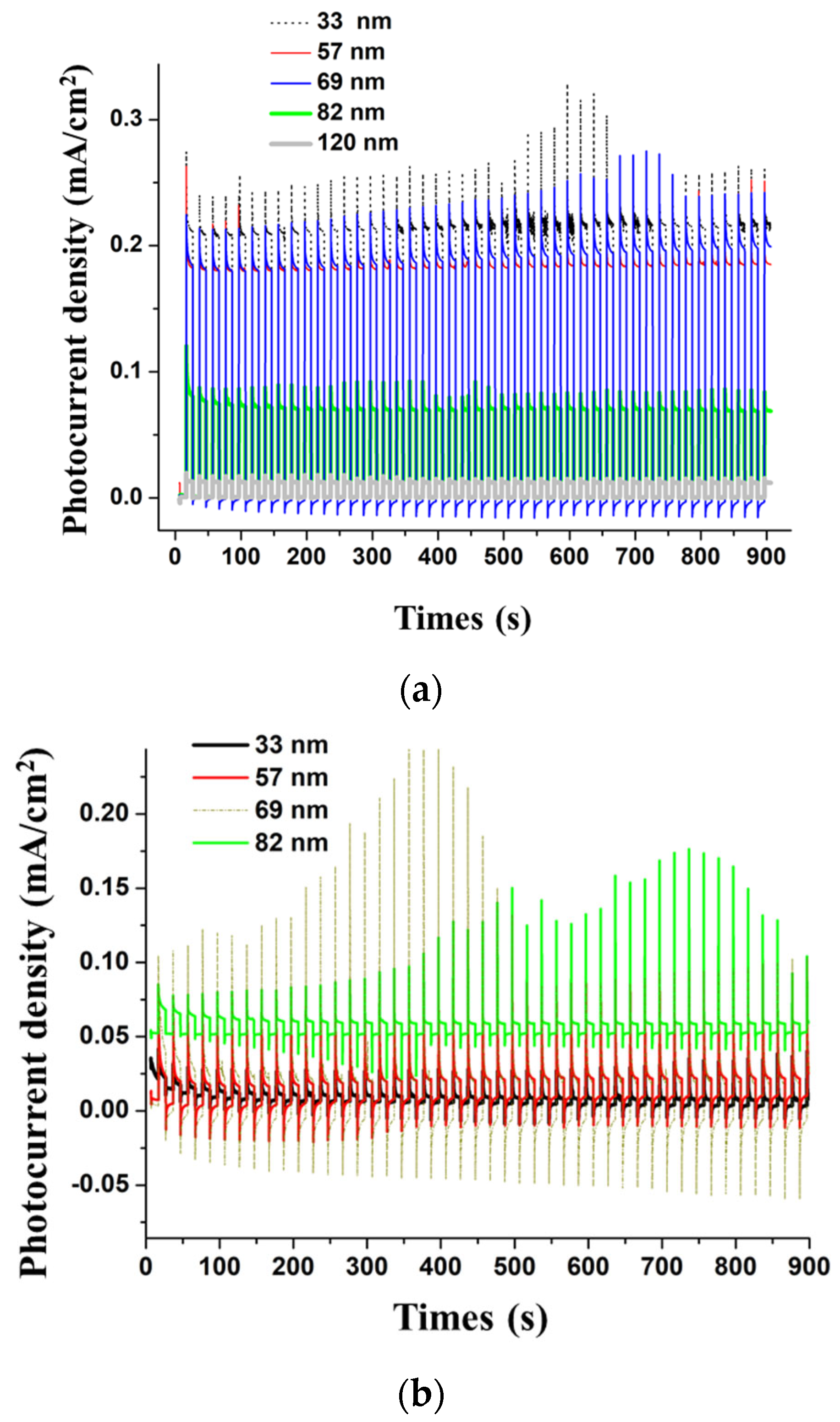

The potentiostatic measurements in a sodium hydroxide solution are presented in Figure 10a, where, as can be seen, all LFO films show excellent stabilities after 15 min of chopped irradiation. The photocurrent peaks are defined by moderate current spikes which can be correlated to a rapid electron-hole recombination. The spike intensities are severely higher in the acidic electrolyte, meaning that the recombination of charge carriers is much higher; this fact can be also seen in the height of photocurrent peaks, which is very small. The stabilities of LFO films are also affected in acidic solution, the photocurrent being altered in time (Figure 10b).

3. Conclusions

In summary, we have discussed the correlations between the structural strain in perovskite-like thin films and their functional properties. Different classes of lead-free materials have been examined.

BFO, a lead-free multiferroic perovskite, is one of the most studied materials due to its excellent electrical properties, high Curie temperature (TC ∼ 830 °C), Néel temperature (TN ∼ 370 °C) and photoelectrochemical activities. The strain induced in the BFO structure is an important factor, which severely governs its physicochemical properties. For BFO-based materials, a high piezoelectric coefficient d₃₃, huge remnant polarization and ferroelectricity, as well as very low leakage current density, were obtained for the most stressed structures. The rare earth doping of BFO films (deposited by PLD) induces huge in-plane dielectric permittivity (≅2500) and low dielectric loss (<0.01). The formation of tilted stripe nanodomain structures with monoclinic symmetry, where the compressive and tensile strains alternate, is also noticed. The photoelectrochemical performances of Y-doped BFO are strongly influenced by film thicknesses, the highest photoanodic current being obtained for the most stressed sample (the thinnest one).

LFO exhibits photocatalytic properties, especially due to its absorption in the visible range, increased photostability, as well as high stability in both reducing and oxidizing chemical media. It is mainly used as a photocathode, but, depending on its synthesis method, it can possess an n-type semiconductor character with an important photoanodic response. The decoration of LFO base materials with precious metals (e.g., Au, Ag) was demonstrated to be an excellent method to further improve their absorption and photocatalytic properties, this happening due to the surface plasmon resonance effect. The oxygen content in LFO films plays an important role in their photoelectrochemical performances. The highest crystalline quality with a very sharp interface and flat surface is obtained for LFO film grown by Pulsed Laser Deposition at a specific oxygen partial pressure during deposition (0.6 mbar O₂). The same sample shows the lowest values of microstrain and mean mosaic tilt angles and giant lateral coherence length. The maximum photocurrent is obtained for LFO/STON film prepared at 0.6 mbar, due to its high oxygen content and low number of oxygen vacancies, which decrease the free charge carriers recombination. The photoelectrochemical activities also vary with the film thicknesses. An excellent quality of LFO films is obtained, especially for the thinner films, the thicker films showing a more defective structure. The presence of several crevasse-like defects filled with amorphous material, which penetrate the film to a depth of 8–9 nm, is evidenced for film having 25 nm thickness, the film-substrate interface region being defectless. For the thickest film (130 nm), some nanopyramid-like structures appear, and these are detrimental for the photoelectrochemical activity of LFO films, because they act as leakage channels increasing the free charge recombination.
