This is an early access version, the complete PDF, HTML, and XML versions will be available soon.
Open AccessArticle
Enhancing Shear Bond Strength in Lithium Silicate Glass Ceramics: Surface Treatment Optimization for Reseating Protocols
by
Allison Torbiak
Allison Torbiak 1,
Muna Bebsh
Muna Bebsh 1,
Asmaa Haimeur
Asmaa Haimeur 2,
Ana Carla Fernandes
Ana Carla Fernandes 1,
Cristina Fiuza
Cristina Fiuza 2 and
Rodrigo França
Rodrigo França 1,2,*
1
Dental Materials Research Lab, Department of Restorative Dentistry, Dr. Gerald Niznick College of Dentistry, University of Manitoba, 780 Bannatyne Ave, Winnipeg, MB R3E 0W2, Canada
2
Department of Restorative Dentistry, Dr. Gerald Niznick College of Dentistry, University of Manitoba, 780 Bannatyne Ave, Winnipeg, MB R3E 0W2, Canada
*
Author to whom correspondence should be addressed.
Crystals 2024, 14(10), 856; https://doi.org/10.3390/cryst14100856 (registering DOI)
Submission received: 1 August 2024
/
Revised: 29 August 2024
/
Accepted: 28 September 2024
/
Published: 29 September 2024
Abstract

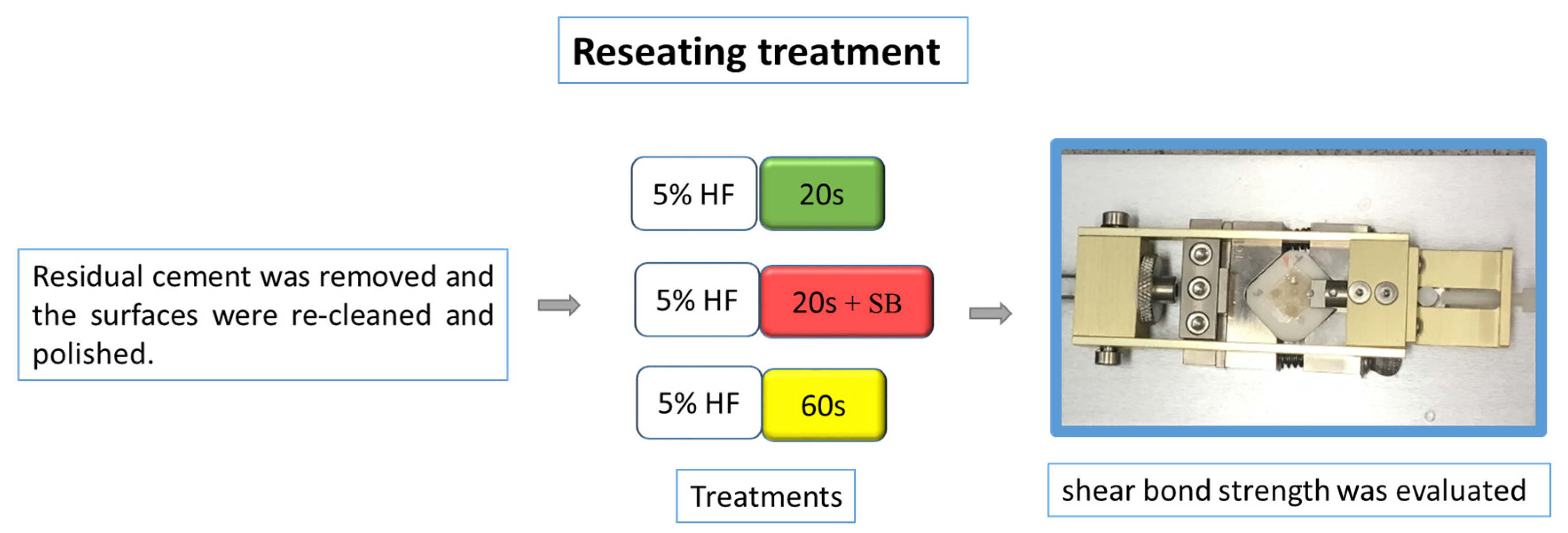

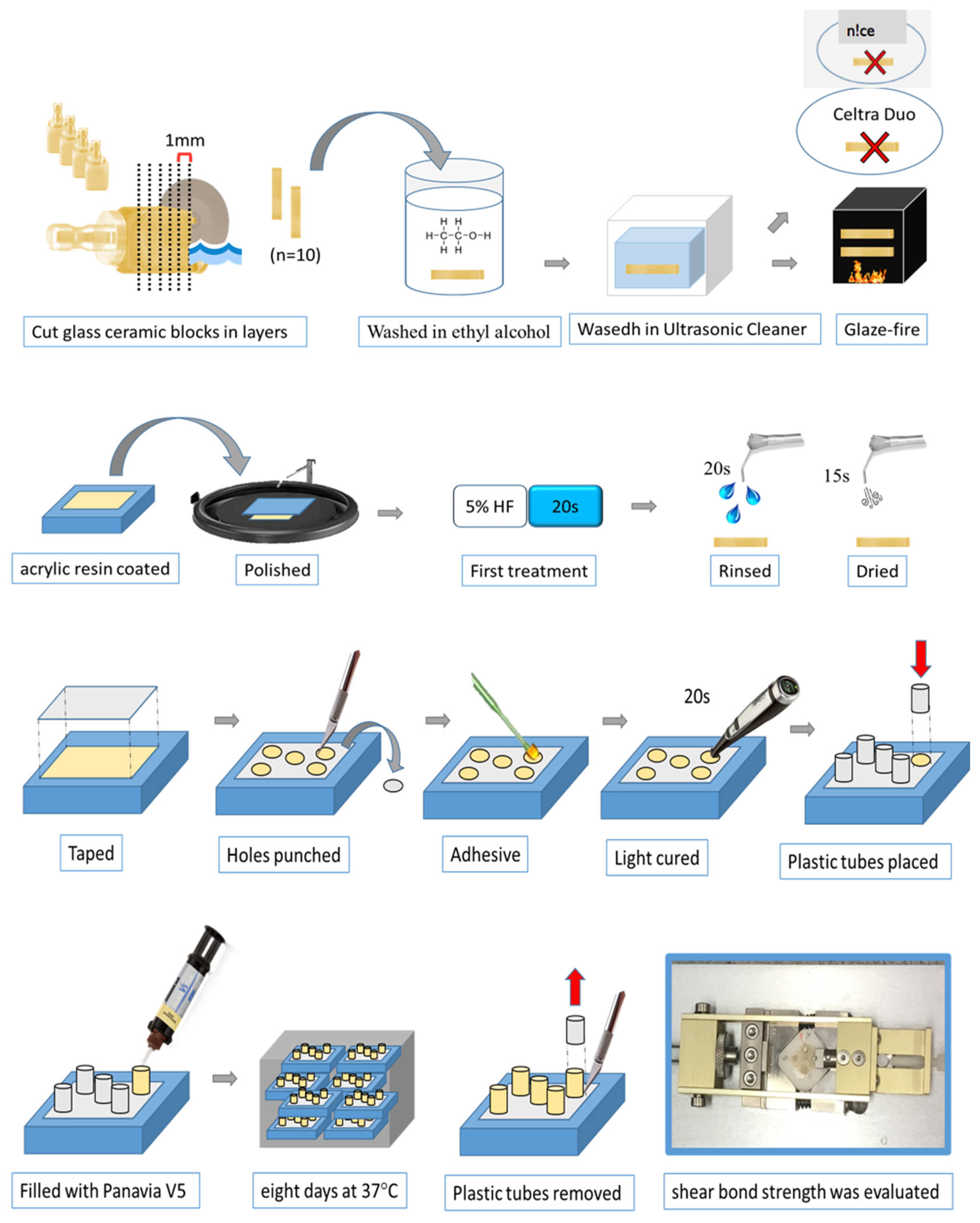

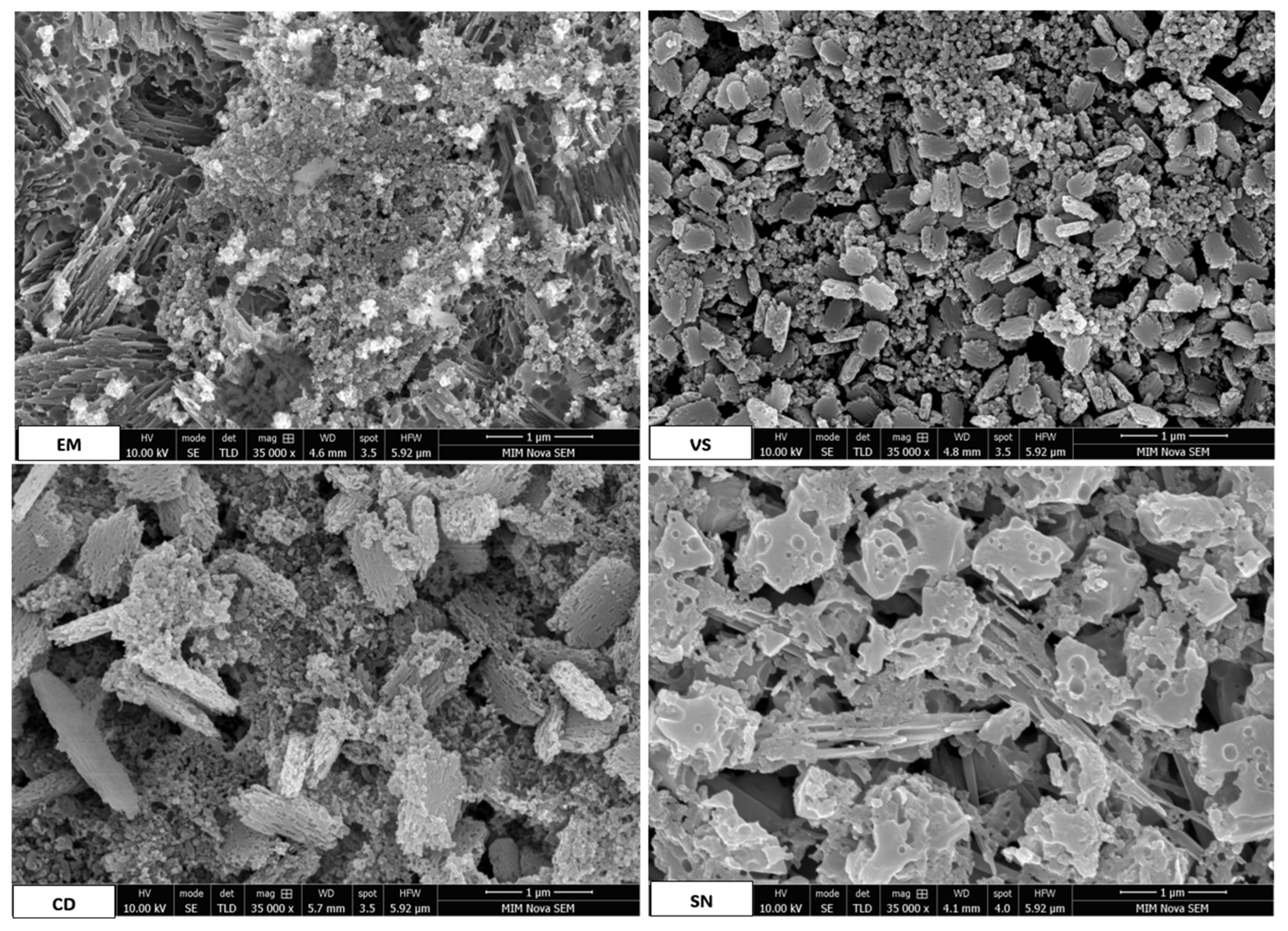

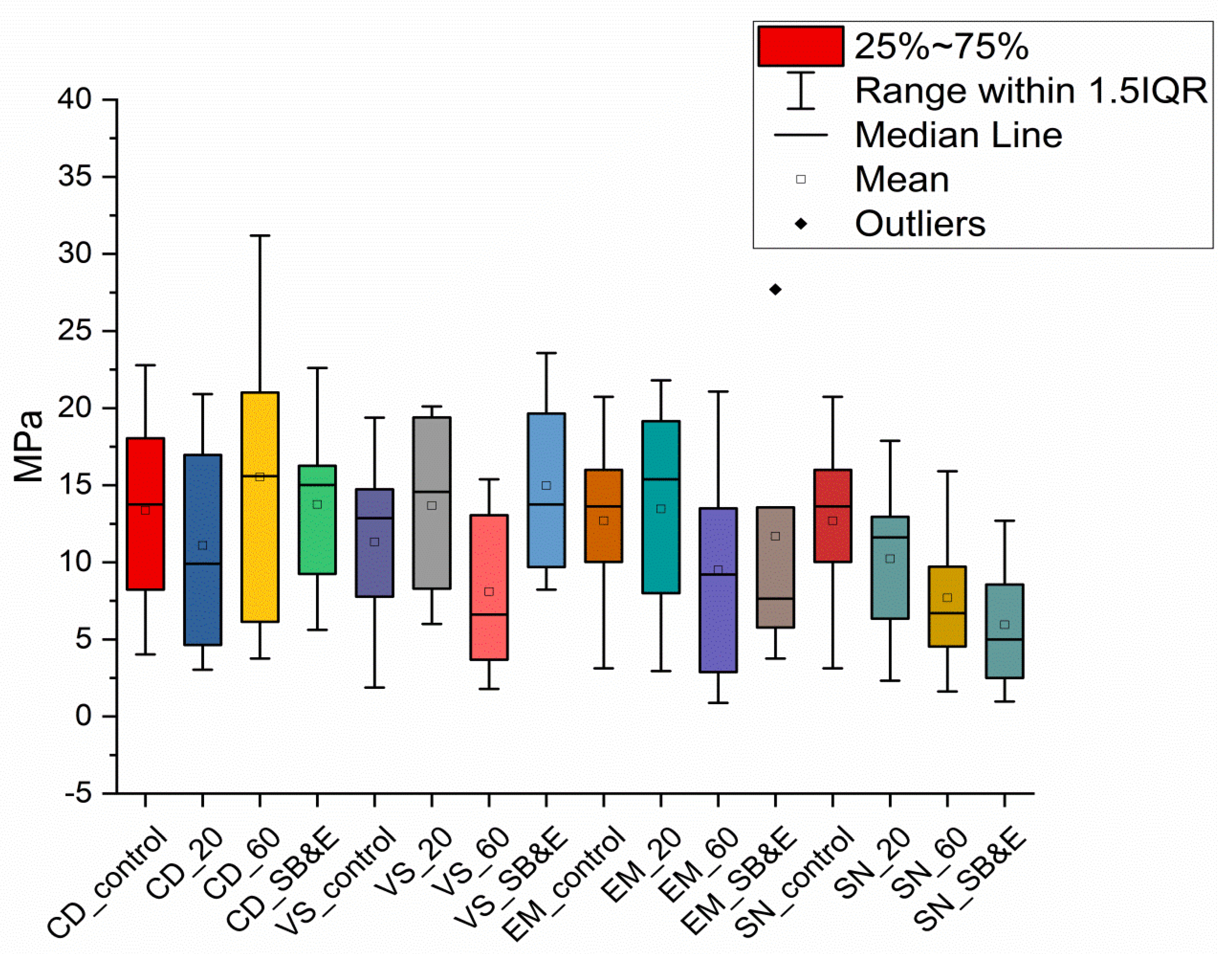

The rapid evolution of lithium silicate-based glass ceramics in the field of dental ceramics has led to the availability of different compositions in the market. This in vitro study was conducted to assess an effective protocol for recementing de-bonded lithium silicate-based glass ceramics by evaluating the shear bond strength of three reseating methods. The study included IPS e.max® CAD, Vita Suprinity®, Celtra Duo®, and n!ce as lithium-based glass ceramics. The samples underwent a series of preparation steps, including embedding in acrylic resin, hand polishing, etching with 5% hydrofluoric acid, and application of universal primer and adhesive as per manufacturer instructions. Subsequently, adhesive resin cement was applied to the ceramic tablets, and shear bond strength was assessed using a standardized method. The findings revealed that no single method demonstrated significantly superior results compared to the others. However, it was observed that etching with 5% hydrofluoric acid for 20 s yielded favorable outcomes in terms of time efficiency and standardized results. Additionally, it was noted that although sandblasting increased surface area, it did not enhance bond strength due to unfavorable surface disturbance. In conclusion, the study suggests that etching with 5% hydrofluoric acid for 20 s is a favorable protocol for reseating de-bonded lithium disilicate-based glass ceramics, offering both time efficiency and consistent results for clinicians.
Share and Cite
MDPI and ACS Style
Torbiak, A.; Bebsh, M.; Haimeur, A.; Fernandes, A.C.; Fiuza, C.; França, R.
Enhancing Shear Bond Strength in Lithium Silicate Glass Ceramics: Surface Treatment Optimization for Reseating Protocols. Crystals 2024, 14, 856.
https://doi.org/10.3390/cryst14100856
AMA Style
Torbiak A, Bebsh M, Haimeur A, Fernandes AC, Fiuza C, França R.
Enhancing Shear Bond Strength in Lithium Silicate Glass Ceramics: Surface Treatment Optimization for Reseating Protocols. Crystals. 2024; 14(10):856.
https://doi.org/10.3390/cryst14100856
Chicago/Turabian Style
Torbiak, Allison, Muna Bebsh, Asmaa Haimeur, Ana Carla Fernandes, Cristina Fiuza, and Rodrigo França.
2024. "Enhancing Shear Bond Strength in Lithium Silicate Glass Ceramics: Surface Treatment Optimization for Reseating Protocols" Crystals 14, no. 10: 856.
https://doi.org/10.3390/cryst14100856
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details
here.
Article Metrics
Article Access Statistics
For more information on the journal statistics, click
here.
Multiple requests from the same IP address are counted as one view.
