Article

Effects of Rare-Earth Elements Doping on Micro-Structure and Fluorescence Performances of Fluorapatite

1
School of Engineering and Technology, China University of Geosciences (Beijing), Beijing 100083, China
2
Zhengzhou Institute, China University of Geosciences (Beijing), Zhengzhou 451283, China
3
Technology Innovation Center for Major Engineering Geological Safety Risk Prevention and Control, Ministry of Natural Resources, Beijing 100083, China
*
Authors to whom correspondence should be addressed.
Crystals 2024, 14(2), 185; https://doi.org/10.3390/cryst14020185
Submission received: 11 January 2024 / Revised: 25 January 2024 / Accepted: 1 February 2024 / Published: 13 February 2024

Abstract

:
For purposes of optimizing the microstructure and fluorescence properties of rare-earth elements (REEs)-doped fluorapatites (FAps), various kinds of REEs (La, Pr, Sm, Eu, Gd, Ho, Er, and Yb) with the concentration of 2~20 mol.% have been inserted into the FAps framework via hydrothermal method, in order to investigate the influential mechanism of the REEs on the crystal structure, morphology, and fluorescence under the excitation of the near-ultraviolet light of the FAps. Experimental results show that the wavelength of the emitted light of the REEs-doped FAps is decided by the type of REEs. Unlike the Pr/Yb- and Ho-doped FAps and with the fluorescence of red and green emitted light, respectively, the Er-doped FAps show a blue light emission with wavelengths of 296, 401, and 505 nm, which is, moreover, different with the Eu-doped Faps, showing an orange light emission with wavelengths of 490, 594, and 697 nm. The emission luminous color is related to the lattice defects of the FAps doped with the various types and the effective doping concentration of the REEs. The luminous intensity increases with the increase in the effective doping concentration of the REEs. Nevertheless, the formation of rare-earth fluoride results in the decrease in the effective doping concentration of the REEs and the luminous intensity. The FAps with an effective doping concentration of 7 mol.% Er and 3 mol.% Eu show relative excellent fluorescence properties.

1. Introduction

The fluorapatites (FAps, Ca10(PO4)6F2), as a kind of biomedical material, are widely used for the manufacturing of orthopedic implants, dental ceramics, and sustained-release carrier, owing to their excellent biocompatibility [1,2,3,4,5]. Nonetheless, the calcium ion with a fully outermost electron orbital mean that pure FAps cannot emit visible light under ultraviolet excitation, which finally causes it to be not able to be tracked via bioimaging technologies [6,7].
Fortunately, the structural flexibility of the FAps permits the substitutes diverse rare-earth elements (REEs) ions for calcium ions [8,9,10]. The active electrons in the 4f sub-shell can be excited to bring about energy level transition, resulting in REEs ions that can absorb and emit light of particular frequencies [11,12,13]. As a consequence, the REEs-doped FAps can generate a broad range of absorption and fluorescence spectra spanning from ultraviolet to visible or infrared light under the excitation of the near-ultraviolet light [14,15,16,17,18,19,20,21,22].
Numerous studies claim that the element types of the REEs play a basic role on the fluorescence properties of the REEs-doped inorganic substance [14,15,16,17]. Yang H. et al. [14] has reported that the Nd3+-doped Gd2O3 shows excellent luminous performances under the excitation of the near-infrared light with a wavelength of 808 nm. Zhang Z. et al. [15] found that the Sm-doped Ca5(PO4)2SiO4 shows an orange–red emission peak with a wavelength of 600 nm under the excitation of near-ultraviolet light. Baghel S. K et al. [16] demonstrated that Ce-doped SrZrSi2O7 synthesized via the solid-state reaction method exhibits a broad excitation peak at a wavelength of 293 nm and an emission peak with a wavelength of 480 nm (blue range) [17].
Meanwhile, a great number of researchers have also proven that the luminous intensity and emission light color of the REEs-doped inorganic substance are directly determined by the effective doping concentration of the REEs [18]. Mariappan A. et al. have reported that Eu3+-doped Ce0.2Gd0.2Hf0.2La0.2Zr0.2O2 nanoparticles with increasing Eu3+ concentration show various emission colors tuned from orange to red [19]. Hua Y. et al. [20] found that the luminous intensity of Eu-doped Sr2LaNbO3 shows a trend of first increasing and then decreasing with the increase in the effective Eu doping concentration. Senden T. et al. [21] demonstrated that the concentration quenching effects are limited under a concentration of Mn ions lower than 5 mol.% but the quantum efficiency decreases as the concentration is higher than 10 mol.% due to direct energy transfer to quenching sites (defects and impurity ions). Kuamr P. et al. [22] found that an increase in the doping concentration of Sm ions results in the luminous intensity of Sm-doped Y4Al2O9 first increasing and then decreasing due to the nonradiative energy transfer. Unfortunately, the effects mechanism of doping REEs and their content on the fluorescence of fluorapatite remainsto be understood.
In this paper, La-, Pr-, Sm-, Eu-, Gd-, Ho-, Er-, and Yb-doped FAps with various effective doping concentrations ranging 1 to 20 mol.% have been synthesized via hydrothermal method. The crystal structure and morphology of the REEs-doped FAps have been investigated to reveal the effects of the doping element types and the concentration of the REE ions on the luminescence of fluorapatite.

2. Experimental

To form the REEs-doped FAps, La, Pr, Sm, Eu, Gd, Ho, Er, and Yb ions were doped to replace calcium ions in FAps. Figure 1 is the flowchart showing the synthesizing of the REEs-doped FAps. Prior to the hydrothermal synthesis of the REEs-doped FAps, precursor solution (A) was prepared via mixing 0.1 mol/L Ca(NO3)2·4H2O, 0.03 mol/L cetyltrimethylammonium bromide (CTAB), and various REEs–nitrate and stirring in deionized water. The anionic ligand solution (B) is the mixture solution of 0.267 mol/L Na3Cit·2H2O, 0.267 mol/L NaF, and 0.111 mol/L (NH4)2HPO4. The prepared anionic ligand and precursor solution were mixed by magnetic stirring. During hydrothermal synthesis, the anionic ligand and precursor solutions were hydrothermally treated under a temperature of 180 °C for 24 h. Precipitation with the REEs-doped FAps was formed in the mixture solution. After hydrothermal synthesis, the REEs-doped FAps were collected via the processing of centrifugation (15 min, 8000 r/min), deionized water and ethanol washing, and, finally, drying at 80 °C for 12 h. The effective doping concentration of the REEs was decided by controlling the molar ratio of Ca(NO3)2·4H2O and REEs–nitrate. The detailed molar ratio of Ca(NO3)2·4H2O and REEs–nitrate in precursor solution for each sample is shown in Table 1. The theoretical doping concentrations of the REEs (La, Pr, Sm, Eu, Gd, Ho, Er, and Yb) in the FAps are 2, 4, 6, 8, 10, 12, 14, 16, 18, and 20 mol.%.
The crystallographic lattice constants and phase structure of the REE-doped FAps were identified by a Rigaku Smart-Lab SE model X-ray diffraction (XRD) using a Cu-Kα radiation source (wavelength of 1.5406 Å), a 2θ range of 5~120°, and a continuous scan speed of 2°/min. The structure was also refined by utilizing the GSAS II 5438 software which is designed by Argonne National Laboratory, USA, and the lattice constants were also calculated via the Rietveld structural refinement in the GSAS II software. The initial set for refinement was based on the P63/m space group and its corresponding atomic positions [23]. The background is modeled using a 12th-order polynomial. Then, the data acquired from the XRD experiment were fitted using the Lorentzian and Gaussian functions. The occupancy factors for oxygen, fluorine, and phosphorous were presumed to remain constant, consistent with the stoichiometry of the FAps.
The particle size, microstructure, and morphology of the REEs–FAps were analyzed by a ThermoFisher Talos F200X model transmission electron microscope (TEM) equipped with energy-dispersive X-ray detector (EDS), which were purchased from Thermo Fisher Scientific Inc., Waltham, MA, USA. The TEM tests of the pure and REEs-doped FAps were conducted under room temperature and an accelerating voltage of 200 KeV. The morphology and element spectrum of the REE–FAps were also observed by Hitachi SU8220 scanning electron microscope (SEM) equipped with the FEI Quanta 200 FEG model EDS, which were purchased from Hitachi, Tokyo, Japan, and Thermo Fisher Scientific Inc., Waltham, MA, USA.
The Edinburgh FS5/Hitachi F4600 model, purchased by Edinburgh Instruments, Livingston, Scotland, UK, fluorescence spectrofluorometer was used to record excitation and emission spectra of the REEs-doped FAps under the excitation light wavelength of 440 nm and the emission light wavelength of 250 nm.

3. Results and Discussion

Figure 2 is the bright-field TEM images, EDS, and Fast Fourier Transform (FFT) spectrum of the micro-structure of the pure, La-2, Yb-2, Eu-2, and Er-2 FAps. It is can be seen from the bright-field TEM images that the pure, La-2, Yb-2, Eu-2, and Er-2 FAps show an approximate rod-shaped morphology. The pure FAps show a length of approximately 3 μm and a diameter of approximately 1 μm. Compared with the pure FAps, the REEs-doped FAps show a bigger size with a larger diameter and a longer length. Among the REEs-doped FAps, the Er-2 and Eu-2 FAps show a longer length of around 10 μm and a larger diameter of 3 μm. The grain length of pure FAps is approximately 3 μm. In contrast, the La-2 and Yb-2 FAps display a size of 4 μm, while the Er-2 and Eu-2 FAps exhibit a size of around 10 μm. The EDS spectrum shows that the distribution of the Ca, P, and O elements of the pure and REEs-doped FAps is homogeneous. Similarly, the REEs are also uniformly distributed in the REEs-doped FAps, except for the area of the rare-earth fluoride nanoparticles covered on the surface of the REEs-doped FAps. For example, the flocculent aggregate morphology covered on the surface of the La-2 FAps can be observed in Figure 2b, which is the lanthanum fluoride precipitation that resulted from an inadequate interaction between La3+ and surfactants [24]. Additionally, the surface of the Yb-2, Eu-2, and Er-2 FAps also adhered with a small quantity of rare-earth fluoride microparticles. The high-resolution transmission electron microscopy (HRTEM) and its corresponding Fast Fourier Transform (FFT) provides solid evidence to indicate that the pure and REEs-doped FAps are single crystalline. As shown in the HRTEM images, it is interesting that all the (002) lattice planes are perpendicular to the cylindrical surface (axial direction) of the pure and REEs-doped FAps.

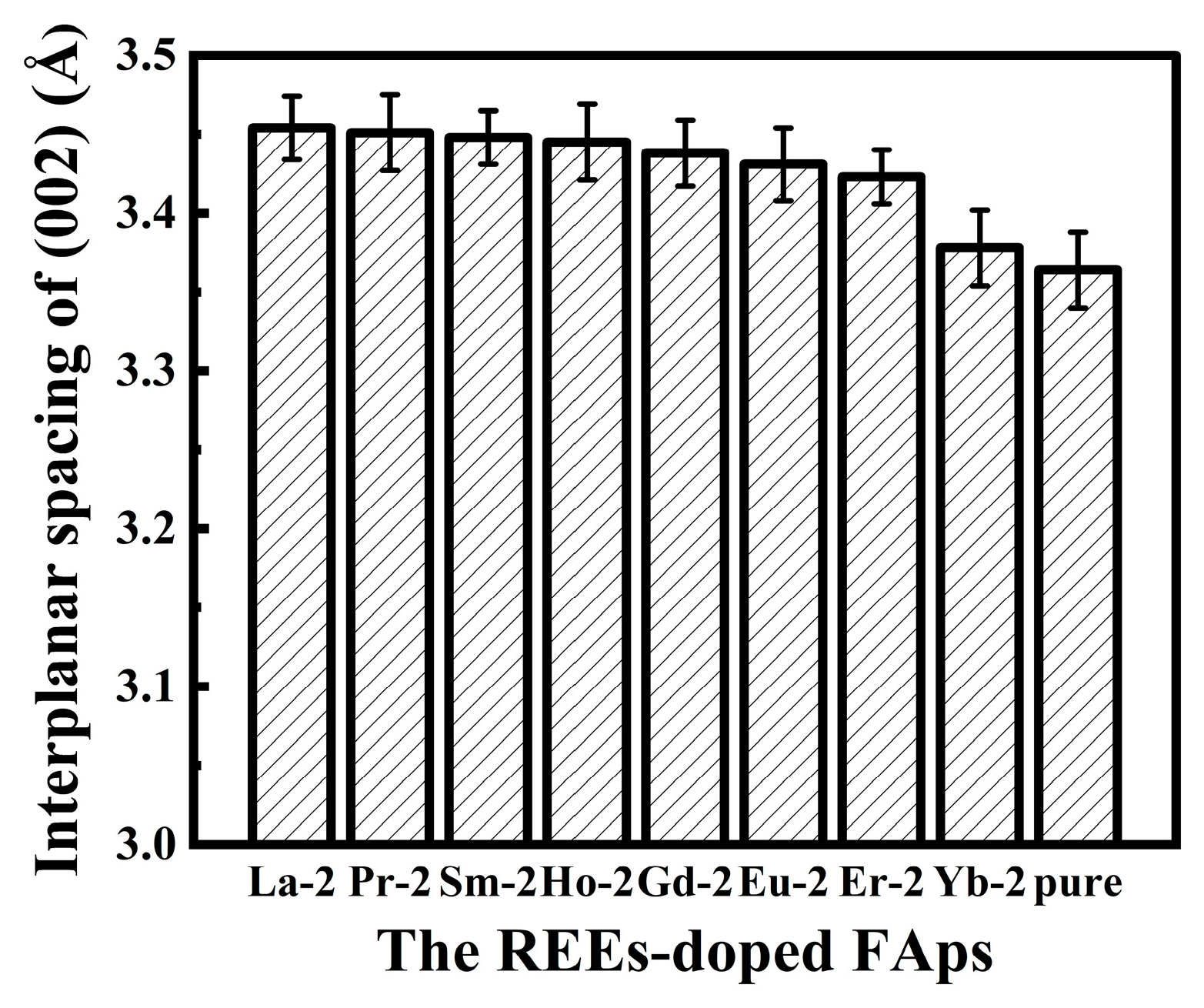

Figure 3 shows the interplanar spacing of the (002) lattice planes of the pure and REEs-doped FAps measured from the HRTEM images. The interplanar spacing of the (002) lattice planes of the Yb-2 FAps is about 3.38 Å, which is nearly the same as that of the pure FAps. The interplanar spacing of the (002) lattice planes of the Gd-2, Yb-2, Eu-2, and Er-2 FAps is slightly smaller than the La-2, Pr-2, Sm-2, and Ho-2 FAps. The interplanar spacing of the (002) lattice planes of the REEs-doped FAps is related to the coactions of the cationic lattice positions, atomic radius, and the effective doping concentration of the doping REEs atoms.
Figure 4 is the SEM images accompanied by EDS spectra showing the morphology, crystallite dimension, and the effective doping concentration of the La-2, Yb-2, Sm-2, Pr-2, Gd-2, Ho-2, Er-2, and Eu-2 FAps. It can be seen in Figure 4a–h that all the REEs-doped FAps are rodlike microparticle precipitates, which is similar with the results shown in Figure 2. The main reason for the formation of the rodlike FAps precipitates is the growth orientation of the FAps precipitates, that is, the (001) crystal direction perpendicular to (002) (as shown in Figure 2) [25]. According to the statistical result from Figure 5, the grain size of the REEs-doped FAps shows an average length of 4~14 μm and an average diameter of 1~4 μm. It is worth noting that the Gd-2, Ho-2, Er-2, and Eu-2 FAps show a larger grain size, compared with that of the La-2, Yb-2, Sm-2, and Pr-2 FAps. As shown in the EDS elements spectrum, the effective doping concentration of Yb-2 is about 0.77 mol.%, lower than that of the Sm-2, Pr-2, Gd-2, Ho-2, Er-2, and Eu-2 FAps (0.9 mol.%), which demonstrated that the ratio of the effective doping concentration to the theoretical doping concentration is nearly 50%.
The SEM images accompanied by EDS spectra of the Er-doped FAps with the theoretical doping concentrations of 2, 4, 6, 8, 10, 12, 14, and 16 mol.% are shown in Figure 5. The Er-doped FAps with the theoretical doping concentration of 2, 4, 6, 8, 10, 12, 14, and 16 mol.% all show a rod-shaped morphology. The average grain size (volume) of all the Er-doped FAps is around 240 μm3. Nonetheless, the grain size (volume) of the Er-doped FAps with a high concentration is a scattered, multiple-center data management group, which may result from the increasing cation concentration promoting the nucleation of the Er-doped FAps precipitates. The effective doping concentration of Er3+ ions also shows a growing tendency with the increase in increasing theoretical doping concentration. The ratio of the effective doping concentration to the theoretical doping concentration of all the Er-doped FAps is about 0.44. The obtained results showed that the increasing doping concentration of Er3+ ions shows no effect on the average grain size, which is similar with the results shown in ref. [26].

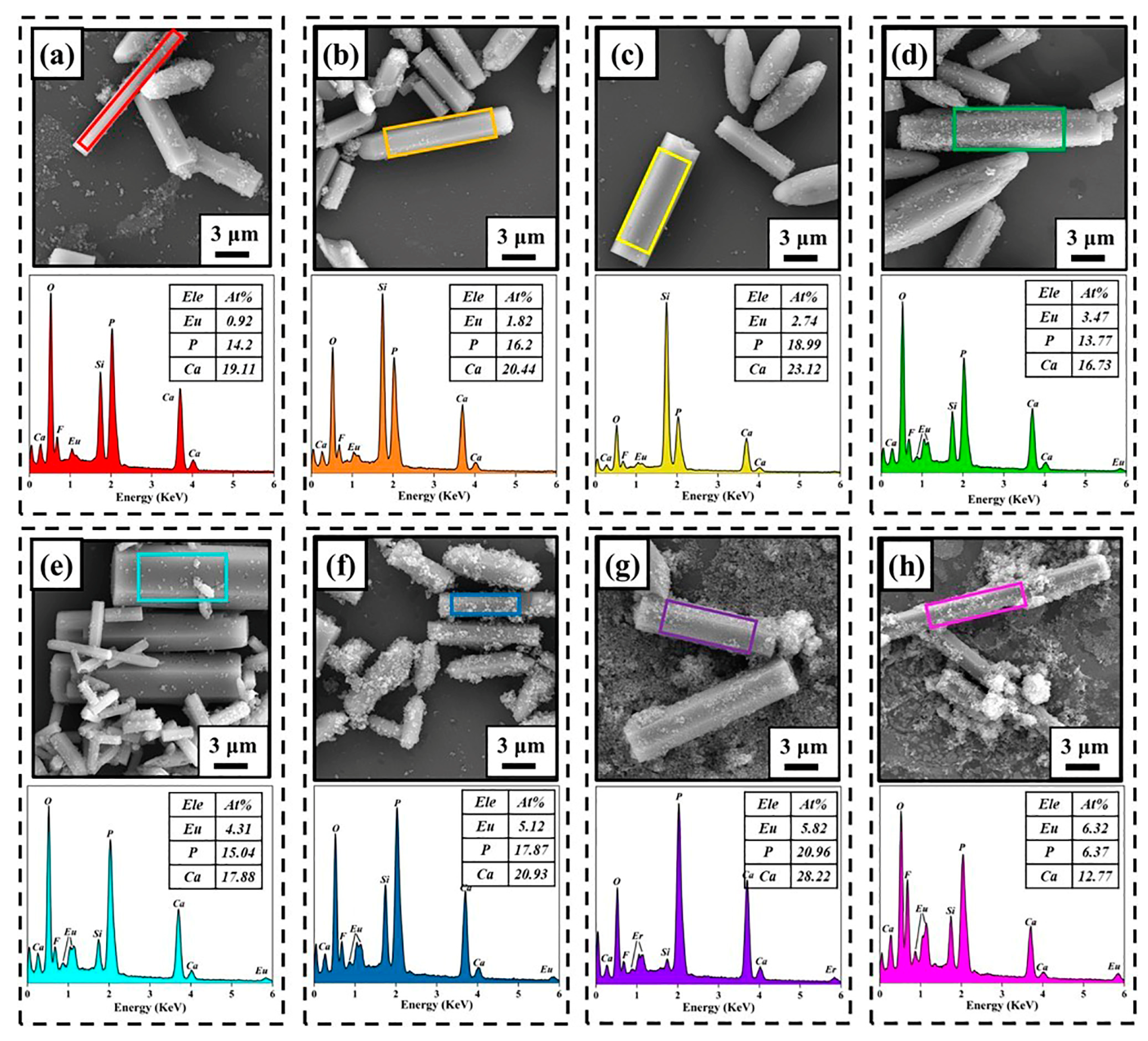

Figure 6 is the SEM images accompanied by EDS spectra of the Eu-doped FAps with the Eu theoretical doping concentrations of 2, 4, 6, 8, 10, 12, 14, and 16 mol.%. Similar with the Er-doped FAps, the shape, average grain size, and the ratio of the effective doping concentration to the theoretical doping concentration of the Eu3+ are free from the influence of the Eu3+ doping concentration. It is worth noting that a great number of rare-earth fluoride particles can be observed on the surface of the Eu-12, 14, and 16 FAps. The amount of rare-earth fluoride particles covered on the surface of the Eu-doped FAps also show an increase tendency with the increasing concentration of Eu3+ ions.
Similar with the Er- and Eu-doped FAps, the SEM images and EDS spectra of the La-, Pr-, Sm-, Gd-, Ho-, and Yb-doped FAps also demonstrate that the REE ion doping concentration shows no effect on the average grain size. Figure 7 shows the effective doping concentration of the La-, Pr-, Sm-, Eu-, Gd-, Ho-, Er-, and Yb-doped FAps. It can be seen that the effective doping concentration of the REEs-doped FAps increases with the increasing theoretical doping concentration. Nevertheless, the ratio of the effective doping concentration to the theoretical doping concentration is around 50%. And this ratio gradually decreases as the theoretical doping concentration increases, like Eu-doped FAps. The main reason is that the additions of superabundant cations are more likely to precipitate directly instead of forming REEs-doped FAps.

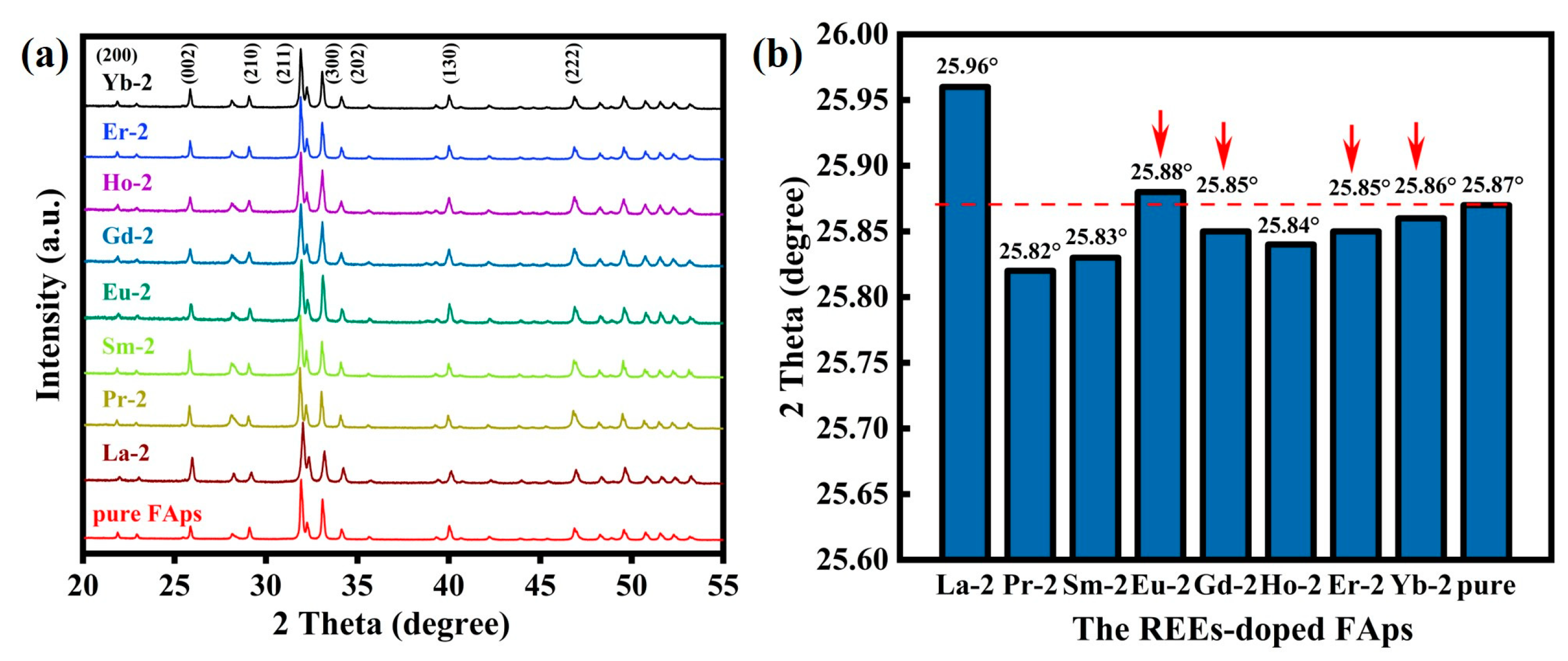

Figure 8 shows the phase and crystal structure of the La-2, Yb-2, Sm-2, Pr-2, Gd-2, Ho-2, Er-2, and Eu-2 FAps by the XRD patterns and the degree of (002) diffraction peak. The diffraction peaks of the REEs-doped FAps are in good agreement with the standard spectrum peaks of the FAps, which indicates that the formation of the phase structure of the pure and REEs FAps. As shown in Figure 8b, the diffraction peak corresponding to the (002) crystal plane of the La-2, Yb-2, Sm-2, Pr-2, Gd-2, Ho-2, Er-2, and Eu-2 FAps exhibits variable shifts, attributable to the distinct atomic radii of the dopant atoms. The red dotted line in Figure 8b represents the (002) crystal plane angle of the pure FAps. Compared to the peak positions of the Yb-2, Gd-2, Er-2, and Eu-2 FAps, the La-2, Sm-2, Pr-2, and Ho-2 FAps show a visible lattice distortion.

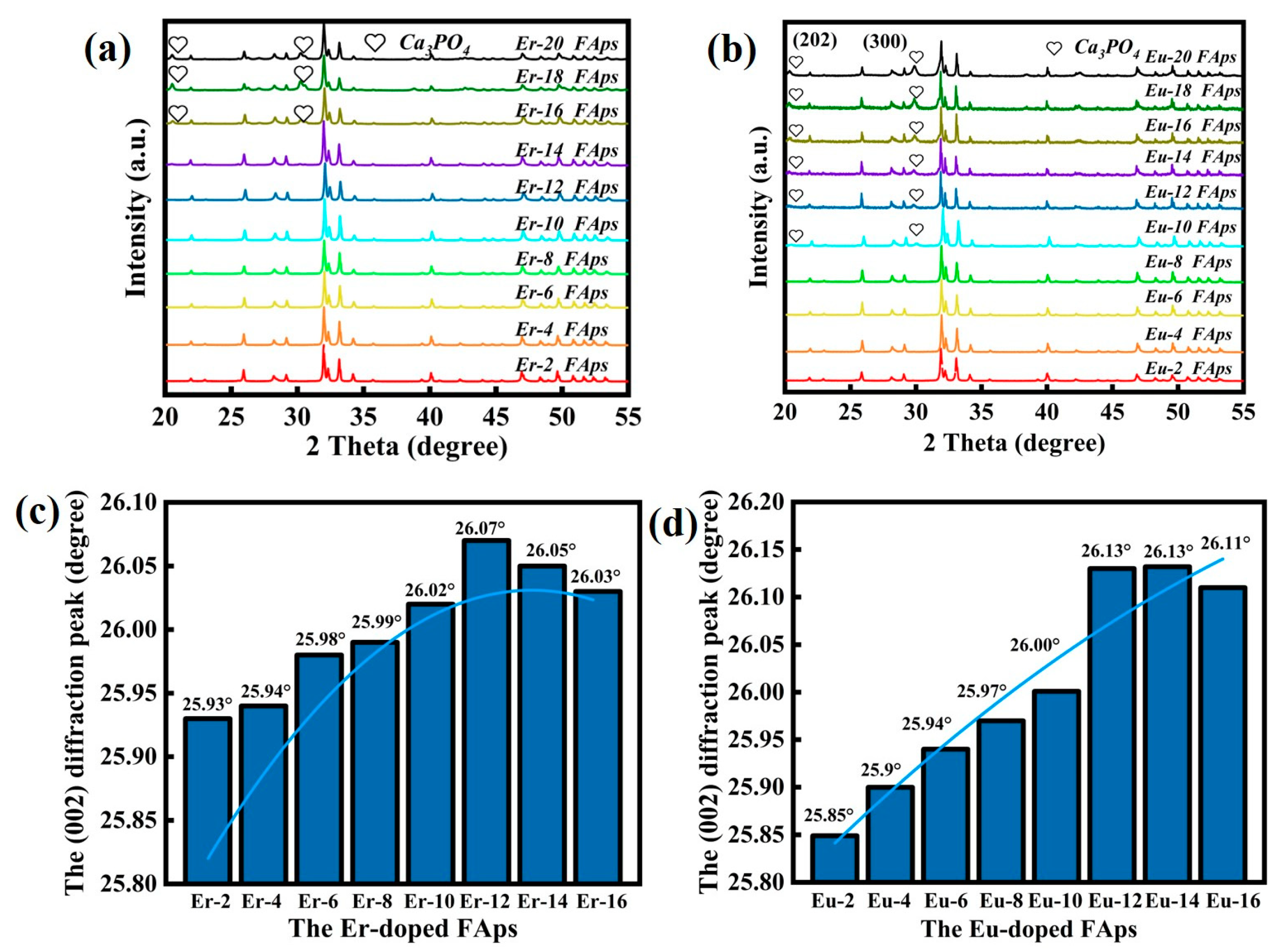

The XRD patterns for the Er-2, 4, 6, 8, 10, 12, 14, and 16 FAps and Eu-2, 4, 6, 8, 10, 12, 14, and 16 FAps are illustrated in Figure 9. It can be seen in Figure 9a,b that the Er-2, 4, 6, 8, 10, 12, 14, and 16 FAps and Eu-2, 4, 6, 8, 10, 12, 14, and 16 FAps can be synthesized successfully when the theoretical doping concentration is less than 20%. As the theoretical doping concentration approaches 20%, the XRD patterns of Er-16, 18, and 20 and Eu-10, 12, 14, 16, 18, and 20 FAps show the abrupt diffraction peaks at 20.21° and 29.65° that do not belong to the FAps phase. These diffraction peaks are analyzed to the (202) and (300) characteristic peaks of the calcium phosphate phase. The angle of the (002) diffraction peak changing with the effective doping concentration in Figure 9c,d illustrates that numerous Er3+ ions or Eu3+ ions entering the FAps lattice led to distortion [27]. According to the Bragg Equation (2dsinθ = nλ), the increase in the 2-theta angle in Figure 9c,d is attributed to the decrease in interplanar crystal spacing of the (002) plane resulting from Er atom doping.

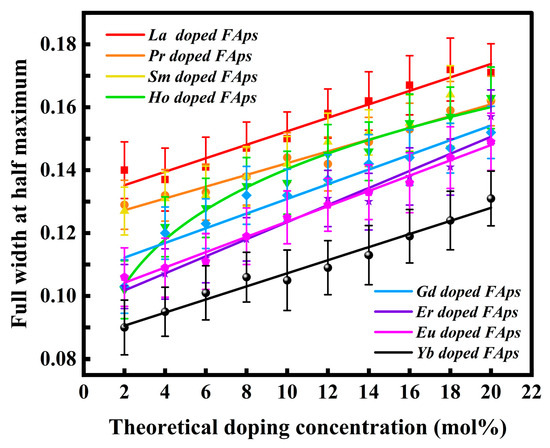

The FWHM of the (002) lattice plane in the REEs-doped FAps is calculated in order to roughly understand the influence of the theoretical doping concentration on the lattice defects in the FAp-phase crystal. It can be seen in Figure 10 that the FWHM of REEs-doped FAps increases with the increase in theoretical doping concentration, indicating that the degree of crystallinity gradually decreases [27]. The La-, Pr-, Sm-, and Ho-doped FAps show higher FWHM compared to Gd-, Er-, Eu-, Yb-doped FAps, resulting in the Gd-, Er-, Eu-, and Yb-doped FAps having better crystallinity.
The XRD patterns of REEs-doped FAps were refined, and the Rietveld calculation was performed using GSAS II to obtain the crystal structure model [28]. The Rwp of the Er-2 and Eu-2 FAps is, respectively, 8.935% and 11.448%, while the χ2 is, respectively, 2.73% and 4.91%. The smaller error coefficient indicates that the refinement results are more reliable. From Figure 11b,c, the black cross represents the measured XRD data, the red solid line represents the XRD data fitted based on the computational structural model, the bule solid line represents the difference between the measured data and the fitted data, and the magenta columnar line represents the position of the Bragg diffraction peak. The difference between the measured XRD diffraction peaks calculated by fitting is small and the fitting results are calculable. The refined results are listed in Table 2. Based on the crystallographic files generated by GSAS II, Vesta was used to create a lattice structure of REEs-doped FAps, as is shown in Figure 11a. In the hexagonal crystal structure, two cationic lattice positions, namely the Ca1 and Ca2 positions, are present. Nevertheless, distinct rare-earth atoms exhibit specific tendencies for occupying these lattice positions. Notably, Er and Eu are inclined to preferentially occupy the 6h position [29]. According to the Rietveld refinements of the XRD patterns of the REEs-doped FAps, the unit cell volume and lattice constants were calculated out and plotted in Figure 11d. Visibly, in Figure 11d, the unit cell volume and lattice constants of the Gd-2, Er-2, Eu-2, and Yb-2 FAps are closer with the pure FAps without REEs doping. It can be concluded that the lattice distortion of the Gd-2, Er-2, Eu-2, and Yb-2 FAps is weaker compared with that of the Pr-2, La-2, Sm-2, and Ho-2 FAps.
Trivalent rare-earth ions such as Y3+ and La3+, which lack 4f electrons, exhibit closed electronic shells, rendering them optically inert. In contrast, other rare-earth ions possess varying numbers of electrons in the Ca1 orbit, and the transitions of these electrons gives rise to light emission. The emission spectra are shown in Figure 12 under excitation at 250 nm. Different REEs-doped FAps display completely different fluorescence properties.

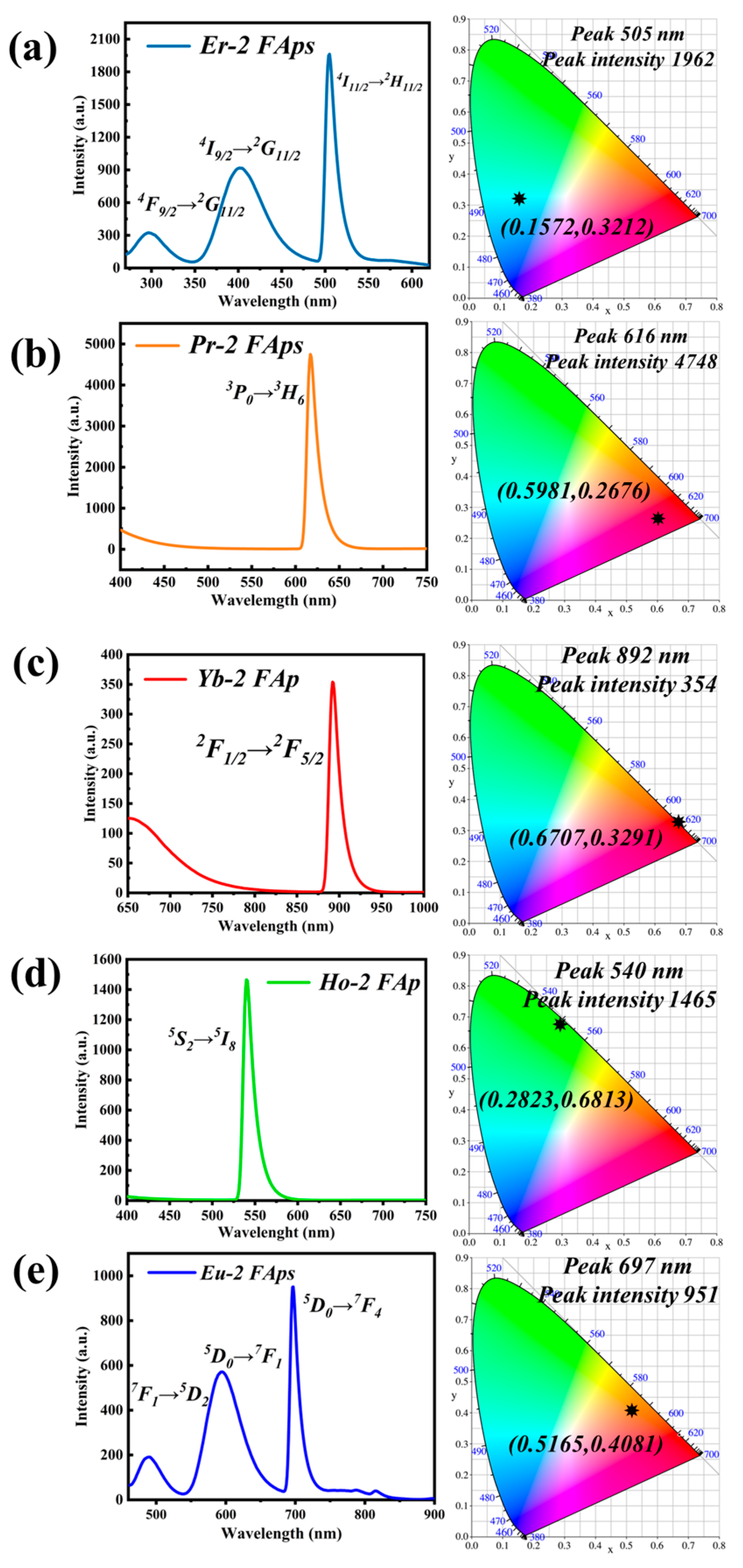

It can be seen in Figure 12d that Ho-2 FAps exhibit the emission band located at strong emission around 540 nm, which is related to the transition of 5S25I8. Calculating the color co-ordinates of Ho-2 FAps based on its corresponding emission spectrum, the color of the phosphor is green. The Yb-2 and Pr-2 FAps display emission bands, respectively, at 392 nm and 892 nm originating from the 2F7/22F5/2 (Yb) transition in Yb and the 5S25I8 transition in Ho [30,31]. Figure 12a shows the emission spectra of the Er-2 FAps, manifesting three emission bands, which feature two minor emission peaks at approximately 296 nm/401 nm and a prominent emission peak at 505 nm. These phenomena are attributed to the transitions involving 4F9/22G11/2, 4I9/22G11/2, and 4I11/22H11/2, respectively [32]. In addition, Eu-2 FAps demonstrate emissions of three bands: 7F15D2 (490 nm), 5D07F1 (594 nm), and 5D07F4 (697 nm) [33,34]. The CIE co-ordinates show that the Eu-2 phosphor emits orange fluorescence.
Figure 13 displays the emission spectra of Er-2, 6, 12, 16, and 20 FAps and its changes in maximum fluorescence intensity. As shown in Figure 13b, the fluorescence emitted by the Er-2, 6, 12, 16, and 20 FAps is mainly blue–green. By measuring the strongest fluorescence intensity at the emission band, it can be obtained that, as shown in Figure 13c–e, the fluorescence intensity first increases and then decreases as the effective doping concentration increases. Through fitting discrete points, the equation describing the change in fluorescence intensity of emitted light at 505 nm with respect to doping concentration is obtained as y = 221.28 + 1365.57X − 107.11X2. By analyzing the fitting curve, it can be deduced that the optimum fluorescence intensity for the Er-doped FAps is achieved at an effective doping concentration of 6.37 mol%. At lower concentrations, the rise in luminescence intensity can be ascribed to an augmentation in the number of luminescent centers. Conversely, the decline in luminescence intensity is attributed to excessive Er concentration, indicating concentration quenching [35].

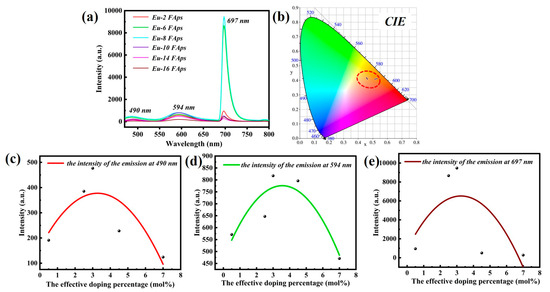

As depicted in Figure 14c–e, when excited at 250 nm, the Eu-doped FAps phosphor exhibits three emission bands at 490 nm (7F15D2), 594 nm (5D07F1), and 697 nm (5D07F4). The color co-ordinate diagram of the Eu-doped phosphor indicates that it emits orange light under UV lamp irradiation. In accordance with the Er-doped FAps, the fluorescence intensity and the effective doping concentration of the Eu-doped FAps also demonstrate a parabolic trend. The equation describing the change in fluorescence intensity with the effective doping concentration at 697 nm is determined as y = 1394.45 + 2883.61X − 426.67X2. Through the calculation of the fitting curve, it can be concluded that, when the doping concentration is 3.38 mol%, the Eu-doped FAps with best fluorescence intensity can be obtained.
Figure 15a–c show the trend of the changes in fluorescence intensity of the Pr-, Yb-, and Ho-doped FAps with effective doping concentration. Consistent with Eu and Er, the fluorescence intensity of Pr-, Yb-, and Ho-doped FAps, moreover, increase first and then decreases as the effective doping concentration increases. The optimal effective doping concentrations of Pr, Yb, and Ho are 4.5, 4, and 5 mol%.
The various rare-earth atoms involve different energy levels when emitting visible light, resulting in those atoms being able to emit light of different wavelengths. For example, Er-doped FAps emit blue–green light, while Eu-doped FAps emit orange light, from Figure 12. When the theoretical doping concentration is 2 mol%, the (002) lattice plane FWHM of all the REE-doped FAps is at a low value, resulting in excellent crystallinity. Instead, it can be observed in Figure 10 that the FWHM of all REE-doped FAps is coincidently increased with the effective doping concentration increase, which means that the crystallinity of the FAps is gradually decreasing. High crystallinity means a well-ordered internal crystal structure, reducing energy loss from nonradiative recombination of excited electrons, which enhances the conversion of excitation energy into fluorescent radiation. Hence, an excessively high doping concentration will cause a reduction in crystallinity, leading to a decrease in fluorescence intensity. From Figure 12, Figure 13, Figure 14 and Figure 15, the maximum fluorescence intensity can be found as the effective doping concentration increases to a specific threshold value. When the threshold is exceeded, the fluorescence intensity of REE-doped FAps begins to decrease.
In addition, the FAps crystal grains synthesized via the hydrothermal method are in the micron level in Figure 4, Figure 5 and Figure 6, which is also beneficial to the improvement of the fluorescence intensity. This is owing to the enlarged grains with their increased surface area, which facilitate the absorption of a greater amount of excitation light energy, which leads to the excitation of a higher number of luminescent centers, thereby contributing to heightened luminescence. In contrast, the small grains cause nonradiative losses due to surface effects and reducing luminous efficiency.

4. Conclusions

The REEs-doped FAp powders synthesized by hydrothermal methods produce fluorescence of different wavelengths. Er-, Eu-, Pr-, Ho-, and Yb-doped FAps can, respectively, emit blue, orange, red, orange, red, and green light under the excitation of ultraviolet light (250 nm). Compared with the Pr/Sm/Gd/Ho/Yb-doped FAps, Er/Eu-doped FAps exhibit high fluorescence intensity, attributed to their small lattice distortion, big grain siz,e and suitable doping concentration.
The FAps with different REE effective doping concentrations show that the fluorescence intensity increases first and then decreases as the concentration increases. This is mainly because an increase in effective doping concentration has a positive impact on the fluorescence intensity. However, an excessively high doping concentration will lead to concentration quenching and a decrease in crystallinity, which will have a negative impact on the fluorescence intensity. Therefore, when the doping concentration of Er is at 6.37 mol%, Eu is at 3.38 mol%, Pr is at 4.5 mol%, Yb is at 4 mol%, and Ho is at 5 mol%, the combination of good crystallinity, higher luminescent atoms, and larger grain size results in excellent fluorescence intensity.

Author Contributions

Conceptualization, D.-S.S. and S.-R.B.; methodology, S.-R.B.; software, S.-R.B.; validation, D.-S.S., W.Y. and S.-R.B.; formal analysis, D.-S.S.; investigation, S.-R.B.; resources, D.-S.S.; data curation, W.Y. and S.-R.B.; writing—original draft preparation, S.-R.B.; writing—review and editing, D.-S.S.; visualization, S.-R.B.; supervision, W.Y.; project administration, D.-S.S.; funding acquisition, D.-S.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Fundamental Research Funds for the Central Universities, grant number 265QZ2022002, the Natural Science Foundation of Henan Province (Grant no. 232300421104), and the National Key Research and Development Project (Grant no. 2023YFF0611102).

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Li, H.; Sheng, W.; Haruna, S.A.; Hassan, M.M.; Chen, Q. Recent advances in rare earth ion-doped upconversion nanomaterials: From design to their applications in food safety analysis. Compr. Rev. Food Sci. Food Saf. 2023, 22, 3732–3764. [Google Scholar] [CrossRef] [PubMed]
  2. Li, X.; Zhu, J.; Man, Z.; Ao, Y.; Chen, H. Investigation on the structure and upconversion fluorescence of Yb3+/Ho3+ co-doped fluorapatite crystals for potential biomedical applications. Sci. Rep. 2014, 4, 4446. [Google Scholar] [CrossRef] [PubMed]
  3. Arcos, D.; Vallet-Regi, M. Substituted hydroxyapatite coatings of bone implants. J. Mater. Chem. B 2020, 8, 1781–1800. [Google Scholar] [CrossRef]
  4. Zhong, Y.; Ma, Z.; Wang, F.; Wang, X.; Yang, Y.; Liu, Y.; Zhao, X.; Li, J.; Du, H.; Zhang, M.; et al. In vivo molecular imaging for immunotherapy using ultra-bright near-infrared-IIb rare-earth nanoparticles. Nat. Biotechnol. 2019, 37, 1322–1331. [Google Scholar] [CrossRef]
  5. DeRocher, K.A.; Smeets, P.J.M.; Goodge, B.H.; Zachman, M.J.; Balachandran, P.V.; Stegbauer, L.; Cohen, M.J.; Gordon, L.M.; Rondinelli, J.M.; Kourkoutis, L.F.; et al. Chemical gradients in human enamel crystallites. Nature 2020, 583, 66–71. [Google Scholar] [CrossRef]
  6. Boulon, G.; Collombet, A.; Brenier, A.; Cohen-Adad, M.T.; Yoshikawa, A.; Lebbou, K.; Lee, J.H.; Fukuda, T. Structural and spectroscopic characterization of nominal Y3:CaLa(PO)6O2 oxyapatite single crystal fibers grown by the micro-pulling-down method. Adv. Funct. Mater. 2001, 11, 263–270. [Google Scholar] [CrossRef]
  7. Wei, L.X.; Pang, D.W.; He, L.Y.; Deng, C.L. Crystal structure analysis of selenium-doped hydroxyapatite samples and their thermal stability. Ceram. Int. 2017, 43, 16141–16148. [Google Scholar] [CrossRef]
  8. Boanini, E.; Gazzano, M.; Bigi, A. Ionic substitutions in calcium phosphates synthesized at low temperature. Acta Biomater. 2010, 6, 1882–1894. [Google Scholar] [CrossRef]
  9. Supova, M. Substituted hydroxyapatites for biomedical applications: A review. Ceram. Int. 2015, 41, 9203–9231. [Google Scholar] [CrossRef]
  10. Hughes, J.M.; Rakovan, J. The Crystal Structure of Apatite, Ca5(PO4)3(F,OH,Cl). Rev. Mineral. Geochem. 2002, 48, 1–12. [Google Scholar] [CrossRef]
  11. Chen, H.; Jiang, Z.; Hu, H.; Kang, B.; Zhang, B.; Mi, X.; Guo, L.; Zhang, C.; Li, J.; Lu, J.; et al. Sub-50-ns ultrafast upconversion luminescence of a rare-earth-doped nanoparticle. Nat. Photonics 2022, 16, 651. [Google Scholar] [CrossRef]
  12. Eliseeva, S.V.; Bünzli, J.C.G. Lanthanide luminescence for functional materials and bio-sciences. Chem. Soc. Rev. 2010, 39, 189–227. [Google Scholar] [CrossRef]
  13. Gai, S.L.; Li, C.X.; Yang, P.P.; Lin, J. Recent Progress in Rare Earth Micro/Nanocrystals: Soft Chemical Synthesis, Luminescent Properties, and Biomedical Applications. Chem. Rev. 2014, 114, 2343–2389. [Google Scholar] [CrossRef] [PubMed]
  14. Yang, H.J.; Li, X.B.; Zhang, R.R.; Huang, W.T.; Guo, Y.; Shen, Z.F.; Yu, M.X.; Zhang, Q.T.; Wang, L.X. Preparation and properties of Nd3+ doped Gd2O3 near-infrared phosphor. Ceram. Int. 2021, 47, 8510–8517. [Google Scholar] [CrossRef]
  15. Zhang, Z.; Niu, J.L.; Zhou, W.; Xu, D.D.; Du, H.H. Samarium doped apatite-type orange-red emitting phosphor Ca5(PO4)2SiO4 with satisfactory thermal properties for n-UV w-LEDs. J. Rare Earths 2019, 37, 949–954. [Google Scholar] [CrossRef]
  16. Baghel, S.K.; Brahme, N.; Bisen, D.P.; Patle, Y.; Richhariya, T.; Chandrawanshi, E.; Belodhiya, C. Luminescence properties of a novel cyan-blue light emitting Ce3+ doped SrZrSi2O7 phosphor. Opt. Mater. 2022, 126, 112141. [Google Scholar] [CrossRef]
  17. Baldassarre, F.; Altomare, A.; Corriero, N.; Mesto, E.; Lacalamita, M.; Bruno, G.; Sacchetti, A.; Dida, B.; Karaj, D.; Ventura, G.D.; et al. Crystal Chemistry and Luminescence Properties of Eu-Doped Polycrystalline Hydroxyapatite Synthesized by Chemical Precipitation at Room Temperature. Crystals 2020, 10, 250. [Google Scholar] [CrossRef]
  18. Mei, Q.; Bansal, A.; Jayakumar, M.K.G.; Zhang, Z.; Zhang, J.; Huang, H.; Yu, D.; Ramachandra, C.J.A.; Hausenloy, D.J.; Soong, T.W.; et al. Manipulating energy migration within single lanthanide activator for switchable upconversion emissions towards bidirectional photoactivation. Nat. Commun. 2019, 10, 4416. [Google Scholar] [CrossRef]
  19. Anandkumar, M.; Bagul, P.M.; Deshpande, A.S. Structural and luminescent properties of Eu 3+doped multi-principal component Ce0.2Gd0.2Hf0.2La0.2Zr0.2O2 nanoparticles. J. Alloys Compd. 2020, 838, 155595. [Google Scholar] [CrossRef]
  20. Hua, Y.B.; Ran, W.G.; Yu, J.S. Excellent photoluminescence and cathodoluminescence properties in Eu3+-activated Sr2LaNbO6 materials for multifunctional applications. Chem. Eng. J. 2021, 406, 127154. [Google Scholar] [CrossRef]
  21. Senden, T.; van Dijk-Moes, R.J.A.; Meijerink, A. Quenching of the red Mn4+ luminescence in Mn4+-doped fluoride LED phosphors. Light-Sci. Appl. 2018, 7, 8. [Google Scholar] [CrossRef]
  22. Kumar, P.; Singh, D.; Gupta, I.; Singh, S.; Nehra, S.; Kumar, R. Realization of warm reddish-orange light emitter single phase Y4Al2O9: Sm3+ nanophosphors for indoor lighting applications. J. Lumin. 2023, 257, 119703. [Google Scholar] [CrossRef]
  23. Toby, B.H.; Von Dreele, R.B. GSAS-II: The genesis of a modern open-source all purpose crystallography software package. J. Appl. Crystallogr. 2013, 46, 544–549. [Google Scholar] [CrossRef]
  24. Chen, M.; Jiang, D.L.; Li, D.; Zhu, J.J.; Li, G.F.; Xie, J.M. Controllable synthesis of fluorapatite nanocrystals with various morphologies: Effects of pH value and chelating reagent. J. Alloys Compd. 2009, 485, 396–401. [Google Scholar] [CrossRef]
  25. Wang, T.X.; Li, W.W.; Song, J.H.; Fang, Y.H.; Sun, Z.C.; Mei, B.C.; Su, L.B. Morphology control of Sr5(PO4)3F nanoparticles synthesized through co-precipitation. Mater. Lett. 2017, 202, 131–133. [Google Scholar] [CrossRef]
  26. Demir, B.; Derince, D.; Dayioglu, T.; Koroglu, L.; Karacaoglu, E.; Uz, V.; Ayas, E. Effects of doping content and crystallite size on luminescence properties of Eu3+ doped fluorapatites obtained from natural waste. Ceram. Int. 2021, 47, 34657–34666. [Google Scholar] [CrossRef]
  27. Balakrishnan, S.; Padmanabhan, V.P.; Kulandaivelu, R.; Sankara Narayanan Nellaiappan, T.S.; Sagadevan, S.; Paiman, S.; Mohammad, F.; Al-Lohedan, H.A.; Obulapuram, P.K.; Oh, W.C. Influence of iron doping towards the physicochemical and biological characteristics of hydroxyapatite. Ceram. Int. 2021, 47, 5061–5070. [Google Scholar] [CrossRef]
  28. Njema, H.; Boughzala, K.; Boughzala, H.; Bouzouita, K. Structural analysis by Rietveld refinement of calcium and lanthanum phosphosilicate apatites. J. Rare Earths 2013, 31, 897–904. [Google Scholar] [CrossRef]
  29. Fleet, M.E.; Liu, X.Y.; Pan, Y.M. Site preference of rare earth elements in hydroxyapatite Ca10(PO4)6(OH)2. J. Solid State Chem. 2000, 149, 391–398. [Google Scholar] [CrossRef]
  30. Song, P.; Zhao, Z.; Xu, X.; Deng, P.; Xu, J. Growth and spectral properties of Yb: FAP single crystal. Opt. Mater. 2007, 29, 471–474. [Google Scholar] [CrossRef]
  31. Gruber, J.B.; Zandi, B.; Seltzer, M.D. Spectra and energy levels of trivalent holmium in strontium fluorapatite. J. Appl. Phys. 1997, 81, 7506–7513. [Google Scholar] [CrossRef]
  32. Hong, J.; Zhang, L.; Xu, M.; Hang, Y. Effect of erbium concentration on optical properties of Er:YLF laser crystals. Infrared Phys. Technol. 2017, 80, 38–43. [Google Scholar] [CrossRef]
  33. Fu, Z.; Wang, X.; Yang, Y.; Wu, Z.; Duan, D.; Fu, X. Hydrothermal synthesis, electronic structure and tunable luminescence of single-phase Ca5(PO4)3F: Tb3+, Eu3+ microrods. Dalton Trans. 2014, 43, 2819–2827. [Google Scholar] [CrossRef] [PubMed]
  34. Rodríguez-García, M.M.; Ciric, A.; Ristic, Z.; Williams, J.A.G.; Dramićanin, M.D.; Evans, I.R. Narrow-band red phosphors of high color purity based on Eu3+-activated apatite-type Gd9.33(SiO4)6O2. J. Mater. Chem. C 2021, 9, 7474–7484. [Google Scholar] [CrossRef]
  35. Zhang, L.; Liu, R.; Wang, Z.; Guan, F.; Li, Y.; Yuan, X.; Zhang, L.; Jiang, Y. Er3+ concentration-dependent microstructural and up conversion luminescence process of transparent perfluoride composite glass. J. Eur. Ceram. Soc. 2022, 42, 4335–4342. [Google Scholar] [CrossRef]

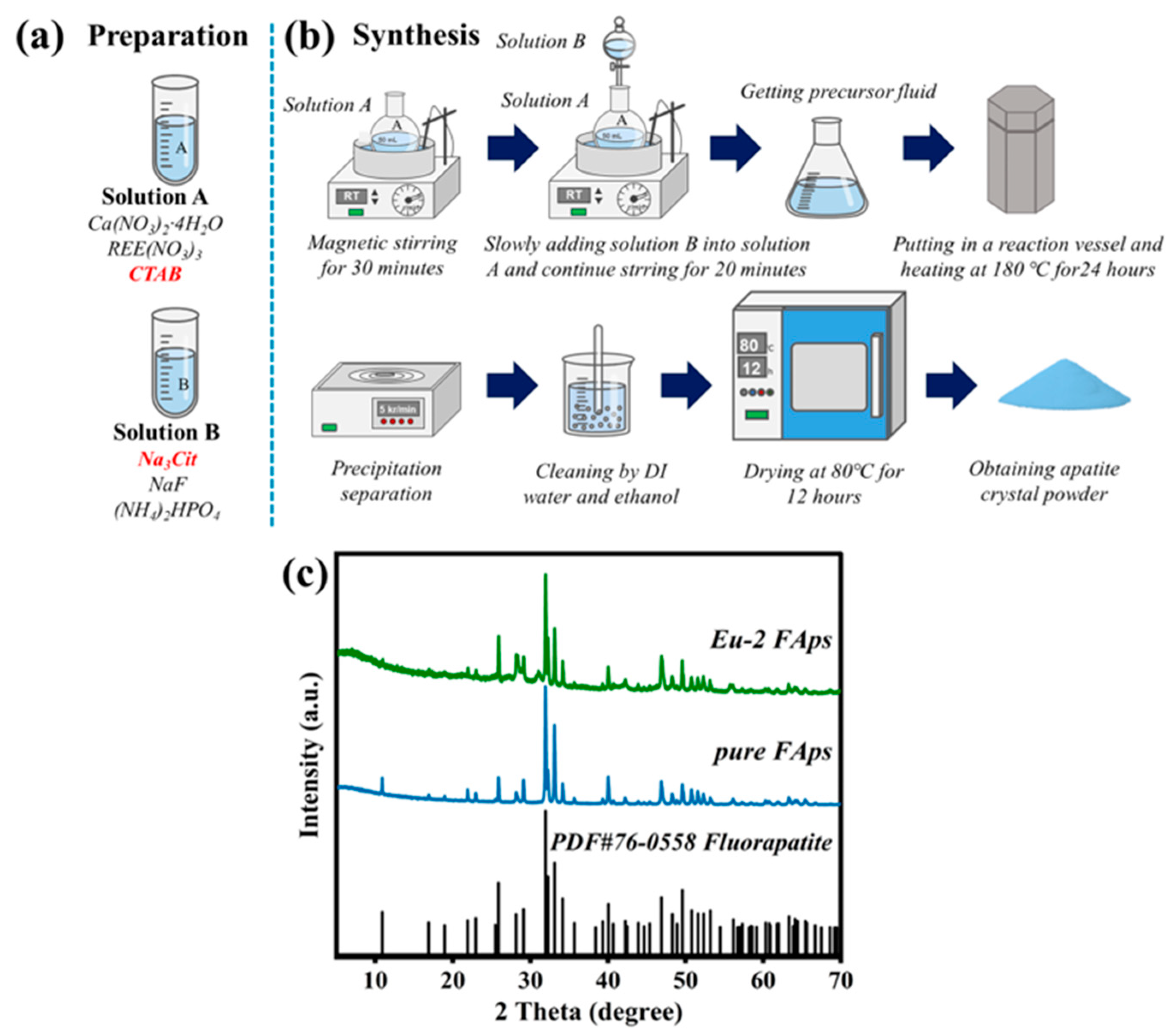

Figure 1. The flowchart showing the hydrothermal synthesizing of the REEs-doped FAps: (a) the anionic ligand and precursor solutions, (b) the hydrothermal synthesizing processing of the REEs-doped FAps, and (c) the XRD patterns of the synthesized pure and Eu-doped FAps.
Figure 1. The flowchart showing the hydrothermal synthesizing of the REEs-doped FAps: (a) the anionic ligand and precursor solutions, (b) the hydrothermal synthesizing processing of the REEs-doped FAps, and (c) the XRD patterns of the synthesized pure and Eu-doped FAps.
Crystals 14 00185 g001
Figure 2. The TEM bright images, EDS, and FFT spectrum showing the microstructure of the (a) pure, (b) La-2, (c) Yb-2, (d) Er-2, and (e) Eu-2 FAps.
Figure 2. The TEM bright images, EDS, and FFT spectrum showing the microstructure of the (a) pure, (b) La-2, (c) Yb-2, (d) Er-2, and (e) Eu-2 FAps.
Crystals 14 00185 g002
Figure 3. The interplanar spacing of the (002) lattice planes of the pure and REEs-doped FAps.
Figure 3. The interplanar spacing of the (002) lattice planes of the pure and REEs-doped FAps.
Crystals 14 00185 g003
Figure 4. The SEM images accompanied by EDS spectra of the (a) La-2, (b) Yb-2, (c) Sm-2, (d) Pr-2, (e) Gd-2, (f) Ho-2, (g) Er-2, and (h) Eu-2 FAps.
Figure 4. The SEM images accompanied by EDS spectra of the (a) La-2, (b) Yb-2, (c) Sm-2, (d) Pr-2, (e) Gd-2, (f) Ho-2, (g) Er-2, and (h) Eu-2 FAps.
Crystals 14 00185 g004
Figure 5. The SEM images accompanied by EDS spectra of the Er-doped FAps with the Er theoretical doping concentration of (a) 2, (b) 4, (c) 6, (d) 8, (e) 10, (f) 12, (g) 14, and (h) 16 mol%.
Figure 5. The SEM images accompanied by EDS spectra of the Er-doped FAps with the Er theoretical doping concentration of (a) 2, (b) 4, (c) 6, (d) 8, (e) 10, (f) 12, (g) 14, and (h) 16 mol%.
Crystals 14 00185 g005
Figure 6. The SEM images accompanied by EDS spectra of the (a) Eu-2, (b) Eu-4, (c) Eu-6, (d) Eu-8, (e) Eu-10, (f) Eu-12, (g) Eu-14, and (h) Eu-16 FAps.
Figure 6. The SEM images accompanied by EDS spectra of the (a) Eu-2, (b) Eu-4, (c) Eu-6, (d) Eu-8, (e) Eu-10, (f) Eu-12, (g) Eu-14, and (h) Eu-16 FAps.
Crystals 14 00185 g006

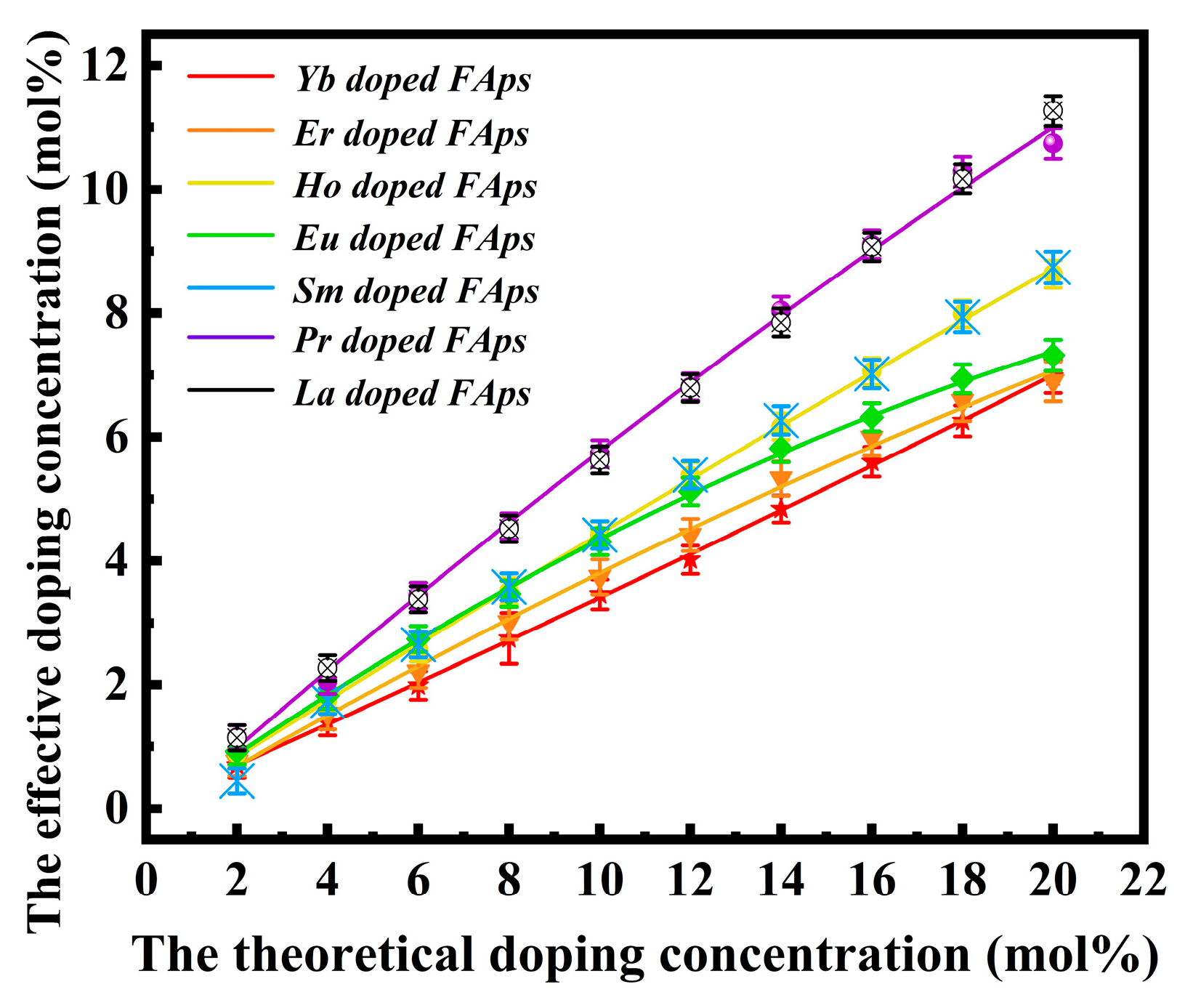

Figure 7. The effective doping concentration of the La-, Pr-, Sm-, Eu-, Gd-, Ho-, Er-, and Yb-doped FAps.
Figure 7. The effective doping concentration of the La-, Pr-, Sm-, Eu-, Gd-, Ho-, Er-, and Yb-doped FAps.
Crystals 14 00185 g007
Figure 8. The phase and crystal structure of the La-2, Yb-2, Sm-2, Pr-2, Gd-2, Ho-2, Er-2, and Eu-2 FAps by (a) the XRD patterns and (b) the position of (002) diffraction peak.
Figure 8. The phase and crystal structure of the La-2, Yb-2, Sm-2, Pr-2, Gd-2, Ho-2, Er-2, and Eu-2 FAps by (a) the XRD patterns and (b) the position of (002) diffraction peak.
Crystals 14 00185 g008
Figure 9. The phase and crystal structure of the Er-2, 4, 6, 8, 10, 12, 14, 16, 18, and 20 and Eu-2, 4, 6, 8, 10, 12, 14, 16, 18, and 20 by (a,b) the XRD patterns and (c,d) the position of (002) diffraction peak.
Figure 9. The phase and crystal structure of the Er-2, 4, 6, 8, 10, 12, 14, 16, 18, and 20 and Eu-2, 4, 6, 8, 10, 12, 14, 16, 18, and 20 by (a,b) the XRD patterns and (c,d) the position of (002) diffraction peak.
Crystals 14 00185 g009

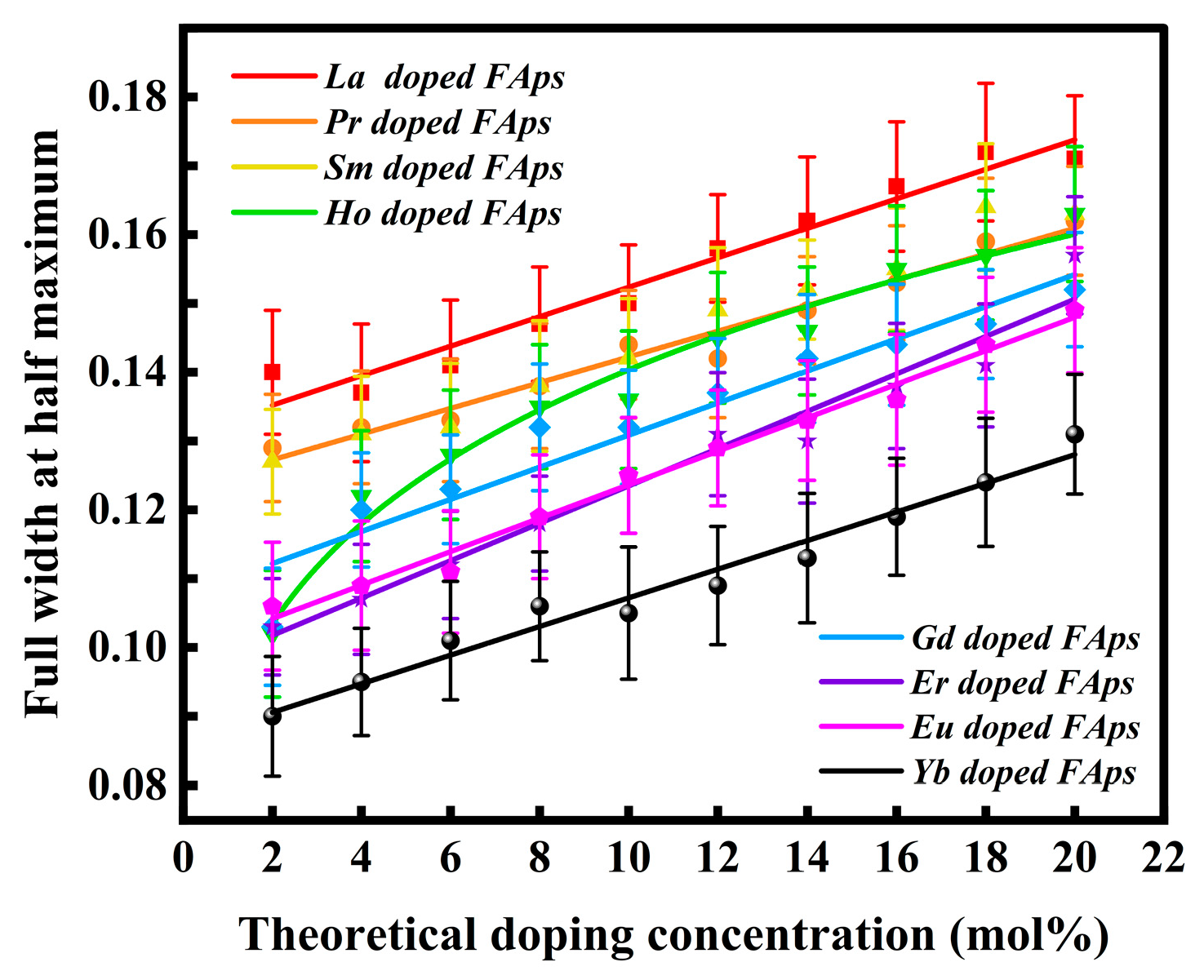

Figure 10. The FWHM of REEs-doped FAps with various theoretical doping concentrations.
Figure 10. The FWHM of REEs-doped FAps with various theoretical doping concentrations.
Crystals 14 00185 g010

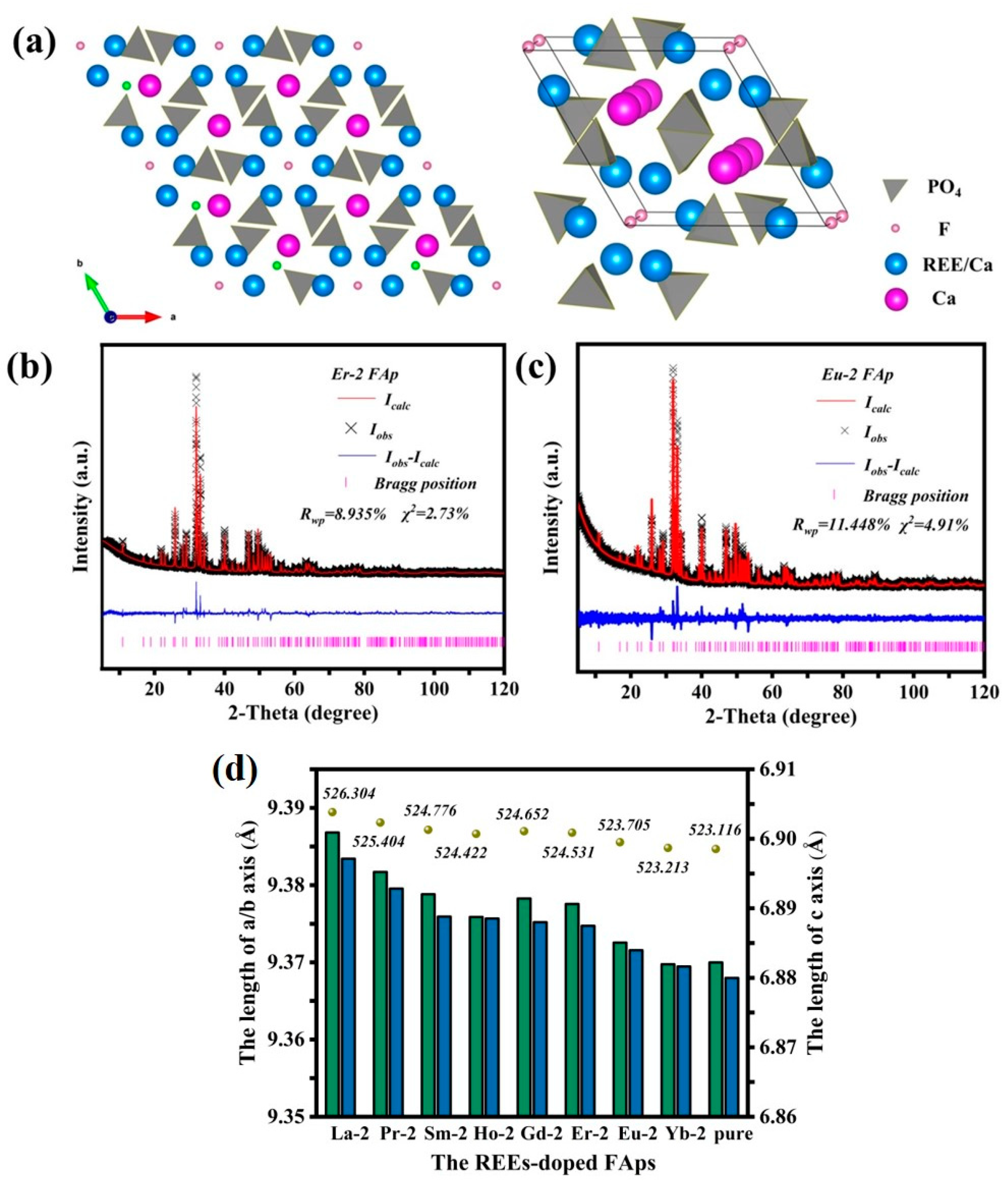

Figure 11. Refinement of La-2, Yb-2, Sm-2, Pr-2, Gd-2, Ho-2, Er-2, and Eu-2 FAps: (a) lattice structure of REEs-doped Faps (b) the Rietveld refinement of powder XRD pattern, (c) the Rietveld refinement of powder XRD pattern, and (d) the unit cell volume and lattice constants.
Figure 11. Refinement of La-2, Yb-2, Sm-2, Pr-2, Gd-2, Ho-2, Er-2, and Eu-2 FAps: (a) lattice structure of REEs-doped Faps (b) the Rietveld refinement of powder XRD pattern, (c) the Rietveld refinement of powder XRD pattern, and (d) the unit cell volume and lattice constants.
Crystals 14 00185 g011
Figure 12. Fluorescence properties of Er-2/Pr-2/Yb-2/Ho-2/Eu-2 FAps: (ae) the emission spectrum of REEs-doped FAps and FAps at the wavelength of 250 nm and its corresponding CIE color co-ordinates.
Figure 12. Fluorescence properties of Er-2/Pr-2/Yb-2/Ho-2/Eu-2 FAps: (ae) the emission spectrum of REEs-doped FAps and FAps at the wavelength of 250 nm and its corresponding CIE color co-ordinates.
Crystals 14 00185 g012

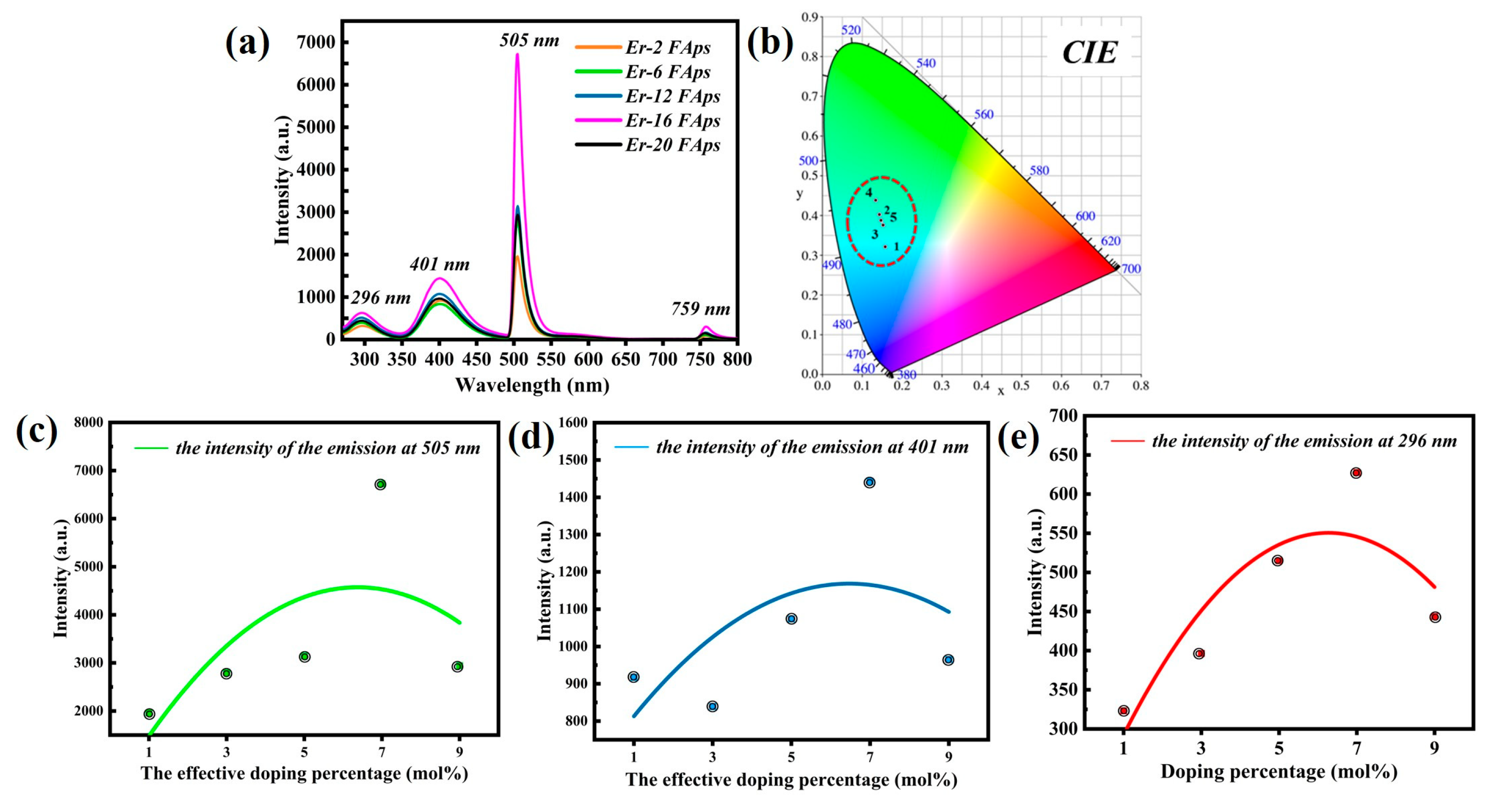

Figure 13. Fluorescence properties of Er-2, 6, 12, 16, and 20 FAps: (a) emission spectra under excitation at 250 nm; (b) the CIE color co-ordinates; (ce) fluorescence intensity of various emission bands (296 nm/401 nm/505 nm) changes with the effective doping concentration.
Figure 13. Fluorescence properties of Er-2, 6, 12, 16, and 20 FAps: (a) emission spectra under excitation at 250 nm; (b) the CIE color co-ordinates; (ce) fluorescence intensity of various emission bands (296 nm/401 nm/505 nm) changes with the effective doping concentration.
Crystals 14 00185 g013

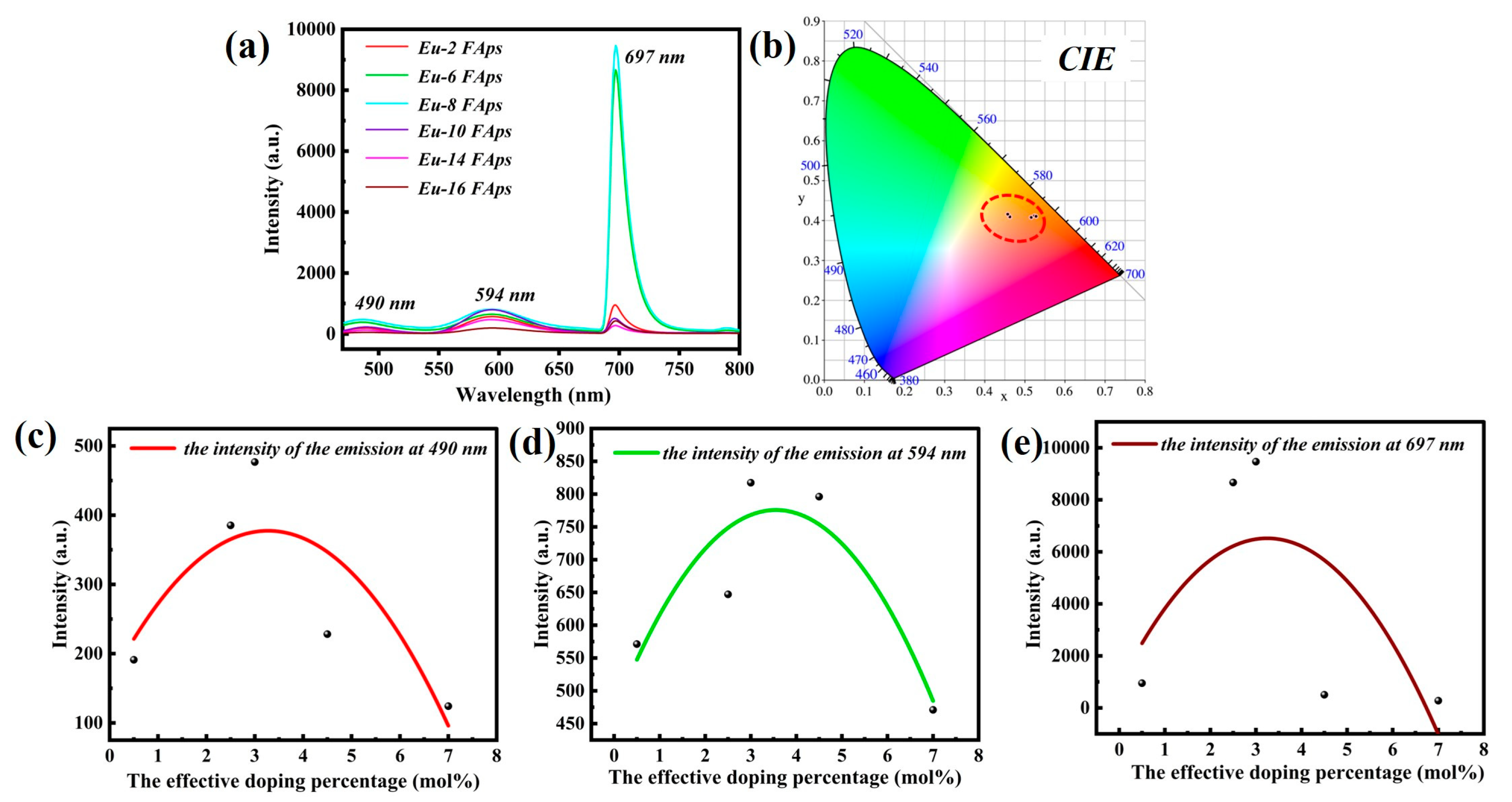

Figure 14. Fluorescence properties of Eu-2, 6, 8, 10, 14, and 16 FAps: (a) emission spectra under excitation at 250 nm; (b) the CIE color co-ordinates; (ce) fluorescence intensity of various emission bands (490 nm/594 nm/697 nm) changes with the effective doping concentration.
Figure 14. Fluorescence properties of Eu-2, 6, 8, 10, 14, and 16 FAps: (a) emission spectra under excitation at 250 nm; (b) the CIE color co-ordinates; (ce) fluorescence intensity of various emission bands (490 nm/594 nm/697 nm) changes with the effective doping concentration.
Crystals 14 00185 g014

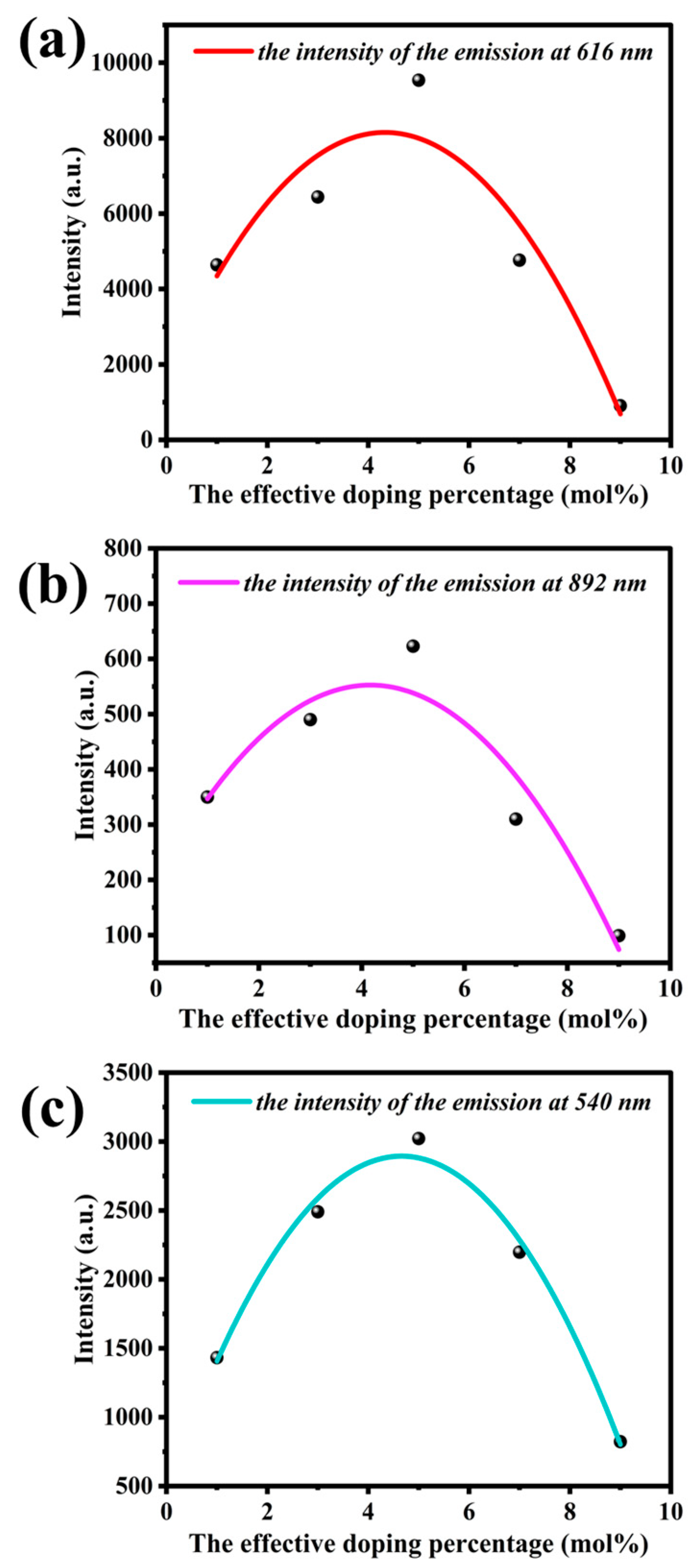

Figure 15. (ac) The fluorescence intensity of Pr-, Yb-, and Ho-doped FAps changes with the effective doping concentration.
Figure 15. (ac) The fluorescence intensity of Pr-, Yb-, and Ho-doped FAps changes with the effective doping concentration.
Crystals 14 00185 g015
Table 1. The molar quantities of the anionic ligand and precursor solutions for synthesizing the REEs-doped FAps.
Table 1. The molar quantities of the anionic ligand and precursor solutions for synthesizing the REEs-doped FAps.
Sample NumberPrecursor Solution (A)Anionic Ligand Solution (B)
Ca(NO3)2·4H2O
(mol/L)
REEs-Nitrate
(mol/L)
CTAB
(mol/L)
Na3Cit·2H2O
(mol/L)
NaF
(mol/L)
(NH4)2HPO4
(mol/L)
La/Pr/Sm/Eu/Gd/Ho/Er/Yb-20.0980.0020.030.2670.2670.111
La/Pr/Sm/Eu/Gd/Ho/Er/Yb-40.0960.0040.030.2670.2670.111
La/Pr/Sm/Eu/Gd/Ho/Er/Yb-60.0940.0060.030.2670.2670.111
La/Pr/Sm/Eu/Gd/Ho/Er/Yb-80.0920.0080.030.2670.2670.111
La/Pr/Sm/Eu/Gd/Ho/Er/Yb-100.090.010.030.2670.2670.111
La/Pr/Sm/Eu/Gd/Ho/Er/Yb-120.0880.0120.030.2670.2670.111
La/Pr/Sm/Eu/Gd/Ho/Er/Yb-140.0860.0140.030.2670.2670.111
La/Pr/Sm/Eu/Gd/Ho/Er/Yb-160.0840.0160.030.2670.2670.111
La/Pr/Sm/Eu/Gd/Ho/Er/Yb-180.0820.0180.030.2670.2670.111
La/Pr/Sm/Eu/Gd/Ho/Er/Yb-200080.020.030.2670.2670.111
Table 2. The crystal structure parameter of La-2, Yb-2, Sm-2, Pr-2, Gd-2, Ho-2, Er-2, and Eu-2 FAps.
Table 2. The crystal structure parameter of La-2, Yb-2, Sm-2, Pr-2, Gd-2, Ho-2, Er-2, and Eu-2 FAps.
Doping ElementLaPrSmHoGdErEuYb
Space groupP63/mP63/mP63/mP63/mP63/mP63/mP63/mP63/m
Crystal systemHex.Hex.Hex.Hex.Hex.Hex.Hex.Hex.
a/b (Å)9.386829.381719.378839.375889.378289.377579.372569.36976
c (Å)6.897146.892856.888826.888536.888016.887496.883986.88163
α/β90°90°90°90°90°90°90°90°
γ120°120°120°120°120°120°120°120°
V (Å3)526.304525.404524.776524.422524.652524.532523.705523.213
Rw (%)14.20713.85910.21510.4518.2957.3228.9367.742
χ25.973.782.814.492.432.182.732.26
