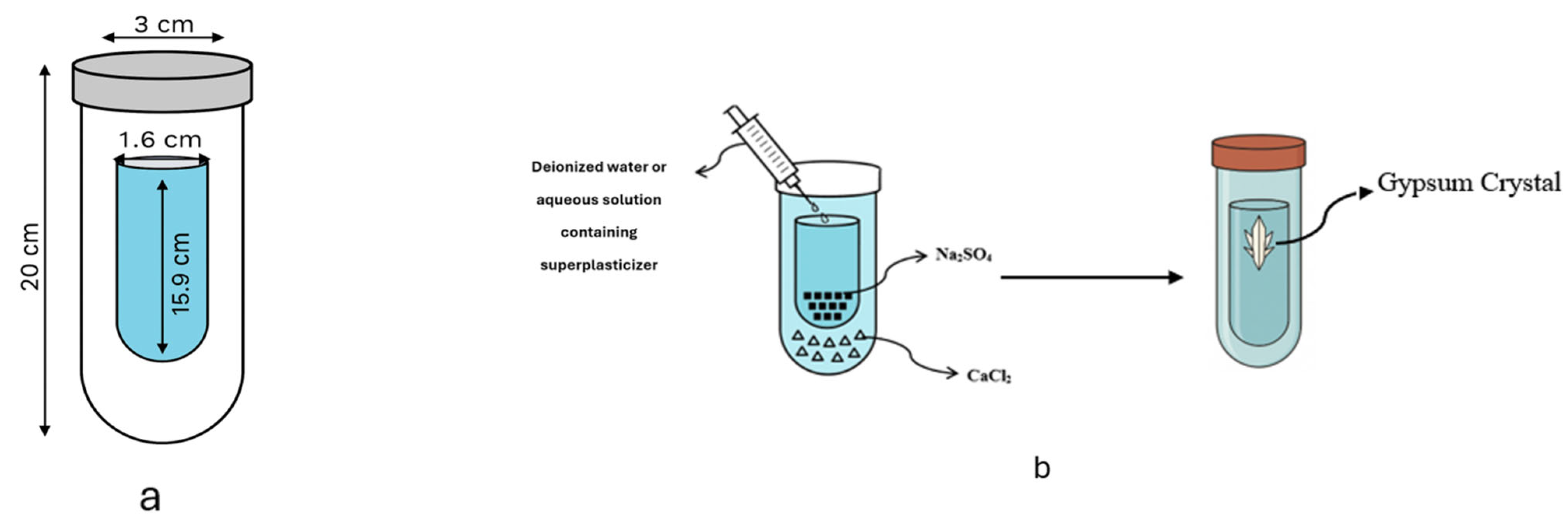

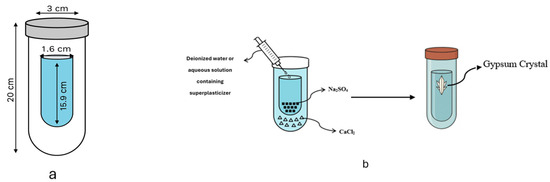

Figure 1.
(a) Schematic representation of the coaxial test tube setup used for gypsum crystallization, showing the inner and outer tubes with respective dimensions. (b) Illustration of the initial steps of gypsum crystal formation through the reaction of Na2SO4 and CaCl2 in either deionized water or a superplasticizer-containing solution.
Figure 1.
(a) Schematic representation of the coaxial test tube setup used for gypsum crystallization, showing the inner and outer tubes with respective dimensions. (b) Illustration of the initial steps of gypsum crystal formation through the reaction of Na2SO4 and CaCl2 in either deionized water or a superplasticizer-containing solution.
Figure 2.

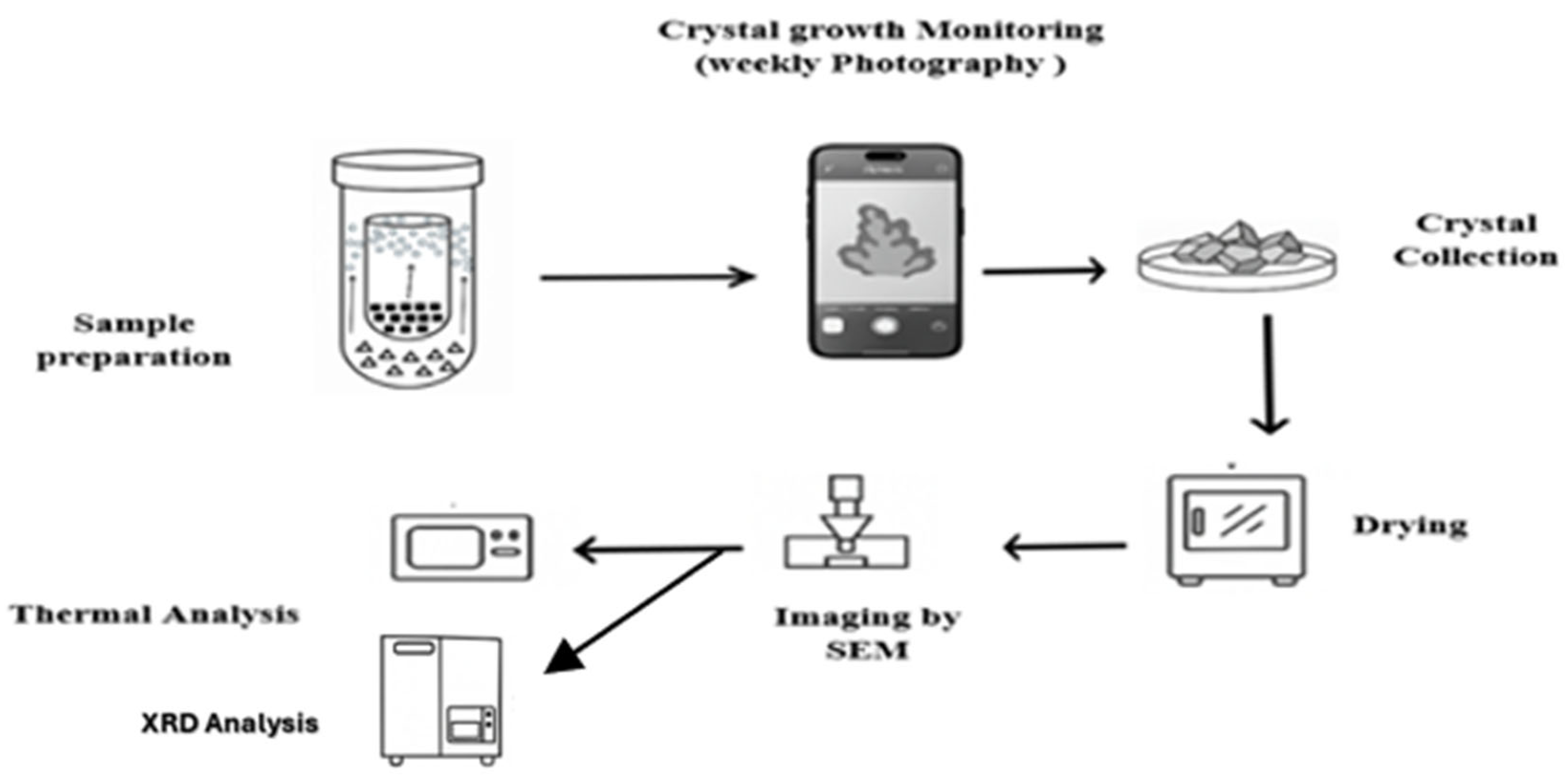

General schematic representation of the experimental workflow, including sample preparation, photographic monitoring of crystal growth, crystal collection and drying, SEM imaging, XRD analysis and thermal analysis.
Figure 2.
General schematic representation of the experimental workflow, including sample preparation, photographic monitoring of crystal growth, crystal collection and drying, SEM imaging, XRD analysis and thermal analysis.
Figure 3.

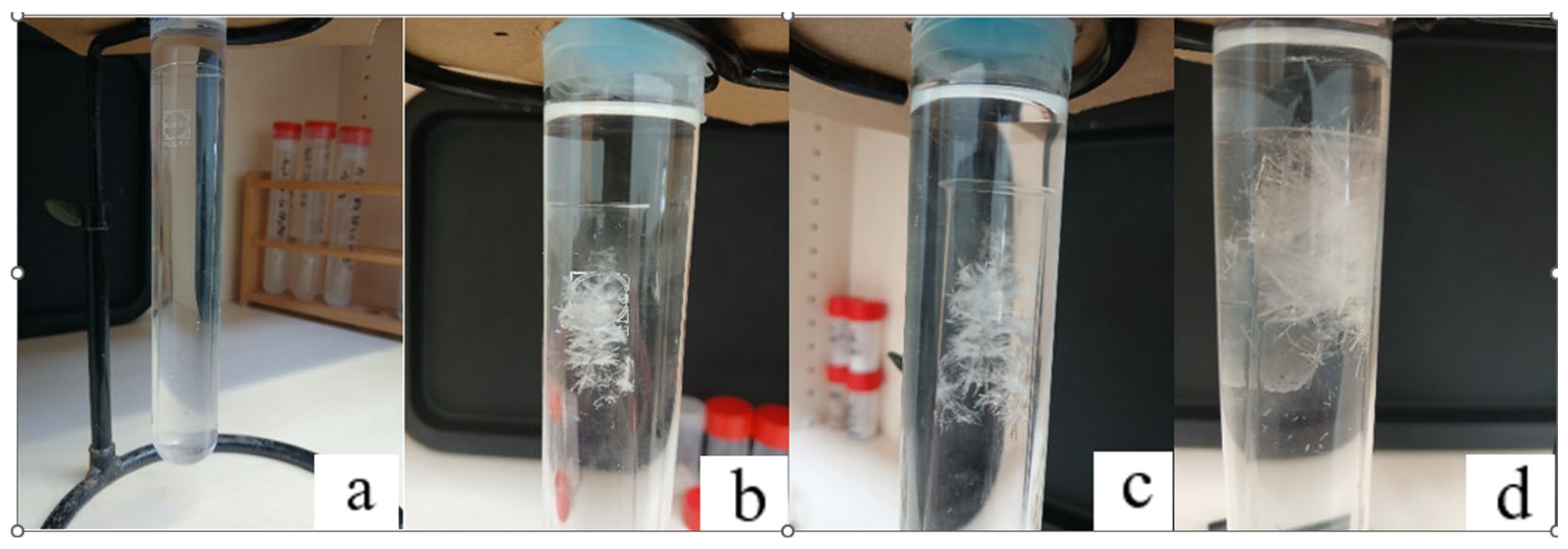

Visual progression of gypsum crystal growth over 12 weeks: (a) Week 1—clear, no crystallization; (b) Week 3—initial needle-like crystals; (c) Week 4—radial crystal growth; (d) Week 12—dense fibrous crystals.
Figure 3.
Visual progression of gypsum crystal growth over 12 weeks: (a) Week 1—clear, no crystallization; (b) Week 3—initial needle-like crystals; (c) Week 4—radial crystal growth; (d) Week 12—dense fibrous crystals.

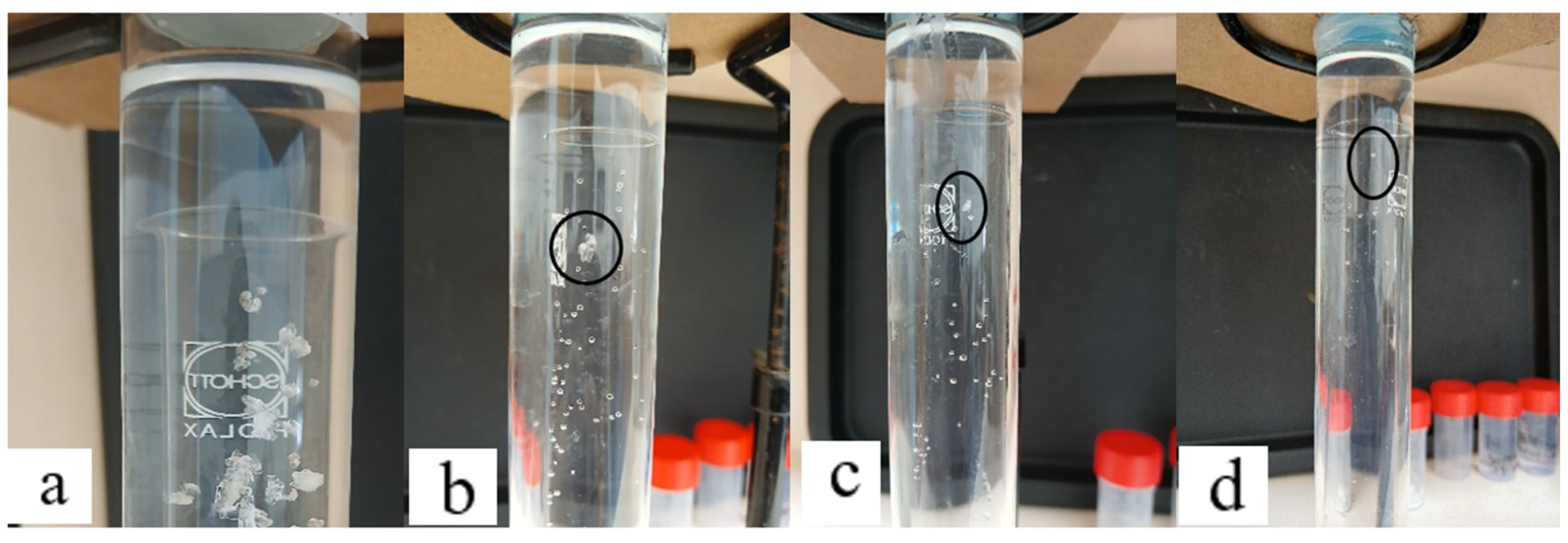

Figure 4.
Effect of varying concentrations of Sika® ViscoCrete® 430P on early-stage gypsum (CaSO4·2H2O) crystallization after four weeks: (a) 0.5%—distinct and well-developed crystals; (b) 1%—clustered and moderately controlled crystallization; (c) 1.5%—elongated, filamentous growth; (d) 2%—a single small isolated crystal. Increasing concentrations progressively suppress nucleation and crystal growth.
Figure 4.
Effect of varying concentrations of Sika® ViscoCrete® 430P on early-stage gypsum (CaSO4·2H2O) crystallization after four weeks: (a) 0.5%—distinct and well-developed crystals; (b) 1%—clustered and moderately controlled crystallization; (c) 1.5%—elongated, filamentous growth; (d) 2%—a single small isolated crystal. Increasing concentrations progressively suppress nucleation and crystal growth.

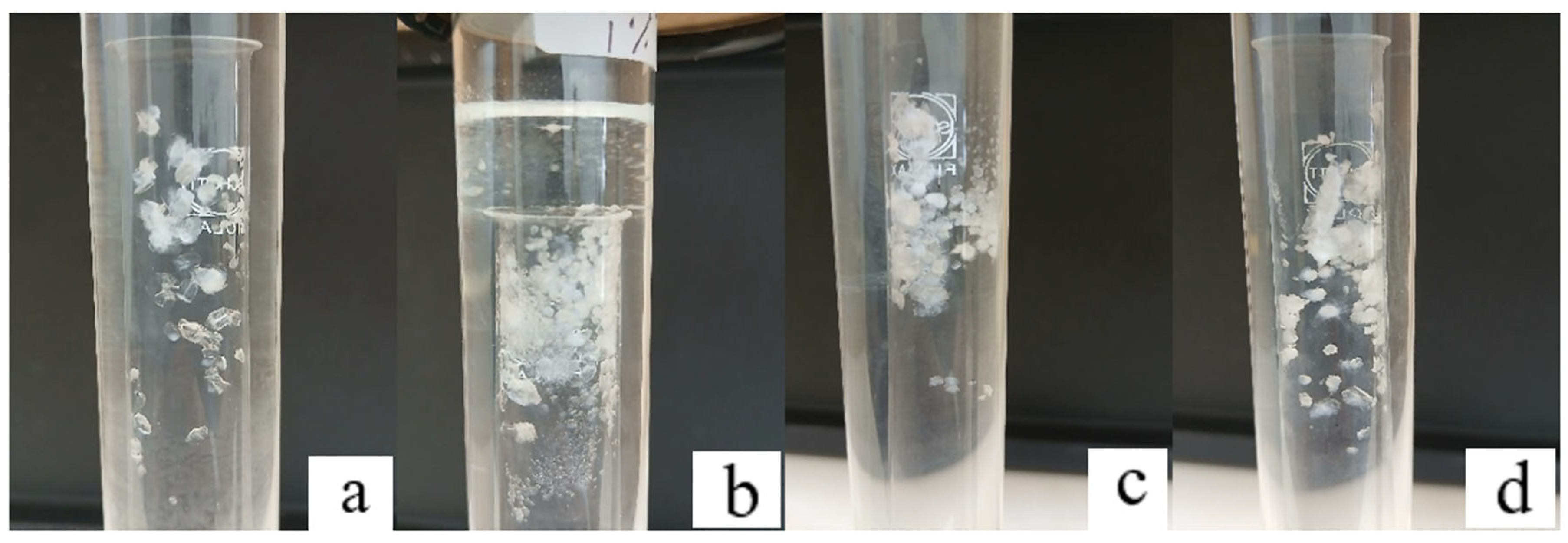

Figure 5.
Effect of Sika® ViscoCrete® 430P concentration on gypsum (CaSO4·2H2O) crystal growth and morphology after 12 weeks: (a) 0.5%—large, transparent, well-formed crystals; (b) 1%—dense aggregates adhering to the tube wall; (c) 1.5%—smaller, rounded, sparsely distributed crystals; (d) 2%—fine, irregular, and highly clustered crystals. Higher concentrations increasingly inhibit both nucleation and growth through diffusion and surface interaction mechanisms.
Figure 5.
Effect of Sika® ViscoCrete® 430P concentration on gypsum (CaSO4·2H2O) crystal growth and morphology after 12 weeks: (a) 0.5%—large, transparent, well-formed crystals; (b) 1%—dense aggregates adhering to the tube wall; (c) 1.5%—smaller, rounded, sparsely distributed crystals; (d) 2%—fine, irregular, and highly clustered crystals. Higher concentrations increasingly inhibit both nucleation and growth through diffusion and surface interaction mechanisms.

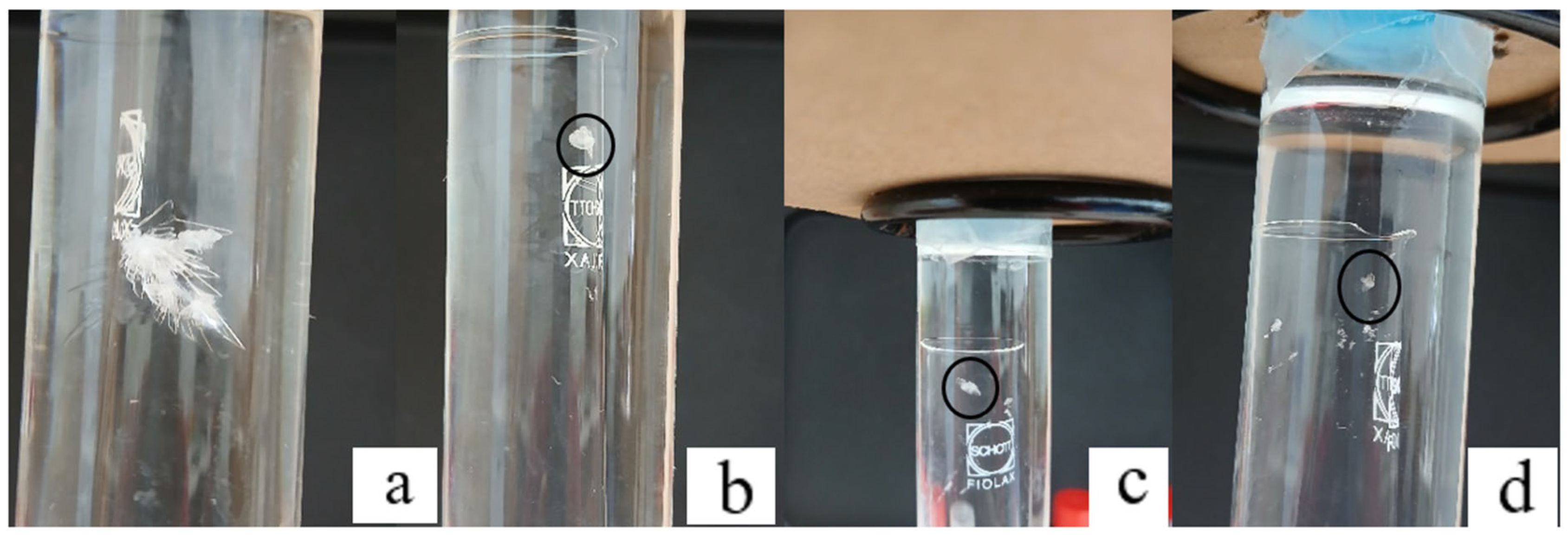

Figure 6.
Effect of Sika® ViscoCrete® 111P concentration on gypsum (CaSO4·2H2O) crystal growth and morphology after 4 weeks. (a) 0.5%—elongated, well-formed, and directionally oriented crystals, indicating minimal restriction to growth; (b) 1%—smaller, compact crystals with poorly defined edges, suggesting moderate inhibition of growth; (c) 1.5%—few small and scattered crystals, reflecting stronger suppression of crystal development; (d) 2%—extremely small, sparse, and incompletely formed crystals, indicating significant inhibition of both nucleation and growth. Increasing superplasticizer concentration progressively limits crystallization through diffusion restriction and surface interactions.
Figure 6.
Effect of Sika® ViscoCrete® 111P concentration on gypsum (CaSO4·2H2O) crystal growth and morphology after 4 weeks. (a) 0.5%—elongated, well-formed, and directionally oriented crystals, indicating minimal restriction to growth; (b) 1%—smaller, compact crystals with poorly defined edges, suggesting moderate inhibition of growth; (c) 1.5%—few small and scattered crystals, reflecting stronger suppression of crystal development; (d) 2%—extremely small, sparse, and incompletely formed crystals, indicating significant inhibition of both nucleation and growth. Increasing superplasticizer concentration progressively limits crystallization through diffusion restriction and surface interactions.

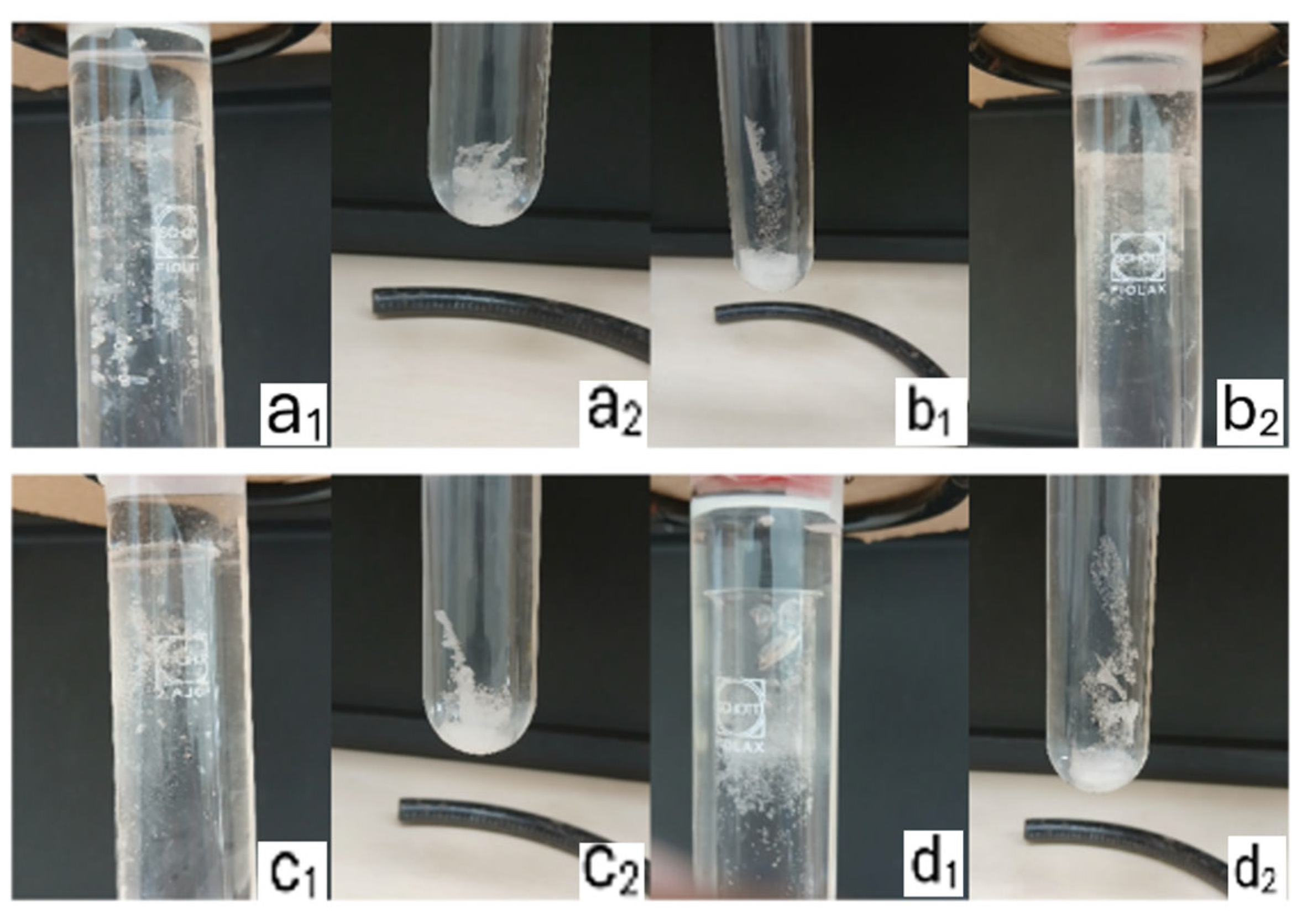

Figure 7.
Effect of Sika® ViscoCrete® 111P concentration on gypsum crystallization after 12 weeks: (a1,a2) 0.5%; (b1,b2) 1%; (c1,c2) 1.5%; (d1,d2) 2%.
Figure 7.
Effect of Sika® ViscoCrete® 111P concentration on gypsum crystallization after 12 weeks: (a1,a2) 0.5%; (b1,b2) 1%; (c1,c2) 1.5%; (d1,d2) 2%.

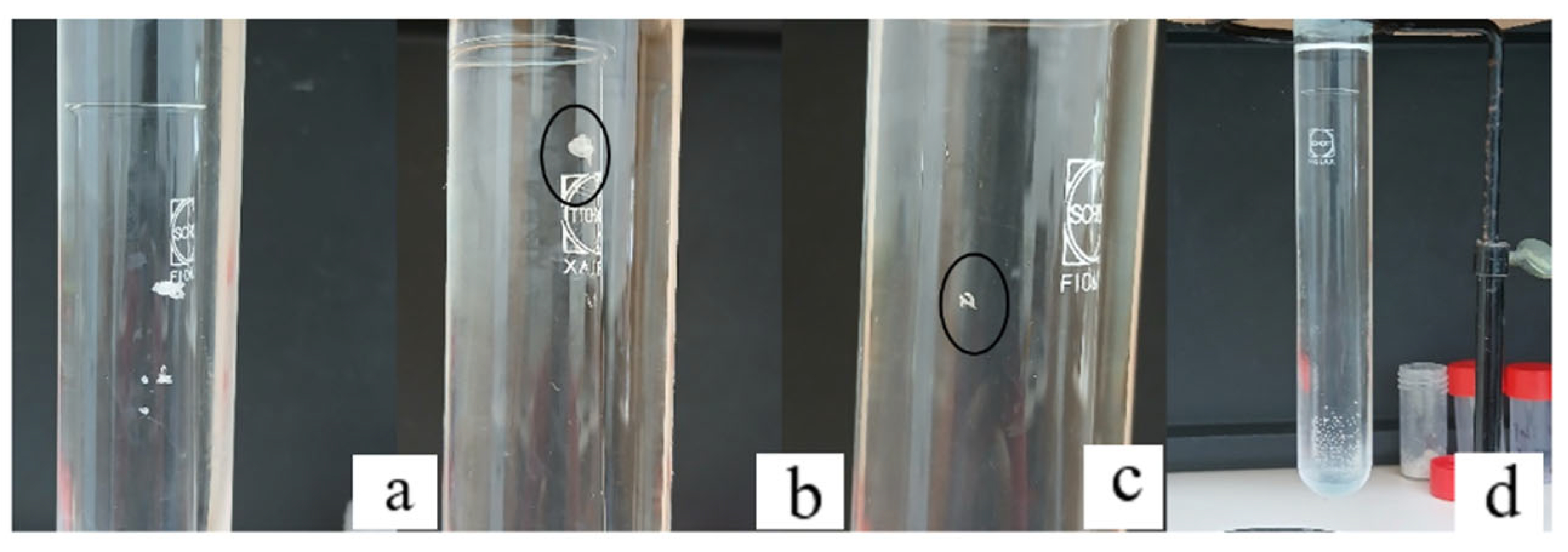

Figure 8.
Effect of varying concentrations of Sika® ViscoCrete® 120P on early-stage gypsum (CaSO4·2H2O) crystallization after 4 weeks: (a) 0.5%—small, well-defined crystal clusters indicating low inhibition of nucleation; (b) 1%—fewer and more dispersed crystals suggesting the onset of diffusion restriction; (c) 1.5%—one or two isolated microcrystals reflecting significant nucleation suppression; (d) 2%—no visible crystals, indicating complete inhibition of nucleation due to high superplasticizer concentration. The figure illustrates a clear concentration-dependent regulation of gypsum nucleation and initial crystal growth.
Figure 8.
Effect of varying concentrations of Sika® ViscoCrete® 120P on early-stage gypsum (CaSO4·2H2O) crystallization after 4 weeks: (a) 0.5%—small, well-defined crystal clusters indicating low inhibition of nucleation; (b) 1%—fewer and more dispersed crystals suggesting the onset of diffusion restriction; (c) 1.5%—one or two isolated microcrystals reflecting significant nucleation suppression; (d) 2%—no visible crystals, indicating complete inhibition of nucleation due to high superplasticizer concentration. The figure illustrates a clear concentration-dependent regulation of gypsum nucleation and initial crystal growth.

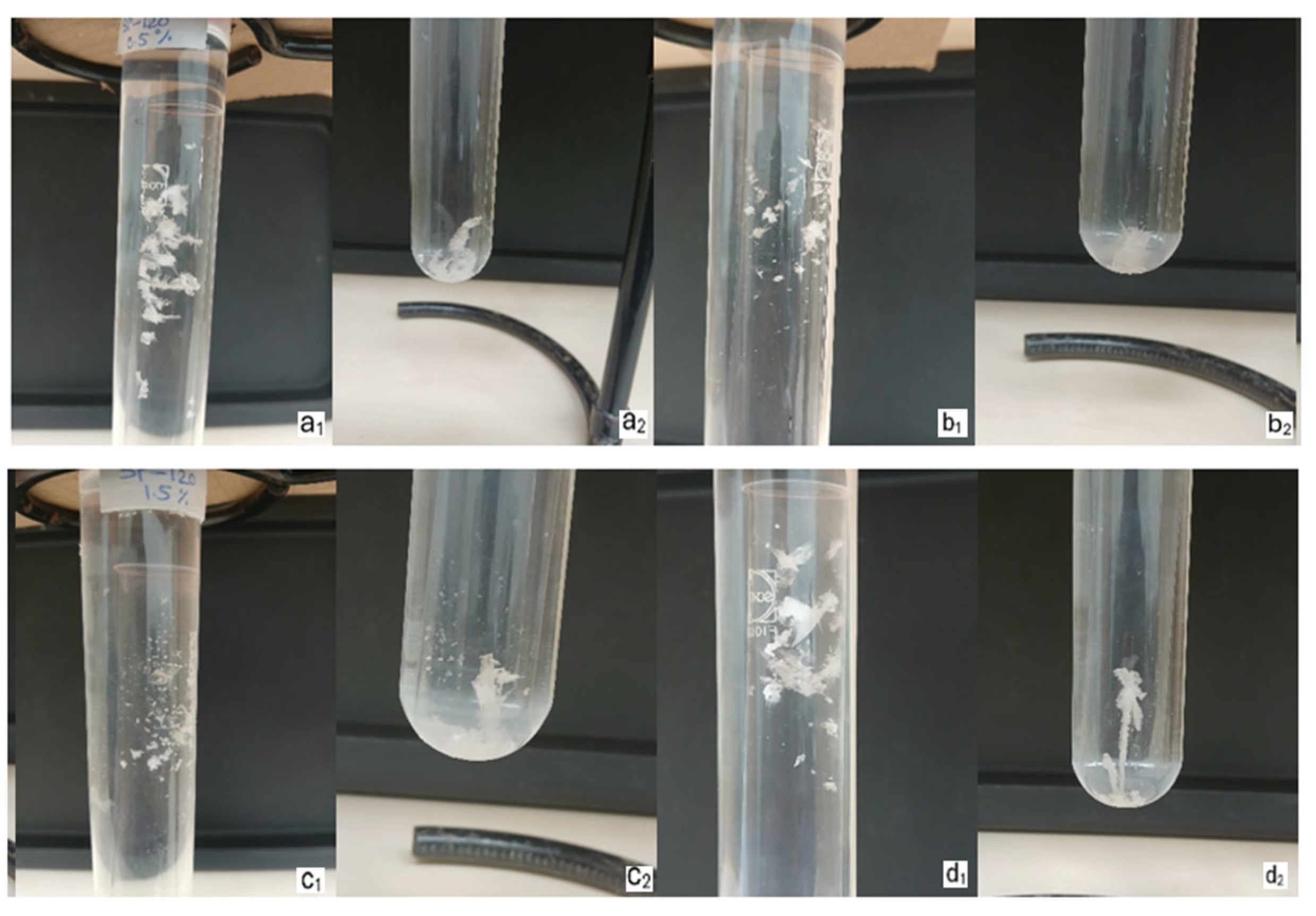

Figure 9.
Effect of Sika® ViscoCrete® 120P concentration on gypsum (CaSO4·2H2O) crystallization after 12 weeks: (a1,a2) 0.5%—large, branched crystals with partial settling; (b1,b2) 1%—fewer, dispersed crystals showing moderate inhibition; (c1,c2) 1.5%—fine, irregular particles indicating strong suppression; (d1,d2) 2%—localized growth with wall-adhered and upward-growing crystals. Crystal size and order decrease with increasing SP-120 concentration.
Figure 9.
Effect of Sika® ViscoCrete® 120P concentration on gypsum (CaSO4·2H2O) crystallization after 12 weeks: (a1,a2) 0.5%—large, branched crystals with partial settling; (b1,b2) 1%—fewer, dispersed crystals showing moderate inhibition; (c1,c2) 1.5%—fine, irregular particles indicating strong suppression; (d1,d2) 2%—localized growth with wall-adhered and upward-growing crystals. Crystal size and order decrease with increasing SP-120 concentration.
Figure 10.

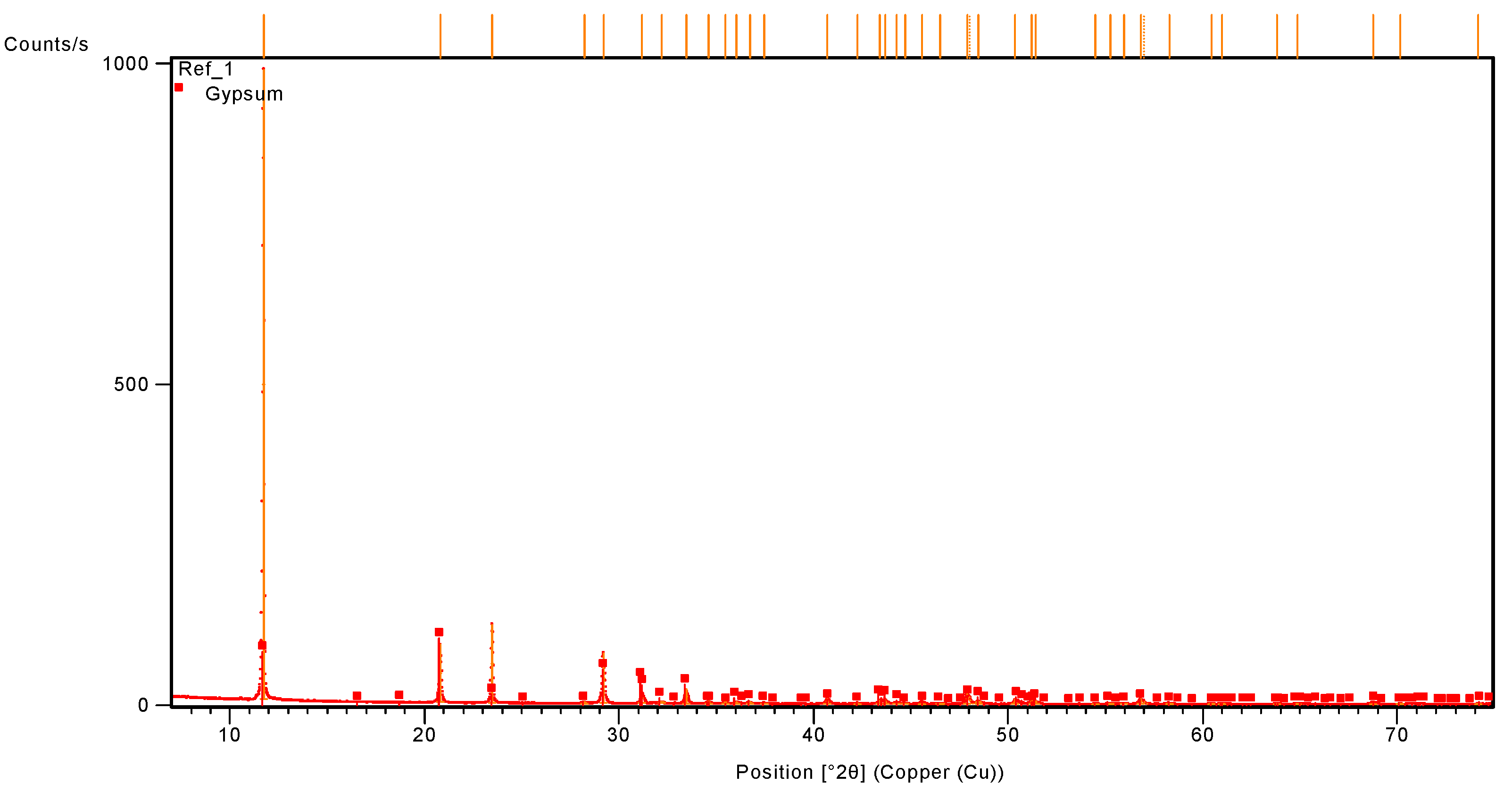

X-ray diffraction (XRD) pattern of the reference gypsum crystals. The diffraction peaks correspond to the standard pattern of gypsum (CaSO4·2H2O), confirming phase purity and high crystallinity. No secondary phases were detected.
Figure 10.
X-ray diffraction (XRD) pattern of the reference gypsum crystals. The diffraction peaks correspond to the standard pattern of gypsum (CaSO4·2H2O), confirming phase purity and high crystallinity. No secondary phases were detected.

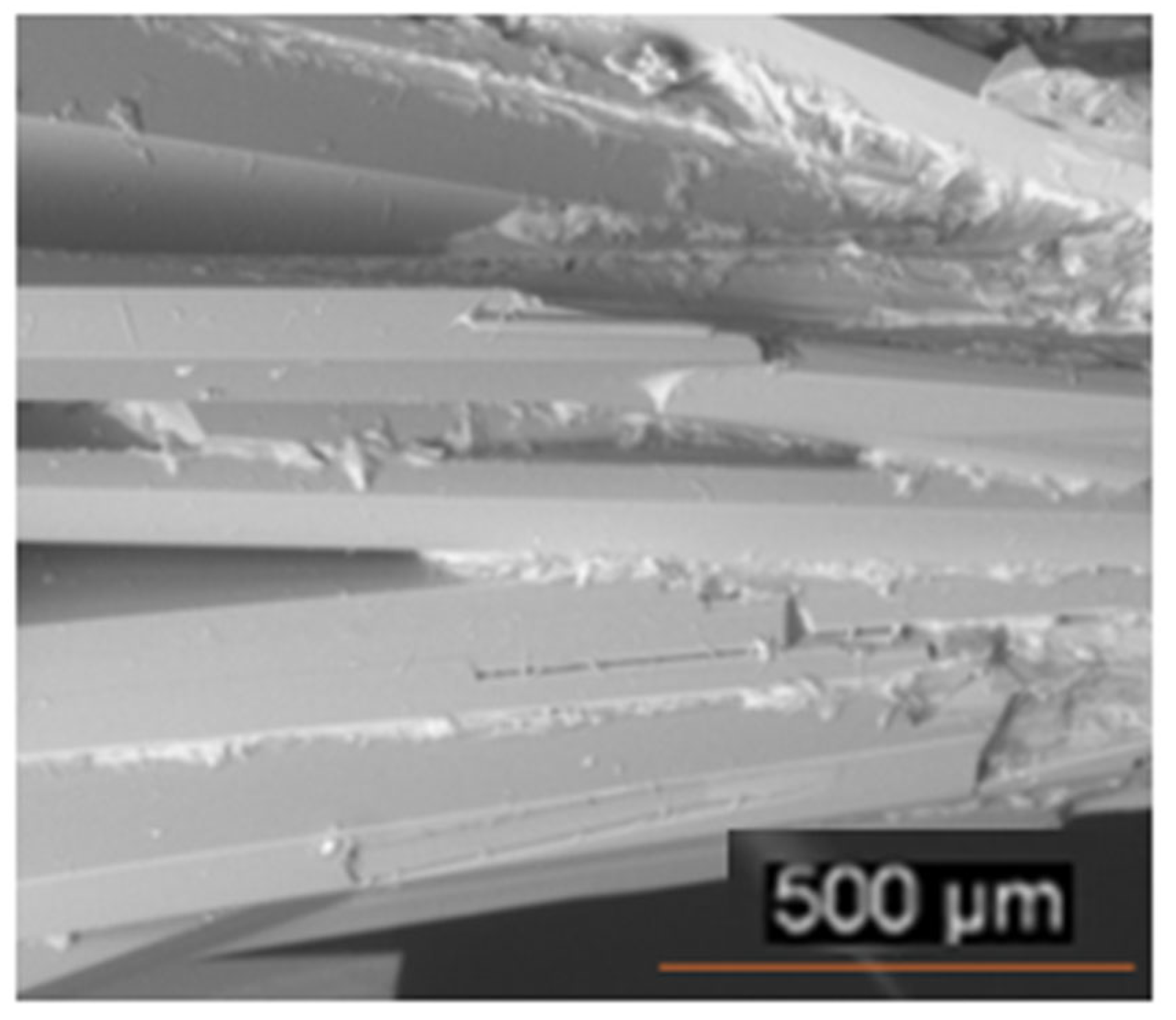

Figure 11.
SEM image of gypsum (CaSO4·2H2O) crystals formed by diffusion after 12 weeks in the absence of superplasticizers. The crystals exhibit a dense, acicular (needle-like) morphology with random orientation, interlocking growth, and minimal spacing—indicative of rapid nucleation and unconstrained crystal development.
Figure 11.
SEM image of gypsum (CaSO4·2H2O) crystals formed by diffusion after 12 weeks in the absence of superplasticizers. The crystals exhibit a dense, acicular (needle-like) morphology with random orientation, interlocking growth, and minimal spacing—indicative of rapid nucleation and unconstrained crystal development.

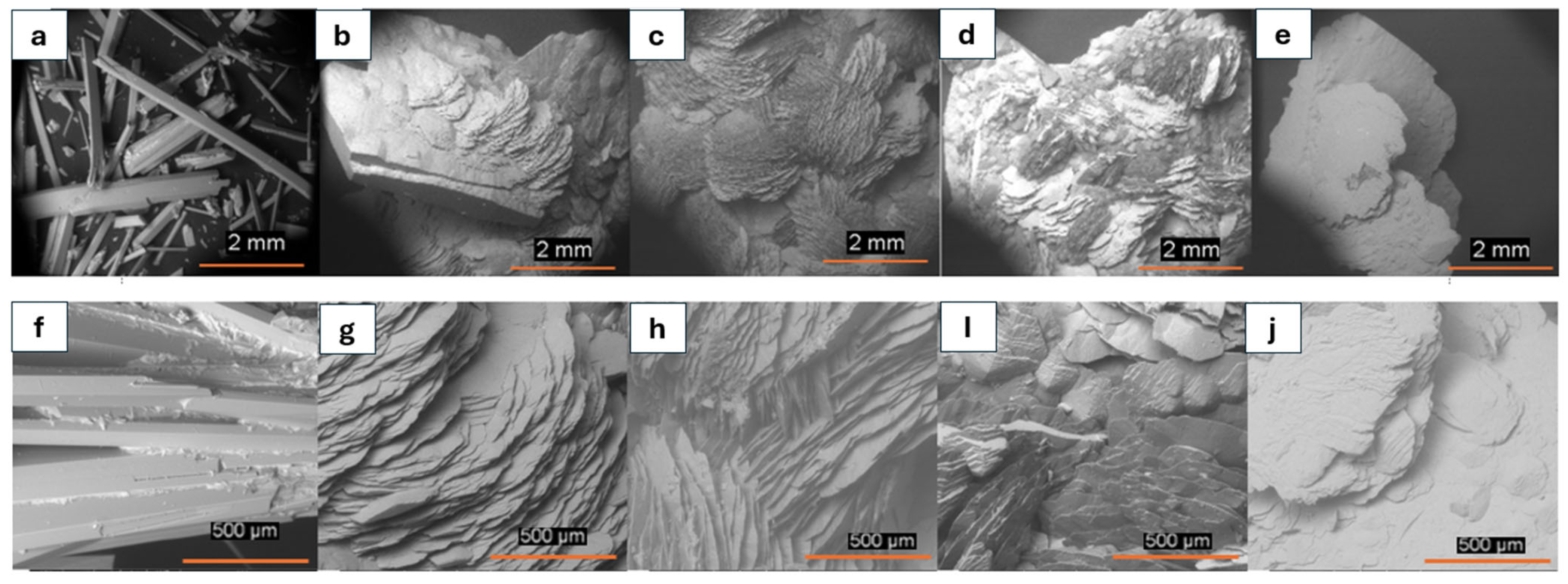

Figure 12.

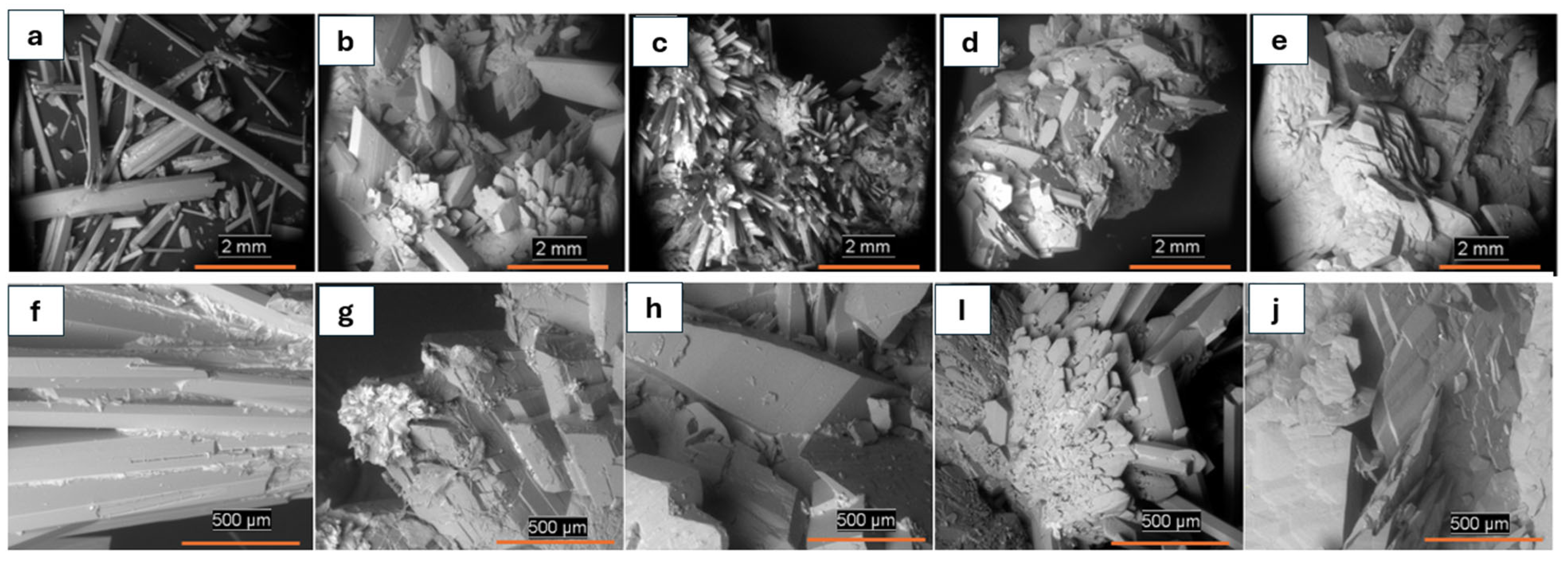

Combined SEM images of gypsum crystals formed in the presence of Sika® ViscoCrete® 430P at different dosages: (a–e) low-magnification views showing morphological evolution from dense, randomly oriented needle-like crystals (reference) to thin, layered plates (0.5%), thicker prismatic forms (1.0%), well-separated prisms (1.5%), and finally compact, lobular aggregates (2.0%); (f–j) corresponding high-magnification views revealing microstructural details and progressive densification with increasing dosage. Scale bars: 2 mm for (a–e), 500 µm for (f–j).
Figure 12.
Combined SEM images of gypsum crystals formed in the presence of Sika® ViscoCrete® 430P at different dosages: (a–e) low-magnification views showing morphological evolution from dense, randomly oriented needle-like crystals (reference) to thin, layered plates (0.5%), thicker prismatic forms (1.0%), well-separated prisms (1.5%), and finally compact, lobular aggregates (2.0%); (f–j) corresponding high-magnification views revealing microstructural details and progressive densification with increasing dosage. Scale bars: 2 mm for (a–e), 500 µm for (f–j).

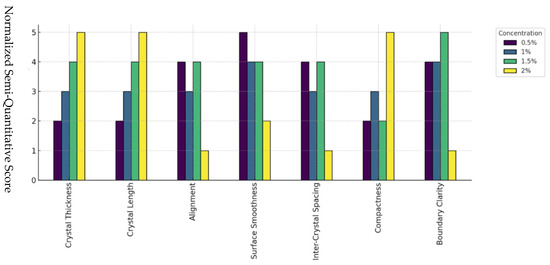

Figure 13.

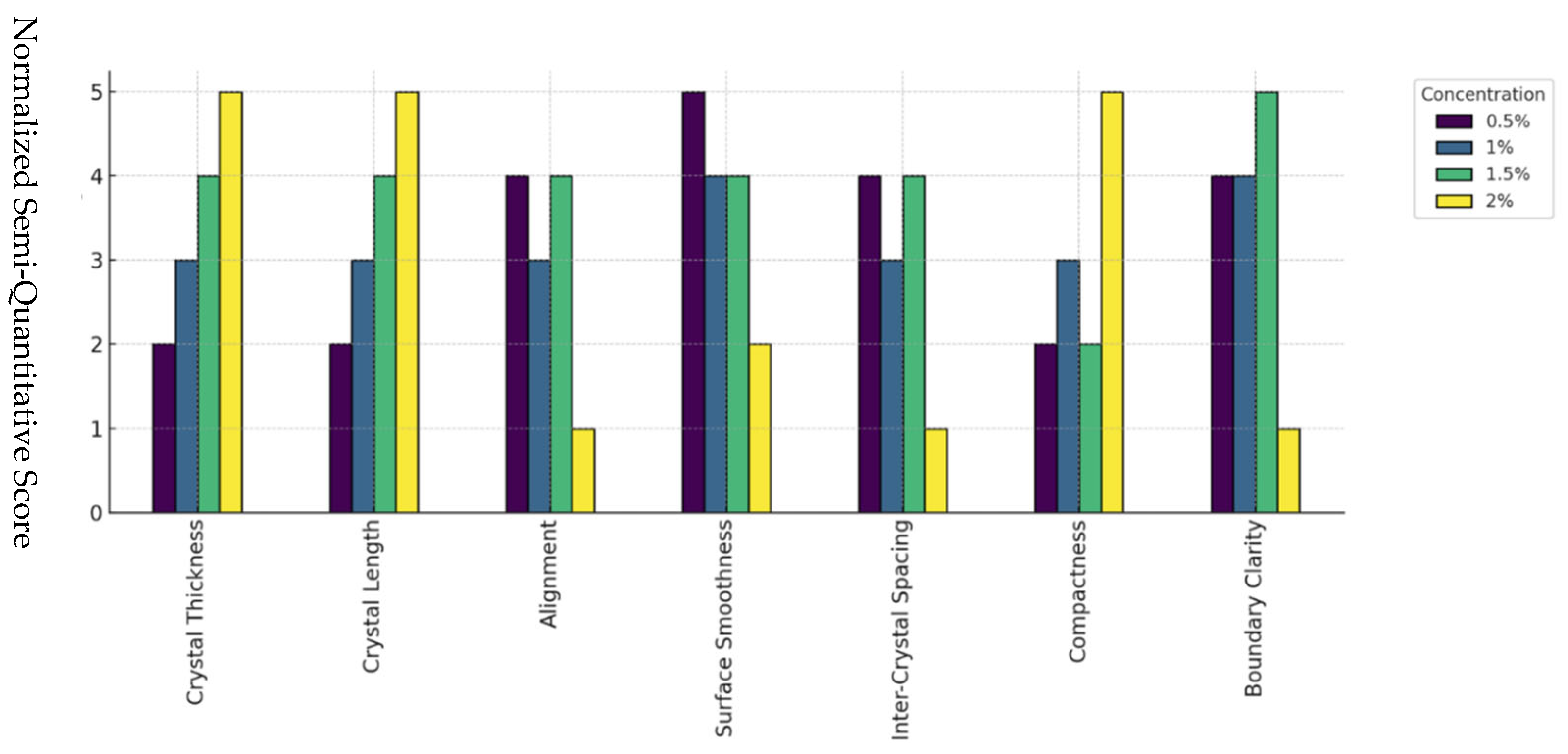

Quantitative comparison of gypsum crystal properties at different concentrations of Sika® ViscoCrete® 430P. The vertical axis (1–5) represents a normalized scale based on semi-quantitative scoring from image analysis. With increasing concentration from 0.5% to 2%, crystal thickness and length increase, while alignment, surface smoothness, inter-crystal spacing, and boundary clarity progressively decrease. The 2% sample shows the highest compactness and lowest structural order, indicating dense but disordered crystal growth. These trends confirm the morphological transition observed in SEM images, highlighting the concentration-dependent impact of the superplasticizer on crystal formation.
Figure 13.
Quantitative comparison of gypsum crystal properties at different concentrations of Sika® ViscoCrete® 430P. The vertical axis (1–5) represents a normalized scale based on semi-quantitative scoring from image analysis. With increasing concentration from 0.5% to 2%, crystal thickness and length increase, while alignment, surface smoothness, inter-crystal spacing, and boundary clarity progressively decrease. The 2% sample shows the highest compactness and lowest structural order, indicating dense but disordered crystal growth. These trends confirm the morphological transition observed in SEM images, highlighting the concentration-dependent impact of the superplasticizer on crystal formation.
Figure 14.
Combined SEM images of gypsum crystals formed in the presence of Sika® ViscoCrete® 111P at different dosages: (a–e) low-magnification views showing the evolution from prismatic crystals with rosette-like formations (reference) to smoother, elongated and aligned prismatic crystals (0.5–1.0%), partially aggregated crystals with reduced boundary clarity (1.5%), and compact, indistinct aggregates (2.0%); (f–j) corresponding high-magnification views highlighting microstructural changes, including surface roughness, aggregation, and morphological irregularities with increasing dosage. Scale bars: 2 mm for (a–e), 500 µm for (f–j).
Figure 14.
Combined SEM images of gypsum crystals formed in the presence of Sika® ViscoCrete® 111P at different dosages: (a–e) low-magnification views showing the evolution from prismatic crystals with rosette-like formations (reference) to smoother, elongated and aligned prismatic crystals (0.5–1.0%), partially aggregated crystals with reduced boundary clarity (1.5%), and compact, indistinct aggregates (2.0%); (f–j) corresponding high-magnification views highlighting microstructural changes, including surface roughness, aggregation, and morphological irregularities with increasing dosage. Scale bars: 2 mm for (a–e), 500 µm for (f–j).
Figure 15.
Quantitative comparison of gypsum crystal properties under different concentrations of Sika® ViscoCrete® 111P, The vertical axis (1–5) represents a normalized scale based on semi-quantitative scoring from image analysis. crystal thickness and length rise steadily, while alignment, surface smoothness, inter-crystal spacing, and boundary clarity decline. Compactness peaks at 2%, indicating denser but less organized structures at higher superplasticizer dosages.
Figure 15.
Quantitative comparison of gypsum crystal properties under different concentrations of Sika® ViscoCrete® 111P, The vertical axis (1–5) represents a normalized scale based on semi-quantitative scoring from image analysis. crystal thickness and length rise steadily, while alignment, surface smoothness, inter-crystal spacing, and boundary clarity decline. Compactness peaks at 2%, indicating denser but less organized structures at higher superplasticizer dosages.
Figure 16.

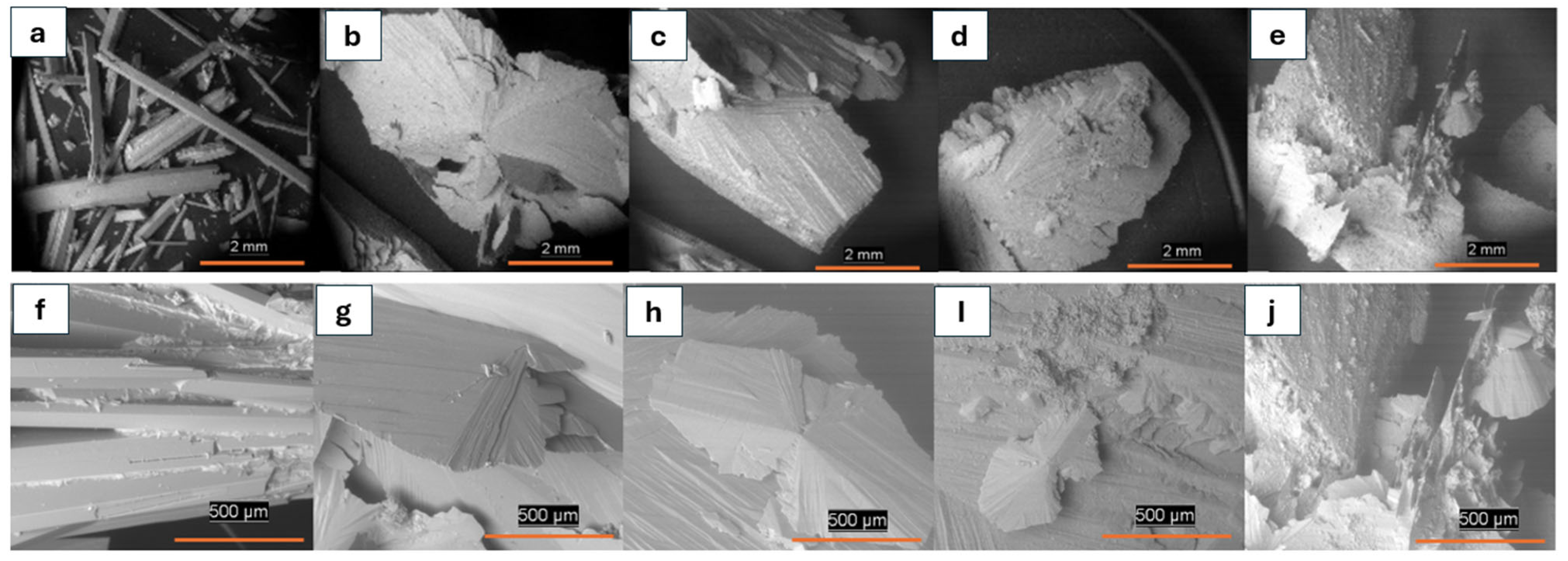

Combined SEM images of gypsum crystals formed in the presence of Sika® ViscoCrete® 120P at different dosages: (a–e) low-magnification views illustrating the morphological evolution from acicular crystals (reference) to smooth, aligned platy sheets (0.5%), thicker plates with slight misalignment (1.0%), fan-like irregular forms (1.5%), and bulky, merged aggregates (2.0%); (f–j) corresponding high-magnification views confirming microstructural details, progressive loss of alignment, increased disorder, and aggregation as the dosage increases. Scale bars: 2 mm for (a–e), 500 µm for (f–j).
Figure 16.
Combined SEM images of gypsum crystals formed in the presence of Sika® ViscoCrete® 120P at different dosages: (a–e) low-magnification views illustrating the morphological evolution from acicular crystals (reference) to smooth, aligned platy sheets (0.5%), thicker plates with slight misalignment (1.0%), fan-like irregular forms (1.5%), and bulky, merged aggregates (2.0%); (f–j) corresponding high-magnification views confirming microstructural details, progressive loss of alignment, increased disorder, and aggregation as the dosage increases. Scale bars: 2 mm for (a–e), 500 µm for (f–j).

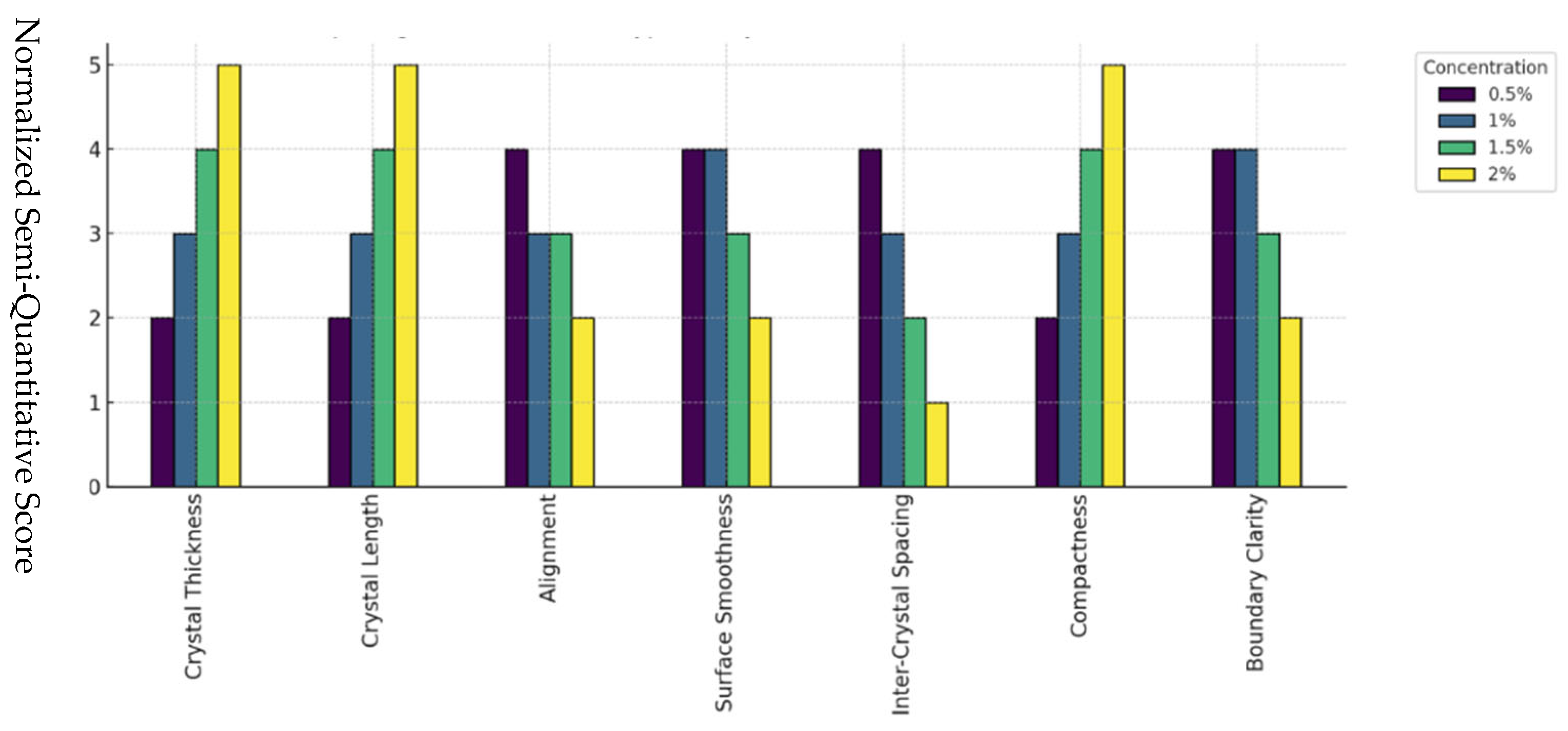

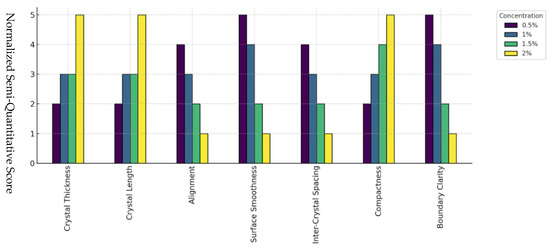

Figure 17.
Quantitative comparison of gypsum crystal properties under different concentrations of Sika® ViscoCrete® 120. The vertical axis (1–5) represents a normalized scale based on semi-quantitative scoring from image analysis. With increasing dosage, crystal thickness and compactness rise, while alignment, smoothness, spacing, and boundary clarity progressively decline, indicating a shift from ordered to disordered microstructure.
Figure 17.
Quantitative comparison of gypsum crystal properties under different concentrations of Sika® ViscoCrete® 120. The vertical axis (1–5) represents a normalized scale based on semi-quantitative scoring from image analysis. With increasing dosage, crystal thickness and compactness rise, while alignment, smoothness, spacing, and boundary clarity progressively decline, indicating a shift from ordered to disordered microstructure.
Figure 18.

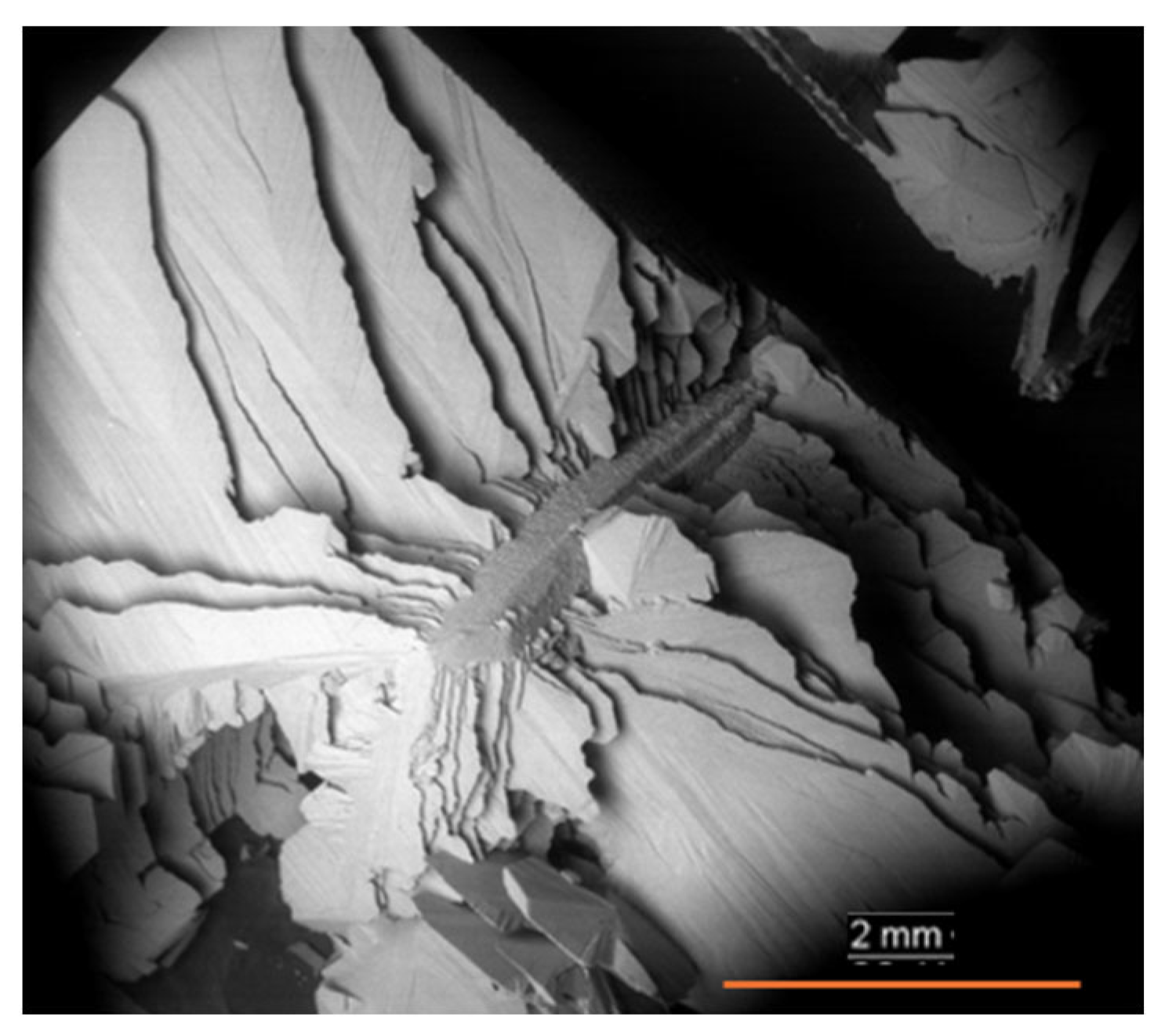

SEM image showing a central non-crystalline band in gypsum, likely caused by local superplasticizer accumulation disrupting crystal growth and alignment.
Figure 18.
SEM image showing a central non-crystalline band in gypsum, likely caused by local superplasticizer accumulation disrupting crystal growth and alignment.

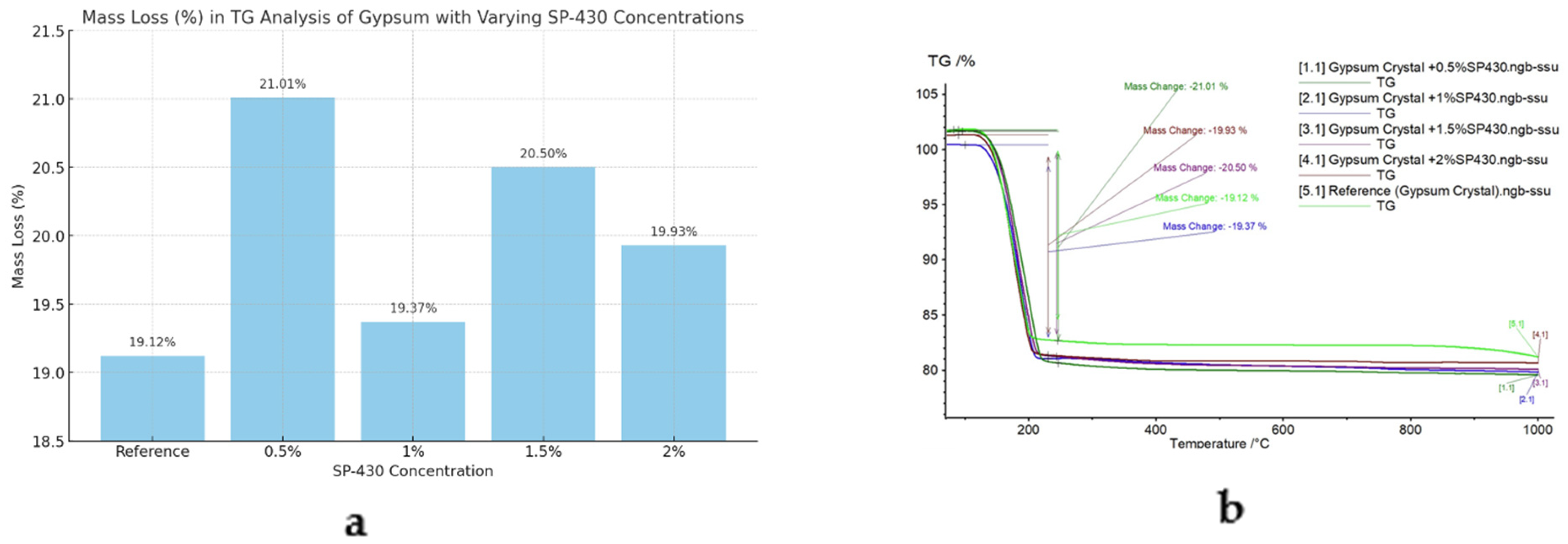

Figure 19.
(a) TG analysis of mass loss in gypsum crystals with varying concentrations of Sika® ViscoCrete® 430P. (b) Thermogravimetric (TG) curves of gypsum crystals synthesized with various concentrations of Sika® ViscoCrete® 430P (0.5%, 1%, 1.5%, and 2%) compared to the reference sample without superplasticizer. The curves correspond to reference (light green), 0.5% (black), 1% (blue), 1.5% (purple), and 2% (red).
Figure 19.
(a) TG analysis of mass loss in gypsum crystals with varying concentrations of Sika® ViscoCrete® 430P. (b) Thermogravimetric (TG) curves of gypsum crystals synthesized with various concentrations of Sika® ViscoCrete® 430P (0.5%, 1%, 1.5%, and 2%) compared to the reference sample without superplasticizer. The curves correspond to reference (light green), 0.5% (black), 1% (blue), 1.5% (purple), and 2% (red).

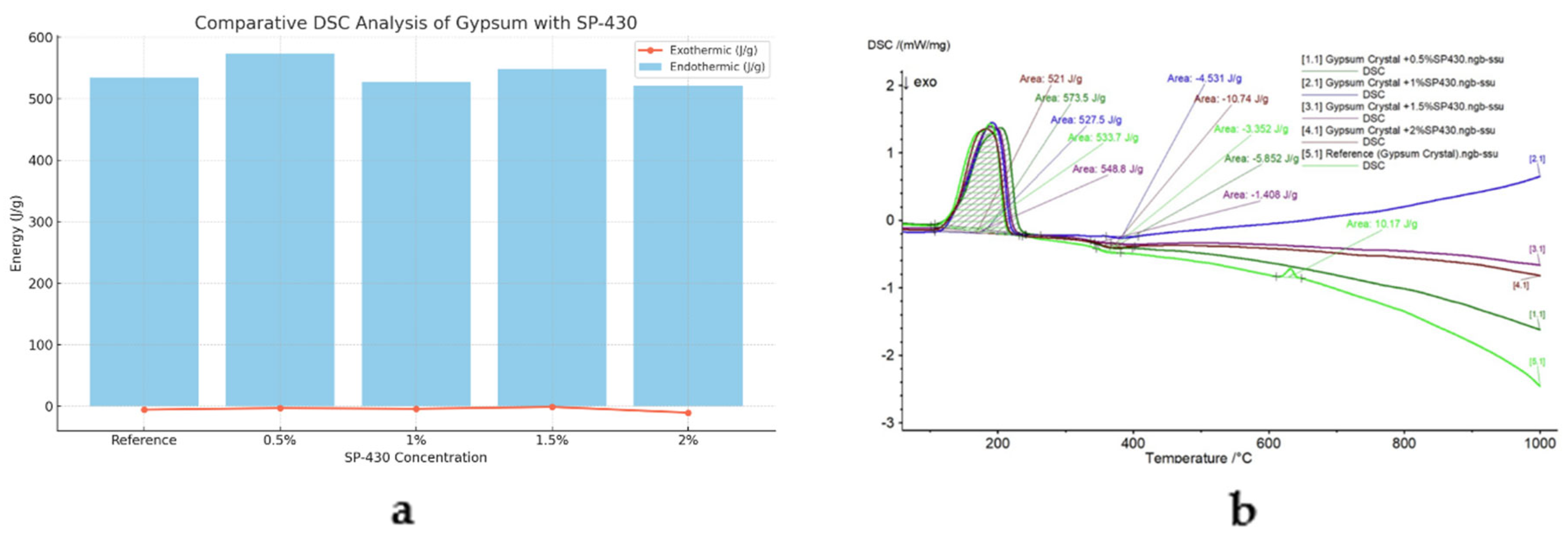

Figure 20.
(a) Comparison of endothermic and exothermic energies in gypsum crystals with different SP-430 superplasticizer concentrations based on DSC analysis. (b) Differential scanning calorimetry (DSC) curves of gypsum crystals synthesized with various concentrations of Sika® ViscoCrete® 430P (0.5%, 1%, 1.5%, and 2%) compared to the reference sample without superplasticizer. The curves correspond to reference (light green), 0.5% (black), 1% (blue), 1.5% (purple), and 2% (red).
Figure 20.
(a) Comparison of endothermic and exothermic energies in gypsum crystals with different SP-430 superplasticizer concentrations based on DSC analysis. (b) Differential scanning calorimetry (DSC) curves of gypsum crystals synthesized with various concentrations of Sika® ViscoCrete® 430P (0.5%, 1%, 1.5%, and 2%) compared to the reference sample without superplasticizer. The curves correspond to reference (light green), 0.5% (black), 1% (blue), 1.5% (purple), and 2% (red).

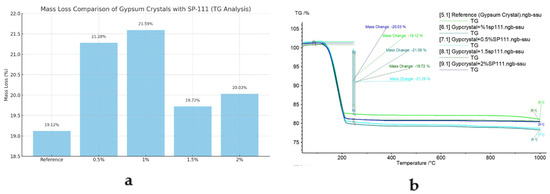

Figure 21.
(a) Comparison of Endothermic and Exothermic Energies in Gypsum Crystals with Different SP-111 Superplasticizer Concentrations Based on DSC Analysis. (b) Thermogravimetric (TG) curves of gypsum crystals synthesized with various concentrations of Sika® ViscoCrete® 111P (0.5%, 1%, 1.5%, and 2%) compared to the reference sample without superplasticizer. The curves correspond to reference (light green), 0.5% (cyan), 1% (blue), 1.5% (dark green), and 2% (dark blue).
Figure 21.
(a) Comparison of Endothermic and Exothermic Energies in Gypsum Crystals with Different SP-111 Superplasticizer Concentrations Based on DSC Analysis. (b) Thermogravimetric (TG) curves of gypsum crystals synthesized with various concentrations of Sika® ViscoCrete® 111P (0.5%, 1%, 1.5%, and 2%) compared to the reference sample without superplasticizer. The curves correspond to reference (light green), 0.5% (cyan), 1% (blue), 1.5% (dark green), and 2% (dark blue).

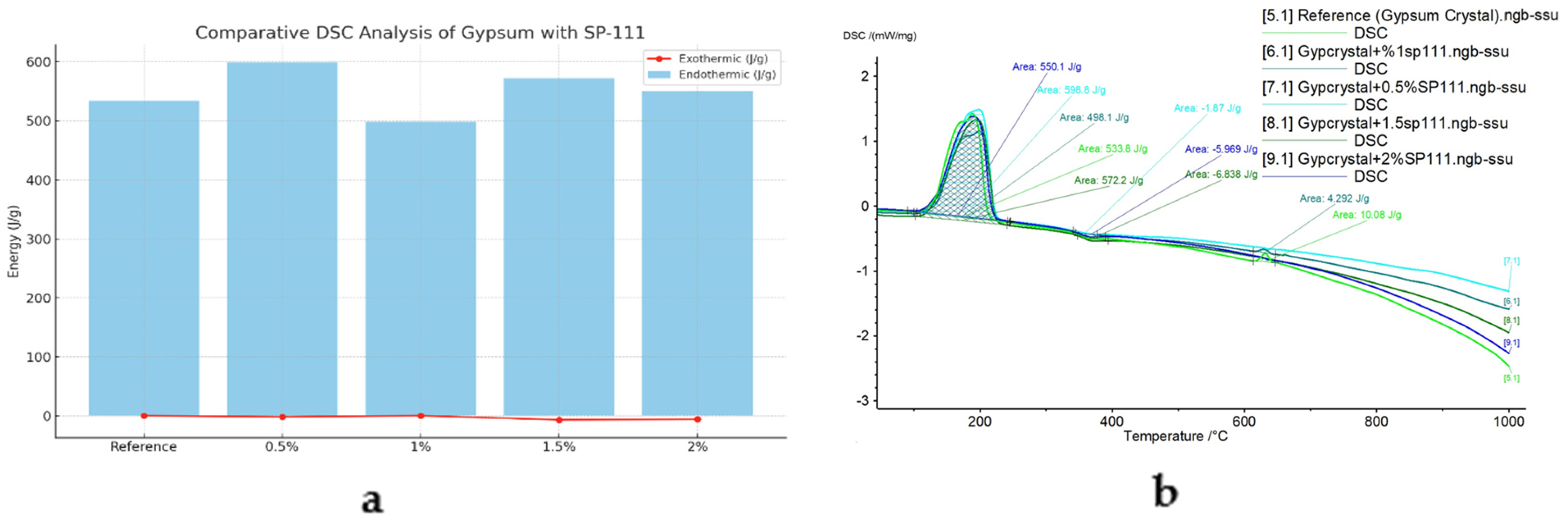

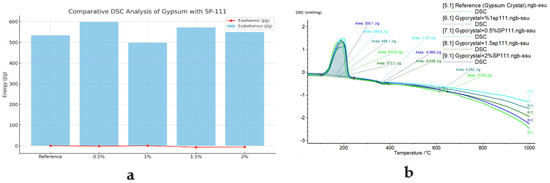

Figure 22.
(a) Comparison of Endothermic and Exothermic Energies in Gypsum Crystals with Different SP-111 Superplasticizer Concentrations Based on DSC Analysis. (b) Differential scanning calorimetry (DSC) curves of gypsum crystals synthesized with various concentrations of Sika® Visco Crete® 111P (0.5%, 1%, 1.5%, and 2%) compared to the reference sample without superplasticizer. The curves correspond to reference (light green), 0.5% (cyan), 1% (blue), 1.5% (dark green), and 2% (dark blue).
Figure 22.
(a) Comparison of Endothermic and Exothermic Energies in Gypsum Crystals with Different SP-111 Superplasticizer Concentrations Based on DSC Analysis. (b) Differential scanning calorimetry (DSC) curves of gypsum crystals synthesized with various concentrations of Sika® Visco Crete® 111P (0.5%, 1%, 1.5%, and 2%) compared to the reference sample without superplasticizer. The curves correspond to reference (light green), 0.5% (cyan), 1% (blue), 1.5% (dark green), and 2% (dark blue).

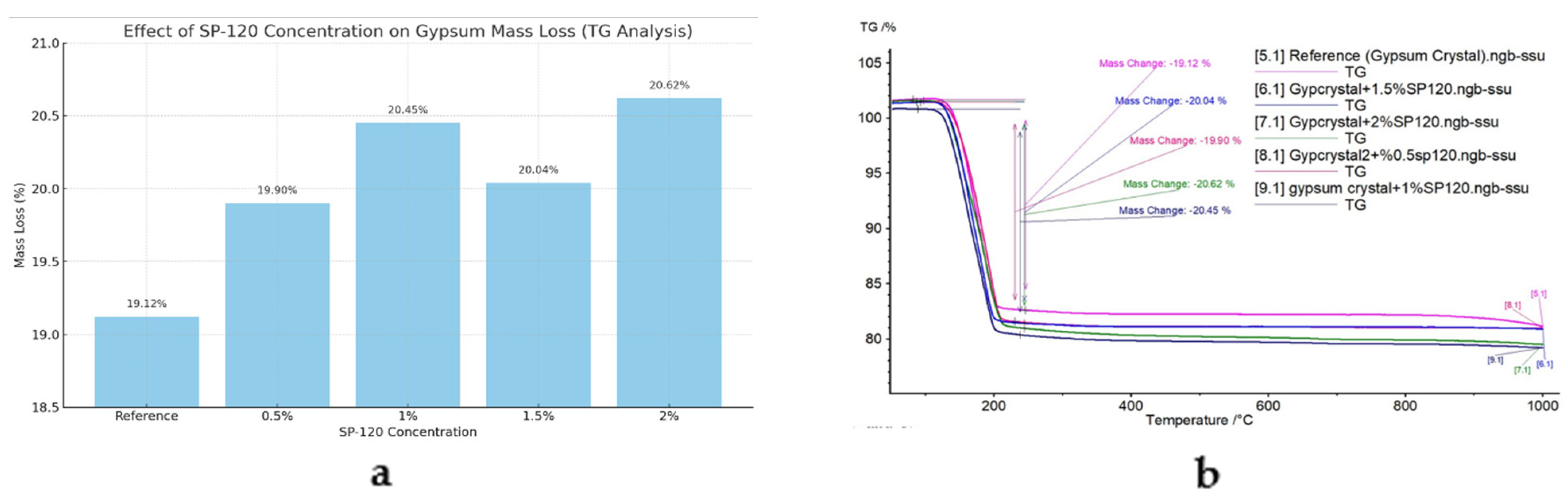

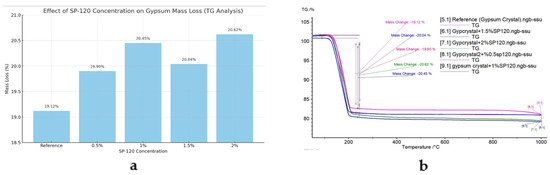

Figure 23.
(a) Comparison of Endothermic and Exothermic Energies in Gypsum Crystals with Different SP-120 Superplasticizer Concentrations Based on DSC Analysis. (b) Thermogravimetric (TG) curves of gypsum crystals synthesized with various concentrations of Sika® ViscoCrete® 120P (0.5%, 1%, 1.5%, and 2%) compared to the reference sample without superplasticizer. The curves correspond to reference (light pink), 0.5% (dark pink), 1% (dark blue), 1.5% (blue), and 2% (green).
Figure 23.
(a) Comparison of Endothermic and Exothermic Energies in Gypsum Crystals with Different SP-120 Superplasticizer Concentrations Based on DSC Analysis. (b) Thermogravimetric (TG) curves of gypsum crystals synthesized with various concentrations of Sika® ViscoCrete® 120P (0.5%, 1%, 1.5%, and 2%) compared to the reference sample without superplasticizer. The curves correspond to reference (light pink), 0.5% (dark pink), 1% (dark blue), 1.5% (blue), and 2% (green).

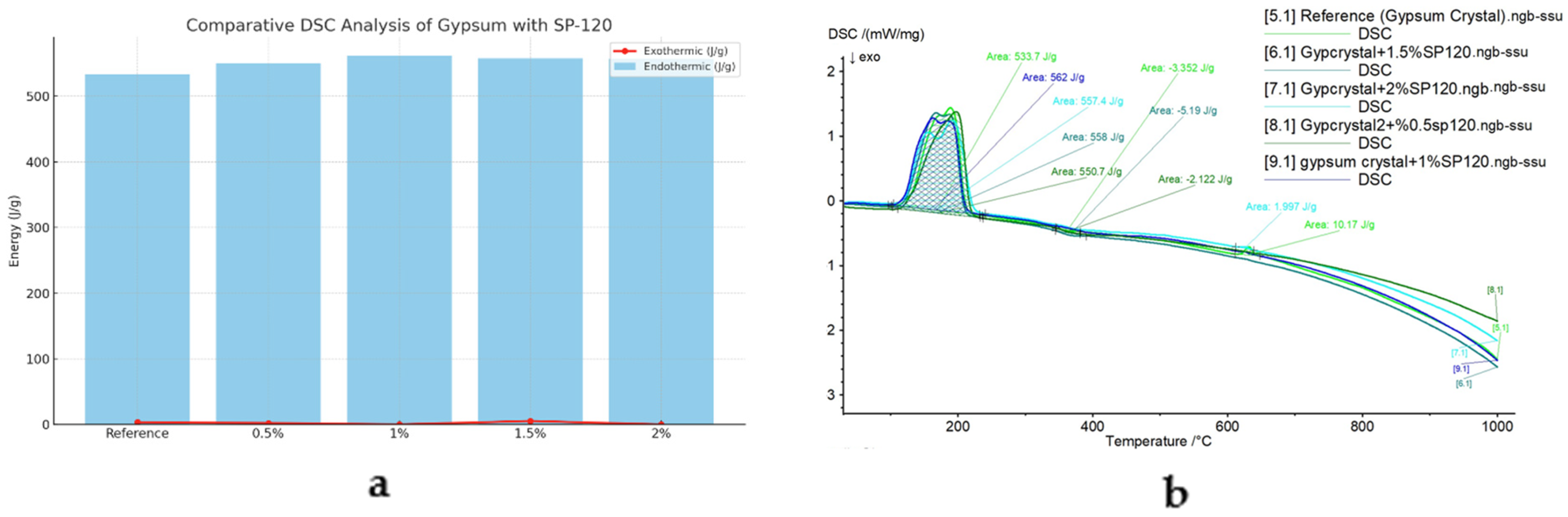

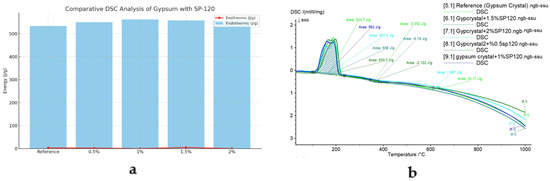

Figure 24.
(a) Comparison of Endothermic and Exothermic Energies in Gypsum Crystals with Different SP-120 Superplasticizer Concentrations Based on DSC Analysis. (b) Differential scanning calorimetry (DSC) curves of gypsum crystals synthesized with various concentrations of Sika® Visco Crete® 120P (0.5%, 1%, 1.5%, and 2%) compared to the reference sample without superplasticizer. The curves correspond to reference (green), 0.5% (dark green), 1% (dark blue), 1.5% (cyan), and 2% (light blue).
Figure 24.
(a) Comparison of Endothermic and Exothermic Energies in Gypsum Crystals with Different SP-120 Superplasticizer Concentrations Based on DSC Analysis. (b) Differential scanning calorimetry (DSC) curves of gypsum crystals synthesized with various concentrations of Sika® Visco Crete® 120P (0.5%, 1%, 1.5%, and 2%) compared to the reference sample without superplasticizer. The curves correspond to reference (green), 0.5% (dark green), 1% (dark blue), 1.5% (cyan), and 2% (light blue).

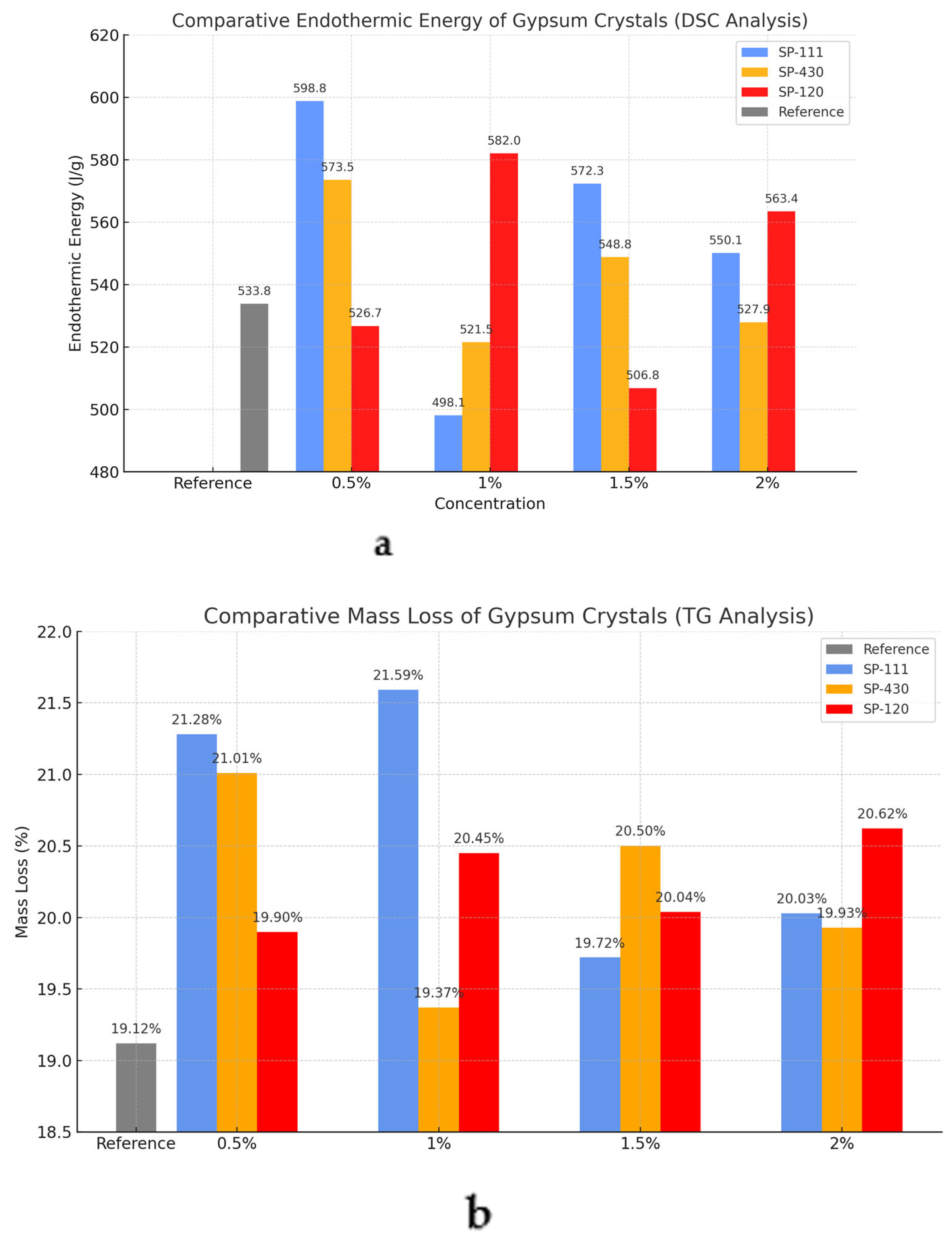

Figure 25.
(a) Comparison of endothermic enthalpy values (J/g) of gypsum crystals synthesized with different concentrations of three superplasticizers (SP-111, SP-120, and SP-430), as measured by DSC. (b) Comparative mass loss analysis of gypsum crystals containing various concentrations of SP-111, SP-430, and SP-120 superplasticizers based on TG measurements.
Figure 25.
(a) Comparison of endothermic enthalpy values (J/g) of gypsum crystals synthesized with different concentrations of three superplasticizers (SP-111, SP-120, and SP-430), as measured by DSC. (b) Comparative mass loss analysis of gypsum crystals containing various concentrations of SP-111, SP-430, and SP-120 superplasticizers based on TG measurements.
Table 1.
Key physicochemical properties of the three superplasticizers (SP-430, SP-111, and SP-120) as reported by the manufacturer’s datasheets.
Table 1.
Key physicochemical properties of the three superplasticizers (SP-430, SP-111, and SP-120) as reported by the manufacturer’s datasheets.
Property | SP-430 | SP-111 | SP-120 |
Composition | Modified polycarboxylate (PCE) | Modified polycarboxylate (PCE) | Modified polycarboxylate (PCE) |
Appearance/Color | White to yellowish powder | White to yellowish powder | White to yellowish powder |
Bulk density (g/cm3) | ~0.51–0.61 | ~0.60 | ~0.55 |
pH (40% solution) | ~4.0–5.0 | ~4.0 | ~4.0 |
Total chloride content | ≤0.1% | ≤0.1% | ≤0.1% |
Storage conditions | Dry, ≤30 °C, protect from sunlight | Dry, ≤30 °C, protect from sunlight | Dry, ≤30 °C, protect from sunlight |
Shelf life | 24 months | 24 months | 24 months |
Table 2.
Summary of observed crystallization stages, crystal morphology, and solution appearance over the 12-week experimental period with Sika® ViscoCrete® 430P addition.
Table 2.
Summary of observed crystallization stages, crystal morphology, and solution appearance over the 12-week experimental period with Sika® ViscoCrete® 430P addition.
Time | Crystallization Stage | Crystal Observation | Solution Appearance |
---|
1st week | Supersaturation (Pre-nucleation) | No visible crystals | Clear and colorless |
3rd week | Initial Nucleation | Few distinct crystals begin to appear | Slightly cloudy |
4th week | Crystal Growth | Larger, elongated, filamentous or clustered depending on concentration | Moderately cloudy |
12th week | Saturation and Final Equilibrium | Morphology dependent on concentration: well-formed at 0.5%, fine/irregular at 2% | Cloudy and dense or soft clusters |
Table 3.
Summary of the concentration-dependent effects of Sika® ViscoCrete® 430P on gypsum (CaSO4·2H2O) crystal morphology, growth behavior, and sediment characteristics after 12 weeks.
Table 3.
Summary of the concentration-dependent effects of Sika® ViscoCrete® 430P on gypsum (CaSO4·2H2O) crystal morphology, growth behavior, and sediment characteristics after 12 weeks.
Concentration (%) Sika® ViscoCrete® 430P | Crystal Morphology | Growth Behavior | Sediment Characteristics |
---|
0.5% | Distinct, large, transparent, well-formed | Minimal inhibition, unrestricted growth | Distributed, heavy settled crystals |
1% | Dense aggregates adhering to wall | Moderate inhibition, limited volumetric growth | Compact clusters, wall-adhered |
1.5% | Smaller, rounded, sparsely distributed | Noticeable inhibition, reduced growth rate | Sparse, light fragments |
2% | Fine, irregular, highly clustered | Strong suppression of nucleation and growth | Fine, soft powder-like clusters |
Table 4.
Summary of observed crystallization stages, crystal morphology, and solution appearance over the 12-week experimental period with Sika® ViscoCrete® 111P addition.
Table 4.
Summary of observed crystallization stages, crystal morphology, and solution appearance over the 12-week experimental period with Sika® ViscoCrete® 111P addition.
Time | Crystallization Stage | Crystal Observation | Solution Appearance |
---|
1st week | Supersaturation (Pre-nucleation) | No visible crystals | Clear and colorless |
3rd week | Initial Nucleation | Fine, needle-like crystals starting to form | Slightly cloudy (locally) |
4th week | Crystal Growth | Larger and more crystals, radially dispersed | Moderately cloudy |
12th week | Saturation and Final Equilibrium | Dense, clustered crystals with fibrous structure | Cloudy and dense |
Table 5.
Summary of the concentration-dependent effects of Sika® ViscoCrete® 111P on gypsum (CaSO4·2H2O) crystal morphology, growth behavior, and sediment characteristics after 12 weeks.
Table 5.
Summary of the concentration-dependent effects of Sika® ViscoCrete® 111P on gypsum (CaSO4·2H2O) crystal morphology, growth behavior, and sediment characteristics after 12 weeks.
Concentration (%) of Sika® ViscoCrete® 111P | Crystal Morphology | Growth Behavior | Sediment Characteristics |
---|
0.5% | Branched, well-formed, dense | Unrestricted growth, full development | Heavy, settled due to crystal weight |
1% | Smaller, compact, less distinct edges | Partially inhibited, moderate diffusion limitation | Compact clusters with some powdery deposits |
1.5% | Fine, dispersed, weak structural integrity | Strong inhibition, limited ionic mobility | Light, scattered, filamentous fragments |
2% | Powdery, soft, amorphous | Severely inhibited near-complete growth suppression | Soft, fine powder with no defined structure |
Table 6.
Summary of observed crystallization stages, crystal morphology, and solution appearance over the 12-week experimental period with Sika® ViscoCrete® 120P addition.
Table 6.
Summary of observed crystallization stages, crystal morphology, and solution appearance over the 12-week experimental period with Sika® ViscoCrete® 120P addition.
Time | Crystallization Stage | Crystal Observation | Solution Appearance |
---|
1st week | Supersaturation (Pre-nucleation) | No visible crystals | Clear and colorless |
3rd week | Initial Nucleation | Small clusters on inner wall, indicating low inhibition of nucleation | Slightly cloudy (locally) |
4th week | Crystal Growth | Fewer or isolated microcrystals at higher concentrations, strong suppression evident | Moderately cloudy |
12th week | Saturation and Final Equilibrium | Large branched clusters at 0.5%, irregular/fine at 1.5%, localized growth at 2% | Cloudy or partially clear |
Table 7.
Summary of the concentration-dependent effects of Sika® ViscoCrete® 120P on gypsum (CaSO4·2H2O) crystal morphology, growth behavior, and sediment characteristics after 12 weeks.
Table 7.
Summary of the concentration-dependent effects of Sika® ViscoCrete® 120P on gypsum (CaSO4·2H2O) crystal morphology, growth behavior, and sediment characteristics after 12 weeks.
Concentration (%) of Sika® ViscoCrete® 120P | Crystal Morphology | Growth Behavior | Sediment Characteristics |
---|
0.5% | Distinct, large, transparent, well-formed | Minimal inhibition, unrestricted growth | Distributed, heavy settled crystals |
1% | Dense aggregates adhering to wall | Moderate inhibition, limited volumetric growth | Compact clusters, wall-adhered |
1.5% | Smaller, rounded, sparsely distributed | Noticeable inhibition, reduced growth rate | Sparse, light fragments |
2% | Fine, irregular, highly clustered | Strong suppression of nucleation and growth | Fine, soft powder-like clusters |
Table 8.
Effect of superplasticizer type and dosage on crystal nucleation and growth.
Table 8.
Effect of superplasticizer type and dosage on crystal nucleation and growth.
Superplasticizer | Dosage (% w/w) | Induction time (week) | Observed crystal growth pattern |
Reference (no additive) | — | 3 | Distinct needle-like crystals observed (Figure 3) |
SP-430 | 0.5 | 4 | Reduced growth, fewer crystals (Figure 4) |
SP-430 | 1.0 | 4 | Significantly less growth, sparse crystals |
SP-430 | 1.5 | 4 | Noticeably less growth, sparse crystals |
SP-430 | 2.0 | 4 | Minimal growth, very few crystals |
SP-111 | 0.5 | 4 | Reduced growth, fewer crystals (Figure 6) |
SP-111 | 1.0 | 4 | Significantly less growth, sparse crystals |
SP-111 | 1.5 | 4 | Noticeably less growth, sparse crystals |
SP-111 | 2.0 | 4 | Minimal growth, very few crystals |
SP-120 | 0.5 | 4 | Reduced growth, fewer crystals (Figure 8) |
SP-120 | 1.0 | 4 | Significantly less growth, sparse crystals |
SP-120 | 1.5 | 4 | Noticeably less growth, sparse crystals |
SP-120 | 2.0 | 5 | No visible crystals up to week 4; first crystals appeared at week 5 (Figure 8) |
Table 9.
Increasing Sika® ViscoCrete® 430P concentration alters gypsum crystal morphology—from thin, aligned structures at low dosages to bulky, disordered forms at higher levels, reflecting a shift from controlled to inhibited growth.
Table 9.
Increasing Sika® ViscoCrete® 430P concentration alters gypsum crystal morphology—from thin, aligned structures at low dosages to bulky, disordered forms at higher levels, reflecting a shift from controlled to inhibited growth.
Superplasticizer Concentration (%) | Dominant Morphology | Crystal Surface Features | Crystal Boundaries | Orientation and Order | Structural Density |
---|
0.5% | Thin, platy, layered | Smooth, aligned, clean edges | Clearly defined | Highly aligned | Low |
1.0% | Thicker, acicular-prismatic | Slightly rough with intersecting lines | Slight overlap | Semi-aligned with deviations | Moderate |
1.5% | Well-defined prismatic | Smooth surfaces, sharp edges | Well-separated | More directional and organized | Low-to moderate |
2.0% | Bulky, aggregated, lobular | Rough, irregular, textured | Merged, indistinct | Disordered and random | High (compact) |
Table 10.
Summary of gypsum (CaSO4·2H2O) crystal characteristics under varying concentrations of Sika® ViscoCrete® 111P. Increasing the superplasticizer dosage from 0.5% to 1.5% enhances crystal definition, orientation, and separation, with 1.5% yielding prismatic crystals with optimized morphology. At 2.0%, structural irregularities such as merged boundaries, chaotic orientation, and high density emerge, indicating reduced growth control and the onset of oversaturation effects.
Table 10.
Summary of gypsum (CaSO4·2H2O) crystal characteristics under varying concentrations of Sika® ViscoCrete® 111P. Increasing the superplasticizer dosage from 0.5% to 1.5% enhances crystal definition, orientation, and separation, with 1.5% yielding prismatic crystals with optimized morphology. At 2.0%, structural irregularities such as merged boundaries, chaotic orientation, and high density emerge, indicating reduced growth control and the onset of oversaturation effects.
Superplasticizer Concentration (%) | Dominant Morphology | Crystal Surface Features | Crystal Boundaries | Orientation and Order | Structural Density |
---|
0.5% | Thin, layered, semi-organized | Smooth and clean | Mostly distinct | Semi-aligned with parallel growth | Moderate |
1.0% | Thicker blades, semi-prismatic | Slightly rough, minor secondary growth | Partially overlapping | Moderate alignment, more deviations | Moderate to high |
1.5% | Prismatic, irregular tips | Moderately rough with irregular edges | Poorly defined | Less directional growth | High |
2.0% | Bulky, dense, disordered | Textured, with merged surfaces | Largely merged | Chaotic and random | Very high |
Table 11.
Summary of gypsum crystal characteristics under different concentrations of Sika® ViscoCrete® 120. Increasing dosage from 0.5% to 2.0% leads to a transition from well-organized, thin platy crystals with smooth surfaces and clear boundaries to bulky, disordered forms with rough textures and merged edges. Orientation and structural order decline, while density and aggregation increase at higher concentrations.
Table 11.
Summary of gypsum crystal characteristics under different concentrations of Sika® ViscoCrete® 120. Increasing dosage from 0.5% to 2.0% leads to a transition from well-organized, thin platy crystals with smooth surfaces and clear boundaries to bulky, disordered forms with rough textures and merged edges. Orientation and structural order decline, while density and aggregation increase at higher concentrations.
Superplasticizer Concentration (%) | Dominant Morphology | Crystal Surface Features | Crystal Boundaries | Orientation and Order | Structural Density |
---|
0.5% | Thin, platy, well-organized | Smooth, clean, no secondary deposits | Clearly defined | Highly aligned and directional | Low (open structure) |
1.0% | Thicker platy | Smooth with slight intersecting lines | Well-defined, slight overlap | Mostly aligned, slight deviation | Moderate |
1.5% | Fan-like leaf-like | Covered with fine particles | Less distinguishable | Loss of consistent orientation | Relatively high |
2.0% | Bulky and disordered | Rough, textured | Poorly defined or merged | No dominant orientation | High (compact structure) |
