Preparation and Crystal Structure of 5-Azido-3-nitro-1H-1,2,4-triazole, Its Methyl Derivative and Potassium Salt

Abstract

5-Azido-3-nitro-1H-1,2,4-triazole, its methyl derivative and potassium salt were synthesized and characterized by various spectroscopic methods. The crystal structures were determined by low temperature single crystal X-ray diffraction. The interactions between the molecules or ions were analyzed and discussed. Furthermore, all compounds were tested according to BAM (Bundesanstalt für Materialforschung und -prüfung) methods.

1. Introduction

New non-toxic and environmentally-friendly primary explosives, such as lead azide replacement, are of recent interest in our research group. In this study we report on the preparation and characterization of 5-azido-3-nitro-1H-1,2,4-triazole and its potassium salt, which shows the desired characteristics for primary explosives. Besides high sensitivities to various stimuli, for example impact or friction, a main characteristic is a fast deflagration-to-detonation transition. Although the title compound is already literature known at least since 1974 [1], we were not able to find reliable data on its preparation or characterization (spectroscopy, X-ray, sensitivities, etc.).

2. Results and Discussion

The neutral compound 5-azido-3-nitro-1H-1,2,4-triazole (1) was synthesized by diazotation of 5-amino-3-nitro-1H-1,2,4-triazole (ANTA, prepared by modified literature procedures [2]) with sodium nitrite in aqueous sulfuric acid and subsequent reaction with sodium azide. Further reaction with dimethyl sulfate in aqueous sodium hydroxide solution yielded the methyl derivative 2, and with potassium carbonate in ethanol the potassium salt 3.

While suitable single crystals of the parent compound 1 were obtained upon removal of the ethyl acetate solvent in a rotary evaporator as colorless blocks, the methylated derivative 2 yielded colorless, fine needles directly from the reaction mixture upon cooling down to room temperature. Recrystallization of the potassium salt 3 from acetone yielded pale yellow needles. The crystallographic data for all compounds 1–3 are compiled in Table 1. Thermal ellipsoids in structure depictions are drawn with 50% probability. Selected bond lengths, bond angles and torsion angles of all three compounds are available as supplementary information, together with the CIF files.

Table 1. Crystallographic data for 1–3.

	1	2	3
Formula	C2HN7O2	C3H3N7O2	C2KN7O2
M/g mol−1	155.10	169.12	193.19
Color	colorless	colorless	pale yellow
Habit	block	needle	needle
Crystal size/mm	0.40 × 0.30 × 0.15	0.40 × 0.05 × 0.03	0.35 × 0.10 × 0.05
Crystal system	orthorhombic	monoclinic	monoclinic
Space group	Pnma (№ 62)	P21/m (№ 11)	P21/c (№ 14)
a/Å	10.4057(8)	6.9585(16)	4.4403(2)
b/Å	5.8792(6)	5.9641(13)	11.8862(4)
c/Å	9.4946(8)	8.5356(16)	12.7766(6)
α/°	90	90	90
β/°	90	106.59(2)	100.167(4)
γ/°	90	90	90
V/Å3	580.85(9)	339.49(12)	663.74(5)
Z	4	2	4
ρcalc./g cm−3	1.774	1.654	1.933
T/K	173(2)	173(2)	173(2)
F(000)	312	172	384
μ/mm−1	0.156	0.141	0.768
θ range/°	4.29– 27.49	4.23–27.00	4.66–26.00
Dataset (h; k; l)	−13:13; −7:7; −11:12	−8:8; −7:6; −9:10	−5:5; −14:14; −15:15
Reflections collected	3230	1927	6582
Independent reflections	732	805	1307
Observed reflections	555	625	1132
Rint	0.0314	0.0216	0.0268
Data	732	805	1307
Restraints	0	0	0
Parameters	70	73	109
R1 (obs.)	0.0309	0.0407	0.0215
wR2 (all data)	0.0873	0.1161	0.0527
S	1.034	1.082	1.041
Res. dens./e Å−3	−0.238:0.144	−0.241:0.311	−0.157:0.227
Solution	SIR97	SIR97	SIR97
Refinement	SHELXL-97	SHELXL-97	SHELXL-97
Absorption correction	multi-scan	multi-scan	multi-scan
CCDC	871252	875278	871253

Table 1. Crystallographic data for 1–3.

	1	2	3
Formula	C2HN7O2	C3H3N7O2	C2KN7O2
M/g mol−1	155.10	169.12	193.19
Color	colorless	colorless	pale yellow
Habit	block	needle	needle
Crystal size/mm	0.40 × 0.30 × 0.15	0.40 × 0.05 × 0.03	0.35 × 0.10 × 0.05
Crystal system	orthorhombic	monoclinic	monoclinic
Space group	Pnma (№ 62)	P21/m (№ 11)	P21/c (№ 14)
a/Å	10.4057(8)	6.9585(16)	4.4403(2)
b/Å	5.8792(6)	5.9641(13)	11.8862(4)
c/Å	9.4946(8)	8.5356(16)	12.7766(6)
α/°	90	90	90
β/°	90	106.59(2)	100.167(4)
γ/°	90	90	90
V/Å3	580.85(9)	339.49(12)	663.74(5)
Z	4	2	4
ρcalc./g cm−3	1.774	1.654	1.933
T/K	173(2)	173(2)	173(2)
F(000)	312	172	384
μ/mm−1	0.156	0.141	0.768
θ range/°	4.29– 27.49	4.23–27.00	4.66–26.00
Dataset (h; k; l)	−13:13; −7:7; −11:12	−8:8; −7:6; −9:10	−5:5; −14:14; −15:15
Reflections collected	3230	1927	6582
Independent reflections	732	805	1307
Observed reflections	555	625	1132
Rint	0.0314	0.0216	0.0268
Data	732	805	1307
Restraints	0	0	0
Parameters	70	73	109
R1 (obs.)	0.0309	0.0407	0.0215
wR2 (all data)	0.0873	0.1161	0.0527
S	1.034	1.082	1.041
Res. dens./e Å−3	−0.238:0.144	−0.241:0.311	−0.157:0.227
Solution	SIR97	SIR97	SIR97
Refinement	SHELXL-97	SHELXL-97	SHELXL-97
Absorption correction	multi-scan	multi-scan	multi-scan
CCDC	871252	875278	871253

2.1. 5-Azido-3-nitro-1H-1,2,4-triazole (1)

5-Azido-3-nitro-1H-1,2,4-triazole (1) crystallizes in the orthorhombic space group Pnma with a cell volume of 580.85(9) ų and four molecules in the unit cell. The calculated density at −100 °C is 1.774 g cm⁻³, which is lower than that of the reactant (ANTA, 1.841 g cm⁻³). This may be due to fewer hydrogen bonds. The asymmetric unit consists of one complete molecule (Figure 1).

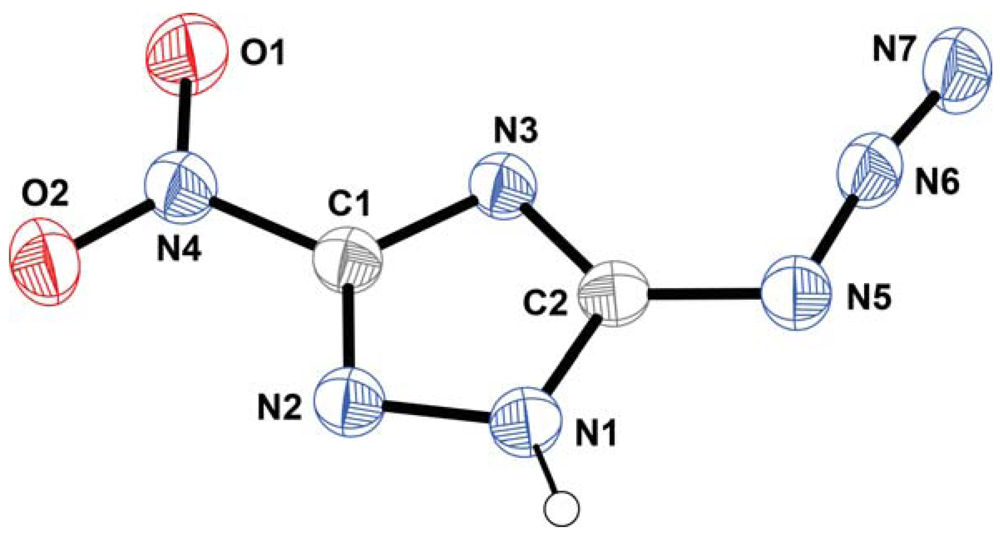

Figure 1. Molecular structure of 5-azido-3-nitro-1H-1,2,4-triazole (1).

Figure 1. Molecular structure of 5-azido-3-nitro-1H-1,2,4-triazole (1).

The structure of 1 is similar to other disubstituted 1,2,4-triazoles with the C–N and N–N bonds of the ring being between formal single and double bonds (C–N: 1.47 Å, 1.22 Å; N–N: 1.48 Å, 1.20 Å) [3]. N1–C2 (1.345(2) Å), N3–C1 (1.350(2) Å) and N1–N2 (1.356(2) Å) have a more single bond character, while N2–C1 (1.314(2) Å) and N3–C2 (1.327(2) Å) have a more double bond character. This also affects the angles within the ring, with only N2–C1–N3 (118.5(1)°) being close to sp² hybridization (120°). N1–C2–N3 and N2–N1–C2 are both around 110°, while C1–N3–C2 and N1–N2–C1 are both around 100°. The N4–C1 bond connecting the nitro group to the ring is the longest bond with 1.452(2) Å and therefore almost a true single bond. The O–N bonds are similar (O1–N4: 1.227(1) Å; O2–N4: 1.228(1) Å) with high double bond character (1.20 Å) [3] and the O1–N4–O2 angle is 124.9(2)°, which is common for aromatic nitro groups. The N5–C2 bond shows a high single bond character with 1.383(2) Å. The constitution of the azide group is similar to other covalent azides, for example 5-azido-1H-tetrazole [4]. The N5–N6 bond (1.256(2) Å) is in the range of a N–N double bond and N6–N7 (1.124(2) Å) is close to a formal N–N triple bond (1.10 Å) [3]. The N5–N6–N7 angle (170.4(2)°) deviates as expected from 180°, which can be explained by hyperconjugation effects [5]. The torsion angles N2–C1–N4–O1 and N1–C2–N5–N6 are both 180.0(2)°, showing a complete planarity of the molecule.

The structure of 1 in the crystalline state is characterized by infinite chains of alternating molecules along the a-axis in the a-c plane, connected by bifurcated hydrogen bonds (Figure 2 and Table 2). The N1–H71···O1ⁱ contact is less directed with an angle of 135(2)° than the N1–H71···N3ⁱ contact with 153(2)°, and both are fairly weak with practically identical donor acceptor distances (N1···O1ⁱ: 3.013(2) Å; N1···N3ⁱ: 3.015(2) Å) just slightly under the sum of the van der Waals radii (r_w (N) + r_w (O) = 3.1 Å, r_w (N) + r_w (N) = 3.2 Å) [3]. The hydrogen bonds are therefore mostly of an electrostatic nature [6], forming a five-membered ring with the graph set descriptor R2,1(5).

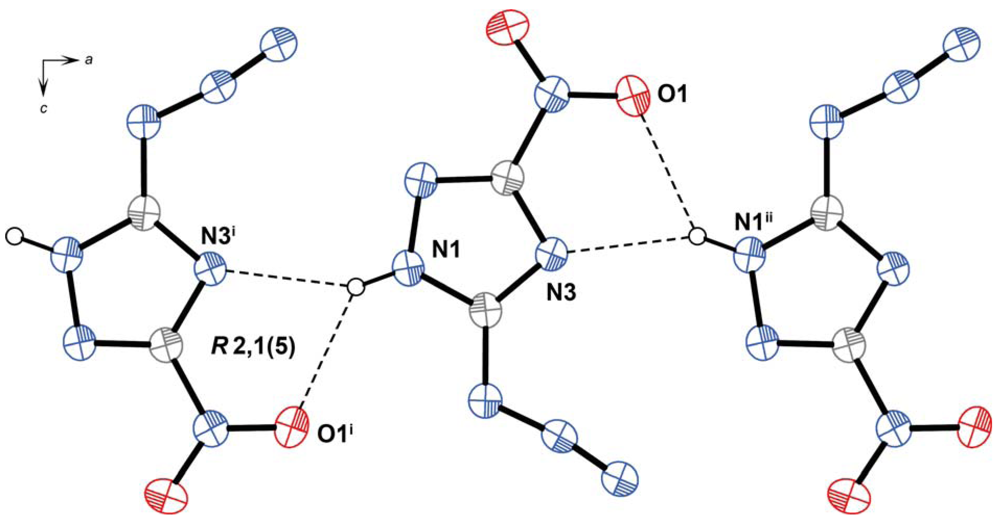

Figure 2. Hydrogen bonding in the crystal structure of 1, illustrating the infinite chains along the a-axis in the a–c plane. Symmetry codes: (i) x − 0.5, −y + 0.5, −z + 0.5; (ii) x + 0.5, −y + 0.5, −z + 0.5.

Figure 2. Hydrogen bonding in the crystal structure of 1, illustrating the infinite chains along the a-axis in the a–c plane. Symmetry codes: (i) x − 0.5, −y + 0.5, −z + 0.5; (ii) x + 0.5, −y + 0.5, −z + 0.5.

Table 2. Distances and angles of the hydrogen bonds of 1.

D–H···A	d (D–H)/Å	d (H···A)/Å	d (D···A)/Å	<(D–H···A)/°
N1–H71···O1i	0.85(3)	2.36(2)	3.013(2)	135(2)
N1–H71···N3i	0.85(3)	2.24(3)	3.015(2)	153(2)

Symmetry code: (i) x − 0.5, −y + 0.5, −z + 0.5.

Table 2. Distances and angles of the hydrogen bonds of 1.

D–H···A	d (D–H)/Å	d (H···A)/Å	d (D···A)/Å	<(D–H···A)/°
N1–H71···O1i	0.85(3)	2.36(2)	3.013(2)	135(2)
N1–H71···N3i	0.85(3)	2.24(3)	3.015(2)	153(2)

Symmetry code: (i) x − 0.5, −y + 0.5, −z + 0.5.

The chains build up a layer structure where one layer consists of identical parallel chains with no interaction between them. The second layer consists of anti-parallel chains, in relation to the first layer, with the molecules being above the gaps of the first layer. This leads to the layers being connected by an O–O short contact O1···O1ⁱⁱⁱ where the atoms are almost directly above each other along the b-axis. The distance of 2.9633(4) Å is only slightly shorter than the sum of the van der Waals radii (r_w (O) + r_w (O) = 3.0 Å), indicating a weak interaction. The packing of the molecules is depicted in Figure 3, together with the O–O short contacts.

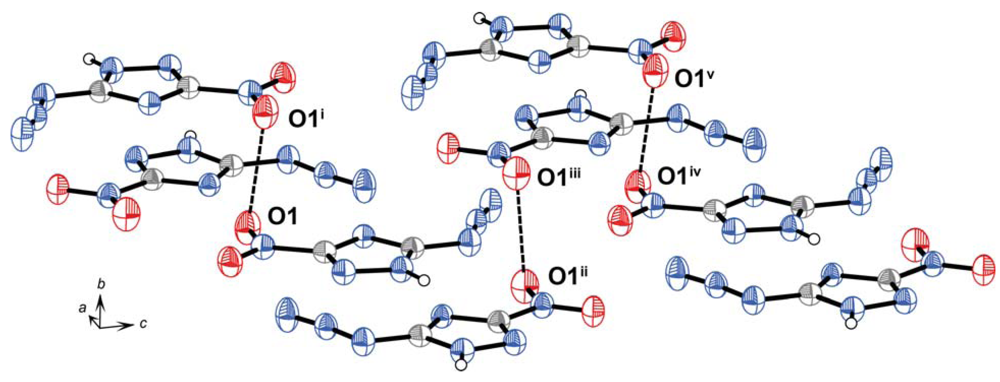

Figure 3. Packing scheme of 1, showing the short contacts connecting the layers along the b-axis. Symmetry codes: (i) −x + 1, y + 0.5, −z; (ii) x − 0.5, −y + 0.5, −z + 0.5; (iii) −x + 0.5, − y+ 1, z + 0.5; (iv) x, y, z + 1; (v) −x + 1, y + 0.5, −z + 1.

Figure 3. Packing scheme of 1, showing the short contacts connecting the layers along the b-axis. Symmetry codes: (i) −x + 1, y + 0.5, −z; (ii) x − 0.5, −y + 0.5, −z + 0.5; (iii) −x + 0.5, − y+ 1, z + 0.5; (iv) x, y, z + 1; (v) −x + 1, y + 0.5, −z + 1.

2.2. 5-Azido-1-methyl-3-nitro-1,2,4-triazole (2)

5-Azido-1-methyl-3-nitro-1,2,4-triazole (2) crystallizes in the monoclinic space group P2₁/m with a cell volume of 339.49(12) ų and two molecules in the unit cell. The calculated density at −100 °C is 1.654 g cm⁻³. The asymmetric unit consists of one molecule and is depicted in Figure 4, together with the atom labeling scheme.

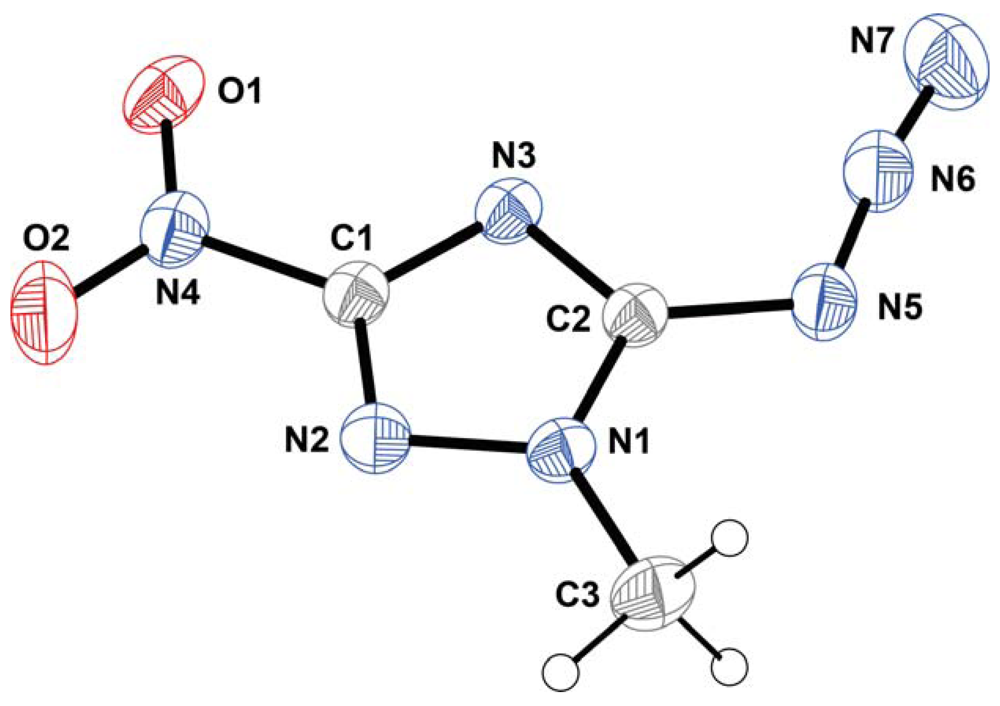

Figure 4. Molecular structure of 5-azido-1-methyl-3-nitro-1,2,4-triazole (2).

Figure 4. Molecular structure of 5-azido-1-methyl-3-nitro-1,2,4-triazole (2).

The geometry of the ring system is identical to the parent compound 1. The N1–C3 bond is a true single bond with 1.463(4) Å.

A discussion of hydrogen bonds is omitted due to the hydrogen atoms being calculated as an idealized methyl group (HFIX 33), although the crystal packing shows the possibility of a very weak electrostatic interaction between C3 and N3ⁱⁱ (Figure 5).

The structure is again comprised of parallel chains along the a-axis forming a layer structure, whereby the alternating layers have antiparallel chains (Figure 5), quite similar to 1. But contrary to 1, the molecules are not above the gaps of the surrounding layers, but rather directly above each other. This is the result of four O–C and N–N short contacts (O1–C1ⁱ: 3.0351(9) Å; N3–N4ⁱ: 3.0448(8) Å), all of which are well below the sum of the respective van der Waals radii (r_w (O) + r_w (C) = 3.3 Å).

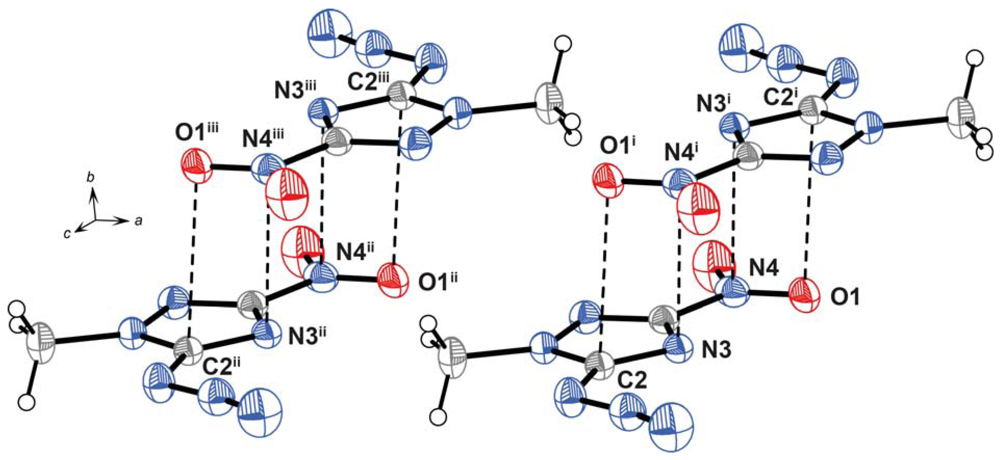

Figure 5. Packing scheme of 2, showing the short contacts connecting the layers along the b-axis. Symmetry codes: (i) −x + 2, y − 0.5, −z; (ii) x − 1, y, z; (iii) −x + 1, y − 0.5, −z.

Figure 5. Packing scheme of 2, showing the short contacts connecting the layers along the b-axis. Symmetry codes: (i) −x + 2, y − 0.5, −z; (ii) x − 1, y, z; (iii) −x + 1, y − 0.5, −z.

2.3. Potassium 5-Azido-3-nitro-1,2,4-triazolate (3)

Potassium 5-azido-3-nitro-1,2,4-triazolate (3) crystallizes in the monoclinic space group P2₁/c with a cell volume of 663.74(5) ų and four molecules in the unit cell. The calculated density at −100 °C is 1.933 g cm⁻³. The asymmetric unit, depicted in Figure 6, consists of one ion pair.

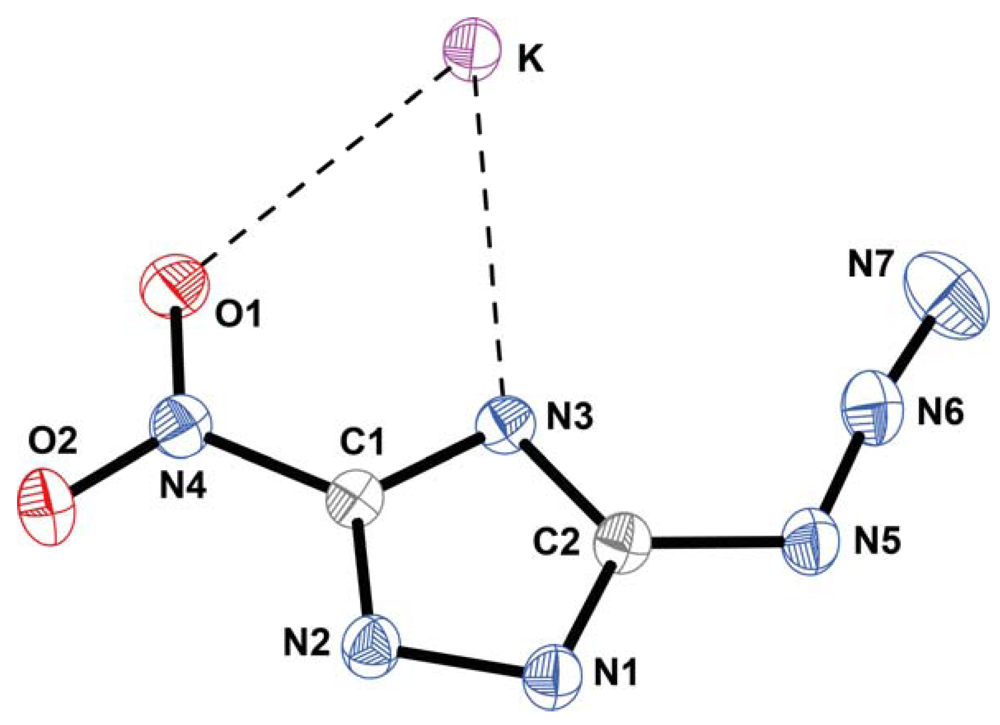

Figure 6. Molecular structure of potassium 5-azido-3-nitro-1,2,4-triazolate (3).

Figure 6. Molecular structure of potassium 5-azido-3-nitro-1,2,4-triazolate (3).

The deprotonation of the ring leads to a fully delocalized π system, with C–N bond lengths between 1.327(2) Å (N2–C1) to 1.343(2) Å (N1–C2 and N3–C1) and a N1–N2 bond length of 1.374(2) Å. The angles of the ring are more symmetrical than in 1, with N1–C2–N3 and N2–C1–N3 both being around 120°, close to an sp² hybridization. N1–N2–C1, N2–N1–C2 and C1–N3–C2 are all round 100°, with the former two slightly higher and the latter slightly lower. While the N4–C1 bond between the ring and the nitro group is shortened to 1.441(2) Å, the N5–C2 bond connecting the ring with the azide grew to 1.410(2) Å, with both still showing a high single bond character. The bond lengths and angles of the azide and the nitro group are nearly identical to those of 1. While the N2–C1–N4–O1 torsion angle shows a nearly complete planarity between the ring and the nitro group (179.0(1)°), the azide is slightly bent out of ring plane with an N1–C2–N5–N6 angle of −174.9(1)°. The potassium cation lies slightly above the molecule plane with torsion angles around 20° for N3···K···O1–N4 and O1···K···N3–C1.

The coordination of the potassium cation is nine-fold, resembling a distorted singly capped tetragonal prism (Figure 7). The distances are between 2.847(1) Å (K···O1) and 3.084(1) Å (K···N2^iv), with the contacts within the asymmetric unit being 2.847(1) Å (K···O1) and 2.902(1) Å (K···N3).

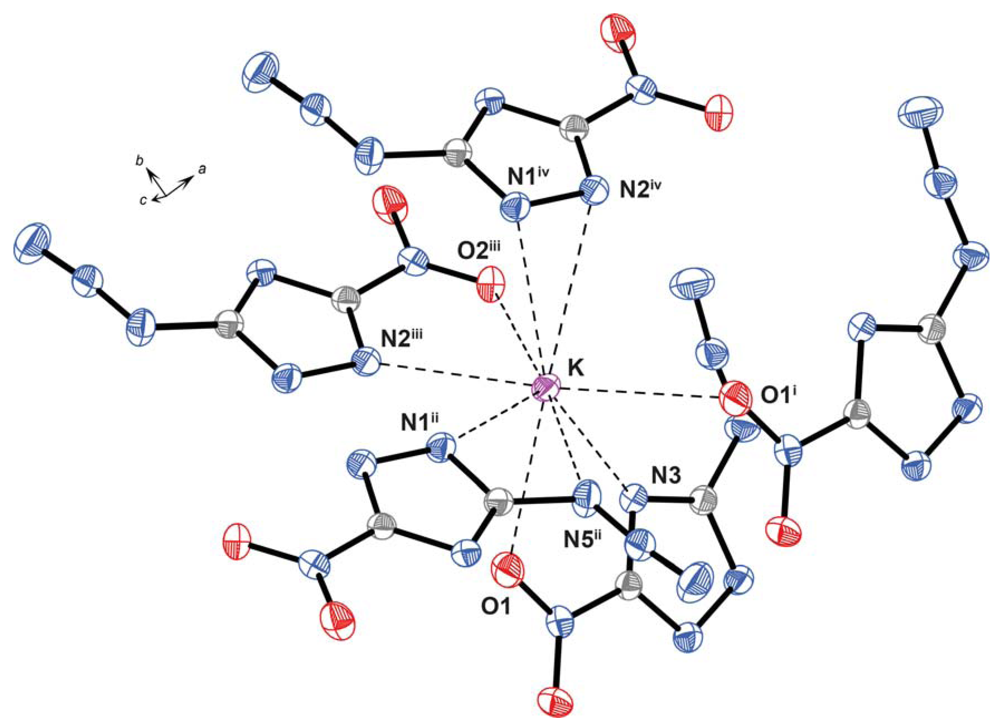

Figure 7. Molecular structure of potassium 5-azido-3-nitro-1,2,4-triazolate (3). Symmetry codes: (i) x + 1, y, z; (ii) x, −y + 0.5, z + 0.5; (iii) −x + 1, y + 0.5, −z + 0.5; (iv) −x + 2, y + 0.5, −z + 0.5.

Figure 7. Molecular structure of potassium 5-azido-3-nitro-1,2,4-triazolate (3). Symmetry codes: (i) x + 1, y, z; (ii) x, −y + 0.5, z + 0.5; (iii) −x + 1, y + 0.5, −z + 0.5; (iv) −x + 2, y + 0.5, −z + 0.5.

3. Experimental Section

All chemicals were used as supplied (ABCR, Acros Organics, AppliChem, Sigma-Aldrich, VWR).

NMR spectra were recorded using the spectrometers JEOL Eclipse 400 and JEOL ECX 400. The measurements were conducted in regular glass NMR tubes (Ø 5 mm) and, if not stated otherwise, at 25 °C. Tetramethylsilane (¹H, ¹³C) and nitromethane (^14/15N) were used as external standards. As an additional internal standard, the reference values of the partially deuterated solvent impurity (¹H) and the fully deuterated solvent (¹³C) were used [7]. Data analysis was performed using MestReNova [8].

IR spectra were recorded using a PerkinElmer BX FT IR spectrometer on a Smiths DuraSamplIR II diamond ATR unit with pure samples. Raman spectra were recorded using a Bruker RAM II, with 300 mW laser power (Nd:YAG laser, λ = 1064 nm) and 30 scans in open glass tubes (Ø 1 mm).

The determinations of the carbon, hydrogen and nitrogen contents were carried out by combustion analysis using an Elementar Vario EL. The theoretical values are given in parentheses.

Differential scanning calorimetry was conducted with a Linseis DSC-PT10 in closed aluminum pans, equipped with a hole (Ø 0.1 mm) for gas release, and a heating rate of 5 °C min⁻¹.

Crystal structures were determined by single crystal X-ray diffraction on an Oxford Diffraction Xcalibur 3 diffractometer with a Sapphire CCD detector, four circle kappa platform, Enhance molybdenum K_α radiation source (λ = 71.073 pm) and Oxford Cryosystems Cryostream cooling unit. Data collection and reduction were performed with CrysAlisPro [9]. The structures were solved with SIR97 [10], refined with SHELXL-97 [11] and checked with PLATON [12], all integrated in the WinGX software suite [13]. The finalized CIF files [14] were checked with checkCIF [15]. Intra- and intermolecular contacts were analyzed with Mercury [16], graph set patterns [17,18] with RPluto [19]. Illustrations of molecular structures were drawn with Diamond [20].

The sensitivities against impact (IS) and friction (FS) were determined according to BAM [21] standards using a BAM drop hammer and a BAM friction apparatus [22,23,24,25,26]. The compounds were classified in compliance with UN guidelines [27]. The sensitivities against electrostatic discharge (ESD) were determined using an OZM Research ESD 2010 EN.

CAUTION! Most compounds prepared herein are energetic compounds sensitive to impact, friction and electric discharge. Therefore proper protective measures (ear protection, Kevlar^® gloves, face shield, body armor and earthed equipment) should be used, especially when handling the primary explosive 2.

3.1. 5-Azido-3-nitro-1H-1,2,4-triazole (1)

Sodium nitrite (379 mg, 5.50 mmol) was added to a stirred suspension of ANTA (645 mg, 5.00 mmol) in sulfuric acid (25%, 30 mL) at 0–5 °C in small portions and the resulting yellow solution was stirred for 1 h at room temperature. After the addition of a small portion of urea, sodium azide (390 mg, 6.00 mmol) was added in small portions, followed by stirring for further 30 min. The reaction mixture was extracted with ethyl acetate (3 × 20 mL) and the combined organic phases were dried over magnesium sulfate, then evaporated to dryness at reduced pressure. The residue was stirred in n-pentane overnight, then filtered and washed with n-pentane to yield a pale colorless powder (685 mg, 4.42 mmol, 88%).

DSC (5 °C min⁻¹): T_m = 117 °C, T_d = 174 °C; ¹H NMR (CD₃CN): δ = 10.74 (br) ppm; ¹H NMR (DMSO-d₆): δ = 9.73 (br) ppm; ¹³C{¹H} NMR (DMSO-d₆): δ = 160.3 (C–NO₂), 151.8 (C–N₃) ppm; ¹⁴N NMR (DMSO-d₆): δ = −22 (NO₂), −141 (N_β) ppm; ¹⁵N NMR (DMSO-d₆): δ = −20.9 (NO₂), −91.6 (C=N–NH), −137.0 (N_γ), −139.9 (N_β), −154.0 (C–N=C), −172.7 (N–NH–C), −285.9 (N_α) ppm; IR (ATR): ν = 3198 (m), 2367 (w), 2219 (w), 2148 (s), 1670 (w), 1630 (w), 1569 (m), 1525 (vs), 1489 (vs), 1443 (s), 1417 (s), 1378 (s), 1294 (s), 1187 (vs), 1165 (s), 1053 (m), 1035 (s), 1010 (m), 843 (vs), 787 (vs), 766 (s), 706 (vs) cm⁻¹; Raman: ν = 2159 (9), 1543 (16), 1492 (100), 1422 (17), 1384 (25), 1369 (9), 1320 (6), 1299 (10), 1169 (17), 1037 (14), 1012 (5) cm⁻¹; MS (DEI+): m/z = 155.1 ([M⁺]); EA (C₂HN₇O₂): C 16.12 (15.49), H 0.80 (0.65), N 61.96 (63.23) %; Sensitivities (<100 µm): IS 5 J, FS 42 N, ESD 50 mJ.

3.2. 5-Azido-1-methyl-3-nitro-1,2,4-triazole (2)

Dimethyl sulfate (1.26 g, 10.0 mmol) was added dropwise to a solution of 1 (1.55 g, 10.0 mmol) and sodium hydroxide (800 mg, 20.0 mmol) in water (10 mL). The reaction mixture was then stirred overnight at 105 °C. The precipitate obtained after cooling to room temperature was filtered off, washed with a small amount of water and dried in air to yield fine colorless needles suitable for X-ray diffraction (270 mg, 1.60 mmol, 16%).

DSC (5 °C min⁻¹): T_m = 122 °C, T_d = 161 °C; ¹H NMR (DMSO-d₆): δ = 3.74 (s) ppm; ¹³C{¹H} NMR (DMSO-d₆): δ = 158.7 (C–NO₂), 150.3 (C–N₃), 35.4 (CH₃) ppm; ¹⁴N NMR (DMSO-d₆): δ = −23 (NO₂), −142 (N_β) ppm; IR (ATR): ν = 2394 (w), 2294 (w), 2166 (s), 1551 (s), 1502 (vs), 1449 (s), 1398 (s), 1311 (vs), 1266 (s), 1252 (vs), 1044 (m), 1020 (m), 875 (s), 811 (s), 708 (s), 683 (s), 642 (m) cm⁻¹; Raman: ν = 2960 (28), 2160 (11), 1551 (12), 1535 (52), 1499 (54), 1453 (39), 1398 (100), 1303 (32), 1271 (13), 1253 (28), 1046 (24), 1023 (12), 769 (6), 683 (13) cm⁻¹; MS (DEI+): m/z = 169.0 ([M⁺]); EA (C₃H₃N₇O₂): C 21.58 (21.31), H 1.80 (1.79), N 56.59 (57.98) %; Sensitivities (100–500 µm): IS 40 J, FS 288 N, ESD 200 mJ.

3.3. Potassium 5-Azido-3-nitro-1,2,4-triazolate (3)

Potassium carbonate (138 mg, 1.00 mmol) and 1 (341 mg, 2.20 mmol) were refluxed in ethanol (40 mL) for 30 min, then filtered to remove undissolved solids. The solvent was then removed under reduced pressure and the residue was stirred in diethyl ether, then filtered off and washed with diethyl ether to yield a yellow powder (317 mg, 1.64 mmol, 82%).

DSC (5 °C min⁻¹): T_d = 175 °C; ¹³C{¹H} NMR (DMSO-d₆): δ = 163.9 (C–NO₂), 156.2 (C–N3) ppm; ¹⁴N NMR (DMSO-d₆): δ = −12 (NO₂), −134 (N_β) ppm; ¹⁵N NMR (DMSO-d₆): δ = −12.4 (NO₂), −48.5 (ring N–N), −67.2 (ring N–N), −130.4 (N_β), −140.4 (N_γ), −152.8 (C–N=C), −288.5 (N_α) ppm; IR (ATR): ν = 2444 (w), 2243 (w), 2142 (s), 1531 (s), 1478 (m), 1441 (vs), 1386 (s), 1324 (vs), 1286 (m), 1226 (m), 1084 (s), 1054 (w), 1018 (w), 843 (m), 796 (w), 731 (m), 656 (m) cm⁻¹; Raman: ν = 2153 (4), 1457 (11), 1445 (28), 1387 (44), 1323 (72), 1083 (100), 1019 (5) cm⁻¹; MS (FAB+): m/z = 38.9 ([K⁺]); MS (FAB−): m/z = 153.9 ([M⁻]); EA (C₂KN₇O₂): C 12.59 (12.44), N 48.84 (50.76) %; Sensitivities (<100 µm): IS 1 J, FS 5 N, ESD 15 mJ.

4. Conclusions

The thermally stable azidotriazole 5-azido-3-nitro-1H-1,2,4-triazole (1) was prepared by diazotation and subsequent reaction with sodium azide from 3-amino-5-nitro-1H-1,2,4-triazole (ANTA) in high yield and purity. Methylation with dimethyl sulfate yielded 5-azido-1-methyl-3-nitro-1,2,4-triazole (2). Reaction of the neutral compound with potassium carbonate led to the formation of potassium 5-azido-3-nitro-1,2,4-triazolate (3), which is a very sensitive primary explosive detonating in the flame. Deprotonation of the triazole ring practically does not result in a change of the decomposition temperature, in contrast to other azidotriazoles like 3,5-diazido-1H-1,2,4-triazole [28].
