Charge-Assisted Hydrogen-Bonded Networks of NH4+ and [Co(NH3)6]3+ with the New Linker Anion of 4-Phosphono-Biphenyl-4′-Carboxylic Acid

by
Christian Heering
,
Bahareh Nateghi
and
Christoph Janiak
*
Institut für Anorganische Chemie und Strukturchemie, Universitätsstraße 1, 40225 Düsseldorf, Germany
*
Author to whom correspondence should be addressed.
Crystals 2016, 6(3), 22; https://doi.org/10.3390/cryst6030022
Submission received: 30 January 2016 / Revised: 19 February 2016 / Accepted: 22 February 2016 / Published: 24 February 2016
(This article belongs to the Special Issue Analysis of Hydrogen Bonds in Crystals)
Browse Figures
Versions Notes

Abstract

:
The new linker molecule 4-phosphono-biphenyl-4′-carboxylic acid (H2O3P-(C6H4)2-COOH, H3BPPA) has been structurally elucidated in hydrogen-bonded networks with the ammonium cation NH4(H2BPPA)(H3BPPA) (1) and the hexaamminecobalt(III) cation [Co(NH3)6](BPPA)·4H2O (2). The protic O-H and N-H hydrogen atoms were found and refined in the low-temperature single-crystal X-ray structures. The hydrogen bonds in both structures are so-called charge-assisted; that is, the H-bond donor and/or acceptor carry positive and/or negative ionic charges, respectively. The H-bonded network in 1 consists of one formally mono-deprotonated 4-phosphonato-biphenyl-4′-carboxylic acid group; that is, a H2BPPA− anion and a neutral H3BPPA molecule, which together form a 3D hydrogen-bonded network. However, an almost symmetric resonance-assisted hydrogen bond (RAHB) bond [O···H = 1.17 (3) and 1.26 (3) Å, O···H···O = 180 (3)°] signals charge delocalization between the formal H2BPPA− anion and the formally neutral H3BPPA molecule. Hence, the anion in 1 is better formulated as [H2BPPA···H···H2BPPA]−. In the H-bonded network of 2 the 4-phosphonato-biphenyl-4′-carboxylic acid is triply deprotonated, BPPA3−. The [Co(NH3)6]3+ cation is embedded between H-bond acceptor groups, –COO− and –PO3− and H2O molecules. The incorporation of sixteen H2O molecules per unit cell makes 2 an analogue of the well-studied guanidinium sulfonate frameworks.

Graphical Abstract

1. Introduction

The organophosphonic acid function, which has a pKa1 of 2.0 for the first and a pKa2 of 6.59 for the second proton, is capable of forming strong metal-to-ligand coordinative bonds in thermodynamically stable complexes with high stability constants [1]. Metal organophosphonate compounds are multifunctional organic-inorganic hybrid materials and as open frameworks can be regarded in between zeolite-like [1,2] and metal-organic framework materials [3,4], whereas phosphonate metal-organic frameworks (MOFs) are considerably rarer than MOFs with carboxylate linkers, with phosphonates forming stronger bonds to metals than carboxylate groups [3]. Metal organophosphonates are stable in water or aqueous environment [5]. The use of metal phosphonates in catalysis, luminescence [6], ion or proton exchange or conductivity [7,8] and in separation is discussed and investigated [9]. Further, cobalt and iron organophosphonates are investigated for their magnetic properties [10,11,12,13]. Metal phosphonates are also promising porous materials [14,15], and can be reversibly hydrated and dehydrated [16].
Organophosphonates can contain additional functional groups such as carboxylate, hydroxyl or amino in the organo-moiety which presents a tunable functionality with a wide variety of structural motifs and properties [1,3,17]. Carboxy-phosphonates (Scheme 1) can be seen as intermediates between pure carboxylates and pure phosphonates, sharing synergies of both ligand classes. Carboxy-phosphonates can form porous or 3D metal-ligand networks [18,19,20]. Weng et al. described a 3D zinc carboxy-phosphonate, ZnPC-2, as a material for CO2 adsorption [21].
Various metal complexes have been synthesized with a ligand from deprotonated 4-phosphono-benzoic acid, including the metals barium [22], cobalt [23], copper [23], europium [24], lead [20], lithium [25], silver [26], strontium [27], thorium [28], titanium [29], uranium [28] and zinc [30,31]. However, the extended biphenyl-based variant 4-phosphono-biphenyl-4’-carboxylic acid (H3BPPA) was unknown so far (Scheme 1).
Herein, we present the new linker 4-phosphono-biphenyl-4’-carboxylic acid, H3BPPA, and its deprotonated structure in hydrogen-bonded networks with NH4+ and [Co(NH3)6]3+ cations.

2. Results and Discussion

4-Phosphono-biphenyl-4’-carboxylic acid H3BPPA has been synthesized, following a known procedure by Merkushev et al. from 4-biphenyl carboxylic acid through the intermediates 4’-iodo-biphenyl-4-carboxylic acid [32] and its methyl ester, followed by the nickel(II)-catalyzed conversion to a phosphonate ester, which after hydrolysis gave H3BPPA (Scheme 2).
Neutralization of H3BPPA with one equivalent of ammonium acetate yielded colorless crystals of formula NH4(HO3P-(C6H4)2-COOH)(H2O3P-C6H4-C6H4-COOH) (1). The ammonium monohydrogenphosphonato-biphenyl-carboxylic acid crystallized with one molecule of the free H3BPPA acid. The best results were obtained using a 1:1 ratio, though less ammonium acetate also led to product formation of lower quality. When the neutralization of H3BPPA was carried out with excess conc. aqueous NH3 instead of stoichiometric ammonium acetate, the same product, 1, was formed, albeit of lower purity. Importantly, no complete or even twofold deprotonation of H3BPPA was achieved in that way.
The asymmetric unit of 1 consists of the ammonium-cation, and formally a H2BPPA− anion and a neutral H3BPPA molecule (see below) (Figure 1a). The H2BPPA− anion is derived by mono-deprotonation of the phosphonic acid group. The protic O–H and N–H hydrogen atoms were found and refined with Ueq = 1.5 Ueq(O,N). The three building blocks form a three-dimensional (3D) hydrogen bonded network.
The carboxylic acid groups are oriented towards each other with the typical tail-to-tail arrangement, also known as R 2 2 ( 8 ) -motif in the Etter-notation (Figure 1b) [33].
The biphenyl systems of the BPPA molecules are in nearly planar geometry with 0.31 (14) and 2.79 (14)° for the dihedral angles between the aryl ring planes, and 1.7 (2)° and 3.3 (2)° for the dihedral angle between −COOH and its aryl ring in the P1 and P2 molecule, respectively. The shape of the thermal ellipsoids of the carboxyl oxygen atoms O1, O2, O6, and O7 is indicative of some rotational movement (vibration) around the (carboxyl)C–C(aryl) bond (yet, no split refinement was suggested by SHELX from the principal mean square atomic displacements). Despite the presence of the biphenyl π-systems in 1, there are no π-π interactions [34] and only few intermolecular C–H···π [35] are evident. The angle is 57° for the plane formed by one biphenyl system to its neighbor.
The ammonium cation engages all of its four (found and refined) N–H bonds in the hydrogen network to four different phosphono groups. The ammonium cations and phosphono groups form hydrogen-bonded layers parallel to the ab-plane, separated by the biphenyl-carboxylic acid parts (Figure 1c). Ammonium benzenephosphonate, NH4(HO3PC6H5) [36], consists of a layered structure due to hydrogen bonds, with a similar motif to that of 1.
Noteworthy, the H-bond O9–H9···O5 refined to an almost symmetric O9···H9···O5 hydrogen bridge with very similar distances of the H atom to both oxygen neighbors (1.17 (3) and 1.26 (3) Å) and a 180 (3)° O–H···O bond angle. This symmetric resonance-assisted hydrogen bond (RAHB) [37,38,39,40,41] O···H···O signals charge delocalization between the formal H2BPPA− anion (of P2) and the formally neutral H3BPPA molecule (of P1). Hence, the anion is better formulated as [H2BPPA···H···H2BPPA]−.
The interpretation of delocalized anion charge over the two phosphono groups is in agreement with the P–O bond lengths (Scheme 2). In each phosphonato group, there is a longer P–O bond of ~1.56 Å and two shorter P–O bonds between 1.50–1.52 Å. The P–O(H) bonds are 1.5583 (19) Å and 1.5553 (19) Å. One cannot clearly distinguish between a formally P=O double bond and a formally deprotonated P–O− bond. The P–O bond lengths of the symmetric O9···H9···O5 hydrogen bridge are only slightly longer (~1.52 Å) then what should be P=O double bonds (~1.50 Å). The negative charge is delocalized over the P–O− and P=O bonds, giving both of them a partial double bond character with P–O bond lengths between 1.50–1.52 Å (Scheme 3).
Thermogravimetric analysis (TGA) of 1 shows a first a mass loss of ~4% up to 240 °C (Figure 2), which can be assigned to one molecule of ammonia (~3%), which is in agreement with literature values [42]. In a second step decarboxylation of one mol CO2 (44 g/mol) leads to a mass loss of ~8%. With a third step of ~24% rapid dephosphonation of one mol PO(OH)2 and final decarboxylation of another mol CO2 takes place, which is followed by steady decomposition up to 700 °C.
The hydrated salt [Co(NH3)6](O3P-(C6H4)2-COO)·4H2O, 2 could be crystallized from an aqueous ammonia solution 4-phosphono-biphenyl-4’-carboxylic acid. In a similar approach, 4-phosphono benzoic acid was crystallized with hexaaquacobalt(II) [43], and sulfonate ligands were crystallized with [Co(NH3)6]3+ cations, resulting in hydrogen-bonded networks [44].
In the asymmetric unit of 2 there is one trivalent hexaamminecobalt cation, one completely deprotonated BPPA3− trianion and four water molecules (Figure 3a). The coordination sphere of Co3+ with six crystallographically different ammine ligands results in the well-known [Co(NH3)6]3+ octahedron [45]. Despite its high symmetry, the Co(NH3)6]3+ octahedron does not reside on a special position. The Co-N distances (Table 3) are comparable with that of [Co(NH3)6]3+ in related complexes (Co-N = 1.951 (2) − 1.976 (2) Å, av. 1.956 (2) Å) [43,44,46].
Again, the hydrophilic groups, [Co(NH3)6]3+, –COO−, and –PO32−, and the crystal water molecules are arranged in slabs (parallel to the ac plane) with slabs of the hydrophobic biphenyl part in-between (Figure 3b,c). Such a separation of hydrophilic and hydrophobic parts of molecules is a common packing motif [47,48,49]. Here the hydrophilic region is organized by hydrogen bonding, the biphenyl rings are arranged by singular N–H···π, O–H···π, C–H···π or van-der-Waals interactions (see Supplementary Information). The dihedral angles within the biphenyl-carboxylate are 26.8 (4)° (ring to ring) and 42.0 (4)° (–CCOO− to aryl ring).
The BPPA3− anions and the [Co(NH3)6] octahedra are connected to each other by hydrogen bonding (Table 4, Figure 4). The fully deprotonated phosphonate-carboxylate is solely an H-acceptor for the N–H and water O–H bonds. The carboxylate group is acceptor to O–H from water molecules. The four water molecules are held by hydrogen bonding from N–H and O–H-donors and –COO− and −P(O)2O2− acceptors.
Finally, we note that in both structures, 1 and 2, the H-bonds to the phosphonato groups are so-called charge-assisted hydrogen bonds. The hydrogen bond donor and/or acceptor carry positive and negative ionic charges, respectively, hence are usually stronger and shorter than neutral H-bonds [12,46,47,50,51,52,53,54]. In 1 these are bonds NH4(+)···(−)O-P and NH4(+)···(H)O-P, -P-OH···(−)O-P (Figure 1c). In 2 these are bonds Co-NH3(+)···(−)O-P and HOH···(−)O-P (Figure 4).
The large number of hydrogen-bonds in 2 results in a thermal stability that is higher than that of other supramolecular complexes of [Co(NH3)6]3+ [55,56]. The thermal stability of BPPA3− is reflected by the TGA measurement (Figure 5). The mass loss in 2 up to (~17%) is due to the evaporation of the four water molecules together with one ammine ligand (17.5%). The next five ammine ligands are removed along with decarboxylation of BPPA in the range from 220 °C to 500 °C, followed by decomposition of the biphenyl system (~42% in total). The remaining mass of ~40% can be assigned to cobalt phosphonate species (~35%). It has been observed that metal phosphonates are stable up to 650 °C and higher [57].
Comparison of the experimental powder X-ray diffractogram for 2 with the simulation from the single-crystal X-ray dataset (Figure 6) shows that the investigated single crystal was representative of the bulk amount when one takes into account the preferential orientation of the column- or rod-shaped crystals of 2 (Figure S1 in Supplementary Material) on the flat sample holder. Due to the preferred orientation of the rod-shaped crystals on the flat sample holder during the powder X-ray diffraction (PXRD) measurement, and their small quantity, some reflections were not present in the experimental diffraction pattern or their intensity was strongly changed. Such a behavior is discussed in detail in the literature [58,59,60].

3. Materials and Methods

The chemicals used were obtained from commercial sources. No further purification has been carried out. The ligand has been synthesized starting from 4-biphenyl carboxylic acid in a four-step-synthesis. CHN analysis was performed with a Perkin Elmer CHN 2400. IR-spectra were recorded on a Bruker Tensor 37 IR spectrometer with ATR unit. Thermogravimetric analysis (TGA) was done with a Netzsch TG 209 F3 Tarsus in the range from 20 to 700 °C, equipped with Al-crucible and applying a heating rate of 10 K·min−1. The melting point was determined using a Büchi Melting Point apparatus B540. For powder X-ray diffraction patterns (PXRD), a Bruker D2 Phaser powder diffractometer was used with a flat silicon, low background sample holder, at 30 kV, 10 mA for Cu-Kα radiation (λ = 1.5418 Å), with a scan speed of 0.2 s/step and a step size of 0.02° (2θ). Diffractograms were obtained on flat layer sample holders with a beam scattering protection blade installed, which led to the low relative intensities measured at 2θ < 7°. Details of the synthesis of 4-phosphono-biphenyl-4′-carboxylic acid (H2O3P-(C6H4)2-COOH, H3BPPA) will be given elsewhere [62].
NH4(HO3P-(C6H4)2-COOH)(H2O3P-(C6H4)2-COOH): In a Teflon-lined stainless steel reactor 30 mg (0.108 mmol) of H3BPPA and 8.3 mg (0.108 mmol) of ammonium acetate, NH4(CH3COO), were suspended in 2 mL of doubly de-ionized water. Heating at 180 °C for 24 h and cooling to room temperature within 12 h led to formation of colorless crystals (Figure S1a in Supplementary Information). Yield: 29 mg (91% based on BPPA). Mp > 350 °C. Calc. for C26H25NO10P2 (573.43 g·mol−1): C, 54.46; H, 4.39; N, 2.44%. Found: C, 53.93; H, 4.36; N, 2.02%. FT-IR (ATR) ν/cm−1 = 3810 (w), 3196 (w, b) 2999 (w, b), 2859 (w, b), 1672 (m), 1605 (m), 1569 (w), 1446 (m), 1248 (m), 1126 (vs), 1029 (vs), 921 (vs), 824 (vs), 763 (vs), 704 (m), 576 (s), 560 (s) (Figure S2 in Supplementary Material).
[Co(NH3)6](O3P-(C6H4)2-COO)·4H2O: In a glass vial 9.6 mg (0.036 mmol) of [Co(NH3)6]Cl3 and 10 mg (0.036 mmol) of 4-phosphono-biphenyl-4′-carboxylic acid were dissolved in 1.5 mL of 25% aqueous ammonia. The vial was sealed and the crystals were allowed to grow for a period of days at room temperature. After several days deep orange column-shaped crystals had grown (Figure S1b in Supplementary Material). Yield: 17 mg (91%). Mp > 350 °C. Calc. for C13H33CoN6O9P (507.34 g·mol−1): C, 30.78; H, 6.56; N, 16.57%. Found: C, 30.92; H, 6.33; N, 17.12%. FT-IR (ATR) ν/cm−1 = 3466 (w, b), 3132 (m, b), 3051 (m, b), 2852 (w, b), 1586 (m), 1554 (m), 1528 (m), 1388 (s), 1228 (w), 1138 (m), 1100 (s), 873 (vs), 835 (m), 786 (m), 701 (m), 579 (vs) (Figure S3 in Supplementary Material).

Single Crystal X-ray Structures

Suitable crystals were carefully selected under a polarizing microscope, covered in protective oil and mounted on a 0.05 mm cryo loop. Data collection. Bruker Kappa APEX2 CCD X-ray diffractometer with microfocus tube, Mo-Kα radiation (λ = 0.71073 Å), multi-layer mirror system, ω- and θ-scans; data collection with APEX2, cell refinement and data reduction with SAINT [63], experimental absorption correction with SADABS [64]. Structure analysis and refinement: All structures were solved by direct methods using SHELXL2014; refinement of 1 was done by full-matrix least squares on F2 using the SHELX-97 program suite [65], of 2 with OLEX 2 [66,67]. Non-hydrogen atoms were refined with anisotropic displacement parameters. Hydrogen atoms were positioned geometrically (C–H = 0.95 Å) and refined using riding models (AFIX 43 for aromatic CH with C–H = 0.93 Å and Uiso(H) = 1.2Ueq(C). In 1 the protic hydrogen atoms (O–H, N–H) were found and freely refined with Uiso(H) = 1.5Ueq (NH and OH).
In 2, NH3 hydrogen atoms were found and freely refined. Water hydrogen atoms were also found and refined, except for O6, where they were positioned geometrically (O–H = 0.870 Å) and refined using a riding model (AFIX 6) with Uiso(H) = 1.5Ueq(O).
Crystal data and details on the structure refinement are given in Table 5. Graphics were drawn with DIAMOND [68]. Analyses on the supramolecular C–H···O, C–H···π and π-π-stacking interactions were done with PLATON for Windows [69]. CCDC 1450889 and 1450890 contain the supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html.

4. Conclusions

We investigated the hydrogen-bonding potential of the new organo-phosphonate linker, H3BPPA, in its (partially) deprotonated forms H2BPPA− and BPPA3−. As expected, the protonated phosphonic acid and deprotonated phosphonate group enters into H-bonds with all of its P–O–H donors and P–O− acceptors. Remarkably and unexpectedly, an almost symmetric resonance-assisted hydrogen bond (RAHB) bond was found between the formal H2BPPA− anion and the formally neutral H3BPPA molecule in 1 to give the overall anion [H2BPPA···H···H2BPPA]−.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4352/6/3/22/s001. Figure S1: Photographs of crystals of (a) NH4(HO3P-(C6H4)2-COOH)(H2O3P-(C6H4)2-COOH), 1 and (b) [Co(NH3)6](O3P-(C6H4)2-COO)·4H2O, 2 taken with a light microscope; Figure S2: FT-IR (ATR) spectrum of NH4(HO3P-(C6H4)2-COOH)(H2O3P-(C6H4)2-COOH), 1; Figure S3: FT-IR (ATR) spectrum of [Co(NH3)6](O3P-(C6H4)2-COO)·4H2O, 2. Figure S4: Comparison of the experimental PXRD pattern of 1 (black) with the simulated pattern from the X-ray data (red). Packing analyses.

Acknowledgments

The work was supported by the German Science Foundation (DFG) through grant Ja466/25-1.

Author Contributions

Christian Heering designed the experiments, synthesized the ligand and compound 2. Bahareh Nateghi carried out the reaction leading to 1. Data analysis and measurements were performed by Christian Heering, while Christoph Janiak and Christian Heering wrote the manuscript.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Clearfield, A.; Demadis, K. Metal Phosphonate Chemistry: From Synthesis to Applications; Royal Society of Chemistry: Oxford, UK, 2012; pp. 45–128. [Google Scholar]
  2. Deng, M.; Liu, X.; Zheng, Q.; Chen, Z.; Fang, C.; Yue, B.; He, H. Controllable preparation and structures of two zinc phosphonocarboxylate frameworks with MER and RHO zeolitic topologies. CrystEngComm 2013, 15, 7056–7061. [Google Scholar] [CrossRef]
  3. Gagnon, K.J.; Perry, H.P.; Clearfield, A. Conventional and unconventional metal-organic frameworks based on phosphonate ligands: MOFs and UMOFs. Chem. Rev. 2012, 112, 1034–1054. [Google Scholar] [CrossRef] [PubMed]
  4. Janiak, C. Engineering coordination polymers towards applications. Dalton Trans. 2003, 2781–2804. [Google Scholar] [CrossRef]
  5. Taylor, J.M.; Vaidhyanathan, R.; Iremonger, S.S.; Shimizu, G.K.H. Enhancing water stability of metal-organic frameworks via phosphonate monoester linkers. J. Am. Chem. Soc. 2012, 134, 14338–14340. [Google Scholar] [CrossRef] [PubMed]
  6. Patterson, A.R.; Schmitt, W.; Evans, R.C. Lighting-Up Two-dimensional lanthanide phosphonates: Tunable structure-property relationships towards visible and near-infrared emitters. J. Phys. Chem. C 2014, 118, 10291–10301. [Google Scholar] [CrossRef]
  7. Jiménez-García, L.; Kaltbeitzel, A.; Pisula, W.; Gutmann, J.S.; Klapper, M.; Müllen, K. Phosphonated hexaphenylbenzene: A crystalline proton conductor. Angew. Chem. Int. Ed. 2009, 48, 9951–9953. [Google Scholar] [CrossRef] [PubMed]
  8. Corma, A.; García, H.; Llabrés i Xamena, F.X. Engineering metal organic frameworks for heterogeneous catalysis. Chem. Rev. 2010, 110, 4606–4655. [Google Scholar] [CrossRef] [PubMed]
  9. Shimizu, G.K.H.; Vaidhyanathan, R.; Taylor, J.M. Phosphonate and sulfonate metal organic frameworks. Chem. Soc. Rev. 2009, 38, 1430–1449. [Google Scholar] [CrossRef] [PubMed]
  10. Rojo, T.; Mesa, J.L.; Lago, J.; Bazan, B.; Pizarro, J.L.; Arriortua, M.I. Organically templated open-framework phosphite. J. Mater. Chem. 2009, 19, 3793–3818. [Google Scholar] [CrossRef]
  11. Hou, S.-Z.; Cao, D.-K.; Liu, X.-G.; Li, Y.-Z.; Zheng, L.-M. Metal phosphonates based on (4-carboxypiperidyl)-N-methylene-phosphonate: In situ ligand cleavage and metamagnetism in Co3(O3PCH2-NHC5H9-COO)2(O3PCH2-NC5H10)(H2O). Dalton Trans. 2009, 15, 2746–2750. [Google Scholar] [CrossRef] [PubMed]
  12. Habib, H.A.; Gil-Hernández, B.; Abu-Shandi, K.; Sanchiz, J.; Janiak, C. Iron, copper and zinc ammonium-1-hydroxyalkylidene-diphosphonates with zero-, one- and two-dimensional covalent metal-ligand structures extended into three-dimensional supramolecular networks by charge-assisted hydrogen-bonding. Polyhedron 2010, 29, 2537–2545. [Google Scholar] [CrossRef]
  13. Abu-Shandi, K.; Winkler, H.; Janiak, C. Structure and mössbauer study of the first mixed-valence iron diphosphonate. Z. Anorg. Allg. Chem. 2006, 632, 629–633. [Google Scholar] [CrossRef]
  14. Zhao, X.; Bell, J.G.; Tang, S.-F.; Li, L.; Thomas, K.M. Kinetic molecular sieving, thermodynamic and structural aspects of gas/vapor sorption on metal organic framework [Ni1.5(4,4′-bipyridine)1.5(H3L)-(H2O)3][H2O]7 where H6L = 2,4,6-trimethylbenzene-1,3,5-triyl tris(methylene)triphosphonic acid. J. Mater. Chem. A 2016, 4, 1353–1365. [Google Scholar] [CrossRef]
  15. Zhai, F.; Zheng, Q.; Chen, Z.; Ling, Y.; Liu, X.; Weng, L.; Zhou, Y. Crystal transformation synthesis of a highly stable phosphonate MOF for selective adsorption of CO2. CrystEngComm 2013, 15, 2040–2043. [Google Scholar] [CrossRef]
  16. Kinnibrugh, T.L.; Ayi, A.A.; Bakhmutov, V.I.; Zon, J.; Clearfield, A. Reversible dehydration behavior reveals coordinatively unsaturated metal sites in microporous aluminum phosphonates. Cryst. Growth Des. 2013, 13, 2973–2981. [Google Scholar] [CrossRef]
  17. Menelaou, M.; Dakanali, M.; Raptopoulou, C.P.; Drouza, C.; Lalioti, N.; Salifoglou, A. pH-Specific synthetic chemistry, and spectroscopic, structural, electrochemical and magnetic susceptibility studies in binary Ni(II)-(carboxy)phosphonate systems. Polyhedron 2009, 28, 3331–3339. [Google Scholar] [CrossRef]
  18. Ling, Y.; Deng, M.; Chen, Z.; Xia, B.; Liu, X.; Yang, Y.; Zhou, Y.; Weng, L. Enhancing CO2 adsorption of a Zn-phosphonocarboxylate framework by pore space partitions. Chem. Commun. 2013, 49, 78–80. [Google Scholar] [CrossRef] [PubMed]
  19. Breeze, B.A.; Shanmugam, M.; Tuna, F.; Winpenny, R.E.P. A series of nickel phosphonate-carboxylate cages. Chem. Commun. 2007, 48, 5185–5187. [Google Scholar] [CrossRef] [PubMed]
  20. Rueff, J.-M.; Perez, O.; Leclaire, A.; Couthon-Gourvès, H.; Jaffrès, P.-A. Lead(II) Hybrid Materials from 3- or 4-Phosphonobenzoic Acid. Eur. J. Inorg. Chem. 2009, 4870–4876. [Google Scholar] [CrossRef]
  21. Liao, T.-B.; Ling, Y.; Chen, Z.-X.; Zhou, Y.-M.; Weng, L.-H. A rutile-type porous zinc(II)-phosphono­carboxylate framework: Local proton transfer and size-selected catalysis. Chem. Commun. 2010, 46, 1100–1102. [Google Scholar] [CrossRef] [PubMed]
  22. Svoboda, J.; Zima, V.; Beneš, L.; Melánová, K.; Trchová, M.; Vlček, M. New barium 4-carboxyphenylphosphonates: Synthesis, characterization and interconversions. Solid State Sci. 2008, 10, 1533–1542. [Google Scholar] [CrossRef]
  23. Pütz, A.-M.; Carrella, L.M.; Rentschler, E. A distorted honeycomb motive in divalent transition metal compounds based on 4-Phosphonbenzoic acid and exchange coupled Co(II) and Cu(II): Synthesis, structural description and magnetic properties. Dalton Trans. 2013, 42, 16194–16199. [Google Scholar] [CrossRef] [PubMed]
  24. Rueff, J.-M.; Barrier, N.; Boudin, S.; Dorcet, V.; Caignaert, V.; Boullay, P.; Hix, G.B.; Jaffrès, P.-A. Remarkable thermal stability of Eu(4-phosphonobenzoate): Structure investigations and luminescence properties. Dalton Trans. 2009, 47, 10614–10620. [Google Scholar] [CrossRef] [PubMed]
  25. Li, J.-T.; Guo, L.-R.; Shen, Y.; Zheng, L.-M. LiF-assisted crystallization of zinc 4-carboxyphenylphosphonates with pillared layered structures. CrystEngComm 2009, 11, 1674–1678. [Google Scholar] [CrossRef]
  26. Rueff, J.-M.; Perez, O.; Caignaert, V.; Hix, G.; Berchel, M.; Quentel, F.; Jaffrès, P.-A. Silver-based hybrid materials from meta- or para-phosphonobenzoic acid: Influence of the topology on silver release in water. Inorg. Chem. 2015, 54, 2152–2159. [Google Scholar] [CrossRef] [PubMed]
  27. Zima, V.; Svoboda, J.; Beneš, L.; Melánová, K.; Trchová, M.; Dybal, J. Synthesis and characterization of new strontium 4-carboxyphenylphosphonates. J. Solid State Chem. 2007, 180, 929–939. [Google Scholar] [CrossRef]
  28. Adelani, P.O.; Albrecht-Schmitt, T.E. Comparison of thorium (IV) and uranium (VI) carboxyphos­phonates. Inorg. Chem. 2010, 49, 5701–5705. [Google Scholar] [CrossRef] [PubMed]
  29. Melánová, K.; Klevcov, J.; Beneš, L.; Svoboda, J.; Zima, V. New layered functionalized titanium (IV) phenylphosphonates. J. Phys. Chem. Solids 2012, 73, 1452–1455. [Google Scholar] [CrossRef]
  30. Li, J.-T.; Cao, D.-K.; Akutagawa, T.; Zheng, L.M. Zn3(4-OOCC6H4PO3)2: A polar metal phosphonate with pillared layered structure showing SHG-activity and large dielectric anisotropy. Dalton Trans. 2010, 39, 8606–8608. [Google Scholar] [CrossRef] [PubMed]
  31. Chen, Z.; Zhou, Y.; Weng, L.; Zhao, D. Mixed-solvothermal syntheses and structures of six new zinc phosphonocarboxylates with zeolite-type and pillar-layered frameworks. Cryst. Growth Des. 2008, 8, 4045–4053. [Google Scholar] [CrossRef]
  32. Merkushev, E.B.; Shvartzberg, M.S. Organoiodine Compounds and Syntheses Based on Them; Tomsk Gos. Pedagogicheskii Institut: Tomsk, Soviet Union, 1982; pp. 2598–2601. [Google Scholar]
  33. Etter, M.C. Encoding and decoding hydrogen-bond patterns of organic compounds. Acc. Chem. Res. 1990, 23, 120–126. [Google Scholar] [CrossRef]
  34. Janiak, C. A critical account on π–π stacking in metal complexes with aromatic nitrogen-containing ligands. J. Chem. Soc. Dalton Trans. 2000, 21, 3885–3896. [Google Scholar] [CrossRef]
  35. Nishio, M. CH/π hydrogen bonds in crystals. CrystEngComm 2004, 6, 130–158. [Google Scholar] [CrossRef]
  36. Lin, Z.; Lei, X.-Q.; Bai, S.-D.; Ng, S.W. Ammonium benzenephosphonate. Acta Crystallogr. Sect. E.—Struct Rep. Online 2008, 64, o1607. [Google Scholar] [CrossRef] [PubMed]
  37. Gilli, G.; Gilli, P. On Noncovalent Interactions in Crystals: Supramolecular Chemistry: From Molecules to Nanomaterials; Steed, J., Gale, P.A., Eds.; Wiley: Chichester, UK, 2012; Volume 6, pp. 2829–2868. [Google Scholar]
  38. Góra, R.W.; Maj, M.; Grabowski, S.J. Resonance-assisted hydrogen bonds revisited. Resonance stabilization vs. charge delocalization. Phys. Chem. Chem. Phys. 2013, 15, 2514–2522. [Google Scholar] [CrossRef] [PubMed]
  39. Sanz, P.; Mó, O.; Yáñez, M.; Elguero, J. Resonance-assisted hydrogen bonds: A critical examination. structure and stability of the enols of β-diketones and β-enaminones. J. Phys. Chem. A 2007, 111, 3585–3591. [Google Scholar] [CrossRef] [PubMed]
  40. Gilli, P.; Bertolasi, V.; Pretto, L.; Ferretti, V.; Gilli, G. Covalent versus electrostatic nature of the strong hydrogen bond: Discrimination among single, double, and asymmetric single-well hydrogen bonds by variable-temperature X-ray crystallographic methods in β-diketone enol RAHB systems. J. Am. Chem. Soc. 2004, 126, 3845–3855. [Google Scholar] [CrossRef] [PubMed]
  41. Gilli, P.; Bertolasi, V.; Ferretti, V.; Gilli, G. Evidence for intramolecular N–H···O resonance-assisted hydrogen bonding in enaminones and related heterodienes. A combined crystal-structural, IR and NMR spectroscopic, and quantum-mechanical investigation. J. Am. Chem. Soc. 2000, 122, 10405–10417. [Google Scholar] [CrossRef]
  42. Feng, C.; Liang, M.; Jiang, J.; Huang, J.; Liu, H. Synergistic effect of a Novel triazine Charring Agent and ammonium polyphosphate on the flame retardant properties of Halogen-Free Flame Retardant Polypropylene composites. Thermochim. Acta 2016. [Google Scholar] [CrossRef]
  43. Wilk, M.; Janczak, J.; Videnova-Adrabinska, V. Hexaaquacobalt(II) bis[hydrogen bis(4-carboxyphenyl-phosphonate)] dihydrate. Acta Crystallogr. Sect. C—Cryst. Struct. Commun. 2011, 67, 9–12. [Google Scholar] [CrossRef] [PubMed]
  44. Wang, X.-Y.; Justice, R.; Sevov, S.C. Hydrogen-bonded metal-complex sulfonate (MCS) inclusion compounds: Effect of the guest molecule on the host framework. Inorg. Chem. 2007, 46, 4626–4631. [Google Scholar] [CrossRef] [PubMed]
  45. Morral, F.R. Alfred werner and cobalt complexes. Adv. Chem. 2009, 6, 70–77. [Google Scholar]
  46. Reddy, D.S.; Duncan, S.; Shimizu, G.K.H. A Family of supramolecular inclusion solids based upon second-sphere interactions. Angew. Chem. Int. Ed. 2003, 42, 1360–1364. [Google Scholar] [CrossRef] [PubMed]
  47. Dorn, T.; Chamayou, A.-C.; Janiak, C. Hydrophilic interior between hydrophobic regions in inverse bilayer structures of cation–1,1′-binaphthalene- 2,2′-diyl phosphate salts. New J. Chem. 2006, 30, 156–167. [Google Scholar] [CrossRef]
  48. Maclaren, J.K.; Sanchiz, J.; Gili, P.; Janiak, C. Hydrophobic-exterior layer structures and magnetic properties of trinuclear copper complexes with chiral amino alcoholate ligands. New J. Chem. 2012, 36, 1596–1609. [Google Scholar] [CrossRef]
  49. Enamullah, M.; Vasylyeva, V.; Janiak, C. Chirality at metal and helical ligand folding in optical isomers of chiral bis(naphthaldiminato)nickel(II) complexes. Inorg. Chim. Acta 2013, 408, 109–119. [Google Scholar] [CrossRef]
  50. Ward, M.D. Design of crystalline molecular networks with charge-assisted hydrogen bonds. Chem. Commun. 2005, 47, 5838–5842. [Google Scholar] [CrossRef] [PubMed]
  51. Gil-Hernández, B.; Maclaren, J.K.; Höppe, H.A.; Pasan, J.; Sanchiz, J.; Janiak, C. Homochiral lanthanoid(III) mesoxalate metal-organic frameworks: Synthesis, crystal growth, chirality, magnetic and luminescent properties. CrystEngComm 2012, 14, 2635–2644. [Google Scholar] [CrossRef]
  52. Maclaren, J.K.; Janiak, C. Amino-acid based coordination polymers. Inorg. Chim. Acta 2012, 389, 183–190. [Google Scholar]
  53. Chamayou, A.-C.; Neelakantan, M.A.; Thalamuthu, S.; Janiak, C. The first vitamin B6 zinc complex, pyridoxinato-zinc acetate: A 1D coordination polymer with polar packing through strong inter-chain hydrogen bonding. Inorg. Chim. Acta 2011, 365, 447–450. [Google Scholar] [CrossRef]
  54. Drašković, B.M.; Bogdanović, G.A.; Neelakantan, M.A.; Chamayou, A.-C.; Thalamuthu, S.; Avadhut, Y.S.; Schmedt auf der Günne, J.; Banerjee, S.; Janiak, C. N-o-Vanillylidene-l-histidine: Experimental charge density analysis of a double zwitterionic amino acid Schiff-base compound. Cryst. Growth Des. 2010, 10, 1665–1676. [Google Scholar] [CrossRef]
  55. Collins, L.W.; Wendlandt, W.W.; Gibson, E.K. The thermal dissociation of the [Co(NH3)5Cl]Cl2 and [Co(NH3)5Br]Br2 complexes in vacuo. Thermochim. Acta 1974, 8, 303–306. [Google Scholar] [CrossRef]
  56. Saito, A. Thermal decomposition of the complexes [Co(NH3)6][Nd(SO4)3]·nH2O. Thermochim. Acta 1986, 102, 373–386. [Google Scholar] [CrossRef]
  57. Dines, M.B.; DiGiacomo, P.M. Derivatized lamellar phosphates and phosphonates of M(IV) ions. Inorg. Chem. 1981, 20, 92–97. [Google Scholar] [CrossRef]
  58. Mittemeijer, E.J.; Welzel, U. Modern Diffraction Methods; Wiley: Weinheim, Germany, 2013. [Google Scholar]
  59. Pecharsky, V.; Zavalij, P. Fundamentals of Powder Diffraction and Structural Characterization of Materials, 2nd ed.; Springer: New York, NY, USA, 2008. [Google Scholar]
  60. Dollase, W.A. Correction of intensities for preferred orientation in powder diffractometry: Application of the March model. J. Appl. Cryst. 1986, 19, 267–272. [Google Scholar] [CrossRef]
  61. Macrae, C.F.; Edgington, P.R.; McCabe, P.; Pidcock, E.; Shields, G.P.; Taylor, R.; Towler, M.; van de Streek, J. Mercury: Visualization and analysis of crystal structures. J. Appl. Cryst. 2006, 39, 453–457. [Google Scholar] [CrossRef]
  62. Heering, C.; Francis, B.; Nateghi, B.; Makhloufi, G.; Janiak, C. Syntheses, structures and properties of group 12 element (Zn, Cd, Hg) coordination polymers with a phosphonate-biphenyl-carboxylate linker. CrystEngComm 2016. (to be submitted). [Google Scholar]
  63. APEX2. SAINT, Data Reduction and Frame Integration Program for the CCD Area-Detector System, Bruker Analytical X-ray Systems; Data Collection program for the CCD Area-Detector System: Madison, WI, USA, 1997–2006. [Google Scholar]
  64. Sheldrick, G. SADABS: Area-Detector Absorption Correction; University of Göttingen: Göttingen, Germany, 1996. [Google Scholar]
  65. Hübschle, C.B.; Sheldrick, G.M.; Dittrich, B. ShelXle: A graphical user interface for SHELXL. J. Appl. Cryst. 2011, 44, 1281–1284. [Google Scholar] [CrossRef] [PubMed]
  66. Bourhis, L.J.; Dolomanov, O.V.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. The anatomy of a comprehensive constrained, restrained refinement program for the modern computing environment—Olex2 dissected. Acta Crystallogr. Sect. A 2015, 71, 59–75. [Google Scholar] [CrossRef] [PubMed]
  67. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Cryst. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  68. Brandenburg, K. DIAMOND, version 3.2; Crystal and Molecular Structure Visualization; Crystal Impact—K. Brandenburg & H. Putz Gbr: Bonn, Germany, 2009. [Google Scholar]
  69. Spek, A.L. Structure validation in chemical crystallography. Acta Crystallogr. Sect. D—Biol. Crystallogr. 2009, 65, 148–155. [Google Scholar] [CrossRef] [PubMed]
Crystals 06 00022 g007 1024

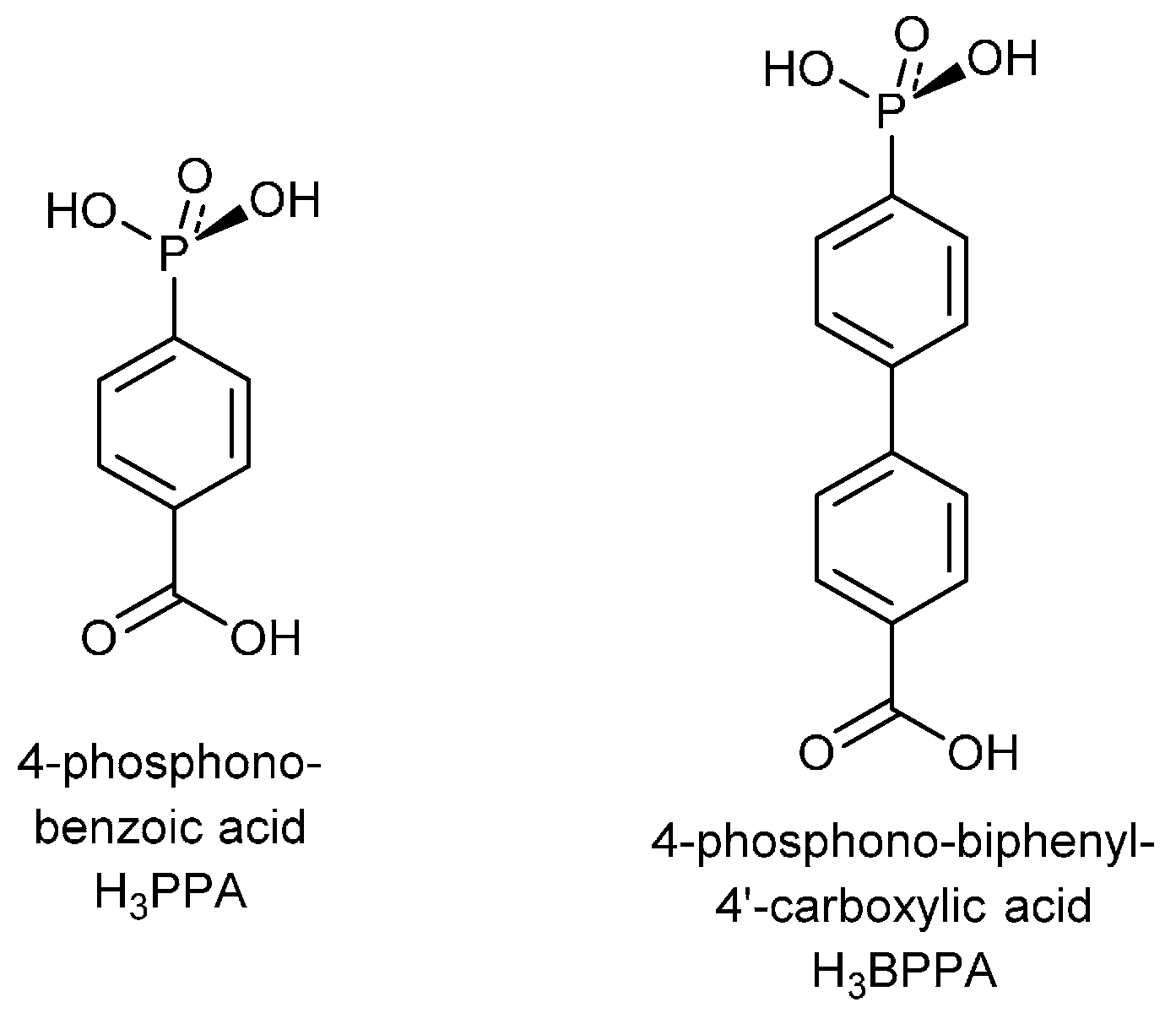

Scheme 1. Examples of phosphono-carboxylic acids.
Scheme 1. Examples of phosphono-carboxylic acids.
Crystals 06 00022 g007
Crystals 06 00022 g008 1024

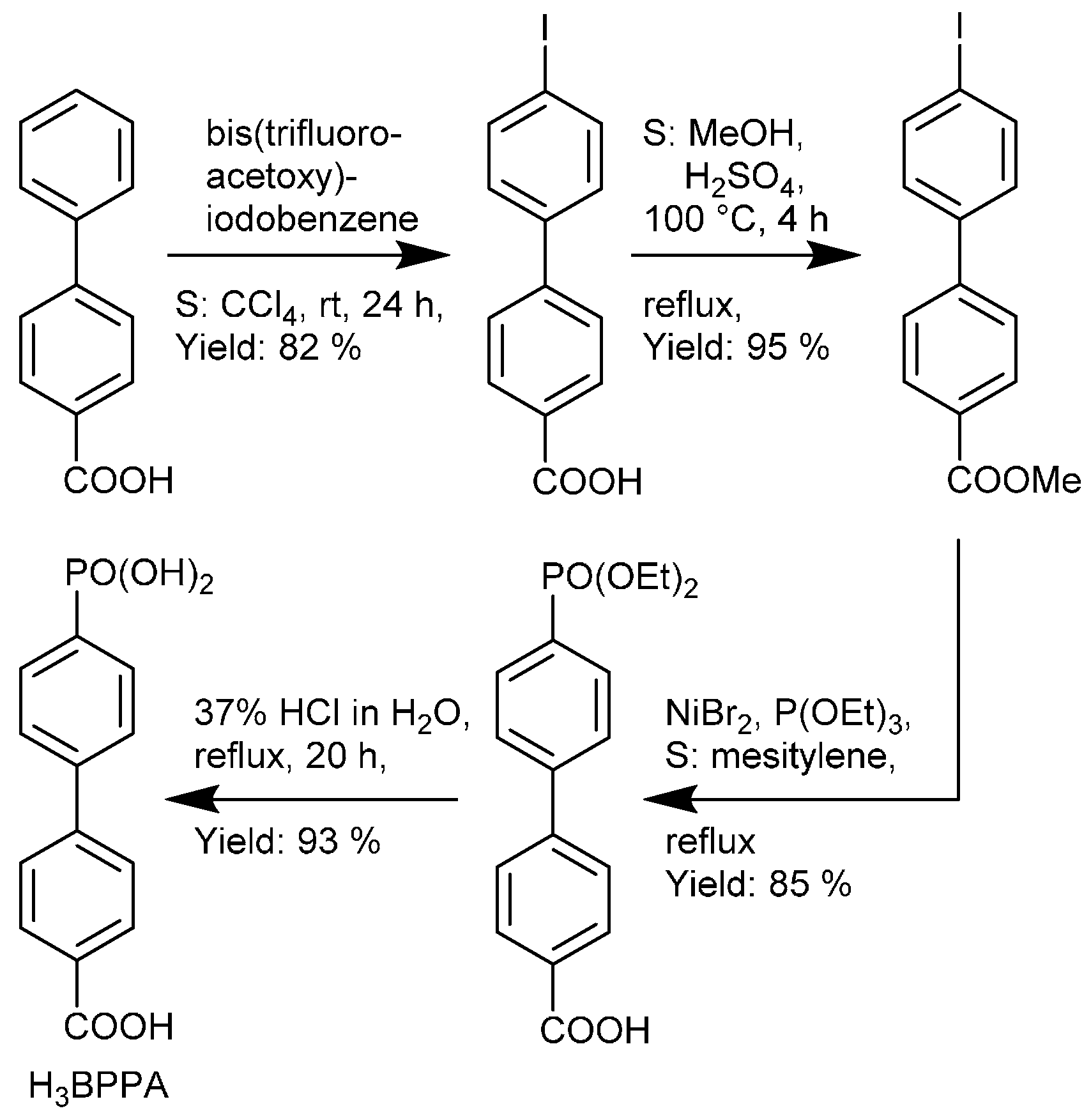

Scheme 2. Reaction sequence for the synthesis of H3BPPA from 4-biphenyl carboxylic acid.
Scheme 2. Reaction sequence for the synthesis of H3BPPA from 4-biphenyl carboxylic acid.
Crystals 06 00022 g008
Crystals 06 00022 g009 1024

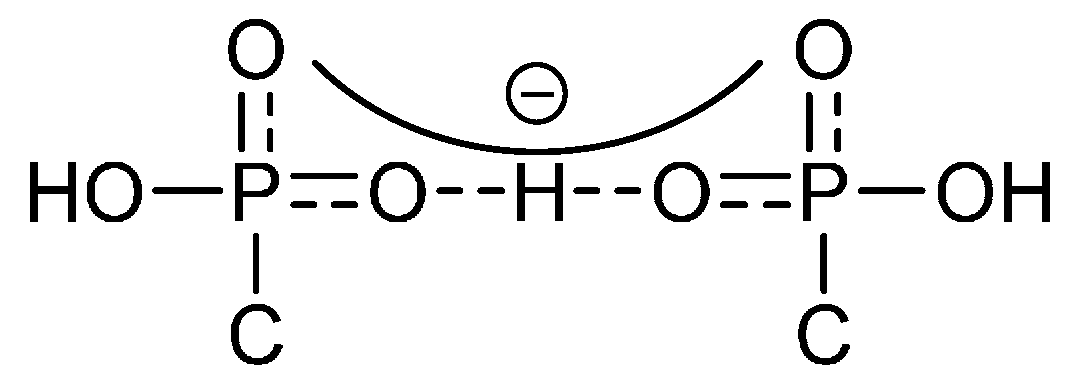

Scheme 3. Lewis valence structure for the bond order and charge-delocalization in the phosphonate groups in 1.
Scheme 3. Lewis valence structure for the bond order and charge-delocalization in the phosphonate groups in 1.
Crystals 06 00022 g009
Crystals 06 00022 g001a 1024Crystals 06 00022 g001b 1024

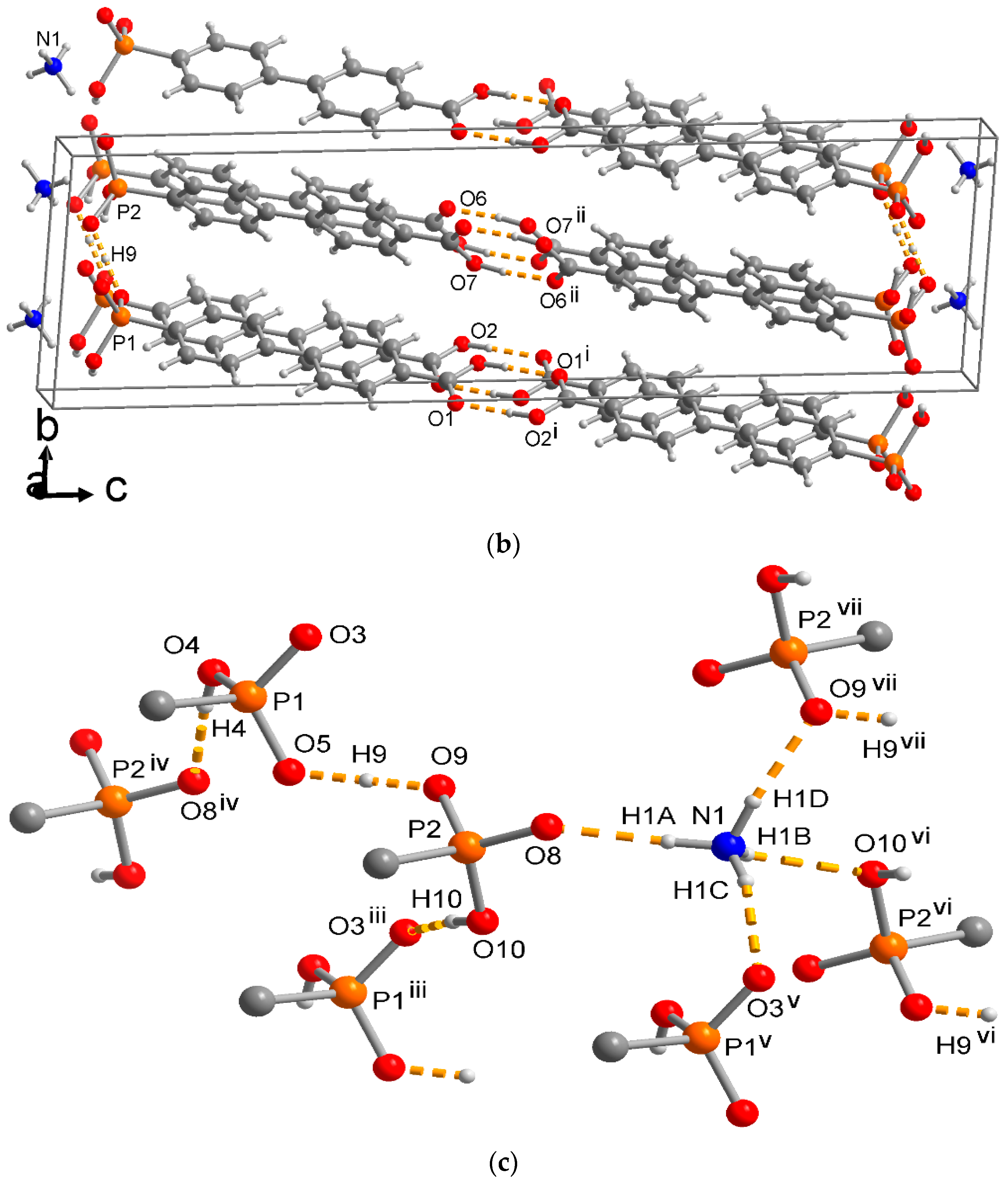

Figure 1. (a) Asymmetric unit of 1 (50% thermal ellipsoids); (b) unit-cell packing diagram with tail-to-tail arrangement of the carboxylic acid groups (showing only the carboxyl and the O9-H-O5 H bonds for clarity); and (c) full hydrogen-bonding arrangement around the NH4+ cation and the phosphonate and phosphonic acid groups. Details of the H-bonding interactions (orange dashed lines) are given in Table 1, selected non-hydrogen bonds and angles in Table 2. Symmetry transformations: i = −1 − x, −y, 1 − z; ii = −x, 1 − y, 1 − z; iii = 1 + x, y, z; iv = x, −1 + y, z; v = 1 + x, 1 + y, z; vi = 2 − x, 2 − y, −z; vii = 1 − x, 2 − y, −z.
Figure 1. (a) Asymmetric unit of 1 (50% thermal ellipsoids); (b) unit-cell packing diagram with tail-to-tail arrangement of the carboxylic acid groups (showing only the carboxyl and the O9-H-O5 H bonds for clarity); and (c) full hydrogen-bonding arrangement around the NH4+ cation and the phosphonate and phosphonic acid groups. Details of the H-bonding interactions (orange dashed lines) are given in Table 1, selected non-hydrogen bonds and angles in Table 2. Symmetry transformations: i = −1 − x, −y, 1 − z; ii = −x, 1 − y, 1 − z; iii = 1 + x, y, z; iv = x, −1 + y, z; v = 1 + x, 1 + y, z; vi = 2 − x, 2 − y, −z; vii = 1 − x, 2 − y, −z.
Crystals 06 00022 g001aCrystals 06 00022 g001b
Crystals 06 00022 g002 1024
Figure 2. Thermogravimetric analysis (TGA) of 1 in the temperature range 20–700 °C.
Figure 2. Thermogravimetric analysis (TGA) of 1 in the temperature range 20–700 °C.
Crystals 06 00022 g002
Crystals 06 00022 g003 1024
Figure 3. (a) Asymmetric unit of 2; and (b,c) projections of the unit-cell packing on different planes. The [Co(NH3)6]3+ cations are illustrated as octahedra; hydrogen bonds are not shown in (a–c) for clarity. Selected bond distances and angles are given in Table 3.
Figure 3. (a) Asymmetric unit of 2; and (b,c) projections of the unit-cell packing on different planes. The [Co(NH3)6]3+ cations are illustrated as octahedra; hydrogen bonds are not shown in (a–c) for clarity. Selected bond distances and angles are given in Table 3.
Crystals 06 00022 g003
Crystals 06 00022 g004 1024

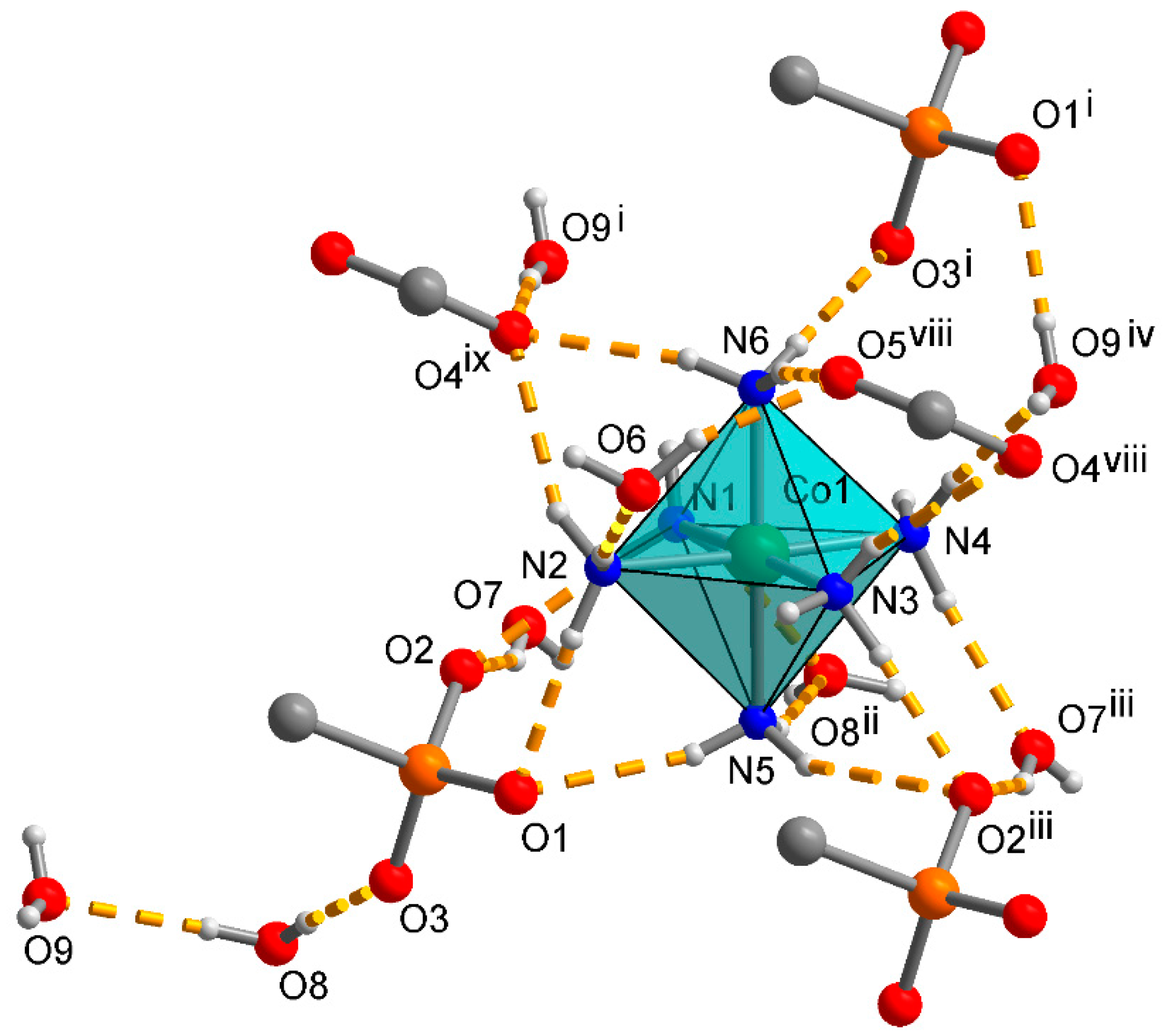

Figure 4. Most relevant H-bonding interactions (orange dashed lines) around a [Co(NH3)6]3+ cation in the structure of 2. Details of the H-bond distances and angles are listed in Table 4. Symmetry transformations: i = x, y, z − 1; ii = −x + 1, −y, −z + 1; iii = x + 1, y, z; iv = x + 1, y, z − 1; v = −x + 1, −y, −z; vi = x + 1/2, −y + 1/2, z − 1/2; vii = x − 1, y, z; viii = x + 3/2, −y + 1/2, z − 1/2; ix = x + 1/2, −y + 1/2, z + 1/2.
Figure 4. Most relevant H-bonding interactions (orange dashed lines) around a [Co(NH3)6]3+ cation in the structure of 2. Details of the H-bond distances and angles are listed in Table 4. Symmetry transformations: i = x, y, z − 1; ii = −x + 1, −y, −z + 1; iii = x + 1, y, z; iv = x + 1, y, z − 1; v = −x + 1, −y, −z; vi = x + 1/2, −y + 1/2, z − 1/2; vii = x − 1, y, z; viii = x + 3/2, −y + 1/2, z − 1/2; ix = x + 1/2, −y + 1/2, z + 1/2.
Crystals 06 00022 g004
Crystals 06 00022 g005 1024

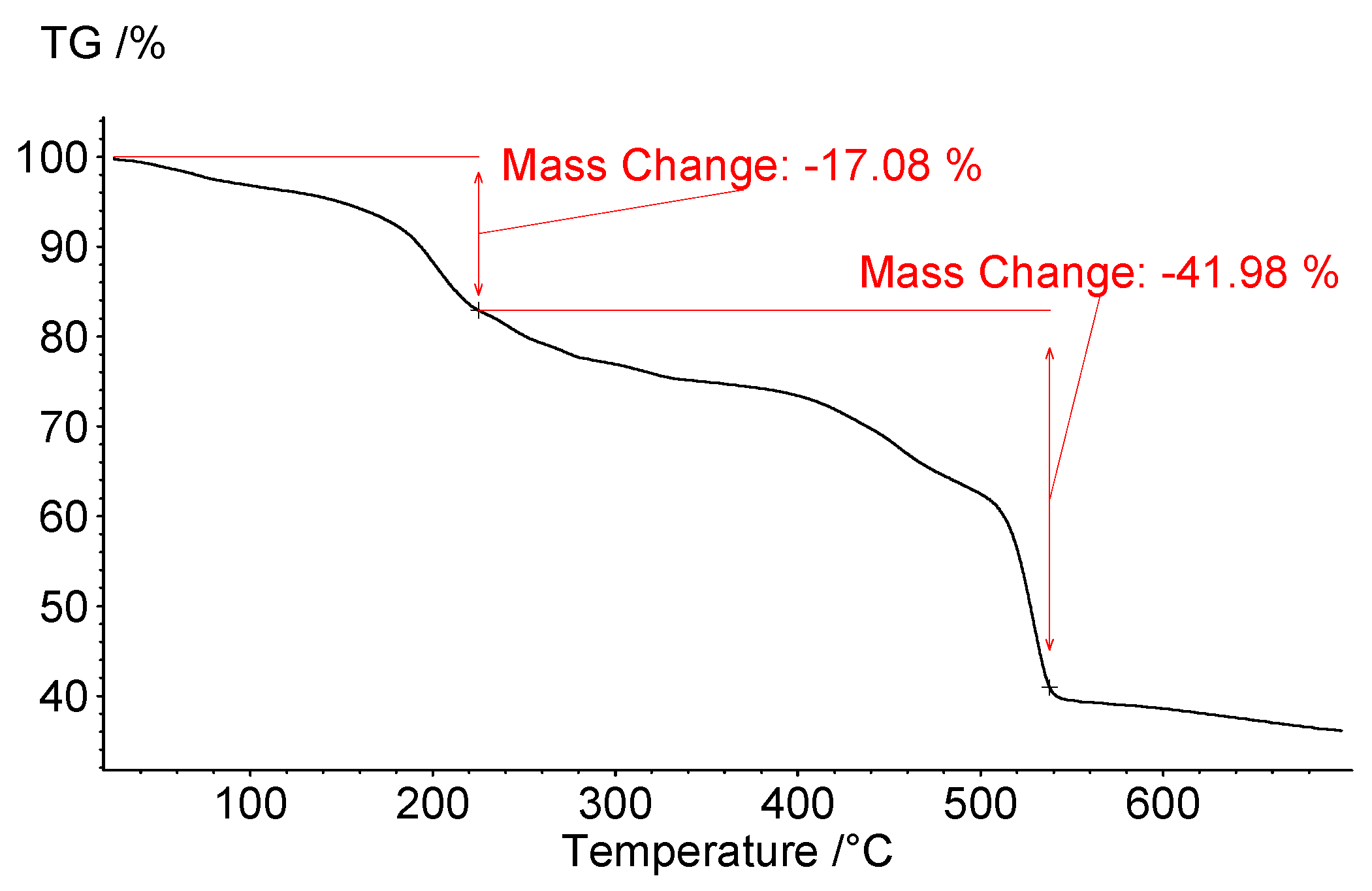

Figure 5. TGA of 2 in the temperature range 20–700 °C.
Figure 5. TGA of 2 in the temperature range 20–700 °C.
Crystals 06 00022 g005
Crystals 06 00022 g006 1024
Figure 6. Comparison of the experimental PXRD pattern of 2 (black) with the unconstrained simulated pattern from the X-ray data (red) and simulated patterns with the preferred orientation of h, k, l = 1, 0, 1 and March–Dollase parameter = 4 (green) and = 10 (blue). The latter simulations try to take into account the rod-shaped crystal morphology of 2 with their non-random orientation on the flat sample holder. The Miller indices have been assigned to the reflections. Simulations were carried out with Mercury [61].
Figure 6. Comparison of the experimental PXRD pattern of 2 (black) with the unconstrained simulated pattern from the X-ray data (red) and simulated patterns with the preferred orientation of h, k, l = 1, 0, 1 and March–Dollase parameter = 4 (green) and = 10 (blue). The latter simulations try to take into account the rod-shaped crystal morphology of 2 with their non-random orientation on the flat sample holder. The Miller indices have been assigned to the reflections. Simulations were carried out with Mercury [61].
Crystals 06 00022 g006
Table
Table 1. Details of the hydrogen bonding interactions in 1 a.
Table 1. Details of the hydrogen bonding interactions in 1 a.
D–H···AD–H [Å]H···A [Å]D···A [Å]D–H···A [°]Symmetry Transformations
N1–H1A···O80.94 (3)1.90 (3)2.840 (3)177 (3)
N1–H1B···O10 vi0.86 (3)2.25 (3)2.945 (3)138 (3)vi = 2 − x, 2 − y, −z
N1–H1C···O3 v0.84 (3)2.00 (3)2.817 (3)165 (3)v = 1 + x, 1 + y, z
N1–H1D···O9 vii0.95 (3)1.92 (3)2.845 (3)164 (2)vii = 1 − x, 2−y, −z
O2–H2···O1 i0.94 (5)1.71 (5)2.623 (3)164 (4)i = −1 − x, −y, 1 − z
O4–H4···O8 iv0.78 (3)1.78 (3)2.563 (2)175 (3)iv = x, −1 + y, z
O7–H7···O6 ii0.99 (5)1.66 (5)2.642 (3)172 (4)ii = −x, 1 − y, 1 − z
O9–H9···O51.17 (3)1.26 (3)2.428 (2)180 (3)
O10–H10···O3 iii0.83 (3)1.72 (3)2.537 (2)170 (3)iii = 1 + x, y, z
Notes: a D = donor, A = acceptor.
Table
Table 2. Selected bond lengths [Å] and angles [°] in 1.
Table 2. Selected bond lengths [Å] and angles [°] in 1.
P1–O31.4975 (18)P2–O81.5045 (18)
P1–O51.5174 (18)P2–O91.5190 (18)
P1–O41.5583 (19)P2–O101.5553 (19)
P1–C101.787 (3)P2–C231.796 (3)
C13–O11.235 (4)C26–O61.230 (4)
C13–O21.283 (4)C26–O71.275 (4)
O3–P1–O5115.63 (11)O8–P2–O9112.38 (11)
O3–P1–O4107.83 (10)O8–P2–O10109.16 (10)
O5–P1–O4108.78 (11)O9–P2–O10110.04 (10)
O3–P1–C10109.35 (11)O8–P2–C23109.32 (11)
O5–P1–C10107.54 (11)O9–P2–C23108.76 (11)
O4–P1–C10107.44 (11)O10–P2–C23107.04 (11)
Table
Table 3. Selected bond lengths and angles (Å, °) in 2.
Table 3. Selected bond lengths and angles (Å, °) in 2.
Co1–N11.957 (2)P1–O11.5235 (18)
Co1–N21.965 (2)P1–O21.5283 (18)
Co1–N31.951 (2)P1–O31.5247 (18)
Co1–N41.959 (2)P1–C11.820 (2)
Co1–N51.976 (2)
Co1–N61.961 (2)
N5–Co1–N187.17 (9)N3–Co1–N489.51 (9)
N4–Co1–N191.46 (9)N3–Co1–N290.46 (9)
N4–Co1–N590.01 (9)N6–Co1–N191.82 (9)
N2–Co1–N188.66 (9)N6–Co1–N5178.81 (9)
N2–Co1–N592.53 (9)N6–Co1–N288.07 (9)
N2–Co1–N4177.47 (9)N6–Co1–N390.31 (9)
N3–Co1–N1177.66 (9)N6–Co1–N489.40 (9)
N3–Co1–N590.71 (9)
Table
Table 4. Details of the hydrogen bonding interactions in 2 a.
Table 4. Details of the hydrogen bonding interactions in 2 a.
D–H···AD–H [Å]H···A [Å]D···A [Å]D–H···A [°]Symmetry Transformations
N1–H1A···O8 i0.84 (5)2.71 (4)3.327 (3)132 (4)i = x, y, z − 1
N1–H1B···O20.84 (4)2.14 (4)2.976 (3)173 (3)
N1–H1C···O8 ii0.87 (4)2.15 (4)2.971 (3)156 (3)ii = −x + 1, −y, −z + 1
N2–H2A···O4 vi0.86 (4)2.28 (4)3.086 (3)157 (3)vi = x + 1/2, −y + 1/2, z − 1/2
N2–H2B···O60.86 (4)2.07 (4)2.909 (4)163 (3)
N2–H2C···O10.89 (3)2.00 (3)2.864 (3)165 (3)
N3–H3A···O60.82 (5)2.60 (5)3.177 (4)129 (4)
N3–H3B···O2 iii0.90 (4)1.90 (4)2.791 (3)174 (3)iii = x + 1, y, z
N3–H3C···O5 viii0.69 (5)2.56 (4)3.048 (3)130 (4)viii = x + 3/2, −y + 1/2, z − 1/2
N3–H3C···O4 viii0.69 (5)2.56 (4)3.180 (3)152 (4)viii = x + 3/2, −y + 1/2, z − 1/2
N4–H4A···O9 iv0.90 (4)2.05 (4)2.937 (3)171 (3)iv = x + 1, y, z − 1
N4–H4B···O7 v0.83 (4)2.77 (3)3.270 (4)120 (3)v = −x + 1, −y, −z
N4–H4C···O7 iii0.86 (4)2.00 (4)2.852 (3)171 (3)iii = x + 1, y, z
N5–H5A···O8 ii0.90 (4)2.19 (4)3.035 (3)157 (3)ii = −x + 1, −y, −z + 1
N5–H5B···O2 iii0.88 (4)2.63 (4)3.437 (3)153 (3)iii = x + 1, y, z
N5–H5C···O10.83 (4)2.13 (4)2.939 (3)162 (3)
N6–H6A···O3 i0.82 (4)2.09 (5)2.904 (3)175 (3)i = x, y, z − 1
N6–H6B···O5 viii0.93 (4)2.26 (4)3.170 (3)167 (3)viii = x + 3/2, −y + 1/2
N6–H6C···O4 vi0.85 (4)2.13 (4)2.948 (3)160 (3)vi = x + 1/2, −y + 1/2, z − 1/2
O6–H6E···O5 viii0.871.82 (1)2.657 (4)161 (4)viii = x + 3/2, −y + 1/2, z − 1/2
O7–H7A···O3 ii0.62 (5)2.12 (5)2.740 (3)171 (6)ii = −x + 1, −y, −z + 1
O7–H7B···O20.85 (4)1.89 (5)2.690 (3)156 (4)
O8–H8A···O90.82 (5)1.99 (5)2.802 (3)175 (4)
O8–H8B···O30.73 (5)1.97 (5)2.693 (3)175 (5)
O9–H9A···O1 vii0.74 (4)1.96 (4)2.704 (3)176 (4)vii = x − 1, y, z
O9–H9B···O4 ix0.78 (4)1.95 (4)2.728 (3)173 (4)ix = x + 1/2, −y + 1/2, z + 1/2
Notes: a D = donor, A = acceptor.
Table
Table 5. Crystal data and refinement details.
Table 5. Crystal data and refinement details.
12
Chemical formulaC26H21O10P2·H4NC13H8O5P·CoH18N6·4(H2O)
Mr573.41508.36
Crystal system, space groupTriclinic, P¯1Monoclinic, P21/n
Temperature (K)150173
a (Å)5.9358(5)7.0193(5)
b (Å)7.5309(5)35.454(3)
c (Å)27.781(2)9.2797(7)
α (°)95.413(4)90
β (°)90.768(5)111.921(4)
γ (°)92.816(5)90
V (Å3)1234.65(16)2142.4 (3)
Z24
μ (mm−1)0.240.93
Crystal size (mm)0.20 × 0.15 × 0.010.33 × 0.3 × 0.15
Absorption correctionMulti-scan, wR2(int) was 0.0937 before and 0.0571 after correction. The Ratio of minimum to maximum transmission is 0.9165. The l/2 correction factor is 0.0000.Multi-scan, wR2(int) was 0.1520 before and 0.0844 after correction. The Ratio of minimum to maximum transmission is 0.6784. The l/2 correction factor is 0.0015.
Tmin, Tmax0.683, 0.7460.507, 0.748
No. of measured, independent and observed reflections20157, 4937, 3104 [I > 2σ(I)]89006, 4214, 4150 [I > 2σ(I)]
Rint0.0660.073
(sin θ/λ)max (Å−1)0.6170.617
R[F2 > 2σ (F2)], wR(F2), S0.049, 0.121, 1.020.038, 0.100, 1.04
No. of reflections49374214
No. of parameters379374
Δρmax, Δρmin (e·Å−3)0.30, –0.341.10, –0.85

Share and Cite

MDPI and ACS Style

Heering, C.; Nateghi, B.; Janiak, C. Charge-Assisted Hydrogen-Bonded Networks of NH4+ and [Co(NH3)6]3+ with the New Linker Anion of 4-Phosphono-Biphenyl-4′-Carboxylic Acid. Crystals 2016, 6, 22. https://doi.org/10.3390/cryst6030022

AMA Style

Heering C, Nateghi B, Janiak C. Charge-Assisted Hydrogen-Bonded Networks of NH4+ and [Co(NH3)6]3+ with the New Linker Anion of 4-Phosphono-Biphenyl-4′-Carboxylic Acid. Crystals. 2016; 6(3):22. https://doi.org/10.3390/cryst6030022

Chicago/Turabian Style

Heering, Christian, Bahareh Nateghi, and Christoph Janiak. 2016. "Charge-Assisted Hydrogen-Bonded Networks of NH4+ and [Co(NH3)6]3+ with the New Linker Anion of 4-Phosphono-Biphenyl-4′-Carboxylic Acid" Crystals 6, no. 3: 22. https://doi.org/10.3390/cryst6030022

APA Style

Heering, C., Nateghi, B., & Janiak, C. (2016). Charge-Assisted Hydrogen-Bonded Networks of NH4+ and [Co(NH3)6]3+ with the New Linker Anion of 4-Phosphono-Biphenyl-4′-Carboxylic Acid. Crystals, 6(3), 22. https://doi.org/10.3390/cryst6030022

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
