Electric and Optical Properties of Pb(Er_1/2Nb_1/2)-Pb(Mg_1/3Nb_1/3)-PbTiO₃ Crystals

Abstract

New ferroelectric crystals Pb(Er_1/2Nb_1/2)-Pb(Mg_1/3Nb_1/3)O-PbTiO₃ (PEN-PMN-PT) were grown by using the flux method. Phase structure of the crystals was described by the X-ray diffraction analysis. Dielectric, ferroelectric and optical properties of the PEN-PMN-PT crystals were investigated systematically. Higher Curie temperature (T_c ~ 291 °C) and larger coercive field (E_c ~ 17.6 kV/cm) for the 40PEN-13PMN-47PT can be obtained, respectively, compared with those of the PMN-PT. Moreover, strong green and red emissions can be excited by using the 980 nm laser. The PEN-PMN-PT crystals with these performances have some promising applications in the electromechanical and optical devices.

1. Introduction

As a typical relaxor ferroelectric crystal, Pb(Mg_1/3Nb_2/3)O₃-PbTiO₃ (PMN-PT) with morphotropic phase boundary (MPB) composition has been extensively researched due to their excellent dielectric, piezoelectric and pyroelectric properties, such as ultrahigh piezoelectric coefficient (d₃₃ > 1800 pC/N), high longitudinal electromechanical coupling factor (k₃₃ > 90%), high dielectric constant (ε’ > 4000) and low dielectric loss (tanδ < 0.01) et al. [1,2,3,4,5]. These brilliant properties make it good candidates in the applications of medical ultrasonic probes, underwater acoustic transducers, ultrasonic motors and military sensors [6].

However, PMN-PT show low coercive field (E_c < 3 kV/cm ) and low Curie temperature (T_c < 150 °C), which gradually limit their applications in high temperature and high energy fields [7]. In order to raise the Curie temperature and coercive field of the PMN-PT crystals, a lot of researches and trials have been done [7,8,9,10,11,12,13,14,15]. Luo et al. [16] reported that the E_c and T_c of Mn-doped PMN-29PT crystals increased by 1.65 kV/cm and 15 °C, respectively. Li et al. [17] explored new ternary crystals Pb(Ho_1/2Nb_1/2)O₃-Pb(Mg_1/3Nb_2/3)O₃-PbTiO₃ (PHN-PMN-PT) with the E_c and T_c of 3.22 kV/cm and 140 °C, respectively. The E_c ~ 8.17 kV/cm and T_c ~ 148 °C were achieved in 6PSN-63PMN-31PT by He et al. [18]. These results indicate that the Curie temperature and coercive field of the PMN-PT crystals can be improved with the appropriate cations.

Previous reports indicated that Curie temperature and coercive field of the PMN-PT crystals can be improved by the rare earth cation of Erbium [19]. In addition, high Curie temperature can be obtained in the Pb(Er_1/2Nb_1/2) (PEN) ceramics [20]. In the present work, the PEN was used to modify PMN-PT crystals by using the linear design rule on the component of the PEN-PMN-PT crystals. The structural, electrical and optical properties of the PEN-PMN-PT crystals were studied systematically.

2. Experimental Procedure

2.1. Crystal Growth

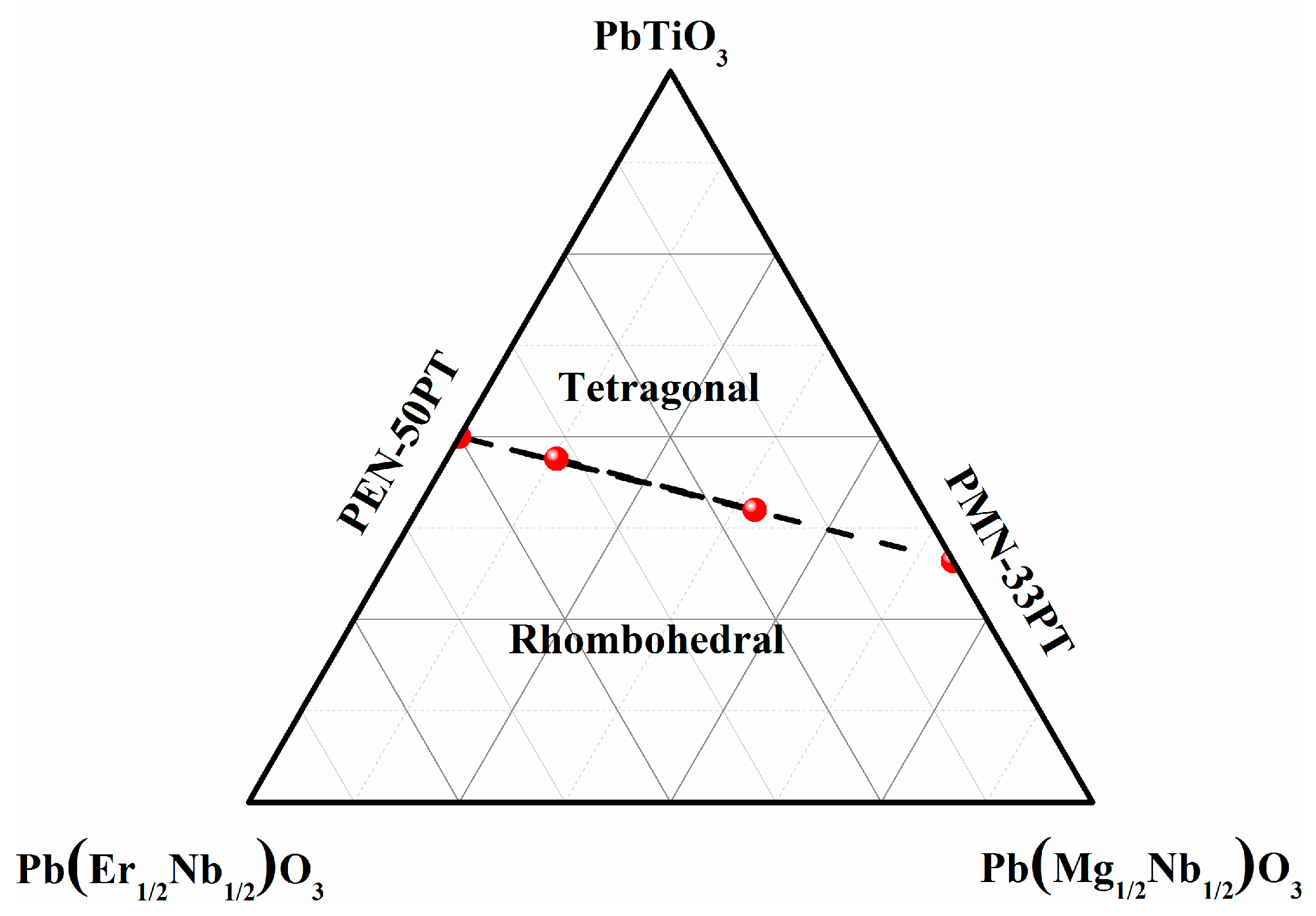

The 20PEN-40PMN-40PT and 40PEN-13PMN-47PT were chosen on the straight line connecting two MPBs in PMN-33PT and Pb(Er_1/2Nb_1/2)-50PbTiO₃ (PEN-50PT), as shown in Figure 1 [7,21]. The crystals of two components were grown by using the flux method. First of all, the starting materials of MgO (99.99%), Nb₂O₅ (99.99%), TiO₂ (99.99%), PbO (99.99%) and Er₂O₃ (99.99%) were prepared, and the precursors, MgNb₂O₆ (MN) and ErNbO₄ (EN) were first synthesized at 1050 °C for 6 h. MN, EN, TiO₂ and PbO were weighed according to the stoichiometric composition of the 20PEN-40PMN-40PT and 40PEN-13PMN-47PT, with 60 wt% excess amount of PbO, and then the raw materials were mixed and wet-milled in alcohol for 12 h. The dried mixed powder was compacted in a platinum crucible with a size of Φ 40 mm × 40 mm and covered with a platinum lid. The platinum crucible was then placed in a corundum crucible, and filled with Al₂O₃ powder in the gap. After that corundum crucible was placed in the high temperature furnace and crystal growth was performed according to the preset procedure. At the end of crystal growth, the Pt crucible was taken out and was boiled with hot nitric acid solution (mixture of HNO₃ and H₂O with a volume ratio 1:1). Finally, the obtained crystal was cleaned in the CNC ultrasonic cleaner (KQ-100DE).

2.2. Characterization Procedure

Firstly, the phase structure of the present crystals was measured by X-ray diffraction (XRD) analysis (D8 ADVANCE, Bruker, Billerica, MA, USA) with Cu-Ka radiation, perating at room temperature in a scan steps of 0.02 (2θ) and an angular range of 20–80°. Secondly, the crystals were polished for the two parallel surfaces, and then polished crystals were coated with silver paste on both polished surfaces and fired at 550 °C for 30 min to obtain the electrode. Eventually, the temperature dependence of dielectric properties was measured by impedance analyzer (Agilent4294A, Agilent, Santa Clara, CA, USA). The ferroelectric performances of the samples were tested by using ferroelectric test system (Radiant Precision PremierⅡ, Radiant Technologies, Inc., Albuquerque, NM, USA). The optical absorption performances of crystal powders were measured by UV-VIS-NIR Spectrophotometer (UV3600PLUS, Shimadzu, Japan). The up-conversion (UC) photoluminescence (PL) and decay curve of the 20PEN-40PMN-40PT and 40PEN-13PMN-47PT crystals were tested by using a photoluminescence spectrometry (FLS980, Edinburgh, England) at room temperature.

3. Results and Discussion

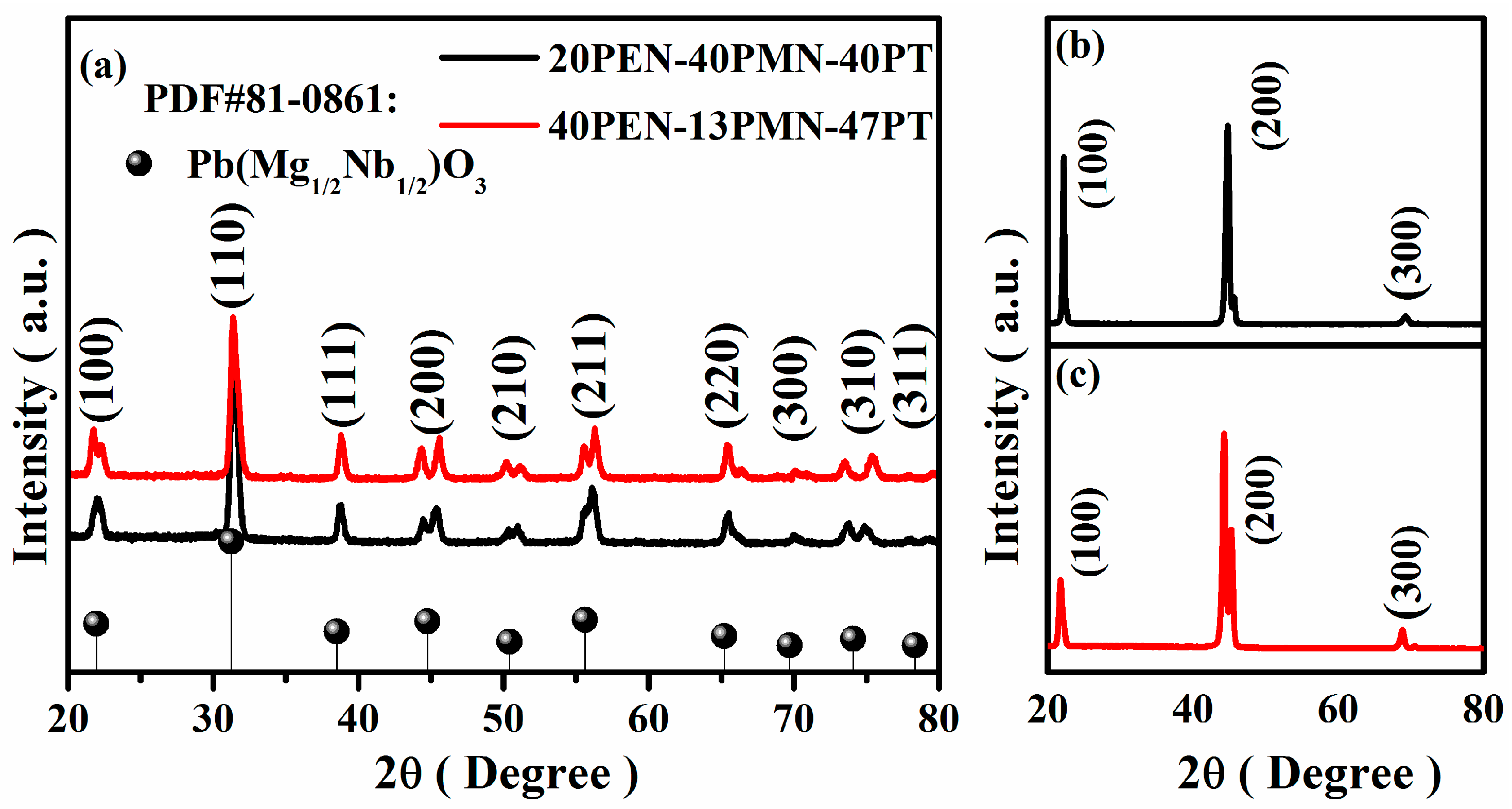

XRD patterns of the powders and natural exposure surfaces of the PEN-PMN-PT crystals are shown in Figure 2. In Figure 2a, the positions and intensity of the main diffraction peaks are consistent with those of the Pb(Mg_1/3Nb_2/3)O₃ (PDF#81-0861). No obvious diffraction peaks of the secondary phases are detected, indicating that the phase structure of the present crystals is pure perovskite structure. The natural exposure surfaces of the present crystals are shown in Figure 2b,c. Only three diffraction peaks of the (100), (200) and (300) can be detected, which indicate that the natural exposure surface of the present crystals is strict {100} surface and the slowest growth direction is [100] orientation. Moreover, the (200) peak at around 2θ = 45° is an important differential characteristic peak, which is used to determine the MPB compositions. It is well-know that only one characteristic peak R(200) can be observed at around 2θ = 45° for rhombohedral phase, whereas (200) peak should be split into two peaks with intensity ratio of 1:2 for tetragonal phase. They correspond to the diffraction of T(200)/(020) and T(002), respectively [10]. Obvious splitting of the (200) peak with the deviated intensity ratio 1:2 can be observed in Figure 2, indicating that the tetragonal and rhombohedral phase coexist in the present crystals.

In order to figure out the effect of the content of rhombohedral and tetragonal phases on electrical properties, the ratio of rhombohedral and tetragonal phase is calculated by the following equation [11]:

$$\mathrm{R}/\mathrm{T}=\frac{{\mathrm{I}}_{\mathrm{R}}(200)}{{\mathrm{I}}_{\mathrm{T}}(200)+{\mathrm{I}}_{\mathrm{T}}(002)}$$

(1)

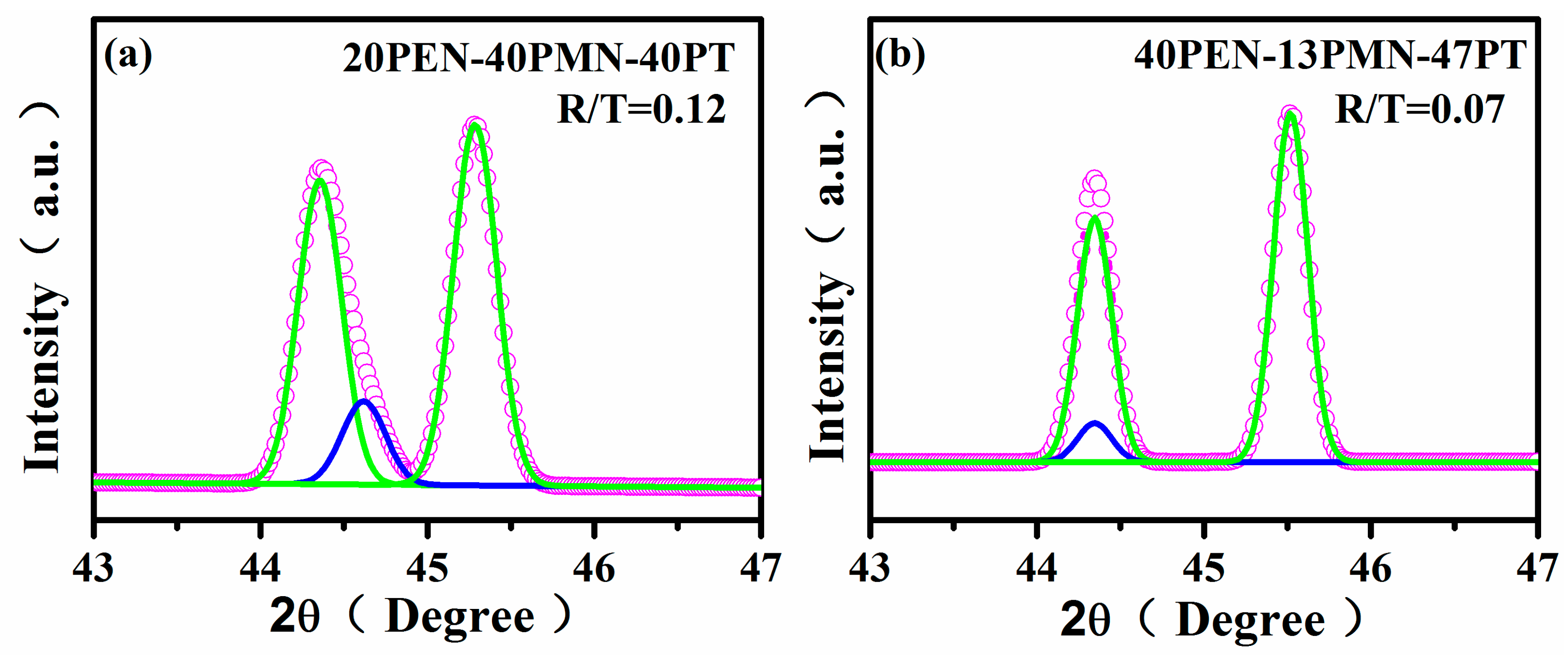

where I_R(200) is the intensity of the rhombohedral (200) peaks. I_T(200) and I_T(002) are the intensities of tetragonal (200) and (002) peaks. The XRD patterns fitted with the Gaussian functions are shown in Figure 3. Pink circles represent the fitted peak profile, and the green line and the blue line represent the deconvoluted profiles of the rhombohedral and tetragonal phase components, respectively. It is observed that the (200) reflection is composed of three reflection peaks of T(200)/(020), T(002) and R(200). According to calculation, the ratio of rhombohedral and tetragonal phases is obtained to be 0.12 and 0.07 for the 20PEN-40PMN-40PT and 40PEN-13PMN-47PT, respectively. These results confirm that the tetragonal phase is dominant in the present crystals and higher content of the tetragonal phases could be responsible for the higher coercive filed [22].

Temperature dependence of the dielectric permittivity of the unpoled PEN-PMN-PT crystals are shown in Figure 4. Only one dielectric peak, corresponding to the transition from ferroelectric to paraelectric phase, is observed for the present crystals. Curie temperatures are 207 and 291 °C for the 20PEN-40PMN-40PT and 40PEN-13PMN-47PT crystals. It indicates that the Curie temperature of the PMN-PT crystal can be improved significantly by the modification of the PEN. The reason for the improvement of Curie temperature of the present crystals is attributed to the introduction of the PEN. When PEN is incorporated into the PMN-PT system, relatively larger Er³⁺ substitutes are located at the B site. This will result in the decreasing of the perovskite tolerance means the rhombohedral or tetragonal phases become more stable. That leads to the increasing of the T_c [7]. Moreover, Curie temperature of PEN-PMN-PT crystals increases with the increase in the PEN and PT content, which is consistent with the results of the PYbN-PMN-PT crystals and PSN-PMN-PT ceramics [11,23].

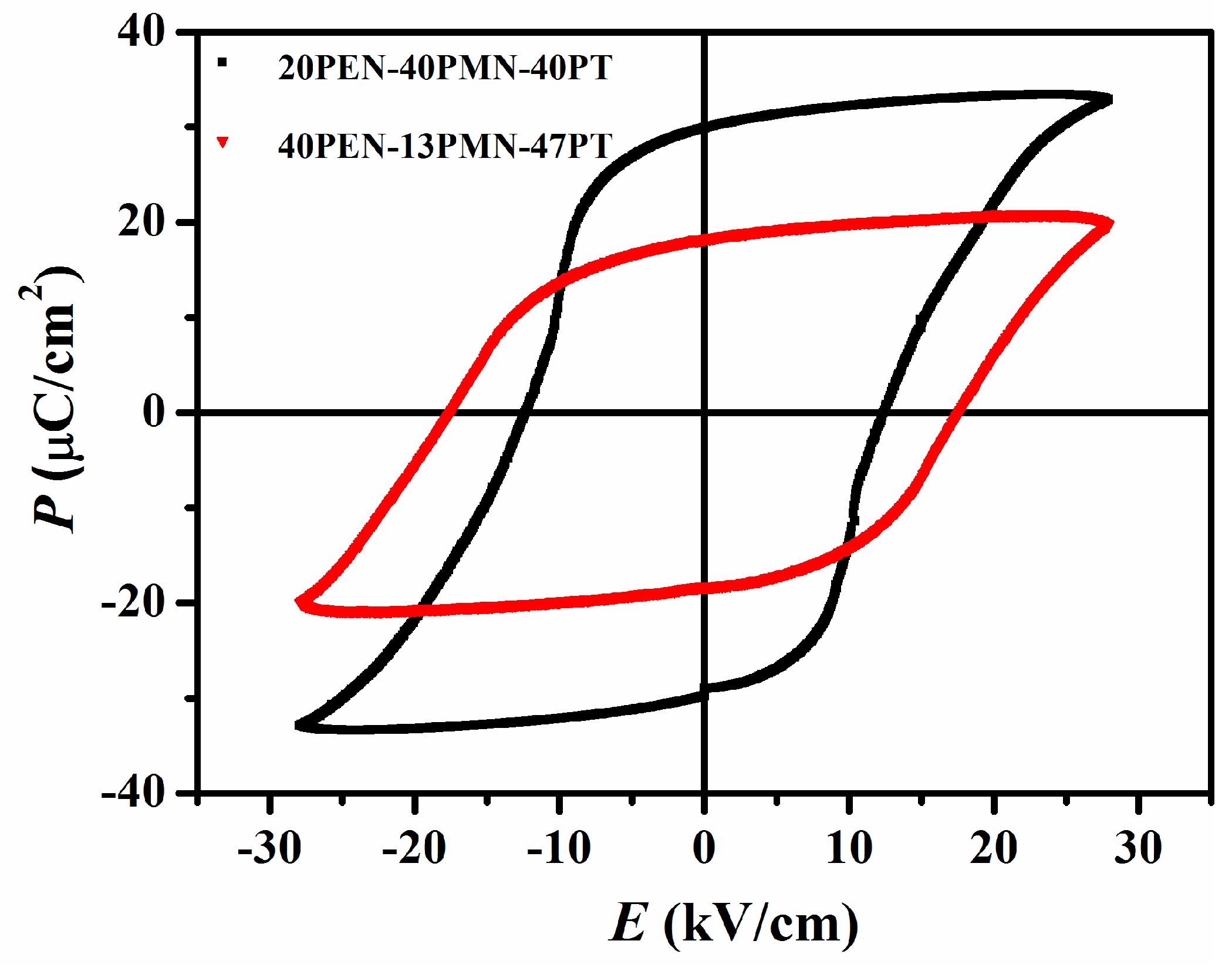

Polarization versus electric field (P-E) of [100]-oriented PEN-PMN-PT crystals with 28 kV/cm at room temperature is shown in Figure 5. Higher coercive electric (E_c ~ 12.3 kV/cm and 17.6 kV/cm) and remnant polarization (P_r ~ 30 μC/cm² and 18.2 μC/cm²) can be obtained for the 20PEN-40PMN-40PT and 40PEN-13PMN-47PT crystals compared with those of the PMN-PT crystal. In the present crystals, Pb(Er_1/2Nb_1/2) is incorporated into the PMN-PT system. Oxygen vacancies will be generated for the charge compensation when the Er³⁺ substitutes Ti⁴⁺ or (Mg_1/3Nb_2/3)⁴⁺ locates at B sites. The higher coercive filed of the present crystals is attributed to the domain motion prevented by the oxygen vacancies. The results are similar to those of the Er³⁺ doped PMN-PT and PSN-PMN-PT crystals [18,19]. Moreover, previous reports indicated that coercive filed of PZN-PYN-PT ceramic in MPB regions is mainly dependent on the tetragonal phase and have been improved with increasing of content of the tetragonal phase [22]. As a result, it is believed that the ratio of the rhombohedral and tetragonal phases in the present crystals is the reason of the difference of ferroelectric properties.

The UV–VIS–NIR absorption spectra of the PEN-PMN-PT crystals in the wavelength range of 400–1800 nm is shown in Figure 6. It can be seen that there are seven absorption peaks at around 489, 526, 665, 794, 974, 1467 and 1540 nm, corresponding to the Er³⁺ transitions from ground state ⁴I_15/2 to excited levels ⁴F_7/2, ²H_11/2, ⁴F_9/2, ⁴_I9/2, ⁴I_11/2 and ⁴I_11/2, respectively. It indicates that the optical absorption is induced by the rare earth cation of the Er³⁺ ions [11,19,24]. The absorption spectra of the PEN-PMN-PT crystals is similar as other Er³⁺-doped ferroelectric materials [25,26].

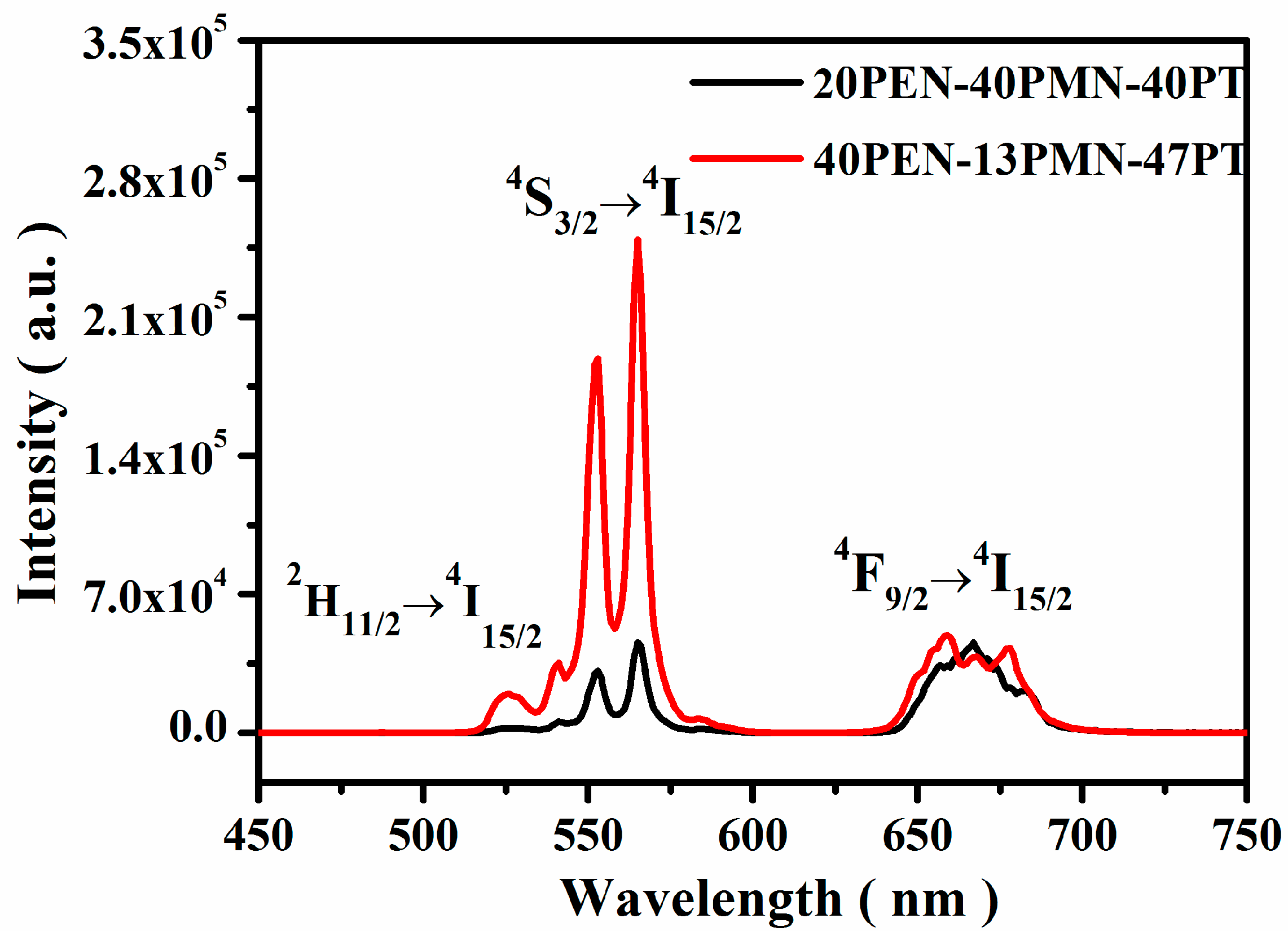

Figure 7 displays the UC luminescence of the PEN-PMN-PT crystals at room temperature. Under the excitation of 980 nm, three distinct emission bands, centered at 526 (green), 565 (green), and 665 nm (red), and the transition emissions’ counterparts, ²H_11/2 → ⁴I_15/2, ⁴S_3/2 → ⁴I_15/2 and ⁴F_9/2 → ⁴I_15/2, are observed in the present crystals. The emission intensity at 665 nm is pretty much constant. However, the obvious difference in luminous intensity at 565 and 526 nm can be observed as well. It may be related to different mechanisms in two crystals.

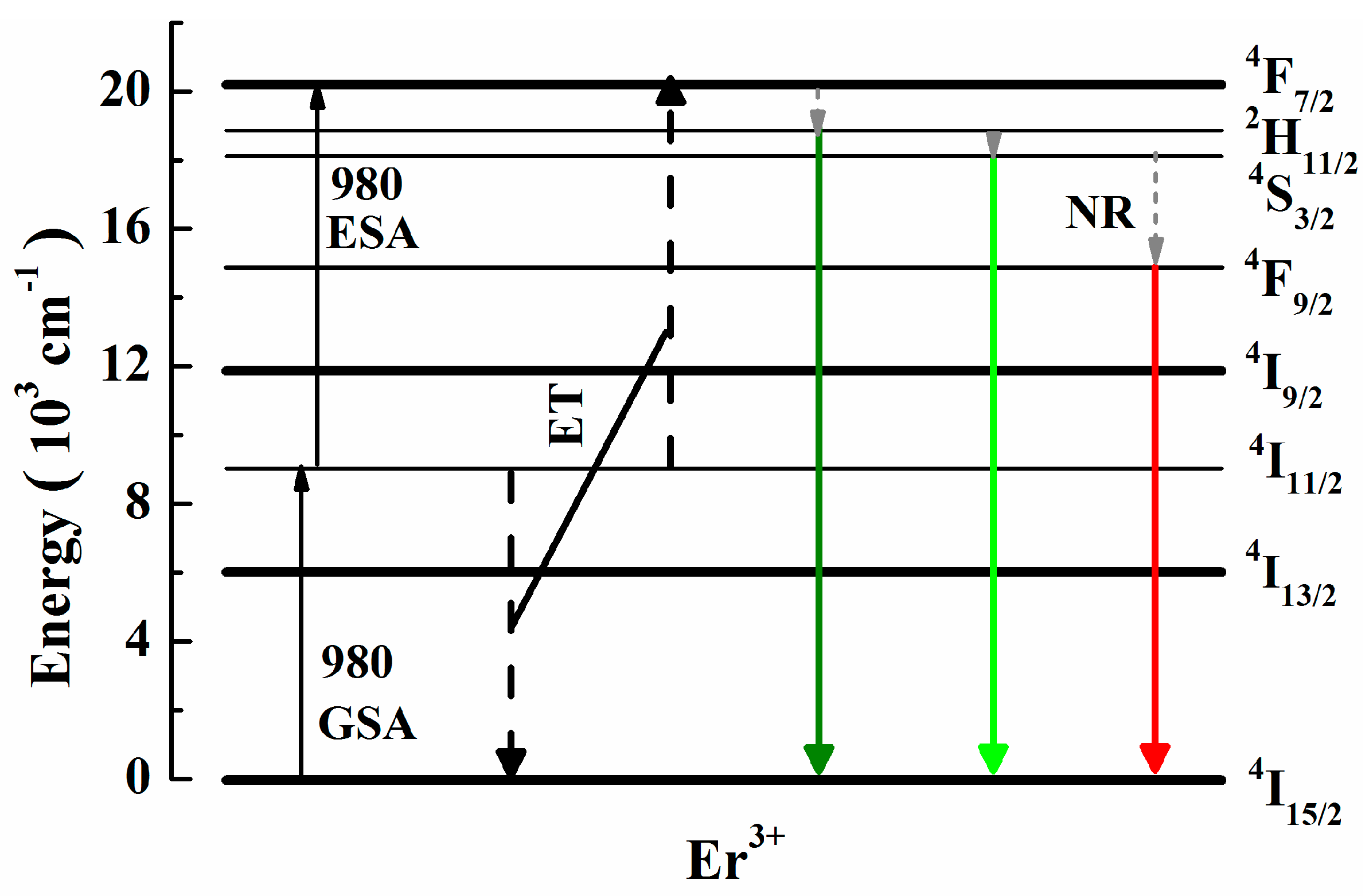

To study differences in luminous intensity at 565 and 526 nm in two crystals, the UC emission mechanisms is described in detail. Figure 8 shows the energy level diagrams and possible UC PL mechanisms of the PEN-PMN-PT crystals under 980 nm excitation. Er³⁺ ions are excited from the ground state ⁴I_15/2 to the excited state ⁴I_11/2 through the ground state absorption (GSA) process. Then, the Er³⁺ ions in ⁴I_11/2 energy level can reach a higher excited state ⁴F_7/2 through excited state absorption process (ESA) and the energy transfer (ET) process: ⁴I_11/2 + ⁴I_11/2 → ⁴I_15/2 + ⁴F_7/2. The Er³⁺ ions are unstable in ⁴F_7/2 level, which reach to ²H_11/2, ⁴S_3/2 and ⁴F_9/2 level by nonradiative transition process. Finally, the Er³⁺ ions return to the ground state ⁴I_15/2 with 526 (green), 565 (green) and 665 nm (red) emitted, respectively. Previous reports indicate the ET processes is enhanced with increasing Er³⁺ ions concentration because of short distance between neighboring Er³⁺ ions [26]. Therefore, Green emissions being significantly enhanced can be explained by the intense ET process that led to populated ⁴I_11/2 state.

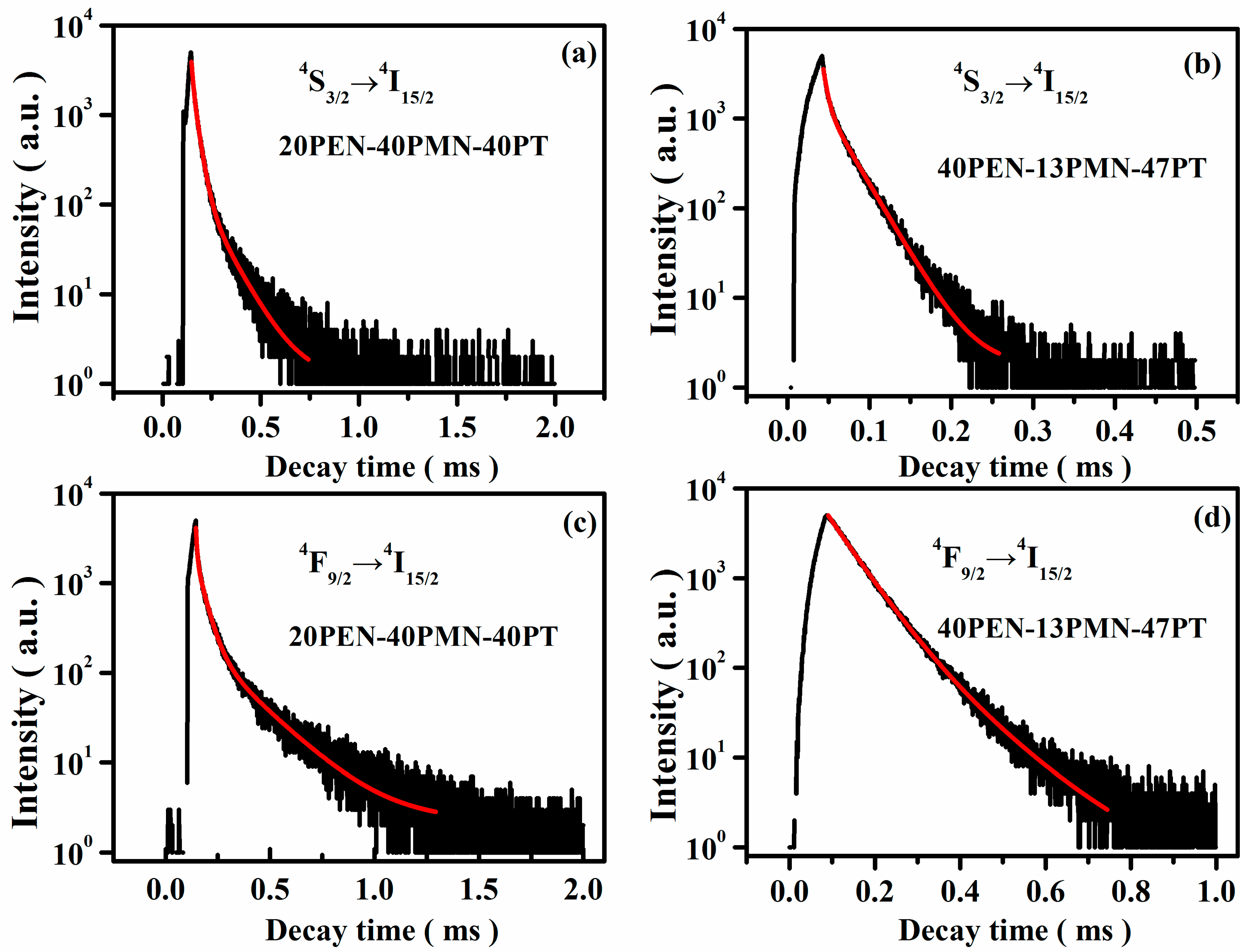

The lifetime τ of energy level is an important parameter for the luminescent materials. The decay curves of ⁴S_3/2 and ⁴F_9/2 levels for the PEN-PMN-PT are shown in Figure 9. The double and triple exponential function (2) is used to fit measured curves [27]. Equation (3) is used to calculate the average lifetimes τ_m.

$${\mathrm{I}}_{\left(\mathrm{t}\right)}={\mathrm{I}}_0*[\mathrm{A}+{\mathrm{B}}_1\exp (-\mathrm{t}/{\mathsf{\tau }}_1)+{\mathrm{B}}_2\exp (-\mathrm{t}/{\mathsf{\tau }}_2)+{\mathrm{B}}_3\exp (-\mathrm{t}/\mathsf{\tau }3\left)\right]$$

(2)

$${\mathsf{\tau }}_{\mathrm{m}}=({\mathrm{B}}_1{\mathsf{\tau }}_1{}^2+{\mathrm{B}}_2{\mathsf{\tau }}_2{}^2+{\mathrm{B}}_3{\mathsf{\tau }}_3{}^2{)/(\mathrm{B}}_1{\mathsf{\tau }}_1+{\mathrm{B}}_2{\mathsf{\tau }}_2+{\mathrm{B}}_3{\mathsf{\tau }}_3)$$

(3)

where A, B₁, B₂ and B₃ are constant, I(t) is the emission intensity. All curves (black line) increase first and then decrease, standing for absorbing energy and releasing energy of electrons populating at ground state and excited state, respectively. The fitting curve (red line) matches perfectly with the measured curve. The lifetimes of 20PEN-40PMN-40PT crystals exhibit a triple exponential decaying behavior, but the 40PEN-13PMN-47PT crystals display a double exponential behavior. Fitting results of fluorescent decay curve for the present crystals are shown in

Table 1. Fitting results of fluorescent decay curve for the PEN-PMN-PT crystals.

Samples	4S3/2 → 4I15/2				4F9/2 → 4I15/2
	τ1	τ2	τ3	τm	τ1	τ2	τ3	τm
20PEN-40PMN-40PT	6.93	33.75	90.15	44.00	13.91	33.24	177.23	105.79
40PEN-13PMN-47PT	9.84	55.57		45.57	59.07	118.97		69.60

. The average lifetime of ⁴S_3/2 level in 40PEN-13PMN-47PT crystals increases (44.00 us) compared with that of 20PEN-40PMN-40PT crystals (45.57 us). However, the average lifetime of ⁴F_9/2 decreases with the increase of the concentration Er³⁺ ions. The increase of Er³⁺ concentration enhances energy transfer (ET) process. The intense ET process makes the ⁴F_9/2 excited levels become populated, resulting in the population of ⁴S_3/2. Ultimately, the enhanced process 4S_3/2 → ⁴I_15/2 leads to the average lifetime increase from 44.00 to 45.57 us. Nevertheless, owing to the depopulation of the ⁴I_15/2 level, the possibility of the ⁴F_9/2 → ⁴I_15/2 transition will decrease, resulting in the average lifetime of ⁴F_9/2 from 105.79 to 69.60 us.

4. Conclusions

New ferroelectric crystals Pb(Er_1/2Nb_1/2)-Pb(Mg_1/3Nb_1/3)O-PbTiO₃ (PEN-PMN-PT) were grown by using the flux method. Pure perovskite structure was confirmed by X-ray diffraction analysis. Dielectric and ferroelectric properties were improved significantly by forming the PEN-PMN-PT ternary crystals. Higher Curie temperature was obtained as T_c ~ 291 °C for the 40PEN-13PMN-47PT crystals, together with larger coercive field (E_c ~ 17.6 kV/cm). The improvements in Curie temperature and coercive field of the PEN-PMN-PT crystals were attributed to the introduction of the PEN and the increasing of tetragonal phase. Moreover, a special absorption in the range 300–1800 nm and strong green UC emissions at the 980 nm excitation were obtained for the PEN-PMN-PT crystals.
