Article

Energy-Dependent RBS Channelling Analysis of Epitaxial ZnO Layers Grown on ZnO by RF-Magnetron Sputtering

1
Friedrich-Schiller-Universität Jena, Institut für Festkörperphysik, Max-Wien-Platz 1, 07743 Jena, Germany
2
Leibniz-Institut für Photonische Technologien, Albert-Einstein-Straße 9, 07745 Jena, Germany
3
Helmholtz-Zentrum Berlin für Materialien und Energie GmbH (HZB), Institute for Solar Fuels, Hahn-Meitner-Platz 1, 14109 Berlin, Germany
*
Author to whom correspondence should be addressed.
Crystals 2019, 9(6), 290; https://doi.org/10.3390/cryst9060290
Submission received: 30 April 2019 / Revised: 27 May 2019 / Accepted: 30 May 2019 / Published: 4 June 2019

Abstract

:
The transparent conducting oxides ZnO and ZnO:Al are interesting materials for a wide range of applications. Several of these applications need a large area, single crystalline, and specially doped thin layers. A common technique for the fabrication of those layers is RF (radio frequency) -magnetron sputtering. The investigation of the crystal quality of such layers requires methods of analysis that are destruction free and that are able to obtain information about the concentration and type of defects versus depth. One such option is the Rutherford backscattering spectroscopy (RBS) in channelling mode. In this work, we exploit the channelling effect and its energy dependence, which are sensitive to the type of defects. By using appropriate software and measuring RBS channelling spectra with different beam energies, we were able to determine the depth distribution of point defects and dislocation loops. The presence of dislocation loops was proven using other previously applied analysis methods. The main advantage of RBS in channelling mode is the quantification of point defects, which can be important for defining the electrical and optical properties of such layers. The technique demonstrated is applicable to other defective crystals or thin crystalline layers.

1. Introduction

Zinc oxide (ZnO) belongs to a group of transparent conductive oxides, which are a unique class of materials. It exhibits both high transparency in the visible and near infrared spectral range and high electronic conductivity. Additionally, ZnO is abundant—therefore cheap—and non-toxic. This makes the material interesting for a wide range of applications such as thin film solar cells, architectural glass coatings and flat-panel displays (see, e.g., [1] and references therein). Polycrystalline ZnO is sufficient for many applications, whereas the development of ZnO-based optoelectronic applications requires epitaxial monocrystalline thin films (see, e.g., [2] and references therein). Among other techniques for thin film deposition, RF-magnetron sputtering is attractive, especially due to its high deposition rates at relatively low substrate temperatures [3]. The substrate type and deposition parameters, such as the mode and temperature of deposition, affect the crystallinity and the defect density of the layers, and therefore their electrical and optical properties.
Many techniques are applied for the analysis of defects in thin films. In this work, Rutherford backscattering spectrometry (RBS) in channelling configuration is used [4,5]. Herein, a well collimated mono-energetic beam of light ions, usually helium (He) ions or protons, impinges on a target. Ions are scattered into the half-space above the target. A detector measures the energy of the backscattered ions. The position of the detector determines the backscattering angle (see Figure 1). The signal of the detector is electronically processed and the number of ions is counted as a function of their energy. Thus, the result of the RBS measurement is the number of ions scattered into the detector as a function of the ion energy, which is called the RBS spectrum. This method is very commonly used, especially for studying ion-beam induced damage in crystalline solids [6]. It is briefly described in Section 3. The advantages of this method are that samples do not require special preparation and RBS is nearly destruction free. By exploiting the channelling effect, the depth distribution of lattice defects can be extracted from the measured RBS spectra. Additionally, further information about the dominate type of defects can be obtained when spectra are measured under different conditions. Those conditions are different temperatures or different energies of the analysing ions.
In this work, the capability of energy-dependent RBS in channelling mode is demonstrated for epitaxial ZnO layers sputtered onto single-crystalline ZnO substrates. The existence of point defects and dislocation loops well describes the channelling RBS spectra measured for the various beam energies applied. The concentration and depth distribution of both types of defects were determined.

2. Experimental Conditions

ZnO and Aluminium-doped ZnO (ZnO:Al) layers grown homoepitaxially on the Zn-terminated surface of undoped ZnO <0001> substrates were investigated by energy-dependent RBS in channelling configuration.
The layers were prepared by RF-magnetron sputtering at a constant power of 50 W and a substrate temperature of 300 °C (for more details of the experimental set-up and the deposition procedure see [7]). Aluminium doping is obtained by using a special ceramic target (ZnO/Al2O3 98/2 wt.%). The Al content of the films, measured by RBS, is about (2 ± 0.2) at.% [8]. The layer thickness was measured with a surface profilometer [9]. Table 1 presents the various deposition frequencies applied, and the composition and thickness of the investigated layers.
The RBS measurements were carried out with He ions at energies of 1.4, 2.0, 2.5 and 3.0 MeV. The backscattered ions were registered with the detector placed at 170° with respect to the direction of the incident ion beam (see Figure 1). An aligned spectrum is obtained when the ions penetrate into the crystal along a low-index axis. Random spectra were taken with the samples being tilted 5 degrees off axis and rotated around an axis perpendicular to the sample surface. The minimum yield χmin is calculated from the energy spectra of backscattered ions measured in aligned (Yal) and in random (Yra) direction with χmin = Yal/Yra. Energy-to-depth conversion was performed using common SRIM (Stopping and Range of Ions in Matter) energy loss data [10]. The minimum yield χmin versus depth z (i.e., the χmin(z) spectra) obtained for the different beam energies were used in order to obtain information about the type and concentration of defects within the sputtered ZnO layers. With respect to RBS in channelling configuration, all defects in a crystal manifest as displaced lattice atoms. In this work, the DICADA code [11] and a previous version DICADA1 [12] are applied for defect analysis, which are based on the discontinuous model of dechannelling [13,14]. With the DICADA code, χmin spectra can be calculated as a function of depth z for a given relative concentration of displaced lattice atoms nda(z) for compound and single crystals. Conversely, the relative concentration of displaced lattice atoms versus depth, nda(z), can be calculated from the measured minimum yield χmin(z). The program version DICADA1 is applicable only to elementary targets but includes both point defects and extended defects. Therefore, this version was used to quantify the amount of point defects and dislocation loops in the epitaxial layers by fitting calculated χmin(z) spectra to the measured ones. For this, the binary material ZnO has to be approximated by an elementary one with mass and atomic number taken as a mean value of that of the two elements of the original crystal. The usability of this approach has already been demonstrated for defect studies of ion-implanted SiC [15]. For the calculations we used an average atomic number of Zav = 19 and an average mass of mav = 40.69 u. The Debey temperature was taken to be 416 K [16] and the lattice parameters are a = 3.2498 Å and c = 5.2066 Å (JCPDS 36-1451).

3. RBS Method

As already mentioned above, an aligned RBS spectrum is obtained when the ions enter a monocrystalline solid in the direction of a low-index axis. The atoms of the crystal are arranged in rows which form channels along the low-index axis. Within these channels the ions perform a guided movement due to the periodic atomic potentials—this is called the channelling effect. It occurs if the angle Ψ between the ion velocity and the atomic rows is below a critical value Ψc. The consequence of channelling is a reduction in the probability of the occurrence of direct backscattering events. Thus, a significant decrease in the yield of backscattered ions is observed in comparison to the yield measured in random direction. Defects in crystals appear as atoms being displaced from their original lattice sites. Direct backscattering takes place when an ion gets backscattered in a single collision with a displaced lattice atom. Additionally, the displaced lattice atoms disturb the movement of the ions within the channels, resulting in an increase of Ψ. When Ψ exceeds the critical angle Ψc, the guided movement of the ions is ceased, and eventually backscattering takes place in a further scattering event. This process is called dechannelling. Both processes occur simultaneously. In the case of direct backscattering, backscattering of the ions takes place at the depth at which the displaced lattice atom is located. Backscattering of ions due to dechannelling is the consequence of all defects within the layer the ions traversed up to the depth where the backscattering event takes place. This contribution to the aligned backscattering spectra is called the dechannelling background.
In previous works, it was demonstrated that the contribution of direct backscattering and dechannelling to the aligned RBS spectra depends on the kind of defects [4,5]. Point defects, point defect complexes and amorphous zones (here summarized as point defects) are characterised by uncorrelated-displaced lattice atoms. In this case, the contribution of direct backscattering is significant. Conversely, in the case of extended defects, a correlated displacement of lattice atoms occurs and the contribution of direct backscattering is negligible. This means that the measured aligned RBS spectra are mainly determined by the dechannelling of the analysing He ions. This effect is illustrated in Figure 2, which shows χmin(z) spectra calculated for <001> oriented silicon damaged within the first 0.25 µm (data taken from [17]). Additionally, the spectrum of the perfect crystal, χ m i n p e r f ( z ) , is shown for comparison. Curve A is calculated assuming a Gaussian distribution of randomly-displaced lattice atoms with a maximum concentration of 0.5 at a depth of 0.1 µm. A clear damage peak due to direct backscattering occurs in this case. Behind the damaged layer, the minimum yield does not drop down to the value of the perfect crystal, because of the dechannelling of the ions that passed through the damaged layer. Curve B in Figure 1 was calculated for a 0.25 µm thick layer containing a certain amount of dislocation loops. No damage peak is visible in this spectrum. The end of the damaged layer is indicated by the change in the slope of χmin with depth z at 0.25 µm.
Theoretical and experimental investigations revealed that the minimum yield χmin at a given depth behind a damaged layer depends on the beam energy E [4,5]. For the analysis, the dechannelling probability γ is relevant with γ = ln [(1 − χ m i n p e r f )/(1 − χmin)]. In a first approximation and with 1 − χ m i n p e r f ≈ 1, one obtains γ ≈ χmin. A dependence of the minimum yield according to γ ~ Eκ is obtained for uncorrelated displaced lattice atoms with κ = (−0.5 to −1) depending on the distribution and concentration of the displaced lattice atoms [5,18]. In the case of extended defects, a beam energy dependence of γ ~ E0 is obtained for stacking faults and γ ~ E0.5 for dislocation loops [12,19]. That is, the beam energy dependences are distinctly different for uncorrelated and correlated displaced lattice atoms. This effect has been used to obtain information about the kind of defects in ion-implanted crystals by RBS in channelling configuration. In this work, it was applied to sputtered ZnO layers.

4. Results and Discussion

Figure 3 depicts the energy spectra of backscattered He ions for all the samples investigated and all the ion energies applied. Oxygen resonances [20] enhance the yield of backscattered ions for beam energies of 2.5 MeV around channel 170, and of 3 MeV around channel 210. The random spectra of Al doped ZnO show a slightly reduced Zn backscattering yield within the deposited layer due to the presences of Al atoms. For all applied beam energies, this decrease corresponds to an Al concentration of 2%, which is in agreement with the composition of the sputter target. As a reference for perfect ZnO, aligned spectra were measured on undoped ZnO <0001> substrates. In Figure 3 it can be seen that the backscattering yield of the sputtered layer is rather high for sample AB5897 (ZnO deposited with 13.56 MHz). This points to a stronger contribution of direct backscattering than in other layers and indicates the formation of a heavily damaged layer. For the other three ZnO layers, the backscattering yield in aligned direction is significantly lower, indicating a low level of damage. The spectra are characterised by a strong dechannelling of the analysing He ions. In this case, the end of the sputtered ZnO layers can be identified by the change in the slope of the spectra with decreasing channel numbers, and therefore decreasing ion energy. For 1.4 MeV He ions, the maximum depth of analysis (backscattering on Zn atoms only without superposition of backscattering from O ions) is about 700 nm. This is less than the thickness of most layers (see Table 1). Therefore, the end of the sputtered layers is less visible in the 1.4 MeV He spectra.
The minimum yield χmin is calculated as explained in Section 2 and shown in Figure 4 for all beam energies and each sample. It can be seen that in general the energy dependence of χmin is weak. The minimum yield χmin averaged over depths ranging from 600 to 650 nm was analysed with respect to its energy dependence according to Eκ. The obtained values of κ are between −0.24 and +0.03. According to theory, a value of κ ≈ 0.0 points to the existence of stacking faults. However, in epitaxially grown layers one usually expects the existence of dislocations, which were indeed found in these homoepitaxial ZnO layers by transmission electron microscopy [7]. Therefore, one can assume that the weak energy dependence of the RBS minimum yield results from the superposition of point defects and dislocation loops both occurring in the sputtered layers. As described above, point defects result in a decrease in χmin with increasing beam energy and dislocations result in an increase, thus yielding a weak energy dependence in the case of superposition.
To demonstrate the effect of point defects and dislocation loops on the structure of the minimum yield χmin versus depth, the minimum yield for different defect distributions were calculated with DICADA1 (see Section 2). Figure 5 plots the results of the test calculations in comparison with the spectrum of minimum yield χmin for sample AB6008 (ZnO:Al deposited with 13.56 MHz) and analysis with 2 MeV He ions. For the calculations shown in Figure 5a a box-like depth profile of randomly distributed displaced lattice atoms (representing point defects) was assumed with a thickness of 800 nm and various concentrations. The spectra in Figure 5b were calculated assuming a box-like distribution of dislocation loops within the first 700 nm and various areal concentrations. A Burger’s vector perpendicular to the loop plane and parallel to the channel direction was assumed. The magnitude of the Burger’s vector was chosen to be c = 3.84 Å and the loop radius 2500 Å. Figure 5 reveals that there are two significant differences between the two sets of calculated spectra. First, in the case of point defects, the calculated χmin spectra shift to higher values starting from the surface with increasing defect concentration. This is not the case for dislocation loops even though their concentration was assumed to be constant over depth up to the surface. Second, there is always a slight decrease in χmin at the end of the layer in the case of point defects. However, in the case of dislocation loops, the end of the layer is only indicated by a change in the slope of χmin versus depth.
When comparing the measured χmin spectrum in Figure 5 with the calculated ones, it becomes obvious that both types of defects have to be taken into account to represent the measured spectra by calculated ones. In doing so, the contribution of dislocation loops is determined by the height of the minimum yield at depths behind the sputtered layer. Therefore, it is a precondition for this type of analysis that the DICADA code well describes the dechannelling background for point defects (i.e., uncorrelated-displaced lattice atoms). This is indeed the case, as was shown in previous publications [21,22]. Further, it has to be mentioned that information about the type and size of dislocation loops cannot be easily obtained with ion channelling [12]. However, the advantage is that, when assuming a certain type and size of loops, their contribution to the dechannelling of the analysing He ions can be quantified. This is useful when analysing a set of layers produced under different deposition conditions, as in this work. A similar procedure was applied for ion-implanted layers to study the number of point defects and dislocation loops as a function of the ion fluence by ion channelling [23,24].
Based on the results presented above, for each sample, the χmin spectra for all four beam energies applied were fitted by calculated χmin spectra assuming one and the same distribution of point defects and dislocation loops for all beam energies. The conditions for the corresponding DICADA1 calculations are as given above. The depth distributions of point defects and dislocation loops were varied until an optimum agreement between the calculated and measured spectra was obtained for all beam energies applied. The achieved fit of the spectra is demonstrated in Figure 6, which compares the measured and calculated spectra for the lowest (1.4 MeV) and highest beam energy (3 MeV). For all of the samples investigated, a good agreement was obtained. This also holds for the two medium beam energies (not shown). The resulting depth distribution of point defects and dislocation loops are plotted in Figure 7. The amount of both types of defects decreases with increasing deposition frequency. This is true for both materials, ZnO with and without Al. This is in good agreement with former investigations [25], since higher deposition frequencies lead to lower voltage at the sputtering target. This discharge voltage determines the maximum energy of ions or energetic atoms, bombarding the growing film. Bombardment with higher-energy particles may cause more defects.
Furthermore, the profiles generally show a lower amount of both types of defects for the layers containing Al. The reduction in the concentration of dislocation loops with increasing frequency is the same for both types of material, ZnO and ZnO:Al. The impact of the frequency on the reduction in the concentration of point defects is higher for samples containing no Al. One possible explanation is that the number of point defects is generally low in layers containing Al.

5. Summary and Conclusions

ZnO and ZnO:Al were deposited on <0001> ZnO by RF-magnetron sputtering applying two different discharge frequencies. The crystalline quality of the deposited layers was investigated by energy-dependent RBS measurement in channelling configuration. For this, He ions with energies of 1.4, 2.0, 2.5, and 3.0 MeV were used. RBS analysis is quick, almost destruction free and does not require special sample preparation.
The minimum yield χmin of the backscattered ions measured as a function of the beam energy is sensitive to the type of defects. For all layers studied here, the χmin spectra measured with the ions of the different beam energies were well represented, assuming point defects and dislocation loops as the main type of defects in the layers. It is worth noting that an agreement was indeed possible using the same defect profiles (one for point defects and one for dislocation loops) for all beam energies. The existence of dislocation loops was proven by transmission electron microscopy in previous publications. The possibility of quantifying the number of point defects is a significant advantage of RBS. This information can be important for understanding, e.g., the electrical and optical properties of such layers.
Two main results can be deduced from our RBS studies: (1) The quantity of defects decreases with increasing RF frequency during the deposition. This holds well for both, ZnO and ZnO:Al layers; and (2) ZnO:Al layers are less damaged than those without Al for a given RF frequency. These results are in agreement with previous findings for similarly deposited layers investigated by other techniques. We were able to show the depth distribution of those two types of defects for both highly and lowly disturbed epitaxial layers.
Our study reveals that by exploiting the channelling effect and its energy dependence, more information can be obtained about the type and concentration of defects in crystals than by using only one ion energy. The procedure demonstrated here can be taken as an example that can also be applied to other defective crystals or thin crystalline layers.

Author Contributions

Conceptualization, F.W. and E.W.; Formal analysis, F.W. and K.G.; Funding acquisition, E.W. and K.E.; Investigation, F.W. and A.B.; Methodology, K.E. and E.W.; Project administration, K.E. and E.W.; Resources, A.B., K.E. and E.W.; Software, K.G.; Supervision, E.W.; Visualization, F.W. and E.W.; Writing—original draft, F.W. and E.W.; Writing—review & editing, F.W., E.W., K.E. and K.G.

Acknowledgments

The work was supported by the Bundesministerium für Bildung und Forschung of the Federal Republic of Germany under contract number 03SF0478B and by the German Federal Ministry of Economics and Technology (Grant Nos. KF2002606DA0 and AiF 16595BG).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cebulla, R.; Wendt, R.; Ellmer, K. Al-doped zinc oxide films deposited by simultaneous rf and dc excitation of a magnetron plasma: Relationships between plasma parameters and structural and electrical film properties. J. Appl. Phys. 1998, 83, 1087–1095. [Google Scholar] [CrossRef]
  2. Özgür, Ü.; Alivov, Y.I.; Liu, C.; Teke, A.; Reshchikov, M.A.; Doğan, S.; Avrutin, V.; Cho, S.J.; Morkoç, H. A comprehensive review of ZnO materials and devices. J. Appl. Phys. 2005, 98, 11. [Google Scholar] [CrossRef]
  3. Greene, J.E. Tracing the recorded history of thin-film sputter deposition: From the1800s to 2017. J. Vac. Sci. Technol. A 2017, 35, 05C204. [Google Scholar] [CrossRef]
  4. Chu, W.K.; Mayer, J.W.; Nicolet, M.A. Backscattering Spectrometry; Academic Press: New York, NY, USA, 1978. [Google Scholar]
  5. Götz, G.; Gärtner, K. (Eds.) High Energy Ion Beam Analysis; Akademie-Verlag: Berlin, Germany, 1988. [Google Scholar]
  6. Wesch, W.; Wendler, E. (Eds.) Ion Beam Modification of Solids: Ion-Solid Interaction and Radiation Damage; Springer International Publishing: Cham, Switzerland, 2016. [Google Scholar]
  7. Rengachari, M.; Bikowski, A.; Ellmer, K. Defect analysis by transmission electron microscopy of epitaxial Al-doped ZnO films grown on (0001) ZnO and a-sapphire by RF magnetron sputtering. J. Appl. Phys. 2016, 120, 015305. [Google Scholar] [CrossRef]
  8. Bikowski, A.; Rengachari, M.; Nie, M.; Wanderka, N.; Stender, P.; Schmitz, G.; Ellmer, K. Research Update: Inhomogeneous aluminium dopant distribution in magnetron sputtered ZnO:Al thin films and its influence on their electrical properties. Appl. Phys. Lett. Mater. 2015, 3, 060701. [Google Scholar] [CrossRef] [Green Version]
  9. Nie, M.; Bikowski, A.; Ellmer, K. Microstructure evolution of Al-doped zinc oxide and Sn-doped indium oxide deposited by radio-frequency magnetron sputtering: A comparison. J. Appl. Phys. 2015, 117, 155301. [Google Scholar] [CrossRef]
  10. Ziegler, J.F.; Biersack, J.P.; Littmark, U. The Stopping and Ranges of Ions in Solids; Pergamon: New York, NY, USA, 2003. [Google Scholar]
  11. Gärtner, K. Modified master equation approach of axial dechannelling in perfect compound crystals. Nucl. Instrum. Methods Phys. Res. B 2005, 227, 522–530. [Google Scholar] [CrossRef]
  12. Gärtner, K.; Ugguzoni, A. Energy dependence of dechannelling due to dislocation loops. Nucl. Instrum. Methods Phys. Res. B 1992, 67, 189–193. [Google Scholar] [CrossRef]
  13. Gärtner, K.; Hehl, H.; Schlotzhauer, G. AXIAL DECHANNELLING: I. Perfect Crystal. Nucl. Instrum. Methods 1983, 216, 275–286. [Google Scholar] [CrossRef]
  14. Gärtner, K.; Hehl, H.; Schlotzhauer, G. AXIAL DECHANNELLING: II. Point Defects. Nucl. Instrum. Methods B 1984, 4, 55–62. [Google Scholar] [CrossRef]
  15. Friedland, E.; Gärtner, K.; Hlatshwayo, T.T.; van der Berg, N.G.; Thabethe, T.T. Influence of radiation damage on xenon diffusion in silicon carbide. Nucl. Instrum. Methods Phys. Res. B 2014, 332, 415–420. [Google Scholar] [CrossRef] [Green Version]
  16. Robie, R.A.; Edwards, J.L. Some Debye temperatures from single-crystal elastic constant data. J. Appl. Phys. 1966, 37, 2659–2663. [Google Scholar] [CrossRef]
  17. Wendler, E.; Bilani, O.; Gärtner, K.; Wesch, W.; Hayes, M.; Auret, F.D.; Lorenz, K.; Alves, E. Radiation damage in ZnO ion implanted at 15 K. Nucl. Instrum. Methods Phys. Res. B 2009, 267, 2708–2711. [Google Scholar] [CrossRef]
  18. Wendler, E.; Treiber, E.; Baldauf, J.; Wolf, S.; Ronning, C. High-level damage saturation below amorphisation in ion implanted β-Ga2O3. Nucl. Instrum. Methods Phys. Res. B 2016, 379, 85–90. [Google Scholar] [CrossRef]
  19. Gruska, B.; Götz, G. Dechannelling by dislocations in ion implanted Si. Radiat. Effects 1982, 59, 157–167. [Google Scholar] [CrossRef]
  20. IBANDL (Ion Beam Analysis Nuclear Data Library). Available online: https://www-nds.iaea.org/exfor/ibandl.htm (accessed on 13 May 2019).
  21. Gärtner, K. Axial dechannelling in compound crystals with point defects and defect analysis by RBS. Nucl. Instrum. Methods Phys. Res. B 1997, 132, 147–158. [Google Scholar] [CrossRef]
  22. Wendler, E.; Gaiduk, P.I. Rutherford backscattering analysis of damage in ion implanted GaAs/A10.44Ga0.56As. Nucl. Instrum. Methods Phys. Res. B 1998, 136, 488–493. [Google Scholar] [CrossRef]
  23. Turos, A. On the mechanism of damage buildup in gallium nitride. Radiat. Eff. Defects Solids 2013, 168, 431–441. [Google Scholar] [CrossRef]
  24. Haddad, Y.; Delauche, L.; Gentils, A.; Garrido, F. In situ characterization of irradiation-induced microstructural evolution in urania single crystals at 773 K. Nucl. Instrum. Methods Phys. Res. B 2018, 435, 25–30. [Google Scholar] [CrossRef]
  25. Bikowski, A.; Welzel, T.; Ellmer, K. The impact of negative oxygen ion bombardment on electronic and structural properties of magnetron sputtered ZnO:Al films. Appl. Phys. Lett. 2013, 102, 242106. [Google Scholar] [CrossRef]

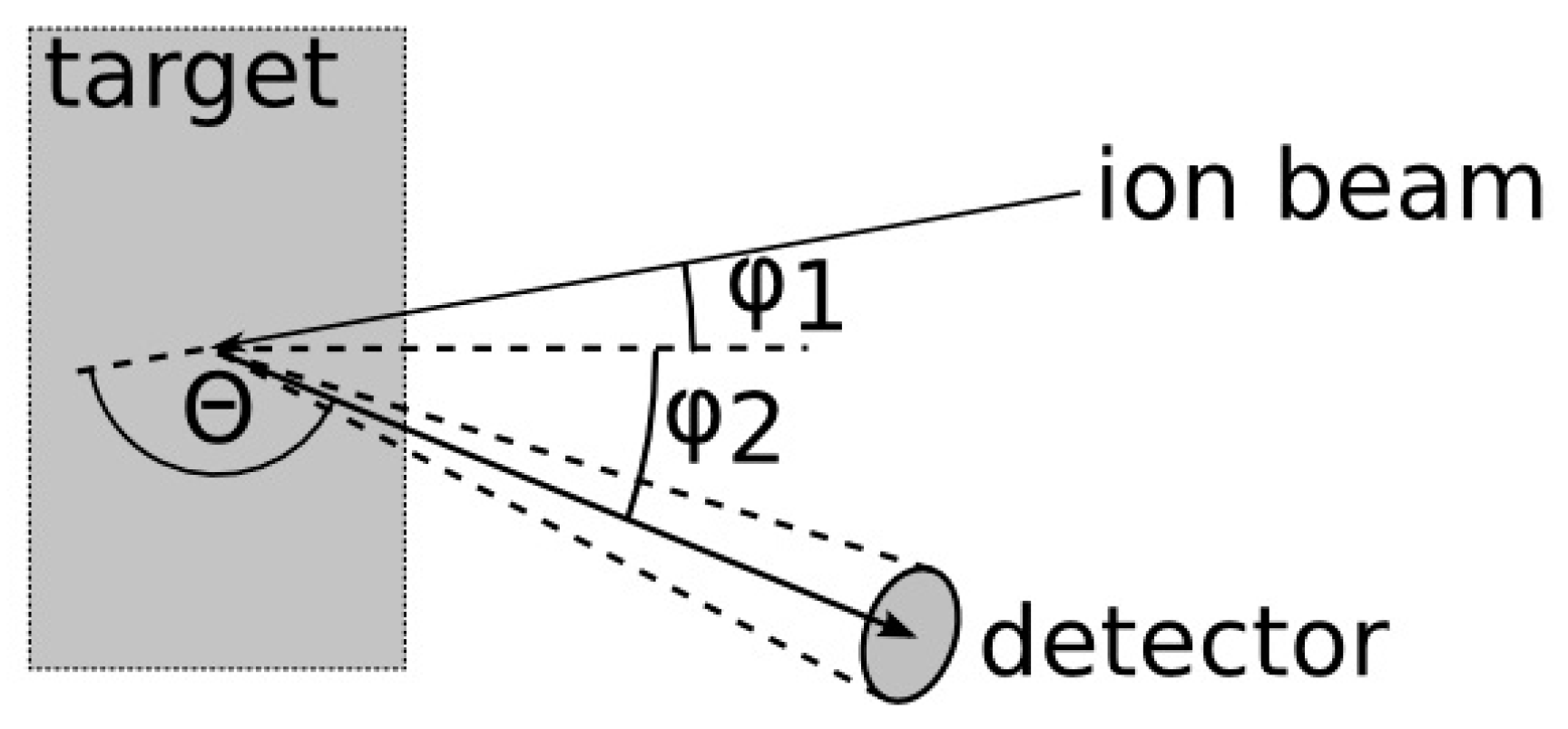

Figure 1. Schematic representation of Rutherford backscattering spectrometry (RBS). The angles of incidence and exit of the analyzing ions are ϕ1 and ϕ2, respectively. Θ is the backscattering angle.
Figure 1. Schematic representation of Rutherford backscattering spectrometry (RBS). The angles of incidence and exit of the analyzing ions are ϕ1 and ϕ2, respectively. Θ is the backscattering angle.
Crystals 09 00290 g001

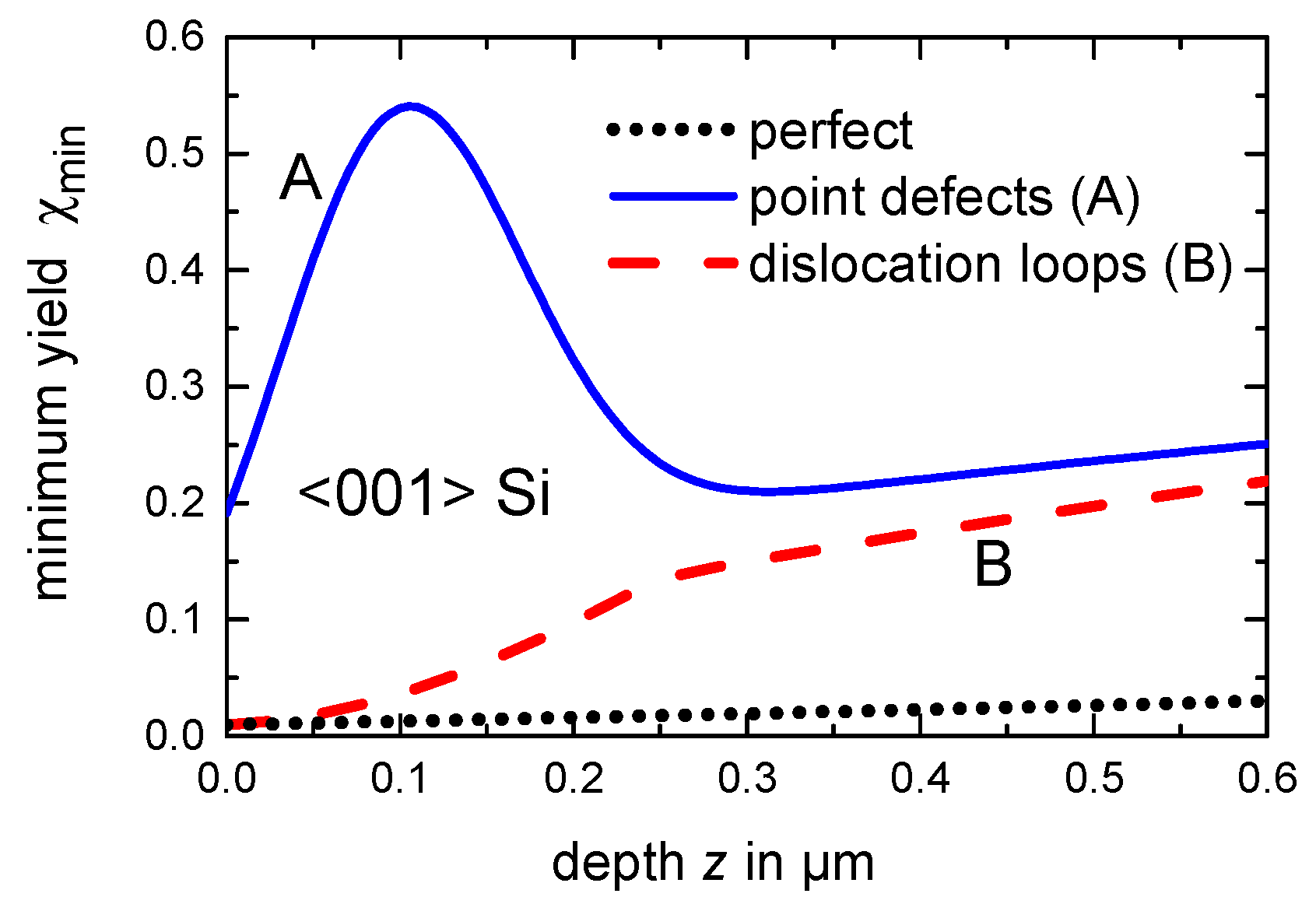

Figure 2. Minimum yield χmin versus depth z calculated for 1.4 MeV He ions and <001> Si with different defect states within the first 0.25 µm: Gaussian distribution of point defect complexes (solid line, A) and box-like distribution of dislocation loops (dashed line, B). The χmin(z) spectrum of undamaged Si is given as a dotted line for comparison. For details see text.
Figure 2. Minimum yield χmin versus depth z calculated for 1.4 MeV He ions and <001> Si with different defect states within the first 0.25 µm: Gaussian distribution of point defect complexes (solid line, A) and box-like distribution of dislocation loops (dashed line, B). The χmin(z) spectrum of undamaged Si is given as a dotted line for comparison. For details see text.
Crystals 09 00290 g002

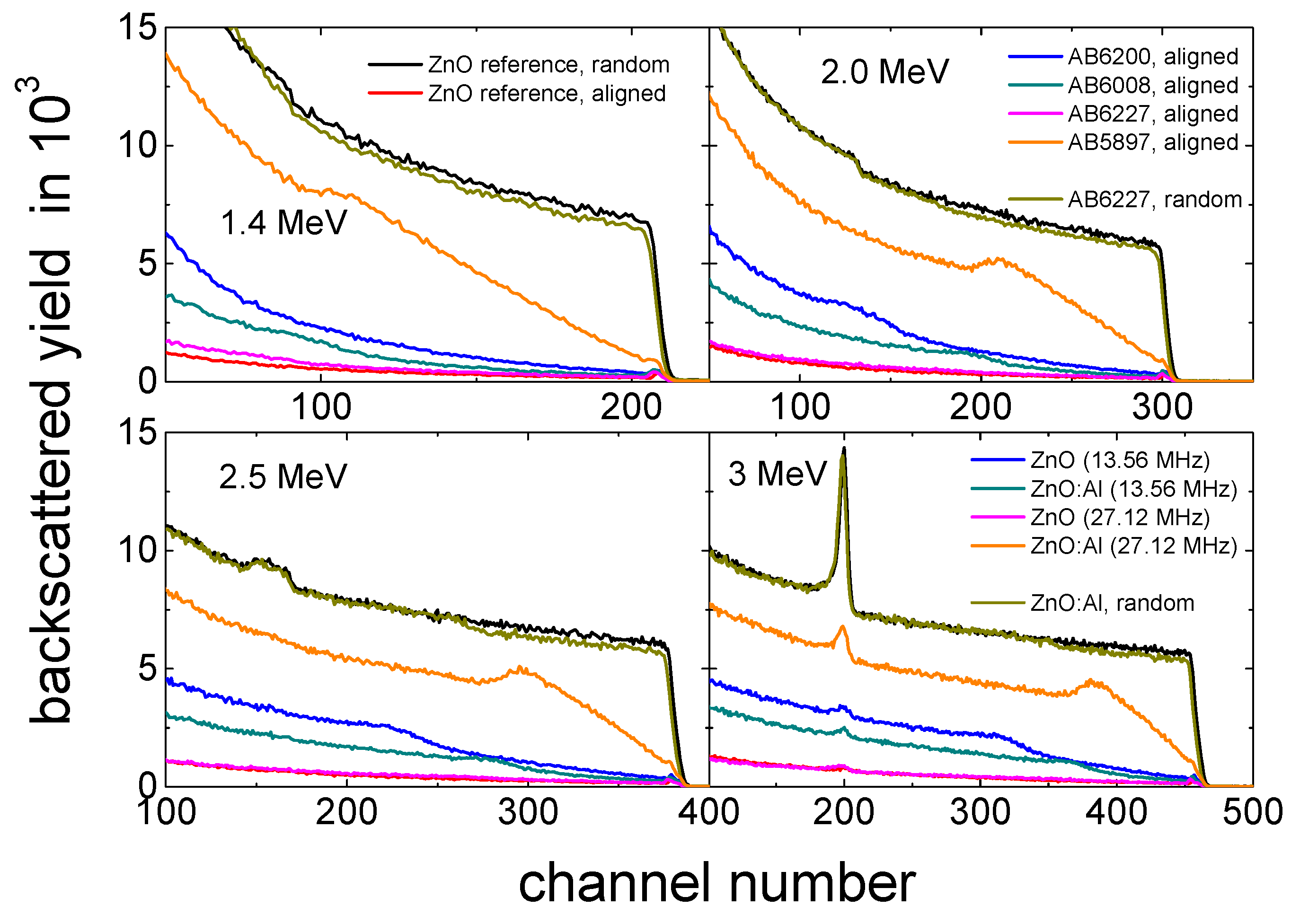

Figure 3. Energy spectra of He ions of different ion energies backscattered in homoepitaxial ZnO and ZnO:Al layers fabricated under various sputtering conditions. Spectra in aligned and random directions for a ZnO single crystal are shown for comparison. Beam energies and names of the samples are indicated in the figure.
Figure 3. Energy spectra of He ions of different ion energies backscattered in homoepitaxial ZnO and ZnO:Al layers fabricated under various sputtering conditions. Spectra in aligned and random directions for a ZnO single crystal are shown for comparison. Beam energies and names of the samples are indicated in the figure.
Crystals 09 00290 g003

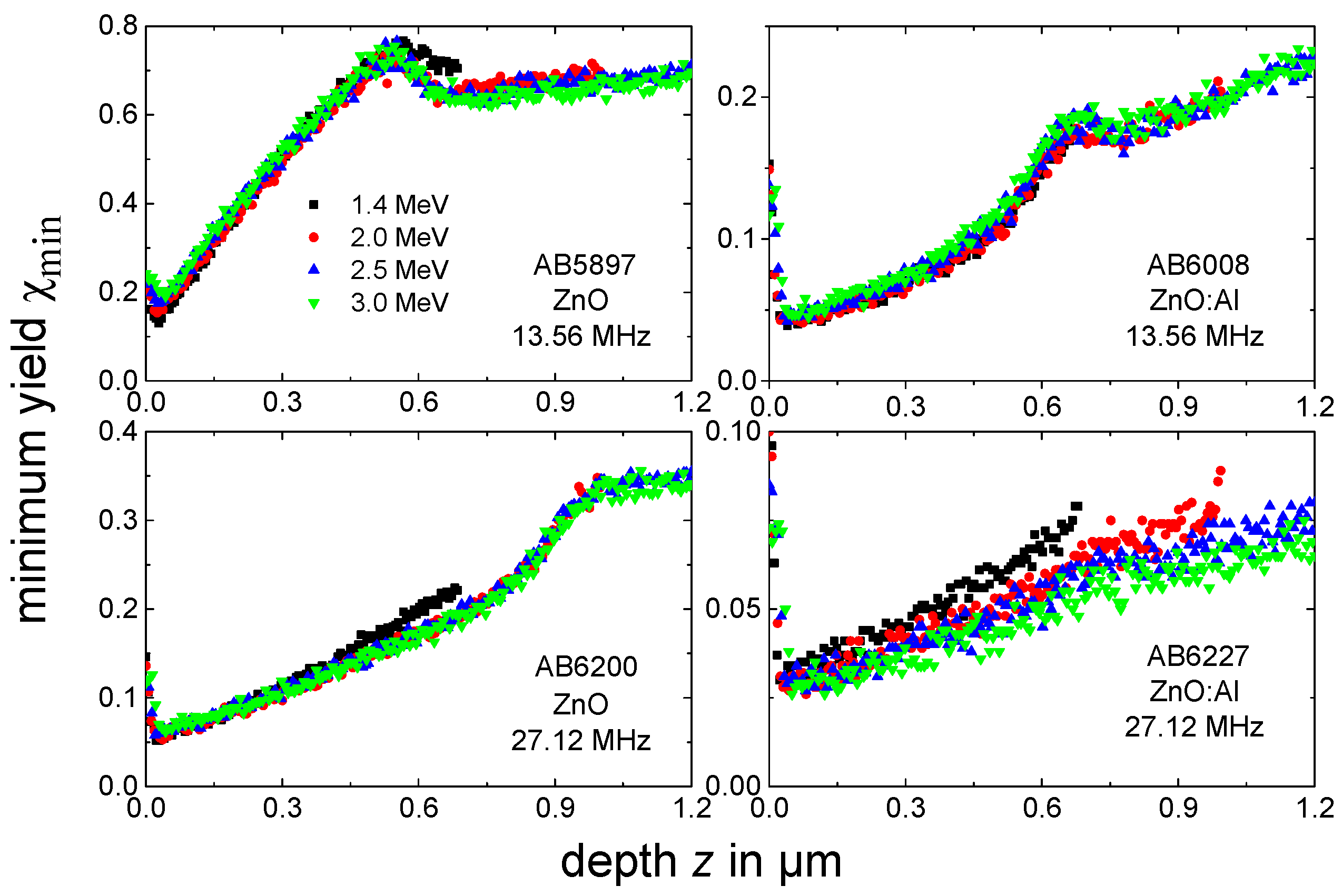

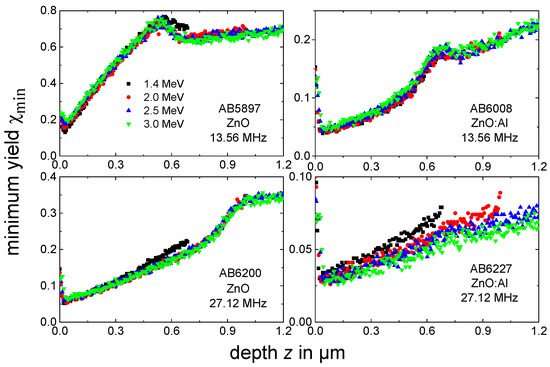

Figure 4. Minimum yield χmin versus depth z for each sample and all of the He ion energies applied. The names of the samples are given in the figure.
Figure 4. Minimum yield χmin versus depth z for each sample and all of the He ion energies applied. The names of the samples are given in the figure.
Crystals 09 00290 g004

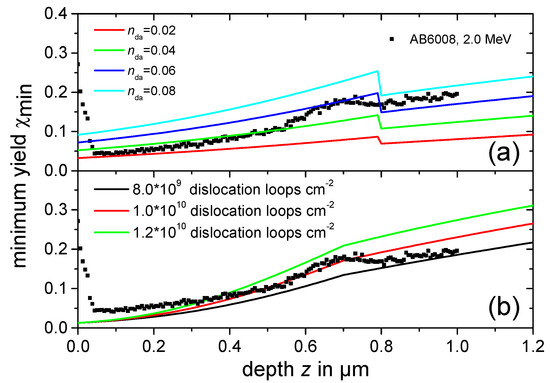

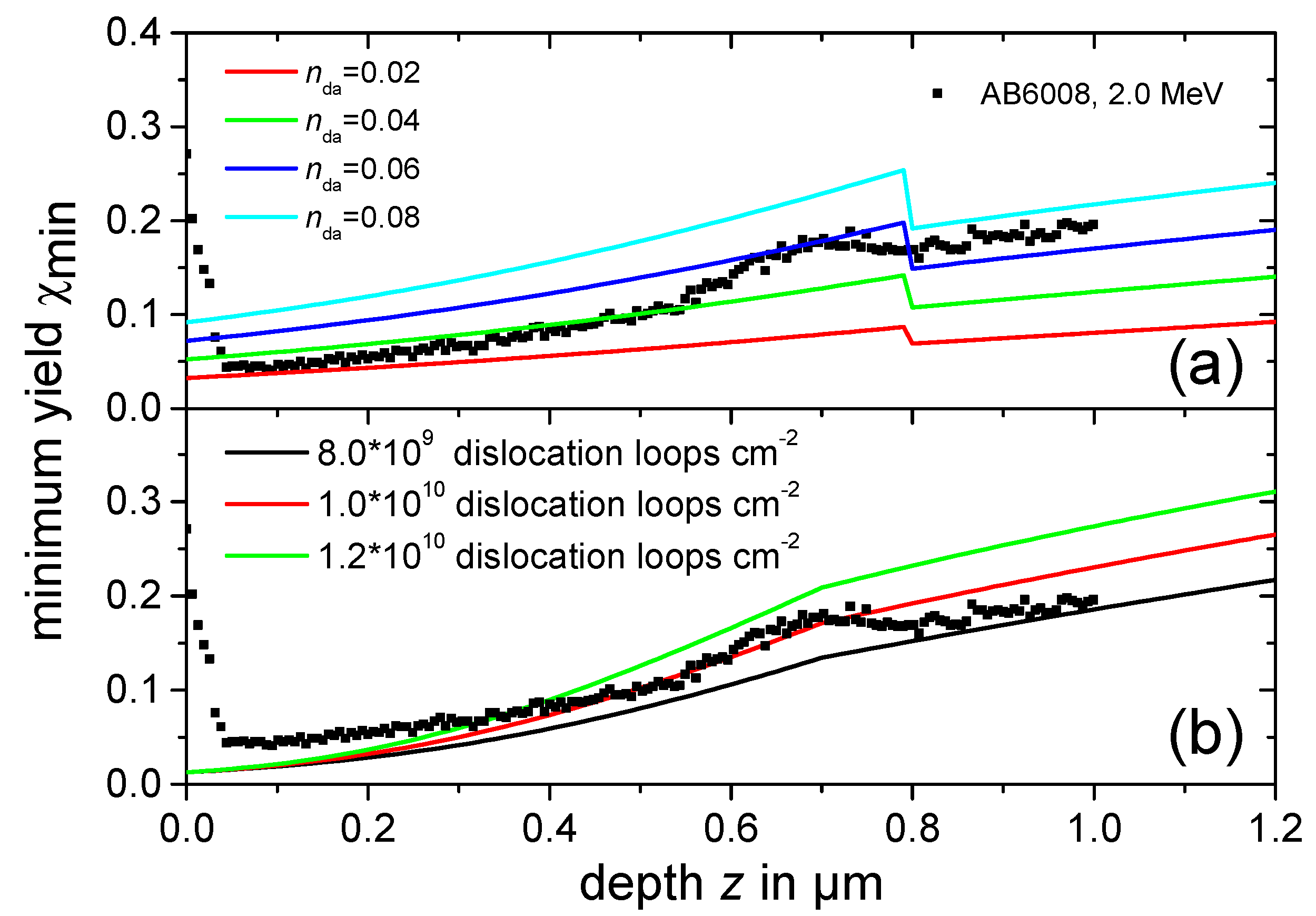

Figure 5. Minimum yield χmin versus depth z for sample AB6008 (ZnO:Al deposited with 13.56 MHz) measured with He ions of 2.0 MeV energy (symbols). The impact of the different type and number of defects on the χmin spectra are demonstrated by DICADA1 calculations (solid lines), (a) shows the impact of point defects represented by randomly distributed displaced lattice atoms with various relative concentrations nda. In (b), spectra are depicted assuming dislocation loops of various areal concentrations. For details see text.
Figure 5. Minimum yield χmin versus depth z for sample AB6008 (ZnO:Al deposited with 13.56 MHz) measured with He ions of 2.0 MeV energy (symbols). The impact of the different type and number of defects on the χmin spectra are demonstrated by DICADA1 calculations (solid lines), (a) shows the impact of point defects represented by randomly distributed displaced lattice atoms with various relative concentrations nda. In (b), spectra are depicted assuming dislocation loops of various areal concentrations. For details see text.
Crystals 09 00290 g005

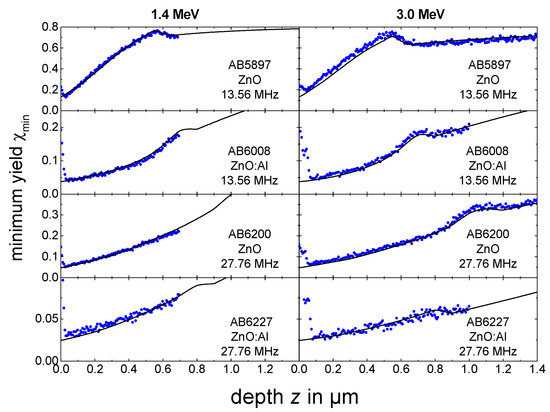

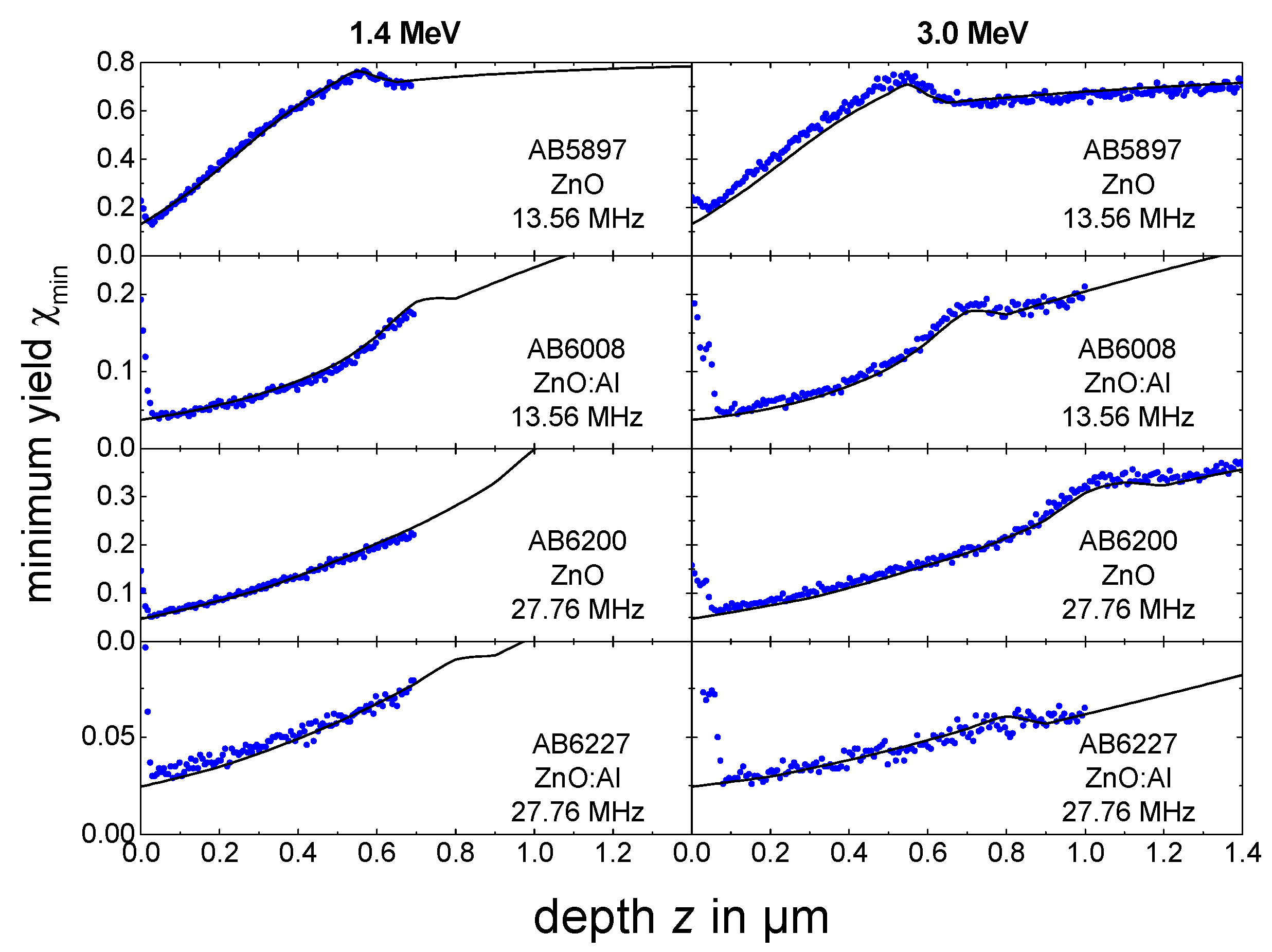

Figure 6. Measured (symbols) and calculated (solid lines) minimum yield χmin versus depth z for He ion energies of 1.4 MeV (left column) and 3.0 MeV (right column). The names of the samples are given in the figure.
Figure 6. Measured (symbols) and calculated (solid lines) minimum yield χmin versus depth z for He ion energies of 1.4 MeV (left column) and 3.0 MeV (right column). The names of the samples are given in the figure.
Crystals 09 00290 g006

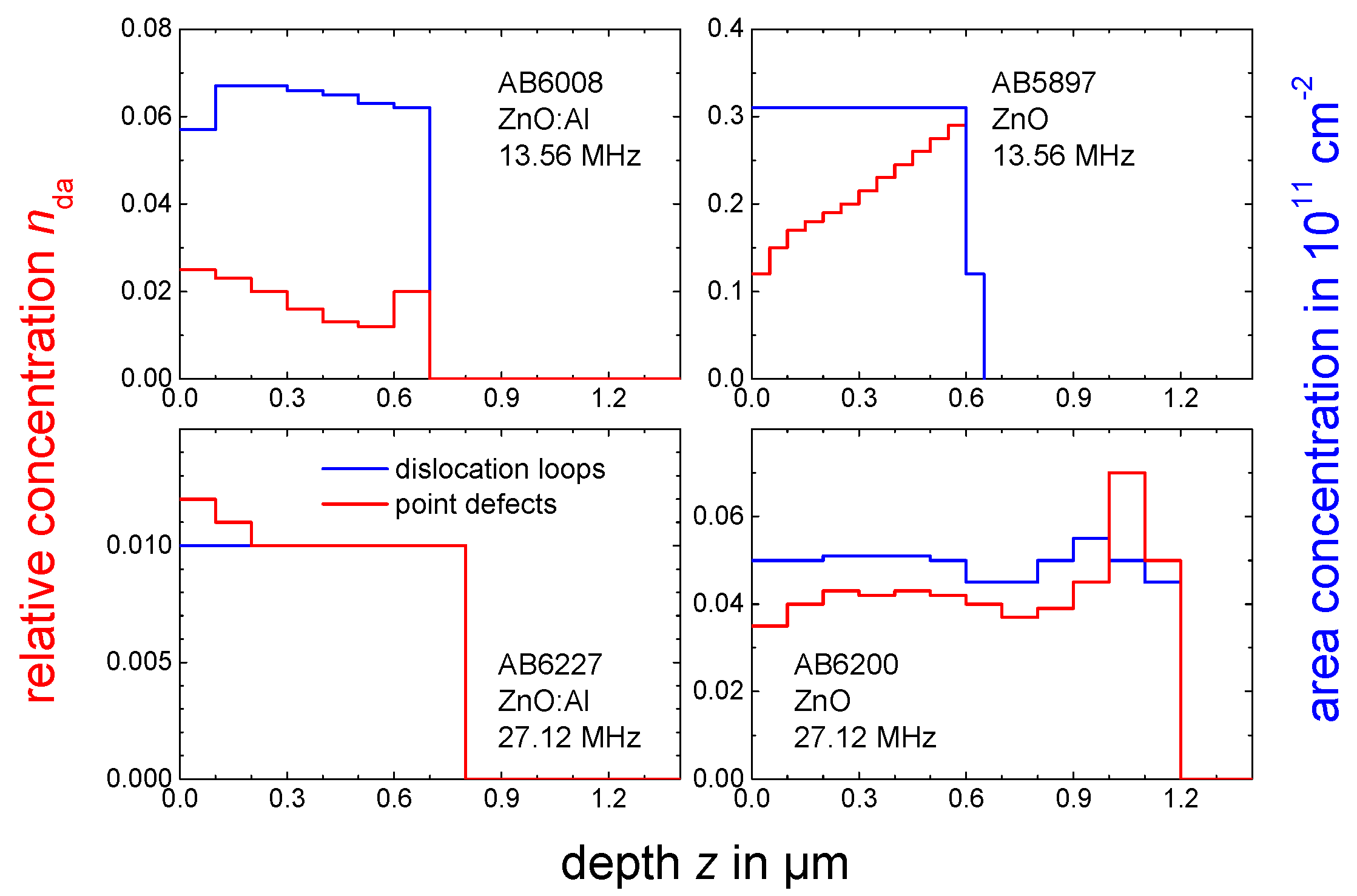

Figure 7. Depth distribution of the defect concentrations used to calculate the χmin spectra plotted in Figure 6 for the various homoepitaxial ZnO and ZnO:Al layers investigated, which are indicated in the figure. Please note the different ordinate scales in different parts of the figure.
Figure 7. Depth distribution of the defect concentrations used to calculate the χmin spectra plotted in Figure 6 for the various homoepitaxial ZnO and ZnO:Al layers investigated, which are indicated in the figure. Please note the different ordinate scales in different parts of the figure.
Crystals 09 00290 g007
Table 1. Overview of the investigated ZnO samples and their parameters.
Table 1. Overview of the investigated ZnO samples and their parameters.
SampleDischarge Frequency
(MHz)
Al Fraction
(at.%)
Thickness
(nm)
AB589713.560565
AB600813.562735
AB620027.1201215
AB622727.122785
