EphA2 Expression in Bone Sarcomas: Bioinformatic Analyses and Preclinical Characterization in Patient-Derived Models of Osteosarcoma, Ewing’s Sarcoma and Chondrosarcoma

by
Giorgia Giordano
1,2,†,
Alessandra Merlini
1,2,*,†,
Giulio Ferrero
3,4,
Giulia Mesiano
1,
Erika Fiorino
1,
Silvia Brusco
1,
Maria Laura Centomo
1,2,
Valeria Leuci
1,
Lorenzo D’Ambrosio
1,5,
Massimo Aglietta
1,2,
Dario Sangiolo
1,2,
Giovanni Grignani
1,‡ and
Ymera Pignochino
1,3,‡
1
Candiolo Cancer Institute, FPO–IRCCS Str. Prov.le 142, Km 3.95, 10060 Candiolo, Italy
2
Department of Oncology, University of Torino, 10124 Torino, Italy
3
Department of Clinical and Biological Sciences, University of Torino, 10124 Torino, Italy
4
Department of Computer Science, University of Torino, 10124 Torino, Italy
5
Cardinal Massaia Hospital, 14100 Asti, Italy
*
Author to whom correspondence should be addressed.
†
Co-first authorship.
‡
Co-last authorship.
Cells 2021, 10(11), 2893; https://doi.org/10.3390/cells10112893
Submission received: 3 September 2021 / Revised: 20 October 2021 / Accepted: 25 October 2021 / Published: 26 October 2021
(This article belongs to the Special Issue Molecular and Cellular Mechanisms of Cancers: Bone Sarcomas - Series 2)
Browse Figures
Versions Notes

Abstract

:
Bone sarcomas are a group of heterogeneous malignant mesenchymal tumors. Complete surgical resection is still the cornerstone of treatment, but, in the advanced/unresectable setting, their management remains challenging and not significantly improved by target- and immuno-therapies. We focused on the tyrosine kinase Eph type-A receptor-2 (EphA2), a key oncoprotein implicated in self-renewal, angiogenesis, and metastasis, in several solid tumors and thus representing a novel potential therapeutic target. Aiming at better characterizing its expression throughout the main bone sarcoma histotypes, we investigated EPHA2 expression in the Cancer Cell Lines Encyclopedia and in public datasets with clinical annotations. looking for correlations with molecular, histopathological and patients’ features and clinical outcomes in a total of 232 osteosarcomas, 197 Ewing’s sarcomas, and 102 chondrosarcomas. We observed EPHA2 expression in bone sarcoma cell lines. We demonstrated higher EPHA2 expression in tumor tissues when compared to normal counterparts. A significant correlation was found between EPHA2 expression and Huvos grade (osteosarcoma) and with worse overall survival (dedifferentiated chondrosarcoma). Next, we characterized EPHA2 expression and activation in bone sarcoma primary tissues and in patient-derived xenografts generated in our laboratory to verify their reliability as in vivo models of osteosarcoma, Ewing’s sarcoma and chondrosarcoma. Furthermore, for the first time, we demonstrated EPHA2 expression in chondrosarcoma, suggesting its potential key role in this histotype. Indeed, we observed a significant dose-dependent antitumor effect of the EphA2-inhibitor ALW-II-41-27 in patient-derived in vitro models. In conclusion, EphA2 targeting represents a promising novel therapeutic strategy against bone sarcomas.

Graphical Abstract

1. Introduction

Bone sarcomas are a rare and heterogeneous group of malignant mesenchymal primary tumors originating from the osseous tissue, representing less than 1% of all malignancies. In particular, osteosarcoma and Ewing’s sarcoma occur mainly in adolescents and young adults, while chondrosarcoma has a peak incidence in the seventh decade [1]. The addition of chemotherapy to surgical excision in osteosarcoma and Ewing’s sarcoma greatly improved the outcome of patients affected by localized disease. Despite optimal treatment, 30–40% of patients still die of the disease due to poor histological response to therapy, disease relapse and onset of multiple metastases [1]. Several target therapies, conventional chemotherapy and immunotherapeutic strategies have been investigated, but besides mifamurtide no other innovative therapy has been approved for the clinical treatment of osteosarcoma in the last decade [2]. The identification of novel molecular targets will be instrumental for overcoming the current impasse in the treatment of relapsing and non-resectable disease presentations. Indeed, multikinase inhibitors with a specific antiangiogenic activity in osteosarcoma [3,4,5], a novel inhibitor of transcriptional-promoting activity of ETS family transcription factors in sarcomas [6], and inhibitors of IDH1/2 activity in chondrosarcomas [7,8], have displayed some clinical benefits, but without exceeding a progression-free survival in the range of six months. These results underpin the need to continue exploring innovative avenues in the quest for key targets through which novel therapies could hijack tumor progression and metastasis. In this view, molecules involved in cell migration and tumor metastasis are of particular interest.
Among these molecules, erythropoietin-producing hepatocellular (Eph) tyrosine kinase receptors are the largest known family of tyrosine kinase receptors. They mediate bi-directional signals between adjacent cells. Eph receptors modulate cytoskeleton dynamics, cell adhesion and cell motility. Indeed, they orchestrate cell movements during several processes (mainly during embryo development), such as gastrulation, segmentation, angiogenesis, axonal path finding, and neural crest cell migration [9,10,11]. In this protein family, Eph type-A receptor 2 (EphA2) has been identified as a driver oncoprotein in the pathogenesis of several tumors, including bone sarcomas, being implicated in the acquisition of self-renewal (stem cell-like) properties [12] and metastasis [13]. In these tumor-promoting contexts, EphA2 activation relies on the so-called non-canonical EphA2 pathway, which is characterized by phosphorylation at serine 897 by pro-tumorigenic kinases, such as PKA, RSK kinases and Akt [14,15,16]. Its “canonical” activation through ligand binding, tyrosine kinase activity and tyrosine autophosphorylation has been implicated in EphA2 activation in physiological conditions [11,17,18]. EphA2 is highly expressed in a variety of tissues and processes during embryo development, as with other Eph protein family members [9,10,11]. However, in adult tissues, its expression is low and mostly limited to epithelia, with a high proportion of dividing cells [17,18]. This could be an important prerequisite for selecting EphA2 as a potential therapeutic target.
In our previous work, we demonstrated that combined pazopanib + trametinib treatment could significantly reduce EphA2 expression in osteosarcoma cell lines and that this was possibly a relevant mechanism of response to the combination treatment [19].
In this study, we aim to broaden our validation of EphA2 as a therapeutic target across the bone sarcoma family, particularly in osteoblastic osteosarcoma, Ewing’s sarcoma and conventional chondrosarcoma, and at establishing bone sarcoma models, tailored according to patients’ tumor characteristics. We propose an in silico investigation of EPHA2 expression in bone sarcoma cell lines and in publicly available datasets from bone sarcoma samples of case series, showing the involvement of EPHA2 in the three main aforementioned bone sarcoma histotypes. We also describe the correspondence among primary tumor tissues and patient-derived xenograft (PDXs) models, focusing on EphA2 expression. To our knowledge, EphA2 had not yet been investigated in chondrosarcoma. This brings chondrosarcoma to the fore alongside osteosarcoma and Ewing’s sarcoma as a potential preclinical and clinical field of study for anti-EphA2 targeting and immunotherapeutic strategies, which are already ongoing, or with preliminary data in several cancer types (NCT02252211, NCT04180371, NCT02575261) [20,21,22,23].
Indeed, we showed that EphA2 targeting with the small molecule inhibitor ALW-II-41-27 resulted in marked reduction in cell growth and cell viability in four in vitro models, which we derived from primary osteosarcoma, Ewing’s sarcoma and chondrosarcoma tumor tissues.
Finally, our established PDX models could serve as a functional validation of EphA2’s relevance in the progression of osteosarcoma, Ewing’s sarcoma and chondrosarcoma for further testing EphA2-targeting strategies in vivo, in different histotypes and at various disease stages (i.e., localized vs. metastatic).

2. Materials and Methods

2.1. Bioinformatics Analyses

The data on the EPHA2 expression levels in the cell lines were retrieved from the Cancer Cell Line Encyclopedia (CCLE) [24]. Specifically, the Z-score-normalized EPHA2 levels were retrieved from the CbioPortal webtool [25] using the track named “Cancer Cell Line Encyclopedia (Broad, 2019)”. R v4.0.3 and shinyGEO were used to analyze the EPHA2 expression levels in relation to patients’ clinical features in 88 osteosarcoma samples from the TARGET-OS project data retrieved from the NCI Genomic Data Commons and from three public gene expression experiments deposited in Gene Expression Omnibus (GEO): GSE39055 (37 osteosarcoma samples), GSE21257 (53 osteosarcoma samples). For the TARGET-OS data, the analysis of the relationship between EPHA2 levels and sex was computed using Wilcoxon-Rank sum Test (Wilcoxon.test R function) while the overall survival analysis was performed using the survival R package v3.12. For the analysis of the GEO datasets, shinyGEO was applied using the Differential Expression Analysis module for comparing the EPHA2 levels between patient groups based on specific covariates (sex, Huvos grade, and survival/recurrence status), while the Survival Analysis module was applied for the overall survival and relapse-free survival analyses. ShinyGEO was also used to analyze the relationship between the EPHA2 levels and clinical features of 246 Ewing’s sarcoma samples from GSE34620 (117 ES samples), GSE63155 (46 ES samples), GSE17674 (44 ES samples) and GSE63156 (39 ES samples). The data on the EPHA2 expression in 102 chondrosarcoma samples were retrieved from E-MTAB-7264. These microarray data were preprocessed and normalized using the affy v1.70 R package in default settings, while Wilcoxon-Rank sum was used for statistical testing.

2.2. Establishment of Patient-Derived Xenograft Models

Patient-derived xenografts (PDXs) were established according to protocols approved by both human and animal Institutional Review Boards committee and the Italian Ministry of Health (Prot. 21635.18, Aut.Min.834/2019-PR). The patients’ characteristics are listed in Table 1. The patients provided signed informed consent; fresh tumor specimens obtained from surgical samples were selected by our local pathologist, who prepared vital tumor mass and surrounding/flanking normal tissues (healthy control tissue). Tumors were fragmented with a scalpel into 0.4 cm × 0.4 cm pieces and then implanted subcutaneously into the right flank of 7-week old NSG (NOD-SCID IL2R gamma null) mice (Charles River, Calco, Italy). Tumor engraftment and growth was monitored biweekly and the xenografts were explanted when a maximum diameter of 1.5 cm was reached. The explanted xenograft was then re-implanted in two further generations of mice and finally explanted and processed for molecular and histological analyses.

2.3. RNA Extraction and Quantitative Real-Time PCR

The total RNA, including small non-coding RNAs, was extracted from snap-frozen primary tumor tissue and normal counterparts upon homogenization by using Promega a Maxwell RSC miRNA tissue Kit and a Maxwell RSC Instrument (Promega Italia, MI, Italy). RNA quality and concentration were checked by DS 11+ Spectrophotometer (Denovix Inc, Wilmington, DE, USA). Starting from 1 µg of total RNA, Superscript VILO IV Master Mix (Life Technologies Italia, Monza, Italy) was used to obtain the cDNA. Quantitative real-time PCR (qRT-PCR) was performed with TaqMan Fast Advanced Mastermix (Life Technologies Italia, Monza, Italy) and Taqman probes (EphA2: Hs01072272_m1 and ACTB: Hs99999903_m1) with an ABI PRISM 7900HT System (Thermo Fisher Scientific, Whaltam, MA, USA). The expression data were normalized to the geometric mean of housekeeping genes and log2 fold change in tumor tissue with respect to normal tissue control was calculated with the formula: 2−ddct. The experiments were dperformed in triplicates; the mean and SEM were calculated by using GraphPad Prism 8 (GraphPad Software, San Diego, CA, USA).

2.4. Western Blot

The total protein extracts were obtained from six different PDX-derived fresh-frozen tumor samples. After mechanical disaggregation in the presence of Lysis Buffer 6 (R&D Systems, Biotechne, Minneapolis, MN USA), western blotting was performed as previously described [19]. Briefly, the protein concentrations were determined using a bicinchoninic acid assay (BCA Protein Assay, Thermo Fisher Scientific, Whaltam, MA, USA), and the absorbance levels were measured using a BioPhotometer (Eppendorf, Hamburg, Germany). Samples of 10 to 30 µg were resolved by electrophoresis on 4–15% mini-PROTEAN®TGX™ PreCast gels (Bio-Rad Laboratories, Hercules, CA, USA) and then transferred to a nitrocellulose membrane via the Trans-Blot® Turbo™ Transfer System (Bio-Rad Laboratories). The blocking of non-specific sites was performed with BSA 10% for 1 h at room temperature. Next, the membranes were incubated overnight at 4 °C with primary antibodies: Phospho-EphA2 (Ser897) (D9A1) Rabbit mAb #6347, EphA2 (D4A2) XP® Rabbit mAb#6997 and β-Actin (13E5) Rabbit mAb #4970 from Cell Signalling Technologies (Euroclone, Pecco, Italy). Specific signals were visualized with HRP–conjugated secondary antibodies (Jackson Immuno Research Laboratories, West Grove, PA, USA) and detected using the Bio-Rad Chemidoc™ Touch Imaging System (Bio-Rad Laboratories) following exposure to Clarity™ Western ECL substrate (Bio-Rad Laboratories).

2.5. Immunohistochemistry

The immunohistochemistry (IHC) for EphA2 was performed manually according to standard procedure, on paraffin-embedded PDX tumor tissues. The antigen retrieval was performed with 15-min sub-boiling citrate buffer (pH = 6). Next, a peroxidase blockade was carried out with serum-free Dako blocking reagent (Agilent Technologies, Inc., Santa Clara, CA, USA). The primary antibody for EphA2 staining was D4A2 XP® Rabbit mAb #6997 (Cell Signaling Technologies, Danvers, MA, USA) diluted 1:200 and incubated overnight at 4 °C. Staining was obtained with Dako EnVision+ System- HRP Labelled Polymer Anti-Rabbit (Agilent Technologies, Inc., Santa Clara, CA, USA) followed by 3,3′-Diaminobenzidine as the standard chromogen and counter-staining with hematoxylin. Slide fixation was performed with mounting medium and observation under an optical microscope (Leica DM750, Leica Biosystems, Buccinasco, MI, Italy) equipped with a Leica ICC50W camera (Leica Biosystems).

2.6. Primary Cell Lines

The primary cell lines were obtained from the corresponding fresh or frozen tumor samples. Tumor samples (approximately 10 mm3 for each sample) were dissociated with a surgical scalpel and subsequently reduced to single-cell suspension using a Tumor Dissociation Kit, human (Miltenyi Biotech, Bologna, Italy) and GentleMACS™ Octo Dissociator (Miltenyi Biotech). Cells were cultured in monolayer condition in the presence of Gibco BRL KO DMEM F12 (Thermo Fisher Scientific), with 10% fetal bovine serum (Euroclone), 25 mmol/L HEPES, 100 U/mL penicillin and 100 U/mL streptomycin (Gibco BRL, Thermo Fisher Scientific) in a humidified 5% CO2 incubator at 37 °C.

2.7. Pharmacological Treatments with EphA Inhibitor ALW-II-41-27 and Cell Viability Assays

Cells in their exponential growing phase were plated in 96-well plates (2000 cells/well). After 24 h, the cells were treated with 1:2 scalar dilutions (2000 - 31.25 nM) of EphA2 inhibitor ALW-II-41-27 (MedChemTronica, Sollentuna, Sweden) for 72 h or left untreated. The cells’ viability was analyzed using a Cell Titer-Glo® luminescent cell viability kit (Promega Italia, Milano, Italy). The luminescence signal was detected using a Synergy HT luminometer (Biotek Instruments, Winooski, VT, USA) and analyzed using Gen5 v1.09 software (Biotek Instruments). The post-treatment viable cell proportions were obtained after normalization with the untreated controls and the concentrations inhibiting 50% of the cell population (IC50); their 95% confidence intervals were calculated using CalcuSyn Software (Biosoft, Cambridge, UK). The cell growth assays were performed by plating cells in their exponential growing phase into 12-well plates (10,000/well). After 24 h, the cells were treated with 1:5 scalar dilutions (2000 - 80 nM) for 72 h or left untreated. The cells were stained with 0.1% crystal violet (Sigma-Aldrich). The image acquisition was performed by using a Bio-Rad Chemidoc™ Touch Imaging System (Bio-Rad Laboratories) and the area occupied by the cells was quantified using Quantity One software version 4.6.5 (Bio-Rad Laboratories). The experiments were performed in triplicate and means; the SEM and p values (two-way ANOVA with Tukey ‘s multiple comparisons) were calculated using GraphPad Prism software version 8.0 (GraphPad Software, San Diego, CA, USA).

3. Results

3.1. EphA2 Expression in Bone Sarcoma Cell Lines from the Cancer Cell lines Encyclopedia

Recently, we showed that EphA2 down-regulation is implicated in the synergistic antitumor activity of pazopanib and trametinib in preclinical models of osteosarcoma. Moreover, the silencing of EphA2 expression led to impaired cell viability and cell migration in our models [19]. To further investigate the role of EphA2 as an effective molecular target in bone sarcomas, we took advantage of the public gene database on osteosarcoma cell lines and patient cohorts to validate our data in silico. As a first step, we explored EPHA2 gene expression levels in the whole Cancer Cell Line Encyclopedia (CCLE), which included 10 osteosarcoma, 12 Ewing’s sarcoma and 4 chondrosarcoma cell lines. As demonstrated in Figure 1, EPHA2 was highly expressed in the osteosarcoma (mean Z-score = 4.8), in Ewing’s sarcoma (mean Z-score = 3.9), and in chondrosarcoma (mean Z-score = 4.1) cell lines. The highest expression level was found in osteosarcoma Saos-2 (Z-score = 7.12), U2OS (Z-score = 5.50), and MG63 (z-score = 5.45) cells, followed by Ewing’s sarcoma SK-NEP-1 (Z-score= 5.28) RD-ES (Z-score = 5.15) and CADO-ES1 (Z-score= 4.71) cells. Finally, EPHA2 was remarkably expressed in three out of four chondrosarcoma cell lines: CAL-78 (Z-score= 4.68), Hs 819.T (Z-score= 4.16) and SW 1353 (Z-score = 3.95) (Figure 1).

3.2. Correlation of EPHA2 Expression with Patients’ Characteristics and Clinical Outcome in Osteosarcoma

Next, we moved to the analysis of EPHA2 expression levels in relation to patients’ characteristics and clinical outcomes. This was performed using the 88 osteosarcoma samples included in the TARGET-OS project, 37 unique diagnostic biopsy specimens (GSE39055) and 34 pre-chemotherapy biopsies of osteosarcoma patients who developed metastases within 5 years, compared with 19 pre-chemotherapy biopsies of osteosarcoma patients who did not develop metastases in the same time interval (GSE21257), deposited in Gene Expression Omnibus (GEO). In the GSE21257 dataset, we found a significant (p = 0.035) EPHA2 higher expression rate in tumors with a higher Huvos grade compared to tumors with a lower Huvos grade (Figure 2 and Table 2). Furthermore, in the same dataset, EPHA2 was significantly upregulated (p = 0.019) in male compared to female subjects. With the limitation of the sample size, we did not find any significant association with survival outcomes.

3.3. Correlation of EPHA2 Expression and Clinical Features in Ewing’s Sarcoma

We took advantage of four microarray experiments deposited in GEO (GSE34620, GSE63155, GSE17674, GSE63156) and, using shinyGEO, we analyzed EPHA2 gene expression levels in relation to tissue type (tumor vs. normal), patients’ characteristics (age, gender) and clinical outcome (overall survival and recurrence data) in a total of 246 Ewing’s sarcoma patients. The analyses revealed a significantly (p < 0.01) higher EPHA2 expression in tumor samples compared to normal tissue and, in two datasets (GSE34620, GSE63155), a significant (p = 0.001 and p = 0.042, respectively) gene upregulation in tumors from male compared to female subjects (Figure 3).

3.4. EPHA2 Expression in Chondrosarcoma and Correlation with Clinical and Molecular Features

As mentioned above, we found EPHA2 gene expression in all but one of the four chondrosarcoma cell lines tested (Figure 1). As a further step, we took advantage of the mRNA expression dataset obtained by Nicolle R. et al., including samples from 102 chondrosarcoma patients [26]. Benign chondroid lesions (n = 8), included in their database, were excluded from our analyses, as well as those lesions with missing tumor grade data (n = 6). Patients affected by dedifferentiated chondrosarcomas (n = 16) with worse prognosis had significantly higher EPHA2 expression levels (p = 0.0091) compared to those with dedifferentiated chondrosarcomas, who experienced longer overall survival (Figure 4). Conventional chondrosarcomas had no significant association between prognosis and EPHA2 expression levels; however, there was a significant association between chondrosarcoma mutational status and EPHA2 expression. Indeed, the G2 chondrosarcomas with mutated COL2A1 demonstrated a higher EPHA2 expression with respect to their wild-type counterpart (Figure 5; ** p < 0.01). Considering G3 conventional chondrosarcomas, EPHA2 expression was lower in the IDH1-mutated samples when compared to the IDH1 wild-type samples (* p < 0.05), while the opposite was observed with respect to the IDH2 mutations (Figure 5; higher EPHA2 expression in IDH2-mutated samples; * p < 0.05).

3.5. EPHA2 Expression and Activation in Bone Sarcoma Patient-Derived Xenografts

We established six bone sarcoma PDXs in three generations of mice. According to the molecular and histopathological diagnosis, we selected two osteoblastic osteosarcomas, two Ewing’s sarcoma and two conventional chondrosarcoma PDXs. The quantitative real–time PCR analysis showed once again that EPHA2 mRNA levels were higher in primary tumor tissues than in surrounding normal tissues (Figure 6A). The western blot and immunohistochemistry analyses showed that EphA2 was also highly expressed in PDX tumor tissues at the protein level (Figure 6B,C). The activated phosphorylated form of EphA2 (p-EphA2S897) was displayed in osteosarcoma and chondrosarcoma but not in Ewing’s Sarcoma PDXs from our cohort (Figure 6B).

3.6. EphA2 Inhibitor ALW-II-41-27 Induced Dose-Dependent Anti-Tumor Effects in In Vitro Models

In order to test the antitumoral effect of the EphA2 inhibitor ALW-II-41-27, we generated patient-derived in vitro models, starting with six primary tumor tissues (OS-29, OS-26, ES-7, ES-15, CS-281, and CS-347). Four out of six primary cell lines (OS-29, ES-07, ES-15, CS-281) were successfully established in adherent monolayer conditions. Treatment with scalar concentrations of ALW-II-41-27 induced a statistically significant dose-dependent inhibition of cell viability and cell growth of OS-29, ES-07, ES-15 and CS-281 cells, as demonstrated by the Cell Titer Glo Assays (Figure 7A) and crystal violet staining, respectively (Figure 7B,C). ES-07 were the most sensitive cells, followed by OS-29, ES-15 and CS-281 (p = 0.0167). The IC50s at 72 h were: 262 (95% confidence interval: 204–335), 552 (461–661), 1093 (773–1545), 1501 (766–2943), respectively.

4. Discussion

Our investigation of EPHA2 expression with bioinformatic analyses and PDXs highlights the involvement of EPHA2 in the tumor biology of the three main bone sarcoma histotypes: osteosarcoma, Ewing’s sarcoma and chondrosarcoma. In this specific setting, we still lack any substantial benefit from the innovation brought about by both target therapy and immunotherapy. In this context, EPHA2 may represent a step forward in both therapeutic settings. Indeed, innovative drugs have been developed targeting EphA2 both in the field of small inhibitors [27] and as drug conjugates [28] or EphA2-specific chimeric antigen receptor T cells (CAR-T; [20,21,22,23]).
The search for tumor-specific targets has been a common feature through the whole field of oncology. Initially, research focused on proteins involved in key processes driving the proliferative advantage of each tumor histotype, achieving remarkable success in selected cancers, such as breast cancer (HER2) [29] or melanoma (b-RAF) [30]. Unfortunately, and despite international efforts, in bone sarcomas we could not identify any target such as KIT [31,32] or EGFR [33] through which to affect tumor biology in a significant way. So far, multi-kinase receptor inhibitors have demonstrated some improvements in osteosarcomas [3,4,5] and IDH-1/2 inhibitors in a minority of chondrosarcomas [8]. Recently, TK216, a specific inhibitor of the deranged transcriptional machinery of Ewing’s sarcoma, has shown preliminary hints of activity, but again in a minority of progressive patients [6]. Moreover, bone sarcomas have not benefitted from checkpoint blockade immunotherapy [34]. This scenario is the bottom line of the continuous efforts to identify new targets to selectively affect bone sarcoma tumor cells, with a “precision medicine” driven approach, trying to tailor each molecule to a specific histotype and disease setting.
In this context, we focused on EphA2, a well-known membrane-bound tyrosine kinase receptor that has already been shown to be involved in the proliferative advantage of several solid tumors [18]. In bone sarcomas, EphA2 has come to the fore for its relevance to Ewing’s sarcoma tumor angiogenesis [35] and metastasis [13]. Concerning osteosarcoma, EphA2 mitogenic-, migratory- and metastasis-promoting effects have been demonstrated by our group [19] and by Fritsche-Guenther et al. [36].
In this study, we performed bioinformatic analyses in several databases (fully listed in the Methods section) to look for EphA2 expression and correlation with patients’ characteristics and clinical outcomes in osteosarcoma, Ewing’s sarcoma and chondrosarcoma.
The bioinformatic analysis of bone sarcoma cell line expression data (derived from CCLE) revealed high EPHA2 expression in osteosarcoma, Ewing’s sarcoma and chondrosarcoma; high expression levels were also found in other solid tumors, while low-to-null EPHA2 expression characterized hematological neoplasias. Hence, it seems that EPHA2 expression is not merely related to the cell of origin of the different tumor types (i.e., mesenchymal vs. epithelial). Indeed, one common feature of solid tumors is the need to hijack capable mechanisms through which to evade the primary tumor site and migrate to metastatic niches. With respect to blood cancers, solid tumors, these need to activate specific programs to orchestrate cell movement and migration, which often implies (for epithelial neoplasias) an epithelial-to-mesenchymal transition (EMT) [37,38]. Indeed, we could speculate that the high expression levels of EPHA2 observed in our analysis in aggressive epithelial cancers, such as pancreatic and gastric cancer, could reflect EMT activation in these histotypes. In fact, EphA2 is a key player in EMT and its involvement in this process has been specifically described in gastric cancer [39,40]. What is more, in our bioinformatic analysis, melanoma cells expressed EPHA2 at levels comparable to Ewing’s sarcoma and chondrosarcoma; in melanoma cells, EPHA2 expression has been linked to the shift from mesenchymal movement to amoeboid-like movement in migration and metastasis [41]. The ability of cancer cells to shuffle their movement type is an important mechanism of plasticity in cancer cell invasiveness [41,42,43,44]. Taken together, these data derived from CCLE bioinformatic analyses demonstrate high EPHA2 expression levels in solid tumors, including in our histotypes of interest (osteosarcoma, Ewing’s sarcoma and chondrosarcoma).
Through the analysis of public gene expression databases including bone sarcoma patients, we confirmed in silico that EPHA2 is expressed at higher levels compared to normal tissues in Ewing’s sarcoma; that it is associated with Huvos grade in osteosarcoma; and that higher EPHA2 expression correlates with a worse prognosis in dedifferentiated chondrosarcoma. In both the osteosarcoma and Ewing’s sarcoma data sets, a significant difference in EPHA2 expression levels was found in male (higher expression) vs. female (lower expression) subjects. We could hypothesize that this might be related to the worse prognostic outcome of male patients with respect to female patients, reflecting the higher aggressiveness of tumors expressing EPHA2 at higher levels. However, for now, this could only be described as an association deserving attention, as we lack a causal explanation for this survival difference and its possible relationship with EPHA2 expression. Indeed, the physiological and biological reasons behind the different survival for male vs. female subjects in osteosarcoma and Ewing’s sarcoma are still largely unknown [45,46].
Moving from in silico analyses to our experimental in vitro and in vivo data, we provided evidence that EphA2 is highly expressed in selected primary tumor samples of bone sarcomas if compared to their normal counterparts; this was demonstrated in their respective PDX models generated in our laboratory in NSG mice.
In particular, in both osteosarcoma PDX models, we showed EphA2 expression and phosphorylation at critical serine 897 (Ser897) residue, as a sign of oncogenic, non-canonical EphA2 pathway activation [14,15,16,47].
We also confirmed EphA2 expression in our Ewing’s sarcoma primary tumor samples and PDXs. However, in these two PDXs, we did not observe EphA2 phosphorylation at Ser897 (p-EphA2S897). In fact, previous work by Garcia-Monclús S. et al. [13] demonstrated heterogeneity among different Ewing’s sarcoma cell lines in terms of Ser897 phosphorylation. They demonstrated the role of EphA2 non-canonical pathway activation in the metastatic progression in Ewing’s sarcoma, displaying the more aggressive behavior (in terms of cell proliferation and migration) of cells bearing higher expression levels of p-EphA2Ser897 when compared to those with lower/no p-EphA2Ser897 [13]. Hence, considering the variability of p-EphA2Ser897 expression levels in Ewing’s sarcoma, it might be that with our limited sample size we could not capture this heterogeneity. Several other reasons might be hypothesized, but we speculate that this could also be due to the fact that our Ewing’s sarcoma models were derived from primary, localized tumor samples, and not from metastatic/relapsed lesions.
Finally, for chondrosarcoma, we demonstrated abundant EphA2 expression at the tissue/protein level in our primary tumor samples and PDX models. This is a novel observation, which deserves particular attention due to the lack of both chemotherapeutic and innovative efficacious treatment strategies in chondrosarcoma. In the chondrosarcoma PDXs, the activated, phosphorylated form of EphA2, p-EphA2S897, was highly expressed, displaying functional non-canonical EphA2 pathway activation.
Another attractive feature of EphA2 is its rather low physiological expression in healthy adult tissues [18], making EphA2 an interesting target with predictably few on-target, off-tumor side effects. Indeed, both in our bioinformatic investigation and in our qRT-PCR analysis of primary tumor and surrounding normal tissues, we demonstrated a significant differential expression of EPHA2 (higher expression in pathological tumor tissue vs. healthy tissues). Furthermore, we tested the sensitivity of EphA2 higher vs. lower expressing primary bone sarcoma cell lines, against the EphA2 inhibitor ALW-II-41-27. ALW-II-41-27 is a potent EphA2 inhibitor, which has displayed antitumoral activity in different tumor types and preclinical models. In particular, ALW-II-41-27 has been studied in non-small cell lung cancer [48,49], breast cancer [50], gastric cancer [51], colorectal cancer [52] and hepatocellular carcinoma [53]. However, this is the first time in which ALW-II-41-27 has been studied in bone sarcomas. We managed to establish six primary cell lines from our primary tumor samples, but only four out of these six were able to grow in monolayer-culture conditions in vitro. We observed a more profound effect on cell growth and viability in one Ewing’s sarcoma primary cell line, followed by osteosarcoma (intermediate sensitivity), another Ewing’s sarcoma (lower sensitivity) and chondrosarcoma primary cell lines. This represents an encouraging result for the chondrosarcoma histotype, in which EphA2’s role is a novel finding, as mentioned above, and which is particularly important given the current lack innovative therapeutic strategies.
However, two caveats should be mentioned in this context: first, EphA2 is an important pattern recognition receptor for fungal beta-glucan [54] and its targeting might lead to impaired anti-fungal response. This could be a relevant issue for oncological patients, who are at relevant risk of developing opportunistic infections. Secondly, in the first three patients treated with EphA2-directed CAR-T cells, G2 pulmonary edema was reported, which could be an on-target, off-tumor effect considering that EphA2 is expressed in the adult lung epithelium [23].
Of course, our work features limitations, mainly due to the fact that, even among bone sarcoma subtypes, heterogeneity is a major issue. For instance, we provided data based on osteoblastic osteosarcoma models, but we cannot assume that our results could apply to other histotypes as well. Furthermore, pediatric osteosarcomas are somewhat different with respect to adult osteosarcomas [46]. In Ewing’s sarcoma – driven by several different specific balanced translocations – we might presume different levels of expression and involvement of this receptor pathway, based on Ewing’s sarcoma’s intrinsic heterogeneity [55,56]. Finally, chondrosarcomas display different grades of aggressiveness, which affect, for example, the IDH1/2 dependency of these tumors [8]. However, notwithstanding all these caveats, our findings provide a strong rationale upon which to develop future research targeting EphA2 in osteosarcoma, Ewing’s sarcoma and chondrosarcoma. Our PDXs could constitute a reliable platform to test different EphA2-targeting agents to strengthen preclinical data, in order to construct evidence for EphA2 targeting in clinical trials in different bone sarcoma histotypes.

5. Conclusions

In conclusion, EphA2 is overexpressed in the three main bone sarcoma histotypes and EphA2 targeting with a small-molecule inhibitor demonstrated significant antitumoral effects in all the tested patient-derived bone sarcoma cell lines. In this specific setting, the array of pharmacological tools is rapidly enlarging and offers innovative types of drugs, both in the field of target therapies as well as in that of immunotherapies other than immune-checkpoint inhibitors. We believe that the data presented in this article warrant further studies in the field of osteosarcoma, Ewing’s sarcoma and, especially, chondrosarcoma, in which EphA2 pathway activation has not been previously reported and might represent a therapeutic opportunity for this disease.

Author Contributions

Conceptualization, G.G. (Giorgia Giordano), A.M., M.A., G.G. (Giovanni Grignani), and Y.P.; methodology, G.G. (Giorgia Giordano), A.M., L.D., G.F., Y.P.; software, G.F.; validation, G.F., L.D., Y.P.; formal analysis, G.F., Y.P.; investigation, G.G. (Giorgia Giordano), A.M., G.F., G.M., E.F., S.B., M.L.C., V.L, L.D., D.S., G.G. (Giovanni Grignani), Y.P.; visualization, G.G. (Giovanni Grignani), Y.P.; resources, G.G. (Giovanni Grignani), D.S., M.A., and Y.P.; data curation, G.G. (Giorgia Giordano), A.M., G.F., G.M., E.F., S.B., M.L.C., V.L., L.D., D.S., G.G. (Giovanni Grignani), Y.P.; writing—original draft preparation, A.M., G.G. (Giovanni Grignani), Y.P.; writing—review and editing, G.G. (Giorgia Giordano), A.M., G.F., G.M., E.F., M.L.C., V.L., L.D., D.S., M.A., G.G. (Giovanni Grignani), Y.P.; visualization, A.M., G.F., Y.P.; supervision, Y.P. and G.G. (Giovanni Grignani); project administration, Y.P. and G.G. (Giovanni Grignani); funding acquisition, G.G. (Giovanni Grignani), Y.P. and D.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Ministero della Salute-Ricerca Finalizzata, Giovani Ricercatori GR-2016-02362726 (Y.P); RC 2019 Ministero della Salute; AIRC IG 23104., FPRC 5 × 1000 Ministero della Salute 2015 ImGen, FPRC 5xmille MIUR 2014 (G.G., Giovanni Grignani); FPRC ONLUS 5 × 1000 Ministero della Salute 2015 to D.S; Fondazione per la ricerca sui tumori dell’apparato muscoloscheletrico e rari ONLUS CRT RF = 2016–0917.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Institutional Review Board and Ethics Committee of Candiolo Cancer Institute, FPO-IRCCS (296-2020; date 14-OCT-2020). For the animal studies: authorization Italian Ministry of Health (Prot. 21635.18, Aut.Min.834/2019-PR).

Informed Consent Statement

Informed consent was obtained from all human subjects involved in the study.

Data Availability Statement

Data are available upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest with regard to the present study. Potential COI outside of the present study: G.G. (Giovanni Grignani) has received fees for consulting and advisory board roles from PharmaMar, Lilly, Novartis, Bayer; and Eisai. L.D. has received travel expenses from PharmaMar and Lilly. All other authors declare no competing interests.

References

  1. Casali, P.G.; Bielack, S.; Abecassis, N.; Aro, H.T.; Bauer, S.; Biagini, R.; Bonvalot, S.; Boukovinas, I.; Bovee, J.V.M.G.; Brennan, B.; et al. Bone sarcomas: ESMO-PaedCan-EURACAN Clinical Practice Guidelines for diagnosis, treatment and follow-up. Ann. Oncol. 2018, 29, iv79–iv95. [Google Scholar] [CrossRef]
  2. Kager, L.; Pötschger, U.; Bielack, S. Review of mifamurtide in the treatment of patients with osteosarcoma. Ther. Clin. Risk Manag. 2010, 6, 279. [Google Scholar] [CrossRef] [Green Version]
  3. Duffaud, F.; Mir, O.; Boudou-Rouquette, P.; Piperno-Neumann, S.; Penel, N.; Bompas, E.; Delcambre, C.; Kalbacher, E.; Italiano, A.; Collard, O. Efficacy and safety of regorafenib in adult patients with metastatic osteosarcoma: A non-comparative, randomised, double-blind, placebo-controlled, phase 2 study. Lancet Oncol. 2019, 20, 120–133. [Google Scholar] [CrossRef]
  4. Grignani, G.; Palmerini, E.; Ferraresi, V.; D'Ambrosio, L.; Bertulli, R.; Asaftei, S.D.; Tamburini, A.; Pignochino, Y.; Sangiolo, D.; Marchesi, E. Sorafenib and everolimus for patients with unresectable high-grade osteosarcoma progressing after standard treatment: A non-randomised phase 2 clinical trial. Lancet Oncol. 2015, 16, 98–107. [Google Scholar] [CrossRef]
  5. Grignani, G.; Palmerini, E.; Dileo, P.; Asaftei, S.; D’Ambrosio, L.; Pignochino, Y.; Mercuri, M.; Picci, P.; Fagioli, F.; Casali, P. A phase II trial of sorafenib in relapsed and unresectable high-grade osteosarcoma after failure of standard multimodal therapy: An Italian Sarcoma Group study. Ann. Oncol. 2012, 23, 508–516. [Google Scholar] [CrossRef] [PubMed]
  6. Ludwig, J.; Federman, N.; Anderson, P.; Macy, M.; Davis, L.; Riedel, R.; Muscal, J.; Daw, N.; Ratan, R.; Toretsky, J. 1620O Phase I study of TK216, a novel anti-ETS agent for Ewing sarcoma. Ann. Oncol. 2020, 31, S972. [Google Scholar] [CrossRef]
  7. Waitkus, M.S.; Yan, H. Targeting Isocitrate Dehydrogenase Mutations in Cancer: Emerging Evidence and Diverging Strategies. Clin. Cancer Res. 2021, 27, 383–388. [Google Scholar] [CrossRef] [PubMed]
  8. Tap, W.D.; Villalobos, V.M.; Cote, G.M.; Burris, H.; Janku, F.; Mir, O.; Beeram, M.; Wagner, A.J.; Jiang, L.; Wu, B. Phase I study of the mutant IDH1 inhibitor ivosidenib: Safety and clinical activity in patients with advanced chondrosarcoma. J. Clin. Oncol. 2020, 38, 1693. [Google Scholar] [CrossRef]
  9. Coulthard, M.G.; Duffy, S.; Down, M.; Evans, B.; Power, M.; Smith, F.; Stylianou, C.; Kleikamp, S.; Oates, A.; Lackmann, M.; et al. The role of the Eph-ephrin signalling system in the regulation of developmental patterning. Int. J. Dev. Biol. 2002, 46, 375–384. [Google Scholar] [PubMed]
  10. Fagotto, F.; Winklbauer, R.; Rohani, N. Ephrin-Eph signaling in embryonic tissue separation. Cell Adhes. Migr. 2014, 8, 308–326. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Park, J.E.; Son, A.I.; Zhou, R. Roles of EphA2 in Development and Disease. Genes 2013, 4, 334–357. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Binda, E.; Visioli, A.; Giani, F.; Lamorte, G.; Copetti, M.; Pitter, K.L.; Huse, J.T.; Cajola, L.; Zanetti, N.; DiMeco, F.; et al. The EphA2 receptor drives self-renewal and tumorigenicity in stem-like tumor-propagating cells from human glioblastomas. Cancer Cell 2012, 22, 765–780. [Google Scholar] [CrossRef] [Green Version]
  13. Garcia-Monclús, S.; López-Alemany, R.; Almacellas-Rabaiget, O.; Herrero-Martín, D.; Huertas-Martinez, J.; Lagares-Tena, L.; Alba-Pavón, P.; Hontecillas-Prieto, L.; Mora, J.; de Álava, E.; et al. EphA2 receptor is a key player in the metastatic onset of Ewing sarcoma. Int. J. Cancer 2018, 143, 1188–1201. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Barquilla, A.; Lamberto, I.; Noberini, R.; Heynen-Genel, S.; Brill, L.M.; Pasquale, E.B. Protein kinase A can block EphA2 receptor–mediated cell repulsion by increasing EphA2 S897 phosphorylation. Mol. Biol. Cell 2016, 27, 2757–2770. [Google Scholar] [CrossRef] [PubMed]
  15. Zhou, Y.; Yamada, N.; Tanaka, T.; Hori, T.; Yokoyama, S.; Hayakawa, Y.; Yano, S.; Fukuoka, J.; Koizumi, K.; Saiki, I. Crucial roles of RSK in cell motility by catalysing serine phosphorylation of EphA2. Nat. Commun. 2015, 6, 1–12. [Google Scholar] [CrossRef] [Green Version]
  16. Miao, H.; Li, D.-Q.; Mukherjee, A.; Guo, H.; Petty, A.; Cutter, J.; Basilion, J.P.; Sedor, J.; Wu, J.; Danielpour, D. EphA2 mediates ligand-dependent inhibition and ligand-independent promotion of cell migration and invasion via a reciprocal regulatory loop with Akt. Cancer Cell 2009, 16, 9–20. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Hafner, C.; Schmitz, G.; Meyer, S.; Bataille, F.; Hau, P.; Langmann, T.; Dietmaier, W.; Landthaler, M.; Vogt, T. Differential gene expression of Eph receptors and ephrins in benign human tissues and cancers. Clin. Chem. 2004, 50, 490–499. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Wykosky, J.; Debinski, W. The EphA2 receptor and ephrinA1 ligand in solid tumors: Function and therapeutic targeting. Mol. Cancer Res. 2008, 6, 1795–1806. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Chiabotto, G.; Grignani, G.; Todorovic, M.; Martin, V.; Centomo, M.L.; Prola, E.; Giordano, G.; Merlini, A.; Miglio, U.; Berrino, E. Pazopanib and trametinib as a synergistic strategy against osteosarcoma: Preclinical activity and molecular insights. Cancers 2020, 12, 1519. [Google Scholar] [CrossRef]
  20. Donovan, L.K.; Delaidelli, A.; Joseph, S.K.; Bielamowicz, K.; Fousek, K.; Holgado, B.L.; Manno, A.; Srikanthan, D.; Gad, A.Z.; Van Ommeren, R.; et al. Locoregional delivery of CAR T cells to the cerebrospinal fluid for treatment of metastatic medulloblastoma and ependymoma. Nat. Med. 2020, 26, 720–731. [Google Scholar] [CrossRef] [PubMed]
  21. Shitara, K.; Satoh, T.; Iwasa, S.; Yamaguchi, K.; Muro, K.; Komatsu, Y.; Nishina, T.; Esaki, T.; Hasegawa, J.; Kakurai, Y.; et al. Safety, tolerability, pharmacokinetics, and pharmacodynamics of the afucosylated, humanized anti-EPHA2 antibody DS-8895a: A first-in-human phase I dose escalation and dose expansion study in patients with advanced solid tumors. J. Immunother. Cancer 2019, 7, 219. [Google Scholar] [CrossRef]
  22. Chow, K.K.; Naik, S.; Kakarla, S.; Brawley, V.S.; Shaffer, D.R.; Yi, Z.; Rainusso, N.; Wu, M.F.; Liu, H.; Kew, Y.; et al. T cells redirected to EphA2 for the immunotherapy of glioblastoma. Mol. Ther. 2013, 21, 629–637. [Google Scholar] [CrossRef] [Green Version]
  23. Lin, Q.; Ba, T.; Ho, J.; Chen, D.; Cheng, Y.; Wang, L.; Xu, G.; Xu, L.; Zhou, Y.; Wei, Y.; et al. First-in-Human Trial of EphA2-Redirected CAR T-Cells in Patients With Recurrent Glioblastoma: A Preliminary Report of Three Cases at the Starting Dose. Front. Oncol. 2021, 11, 694941. [Google Scholar] [CrossRef]
  24. Barretina, J.; Caponigro, G.; Stransky, N.; Venkatesan, K.; Margolin, A.A.; Kim, S.; Wilson, C.J.; Lehár, J.; Kryukov, G.V.; Sonkin, D.; et al. The Cancer Cell Line Encyclopedia enables predictive modelling of anticancer drug sensitivity. Nature 2012, 483, 603–607. [Google Scholar] [CrossRef] [PubMed]
  25. Gao, J.; Aksoy, B.A.; Dogrusoz, U.; Dresdner, G.; Gross, B.; Sumer, S.O.; Sun, Y.; Jacobsen, A.; Sinha, R.; Larsson, E.; et al. Integrative analysis of complex cancer genomics and clinical profiles using the cBioPortal. Sci. Signal. 2013, 6, pl1. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Nicolle, R.; Ayadi, M.; Gomez-Brouchet, A.; Armenoult, L.; Banneau, G.; Elarouci, N.; Tallegas, M.; Decouvelaere, A.-V.; Aubert, S.; Rédini, F. Integrated molecular characterization of chondrosarcoma reveals critical determinants of disease progression. Nat. Commun. 2019, 10, 4622. [Google Scholar] [CrossRef]
  27. Xiao, T.; Xiao, Y.; Wang, W.; Tang, Y.Y.; Xiao, Z.; Su, M. Targeting EphA2 in cancer. J. Hematol. Oncol. 2020, 13, 114. [Google Scholar] [CrossRef] [PubMed]
  28. Barile, E.; Wang, S.; Das, S.K.; Noberini, R.; Dahl, R.; Stebbins, J.L.; Pasquale, E.B.; Fisher, P.B.; Pellecchia, M. Design, Synthesis and Bio-evaluation of an EphA2-based Targeted Delivery System. ChemMedChem 2014, 9, 1403. [Google Scholar] [CrossRef] [PubMed]
  29. Krishnamurti, U.; Silverman, J.F. HER2 in breast cancer: A review and update. Adv. Anat. Pathol. 2014, 21, 100–107. [Google Scholar] [CrossRef]
  30. Ascierto, P.A.; Kirkwood, J.M.; Grob, J.-J.; Simeone, E.; Grimaldi, A.M.; Maio, M.; Palmieri, G.; Testori, A.; Marincola, F.M.; Mozzillo, N. The role of BRAF V600 mutation in melanoma. J. Transl. Med. 2012, 10, 1–9. [Google Scholar] [CrossRef] [Green Version]
  31. Fletcher, J.A.; Rubin, B.P. KIT mutations in GIST. Curr. Opin. Genet. Dev. 2007, 17, 3–7. [Google Scholar] [CrossRef]
  32. Napolitano, A.; Vincenzi, B. Secondary KIT mutations: The GIST of drug resistance and sensitivity. Br. J. Cancer 2019. [Google Scholar] [CrossRef] [Green Version]
  33. Da Cunha Santos, G.; Shepherd, F.A.; Tsao, M.S. EGFR mutations and lung cancer. Annu. Rev. Pathol. Mech. Dis. 2011, 6, 49–69. [Google Scholar] [CrossRef] [Green Version]
  34. Palmerini, E.; Lopez-Pousa, A.; Grignani, G.; Redondo, A.; Hindi, N.; Stacchiotti, S.; Sebio, A.; Lopez-Martin, J.A.; Valverde Morales, C.M.; Martinez-Trufero, J. IMMUNOSARC: A collaborative Spanish (GEIS) and Italian (ISG) sarcoma groups phase I/II trial of sunitinib and nivolumab in advanced soft tissue and bone sarcoma: Results from the phase II part, bone sarcoma cohort. J. Clin. Oncol. 2020. [Google Scholar] [CrossRef]
  35. Sainz-Jaspeado, M.; Huertas-Martinez, J.; Lagares-Tena, L.; Martin Liberal, J.; Mateo-Lozano, S.; de Alava, E.; de Torres, C.; Mora, J.; Muro, X.G.d.; Tirado, O.M. EphA2-induced angiogenesis in ewing sarcoma cells works through bFGF production and is dependent on caveolin-1. PLoS ONE 2013, 8, e71449. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Fritsche-Guenther, R.; Noske, A.; Ungethüm, U.; Kuban, R.J.; Schlag, P.M.; Tunn, P.U.; Karle, J.; Krenn, V.; Dietel, M.; Sers, C. De novo expression of EphA2 in osteosarcoma modulates activation of the mitogenic signalling pathway. Histopathology 2010, 57, 836–850. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Kalluri, R.; Weinberg, R.A. The basics of epithelial-mesenchymal transition. J. Clin. Investig. 2009, 119, 1420–1428. [Google Scholar] [CrossRef] [Green Version]
  38. Yang, J.; Antin, P.; Berx, G.; Blanpain, C.; Brabletz, T.; Bronner, M.; Campbell, K.; Cano, A.; Casanova, J.; Christofori, G. Guidelines and definitions for research on epithelial–mesenchymal transition. Nat. Rev. Mol. Cell Biol. 2020, 21, 341–352. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Huang, J.; Xiao, D.; Li, G.; Ma, J.; Chen, P.; Yuan, W.; Hou, F.; Ge, J.; Zhong, M.; Tang, Y. EphA2 promotes epithelial–mesenchymal transition through the Wnt/β-catenin pathway in gastric cancer cells. Oncogene 2014, 33, 2737–2747. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Fattet, L.; Jung, H.-Y.; Matsumoto, M.W.; Aubol, B.E.; Kumar, A.; Adams, J.A.; Chen, A.C.; Sah, R.L.; Engler, A.J.; Pasquale, E.B. Matrix rigidity controls epithelial-mesenchymal plasticity and tumor metastasis via a mechanoresponsive EPHA2/LYN complex. Dev. Cell 2020, 54, 302–316.e307. [Google Scholar] [CrossRef] [PubMed]
  41. Parri, M.; Taddei, M.L.; Bianchini, F.; Calorini, L.; Chiarugi, P. EphA2 reexpression prompts invasion of melanoma cells shifting from mesenchymal to amoeboid-like motility style. Cancer Res. 2009, 69, 2072–2081. [Google Scholar] [CrossRef] [Green Version]
  42. Paul, C.D.; Mistriotis, P.; Konstantopoulos, K. Cancer cell motility: Lessons from migration in confined spaces. Nat. Rev. Cancer 2017, 17, 131–140. [Google Scholar] [CrossRef] [Green Version]
  43. Sabeh, F.; Shimizu-Hirota, R.; Weiss, S.J. Protease-dependent versus-independent cancer cell invasion programs: Three-dimensional amoeboid movement revisited. J. Cell Biol. 2009, 185, 11–19. [Google Scholar] [CrossRef] [Green Version]
  44. Condeelis, J.; Segall, J.E. Intravital imaging of cell movement in tumours. Nat. Rev. Cancer 2003, 3, 921–930. [Google Scholar] [CrossRef] [PubMed]
  45. Jawad, M.U.; Cheung, M.C.; Min, E.S.; Schneiderbauer, M.M.; Koniaris, L.G.; Scully, S.P. Ewing sarcoma demonstrates racial disparities in incidence-related and sex-related differences in outcome: An analysis of 1631 cases from the SEER database, 1973-2005. Cancer Interdiscip. Int. J. Am. Cancer Soc. 2009, 115, 3526–3536. [Google Scholar] [CrossRef] [PubMed]
  46. Collins, M.; Wilhelm, M.; Conyers, R.; Herschtal, A.; Whelan, J.; Bielack, S.; Kager, L.; Kühne, T.; Sydes, M.; Gelderblom, H. Benefits and adverse events in younger versus older patients receiving neoadjuvant chemotherapy for osteosarcoma: Findings from a meta-analysis. J. Clin. Oncol. 2013, 31, 2303–2312. [Google Scholar] [CrossRef] [PubMed]
  47. Singh, D.R.; Kanvinde, P.; King, C.; Pasquale, E.B.; Hristova, K. The EphA2 receptor is activated through induction of distinct, ligand-dependent oligomeric structures. Commun. Biol. 2018, 1, 15. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Amato, K.R.; Wang, S.; Hastings, A.K.; Youngblood, V.M.; Santapuram, P.R.; Chen, H.; Cates, J.M.; Colvin, D.C.; Ye, F.; Brantley-Sieders, D.M.; et al. Genetic and pharmacologic inhibition of EPHA2 promotes apoptosis in NSCLC. J. Clin. Investig. 2014, 124, 2037–2049. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Amato, K.R.; Wang, S.; Tan, L.; Hastings, A.K.; Song, W.; Lovly, C.M.; Meador, C.B.; Ye, F.; Lu, P.; Balko, J.M.; et al. EPHA2 Blockade Overcomes Acquired Resistance to EGFR Kinase Inhibitors in Lung Cancer. Cancer Res. 2016, 76, 305–318. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Song, W.; Hwang, Y.; Youngblood, V.M.; Cook, R.S.; Balko, J.M.; Chen, J.; Brantley-Sieders, D.M. Targeting EphA2 impairs cell cycle progression and growth of basal-like/triple-negative breast cancers. Oncogene 2017, 36, 5620–5630. [Google Scholar] [CrossRef] [Green Version]
  51. Peng, Q.; Chen, L.; Wu, W.; Wang, J.; Zheng, X.; Chen, Z.; Jiang, Q.; Han, J.; Wei, L.; Wang, L.; et al. EPH receptor A2 governs a feedback loop that activates Wnt/β-catenin signaling in gastric cancer. Cell Death Dis. 2018, 9, 1146. [Google Scholar] [CrossRef] [Green Version]
  52. Martini, G.; Cardone, C.; Vitiello, P.P.; Belli, V.; Napolitano, S.; Troiani, T.; Ciardiello, D.; Della Corte, C.M.; Morgillo, F.; Matrone, N.; et al. EPHA2 Is a Predictive Biomarker of Resistance and a Potential Therapeutic Target for Improving Antiepidermal Growth Factor Receptor Therapy in Colorectal Cancer. Mol. Cancer Ther. 2019, 18, 845–855. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Wang, H.; Hou, W.; Perera, A.; Bettler, C.; Beach, J.R.; Ding, X.; Li, J.; Denning, M.F.; Dhanarajan, A.; Cotler, S.J.; et al. Targeting EphA2 suppresses hepatocellular carcinoma initiation and progression by dual inhibition of JAK1/STAT3 and AKT signaling. Cell Rep. 2021, 34, 108765. [Google Scholar] [CrossRef] [PubMed]
  54. Swidergall, M.; Solis, N.V.; Lionakis, M.S.; Filler, S.G. EphA2 is an epithelial cell pattern recognition receptor for fungal β-glucans. Nat. MicroBiol. 2018, 3, 53–61. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Sheffield, N.C.; Pierron, G.; Klughammer, J.; Datlinger, P.; Schönegger, A.; Schuster, M.; Hadler, J.; Surdez, D.; Guillemot, D.; Lapouble, E. DNA methylation heterogeneity defines a disease spectrum in Ewing sarcoma. Nat. Med. 2017, 23, 386–395. [Google Scholar] [CrossRef] [PubMed]
  56. Franzetti, G.; Laud-Duval, K.; Van Der Ent, W.; Brisac, A.; Irondelle, M.; Aubert, S.; Dirksen, U.; Bouvier, C.; De Pinieux, G.; Snaar-Jagalska, E. Cell-to-cell heterogeneity of EWSR1-FLI1 activity determines proliferation/migration choices in Ewing sarcoma cells. Oncogene 2017, 36, 3505–3514. [Google Scholar] [CrossRef] [Green Version]
Cells 10 02893 g001 550
Figure 1. Distribution of EphA2 gene expression levels in the Cancer Cell Line Encyclopedia (CCLE). The box plot shows the Z-score-normalized EPHA2 levels in different cell lines divided by cancer type.
Figure 1. Distribution of EphA2 gene expression levels in the Cancer Cell Line Encyclopedia (CCLE). The box plot shows the Z-score-normalized EPHA2 levels in different cell lines divided by cancer type.
Cells 10 02893 g001
Cells 10 02893 g002 550

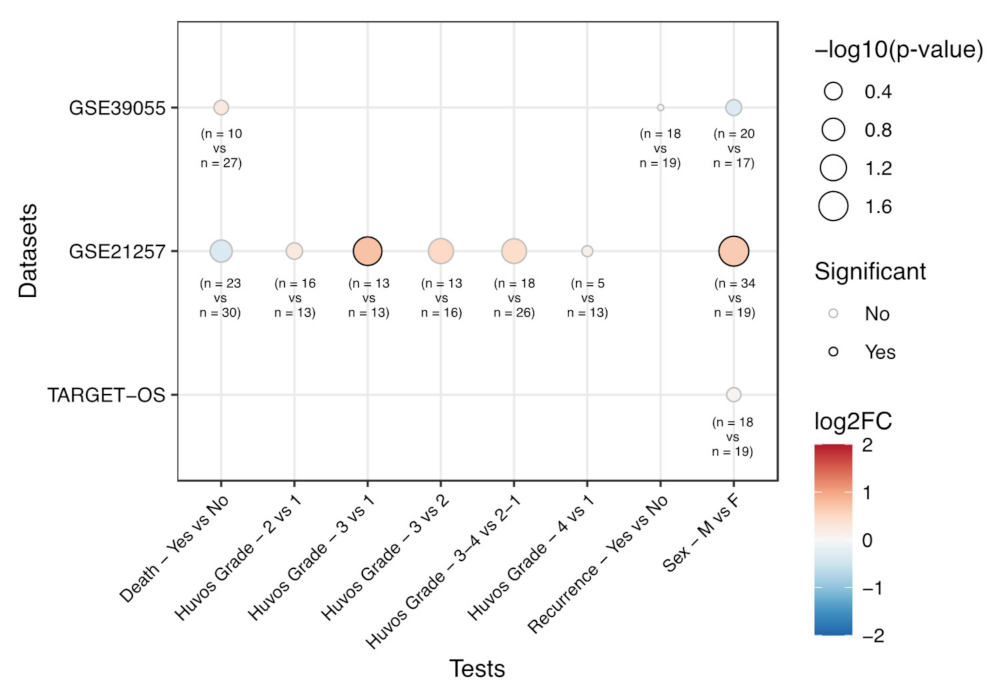

Figure 2. Bioinformatic analysis of EphA2 expression levels from public gene expression datasets on osteosarcoma samples, in relation to patient death status (sample sizes: Yes = 10, 23; No = 27, 30, for GSE39055, GSE21257 datasets, respectively), Huvos grade (sample sizes: G1 = 13, G2 = 16, G3 = 13, G4 = 5; GSE21257 dataset), disease recurrence (sample sizes: Yes = 18, No = 19; GSE39055 dataset), and sex (sample sizes: Male = 20, 34, 23; Female = 17, 19, 30, for GSE39055, GSE21257 and TARGET-OS dataset, respectively). The size of the dots is proportional to the significance of the statistical tests, while the color scale represents the log2 Fold Change (FC) of expression between the compared groups. Dots with a black border represent tests associated with a p-value lower than 0.05.
Figure 2. Bioinformatic analysis of EphA2 expression levels from public gene expression datasets on osteosarcoma samples, in relation to patient death status (sample sizes: Yes = 10, 23; No = 27, 30, for GSE39055, GSE21257 datasets, respectively), Huvos grade (sample sizes: G1 = 13, G2 = 16, G3 = 13, G4 = 5; GSE21257 dataset), disease recurrence (sample sizes: Yes = 18, No = 19; GSE39055 dataset), and sex (sample sizes: Male = 20, 34, 23; Female = 17, 19, 30, for GSE39055, GSE21257 and TARGET-OS dataset, respectively). The size of the dots is proportional to the significance of the statistical tests, while the color scale represents the log2 Fold Change (FC) of expression between the compared groups. Dots with a black border represent tests associated with a p-value lower than 0.05.
Cells 10 02893 g002
Cells 10 02893 g003 550
Figure 3. Bioinformatic analysis of EphA2 expression levels from public gene expression datasets on Ewing’s sarcoma samples, in relation to patient death status (sample sizes: Yes = 11, 14, 27; No = 28, 32 16, for GSE63156, GSE63155 and GSE17674 datasets, respectively), disease recurrence (sample sizes: Yes = 16, 18, No = 23, 28, for GSE63156 and GSE63155 datasets), sex (sample sizes: Male = 20, 27, 66, 28; Female = 19, 19, 51, 16, for GSE63156, GSE63155, GSE34620 and GSE17674 datasets, respectively) and tissue (sample sizes: Tumor= 44; Normal= 19, for GSE17674 dataset). The size of the dots is proportional to the significance of the statistical tests, while the color scale represents the log2 Fold Change (FC) of expression between the compared groups. Dots with a black border represent tests associated with a p-value lower than 0.05.
Figure 3. Bioinformatic analysis of EphA2 expression levels from public gene expression datasets on Ewing’s sarcoma samples, in relation to patient death status (sample sizes: Yes = 11, 14, 27; No = 28, 32 16, for GSE63156, GSE63155 and GSE17674 datasets, respectively), disease recurrence (sample sizes: Yes = 16, 18, No = 23, 28, for GSE63156 and GSE63155 datasets), sex (sample sizes: Male = 20, 27, 66, 28; Female = 19, 19, 51, 16, for GSE63156, GSE63155, GSE34620 and GSE17674 datasets, respectively) and tissue (sample sizes: Tumor= 44; Normal= 19, for GSE17674 dataset). The size of the dots is proportional to the significance of the statistical tests, while the color scale represents the log2 Fold Change (FC) of expression between the compared groups. Dots with a black border represent tests associated with a p-value lower than 0.05.
Cells 10 02893 g003
Cells 10 02893 g004 550
Figure 4. EPHA2 expression levels and overall survival (OS) probability in dedifferentiated chondrosarcoma group (n = 16).
Figure 4. EPHA2 expression levels and overall survival (OS) probability in dedifferentiated chondrosarcoma group (n = 16).
Cells 10 02893 g004
Cells 10 02893 g005 550

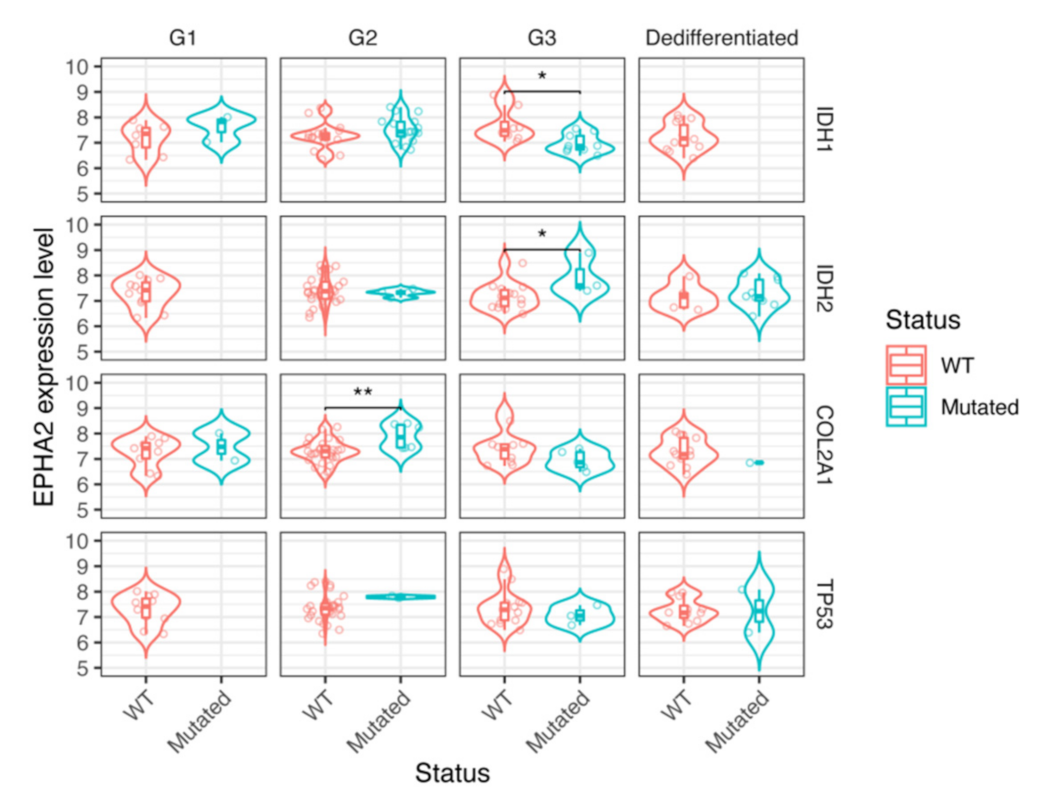

Figure 5. Boxplot showing association between chondrosarcoma mutational status and EPHA2 expression across different chondrosarcoma subtypes. The selected subtypes were dedifferentiated chondrosarcomas (n = 16), G1 chondrosarcomas (n = 17), G2 chondrosarcomas (n = 38) and G3 chondrosarcomas (n = 17) * p< 0.05; ** p < 0.01.
Figure 5. Boxplot showing association between chondrosarcoma mutational status and EPHA2 expression across different chondrosarcoma subtypes. The selected subtypes were dedifferentiated chondrosarcomas (n = 16), G1 chondrosarcomas (n = 17), G2 chondrosarcomas (n = 38) and G3 chondrosarcomas (n = 17) * p< 0.05; ** p < 0.01.
Cells 10 02893 g005
Cells 10 02893 g006 550

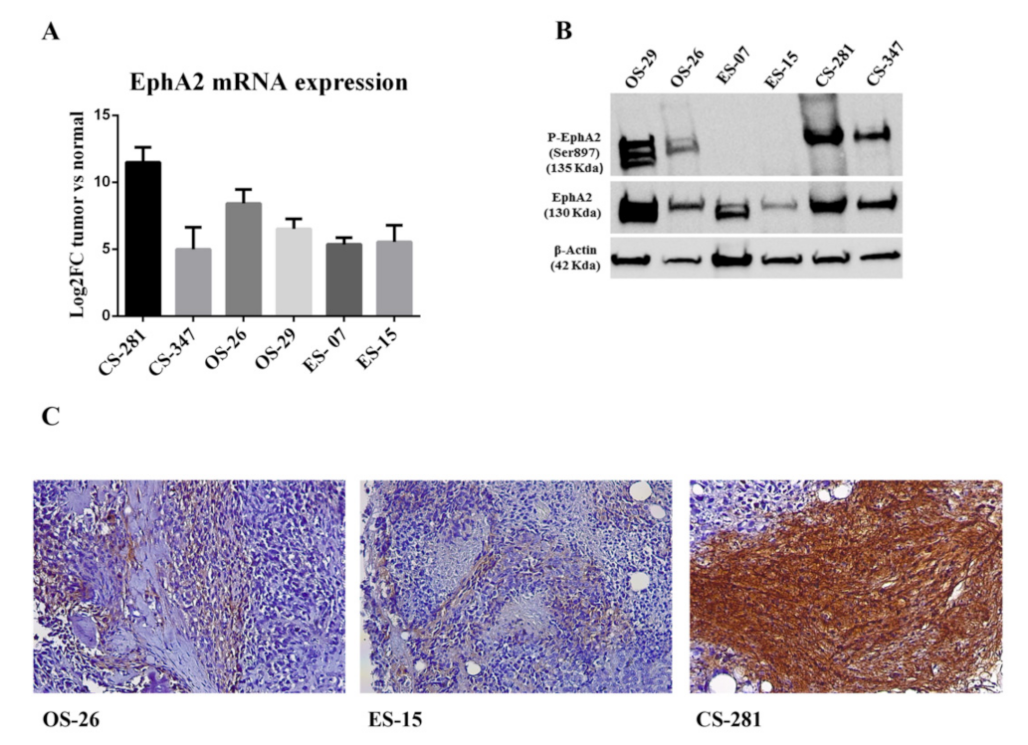

Figure 6. EphA2 expression in human bone sarcomas and patient-derived xenografts. (A) EphA2 mRNA expression in primary human tumors compared to normal counterparts, as obtained by quantitative real time PCR. (B) Western blot analysis of phosphorylated-EphA2 (Ser897), EphA2 and β-actin (housekeeping protein as loading control) as obtained from PDX protein extracts. Osteosarcoma (OS-26, OS-29); Ewing Sarcoma (ES-07,ES-15); Chondrosarcoma (CS-281, CS-347). (C) Immunohistochemistry showing EphA2 staining in PDXs.
Figure 6. EphA2 expression in human bone sarcomas and patient-derived xenografts. (A) EphA2 mRNA expression in primary human tumors compared to normal counterparts, as obtained by quantitative real time PCR. (B) Western blot analysis of phosphorylated-EphA2 (Ser897), EphA2 and β-actin (housekeeping protein as loading control) as obtained from PDX protein extracts. Osteosarcoma (OS-26, OS-29); Ewing Sarcoma (ES-07,ES-15); Chondrosarcoma (CS-281, CS-347). (C) Immunohistochemistry showing EphA2 staining in PDXs.
Cells 10 02893 g006
Cells 10 02893 g007 550

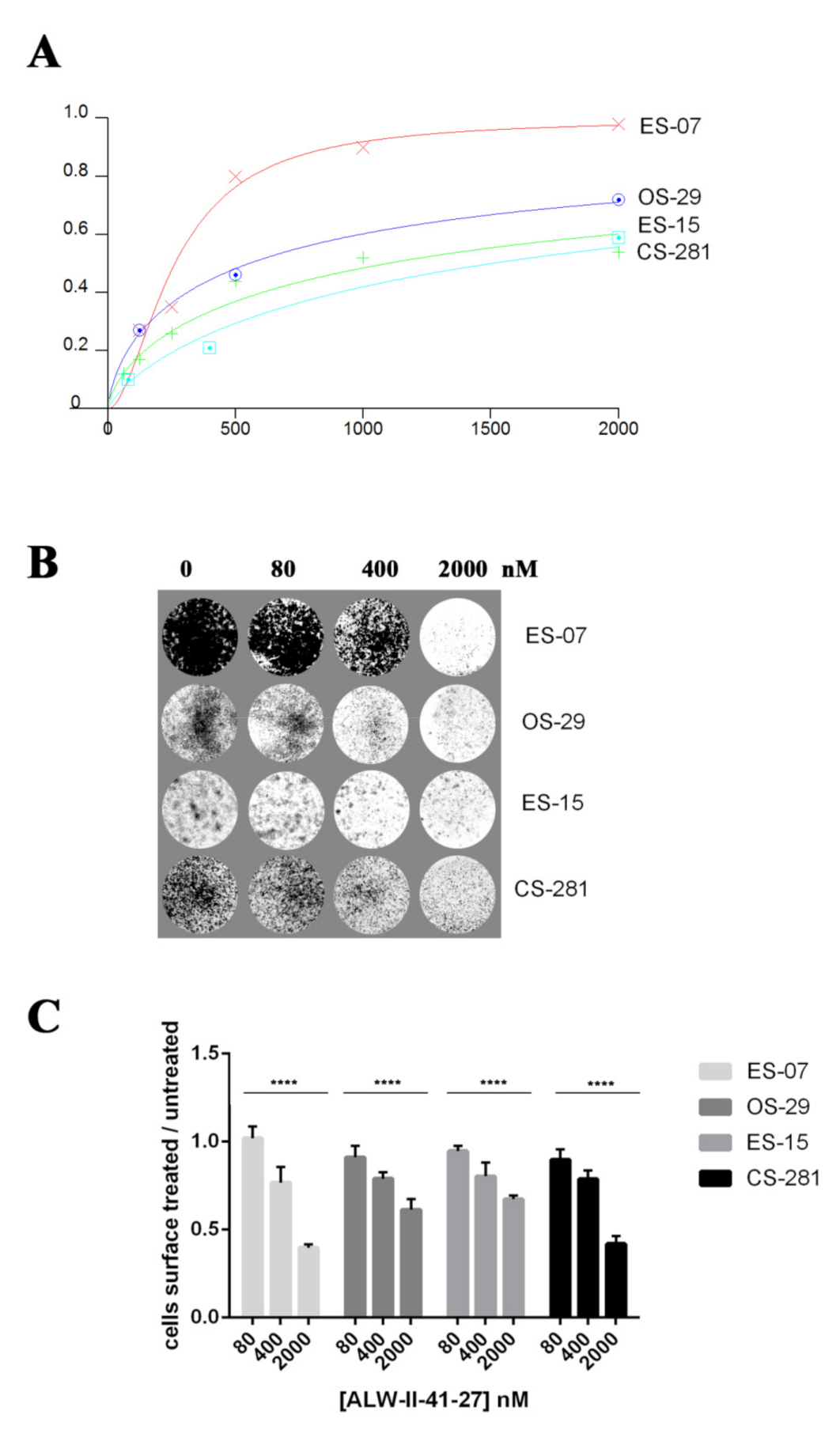

Figure 7. Dose-dependent antitumoral effects of the EphA2 inhibitor ALW II-41-27. (A) Cell viability assays and (B) cell growth assays after 72 h of treatment with scalar concentration of ALW II-41-27. (C) Quantification of the plate surface occupied by viable adherent cells, **** p < 0.0001.
Figure 7. Dose-dependent antitumoral effects of the EphA2 inhibitor ALW II-41-27. (A) Cell viability assays and (B) cell growth assays after 72 h of treatment with scalar concentration of ALW II-41-27. (C) Quantification of the plate surface occupied by viable adherent cells, **** p < 0.0001.
Cells 10 02893 g007
Table
Table 1. Patients’ characteristics, tumor anatomical site, histotype and tumor grade and disease stage of the primary tumors that were analyzed and from which PDXs were generated.
Table 1. Patients’ characteristics, tumor anatomical site, histotype and tumor grade and disease stage of the primary tumors that were analyzed and from which PDXs were generated.
PATIENT ID Sex AgeAnatomical Site HistotypeGradeDisease Stage
OS-026M67Upper limbOsteoblastic osteosarcomaG4Metastatic
OS-029M18Lower limbOsteoblastic osteosarcomaG4Metastatic
ES-07F19Lower limbEwing’s sarcomaHigh gradeLocalized
ES-15F65Lumbar spineEwing’s sarcomaHigh gradeLocalized
CS-281F58HipChondrosarcoma, conventionalG3Locally advanced
CS-347M56Upper limbChondrosarcoma, conventionalG2Locally advanced
Table
Table 2. Correlation of EphA2 expression level (Log2FC) with patient gender, Huvos grade, outcome and recurrence in osteosarcoma.
Table 2. Correlation of EphA2 expression level (Log2FC) with patient gender, Huvos grade, outcome and recurrence in osteosarcoma.
DatasetCategoryTestEphA2 log 2 FCp-Value
GSE39055DeathYes vs. No0.240.596
SexMale vs. Female-0.320.515
RecurrenceYes vs. No-0.010.979
GSE21257SexMale vs. Female0.640.019
Huvos Grade2 vs. 10.240.474
Huvos Grade3 vs. 10.730.030
Huvos Grade3 vs. 20.500.081
Huvos Grade4 vs. 10.110.835
Huvos Grade3-4 vs. 2-10.430.088
TARGET-OSSexMale vs. Female0.060.628
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Giordano, G.; Merlini, A.; Ferrero, G.; Mesiano, G.; Fiorino, E.; Brusco, S.; Centomo, M.L.; Leuci, V.; D’Ambrosio, L.; Aglietta, M.; et al. EphA2 Expression in Bone Sarcomas: Bioinformatic Analyses and Preclinical Characterization in Patient-Derived Models of Osteosarcoma, Ewing’s Sarcoma and Chondrosarcoma. Cells 2021, 10, 2893. https://doi.org/10.3390/cells10112893

AMA Style

Giordano G, Merlini A, Ferrero G, Mesiano G, Fiorino E, Brusco S, Centomo ML, Leuci V, D’Ambrosio L, Aglietta M, et al. EphA2 Expression in Bone Sarcomas: Bioinformatic Analyses and Preclinical Characterization in Patient-Derived Models of Osteosarcoma, Ewing’s Sarcoma and Chondrosarcoma. Cells. 2021; 10(11):2893. https://doi.org/10.3390/cells10112893

Chicago/Turabian Style

Giordano, Giorgia, Alessandra Merlini, Giulio Ferrero, Giulia Mesiano, Erika Fiorino, Silvia Brusco, Maria Laura Centomo, Valeria Leuci, Lorenzo D’Ambrosio, Massimo Aglietta, and et al. 2021. "EphA2 Expression in Bone Sarcomas: Bioinformatic Analyses and Preclinical Characterization in Patient-Derived Models of Osteosarcoma, Ewing’s Sarcoma and Chondrosarcoma" Cells 10, no. 11: 2893. https://doi.org/10.3390/cells10112893

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
