Article

26S Proteasome Non-ATPase Regulatory Subunits 1 (PSMD1) and 3 (PSMD3) as Putative Targets for Cancer Prognosis and Therapy

by
Andres J. Rubio
1,
Alfonso E. Bencomo-Alvarez
2,
James E. Young
3,
Vanessa V. Velazquez
1,
Joshua J. Lara
1,
Mayra A. Gonzalez
2 and
Anna M. Eiring
1,2,3,*
1
Paul L. Foster School of Medicine, Texas Tech University Health Sciences Center at El Paso, El Paso, TX 79905, USA
2
Center of Emphasis in Cancer, Department of Molecular and Translational Medicine, Paul L. Foster School of Medicine, Texas Tech University Health Sciences Center at El Paso, El Paso, TX 79905, USA
3
Graduate School of Biomedical Sciences, Texas Tech University Health Sciences Center at El Paso, El Paso, TX 79905, USA
*
Author to whom correspondence should be addressed.
Cells 2021, 10(9), 2390; https://doi.org/10.3390/cells10092390
Submission received: 5 August 2021 / Revised: 20 August 2021 / Accepted: 8 September 2021 / Published: 11 September 2021
(This article belongs to the Collection Emerging Cancer Target Genes)
Browse Figures
Versions Notes

Abstract

:
Ever since the ubiquitin proteasome system was characterized, efforts have been made to manipulate its function to abrogate the progression of cancer. As a result, the anti-cancer drugs bortezomib, carfilzomib, and ixazomib targeting the 26S proteasome were developed to treat multiple myeloma, mantle cell lymphoma, and diffuse large B-cell lymphoma, among others. Despite success, adverse side effects and drug resistance are prominent, raising the need for alternative therapeutic options. We recently demonstrated that knockdown of the 19S regulatory components, 26S proteasome non-ATPase subunits 1 (PSMD1) and 3 (PSMD3), resulted in increased apoptosis of chronic myeloid leukemia (CML) cells, but had no effect on normal controls, suggesting they may be good targets for therapy. Therefore, we hypothesized that PSMD1 and PSMD3 are potential targets for anti-cancer therapeutics and that their relevance stretches beyond CML to other types of cancers. In the present study, we analyzed PSMD1 and PSMD3 mRNA and protein expression in cancerous tissue versus normal controls using data from The Cancer Genome Atlas (TCGA) and the Clinical Proteomic Tumor Analysis Consortium (CPTAC), comparing expression with overall survival. Altogether, our data suggest that PSMD1 and PSMD3 may be novel putative targets for cancer prognosis and therapy that are worthy of future investigation.

1. Introduction

The ubiquitin proteasome system (UPS) is a highly regulated, multi-enzyme complex that allows cells and tissues to maintain protein homeostasis [1]. It is comprised of a series of enzymes that post-translationally modify proteins with an ubiquitin chain, tagging them for destruction via the 26S proteasome [2]. The 26S proteasome is composed of two main subcomplexes, the 19S regulatory complex and the 20S core complex. The proteasome regulates cellular protein levels through the binding of ubiquitylated proteins to the 19S regulatory complex, followed by catalytic degradation in the 20S core complex. Depending on the demands of the cell, the protein turnover rate fluctuates in part through activity of this biological system [2,3].
In diseases such as cancer, the UPS can go rampant due to the extreme requirements of malignant cells. As cancerous cells rapidly divide, proteins are made and destroyed at an exuberant rate, leading to deteriorating effects such as cachexia and fatigue [4]. There have been several successful attempts at producing cancer treatments directly targeting the 26S proteasome, the first example being bortezomib (BTZ), which was first approved by the FDA in 2003 to treat multiple myeloma (MM) [5]. BTZ has found its success as a reversible inhibitor by binding to the β5 subunit of the 20S core complex to inhibit its chymotrypsin-like enzymatic activity. This inhibition causes an accumulation of ubiquitylated proteins and subsequent caspase-mediated apoptosis of myeloma cells [6]. Since its approval, the use of BTZ has been widened to treat other forms of cancers, such as relapsed mantle cell lymphoma, diffuse large B cell lymphoma, colorectal carcinoma, and thyroid carcinoma, which has effectively demonstrated that the UPS can be a suitable target for cancer therapy [7,8,9,10]. Even when treatment is successful, however, a narrow therapeutic window exists along with a high degree of toxicity [11]. Individuals with relapsed or resistant multiple myeloma experience peripheral neuropathy after taking BTZ, which greatly affects the quality of life for patients [12]. Other obstacles faced by currently FDA approved proteasome inhibitors are poor bioavailability in solid tumors, solubility, developed or acquired resistance, or adverse side effects such as anemia, hepatic toxicity, and adverse cardiovascular events [11,13]. BTZ, like other anti-cancer therapies, is subject to the unfortunate outcome of drug resistance [14]. Acquired tolerance to BTZ in cancer has led to the development of second-generation proteasome inhibitors, such as carfilzomib and ixazomib, which are more selective and specific [15,16]. Despite the success demonstrated by these treatments, adverse side effects and drug resistance are still prominent, raising the need for alternative therapeutic options. One option is the use of combination therapies aimed at reducing the concentration of BTZ. This was recently demonstrated in hepatocellular carcinoma and mammary adenocarcinoma cells with a combination of BTZ and menadione sodium bisulfate (MSB, Vikasolum, vitamin K3). Astakhova et al. demonstrated that combination therapy with MSB in addition to BTZ required BTZ doses that were four to ten times lower than its clinical dose [17]. Despite this success, there is a great need for inhibitors that can target solid tumors, have better bioavailability, and are less toxic compared with currently available treatment options.
Since the UPS is composed of a series of highly regulated proteins, there is ample opportunity to discover new targets for cancer therapy. Indeed, the expression of many different proteasome subunits are reported to be altered in multiple different cancers, including human papillary thyroid carcinoma [18], breast cancer [19,20,21,22,23], colon cancer [24,25], and ovarian cancer [26], among others [27,28,29,30]. We recently demonstrated that two members of the 19S regulatory complex, 26S proteasome non-ATPase subunits 1 (PSMD1) and 3 (PSMD3), may be potential targets for therapy in tyrosine kinase inhibitor (TKI)-resistant chronic myeloid leukemia (CML) cells. In CML, PSMD1 and PSMD3 mRNA expression was notably increased in patients that had transitioned from the chronic phase to the blast phase of the disease. Knockdown of either protein resulted in reduced survival of CML cell lines and patient samples without affecting CD34+ cord blood controls, suggesting they may be good targets for therapy [31]. In breast cancer, PSMD1 was shown to regulate cell growth by inducing p53 protein degradation, thereby promoting cell cycle progression [22]. Similarly, PSMD3 was shown to be overexpressed at the protein level in human epidermal growth factor receptor 2 (HER2)-positive breast cancer, helping to stabilize HER2 and culminating in a worse overall survival (OS). Knockdown of PSMD3 led to reduced cell proliferation, reduced colony formation, and increased apoptosis in breast cancer cell lines [23], and co-silencing of PSMD3 and HER2 resulted in additive inhibition of cell viability and promoted apoptosis in breast cancer [32].
Based on the variability of RNA and protein expression in cancer, the inadequacy of many proteasome inhibitors, and our recent observations in CML, we hypothesized that PSMD1 and PSMD3 are potential targets for anti-cancer therapeutics and that their relevance stretches beyond CML to other types of cancers. In the present study, we comprehensively analyzed the expression and prognostic value of PSMD1 and PSMD3 across multiple cancer types using data from The Cancer Genome Atlas (TCGA) [33] and the Clinical Proteomic Tumor Analysis Consortium (CPTAC) [34,35], comparing expression with OS. Our analysis revealed that differential expression of PSMD1 and PSMD3 is correlated with worse OS in several different cancer types. Ultimately, we highlight PSMD1 and PSMD3 as potential therapeutic targets for the development of novel proteasome inhibitors to treat cancer patients with less toxicity. Additionally, PSMD1 and PSMD3 may be novel prognostic biomarkers for cancers affecting multiple different tissue types.

2. Materials and Methods

2.1. Analysis of PSMD1 and PSMD3 Differential Expression across TCGA Cancers Compared with Normal Tissue

UALCAN (http://ualcan.path.uab.edu/ accessed on 5 August 2021) is a database used to make in silico validation of target genes across cancer subtypes [36]. UALCAN provides access to publicly available OMICS data from TCGA and CPTAC. This assists researchers in identifying viable candidate genes for investigation based off of transcription and proteomic discrepancies between healthy or cancerous tissues. We used UALCAN to determine if PSMD1 and PSMD3 were significantly differentially expressed at the transcript or protein level among the cancer subtypes available in the database. The diseases analyzed in UALCAN included bladder urothelial carcinoma (BLCA), breast invasive carcinoma (BRCA), cervical squamous cell carcinoma and endocervical adenocarcinoma (CESC), cholangiocarcinoma (CHOL), colon adenocarcinoma (COAD), esophageal carcinoma (ESCA), glioblastoma multiforme (GBM), head and neck squamous cell carcinoma (HNSC), kidney chromophobe (KICH), kidney renal clear cell carcinoma (KIRC), kidney renal papillary cell carcinoma (KIRP), liver hepatocellular carcinoma (LIHC), lung adenocarcinoma (LUAD), lung squamous cell carcinoma (LUSC), pancreatic adenocarcinoma (PAAD), prostate adenocarcinoma (PRAD), pheochromocytoma and paraganglioma (PCPG), rectum adenocarcinoma (READ), sarcoma (SARC), skin cutaneous melanoma (SKCM), thyroid carcinoma (THCA), thymoma (THYM), stomach adenocarcinoma (STAD), and uterine corpus endometrial carcinoma (UCEC). The differential mRNA expression of PSMD1 and PSMD3 across cancer types versus normal tissue was further analyzed using Gene Expression Profiling Interactive Analysis 2 (GEPIA2) (http://gepia2.cancer-pku.cn/ accessed on 5 August 2021). GEPIA2 is another molecular analysis platform that combines data from TCGA with data from the Genotype-Tissue Expression (GTEx) project for large-scale gene expression profiling [35,37,38]. The diseases analyzed in GEPIA2 are listed in the Supplementary Materials.

2.2. Correlation of PSMD1 and PSMD3 mRNA Expression with Prognostic Significance across Different Cancer Types with Distinct Clinicopathological Features

In addition to gene expression analysis comparing cancerous versus normal tissues, both UALCAN and GEPIA2 provides data correlating gene expression levels with OS. We used UALCAN and GEPIA2 to determine whether high or low expression (25% cutoff) of PSMD1 and PSMD3 correlated with OS across TCGA cancers. Additionally, UALCAN provides mRNA expression data for different cancers comparing distinct clinicopathological features (e.g., stage). Therefore, we assessed PSMD1 and PSMD3 expression by tumor stage across the cancer subtypes available in the database.

2.3. Genomic Alterations of PSMD1 and PSMD3 across Different Cancer Types

cBioportal (https://www.cbioportal.org/ accessed on 5 August 2021) is another online platform used to explore and visualize a variety of cancer genomics data [39]. Herein, we employed the cBioportal platform to analyze the genomic abnormalities of PSMD1 and PSMD3 for all TCGA cancers in the database. Patients with acute myeloid leukemia (AML) were excluded for inclusion in a separate, similar analysis. The diseases analyzed in cBioportal were similar to those analyzed in UALCAN, with the addition of adrenocortical carcinoma (ACC), colon adenocarcinoma (COAD), diffuse large B-cell lymphoma (DLBCL), low grade glioma (LGG), mesothelioma (MESO), ovarian cancer (OV), tenosynovial giant cell tumor (TGCT), uterine carcinosarcoma (UCS), and uveal melanoma (UVM).

2.4. Statistical Analyses

Gene expression levels for PSMD1 and PSMD3 were calculated in UALCAN using a Student’s t-test, whereas GEPIA2 data were analyzed using the one-way ANOVA test, with data presented as box plots. Correlation of gene expression with OS is presented using Kaplan Meier curves. UALCAN uses a 25% cutoff for analysis of survival data. Therefore, a 25% cutoff was used for high versus low mRNA expression for both PSMD1 and PSMD3 in GEPIA2. For all analyses, a p-value of <0.05 was considered statistically significant.

3. Results

3.1. PSMD1 and PSMD3 mRNA and Protein Expression Are Upregulated in Multiple Cancer Types Compared with Normal Tissue

We recently demonstrated that knockdown of PSMD1 and PSMD3 resulted in increased apoptosis of CML cells but not normal cord blood controls, implicating they may be good targets for therapy [31]. Thus, we hypothesized that their relevance stretches beyond CML to other types of cancers and that they may be targets for anti-cancer therapeutics. To address this hypothesis, we analyzed PSMD1 and PSMD3 mRNA and protein expression using TCGA and CPTAC data available at UALCAN [36]. At the mRNA level, PSMD1 was found to be significantly differentially expressed in 14/24 (58%) TCGA cancers compared with normal controls (Figure 1A).
Cancers demonstrating higher PSMD1 mRNA expression compared with controls included BRCA, which is consistent with previous reports [20,22]. Additional cancers included CHOL, COAD, ESCA, HNSC, LIHC, LUAD, LUSC, STAD, and UCEC (Figure 1A). In contrast, patients with GBM, KICH, KIRC, and KIRP demonstrated reduced PSMD1 mRNA expression compared with control tissue (Figure 1A). At the protein level, PSMD1 was found to be upregulated in 4/5 (80%) CPTAC cancers [35], including breast cancer, colon cancer, clear cell renal cell carcinoma (RCC), and UCEC (Figure 1B).
PSMD3, on the other hand, was found differentially expressed at the mRNA level in 18/24 (75%) TCGA cancers (Figure 2A). Cancers with increased PSMD3 expression included BLCA, BRCA, CHOL, COAD, ESCA, HNSC, KIRC, KIRP, LIHC, LUAD, LUSC, PRAD, READ, SARC, STAD, and UCEC (Figure 2A). Patients with KICH or THCA, in contrast, demonstrated reduced levels of PSMD3 in malignant versus normal tissue (Figure 2A). At the protein level, PSMD3 was found to be upregulated in 5/5 (100%) CPTAC cancers, including breast cancer, colon cancer, ovarian cancer, clear cell RCC, and UCEC (Figure 2B).
Altogether, these data confirm that PSMD1 and PSMD3 mRNA and protein are differentially expressed in multiple types of human cancers, similar to our recent findings in CML disease progression and TKI resistance [31].

3.2. Genomic Alterations of PSMD1 and PSMD3 in Cancer

We next analyzed genomic alterations of the genes encoding PSMD1 and PSMD3 using cBioportal [39]. Overall, PSMD1 DNA is prone to mutations or deep deletions, whereas PSMD3 DNA is primarily prone to amplifications (Figure 3A,B). PSMD1 showed mutations in diseases such as UCEC, BLCA, COAD, STAD, SKCM, LUAD, LIHC, and BRCA, and deep deletions in diseases like SARC, ESCA, UVM, BLCA, CESC, HNSC, THYM, KIRC, and LGG (Figure 3A). PSMD3, on the other hand, demonstrated amplifications in ESCA, STAD, BRCA, UCEC, BLCA, PAAD, UCS, LUSC, OV, COAD, HNSC, and CESC (Figure 3B).
Altogether, mutations, amplification, or deep deletions in the genes encoding PSMD1 and PSMD3 could explain their differential expression in different types of cancers.

3.3. High Expression of PSMD1 or PSMD3 mRNA Correlates with OS in Numerous Different Cancers

The observation that PSMD1 and PSMD3 are upregulated in multiple different cancer types suggested that they may also play a role in outcomes. We next sought to determine whether expression of PSMD1 or PSMD3 correlates with OS in various cancers. Using data available at UALCAN, higher expression of PSMD1 mRNA correlated with reduced OS in multiple cancer types, including ACC, BLCA, LGG, BRCA, CESC, LIHC, LUAD, MESO, and UCEC (Figure 4A–I).
Similarly, higher expression of PSMD3 mRNA correlated with reduced OS in patients with LUAD, KICH, KIRP, SKCM, and UVM (Figure 5A–E). High levels of PSMD3 mRNA expression also correlated with worse OS in patients with AML, which will be presented in a similar, separate analysis (data not shown).
Altogether, these data confirm that higher expression of PSMD1 and PSMD3 correlates with OS in a number of different human malignancies.
To corroborate these findings, we also correlated expression of these genes with OS using GEPIA2 [38], which combines TCGA [33] and GTEx [35,37] data for larger patient cohorts. On this platform, PSMD1 mRNA correlated with worse OS in patients with ACC, LGG, LUAD, MESO, and UVM (Figure S1A–E). In contrast, patients with DLBCL or STAD who had higher levels of PSMD1 mRNA expression demonstrated a better OS (Figure S1F,G). For the cancers that demonstrated a significant difference in OS using GEPIA2, we also analyzed expression levels in malignant versus normal tissue. Using GEPIA2, only patients with STAD and DLBCL demonstrated higher levels of PSMD1 mRNA in malignant versus control tissue (Figure S1H,I). This is despite the fact that high PSMD1 correlated with better OS in either disease (Figure S1F,G). High levels of PSMD3 mRNA expression, in contrast, correlated with a worse OS in MESO and a better OS in thymoma (THYM) (Figure S2A,B). Similar to DLBCL and STAD, patients with THYM demonstrated higher levels of PSMD3 mRNA expression compared with normal controls, despite lower levels correlating with worse outcomes (Figure S2C).
Altogether, these data indicate that high expression levels of PSMD1 and PSMD3 mRNA correlate with worse outcomes in multiple different cancers, with the exception of patients with DLBCL, STAD, and THYM.

3.4. Correlation of PSMD1 and PSMD3 mRNA Expression with Distinct Clinicopathological Features in Certain Types of Cancers

For the cancers demonstrating significant differences in OS, we next associated PSMD1 and PSMD3 mRNA expression with clinicopathological characteristics using UALCAN. PSMD1 mRNA expression was significantly increased in patients with LIHC, LUAD, and UCEC comparing disease stages 1, 2, or 3 (Figure 6A–C). In contrast, PSMD1 mRNA expression was reduced in patients with MESO in stages 1, 2, and 3 (Figure 6D). PSMD3 expression was somewhat different. In patients with SKCM, PSMD3 mRNA levels decreased when comparing stage 1 with stage 3 (Figure 6E). In patients with UVM, PSMD3 mRNA levels also decreased when comparing stage 3 with stage 4 (Figure 6F). Interestingly, in patients with KICH, while PSMD3 mRNA levels decreased comparing normal specimens with stages 1, 2, and 3, it was markedly upregulated in KICH patients who had progressed to stage 4 (Figure 6G). For all other cancers demonstrating significant differences in OS, PSMD1 or PSMD3 mRNA expression had no correlation with disease stage (data not shown).
Altogether, these findings suggest that PSMD1 and PSMD3 mRNA expression could serve as novel prognostic biomarkers for cancers affecting multiple different tissue types, especially for patients with KICH who are progressing from stage 3 to stage 4 of the disease [31].

4. Discussion

The development of public databases such as TCGA, UALCAN, cBioPortal, and GEPIA2 have greatly improved the ability of biomedical scientists to interrogate the role of genes and proteins in cancer initiation, progression, and relapse [40]. In the present study, we used publically available databases to assess the effects of altered PSMD1 and PSMD3 mRNA and protein expression on disease progression and OS for multiple different cancers. Ultimately, our analysis demonstrated that PSMD1 and PSMD3 mRNA and protein were markedly upregulated in numerous different cancers, which correlated with a worse OS, indicating they may serve as novel prognostic biomarkers in cancer diagnosis and therapy response.
We propose that PSMD1 and PSMD3, both subunits of the 19S regulatory complex of the 26S proteasome, are proteins worthy of further investigation for cancer prognosis and therapy. From our previous work with these proteins in CML [31], and what has been published previously in HER2+ breast cancer [22,23], we decided to uncover their relevance as biomarkers or as therapeutic targets in other types of cancers. Our analysis using TCGA and CPTAC data in UALCAN showed that there are significant differences of expression at the mRNA and protein level in a variety of cancers. When TCGA data is correlated with OS for PSMD1 and PSMD3, there were notable examples of worse OS when the genes were more highly expressed. Interestingly, this is contrary to a previous report by Tsvetkov et al., who demonstrated that reduced expression of several different 19S proteasome subunits, including PSMD1, PSMD5, PSMD6, or PSMD10, correlated with higher relapse rates and a worse OS in patients with multiple myeloma [41]. In our analysis, however, some of the cancer types showed a similar phenotype, demonstrating decreased OS with decreased PSMD1 or PSMD3 expression. For example, our data showed that patients with DLBCL or STAD who had higher levels of PSMD1 expression showed increased OS (Figure S1F,G). Similarly, patients with THYM who had higher levels of PSMD3 expression also showed a better OS (Figure S2). Despite reduced expression correlating with worse outcomes, patients with DLBCL or STAD still showed significantly higher levels of PSMD1 mRNA compared with normal controls (Figure S1F,G), and patients with THYM showed higher levels of PSMD3 compared with controls (Figure S2C). Thus, there appears to be tissue-specific differences on the phenotype resulting from altered expression of PSMD1 or PSMD3 in different cancer types.
UALCAN’s TCGA data and the genomic alteration data from cBioportal are worth examining in concert, in order to determine the mechanism by which these genes are differentially expressed in the observed cancers. Indeed, mutations at the promoter region of PSMD1 and PSMD3 could be an explanatory mechanism for their altered mRNA abundance. Alternatively, during oncogenesis as cancer cells rapidly divide, the increase in gene expression could be due to gene amplifications, where more copies of PSMD1 and PSMD3 are erroneously introduced during replication. Interestingly, data from cBioportal demonstrated that the gene encoding PSMD1 is primarily prone to mutations and deep deletions, but also occasionally with gene amplifications (Figure 3A). In patients with ACC, for example, who demonstrated a reduced OS with high levels of PSMD1 expression (Figure 4A), showed exclusively amplifications as the main genomic alteration (Figure 3A).
In contrast, patients with GBM, which demonstrated reduced PSMD1 expression compared with normal controls (Figure 1A), were associated with structural variants and deep deletions (Figure 3A), possibly explaining the reduced expression observed in this particular type of cancer.
The gene encoding PSMD3, in contrast, is primarily associated with amplifications (Figure 3B). For example, patients with ESCA or STAD demonstrate increased PSMD3 mRNA expression compared with normal controls (Figure 2A), which correlated with a high degree of gene amplifications (Figure 3B). On the other hand, patients with KICH demonstrated reduced PSMD3 mRNA expression compared with controls (Figure 2A). However, no genomic alterations have been identified to date (Figure 3B). In this particular case, altered expression of PSMD3 could be due to post-transcriptional, translational, or post-translational regulation. We previously speculated that the difference in sensitivity between CML and normal progenitors to knockdown of PSMD1 or PSMD3 may be due to differences in post-translational modifications, which could alter peptide targets in malignant versus normal tissues [31]. Indeed, Hemmis et al. recently reported that PSMD1 can be phosphorylated at tyrosine 950, and that this modulates interactions between ubiquitin receptors [42].
The post-translational modifications of PSMD1 or PSMD3 could provide a starting point for targeting these proteins in cancer therapy. In addition to phosphorylation events [42], PSMD1 was reported to undergo SUMOylation, the addition of small ubiquitin-related modifiers [43]. The SUMOylation event occurs at a critical lysine residue located immediately adjacent to the ADRM1-binding domain, an ubiquitin receptor [44], thereby regulating associations between the two proteins [43]. Importantly, ADRM1/RPN13 has already been implicated as a potential target for cancer therapy [45,46,47,48,49,50,51,52,53,54]. Less is known about PSMD3 post-translational modifications. However, in yeast, PSMD3 (RPN3) was shown to interact with RPN11, and PSMD3 mutants resulted in a proteasome assembly defect [55]. Therefore, this interaction may potentially be subject to pharmacologic intervention. The post-translational modifications of PSMD1 or PSMD3, the proteins they interact with, and the enzymes that regulate them could provide a mechanism for pharmacologic inhibition in cancer therapy.
Future studies will determine the mechanism by which PSMD1 or PSMD3 are upregulated in CML and other types of cancers, and will interrogate their potential as novel therapeutic targets. Future studies will also identify the mechanism by which they act as oncogenes in certain types of malignancies. Our recent data in CML suggest that PSMD1 and PSMD3 act as oncogenes by stabilizing the nuclear factor-kappa B (NF-κB) transcription factor from degradation [31]. Similarly, these proteasome subunits were shown to regulate p53 and HER2 degradation in breast cancer [22,23]. We speculate that other signaling pathways are regulated by these proteins in different types of cancers, and that those pathways will have relevance to cancer initiation, progression, and relapse, depending on the cell and tissue of origin. PSMD1, PSMD3, and the signaling pathways regulated by them, could be novel molecular targets for improved cancer therapy. Our observation that knockdown of these proteins reduced survival of CML but not normal progenitors suggests they may be good molecular targets with less toxicity compared with traditional proteasome inhibitors [31]. In order to target PSMD1 or PSMD3 directly, we must first have a better understanding of their post-translational modifications, the proteins that interact with them (e.g., deubiquitylases), and their differences between normal versus malignant cells.
Altogether, our data implicate PSMD1 and PSMD3 as novel potential prognostic biomarkers and therapeutic targets that are worthy of future investigation.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/cells10092390/s1, Figure S1: PSMD1 expression correlates with worse OS in multiple human malignancies, Figure S2: PSMD3 expression correlates with worse OS in multiple human malignancies.

Author Contributions

Conceptualization, A.M.E., A.J.R. and A.E.B.-A.; methodology, A.M.E.; data curation, A.M.E.; validation, A.E.B.-A., J.E.Y., V.V.V., J.J.L. and M.A.G.; writing—original draft preparation, A.J.R.; writing—review and editing, A.M.E., A.J.R., A.E.B.-A., J.E.Y., V.V.V., J.J.L. and M.A.G.; visualization, A.M.E. and A.J.R.; supervision, A.M.E.; project administration, A.M.E.; funding acquisition, A.M.E. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Elsa U. Pardee Foundation (A.M.E.) and the American Society of Hematology Minority Medical Student Award Program (J.J.L.). Additionally, this work was funded in part by the National Cancer Institute of the National Institutes of Health under Award Number K22CA216008 (A.M.E.). The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Adams, J. The proteasome: A suitable antineoplastic target. Nat. Rev. Cancer 2004, 4, 349–360. [Google Scholar] [CrossRef] [PubMed]
  2. Tanaka, K. The proteasome: Overview of structure and functions. Proc. Jpn. Acad. Ser. B Phys. Biol. Sci. 2009, 85, 12–36. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Livneh, I.; Cohen-Kaplan, V.; Cohen-Rosenzweig, C.; Avni, N.; Ciechanover, A. The life cycle of the 26S proteasome: From birth, through regulation and function, and onto its death. Cell Res. 2016, 26, 869–885. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Bossola, M.; Pacelli, F.; Tortorelli, A.; Rosa, F.; Doglietto, G.B. Skeletal muscle in cancer cachexia: The ideal target of drug therapy. Curr. Cancer Drug Targets 2008, 8, 285–298. [Google Scholar] [CrossRef]
  5. Dou, Q.P.; Zonder, J.A. Overview of proteasome inhibitor-based anti-cancer therapies: Perspective on bortezomib and second generation proteasome inhibitors versus future generation inhibitors of ubiquitin-proteasome system. Curr. Cancer Drug Targets 2014, 14, 517–536. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Park, J.; Cho, J.; Song, E.J. Ubiquitin–proteasome system (UPS) as a target for anticancer treatment. Arch. Pharmacal Res. 2020, 43, 1144–1161. [Google Scholar] [CrossRef]
  7. O’Connor, O.A. The emerging role of bortezomib in the treatment of indolent non-Hodgkin’s and mantle cell lymphomas. Curr. Treat Options Oncol. 2004, 5, 269–281. [Google Scholar] [CrossRef]
  8. Lin, Z.; Chen, X.; Li, Z.; Zhou, Y.; Fang, Z.; Luo, Y.; Zhao, J.; Xu, B. The role of bortezomib in newly diagnosed diffuse large B cell lymphoma: A meta-analysis. Ann. Hematol. 2018, 97, 2137–2144. [Google Scholar] [CrossRef]
  9. Voutsadakis, I.A. Pathogenesis of colorectal carcinoma and therapeutic implications: The roles of the ubiquitin?proteasome system and Cox-2. J. Cell. Mol. Med. 2007, 11, 252–285. [Google Scholar] [CrossRef]
  10. Mohammed, A.A.; El-Shentenawy, A. Advanced thyroid cancers: New era of treatment. Med. Oncol. 2014, 31, 1–8. [Google Scholar] [CrossRef]
  11. Pancheri, E.; Guglielmi, V.; Wilczynski, G.M.; Malatesta, M.; Tonin, P.; Tomelleri, G.; Nowis, D.; Vattemi, G. Non-Hematologic Toxicity of Bortezomib in Multiple Myeloma: The Neuromuscular and Cardiovascular Adverse Effects. Cancers 2020, 12, 2540. [Google Scholar] [CrossRef]
  12. Yamamoto, S.; Egashira, N. Pathological mechanisms of bortezomib-induced peripheral neuropathy. Int. J. Mol. Sci. 2021, 22, 888. [Google Scholar] [CrossRef]
  13. Park, J.E.; Miller, Z.; Jun, Y.; Lee, W.; Kim, K.B. Next-generation proteasome inhibitors for cancer therapy. Transl. Res. 2018, 198, 1–16. [Google Scholar] [CrossRef] [PubMed]
  14. Piperdi, B.; Ling, Y.-H.; Liebes, L.; Muggia, F.; Perez-Soler, R. Bortezomib: Understanding the mechanism of action. Mol. Cancer Ther. 2011, 10, 2029–2030. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Yee, A.J. The role of carfilzomib in relapsed/refractory multiple myeloma. Ther. Adv. Hematol. 2021, 12, 20406207211019612. [Google Scholar] [CrossRef] [PubMed]
  16. Haq, M.; Thumallapally, N. Ixazomib. In StatPearls; StatPearls Publishing LLC.: Rockville, MD, USA, 2021. [Google Scholar]
  17. Astakhova, T.M.; Morozov, A.V.; Erokhov, P.A.; Mikhailovskaya, M.I.; Akopov, S.B.; Chupikova, N.I.; Safarov, R.R.; Sharova, N.P. Combined effect of bortezomib and menadione sodium bisulfite on proteasomes of tumor cells: The dramatic decrease of bortezomib toxicity in a preclinical trial. Cancers 2018, 10, 351. [Google Scholar] [CrossRef] [Green Version]
  18. Sharova, N.P.; Astakhova, T.A.; Karpova, Y.D.; Lyupina, Y.V.; Alekhin, A.I.; Goncharov, N.G.; Sumedi, I.R.; Cherner, V.A.; Rodoman, G.V.; Kuznetsov, N.A.; et al. Changes in proteasome pool in human papillary thryoid carcinoma development. Cent. Eur. J. Biol. 2011, 6, 486–496. [Google Scholar]
  19. Chen, L.; Madura, K. Increased proteasome activity, ubiquitin-conjugating enzymes, and eEF1A translation factor detected in breast cancer tissue. Cancer Res. 2005, 65, 5599–5606. [Google Scholar] [CrossRef] [Green Version]
  20. Deng, S.; Zhou, H.; Xiong, R.; Lu, Y.; Yan, D.; Xing, T.; Dong, L.; Tang, E.; Yang, H. Over-expression of genes and proteins of ubiquitin specific peptidases (USPs) and proteasome subunits (PSs) in breast cancer tissue observed by the methods of RFDD-PCR and proteomics. Breast Cancer Res. Treat. 2006, 104, 21–30. [Google Scholar] [CrossRef]
  21. Shashova, E.E.; Lyupina, Y.V.; Glushchenko, S.A.; Slonimskaya, E.M.; Savenkova, O.V.; Kulikov, A.M.; Gornostaev, N.G.; Kondakova, I.V.; Sharova, N.P. Proteasome functioning in breast cancer: Connection with clinical-pathological factors. PLoS ONE 2014, 9, e109933. [Google Scholar] [CrossRef]
  22. Okumura, T.; Ikeda, K.; Ujihira, T.; Okamoto, K.; Horie-Inoue, K.; Takeda, S.; Inoue, S. Proteasome 26S subunit PSMD1 regulates breast cancer cell growth through p53 protein degradation. J. Biochem. 2017, 163, 19–29. [Google Scholar] [CrossRef] [PubMed]
  23. Fararjeh, A.S.; Chen, L.-C.; Ho, Y.-S.; Cheng, T.-C.; Liu, Y.-R.; Chang, H.W.; Wu, C.-H.; Tu, S.-H. Proteasome 26S subunit, non-ATPase 3 (PSMD3) regulates breast cancer by stabilizing HER2 from degradation. Cancers 2019, 11, 527. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Boland, K.; Flanagan, L.; McCAWLEY, N.; Pabari, R.; Kay, E.W.; McNamara, D.A.; Murray, F.; Byrne, A.T.; Ramtoola, Z.; Concannon, C.G.; et al. Targeting the 19S proteasomal subunit, Rpt4, for the treatment of colon cancer. Eur. J. Pharmacol. 2016, 780, 53–64. [Google Scholar] [CrossRef]
  25. Erokhov, P.; Kulikov, A.; Karpova, Y.; Rodoman, G.; Sumedi, I.; Goncharov, A.; Razbirin, D.; Gorelova, V.; Sharova, N.; Astakhova, T. Proteasomes in patient rectal cancer and different intestine locations: Where does proteasome pool change? Cancers 2021, 13, 1108. [Google Scholar] [CrossRef] [PubMed]
  26. Bazzaro, M.; Lee, M.; Zoso, A.; Stirling, W.L.; Santillan, A.; Shih, I.-M.; Roden, R.B. Ubiquitin-proteasome system stress sensitizes ovarian cancer to proteasome inhibitor–induced apoptosis. Cancer Res. 2006, 66, 3754–3763. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Ovaa, H.; Kessler, B.; Rolén, U.; Galardy, P.J.; Ploegh, H.L.; Masucci, M.G. Activity-based ubiquitin-specific protease (USP) profiling of virus-infected and malignant human cells. Proc. Natl. Acad. Sci. USA 2004, 101, 2253–2258. [Google Scholar] [CrossRef] [Green Version]
  28. Pilarsky, C.; Wenzig, M.; Specht, T.; Saeger, H.D.; Grützmann, R. Identification and validation of commonly overexpressed genes in solid tumors by comparison of microarray data. Neoplasia 2004, 6, 744–750. [Google Scholar] [CrossRef] [Green Version]
  29. Astakhova, T.M.; Delone, G.V.; Lyupina, Y.V.; Abramova, E.B.; Uryvaeva, I.V.; Sharova, N.P. Changes in the proteasome pool during malignant transformation of mouse liver cells. Acta Nat. 2010, 2, 102–108. [Google Scholar] [CrossRef] [Green Version]
  30. Jia, Z.; Ai, X.; Sun, F.; Zang, T.; Guan, Y.; Gao, F. Identification of new hub genes associated with bladder carcinoma via bioinformatics analysis. Tumori J. 2015, 101, 117–122. [Google Scholar] [CrossRef]
  31. Bencomo-Alvarez, A.E.; Rubio, A.J.; Olivas, I.M.; Gonzalez, M.A.; Ellwood, R.; Fiol, C.R.; Eide, C.A.; Lara, J.J.; Barreto-Vargas, C.; Jave-Suarez, L.F.; et al. Proteasome 26S subunit, non-ATPases 1 (PSMD1) and 3 (PSMD3), play an oncogenic role in chronic myeloid leukemia by stabilizing nuclear factor-kappa B. Oncogene 2021, 40, 2697–2710. [Google Scholar] [CrossRef]
  32. Sahlberg, K.K.; Hongisto, V.; Edgren, H.; Makela, R.; Hellstrom, K.; Due, E.U.; Moen Vollan, H.K.; Sahlberg, N.; Wolf, M.; Borresen-Dale, A.L.; et al. The HER2 amplicon includes several genes required for the growth and survival of HER2 positive breast cancer cells. Mol. Oncol. 2013, 7, 392–401. [Google Scholar] [CrossRef]
  33. The Cancer Genome Atlas Research Network; Weinstein, J.N.; Collisson, E.A.; Mills, G.B.; Shaw, K.R.M.; Ozenberger, B.A.; Ellrott, K.; Shmulevich, I.; Sander, C.; Stuart, J.M. The Cancer Genome Atlas Pan-Cancer analysis project. Nat. Genet. 2013, 45, 1113–1120. [Google Scholar] [CrossRef] [PubMed]
  34. Whiteaker, J.R.; the Clinical Proteomic Tumor Analysis Consortium (CPTAC); Halusa, G.N.; Hoofnagle, A.N.; Sharma, V.; MacLean, B.; Yan, P.; Wrobel, J.A.; Kennedy, J.J.; Mani, D.R.; et al. CPTAC assay portal: A repository of targeted proteomic assays. Nat. Methods 2014, 11, 703–704. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Edwards, N.J.; Oberti, M.; Thangudu, R.R.; Cai, S.; McGarvey, P.B.; Jacob, S.; Madhavan, S.; Ketchum, K.A. The CPTAC data portal: A resource for cancer proteomics research. J. Proteome Res. 2015, 14, 2707–2713. [Google Scholar] [CrossRef] [PubMed]
  36. Chandrashekar, D.S.; Bashel, B.; Balasubramanya, S.A.H.; Creighton, C.J.; Rodriguez, I.P.; Chakravarthi, B.V.S.K.; Varambally, S. UALCAN: A portal for facilitating tumor subgroup gene expression and survival analyses. Neoplasia 2017, 19, 649–658. [Google Scholar] [CrossRef]
  37. Lonsdale, J.; Thomas, J.; Salvatore, M.; Phillips, R.; Lo, E.; Shad, S.; Hasz, R.; Walters, G.; Garcia, F.; Young, N.; et al. The Genotype-Tissue Expression (GTEx) project. Nat. Genet 2013, 45, 580–585. [Google Scholar] [CrossRef] [PubMed]
  38. Tang, Z.; Kang, B.; Li, C.; Chen, T.; Zhang, Z. GEPIA2: An enhanced web server for large-scale expression profiling and interactive analysis. Nucleic Acids Res. 2019, 47, W556–W560. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Gao, J.; Aksoy, B.A.; Dogrusoz, U.; Dresdner, G.; Gross, B.; Sumer, S.O.; Sun, Y.; Jacobsen, A.; Sinha, R.; Larsson, E.; et al. Integrative analysis of complex cancer genomics and clinical profiles using the cBioPortal. Sci. Signal. 2013, 6, pl1. [Google Scholar] [CrossRef] [Green Version]
  40. Zheng, H.; Zhang, G.; Zhang, L.; Wang, Q.; Li, H.; Han, Y.; Xie, L.; Yan, Z.; Li, Y.; An, Y.; et al. Comprehensive review of web servers and bioinformatics tools for cancer prognosis analysis. Front. Oncol. 2020, 10, 68. [Google Scholar] [CrossRef]
  41. Tsvetkov, P.; Sokol, E.; Jin, D.; Brune, Z.; Thiru, P.; Ghandi, M.; Garraway, L.A.; Gupta, P.B.; Santagata, S.; Whitesell, L.; et al. Suppression of 19S proteasome subunits marks emergence of an altered cell state in diverse cancers. Proc. Natl. Acad. Sci. USA 2017, 114, 382–387. [Google Scholar] [CrossRef] [Green Version]
  42. Hemmis, C.W.; Heard, S.C.; Hill, C.P. Phosphorylation of Tyr-950 in the proteasome scaffolding protein RPN2 modulates its interaction with the ubiquitin receptor RPN13. J. Biol. Chem. 2019, 294, 9659–9665. [Google Scholar] [CrossRef] [PubMed]
  43. Ryu, H.; Gygi, S.P.; Azuma, Y.; Arnaoutov, A.; Dasso, M. SUMOylation of Psmd1 controls Adrm1 interaction with the proteasome. Cell Rep. 2014, 7, 1842–1848. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Husnjak, K.; Elsasser, S.; Zhang, N.; Chen, X.; Randles, L.; Shi, Y.; Hofmann, K.; Walters, K.J.; Finley, D.; Dikic, I. Proteasome subunit Rpn13 is a novel ubiquitin receptor. Nat. Cell Biol. 2008, 453, 481–488. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Anchoori, R.K.; Karanam, B.; Peng, S.; Wang, J.W.; Jiang, R.; Tanno, T.; Orlowski, R.; Matsui, W.; Zhao, M.; Rudek, M.A.; et al. A bis-Benzylidine piperidone targeting proteasome ubiquitin receptor RPN13/ADRM1 as a therapy for cancer. Cancer Cell 2013, 24, 791–805. [Google Scholar] [CrossRef] [Green Version]
  46. Song, Y.; Ray, A.; Li, S.; Das, D.S.; Tai, Y.T.; Carrasco, R.D.; Chauhan, D.; Anderson, K.C. Targeting proteasome ubiquitin receptor Rpn13 in multiple myeloma. Leukemia 2016, 30, 1877–1886. [Google Scholar] [CrossRef] [Green Version]
  47. Lu, X.; Nowicka, U.; Sridharan, V.; Liu, F.; Randles, L.; Hymel, D.; Dyba, M.; Tarasov, S.G.; Tarasova, N.I.; Zhao, X.Z.; et al. Structure of the Rpn13-Rpn2 complex provides insights for Rpn13 and Uch37 as anticancer targets. Nat. Commun. 2017, 8, 15540. [Google Scholar] [CrossRef]
  48. Song, Y.; Park, P.M.C.; Wu, L.; Ray, A.; Picaud, S.; Li, D.; Wimalasena, V.; Du, T.; Filippakopoulos, P.; Anderson, K.C.; et al. Development and preclinical validation of a novel covalent ubiquitin receptor Rpn13 degrader in multiple myeloma. Leukemia 2019, 33, 2685–2694. [Google Scholar] [CrossRef]
  49. Ray, A.; Song, Y.; Chauhan, D.; Anderson, K.C. Blockade of ubiquitin receptor Rpn13 in plasmacytoid dendritic cells triggers anti-myeloma immunity. Blood Cancer J. 2019, 9, 1–4. [Google Scholar] [CrossRef] [Green Version]
  50. Anchoori, R.K.; Tan, M.; Tseng, S.-H.; Peng, S.; Soong, R.-S.; Algethami, A.; Foran, P.; Das, S.; Wang, C.; Wang, T.-L.; et al. Structure-function analyses of candidate small molecule RPN13 inhibitors with antitumor properties. PLoS ONE 2020, 15, e0227727. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Soong, R.S.; Anchoori, R.K.; Roden, R.B.S.; Cho, R.L.; Chen, Y.C.; Tseng, S.C.; Huang, Y.L.; Liao, P.C.; Shyu, Y.C. Bis-benzylidine Piperidone RA190 treatment of hepatocellular carcinoma via binding RPN13 and inhibiting NF-κB signaling. BMC Cancer 2020, 20, 386. [Google Scholar] [CrossRef] [PubMed]
  52. Dickson, P.; Simanski, S.; Ngundu, J.M.; Kodadek, T. Mechanistic Studies of the multiple myeloma and melanoma cell-selective toxicity of the Rpn13-binding peptoid KDT-11. Cell Chem. Biol. 2020, 27, 1383–1395.e5. [Google Scholar] [CrossRef] [PubMed]
  53. Du, T.; Song, Y.; Ray, A.; Chauhan, D.; Anderson, K.C. Proteomic analysis identifies mechanism(s) of overcoming bortezomib resistance via targeting ubiquitin receptor Rpn13. Leukemia 2021, 35, 550–561. [Google Scholar] [CrossRef] [PubMed]
  54. Song, Y.; Du, T.; Ray, A.; Chauhan, K.; Samur, M.; Munshi, N.; Chauhan, D.; Anderson, K.C. Identification of novel anti-tumor therapeutic target via proteomic characterization of ubiquitin receptor ADRM1/Rpn13. Blood Cancer J. 2021, 11, 1–5. [Google Scholar] [CrossRef] [PubMed]
  55. Joshi, K.K.; Chen, L.; Torres, N.; Tournier, V.; Madura, K. A proteasome assembly defect in rpn3 mutants is associated with Rpn11 instability and increased sensitivity to stress. J. Mol. Biol. 2011, 410, 383–399. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Cells 10 02390 g001 550

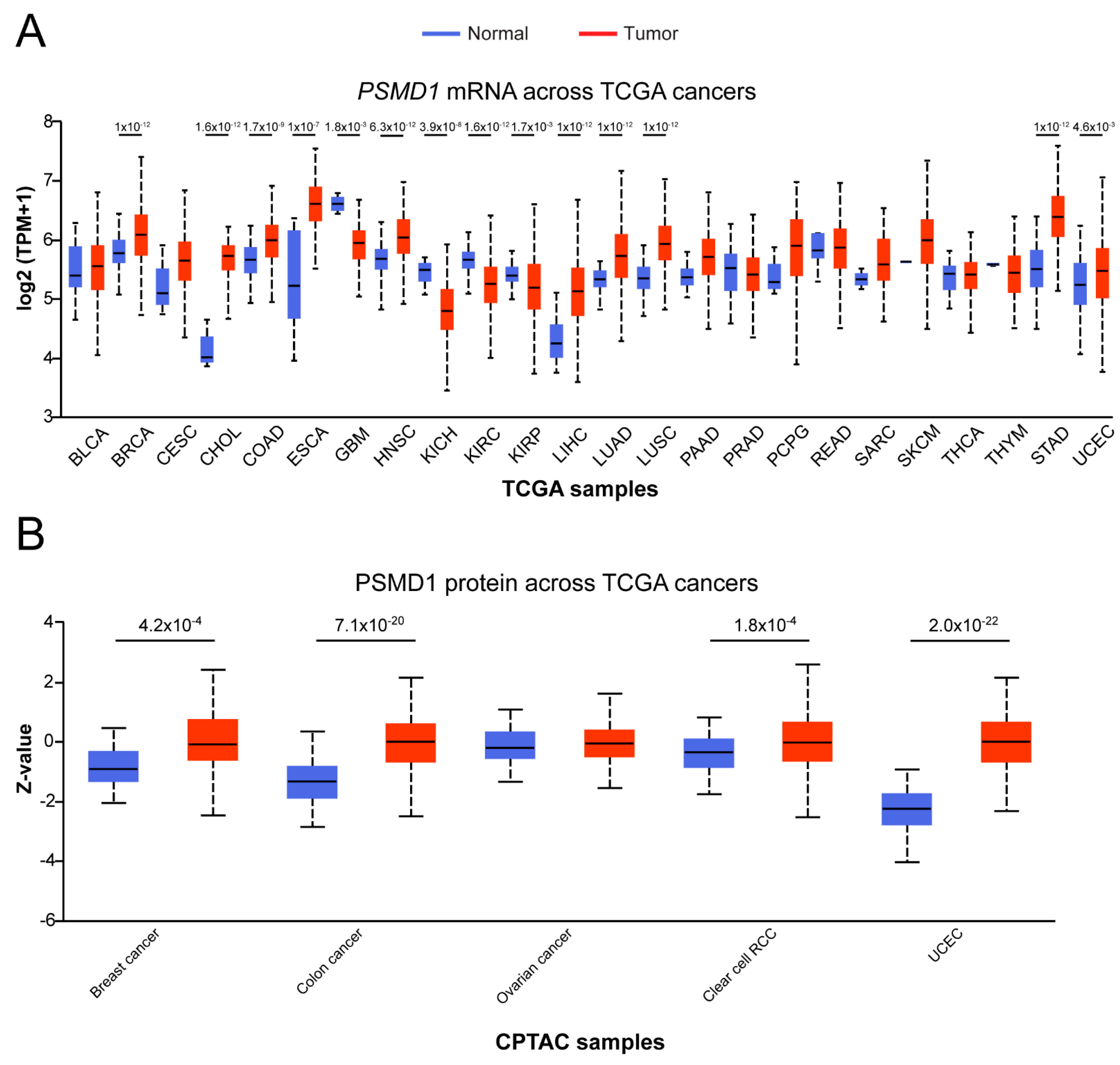

Figure 1. PSMD1 expression correlates with survival in multiple human malignancies. (A) Box plots represent PSMD1 mRNA expression in multiple different tumor types using TCGA RNA-seq data analyzed through UALCAN. BLCA, bladder urothelial carcinoma; BRCA, breast invasive carcinoma; CESC, cervical squamous cell carcinoma and endocervical adenocarcinoma; CHOL, cholangiocarcinoma; COAD, colon adenocarcinoma; ESCA, esophageal carcinoma; GBM, glioblastoma multiforme; HNSC, head and neck squamous cell carcinoma; KICH, kidney chromophobe; KIRC, kidney renal clear cell carcinoma; KIRP, kidney renal papillary cell carcinoma; LIHC, liver hepatocellular carcinoma; LUAD, lung adenocarcinoma; LUSC, lung squamous cell carcinoma; PAAD, pancreatic adenocarcinoma; PRAD, prostate adenocarcinoma; PCPG, pheochromocytoma and paraganglioma; READ, rectum adenocarcinoma; SARC, sarcoma; SKCM, skin cutaneous melanoma; THCA, thyroid carcinoma; THYM, thymoma; STAD, stomach adenocarcinoma; UCEC, uterine corpus endometrial carcinoma. (B) PSMD1 protein expression in different tumor types compared with normal tissue using CPTAC data analyzed through UALCAN. RCC, renal cell carcinoma; UCEC, uterine corpus endometrial carcinoma.
Figure 1. PSMD1 expression correlates with survival in multiple human malignancies. (A) Box plots represent PSMD1 mRNA expression in multiple different tumor types using TCGA RNA-seq data analyzed through UALCAN. BLCA, bladder urothelial carcinoma; BRCA, breast invasive carcinoma; CESC, cervical squamous cell carcinoma and endocervical adenocarcinoma; CHOL, cholangiocarcinoma; COAD, colon adenocarcinoma; ESCA, esophageal carcinoma; GBM, glioblastoma multiforme; HNSC, head and neck squamous cell carcinoma; KICH, kidney chromophobe; KIRC, kidney renal clear cell carcinoma; KIRP, kidney renal papillary cell carcinoma; LIHC, liver hepatocellular carcinoma; LUAD, lung adenocarcinoma; LUSC, lung squamous cell carcinoma; PAAD, pancreatic adenocarcinoma; PRAD, prostate adenocarcinoma; PCPG, pheochromocytoma and paraganglioma; READ, rectum adenocarcinoma; SARC, sarcoma; SKCM, skin cutaneous melanoma; THCA, thyroid carcinoma; THYM, thymoma; STAD, stomach adenocarcinoma; UCEC, uterine corpus endometrial carcinoma. (B) PSMD1 protein expression in different tumor types compared with normal tissue using CPTAC data analyzed through UALCAN. RCC, renal cell carcinoma; UCEC, uterine corpus endometrial carcinoma.
Cells 10 02390 g001
Cells 10 02390 g002 550

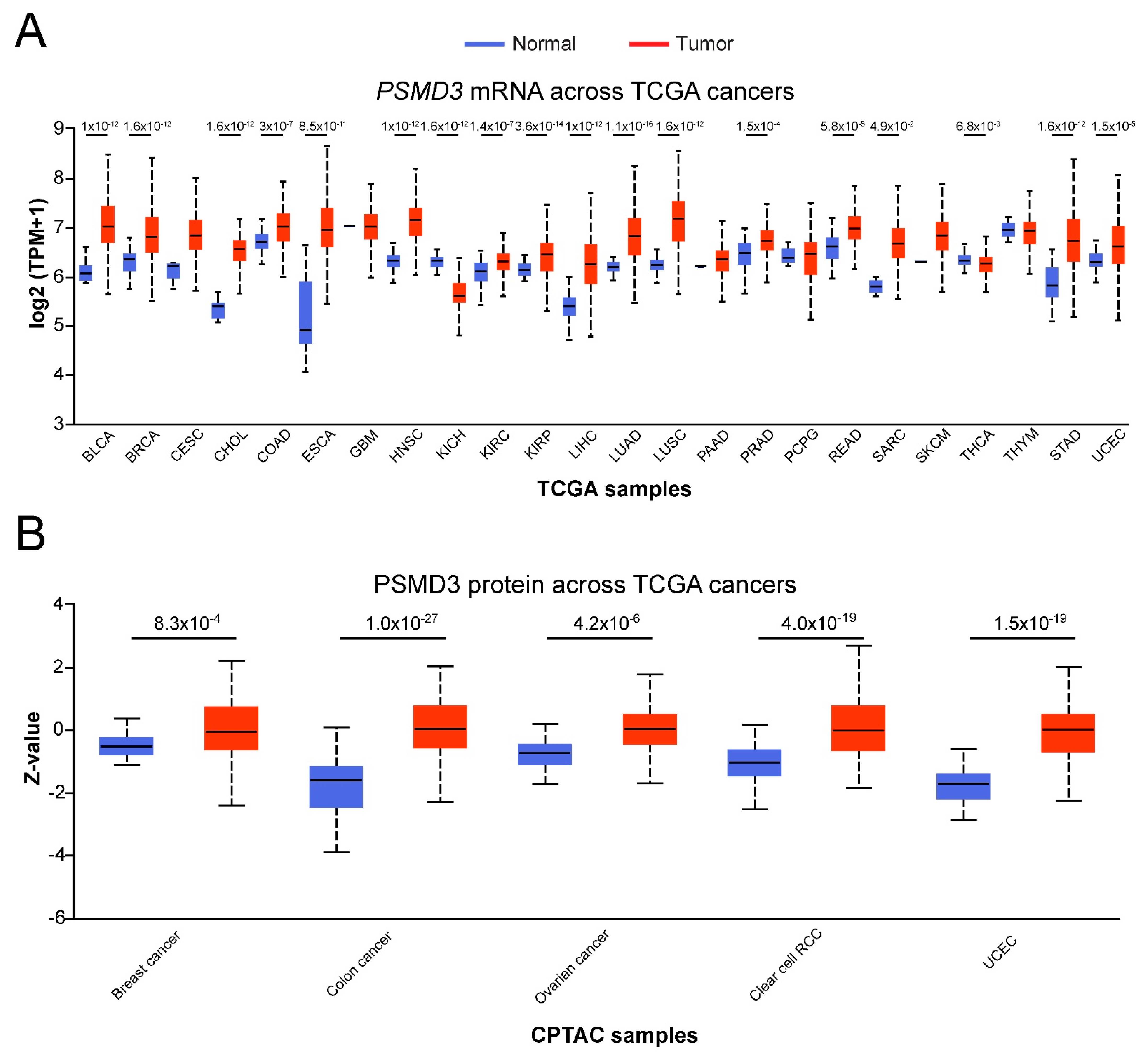

Figure 2. PSMD3 expression correlates with survival in multiple human malignancies. (A) Box plots represent PSMD3 mRNA expression in multiple different tumor types using TCGA RNA-seq data analyzed through UALCAN. BLCA, bladder urothelial carcinoma; BRCA, breast invasive carcinoma; CESC, cervical squamous cell carcinoma and endocervical adenocarcinoma; CHOL, cholangiocarcinoma; COAD, colon adenocarcinoma; ESCA, esophageal carcinoma; GBM, glioblastoma multiforme; HNSC, head and neck squamous cell carcinoma; KICH, kidney chromophobe; KIRC, kidney renal clear cell carcinoma; KIRP, kidney renal papillary cell carcinoma; LIHC, liver hepatocellular carcinoma; LUAD, lung adenocarcinoma; LUSC, lung squamous cell carcinoma; PAAD, pancreatic adenocarcinoma; PRAD, prostate adenocarcinoma; PCPG, pheochromocytoma and paraganglioma; READ, rectum adenocarcinoma; SARC, sarcoma; SKCM, skin cutaneous melanoma; THCA, thyroid carcinoma; THYM, thymoma; STAD, stomach adenocarcinoma; UCEC, uterine corpus endometrial carcinoma. (B) PSMD3 protein expression in different tumor types compared with normal tissue, as determined by CPTAC data analyzed through UALCAN [36]. RCC, renal cell carcinoma; UCEC, uterine corpus endometrial carcinoma.
Figure 2. PSMD3 expression correlates with survival in multiple human malignancies. (A) Box plots represent PSMD3 mRNA expression in multiple different tumor types using TCGA RNA-seq data analyzed through UALCAN. BLCA, bladder urothelial carcinoma; BRCA, breast invasive carcinoma; CESC, cervical squamous cell carcinoma and endocervical adenocarcinoma; CHOL, cholangiocarcinoma; COAD, colon adenocarcinoma; ESCA, esophageal carcinoma; GBM, glioblastoma multiforme; HNSC, head and neck squamous cell carcinoma; KICH, kidney chromophobe; KIRC, kidney renal clear cell carcinoma; KIRP, kidney renal papillary cell carcinoma; LIHC, liver hepatocellular carcinoma; LUAD, lung adenocarcinoma; LUSC, lung squamous cell carcinoma; PAAD, pancreatic adenocarcinoma; PRAD, prostate adenocarcinoma; PCPG, pheochromocytoma and paraganglioma; READ, rectum adenocarcinoma; SARC, sarcoma; SKCM, skin cutaneous melanoma; THCA, thyroid carcinoma; THYM, thymoma; STAD, stomach adenocarcinoma; UCEC, uterine corpus endometrial carcinoma. (B) PSMD3 protein expression in different tumor types compared with normal tissue, as determined by CPTAC data analyzed through UALCAN [36]. RCC, renal cell carcinoma; UCEC, uterine corpus endometrial carcinoma.
Cells 10 02390 g002
Cells 10 02390 g003 550

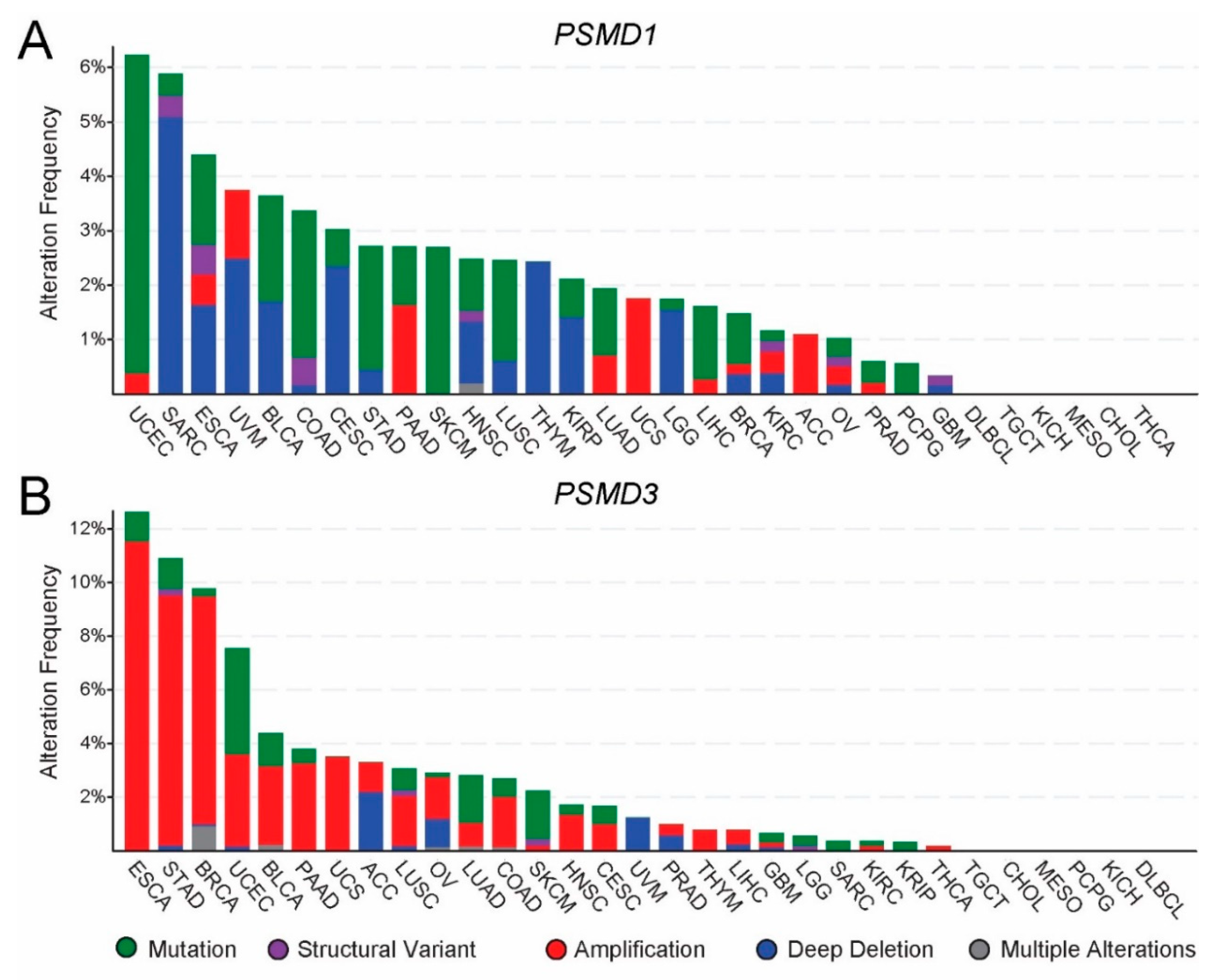

Figure 3. Genomic alterations in the genes encoding PSMD1 and PSMD3 in multiple human cancers. Using data from cBioPortal, we analyzed genomic alterations associated with the PSMD1 (A) and PSMD3 (B) genes in multiple TCGA cancers. The PSMD1 gene was primarily associated with mutations or deep deletions, whereas the PSMD3 gene showed mostly amplifications. ACC, adrenocortical carcinoma; BLCA, bladder urothelial carcinoma; BRCA, breast invasive carcinoma; CESC, cervical squamous cell carcinoma and endocervical adenocarcinoma; CHOL, cholangiocarcinoma; COAD, colon adenocarcinoma; DLBCL, lymphoid neoplasm diffuse large B-cell lymphoma; ESCA, esophageal carcinoma; GBM, glioblastoma multiforme; HNSC, head and neck squamous cell carcinoma; KICH, kidney chromophobe; KIRC, kidney renal clear cell carcinoma; KIRP, kidney renal papillary cell carcinoma; LGG, Brain lower grade glioma; LIHC, liver hepatocellular carcinoma; LUAD, lung adenocarcinoma; LUSC, lung squamous cell carcinoma; MESO, mesothelioma; OV, ovarian serous cystadenocarcinoma; PAAD, pancreatic adenocarcinoma; PRAD, prostate adenocarcinoma; PCPG, pheochromocytoma and paraganglioma; READ, rectum adenocarcinoma; SARC, sarcoma; SKCM, skin cutaneous melanoma; TGCT, testicular germ cell tumors; THCA, thyroid carcinoma; THYM, thymoma; STAD, stomach adenocarcinoma; UCEC, uterine corpus endometrial carcinoma; UCS, uterine carcinosarcoma; UVM, uveal melanoma.
Figure 3. Genomic alterations in the genes encoding PSMD1 and PSMD3 in multiple human cancers. Using data from cBioPortal, we analyzed genomic alterations associated with the PSMD1 (A) and PSMD3 (B) genes in multiple TCGA cancers. The PSMD1 gene was primarily associated with mutations or deep deletions, whereas the PSMD3 gene showed mostly amplifications. ACC, adrenocortical carcinoma; BLCA, bladder urothelial carcinoma; BRCA, breast invasive carcinoma; CESC, cervical squamous cell carcinoma and endocervical adenocarcinoma; CHOL, cholangiocarcinoma; COAD, colon adenocarcinoma; DLBCL, lymphoid neoplasm diffuse large B-cell lymphoma; ESCA, esophageal carcinoma; GBM, glioblastoma multiforme; HNSC, head and neck squamous cell carcinoma; KICH, kidney chromophobe; KIRC, kidney renal clear cell carcinoma; KIRP, kidney renal papillary cell carcinoma; LGG, Brain lower grade glioma; LIHC, liver hepatocellular carcinoma; LUAD, lung adenocarcinoma; LUSC, lung squamous cell carcinoma; MESO, mesothelioma; OV, ovarian serous cystadenocarcinoma; PAAD, pancreatic adenocarcinoma; PRAD, prostate adenocarcinoma; PCPG, pheochromocytoma and paraganglioma; READ, rectum adenocarcinoma; SARC, sarcoma; SKCM, skin cutaneous melanoma; TGCT, testicular germ cell tumors; THCA, thyroid carcinoma; THYM, thymoma; STAD, stomach adenocarcinoma; UCEC, uterine corpus endometrial carcinoma; UCS, uterine carcinosarcoma; UVM, uveal melanoma.
Cells 10 02390 g003
Cells 10 02390 g004 550
Figure 4. PSMD1 expression correlates with worse OS in multiple human malignancies. TCGA survival data from UALCAN demonstrates that higher levels of PSMD1 mRNA expression correlated with worse outcomes as demonstrated in the Kaplan-Meier curves for (A) ACC, adrenocortical carcinoma; (B) BLCA, bladder urothelial carcinoma; (C) LGG, Brain lower grade glioma; (D) BRCA, breast invasive carcinoma; (E) CESC, cervical squamous cell carcinoma and endocervical adenocarcinoma; (F) LIHC, liver hepatocellular carcinoma; (G) LUAD, lung adeno carcinoma; (H) MESO, mesothelioma; (I) UCEI, uterine corpus endometrial carcinoma.
Figure 4. PSMD1 expression correlates with worse OS in multiple human malignancies. TCGA survival data from UALCAN demonstrates that higher levels of PSMD1 mRNA expression correlated with worse outcomes as demonstrated in the Kaplan-Meier curves for (A) ACC, adrenocortical carcinoma; (B) BLCA, bladder urothelial carcinoma; (C) LGG, Brain lower grade glioma; (D) BRCA, breast invasive carcinoma; (E) CESC, cervical squamous cell carcinoma and endocervical adenocarcinoma; (F) LIHC, liver hepatocellular carcinoma; (G) LUAD, lung adeno carcinoma; (H) MESO, mesothelioma; (I) UCEI, uterine corpus endometrial carcinoma.
Cells 10 02390 g004
Cells 10 02390 g005 550
Figure 5. PSMD3 expression correlates with worse OS in multiple human malignancies. TCGA survival data from UALCAN demonstrates that higher levels of PSMD3 mRNA expression correlated with worse outcomes as demonstrated in the Kaplan-Meier curves for (A) LUAD, lung adeno carcinoma; (B) KICH, kidney chromophobe; (C) KIRP, kidney renal papillary cell carcinoma; (D) SKCM, skin cutaneous melanoma; (E) UVM, uveal melanoma.
Figure 5. PSMD3 expression correlates with worse OS in multiple human malignancies. TCGA survival data from UALCAN demonstrates that higher levels of PSMD3 mRNA expression correlated with worse outcomes as demonstrated in the Kaplan-Meier curves for (A) LUAD, lung adeno carcinoma; (B) KICH, kidney chromophobe; (C) KIRP, kidney renal papillary cell carcinoma; (D) SKCM, skin cutaneous melanoma; (E) UVM, uveal melanoma.
Cells 10 02390 g005
Cells 10 02390 g006 550

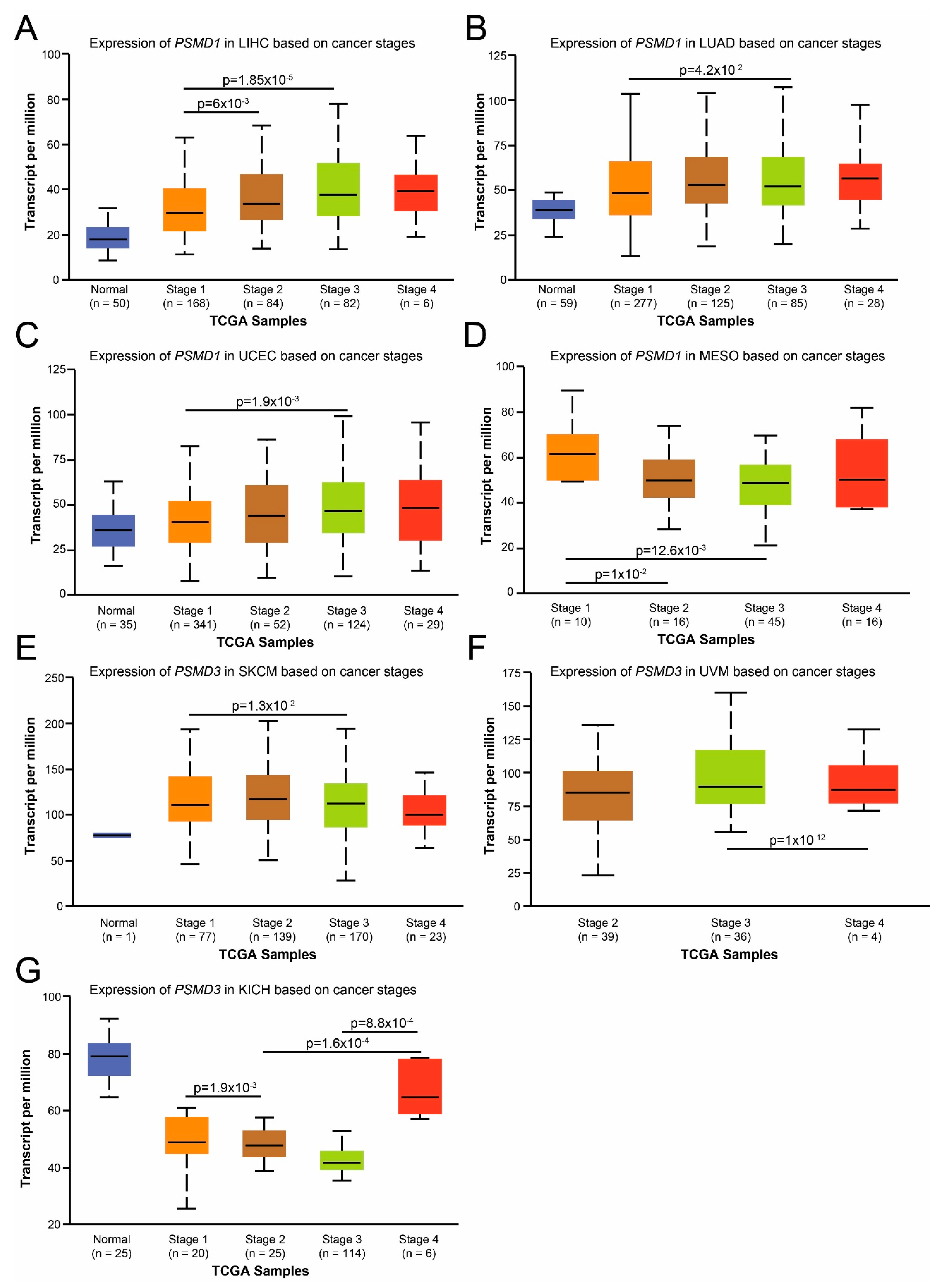

Figure 6. Correlation of PSMD1 and PSMD3 mRNA expression with distinct clinicopathological features in certain types of cancers. We used UALCAN to associate PSMD1 and PSMD3 mRNA expression with clinicopathological characteristics. PSMD1 mRNA expression was significantly increased in patients with LIHC (A), LUAD (B), and UCEC (C) comparing disease stages 1, 2, or 3. PSMD1 mRNA expression was reduced in patients with MESO when comparing stages 1, 2, and 3 (D). In patients with SKCM, PSMD3 mRNA levels decreased when comparing stage 1 with stage 3 (E). In patients with UVM, PSMD3 mRNA levels also decreased when comparing stage 3 with stage 4 (F). In patients with KICH, while PSMD3 mRNA levels decreased comparing normal specimens with stages 1, 2, or 3, it was upregulated in patients who had progressed to stage 4 (G).
Figure 6. Correlation of PSMD1 and PSMD3 mRNA expression with distinct clinicopathological features in certain types of cancers. We used UALCAN to associate PSMD1 and PSMD3 mRNA expression with clinicopathological characteristics. PSMD1 mRNA expression was significantly increased in patients with LIHC (A), LUAD (B), and UCEC (C) comparing disease stages 1, 2, or 3. PSMD1 mRNA expression was reduced in patients with MESO when comparing stages 1, 2, and 3 (D). In patients with SKCM, PSMD3 mRNA levels decreased when comparing stage 1 with stage 3 (E). In patients with UVM, PSMD3 mRNA levels also decreased when comparing stage 3 with stage 4 (F). In patients with KICH, while PSMD3 mRNA levels decreased comparing normal specimens with stages 1, 2, or 3, it was upregulated in patients who had progressed to stage 4 (G).
Cells 10 02390 g006
