Mesothelial Cells Exhibit Characteristics of Perivascular Cells in an In Vitro Angiogenesis Assay

by
Chrysa Koukorava
1,†,‡,
Kelly Ward
2,‡,
Katie Ahmed
1,
Shrouq Almaghrabi
1,
Sumaya Dauleh
2,
Sofia M. Pereira
2,
Arthur Taylor
2,3,
Malcolm Haddrick
3,
Michael J. Cross
1,* and
Bettina Wilm
2,4,*
1
Department of Pharmacology and Therapeutics, Institute of Systems, Molecular and Integrative Biology, University of Liverpool, Liverpool L69 3GE, UK
2
Department of Molecular Physiology and Cell Signalling, Institute of Systems, Molecular and Integrative Biology, University of Liverpool, Liverpool L69 3GE, UK
3
Medicines Discovery Catapult, Alderley Park, Macclesfield SK10 4ZF, UK
4
Department of Women’s and Children’s Health, Institute of Life Course and Medical Sciences, University of Liverpool, Liverpool L69 3GE, UK
*
Authors to whom correspondence should be addressed.
†
Current address: Department of Life Sciences, Faculty of Science and Engineering, Manchester Metropolitan University, Manchester M15 6BH, UK.
‡
These authors contributed equally to this work.
Cells 2023, 12(20), 2436; https://doi.org/10.3390/cells12202436
Submission received: 11 August 2023 / Revised: 29 September 2023 / Accepted: 8 October 2023 / Published: 11 October 2023
(This article belongs to the Section Cells of the Cardiovascular System)
Browse Figures
Review Reports Versions Notes

Abstract

:
Mesothelial cells have been shown to have remarkable plasticity towards mesenchymal cell types during development and in disease situations. Here, we have characterized the potential of mesothelial cells to undergo changes toward perivascular cells using an in vitro angiogenesis assay. We demonstrate that GFP-labeled mesothelial cells (GFP-MCs) aligned closely and specifically with endothelial networks formed when human dermal microvascular endothelial cells (HDMECs) were cultured in the presence of VEGF-A165 on normal human dermal fibroblasts (NHDFs) for a 7-day period. The co-culture with GFP-MCs had a positive effect on branch point formation indicating that the cells supported endothelial tube formation. We interrogated the molecular response of the GFP-MCs to the angiogenic co-culture by qRT-PCR and found that the pericyte marker Ng2 was upregulated when the cells were co-cultured with HDMECs on NHDFs, indicating a change towards a perivascular phenotype. When GFP-MCs were cultured on the NHDF feeder layer, they upregulated the epithelial–mesenchymal transition marker Zeb1 and lost their circularity while increasing their size, indicating a change to a more migratory cell type. We analyzed the pericyte-like behavior of the GFP-MCs in a 3D cardiac microtissue (spheroid) with cardiomyocytes, cardiac fibroblasts and cardiac endothelial cells where the mesothelial cells showed alignment with the endothelial cells. These results indicate that mesothelial cells have the potential to adopt a perivascular phenotype and associate with endothelial cells to potentially support angiogenesis.

Graphical Abstract

1. Introduction

The peritoneum is lined by the mesothelium, a monolayer of predominantly squamous-like epithelial cells, which secrete lubricants, allowing friction-free organ movement, and maintain homeostasis within the cavity. The mesothelium arises from the mesoderm and is also found in the pleural and pericardial serosal cavities; in all cavities, the mesothelium plays an important role in tissue homeostasis and the immune response by secreting inflammatory mediators, growth factors and extracellular matrix components [1,2,3]. Previous genetic lineage tracing studies by ourselves and others showed that mesothelial-derived cells contribute to the vasculature of the heart, lung and intestine via epithelial-to-mesenchymal transition (EMT) and differentiation into vascular smooth muscle cells [4,5,6]. However, the molecular mechanisms that regulate the contribution of mesothelial cells (MCs) to the vasculature have not been described.
Endothelial cells (ECs) line the innermost layer of vascular blood vessels (arteries, veins and capillaries) and lymphatic vessels and play critical roles in blood flow, permeability and general homeostasis, as well as immune/inflammatory responses [7,8]. ECs also originate from the mesoderm and are formed during vasculogenesis [9,10]. Vasculogenesis and angiogenesis are the fundamental processes by which new blood vessels are formed. Vasculogenesis is defined as the differentiation of endothelial precursor cells, or angioblasts, into endothelial cells and the de novo formation of a primitive vascular network [11]. By contrast, during angiogenesis, blood vessels emerge from pre-existing vessels. Angiogenesis is a key mechanism in embryonic development and the pathogenesis of diseases such as cancer, inflammation and diabetic retinopathy [12,13].
Angiogenesis is a complex, highly regulated process comprising a multifactorial cascade of events that involves the degradation of components of the extracellular matrix, followed by the migration, proliferation and differentiation of endothelial cells to form lumen-containing vessels [14,15]. Vessel maturation also requires the coordinated recruitment of mural cells such as pericytes, which regulate endothelial cell proliferation, differentiation and permeability, all of which are essential for the pathophysiological function of blood vessels [16,17].
In order to analyze the interactions of MCs in angiogenic processes, we turned to a modified in vitro angiogenesis assay of primary human fibroblasts and primary human microvascular endothelial cells [18,19,20,21,22,23] in which stable endothelial tubes form within 4–7 days. We used this system to interrogate the interaction of MCs [24], with the human ECs in the in vitro assay.
Our data reveal that MCs have the ability to intimately associate with ECs when plated in a 2D monolayer or 3D multicellular cardiac spheroids. The perivascular nature of the MCs in close proximity to ECs was confirmed by gene expression analysis which revealed upregulation of the pericyte marker Ng2. Furthermore, analysis of MC morphology revealed that contact with fibroblasts facilitated a change in MC shape indicative of a migratory phenotype. Gene expression analysis also revealed that the association of the MCs with fibroblasts was the critical event in facilitating upregulation of Ng2 and expression of the EMT marker Zeb1. Our data suggest that MCs have the ability to acquire a perivascular phenotype and associate with endothelial cells to potentially support angiogenesis.

2. Materials and Methods

All reagents were purchased from Sigma (Poole, UK) unless otherwise stated. All cells were cultured at 37 °C and 5% CO2 in a humidified incubator.

2.1. Basic Cell Culture

Normal human dermal fibroblasts (NHDFs, C-12300), human dermal microvascular endothelial cells (HDMECs, C-12210), human cardiac microvascular endothelial cells (HCMECs, C-12285), human dermal lymphatic endothelial cells (HDLECs, C-12216), human cardiac fibroblasts (HCFs, C-12375) and human pericytes (PCs, C-12980) were purchased from PromoCell (Heidelberg, Germany), human keratinocyte cells (HaCaTs) [25] were a gift from Dr A Simpson (University of Liverpool), the human cardiomyocyte cell line AC16 (#SCC109) was purchased from Millipore and HEK 293TN (LV900A-1) cells were purchased from System Biosciences (Palo Alto, CA, USA). Mouse mesothelial cells (MCs) were isolated as described [24] and cultured in Dulbecco’s Modified Eagle’s Medium (DMEM; D5796) supplemented with 10% fetal bovine serum (FBS; F6178) (MC medium), HaCaTs in DMEM (D6429) supplemented with 10% FBS and 1% Penicillin/Streptomycin (P/S) and HEK 293 cells in DMEM (D6546) supplemented with 10% FBS, 200 mM L-glutamine (G7513) and 1% Penicillin/Streptavidin on untreated tissue culture plastic. HDMECs and HCMECs were routinely cultured in Endothelial Cell Growth Medium MV 2 (EGM MV2; C-22022) with supplement mix (C-39226, all PromoCell) and NHDFs and HCFs in Fibroblast Growth Medium (FGM; C-23010) with supplement mix (C-39315, all PromoCell) on tissue culture plastic coated with 0.5% (w/v) gelatin. Basal Endothelial Cell Growth Medium (C-22022, PromoCell, Heidelberg, Germany) supplemented with 1% FBS (bMV2) was used during the angiogenesis assays. Human endothelial cells were gently dissociated and released from the culture dishes using accutase (C-41310, Promocell, Heidelberg, Germany). The vascular endothelial authenticity of HDMEC and HCMEC batches used in this study was determined by qRT-PCR analysis to confirm minimal contamination with lymphatic endothelial cells (Supplementary Figure S1) and included detection of the lymphatic markers VEGFR3/FLT4, PODOPLANIN and PROX1 (Supplementary Table S1) [26,27,28,29].
CD1 Mouse primary Artery Smooth Muscle Cells (MASMC) #CD-1081 were grown in smooth muscle cell media #M2268. CD1 Mouse primary Dermal Microvascular Endothelial Cells (MDMEC) #CD1064 and C57BL/6 Mouse primary Cardiac Microvascular Endothelial Cells (MCMEC) were routinely cultured in endothelial cell media #M1168. All primary mouse cells and associated media were purchased from Cell Biologics (Chicago, IL, USA).

2.2. Lentiviral Infections

The producer cell line HEK 293TN was transfected with the packaging (psPAX2, Addgene 12260), envelope (pMD2.G, Addgene 12259) and transfer (pLNT-SFFV-GFP [24] or pHIV-dTomato, Addgene 21374) plasmids via the calcium-phosphate method (CAPHOS, Sigma). Supernatant was collected and either used in its crude form to transduce cells or concentrated via ultracentrifugation. Target cells PCs, HaCaTs (GFP), or HDMECs (dTomato) were transduced at ~60% confluence while in medium containing polybrene (8 µg/mL) using the GFP or dTomato (dT) lentivirus. Transduced cells GFP-PC, GFP-HaCaT and dT-HDMEC were expanded and sorted via fluorescence-activated cell sorting (FACS) analysis. GFP-expressing MCs (GFP-MCs) had been generated as described [24].

2.3. Flow Cytometry

Flow cytometry was performed on a FACSCalibur sorter (BD Biosciences, Wokingham, UK) using the 488 nm laser and the FL1 detector to detect the GFP transgene and the FL2 detector to detect the dTomato transgene. Forward- and side-scatter characteristics determined the exclusion of dead cells. Untransduced cells were used as a control. FACS data were analyzed using Cyflogic Software version 1.2.1 (Cyflo, Turku, Finland).

2.4. Cell Culture Experiments

2.4.1. GFP-MC Stimulation

A total of 3 × 104/well GFP-MCs were seeded in a 24-well plate in full-growth MC medium and grown for 3 days. MC medium was refreshed every other day. On day 3, cells were either given fresh MC medium or cultured in basal MC medium (1% FBS) or in basal MC medium supplemented with 50 ng/mL recombinant human VEGF-A165 (100-20; Peprotech, London, UK) and culture for another 3 days.

2.4.2. Culture of GFP-MCs on NHDFs

NHDFs (passage 4–10) were seeded at 3 × 104/well on gelatinized glass-bottomed 24-well plates (662892; Greiner Bio-One, Stonehouse, UK) in FGM and cultured for 3 days. On day 1 of the experiment, 5 × 103/well GFP-MCs were seeded onto the NHDFs and cultured for 24 h in full-growth MC medium. On day 2, medium was changed to basal MC medium (1% FBS) or basal MC medium supplemented with 50 ng/mL recombinant VEGF-A165, and the cells co-cultured for an additional 2 days.

2.4.3. Basic Angiogenesis Assay

NHDFs (passages 14–19) were seeded at 1.5 × 104/well on gelatinized glass-bottomed 24-well plates in FGM and cultured for 3 days [22]. On day 1 of the experiment, 3 × 104/well HDMECs or dT-HDMECs were seeded onto the NHDFs in EGM MV2, either alone or in combination with GFP-MCs, GFP-PCs or GFP-HaCaTs. Seeding ratios were 1:60, 1:30, 1:15, 1:6, 1:2 or 1:1 (GFP-MCs, GFP-PCs or GFP-HaCaTs: HDMECs) for the initial comparative studies, and typical co-cultures were performed at a ratio of 1:15. On day 2, media was replaced with bMV2 ± 50 ng/mL recombinant human VEGF-A165, refreshed on day 4, and cells cultured until day 7. Assays included three replicates, and three different biological mesothelial preparations were used. Preliminary studies had confirmed that MC behavior was maintained when cultured in media of the angiogenesis assay.

2.4.4. Cardiac Angiogenesis Assay Using HCMECs and HCFs

HCFs were seeded at 3 × 104/well on gelatinized 24-well plates in FFGM and cultured for 3 days. On day 1 of the experiments, HCMECs were seeded onto the HCFs at 3 × 104 cells/well with or without GFP-MCs at 5 × 103 cells/well in MV2 FGM. On day 2, media was replaced with bMV2 ± 50 ng/mL recombinant human VEGF-A165, refreshed on day 4, and cells cultured until day 7.

2.4.5. GFP-MCs in the Cardiac Spheroid Model

Following a previously published protocol for generating cardiac microtissues, spheroids containing AC16 cells, HCMECs, and HCFs were formed with a cardiomyocyte:fibroblast:endothelial cell ratio of 4:2:1 [30]. In short, AC16 cells, HCMECs, HCFs and GFP-MCs were detached using accutase, and resuspended in 4 mL of microtissue media (1 part DMEM 10% FCS and 1 part EGM MV2) at the following densities: AC16 2850 cells/mL, HCF 1420 cells/mL, HCMEC 710 cells/mL and GFP-MC 70 cells/mL. 100 μL of the mixed cell suspension was plated into each well of a round-bottomed 96-well ULA plate (CLS3474-24EA, Corning, via Sigma, Poole, UK). The following day, an additional 100 μL of bMV2 + 50 ng/mL recombinant human VEGF-A165 was added per well. A total of 100 μL of media was replaced every 2 days and the spheroids remained in culture for 7 days in total.

2.5. Boyden Chamber Assay

GFP-MCs at passage 7 were seeded at 2 × 104 cells on polyethylene terephthalate (PET) membranes with 8 µm pores (354578; Scientific Laboratory Supplies, Nottingham, UK) and cultured in bMV2 (SFM) or supplemented with conditioned medium (CM), or 0.1, 1, 10, 50, or 100 ng/mL recombinant human VEGF-A165, or MV2 EGM for 16 h at 37 °C, 5% CO2. The lower side of the inserts were fixed in quick diff fix solution (102164; Reagena, Toivala, Finland) for eight minutes followed by incubation in quick diff blue solution for four minutes to stain the nuclei of migrated cells. Each condition was performed in triplicate and for each insert 12 regions of interest were imaged using a Leica Leitz DMRB microscope with a Leica DFC450 C camera. Cells from each image were counted using ImageJ (version 1.53k) software (NIH, Bethesda, MD, USA).

2.6. Immunofluorescence

2D cell cultures were fixed with 4% paraformaldehyde (PFA; Sigma, Poole, UK, P6148) in phosphate-buffered saline (PBS) and permeabilized with 0.25% Triton-X-100 (Sigma, Poole, UK, 93426). After blocking for 1 h in 2% bovine serum albumin (BSA; BP9701, Fisher Scientific, Loughborough, UK) in PBS, cells were incubated with primary antibodies directed against CD31 (M0823, DAKO), GFP (ab6556, Abcam, Cambridge, UK). Secondary antibodies were anti-mouse or anti-rabbit Alexa fluor 488- or 594-coupled (Life Technologies, Paisley, UK). DAPI (D1306, Life Technologies, Paisley, UK) was used for nuclear staining. Three fields of view were randomly imaged per condition.
The 3D spheroid cultures were fixed in 2% PFA in PBS overnight followed by permeabilization with 0.5% Triton-X-100 overnight. The spheroids were blocked in 3% BSA in PBS and 0.1% Triton-X-100 for 2 h followed by incubation with primary antibodies and secondary antibodies, each in 1% BSA/PBS/0.1% Triton-X-100 overnight.
Imaging was performed using a Leica DM IRB microscope with a Leica DFC420 C camera or a Zeiss AxioObserver inverted microscope with Apotome 2.0 and processed using ImageJ/Fiji (version 1.53k) [31].

2.7. Live Cell Imaging of GFP-MCs in Angiogenesis Co-Culture

Co-cultures of GFP-MCs, NHDFs and dTomato-labeled HDMECs in a normal angiogenesis assay were placed in a Cell IQ v.2 (Chip-Man Technologies Ltd., Tampere, Finland) automated culture and imaging platform, and images obtained using the Cy3 and Cy5 filters, on days 2–7, initially every 8 h, and then every 6 h and 15 min.

2.8. Image Analysis

The alignment of GFP-labeled cells to CD31-stained endothelial tubes was quantified by generating a mask using Fiji (version 1.53k) (Supplementary Figure S2). Next, the mask was expanded by 5 μm in each direction to allow detection of aligned cells within this distance and determine the percentage of aligned cells. The area occupied by endothelial tubes was measured before the 5 μm expansion. Vessel length, number of branch points and vessel area were quantified using AngioTool 0.5 [32] in 3 random fields of view per well, with triplicate wells per condition, and 2 independent experiments. We assessed cell shape (area, perimeter, circularity) using Cellpose segmentation (https://colab.research.google.com/github/MouseLand/cellpose/blob/main/notebooks/Cellpose_cell_segmentation_2D_prediction_only.ipynb#scrollTo=obeWmo9R4Fb) [33]. Images were changed into black/white to outline the GFP expression only, and flow threshold parameter was set to 0.7, while cell probability threshold was set to −4. Cellpose ‘flow’ outputs were loaded into Fiji, transformed using Glasbey on dark (LUT) and each individual cell was measured for the three cell shape parameters. Tabular outputs were quantified using GraphPad Prism 10.0.2. Between 2 and 4 images per condition from two independent experiments were analyzed.

2.9. qRT-PCR

Total RNA isolated from mono- and co-cultures was transcribed to cDNA using Superscript III reverse transcriptase (18080044, Life Technologies, Paisley, UK), and cDNA amplified using Power SYBR Green (4368708, Life Technologies, Paisley, UK) including optimized mouse primers (Supplementary Table S1) on a ViiA7 (ThermoFisherScientific, Waltham, MA, USA). Cycles consisted of an initial incubation at 50 °C and 95 °C for 2 and 10 min, respectively, followed by 40 cycles of 95 °C for 15 s and 60 °C for 1 min.
Primer specificity and sensitivity to detect mouse transcripts within the cDNA mix containing human and mouse transcripts were ensured by selecting primers specific for mouse cDNA according to the following work-flow: (1) mouse and human mRNA sequences for the genes of interest were compared by NCBI blastn to identify unique parts within the mouse mRNA sequence (https://blast.ncbi.nlm.nih.gov/Blast.cgi?BLAST_SPEC=blast2seq&LINK_LOC=align2seq&PAGE_TYPE=BlastSearch); (2) qRT-PCR primers were designed within the unique mouse mRNA sequences and flanking regions using NCBI primer blast (https://www.ncbi.nlm.nih.gov/tools/primer-blast/index.cgi); and (3) primer specificity and efficiency were determined by analyzing the Ct value over a range of mouse heart cDNA (0pg to 10,000 pg cDNA) with and without spiked human heart cDNA (0 pg to 10,000 pg total cDNA). Primers showing an efficiency of 95–105%, with no interference from human cDNA, were selected for downstream analysis. For each sample, the average cycle threshold (CT) value was normalized to Gapdh and then compared to the relevant control sample using the comparative CT (2−ΔΔCT) method [34]. Primer sequences for mouse transcripts are given in Supplementary Table S2. For analysis of human transcripts, the average cycle threshold (CT) value was normalized to β-ACTIN and then compared to the relevant control sample using the comparative CT (2−ΔΔCT) method [34]. Primer sequences for human transcripts are given in Supplementary Table S1.

2.10. Statistics and Data Analysis

Quantitative analysis was performed using Microsoft Office Excel 2016–2022, and Graphpad Prism. Cell alignment, vessel parameter data, Boyden chamber cell migration data and the qRT-PCR data were analyzed using a one-way ANOVA with Tukey’s post-hoc multiple comparisons test, or an unpaired Student’s t-test, where p < 0.05 was considered statistically significant.
Data from the Cellpose cell shape analysis were tested for normal distribution, which was rejected, and analyzed for significance using the Kruskal–Wallis test followed by Dunn’s multiple comparison tests.

3. Results

3.1. Mesothelial Cells Showed Specific Alignment with Endothelial Tubes in an In Vitro Angiogenesis Assay

Using the mesothelial marker Wt1, we have previously revealed a link between vascular development and mesothelial cells [6]. In order to interrogate the capacity of MCs to adopt perivascular characteristics, we investigated whether MCs could align to endothelial tubes in vitro. We employed a previously utilized angiogenesis assay where human dermal microvascular endothelial cells (HDMECs) formed an endothelial network when cultured on a confluent layer of normal human dermal fibroblasts (NHDFs) in the presence of VEGF-A165 (Supplementary Figure S3) [21,23,35]. To test our hypothesis, we modified the angiogenesis assay by simultaneously seeding MCs, stably labeled with a GFP lentivirus (GFP-MCs) [24] with the HDMECs in the presence and absence of VEGF-A165 (Figure 1A).
After 6 days of co-culture with HDMECs (5 days with/without VEGF-A165), we analyzed how the GFP-MCs had interacted with the endothelial tube formation process by immunostaining for GFP and CD31 to detect MCs and HDMECs, respectively. Our results revealed that in the presence of VEGF-A165, the GFP-MCs had aligned quite tightly with the endothelial tubes (Figure 1B–D). Confocal imaging revealed that the GFP-MCs aligned quite specifically with HDMEC-formed endothelial tubes in the angiogenesis cultures (Supplementary Movie S1). Specifically, we observed extended cell projections and specific attachment of the GFP-MCs along and around the endothelial tubes (Figure 1E). Co-culture of GFP-MCs with HDMECs at different seeding ratios (1:60 (500 GFP-MCs:30,000 HDMECs) to 1:1 (30,000 GFP-MCs:30,000 HDMECs)), in the presence of VEGF-A165, demonstrated specific attachment and alignment to endothelial tubes independent of their seeding number (Supplementary Figure S4). By contrast, in the absence of VEGF-A165, no particular alignment of the GFP-MCs to the swirls of endothelial cells was observed, independent of the seeding ratio, nor was there an effect on endothelial tube formation (Supplementary Figure S5).
We compared the alignment behavior shown by the GFP-MCs with that of human-placenta-derived pericytes (PCs) in co-culture with HDMECs. As before, PCs labeled with GFP lentivirus (GFP-PCs) were seeded with the HDMECs and analyzed for their alignment after 6 days. Similar to GFP-MCs, we observed that GFP-PCs tended to be situated near the endothelial tubes, although in parallel orientation and not as closely attached as the GFP-MCs (Figure 1F–I). This arrangement of GFP-PCs towards the endothelial tubes was not changed when the pericytes were seeded at different ratios to the HDMECs (1:1 to 1:60) in the presence of VEGF-A165 (Supplementary Figure S6).
We also tested the interaction of cells of a human keratinocyte cell line (HaCaT cells) in co-culture with HDMECs as a negative control. In the co-culture with HDMECs, HaCaT cells labeled with GFP lentivirus (GFP-HaCaTs) formed patches over and between the endothelial tubes and failed to align with the tubular cells (Figure 1J–M). This observation was independent of the seeding ratio between GFP-HaCaTs and HDMECs (Supplementary Figure S7). However, at the highest seeding ratio of 1:1, GFP-HaCaTs in the co-culture negatively affected the endothelial tubular networks since fewer endothelial tubes were present.

3.2. Mesothelial Cells Positively Affected Branch Point Formation

We quantified the specificity of the alignment of GFP-MCs to the endothelial tubes by assessing their percentage alignments. Our analysis on day 7 of co-culture showed that GFP-MCs had aligned at a mean percentage of 69% (Figure 2A). By comparison, GFP-PCs showed a mean percentage alignment of 44% and GFP-HaCaTs of 21% (Figure 2B,C). Interestingly, the different seeding ratios of labeled cells with HDMECs revealed that higher numbers of GFP-MCs and GFP-HaCaTs led to statistically significant lower alignment percentages (ratios 1:6–1:1), while the alignment of GFP-PCs to endothelial tubes was not significantly affected by different seeding ratios.
In order to determine whether GFP-MC alignment had any beneficial or inhibitory effects on the endothelial tube formation process, we assessed the effect of GFP-MC alignment on branch point formation of the endothelial tube network. In angiogenesis control cultures where no third cell type (MCs, PCs, HaCaTs) had been added, a mean of 96.6 branch points (±8.9 SEM) were determined in a 1.29 mm2 field of view (FoV). In co-cultures with GFP-MCs, the average number of branch points per FoV increased with higher seeding densities of the GFP-MCs from 84 (1:60) to 149 (1:1), and a seeding ratio of 1:1 resulted in a significantly higher number of branch points compared to that of 1:60 (Figure 2D). By comparison, the average number of branch points counted per FoV in all co-cultures with GFP-PCs ranged from 81 (1:1) to 112 (1:6); a statistical significance was detected for the difference between seeding density 1:1 and 1:6, which we consider biologically irrelevant (Supplementary Figure S8A). In GFP-HaCaT co-cultures the average number of branch points per FoV decreased significantly with an increase in GFP-HaCaT seeding numbers (Supplementary Figure S8B), from 112 (1:60) to 24 (1:1), in line with the disruptive effect on the vessel formation observed (Supplementary Figure S7).
Next, we measured the effect of GFP-MC alignment on endothelial proliferation and health by quantifying the area occupied by the endothelial tubes at the endpoint of the assay. In control angiogenesis cultures of HDMECs with NHDFs, endothelial tubes covered on average 24% of a 1.29 mm2 FoV (±0.9% SEM) (Supplementary Figure S3A). By comparison, in GFP-MC co-cultures, on average 27% of a FoV (±0.7% SEM) was covered by endothelial tubes (Figure 2E), which was not significantly different from the control cultures. At all seeding densities tested, GFP-MC alignment resulted in a similar area covered by endothelial tubes, even though a non-significant trend towards a larger area of endothelial tube coverage in cultures with higher GFP-MC seeding numbers was observed. Co-culture with GFP-PCs resulted in an average of 24.2% (±0.4% SEM) of endothelial tube coverage; at seeding ratios of 1:60 and 1:15, the endothelial cell coverage was significantly lower than at 1:6 (Supplementary Figure S8C). By contrast, co-culture with GFP-HaCaT resulted in a slightly lower coverage of endothelial tubes per FoV with an average of 20.8% (±0.7% (SEM)), and increasing GFP-HaCaT seeding numbers resulted in a significant reduction of the area occupied by endothelial tubes (Supplementary Figure S8D).
Taken together, these findings suggest that mesothelial cells aligned specifically with the developing endothelial tubes, especially at lower seeding ratios, which appeared to favor alignment. Interestingly, the highest seeding ratio of mesothelial cells resulted in the highest numbers of endothelial branch points and a non-significant trend towards larger vessel area. In contrast, pericytes showed less specific alignment and overall slightly lower vessel density, area and branch points of endothelial tubes, while HaCaT cells failed to align, and increasing HaCaT density negatively affected the endothelial tube formation across all parameters assessed.

3.3. MC Interacted with and Supported Endothelial Tube Formation

Because we had observed a significant effect of GFP-MC presence on branch point formation, we monitored the behavior of GFP-MCs during the culture in the angiogenesis assay using live cell imaging. HDMECs labeled with dTomato and GFP-MCs were seeded at 1:60 in the angiogenesis assay and images were recorded over >115 h in regular intervals in the CellIQ. These recordings revealed that GFP-MCs were engaged near and at the area where branch points formed, demonstrating interaction with the endothelial cells (Supplementary Movie S1).
The movie stills also demonstrate that the GFP-MCs become more irregularly shaped from around 78 h after the start of the co-culture, suggesting a shift in cell behavior at around this time (Figure 3).

3.4. Mesothelial Cells Upregulated Expression of the Pericyte Marker Ng2 When Co-Cultured in the Angiogenesis Assay

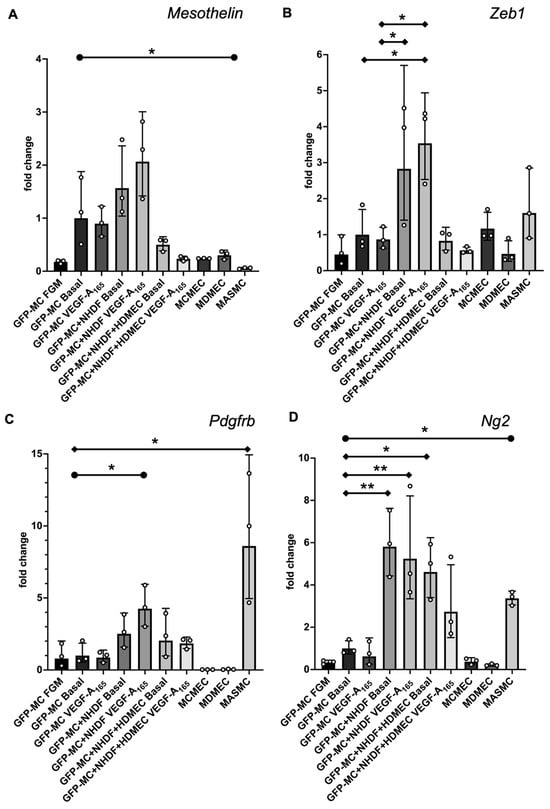

To determine whether the specific behavior of the mesothelial cells in the angiogenesis assay was reflected in changes in gene expression, we performed qRT-PCR for a range of mesothelial, EMT, endothelial and mural markers. We used optimized mouse-specific primers to allow us to measure the level of GFP-MC mRNA transcripts in RNA extracted from individual cultures of GFP-MCs (in FGM, Basal, or Basal with VEGF-A165), in co-culture with NHDFs with or without VEGF-A165, and in co-culture with NHDFs and HDMECs with or without VEGF-A165 (angiogenesis assay), or in mouse cardiac microvascular endothelial cells (MCMECs) from the inbred C57Bl/6 mouse strain, mouse dermal microvascular endothelial cells (MDMECs) from the outbred CD1 mouse strain, or mouse aortic SMCs (MASMCs) as control cell types. Our results revealed that expression of the mesothelial marker Mesothelin (Msln) was slightly upregulated in GFP-MCs when co-cultured with NHDFs and stimulated with or without VEGF-A165 (GFP-MC+NHDF Basal; GFP-MC+NHDF VEGF-A165) when compared to GFP-MCs grown under basal conditions (GFP-MC Basal, Figure 4A). Importantly, Msln was downregulated in GFP-MCs co-cultured in the angiogenesis assay.
The EMT marker Zeb1 was significantly upregulated by 3.6-fold in GFP-MC cultured with NHDF and VEGF-A165 compared to GFP-MC Basal (Figure 4B). Expression levels of Zeb1 were at similar levels in GFP-MCs in the angiogenesis conditions (co-culture with HDMECs, NHDFs and VEGF-A165) compared to the basal condition on day 7 of co-culture. These results suggest that the mesothelial cells responded specifically to the NHDF-VEGF-A165 stimulation, indicating their changes to a more migratory phenotype in line with a role for Zeb1 in the regulation of cell migration [36], while the angiogenesis co-culture conditions at this stage had no pro-migratory effect.
Next, we interrogated expression changes of the pericyte/vSMC markers Pdgfrb and Neuron-glial antigen 2 (Ng2), also known as chondroitin sulfate proteoglycan 4 (Cspg4) [37], under these conditions. Both Pdgfrb and Ng2 were significantly higher expressed in MASMCs than in GFP-MC Basal (Figure 4C,D). GFP-MCs responded to the NHDF-VEGF-A165 co-culture by significant 4-fold upregulation of Pdgfrb expression, while being cultured in the angiogenesis assay with or without VEGF-A165 led to a non-significant increase (1.9 fold with; 2.4 fold without VEGF-A165) in expression compared to GFP-MC Basal (Figure 4C). By contrast, the GFP-MCs significantly upregulated expression of Ng2 by between 4- and 6-fold when co-cultured with NHDFs with or without VEGF-A165, or in the angiogenesis assay without VEGF-A165 compared to GFP-MC Basal (Figure 4D). While the 3-fold upregulation of Ng2 expression in the angiogenesis assay with VEGF-A165 was not statistically significant when compared to GFP-MC Basal, there was also no statistical significance to the expression level of the GFP-MCs in the angiogenesis assay without VEGF-A165. These data suggest that mesothelial cells are stimulated by the angiogenesis assay to upregulate expression of the pericyte marker Ng2 and that the co-culture with NDHFs in the presence of VEGF-A165 upregulated Pdgfrb expression in mesothelial cells.
Next, we analyzed the expression levels of the smooth muscle cell marker α-smooth muscle actin (SMA) to determine if cells had started to differentiate into vSMC as suggested by their behavior in the angiogenesis assay. Our results showed that SMA expression was very high at the mRNA level throughout the conditions except in MCMECs and MDMECs (Supplementary Figure S9A,B). These results were unexpected as they suggest that GFP-MCs expressed high levels of SMA under any condition at similar levels to those in MASMCs.
We also determined the expression of CD31 and VE-Cadherin in the GFP-MCs under the described conditions (Supplementary Figure S9C,D). Our analysis showed that expression for both endothelial markers was exclusively high in the endothelial cell lines, demonstrating that GFP-MCs do not become endothelial cells.
Taken together, our data show that GFP-MCs were stimulated to upregulate the pericyte marker Ng2 in the angiogenesis assay in the presence of endothelial cells. Furthermore, we determined that mesothelial cells exhibited changes towards more migratory phenotype when grown on NHDF feeders and stimulated with VEGF-A165, as determined by upregulation of Zeb1 expression. These results suggest a two-step activation process of MCs towards a pericyte marker phenotype, where mesothelial cells co-cultured with the fibroblasts are stimulated to become migratory. However, at the day 7 time point in the angiogenesis assay when endothelial tubes have formed and mesothelial cells aligned, expression of the migratory markers is downregulated, and instead, the pericyte marker Ng2 is upregulated.

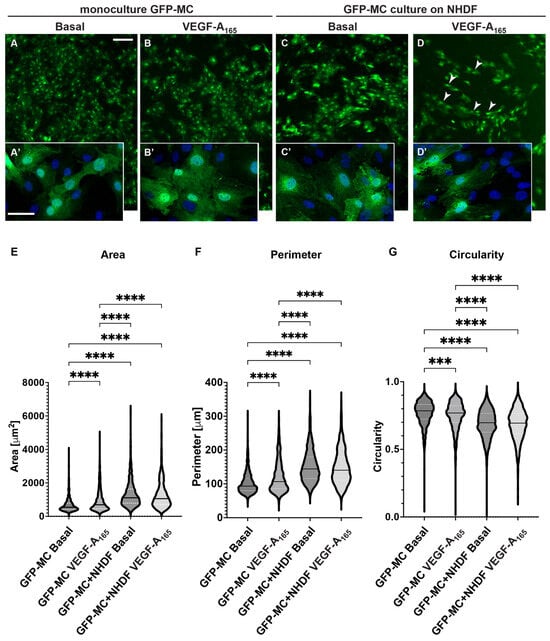

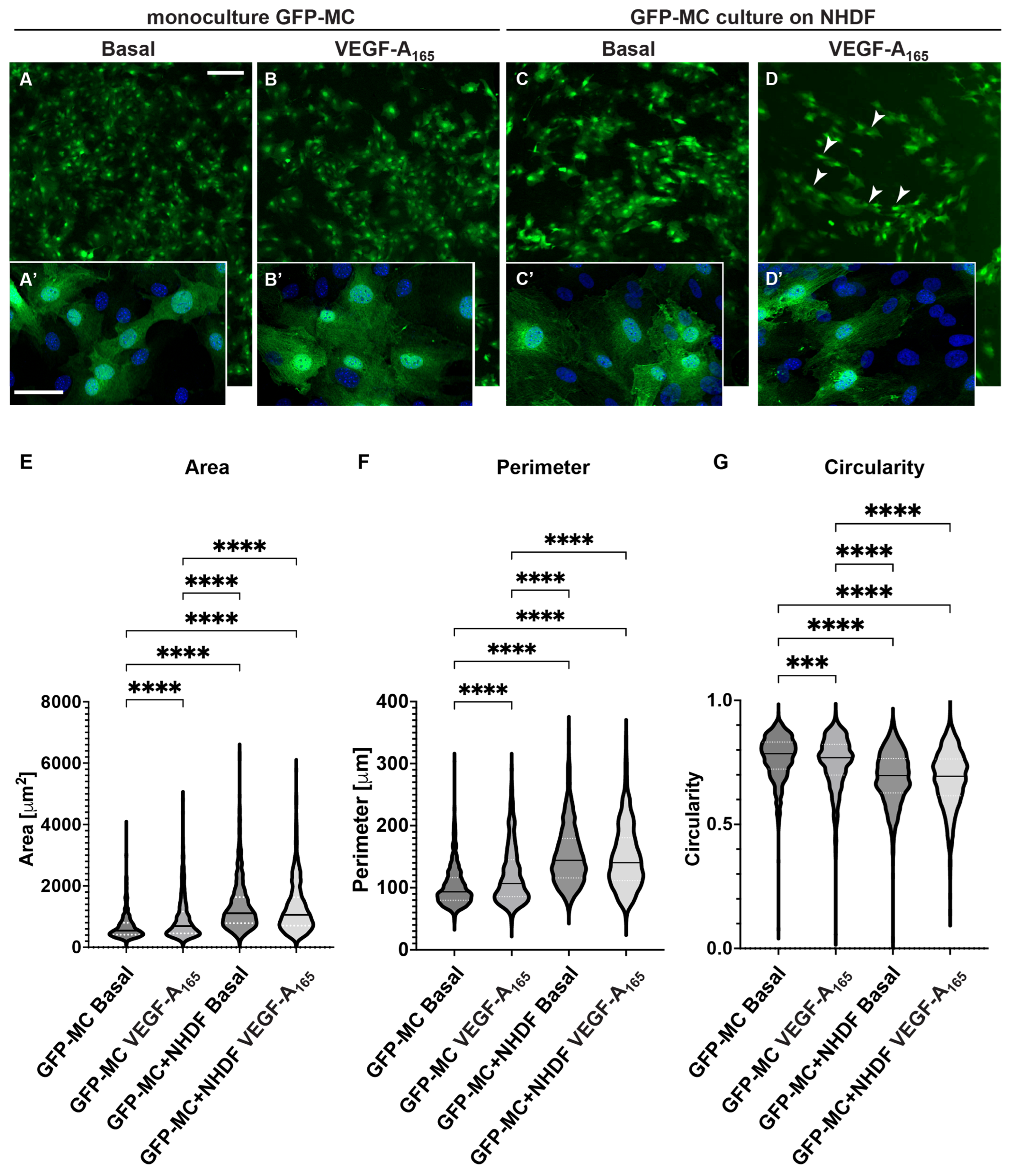

3.5. Mesothelial Cells Changed Cell Shape in Response to Culture on Fibroblast Feeder Cells and with VEGF

Our findings suggested that the GFP-MCs were stimulated to a migratory behavior by the NHDFs and to perivascular phenotype during co-culture in the angiogenesis assay (Figure 4). In addition, our data showed that the GFP-MCs were subject to cell changes in the angiogenesis assay (Figure 1E and Figure 3). We reasoned that the changes in cell shape could be caused through stimulation originating from the NHDFs and/or VEGF-A165.
To address this question, we measured GFP-MC cell shape in response to co-culture with NHDFs and stimulated with VEGF-A165. Mesothelial cell shape was not visibly altered when GFP-MCs were mono-cultured in the presence of VEGF-A165 compared to basal conditions (Figure 5A,B). By contrast, seeding GFP-MCs on NHDF as feeder cells led to a clear change in cell shape, which was further influenced by the presence of VEGF-A165 in the culture medium (Figure 5C,D). We quantified these cell shape changes using Cellpose image analysis software, which revealed statistically significant differences in mean area, mean perimeter and mean circularity between all conditions except between co-culture of GFP-MCs on NHDF with or without VEGF-A165 (Figure 5E–G): There was a statistically larger mean cell area in GFP-MCs stimulated with VEGF-A165 than at basal condition. The mean cell area was further statistically increased in GFP-MCs cultured on NHDFs with or without VEGF-A165 over mono-cultured cells (Figure 5E, Supplementary Table S3). Similarly, the mean cell perimeter of GFP-MCs was significantly larger in cells exposed to VEGF-A165 compared to basal, and even further increased when cells had been co-cultured with NHDFs in the presence or absence of VEGF-A165 (Figure 5F). The circularity of GFP-MCs was significantly lower when stimulated with VEGF-A165 and even further reduced when co-cultured with NHDFs with or without VEGF-A165 stimulation (Figure 5G). These results indicate that mesothelial cells underwent considerable changes towards more elongated and larger cells, stimulated by both VEGF-A165 and co-culture with NHDF, and in the absence of endothelial tube formation. Together, these results suggest that the contact with the NHDFs ‘prepares’ the GFP-MCs for their interaction with the HDMECs in the following days of co-culture.

3.6. Mesothelial Cells Showed Migratory Behaviour in Response to Supernatant from HDMEC–NHDF Co-Culture but Not VEGF

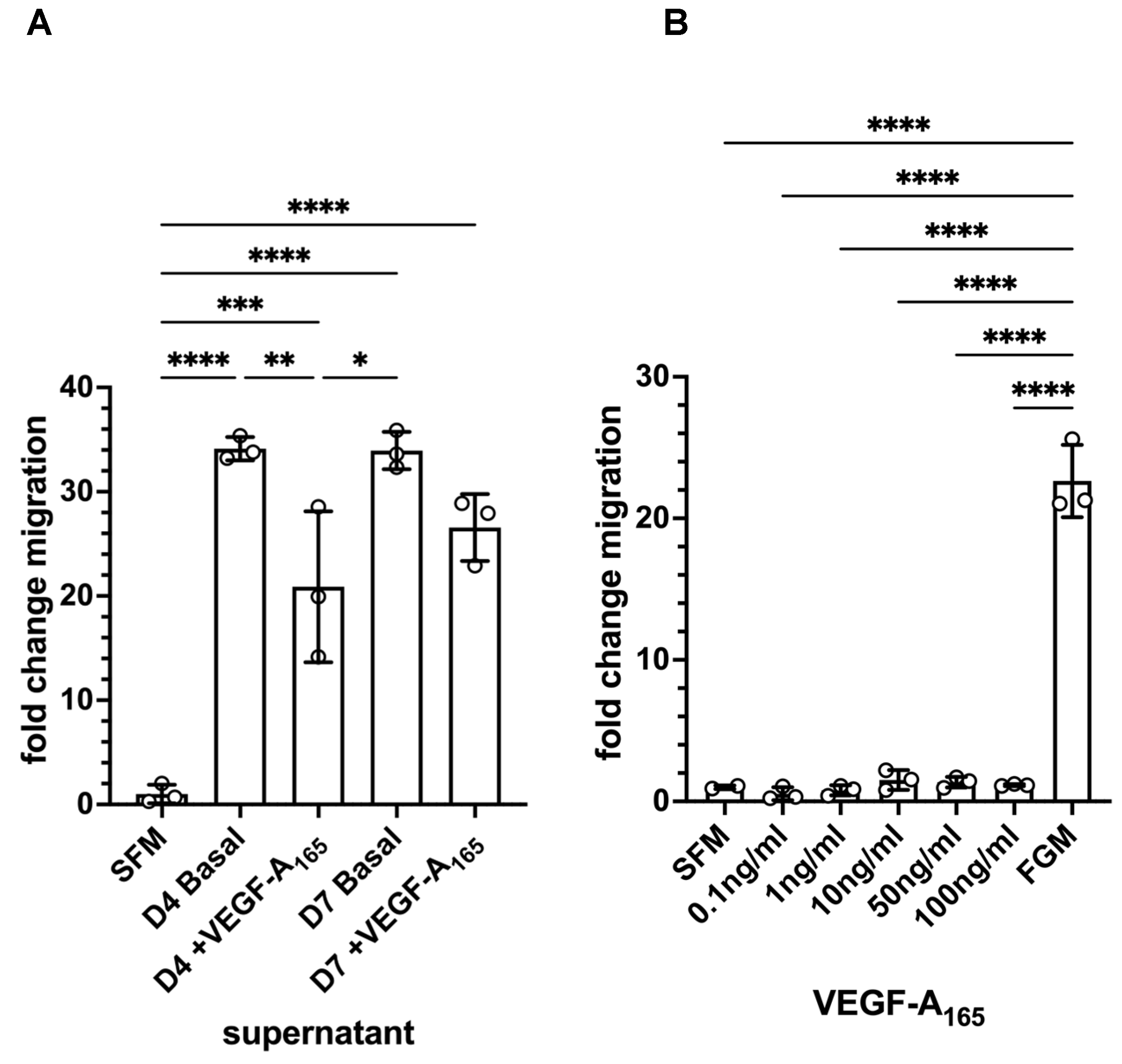

Because we had observed a change in cell shape in the GFP-MCs in response to co-culture with NHDFs and VEGF-A165, we explored the effect of the supernatant from the co-culture of HDMECs and NHDFs on mesothelial cell migration. In a Boyden chamber assay, we found that there was a 34-fold increase in GFP-MC migration over serum-free medium in basal supernatant from HDMEC–NHDF co-culture on day 4 or day 7 (Figure 6A). By comparison, there was a 21-fold or 27-fold increase in GFP-MC migration over serum-free medium in supernatant from HDMEC–NHDF co-culture containing VEGF-A165 on day 4 or day 7, respectively. When serum-free medium was supplemented with VEGF-A165, this failed to elicit a strong migratory response compared to full-growth media (Figure 6B).
These results suggest that the mesothelial cells have the potential to respond with significantly increased migratory behavior to one or several secreted, soluble factors in the supernatant of the angiogenesis assay and this response is not VEGF-A165-mediated.

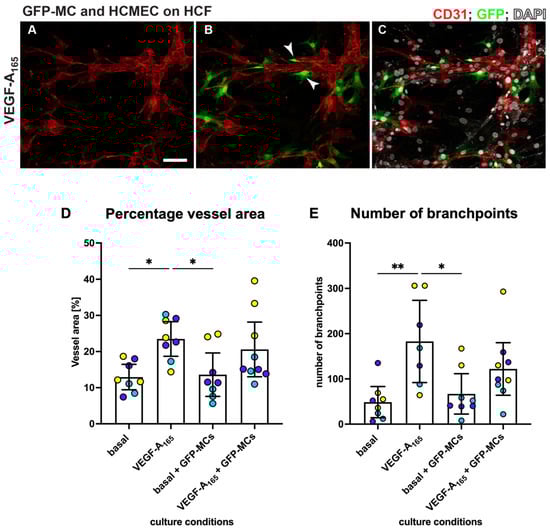

3.7. Mesothelial Cells Aligned and Supported Tube Formation in a Cardiac Angiogenesis Assay

The observation that mesothelial cells can engage with the human dermal microvascular endothelial cells in the angiogenesis assay during the junction forming process, express SMA and Ng2 and change their cell shape in response to the stimuli (NHDF feeder, VEGF-A165) led us to explore their interaction with human cardiac microvascular endothelial cells (HCMECs) cultured on a layer of human cardiac fibroblasts (HCFs) in a ‘cardiac’ angiogenesis assay. When seeding GFP-MCs together with HCMECs on HCFs (experimental design replicated as outlined in Figure 1A), GFP-MCs had interacted and aligned with the endothelial tubes at the experimental endpoint at day 6 (Figure 7A–C). We quantified the effect of GFP-MC alignment in the cardiac angiogenesis assay and observed that adding GFP-MCs to the cardiac angiogenesis assay in the presence of VEGF-A165 resulted in a similar-sized vessel area compared to the co-culture of HCMECs on HCFs alone in the presence of VEGF-A165 (Figure 7D). Furthermore, the number of branch points in the cardiac angiogenesis assay was similar to that in the cardiac co-culture assay (Figure 7E). Of note, culturing the GFP-MCs with HCMECs on HCFs in the absence of VEGF-A165 could not compensate for the angiogenic stimulus that VEGF-A165 represents.

3.8. Mesothelial Cells Integrated in a Cardiac 3D Spheroid Model

Since GFP-MCs aligned with HCMECs in the 2D cardiac angiogenesis assay and had shown supportive behavior in the angiogenesis assays using the HDMECs, we explored whether mesothelial cells could have a supportive, perivascular role in a more physiologically relevant cardiac cell model. We have previously generated a 3D multicellular human cardiac microtissue composed of cardiomyocytes, cardiac fibroblasts and cardiac microvascular endothelial cells [30]. We utilized the AC16 human cardiomyocyte cell line [38] to generate a multicellular cardiac microtissue with HCFs, HCMECs and GFP-MC cells. Immunofluorescence analysis after 7 days of culture revealed that the GFP-MCs had integrated into the spheroids and aligned with the HCMECs which formed a rudimentary endothelial network (Figure 8).
These data indicate that under optimal conditions, mesothelial cells integrate well into cardiac spheroids where they provide support and alignment for the HCMEC network.

4. Discussion

Mesothelial cells are a unique type of epithelial cells that line the serous cavities, including the pleural, pericardial and peritoneal cavities. They serve as a protective barrier, provide lubrication and facilitate organ movement within these cavities. Mesothelial cells have been shown to have angiogenic properties in in vivo studies [6] and to contribute to the development of vascular smooth muscle cells [5]. However, the contribution of MCs to microvascular structure remains obscure. In this study, we used variations of co-culture in vitro angiogenesis assays to analyze the potential of murine MCs to affect microvascular behavior. Our results revealed that MCs undergo transcriptional and morphological changes on contact with fibroblasts ultimately allowing migration and close association with endothelial cells.
We have previously established and characterized the mouse mesothelial cells that we derived from mouse omentum primary cultures and transduced with a GFP-lentivirus [24]. The in vitro angiogenesis assay using human dermal fibroblasts and human dermal microvascular endothelial cells had been previously established in our lab [22]. Here, we co-cultured the GFP-MCs with the human cells in the angiogenesis assay to explore the interaction between mesothelial and endothelial cells. Equivalent human mesothelial cells are not readily available and immortalized human mesothelial cells may not display a primary mesothelial phenotype. Furthermore, the use of the mouse mesothelial cells allowed us to specifically dissect out the changes in gene expression in the mesothelial cells by using mouse-specific primers in the qRT-PCR analysis. Future studies would benefit from using well-characterized primary human mesothelial cells; however, the process of lentivirus transduction and expansion of the human primary cells may exhaust their proliferation potential and primary characteristics.
The in vitro angiogenesis assay revealed that GFP-MCs have the ability to align with endothelial cells, and specifically associate at endothelial branch points. Our spatial and temporal analysis suggests that this interaction promoted an increased number of branch points and may have also affected the total vessel area. The observed co-localization of GFP-MCs with endothelial cells was reminiscent of pericyte behavior in vivo, where intravital imaging in mice has revealed that pericytes associate with endothelial tip cells at branch points [39].
The acquisition of a perivascular/mural phenotype by GFP-MCs was further supported when we performed species-specific qRT-PCR analysis of the pericyte marker Ng2 [37] in RNA extracted from the angiogenic co-cultures comprising GFP-MCs and/or fibroblasts and/or endothelial cells. Murine Ng2 expression significantly increased when the GFP-MCs were plated on fibroblasts or fibroblasts together with endothelial cells. This suggests that contact of GFP-MCs with fibroblasts was critical in promoting a more perivascular phenotype.
Mesothelial cells have been shown to undergo mesothelial–mesenchymal transition (MMT) and acquire migratory and invasive properties [40]. Analysis of murine Zeb1 expression, a marker of EMT [41], revealed increased expression of Zeb1 when GFP-MCs were plated on fibroblasts. Interestingly, plating the GFP-MCs on fibroblasts and endothelial cells did not show a concomitant increase in Zeb1 expression as observed when GFP-MCs were cultured on the fibroblasts alone, suggesting that longer-term exposure to endothelial cells may ultimately suppress Zeb1 expression in the GFP-MCs.
Consistent with the acquisition of a migratory behavior, analysis of cell shape revealed that GFP-MCs plated on fibroblasts or fibroblasts together with endothelial cells, underwent a shape change, increasing cell area and perimeter and reducing circularity. This more elongated morphology allows for the formation of leading edges and trailing tails, facilitating directional migration [42]. Our findings suggest that contact of the GFP-MCs with fibroblasts appears to prime this increased migratory behavior, potentially through MMT. Whilst cell–cell contact could drive this process, the ability of conditioned media from the fibroblasts and endothelial cells to stimulate GFP-MC migration directly suggested that a soluble secreted factor/cytokine, possibly from the fibroblasts, was responsible for driving the migratory behavior in the GFP-MCs. Our current research is aimed at trying to identify the potential soluble factors that can influence GFP-MC migration and potentially MMT.
Mesothelial cells have been shown to play an important role in serosal homeostasis and repair following injury [2]. Establishing and supporting new vasculature is critical for tissue regeneration. Genetic fate-mapping of epicardial cells in zebrafish suggests that these cells may contribute to cardiac repair by forming peri-vascular cells [43,44]. Loss of pericyte function has been implicated in pathophysiological conditions such as drug-induced cardiotoxicity [45], diabetic retinopathy and ischemia [46]. Analysis of the behavior of the GFP-MCs in a 3D cardiac microtissue composed of cardiac myocytes, cardiac endothelial cells and cardiac fibroblasts revealed that the GFP-MCs were able to closely associate with the cardiac endothelial cells in this physiologically relevant model. These 3D cardiac microtissues represent important physiologically relevant in vitro models used for pre-clinical drug safety testing [30] and for analyzing cardiac regeneration [47] and will allow further interrogation of the ability of mesothelial cells to undergo MMT to perivascular cells and support vascularization.

5. Conclusions

This study suggests that mesothelial cells have the potential to adopt a mural phenotype by aligning closely and specifically with endothelial networks in vitro, upregulating the pericyte marker Ng2. In addition, stimulated mesothelial cells exhibited characteristics of migratory cells by changing their appearance towards less circular cells and expressing markers involved in the regulation of EMT. Finally, mesothelial cells showed alignment with cardiac endothelial cells in 3D cardiac spheroids, suggesting their potential as perivascular cells.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cells12202436/s1, Figure S1: Authentication of vascular endothelial cells; Figure S2: Representative images demonstrating quantification of GFP-labelled cells to endothelial tubes; Figure S3: Co-culture of HDMECs with NHDFs, in presence (A) or absence (B) of 50 ng/mL VEGF-A165; Figure S4: Representative images of immunofluorescence staining for GFP (GFP-MCs) and CD31 showing specific GFP-MCs alignment to HDMECs at different seeding ratios in the vitro angiogenesis experiment in the presence of VEGF-A165; Figure S5: GFP-MCs showed no specific alignment in co-culture with HDMECs in the absence of VEGF-A165; Figure S6: Representative images of immunofluorescence staining for GFP (GFP-PCs) and CD31 showing arrangement of GFP-PCs with respect to HDMECs tubes at different seeding ratios in the vitro angiogenesis experiment in the presence of VEGF-A165; Figure S7: Representative images of immunofluorescence staining for GFP (GFP-HaCaTs) and CD31 showing arrangement of GFP-HaCaTs with respect to HDMECs tubes at different seeding ratios in the vitro angiogenesis experiment in the presence of VEGF-A165; Figure S8: Quantification of the effect on endothelial tube formation after 6 days of co-culture with Pericytes and HaCaTs; Figure S9: Changes in gene expression of GFP-MCs in response to VEGF-A165 stimulation, co-culture with NHDF or in the angiogenesis assay. Table S1: Human primer pairs used in the qRT-PCR; Table S2: Mouse primer pairs used in the qRT-PCR; Table S3: Mean values for area, perimeter and circularity and 95% confidence intervals; Video S1: Movie showing mesothelial cell interaction with endothelial cells during network formation.

Author Contributions

Conceptualization, M.J.C. and B.W.; Data curation, C.K., K.W., M.J.C. and B.W.; Formal analysis, C.K., K.W., K.A., S.D., M.J.C. and B.W.; Funding acquisition, A.T., M.J.C. and B.W.; Investigation, C.K., K.W., K.A., S.A., S.D., S.M.P., A.T., M.J.C. and B.W.; Resources, A.T. and M.J.C.; Supervision, A.T., M.H., M.J.C. and B.W.; Visualization, C.K., K.W., K.A., S.D. and B.W.; Writing—original draft, M.J.C. and B.W.; Writing—review and editing, M.J.C. and B.W. All authors have read and agreed to the published version of the manuscript.

Funding

This project has received funding from a Wellcome Trust 4-year Ph.D. training grant, number WT096566MA (K.W. and B.W.), a Biotechnology and Biological Sciences Research Council Ph.D. training grant, number BB/F016905/1 (S.D. and B.W.), a University of Liverpool and Medicines Discovery Catapult (MDC) Ph.D. studentship (C.K. and M.J.C.), an MRC DiMeN Ph.D. studentship (K.A. and M.J.C.), College of Pharmacy, Taibah University Madinah, Saudi Arabia (S.A.) and a Marie Curie EU reintegration grant PERG08-GA-2010-276909 (S.M.P. and A.T.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All datasets from this study will be made available on request.

Acknowledgments

We thank the Centre for Cell Imaging at the University of Liverpool for support during this study.

Conflicts of Interest

The authors have no conflict of interest to declare that are relevant to the content of this article.

References

  1. Mutsaers, S.E. Mesothelial cells: Their structure, function and role in serosal repair. Respirology 2002, 7, 171–191. [Google Scholar] [CrossRef] [PubMed]
  2. Mutsaers, S.E.; Birnie, K.; Lansley, S.; Herrick, S.E.; Lim, C.B.; Prele, C.M. Mesothelial cells in tissue repair and fibrosis. Front. Pharmacol. 2015, 6, 113. [Google Scholar] [CrossRef] [PubMed]
  3. Buechler, M.B.; Kim, K.W.; Onufer, E.J.; Williams, J.W.; Little, C.C.; Dominguez, C.X.; Li, Q.; Sandoval, W.; Cooper, J.E.; Harris, C.A.; et al. A Stromal Niche Defined by Expression of the Transcription Factor WT1 Mediates Programming and Homeostasis of Cavity-Resident Macrophages. Immunity 2019, 51, 119–130.e5. [Google Scholar] [CrossRef] [PubMed]
  4. Kawaguchi, M.; Bader, D.M.; Wilm, B. Serosal mesothelium retains vasculogenic potential (Developmental Dynamics 236, (2973–2979)). Dev. Dyn. 2008, 237, 525. [Google Scholar] [CrossRef]
  5. Que, J.; Wilm, B.; Hasegawa, H.; Wang, F.; Bader, D.; Hogan, B.L. Mesothelium contributes to vascular smooth muscle and mesenchyme during lung development. Proc. Natl. Acad. Sci. USA 2008, 105, 16626–16630. [Google Scholar] [CrossRef]
  6. Wilm, B.; Ipenberg, A.; Hastie, N.D.; Burch, J.B.E.; Bader, D.M. The serosal mesothelium is a major source of smooth muscle cells of the gut vasculature. Development 2005, 132, 5317–5328. [Google Scholar] [CrossRef]
  7. Shao, Y.; Saredy, J.; Yang, W.Y.; Sun, Y.; Lu, Y.; Saaoud, F.; Drummer, C.t.; Johnson, C.; Xu, K.; Jiang, X.; et al. Vascular Endothelial Cells and Innate Immunity. Arterioscler. Thromb. Vasc. Biol. 2020, 40, e138–e152. [Google Scholar] [CrossRef]
  8. Trimm, E.; Red-Horse, K. Vascular endothelial cell development and diversity. Nat. Rev. Cardiol. 2023, 20, 197–210. [Google Scholar] [CrossRef]
  9. Majesky, M.W. Vascular Development. Arterioscler. Thromb. Vasc. Biol. 2018, 38, e17–e24. [Google Scholar] [CrossRef]
  10. Sumpio, B.E.; Riley, J.T.; Dardik, A. Cells in focus: Endothelial cell. Int. J. Biochem. Cell Biol. 2002, 34, 1508–1512. [Google Scholar] [CrossRef]
  11. Risau, W.; Flamme, I. Vasculogenesis. Annu. Rev. Cell Dev. Biol. 1995, 11, 73–91. [Google Scholar] [CrossRef] [PubMed]
  12. Aguilar-Cazares, D.; Chavez-Dominguez, R.; Carlos-Reyes, A.; Lopez-Camarillo, C.; Hernadez de la Cruz, O.N.; Lopez-Gonzalez, J.S. Contribution of Angiogenesis to Inflammation and Cancer. Front. Oncol. 2019, 9, 1399. [Google Scholar] [CrossRef] [PubMed]
  13. Carmeliet, P. Mechanisms of angiogenesis and arteriogenesis. Nat. Med. 2000, 6, 389–395. [Google Scholar] [CrossRef]
  14. Adams, R.H.; Alitalo, K. Molecular regulation of angiogenesis and lymphangiogenesis. Nat. Rev. Mol. Cell Biol. 2007, 8, 464–478. [Google Scholar] [CrossRef] [PubMed]
  15. Herbert, S.P.; Stainier, D.Y. Molecular control of endothelial cell behaviour during blood vessel morphogenesis. Nat. Rev. Mol. Cell Biol. 2011, 12, 551–564. [Google Scholar] [CrossRef]
  16. Gaengel, K.; Genove, G.; Armulik, A.; Betsholtz, C. Endothelial-mural cell signaling in vascular development and angiogenesis. Arterioscler. Thromb. Vasc. Biol. 2009, 29, 630–638. [Google Scholar] [CrossRef]
  17. Geevarghese, A.; Herman, I.M. Pericyte-endothelial crosstalk: Implications and opportunities for advanced cellular therapies. Transl. Res. 2014, 163, 296–306. [Google Scholar] [CrossRef]
  18. Hetheridge, C.; Mavria, G.; Mellor, H. Uses of the in vitro endothelial-fibroblast organotypic co-culture assay in angiogenesis research. Biochem. Soc. Trans. 2011, 39, 1597–1600. [Google Scholar] [CrossRef]
  19. Mavria, G.; Vercoulen, Y.; Yeo, M.; Paterson, H.; Karasarides, M.; Marais, R.; Bird, D.; Marshall, C.J. ERK-MAPK signaling opposes Rho-kinase to promote endothelial cell survival and sprouting during angiogenesis. Cancer Cell 2006, 9, 33–44. [Google Scholar] [CrossRef]
  20. Richards, M.; Mellor, H. In Vitro Coculture Assays of Angiogenesis. Methods Mol. Biol. 2016, 1430, 159–166. [Google Scholar] [CrossRef]
  21. Sorrell, J.M.; Baber, M.A.; Caplan, A.I. A self-assembled fibroblast-endothelial cell co-culture system that supports in vitro vasculogenesis by both human umbilical vein endothelial cells and human dermal microvascular endothelial cells. Cells Tissues Organs 2007, 186, 157–168. [Google Scholar] [CrossRef]
  22. Muniz-Garcia, A.; Wilm, B.; Murray, P.; Cross, M.J. Extracellular Vesicles from Human Umbilical Cord-Derived MSCs Affect Vessel Formation In Vitro and Promote VEGFR2-Mediated Cell Survival. Cells 2022, 11, 3750. [Google Scholar] [CrossRef] [PubMed]
  23. Sorrell, J.M.; Baber, M.A.; Caplan, A.I. Human dermal fibroblast subpopulations; differential interactions with vascular endothelial cells in coculture: Nonsoluble factors in the extracellular matrix influence interactions. Wound Repair Regen. 2008, 16, 300–309. [Google Scholar] [CrossRef] [PubMed]
  24. Dauleh, S.; Santeramo, I.; Fielding, C.; Ward, K.; Herrmann, A.; Murray, P.; Wilm, B. Characterisation of cultured mesothelial cells derived from the murine adult omentum. PLoS ONE 2016, 11, e0158997. [Google Scholar] [CrossRef]
  25. Boukamp, P.; Petrussevska, R.T.; Breitkreutz, D.; Hornung, J.; Markham, A.; Fusenig, N.E. Normal keratinization in a spontaneously immortalized aneuploid human keratinocyte cell line. J. Cell Biol. 1988, 106, 761–771. [Google Scholar] [CrossRef] [PubMed]
  26. Breiteneder-Geleff, S.; Soleiman, A.; Kowalski, H.; Horvat, R.; Amann, G.; Kriehuber, E.; Diem, K.; Weninger, W.; Tschachler, E.; Alitalo, K.; et al. Angiosarcomas express mixed endothelial phenotypes of blood and lymphatic capillaries: Podoplanin as a specific marker for lymphatic endothelium. Am. J. Pathol. 1999, 154, 385–394. [Google Scholar] [CrossRef]
  27. Jiang, S.; Bailey, A.S.; Goldman, D.C.; Swain, J.R.; Wong, M.H.; Streeter, P.R.; Fleming, W.H. Hematopoietic stem cells contribute to lymphatic endothelium. PLoS ONE 2008, 3, e3812. [Google Scholar] [CrossRef]
  28. Kong, L.L.; Yang, N.Z.; Shi, L.H.; Zhao, G.H.; Zhou, W.; Ding, Q.; Wang, M.H.; Zhang, Y.S. The optimum marker for the detection of lymphatic vessels. Mol. Clin. Oncol. 2017, 7, 515–520. [Google Scholar] [CrossRef]
  29. Wilting, J.; Papoutsi, M.; Christ, B.; Nicolaides, K.H.; von Kaisenberg, C.S.; Borges, J.; Stark, G.B.; Alitalo, K.; Tomarev, S.I.; Niemeyer, C.; et al. The transcription factor Prox1 is a marker for lymphatic endothelial cells in normal and diseased human tissues. FASEB J. 2002, 16, 1271–1273. [Google Scholar] [CrossRef]
  30. Ravenscroft, S.M.; Pointon, A.; Williams, A.W.; Cross, M.J.; Sidaway, J.E. Cardiac Non-myocyte Cells Show Enhanced Pharmacological Function Suggestive of Contractile Maturity in Stem Cell Derived Cardiomyocyte Microtissues. Toxicol. Sci. 2016, 152, 99–112. [Google Scholar] [CrossRef]
  31. Schindelin, J.; Arganda-Carreras, I.; Frise, E.; Kaynig, V.; Longair, M.; Pietzsch, T.; Preibisch, S.; Rueden, C.; Saalfeld, S.; Schmid, B.; et al. Fiji: An open-source platform for biological-image analysis. Nat. Methods 2012, 9, 676–682. [Google Scholar] [CrossRef] [PubMed]
  32. Zudaire, E.; Gambardella, L.; Kurcz, C.; Vermeren, S. A computational tool for quantitative analysis of vascular networks. PLoS ONE 2011, 6, e27385. [Google Scholar] [CrossRef] [PubMed]
  33. Stringer, C.; Wang, T.; Michaelos, M.; Pachitariu, M. Cellpose: A generalist algorithm for cellular segmentation. Nat. Methods 2021, 18, 100–106. [Google Scholar] [CrossRef] [PubMed]
  34. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  35. Roberts, O.L.; Holmes, K.; Muller, J.; Cross, D.A.; Cross, M.J. ERK5 is required for VEGF-mediated survival and tubular morphogenesis of primary human microvascular endothelial cells. J. Cell Sci. 2010, 123, 3189–3200. [Google Scholar] [CrossRef]
  36. Maturi, V.; Enroth, S.; Heldin, C.H.; Moustakas, A. Genome-wide binding of transcription factor ZEB1 in triple-negative breast cancer cells. J. Cell Physiol. 2018, 233, 7113–7127. [Google Scholar] [CrossRef]
  37. Ozerdem, U.; Grako, K.A.; Dahlin-Huppe, K.; Monosov, E.; Stallcup, W.B. NG2 proteoglycan is expressed exclusively by mural cells during vascular morphogenesis. Dev. Dyn. 2001, 222, 218–227. [Google Scholar] [CrossRef]
  38. Davidson, M.M.; Nesti, C.; Palenzuela, L.; Walker, W.F.; Hernandez, E.; Protas, L.; Hirano, M.; Isaac, N.D. Novel cell lines derived from adult human ventricular cardiomyocytes. J. Mol. Cell Cardiol. 2005, 39, 133–147. [Google Scholar] [CrossRef]
  39. Seynhaeve, A.L.B.; Oostinga, D.; van Haperen, R.; Eilken, H.M.; Adams, S.; Adams, R.H.; Ten Hagen, T.L.M. Spatiotemporal endothelial cell—Pericyte association in tumors as shown by high resolution 4D intravital imaging. Sci. Rep. 2018, 8, 9596. [Google Scholar] [CrossRef]
  40. Aguilera, A.; Aroeira, L.S.; Ramirez-Huesca, M.; Perez-Lozano, M.L.; Cirugeda, A.; Bajo, M.A.; Del Peso, G.; Valenzuela-Fernandez, A.; Sanchez-Tomero, J.A.; Lopez-Cabrera, M.; et al. Effects of rapamycin on the epithelial-to-mesenchymal transition of human peritoneal mesothelial cells. Int. J. Artif. Organs 2005, 28, 164–169. [Google Scholar] [CrossRef]
  41. Zhang, P.; Sun, Y.; Ma, L. ZEB1: At the crossroads of epithelial-mesenchymal transition, metastasis and therapy resistance. Cell Cycle 2015, 14, 481–487. [Google Scholar] [CrossRef] [PubMed]
  42. Amack, J.D. Cellular dynamics of EMT: Lessons from live in vivo imaging of embryonic development. Cell Commun. Signal. 2021, 19, 79. [Google Scholar] [CrossRef] [PubMed]
  43. Kikuchi, K.; Gupta, V.; Wang, J.; Holdway, J.E.; Wills, A.A.; Fang, Y.; Poss, K.D. tcf21+ epicardial cells adopt non-myocardial fates during zebrafish heart development and regeneration. Development 2011, 138, 2895–2902. [Google Scholar] [CrossRef] [PubMed]
  44. Lepilina, A.; Coon, A.N.; Kikuchi, K.; Holdway, J.E.; Roberts, R.W.; Burns, C.G.; Poss, K.D. A dynamic epicardial injury response supports progenitor cell activity during zebrafish heart regeneration. Cell 2006, 127, 607–619. [Google Scholar] [CrossRef]
  45. Chintalgattu, V.; Rees, M.L.; Culver, J.C.; Goel, A.; Jiffar, T.; Zhang, J.; Dunner, K., Jr.; Pati, S.; Bankson, J.A.; Pasqualini, R.; et al. Coronary microvascular pericytes are the cellular target of sunitinib malate-induced cardiotoxicity. Sci. Transl. Med. 2013, 5, 187ra169. [Google Scholar] [CrossRef] [PubMed]
  46. Ferland-McCollough, D.; Slater, S.; Richard, J.; Reni, C.; Mangialardi, G. Pericytes, an overlooked player in vascular pathobiology. Pharmacol. Ther. 2017, 171, 30–42. [Google Scholar] [CrossRef] [PubMed]
  47. Scalise, M.; Marino, F.; Salerno, L.; Cianflone, E.; Molinaro, C.; Salerno, N.; De Angelis, A.; Viglietto, G.; Urbanek, K.; Torella, D. From Spheroids to Organoids: The Next Generation of Model Systems of Human Cardiac Regeneration in a Dish. Int. J. Mol. Sci. 2021, 22, 3180. [Google Scholar] [CrossRef]
Cells 12 02436 g001
Figure 1. Alignment of mesothelial cells (GFP-MCs) to endothelial tubes (HDMECs) in vitro in the presence of VEGF-A165. (A). Experimental design. (B–E). Alignment of mesothelial cells to HDMEC tubular networks at a seeding ratio of 1:15 (2000 GFP-MCs:30,000 HDMECs). Arrowheads point towards close interaction between endothelial tubes and mesothelial cells with extended cell projections (E). (F–I). Alignment of human pericytes to HDMEC tubular networks at a seeding ratio of 1:15 (2000 GFP-PCs:30,000 HDMECs). (J–M). Arrangement of HaCaTs with HDMEC tubular networks at a seeding ratio of 1:15 (2000 GFP-HaCaTs:30,000 HDMECs). Scale bars (B–D,F–H,J–L) are 100 μm and (E,I,M) are 50 μm.
Figure 1. Alignment of mesothelial cells (GFP-MCs) to endothelial tubes (HDMECs) in vitro in the presence of VEGF-A165. (A). Experimental design. (B–E). Alignment of mesothelial cells to HDMEC tubular networks at a seeding ratio of 1:15 (2000 GFP-MCs:30,000 HDMECs). Arrowheads point towards close interaction between endothelial tubes and mesothelial cells with extended cell projections (E). (F–I). Alignment of human pericytes to HDMEC tubular networks at a seeding ratio of 1:15 (2000 GFP-PCs:30,000 HDMECs). (J–M). Arrangement of HaCaTs with HDMEC tubular networks at a seeding ratio of 1:15 (2000 GFP-HaCaTs:30,000 HDMECs). Scale bars (B–D,F–H,J–L) are 100 μm and (E,I,M) are 50 μm.
Cells 12 02436 g001
Cells 12 02436 g002

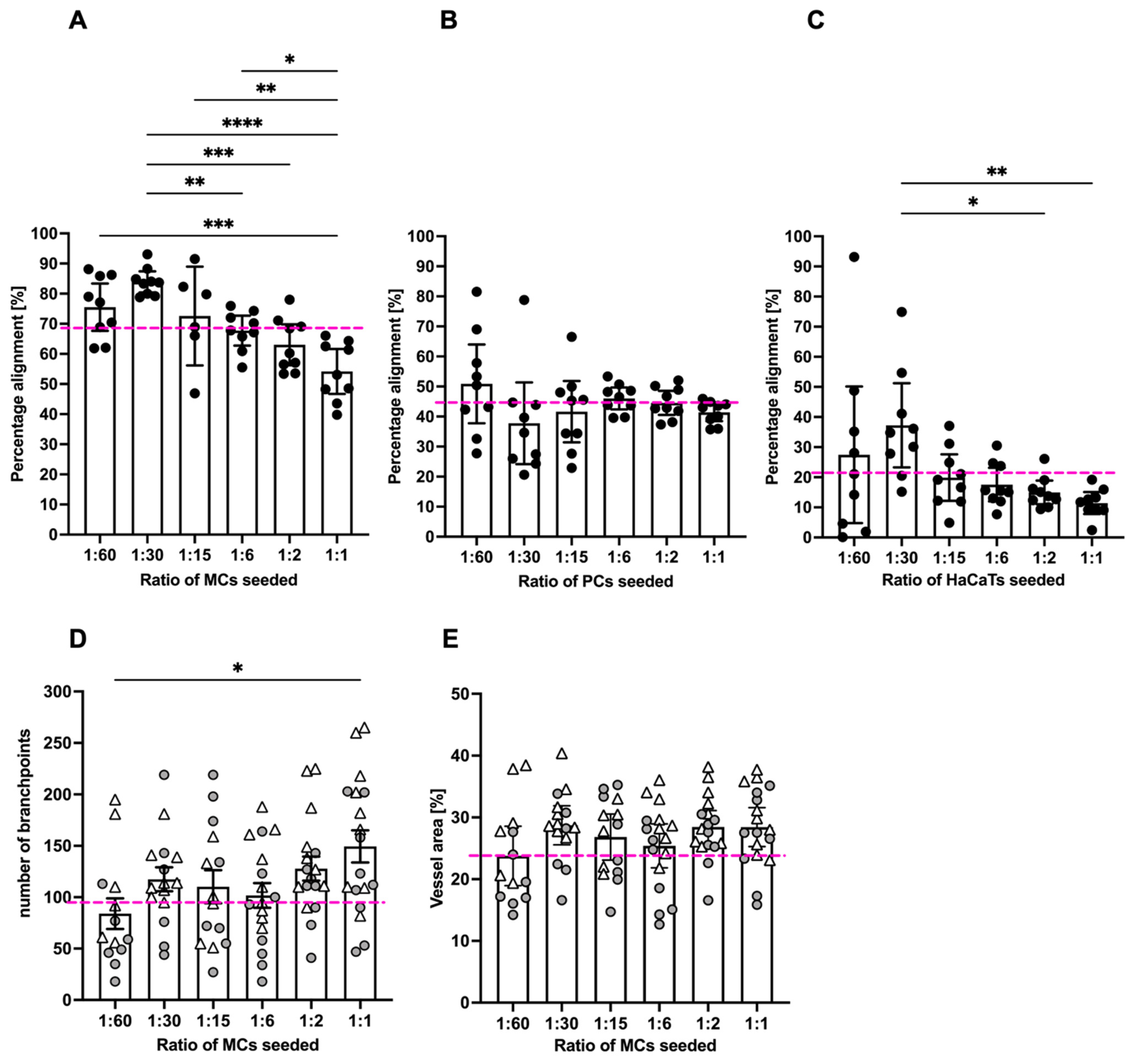

Figure 2. Quantification of mesothelial cell alignment and the effect on endothelial tube formation after 6 days of co-culture. (A). GFP-MCs seeded at ratios of 1:1 to 1:60 with HDMECs showed on average 69% alignment across all seeding densities. Significant differences in percentage alignment were observed amongst different conditions, with the lowest alignment at the highest GFP-MC seeding density. (B). GFP-PCs seeded at ratios of 1:1 to 1:60 with HDMECs showed on average 44% alignment across all seeding densities. There were no significant differences in percentage alignment across the conditions. (C). GFP-HaCaTs seeded at ratios of 1:1 to 1:60 with HDMECs showed on average 21% alignment across all seeding densities. There were significant differences in percentage alignment between 1:30 and 1:1 or 1:2 seeding ratios. Generally, a higher seeding density led to a lower alignment. (D,E). The presence of GFP-MCs in the co-cultures led to an increase in branch points with increasing GFP-MCs seeded (D), and a slightly larger vessel area in the endothelial network, but without significant difference. In (A–C), the pink stippled line indicates the average values across each condition; and in (D,E), the pink stippled line demarcates the control values for branch points and percentage vessel area in the absence of GFP-MCs. Circles and triangles indicate data points from two independent experiments. Data were analyzed by one-way ANOVA with Tukey’s multiple comparison test; data are shown as mean with a 95% confidence interval; significance was defined by a p-value ≤ 0.05. p-value ≤ 0.05 (*), <0.005 (**), ≤0.0005 (***), ≤0.0001 (****).
Figure 2. Quantification of mesothelial cell alignment and the effect on endothelial tube formation after 6 days of co-culture. (A). GFP-MCs seeded at ratios of 1:1 to 1:60 with HDMECs showed on average 69% alignment across all seeding densities. Significant differences in percentage alignment were observed amongst different conditions, with the lowest alignment at the highest GFP-MC seeding density. (B). GFP-PCs seeded at ratios of 1:1 to 1:60 with HDMECs showed on average 44% alignment across all seeding densities. There were no significant differences in percentage alignment across the conditions. (C). GFP-HaCaTs seeded at ratios of 1:1 to 1:60 with HDMECs showed on average 21% alignment across all seeding densities. There were significant differences in percentage alignment between 1:30 and 1:1 or 1:2 seeding ratios. Generally, a higher seeding density led to a lower alignment. (D,E). The presence of GFP-MCs in the co-cultures led to an increase in branch points with increasing GFP-MCs seeded (D), and a slightly larger vessel area in the endothelial network, but without significant difference. In (A–C), the pink stippled line indicates the average values across each condition; and in (D,E), the pink stippled line demarcates the control values for branch points and percentage vessel area in the absence of GFP-MCs. Circles and triangles indicate data points from two independent experiments. Data were analyzed by one-way ANOVA with Tukey’s multiple comparison test; data are shown as mean with a 95% confidence interval; significance was defined by a p-value ≤ 0.05. p-value ≤ 0.05 (*), <0.005 (**), ≤0.0005 (***), ≤0.0001 (****).
Cells 12 02436 g002
Cells 12 02436 g003
Figure 3. Mesothelial cells interact with endothelial tube formation process at junction points. Collection of individual images captured over a 70 h period, starting from day 2 (45 h, 15 min) of the co-culture. In two areas (encircled), GFP-MC (green, GFP) interaction with branching processes by the HDMECs (red, CD31) leading to junctions in the tubular network are shown. Arrows point toward endothelial-junction-forming process and arrowheads point to GFP-MCs that appear to engage actively by changing their shape into elongated migratory cells. Scale bar 100 μm.
Figure 3. Mesothelial cells interact with endothelial tube formation process at junction points. Collection of individual images captured over a 70 h period, starting from day 2 (45 h, 15 min) of the co-culture. In two areas (encircled), GFP-MC (green, GFP) interaction with branching processes by the HDMECs (red, CD31) leading to junctions in the tubular network are shown. Arrows point toward endothelial-junction-forming process and arrowheads point to GFP-MCs that appear to engage actively by changing their shape into elongated migratory cells. Scale bar 100 μm.
Cells 12 02436 g003
Cells 12 02436 g004
Figure 4. Changes in gene expression of GFP-MCs in response to VEGF-A165 stimulation, co-culture with NHDF, or in the angiogenesis assay after 6 days of culture by qRT-PCR. (A). There was no statistically significant difference in Mesothelin expression for any combination when compared to GFP-MC Basal using a one-way ANOVA, although a trend to 2-fold higher expression in GFP-MC+NHDF stimulated with VEGF-A165 compared to GFP-MC Basal could be observed. There was a significantly lower expression of Mesothelin in mouse primary arterial smooth muscle cells (MASMCs) compared to GFP-MC basal using an unpaired t-test with p = 0.0421. (B). There was a statistically significant 3.6-fold higher Zeb1 expression for GFP-MC+NHDF stimulated with VEGF-A165 compared to GFP-MC Basal or GFP-MC with VEGF-A165, and a 2.8-fold higher expression in GFP-MC+NHDF without VEGF-A165 compared to GFP-MC Basal using a one-way ANOVA with Tukey’s multiple comparison test. (C). Expression analysis for Pdgfrb revealed a statistically significant 8-fold higher expression in MASMCs compared to GFP-MC Basal using a one-way ANOVA with Tukey’s multiple comparison test. Pdgfrb expression was 4-fold higher in GFP-MC+NHDF with VEGF-A165 compared to GFP-MC Basal; this was significant when using an unpaired t-test. (D). Ng2 was significantly higher expressed in GFP-MC+NHDF without VEGF-A165 (5.9-fold), in GFP-MC+NHDF stimulated with VEGF-A165 (5.4-fold) and in the GFP-MCs in angiogenesis assay without VEGF-A165 (4.7-fold), compared to GFP-MC Basal using a one-way ANOVA with Tukey’s multiple comparison test. There was a 3.4-fold significantly higher expression in MASMCs when compared to GFP-MC Basal by unpaired t-test. Data displayed as geometric mean with geometric SD, significance was defined by a p-value ≤ 0.05. p-value ≤ 0.05 (*), ≤0.005 (**). FGM—full growth media, MCMEC—mouse primary cardiac microvascular endothelial cells, MDMEC—mouse dermal microvascular endothelial cells.
Figure 4. Changes in gene expression of GFP-MCs in response to VEGF-A165 stimulation, co-culture with NHDF, or in the angiogenesis assay after 6 days of culture by qRT-PCR. (A). There was no statistically significant difference in Mesothelin expression for any combination when compared to GFP-MC Basal using a one-way ANOVA, although a trend to 2-fold higher expression in GFP-MC+NHDF stimulated with VEGF-A165 compared to GFP-MC Basal could be observed. There was a significantly lower expression of Mesothelin in mouse primary arterial smooth muscle cells (MASMCs) compared to GFP-MC basal using an unpaired t-test with p = 0.0421. (B). There was a statistically significant 3.6-fold higher Zeb1 expression for GFP-MC+NHDF stimulated with VEGF-A165 compared to GFP-MC Basal or GFP-MC with VEGF-A165, and a 2.8-fold higher expression in GFP-MC+NHDF without VEGF-A165 compared to GFP-MC Basal using a one-way ANOVA with Tukey’s multiple comparison test. (C). Expression analysis for Pdgfrb revealed a statistically significant 8-fold higher expression in MASMCs compared to GFP-MC Basal using a one-way ANOVA with Tukey’s multiple comparison test. Pdgfrb expression was 4-fold higher in GFP-MC+NHDF with VEGF-A165 compared to GFP-MC Basal; this was significant when using an unpaired t-test. (D). Ng2 was significantly higher expressed in GFP-MC+NHDF without VEGF-A165 (5.9-fold), in GFP-MC+NHDF stimulated with VEGF-A165 (5.4-fold) and in the GFP-MCs in angiogenesis assay without VEGF-A165 (4.7-fold), compared to GFP-MC Basal using a one-way ANOVA with Tukey’s multiple comparison test. There was a 3.4-fold significantly higher expression in MASMCs when compared to GFP-MC Basal by unpaired t-test. Data displayed as geometric mean with geometric SD, significance was defined by a p-value ≤ 0.05. p-value ≤ 0.05 (*), ≤0.005 (**). FGM—full growth media, MCMEC—mouse primary cardiac microvascular endothelial cells, MDMEC—mouse dermal microvascular endothelial cells.
Cells 12 02436 g004
Cells 12 02436 g005
Figure 5. Changes in cell shape of GFP-MCs in response to VEGF-A165 and culture on an NHDF feeder layer. (A–D). GFP-MCs were cultured on plastic (monoculture, (A,B)) or NHDFs (C,D) for 6 days followed by immunofluorescence staining for GFP and DAPI nuclear stain. Scale bars for (A–D) 200 μm; for (A’–D’) 50 μm. (E–G). GFP-stained MCs under the four culture conditions were assessed using the Cellpose workflow and Fiji for area, perimeter and circularity. A Kruskal–Wallis test with Dunn’s multiple comparison tests determined significant differences across the four conditions for the three parameters; data shown as violin plots with median and quartiles. Significance was defined by a p-value ≤ 0.05. p-value ≤ 0.0005 (***), ≤0.0001 (****).
Figure 5. Changes in cell shape of GFP-MCs in response to VEGF-A165 and culture on an NHDF feeder layer. (A–D). GFP-MCs were cultured on plastic (monoculture, (A,B)) or NHDFs (C,D) for 6 days followed by immunofluorescence staining for GFP and DAPI nuclear stain. Scale bars for (A–D) 200 μm; for (A’–D’) 50 μm. (E–G). GFP-stained MCs under the four culture conditions were assessed using the Cellpose workflow and Fiji for area, perimeter and circularity. A Kruskal–Wallis test with Dunn’s multiple comparison tests determined significant differences across the four conditions for the three parameters; data shown as violin plots with median and quartiles. Significance was defined by a p-value ≤ 0.05. p-value ≤ 0.0005 (***), ≤0.0001 (****).
Cells 12 02436 g005
Cells 12 02436 g006
Figure 6. Quantification of GFP-MC migratory behavior in response to supernatant and VEGF-A165 in a Boyden chamber assay. (A). GFP-MCs were cultured for 16 h in a Boyden chamber exposed to serum-free medium (SFM), or supernatant collected on day 4 from HDMEC–NHDF angiogenesis co-culture with basal media (no VEGF-A165) (D4 Basal), or with full angiogenesis media (with VEGF-A165) (D4 +VEGF-A165), or supernatant collected on day 7 from angiogenesis cultures with basal media (D7 Basal), or full angiogenesis media (D7 +VEGF-A165). (B). The exposure of GFP-MCs to a range of concentrations of VEGF-A165 over 16 h failed to lead to migratory behavior compared to SFM, and full growth media (FGM). Statistical analysis by one-way ANOVA with Tukey’s multiple comparisons posthoc test. Data displayed as mean with standard deviation. Significance was defined by a p-value ≤ 0.05. p-value ≤ 0.05 (*), ≤0.005 (**), ≤0.0005 (***), ≤0.0001 (****).
Figure 6. Quantification of GFP-MC migratory behavior in response to supernatant and VEGF-A165 in a Boyden chamber assay. (A). GFP-MCs were cultured for 16 h in a Boyden chamber exposed to serum-free medium (SFM), or supernatant collected on day 4 from HDMEC–NHDF angiogenesis co-culture with basal media (no VEGF-A165) (D4 Basal), or with full angiogenesis media (with VEGF-A165) (D4 +VEGF-A165), or supernatant collected on day 7 from angiogenesis cultures with basal media (D7 Basal), or full angiogenesis media (D7 +VEGF-A165). (B). The exposure of GFP-MCs to a range of concentrations of VEGF-A165 over 16 h failed to lead to migratory behavior compared to SFM, and full growth media (FGM). Statistical analysis by one-way ANOVA with Tukey’s multiple comparisons posthoc test. Data displayed as mean with standard deviation. Significance was defined by a p-value ≤ 0.05. p-value ≤ 0.05 (*), ≤0.005 (**), ≤0.0005 (***), ≤0.0001 (****).
Cells 12 02436 g006
Cells 12 02436 g007
Figure 7. MCs align with HCMECs in angiogenesis co-culture. HCMECs (CD31, red) were cultured on HCF with GFP-MCs (GFP, green) in medium containing VEGF-A165. Nuclei were labeled with DAPI and are shown in white. Addition of GFP-MCs (ratio 1:60) to HCMEC-angiogenesis cultures in medium with VEGF-A165 (A–C) revealed alignment of the MCs to the tubes. Arrowheads in (B) point towards GFP-MCs that align with HCMECs. (D,E). Quantification of angiogenesis of HCMECs on HCFs and with/without GFP-MCs. Percentage vessel area and number of branch points are highest when HCMECs are cultured with VEGF-A165. GFP-MCs added to the co-culture resulted in similar values (no statistical significance). Yellow, purple and turquoise represent data points from 3 independent experiments, and data are shown with a 95% confidence interval. Scale bar 100 μm. Statistical analysis by one-way ANOVA with Tukey’s multiple comparisons test. Images representative of three independent experiments. Significance was defined by a p-value ≤ 0.05. p-value ≤ 0.05 (*), ≤0.005 (**).
Figure 7. MCs align with HCMECs in angiogenesis co-culture. HCMECs (CD31, red) were cultured on HCF with GFP-MCs (GFP, green) in medium containing VEGF-A165. Nuclei were labeled with DAPI and are shown in white. Addition of GFP-MCs (ratio 1:60) to HCMEC-angiogenesis cultures in medium with VEGF-A165 (A–C) revealed alignment of the MCs to the tubes. Arrowheads in (B) point towards GFP-MCs that align with HCMECs. (D,E). Quantification of angiogenesis of HCMECs on HCFs and with/without GFP-MCs. Percentage vessel area and number of branch points are highest when HCMECs are cultured with VEGF-A165. GFP-MCs added to the co-culture resulted in similar values (no statistical significance). Yellow, purple and turquoise represent data points from 3 independent experiments, and data are shown with a 95% confidence interval. Scale bar 100 μm. Statistical analysis by one-way ANOVA with Tukey’s multiple comparisons test. Images representative of three independent experiments. Significance was defined by a p-value ≤ 0.05. p-value ≤ 0.05 (*), ≤0.005 (**).
Cells 12 02436 g007
Cells 12 02436 g008
Figure 8. GFP-MCs aligned with HCMECs in a cardiac spheroid model. Immunofluorescence labeling for GFP (green), CD31 (red) and nuclear stain (DAPI, blue). (A–D). GFP-positive mesothelial cells were detected closely aligned with endothelial tubes (arrowheads). Scale 50 μm. Data are presented from one experiment.
Figure 8. GFP-MCs aligned with HCMECs in a cardiac spheroid model. Immunofluorescence labeling for GFP (green), CD31 (red) and nuclear stain (DAPI, blue). (A–D). GFP-positive mesothelial cells were detected closely aligned with endothelial tubes (arrowheads). Scale 50 μm. Data are presented from one experiment.
Cells 12 02436 g008
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Koukorava, C.; Ward, K.; Ahmed, K.; Almaghrabi, S.; Dauleh, S.; Pereira, S.M.; Taylor, A.; Haddrick, M.; Cross, M.J.; Wilm, B. Mesothelial Cells Exhibit Characteristics of Perivascular Cells in an In Vitro Angiogenesis Assay. Cells 2023, 12, 2436. https://doi.org/10.3390/cells12202436

AMA Style

Koukorava C, Ward K, Ahmed K, Almaghrabi S, Dauleh S, Pereira SM, Taylor A, Haddrick M, Cross MJ, Wilm B. Mesothelial Cells Exhibit Characteristics of Perivascular Cells in an In Vitro Angiogenesis Assay. Cells. 2023; 12(20):2436. https://doi.org/10.3390/cells12202436

Chicago/Turabian Style

Koukorava, Chrysa, Kelly Ward, Katie Ahmed, Shrouq Almaghrabi, Sumaya Dauleh, Sofia M. Pereira, Arthur Taylor, Malcolm Haddrick, Michael J. Cross, and Bettina Wilm. 2023. "Mesothelial Cells Exhibit Characteristics of Perivascular Cells in an In Vitro Angiogenesis Assay" Cells 12, no. 20: 2436. https://doi.org/10.3390/cells12202436

APA Style

Koukorava, C., Ward, K., Ahmed, K., Almaghrabi, S., Dauleh, S., Pereira, S. M., Taylor, A., Haddrick, M., Cross, M. J., & Wilm, B. (2023). Mesothelial Cells Exhibit Characteristics of Perivascular Cells in an In Vitro Angiogenesis Assay. Cells, 12(20), 2436. https://doi.org/10.3390/cells12202436

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
