Transcriptome Analysis of Diurnal Gene Expression in Chinese Cabbage

by
Jin A. Kim
1,*,†,
Donghwan Shim
2,†,
Shipra Kumari
1,
Ha-eun Jung
1,
Ki-Hong Jung
3,
Heesu Jeong
4,
Woe-Yeon Kim
5,
Soo In Lee
1 and
Mi-Jeong Jeong
1
1
Department of Agricultural Biotechnology, National Academy of Agricultural Science, Rural Development Administration, 370, Nongsaengmyeong-ro, Wansan-gu, Jeonju-si 560-500, Korea
2
Department of Forest Bio-resources, National Institute of Forest Science, Suwon 16631, Korea
3
Department of Genetic Engineering and Crop Biotech Institute, Kyung Hee University, Yongin 17104, Korea
4
Department of Plant Science, College of Agriculture and Life Sciences, Seoul National University, San 56-1, Sillim-dong, Gwanak-gu, Seoul 151-744, Korea
5
Division of Applied Life Science (BK21Plus), Institute of Agricultural and Life Science (IALS), Gyeongsang National University, 501 Jinju-daero, Jinju 52828, Korea
*
Author to whom correspondence should be addressed.
†
These authors contribute equally to this work.
Genes 2019, 10(2), 130; https://doi.org/10.3390/genes10020130
Submission received: 16 December 2018 / Revised: 31 January 2019 / Accepted: 4 February 2019 / Published: 11 February 2019
(This article belongs to the Special Issue Genetic Regulation of Circadian Rhythm in Plants)
Browse Figures
Versions Notes

Abstract

:
Plants have developed timing mechanisms that enable them to maintain synchrony with daily environmental events. These timing mechanisms, i.e., circadian clocks, include transcriptional/translational feedback loops that drive 24 h transcriptional rhythms, which underlie oscillations in protein abundance, thus mediating circadian rhythms of behavior, physiology, and metabolism. Circadian clock genes have been investigated in the diploid model plant Arabidopsis thaliana. Crop plants with polyploid genomes—such as Brassica species—have multiple copies of some clock-related genes. Over the last decade, numerous studies have been aimed at identifying and understanding the function of paralogous genes with conserved sequences, or those that diverged during evolution. Brassica rapa’s triplicate genomes retain sequence-level collinearity with Arabidopsis. In this study, we used RNA sequencing (RNAseq) to profile the diurnal transcriptome of Brassica rapa seedlings. We identified candidate paralogs of circadian clock-related genes and assessed their expression levels. These genes and their related traits that modulate the diurnal rhythm of gene expression contribute to the adaptation of crop cultivars. Our findings will contribute to the mechanistic study of circadian clock regulation inherent in polyploidy genome crops, which differ from those of model plants, and thus will be useful for future breeding studies using clock genes.

1. Introduction

Light is a primary energy source for plants—it regulates various stages of plant development and maintains high photosynthetic efficiency [1]. Sessile plants have developed timing mechanisms to maintain synchrony with the Earth’s rotation, and function according to daily environmental events, such as sunrise and sunset [2]. The subsequent transduction of environmental cues regulates, directly or indirectly, diverse developmental processes including photomorphogenesis, floral transition, leaf movements, stomatal conductance, photosynthetic capacity, volatile emissions [3,4,5], and interactions with abiotic and biotic factors [6,7]. These processes seem to have a diurnal rhythm, which occurs during daylight. Circadian rhythm is a biological process that behaves rhythmically during 24 h periods. Under diurnal conditions (light and temperature cycles), organismal genes are expressed due to free running circadian oscillations.
Recently, diurnally expressed genes have been identified in Arabidopsis thaliana [8]; the light signal transduction system—involving photo receptors—has been reported [9,10]; and a computational model of the plant clock system, comprising the main transcriptional feedback loop (loop I) and two additional associated loops (Loops II and III) [11], has been developed. High-throughput RNA sequencing (RNAseq) methods offer dramatic improvements over prior techniques [12,13]. RNA sequencing analysis of circadian transcriptomes derived from wild-type and period-null mutant (per0) Drosophila brains was performed. The results identified novel splicing events and transcripts regulated by the circadian clock. Furthermore, transcriptomic studies performed using several major crop plants including tomato, rice, polar, and lettuce, have demonstrated the expression of diurnal genes under environmental cycles and self-sustaining oscillated circadian genes under constant light or temperature [14,15,16].
The circadian clock coordinates physiological traits such as flowering time, photosynthesis, and growth, as well as internal metabolic and hormonal signals in plants with daily and seasonal environmental changes [17,18,19,20]. This coordination enhances plant fitness, growth, and environmental adaptation [21]. Clock-regulated genes are required for primary metabolism, including CO2 assimilation, starch accumulation/degradation in leaves, and nutrient (lipids and fatty acids) storage in developing seeds [18,20,22,23,24]. Additionally, potato tuberization and abiotic stress response-related secondary metabolic pathways are regulated by clock-related genes [25,26,27,28].
Crop plants that have undergone whole genome duplication events contain multiple copies of genes with or without functional redundancy [29,30,31,32,33,34,35,36,37]. Clock-related genes are conserved among angiosperm evolutionary lineages [33,38,39,40,41,42]. Although accumulation of genome sequences and comparative genome analysis techniques have accelerated the identification of circadian genes in polyploidy genomes, their functional specialization remains unclear. This raises interesting questions regarding how multiple members of gene families contribute to the circadian clock mechanism, and whether the clock model developed for Arabidopsis is applicable to plants with polyploid genomes. Functional studies involving paralogs improve our understanding of the unique physiology of each crop plant and establish a breeding strategy.
The polyploid genus Brassica is comprised of a variety of vegetable crops, such as Chinese cabbage, bok choy, turnip, and broccoletto, as well as oilseed crops, such as turnip rape and sarson, that are of worldwide agricultural importance. It is noteworthy that derived products such as processed oil and kimchi add economic value [43,44]. In the B. rapa genome, after multiple genome duplications and gene losses, circadian clock genes were preferentially retained relative to their neighboring genes [41,45]. Previous studies have described the structures of a pseudo-response regulator (PRR) and circadian clock-associated 1/late elongated hypocotyl (CCA1/LHY) gene families [40,41]. RNA sequencing reads from six tissues of B. rapa accession Chiifu-401-42—the genome of which has been sequenced—indicated widespread transcription of the Chinese cabbage genome [46]. We were interested in the role that the clock genes retained in the B. rapa genome play in the clock network, in addition to the developmental and metabolic processes regulated by them. Here we used RNAseq to profile the circadian transcriptome of leaves derived from wild-type B. rapa. Our findings will contribute to studies on the mechanisms of circadian clock regulation inherent in polyploidy genome crops—which differ from those of model plants—and to plant breeding strategies that require clock genes.

2. Materials and Methods

2.1. Plant Growth and Harvest

Chinese cabbage (B. rapa pekinensis) accession Chiifu-401-42 seeds were sown in individual pots containing soil and grown in a growth chamber (Eyelatron, FLI-301NH, Japan) under a 16/8 h light/dark cycle for 2 weeks, using a cool-white fluorescent lamp. Plants were entrained under a 12/12 h light/dark cycle for 1 week. The plants were watered every three days, and temperatures were maintained at 23 °C until 3–5 true leaves emerged. Aerial parts of three-week old plants were harvested at ZT (zeitgeber Time) 0, 4, 8, 12, 16, 20, and 24, with two biological repeats (Figure 1).

2.2. Library Preparation and RNA Sequencing

Total RNA was isolated from B. rapa leaf tissue using RNeasy Plant Mini Kits (Qiagen, Valencia, CA, USA), according to the manufacturer’s instructions. RNA quality was determined using a 2100 Bioanalyzer (Agilent, Santa Clara, CA, USA), and only samples with an RNA integrity number > 8 were used for library preparation. Preparation of each single-end complementary DNA (cDNA) library was conducted according to the TruSeq RNA Sample Preparation Guide (Illumina, San Diego, CA, USA). Complementary DNA libraries sequencing was performed using an Illumina HiSeq2000 sequencer. Base calls were made using CASAVA software (Illumina).

2.3. Transcript Quantification, Differential Expression Analysis, and Gene Annotation

Single-end reads were cleaned by processing with PRINSEQ-lite, v. 0.20.4 software (http://prinseq.sourceforge.net/). Sequences < 50 bp long, with at least one quality score < 10, a mean quality score of < 20, exact duplicates or reverse-complement exact duplicates were filtered out, and sequences with a quality score threshold of 20 were trimmed from both the 5′ and 3′ ends [47].
The clean reads of each sample were aligned to the reference transcriptome (B.rapa_197_transcript_primaryTranscriptOnly.fa of Phytozome V9.0, https://genome.jgi.doe.gov/portal/pages/dynamicOrganismDownload.jsf?organism=Phytozome) using Bowtie software [48]. RSEM v.1.3.0 software (http://deweylab.github.io/RSEM/) was used to generate read counts, and the trimmed mean of M-values (TMM)-normalized fragments per kb of exon per million (FPKM) reads mapped for each transcript [49]. For differential expression analysis, negative binomial dispersion across samples was calculated using the EdgeR v. 3.16.5 software [50]. Genes with more than a twofold change in expression, and a false discovery rate (FDR)-adjusted p-value ≤0.05, were considered to be differentially expressed. Information on gene annotation was supported by the B.rapa_197_annotation profile of Phytozome V9.0 (https://phytozome.jgi.doe.gov).
To identify rhythmically expressed genes, we applied the JTK-CYCLE circadian transcript analysis software. This is a non-parametric statistical algorithm designed to identify circadian-regulated transcripts and estimates their period, phase, and amplitude [51]. The dataset of B. rapa gene expression levels that we generated was used for the JTK-CYCLE analysis with a 24 h period. For comparison, we used the Arabidopsis microarray dataset from NCBI (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE3416). Genes with a q-value < 0.05 were classified as rhythmic. Circadian-regulated genes from JTK-CYCLE were clustered using the MeV v.4.8.1 software [52]. Transcription factors (TFs) were classified into families using plant TF database (PlantTFDB) version 4.0 for TF annotation.

2.4. Quantitative Real-Time Polymerase Chain Reaction

Gene-specific primers were designed using Primer3 software (http://frodo.wi.mit.edu/primer3/) (Table S1). Three-week-old plants grown under a 12/12 h light/dark cycle, following growth under a 16/8 h light/dark cycle for 2 weeks, were used as input samples for qRT-PCR (quantitative real-time PCR). Plant tissues were collected at 4 h intervals, for a 24 h period under light/dark conditions, and for 72 h under continuous light conditions. Complementary DNA was synthesized using cDNA EcoDry Premix (Oligo dT) (Clontech, TaKaRa, Shiga, Japan). For cDNA synthesis, 5 ng of total RNA was incubated with oligo (dT) primers at 42 °C for 60 min, and heated at 70 °C for 10 min to stop the reaction. qRT PCR reactions were performed in three technical replicates using a Bio-Rad system (CFX Connect Real-Time PCR) and SYBR Green I Master Mix in a 20 µL final volume. Relative expression levels were determined as the expression ratio of target gene and β-actin in the same cDNA preparation.

2.5. Data Deposition

Raw read files were submitted to the sequence reads archive (SRA), NCBI database (accession number SRP166211).

3. Results

3.1. Sequencing and Statistical Evaluation of the Brassica rapa Transcriptome

To examine the transcriptome of Chinese cabbage (B. rapa, pekinensis), we entrained two-week-old seedlings under a 12/12 h light–dark cycle for 1 week. Two biological repeats for each sample were harvested at ZT 0, 4, 8, 12, 16, 20, and 24 h (Figure 1).
We isolated RNA from the aerial parts of the plants at seven time points and synthesized cDNA libraries for RNAseq, generating 1,363,558,142 raw reads. After filtering out low quality and unpaired reads, 1,363,198,067 high quality reads were used for mapping the B. rapa transcriptome. We obtained a mapping rate over 70% on the B. rapa reference transcript sequences (Table 1).
To statistically evaluate the samples used for comparative transcriptomic analysis, we mapped high quality reads to the B. rapa (Phytozome v9.0) database and calculated transcript abundance. We identified differentially expressed genes (DEGs) based on pairwise sample comparisons with ZT0, and visualized DEGs distribution using MA (intensity ratio) plots (Figure 2A,C and Figure S2). In the pairwise ZT comparisons, each sample’s two biological replicates were highly correlated (range ± 1). ZT24 samples harvested during the same phase as the following day ZT0 were also highly correlated (Figure 2B and Figure S1).

3.2. Identification of Differentially Expressed Genes in Pairwise Sample Comparisons

In total, we detected 35,759 DEGs (87.2% of the 41,019 annotated genes) at one or more time points (using a cutoff of an at least twofold change and p <0.05, FDR p-value) in pairwise sample comparisons (Figure 2B). Initially, we compared the gene expression of each time point sample to ZT0 (Figure 2C). Among the DEGs, 1973, 3870, 3461, 2217, and 1471 putative transcripts were differentially expressed at ZT4, 8, 12, 16, and 20, respectively. Comparative analysis between ZT0 and ZT24 resulted in 96 DEGs (Figure 2C). After sunrise (ZT0), the number of DEGs was highest during the evening and at sunset (ZT8 and ZT12, respectively) and decreased sharply thereafter (Figure 2C).

3.3. Conserved Phasing of Diurnally Expressed Genes in B. rapa

Our results identified 11,699 of 41,019 putative unique transcripts (28.5%) in Chinese cabbage, and 5747 of 22,810 transcripts (25.2%) in Arabidopsis as circadian-regulated. Circadian-related transcripts were 3.3% more abundant in Chinese cabbage compared to Arabidopsis (Tables S3 and S4). Circadian-regulated genes clustered into 25 groups (Table S5). In the B. rapa dataset, transcripts with daytime expression peaks were classified into various groups, and those with nighttime peaks were classified into three groups (Figure 3). The phases of cycling genes were compared between A. thaliana and B. rapa datasets. Under diurnal conditions, most orthologs exhibited similar phases, but some showed an inverse expression (data not shown).
In the present study, 2,249 DEGs were identified as transcription factors (TFs). Functional annotation of these TFs based on their sequence homology and domain sequence similarities with the existing TF database of B. rapa resulting in 51 TF families which were over-represented (32.99% of total TFs); Myb family (181), AP2/ERF (149), WRKY (147), Myb domain (142), and ZF (C2H2 type) (123) TFs (Figure 4A). Among total TFs, 232 genes were circadian clock-regulated based on the DEGs pattern. MYB and WRKY TFs act as key regulators of many processes in plants, of which 16 MYB and 13 WRKY members appeared significantly upregulated during the daytime. The remaining 16 MYB and 9 WRKY members were downregulated during the daytime. Similarly, AP2/ERF, HB, bZIP, ZF (C2H2 type), IDD, NF-Y, TLP, PIF, and TCP are key regulators of plant growth and development. Of these families, 11, 9, 8, 5, 4, 3, 3, 3, and 2 members during daytime and 6, 6, 4, 4, 1, 1, 1, 0, and 3 during nighttime showed peaks of expression, respectively (Figure 4B). The rhythmic expression pattern suggests that these TFs may be related to the circadian function in B. rapa. Of the 51, forty four transcription factors have exhibited significant circadian enrichment (Figure 4B). TFs like Myb-related, basic leucine zipper (bZIP), and multiprotein bridging factor 1 (MBF1) were known associates of the circadian clock-regulated processes [53,54,55,56].

3.4. Expression Anaysis of Clock-Related Gene Paralogs in Chinese Cabbage

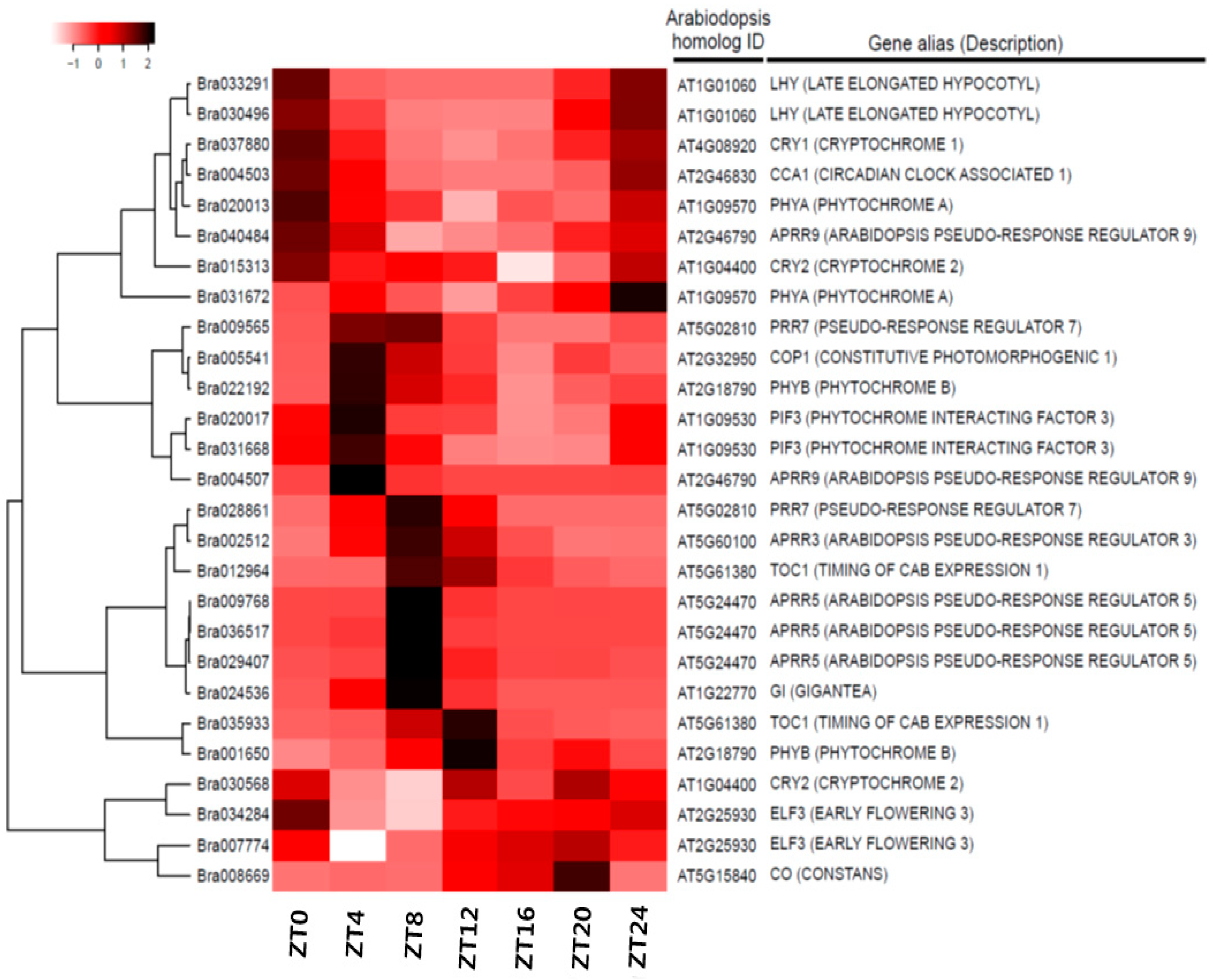

Using Arabidopsis microarray datasets, we screened circadian pathway genes included in the Kyoto Encyclopedia of Genes and Genomes (KEGG) pathways (Figure S3) and determined their expression levels. Heat maps showed that the expression of these genes changed over time, and all exhibited clear peaks of expression except for PHYA, COP1, and CRY2 (Figure S4). Based on a study of Arabidopsis clock regulation [57,58], we identified putative orthologs of the 21 key Arabidopsis clock-related genes (CRY1, CRY2, PHYA, PHYB, COP1, PIF3, CCA1/LHY, GI, TOC1, ELF3, ELF4, RVE4, RVE8, LUX, FKF1, PRR1, PRR3, PRR5, PRR7, and PRR9) present in the B. rapa dataset (Table 2 and Table S2) and confirmed daily fluctuations in their expression. One to three orthologous copies of individual Arabidopsis clock-related genes displayed highly conserved cycling profiles under diurnal conditions (Figure 5 and Figure S3). The expression cycling profiles of clock-related genes derived from the time course dataset showed similar expression patterns to those of Arabidopsis clock-related genes (Figure S4). The expression pattern of each ortholog resembled that of its corresponding gene in Arabidopsis with respect to, for example, the times at which their expression was highest and lowest (Figure 5 and Figure S4). However, some paralogous copies showed patterns, peak times, or intensities of expression that differed from their paralogs and their orthologs in Arabidopsis. For example, Bra030568—a CRY2 ortholog—did not exhibit expression cycling, and the expression levels of Bra012964 and Bra035933—orthologs of TOC1—peaked at ZT8 and ZT12, respectively (Figure 5).
The RNAseq profiles and phase calls of the listed genes were estimated by calculating the FPKM values, and their expression was compared to their orthologs in Arabidopsis (Figure S5). Expression levels of Bra037880 and Bra024536, orthologs of cryptochrome circadian regulator 1 (CRY1) and GI, were highest and lowest at ZT12 and ZT8, respectively (Figure 6C,G). For Bra004503, a CCA1 ortholog, expression levels were highest at ZT0 and lowest at ZT8-–ZT16 (Figure 5 and Figure S5O). Single copies of these genes were found for the Arabidopsis orthologs, and their expression patterns were highly conserved. Two homologous copies of phytochrome A (PHYA), phytochrome B (PHYB), constitutively photomorphogenic 1 (COP1), reveille 8 (RVE8), late elongated hypocotyl (LHY), and pseudo-response regulator (PRR3) were also found. One of the two paralogs (Bra020013, Bra022192, Bra005541, Bra029778, Bra033291, and Bra002512) showed expression patterns identical to their Arabidopsis orthologs (Figure 5 and Figure S5A,B,E,K,N,Q). However, Bra031672, Bra001650, Bra021818, Bra034074, Bra030496, and Bra020263 were rarely expressed. In Arabidopsis, CRY2 expression did not exhibit a circadian pattern (Figures S4 and S5D). Our results also showed that the two copies of CRY2 maintained steady expression over the course of 1 day (Figure 5 and Figure S5D). The timing of peak expression for the two paralogs of ELF3, PRR1, and PRR7 differed. The expression of Bra007774 (Arabidopsis ELF3) peaked at ZT4, and that of Bra034284 peaked at ZT8 (Figure 5 and Figure S5H). Among the three ELF4 homologs, the expression of Bra017035 peaked early, while Bra000165 and Bra004991 exhibited identical expression patterns (Figure 5 and Figure S5I). However, expression level peaks for the three homologs of Arabidopsis ELF4 occurred at two different times (Figure 5 and Figure S5I). The RVE4 homolog, Bra005754, was expressed at a low level with no diurnal pattern, but the expression of Bra005751 and Bra009562 began decreasing at sunrise, reached ZT8 at nadir, and subsequently increased after ZT16 (Figure 5 and Figure S5J). No homologs of ZTL or FKF1 were found in the B. rapa transcriptome dataset (Table 2 and Table S2). Although each of these genes contains three functional domains—the LOV domain, the F-box motif, and the kelch repeats—and shows high sequence homology [59], only LKP2 matched three homologous genes in our dataset. Bra038832, an LKP2 homolog, showed a circadian expression pattern, but the expression levels of Bra038830 and Bra038831 remained steady over 1 day (Figure 5 and Figure S5M). Of the two PRR1 homologs, Bra012964 expression peaked at ZT8. Furthermore, Bra035933 expression was lower than Bra012964 (Figure 5 and Figure S5P). The three PRR5 homologs were expressed identical to that in Arabidopsis. However, Bra009768 expression peaked at ZT8 (Figure 5 and Figure S5R). The expression pattern of one Bra009565 homolog was identical to that of Arabidopsis PRR7, but that of Bra028861 peaked later at ZT8 (Figure 5 and Figure S5S). Bra033809 and Bra018204 expression peaked at ZT12, but that of the former was lower. The PRR9 homolog, Bra004507, showed the same expression pattern as in Arabidopsis, but that of Bra040484 differed (Figure 5 and Figure S5T). We confirmed the free-running expression of all clock-related genes under continuous light for 72 h by quantitative reverse transcription-polymerase chain reaction (qRT-PCR) (Figure 6 and Figure S6). Expression of most orthologous copies of clock-related genes exhibited a cyclic pattern.

3.5. Differentially Expression of Glucosinolate-Related Gene Paralogs in Chinese Cabbage

We identified orthologous genes related to the glucosinolate pathway in the B. rapa dataset. Expression of their paralogous genes as a heat map is shown in Figure 7. Though most genes were expressed during the daily cycle—at 4 h after sunrise (ZT4)—genes showed a peak expression. Some MYB TFs were also involved in indolic and aliphatic glucosinolate synthesis. Many Myb transcription factors, except MYB34s, showed peaks at different time points. Most paralogous members showed similar peak time points. Branched-chain aminotransferase (BCAT4) and methylthioalkylmalate synthase (MAM1) involved in the early steps of side chain elongation, and two AOP2 and AOP3 responsible for the side chain modification step in the glucosinolate pathway [60] had peak expression at ZT4. We found that three sulpho-transferases (ST) were involved in the core structure of glucosinolate biosynthesis. Among them, one ST5b (Bra015938) and ST5c (Bra025668) showed high expression at ZT4, and the other ST5b (Bra015936) at ZT0. Expression level then gradually decreased during a 24 h period. Similarly, one FMOGS-OX5 (Bra026988) showed peak expression at ZT4 but the other (Bra016787) at ZT16.
Additionally, other genes such as one DOF1 (Bra014297) had peak expression at ZT0, while others were at ZT8 (Bra030423), ZT4 during the light period (one GSL-OH (Bra022920)), and at ZT20 during the dark period (Bra021671). All CYP genes like CYP79B2, CYP79B3, CYP79F1, CYP83A1, CYP83B1, and CYP83B2 were highly expressed at ZT4 and showed expression throughout the 24 h cycle.

4. Discussion

Photocycles drive oscillations in gene expression. At least 10–30% of genes expressed in Arabidopsis are regulated in a circadian manner [21,62], and up to 89% of transcripts in Arabidopsis display rhythmic expression patterns under a broad set of environmental diurnal/circadian conditions. Indeed, approximately 60% of rice and poplar transcripts displayed rhythmic expression under diurnal/circadian conditions [16].

4.1. Circadian-Regulated Genes in the Brassica Genome

The Brassica genome underwent a whole-genome triplication event after divergence from A. thaliana [45], in addition to several very recent genome duplications. These events make the genus Brassica useful for studies of polyploid genomes’ evolution. The B. rapa genome, which was the first to be sequenced among the Brassica species [45], is 529 Mbp with an approximately 220 Mbp euchromatic region (42% of the genome) [36]. In this study, 28.5% of the 41,019 putative unique transcripts in B. rapa were estimated to be circadian-regulated. These findings are similar to those in Arabidopsis [63], in which 25% of 22,811 transcripts were circadian-regulated. These data suggest that the number of genes whose expression shows a daily cycle and the total number of genes in the Chinese cabbage genome are twofold those in Arabidopsis. In seedling leaf tissues, 35,759 genes (87% of the total of 41,020 annotated genes) were expressed at more than one time point. This is higher than the 32,335 genes (78.8% of the 41,020 annotated genes) expressed in at least one tissue of B. rapa Chiifu [46]. These results suggest that the expression of many genes undergo a daily cycle. In plants, many TFs act as key regulators of various plant functions such as cell cycle, metabolic and physiological pathways, and responses to the environment. More than 2000 TFs have been found in the Arabidopsis genome [64,65,66,67]. Circadian clocks, as timekeeping systems, generate endogenous rhythms with periods of about a day. In the core system based on a transcriptional–translational negative feedback loop, CCA1 and LHY encode closely related single MYB domain transcription factors [68,69]. In addition, various TFs are involved in the regulation of light signal transduction and circadian rhythm [70]. Among the 2269 TFs found in the B. rapa dataset, approximately 14% from each group were found to have a daily cycle of expression (Figure 4B). In Arabidopsis, similar TF genes are regulated by blue light [71]. Nine transcription factor families in Arabidopsis, including NAC, bHLH, C2H2, AP2/ERF, the MYB superfamily, HB, WRKY, bZIP, and MADS are either induced or repressed by blue light [71].

4.2. Circadian Genes Conserved in Brassica after Genome Duplication Events

After triploidization, B. rapa genome segments retained 36–70% of their original genes during fractionation [45]. At the genomic level, approximately double the number of Arabidopsis genes were maintained due to genome shrinkage in the B. rapa genome [36]. After triplication and fractionation, circadian clock-related genes were retained in B. rapa at a significantly higher rate than other gene sets. Furthermore, 65% of the clock-related genes were retained more than one copy—two or three [72]. Our findings are in agreement with previously published findings (Table 2). Two single myeloblastosis (Myb) domain transcription factors play critical roles in the central loop of the Arabidopsis clock [11,73]. The orthologs of LHY/CCA1 are found as three gene family members in B. rapa. One LHY and CCA1 orthologs (Bra033291 and Bra004503) were similarly expressed as those in Arabidopsis, but the expression of Bra030496 was lower in B. rapa (Figure 5 and Figure S5N,O). Among the 18 RVE homologs with roles in clock function or regulation of clock output pathways in Arabidopsis [56,74,75,76,77], our transcriptome dataset contained three and two orthologs of REV4 and REV8, respectively (Table 2). The expression pattern of each was similar to that of its ortholog in Arabidopsis, but the expression of orthologs of REV4 and REV8, Bra005754 and Bra034074, was lower (Figure 5 and Figure S5J,K).

4.3. Expression Patterns of Paralogous Gene Copies

Pseudo-Response Regulator gene, found in the moss Physcomitrella patens, has been generated very early in evolution [78]. After its divergence from Carica papaya, only a single copy of each PRR gene was retained in Arabidopsis. However, after genome triplication in B. rapa, earlier work based on microsynteny analysis estimated a significantly higher rate of retention than that of their neighboring genes [41]. Eleven PRR genes were identified in the B. rapa genome. PRR3b and PRR9b detected as a result of rearrangements and partial deletions were predicted to be nonfunctional or neo-functional [41]. We confirmed the rare expression of PRR3b, with very low FPKM values and no specific qRT-PCR evidence (Figure 5 and Figure S5Q). Although it was not detected by qRT-PCR (Figure 5 and Figure S5Q), RNAseq showed that PRR9b expression was higher than PRR9a (Figure 5 and Figure S5T). PRR3 modulates the stability of TOC1 (PRR1) through a direct protein–protein interaction [79]. In the B. rapa genome, the expression of two PRR1 orthologs peaked at different time points (Table 2 and Figure S5P), suggesting that the circadian clock in B. rapa is regulated by a novel mechanism.
In Arabidopsis, ZTL and its close relatives LKP2 and FKF1 determine the length of the circadian period by regulating the degradation of TOC1 [80,81]. These three genes encode F-box proteins with an N-terminal LOV domain, a central F-box, and a series of Kelch repeats at the C-terminus [41,59]. Although their sequences are similar, ZTL and FKF1 were not found and three tightly linked copies of Arabidopsis LKP2 were found in B. rapa [41]. Based on their domain structures, FKF1 in Arabidopsis has one less repeat (four) compared to ZTL and LKP2 (five each). In B. rapa, LKP2a (Bra038832) has one less repeat (four) compared to LKP2b (Bra038831) and LKP2c (Bra038830) (five each) [41]. Interestingly, the expression of LKP2a (Bra038832) peaked at around ZT8, similar to Arabidopsis FKF1 (Figures S5M,U,V and S6). LKP2b and LKP2c did not show a rhythmic expression pattern. Arabidopsis ZTL, LKP2, and FKF1 play overlapping roles in circadian period determination. Although ZTL predominates, FKF1 plays the major role in flowering time determination [80,81,82]. The functional specialization of the three copies of LKP2 in B. rapa warrants further research. Homologous genes with multiple copies are considered to be functionally similar. Orthologous copies have redundant function and may show functional specialization or sub-functionalization compared to the ancestral copy [83]. However, one or more members may acquire new functions, while others retain their original function [84,85,86,87,88]. Such changes may be advantageous for preserving fitness. We found different expression levels or phase shifts among paralogous copies (Figure S5). Further research on the function of each paralogous copy is needed to explain the circadian rhythm of gene expression in crop species.

4.4. Regulation of Circadian-Mediated Biological Processes in Crops

The understanding of the circadian clock and its regulatory processes can be effectively utilized to enhance plant growth and fitness [20,57,89,90]. The synthesis of glucosinolates, a major secondary metabolite in B. rapa, has been reported as a light-regulated pathway. In the first 4 h of re-illumination of dark-adapted plants, the expression of many glucosinolate genes increased, inducing accumulation of mRNA [91]. BCAT4 and MAM1 are involved in the early side chain elongation process, and AOP2 in the secondary modification of the side chain, which showed higher expression levels under the light condition compared to darkness. They maintained high expression levels when the plants were kept under continuous light [60,91]. Reciprocally, glucosinolate genotypes altered the periodicity of a clock output unrelated to glucosinolates, the photochemical state of photosystem II [92]. These findings suggest that the manipulation of circadian clock genes can be valuable for improving plant metabolism. Studies on the expression patterns of clock-related genes in crop species will enable the formulation of effective crop-breeding strategies.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4425/10/2/130/s1. Figure S1: Statistical analysis of differentially expressed genes across repeat samples; Figure S2: Statistical analysis of significantly expressed genes at each time point versus ZT0; Figure S3: Circadian-related genes in Arabidopsis and B. rapa.; Figure S4: Expression of clock-related genes over time in Arabidopsis and PCC values between Br and At; Figure S5: Expression of clock-related genes in Arabidopsis and B. rapa. Bra numbers indicate orthologs of PHYA (A), PHYB (B), CRY1 (C), CRY2 (D), COP1 (E), PIF3 (F), GI (G), ELF3 (H), ELF4 (I), RVE4 (J), RVE8 (K), LUX (L), LKP2 (M), LHY (N), CCA1 (O), PRR1 (P), PRR3 (Q), PRR5 (R), PRR7 (S), PRR9 (T), ZTL(U), and FKF1(V); Figure S6: Free-running expression of clock-related genes in B. rapa; Table S1: qRT-PCR primers used in this work.; Table S2: B. rapa_circadian_normalized_FPKM and orthologous identification; Table S3: JTK-cycle results of the Arabidopsis data set; Table S4: JTK-cycle results of the B. rapa data set; Table S5: Clustering results of cycling genes in B. rapa.

Author Contributions

Conceptualization: J.A.K.; methodology and bioinformatical analysis: D.S.; formal analysis: S.K.; validation: H.-e.J.; formal analysis: K.-H.J. and H.J.; resources: W.Y.K., S.I.L., and M.-J.J.; writing—original draft preparation: J.A.K.; writing—review and editing: D.S., S.K.

Funding

This work was supported by grants from the Research Program for Agricultural Science & Technology Development, National Academy of Agricultural Science (project No. PJ01247203), and from the BioGreen 21 Program of the Rural Development Administration, Republic of Korea (project No. PJ01327303).

Conflicts of Interest

The authors declare no conflict of interest.
