Article

Characterization of the Complete Mitochondrial Genome of a Whipworm Trichuris skrjabini (Nematoda: Trichuridae)

by
Awais Ali Ahmad
1,
Muhammad Abu Bakr Shabbir
2,
Yang Xin
1,
Muhammad Ikram
3,
Mian Abdul Hafeez
4,
Chunqun Wang
1,
Ting Zhang
1,
Caixian Zhou
1,
Xingrun Yan
1,
Mubashar Hassan
1 and
Min Hu
1,*
1
State Key Laboratory of Agricultural Microbiology, Key Laboratory for the Development of Veterinary Products, Ministry of Agriculture, College of Veterinary Medicine, Huazhong Agricultural University, Wuhan 430070, Hubei, China
2
MOA Laboratory for Risk Assessment of Quality and Safety of Livestock and Poultry Products, Huazhong Agricultural University, Wuhan 430070, Hubei, China
3
Statistical Genomics Lab, College of Plant Science and Technology, Huazhong Agricultural University, Wuhan 430070, Hubei, China
4
Department of Parasitology, University of Veterinary and Animal Sciences, Lahore 54000, Pakistan
*
Author to whom correspondence should be addressed.
Genes 2019, 10(6), 438; https://doi.org/10.3390/genes10060438
Submission received: 21 April 2019 / Revised: 4 June 2019 / Accepted: 6 June 2019 / Published: 9 June 2019
(This article belongs to the Section Microbial Genetics and Genomics)
Browse Figures
Review Reports Versions Notes

Abstract

:
The complete mitochondrial (mt) genome of Trichuris skrjabini has been determined in the current study and subsequently compared with closely related species by phylogenetic analysis based on concatenated datasets of mt amino acid sequences. The whole mt genome of T. skrjabini is circular and 14,011 bp in length. It consists of a total of 37 genes including 13 protein coding genes (PCGs), two ribosomal RNA (rRNA) genes, 22 transfer RNA (tRNAs) genes, and two non-coding regions. The gene arrangement and contents were consistent with other members of the Trichuridae family including Trichuris suis, Trichuris trichiura, Trichuris ovis, and Trichuris discolor. Phylogenetic analysis based on concatenated datasets of amino acids of the 12 PCGs predicted the distinctiveness of Trichuris skrjabini as compared to other members of the Trichuridae family. Overall, our study supports the hypothesis that T. skrjabini is a distinct species. The provision of molecular data of whole mt genome of T. skrjabini delivers novel genetic markers for future studies of diagnostics, systematics, population genetics, and molecular epidemiology of T. skrjabini.

Graphical Abstract

1. Introduction

Helminthiases, some of which are often referred as neglected tropical diseases, have accounted for devastating effects on human health. According to an estimate, helminths transmitted from soil (geo-helminths), most commonly whipworms (Trichuris spp.), hookworms (Ancyclostoma and Necator spp.), and roundworm (Ascaris lumbricoides), prevailing in less privileged regions of the world infect about one billion people [1]. Almost half billion people are infected with Trichuris spp., as a result about 0.64 million people suffer compromised life years [2]. Children with chronic infection develop clinical symptoms like dysentery, rectal prolapse, bloody diarrhea, and cognitive impairment and are more prone as compared to adults [3,4]. Whipworms are found to be in a wide range of hosts including bovines and caprines (Trichuris ovis, Trichuris discolor), dogs (Trichuris vulpis), pigs (Trichuris suis), humans (Trichuris trichiura), and non-human primates (Trichuris spp.) [5,6,7]. Transmission of these parasites is direct or occurs through a fecal–oral route. After ingestion, infective thick shelled embryonated eggs are hatched in the small intestine through gastric passage. Adult worms are developed (30–50 mm in length) from first stage larvae which are burrowed in the walls of caecum and proximal colon [8]. Whipworms are notorious for instigating significant economic losses and diseases, common in both humans and animals [9,10].
Currently on the basis of previous knowledge, morphological features of adults (pericloacal papillae and spicule), and the hosts harboring Trichuris species provides a foundation for their identification [11,12]. However, these criteria are not always able to reliably identify and differentiate the species [13,14]. Trichuris skrjabini was characterized and differentiated from T. ovis based on a morphological study and isoenzyme gel electrophoresis [15]. A molecular study based on Cytochrome c oxidase subunit I gene (cox1) and 16S rDNA of T. skrjabini showed homology with the Trichinella species [14]. However, rDNA sequences may not provide a suitable genetic marker to conduct systematics studies on nematodes due to enormous sequence polymorphism in these rDNA regions within the nematodes [16,17].
Mitochondrial (mt) DNA sequences provide a basis for genetic markers as well as studying systematics, population genetics, and evolutionary relationships due to maternal inheritance and rapid evolutionary change [18,19,20]. Delimitation due to high substitution rate and low population size of closely related species is another advantage of mtDNA sequences, leading to sorting of the speciation [21]. Therefore, comparative analysis can be useful to identify certain hidden species which cannot be differentiated by traditional methods [22]. Of mitochondrial genomes of nematodes to date, approximately 63 (complete or near-complete) have been reported and deposited in GenBank [23]. However, in the Trichuridae family complete mitochondrial genomes for only four species are available [24].
As yet, no mitochondrial genome has been reported for T. skrjabini. In the current study based on the previous investigations, we have reconstructed the phylogenetic relationships derived from known mt genomes of enoplid nematodes and also characterized the whole mitochondrial genome of T. skrjabini to determine the gene contents and their arrangements.

2. Materials and Methods

2.1. Parasite Collection and Isolation of DNA

Adult worms dwelling in the large intestine in sheep were collected from naturally infected sheep from a private farmer in Luotian, Hubei, PR China. The worms were extensively washed with physiological saline and identified initially as Trichuris spp. based on the morphological characteristics and predilection site [11,25]. The worms were then fixed in 70% ethyl alcohol and stored at −20 °C until further used for experiments. Standard sodium dodecyl/proteinase K treatment was done followed by mini column purification method (Wizard Genomic DNA Purification System, Promega, Beijing, China) to isolate the genomic DNA.

2.2. Trichuris skrjabini ITS-2 Amplification

As described previously by Anshay et al. [26], the ITS-2 region was amplified using NC5 and NC2 primers (Table 1) which was then identified by sequence analysis. A PCR reaction was carried out in a volume of 20 µL containing premix (Takara, Dalian, China), primers, and DNA template. The reaction conditions used were 94 °C initially for 5 min following the 35 cycles of 94 °C/30 s, 50 °C/30 s, and 72 °C/1 min, 72 °C/10 min final extension and reaction was stopped at 20 °C/5 min.

2.3. Amplification of Short and Long Fragments by PCR

The short fragments were amplified to obtain the partial sequences of cox1, nad5, and cytb. Primers used for amplification were based on mitochondrial genome sequences of T. trichiura and T. suis [24] and the primers were the same as reported in a previous study [27,28] (Table 1). 50 µL of total volume was used per amplicon in the PCR with reaction mixture containing 10 mM each of dNTP (Takara), 5 µL of 10× Thermopol reaction buffer (New England Biolabs, Ipswich, MA, USA), 1.25 U LATaq (Takara), each primer 2 µM (synthesized by TsingKe, Beijing, China), 34.75 µL dH₂O, and 2 µL of genomic DNA in a thermocycler (Biometra, Göttingen, Germany). The reaction was initiated with denaturation at 94 °C for 5 min followed by 35 cycles of denaturation at 94 °C, 50 °C annealing for 30 s, extension at 60 °C for 5 min, and final extension for 7 min at 60 °C. The amplified products were then sequenced directly (Sangon BioTech company, Shanghai, China) to obtain partial sequences.
Based on the partial sequences of cox1, nad5, and cytb, new primers were designed (Primer Premier 6.0) to amplify the long regions to obtain the complete mitochondrial genome (Table 1). They were amplified in three overlapping fragments ranging from cox1 to nad5, nad5 to cytb and cytb to cox1. The reaction mixture was the same as used before in PCR for amplifying short fragments. The conditions for amplification of long fragments were 92 °C denaturation for 5 min, then 35 cycles at 92 °C for 30 s, annealing at 51 °C for 30 s, extension at 65 °C for 7 min, followed by final extension at 65 °C for 7 min, and reaction was stopped at 16 °C for 1 min. The amplified products were then cloned into pGEM-TEASY vector (Promega, Madison, WI, USA) and were sequenced (Sangon BioTech company) by primer walking strategy. The entire mt genome sequence of T. skrjabini was obtained (GenBank accession number: MK333462).

2.4. Gene Annotation and Sequence Analysis

Manual assembly of the sequences obtained was performed by employing Clustal X 1.83 in contrast to T. trichiura complete mt genome sequence. The analysis of the open reading frames was executed by selecting invertebrate mitochondrial code using Open Reading Frame (ORF) Finder (http://www.ncbi.nlm.nih.gov/gorf/gorf.html) and subsequently comparison was done with mt genome sequences of other enoplids [24,29,30]. Genes were translated individually to get amino acid sequences by selecting invertebrate mitochondrial code in the software MEGA5 [31]. The alignment of the resulting amino acid sequences was performed against amino acid sequences of mt genomes of other nematodes utilizing Clustal X 1.83. For homologous genes, percentage of amino acid identity was also calculated on the basis of pairwise comparison. Codon usage was determined on the basis of relationships between nucleotide composition, codon families, and amino acid occurrence where the genetic codes are split into rich AT, GC, or neutral codons. Secondary structures of tRNA genes were identified to get rRNA genes by using the ARWEN tool (http://mbio-139 serv2.mbioekol.lu.se/ARWEN/) [32] and visual inspection [33].

2.5. Phylogenetic Analysis

The inferred amino acid sequences of 12 mt protein coding genes (PCGs) (other than atp8 because of its absence in the outgroup) of T. skrjabini was aligned against mt amino acid sequences of other enoplid nematodes (Trichinella spiralis, GenBank accession number NC_002681; T. trichiura, GU385218; T. suis, GU070737; T. ovis, JQ996232; T. discolor, JQ996231; Xiphinema americanum, NC_005928; Strelkovimermis spiculatus, NC_008047; Romanomermis iyengari, NC_008693; Romanomermis culicivorax, NC_008640; Romanomermis nielseni, NC_008692; Thaumamermis cosgrovei, NC_008046; Agamermis sp., NC_008231; Hexamermis agrotis, NC_008828), where Ascaris suum, the chromadorean nematode (HQ704901) was selected as the outgroup [27]. The individual arrangement of groupings of amino acids got from mt protein coding sequences was performed utilizing the MAFFT 7.122 programming [34] and were fastened into a solitary dataset. Sequences which were adjusted vaguely were evaluated by a recently portrayed strategy [35]. Phylogenetic evaluation was steered by neighbor joining (NJ), maximum likelihood (ML), and maximum parsimony (MP) techniques as indicated by an earlier depicted strategy [36,37,38]. The program FigTree v. 1.4 (http://tree.bio.ed.ac.uk/programming/figtree) was utilized to develop the phylograms.

3. Results

3.1. ITS-2 Analysis

The acquired ITS-2 sequence of worm samples had a 99% match to a formerly published ITS-2 sequence of T. skrjabini (GenBank Accession no. AJ489248.1), identifying the worms gathered as T. skrjabini.

3.2. mt Genome Features

The entire mt genome sequence of T. skrjabini was 14,011 bp long (GenBank accession number: MK333462) (Figure 1). The mt genome of T. skrjabini was comprised of 13 PCGs (cox1-3, nad1-6, nad4L, atp6,8 and cytb), 22 tRNA genes, two ribosomal RNA genes, and two non-coding sites (Table 2). The atp8 gene is encoded (Figure 1), as is unvarying for enoplid nematodes [24,30]. The PCGs are translated in various directions, consistent with those depicted for T. suis and T. spiralis [24,30]. Apart from four PCGs (nad2, nad5, nad4, and nad4L) and six tRNA genes (trnM, trnF, trnH, trnR, trnT, trnP) encoded on the L-strand, every other gene is encoded on the H-strand. The AT-rich regions are sited among nad1 and trnK, and nad3 and trnA. The nucleotide synthesis of the whole mt genome was inclined toward A and T, with T being the most braced nucleotide and G being the slightest reinforced, which is steady with mt genomes of other enoplid nematodes for which mt genome information is accessible [24,30,39]. The content of A + T is 69.71% for T. skrjabini with a nucleotide composition of A: 34.75%, T: 34.96%, G: 13.88%, and C: 16.38%.
Moreover, the T. skrjabini mt genome has some overlaps among different tRNA genes and CDS regions (Table 2) fluctuating between 1–5 bp in smaller overlaps (atp8–nad3; trnK–nad2; trnS2–trnN; trnF–trnM; trnG–atp8), however some longer overlaps were also present, like trnA overlaps trnS2 (43 bp), trnF overlaps nad5 (56 bp), trnD overlaps atp8 (57 bp), and nad4L overlaps nad4 (104 bp).

3.3. Annotation

The T. skrjabini mt genome includes a total of 3582 amino acids exclusive of the termination codons. All of the PCGs possess complete termination codons. PCGs use ATG and ATA as start codons and utilize three termination codons (TAA, TGA, and TAG). Among the start codons, ATG has the highest frequency, being used by ten genes (cox1, cox2, nad2, nad5, nad4, nad4L, nad6, cytb, atp6 and cox3), whereas nad1, atp8, and nad3 genes use ATA as an initiation codon (Table 2). Terminal codon TAA is used by ten genes (cox1, cox2, nad2, nad5, nad4, nad6, cytb, atp6, cox3 and atp8). nad1 utilizes TGA as a termination codon and TAG is used as a termination codon by nad4L and nad3 genes (Table 2).
The mt genome of T. skrjabini contains 22 tRNA genes ranging between 53 to 64 bp long. In comparison to other mt genomes of nematodes, tRNA genes are comparatively smaller to their corresponding genes which is due to DHU stem loop regions or condensed TV replacement loops [39]. rrnS is situated between trnS1 and trnV, whereas rrnL is located between trnV and atp6, the length for which is 566 bp and 840 bp respectively for rrnS and rrnL. AT contents for rrnS and rrnL genes were found to be 72.78 and 73.44%, respectively (Table 3). T. skrjabini mt genome also infers two non-coding regions represented as small non-coding region (SNCR) for smaller regions and longer non-coding region (LNCR) for longer regions, the AT contents for which are 70.50% and 81.81% respectively. SNCR is positioned between nad3 and trnA whereas LNCR is situated between nad1 and trnK. There is no clear evidence of authentic processing of these non-coding regions; however, they may play role in replication or transcription [40].

3.4. Phylogenetic Analysis

Based on the concatenated dataset of 12 PCGs amino acid sequences other than atp8 (because of its absence in the outgroup), phylogenetic analysis was carried out for T. skrjabini (Figure 2) which generated similar topologies, irrespective of the approach used (NJ, MP, and ML). The bootstrap value for ML analysis was selected to be 100 whereas NJ and MP bootstrap values were 1000. The cut off value set for all the three methods was 95%. The uniform rates model was used for ML analysis and the number of differences model was used by NJ to infer the phylogenetic tree. The subtree–pruning–regrafting search method was used for MP analysis and the maximum trees to retain were 100. Within enoplid nematodes, two major clades were revealed (Trichuridae, Trichinellidae) and (Longidoridae, Mermithidae). T. skrjabini is more similar to T. ovis and T. discolor than T. suis, so it is closer to T. ovis and T. discolor in evolution. The results showed monophyly of the Trichuridae family (T. suis, T. trichiura, T. ovis, T. discolor) whereas the Trichinellidae family appeared to be less similar to T. skrjabini on the basis of evolution. Similarly, the results revealed the rejection of monophyly of other species belonging to Longidoridae and Mermithidae families in comparison to T. skrjabini.

4. Discussion

Whipworms cause parasitism of caecum in animals and humans in different parts of the world. Usually the identification of the species is carried out on the basis of their morphological and biometrical characteristics, and based on these characters more than 20 species of Trichuris have been reported [12]. Some of the pioneering studies of Trichuris species identification stated the fact that body length and body spicules were the most reliable characteristics for differentiation among the species [18,41]. Likewise, pericloacal papillae were considered to be useful criteria for species distinction by other researchers [42]. Though, still some of the species of this genus were challenging to identify based on these criteria [13].
In examination of taxonomic status, mt genome sequences deliver dependable genetic markers in comparative analyses [43,44,45,46,47,48]. Therefore, we determined the complete mt genome sequence of T. skrjabini in the current study. The size of the complete mt genome of T. skrjabini was 14,011 bp. The size of mt genomes of other species from Trichuridae family (T. trichiura, T. suis, T. discolor, T. ovis) ranged between 13,904 bp (the smallest for T. ovis) [37] and 14,436 bp (the largest for T. suis) [24]. Therefore, the size of the mt genome of T. skrjabini was found to be within the expected range. The gene contents (13 PCGs, two rRNAs, 22 tRNAs) and gene arrangement of T. skrjabini was also found to be consistent as in other studies, and the variation of the nucleotide sequence length among the species was also consistent [24,37] as the Trichuris spp. were isolated from different hosts.
On the basis of comparison between mt genomes of species of the Trichuridae family, the difference between the number of amino acid was almost negligible as T. ovis and T. discolor [37] possess 3577 and 3578 amino acids whereas the mt genomes of T. trichiura and T. suis possess 3559 and 3562 amino acids, respectively [24], and our study revealed the presence of 3582 amino acids. The usage of initiation and stop codons was also found to be consistent with some noticeable differences as T. skrjabini use only two start codons, i.e., ATG and ATA, where ATG, ATT, and ATA were utilized as start codons in the pig derived and human derived Trichuris. Moreover, T. ovis and T. discolor utilize four start codons, ATG, ATA, ATT, and TTG. In the case of termination codons, TAG and TAA were used as stop codons in all the four species of Trichuridae family, however, T. skrjabini possesses another stop codon TAG for the nad1 gene, whereas other stop codons TAA and TAG were found to be consistent. These findings are consistent with previous studies, however, these marked differences are suggestive that T. skrjabini is distinct from other species of the Trichuridae family, hence providing new molecular data for the future comparative studies of mitochondrial genomes.
Phylogenetic study based on concatenated datasets of 12 PCGs for T. skrjabini by three different analysis methods (NJ, ML, and MP) also supported the evolution of the species and its distinctiveness as it is found to be more closer in relation to T. ovis and T. discolor. As reported by [37] these two species also may represent distinct species, however, some of studies provide a basis of differences among species which can represent different cryptic species originating from different hosts and geographical regions [25]. Thus, studies in the future may be able to explore variation in nucleotides in mtDNA and rDNA among populations from different regions and hosts.

5. Conclusions

The present study determined the complete mitochondrial genome of T. skrjabini. The molecular data presented in this study is distinct in the nucleotide sequences. Phylogenetic analysis also provides basis for distinctiveness of the species as compared to other species of the Trichuridae family which also supports our hypothesis. Therefore, the mtDNA data in the current study provides beneficial novel markers for population genetics and molecular epidemiological studies of T. skrjabini.

Author Contributions

M.H. conceived, designed, validated, acquired funding for, and supervised the project. X.Y. and M.A.S. validated and contributed to formal analysis. M.A.S., X.Y., M.I., and M.H. contributed in review and input for manuscript. Software was not applicable. All authors read and approved the final manuscript.

Funding

This research was funded by the National Key Research and Development Program of China (grant number (2018YFD0501600)) to M.H. The APC was funded by M.H.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hotez, P.J.; Fenwick, A.; Savioli, L.; Molyneux, D.H. Rescuing the bottom billion through control of neglected tropical diseases. Lancet 2009, 373, 1570–1575. [Google Scholar] [CrossRef]
  2. Pullan, L.R.; Jennifer, L.S.; Rashmi, J.; Simon, J.B. Global numbers of infection and disease burden of soil transmitted helminth infections in 2010. Parasit. Vectors. 2014, 7, 37. [Google Scholar] [CrossRef] [PubMed]
  3. Sternberg, R.J.; McGrane, P.; Powell, C.; Grantham-McGregor, S. Effects of a parasitic infection on cognitive functioning. J. Exp. Psychol. Appl. 1997, 3, 67–76. [Google Scholar] [CrossRef]
  4. Bethony, J.; Brooker, S.; Albonico, M.; Geiger, S.M.; Loukas, A.; Diemert, D.; Hotez, P.J. Soil-transmitted helminth infections: Ascariasis, trichuriasis, and hookworm. Lancet 2006, 367, 1521–1532. [Google Scholar] [CrossRef]
  5. Hotez, P.J.; Savioli, L.; Fenwick, A. Neglected tropical diseases of the Middle East and North Africa: Review of their prevalence, distribution, and opportunities for control. PLoS Negl. Trop. Dis. 2012, 6, e1475. [Google Scholar] [CrossRef] [PubMed]
  6. Cutillas, C.; De Rojas, M.; Ariza, C.; Ubeda, J.M.; Guevara, D. Molecular identification of Trichuris vulpis and Trichuris suis isolated from different hosts. Parasitol. Res. 2007, 100, 383–389. [Google Scholar] [CrossRef]
  7. Khalafalla, R.E.; Elseify, M.A.; Elbahy, N.M. Seasonal prevalence of gastrointestinal nematode parasites of sheep in Northern region of Nile Delta, Egypt. Parasitol. Res. 2011, 108, 337–340. [Google Scholar] [CrossRef]
  8. Bundy, D.A.P.; Cooper, E.S. Trichuris and Trichuriasis in Humans. Adv. Parasitol. 1989, 28, 107–173. [Google Scholar]
  9. Jex, A.R.; Lim, Y.A.L.; Bethony, J.M.; Hotez, P.J.; Young, N.D.; Gasser, R.B. Soil-transmitted helminths of humans in Southeast Asia-towards integrated control. Adv. Parasitol. 2011, 74, 231–235. [Google Scholar]
  10. Roepstorff, A.; Mejer, H.; Nejsum, P.; Thamsborg, S.M. Helminth parasites in pigs: New challenges in pig production and current research highlights. Vet. Parasitol. 2011, 180, 72–81. [Google Scholar] [CrossRef] [Green Version]
  11. Cutillas, C.; German, P.; Arias, P.; Guevara, D. Trichuris ovis and Trichuris globulosa: Morphological, biometrical, and genetic studies. Exp. Parasitol. 1995, 81, 621–625. [Google Scholar] [CrossRef] [PubMed]
  12. del Rosario Robles, M. New Species of Trichuris (Nematoda: Trichuridae) from Akodon montensis Thomas, 1913, of the Paranaense Forest in Argentina. J. Parasitol. 2011, 97, 319–327. [Google Scholar] [CrossRef] [PubMed]
  13. del Rosario Robles, M.; Navone, G.T.; Notarnicola, J. A new species of Trichuris (Nematoda: Trichuridae) from Phyllotini rodents in Argentina. J. Parasitol. 2006, 92, 100–104. [Google Scholar] [CrossRef] [PubMed]
  14. Callejón, R.; De Rojas, M.; Ariza, C.; Ubeda, J.M.; Guevara, D.C.; Cutillas, C. Cytochrome oxidase subunit 1 and mitochondrial 16S rDNA sequences of Trichuris skrjabini (Tricocephalida: Trichuridae). Parasitol. Res. 2009, 104, 715–716. [Google Scholar] [CrossRef] [PubMed]
  15. Cutillas, C.; German, P.; Arias, P.; Guevara, D. Characterization of Trichuris skrjabini by isoenzyme gel electrophoresis: Comparative study with Trichuris ovis. Acta Trop. 1996, 62, 63–69. [Google Scholar] [CrossRef]
  16. Gasser, R.B. Mutation scanning methods for the analysis of parasite genes. Int. J. Parasitol. 1997, 27, 449–463. [Google Scholar] [CrossRef]
  17. Gasser, R.B.; Zhu, X.; Beveridge, I.; Chilton, N. Mutation scanning analysis of sequence heterogenity in the second internal transcribed spacer (rDNA) within some members of the Hypodontus macropi (Nematoda: Strongyloidea) complex. Electrophoresis 2001, 22, 1076–1085. [Google Scholar] [CrossRef]
  18. Saccone, C. The evolution of mitochondrial DNA. Curr. Opin. Genet. Dev. 1994, 4, 875–881. [Google Scholar] [CrossRef]
  19. Boore, J.L. Animal mitochondrial genomes. Nucleic Acids Res. 1999, 27, 1767–1780. [Google Scholar] [CrossRef] [Green Version]
  20. Zhao, G.H.; Li, J.; Song, H.Q.; Li, X.Y.; Chen, F.; Lin, R.Q.; Yuan, Z.G.; Weng, Y.B.; Hu, M.; Zou, F.C.; et al. A specific PCR assay for the identification and differentiation of Schistosoma japonicum geographical isolates in mainland China based on analysis of mitochondrial genome sequences. Infect. Genet. Evol. 2012, 12, 1027–1036. [Google Scholar] [CrossRef]
  21. Nadler, S.A.; De Len, G.P.P. Integrating molecular and morphological approaches for characterizing parasite cryptic species: Implications for parasitology. Parasitology 2011, 138, 1688–1709. [Google Scholar] [CrossRef] [PubMed]
  22. Ross, H.A.; Murugan, S.; Li, W.L. Testing the reliability of genetic methods of species identification via simulation. Syst. Biol. 2008, 57, 216–230. [Google Scholar] [CrossRef] [PubMed]
  23. International Helminth Genomes Consortium: Comparative genomics of the major parasitic worms. Nat. Genet. 2019, 51, 163–174. [CrossRef] [PubMed]
  24. Liu, G.H.; Gasser, R.B.; Su, A.; Nejsum, P.; Peng, L.; Lin, R.Q.; Li, M.W.; Xu, M.J.; Zhu, X.Q. Clear genetic distinctiveness between human- and pig-derived trichuris based on analyses of mitochondrial datasets. PLoS Negl. Trop. Dis. 2012, 6, e1539. [Google Scholar] [CrossRef] [PubMed]
  25. Callejón, R.; Halajian, A.; de Rojas, M.; Marrugal, A.; Guevara, D.; Cutillas, C. 16S partial gene mitochondrial DNA and internal transcribed spacers ribosomal DNA as differential markers of Trichuris discolor populations. Vet. Parasitol. 2012, 186, 350–363. [Google Scholar] [CrossRef] [PubMed]
  26. Anshary, H.; Sriwulan; Freeman, M.A.; Ogawa, K. Occurrence and molecular identification of Anisakis dujardin, 1845 from marine fish in southern Makassar Strait, Indonesia. Korean J. Parasitol. 2014, 52, 9–19. [Google Scholar] [CrossRef]
  27. Liu, G.H.; Wu, C.Y.; Song, H.Q.; Wei, S.J.; Xu, M.J.; Lin, R.Q.; Zhao, G.H.; Huang, S.Y.; Zhu, X.Q. Comparative analyses of the complete mitochondrial genomes of Ascaris lumbricoides and Ascaris suum from humans and pigs. Gene 2012, 492, 110–116. [Google Scholar] [CrossRef]
  28. Wasimuddin; Bryja, J.; Ribas, A.; Baird, S.J.E.; Piálek, J.; Goüy de Bellocq, J. Testing parasite “intimacy”: The whipworm Trichuris muris in the European house mouse hybrid zone. Ecol. Evol. 2016, 6, 2688–2701. [Google Scholar] [CrossRef]
  29. Webb, K.M.; Rosenthal, B.M. Next-generation sequencing of the Trichinella murrelli mitochondrial genome allows comprehensive comparison of its divergence from the principal agent of human trichinellosis, Trichinella spiralis. Infect. Genet. Evol. 2011, 11, 116–123. [Google Scholar] [CrossRef]
  30. Lavrov, D.V.; Brown, W.M. Trichinella spiralis mtDNA: A nematode mitochondrial genome that encodes a putative atp8 and normally structured tRNAs and has a gene arrangement relatable to those of coelomate metazoans. Genetics 2001, 157, 621–637. [Google Scholar]
  31. Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol. 2011, 28, 2731–2739. [Google Scholar] [CrossRef] [PubMed]
  32. Laslett, D.; Canbäck, B. ARWEN: A program to detect tRNA genes in metazoan mitochondrial nucleotide sequences. Bioinformatics 2008, 24, 172–175. [Google Scholar] [CrossRef] [PubMed]
  33. Hu, M.; Chilton, N.B.; Gasser, R.B. The mitochondrial genomes of the human hookworms, Ancylostoma duodenale and Necator americanus (Nematoda: Secernentea). Int. J. Parasitol. 2002, 32, 145–158. [Google Scholar] [CrossRef]
  34. Katoh, K.; Standley, D.M. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef] [PubMed]
  35. Sun, M.M.; Liu, G.H.; Ando, K.; Woo, H.C.; Ma, J.; Sohn, W.M.; Sugiyama, H.; Zhu, X.Q. Complete mitochondrial genomes of Gnathostoma nipponicum and Gnathostoma sp., and their comparison with other Gnathostoma species. Infect. Genet. Evol. 2017, 48, 109–115. [Google Scholar]
  36. Liu, G.H.; Nadler, S.A.; Liu, S.S.; Podolska, M.; D’Amelio, S.; Shao, R.; Gasser, R.B.; Zhu, X.Q. Mitochondrial phylogenomics yields strongly supported hypotheses for ascaridomorph nematodes. Sci. Rep. 2016, 6, 39248. [Google Scholar] [CrossRef]
  37. Liu, G.H.; Wang, Y.; Xu, M.J.; Zhou, D.H.; Ye, Y.G.; Li, J.Y.; Song, H.Q.; Lin, R.Q.; Zhu, X.Q. Characterization of the complete mitochondrial genomes of two whipworms Trichuris ovis and Trichuris discolor (Nematoda: Trichuridae). Infect. Genet. Evol. 2012, 12, 1635–1641. [Google Scholar] [CrossRef] [PubMed]
  38. Ahmad, A.; Yang, X.; Zhang, T.; Wang, C.; Zhou, C.; Yan, X.; Hassan, M.; Ikram, M.; Hu, M. Characterization of the complete mitochondrial genome of Ostertagia trifurcata of small ruminants and its phylogenetic associations for the Trichostrongyloidea superfamily. Genes 2019, 10, 107. [Google Scholar] [CrossRef] [PubMed]
  39. He, Y.; Jones, J.; Armstrong, M.; Lamberti, F.; Moens, M. The mitochondrial genome of Xiphinema americanum sensu stricto (Nematoda: Enoplea): Considerable economization in the length and structural features of encoded genes. J. Mol. Evol. 2005, 61, 819–833. [Google Scholar] [CrossRef]
  40. Andi, E.T.R.; Ucchini, V.I.L.; Rewitt, T.A.R.A.A.R.; Imball, R.E.T.K.; Raun, E.D.L.B.; Igon, J.D.A.L.; Randi, E.; Lucchini, V.; Armijo-Prewitt, T.; Kimball, R.T.; et al. Mitochondrial DNA phylogeny and speciation in the tragopans. Auk 2000, 117, 1003–1015. [Google Scholar]
  41. Špakulová, M. Discriminant analysis as a method for the numerical evaluation of taxonomic characters in male trichurid nematodes. Syst. Parasitol. 1994, 29, 113–119. [Google Scholar] [CrossRef]
  42. Yevstafieva, V.A.; Yuskiv, I.D.; Melnychuk, V.V.; Yasnolob, I.O.; Kovalenko, V.A.; Horb, K.O. Nematodes of the genus Trichuris (Nematoda, Trichuridae), parasitizing sheep in central and South-Eastern regions of Ukraine. Vestn. Zool. 2018, 52, 193–204. [Google Scholar] [CrossRef]
  43. Lin, R.Q.; Qiu, L.L.; Liu, G.H.; Wu, X.Y.; Weng, Y.B.; Xie, W.Q.; Hou, J.; Pan, H.; Yuan, Z.G.; Zou, F.C.; et al. Characterization of the complete mitochondrial genomes of five Eimeria species from domestic chickens. Gene 2011, 480, 28–33. [Google Scholar] [CrossRef] [PubMed]
  44. Li, H.; Gao, J.; Liu, H.; Liu, H.; Liang, A.; Zhou, X.; Cai, W. The architecture and complete sequence of mitochondrial genome of an assassin bug agriosphodrus dohrni (Hemiptera: Reduviidae). Int. J. Biol. Sci. 2011, 7, 792–804. [Google Scholar] [CrossRef] [PubMed]
  45. Li, H.; Liu, H.; Cao, L.; Shi, A.; Yang, H.; Cai, W. The complete mitochondrial genome of the damsel bug Alloeorhynchus bakeri (Hemiptera: Nabidae). Int. J. Biol. Sci. 2011, 8, 93–107. [Google Scholar] [CrossRef]
  46. Liu, G.-H.; Lin, R.-Q.; Li, M.-W.; Liu, W.; Liu, Y.; Yuan, Z.-G.; Song, H.-Q.; Zhao, G.-H.; Zhang, K.-X.; Zhu, X.-Q. The complete mitochondrial genomes of three cestode species of Taenia infecting animals and humans. Mol. Biol. Rep. 2011, 38, 2249–2256. [Google Scholar] [CrossRef]
  47. Liu, G.H.; Li, C.; Li, J.Y.; Zhou, D.H.; Xiong, R.C.; Lin, R.Q.; Zou, F.C.; Zhu, X.Q. Characterization of the complete mitochondrial genome sequence of Spirometra erinaceieuropaei (Cestoda: Diphyllobothriidae) from China. Int. J. Biol. Sci. 2012, 8, 640–649. [Google Scholar] [CrossRef]
  48. Wang, Y.; Wang, C.R.; Zhao, G.H.; Gao, J.F.; Li, M.W.; Zhu, X.Q. The complete mitochondrial genome of Orientobilharzia turkestanicum supports its affinity with African Schistosoma spp. Infect. Genet. Evol. 2011, 11, 1964–1970. [Google Scholar] [CrossRef]
Genes 10 00438 g001 550

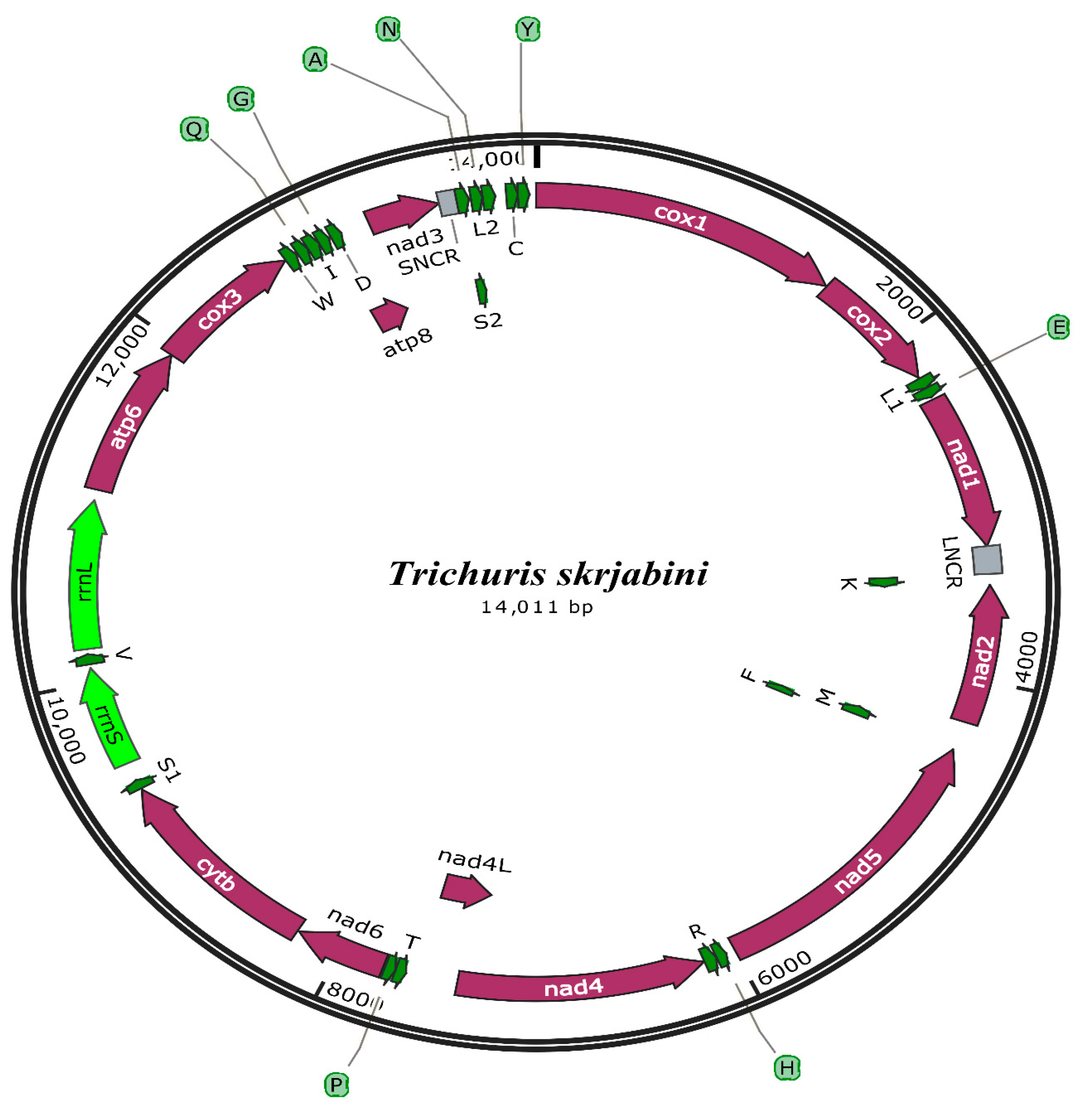

Figure 1. Mitochondrial genome structure of T. skrjabini. Genes represented as per standard nomenclature and tRNAs represented using one letter amino acid codes, with numerals differentiating each of the two leucine- and serine-specifying tRNAs (L1 and L2 for codon families UUR and CUA, respectively; S1 and S2 for codon families AGN and UGN, respectively). SNCR refers to small non-coding region and LNCR refers to longer non-coding region.
Figure 1. Mitochondrial genome structure of T. skrjabini. Genes represented as per standard nomenclature and tRNAs represented using one letter amino acid codes, with numerals differentiating each of the two leucine- and serine-specifying tRNAs (L1 and L2 for codon families UUR and CUA, respectively; S1 and S2 for codon families AGN and UGN, respectively). SNCR refers to small non-coding region and LNCR refers to longer non-coding region.
Genes 10 00438 g001
Genes 10 00438 g002 550
Figure 2. Phylogenetic tree inferred from concatenated amino acid sequence dataset of 12 protein coding genes (excluding atp8 gene) among selected enoplid nematodes, using chromadorea nematode (Ascaris suum, NC_001327) as an outgroup. Phylogenetic relationships of T. skrjabini were inferred using the neighbor joining (NJ), maximum likelihood (ML), and maximum parsimony (MP) methods. The numbers along the branches indicate bootstrap values resulting from the analysis using NJ/ML/MP, where the values under 50 are given as “–”.
Figure 2. Phylogenetic tree inferred from concatenated amino acid sequence dataset of 12 protein coding genes (excluding atp8 gene) among selected enoplid nematodes, using chromadorea nematode (Ascaris suum, NC_001327) as an outgroup. Phylogenetic relationships of T. skrjabini were inferred using the neighbor joining (NJ), maximum likelihood (ML), and maximum parsimony (MP) methods. The numbers along the branches indicate bootstrap values resulting from the analysis using NJ/ML/MP, where the values under 50 are given as “–”.
Genes 10 00438 g002
Table
Table 1. Primer sequences used for amplification of the ITS-2 region, short and long fragments of mitochondrial (mt) DNA of Trichuris skrjabini.
Table 1. Primer sequences used for amplification of the ITS-2 region, short and long fragments of mitochondrial (mt) DNA of Trichuris skrjabini.
PrimersSequence (5′ to 3′)
ITS-2
NC5GTAGGTGAACCTGCGGAAGGAT
NC2TTAGTTTCTTTTCCTCCGCT
Short PCR
Trichuris_cox1_FGAAAGTGTTGGGGYAKAAAAGTTA
Trichuris_cox1_RCAGGAAATCACAAAAAAATTGG
NAD-5FCAAGGATTTTTTTGAGATCTTTTTC
NAD-5RTAAACCGAATTGGAGATTTTTGTTT
Cytb-FGAGTAATTTTTATAATACGAGAAGT
Cytb-RAATTTTCAGGGTCTCTGCTTCAATA
Long PCR
Cox1-FCCTTGAAGCTTTGACACCTCC
Nad5-RTGAGCTTTACGCAAGTTATGC
Nad5-FCTAGCGTAAAAACTAGTGAGGTAAC
Cytb-RGAGTGTGGGAACCAAGTGGA
Cytb-FCTCTATGTGAAGCTTTTTGGGG
Cox1-RTGGCAACTGCATGAGCAGATA
Table
Table 2. Structure of the mitochondrial genome of T. skrjabini and nucleotide positions of the starting and termination sites as well as the length of each gene and the number of encoded amino acids, starting and terminator codons of protein coding genes, and anticodons for tRNAs starting from trnL1.
Table 2. Structure of the mitochondrial genome of T. skrjabini and nucleotide positions of the starting and termination sites as well as the length of each gene and the number of encoded amino acids, starting and terminator codons of protein coding genes, and anticodons for tRNAs starting from trnL1.
Gene/CodonsPosition and Sequence Length of NtAmino AcidsStart/Stop CodonsAnticodons
cox11–1545 (1545)514ATG/TAA
cox21550–2233 (684)227ATG/TAA
trnL1 (UUR)2241–2302 (62) TAA
trnE2304–2360 (57) TTC
nad12376–3245 (870)289ATA/TGA
LNCR3246–3401 (156)
trnK3402–3464 (63) TTT
nad23463–4245 (783)260ATG/TAA
trnM4357–4419 (63) CAT
trnF4416–4471 (56) GAA
nad54410–5996 (1587)528ATG/TAA
trnH6042–6095 (54) GTG
trnR6096–6159 (64) TCG
nad46161–7396 (1236)411ATG/TAA
nad4L7293–7601 (309)102ATG/TAG
trnT7654–7708 (55) TGT
trnP7709–7762 (54) TGG
nad67772–8230 (459)152ATG/TAA
cytb8239–9351 (1113)370ATG/TAA
trnS1 (AGN)9359–9411 (53) GCT
rrnS9515–10,080 (566)
trnV10,103–10,159 (57) TAC
rrnL10,189–11,028 (840)
atp611,089–11,931 (843)280ATG/TAA
cox311,933–12,706 (774)257ATG/TAA
trnW12,709–12,770 (62) TCA
trnQ12,778–12,834 (57) TTG
trnI12,836–12,898 (63) GAT
trnG12,899–12,955 (57) TCC
trnD12,966–13,022 (57) GTC
atp812,951–13,169 (219)72ATA/TAA
nad313,169–13,531 (363)120ATA/TAG
SNCR13,532–13,619 (88)
trnA13,620–13,680 (61) TGC
trnS2 (UGN)13,638–13,692 (55) TGA
trnN13,691–13,747 (57) GTT
trnL2 (CUA)13,749–13,811 (63) TAG
trnC13,866–13,922 (57) GCA
trnY13,923–13,979 (57) GTA
Table
Table 3. Composition of nucleotides and skew values of T. skrjabini mitochondrial protein coding genes.
Table 3. Composition of nucleotides and skew values of T. skrjabini mitochondrial protein coding genes.
GeneAGCTA + T (%)AT skewGC skew
cox127.5016.1822.7833.5261.02−0.090.16
cox234.0613.7423.0929.0963.120.070.25
nad128.9613.2120.4537.3566.31−0.120,21
nad240.9916.3412.0030.6571.640.14−0.15
nad541.1414.3613.3531.1272.260.13−0.03
nad444.8213.3413.7528.0772.890.220.01
nad4L42.7110.6717.7928.8071.510.190.25
nad623.0912.8513.2850.7673.85−0.370.01
cytb27.7615.3615.8141.0668.82−0.190.01
atp633.3318.6218.6238.1971.52−0.060.30
cox328.1619.8919.8936.6964.85−0.130.13
atp830.5916.4316.4342.9273.51−0.160.24
nad332.2312.9415.1539.6671.89−0.100.07
rrnS35.6813.7813.4237.1072.78−0.01−0.01
rrnL38.3312.7313.8035.1173.440.040.04
LNCR34.6116.0213.4635.8970.50−0.01−0.08
SNCR47.7214.5413.6334.0981.810.160.50
Overall34.7513.8816.3834.9669.71−0.000.08
