Marker-Assisted Gene Pyramiding and the Reliability of Using SNP Markers Located in the Recombination Suppressed Regions of Sunflower (Helianthus annuus L.)
1
USDA-Agricultural Research Service, Edward T. Schafer Agricultural Research Center, 1616 Albrecht Blvd. N, Fargo, ND 58102-2765, USA
2
Department of Plant Sciences, North Dakota State University, Fargo, ND 58108, USA
*
Author to whom correspondence should be addressed.
Genes 2020, 11(1), 10; https://doi.org/10.3390/genes11010010
Submission received: 21 November 2019
/
Revised: 10 December 2019
/
Accepted: 17 December 2019
/
Published: 20 December 2019
(This article belongs to the Special Issue Sunflower Genetics)
Abstract
:Rust caused by the fungus Puccinia helianthi and downy mildew (DM) caused by the obligate pathogen Plasmopara halstedii are two of the most globally important sunflower diseases. Resistance to rust and DM is controlled by race-specific single dominant genes. The present study aimed at pyramiding rust resistance genes combined with a DM resistance gene, using molecular markers. Four rust resistant lines, HA-R3 (carrying the R4 gene), HA-R2 (R5), HA-R8 (R15), and RHA 397 (R13b), were each crossed with a common line, RHA 464, carrying a rust gene R12 and a DM gene PlArg. An additional cross was made between HA-R8 and RHA 397. Co-dominant simple sequence repeat (SSR) and single nucleotide polymorphism (SNP) markers linked to the target genes were used to discriminate between homozygotes and heterozygotes in F2 populations. Five pyramids with different combinations of rust resistance genes were selected in the homozygous condition through marker-assisted selection, and three of them were combined with a DM resistance gene PlArg: R4/R12/PlArg, R5/R12/PlArg, R13b/R12/PlArg, R15/R12, and R13b/R15. The pyramiding lines with the stacking of two rust and one DM genes were resistant to all known races of North American sunflower rust and all known races of the pathogen causing DM, potentially providing multiple and durable resistance to both rust and DM. A cluster of 12 SNP markers spanning a region of 34.5 Mb on chromosome 1, which co-segregate with PlArg, were tested in four populations. Use of those markers, located in a recombination suppressed region in marker selection, is discussed.
1. Introduction
Sunflower (Helianthus annuus L.) is cultivated globally and is highly valued as a source of edible oil rich in lineoleic or oleic acids with a high vitamin E content. However, sunflower crops can be infected by disease-causing bacterial, fungal, and viral pathogens, subsequently reducing yield and quality. Rust caused by the fungus Puccinia helianthi Schwein. and downy mildew (DM) caused by the obligate pathogen Plasmopara halstedii (Farl.) Berl. et. de Toni are the two of the most important sunflower diseases. Both are native to North America (NA) but have spread to nearly every sunflower growing region in the world; for review see [1,2]. Resistance to rust and DM is controlled by race-specific single dominant genes. There is a long history of the use of resistant varieties and hybrids to control rust and DM in sunflower production.
The first rust resistant cultivar was developed in Canada in 1954, and subsequently, two rust resistance genes (R genes), R1 and R2, were discovered [3,4]. Since then, a total of 13 rust R genes, R1–R5, R10–R15, Pu6, and Radv, have been reported from sunflower and its wild relatives, which are summarized in Ma et al. [5]. Major gene resistance against biotrophic pathogens, such as rust, is generally unstable and nondurable, due to the emergence of virulent races in pathogen populations. In the early 1960s, only four NA P. helianthi races, 1, 2, 3, and 4, corresponding to races 100, 500, 300, and 700 of the coded triplet system were identified [6]. Over four decades and more, Gulya and Markell [7] reported 39 NA P. helianthi races from 300 rust isolates collected from fields in 2007 and 2008. Friskop et al. [8] identified 29 NA P. helianthi races from 238 single-pustule isolates collected from fields in 2011 and 2012. Among the 13 rust R genes, only seven, R11, R12, R13a, R13b, R14, R15, and R16, remain effectively resistant to all P. helianthi races identified in the USA [5,9,10,11,12]. In some areas, although a single gene confers resistance to the existing pathogen population, large-scale use of this gene results in the breakdown of resistance. Pyramiding of more than one resistance gene in a single genotype is expected to considerably extend the durability and longevity of resistance due to the low probability of the pathogen being able to assemble multiple, rare virulence genes by mutation or recombination.
In traditional plant breeding, phenotypic selection of superior genotypes within segregating progeny obtained from crosses is a labor-intensive and time-consuming process. Advances in technology have changed agricultural practices over time. Development of modern plant molecular and quantitative genetics over the last three decades has made the integration of biotechnology and conventional breeding possible for many crops. The principles of gene pyramiding assume that parental lines containing target genes and markers linked to the target genes are available. Marker-assisted selection (MAS) can be used to pyramid several R genes into a single host genotype, which has been reported in rice [13,14,15], wheat [16,17,18,19,20], barley [21], soybean [22], and tomato [23], as well as in sunflower [24,25].
The rust R genes R4 in HA-R3 and R5 in HA-R2 confer resistance to 96.6% and 78.6% of 238 rust isolates tested, respectively, in the USA in 2011 and 2012 [8], while R12 in RHA 464, R13b in RHA 397, and R15 in HA-R8 confer resistance to all P. helianthi races identified in the USA [10]. These genes have been mapped to different sunflower chromosomes corresponding to linkage groups with linked markers—R5 on chromosome 2, R15 on chromosome 8, R12 on chromosome 11, and R4 and R13b on chromosome 13 [5,10,26,27,28,29].
DM is a seedling disease initiated by soil borne oospores of P. halstedii or infected seeds. The pathogen infects plants through the roots, eventually becoming systemic. There is no rescue treatment once the disease manifests. The inbred line RHA 464 carries a rust R gene, R12, as well as a broad-spectrum DM R gene, PlArg, which is resistant to all P. halstedii races [29,30,31,32,33]. PlArg has recently been genetically and physically mapped using high-density single nucleotide polymorphism (SNP) markers on chromosome 1, and the 12 diagnostic SNP markers co-segregating with PlArg span a physical distance of 34.5 Mb, due to suppressed recombination [25]. The distribution of the recombination being population-dependent was reported in wheat [34]. In this study, we report pyramiding of four rust R genes, R4, R5, R13b, and R15, with R12 and PlArg from RHA 464, as well as R13b and R15, using MAS to promote rust resistance efficiency and durability. Meanwhile, we examined the possible segregation of cluster markers linked to PlArg in the four distinct F2 populations to narrow down the physical interval of PlArg.
2. Materials and Methods
2.1. Parents and Populations for Gene Pyramiding
Five sunflower lines, HA-R2, HA-R3, HA-R8, RHA 397, and RHA 464, were used in the present study. HA-R2 (PI 650753, carrying the R5 gene) and HA-R3 (PI 650754, carrying R4) were released in 1985; these are selections from Argentinian open-pollinated cultivars [35]. RHA 397 (PI 597974) and HA-R8 (PI 607511) were released in 1997 and 2001, respectively [36,37]. The R13b gene in RHA 397 originated from a South African line RO-20-10-3-3-2, while R15 in HA-R8 was derived from a sunflower landrace of PI 432512 collected from Arizona, USA. The RHA 464 (PI 655015) line was released by the USDA-ASR with the North Dakota Agricultural Experiment Station in 2010 and possesses the rust and DM R genes R12 and PlArg, respectively [38]. R12 originated from the wild H. annuus PI 413047 and PlArg from the wild H. argophyllus PI 468651. The sunflower inbred line HA 89, which is susceptible to all DM and rust races was used as a susceptible control in the present study.
Four sunflower lines, HA-R2, HA-R3, RHA 397, and HA-R8, were each crossed with a common parent, RHA 464, to create four F2 populations for pyramiding the rust resistance genes combined with DM resistance. Population 1 (Pop1) was derived from a cross between HA-R3 and RHA 464, Population 2 (Pop2) from HA-R2/RHA 464, Population 3 (Pop3) from RHA 397/RHA 464, and Population 4 (Pop4) from HA-R8/RHA 464, while Population 5 (Pop5) was derived from a cross between RHA 397 and HA-R8 for pyramiding of the rust resistance genes R13b and R15.
2.2. Marker Selection
DNA markers used in the present study are listed in Table 1. The co-dominant nature of the polymorphisms exhibited by the selected markers enables discrimination between homozygotes and heterozygotes in F2 populations. In addition, 14 SNP markers diagnostic for PlArg were used for cluster marker analysis. Among them, 12 SNP markers co-segregate with PlArg and physically span a region of 34.5 Mb on chromosome 1 (Table 2) [25]. Marker-assisted selections were performed in all F2 generations. For each F2 population, initial selection was conducted using one marker per gene, and selected multi-R plants were further confirmed with additional markers.
Genomic DNA from each population, along with their parental lines, was extracted from the lyophilized tissues using the DNeasy 96 Plant Kit (Qiagen, Valencia, CA, USA), following the manufacturer’s instructions. DNA quantity and quality were determined using a NanoDrop 2000 Spectrophotometer (Thermo Fisher Scientific, Wilmington, DE, USA). Genotyping of the selected homozygous F2 plants from Pop2 and Pop3, along with the SNP markers, were conducted in BioDiagnostics Inc. (River Falls, WI, USA) in 2014. Genotyping of simple sequence repeat (SSR) and PCR-based SNP markers was performed by following the methods described by Qi et al. [9,39]. PCR products were diluted 20–160 times, depending on their yield and were detected using an IR2 4300/4200 DNA Analyzer with denaturing polyacrylamide gel electrophoresis (LI-COR, Lincoln, NE, USA).
2.3. New SSR Marker Development for R15
The rust resistance gene R15 was recently mapped to the upper end of sunflower chromosome 8 [5]. Unfortunately, SNP markers linked to R15 did not have any polymorphisms between HA-R8 and RHA 464. We extracted a sequence from the sunflower reference genome HA412-HO using the flanking markers SFW05824 (physical position 10,040,792 bp) and NSA_008457 (11,391,650 bp). SSRs were identified from the extracted sequences using the SSR Identification Tool from the Gramene. Out of the 13 designed SSR markers, two SSRs, SUN398 and SUN406, that mapped close to R15 and were used to screen R15 in Pop4 derived from the HA-R8/RHA 464 cross and the Pop5 derived from HA-R8/RHA 397. The SSR primer sequences were as follows (5′–3′): SUN398 F-ATCCAACCCGACTTCTTCGG, R-TGACAAACAGCCGCCTCTC and SUN406 F-CTCACTGGAAGCAGCCTCTC, R-TTCCATGTGCATCAATGTGGC.
2.4. Disease Evaluation
In addition to DNA marker selection in the F2 generations, both DM and the rust-resistant tests of these F2-derived F3 families that had two or three genes of interest in the homozygous state were conducted under greenhouse control conditions. The whole seedling immersion method was applied to test reactions to DM in sunflower seedlings using the NA P. halstedii race 734 [39,40], a new virulent race identified in the USA in 2010 [41]. Sunflower seedlings infected with DM display typical leaf chlorosis with white sporulation on the underside of their cotyledons and true leaves. A plant was scored as susceptible (S) if sporulation was observed on the cotyledons and true leaves, and was scored as resistant (R) if no sporulation was observed.
Twenty-four to seventy-two individual seedlings of each F3 family were first inoculated with P. halstedii race 734, and the resistant plants were then transferred to 36 cell plastic flats (each cell 4.6 cm × 5.4 cm) filled with Sunshine SB 100B potting mixture (SunGro Horticulture, Bellevue, WA, USA). After 10–12 days, seedlings at the four-leaf stage were inoculated with P. helianthi race 336, as described by Qi et al. [9]. The infection types (ITs) of rust were recorded on a scale of 0–4 [42], combined with the percentage of leaf area covered in pustules (severity), as described by Gulya et al. [43], after 12–14 days post inoculation. IT 0, 1, and 2 along with pustule coverage of 0 to 0.5% were recorded as resistant, while IT 3 and 4 with pustule coverage larger than 0.5% were considered susceptible.
3. Results
3.1. Marker Selection and Disease Evaluation of Homozygous Multi-Resistant Plants
3.1.1. R4/R12/PlArg Homozygous Plants
Three DNA markers, ORS316, NSA_001392, and NSA_002798, linked to genes R4, R12, and PlArg, respectively, were first used to screen Pop1, which was derived from a cross between HA-R3 and RHA 464, for genotypes being homozygous for the three genes. Out of the 376 F2 individuals screened, four plants were selected as homozygotes at all three marker loci and were further confirmed by the additional six markers, SFW05240 and SFW01497 for R4, NSA_00064 and NSA_001570 for R12, and NSA_002851 and NSA_006530 for PlArg (Figure 1, Table 1).
To confirm the presence of DM and rust resistance and to observe the effects of stacking rust genes, DM and rust tests were performed on selected F2-derived F3 families. The susceptible line HA 89 and the parental line HA-R3 showed the expected susceptibility reactions to NA P. halstedii race 734 exposure, after seedling inoculation, while 197 F3 plants from four F2-derived F3 families exhibited resistance to race 734 (Table 3). Subsequent rust tests revealed that F3 plants with two gene stacks, R4 and R12, were highly resistant, showing hypersensitive fleck without pustules after seedling inoculation with P. helianthi race 336, as compared to the parental lines HA-R3 and RHA 464, which exhibited an IT of 1 and a pustule coverage of 0.1% (Table 3). These results indicated an enhanced rust resistance in these plants. DM and rust tests confirmed that the entries were homozygous for R4, R12, and PlArg.
3.1.2. R5/R12/PlArg Homozygous Plants
A total of 752 F2 individuals from Pop2, derived from the HA-R2/RHA 464 cross, were initially screened using three markers. The SSR marker ORS1197 was used to identify F2 plants with the R5 gene, SNP NSA_001392 for R12, and SSR ORS610 for PlArg. Four plants with homozygous alleles at all three gene loci (R5 R5/R12R12/PlArgPlArg) were identified and further confirmed with seven additional SNP markers, three (SFW03654, NSA_000267, and NSA_001605) linked to R5, two (NSA_000064 and NSA_001570) linked to R12, and two (NSA_002851 and NSA_006530) linked to PlArg (Table 1).
DM phenotyping indicated that, as expected, the parental line HA-R2 was susceptible to P. halstedii race 734, similar to HA 89, a susceptible control, while 232 plants from the four F3 families exhibited homozygous resistance to downy mildew like the resistant donor RHA 464 (Table 3), confirming that these entries were homozygous for PlArg. In subsequent rust tests, the susceptible control HA 89 line developed severe symptoms with an IT of 4 and a pustule coverage of 40%, after infection with P. helianthi race 336 (Table 3). Comparing the effect of the different resistance sources for rust disease, the effect of the rust resistance gene in RHA 464 was higher than that in HA-R2. HA-R2 had an IT of 2 with a pustule coverage of 0.5%, while RHA 464 had an IT of 1 with a pustule coverage of 0.1% (Table 3). The selected plants with two gene stacks, R5 and R12, had a reaction to rust infection similar to RHA 464.
3.1.3. R13b/R12/PlArg Homozygous Plants
Initial screens of Pop3, derived from the RHA 397/RHA 464 cross, were conducted using three markers, ORS316 for R13b, NSA_001392 for R12, and ORS610 for PlArg, and three of the 758 F2 plants tested were homozygous at all three marker loci. The selected triple R-plants were further confirmed with six additional SNP markers, three NSA_000187, NSA_005565, and NSA_006846, one NSA_001570, and two NSA_002851 and NSA_006530 linked to the three targeted genes, respectively (Table 1).
As expected, the susceptible control HA 89 and the parental RHA 397 lines were susceptible to downy mildew, while the 180 F3 individuals from the three F2-derived F3 families, along with their resistant donor RHA 464, were resistant to inoculation with P. halstedii race 734. All F3 plants carrying R13b and R12 proved to be free of rust infection after inoculation with P. helianthi race 336 (Table 3). This demonstrated that the combination of R13b and R12 exerted an additive effect on the degree of resistance to rust.
3.1.4. R15/R12 Homozygous Plants
Two new SSR markers were developed in the present study due to a lack of polymorphic SNP markers linked to R15 in the HA-R8/RHA 464 F2 population. Linkage analysis with 186 F2 segregating plants derived from the HA 89/HA-R8 cross previously used to map the R15 gene [5] indicated that SSRs SUN398 and SUN406 co-segregated with a previously mapped SNP marker, SFW05824, distal to R15 at a genetic distance of 0.4 cM (Table 1).
A total of 470 F2 plants from HA-R8/RHA 464 were first screened using three markers, SSR SUN398, SNPs NSA_001392, and NSA_002798, targeting three genes, R15, R12, and PlArg, respectively, and two plants, 16-46-202 and 16-46-329, were identified as homozygous for all three loci. The three additional markers, SUN406, NSA_001570, and NSA_001835, one for each gene, further confirmed their homozygous state (Table 1).
Unexpectedly, 92 F3 plants from the two F2-derived F3 families exhibited homozygous susceptibility to DM, similar to the susceptible parent HA-R8, after inoculation with P. halstedii race 734 (Table 3). PlArg in RHA 464 co-segregated with 12 SNP markers that spanned a region of 34.5 Mb on chromosome 1 (Table 2) [25]. The two SNP markers used in the above screening, NSA_002798 and NSA_001835, were located on the lower end of the marker cluster (Table 2). One possibility is that recombination occurred between the clustered markers and the gene during line development, which altered the linkage phase between the markers and PlArg. To confirm this hypothesis, we tested these 14 SNP markers in all selected F2 individuals from the four F2 populations, from which the F3 families were derived (see below).
Because the F3 families tested were susceptible to DM and died, we regrew 44 and 48 pyramiding individuals from each of the two F3 families carrying R12 and R15 for rust evaluation. No segregation was detected in the rust phenotypic assessment, indicating the homozygous state of the selected F3 families. All F3 plants exhibited hypersensitive fleck without pustules after seedling inoculation with P. helianthi race 336, indicating an increased resistance to rust, as compared to both parents (Table 3).
3.1.5. R13b/R15 Homozygous Plants
Two SSR markers, ORS316 and SUN398, targeting the rust R genes R13b and R15, respectively, were used to screen Pop5, derived from the RHA 397 and HA-R8 cross. Twenty plants from 376 F2 individuals tested were homozygous at both marker loci, which was confirmed by an additional two markers, HT382 for R13b and SUN406 for R15 (Figure 2).
A total of 192 F3 plants from the four selected F3 families were evaluated for rust resistance using the P. helianthi race 336, along with the susceptible control HA 89 and both parents, RHA 397 and HA-R8. All F3 plants exhibited a hypersensitive fleck without pustules, compared to the susceptible control HA 89, which had an IT of 4, and more than 40% of the leaves were covered with pustules, and both parents, which had an IT of 1% and 0.1% of leaves, were covered with pustules (Table 3).
3.2. Detection of Recombination in the Marker Cluster Linked to PlArg
A total of 14 SNP markers that are diagnostic for RHA 464 marker alleles linked to PlArg were used to detect recombination among cluster markers in the multi-resistant F2 plants selected from the four different F2 populations. Of the 14 SNP markers selected, 12, spanning a region of 34.5 Mb on chromosome 1 physical map, co-segregated with PlArg, and two were proximal to PlArg, with genetic distances of 0.31 and 0.83 cM (Table 2) [25]. No recombination was detected in F2 plants derived from Pop1 of the HA-R3/RHA 464 cross or Pop2 of HA-R2/RHA 464 (Table 4). In Pop3 of RHA 397/RHA 464, one (14-21-129) of the three F2 plants exhibited recombination between markers NSA_008037 and NSA_007595, based on their physical positions (Figure 3, Table 4). The 14-21-129 F2 plant had heterozygous alleles at three SNP loci, NSA_007595, NSA_001835, and NSA_006530, while the F2-derived F3 family exhibited homozygous resistance to DM, indicating that the recombination did not involve the PlArg locus (Table 3).
In Pop4, derived from the HA-R8/RHA 464 cross, recombination was detected between SNP markers NSA_005063 and NSA_002851 based on their physical position in the two selected F2 plants, 16-46-202 and 16-46-329 (Figure 4, Table 2 and Table 4). Five SNPs, NSA_002208, NSA_000630, NSA_004149, NSA_005423, and NSA_005063, physically located in a region between 106 and 123 Mb, were homozygous for the HA-R8 SNP alleles, while the remaining nine SNPs physically located in a region between 124 and 145 Mb were homozygous for the RHA 464 SNP alleles. Two SNP markers, NSA_002798 and NSA_001835, which were used for the initial selection of F2 plants, belonged to the latter group. Although the two selected F2 plants had RHA 464 alleles at both NSA_002798 and NSA_001835 loci, the F2-derived F3 families exhibited homozygous susceptibility to DM, indicating that the genetic linkage between the markers and the PlArg gene was broken, altering the linkage phase of PlArg with the markers. Combined phenotyping and genotyping data placed PlArg in a position close to the first five SNP markers in the cluster (Figure 5, Table 4).
4. Discussion
Marker-assisted gene pyramiding has previously been successfully used in plant breeding, especially when selecting for disease and insect resistance controlled by major genes; for review see [44]. In the present study, we developed five pyramids with different rust R gene combinations, three of which were combined with a DM R gene: PlArg, R4/R12/PlArg, R5/R12/PlArg, R13b/R12/PlArg, R15/R12, and R13b/R15. Accumulating major genes for resistance in an elite genotype by conventional breeding is laborious and time-consuming when one or more of the genes are effective against all known isolates of the pathogen. Due to a lack of P. helianthi race to differentiate the R12 gene from the other four rust R genes, selection for plants having multiple genes using molecular markers is extremely important. The co-dominant nature of both SSR and SNP markers used in this study made it possible to select homozygous pyramids in the F2 generation. Rust evaluation of the F2-derived F3 families indicated that the pyramids generally showed enhanced resistance to the P. helianthi pathogen, compared to the parental lines, demonstrating a complementary effect of the two R genes when present together. The pyramids carrying R4/R12/PlArg, R13b/R12/PlArg, R15/R12, and R13b/R15 proved to be free of rust infection (Table 3). These lines, once released, will serve as valuable germplasms for the breeder to use in breeding programs. As a hybrid crop, sunflower breeders can transfer the different gene combinations into the cytoplasm male sterile (CMS) and male fertility restorer (Rf) lines, respectively, and the resulting F1 hybrids from the crosses of CMS/Rf will carry multiple rust R genes and a DM R gene, effectively suppressing the emergence of virulent isolates of the rust pathogen and potentially providing wider spectra and durable resistance to rust.
The minimum population size for successful recovery of a desirable genotype can be calculated in a three-unlinked gene pyramiding project. To obtain one F2 individual that is homozygous for resistance alleles at all three gene loci with a 99% probability of success, 293 individuals must be evaluated [45]. In the present study, we screened the four F2 populations, with sizes ranging from 376 to 758 F2 individuals, recovering three-gene pyramids from Pop1 (4/376), Pop2 (4/756), and Pop3 (3/758); Pop4 was an exception. As the recombination occurred between the flanking markers of PlArg, two selected F2 plants from 470 F2 individuals had lost the PlArg gene (Table 4).
PlArg was originally transferred from a wild H. argophyllus into cultivated sunflower in 1989 with no reports of resistance breakdown for more than 25 years [31,33,46]. Molecular mapping placed PlArg in a region with highly suppressed recombination on sunflower chromosome 1 [30,47]. Qi et al. [25] reported that 78 SNP markers co-segregated with PlArg in an F2 population derived from the cross of HA 89/RHA 464, and 12 of them were diagnostic for PlArg, which spanned a physical distance of 34.5 Mb (between 106.0 Mb and 140.5 Mb) in the HA412-HO genome assembly (Table 2). In the present study, the recombination events were observed in the marker cluster in the two F2 populations of RHA 397/RHA 464 and HA-R8/RHA 464. Crossover occurred between NSA_008037 and NSA_007595 in plant 14-21-129 in Pop3 of RHA 397/RHA 464 but did not change the linkage phase of PlArg with the markers (Table 4). Plant 14-21-129 displayed heterozygous alleles in three marker loci, NSA_007595, NSA_001835, and NSA_006530, while the F3 family derived from 14-21-129 exhibited homozygous resistance to DM. However, the observed recombination between NSA_005063 and NSA_002851 in Pop4 of HA-R8/RHA 464 did change the linkage phase of the PlArg with markers. Of the 14 SNP markers tested, selected F2 plants showed HA-R8 SNP alleles in the first five SNP loci and RHA 464 SNP alleles in the latter nine SNP loci (Table 2 and Table 4). The F2-derived F3 families were all susceptible to DM, indicating that PlArg is close to the first five SNPs in the marker cluster (Figure 5). This finding narrows down the PlArg-harboring region from 34.5 Mb to 17.3 Mb—between 106.0 Mb and 123.3 Mb (Table 2).
A high-density SNP map for PlArg was constructed using a biparental F2 population, as is the case for most genetic maps generated where one cycle of meiosis provided all recombination events in the population [25]. Whereas, a breeding program might involve more than two parents and multiple crosses, as a result, greatly increasing the recombination rate in breeding population and decreasing the reliability of the marker-based selection because of the increasing cycles of meiosis. Although the present study placed PlArg within a five-SNP cluster that co-segregated with the gene, these markers still spanned a physical distance of 17.3 Mb. With potential increases in recombination in breeding populations, there is a chance that crossover occurred between PlArg and the five SNP-cluster. Using SNP markers selected from a five SNP-cluster combining the closest flanking marker, NSA_002851, is recommended in MAS for breeding programs, which would greatly increase the reliability of the markers for predicting phenotypes.
Author Contributions
Conceived and designed the experiments: L.Q. Performed the experiments: L.Q. and G.M. Analyzed data: L.Q. and G.M. Wrote the paper: L.Q. All authors have read and agreed to the published version of the manuscript.
Funding
This research was supported by the USDA-ARS CRIS Project No. 3060-2100-043-00D. The mention of trade names or commercial products in this report is solely for the purpose of providing specific information and does not imply recommendation or endorsement by the US Department of Agriculture. The USDA is an equal opportunity provider and employer.
Acknowledgments
The authors would like to thank Angelia Hogness for the technical assistance provided.
Conflicts of Interest
The authors declare no conflicts of interest.
References
- Sackston, W.E. On a treadmill, breeding sunflowers for resistance to disease. Annu. Rev. Phytopathol. 1992, 30, 529–551. [Google Scholar] [CrossRef] [PubMed]
- Vear, F. Breeding disease-resistant sunflowers. CAB Rev. 2017, 12, 1–11. [Google Scholar] [CrossRef]
- Putt, E.D.; Sackston, W.E. Studies on sunflower rust. I. Some sources of rust resistance. Can. J. Plant Sci. 1957, 37, 43–54. [Google Scholar] [CrossRef]
- Putt, E.D.; Sackston, W.E. Studies on sunflower rust. IV. Two genes, R1 and R2 for resistance in the host. Can. J. Plant Sci. 1963, 43, 490–496. [Google Scholar] [CrossRef]
- Ma, G.J.; Song, Q.J.; Markell, S.G.; Qi, L.L. High throughput genotyping-by-sequencing facilitates molecular tagging of a novel rust resistance gene, R15, in sunflower (Helianthus annuus L.). Theor. Appl. Genet. 2018, 131, 1423–1432. [Google Scholar] [CrossRef]
- Sackston, W.E. Studies on sunflower rust. III. Occurrence, distribution, and significance of race Puccinia helianthi Schw. Can. J. Bot. 1962, 40, 1449–1458. [Google Scholar] [CrossRef]
- Gulya, T.J.; Markell, S. Sunflower rust status-2008 race frequency across the Midwest and resistance among commercial hybrids. In Proceedings of the 31st Sunflower Research Forum, Fargo, ND, USA, 13–14 January 2009; Available online: https://www.sunflowernsa.com/uploads/15/gulya_ruststatus_09.pdf (accessed on 20 November 2019).
- Friskop, A.J.; Gulya, T.J.; Harveson, R.H.; Humann, R.M.; Acevedo, M.; Markell, S.G. Phenotypic diversity of Puccinia helianthi (sunflower rust) in the United States from 2011 and 2012. Plant Dis. 2015, 99, 1604–1609. [Google Scholar] [CrossRef] [Green Version]
- Qi, L.L.; Gulya, T.J.; Seiler, G.J.; Hulke, B.S.; Vick, B.A. Identification of resistance to new virulent races of rust in sunflowers and validation of DNA markers in the gene pool. Phytopathology 2011, 101, 241–249. [Google Scholar] [CrossRef] [Green Version]
- Gong, L.; Gulya, T.J.; Markell, S.G.; Hulke, B.S.; Qi, L.L. Genetic mapping of rust resistance genes in confection sunflower line HA-R6 and oilseed line RHA 397. Theor. Appl. Genet. 2013, 126, 2039–2049. [Google Scholar] [CrossRef]
- Zhang, M.; Liu, Z.; Jan, C.C. Molecular mapping of a rust resistance gene R14 in cultivated sunflower line PH3. Mol. Breed. 2016, 36, 32. [Google Scholar] [CrossRef]
- Liu, Z.; Zhang, L.; Ma, G.J.; Seiler, G.J.; Jan, C.C.; Qi, L.L. Molecular mapping of the downy mildew and rust resistance genes in a sunflower germplasm line TX16R. Mol. Breed. 2019, 39, 19. [Google Scholar] [CrossRef]
- Hittalmani, S.; Parco, A.; Mew, T.V.; Zeigler, R.S.; Huang, N. Fine mapping and DNA marker-assisted pyramiding of the three major genes for blast resistance in rice. Theor. Appl. Genet. 2000, 100, 1121–1128. [Google Scholar] [CrossRef]
- Singh, S.; Sidhu, J.S.; Huang, N.; Vikal, Y.; Li, Z.; Brar, D.S.; Dhaliwal, H.S.; Khush, G.S. Pyramiding three bacterial blight resistance genes (xa5; xa13 and Xa21) using marker-assisted selection into indica rice cultivar PR106. Theor. Appl. Genet. 2001, 102, 1011–1015. [Google Scholar] [CrossRef]
- Fukuoka, S.; Saka, N.; Mizukami, Y.; Koga, H.; Yamanouchi, U.; Yoshioka, Y.; Hayashi, N.; Ebana, K.; Mizobuchi, R.; Yano, M. Gene pyramiding enhances durable blast disease resistance in rice. Sci. Rep. 2015, 5, 7773. [Google Scholar] [CrossRef] [Green Version]
- Kloppers, F.J.; Pretorious, Z.A. Effects of combinations amongst genes Lr13; Lr34 and Lr37 on components of resistance in wheat to leaf rust. Plant Pathol. 1997, 46, 737–750. [Google Scholar] [CrossRef]
- Liu, J.; Liu, D.; Tao, W.; Li, W.; Wang, S.; Chen, P.; Cheng, S.; Gao, D. Molecular marker-facilitated pyramiding of different genes for powdery mildew resistance in wheat. Plant Breed. 2000, 119, 21–24. [Google Scholar] [CrossRef]
- Samsampour, D.; Zanjani, M.; Singh, A.; Pallavi, J.K.; Prabhu, K.V. Marker assisted selection to pyramid seedling resistance gene Lr24 and adult plant resistance gene Lr48 for leaf rust resistance in wheat. Ind. J. Genet. Plant Breed. 2009, 69, 1–9. [Google Scholar]
- Mago, R.; Lawrence, G.J.; Ellis, J.G. The application of DNA marker and doubled-haploid technology for stacking multiple stem rust resistance genes in wheat. Mol. Breed. 2011, 27, 329–335. [Google Scholar] [CrossRef]
- Singh, M.; Mallick, N.; Chand, S.; Kumari, P.; Sharma, J.B.; Sivasamy, M.; Jayaprakash, P.; Prabhu, K.V.; Jha, S.K. Vinod Marker-assisted pyramiding of Thinopyrum-derived leaf rust resistance genes Lr19 and Lr24 in bread wheat variety HD2733. J. Genet. 2017, 96, 951–957. [Google Scholar] [CrossRef]
- Werner, K.; Friedt, W.; Ordon, F. Strategies for pyramiding resistance genes against the barley yellow mosaic virus complex (BaMMV; BaYMV; BaYMV-2). Mol. Breed. 2005, 16, 45–55. [Google Scholar] [CrossRef]
- Shi, A.L.; Chen, P.Y.; Li, D.X.; Zheng, C.M.; Zhang, B.; Hou, A.F. Pyramiding multiple genes for resistance to soybean mosaic virus in soybean using molecular markers. Mol. Breed. 2009, 23, 113–124. [Google Scholar] [CrossRef]
- Hanson, P.; Lu, S.F.; Wang, J.F.; Chen, W.; Kenyon, L.; Tan, C.W.; Tee, K.L.; Wang, Y.Y.; Hsu, Y.C.; Schafleitner, R.; et al. Conventional and molecular marker-assisted selection and pyramiding of genes for multiple disease resistance in tomato. Sci. Hort. 2016, 201, 346–354. [Google Scholar] [CrossRef] [Green Version]
- Qi, L.L.; Ma, G.J.; Long, Y.M.; Hulke, B.S.; Markell, S.G. Relocation of a rust resistance gene R2 and its marker-assisted gene pyramiding in confection sunflower (Helianthus annuus L.). Theor. Appl. Genet. 2015, 128, 477–488. [Google Scholar] [CrossRef] [PubMed]
- Qi, L.L.; Talukder, Z.I.; Hulke, B.S.; Foley, M.E. Development and dissection of diagnostic SNP markers for the downy mildew resistance genes PlArg and Pl8 and maker-assisted gene pyramiding in sunflower (Helianthus annuus L.). Mol. Genet. Genom. 2017, 292, 551–563. [Google Scholar] [CrossRef]
- Qi, L.L.; Hulke, B.S.; Vick, B.A.; Gulya, T.J. Molecular mapping of the rust resistance gene R4 to a large NBS-LRR cluster on linkage group 13 of sunflower. Theor. Appl. Genet. 2011, 123, 351–358. [Google Scholar] [CrossRef] [Green Version]
- Qi, L.L.; Gulya, T.J.; Hulke, B.S.; Vick, B.A. Chromosome location, DNA markers and rust resistance of the sunflower gene R5. Mol. Breed. 2012, 30, 745–756. [Google Scholar] [CrossRef]
- Qi, L.L.; Long, Y.M.; Ma, G.J.; Markell, S.G. Map saturation and SNP marker development for the rust resistance genes (R4, R5, R13a, and R13b) in sunflower (Helianthus annuus L.). Mol. Breed. 2015, 35, 196. [Google Scholar] [CrossRef]
- Gong, L.; Hulke, B.S.; Gulya, T.J.; Markell, S.G.; Qi, L.L. Molecular tagging of a novel rust resistance gene R12 in sunflower (Helianthus annuus L.). Theor. Appl. Genet. 2013, 126, 93–99. [Google Scholar] [CrossRef]
- Dußle, C.M.; Hahn, V.; Knapp, S.J.; Bauer, E. PlArg from Helianthus argophyllus is unlinked to other known downy mildew resistance genes in sunflower. Theor. Appl. Genet. 2004, 109, 1083–1086. [Google Scholar] [CrossRef]
- Gascuel, Q.; Martinez, Y.; Boniface, M.-C.; Vear, F.; Pichon, M.; Godiard, L. The sunflower downy mildew pathogen Plasmopara halstedii. Mol. Plant Pathol. 2015, 16, 109–122. [Google Scholar] [CrossRef]
- Talukder, Z.I.; Gong, L.; Hulke, B.S.; Pegadaraju, V.; Song, Q.J.; Schultz, Q.; Qi, L.L. A high-density SNP map of sunflower derived from RAD-sequencing facilitating fine-mapping of the rust resistance gene R12. PLoS ONE 2014, 9, e98628. [Google Scholar] [CrossRef] [PubMed]
- Gilley, M.A.; Markell, S.G.; Gulya, T.J.; Misar, C.G. Prevalence and virulence of Plasmopara halstedii (downy mildew) in sunflowers. In Proceedings of the 38th Sunflower Research Forum, Fargo, ND, USA, 12–13 January 2016; Available online: http//www.sunflowernsa.com/uploads/research/1277/Prevalence.Downey_Gilley.etal_2016.rev.pdf (accessed on 20 November 2019).
- Saintenac, C.; Falque, M.; Martin, O.C.; Paux, E.; Feuillet, C.; Sourdille, P. Detailed recombination studies along chromosome 3B provide new insights on crossover distribution in wheat (Triticum aestivum L.). Genetics 2009, 181, 393–403. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Gulya, T.J. Registration of five disease-resistant sunflower germplasms. Crop Sci. 1985, 25, 719–720. [Google Scholar] [CrossRef]
- Miller, J.F.; Gulya, T.J. Registration of eight maintainer (HA 393; HA 394 and HA 402 to HA 407) and seven restorer (RHA 395 to RHA 401) sunflower germplasm lines. Crop Sci. 1997, 37, 1988–1989. [Google Scholar] [CrossRef]
- Miller, J.F.; Gulya, T.J. Registration of three rust resistant sunflower germplasm populations. Crop Sci. 2011, 41, 601. [Google Scholar] [CrossRef]
- Hulke, B.S.; Miller, J.F.; Gulya, T.J. Registration of the restorer oilseed sunflower germplasm RHA 464 processing genes for resistance to downy mildew and sunflower rust. J. Plant Reg. 2010, 4, 249–254. [Google Scholar] [CrossRef]
- Qi, L.L.; Foley, M.E.; Cai, X.W.; Gulya, T.J. Genetics and mapping of a novel downy mildew resistance gene, Pl18, introgressed from wild Helianthus argophyllus into cultivated sunflower (Helianthus annuus L.). Theor. Appl. Genet. 2016, 129, 741–752. [Google Scholar] [CrossRef]
- Gulya, T.J.; Miller, J.F.; Viranyi, F.; Sackston, W.E. Proposed internationally standardized methods for race identification of Plasmopara halstedii. Helia 1991, 14, 11–20. [Google Scholar]
- Gulya, T.J.; Markell, S.; McMullen, M.; Harveson, B.; Osborne, L. New virulent races of downy mildew, distribution; status of DM resistant hybrids; and USDA sources of resistance. In Proceedings of the 33rd Sunflower Research Forum, Fargo, ND, USA, 12–13 January 2011; Available online: http//www.sunflowernsa.com/uploads/resources/575/gulya_virulentracesdownymildew.pdf (accessed on 20 November 2019).
- Yang, S.M.; Antonelli, E.F.; Luciano, A.; Luciani, N.D. Reactions of Argentine and Australian sunflower rust differentials to four North American cultures of Puccinia helianthi from North Dakota. Plant Dis. 1986, 70, 883–886. [Google Scholar] [CrossRef]
- Gulya, T.J.; Venette, R.; Venette, J.R.; Lamey, H.A. Sunflower Rust; NDSU Experimental Service: Fargo, ND, USA, 1990; Available online: https//library.ndsu.edu/ir/bitstream/handle/10365/5283/pp998.pdf?sequence=1&isAllowed=y (accessed on 20 November 2019).
- Joshi, R.K.; Nayak, S. Gene pyramiding-A broad spectrum technique for developing durable stress resistance in crops. Biotechnol. Mol. Biol. Rev. 2010, 5, 51–60. [Google Scholar]
- Sedcole, J.R. Number of plants necessary to recover a trait. Crop Sci. 1977, 17, 667–668. [Google Scholar]
- Seiler, G.J. Registration of 13 downy mildew tolerant interspecific sunflower germplasm lines derived from wild annual species. Crop Sci. 1991, 31, 1714–1716. [Google Scholar]
- Wieckhorst, S.; Bachlava, E.; Dußle, C.M.; Tang, S.; Gao, W.; Saski, C.; Knapp, S.J.; Schön, C.C.; Hahn, V.; Bauer, E. Fine mapping of the sunflower resistance locus PlARG introduced from the wild species Helianthus argophyllus. Theor. Appl. Genet. 2010, 121, 1633–1644. [Google Scholar] [CrossRef] [PubMed] [Green Version]

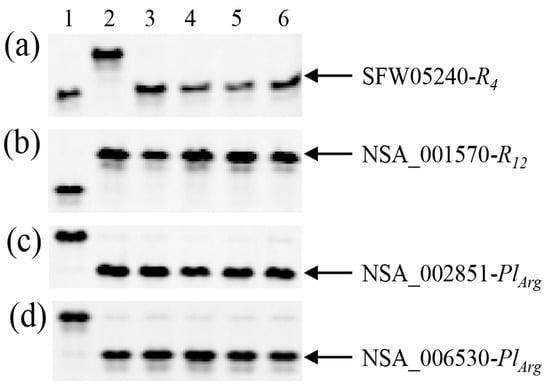

Figure 1.
PCR gel image of single nucleotide polymorphism (SNP) markers for testing homozygous triple-resistant F2 plants from HA-R3/RHA 464. (a) SFW05240 linked to R4, (b) NSA_001570 linked to R12, (c,d) NSA_002851 and NSA_006530 linked to PlArg. 1: HA-R3, 2: RHA 464, 3–6: Homozygous triple-resistant plants for R4/R12/PlArg.
Figure 1.
PCR gel image of single nucleotide polymorphism (SNP) markers for testing homozygous triple-resistant F2 plants from HA-R3/RHA 464. (a) SFW05240 linked to R4, (b) NSA_001570 linked to R12, (c,d) NSA_002851 and NSA_006530 linked to PlArg. 1: HA-R3, 2: RHA 464, 3–6: Homozygous triple-resistant plants for R4/R12/PlArg.

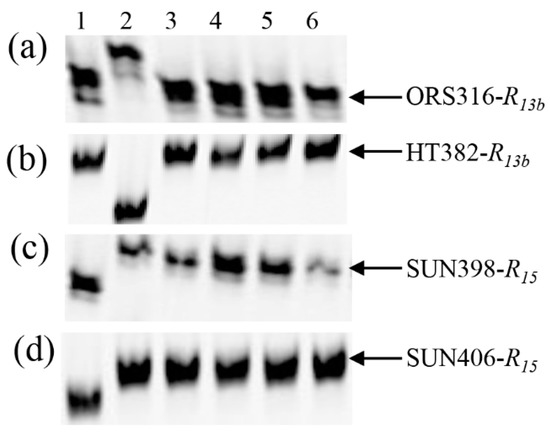

Figure 2.
PCR gel image of SSR markers for testing the homozygous double-resistant F2 plants from RHA397/HA-R8. (a,b) ORS316 and HT382 linked to R13b. (c,d) SUN398 and SUN406 linked to R15. 1: RHA 397, 2: HA-R8, 3–6: Homozygous double-resistant plants for R13b/R15.
Figure 2.
PCR gel image of SSR markers for testing the homozygous double-resistant F2 plants from RHA397/HA-R8. (a,b) ORS316 and HT382 linked to R13b. (c,d) SUN398 and SUN406 linked to R15. 1: RHA 397, 2: HA-R8, 3–6: Homozygous double-resistant plants for R13b/R15.

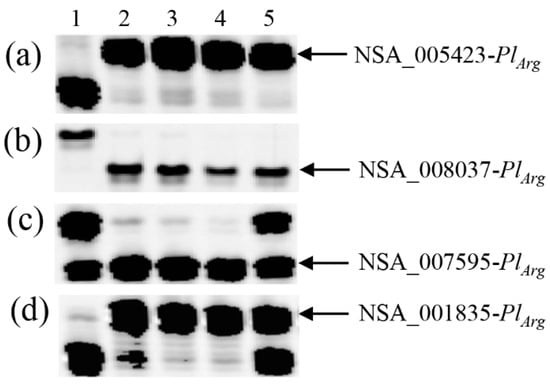

Figure 3.
PCR gel image of SNP markers linked to PlArg indicates recombination between NSA_008037 and NSA_007595 in selected F2 plants from RHA 397/RHA 464. (a) NSA_005423, (b) NSA_008037, (c) NSA_007595, and (d) NSA_001835. 1: RHA 397, 2: RHA 464, 3: 14-21-319, 4: 14-21-413, 5: 14-21-129. 14-21-129 was homozygous at the NSA_005423 and NSA_008037 loci but heterozygous at the NSA_007595 and NSA_001835 loci.
Figure 3.
PCR gel image of SNP markers linked to PlArg indicates recombination between NSA_008037 and NSA_007595 in selected F2 plants from RHA 397/RHA 464. (a) NSA_005423, (b) NSA_008037, (c) NSA_007595, and (d) NSA_001835. 1: RHA 397, 2: RHA 464, 3: 14-21-319, 4: 14-21-413, 5: 14-21-129. 14-21-129 was homozygous at the NSA_005423 and NSA_008037 loci but heterozygous at the NSA_007595 and NSA_001835 loci.
Figure 4.
PCR gel image of SNP markers linked to PlArg indicates recombination between NSA_005063 and NSA_002851 in the selected F2 plants from HA-R8/RHA 464. (a) NSA_002208, (b) NSA_005063, (c) NSA_002851, and (d) NSA_001835. 1: HA-R8, 2: RHA 464, 3: 16-46-202, and 4: 16-46-329. 16-46-202 and 16-46-329 did not have PlArg SNP alleles at the NSA_002208 or NSA_005063 loci but had PlArg SNP alleles at the NSA_002851 and NSA_001835 loci.
Figure 4.
PCR gel image of SNP markers linked to PlArg indicates recombination between NSA_005063 and NSA_002851 in the selected F2 plants from HA-R8/RHA 464. (a) NSA_002208, (b) NSA_005063, (c) NSA_002851, and (d) NSA_001835. 1: HA-R8, 2: RHA 464, 3: 16-46-202, and 4: 16-46-329. 16-46-202 and 16-46-329 did not have PlArg SNP alleles at the NSA_002208 or NSA_005063 loci but had PlArg SNP alleles at the NSA_002851 and NSA_001835 loci.

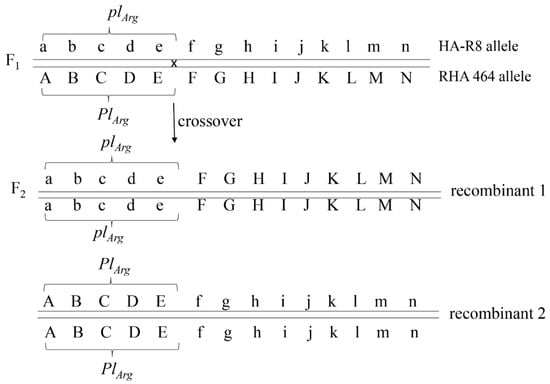

Figure 5.
A crossover occurred between marker E and F and changed the linkage phase of PlArg with the markers. A to N represent 14 SNP markers listed in Table 2. Lower case letters represent the HA-R8 SNP allele and the upper case letters represent the RHA 464 SNP allele. PlArg co-segregated with the first five markers.
Figure 5.
A crossover occurred between marker E and F and changed the linkage phase of PlArg with the markers. A to N represent 14 SNP markers listed in Table 2. Lower case letters represent the HA-R8 SNP allele and the upper case letters represent the RHA 464 SNP allele. PlArg co-segregated with the first five markers.
Table 1.
DNA markers used in the present study.
| Markers/Genes | Marker Type | Chromosome/Linkage Group | Position (cM) | Reference |
|---|---|---|---|---|
| ORS316 | SSR | 13 | 3.5 | [28] |
| SFW05240 | SNP | 3.5 | ||
| R4 | 4.1 | |||
| SFW01497 | SNP | 4.8 | ||
| ORS1197 | SSR | 2 | 12.2 | [28] |
| NSA_001605 | SNP | 14.4 | ||
| SFW03654 | SNP | 14.9 | ||
| R5 | 15.5 | |||
| NSA_000267 | SNP | 16.7 | ||
| NSA_000064 | SNP | 11 | 44.6 | [32] |
| R12 | 45.4 | |||
| NSA_001392 | SNP | 46.8 | ||
| NSA_001570 | SNP | 46.8 | ||
| ORS316 | SSR | 13 | 5.9 | [28] |
| NSA_000187 | SNP | 5.9 | ||
| NSA_005565 | SNP | 5.9 | ||
| NSA_006846 | SNP | 5.9 | ||
| R13b | 6.8 | |||
| HT382 | SSR | 14.4 | ||
| SUN398 | SSR | 8 | 17.7 | [5], present study |
| SUN406 | SSR | 17.7 | ||
| R15 | 18.1 | |||
| ORS610 | SSR | 1 | 29.4 | [25] |
| PlArg | 29.7 | |||
| NSA_002851 | SNP | 29.7 | ||
| NSA_002798 | SNP | 29.7 | ||
| NSA_001835 | SNP | 30.0 | ||
| NSA_006530 | SNP | 30.5 |
Markers used for initial screening are in bold.
Table 2.
SNP markers and their genetic and physical position in relation to PlArg.
| SNP ID | Recombination between Markers a | Genetic Position (cM) a | Physical Position (bp) in HA 412-HO Assembly | |
|---|---|---|---|---|
| Start | End | |||
| NSA_002208 | 29.68 | 105,999,004 | 105,999,300 | |
| NSA_000630 | 0 | 29.68 | 108,193,829 | 108,194,264 |
| NSA_004149 | 0 | 29.68 | 109,941,814 | 109,942,141 |
| NSA_005423 | 0 | 29.68 | 110,935,770 | 110,936,060 |
| NSA_005063 | 0 | 29.68 | 123,281,156 | 123,281,926 |
| PlArg | 0 | 29.69 | ||
| NSA_002851 | 0 | 29.68 | 124,006,083 | 124,006,420 |
| NSA_002867 | 0 | 29.68 | 129,149,732 | 129,150,065 |
| NSA_005624 | 0 | 29.68 | 132,990,525 | 132,990,886 |
| NSA_002798 | 0 | 29.68 | 135,732,577 | 135,733,004 |
| NSA_002131 | 0 | 29.68 | 135,852,458 | 135,852,909 |
| NSA_008037 | 0 | 29.68 | 137,830,356 | 137,830,737 |
| NSA_007595 | 0 | 29.68 | 140,507,251 | 140,507,591 |
| NSA_001835 | 1 | 30.00 | 143,343,690 | 143,344,747 |
| NSA_006530 | 1 | 30.52 | 143,859,036 | 143,859,455 |
a Modified from Qi et al. (2017) based on the current study. The size of the sunflower chromosome 1 physical map is 175,985,764 bp for HA412-HO assembly.
Table 3.
Summary of Downy Mildew and Rust Tests in F3 Families.
| Plant No. | Genes/Pyramided Genes | Materials | DM Score (Race 734) | Rust Score (Race 336) | ||||
|---|---|---|---|---|---|---|---|---|
| No. of Plants Tested | S | R | No. of Plants Tested | IT | Severity | |||
| 2008 GH | - | HA 89 (S-control) | 12 | 12 | 0 | 12 | 4 | 40 |
| 2014 GH | R4 | HA-R3 | 24 | 24 | 0 | 12 | 1 | 0.1 |
| 15-2076 | R12/PlArg | RHA 464 | 12 | 0 | 12 | 12 | 1 | 0.1 |
| 16-069-18 | R4/R12/PlArg | HA-R3 × RHA 464 F3 | 36 | 0 | 36 | 36 | 0 | 0 |
| 16-069-46 | 60 | 0 | 60 | 60 | 0 | 0 | ||
| 16-069-121 | 53 | 0 | 53 | 53 | 0 | 0 | ||
| 16-069-288 | 60 | 0 | 60 | 60 | 0 | 0 | ||
| 2008 GH | - | HA 89 (S-control) | 12 | 12 | 0 | 12 | 4 | 40 |
| 2012 GH | R5 | HA-R2 | 20 | 20 | 0 | 12 | 2 | 0.5 |
| 15-2076 | R12/PlArg | RHA464 | 12 | 0 | 12 | 12 | 1 | 0.1 |
| 14-22-693 | R5/R12/PlArg | HA-R2 × RHA 464 F3 | 54 | 0 | 54 | 54 | 1 | 0.1 |
| 14-22-694 | 46 | 0 | 46 | 46 | 1 | 0.1 | ||
| 14-22-737 | 68 | 0 | 68 | 68 | 1 | 0.1 | ||
| 14-22-786 | 64 | 0 | 64 | 64 | 1 | 0.1 | ||
| 2008 GH | - | HA 89 (S-control) | 12 | 12 | 0 | 12 | 4 | 40 |
| 10-002-2 | R13b | RHA 397 | 16 | 16 | 0 | 12 | 1 | 0.1 |
| 15-2076 | R12/PlArg | RHA 464 | 12 | 0 | 12 | 12 | 1 | 0.1 |
| 14-21-129 | R13b/R12/PlArg | RHA 397 × RHA 46 F3 | 48 | 0 | 48 | 48 | 0 | 0 |
| 14-21-319 | 72 | 0 | 72 | 72 | 0 | 0 | ||
| 14-21-413 | 60 | 0 | 60 | 60 | 0 | 0 | ||
| 2008 GH | - | HA 89 (S-control) | 12 | 12 | 0 | 12 | 4 | 40 |
| 2012 GH | R15 | HA-R8 | 28 | 28 | 0 | 12 | 1 | 0.1 |
| 15-2076 | R12/PlArg | RHA 464 | 12 | 0 | 12 | 12 | 1 | 0.1 |
| 16-46-202 | R15/R12 | RHA 464 × HA-R8 F3 | 32 | 32 | 0 | 44 | 0 | 0 |
| 16-46-329 | 28 | 28 | 0 | 48 | 0 | 0 | ||
| 2008 GH | - | HA 89 (S-control) | - | - | - | 32 | 4 | 40 |
| 2012 GH | R15 | HA-R8 | - | - | - | 16 | 1 | 0.1 |
| 10-002-2 | R13b | RHA 397 | - | - | - | 16 | 1 | 0.1 |
| 16-043-13 | R13b/R15 | RHA 397 × HA-R8 F3 | - | - | - | 48 | 0 | 0 |
| 16-043-115 | - | - | - | 48 | 0 | 0 | ||
| 16-044-81 | - | - | - | 48 | 0 | 0 | ||
| 16-044-181 | - | - | - | 48 | 0 | 0 | ||
S, susceptible; R, resistant.
Table 4.
Summary of the PlArg cluster marker tests in the multi-resistant F2 plants selected from the four F2 populations.
Table 4.
Summary of the PlArg cluster marker tests in the multi-resistant F2 plants selected from the four F2 populations.
| Selected F2 Plants | F3 DM Phenotype | PlArg SNP Marker | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NSA_002208 | NSA_000630 | NSA_004149 | NSA_005423 | NSA_005063 | NSA_002851 | NSA_002867 | NSA_005624 | NSA_002798 | NSA_002131 | NSA_008037 | NSA_007595 | NSA_001835 | NSA_006530 | ||
| RHA397 | S | A | A | A | A | A | A | A | A | A | A | A | A | A | A |
| RHA464 | R | B | B | B | B | B | B | B | B | B | B | B | B | B | B |
| 14-21-129 | R | B | B | B | B | B | B | B | B | B | B | B | H | H | H |
| 14-21-319 | R | B | B | B | B | B | B | B | B | B | B | B | B | B | B |
| 14-21-413 | R | B | B | B | B | B | B | B | B | B | B | B | B | B | B |
| HA-R2 | S | A | A | A | A | A | A | A | A | A | A | A | A | A | A |
| RHA464 | R | B | B | B | B | B | B | B | B | B | B | B | B | B | B |
| 14-22-693 | R | B | B | B | B | B | B | B | B | B | B | B | B | B | B |
| 14-22-694 | R | B | B | B | B | B | B | B | B | B | B | B | B | B | B |
| 14-22-737 | R | B | B | B | B | B | B | B | B | B | B | B | B | B | B |
| 14-22-786 | R | B | B | B | B | B | B | B | B | B | B | B | B | B | B |
| HA-R3 | S | A | A | A | A | A | A | A | A | A | A | A | A | A | A |
| RHA464 | R | B | B | B | B | B | B | B | B | B | B | B | B | B | B |
| 16-69-18 | R | B | B | B | B | B | B | B | B | B | B | B | B | B | B |
| 16-69-46 | R | B | B | B | B | B | B | B | B | B | B | B | B | B | B |
| 16-69-121 | R | B | B | B | B | B | B | B | B | B | B | B | B | B | B |
| 16-69-288 | R | B | B | B | B | B | B | B | B | B | B | B | B | B | B |
| HA-R8 | S | A | A | A | A | A | A | A | A | A | A | A | A | A | A |
| RHA464 | R | B | B | B | B | B | B | B | B | B | B | B | B | B | B |
| 16-46-202 | S | A | A | A | A | A | B | B | B | B | B | B | B | B | B |
| 16-46-329 | S | A | A | A | A | A | B | B | B | B | B | B | B | B | B |
A, SNP allele other than that of RHA 464; B, RHA 464 SNP allele; H, heterozygous; S, homozygous susceptible; R, homozygous resistant. The bold capital letters indicate recombination between markers.
© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Qi, L.; Ma, G. Marker-Assisted Gene Pyramiding and the Reliability of Using SNP Markers Located in the Recombination Suppressed Regions of Sunflower (Helianthus annuus L.). Genes 2020, 11, 10. https://doi.org/10.3390/genes11010010
AMA Style
Qi L, Ma G. Marker-Assisted Gene Pyramiding and the Reliability of Using SNP Markers Located in the Recombination Suppressed Regions of Sunflower (Helianthus annuus L.). Genes. 2020; 11(1):10. https://doi.org/10.3390/genes11010010
Chicago/Turabian StyleQi, Lili, and Guojia Ma. 2020. "Marker-Assisted Gene Pyramiding and the Reliability of Using SNP Markers Located in the Recombination Suppressed Regions of Sunflower (Helianthus annuus L.)" Genes 11, no. 1: 10. https://doi.org/10.3390/genes11010010
APA StyleQi, L., & Ma, G. (2020). Marker-Assisted Gene Pyramiding and the Reliability of Using SNP Markers Located in the Recombination Suppressed Regions of Sunflower (Helianthus annuus L.). Genes, 11(1), 10. https://doi.org/10.3390/genes11010010
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
