Biodiversity and Habitats of Polar Region Polyhydroxyalkanoic Acid-Producing Bacteria: Bioprospection by Popular Screening Methods

by
Małgorzata Marta Rogala
1,
Jan Gawor
2,
Robert Gromadka
2,
Magdalena Kowalczyk
3 and
Jakub Grzesiak
1,*
1
Department of Antarctic Biology, Institute of Biochemistry and Biophysics, Polish Academy of Sciences Pawińskiego 5A, 02-106 Warszawa, Poland
2
Laboratory of DNA Sequencing and Oligonucleotide Synthesis, Institute of Biochemistry and Biophysics, Polish Academy of Sciences, Pawińskiego 5A, 02-106 Warszawa, Poland
3
Department of Microbial Biochemistry, Institute of Biochemistry and Biophysics, Polish Academy of Sciences Pawińskiego 5A, 02-106 Warszawa, Poland
*
Author to whom correspondence should be addressed.
Genes 2020, 11(8), 873; https://doi.org/10.3390/genes11080873
Submission received: 30 June 2020 / Revised: 24 July 2020 / Accepted: 27 July 2020 / Published: 31 July 2020
(This article belongs to the Special Issue Genetics and Genomics of Psychrophilic and Psychrotolerant Microorganisms)
Browse Figures
Versions Notes

Abstract

:
Polyhydroxyalkanoates (PHAs), the intracellular polymers produced by various microorganisms as carbon and energy storage, are of great technological potential as biodegradable versions of common plastics. PHA-producing microbes are therefore in great demand and a plethora of different environments, especially extreme habitats, have been probed for the presence of PHA-accumulators. However, the polar region has been neglected in this regard, probably due to the low accessibility of the sampling material and unusual cultivation regime. Here, we present the results of a screening procedure involving 200 bacterial strains isolated from 25 habitats of both polar regions. Agar-based tests, microscopy, and genetic methods were conducted to elucidate the biodiversity and potential of polar-region PHA-accumulators. Microscopic observation of Nile Red stained cells proved to be the most reliable screening method as it allowed to confirm the characteristic bright orange glow of the Nile Red–PHA complex as well as the typical morphology of the PHA inclusions. Psychrophilic PHA-producers belonged mostly to the Comamonadaceae family (Betaproteobacteria) although actinobacterial PHA synthesizers of the families, Microbacteriaceae and Micrococcaceae also featured prominently. Glacial and postglacial habitats as well as developed polar region soils, were evaluated as promising for PHA-producer bioprospection. This study highlights the importance of psychrophiles as biodiverse and potent polyhydroxyalkanoate sources for scientific and application-aimed research.

1. Introduction

Polyhydroxyalkanoates (PHA) are a group of intracellular polymers synthesized by a variety of prokaryotic microorganisms. Their primary function is that of a carbon and energy storage to be used in starvation periods. They are produced from the excess carbon present in the cells’ environment and consist of polyesters of hydroxyalkanoic acids with chains of varying lengths. Key enzymes conducting the polymerization process are the PHA synthases encoded by the phaC gene. Currently, there are four classes of this enzyme discovered and described. Amino acid sequence overlap between enzymes representing different classes is moderate at best, albeit their products can be divided into short side chain length PHAs (scl-PHAs) produced mainly by the actions of the I, III and IV class synthases and medium side chain length PHAs (mcl-PHAs) produced mainly by the class II synthases harbored inter alia by the Pseudomonas genus [1,2].
Polyhydroxyalkanoic acids are of great technological potential because they are seen as a possible petroleum-based plastic substitute: biodegradable, biocompatible, and derived from biowaste products [3,4]. Therefore, PHA producing microbes are highly sought after in terms of quality and quantity of the synthesized polymer [5]. Screening procedures involve mainly the detection of the PHA granule themselves and/or the detection of genes coding the PHA synthesis pathway enzymes [6]. Staining of the granules with lipophilic dyes is the most popular of the methods, with the fluorescent Nile Red stain being frequently used to differentiate PHA positive bacterial colonies on a Petri dish or to visualize granules within bacterial cells using an adequately equipped microscope. The PHA positive strains display a bright orange glow when irradiated with UV (330–380 nm) or green light (510–560 nm) [7,8]. Genetic screening involves mainly the PCR based amplification of a fragment of the phaC gene using degenerate primers [9].
PHA producing bacteria can be found in a variety of environments, mainly those that experience periodic nutrient limitations, as the granule-stored carbon helps to cope with starvation issues [3]. Studies conducted on the survival of PHA-containing bacterial cells reveal the involvement of these polymers in cell recovery from a number of other abiotic stressors [10]. Therefore, habitats, where the intensity of physical and chemical factors change frequently, have the potency to enrich the microbial community in most resilient cells, inter alia in PHA producers [11]. Polar region habitats seem in this regard to be a very promising source of novel PHA synthesizing bacterial strains [12,13]. Polar and circumpolar regions experience a severe case of seasonal nutrient inputs caused by the occurrence of the yearly polar day/night phenomenon. Furthermore, several other factors (not only low temperatures) such as water activity shifts, freeze-thaw cycles, intense UV radiation, free radical formation, and sudden pH changes also contribute to the harshness of this environment [14]. Therefore, prospecting for polar region cold-loving bacterial PHA producers might prove very fruitful. Such endeavors have to date been undertaken only in a limited respect, presumably due to the low accessibility of the sampling material and unusual cultivation regime [15].
In this study, we present a screening of 200 bacterial isolates derived from 25 different habitats all located in polar regions of both the Arctic and Antarctica done by popular testing methods. The aim of these analyses was to evaluate the actual potential of those microbes to produce PHAs and additionally to find the most accurate method to do so. Our hypothesis states that polar region habitats harbor a phylogenetically and metabolically diverse cultivable bacteria communities capable of PHA production at low temperatures.

2. Materials and Methods

2.1. Strain Cultivation

Bacterial strains used in this study (see Table 1 for details) are part of the Central Collection of Strains of the Institute of Biochemistry and Biophysics Polish Academy of Sciences (http://kolekcja.ibb.waw.pl/) described in the “Arctic and Antarctic psychrophilic database” section. The strains are stored as glycerol stocks at −80 °C. They were revived by streaking aliquots of the stocks on an appropriate medium. For the saltwater isolates, R3A medium was used containing (g/L): peptone—1, tryptone—1, yeast extract—1, beef extract—1, glucose—1, K2HPO4—1, NaH2PO4—0.5, MgSO4—0.1, prepared with artificial seawater (g/L): NaCl—27.5, MgCl2·6H2O—5.38, MgSO4·7H2O—6.78, KCl—0.72, NaHCO3—0.2, CaCl2·2H2O—1.4. For all other strains, the R3A medium (agar and broth) was prepared with distilled water. The plates were incubated at 15 °C in the dark (Liebher Thermostat Cabinet) for a period of 3 weeks. Strains were checked for purity by repeated transfer to fresh agar plates. Single colonies were picked and transferred to test tubes with 3 mL of cool, sterile R3A broth and incubated for 1 week to attain a saturated bacterial culture. The submerged cultures were agitated by briefly vortexing once a day. The typical OD was estimated to have been 0.7. The cultures were the basis for further research.

2.2. Agar-Based Screening

The R3A agar plates for PHA screening were prepared according to [7]. Stock solutions of Nile Blue A and Nile Red dyes were prepared in DMSO and added to the agar post autoclaving to give a final concentration of 0.5 µg dye per mL of medium. Strains were drop plated (5 µL) from the active culture onto the plates, with controls on R3A agar without the dyes. After 1 week of incubation at 15 °C, the plates were exposed to ultraviolet light (312 nm) and the drop-spots were examined for the bright orange fluorescence indicative for PHA presence. Those exhibiting the glow were scored as positive.

2.3. Gene-Based Analysis

For DNA extraction from bacterial cells, 100 µL of the liquid culture was centrifuged at 12,000 rpm for 3 min in a 2 mL Eppendorf type tube and the pellet was suspended in 200 µL of sterile MiliQ water and approx. ten milligrams of Chelex100 resin and sharp garnet sand were added. The suspension was further amended with 1.5 µL of lysozyme solution (10 mg/mL) and incubated at 37 °C for 2.5 h. Then 10 µL of a 10% SDS solution was added to the suspension and the tubes were placed in a Qiagen Retsch TissueLyser II for 5 min at 39 Hz–1800 oscillation per min. The tubes were centrifuged briefly, amended with 1 µL proteinase K solution and incubated at 55 °C for 1 h. After centrifugation at 12,000 rpm for 3 min, the DNA in the supernatant was purified using the Clean-up Concentrator kit (A&A Biotechnology) according to the manufacturer’s protocol. The yield and purity of the extracted DNA were checked in a NanoPhotometer® NP80 (Implen).
Amplification of the 16S rRNA gene fragment was performed using universal primers 27F and 1492R [16]. PCR conditions were as follows: 1 min of 95 °C initial denaturation followed by 30 cycles of 95 °C for 15 s, 55 °C annealing for 15 s and elongation 72 °C for 1 min and 30 s, using DreamTaq polymerase (Thermo Scientific-Fermentas). Obtained PCR products (~1500 bp for 16S rRNA gene fragment) were checked on 0.8% agarose gel and purified using the Clean-up Concentrator kit (A&A Biotechnology). The 16S rRNA gene amplicons were sequenced with PCR forward primer (27F) with the use of BigDye Terminator v.3.1 chemistry and ABI3730xl genetic analyzer at the DNA Sequencing Laboratory (Institute of Biochemistry and Biophysics PAS).
Amplification of the phaC gene fragment was performed using primers G-D (5′GTGCCGCCSYRSATCAACAAGT3′) and G-1R (5′GTTCCAGWACAGSAKRTCGAA3′) by [9] targeting both the class I and class II synthase gene (phaC). Class III and IV synthase gene fragments are not prone to amplification by the primer set used. PCR conditions were as follows: 1 cycle of 94 °C for 10 min, 60 °C for 2 min and 72 °C for 2 min followed by 40 cycles at 94 °C for 20 s, 55.5 °C for 45 s and 72 °C for 1 min and a final cycle at 72 °C for 5 min using DreamTaq polymerase (Thermo Scientific-Fermentas). Negative controls were added in each PCR run. Obtained PCR products (~550 bp for the phaC gene fragment) were checked on 0.8% agarose gel. Samples containing the desired length product were scored as positive.

2.4. Feast-Famine Regime Implementation

Three types of PHA-inducing media (PIM) were introduced to create a feast/famine regime based on lowering the nitrogen to carbon ratio. The basis was a 7-fold diluted (0.5 g/L) R3A medium amended with several carbon sources. PIM1 contained carbon sources that were unrelated to PHA structure: glucose (2.5 g/L), sodium lactate (2.5 g/L), glycerol (2.5 g/L) and sodium acetate (1 g/L). PIM2 contained short-chain fatty acids: sodium butyrate and sodium valerate (3.5 g/L each). PIM3 contained a mix of medium-chain fatty acids derived from the ultrasonic-initiated saponification of coconut oil [17]. Ten grams of coconut oil (generic brand) was amended with 30 mL of 1.5 M NaOH (in excess) in a 50 mL Falcon-type tube, heated in a water bath at 50 °C until the oil completely melted. The ingredients were then shaken for 5 min on a Tornado Vortexer until a homogenous emulsion was achieved. Then the tube was placed in a VWR Ultrasonic Cleaner USC-TH set to 50 °C and sonicated at 40 kH for 45 min to facilitate the saponification reaction. The tube was placed in a thermostat at 37 °C for 6 weeks to allow the saponification reaction to proceed to completion. The saponified oil was dissolved in ddH2O, the pH was adjusted to 5.0 with HCl upon which the free fatty acids precipitated. The suspension was sedimented by centrifugation (10 min, 8000 rpm) and washed three times with ddH2O to remove the excess alkali and the glycerol by-product. Free fatty acids were air-died and suspended in water at a concentration of 7 g/L with Tween80 (0.1 g/L). The mixture was emulsified by heating to 45 °C and vigorous shaking. All media were adjusted to pH 7.2.
Bacterial cultures on R3A broth were harvested by centrifugation (0.5 mL) in separate Eppendorf tubes, resuspended in 3 mL of each of the PIMs, and incubated at 14 °C for 1 week. Resulting suspensions were subjected to microscopy-based screening.

2.5. Nile Red Staining and Microscopy

Bacterial suspensions were washed with a washing buffer (NaCl 9 g/L, methanol 10 g/L, Tween80 0 µg/L, tetrasodium pyrophosphate 2.6 g/L) to remove media components and slightly perforate cell walls for dye penetration. Bacterial cells were resuspended in 0.9% saline and stained with Nile Red in DMSO (80 µg/mL) to give a final concentration of 3.1 µg/mL for 30 min [18]. Stained bacterial suspensions were trapped under a microscope slide and observed under 1000× magnification with green (510–560 nm) and blue light (450–490 nm) excitation on a Nikon E-200 microscope with a 100 W Hg lamp and 100× CFI 60 oil immersion objective, with a digital DS-Fi3 high-definition color microscope camera equipped with a 5.9 megapixel CMOS image sensor and a filter block of wavelengths: EX 330–380, DM 400, BA 420.

2.6. Data Analysis

Calculation charts and graphs were made in Excel (MS Office for Windows). The simple matching coefficient (SMC) was calculated using the following formula: SMC = (M00 + M11)/(M00 + M01 + M10 + M11), where: M00—total number of attributes where both have a value of 0, M11—total number of attributes where both have a value of 1, M01 and M10—total number of attributes where one has a value of 1 and the other a value of 0. The 16S rRNA gene fragments were identified using the Blastn algorithm with the “sequences from type material” option, identifying the strain as the closest match to validly describe species. Phylogenetic trees were made using the Mega-X software [19]. Obtained 16S partial sequences were deposited in the GenBank database under the accession numbers: MT585825-MT586024.

3. Results

Polar region strains screened with the Nile Red-amended agar technique displayed varying shades of the expected bright orange fluorescence. Some strains displayed a fluorescence with a pinkish hue (like Polaromonas sp. 1701), some with a more yellowish hue (like Chrysoebacterium sp. 966). In others, like the Rhodanobacter sp. 2793, only a faint trace of the orange fluorescence could be observed at the rim of the drop-growth (Figure 1A). Several strains displayed growth retardation on the Nile Red amended agar in comparison to the Nile Red free control. Agar with the Nile Blue A dye did not yield any specific fluorescence. Amplification of the phaC gene resulted in the single, specific 550 bp long fragment like in the case of Polaromonas sp. 1701 or in multiple fragments, including the specific one (Figure 1B). Microscopic observations of the Nile Red–stained cells observed under green light excitation in most cases confirmed the orange-fluorescing intracellular granules with a clearly defined morphology thereof. The outline of cells without PHA granules was also visible. Most strains belonging to the Bacteroidetes phylum, like Flavobacterium sp. 1052 and also marine bacteria (inter alia Psychromonas sp. 1212) displayed an orange fluorescence of the whole cell, without any granule-characteristic morphology (Figure 1C).
Examined isolates belonged to four phyla: Proteobacteria (Figure 2), Actinobacteria, Firmicutes, and Bacteroidetes (Figure 3). Proteobacterial isolates belonged to three classes: Alphaproteobacteria (n = 8) consisting mostly of Sphingomonas sp. strains. Betaproteobacteria were more numerous consisting of 45 isolates clustered within roughly three families, the most important being the Comamonadaceae (n = 27), with Polaromonas as the most frequent genus. Gammaproteobacterial isolates were the most numerous (n = 53) and most diverse (>7 families). The family with the most members was Pseudomonadaceae (n = 27) consisting exclusively of the Pseudomonas genus (Figure 2). Actinobacteria (n = 43), Firmicutes (n = 6) and Bacteroidetes (n = 45) were less frequently isolated than Proteobacteria. Actinobacterial strains belonged mostly to two families: Microbacteriaceae (n = 22) and Micrococcaceae (n = 17). Microbacteriaceae consisted mostly of three genera: Salinibacterium, Cryobacterium, and Glaciihabitans. The Micrococcaceae consisted exclusively of two genera: Arthrobacter and Paeniglutamicibacter. The Bacteroidetes isolates were mostly members of the Flavobacteriaceae family (n = 36).
To examine the reproducibility of the results obtained by the different methods a simple matching coefficient (SMC) was calculated between each of the binary data sets, taking both negative and positive responses into account (Figure 4). The SMC results vary between one and zero, where one means that data sets are identical and zero if there are no identical scores within the two datasets. As the microscopy-based method was evaluated as the least bias-prone, strains were included in the PHA-positive group (POS) when granules were present after cultivation on either of the liquid media used (R3A, PIM1,2,3). None of the methods used showed a total result overlap. For the “all strains” group, the highest overlap was achieved for the phaC gene detection and microscopy method for R3A medium cultured strains (CON—constitutive PHA producers)—0.67. Low overlap values were achieved for the agar plate screening method (0.45–0.59). For Gram-negative bacteria, this was also apparent with high overlap of the phaC detection with strains scored as positive (0.66). Gram-positive bacteria on the other hand had a low overlap (0.34) of the phaC detection scores with positive strains but high overlap with a microscopy-based method for constitutive producers. The plate method displayed in the case of Gram-positive bacteria greater overlap with other methods (0.65–0.67). Proteobacteria displayed low to moderate overlap values, especially low for the agar plate method (0.35–0.50). The highest overlap value was achieved for the phaC detection and PHA positives. Actinobacteria displayed a relatively high overlap between phaC detection and microscopy method for constitutive producers (0.78) and low overlap when the overlap was calculated for PHA positive strains. Bacteroidetes displayed moderate to high overlap of tested methods with the highest between phaC detection and microscopy granule detection after cultivation on R3A broth (Figure 4).
The percentage of PHA positive strains were based on microscopy observations (Figure 5). For all examined strains, a value of 63% of PHA-granule positive was achieved. Within the phylum-rank group, high values were scored for Proteobacteria (75%) and Actinobacteria (74%). Bacteroidetes scored only 27% PHA-positive strains. Betaproteobacteria and Gammaproteobacteria scored 91% and 60% positive strains, respectively. Within the family level groups (where n > 10) the Comamonadaceae displayed the highest values (96%) whereas the Flavobacteriaceae displayed the lowest (28%). The Alcaligenaceae, Pseudomonadaceae, Microbacteriaceae, and Micrococcaceae remained within a 70–80% threshold (Figure 5). Half of the PHA-producers (within all examined strains) were constitutive granule producers, whereas the other half had to be induced with a high C/N ratio. The highest constitutive producer percentages were found belonging to the Alcaligenaceae and Comamonadaceae families within the Betaproteobacteria class (86% and 73%, respectively), whereas the Microbacteriaceae (Actinobacteria) and Pseudomonadaceae (Gammaproteobacteria) displayed a high percentage of strains that produced PHA only upon induction. The most successful induction medium was the PIM1, inducing PHA-formation in 71% of all of the non-constitutive PHA producers. It was the highest-scoring induction medium for all groups except for the Betaproteobacteria and Alcaligenaceae, where PIM2 was more successful in inducing PHA formation. PIM3 medium containing medium-length fatty acid salts was the most successful in PHA induction of the Pseudomonadaceae family members.
The inducible PHA-granule accumulating strains usually produced the storage material on more than one type of induction media (Figure 6). PIM1 and PIM2 shared the greatest number of induced strains (23) whereas PIM2 and PIM3 shared the lowest number (13). Twelve strains managed to produce PHA on all three induction media.
Strains were grouped according to the type of environment they were isolated from (Figure 7). Glacial environments harbored the most PHA-positive strains (91%), 52% of which were constitutive granule accumulators. High contribution values of PHA positive strains were also apparent for soil-associated (pedogenic) habitats (78%) but also post-glacial deposits (67%). Marine and animal-influenced habitats contained mostly non-PHA producing strains, albeit the PHA producing minority had to be induced to accumulate PHA (>70%). Almost half of the freshwater habitat-isolated strains had PHA synthesis abilities, 67% of which did it without the high carbon to nitrogen ratio induction.

4. Discussion

4.1. Evaluating Screening Methods

Popular screening methods (both physiology- and gene-based) displayed a varying degree of accuracy when dealing with polar region-derived bacterial strains. The plate method yielded results that were hard to evaluate. Most difficult to interpret were pigmented strains, which was noted also by other researchers [20]. In the case of Rhodanobacter sp. isolates the presence of the pigment seemed to extinguish the Nile Red-stained granule fluorescence. Rhodanobacter isolates often produce xanthomonadin-like pigments, which absorb wavelengths in the blue-green range, those that excite the granule-bound Nile Red dye [18,21,22]. Drop-growth of most Bacteroidetes members (mostly Flavobacterium spp. and Chryseobacterium spp. isolates) and several Proteobacteria of marine origin (e.g., Psychromonas sp.) displayed strong orange fluorescence on the Nile Red amended agar. This was checked by microscopy analysis, where whole cells had an orange glow in green light excitation. Flavobacteria of polar origin produce substantial amounts of branched and unsaturated fatty acids to maintain membrane fluidity [23], whereas marine psychrophiles produce polyunsaturated fatty acids for the same purpose [24]. Ref. [25] states that those fatty acids belong to the polar lipid group and their fluorescence after Nile Red staining is in the range of 610 nm (orange). A feature of the plate based-screening, besides color evaluation difficulty, was also visible growth retardation on the Nile Red amended agar in comparison to the Nile Red-free control. Presumably, strains that originate from polar regions, where there is low anthropogenic impact and low nutrient concentrations, are more sensitive to xenobiotics, like the diluent used (DMSO) or the dye itself [7,26]. Surprisingly, agar amended with the Nile Blue A dye did not yield any specific fluorescence. Presumably, the low temperature or the pH of the medium hampered its oxidation to the active derivative (Nile Red) [27]. Genetic screening methods have an advantage over the metabolism-based ones as they do not rely on granule presence; however, genetic screening methods can only indicate that strains have the genetic potential to produce PHA but not that the gene is expressed or that PHA is accumulated. The primer set designed by [9] targets type I and II synthase genes. Amplification of the phaC fragment using those primers frequently yielded multiple bands with or without the 550 bp specific band during the screening of polar region bacteria. This could be explained either by non-specific binding of the degenerate primers or the existence of other copies of the gene in close proximity to each other, simultaneous carrying of two types of synthases or other unusual PHA synthase related genes. Recent studies [28] have shown, that Pseudomonas spp. isolated from Antarctica carried two classes of synthases (I and II) and some Janthinobacterium sp. isolates contained genes of a usual PHA synthase (provisionally named class V) besides the class I synthase. Class III and IV synthase genes were not amplified by the primers used and currently, there are no wide-range primer sets to detect them [29]. Microscopy observation of the Nile Red stained cells also required cautious examination. However, the microscopy-based approach has proven the most accurate and the most reliable down the line, as it detected active PHA accumulators and granule presence was not only confirmed by the characteristic fluorescence but also by their morphology [30]. As already mentioned, marine strains and those belonging to the Bacteroidetes phylum displayed a whole-cell red fluorescence in green light excitation. Those were scored as negative for PHA accumulation as the granules in native producers tend not to exceed 40% of the cells volume [31]. A further advantage of the microscopy-based approach was that the cells were stained post-growth and PHA production so there were no issues with a proliferation-hampering effect of the dye or the carrier diluent (DMSO). Furthermore, the feast-famine regime could easily be incorporated into the method to further increase the number of PHA-positive strains.
Comparison of the data with the simple matching coefficient clearly showed that each method produced different results for the same sample group. Assuming that the microscopic method is the most accurate one and considering the results of the feast/famine regime, several observations can be made. The plate-based method displayed low overlap with the microscopy method in Proteobacteria, suggesting that in this group the agar plate approach potentially introduces a heavy bias. In Actinobacteria, phaC detection method showed high overlap with the microscopy-based technique only for constitutive producers and low overlap when also inducible producers were taken into account. This points towards the failed amplification of most of the actinobacterial phaC gene fragments. The reason being, that the primers were designed mostly on the basis of proteobacterial sequences or that polar region actinobacterial genes represent a novel quality among PHA synthases.

4.2. Biodiversity of Psychrophilic PHA Producers

The most frequently isolated polar region PHA-producing strains belonged mostly to the Comamonadaceae family. Members of this family have been frequently recognized as a vital part of polyhydroxybutyrate-producing consortia enriched from a mixed microbial culture under different feeding conditions [32,33]. Furthermore, members of the Comamonadaceae like Rhodoferax spp. and Polaromonas spp. have been found to produce PHA in sea ice and cold waters of the northern Baltic Sea [34]. Polaromonas spp. are frequent residents of glacial Arctic and Antarctic habitats and are suspected to be involved in symbiosis with eukaryotic algae [35]. This is in line with the conclusions drawn by [36] about the pivotal role of PHA in bacterial symbionts of eukaryotic organisms. Especially surprising is the constitutive feature of the betaproteobacterial PHA synthesis. The need for constant granule presence might be dictated by the sudden changes in nutrient availability or intensity of metabolism-challenging factors as the PHA are thought to protect extremophiles from environmental stressors [15]. Gammaproteobacteria, especially the Pseudomonadaceae family members produced PHA mostly under nitrogen limiting conditions. Those bacteria are a known group of opportunitrophs, displaying a large variety of adaptive features like fast growth and a wide range of substrate utilization and lytic enzyme production [37], so PHA production may be an asset only in extremely harsh conditions [38]. Actinobacteria were second in terms of isolate numbers of active PHA producers revealed in this study. A vast majority of actinobacterial strains produced PHA only upon induction with a high C/N ratio, most notably the members of the Microbacteriaceae family e.g., Cryobacterium. Micrococcaceae were more evenly divided among constitutive and inducible PHA producers (e.g., Arthrobacter spp.). Information on members of those families as PHA producers is limited, however Actinobacteria from polar regions were described as occupying diverse niches [39], so the scenario presented earlier for Pseudomonadaceae might also be applicable. As reported by [40], Actinobacteria tend to produce PHA of unusual chemistry, therefore actinobacterial isolates derived from polar region materials might represent an untapped source of novel, biotechnologically relevant polyhydroxyalkanoates.

4.3. PHA Producers and Their Habitats

Polar region habitat types differed quite substantially in cultivable bacterial PHA accumulators’ content. The zoogenic habitat type which was represented by sea birds’ (penguins and little auks) nesting sites and marine habitats represented mainly by decaying seaweed heaps displayed the lowest contribution of PHA producers. Seemingly, polar nutrient-rich substratum [41,42] does not promote species that diverge energy and resources towards carbon-storage material synthesis [43,44]. Furthermore, even among isolates displaying this ability, its expression had to be triggered by nitrogen starvation with simultaneous carbon surplus. Therefore, constant high nutrient availability negatively influences the contribution of PHA producers to the community also in polar regions. Contrasting in this respect were the highly oligotrophic glacial habitats. Vital nutrients, especially nitrogen and phosphorus are scarce in those sites [45,46]. Over 90% contribution of PHA positive isolates among glacier-derived bacteria was therefore not surprising. Presumably, labile carbon surplus is present only during the short summer season [47], therefore PHA production is needed in regard to carbon deficit survival. Among glacier derived PHA positive strains there was an even distribution of constitutive and inducible PHA producers, indicating different mechanisms for coping with extreme glacial conditions. As mentioned before, some bacterial groups might use the granules as an abiotic stress-resistance feature, whereas others might rely on different mechanisms, not related to PHA metabolism like pigment synthesis [48]. Soils of varying complexity (developed and postglacial) shared similar characteristics to each other in terms of percentage of PHA-producing strains and their ability for constitutive or inducible granule accumulation. Heterogeneity of such habitats enables the establishment of a multitude of different niches, even among closely related microorganisms [49], hence, the fairly even distribution between non-producers, constitutive producers, and inducible producers. Polar region freshwater habitats are strongly affected by seasonal changes in nutrient quantity and quality, creating a natural feast/famine regime [50]. Consequently, high altitude Himalayan lakes were recently proclaimed as a “bioplastics reservoir” by [51].

5. Conclusions

Polar region bacteria present a novel and potent source of PHA-producing microorganisms. Microscopic observation of Nile Red stained cells amended with a feast/famine regime implementation using different carbon sources was proven as the most reliable screening method. Caution is advised when evaluating members of the Bacteroidetes phylum and polar region marine bacteria as they often give false-positive results in the Nile Red dye involving approach. Members of the Comamonadaceae family were the most numerous PHA producers by percentage among the 200 examined strains. Most abundant in cultivable PHA accumulators were glacier associated habitats of both polar regions, followed by well-developed soils and postglacial deposits. Nonetheless, to further expand the topic of polar region PHA producers’ additional investigations are in order: a culture-independent approach of the native source material and an in-depth laboratory analysis of bacterial strains.

Author Contributions

Conceptualization, J.G. (Jakub Grzesiak); methodology, J.G. (Jakub Grzesiak), M.M.R., J.G. (Jan Gawor); software, J.G. (Jakub Grzesiak); validation, J.G. (Jakub Grzesiak) and M.M.R; formal analysis, J.G. (Jakub Grzesiak), M.M.R, and J.G. (Jan Gawor); investigation, J.G.(Jakub Grzesiak), M.M.R, and J.G. (Jan Gawor); resources, J.G. (Jakub Grzesiak); data curation, J.G. (Jakub Grzesiak); writing—original draft preparation, J.G. (Jakub Grzesiak); writing—review and editing, M.M.R., J.G. (Jan Gawor), R.G., and M.K.; visualization, J.G. (Jakub Grzesiak); supervision, J.G. (Jakub Grzesiak), and M.K.; project administration, J.G. (Jakub Grzesiak); funding acquisition, J.G. (Jakub Grzesiak) All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Science Center, Poland (Grant 2017/24/C/NZ9/00232).

Acknowledgments

Samples and data were obtained due to the scientific facilities of the Polish Antarctic Station ARCTOWSKI and the Polish Polar Station HORNSUND.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Reddy, C.S.K.; Ghai, R.; Kalia, V. Polyhydroxyalkanoates: An overview. Bioresour. Technol. 2003, 87, 137–146. [Google Scholar] [CrossRef]
  2. Rehm, B.H.; Steinbüchel, A. Biochemical and genetic analysis of PHA synthases and other proteins required for PHA synthesis. Int. J. Biol. Macromol. 1999, 25, 3–19. [Google Scholar] [CrossRef]
  3. Anderson, A.J.; Dawes, E.A. Occurrence, metabolism, metabolic role, and industrial uses of bacterial polyhydroxyalkanoates. Microbiol. Mol. Biol. Rev. 1990, 54, 450–472. [Google Scholar] [CrossRef] [Green Version]
  4. Chee, J.Y.; Yoga, S.S.; Lau, N.S.; Ling, S.C.; Abed, R.M.; Sudesh, K. Bacterially produced polyhydroxyalkanoate (PHA): Converting renewable resources into bioplastics. Curr. Res. Technol. Educ. Top. Appl. Microbiol. Microb. Biotechnol. 2010, 2, 1395–1404. [Google Scholar]
  5. Kumar, V.; Kumar, S.; Singh, D. Microbial polyhydroxyalkanoates from extreme niches: Bioprospection status, opportunities and challenges. Int. J. Biol. Macromol. 2020, 147, 1255–1267. [Google Scholar] [CrossRef]
  6. Kung, S.S.; Chuang, Y.C.; Chen, C.H.; Chien, C.C. Isolation of polyhydroxyalkanoates-producing bacteria using a combination of phenotypic and genotypic approach. Lett. Appl. Microbiol. 2007, 44, 364–371. [Google Scholar] [CrossRef]
  7. Spiekermann, P.; Rehm, B.H.; Kalscheuer, R.; Baumeister, D.; Steinbüchel, A. A sensitive, viable-colony staining method using Nile red for direct screening of bacteria that accumulate polyhydroxyalkanoic acids and other lipid storage compounds. Arch. Microbiol. 1999, 171, 73–80. [Google Scholar] [CrossRef]
  8. Kitamura, S.; Doi, Y. Staining method of poly (3-hydroxyalkanoic acids) producing bacteria by Nile blue. Biotechnol. Tech. 1994, 8, 345–350. [Google Scholar] [CrossRef]
  9. Romo, D.M.R.; Grosso, M.V.; Solano, N.C.M.; Castaño, D.M. A most effective method for selecting a broad range of short and medium-chain-length polyhidroxyalcanoate producing microorganisms. Electron. J. Biotechnol. 2007, 10, 348–357. [Google Scholar]
  10. Obruca, S.; Sedlacek, P.; Koller, M.; Kucera, D.; Pernicova, I. Involvement of polyhydroxyalkanoates in stress resistance of microbial cells: Biotechnological consequences and applications. Biotechnol. Adv. 2018, 36, 856–870. [Google Scholar] [CrossRef]
  11. Pernicova, I.; Novackova, I.; Sedlacek, P.; Kourilova, X.; Koller, M.; Obruca, S. Application of osmotic challenge for enrichment of microbial consortia in polyhydroxyalkanoates producing thermophilic and thermotolerant bacteria and their subsequent isolation. Int. J. Biol. Macromol. 2020, 144, 698–704. [Google Scholar] [CrossRef] [PubMed]
  12. Ciesielski, S.; Górniak, D.; Możejko, J.; Świątecki, A.; Grzesiak, J.; Zdanowski, M. The diversity of bacteria isolated from Antarctic freshwater reservoirs possessing the ability to produce polyhydroxyalkanoates. Curr. Microbiol. 2014, 69, 594–603. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Ayub, N.D.; Pettinari, M.J.; Ruiz, J.A.; López, N.I. A polyhydroxybutyrate-producing Pseudomonas sp. isolated from Antarctic environments with high stress resistance. Curr. Microbiol. 2004, 49, 170–174. [Google Scholar] [CrossRef] [PubMed]
  14. Varin, T.; Lovejoy, C.; Jungblut, A.D.; Vincent, W.F.; Corbeil, J. Metagenomic analysis of stress genes in microbial mat communities from Antarctica and the High Arctic. Appl. Environ. Microbiol. 2012, 78, 549–559. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Koller, M. Production of polyhydroxyalkanoate (PHA) biopolyesters by extremophiles. MOJ Polym. Sci. 2017, 1, 1–19. [Google Scholar] [CrossRef] [Green Version]
  16. Lane, D.J. 16S/23S rRNA sequencing. In Nucleic Acid Techniques in Bacterial Systematics; Stackebrandt, E., Goodfellow, M., Eds.; Wiley: Chichester, NY, USA, 1991. [Google Scholar]
  17. Mercantili, L.; Davis, F.; Collyer, S.D.; Higson, S.P. Ultrasonic modification of the viscosity of vegetable, mineral and synthetic oils—Effects of nucleating agents and free-radical scavengers. Lubr. Sci. 2015, 27, 177–191. [Google Scholar] [CrossRef]
  18. Zuriani, R.; Vigneswari, S.; Azizan, M.N.M.; Majid, M.I.A.; Amirul, A.A. A high throughput Nile red fluorescence method for rapid quantification of intracellular bacterial polyhydroxyalkanoates. Biotechnol. Bioprocess Eng. 2013, 18, 472–478. [Google Scholar] [CrossRef]
  19. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular evolutionary genetics analysis across computing platforms. Mol. Biol. Evol. 2018, 5, 1547–1549. [Google Scholar] [CrossRef]
  20. Higuchi-Takeuchi, M.; Morisaki, K.; Numata, K. A screening method for the isolation of polyhydroxyalkanoate-producing purple non-sulfur photosynthetic bacteria from natural seawater. Front. Microbiol. 2016, 7, 1509. [Google Scholar] [CrossRef] [Green Version]
  21. He, Y.W.; Cao, X.Q.; Poplawsky, A.R. Chemical Structure, Biological Roles, Biosynthesis and Regulation of the Yellow Xanthomonadin Pigments in the Phytopathogenic Genus Xanthomonas. Mol. Plant-Microbe Interact. 2020, 33, 705–714. [Google Scholar] [CrossRef] [Green Version]
  22. Rajagopal, L.; Sundari, C.S.; Balasubramanian, D.; Sonti, R.V. The bacterial pigment xanthomonadin offers protection against photodamage. FEBS Lett. 1997, 415, 125–128. [Google Scholar] [CrossRef] [Green Version]
  23. Králová, S. Role of fatty acids in cold adaptation of Antarctic psychrophilic Flavobacterium spp. Syst. Appl. Microbiol. 2017, 40, 329–333. [Google Scholar] [CrossRef] [PubMed]
  24. Russell, N.J.; Nichols, D.S. Polyunsaturated fatty acids in marine bacteria—A dogma rewritten. Microbiology 1999, 145, 767–779. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Alonzo, F.; Mayzaud, P. Spectrofluorometric quantification of neutral and polar lipids in zooplankton using Nile red. Mar. Chem. 1999, 67, 289–301. [Google Scholar] [CrossRef]
  26. Znój, A.; Chwedorzewska, K.J.; Androsiuk, P.; Cuba-Diaz, M.; Giełwanowska, I.; Koc, J.; Zmarz, A. Rapid environmental changes in the Western Antarctic Peninsula region due to climate change and human activity. Appl. Ecol. Environ. Res. 2017, 15, 525–539. [Google Scholar]
  27. Greenspan, P.; Mayer, E.P.; Fowler, S.D. Nile red: A selective fluorescent stain for intracellular lipid droplets. J. Cell Biol. 1985, 100, 965–973. [Google Scholar] [CrossRef] [Green Version]
  28. Tan, I.K.P.; Foong, C.P.; Tan, H.T.; Lim, H.; Zain, N.A.A.; Tan, Y.C.; Sudesh, K. Polyhydroxyalkanoate (PHA) synthase genes and PHA-associated gene clusters in Pseudomonas spp. and Janthinobacterium spp. isolated from Antarctica. J. Biotechnol. 2020, 313, 18–28. [Google Scholar] [CrossRef]
  29. Montenegro, E.M.D.S.; Delabary, G.S.; Silva, M.A.C.D.; Andreote, F.D.; Lima, A.O.D.S. Molecular diagnostic for prospecting polyhydroxyalkanoate-producing bacteria. Bioengineering 2017, 4, 52. [Google Scholar] [CrossRef]
  30. Wältermann, M.; Steinbüchel, A. Neutral lipid bodies in prokaryotes: Recent insights into structure, formation, and relationship to eukaryotic lipid depots. J. Bacteriol. 2005, 187, 3607–3619. [Google Scholar] [CrossRef] [Green Version]
  31. Mravec, F.; Obruca, S.; Krzyzanek, V.; Sedlacek, P.; Hrubanova, K.; Samek, O.; Nebesarova, J. Accumulation of PHA granules in Cupriavidus necator as seen by confocal fluorescence microscopy. FEMS Microbiol. Lett. 2016, 363, fnw094. [Google Scholar] [CrossRef] [Green Version]
  32. Dai, J.; Gliniewicz, K.; Settles, M.L.; Coats, E.R.; McDonald, A.G. Influence of organic loading rate and solid retention time on polyhydroxybutyrate production from hybrid poplar hydrolysates using mixed microbial cultures. Bioresour. Technol. 2015, 175, 23–33. [Google Scholar] [CrossRef] [PubMed]
  33. Cavaillé, L.; Albuquerque, M.; Grousseau, E.; Lepeuple, A.S.; Uribelarrea, J.L.; Hernandez-Raquet, G.; Paul, E. Understanding of polyhydroxybutyrate production under carbon and phosphorus-limited growth conditions in non-axenic continuous culture. Bioresour. Technol. 2016, 201, 65–73. [Google Scholar] [CrossRef] [PubMed]
  34. Pärnänen, K.; Karkman, A.; Virta, M.; Eronen-Rasimus, E.; Kaartokallio, H. Discovery of bacterial polyhydroxyalkanoate synthase (PhaC)-encoding genes from seasonal Baltic Sea ice and cold estuarine waters. Extremophiles 2015, 19, 197–206. [Google Scholar] [CrossRef] [PubMed]
  35. Gawor, J.; Grzesiak, J.; Sasin-Kurowska, J.; Borsuk, P.; Gromadka, R.; Górniak, D.; Zdanowski, M.K. Evidence of adaptation, niche separation and microevolution within the genus Polaromonas on Arctic and Antarctic glacial surfaces. Extremophiles 2016, 20, 403–413. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Kadouri, D.; Jurkevitch, E.; Okon, Y.; Castro-Sowinski, S. Ecological and agricultural significance of bacterial polyhydroxyalkanoates. Crit. Rev. Microbiol. 2005, 31, 55–67. [Google Scholar] [CrossRef] [PubMed]
  37. Prieto, A.; Escapa, I.F.; Martínez, V.; Dinjaski, N.; Herencias, C.; de la Peña, F.; Revelles, O. A holistic view of polyhydroxyalkanoate metabolism in Pseudomonas putida. Environ. Microbiol. 2016, 18, 341–357. [Google Scholar] [CrossRef] [Green Version]
  38. Ayub, N.D.; Tribelli, P.M.; López, N.I. Polyhydroxyalkanoates are essential for maintenance of redox state in the Antarctic bacterium Pseudomonas sp. 14–3 during low temperature adaptation. Extremophiles 2009, 13, 59–66. [Google Scholar] [CrossRef] [Green Version]
  39. Zdanowski, M.K.; Żmuda-Baranowska, M.J.; Borsuk, P.; Świątecki, A.; Górniak, D.; Wolicka, D.; Grzesiak, J. Culturable bacteria community development in postglacial soils of Ecology Glacier, King George Island, Antarctica. Polar Biol. 2013, 36, 511–527. [Google Scholar] [CrossRef] [Green Version]
  40. Matias, F.; Bonatto, D.; Padilla, G.; Rodrigues, M.F.D.A.; Henriques, J.A.P. Polyhydroxyalkanoates production by actinobacteria isolated from soil. Can. J. Microbiol. 2009, 55, 790–800. [Google Scholar] [CrossRef]
  41. Grzesiak, J.; Kaczyńska, A.; Gawor, J.; Żuchniewicz, K.; Aleksandrzak-Piekarczyk, T.; Gromadka, R.; Zdanowski, M.K. A smelly business: Microbiology of Adélie penguin guano (Point Thomas rookery, Antarctica). Sci. Total Environ. 2020, 714, 136714. [Google Scholar] [CrossRef]
  42. Zdanowski, M.K.; Zmuda, M.J.; Zwolska, I. Bacterial role in the decomposition of marine-derived material (penguin guano) in the terrestrial maritime Antarctic. Soil Biol. Biochem. 2005, 37, 581–595. [Google Scholar] [CrossRef]
  43. Pratt, S.; Werker, A.; Morgan-Sagastume, F.; Lant, P. Microaerophilic conditions support elevated mixed culture polyhydroxyalkanoate (PHA) yields, but result in decreased PHA production rates. Water Sci. Technol. 2012, 65, 243–246. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Wang, J.; Yu, J. Kinetic analysis on inhibited growth and poly (3-hydroxybutyrate) formation of Alcaligenes eutrophus on acetate under nutrient-rich conditions. Process Biochem. 2000, 36, 201–207. [Google Scholar] [CrossRef]
  45. Grzesiak, J.; Górniak, D.; Świątecki, A.; Aleksandrzak-Piekarczyk, T.; Szatraj, K.; Zdanowski, M.K. Microbial community development on the surface of Hans and Werenskiold Glaciers (Svalbard, Arctic): A comparison. Extremophiles 2015, 19, 885–897. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Grzesiak, J.; Zdanowski, M.K.; Górniak, D.; Świątecki, A.; Aleksandrzak-Piekarczyk, T.; Szatraj, K.; Nieckarz, M. Microbial community changes along the ecology glacier ablation zone (King George Island, Antarctica). Polar Biol. 2015, 38, 2069–2083. [Google Scholar] [CrossRef] [Green Version]
  47. Telling, J.; Anesio, A.M.; Tranter, M.; Fountain, A.G.; Nylen, T.; Hawkings, J.; Wadham, J.L. Spring thaw ionic pulses boost nutrient availability and microbial growth in entombed Antarctic Dry Valley cryoconite holes. Front. Microbiol. 2014, 5, 694. [Google Scholar] [CrossRef] [Green Version]
  48. Dieser, M.; Greenwood, M.; Foreman, C.M. Carotenoid pigmentation in Antarctic heterotrophic bacteria as a strategy to withstand environmental stresses. Arct. Antarct. Alp. Res. 2010, 42, 396–405. [Google Scholar] [CrossRef] [Green Version]
  49. Gittel, A.; Bárta, J.; Kohoutová, I.; Mikutta, R.; Owens, S.; Gilbert, J.; Lashchinskiy, N. Distinct microbial communities associated with buried soils in the Siberian tundra. ISME J. 2014, 8, 841–853. [Google Scholar] [CrossRef]
  50. Crump, B.C.; Kling, G.W.; Bahr, M.; Hobbie, J.E. Bacterioplankton community shifts in an arctic lake correlate with seasonal changes in organic matter source. Appl. Environ. Microbiol. 2003, 69, 2253–2268. [Google Scholar] [CrossRef] [Green Version]
  51. Kumar, V.; Thakur, V.; Kumar, S.; Singh, D. Bioplastic reservoir of diverse bacterialcommunities revealed along altitude gradient of Pangi-Chamba trans-Himalayan region. FEMS Microbiol. Lett. 2018, 365, fny144. [Google Scholar] [CrossRef] [Green Version]
Genes 11 00873 g001 550
Figure 1. (A) Examples of drop growth fluorescence of bacterial strains in UV light on a R3A agar supplemented with Nile Red (from left to right): Janthinobacterium sp. 1167, Chryseobacterium sp. 966, Rhodanobacter sp. 2793. (B) Examples of PCR-amplification results (bands) of a phaC gene fragment using the G-D and G-1R primers by Romo et al. 2007 (left to right): Polaromonas sp. 1701 (550 bp band), Acidovorax sp. 1169 (300 bp and 550 bp band), Janthinobacterium sp. 1167 (550 bp and 1000 bp band), (C) Bacterial cell fluorescence in green light excitation (510–560 nm) after Nile Red staining (left to right): Janthinobacterium sp. 1167—“empty” cell, Janthinobacterium sp. 1167—granule-filled cell, Flavobacterium sp. 1052 cell scored as PHA negative (no granule outline), Psychromonas sp. 1212 cell scored as PHA negative (no granule outline).
Figure 1. (A) Examples of drop growth fluorescence of bacterial strains in UV light on a R3A agar supplemented with Nile Red (from left to right): Janthinobacterium sp. 1167, Chryseobacterium sp. 966, Rhodanobacter sp. 2793. (B) Examples of PCR-amplification results (bands) of a phaC gene fragment using the G-D and G-1R primers by Romo et al. 2007 (left to right): Polaromonas sp. 1701 (550 bp band), Acidovorax sp. 1169 (300 bp and 550 bp band), Janthinobacterium sp. 1167 (550 bp and 1000 bp band), (C) Bacterial cell fluorescence in green light excitation (510–560 nm) after Nile Red staining (left to right): Janthinobacterium sp. 1167—“empty” cell, Janthinobacterium sp. 1167—granule-filled cell, Flavobacterium sp. 1052 cell scored as PHA negative (no granule outline), Psychromonas sp. 1212 cell scored as PHA negative (no granule outline).
Genes 11 00873 g001
Genes 11 00873 g002 550
Figure 2. Phylogenetic tree based on partial 16S rRNA gene sequences belonging to the Proteobacteria phylum lined up with the results from the PHA screening with various methods. The tree was built using the neighbor-joining method. Bootstrap values are indicated at the nodes. Green boxes indicate a positive score. phaC—presence of the 550 bp DNA fragment of the phaC gene; PLATE—presence of characteristic fluorescence on R3A agar plates with Nile Red after UV exposure; R3A—presence of red-fluorescing granules in Nile Red stained cells cultured on R3A broth; PIM1—presence of red-fluorescing granules in Nile Red stained cells incubated in PIM1 medium; PIM2—presence of red-fluorescing granules in Nile Red stained cells incubated in PIM2 medium; PIM3—presence of red-fluorescing granules in Nile Red stained cells incubated in PIM3 medium.
Figure 2. Phylogenetic tree based on partial 16S rRNA gene sequences belonging to the Proteobacteria phylum lined up with the results from the PHA screening with various methods. The tree was built using the neighbor-joining method. Bootstrap values are indicated at the nodes. Green boxes indicate a positive score. phaC—presence of the 550 bp DNA fragment of the phaC gene; PLATE—presence of characteristic fluorescence on R3A agar plates with Nile Red after UV exposure; R3A—presence of red-fluorescing granules in Nile Red stained cells cultured on R3A broth; PIM1—presence of red-fluorescing granules in Nile Red stained cells incubated in PIM1 medium; PIM2—presence of red-fluorescing granules in Nile Red stained cells incubated in PIM2 medium; PIM3—presence of red-fluorescing granules in Nile Red stained cells incubated in PIM3 medium.
Genes 11 00873 g002
Genes 11 00873 g003 550

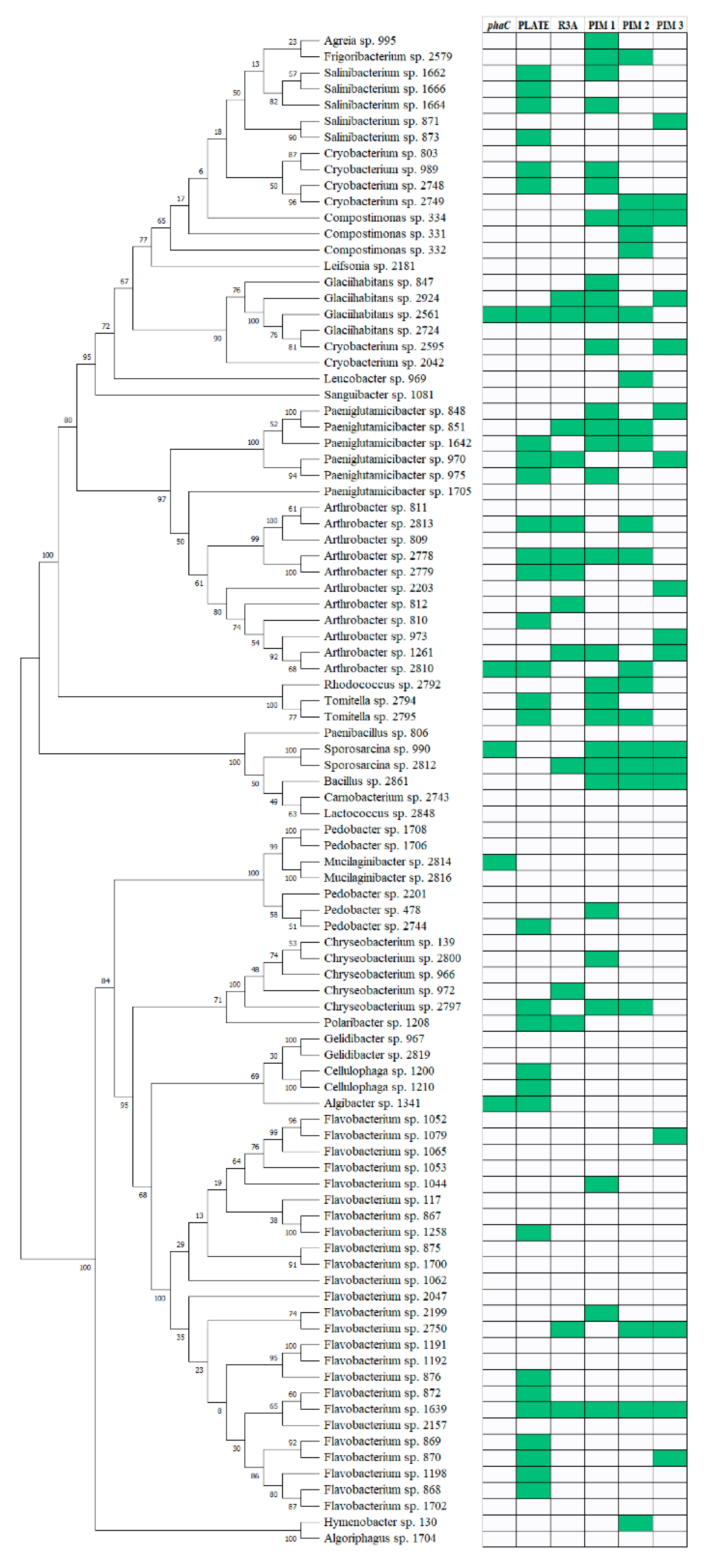

Figure 3. Phylogenetic tree based on partial 16S rRNA gene sequences belonging to the Actinobacteria, Firmicutes, and Bacteroidetes phylum lined up with the results from the PHA screening with various methods. The tree was built using the neighbor-joining method. Bootstrap values are indicated at the nodes. Green boxes indicate a positive score. phaC—presence of the 550 bp DNA fragment of the phaC gene; PLATE—presence of characteristic fluorescence on R3A agar plates with Nile Red after UV exposure; R3A—presence of red-fluorescing granules in Nile Red stained cells cultured on R3A broth; PIM1—presence of red-fluorescing granules in Nile Red stained cells incubated in PIM1 medium; PIM2—presence of red-fluorescing granules in Nile Red stained cells incubated in PIM2 medium; PIM3—presence of red-fluorescing granules in Nile Red stained cells incubated in PIM3 medium.
Figure 3. Phylogenetic tree based on partial 16S rRNA gene sequences belonging to the Actinobacteria, Firmicutes, and Bacteroidetes phylum lined up with the results from the PHA screening with various methods. The tree was built using the neighbor-joining method. Bootstrap values are indicated at the nodes. Green boxes indicate a positive score. phaC—presence of the 550 bp DNA fragment of the phaC gene; PLATE—presence of characteristic fluorescence on R3A agar plates with Nile Red after UV exposure; R3A—presence of red-fluorescing granules in Nile Red stained cells cultured on R3A broth; PIM1—presence of red-fluorescing granules in Nile Red stained cells incubated in PIM1 medium; PIM2—presence of red-fluorescing granules in Nile Red stained cells incubated in PIM2 medium; PIM3—presence of red-fluorescing granules in Nile Red stained cells incubated in PIM3 medium.
Genes 11 00873 g003
Genes 11 00873 g004 550

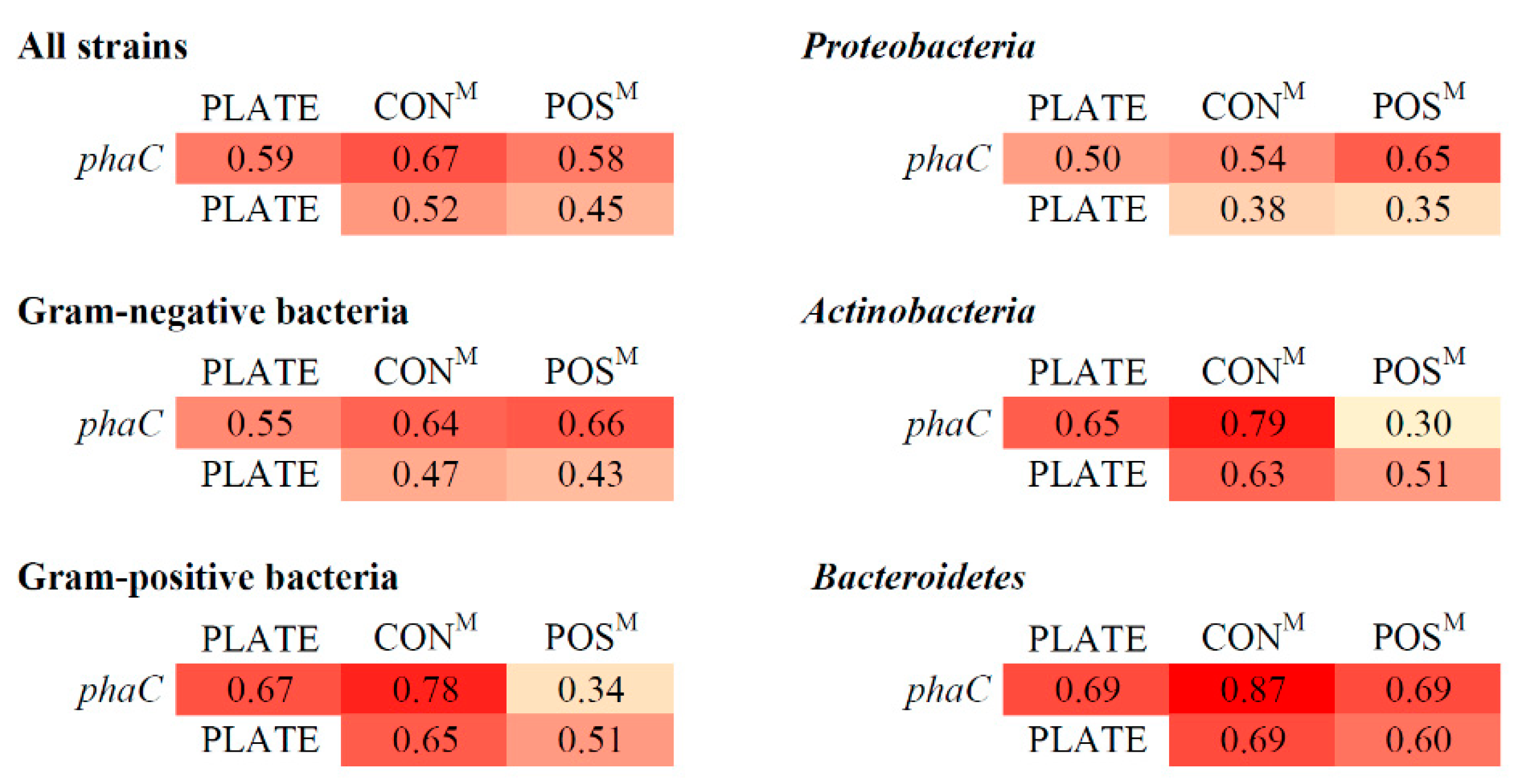

Figure 4. Simple matching coefficient calculated from the binary (positive/negative) data obtained from each screening method for the following subsets: all strains (n = 200), Gram-negative bacteria (n = 151), Gram-positive bacteria (n = 49), Proteobacteria (n = 106), Actinobacteria (n = 43), Bacteroidetes (n = 45). phaC—binary dataset of the presence/absence of the 550 bp DNA fragment of the phaC gene; PLATE—binary dataset of the presence/absence of the characteristic fluorescence on R3A agar plates with Nile Red after UV exposure; CONM—microscopy-obtained (M) binary dataset of the presence/absence of granules after incubation in R3A broth (constitutive producers); POSM—microscopy-obtained (M) binary dataset of the presence/absence of granules after incubation on ≥1 of the liquid media used (R3A, PIM1,2,3).
Figure 4. Simple matching coefficient calculated from the binary (positive/negative) data obtained from each screening method for the following subsets: all strains (n = 200), Gram-negative bacteria (n = 151), Gram-positive bacteria (n = 49), Proteobacteria (n = 106), Actinobacteria (n = 43), Bacteroidetes (n = 45). phaC—binary dataset of the presence/absence of the 550 bp DNA fragment of the phaC gene; PLATE—binary dataset of the presence/absence of the characteristic fluorescence on R3A agar plates with Nile Red after UV exposure; CONM—microscopy-obtained (M) binary dataset of the presence/absence of granules after incubation in R3A broth (constitutive producers); POSM—microscopy-obtained (M) binary dataset of the presence/absence of granules after incubation on ≥1 of the liquid media used (R3A, PIM1,2,3).
Genes 11 00873 g004
Genes 11 00873 g005 550

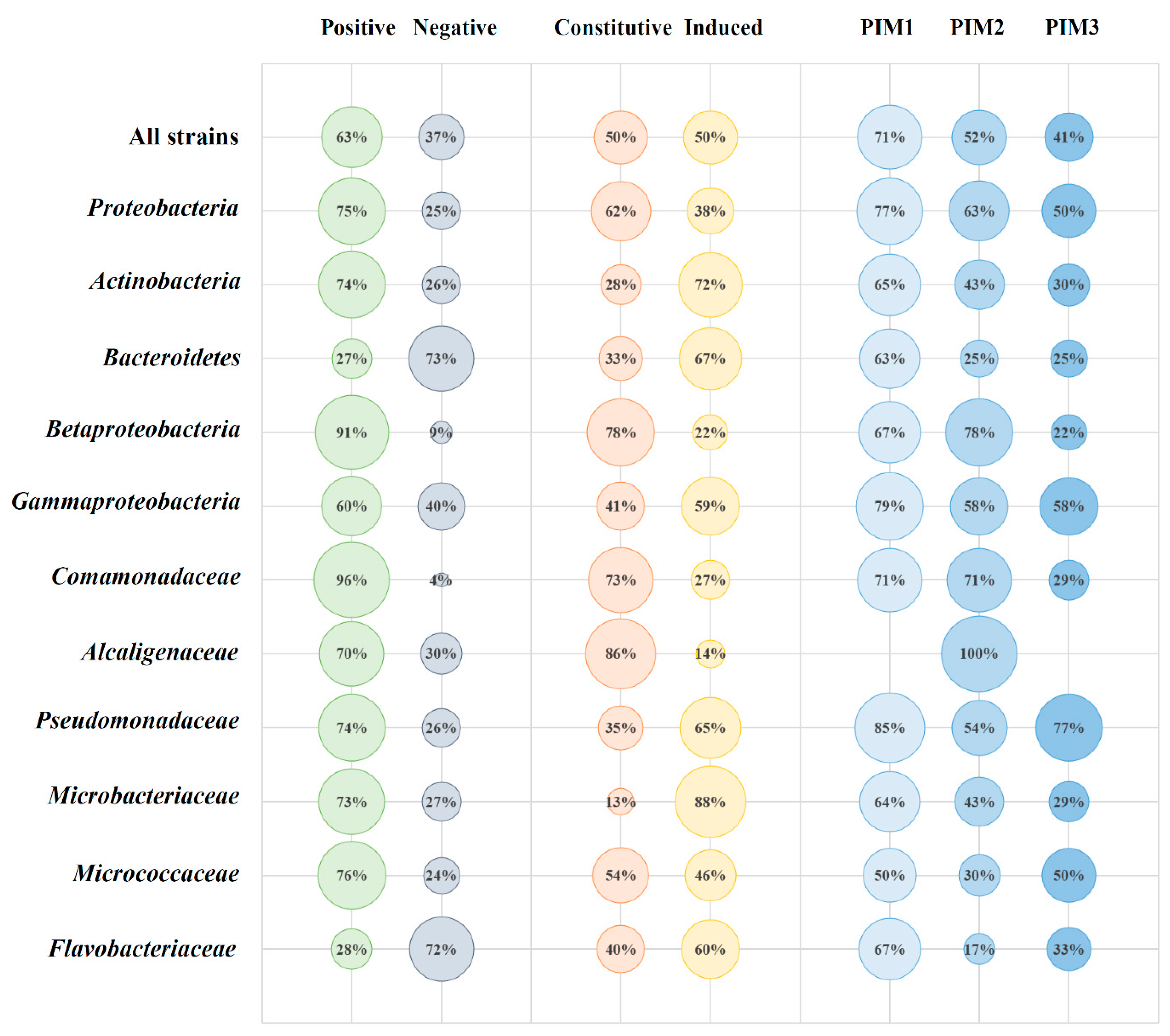

Figure 5. Percentage of strains (total and within selected taxonomic ranks) expressing the following traits: Positive—presence of red-fluorescing granules (on R3A broth and on PIMs); negative—absence of red-fluorescing granules in any conditions; constitutive—presence of red-fluorescing granules in R3A broth; induced-presence of red-fluorescing granules only after incubation in PIMs; PIM1—presence of red-fluorescing granules after incubation in PIM1 within the “Induced” group; PIM2—presence of red-fluorescing granules after incubation in PIM2 within the “Induced” group; PIM3—presence of red-fluorescing granules after incubation in PIM3 within the “Induced” group.
Figure 5. Percentage of strains (total and within selected taxonomic ranks) expressing the following traits: Positive—presence of red-fluorescing granules (on R3A broth and on PIMs); negative—absence of red-fluorescing granules in any conditions; constitutive—presence of red-fluorescing granules in R3A broth; induced-presence of red-fluorescing granules only after incubation in PIMs; PIM1—presence of red-fluorescing granules after incubation in PIM1 within the “Induced” group; PIM2—presence of red-fluorescing granules after incubation in PIM2 within the “Induced” group; PIM3—presence of red-fluorescing granules after incubation in PIM3 within the “Induced” group.
Genes 11 00873 g005
Genes 11 00873 g006 550

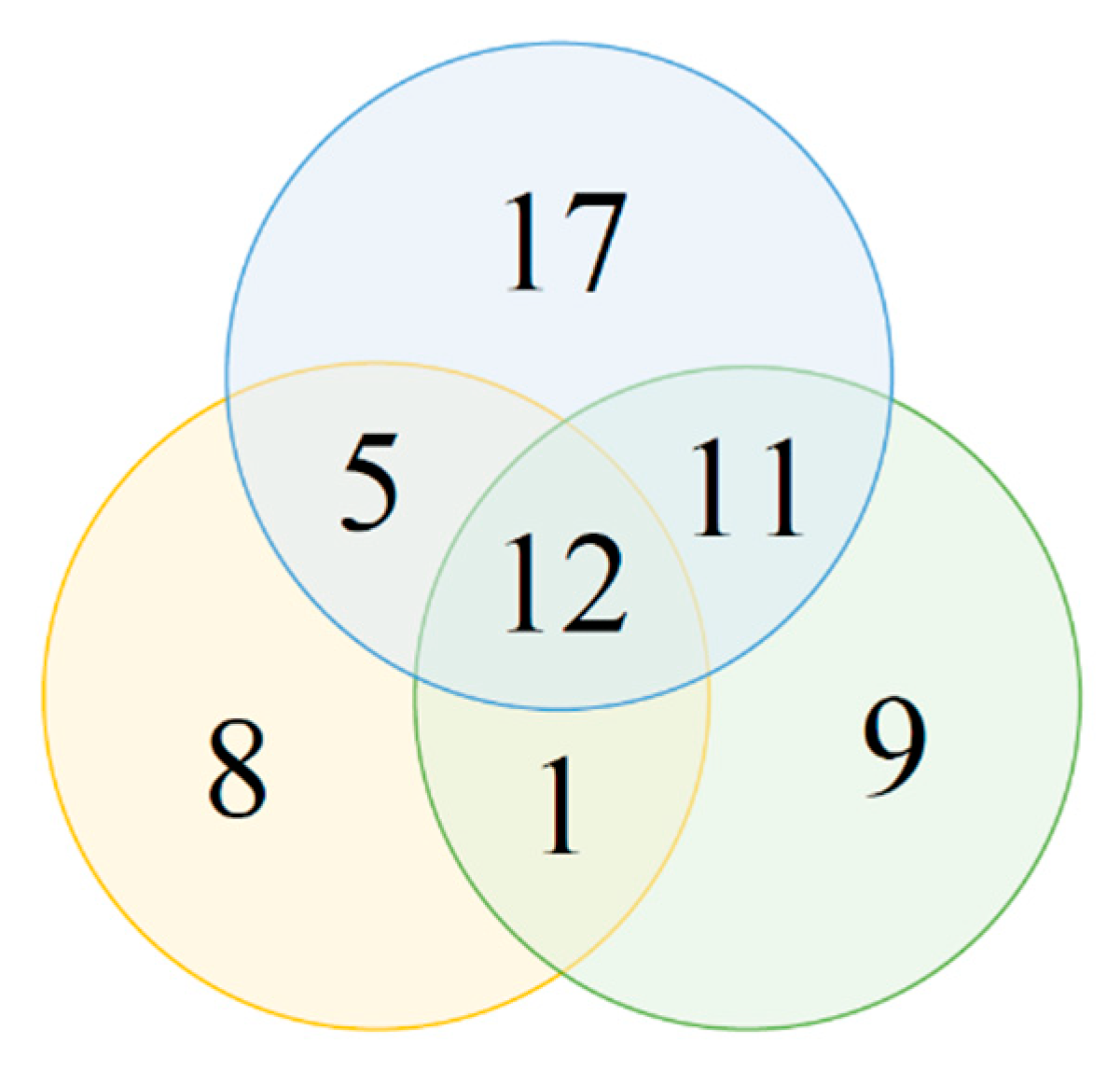

Figure 6. Venn diagram displaying numbers of strains within the “induced” group that were PHA positive on different versions of PIM. Blue circle—PIM1, green circle—PIM2, orange circle—PIM3.
Figure 6. Venn diagram displaying numbers of strains within the “induced” group that were PHA positive on different versions of PIM. Blue circle—PIM1, green circle—PIM2, orange circle—PIM3.
Genes 11 00873 g006
Genes 11 00873 g007 550

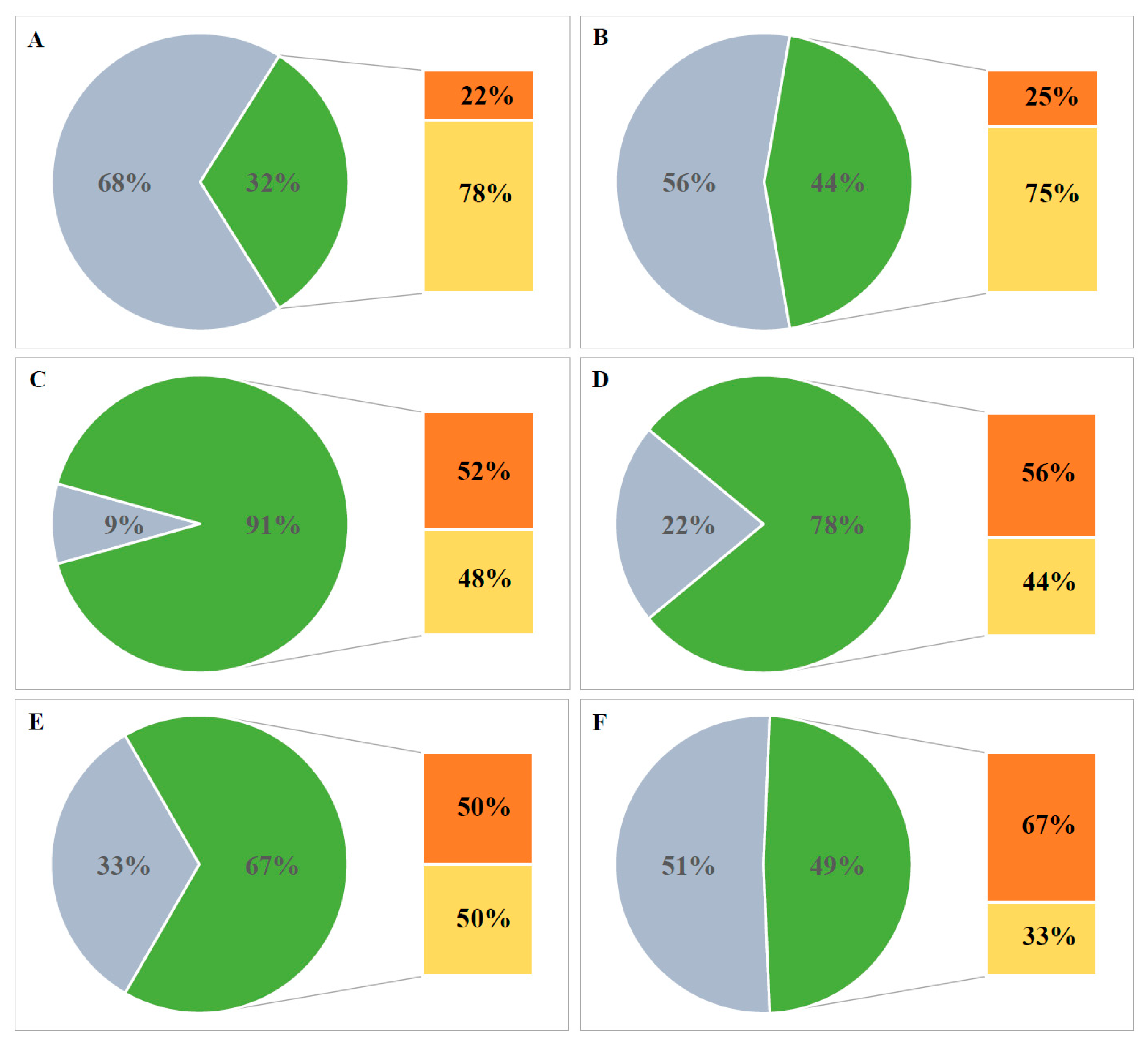

Figure 7. Percentage of strains divided according to habitat-type of origin: (A) zoogenic habitat, (B) marine habitat, (C) glacial habitats, (D) pedogenic habitats, (E) postglacial habitats, (F) freshwater habitats. Percentage of strains positive for granule presence—green part of diagram, negative—gray, constitutive PHA producers within the positives—orange, PIM-inducible PHA producers within the positives—yellow.
Figure 7. Percentage of strains divided according to habitat-type of origin: (A) zoogenic habitat, (B) marine habitat, (C) glacial habitats, (D) pedogenic habitats, (E) postglacial habitats, (F) freshwater habitats. Percentage of strains positive for granule presence—green part of diagram, negative—gray, constitutive PHA producers within the positives—orange, PIM-inducible PHA producers within the positives—yellow.
Genes 11 00873 g007
Table
Table 1. Information on origin and cultivation of strains used in analysis.
Table 1. Information on origin and cultivation of strains used in analysis.
Strain NumbersMaterial of IsolationPlace of OriginEnvironment TypeMaintenance Medium
2043, 2045, 2047, 2049, 2099, 2102, 2132, 2139, 2157Little auk (Alle alle) guanoHornsund Fiord, Spitsbergen Island, ArcticZoogenicR3A agar
966, 967, 968, 969, 970, 972, 973, 974, 975Adélie penguin guanoPoint Thomas Rookery, King George Island, AntarcticaZoogenicR3A agar
1198, 1200, 1204, 1206, 1208, 1210, 1212, 1334, 1335, 1336, 1337, 1338, 1339, 1340, 1341, 1343, 2848Decaying seaweedsHornsund Fiord, Spitsbergen Island, ArcticMarineR3A agar with artificial seawater
1639, 1640, 1641, 1642, 1643, 1662, 1663, 1664, 1666, 2861Decaying seaweedsAdmiralty Bay shore, King George Island, AntarcticaMarineR3A agar with artificial seawater
2529, 2539, 2543, 2556, 2561, 2574, 2579, 2595, 2600CryoconiteHans Glacier, Spitsbergen, ArcticGlacialR3A agar
2720, 2722, 2724, 2728CryoconiteWerenskiold Glacier, Spitsbergen, ArcticGlacialR3A agar
301, 303, 304, 305, 330, 331, 332, 333, 334Glacial surface iceEcology Glacier, King George Island, AntarcticaGlacialR3A agar
473, 474, 475, 476, 477, 478, 479, 481, 482Glacial surface iceBaranowski Glacier, King George Island, AntarcticaGlacialR3A agar
803, 805, 806, 807, 808, 809, 810, 811, 812Plant-free postglacial soilEcology Glacier foreland, King George Island, AntarcticaGlacialR3A agar
989, 990, 991, 992, 993, 994, 995, 996, 997, 998Postglacial soil with plant debrisEcology Glacier foreland, King George Island, AntarcticaGlacialR3A agar
844, 847, 848, 851Plant-free postglacial soilBaranowski Glacier foreland, King George Island, AntarcticaGlacialR3A agar
117, 123, 130, 139, 1258, 1259, 1261Plant-free postglacial soilWindy Glacier foreland, King George Island, AntarcticaGlacialR3A agar
2176, 2180, 2181, 2183, 2186, 2191, 2196, 2199, 2200, 2201, 2203Arctic tundra soil with moss/lichen debrisHornsund Fiord, Spitsbergen Island, ArcticPedogenicR3A agar
1044, 1051, 1052, 1053, 1058, 1062, 1065, 1079, 1081Kettle lake waterWerenskiold Glacier forefield, Hornsund fiord, Spitsbergen, ArcticFreshwaterR3A agar
1699, 1700, 1701, 1702, 1703, 1704, 1705, 1706, 1707, 1708, 2031, 2032, 2033, 2034, 2035, 2036, 2042, 2083, 2084, 2954, 2955Freshwater microbial matJasnorzewski Gardens, King George Island, AntarcticaFreshwaterR3A agar
867, 868, 869, 870, 871, 872, 873, 874, 875, 876AirPoint Thomas Rookery, King George Island, AntarcticaZoogenicR3A agar
1160, 1162, 1165, 1166, 1167, 1169, 1170, 1191, 1192Subglacial waterSubglacial stream, Hans Glacier, Spitsbergen, ArcticGlacialR3A agar
P12, 2778, 2779, 2785Deschampsia antarctica rhizosphere soilArctowski Station vicinity, King George Island, AntarcticaPedogenicR3A agar
2792, 2793, 2794, 2795, 2797, 2799, 2800, 2860Ornithogenic soilArctowski Station vicinity, King George Island, AntarcticaPedogenicR3A agar
2810, 2812, 2813, 2814, 2815, 2816, 2817, 2818, 2819Moss rhizosphereArctowski Station vicinity, King George Island, AntarcticaPedogenicR3A agar
2921, 2923, 2924, 2926, 2927, 2928Supraglacial waterSupraglacial stream, Ecology Glacier, King George Island, AntarcticaGlacialR3A agar
2743, 2744, 2746, 2747, 2748, 2749, 2750River waterAriedalen stream, Spitsbergen, ArcticFreshwaterR3A agar
