8p23.2-pter Microdeletions: Seven New Cases Narrowing the Candidate Region and Review of the Literature

by
Ilaria Catusi
1,*,
Maria Garzo
1,
Anna Paola Capra
2,
Silvana Briuglia
2,
Chiara Baldo
3,
Maria Paola Canevini
4,
Rachele Cantone
5,
Flaviana Elia
6,
Francesca Forzano
7,
Ornella Galesi
8,
Enrico Grosso
5,
Michela Malacarne
3,
Angela Peron
4,9,10,
Corrado Romano
11,
Monica Saccani
4,
Lidia Larizza
1 and
Maria Paola Recalcati
1
1
Istituto Auxologico Italiano, IRCCS, Laboratory of Medical Cytogenetics and Molecular Genetics, 20145 Milan, Italy
2
Department of Biomedical, Dental, Morphological and Functional Imaging Sciences, University of Messina, 98100 Messina, Italy
3
UOC Laboratorio di Genetica Umana, IRCCS Istituto Giannina Gaslini, 16147 Genova, Italy
4
Child Neuropsychiatry Unit—Epilepsy Center, Department of Health Sciences, ASST Santi Paolo e Carlo, San Paolo Hospital, Università Degli Studi di Milano, 20142 Milan, Italy
5
Medical Genetics Unit, Città della Salute e della Scienza University Hospital, 10126 Turin, Italy
6
Unit of Psychology, Oasi Research Institute-IRCCS, 94018 Troina, Italy
7
Clinical Genetics Department, Guy’s & St Thomas’ NHS Foundation Trust, London SE1 9RT, UK
8
Laboratory of Medical Genetics, Oasi Research Institute-IRCCS, 94018 Troina, Italy
9
Human Pathology and Medical Genetics, ASST Santi Paolo e Carlo, San Paolo Hospital, 20142 Milan, Italy
10
Division of Medical Genetics, Department of Pediatrics, University of Utah School of Medicine, Salt Lake City, UT 84132, USA
11
Unit of Pediatrics and Medical Genetics, Oasi Research Institute-IRCCS, 94018 Troina, Italy

add Show full affiliation list

remove Hide full affiliation list
*
Author to whom correspondence should be addressed.
Genes 2021, 12(5), 652; https://doi.org/10.3390/genes12050652
Submission received: 18 March 2021 / Revised: 21 April 2021 / Accepted: 22 April 2021 / Published: 27 April 2021
(This article belongs to the Special Issue Genetics and Genomics of Intellectual Disability)
Browse Figures
Versions Notes

Abstract

:
To date only five patients with 8p23.2-pter microdeletions manifesting a mild-to-moderate cognitive impairment and/or developmental delay, dysmorphisms and neurobehavioral issues were reported. The smallest microdeletion described by Wu in 2010 suggested a critical region (CR) of 2.1 Mb including several genes, out of which FBXO25, DLGAP2, CLN8, ARHGEF10 and MYOM2 are the main candidates. Here we present seven additional patients with 8p23.2-pter microdeletions, ranging from 71.79 kb to 4.55 Mb. The review of five previously reported and nine Decipher patients confirmed the association of the CR with a variable clinical phenotype characterized by intellectual disability/developmental delay, including language and speech delay and/or motor impairment, behavioral anomalies, autism spectrum disorder, dysmorphisms, microcephaly, fingers/toes anomalies and epilepsy. Genotype analysis allowed to narrow down the 8p23.3 candidate region which includes only DLGAP2, CLN8 and ARHGEF10 genes, accounting for the main signs of the broad clinical phenotype associated to 8p23.2-pter microdeletions. This region is more restricted compared to the previously proposed CR. Overall, our data favor the hypothesis that DLGAP2 is the actual strongest candidate for neurodevelopmental/behavioral phenotypes. Additional patients will be necessary to validate the pathogenic role of DLGAP2 and better define how the two contiguous genes, ARHGEF10 and CLN8, might contribute to the clinical phenotype.

Graphical Abstract

1. Introduction

Deletions of the distal region of the short arm of chromosome 8 have been frequently reported in the literature as either isolated terminal/interstitial deletions or terminal deletions associated with more proximal duplications [1]. These rearrangements are mainly due to the architecture of the 8p23.1 region, characterized by the presence of two olfactory receptor gene clusters and defensin repeats, named REPD (repeat-distal) and REPP (repeat-proximal), that mediate chromosomal rearrangements through a U-type exchange mechanism [2,3,4,5,6].
Conversely, large deletions including the 8p23.1 region and isolated microdeletions of the more distal 8p23.2-pter region have rarely been reported in patients displaying various clinical features, including developmental delay (DD)/intellectual disability (ID), microcephaly, mildly dysmorphic features, language delay and/or behavioral problems [7]. Microdeletions of this region are hardly ever recorded in the database of genomic variants (DGV) which collects copy number variants (CNVs) in healthy control samples [8].
To date only five patients carrying 8p23.2-pter microdeletions have been characterized by chromosomal microarray (CMA) analysis in the literature and other cases have been reported in the DECIPHER database [7,9,10,11]. Furthermore, the smallest microdeletion described by Wu et al. in 2010 suggested a possible critical region (CR) of 2.1 Mb in 8p23.3 [7,11]. The CR comprises several genes out of which the OMIM genes FBXO25, DLGAP2, CLN8, ARHGEF10 and MYOM2, most of which share a role in neural differentiation and function [12,13,14,15,16,17], are main candidates for DD/ID, microcephaly and neurobehavioral disorders.
Here we report seven new patients with interstitial microdeletions included in the 8p23.2-pter region which partially overlap with the previously mentioned CR [7,11]. Phenotypic evaluation of our patients, compared to that of five previously reported patients and additional nine obtained from the DECIPHER database, confirmed a shared clinical phenotype, mainly characterized by ID/DD, including language and speech delay and/or motor impairment, behavioral anomalies/attention deficit and hyperactive disorder (ADHD), autism spectrum disorder (ASD) and dysmorphisms. The analysis of microdeletion extensions enabled us to point out a candidate region, more restricted compared to the previously proposed CR, and to propose a genotype-to-phenotype correlation for a few core clinical signs. Moreover, possible mechanisms accounting for the clinical variability across microdeletion carriers are herein discussed.

2. Materials and Methods

The seven patients described underwent standard and molecular cytogenetics analyses as routine diagnostic procedures in five different Italian Cytogenetics Laboratories. Informed consent signed by the patients’ parents, adult patients themselves and healthy adult carriers was provided. Chromosome analysis was performed on peripheral blood lymphocytes using QFQ banding techniques on metaphase chromosomes obtained by standard procedures. Array based comparative genomic hybridization (array-CGH) analyses were performed using: Bluegnome 4 × 180 K CytoChip Oligo ISCA, resolution ~25 kb (Patient 1); Agilent SurePrint G3 Human CGH+SNP Microarray kit 4 × 180 K, resolution ~25 Kb (Patients 2 and 7); Agilent SurePrint G3 Oligo ISCA v2.0 4 × 180 K, resolution ~25 kb (Patient 4); Agilent SurePrint G3 Human CGH Microarray kit 8 × 60 K, resolution ~100–150 kb (Patients 3, 5 and 6). Nucleotide designations were assigned according to the hg19/GRCh37 assembly of the human genome. BAC-FISH (Bacterial artificial chromosome – Fluorescence in situ hybridization) experiments with the RP11-666I19 BAC clone were performed according to Lichter et al. 1988 [18] with minor modifications. FISH analyses with chromosome 8 subtelomeric-specific probes (ToTelVysion, Vysis, Downers Grove, IL, USA) were performed according to manufacturer’s instructions. All coding exons of the CLN8 gene were analyzed by direct sequencing of polymerase chain reaction (PCR) products using standard protocols. Patients 1, 2 and 4 underwent Leiter-3, ADOS (Autism Diagnostic Observation Schedule), VABS II (Vineland Adaptive Behavior Scales-II), ABC-2 (Movement Assessment Battery for Children 2), PEP-3 (PsychoEducational Profile 3) and ADI-R tests. Patient 5 underwent WISC-III (Wechsler Intelligence Scale for Children-III), Leiter-R and ADOS tests; Patient 7 underwent WISC-IV, Leiter-3 and CPM (Coloured Progressive Matrices) tests. In patients 3 and 6, ID and DD assessments have been performed through clinical evaluation by experienced neurologists.
Protocols provided by the companies have been followed with no modifications.
Consent for publication of research studies were obtained from all individuals.

3. Results

Cytogenomic and Phenotypic Characterization of Seven Novel 8p23-Pter Microdeletion Patients: Cross-Comparison to Previously Reported Patients

Our study includes seven patients, six males and one female, with age at diagnosis ranging from 2 to 38 years. CMA was performed for all seven patients and the results are provided in Figure 1 and Table 1. Of note, Patients 3, 5 and 6 have been extrapolated from a cohort of 5110 Italian patients, collected by the Cytogenetics/Cytogenomics working group of the Italian Society of Human Genetics (SIGU) and processed by CMA as reported [19]. Patients 1, 2, 4 and 7 were collected by the same SIGU working group afterwards. Patient 7 corresponds to DECIPHER patient 383055. Additional approaches used were: standard cytogenetics analysis, that for Patient 3 revealed a mosaic karyotype 45,XY,-8[8]/46,XY,r(8)(p23.2q24.3) [42], and targeted FISH analysis using the 8p subtelomeric probe and BAC probe RP11-666I19, to confirm the microdeletion in Patient 1 (data not shown). Array-CGH analysis on Patient 3 genomic DNA didn’t reveal either imbalances involving 8q or mosaic monosomy of chromosome 8. However, the declared detection rate of the array-CGH platform used does not guarantee to identify mosaicism under the rate of 30%. Furthermore, given that the 123 kb deletion of Patient 6, which involves only the CLN8 and ARHGEF10 genes, did not manifest any effect in the carrier brother, direct sequencing analysis of polymerase chain reaction (PCR) products was performed on the patient’s genomic DNA in order to check if eventual unmasking of a recessive CLN8 mutation on the non-deleted allele could be responsible for the patient’s phenotype. Sequence changes in CLN8 exons were ruled out (data not shown). The inheritance pattern was precluded for Patient 1, since he was adopted, but could be determined in five of the six remaining patients: the microdeletion arose de novo in Patients 3 and 4, was transmitted to Patient 2 by his apparently healthy mother and to Patient 5 by his father, which presented a milder phenotype. Moreover, we presume that the microdeletion was inherited also by Patient 6, because his unaffected brother carried the same microdeletion (Table 1). The extent of the microdeletions ranged from the 71.79 kb deletion detected in Patient 4, which contained only the DLGAP2 gene, to the 4.55 Mb deletion of Patient 3, comprising 9 coding genes (Figure 1 and Table 1).
Table 2 lists the genes comprised in the patients’ microdeletions, their OMIM entry, when available, the encoded proteins and their assessed, putative or unknown main role, their association to disease, if applicable, and all inherent references. The last column of the table provides the pLI (probability of Loss of function Intolerance) score, a metric which ranges between 0 and 1 and measures the extent of tolerance of a given gene to heterozygous loss-of function variants [21,22], a parameter suitable to explore the role of genes contributing to the phenotype of microdeletion syndromes.
All genes map to 8p23.3, except the most centromeric CSMD1, which maps to 8p23.2. Noncoding genes localized at 8p23.2-pter are not included in the list because knowledge of their function is limited and most of them are not annotated in OMIM.
Out of the 11 protein coding genes encompassing the deletion intervals of our patients, DLGAP2 and ARHGEF10 appear to be, according to their expression profile and the assessed role in neural morphogenesis, differentiation and function [13,14,15,16], bona fide candidates for neurodevelopmental disorders. Interestingly, DLGAP2, a “synaptic” gene associated with autism [13], is the only gene lost in Patient 4, who carries the smallest microdeletion (71.79 kb) and presents behavioral issues (Table 1); ARHGEF10 is the only gene lost in the second smallest microdeletion (83.33 kb), found in Patient 7, who also displays a hyperkinetic behavior (Table 1). ARHGEF10, together with CLN8, also falls within the 123 kb deletion of patient 6 who has motor coordination problems and epilepsy (Table 1). Both DLGAP2 and ARHGEF10 also map within the deletion intervals of the remaining four patients. The CLN8 gene is involved in lipid synthesis, transport, or sensing [23]. The FBXO25 and KBTBD11 genes have cell cycle regulation and metabolic functions [24,25], while TDRP is involved in spermatogenesis [26] and MYOM2 encodes a strictly muscular-related protein [27]. Even more limited is the knowledge on the remaining OR4F21, ZNF596, ERICH1 and CSMD1 microdeletion genes.
RNA-seq data from the GTEx Portal show a high level of expression in the whole brain for DLGAP2, KBTBD11 and CSMD1, and in some nervous system tissues for ZNF596 (cerebellum) and CLN8 (spinal cord) [28].
Comparison of the microdeletions of our seven patients with those of the five patients reported in the literature highlighted a similar extent and an identical gene content between the microdeletion of our Patient 2 and the literature smallest microdeletion which allowed to identify the CR [7,11]. It also allowed to point out the presence in Patient 5 of another microdeletion, similar in length, but staggered. In addition, while the largest microdeletion in our series (Patient 3) stands between those reported in Patients 1 and 2 by Burnside [9], the increasingly smaller deletion intervals of 1.72 Mb, 123 kb, 83.33 kb and 71.79 kb in our Patients 1, 6, 7 and 4, respectively, provided the tool to address a genotype-phenotype analysis by cross evaluating the clinical signs displayed by our patients and the reported microdeleted patients. As detailed in Table 1, growth delay combined to mild cognitive impairment and/or ASD manifestations and a few dysmorphic signs, particularly microcephaly, emerged as core features of both the seven newly characterized patients and the five previously reported ones. However not all the listed signs were present across patients and their combination was variable, apparently not dependent on the deletion size (Table 1). In order to better define the variable clinical expressivity of 8p23.2-pter microdeletion, 9 additional individuals from the DECIPHER database [29] were included in the genomic and clinical comparison, summing up to a total of 21 individuals (Table 3). DECIPHER patients 396027, 396034, 396025, 396345 and 396353, referred to the same laboratory and carrying 8p23.3 microdeletions with the same extension and identical end points, were excluded from our analysis as we could not discriminate between their possible familial relationship and a longitudinal study of the same individual at different ages. DECIPHER patient 394930 has been excluded because he carries the same 8p23.3 microdeletion and a large pathogenic rearrangement involving chromosome 12.
Evaluation of the expanded cohort of 21 8p23.2-pter microdeleted patients confirmed that the main phenotype is variably compounded by ID (13/21), DD (9/27), including language and/or speech delay (7/21) and motor impairment (5/21), behavioral anomalies/ADHD (8/21), ASD (6/21), dysmorphisms (8/21), microcephaly (6/21), fingers/toes anomalies (6/21), and epilepsy (4/21) (Table 3).

4. Discussion

We overviewed seven new patients carrying microdeletions sized from 71.79 kb to 4.55 Mb encompassing the 8p23.2-pter region. All microdeletions partially overlap with the CR including the FBXO25, DLGAP2, CLN8, ARHGEF10 and MYOM2 genes, that have been previously pointed out by Wu et al. and Shi et al. [7,11]. Loss of these genes may be of pathogenic relevance as 8p23.2-pter CNVs are rarely reported in the healthy population according to the DGV database [8]. Patient 3 should be considered more prudently compared to other patients since conventional cytogenetic analysis revealed a low-level mosaicism for chromosome 8 monosomy, non excludable by array-CGH analysis, making difficult to assess its contribution to the clinical phenotype.
Our patients have been referred for variable clinical features consistent with those described in 5 previously reported microdeleted patients (Table 1) and in 9 patients recorded in the DECIPHER Database, summing up to a total of 21 individuals (Table 3). The small number of the evaluated patients so far and the lack of records for specific signs in a few cases does not allow to calculate an accurate frequency for each considered feature. In addition, since age at diagnosis spans between <1 to 38 years, incompletely evaluated late onset features in some patients must be also taken into account as contributors to the phenotypic variability. However, considering the entire composite cohort, ID and DD, including speech and/or motor delay, are present in the majority of individuals. Other common features in decreasing trend are behavioral anomalies/ADHD, ASD, dysmorphisms and microcephaly. We also observed fingers/toes anomalies in few individuals, whereas epilepsy/seizure was reported only occasionally.
Overall, microdeletions arose de novo in 5 patients and were inherited in 6 out of the 21 patients herein surveyed. The familial cases, including one paternal transmission (our Patient 5), three maternal transmissions (our Patient 2, and DECIPHER patients 288405 and 391615) and two unknown transmissions (brother of Patient 6 and DECIPHER patient 277848) attest the relatively mild overall phenotype of even large microdeletion carriers and their spared reproductive fitness. This observation values the provision of genetic counseling and the careful collection of familial history also in those that are apparently sporadic cases. Recognition of the unaffected brother of Patient 6 and the apparently asymptomatic mother of Patient 2 highlights a possible defect of penetrance which may lead to underestimate 8p23.2-pter microdeletion carriers. However, inaccurate clinical evaluation of these asymptomatic carriers cannot be excluded since some patients are characterized by very mild clinical features. Additional cases are required to strengthen the incomplete penetrance of 8p23.2-pter microdeletions.
Although sharing deleted genes, the 21 different microdeletions analyzed do not appear to share common breakpoints, a finding which may account for non recurrent microdeletions at the population level [30,31]. The different rearrangement sizes, genomic extents, and breakpoint positions suggest non-homologous end joining (NHEJ) and replication mechanisms as the main causative drivers of the described microdeletions [32]. The analysis of the deletion intervals does not highlight a single overlapping region. However, the smallest microdeletions identified in Patients 4, 6 and 7, as well as in DECIPHER patients 253667, 288405, 337882 and 391615, point out two CRs, one including DLGAP2 and the other ARHGEF10 (Figure 1, Table 1 and Table 3).
ARHGEF10 (Rho guanine nucleotide exchange factor 10) encodes a guanine-nucleotide exchange factor (GEF) for the Rho family of GTPase proteins (RhoGEFs) [33]. The function of ARHGEF10 has not been completely elucidated, but recent evidence suggests it could be specifically linked to the membrane trafficking pathway [14,15,34]. A neuronal role for ARHGEF10 has emerged with the identification of a familial Thr332Ile heterozygous mutation, which causes constitutive activation of GEF, and which is associated to autosomal dominant non-progressive slow nerve conduction velocities and thin peripheral nerve myelinization without clinical phenotype (OMIM #608236) (Table 2) [34,35]. ARHGEF10 variants have been also associated to schizophrenia and to Charcot-Marie Tooth disease type 1A (CMT1A) [36,37,38,39]. In accordance with this presumptive role, DECIPHER patient 368323, carrying an SNV (single nucleotide variant) of uncertain clinical significance in ARHGEF10, mainly showed global developmental delay, postnatal microcephaly, encephalopathy and seizure, that are typical features of 8p23.2-pter patients (Table 1 and Table 3). In addition, ARHGEF10 is included among autism genes with a suggestive evidence score in the SFARI database (score 3) [40].
DLGAP2 (discs, large Drosophila homolog-associated protein 2) belongs to the DLGAP family of scaffolding proteins acting in the post-synaptic density (PSD), a highly specialized matrix involved in transmission of neuronal signals across the synaptic junction [16,41]. Several studies pointed out an association between DLGAP2 and ASD, obsessive-compulsive disorder (OCD) and schizophrenia [10,11,13,42,43,44]. In particular, two duplications of DLGAP2 have been recently reported in an ASD cohort [45]. Accordingly, DLGAP2 is also present in the SFARI Gene database with a suggestive evidence score of 3 [40]. Most importantly, and conversely to ARHGEF10, DLGAP2 is a brain-specific expressed and dosage-sensitive gene with a pLI score of 1 (Table 2) [21], indicating it may contribute to the clinical phenotype of 8p23.2-pter microdeleted patients.
In 2017 Shi et al. proposed DLGAP2 as candidate gene for microcephaly [7], given that polymorphisms in DLGAP2 have been associated to orbital frontal cortex (OFC) white matter volume alterations in OCD patients [46]. Moreover, DLGAP2 interacts with NRXN1, a pre-synaptic cell-adhesion molecule (Figure 2A) and CASK, another scaffolding protein (Figure 2C) and mutations in both NRXN1 and CASK are associated to neurodevelopmental and neurocognitive disabilities and microcephaly [47,48,49]. Disruption of the CASK-Neurexin interaction was recently proposed to be strictly linked to microcephaly onset in CASK-mutated patients [50]. Weakening of the DLGAP2-NRXN1 interaction upon DLGAP2 haploinsufficiency and interfering with the NRXN1-CASK interaction might concur to microcephaly onset also in 8p23.2-pter patients. In our cohort, the presence of microcephaly only in Patient 3, which carries a 4.55 Mb microdeletion encompassing 9 genes and a mosaic karyotype with a chromosome 8 monosomy cell line, does not allow to confirm DLGAP2 as the main candidate gene for microcephaly. In addition, microdeleted patients in the literature displaying microcephaly were shown to carry large deletions, leaving open the implication of other 8p23.2-pter genes. In particular, ARHGEF10 is involved in neuronal morphogenesis and DECIPHER Patient 368323, which carries an ARHGEF10 SNV, presents microcephaly; CSMD1 and KBTBD11 are brain-specific expressed genes, and CSMD1 is also dosage-sensitive. The strict connection between brain genes and microcephaly is well-documented in the literature [51,52,53].
Both DLGAP2 and ARHGEF10 could be potential candidates for behavioral disorders, in accordance with the phenotype of Dlgap2-/- and Arhgef10-/- mice [54,55,56]. Accordingly, our Patients 2, 4, 5 and 7, which carry 8p23.2-pter microdeletions involving DLGAP2 and/or ARHGEF10, are characterized by hyperactivity/hyperkinetic behavior and/or aggressiveness (Table 1).
Based on its dosage-sensitivity, the brain-specific expression and the de novo origin of Patient’s 4 microdeletion, DLGAP2 seems to be a stronger candidate than ARHGEF10 for both the neurodevelopmental and behavioral phenotypes. The causative role of ARHGEF10 appears weaker since none of the microdeletions involving ARHGEF10 without DLGAP2 (Patients 5, 6 and 7), were demonstrated to be de novo. Moreover, the asymptomatic brother of Patient 6 may be interpreted as a sign of reduced penetrance, as above mentioned, but could also be evidence against causality.
Therefore, for these latter patients, pathogenic mechanisms other than ARHGEF10 loss, are possible. In particular, the microdeletion could impact the expression of genes flanking the deleted region, such as the nearby DLGAP2, through a position effect mechanism or by disruption of the topological associated domains (TADs) architecture. Indeed, in the 8p23.2-pter region two adjacent TADs are present with a boundary localized between MYOM2 and CSMD1 (Figure 3). For example, the microdeletion of Patient 5, which involves the boundary but not DLGAP2, could cause neurodevelopmental and behavioral consequences due to DLGAP2 deregulation. Assessment of DLGAP2 expression levels in patients which deletion breakpoints map to the boundary of the two main 8p23.2-pter architectural domains might furnish preliminary insights.
Despite all the above-mentioned considerations, ARHGEF10 deserves to be evaluated in further microdeleted patients because of its documented role in neuronal morphogenesis and its joined action with DLGAP2 on post-synaptic scaffolding proteins. The family of post-synaptic scaffolding proteins includes members of the SHANK, DLG and DLGAP subfamilies, which interact in post-synapses [16]. As shown in Figure 2A, DLGAP2 interacts with SHANK1–2, DLG2-4 and DLGAP1-2-3. Disruption of the network of scaffolding proteins alters the homeostasis of the PSD, contributing to various neuropsychiatric conditions, such as autism spectrum disorders, intellectual disability, behavioral problems, schizophrenia, and bipolar disorders [16,58,59,60,61,62].
At the same time, ARHGEF10 defects, which cause alterations in Rho GTPases function, could have an indirect effect on the activity of scaffolding proteins (Figure 2C). The STRING database shows the interaction between ARHGEF10 and small GTPases, such as RhoA and CDC42 (Figure 2B), which play an important role in regulating the shape of most neuron cell types and interact with scaffolding proteins, such as SHANK [63,64]. A role for GTPases in neurodevelopmental disorders, especially autism [59,62] is attested by the association of RhoA and CDC42 genes to ASD [65,66,67].
Based on the clinical phenotype and on the CR [7,11], we pointed out for the first time, motor impairment as another clinical feature associated with 8p23.2-pter microdeletions and linked it to CLN8 and ARHGEF10, the only genes included in the 123 kb deletion of our Patient 6, which showed fine and gross coordination problems. The CLN8 (Ceroid-lipofuscinosis neuronal 8) gene belongs to the TLC (TRAM, Lag1, and CLN8 homology domains) superfamily and has a role in the biosynthesis and metabolism of lipids and in the protection of proteins from proteolysis [23]. Homozygous genetic alterations of CLN8 are associated with neuronal ceroid lipofuscinosis (NCL) (OMIM #600143), a genetically heterogeneous group of neurodegenerative disorders mainly characterized by seizures and progressive neurological deterioration, which result in dementia, ataxia, visual failure, and various forms of abnormal movement. Despite the fact that a mutation of CLN8 in the non deleted allele of Patient 6 has been ruled out and that, to date, a clinical phenotype has never been reported for CLN8 heterozygous deletion/mutation, a higher risk for motor impairment should be assessed in future CLN8 heterozygous deleted patients.
Since also CLN8, which maps between DLGAP2 and ARHEGF10, seems to be potentially clinically relevant, the two CRs could be merged into a single candidate region, including DLGAP2, CLN8 and ARHGEF10, that could be a valuable landmark for future investigations of additional 8p23.2-pter microdeleted patients. This region is more restricted compared to the previously proposed CR [7,11].
As regards the pronounced clinical variability observed in 8p23.3-pter patients it may result from their genetic heterogeneity, linked to microdeletions size and gene content. Beyond those involved in the actually restricted candidate region, other genes less frequently included in 8p23.2-pter microdeletions may cooperate to the clinical spectrum. Examples are CSMD1 in 8p23.2, a dosage-sensitive gene associated to ASD, schizophrenia and epilepsy [68,69,70] and FBXO25, recently associated to neuropsychiatric disorders [71]. Both genes are not included in most of the microdeletions reported to date, but they might act as phenotypic modifiers in patients with microdeletions spanning until the 8p23.2 or 8p23.3 regions, respectively. Although we focused our attention on coding genes, the 8p23.2-pter region includes several noncoding genes for different types of regulatory RNAs, whose microdeletion could also have an effect on the clinical phenotype. The contribution to the clinical phenotype of 8p23.3-pter patients of several other coding or noncoding genes, remains to be identified. Dysmorphisms for example were reported only in patients carrying larger microdeletions, not involving only DLGAP2 and/or ARHGEF10, and this coincidence needs to be confirmed.
In addition, several genomic and epigenetic mechanisms may contribute to the phenotypic variability of 8p23.2-pter patients.
First, the genetic make up may influence the severity of the phenotype. The presence of other CNVs or mutations in the genome could have an additive effect on the clinical phenotype, as exemplified by Patients 2 and 7 additional CNVs, namely 5p15.2 microdeletion and 6q26 microduplication. Although these CNVs could be classified as likely benign according to international criteria, there could be a pathogenic effect in an 8p23.2-pter deleted background.
Second, epigenetic mechanisms may also play a role. In particular, DLGAP2 is predicted to be a maternally imprinted gene [73]. Although it seems to be expressed from both alleles in whole brain, the effect of its deletion on the severity of the clinical phenotype could be dependent on its parental origin. In patients carrying the microdeletion on the paternal allele, the effect of DLGAP2 loss could be worst. In favor of this hypothesis, the DLGAP2 microdeletions identified in the OCD and the ASD cohorts are both paternally inherited [42,45]. In order to support this hypothesis, the parental origin of the deleted allele should be checked, even in patients with a de novo origin of the microdeletion.

5. Conclusions

In conclusion, this study expands the limited number of described patients carrying microdeletions involving the 8p23.2-pter region. Comparison of the 7 novel patients with the 5 previously reported and the additional 9 recorded in DECIPHER confirms the association to a variable clinical phenotype, mainly characterized by ID/DD, including language and/or speech delay and motor impairment, behavioral anomalies/ADHD, ASD, dysmorphisms and microcephaly. The analysis of small microdeletions allowed us to dissect the previously proposed CR, delineating a new candidate region including three 8p23.3 genes: DLGAP2, CLN8 and ARHGEF10. Out of these three genes, DLGAP2 is the more robust candidate due to its pLI score and its brain-specific expression, which account for the neurodevelopmental-specific effect of its loss. Investigation of novel patients will permit to validate the pathogenic role of DLGAP2, define how the two contiguous genes CLN8 and ARHGEF10 might contribute to the clinical phenotype and determine the role of other 8p23.2-pter genes.

Author Contributions

Conceptualization, I.C. and M.P.R.; funding acquisition, L.L. and M.P.R.; Investigation, I.C.; project administration, M.P.R.; resources, I.C., M.G., A.P.C., S.B., C.B., M.P.C., R.C., F.E., F.F., O.G., E.G., M.M., A.P., C.R., M.S. and M.P.R.; visualization, I.C.; writing—original draft, I.C.; writing—review and editing, L.L. and M.P.R. All authors have read and agreed to the published version of the manuscript.

Funding

This work was partially supported by the Italian Ministry of Health funding to Istituto Auxologico Italiano (RC 08C922 2019). The Biobank of the Laboratory of Human Genetics—IRCCS G. Gaslini, member of the “Network Telethon of Genetic Biobanks” (project no. GTB18001) funded by Telethon Italy, and of the EuroBioBank network, provided us with specimens of the lymphoblastoid cell line from Patient 3.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Institutional Review Board of Istituto Auxologico Italiano (protocol code 08C922 approved on 16 April 2019).

Informed Consent Statement

Informed consent was obtained by the Clinical Geneticists from parents/tutors of the patients, from the healthy carrier or from the adult patients themselves.

Data Availability Statement

Not applicable.

Acknowledgments

We would like to thank the patients and their families. We would also like to thank Francesca Romana Grati and Daniela Giardino, respectively actual and former coordinators of the Cytogenetics/Cytogenomics working group of the Italian Society of Human Genetics (SIGU), for support to our study and Nicola Manfrini for language editing of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lo Bianco, M.; Vecchio, D.; Timpanaro, T.A.; Arena, A.; Macchiaiolo, M.; Bartuli, A.; Sciuto, L.; Presti, S.; Sciuto, S.; Sapuppo, A.; et al. Deciphering the Invdupdel(8p) Genotype-Phenotype Correlation: Our Opinion. Brain Sci. 2020, 10, 451. [Google Scholar] [CrossRef] [PubMed]
  2. Hollox, E.J.; Barber, J.C.; Brookes, A.J.; Armour, J.A. Defensins and the dynamic genome: What we can learn from structural variation at human chromosome band 8p23.1. Genome Res. 2008, 18, 1686–1697. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Rowe, L.R.; Lee, J.Y.; Rector, L.; Kaminsky, E.B.; Brothman, A.R.; Martin, C.L.; South, S.T. U-type exchange is the most frequent mechanism for inverted duplication with terminal deletion rearrangements. J. Med. Genet. 2009, 46, 694–702. [Google Scholar] [CrossRef] [PubMed]
  4. Yu, S.; Fiedler, S.; Stegner, A.; Graf, W.D. Genomic profile of copy number variants on the short arm of human chromosome 8. Eur. J. Hum. Genet. 2010, 18, 1114–1120. [Google Scholar] [CrossRef]
  5. Ballarati, L.; Cereda, A.; Caselli, R.; Selicorni, A.; Recalcati, M.P.; Maitz, S.; Finelli, P.; Larizza, L.; Giardino, D. Genotype-phenotype correlations in a new case of 8p23.1 deletion and review of the literature. Eur. J. Med. Genet. 2011, 54, 55–59. [Google Scholar] [CrossRef] [PubMed]
  6. Kato, T.; Inagaki, H.; Miyai, S.; Suzuki, F.; Naru, Y.; Shinkai, Y.; Kato, A.; Kanyama, K.; Mizuno, S.; Muramatsu, Y.; et al. The involvement of U-type dicentric chromosomes in the formation of terminal deletions with or without adjacent inverted duplications. Hum. Genet. 2020, 139, 1417–1427. [Google Scholar] [CrossRef]
  7. Shi, S.; Lin, S.; Chen, B.; Zhou, Y. Isolated chromosome 8p23.2pter deletion: Novel evidence for developmental delay, intellectual disability, microcephaly and neurobehavioral disorders. Mol. Med. Rep. 2017, 16, 6837–6845. [Google Scholar] [CrossRef] [Green Version]
  8. DGV. Database of Genomic Variants. Available online: http://dgv.tcag.ca/dgv/app/home (accessed on 6 February 2021).
  9. Burnside, R.D.; Pappas, J.G.; Sacharow, S.; Applegate, C.; Hamosh, A.; Gadi, I.K.; Jaswaney, V.; Keitges, E.; Phillips, K.K.; Potluri, V.R.; et al. Three cases of isolated terminal deletion of chromosome 8p without heart defects presenting with a mild phenotype. Am. J. Med. Genet. Part A 2013, 161, 822–828. [Google Scholar] [CrossRef]
  10. Chien, W.H.; Gau, S.S.; Wu, Y.Y.; Huang, Y.S.; Fang, J.S.; Chen, Y.J.; Soong, W.T.; Chiu, Y.N.; Chen, C.H. Identification and molecular characterization of two novel chromosomal deletions associated with autism. Clin. Genet. 2010, 78, 449–456. [Google Scholar] [CrossRef]
  11. Wu, Y.; Ji, T.; Wang, J.; Xiao, J.; Wang, H.; Li, J.; Gao, Z.; Yang, Y.; Cai, B.; Wang, L.; et al. Submicroscopic subtelomeric aberrations in Chinese patients with unexplained developmental delay/mental retardation. BMC Med. Genet. 2010, 11, 72. [Google Scholar] [CrossRef] [Green Version]
  12. Kraus, D.M.; Elliott, G.S.; Chute, H.; Horan, T.; Pfenninger, K.H.; Sanford, S.D.; Foster, S.; Scully, S.; Welcher, A.A.; Holers, V.M. CSMD1 is a novel multiple domain complement-regulatory protein highly expressed in the central nervous system and epithelial tissues. J. Immunol. 2006, 176, 4419–4430. [Google Scholar] [CrossRef] [PubMed]
  13. Pinto, D.; Pagnamenta, A.T.; Klei, L.; Anney, R.; Merico, D.; Regan, R.; Conroy, J.; Magalhaes, T.R.; Correia, C.; Abrahams, B.S.; et al. Functional impact of global rare copy number variation in autism spectrum disorders. Nature 2010, 466, 368–372. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Shibata, S.; Kawanai, T.; Hara, T.; Yamamoto, A.; Chaya, T.; Tokuhara, Y.; Tsuji, C.; Sakai, M.; Tachibana, T.; Inagaki, S. ARHGEF10 directs the localization of Rab8 to Rab6-positive executive vesicles. J. Cell Sci. 2016, 129, 3620–3634. [Google Scholar] [CrossRef] [Green Version]
  15. Shibata, S.; Teshima, Y.; Niimi, K.; Inagaki, S. Involvement of ARHGEF10, GEF for RhoA, in Rab6/Rab8-mediating membrane traffic. Small Gtpases 2019, 10, 169–177. [Google Scholar] [CrossRef]
  16. Rasmussen, A.H.; Rasmussen, H.B.; Silahtaroglu, A. The DLGAP family: Neuronal expression, function and role in brain disorders. Mol. Brain 2017, 10, 43. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. OMIM. Online Mendelian Inheritance in Man. Available online: https://www.omim.org/ (accessed on 6 February 2021).
  18. Lichter, P.; Cremer, T.; Borden, J.; Manuelidis, L.; Ward, D.C. Delineation of individual human chromosomes in metaphase and interphase cells by in situ suppression hybridization using recombinant DNA libraries. Hum. Genet. 1988, 80, 224–234. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Catusi, I.; Recalcati, M.P.; Bestetti, I.; Garzo, M.; Valtorta, C.; Alfonsi, M.; Alghisi, A.; Cappellani, S.; Casalone, R.; Caselli, R.; et al. Testing single/combined clinical categories on 5110 Italian patients with developmental phenotypes to improve array-based detection rate. Mol. Genet. Genom. Med. 2020, 8, e1056. [Google Scholar] [CrossRef] [Green Version]
  20. UCSC Genome Browser. Available online: https://genome.ucsc.edu/ (accessed on 6 February 2021).
  21. GnomAD. Genome Aggregation Database. Available online: https://gnomad.broadinstitute.org/ (accessed on 6 February 2021).
  22. Lek, M.; Karczewski, K.J.; Minikel, E.V.; Samocha, K.E.; Banks, E.; Fennell, T.; O’Donnell-Luria, A.H.; Ware, J.S.; Hill, A.J.; Cummings, B.B.; et al. Analysis of protein-coding genetic variation in 60,706 humans. Nature 2016, 536, 285–291. [Google Scholar] [CrossRef] [Green Version]
  23. Di Ronza, A.; Bajaj, L.; Sharma, J.; Sanagasetti, D.; Lotfi, P.; Adamski, C.J.; Collette, J.; Palmieri, M.; Amawi, A.; Popp, L.; et al. CLN8 is an endoplasmic reticulum cargo receptor that regulates lysosome biogenesis. Nat. Cell Biol. 2018, 20, 1370–1377. [Google Scholar] [CrossRef] [PubMed]
  24. Teixeira, F.R.; Manfiolli, A.O.; Vieira, N.A.; Medeiros, A.C.; Coelho, P.O.; Santiago Guimaraes, D.; Schechtman, D.; Gomes, M.D. FBXO25 regulates MAPK signaling pathway through inhibition of ERK1/2 phosphorylation. Arch. Biochem. Biophys. 2017, 621, 38–45. [Google Scholar] [CrossRef]
  25. Watanabe, K.; Yokota, K.; Yoshida, K.; Matsumoto, A.; Iwamoto, S. Kbtbd11 contributes to adipocyte homeostasis through the activation of upstream stimulatory factor 1. Heliyon 2019, 5, e02777. [Google Scholar] [CrossRef] [PubMed]
  26. Wang, X.; Jiang, H.; Zhou, W.; Zhang, Z.; Yang, Z.; Lu, Y.; Lu, B.; Wang, X.; Ding, Q.; Hu, R. Molecular cloning of a novel nuclear factor, TDRP1, in spermatogenic cells of testis and its relationship with spermatogenesis. Biochem. Biophys. Res. Commun. 2010, 394, 29–35. [Google Scholar] [CrossRef]
  27. Van der Ven, P.F.; Speel, E.J.; Albrechts, J.C.; Ramaekers, F.C.; Hopman, A.H.; Furst, D.O. Assignment of the human gene for endosarcomeric cytoskeletal M-protein (MYOM2) to 8p23.3. Genomics 1999, 55, 253–255. [Google Scholar] [CrossRef] [Green Version]
  28. GTEx. Genotype-Tissue Expression. Available online: https://www.gtexportal.org/home/ (accessed on 17 March 2021).
  29. DECIPHER. DatabasE of GenomiC VarIation and Phenotype in Humans Using Ensembl Resources. Available online: https://decipher.sanger.ac.uk/ (accessed on 6 February 2021).
  30. Li, L.; Huang, L.; Luo, Y.; Huang, X.; Lin, S.; Fang, Q. Differing Microdeletion Sizes and Breakpoints in Chromosome 7q11.23 in Williams-Beuren Syndrome Detected by Chromosomal Microarray Analysis. Mol. Syndr. 2016, 6, 268–275. [Google Scholar] [CrossRef] [Green Version]
  31. Bonati, M.T.; Castronovo, C.; Sironi, A.; Zimbalatti, D.; Bestetti, I.; Crippa, M.; Novelli, A.; Loddo, S.; Dentici, M.L.; Taylor, J.; et al. 9q34.3 microduplications lead to neurodevelopmental disorders through EHMT1 overexpression. Neurogenetics 2019, 20, 145–154. [Google Scholar] [CrossRef] [PubMed]
  32. Venturin, M.; Gervasini, C.; Orzan, F.; Bentivegna, A.; Corrado, L.; Colapietro, P.; Friso, A.; Tenconi, R.; Upadhyaya, M.; Larizza, L.; et al. Evidence for non-homologous end joining and non-allelic homologous recombination in atypical NF1 microdeletions. Hum. Genet. 2004, 115, 69–80. [Google Scholar] [CrossRef] [PubMed]
  33. Stankiewicz, T.R.; Linseman, D.A. Rho family GTPases: Key players in neuronal development, neuronal survival, and neurodegeneration. Front. Cell Neurosci. 2014, 8, 314. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Chaya, T.; Shibata, S.; Tokuhara, Y.; Yamaguchi, W.; Matsumoto, H.; Kawahara, I.; Kogo, M.; Ohoka, Y.; Inagaki, S. Identification of a negative regulatory region for the exchange activity and characterization of T332I mutant of Rho guanine nucleotide exchange factor 10 (ARHGEF10). J. Biol. Chem. 2011, 286, 29511–29520. [Google Scholar] [CrossRef] [Green Version]
  35. Verhoeven, K.; De Jonghe, P.; Van de Putte, T.; Nelis, E.; Zwijsen, A.; Verpoorten, N.; De Vriendt, E.; Jacobs, A.; Van Gerwen, V.; Francis, A.; et al. Slowed conduction and thin myelination of peripheral nerves associated with mutant rho Guanine-nucleotide exchange factor 10. Am. J. Hum. Genet. 2003, 73, 926–932. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Jungerius, B.J.; Hoogendoorn, M.L.; Bakker, S.C.; Van’t Slot, R.; Bardoel, A.F.; Ophoff, R.A.; Wijmenga, C.; Kahn, R.S.; Sinke, R.J. An association screen of myelin-related genes implicates the chromosome 22q11 PIK4CA gene in schizophrenia. Mol. Psychiatry 2008, 13, 1060–1068. [Google Scholar] [CrossRef] [Green Version]
  37. Tabares-Seisdedos, R.; Rubenstein, J.L. Chromosome 8p as a potential hub for developmental neuropsychiatric disorders: Implications for schizophrenia, autism and cancer. Mol. Psychiatry 2009, 14, 563–589. [Google Scholar] [CrossRef]
  38. Noto, Y.; Shiga, K.; Tsuji, Y.; Mizuta, I.; Higuchi, Y.; Hashiguchi, A.; Takashima, H.; Nakagawa, M.; Mizuno, T. Nerve ultrasound depicts peripheral nerve enlargement in patients with genetically distinct Charcot-Marie-Tooth disease. J. Neurol. Neurosurg. Psychiatry 2015, 86, 378–384. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Boora, G.K.; Kulkarni, A.A.; Kanwar, R.; Beyerlein, P.; Qin, R.; Banck, M.S.; Ruddy, K.J.; Pleticha, J.; Lynch, C.A.; Behrens, R.J.; et al. Association of the Charcot-Marie-Tooth disease gene ARHGEF10 with paclitaxel induced peripheral neuropathy in NCCTG N08CA (Alliance). J. Neurol. Sci. 2015, 357, 35–40. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. SFARI Gene Database. Available online: https://gene.sfari.org/ (accessed on 6 February 2021).
  41. Deneault, E.; White, S.H.; Rodrigues, D.C.; Ross, P.J.; Faheem, M.; Zaslavsky, K.; Wang, Z.; Alexandrova, R.; Pellecchia, G.; Wei, W.; et al. Complete Disruption of Autism-Susceptibility Genes by Gene Editing Predominantly Reduces Functional Connectivity of Isogenic Human Neurons. Stem Cell Rep. 2019, 12, 427–429. [Google Scholar] [CrossRef] [Green Version]
  42. Gazzellone, M.J.; Zarrei, M.; Burton, C.L.; Walker, S.; Uddin, M.; Shaheen, S.M.; Coste, J.; Rajendram, R.; Schachter, R.J.; Colasanto, M.; et al. Uncovering obsessive-compulsive disorder risk genes in a pediatric cohort by high-resolution analysis of copy number variation. J. Neurodev. Disord. 2016, 8, 36. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Xing, J.; Kimura, H.; Wang, C.; Ishizuka, K.; Kushima, I.; Arioka, Y.; Yoshimi, A.; Nakamura, Y.; Shiino, T.; Oya-Ito, T.; et al. Resequencing and Association Analysis of Six PSD-95-Related Genes as Possible Susceptibility Genes for Schizophrenia and Autism Spectrum Disorders. Sci. Rep. 2016, 6, 27491. [Google Scholar] [CrossRef]
  44. Li, Y.; Wang, K.; Zhang, P.; Huang, J.; An, H.; Wang, N.; De Yang, F.; Wang, Z.; Tan, S.; Chen, S.; et al. Quantitative DNA Methylation Analysis of DLGAP2 Gene using Pyrosequencing in Schizophrenia with Tardive Dyskinesia: A Linear Mixed Model Approach. Sci. Rep. 2018, 8, 17466. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Woodbury-Smith, M.; Zarrei, M.; Wei, J.; Thiruvahindrapuram, B.; O’Connor, I.; Paterson, A.D.; Yuen, R.K.C.; Dastan, J.; Stavropoulos, D.J.; Howe, J.L.; et al. Segregating patterns of copy number variations in extended autism spectrum disorder (ASD) pedigrees. Am. J. Med. Genet. B Neuropsychiatr. Genet. 2020, 183, 268–276. [Google Scholar] [CrossRef]
  46. Wu, K.; Hanna, G.L.; Easter, P.; Kennedy, J.L.; Rosenberg, D.R.; Arnold, P.D. Glutamate system genes and brain volume alterations in pediatric obsessive-compulsive disorder: A preliminary study. Psychiatry Res. 2013, 211, 214–220. [Google Scholar] [CrossRef] [Green Version]
  47. Curran, S.; Ahn, J.W.; Grayton, H.; Collier, D.A.; Ogilvie, C.M. NRXN1 deletions identified by array comparative genome hybridisation in a clinical case series—Further understanding of the relevance of NRXN1 to neurodevelopmental disorders. J. Mol. Psychiatry 2013, 1, 4. [Google Scholar] [CrossRef] [Green Version]
  48. Hu, Z.; Xiao, X.; Zhang, Z.; Li, M. Genetic insights and neurobiological implications from NRXN1 in neuropsychiatric disorders. Mol. Psychiatry 2019, 24, 1400–1414. [Google Scholar] [CrossRef] [PubMed]
  49. Castronovo, P.; Baccarin, M.; Ricciardello, A.; Picinelli, C.; Tomaiuolo, P.; Cucinotta, F.; Frittoli, M.; Lintas, C.; Sacco, R.; Persico, A.M. Phenotypic spectrum of NRXN1 mono- and bi-allelic deficiency: A systematic review. Clin. Genet. 2020, 97, 125–137. [Google Scholar] [CrossRef] [Green Version]
  50. LaConte, L.E.W.; Chavan, V.; Elias, A.F.; Hudson, C.; Schwanke, C.; Styren, K.; Shoof, J.; Kok, F.; Srivastava, S.; Mukherjee, K. Two microcephaly-associated novel missense mutations in CASK specifically disrupt the CASK-neurexin interaction. Hum. Genet. 2018, 137, 231–246. [Google Scholar] [CrossRef]
  51. Pirozzi, F.; Nelson, B.; Mirzaa, G. From microcephaly to megalencephaly: Determinants of brain size. Dialogues Clin. Neurosci. 2018, 20, 267–282. [Google Scholar] [CrossRef] [Green Version]
  52. Jean, F.; Stuart, A.; Tarailo-Graovac, M. Dissecting the Genetic and Etiological Causes of Primary Microcephaly. Front. Neurol. 2020, 11, 570830. [Google Scholar] [CrossRef] [PubMed]
  53. Stracker, T.H.; Morrison, C.G.; Gergely, F. Molecular causes of primary microcephaly and related diseases: A report from the UNIA Workshop. Chromosoma 2020, 129, 115–120. [Google Scholar] [CrossRef] [PubMed]
  54. Jiang-Xie, L.F.; Liao, H.M.; Chen, C.H.; Chen, Y.T.; Ho, S.Y.; Lu, D.H.; Lee, L.J.; Liou, H.H.; Fu, W.M.; Gau, S.S. Autism-associated gene Dlgap2 mutant mice demonstrate exacerbated aggressive behaviors and orbitofrontal cortex deficits. Mol. Autism 2014, 5, 32. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Lu, D.H.; Liao, H.M.; Chen, C.H.; Tu, H.J.; Liou, H.C.; Gau, S.S.; Fu, W.M. Impairment of social behaviors in Arhgef10 knockout mice. Mol. Autism 2018, 9, 11. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Horner, A.E.; Norris, R.H.; McLaren-Jones, R.; Alexander, L.; Komiyama, N.H.; Grant, S.G.N.; Nithianantharajah, J.; Kopanitsa, M.V. Learning and reaction times in mouse touchscreen tests are differentially impacted by mutations in genes encoding postsynaptic interacting proteins SYNGAP1, NLGN3, DLGAP1, DLGAP2 and SHANK2. Genes Brain Behav. 2020, e12723. [Google Scholar] [CrossRef]
  57. STRING Database. Available online: https://string-db.org/ (accessed on 6 February 2021).
  58. Verpelli, C.; Schmeisser, M.J.; Sala, C.; Boeckers, T.M. Scaffold proteins at the postsynaptic density. Adv. Exp. Med. Biol. 2012, 970, 29–61. [Google Scholar] [CrossRef]
  59. Sala, C.; Vicidomini, C.; Bigi, I.; Mossa, A.; Verpelli, C. Shank synaptic scaffold proteins: Keys to understanding the pathogenesis of autism and other synaptic disorders. J. Neurochem. 2015, 135, 849–858. [Google Scholar] [CrossRef] [PubMed]
  60. Soler, J.; Fananas, L.; Parellada, M.; Krebs, M.O.; Rouleau, G.A.; Fatjo-Vilas, M. Genetic variability in scaffolding proteins and risk for schizophrenia and autism-spectrum disorders: A systematic review. J. Psychiatry Neurosci. 2018, 43, 223–244. [Google Scholar] [CrossRef] [Green Version]
  61. Taylor, S.C.; Ferri, S.L.; Grewal, M.; Smernoff, Z.; Bucan, M.; Weiner, J.A.; Abel, T.; Brodkin, E.S. The Role of Synaptic Cell Adhesion Molecules and Associated Scaffolding Proteins in Social Affiliative Behaviors. Biol. Psychiatry 2020, 88, 442–451. [Google Scholar] [CrossRef]
  62. Kaizuka, T.; Takumi, T. Postsynaptic density proteins and their involvement in neurodevelopmental disorders. J. Biochem. 2018, 163, 447–455. [Google Scholar] [CrossRef]
  63. Park, E.; Na, M.; Choi, J.; Kim, S.; Lee, J.R.; Yoon, J.; Park, D.; Sheng, M.; Kim, E. The Shank family of postsynaptic density proteins interacts with and promotes synaptic accumulation of the beta PIX guanine nucleotide exchange factor for Rac1 and Cdc42. J. Biol. Chem. 2003, 278, 19220–19229. [Google Scholar] [CrossRef] [Green Version]
  64. Sarowar, T.; Grabrucker, A.M. Actin-Dependent Alterations of Dendritic Spine Morphology in Shankopathies. Neural Plast. 2016, 2016, 8051861. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Zeidan-Chulia, F.; Salmina, A.B.; Malinovskaya, N.A.; Noda, M.; Verkhratsky, A.; Moreira, J.C. The glial perspective of autism spectrum disorders. Neurosci. Biobehav. Rev. 2014, 38, 160–172. [Google Scholar] [CrossRef] [PubMed]
  66. Bakos, J.; Bacova, Z.; Grant, S.G.; Castejon, A.M.; Ostatnikova, D. Are Molecules Involved in Neuritogenesis and Axon Guidance Related to Autism Pathogenesis? Neuromol. Med. 2015, 17, 297–304. [Google Scholar] [CrossRef] [PubMed]
  67. Reichova, A.; Zatkova, M.; Bacova, Z.; Bakos, J. Abnormalities in interactions of Rho GTPases with scaffolding proteins contribute to neurodevelopmental disorders. J. Neurosci. Res. 2018, 96, 781–788. [Google Scholar] [CrossRef] [PubMed]
  68. Cukier, H.N.; Dueker, N.D.; Slifer, S.H.; Lee, J.M.; Whitehead, P.L.; Lalanne, E.; Leyva, N.; Konidari, I.; Gentry, R.C.; Hulme, W.F.; et al. Exome sequencing of extended families with autism reveals genes shared across neurodevelopmental and neuropsychiatric disorders. Mol. Autism 2014, 5, 1. [Google Scholar] [CrossRef] [Green Version]
  69. Liu, Y.; Fu, X.; Tang, Z.; Li, C.; Xu, Y.; Zhang, F.; Zhou, D.; Zhu, C. Altered expression of the CSMD1 gene in the peripheral blood of schizophrenia patients. BMC Psychiatry 2019, 19, 113. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Crippa, M.; Malatesta, P.; Bonati, M.T.; Trapasso, F.; Fortunato, F.; Annesi, G.; Larizza, L.; Labate, A.; Finelli, P.; Perrotti, N.; et al. A familial t(4;8) translocation segregates with epilepsy and migraine with aura. Ann. Clin. Transl. Neurol. 2020, 7, 855–859. [Google Scholar] [CrossRef] [PubMed]
  71. Harich, B.; Klein, M.; Ockeloen, C.W.; van der Voet, M.; Schimmel-Naber, M.; de Leeuw, N.; Schenck, A.; Franke, B. From man to fly—Convergent evidence links FBXO25 to ADHD and comorbid psychiatric phenotypes. J. Child Psychol. Psychiatry 2020, 61, 545–555. [Google Scholar] [CrossRef] [PubMed]
  72. YUE Lab Computational and Functional Genomics/Epigenomics. Available online: http://3dgenome.fsm.northwestern.edu/view.php (accessed on 27 February 2021).
  73. Luedi, P.P.; Dietrich, F.S.; Weidman, J.R.; Bosko, J.M.; Jirtle, R.L.; Hartemink, A.J. Computational and experimental identification of novel human imprinted genes. Genome Res. 2007, 17, 1723–1730. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Genes 12 00652 g001 550

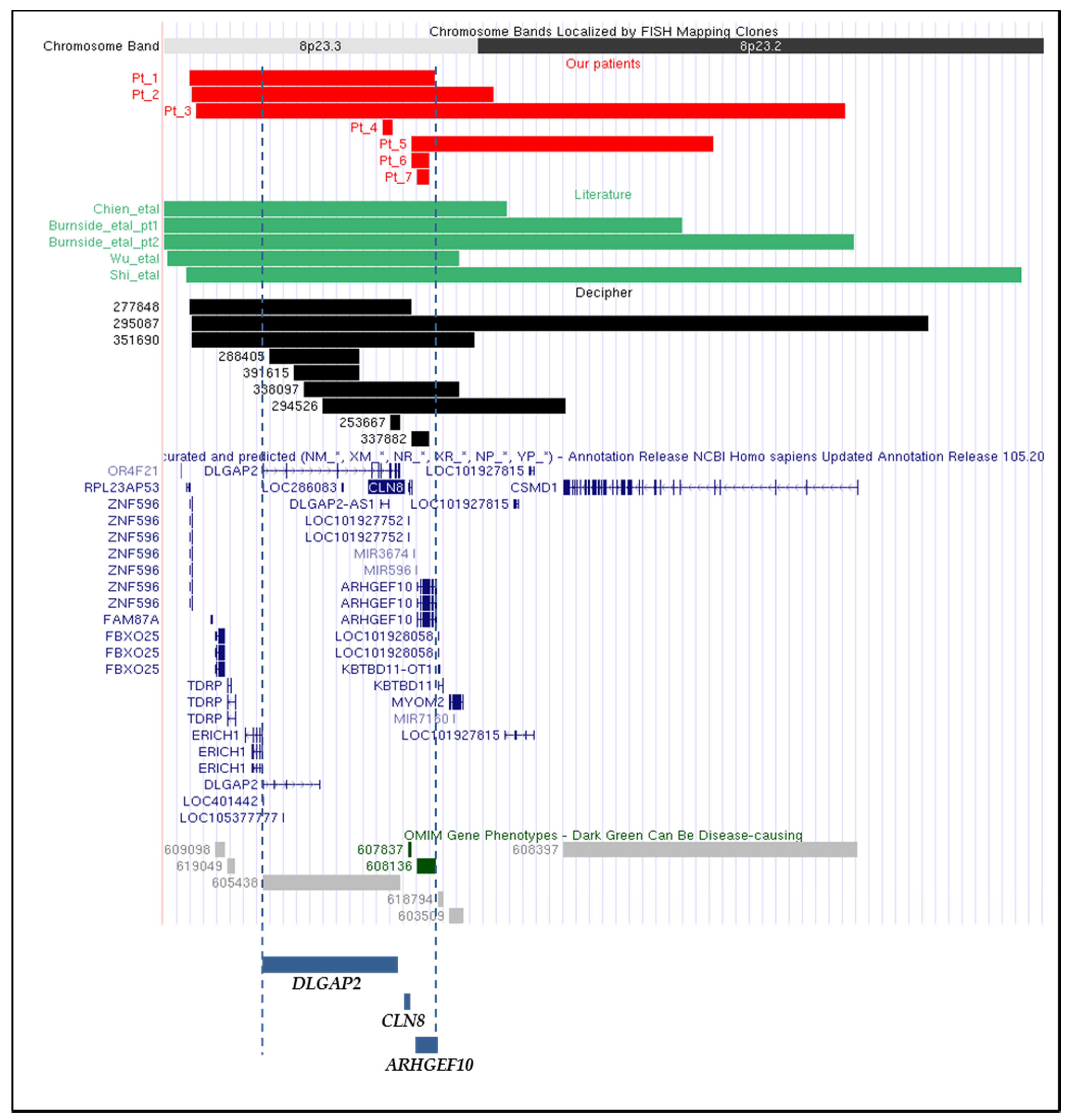

Figure 1. Physical map of the 8p23.2-pter region (nucleotides 1 to 6,000,000 GRCh37/hg19) adapted from the UCSC Genome Browser [20]: differently colored bars indicate the different genomic regions involved in the microdeletions of: our seven patients (RED bars), patients reported in the literature (GREEN bars), patients described in the DECIPHER database (BLACK bars). All curated and predicted NCBI RefSeq genes included in this region are annotated. Genes included in the candidate region are indicated below with BLUE bars. DARK GREEN bars point to OMIM-disease genes, whereas LIGHT GREY bars indicate genes not associated to any OMIM phenotype [17].
Figure 1. Physical map of the 8p23.2-pter region (nucleotides 1 to 6,000,000 GRCh37/hg19) adapted from the UCSC Genome Browser [20]: differently colored bars indicate the different genomic regions involved in the microdeletions of: our seven patients (RED bars), patients reported in the literature (GREEN bars), patients described in the DECIPHER database (BLACK bars). All curated and predicted NCBI RefSeq genes included in this region are annotated. Genes included in the candidate region are indicated below with BLUE bars. DARK GREEN bars point to OMIM-disease genes, whereas LIGHT GREY bars indicate genes not associated to any OMIM phenotype [17].
Genes 12 00652 g001
Genes 12 00652 g002 550

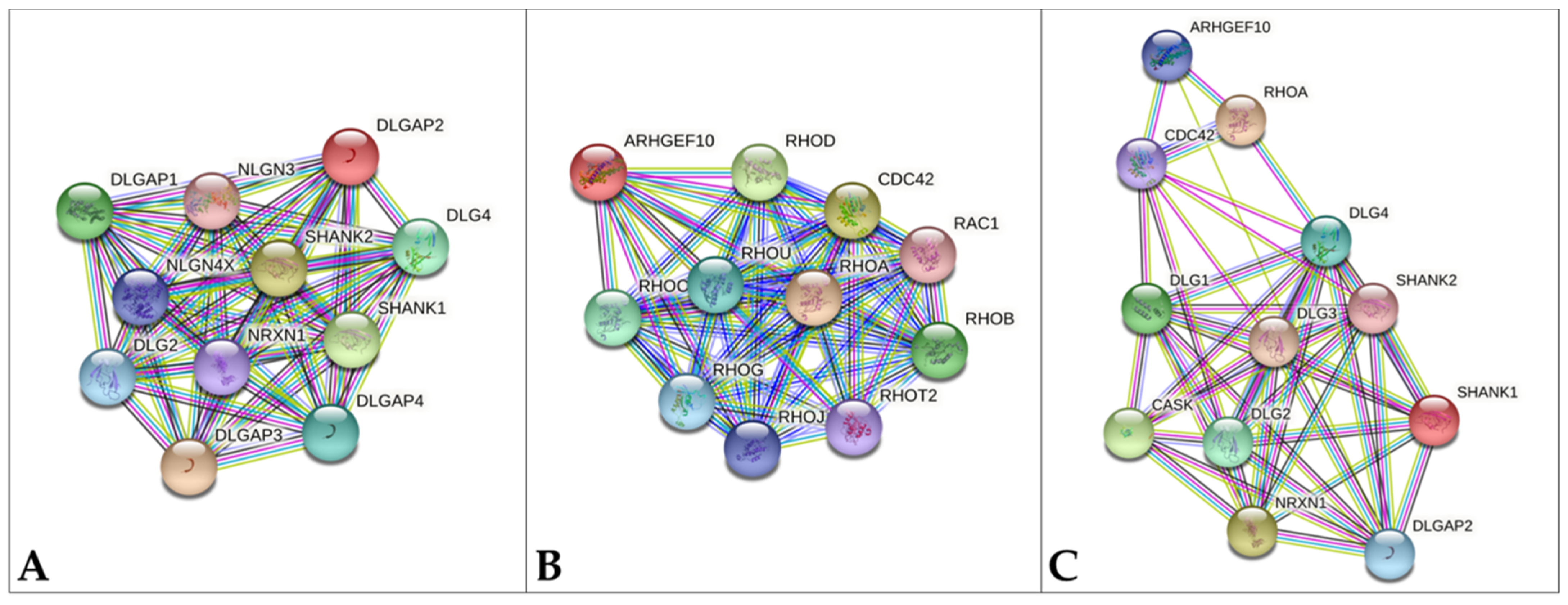

Figure 2. Protein-protein interaction in STRING database [57]. (A) DLGAP2 network, (B) ARHGEF10 network (C) ARHGEF10 and DLGAP2 common network. The top ten interactors for each gene are shown. Colored lines indicate different kinds of interactions. Blue: known interaction from curated databases; violet: known interaction experimentally determined; green: predicted interaction for gene neighborhood; red: predicted interaction for gene fusion; dark blue: predicted interaction for gene co-occurrence; yellow: interaction based on text mining; black: interaction based on gene-expression; light blue: interaction based on protein homology.
Figure 2. Protein-protein interaction in STRING database [57]. (A) DLGAP2 network, (B) ARHGEF10 network (C) ARHGEF10 and DLGAP2 common network. The top ten interactors for each gene are shown. Colored lines indicate different kinds of interactions. Blue: known interaction from curated databases; violet: known interaction experimentally determined; green: predicted interaction for gene neighborhood; red: predicted interaction for gene fusion; dark blue: predicted interaction for gene co-occurrence; yellow: interaction based on text mining; black: interaction based on gene-expression; light blue: interaction based on protein homology.
Genes 12 00652 g002
Genes 12 00652 g003 550

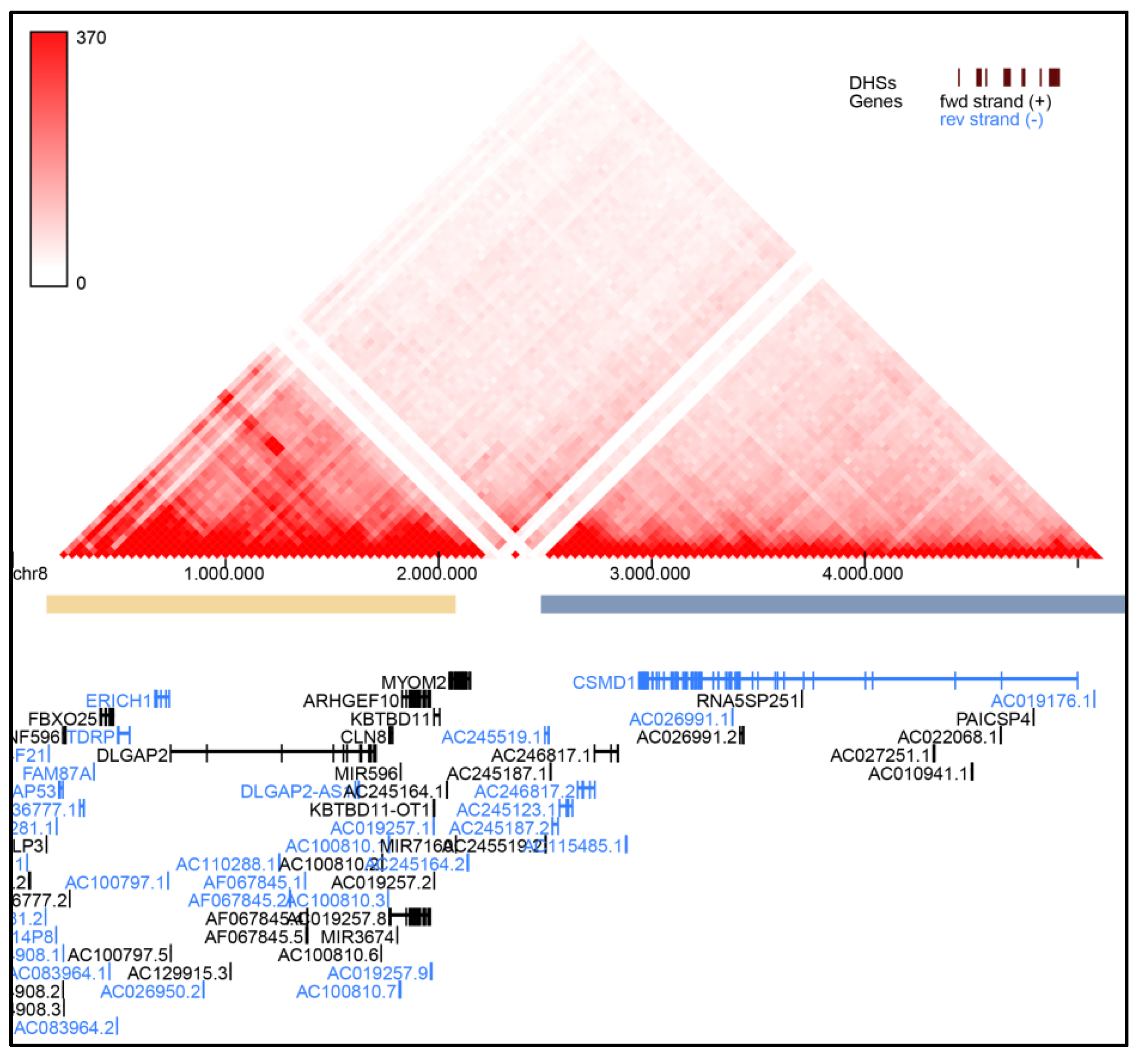

Figure 3. Topological associated domains (TADs) in 8p23.2-pter region based on Hi-C data performed by YUE Lab website [72].
Figure 3. Topological associated domains (TADs) in 8p23.2-pter region based on Hi-C data performed by YUE Lab website [72].
Genes 12 00652 g003
Table
Table 1. Clinical and molecular genetics data of 8p microdeleted patients described in the present work and in the literature.
Table 1. Clinical and molecular genetics data of 8p microdeleted patients described in the present work and in the literature.
Present Work PatientsLiterature Patients
Patient 1Patient 2Patient 3Patient 4Patient 5Patient 6Patient 7Shi et al., 2017 [7] Burnside et al., 2013 pt1 [9]Burnside et al., 2013 pt2 [9]Chien et al., 2010 [10]Wu et al., 2010 [11]Total Number of Patients
Age at diagnosis134162133812524121
SexMMMMMMFMFMMF
Coordinates (GRCh37/hg19)chr8:176475-1892812chr8:191530-2308985chr8:221611-4767606chr8:1531691-1603483chr8:1731454-3846288chr8:1731454-1853939chr8:1774139-1857463chr8:158048-6004205chr8:1- 3623904chr8:1-4832134chr8:1-2400000chr8:21000-2067000
Size1.72 Mb2.12 Mb4.55 Mb71.79 kb2.1 Mb123 kb83.33 kb6.0 Mb3.6 Mb4.8 Mb2.4 Mb2.1 Mb
Inheritance Maternalde novode novopaternal
(father with learning disability and stuttering)		inherited
(present in the unaffected brother)		 de novode novode novo
Coding gene(s) contentORF4F21, ZNF596, FBXO25, TDRP,
ERICH1,
DLGAP2,
CLN8, ARHGEF10		ORF4F21, ZNF596, FBXO25, TDRP,
ERICH1,
DLGAP2,
CLN8, ARHGEF10, KBTBD11, MYOM2		FBXO25, TDRP,
ERICH1,
DLGAP2, CLN8, ARHGEF10, KBTBD11, MYOM2, CSMD1		DLGAP2CLN8, ARHGEF10,KBTBD11, MYOM2, CSMD1CLN8, ARHGEF10ARHGEF10ORF4F21, ZNF596, FBXO25, TDRP,
ERICH1,
DLGAP2, CLN8, ARHGEF10, KBTBD11, MYOM2, CSMD1		ORF4F21, ZNF596, FBXO25, TDRP, ERICH1, DLGAP2, CLN8, ARHGEF10, KBTBD11, MYOM2, CSMD1ORF4F21, ZNF596, FBXO25, TDRP, ERICH1, DLGAP2, CLN8, ARHGEF10, KBTBD11, MYOM2, CSMD1ORF4F21, ZNF596, FBXO25, TDRP,
ERICH1, DLGAP2, CLN8, ARHGEF10, KBTBD11, MYOM2		ORF4F21, ZNF596, FBXO25, TDRP, ERICH1, DLGAP2, CLN8, ARHGEF10, KBTBD11, MYOM2
IDmild ID mild ID mild DD at 3y.
IQ = 91 at 13y		 + ++6/12
DD +--++++++++9/12
Language and speech delay+ + +++-+ 6/12
Motor impairmentMotor instability, dyspraxiaMotor instability, balance/coordination problems, limb hypotonia −Fine and gross coordination problems Balanced/coordination problemsBalanced/coordination problems 5/12
ASD + ++ −+−−+ 5/12
Behavioral abnormalities/
ADHD		 Hyperkinetic behavior, irritability Hyperkinetic behavior, ADHDHyperactivity, aggressiveness, impulsiveness, stereotype behavior Hyperkinetic behavior, hyperactivity, attention deficit, aggressivenessADHD−−ADHD 6/12
Microcephaly + −+Microcephaly, brachycephaly+−+5/12
Fingers/
toes anomalies		 Shortened 4th toe of left foot, bilateral broad 1st toe, finger hyperlaxity Bilateral clinodactyly of the 5th finger Nail hypoplasia 3/12
Dysmophisms+
(not specified)		−Bitemporal narrowing, hypotelorism, prograthism, premature graying of hair−Low-set ears, narrow palpebral fissures, thin vermillion of the upper lip− low-set ears with bilateral
prominence of the antitragus, epicanthal folds
and a long philtrum		Mild maxillary, flattening medial epicanthal
folds with upslanting
palpebral fissures, preauricular pit and bilateral
prominence of the
antitragus		Palpable metopic ridge, upslanting palpebral, fissures, nystagmus, aniridia, low-set and
posteriorly rotated ears with overfolded helices,
small upturned nose, and
downturned corners of the mouth		−Hypertelorism, long philtrum,
malformed ears		7/12
Epilepsy − −++ + 3/12
OtherMyopia, strabismus, skeletal anomaliesXerosis cutis, skin anomalies, mild hepatomegaly, cerebral parenchymal anomaliesShort stature, eutrophic skin,Hippocampal anomalies, heart anomaliesPerinatal distress, jaundice, flat feet, frequent respiratory infectionsScoliosisEmmetropia, scoliosis, horshoe kidney, hypereosinophily, teeth cavities, hypotyroidism Coartaction of the aorta
Other CNVs (GRCh37/ hg19)/
additional genetic data		 5p15.2 microdeletion coordinates
12260192-12849583
(maternal)		45,XY,-8[8]/
46,XY,r(8)(p23.2q24.3)[42]		 Absence of mutations in CLN8 coding sequence on the other allele6q26 deletion
coordinates
163274414-163399757
The information for each patient includes: age at diagnosis, sex, 8p microdeletion coordinates (Assembly GRCh37/hg19), microdeletion size, inheritance, gene content, clinical features and other additional genetic/genomic data. The number of patients showing a clinical feature compared to the total number of patients (present work and literature patients) is indicated in the last column. Main candidate genes are displayed in bold characters. “+” means present; “−” means absent; empty cells: data not available. ADHD: attention deficit and hyperactive disorder; ASD: autism spectrum disorders; chr: chromosome; CNV: copy number variant; DD: developmental delay; ID: intellectual disability; IQ: intelligence quotient; y: years.
Table
Table 2. Coding genes included in 8p23.2-pter region.
Table 2. Coding genes included in 8p23.2-pter region.
Human Gene Symbol/OMIM EntryGene Full NameMain Biological
Activity		ReferenceOMIM Disease AssociationpLI Score
OR4F21Olfactory receptor family 4 subfamily F member 21Olfactory receptornpnpnp
ZNF596Zinc finger protein 596Transcriptional regulationnpnp0
FBXO25
/*609098		F-box protein 25Substrate-recognition component of the SCF (SKP1-CUL1-F- box protein)-type E3 ubiquitin ligase complex. [24]np0
TDRPTestis development related proteinContributes to normal sperm motility[26]np0
ERICH1Glutamate-rich 1Unknownnpnp0
DLGAP2
/*605438		Discs, large (Drosophila) homolog-associated protein 2Role in the molecular organization of synapses and neuronal cell signaling. Adapter protein linking ion channel to the sub-synaptic cytoskeleton[16]np1
CLN8
/*607837		Ceroid-lipofuscinosis, neuronal 8 (epilepsy, progressive with mental retardation)Lipid synthesis, transport, or sensing[23]Ceroid lipofuscinosis 8, AR (# 600143)
Ceroid lipofuscinosis, neuronal, 8, Northern epilepsy variant, AR (# 610003)		0
ARHGEF10
/*608136		Rho guanine nucleotide exchange factor (GEF) 10Membrane trafficking and neural morphogenesis[14,15]?Slowed nerve conduction velocity, AD (# 608236)0
KBTBD11
/*618794		Kelch repeat and BTB (POZ) domain containing 11 Protein degradation, thereby affecting differentiation, homeostasis, metabolism, cell signaling, and oxidative stress response [25]np0.06
MYOM2
/*603509		Myomesin 2Major component of the vertebrate myofibrillar M band[27]np0
CSMD1
/*608397		CUB and Sushi multiple domains 1Role in central nervous system development[12]np1
Gene symbol, OMIM entry, full name, main known biological activity and relative reference, OMIM disease association if applicable and pLI (probability of a gene being intolerant to variation causing loss of gene function) score from GnomAD are reported. “np” stands for: not present [17,21].
Table
Table 3. Clinical and molecular genetics data of 8p microdeleted patients described in the DECIPHER database [29].
Table 3. Clinical and molecular genetics data of 8p microdeleted patients described in the DECIPHER database [29].
DECIPHER PatientsTOTAL NUMBER OF PATIENTS
253667277848288405294526295087338097337882351690391615
Age at diagnosis85ndnd10nd<113nd
SexFMndMFMMMM
Coordinates (GRCh37/hg19)chr8:1588355-1656051chr8:176814-1734772chr8:738801-1369613chr8:1111157-2908829chr8:191560-5353580chr8:974820-2067679chr8:1731454-1853939chr8:194617-2170951chr8:907664-1368668
Size68 kb1.56 Mb633 kb1.80 Mb5.16 Mb1.09 Mb122 kb1.98 Mb463 kb
Inheritance inherited
(parent with the same phenotype)		maternal de novo maternal
Coding gene(s) contentDLGAP2ZNF596, FBXO25, TDRP,
ERICH1, DLGAP2, CLN8		DLGAP2DLGAP2, CLN8, ARHGEF10, KBTBD11, MYOM2, CSMD1ZNF596, FBXO25, TDRP,
ERICH1,
DLGAP2, CLN8, ARHGEF10, KBTBD11, MYOM2, CSMD1		DLGAP2, CLN8, ARHGEF10, KBTBD11, MYOM2CLN8, ARHGEF10ZNF596, FBXO25, TDRP,
ERICH1, DLGAP2, CLN8, ARHGEF10, KBTBD11, MYOM2		DLGAP2
ID+Learning disability++++ + 13/21
DD 9/21
Language and speech delay +7/21
Motor impairment 5/21
ASD + 6/21
Behavioral problems/ADHD + ADHD8/21
Microcephaly+ 6/21
Fingers/toes anomaliesClinodactyly of the 5th finger Short phalanx of fingers, sandal gap Short middle phalanx finger 6/21
DysmophismsEpicanthus 8/21
Epilepsy + 4/21
OtherSpotty hyperpigmentation Coarctation of the aorta
Other CNVs (GRCh37/hg19)/
additional genetic data		 4q26 duplication coordinates
119606253-120003254
The information for each patient includes: age at diagnosis, sex, 8p microdeletion coordinates (assembly GRCh37/hg19) and size, inheritance, gene content, clinical features and other additional genetic/genomic data. The number of patients showing a clinical feature compared to the total number of patients (present work, literature and DECIPHER patients) is indicated in the last column. Main candidate genes are displayed in bold characters. “+” means present; “−” means absent; empty cells: data not available. ADHD: attention deficit and hyperactive disorder; ASD: autism spectrum disorders; chr: chromosome; CNV: copy number variant; DD: developmental delay; ID: intellectual disability.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Catusi, I.; Garzo, M.; Capra, A.P.; Briuglia, S.; Baldo, C.; Canevini, M.P.; Cantone, R.; Elia, F.; Forzano, F.; Galesi, O.; et al. 8p23.2-pter Microdeletions: Seven New Cases Narrowing the Candidate Region and Review of the Literature. Genes 2021, 12, 652. https://doi.org/10.3390/genes12050652

AMA Style

Catusi I, Garzo M, Capra AP, Briuglia S, Baldo C, Canevini MP, Cantone R, Elia F, Forzano F, Galesi O, et al. 8p23.2-pter Microdeletions: Seven New Cases Narrowing the Candidate Region and Review of the Literature. Genes. 2021; 12(5):652. https://doi.org/10.3390/genes12050652

Chicago/Turabian Style

Catusi, Ilaria, Maria Garzo, Anna Paola Capra, Silvana Briuglia, Chiara Baldo, Maria Paola Canevini, Rachele Cantone, Flaviana Elia, Francesca Forzano, Ornella Galesi, and et al. 2021. "8p23.2-pter Microdeletions: Seven New Cases Narrowing the Candidate Region and Review of the Literature" Genes 12, no. 5: 652. https://doi.org/10.3390/genes12050652

APA Style

Catusi, I., Garzo, M., Capra, A. P., Briuglia, S., Baldo, C., Canevini, M. P., Cantone, R., Elia, F., Forzano, F., Galesi, O., Grosso, E., Malacarne, M., Peron, A., Romano, C., Saccani, M., Larizza, L., & Recalcati, M. P. (2021). 8p23.2-pter Microdeletions: Seven New Cases Narrowing the Candidate Region and Review of the Literature. Genes, 12(5), 652. https://doi.org/10.3390/genes12050652

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
