siRNA Mediate RNA Interference Concordant with Early On-Target Transient Transcriptional Interference

Abstract

Exogenous siRNAs are commonly used to regulate endogenous gene expression levels for gene function analysis, genotype–phenotype association studies and for gene therapy. Exogenous siRNAs can target mRNAs within the cytosol as well as nascent RNA transcripts within the nucleus, thus complicating siRNA targeting specificity. To highlight challenges in achieving siRNA target specificity, we targeted an overlapping gene set that we found associated with a familial form of multiple synostosis syndrome type 4 (SYSN4). In the affected family, we found that a previously unknown non-coding gene TOSPEAK/C8orf37AS1 was disrupted and the adjacent gene GDF6 was downregulated. Moreover, a conserved long-range enhancer for GDF6 was found located within TOSPEAK which in turn overlapped another gene which we named SMALLTALK/C8orf37. In fibroblast cell lines, SMALLTALK is transcribed at much higher levels in the opposite (convergent) direction to TOSPEAK. siRNA targeting of SMALLTALK resulted in post transcriptional gene silencing (PTGS/RNAi) of SMALLTALK that peaked at 72 h together with a rapid early increase in the level of both TOSPEAK and GDF6 that peaked and waned after 24 h. These findings indicated the following sequence of events: Firstly, the siRNA designed to target SMALLTALK mRNA for RNAi in the cytosol had also caused an early and transient transcriptional interference of SMALLTALK in the nucleus; Secondly, the resulting interference of SMALLTALK transcription increased the transcription of TOSPEAK; Thirdly, the increased transcription of TOSPEAK increased the transcription of GDF6. These findings have implications for the design and application of RNA and DNA targeting technologies including siRNA and CRISPR. For example, we used siRNA targeting of SMALLTALK to successfully restore GDF6 levels in the gene therapy of SYNS4 family fibroblasts in culture. To confidently apply gene targeting technologies, it is important to first determine the transcriptional interference effects of the targeting reagent and the targeted gene.

1. Introduction

Exogenous siRNAs are used routinely in many biotechnology and research applications to regulate endogenous gene expression levels. The most common is the use of siRNA for post transcriptional gene silencing (PTGS) via the knockdown of mRNA expression levels [1] which is also referred to as RNA interference (RNAi). Exogenous siRNA can also target nascent RNA transcripts in the nucleus with the potential to cause near permanent transcriptional silencing (PTS) or upregulation (PTU) of the associated gene through epigenetic modification of the DNA [2,3,4,5,6,7]. The mechanisms of siRNA mediated PTGS and PTS/PTU are well documented and involve siRNA targeting within the cytosol and the nucleus, respectively [1,2,3,4,5,6,7].

PTGS/RNAi represents the most widely documented siRNA approach for the transient reduction (knockdown) of target mRNA levels in the cytosol [1]. To achieve PTGS, an exogenous siRNA is designed to be complementary to a mature mRNA (exon derived) sequence. In contrast, for PTS/PTU, the siRNA are designed complementary to the immediate gene promoter or 3′ flanking region of the target gene, respectively [2,3,4,5,6,7]. During PTS/PTU, the exogenous siRNA enters the cytosol before relocating to the nucleus where it binds the nascent RNA transcript derived from the target gene causing epigenetic modification of the DNA of the target gene [5,8]. When successful, the resulting epigenetic modifications of the DNA in PTS/PTU can cause near permanent changes to the transcription of the target gene [8]. From these applications, it is obvious that siRNA target RNA transcripts within both the cytosol and the nucleus where the region of the RNA targeted determines the nature of the interference. We, therefore, questioned whether an siRNA designed for PTGS of a target mRNA in the cytosol could target and interfere with the transcription of the nascent RNA precursor of the target in the nucleus and whether it would be possible to differentiate between these two distinct on-target interference effects.

To differentiate between siRNA targeting effects on the mRNA and its nascent precursor, we determined to target one gene that overlaps another gene with the following specifications: Firstly, the transcription of the two overlapping genes must converge from opposite directions on the DNA so as to initiate RNA polymerase collision mediated transcriptional interference [9,10,11]. Secondly, the target gene must be expressed at higher levels than the gene it overlaps [11]. The rationale for this approach was that the more highly expressed of the two convergently transcribed genes has been shown to repress the transcription of the lower expressed gene [11] presumably through increased incidence of RNA polymerase collision events [10]. In this way, if the siRNA were to alter the transcription of the target gene (after binding its nascent RNA transcript) as reported elsewhere [11] this could in turn effect the transcription and expression of the overlapping gene [11] which could in turn be monitored using comparative rtPCR [11].

The Model: In this study, we discovered and were the first to characterize the long noncoding gene which we named TOSPEAK. We found that TOSPEAK was disrupted in a family with SYSN4 with multiple joint fusions, malformation of laryngeal cartilages and severe speech impairment. TOSPEAK/C8orf37AS1 was found to overlap a nested long-range enhancer ECR5 that regulates expression of the adjacent bone morphogenetic protein gene growth differentiation factor 6 (GDF6) [12]. This was of great interest as GDF6 expression was previously found reduced in affected members of the SYSN4 family [13] thus raising the question as to whether the SYNS4 skeletal phenotype was a function of the GDF6 or TOSPEAK genotype. Moreover, there was another interesting feature of TOSPEAK that warranted further investigation, namely that TOSPEAK physically overlaps another more highly expressed gene, which we named SMALLTALK/C8orf37.

To examine the expression of this overlapping gene set, we used siRNA to target SMALLTALK in primary fibroblast cell cultures. As expected, the siRNA targeting of SMALLALK resulted in a prolonged PTGS/RNAi mediated decrease in the mRNA level of SMALLTALK. In addition, we detected a transient increase in the mRNA levels of both TOSPEAK and GDF6. Together, our findings indicate a role for both TOSPEAK and GDF6 in the joint, bone and cartilage malformations of the SYNS4 family [13]. Given that over 20% of human protein coding genes physically overlap [14] and that many others share promoters, and those like GDF6 that have regulatory elements nested within adjacent genes, the findings of this study have important implications for genotype–phenotype correlation studies and gene targeting strategies and for the design of gene therapies including those that use exogenous siRNA.

2. Materials and Methods

RNA isolation and cDNA synthesis: Total RNA was extracted from tissues (fresh skin biopsies and primary fibroblast cell lines derived there from, and from fresh white blood cells) using Trizol following the manufacture’s protocol (ThermoFisher Scientific Australia, Sydney, Australia). RNA was treated with DNase I (NEB Biolabs, Ipswich, Australia), ethanol precipitated, resuspended in DEPC-treated water and quality tested using spectrophotometry (A260/280 ratio was ~1.7) and gel electrophoresis. Then, 1 ug of total RNA extracted was reverse transcribed using 250 ng of random hexamers (Promega Pty Ltd., Sydney, Australia) in a standard 20 μL reaction including 4 μL of first strand buffer (Invitrogen Pty Ltd.), 2 μL of 0.1M DDT, 1 μL of 10 mM dNTP, 1 μL RNase inhibitor (2500 U) and 1 μL of reverse transcriptase (10,000 U) (Invitrogen Pty Ltd.). After annealing of the hexamers for 10 min at 72 °C, cDNA synthesis was performed for 42 °C for 90 min followed by an enzyme inactivation step at 70 °C for 15 min. All cDNA products were diluted in a ratio of 1:10 and stored at −20 °C before use.

TOSPEAK transcription start site and termination site: 1 ug of total RNA was reversed transcribed using 1 μL of reverse transcriptase (10,000 U) (ThermoFisher Scientific Australia, Sydney, Australia), where each reaction was primed with 1 μL of 12 mM 5′-CDS primer A (5′-(T) 25VN-3′) (ThermoFisher Scientific Australia, Sydney, Australia) and 1 mL of 12 mM SMART II A oligo (5′-AAGCAGTGGTATCAACGCAGAGTACGCGGG-3′) (Clontech Pty Ltd.).

After annealing of hexamers for 10 min at 70 °C, cDNA synthesis was performed using Superscript II (Invitrogen Pty Ltd.) at 42 °C for 90 min followed by enzyme inactivation at 72 °C for 7 min with addition of 100 μL of Tricine-EDTA buffer. The 5′RACE clones were amplified with a reverse primer from TOSPEAK exon 6 (

Table 1. Primer Table.

Primer	Sequence (5′→3′)
GDF6–forward	CCTGTTGCTTGTTTGGTTCA
GDF6–reverse	GCTGTCCATTTCCTCTTTGC
SMALLTALK–forward	AGTAGCGACCGGAACCAAG
SMALLTALK–reverse	TTGTCCAAGTTGGGCTCTTC
TOSPEAK (exon 6)–reverse	GCAGGTCCTTGAATCCCTCATGGCCAT
TOSPEAK (exon 9)–forward	TATGCTTCACAGGTGTTTCT
TOSPEAK1 (exon 8)–forward	TGGCAGTTCCATCATTTGAA
TOSPEAK1 (exon 9)–reverse	AGGAGAAACACCTGTGAAGCA
TOSPEAK2 (exon 9)–forward	AGCTCTCCTGGCATACTCTGA
TOSPEAK2 (exon 9)–reverse	CCCAGATGGGATGAGACATA
18S rRNA–forward	GTAACCCGTTGAACCCCATT
18S rRNA–reverse	CCATCCAATCGGTAGTAGCG
GAPDH–forward	CCACCCATGGCAAATTCCATGGCA
GAPDH–reverse	TCTAGACGGCAGGTCAGGTCCACC

) using 10× Universal Primer A mix as per manufacturers’ protocol (ThermoFisher Scientific Australia, Sydney, Australia)). PCR was performed using the following conditions: 5 cycles at 94 °C for 30 s and 72 °C for 2 min, 5 cycles at 94 °C for 30 s, 70 °C for 30 s and 72 °C for 2 min, and 30 cycles at 94 °C for 30 s, 68 °C for 30 s and 72 °C for 2 min. 3′-RACE libraries were generated from RNA with Superscript III (Invitrogen Pty Ltd.: Cat No. 18080-093) using primers and protocols described in the SMART RACE User Manual (Becton Dickinson, Sydney, Australia). The 3′RACE clones were amplified with a forward primer from TOSPEAK exon 9 (Table 1). RACE PCR products were excised from gels and cloned into the pGEMT vector (Promega, Sydney, Australia) and sequenced using Big Dye chemistries (Australian Genome Research Facility, Brisbane, Australia).

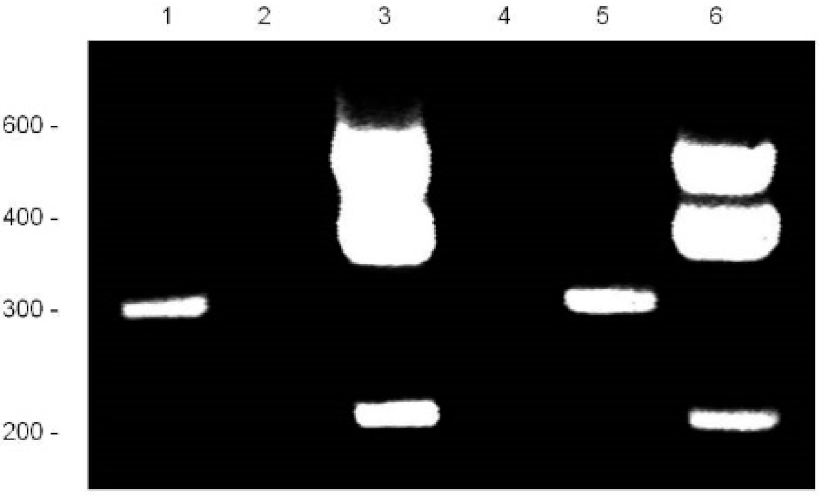

RT-PCR characterisation of TOSPEAK transcripts: RT-PCR reactions contained 5 μL of the diluted cDNA template, 2.5 μL of 10× PCR buffer, 0.2 μL of 25 mM dNTPs, 1 μL of each of the forward and reverse primer stocks (10 mM) (Table 1), 1.5 μL of 25 mM MgCl₂ and 0.25 μL of AmpliTaq Gold polymerase (Applied Biosystems, Sydney, Australia) made up to 25 μL with ddH₂O and amplified using an initial denaturation at 94 °C for 10 min followed by 40 cycles at 94 °C for 30 s,58 °C for 30 s and 72 °C for 40 s and a final extension of 72 °C for 15 min.

Antibody Screen: An affinity purified polyclonal antibody was raised in rabbit against a synthetic peptide CESFLRKSVALPGEVIKSLLA (Monash University Melbourne, Australia) that we generated based on part of a putative ORF from the most abundant human TOSPEAK transcript (Genebank accession number GU295154). This antibody was used to screen human lymphocytes using Western analysis (Z.F. & R.A.C.) and paraffin embedded human heart tissue using immunohistochemistry (St George Hospital Clinical Pathology Laboratory, Sydney, Australia). Note: This antibody was affinity purified against the original synthetic peptide antigen; however, no positive control tissue sample was available to test the functional validity of this antibody in western analysis or immunohistochemistry and this antibody displayed negative staining in all tissues interrogated (results not shown).

Comparative genomic analyses: Nucleotide sequences from a ~900 kb region of the genome spanning the TOSPEAK gene locus, were extracted from the Ensembl and NCBI GenBank databases (http://www.ensembl.org/ (accessed on 21 August 2009)), version 41.36c; http://www.ncbi.nlm.nih.gov/, Build 37.1 (accessed on 21 August 2009), for human, chimpanzee, dog, mouse, and opossum and analysed for any evolutionary conservation using VISTA (http://genome.lbl.gov/vista/ (accessed on 21 August 2009)) [15] with the human as the reference sequence.

Cell lines: Fresh skin biopsies were used to generate primary fibroblast cell lines cultured at 37 °C in DMEM media with 10% fetal calf serum (FCS). A commercial skin fibroblast cell line was used as independent control NC1 (NHDF-c adult normal human dermal fibroblast cell line PromoCell-Bio Connect C-12302). To harvest cells for Western analysis, washed cells were disrupted by adding 100 μL of lysis buffer (300 mM NaCl, 1 mM EDTA, 30 mM Tris/HCl, 1 μL proteinase inhibitor) and stored on ice for 30 min. For rtPCR cells were centrifuged at 1000 rpm for 5 min and resuspended and washed in PBS before RNA isolation.

siRNA mediated transient transcriptional interference (TTI) protocol: At sub-confluence, fibroblast cultures were washed with cold PBS and harvested using 0.25% trypsin in PBS at 37 °C for 1–5 min. Trypsin was then deactivated by suspension of cells in DMEM containing 10% FCS. Cells were centrifuged at 1000 rpm for 7 min and resuspended in DMEM without FCS before replating in preparation for treatment with siRNAs. Cells were plated into 6 well culture plates at 10⁵ cells/well in 2 mL and incubated for 17–24 h prior to treatment with siRNA.

Working stocks of STEALTH siRNAs (

Table 2. siRNAs.

siRNA (Target)	Sequence (5′→3′)
siRNA-S1 (SMALLTALK exon 1)–sense	CAAGCCAAGGCGAAAGAGACGCUCA
siRNA-S1 (SMALLTALK exon 1)–antisense	UGAGCGUCUCUUUCGCCUUGGCUUG
siRNA-S2 (SMALLTALK last exon)–sense	CCAGUGUAGCUGGAGAACUAUUGAA
siRNA-S2 (SMALLTALK last exon)–antisense	UUCAAUAGUUCUCCAGCUACACUGG
siRNA-S3 (SMALLTALK last exon)–sense	UCGCUGGGUUUGUGGUAAACAUUAA
siRNA-S3 (SMALLTALK last exon)–antisense	UUAAUGUUUACCACAAACCCAGCGA
siRNA-T1 (TOSPEAK intron 1)–sense	AUCACUGCCAGUUUCUACACCUCUG
siRNA-T1 (TOSPEAK intron 1)–antisense	CAGAGGUGUAGAAACUGGCAGUGTU
Stealth control–sense	CAAGAACAGCGAGAAGCAGCCGUCA
Stealth control–antisense	UGACGGCUGCUUCUCGCUGUUCUUG

—Life Sciences Corp) were prepared at a 1/200 dilution (2 μM) in nuclease free H₂O and stored at −80°C. Then, 2.5 μL of siRNA working stock was added to 95 μL serum-free media. At the same time 5 μL Lipofectamine 2000 (Invitrogen Pty Ltd.) was added to 95 μL serum-free media and gently mixed. The siRNA mix and Lipofectamine mix were then combined and incubated for 20 min, then transferred to ‘treatment’ wells containing fibroblasts (1 mL FCS free media + 2.5 μL siRNA (5 nM) + 5 μL Lipofectamine Reagent 2000) and incubated at 37 °C for 6 h before the addition of 1 mL of DMEM containing 20% FCS. After 18 h cell culture media was replaced with fresh DMEM containing 10% FCS (referred to as time zero). Cells were then incubated for 24 h (Time 1), 48 h (Time 2) or 72 h (Time 3) before harvesting for RNA extraction and real time rtPCR analysis—cell culture media was then removed and adherent cells washed twice with PBS at room temperature before adding 350 μL of cell lysis buffer (2.4 mL Buffer RLT and 20 μL of β-Mercaptoethanol) to each well (as per RNeasy Mini Kit (50) #74104, Qiagen, Melbourne Australia). All siRNA experiments were performed in triplicate.

TOSPEAK was not amenable to siRNA knockdown in our hands (results not shown). Note: This may have been due to the newly evolved TOSPEAK gene being very poorly conserved in sequence and structure between species with only 2 permanently transcribed exons (exons 1 and 9, respectively) that are very short and highly enriched for GC dinucleotides and repetitive elements (see Results below). However, siRNA targeting of the coding gene SMALLTALK was successful (using siRNA-S1, -S2 and -S3—see Table 2) and achieved peak silencing of SMALLTALK within ~72 h.

Comparative RT-PCR: First-Strand cDNA Synthesis was performed using the SuperScript™ III First-Strand synthesis qRT-PCR Kit (ThermoFisher Scientific Australia, Sydney, Australia) according to manufacturers’ instructions: 10 μL of 2X RT Reaction Mix, 2 μL RT Enzyme Mix and 50 pg of RNA were made up to 20 μL with DEPC-treated water and incubated at 25 °C for 10 min and again at 42 °C for 50 min. Reactions were terminated at 85 °C for 5 min, then chilled on ice for 5 min followed by a short spin in the microfuge. Then, 1 μL (2 U) of E. coli RNase H was added and incubated at 37 °C for 20 min. A qPCR master mix was prepared with all common components. Volumes for a single 25 μL reaction were 12.5 μL of Platinum^® SYBR^® Green qPCR SuperMix-UDG (ThermoFisher Scientific Australia, Sydney, Australia), 1 μL each of 10 μM primer stocks specific for gene of interest (Table 1), 2.5 μL of cDNA and DEPC-treated water to 25 μL. Reactions were incubated at 50 °C for 2 min and an initial denaturation step of 94 °C for 2 min. qPCR was performed for 40 cycles: denature at 94 °C for 15 s, anneal at 55 °C for 10 s, extension at 72 °C for 20 s. Comparative rtPCR profiles were independently normalised against expression of GAPDH and 18sRNA to remove the non-biological variation. Each of the experimental triplicates were evaluated in triplicate (technical triplicates) and expressed as the mean. Patient rtPCR data was expressed as the mean of 2 patients.

3. Results

3.1. Genomic Analysis of the SMALLTALK-TOSPEAK-GDF6 Gene Locus

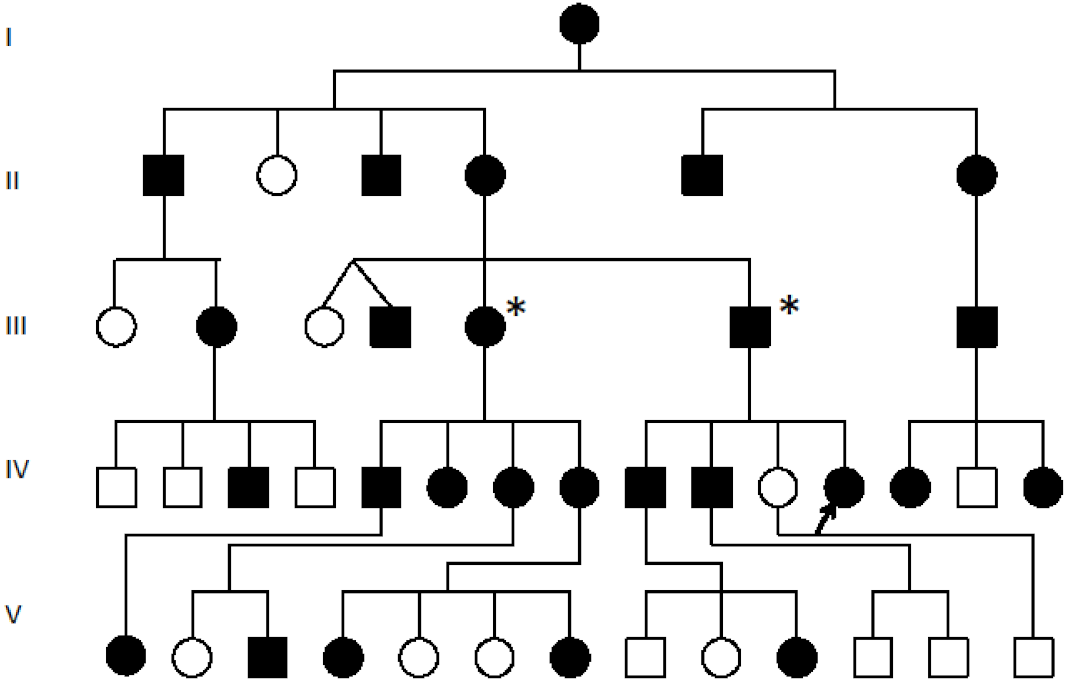

In an earlier study, a breakpoint on chromosome 8q between the SMALLTALK gene and the GDF6 bone morphogenetic protein gene was identified segregating with vertebral fusion and malformation of laryngeal cartilages in a family with SYNS4 (Figure 1) [13,16,17]. Located near the breakpoint were three short expressed sequence tags (ESTs): BU570390, AI832412 and AV713874. In the present study, we investigated the origin of these ESTs using RACE, RT-PCR and nucleotide sequence analysis (Figure 2). We established that the three ESTs derived from a hitherto unknown gene which we named TOSPEAK/C8orf37-AS1. TOSPEAK was found to overlap the 5′ end of SMALLTALK/C8orf37 such that TOSPEAK was transcribed in the opposite convergent direction to SMALLTALK (Figure 3) [16,17].

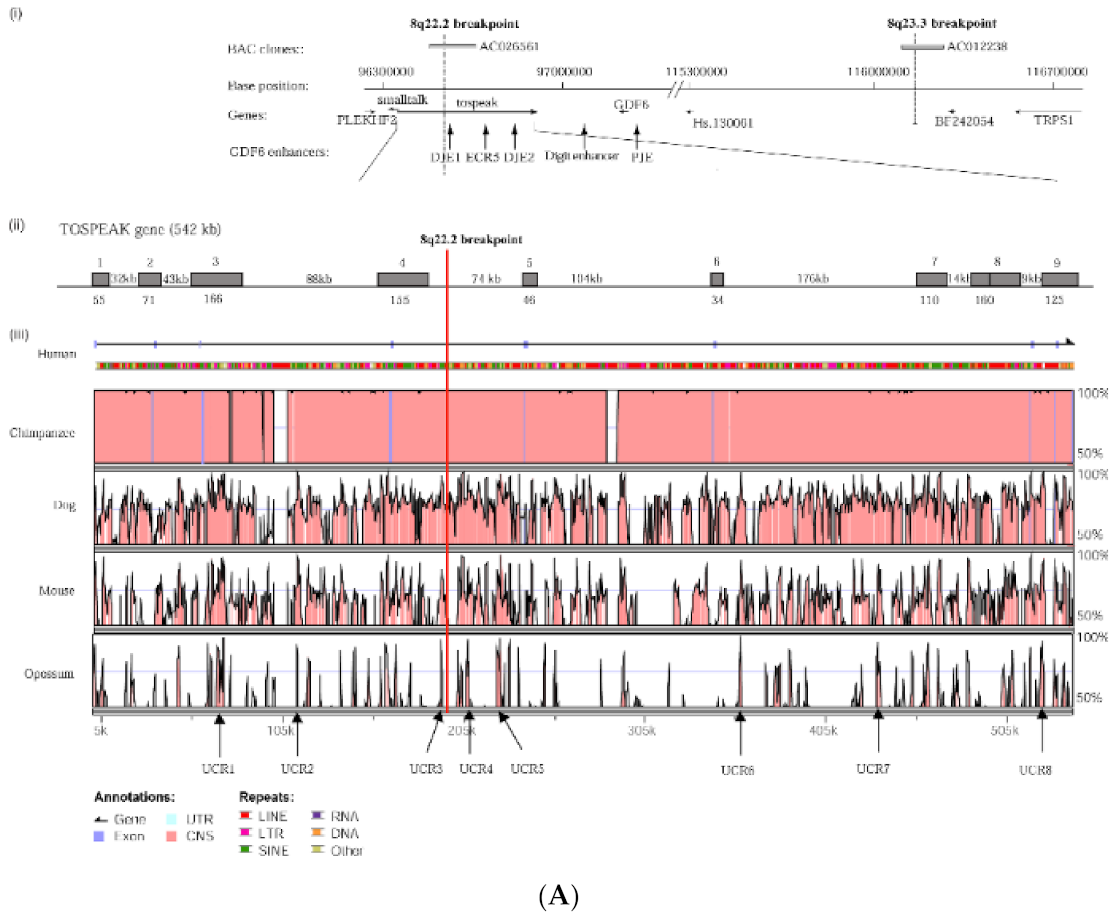

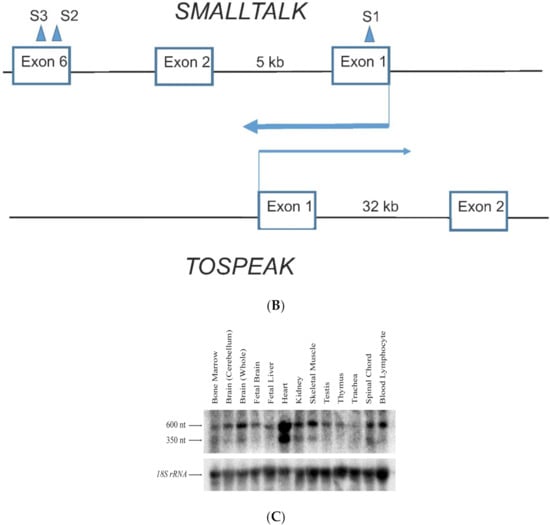

TOSPEAK spans 542 kb of genomic DNA between SMALLTALK and GDF6 (Figure 3). TOSPEAK has nine short exons of which all but the first and last exons (exons 1 and 9, respectively) are alternatively spliced-out, leading to numerous short, low-abundance transcripts of between 180 and 600 nucleotides in length. Northern blot analysis indicated ubiquitous low-level expression of two major overlapping TOSPEAK transcripts in human adult and neonatal tissues (Figure 3C). All TOSPEAK transcripts contained an excessive number of stop codons and none of the transcripts encoded for any recognisable protein structure. Furthermore, the polyclonal antibody that we raised in rabbit against a synthetic peptide corresponding to part of the most abundant of two short open reading frames of TOSPEAK did not detect a protein in Western analysis of lymphocytes and showed no positive staining in the immunohistochemistry of heart tissue sections (results not shown). As such TOSPEAK exhibited all the features of a long non-coding transcription unit (lncRNA gene). Further analysis found that TOSPEAK harbours the highly conserved ECR5 long-range enhancer for GDF6 [12]. ECR5 is located in one of TOSPEAK’s introns (Figure 3A). As such TOSPEAK is transcribed across the ECR5 enhancer which regulates GDF6 transcription in the developing pharyngeal arches [12], which in human give rise to the laryngeal structures malformed in the speech affected family [18]. Furthermore, GDF6, TOSPEAK and SMALLTALK expression levels were reduced in fresh white blood cells of two affected family members compared with five unaffected control individuals (Figure 4) [13].

3.2. siRNA Mediate RNAi and Transient Transcriptional Interference

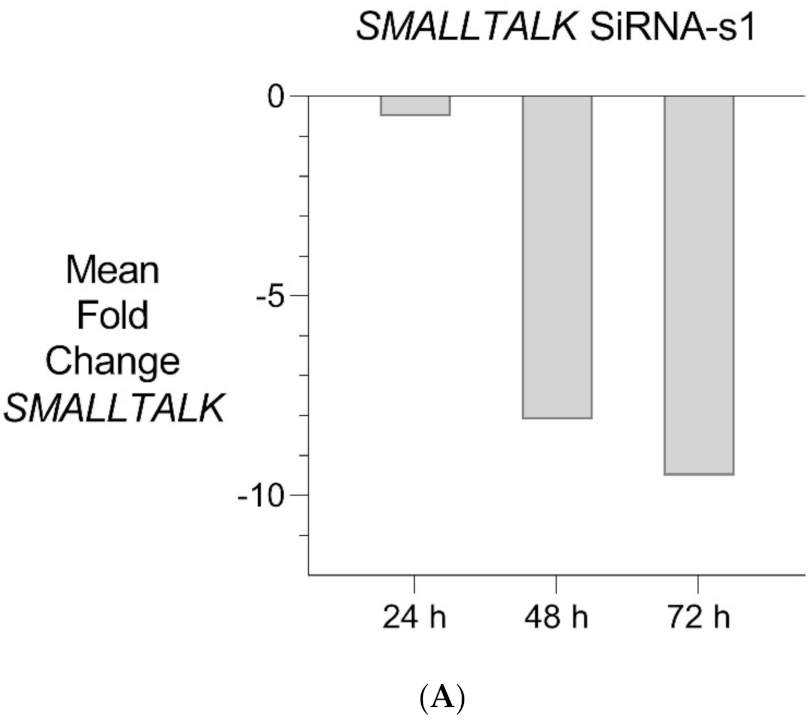

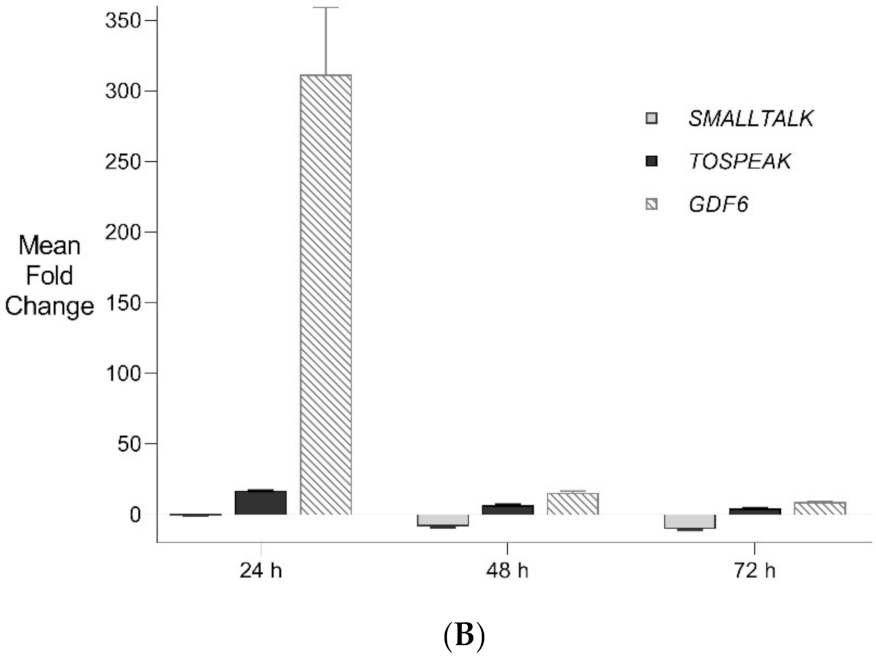

PCR gene expression analysis in fibroblast cultures indicated that SMALLTALK was expressed at much higher levels compared with either TOSPEAK or GDF6 (results not shown). As SMALLTALK appeared to be transcribed at higher levels convergent with TOSPEAK we targeted SMALLTALK using a series of siRNA (S1–S3). These siRNAs were designed complementary to the mRNA of SMALLTALK (Table 2) to target that region of SMALLTALK well clear of the overlap region with TOSPEAK (Figure 5). As expected, siRNA-S1 mediated a reduction in SMALLTALK levels that peaked at 72 h (Figure 5A). Surprisingly, the siRNA-S1 silencing of SMALLTALK was associated with a clear increase in the level of GDF6 at 72 h but not TOSPEAK (Figure 5B). We tested for temporal changes in the expression of GDF6 and TOSPEAK at earlier time points during the assay, again using siRNA-S1 to target SMALLTALK (Figure 5B). At 24 h both GDF6 and TOSPEAK expression had increased dramatically long before the maximum silencing of SMALLTALK at 72 h (Figure 5A,B). We repeated this experiment using two different siRNA (siRNA-S2 and siRNA-S3) to target SMALLTALK, (Table 2, Figure 6A). Both siRNA-S2 & S3 also induced a rapid, concordant and proportional induction of both TOSPEAK and GDF6 expression within 24 h comparable to the result for siRNA-S1 (Figure 6B). Moreover, the induced levels of both TOSPEAK and GDF6 dissipated rapidly after 24 h prior to the peak reduction in SMALLTALK at 72 h (Figure 6B).

3.3. siRNA Reverse Downregulation of GDF6 in SYNS4 Family Fibroblasts

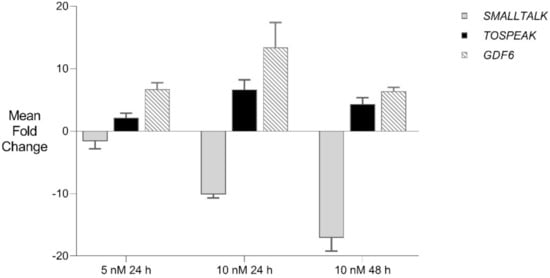

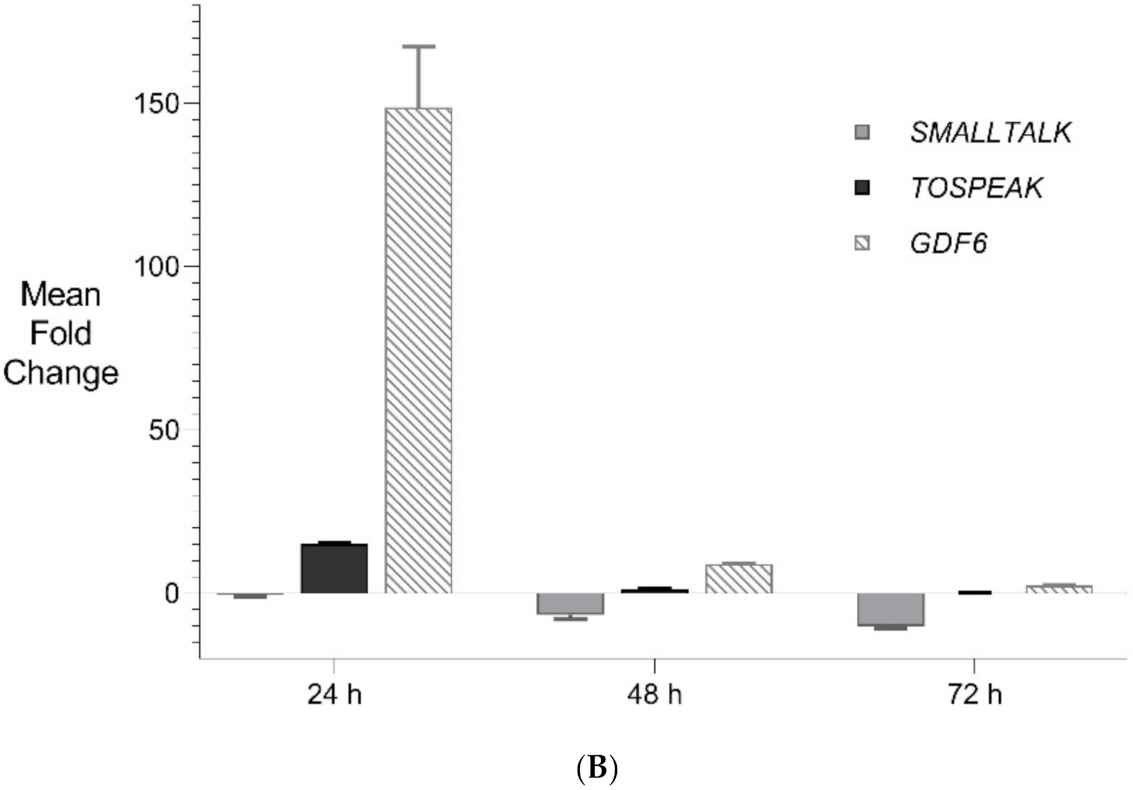

We then used siRNA-S2 to target SMALLTALK in primary fibroblast culture derived from a severely speech affected member of the SYNS4 family in which a copy of the TOSPEAK gene had been disrupted. This resulted in the concordant and proportional induction of both TOSPEAK and GDF6 levels which peaked within ~24 h. Despite this, concordant induction of TOSPEAK and GDF6 in family fibroblasts came off a much lower base compared to that in normal fibroblasts—which indicated that the familial breakpoint within TOSPEAK had caused a reduction in the level of both TOSPEAK and GDF6 transcription (Figure 1 and Figure 7). To test if we could modulate the level of GDF6 induction in fibroblasts from the affected family we doubled the assay concentration of siRNA-S2 from 5 nM to 10 nM. The increased concentration of siRNA -S2 resulted in a greater induction of both TOSPEAK and GDF6 by ~24 h which were again both concordant and proportional and dissipated rapidly after 24 h (Figure 7). In all assays, the induction of TOSPEAK and GDF6 was transient and dissipated rapidly from peak levels at ~24 h whereas SMALLTALK levels continued to decrease for the duration of the 72 h assay (Figure 5, Figure 6 and Figure 7).

4. Discussion

PTGS/RNAi reduces the level of target mRNAs in the cytosol. To achieve PTGS, the siRNA is designed to be complementary to a target site within the target mRNA, despite the fact that an identical target site also exists within the immature and/or intermediate nascent RNA transcript precursor of that mRNA within the nucleus. Due to this potential for dual targeting of both the mRNA and its precursor nascent transcript by a single siRNA, the following questions arise: Firstly, to what extent if any does an siRNA designed for PTGS (target and reduce the level of a specific mRNA) also target the identical site within the nascent RNA transcript precursor of that mRNA? Secondly, to what extent if any does this affect the transcription of that gene? Thirdly, given that any such reduction in transcription will also reduce the level of the target mRNA is it possible to distinguish any such effect on transcription from the PTGS/RNAi effect on the mRNA?

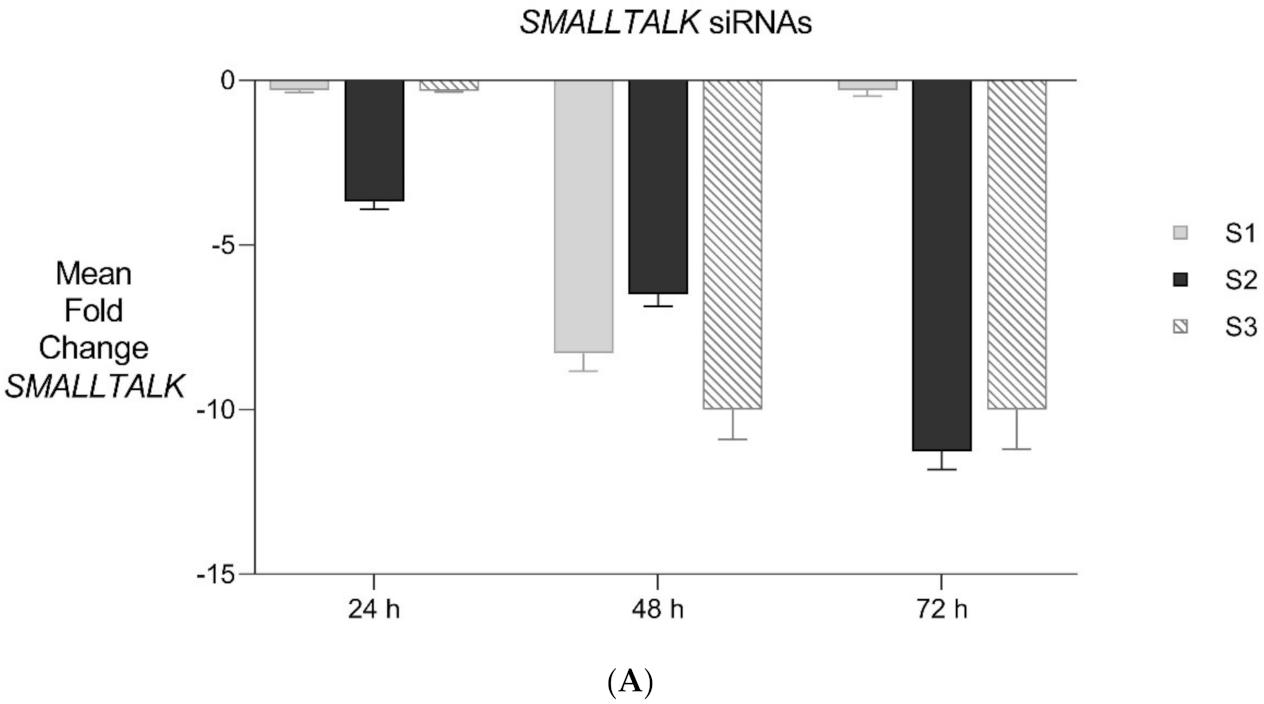

In this study, three distinct siRNA were used to target SMALLTALK. For each of the three siRNA, there were three distinct responses. The first response was the knockdown of SMALLTALK levels which peaked near 72 h in typical fashion to that expected for PTGS/RNAi in the cytosol. The second and third responses were the early transient increase of TOSPEAK and GDF6 levels, respectively, both of which peaked simultaneously at ~24 h before declining thereafter. The second and third responses were therefore independent of the PTGS of SMALLTALK which continued unabated for another 48 h. As such, the increase in TOSPEAK is best explained by its convergent transcriptional overlap with the SMALLTALK gene. Convergent transcription between overlapping genes results in RNA polymerase collision events [10,11] that can cause discordant transcriptional interference [9,10,11]. Other examples of transcriptional interference between convergently transcribed overlapping genes include the DLX1, DLX5 and DLX6 genes which all experience transcriptional interference from overlapping non-coding antisense genes [9]. However, for such a mechanism to be in play in our experiments would require the prior interference of SMALLTALK transcription by the siRNA-S1-3. Support for this scenario came from the discordant increase in the level of TOSPEAK as SMALLTALK levels decreased during the first 24 h of the assay. Moreover, a similar sequence of events to this was observed with respect to the convergent transcription of the overlapping LRRTM3 and CTNNA3 genes associated with autism [11]. In that study, five different siRNA were used to target the more highly expressed CTNNA3 gene which in all five cases resulted in discordant transient interference (increase) of LRRTM3 transcription [11]. Together, these results are consistent with the siRNA mediated interference (reduction) of SMALLTALK transcription causing reduced transcriptional repression (and increase) of TOSPEAK [5,8].

Further support for the transcriptional interference of TOSPEAK by SMALLTALK comes from the third response which was the concordant, proportional and transient increase in GDF6. TOSPEAK is transcribed across the highly conserved ECR5 long-range enhancer of GDF6 and both TOSPEAK and GDF6 levels increased in response to the siRNA-S targeting of SMALLTALK. Within the 1st 24 h of the siRNA-S assay there was a synchronous, proportional and transient induction of both TOSPEAK and GDF6 levels followed by a concordant and proportional decline of both TOSPEAK and GDF6 levels within the following 24 h well before the peak reduction in SMALLTALK levels at 72 h (Figure 7 and Figure 8). This strongly suggested that TOSPEAK transcription, not the TOSPEAK transcript, is a positive regulator of GDF6 transcription. This interpretation of the results is also consistent with the phenotypic findings from the speech affected SYSN4 family where the breakpoint in the TOSPEAK gene, which blocked transcription across ECR5, was associated with reductions in both TOSPEAK and GDF6 expression levels (Figure 4) and the aberrant ossification of the very same joints, ligaments and cartilages regulated by the GDF6 enhancer [13,19,20].

In summary, these findings suggest that:

• siRNA-S targeting of SMALLTALK interferes with SMALLTALK transcription.
• SMALLTALK transcription converges on & represses TOSPEAK transcription.
• TOSPEAK transcription across GDF6 enhancer enhances GDF6 transcription.

A number of possible mechanisms have been suggested for the modulation of highly conserved enhancers such as ECR5 by the transcription of non-coding genes like TOSPEAK [9]. Included is the possibility that TOSPEAK transcription across ECR5 may enhance GDF6 transcription through the secondment of the GDF6 enhancer into active transcription factories, thereby facilitating GDF6 promoter–enhancer coupling and increased transcription of GDF6 [9]. This scenario may involve modulation of chromatin structure around the enhancer [9]. A similar scenario has been demonstrated for transcription-enhancer overlaps elsewhere [21]. Furthermore, genome-wide 4C and Hi-C interaction data mark the locus spanning SMALLTALK, TOSPEAK and GDF6 as a functionally interactive chromatin domain (Figure 8) consistent with the three overlapping genes functioning as a set of overlapping interacting transcription units [10,11,21].

It has been shown elsewhere that not all overlapping genes or gene sets are implicated in this form of transcriptional interference [11]. Furthermore, it is uncertain to what degree this phenomenon is limited by cell or tissue specificity [9,11]. Furthermore, additional studies are required to understand the mechanism by which siRNA designed for PTGS/RNAi interfere with the transcription of the parent gene which in this case was SMALLTALK [2,3,4,5,6,7].

5. Conclusions

We discovered and were the first to characterize the long noncoding gene which we named TOSPEAK and its physical overlap with both the SMALLTALK gene and the ECR5 long-range enhancer for GDF6. Furthermore, we established that TOSPEAK was disrupted in the SYNS4 family with reduction of both TOSPEAK and GDF6 levels. We used this overlapping set of genes to demonstrate siRNA mediated on-target transcriptional interference and its relevance for gene function and genotype–phenotype association analysis and gene therapy as evidenced by the restoration of GDF6 levels in cells from the SYNS4 family.

The limitations of this study included the use of one specific cell type in culture conditions different to those in vitro. Further studies are required to understand the mechanism by which siRNA designed for RNAi cause transient transcriptional interference of their target nascent transcript [2,3,4,5,6,7]. Uncertainty also remains regarding the mechanism by which TOSPEAK could induce the transcription of GDF6. Highly conserved lncRNA transcripts often have important regulatory functions [9]; however, the TOSPEAK transcript is not conserved between species. Moreover, TOSPEAK gives rise to numerous very short transcripts with no translated protein structure and a very high incidence of stop signals making the mature transcript (s) of TOSPEAK a most unlikely regulator of GDF6. Notwithstanding, the nascent transcript of TOSPEAK does include the sequence of the highly conserved ECR5 enhancer of GDF6 and as such could feasibly have a trans role in enhancing GDF6 transcription [9]. Notwithstanding the most plausible interpretation of the results are that TOSPEAK transcription, not the TOSPEAK transcript, positively regulates GDF6 transcription.
