The Banana MaWRKY18, MaWRKY45, MaWRKY60 and MaWRKY70 Genes Encode Functional Transcription Factors and Display Differential Expression in Response to Defense Phytohormones

by
Sergio García-Laynes
1,
Virginia Aurora Herrera-Valencia
1,
Lilia Guadalupe Tamayo-Torres
1,
Verónica Limones-Briones
1,
Felipe Alonso Barredo-Pool
1,
Fray Martin Baas-Espinola
1,
Angel Gabriel Alpuche-Solís
2,
Carlos Puch-Hau
3 and
Santy Peraza-Echeverria
1,*
1
Unidad de Biotecnología, Centro de Investigación Científica de Yucatán, Calle 43 No. 130 × 32 y 34, Colonia Chuburná de Hidalgo, Mérida 97205, Yucatán, Mexico
2
División de Biología Molecular, Instituto Potosino de Investigación Científica y Tecnológica A. C., Camino a la Presa San José 2055, Col. Lomas 4 Sección, San Luis Potosí 78216, San Luis Potosí, Mexico
3
Departamento de Recursos del Mar, Unidad Mérida, Centro de Investigación y de Estudios Avanzados del Instituto Politécnico Nacional (CINVESTAV-IPN), km. 6, Antigua Carretera a Progreso, Apdo. Postal 73-Cordemex, Mérida 97310, Yucatán, Mexico
*
Author to whom correspondence should be addressed.
Genes 2022, 13(10), 1891; https://doi.org/10.3390/genes13101891
Submission received: 14 September 2022 / Revised: 12 October 2022 / Accepted: 13 October 2022 / Published: 18 October 2022
(This article belongs to the Special Issue Genetics of Biotic and Abiotic Stress Response in Plants)
Browse Figures
Versions Notes

Abstract

:
WRKY transcription factors (TFs) play key roles in plant defense responses through phytohormone signaling pathways. However, their functions in tropical fruit crops, especially in banana, remain largely unknown. Several WRKY genes from the model plants rice (OsWRKY45) and Arabidopsis (AtWRKY18, AtWRKY60, AtWRKY70) have shown to be attractive TFs for engineering disease resistance. In this study, we isolated four banana cDNAs (MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70) with homology to these rice and Arabidopsis WRKY genes. The MaWRKY cDNAs were isolated from the wild banana Musa acuminata ssp. malaccensis, which is resistant to several diseases of this crop and is a progenitor of most banana cultivars. The deduced amino acid sequences of the four MaWRKY cDNAs revealed the presence of the conserved WRKY domain of ~60 amino acids and a zinc-finger motif at the N-terminus. Based on the number of WRKY repeats and the structure of the zinc-finger motif, MaWRKY18 and MaWRKY60 belong to group II of WRKY TFs, while MaWRKY45 and MaWRKY70 are members of group III. Their corresponding proteins were located in the nuclei of onion epidermal cells and were shown to be functional TFs in yeast cells. Moreover, expression analyses revealed that the majority of these MaWRKY genes were upregulated by salicylic acid (SA) or methyl jasmonate (MeJA) phytohormones, although the expression levels were relatively higher with MeJA treatment. The fact that most of these banana WRKY genes were upregulated by SA or MeJA, which are involved in systemic acquired resistance (SAR) or induced systemic resistance (ISR), respectively, make them interesting candidates for bioengineering broad-spectrum resistance in this crop.

Graphical Abstract

1. Introduction

Banana is a staple food for more than 400 million people in the tropics and a major source of foreign currency for the leading producers [1]. Banana ranks as the most prolifically produced fruit in the world, with 145 million tons per year, representing an estimated value of USD$52 billion [2]. Similar to other monocultures, banana cultivars are affected by a broad range of pathogens, including viruses, bacteria, fungi, and nematodes, which can cause partial or total loss of fruit production [3,4]. Fungal pathogens are the most destructive in the banana industry today, and the most notorious of them are the soil-borne Fusarium oxysporum f.sp. cubense (Foc), the causal agent of Panama disease, and the air-borne Pseudocercospora fijiensis, the causal agent of black Sigatoka disease. Foc tropical race 4 (TR4) threatens to destroy all banana plantations of susceptible cultivars in the tropics. Fungicides are largely ineffective against Foc. P. fijiensis is spread in almost all banana-growing regions of the world and requires an intensive regime of fungicide applications to control it, with up to 66 applications per year in some locations [3,4,5]. This conventional strategy to control P. fijiensis is one of the most expensive in agriculture, surpassing US$500 million per year [6] and putting the health of plantation workers and the environment at risk. Taking into account all these biotic factors, there is an urgent need to develop disease-resistant genotypes that preserve the current agronomic quality features of banana fruits without using pesticides. A better understanding of the genes involved in disease resistance in banana should provide valuable tools for the genetic improvement of this crop.
Plants have developed two effective spatial immune responses to recognize and repel pathogens. The first comprises mainly receptor-like proteins (RLPs) or receptor-like kinases (RLKs) located at the plasma membrane. RLPs and RLKs perceive extracellular immunogenic patterns (ExIPs) derived from the pathogen or damaged host cell, activating extracellularly triggered immunity (ExTI) that halts pathogen spread [7,8]. ExTI is usually associated with programmed cell death at the infection site, known as the hypersensitive response (HR). The second immune response takes place inside the cell and occurs when an intracellular receptor, mainly a nucleotide-binding site and leucine-rich repeat (NBS-LRR) protein, perceives intracellular immunogenic patterns (InIPs) derived from the pathogen or damaged host cell, activating intracellularly triggered immunity (InTI), which can also result in an HR to stop pathogen spread [7,8].
The HR generally activates a disease resistance mechanism known as systemic acquired resistance (SAR), which is dependent on the accumulation of the defense hormone salicylic acid (SA) and is effective against biotrophic or hemibiotrophic pathogens. The SAR response activates several types of pathogenesis-related (PR) proteins with antimicrobial activities, providing broad-spectrum resistance in the entire plant that can last several days [9,10]. The hormone jasmonic acid (JA) also plays a major role in regulating plant defense responses against necrotrophic pathogens [11]. Moreover, beneficial microorganisms can activate induced systemic resistance (ISR) through JA and its conjugates, such as methyl-JA (MeJa), leading to broad-spectrum resistance [12]. Recent studies have shown that SA also plays a role in ISR [13,14,15].
Several TF families have been implicated in the regulation network of SAR or ISR, such as AP2/ERF, bHLH, bZIP, MYB, NAC, and WRKY [16,17]. These TFs bind to promoter elements of defense genes, regulating their expression as either activators or repressors of transcription. WRKY TFs play a prominent role in the activation of immune responses. These TFs belong to a large plant gene family of transcriptional regulators, which are defined by the highly conserved WRKY domain (~60 amino acid residues in length) composed of a conserved WRKYGQK motif at the N-terminus and a zinc-finger motif at the C-terminus [18]. WRKY TFs recognize the W-box cis-acting element (TTGACY) in the promoters of their target genes. WRKY proteins are classified into three major groups based on the number of WRKY domains and the type of zinc finger motif [19]. Group I contains two WRKY domains in tandem and a C2H2 zinc finger type, whereas groups II and III each possess only one WRKY domain with a C2H2 zinc finger type and a C2HC zinc finger type, respectively. Group II WRKY proteins are further classified into five subgroups (IIa to IIe) by phylogenetic analysis [18]. Furthermore, several WRKY proteins are responsive to defense-related hormones, such as SA or JA, leading to disease resistance. Moreover, overexpression of WRKY genes can enhance disease resistance against a broad range of pathogens [18,20]; for example, the overexpression of rice OsWRKY45 increased resistance against biotrophic and hemibiotrophic pathogens such as the bacterium Xanthomonas oryzae and the fungus Magnaporthe grisea, respectively, in transgenic rice [21]. Additionally, Arabidopsis AtWRKY70, which is phylogenetically closely related to OsWRKY45, enhanced resistance to the bacterial pathogens Erwinia carotovora and Pseudomonas syringae and to the fungal pathogen Erysiphe cichoracearum in transgenic Arabidopsis [22,23]. Both genes belong to group III. Another example is Arabidopsis AtWRKY18, whose overexpression increased resistance to P. syringae [24]. Moreover, Arabidopsis AtWRKY60 enhanced the DNA-binding activity of AtWRKY18 [25]. The AtWRKY18 and AtWRKY60 genes are phylogenetically closely related and belong to subgroup IIa of the WRKY family (Xu et al., 2006). Interestingly, homologs of AtWRKY18 and AtWRKY60 genes in banana were upregulated in response to the fungus P. fijiensis [26]. These reports and others make WRKY genes interesting candidates for the genetic improvement of crops.
In banana, genome-wide analyses have identified 164 members of the WRKY family, and transcriptomic analyses have revealed a possible involvement of members of groups II and III in disease resistance [26,27,28,29]. Although substantial advances have been made in the annotation of WRKY genes in banana and their expression analysis in response to biotic and abiotic stress, our understanding of their function as TFs and their regulation by defense hormones is still very limited. To expand the current knowledge of banana WRKY genes, in the present study, we isolated the cDNAs of four banana WRKY homologs, which we named MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 due to their close phylogenetic relationships with their counterparts in Arabidopsis and rice. A comprehensive structural analysis of these banana WRKY genes was carried out, and their protein subcellular locations were determined. Furthermore, their function as TFs was determined, along with their expression profiles in response to the defense hormones SA and MeJA. The novel insights provided in this study represent a foundation for further functional analyses of these banana WRKY genes, which may lead to engineering disease resistance in this crop.

2. Materials and Methods

2.1. Plant Material and Phytohormone Treatments

Leaves of Musa acuminata ssp. malaccensis (ITC code: 1345) plants growing outdoors in leptosol soil at the Centro de Investigación Científica de Yucatán A. C. were used for RNA extraction and cloning of banana WRKY cDNAs. A floating leaf disc assay [30] was used for hormone treatments. Briefly, fully expanded young leaves next to the furled leaf of M. acuminata ssp. malaccensis adult plants were used to collect leaf fragments in the morning (9 a.m./26 °C), which were disinfected as described by Rodríguez-García et al. [31]. Leaf fragments were then cut into 10 circular pieces of 1.5 cm diameter and floated (adaxial surface facing up) on 30 mL of 5 mM SA [32] or 100 µM MeJA [33] in 10 cm diameter Petri dishes; both solutions contained 0.025% Silwet-L77 and 0.5% ethanol. For the control, the leaf discs were floated on 30 mL of 0.025% Silwet-L77 and 0.5% ethanol solution. All Petri dishes had 10 leaf discs, each excised from an independent plant. Three biological replicates were used for each hormone treatment, and three biological replicates were used for the control. Samples were incubated at 26 ± 1 °C in a growth room with a 16-h photoperiod (light intensity of 100 mmol m–2 s–1) for 6 h, and collected and stored at −80 °C until use for total RNA extraction.

2.2. BLAST Searches

The amino acid sequences of OsWRKY45 (GenBank accession number AK066255) [34] and AtWRKY70 (GenBank accession number AF421157) [22] from rice and Arabidopsis, respectively, were used as queries to search (E-value cutoff of −1) the proteome of the wild species M. acuminata ssp. malaccensis [26] using the BLASTP algorithm at the Phytozome v12.1 database (https://phytozome.jgi.doe.gov/pz/portal.html, accessed on 20 January 2021). We also included the banana WRKY sequences GSMUA_Achr3T13440 and GSMUA_Achr7T05200 as queries in BLASTP searches, as they have been shown to be upregulated by the pathogen P. fijiensis and have been reported to be closely related to AtWRKY18 and AtWRKY60 [26]. In this case, the BLASTP searches were carried out at the Phytozome v12.1 database (accessed on 20 January 2021) using the Arabidopsis proteome. The four banana WRKY genes were named based on their Arabidopsis or rice WRKY gene counterparts, with the prefix ‘Ma’ indicating M. acuminata.

2.3. RT-PCR and Cloning of MaWRKY cDNAs

The Illustra Nucleon PhytopureTM kit (GE Healthcare Life Science, Chicago, IL, USA) was used to extract total RNA from leaf tissue of the wild banana M. acuminata ssp. malaccensis following the manufacturer’s instructions. Total RNA concentration and purity were determined using a NanoDrop Lite Spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA). Total RNA integrity was determined by agarose gel electrophoresis stained with ethidium bromide. The nucleic acid extract was treated with TURBOTM DNase (Thermo Fisher Scientific, Waltham, MA, USA), and then first-strand cDNA synthesis was performed using 5 µg of total RNA employing SuperScript™ III (Thermo Fisher Scientific) according to the manufacturer’s protocol. Specific primers for the predicted coding sequences (CDSs) of the MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 genes were designed (Table S1) and used for RT-PCR amplification using the Expand™ Long Template PCR System (Merck, Darmstadt, Germany). The cycling conditions were 95 °C for 3 min, followed by 35 cycles of 95 °C for 10 s, 59 °C for 30 s, and 72 °C for 1 min. The PCR products were cloned into the pGEM-T Easy vector (Promega, Madison, WI, USA) and sequenced on both strands by Macrogen, Inc. (https://dna.macrogen.Com, accessed on 8 February 2020). In addition, specific primers (Table S2) upstream of the stop codon of each CDS were designed for mapping the 3′ cDNA ends using the SMARTer® RACE Kit (Takara Bio USA, San Jose, CA, USA) according to the manufacturer’s protocol. The PCR products were cloned and sequenced as described above. The sequences were edited using the BioEdit software v7.2. (Informer Technologies, Inc., Los Angeles, CA, USA) [35]. The cDNA sequences of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 were deposited in GenBank with the accession numbers OP186309, OP186310, OP186311, and OP186312, respectively.

2.4. Gene Structure, Identification of Conserved Protein Motifs, Protein Modeling, and Phylogenetic Tree Construction

The 3′ UTR (Untranslated Region), exon, and intron regions of banana WRKY genes were illustrated using the Exon-Intron Graphic Maker v4.0 platform (http://wormweb.org/exonintron, accessed on 8 June 2021). The WRKY CDS was translated with the Translate function of the BioEdit software v7.2., (Informer Technologies, Inc., Los Angeles, CA, USA) [35]. The identification of conserved motifs was performed using the ScanProsite Tool from the Expasy Bioinformatics Resource Portal (https://prosite.expasy.org/scanprosite/, accessed on 13 February 2021) with the default settings. The amino acid identity between sequences was determined with the Clustal Omega program (https://www.ebi.ac.uk/Tools/msa/clustalo/, accessed on 18 February 2021). The presence of cis-acting DNA regulatory elements in the putative promoter region (1500 bp upstream of the start codon) of each banana WRKY gene was detected using the databases PlantCARE [36] (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/, accessed on 3 April 2021) and PlantPAN v3.0 [37] (http://plantpan.itps.ncku.edu.tw/, accessed on 5 April 2021) with the default settings. Homology modeling of protein structures was carried out using the SWISS-MODEL suite [38] (https://swissmodel.expasy.org/, accessed on 9 April 2021), and 3D models were edited with the PyMol program v2 (https://pymol.org/2/, accessed on 10 April 2021). Multiple sequence alignments were performed using the Clustal Omega program with the default parameter settings. Identical and similar amino acids were indicated with black and gray shading, respectively, using the Boxshade program (http://www.ch.embnet.org, accessed on 12 April 2021). A phylogenetic tree was constructed using the neighbor-joining (NJ) method with 1000 bootstrap replications, employing the Molecular Evolutionary Genetics Analysis (MEGA) v11.0.10 package [39] (http://www.megasoftware.net/, accessed on 13 April 2021). The phylogenetic tree was edited with the FigTree v1.4.4 program (http://tree.bio.ed.ac.uk/software/figtree, accessed on 14 April 2021). The banana MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 protein sequences plus 70 members of the Arabidopsis WRKY family were used for phylogenetic tree construction.

2.5. Subcellular Localization Assay

The CDSs of the MaWRY18, MaWRY45, MaWRY60, and MaWRKY70 cDNAs were fused in frame to the 3′ end of the GFP reporter gene present in the pAVA121 vector [40]. Onion epidermal cells were transiently transformed with the particle bombardment method [40] using a PDS-1000/HeTM system (Bio-Rad, Hercules, CA, USA). Green fluorescence was observed with an AxioScope A1 epifluorescence microscope (Carl Zeiss, Oberkochen, Germany), and image editing was performed with ZEN Edition Blue imaging software (Carl Zeiss, Oberkochen, Germany).

2.6. Yeast One-Hybrid Assay

The transcriptional activity of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 was determined by yeast one-hybrid assay using the pGBKT7 vector and the Y2HGold yeast strain (Takara Bio USA, San Jose, CA, USA). The pGBKT7 plasmid contains the GAL4 DNA-binding domain (BD) under the control of the ADH1 promoter and the TRP1 nutritional marker for selection in yeast, whereas the yeast Y2HGold strain contains the reporter genes AUR1-C, ADE2, and HIS3. The growing conditions used for the yeast Y2HGold strain are described in the Matchmaker® Gold Yeast Two-Hybrid System User Manual (Takara Bio USA). The CDSs of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 cDNAs were PCR amplified using primers designed for In-Fusion® cloning (Table S1) and cloned into the pGBKT7 vector by recombination using the In-Fusion® HD Cloning Plus kit (Takara Bio USA) following the manufacturer’s instructions. The generated constructs were sequenced as described above and then used to transform the Y2HGold yeast strain, as described in the Matchmaker® Gold Yeast Two-Hybrid System User Manual (Takara Bio USA). To test the transactivation activity, yeast strains harboring the recombinant and empty plasmids were streaked on synthetic dropout (SD) medium (-Trp, -His, -Ade) or YPDA medium supplemented with 200 ng/mL aureobasidin A. We used the papaya ERF transcription factor CpERF7 as a positive control [41].

2.7. RT-qPCR

Total RNA extraction and cDNA synthesis from floating leaf discs treated with SA or MeJA hormones were performed as previously described in Section 2.3. RT-qPCR was performed using Maxima SYBR Green/ROX qPCR master mix (Thermo Fisher Scientific) and specific primers for the MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 genes (Table S1). The cycling conditions were 95 °C for 10 min, followed by 40 cycles of 95 °C for 10 s, 57 °C for 30 s and 72 °C for 30 s. Banana Ma25S gene expression was used as an internal standard [42] to normalize the expression of the banana WRKY genes, and the 2−ΔΔCt method [43] was used to calculate the relative gene expression. In addition, specific primers for the banana MaDLO1 [32] and MaLOX1 [33] genes were used in the RT-qPCR assays as controls (Table S1). RT-qPCR was carried out using the StepOnePlus™ Real-Time PCR System (Thermo Fisher Scientific). Three biological replicates (each one with three technical replicates) and two experimental repetitions were performed for statistical analysis. The Anderson–Darling statistic was used to determine whether the data meet the assumption of normality for a t-test, and then a Student’s t-test was applied using the Minitab software v.17, (Informer Technologies, Inc., Los Angeles, CA, USA).

3. Results

3.1. Structural and Phylogenetic Analysis of the MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 Genes

BLASTP searches revealed that the best banana sequence hits to OsWRKY45 and AtWRKY70 were GSMUA_Achr5P07490 (E value = 1.78 × 10−32) and GSMUA_Achr1P27980 (E value = 2.98 × 10−25), respectively, whereas the best BLASTP hits for banana GSMUA_Achr3P13440 and GSMUA_Achr7P05200 in the Arabidopsis proteome were AtWRKY18 (E value = 1.81 × 10−56) and AtWRKY60 (E value = 1.76 × 10−58), respectively (Tables S3 and S4). The CDSs of the four banana WRKY cDNAs ranged from 828 (MaWRKY18) to 933 bp (MaWRKY70) in length (Table 1) (Figures S1–S4).
MaWRKY18 and MaWRKY60 contained the highest numbers of exons and introns, with 4 and 3, respectively, while MaWRKY45 and MaWRKY70 contained the lowest numbers of exons and introns, with 3 and 2, respectively (Figure 1a). The 3′ UTR lengths varied from 148 (MaWRKY18) to 434 (MaWRKY45) bp. The amino acid sequence lengths ranged from 275 (MaWRKY18) to 310 (MaWRKY70) (Table 1), while the protein sequence similarities among them ranged from 16% (MaWRKY60 vs. MaWRKY70) to 67.9% (MaWRKY18 vs. MaWRKY60) (Table S5). The deduced amino acid sequences of the four MaWRKY cDNAs revealed the presence of the conserved WRKY domain of ~60 amino acids (Figure 1b and Figure 2), which comprises the canonical WRKYGQK and zinc-finger motifs. Based on the number of WRKY repeats and the structure of the zinc-finger motif [18], MaWRKY18 and MaWRKY60 were determined to belong to group II, while MaWRKY45 and MaWRKY70 were classified as members of group III. Moreover, the four banana WRKY proteins had a potential nuclear localization signal (NLS) at the N-terminus near the WRKY domain (Figure 1b). We also found potential phosphorylation sites in the four protein sequences (Figure 1b). All proteins except MaWRKY45 had posttranslational sites (PTSs) for myristoylation (Figure 1b). Glycosylation sites were also found for MaWRKY18 and MaWRKY45 proteins (Figure 1b).
The 3D models of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 (Figure 3) showed four antiparallel β-sheets comprising the WRKY DNA-binding domain similar to the WRKY domain of the Arabidopsis AtWRKY1 protein [44]. The phylogenetic tree (Figure 4) revealed that MaWRKY18 and MaWRKY60 clustered in clade IIa along with AtWRKY18 and AtWRKY60, while MaWRKY45 and MaWRKY70 clustered in clade III, with their homologs OsWRKY45 and AtWRKY70.
The promoter regions (1500 bp upstream of the start codon) of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 contained potential cis-acting regulatory elements (Figure 5). The four promoters contained potential hormone-responsive elements, such as SA [CCATCTTTTT], MeJA [TGACG], auxin [AACGAC], abscisic acid [CACGTG], and gibberellic acid [CCTTTTG]. The MeJA-responsive element was found in the promoter regions of MaWRKY18, MaWRKY45, and MaWRKY60. MaWRKY45 had the highest number of MeJA-responsive elements, with four. Single SA-responsive elements were found in the promoter regions of MaWRKY18 and MaWRKY70. All four gene promoters also had W-boxes [TTGACC], which are the sequences recognized by WRKY TFs. MaWRKY18 and MaWRKY60 had the highest numbers of W-boxes, with five and three, respectively, while MaWRKY45 had two and MaWRKY70 had only one. Other TF-responsive elements, such as NAC [CATGTG], ERF [TAAGAGCCGCC], MYB [CGGTCA], bZIP [TACGTA and CACGTG], dof [T/AAAAG], and bHLH [CANNTG], were also present in the four promoters (Figure 5). Moreover, cis-acting regulatory elements involved in heat [AGAAAATTCG], cold [CCGAAA], or dehydration [CAACTG] responses were found in the promoter regions of the four banana WRKY genes, suggesting their roles in the cross-talk between abiotic and biotic stress responses.

3.2. Subcellular Localization of MaWRK18, MaWRKY45, MaWRKY60, and MaWRKY70

As previously described, the four banana WRKY proteins were predicted to be located within the nucleus. To confirm whether these proteins were indeed localized in the nucleus of the cell, their coding sequences were fused in-frame to the GFP gene and transiently expressed in onion epidermal cells. We confirmed that these four MaWRKY proteins were localized inside the nucleus (Figure 6), indicating that these four MaWRKY proteins have roles in this cellular compartment.

3.3. Transactivation Activity of MaWRK18, MaWRKY45, MaWRKY60, and MaWRKY70 Transcription Factors

We carried out a yeast one-hybrid assay to test the in vivo transactivation activity of the MaWRKY18, MaWRKY45, MaWRKY60 and MaWRKY70 proteins. The cDNA coding sequences of these four MaWRKYs were fused in-frame to the GAL4 DNA-binding domain (Figure 7a), resulting in fusion proteins capable of activating the transcription of three independent reporter genes (AUR1-C, ADE2, and HIS3) and promoting the growth of the Y2HGold yeast strain in either SD minimal medium (-Trp, -His, -Ade) or YPDA medium supplemented with the highly toxic drug aureobasidin A (Figure 7b,c). The two negative controls used in the yeast one-hybrid assay did not grow on YPDA medium supplemented with aureobasidin A or SD (-Trp, -His, -Ade) minimal medium, whereas the positive control CpERF7 did grow (Figure 7c). These results indicated that these MaWRKY proteins were functional TFs capable of positively regulating the transcription process in yeast.

3.4. Expression Profiles of the MaWRK18, MaWRKY45, MaWRKY60, and MaWRKY70 Genes in Response to Phytohormone Treatments

To determine whether the MaWRK18, MaWRKY45, MaWRKY60, and MaWRKY70 genes were responsive to phytohormones involved in plant defense-signaling pathways, we performed an RT-qPCR analysis to measure their transcript levels when exposed to exogenous SA or MeJA after 6 h. The four genes were responsive to SA (Figure 8). The expression levels of MaWRKY45 and MaWRKY60 increased above 2-fold, while MaWRKY18 expression increased 1.7-fold. In the case of MaWRKY70, its expression decreased by 5-fold. The expression of the SA-responsive marker MaDLO1 increased significantly by 655-fold. The transcript levels in MeJA-treated samples exhibited higher expression levels than in samples treated with SA. The transcription levels of MaWRKY45, MaWRKY60, and MaWRKY70 increased significantly, with MaWRKY60 being the most responsive gene to MeJA treatment, with a 52-fold increase, whereas the MaWRKY18 gene was not responsive to MeJA. As an MeJA-responsive marker, the MaLOX1 gene was analyzed and showed a marked increase of 210-fold. These results suggest that the MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 genes may play roles in SA or MeJA defense-signaling pathways.

4. Discussion

The WRKY genes are widespread in plant genomes, where they play a fundamental role in the transcriptional regulation of genes involved in growth, development, and stress responses [45,46]. Annotation of WRKY genes in angiosperm plants has shown that they belong to a large gene family ranging from 38 to 287 members in Genlisea aurea and Glycine max, respectively [47]. Despite these advances in WRKY gene annotations, only a small percentage of them have been functionally characterized, mainly in the model plants Arabidopsis and rice. In the case of economically important fruit crops, such as banana, with 164 WRKY genes annotated [29], only a few WRKY genes have been validated as TFs [48,49,50,51]. Cloning and elucidating the functional aspects of banana WRKY genes will expand our understanding of the multiple roles of these transcription factors and provide novel tools for genetic improvement.
OsWRKY45, AtWRKY18, AtWRKY60, and AtWRKY70 play pivotal roles in the resistance to fungal and bacterial pathogens [22,25,34]. Given the importance of these TFs in plant defense responses, in this study, we searched the banana genome for potential orthologs of these genes. The MaWRKY45 and MaWRKY70 proteins resulted in the best BLASTP hits using their counterparts from rice and Arabidopsis as queries, respectively. It has previously been shown that OsWRKY45 and AtWRKY70 are phylogenetically closely related [52]; interestingly, MaWRKY45 and MaWRKY70 also clustered in the same phylogenetic clade as OsWRKY45 and AtWRKY70, suggesting an evolutionary relationship and function in stress responses. In the case of MaWRKY18 and MaWRKY60, their best BLASTP hits were with AtWRKY18 and AtWRKY60 from Arabidopsis, respectively. They shared the features of the group IIa WRKY TFs and clustered with AtWRKY18 and AtWRKY60, which are phylogenetically closely related [25], implying a possible orthology for MaWRKY18 and MaWRKY60.
We identified multiple potential phosphorylation sites in the protein sequences of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70, even at the core of WRKY domains, which indicates that the activity of these banana WRKYs might be modulated via phosphorylation. Numerous WRKY TFs have been shown to be phosphorylated by mitogen-activated protein kinases, leading to enhanced binding to W-box elements and transcriptional activity [18]. We also identified N-myristoylation sites for these banana WRKY proteins. The number of characterized myristoylated proteins in plants is still limited [53], and to our knowledge, no myristoylated WRKY TF has been experimentally validated. Analysis of the myristoylome in Arabidopsis revealed that numerous membrane proteins involved in stress responses are myristoylated, suggesting that the myristoylome might function as a dynamic proteome in response to abiotic and biotic stresses [53]. Moreover, myristoylation of the BASP1 protein is required for its function as a transcriptional repressor by binding to the Wilms’ tumor 1 (WT1) transcription factor and other corepressor proteins [54]. By analogy, some myristoylated MaWRKY TFs could work in a similar manner. We also found NLS sites in all four banana WRKY proteins considered in this study and confirmed that these proteins were indeed localized in the nuclei of onion epidermal cells. These results are consistent with the nuclear localization of other plant WRKY TFs, including the banana WRKYs reported thus far [48,49,50,51,55]. Furthermore, we demonstrated that these four banana WRKYs were functional transcription factors in yeast since all of them were capable of activating RNA polymerase II for the transcription of three marker genes. Less than 5% of the WRKY genes found in the banana genome have been experimentally validated as TFs, and most of them are from the cultivar Cavendish [48,49,50,51]; this is the first report that assessed the transactivation activity of WRKY proteins from a wild banana (M. acuminata ssp. malaccensis), which is resistant to the most destructive diseases of this crop and is a progenitor of most banana cultivars [26].
Numerous putative cis-acting regulatory elements related to defense phytohormones were found in the promoter regions of all four banana WRKY genes, including SA and MeJA, which are two key phytohormones involved in SAR and ISR, respectively [56]. MaWRKY18, MaWRKY45, and MaWRKY60 were upregulated in response to SA. This is in agreement with the expression profiles of AtWRKY18, OsWRKY45, and AtWRKY60, which were also upregulated by SA [24,34,57]. However, MaWRKY70 was downregulated by SA, in contrast to AtWRKY70, which has been shown to be upregulated by this phytohormone [22]. Regarding MeJa, MaWRKY45, MaWRKY60, and MaWRKY70 were upregulated in response to this phytohormone, unlike MaWRKY18, which was not responsive to MeJA. Interestingly, both MaWRKY18 and MaWRKY60 were upregulated by the fungal pathogen P. fijiensis in susceptible banana accessions [26]. Taking into consideration that MaWRKY18 was upregulated by SA and MaWRKY60 by both SA and MeJa, it is plausible that both phytohormones play roles in the banana–P. fijiensis pathosystem. In the case of Arabidopsis AtWRKY18 and AtWRKY60, it remains to be seen whether these TFs respond to MeJA. Previous reports have shown that OsWRKY45 and AtWRKY70 were upregulated by MeJa [22,57]. These two TFs function as a convergent point of jasmonate- and salicylate-mediated signals in plant defense [22,48]. Moreover, AtWRKY70 is regulated downstream of the master regulator of SAR, the transcription cofactor AtNPR1, while OsWRKY45 works independently of OsNPR1 [48], indicating that although these two TFs are phylogenetically closely related and function downstream of SA, they respond differently to NPR1. Thus, a similar scenario may occur in MaWRKY45 and MaWRKY70. Moreover, the promoter regions of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 contained W-boxes, suggesting that the expression of these banana WRKY genes could be either autoregulated or cross-regulated by other MaWRKYs, as previously reported [58]. W-boxes are ubiquitous in the promoter regions of stress-inducible genes [59,60].
The fact that these four MaWRKY genes were responsive to phytohormones involved in SAR and ISR makes them interesting candidates for engineering broad-spectrum resistance in banana. Since constitutive overexpression of WRKYs can lead to adverse effects on agronomic traits [21,24,34], it is necessary to fine-tune their expression through a moderate constitutive or pathogen-inducible promoter to harness the full potential of WRKY genes for boosting the plant immune system without detrimental effects on growth and development. Promising advances in this direction have been made in rice with a moderate constitutive and pathogen-inducible promoter driving the expression of OsWRKY45 [61,62]. Therefore, the use of these types of promoters in banana for driving the expression of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 may lead to triggering SAR or ISR, providing broad-spectrum resistance without affecting agronomic traits.

5. Conclusions

We isolated the cDNAs of four WRKY genes from a wild banana (M. acuminata ssp. malaccensis) and found that they belong to group II (MaWRKY18 and MaWRKY60) and group III (MaWRKY45 and MaWRKY70) of plant WRKY genes. Their proteins were located in the nuclei of onion epidermal cells and were functional TFs in yeast cells. Furthermore, these MaWRKY genes were responsive to the phytohormone SA, implying a possible role in SAR, while three of them were responsive to the phytohormone MeJA, suggesting a possible role in ISR. These results make MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 interesting candidates for bioengineering broad-spectrum resistance in banana, using moderate constitutive or pathogen-inducible promoters to fine-tune their expression.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes13101891/s1, Table S1: List of primers for RT-PCR and RT-qPCR; Table S2: List of forward primers for 3′ UTR amplification using RACE; Table S3: Best BLASTP hits of rice OsWRKY45 and Arabidopsis AtWRKY70 protein sequences used as queries in the proteome of M. acuminata ssp. Malaccensis; Table S4: Best BLASTP hits of banana GSMUA_Achr3P13440 and GSMUA_Achr7P05200 protein sequences used as queries in the Arabidopsis proteome; Table S5: Amino acid sequence similarity (%) between banana MaWRKY18, MaWRKY45, MaWRKY60, MaWRKY70 and their respective homologs in Arabidopsis and rice; Figure S1: cDNA sequence of MaWRKY18 and its deduced amino acid sequence; Figure S2: cDNA sequence of MaWRKY45 and its deduced amino acid sequence; Figure S3: cDNA sequence of MaWRKY60 and its deduced amino acid sequence; Figure S4: cDNA sequence of MaWRKY70 and its deduced amino acid sequence.

Author Contributions

Conceptualization, S.G.-L., V.A.H.-V. and S.P.-E.; methodology, S.G.-L., V.A.H.-V. and S.P.-E.; validation, S.G.-L., L.G.T.-T. and V.L.-B.; formal analysis, S.G.-L., L.G.T.-T., V.A.H.-V. and S.P.-E.; investigation, S.G.-L., L.G.T.-T., V.L.-B., F.A.B.-P., F.M.B.-E., V.A.H.-V. and S.P.-E.; resources, S.P.-E.; writing—original draft preparation, S.G.-L. and S.P.-E.; writing—review and editing, S.G.-L., V.A.H.-V., L.G.T.-T., V.L.-B., F.A.B.-P., F.M.B.-E., A.G.A.-S., C.P.-H. and S.P.-E.; visualization, S.G.-L., V.A.H.-V. and S.P.-E.; supervision, V.A.H.-V. and S.P.-E.; project administration, S.P.-E.; funding acquisition, S.P.-E. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Consejo Nacional de Ciencia y Tecnología (CONACYT, México, grant No. 252964). Sergio Garcia Laynes was supported by CONACYT, PhD Scholarship No. 692581.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We are grateful to Rosa María Escobedo-GraciaMedrano for providing plants of M. acuminata ssp. malaccensis (Centro de Investigación Científica de Yucatán, Mérida, México).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dale, J.; James, A.; Paul, J.Y.; Khanna, H.; Smith, M.; Peraza-Echeverria, S.; Garcia-Bastidas, F.; Kema, G.; Waterhouse, P.; Mengersen, K.; et al. Transgenic Cavendish bananas with resistance to Fusarium wilt tropical race 4. Nat. Commun. 2017, 8, 1496. [Google Scholar] [CrossRef] [PubMed]
  2. FAO. Global Programme on Banana Fusarium Wilt Disease. 2017. Available online: https://www.fao.org/publications/card/en/%20c/29d4ef48-7454-4f98-8260-e5f19249d246 (accessed on 10 February 2022).
  3. Ploetz, R.C.; Kema, G.H.J.; Ma, L.J. Impact of diseases on export and smallholder production of banana. Annu. Rev. Phytopathol. 2015, 53, 269–288. [Google Scholar] [CrossRef] [PubMed]
  4. Drenth, A.; Guest, D.I. Fungal and oomycete diseases of tropical tree fruit crops. Annu. Rev. Phytopathol. 2016, 54, 373–395. [Google Scholar] [CrossRef]
  5. Churchill, A.C.L. Mycosphaerella fijiensis, the black leaf streak pathogen of banana: Progress towards understanding pathogen biology and detection, disease development, and the challenges of control. Mol. Plant Pathol. 2011, 2, 307–328. [Google Scholar] [CrossRef] [PubMed]
  6. Arango-Isaza, R.E.; Diaz-Trujillo, C.; Dhillon, B.; Aerts, A.; Carlier, J.; Crane, C.F.; de Jong, T.V.; de Vries, I.; Dietrich, R.; Andrew, D.A.D.; et al. Combating a global threat to a clonal crop: Banana black Sigatoka pathogen Pseudocercospora fijiensis (Synonym Mycosphaerella fijiensis) genomes reveal clues for disease control. PLoS Genet. 2016, 2, e1005876. [Google Scholar] [CrossRef] [PubMed]
  7. Kanyuka, K.; Rudd, J.J. Cell surface immune receptors: The guardians of the plant’s extracellular spaces. Curr. Opin. Plant Biol. 2019, 50, 1–8. [Google Scholar] [CrossRef]
  8. Van der Burgh, A.M.; Joosten, M.H.A.J. Plant immunity: Thinking outside and inside the box. Trends Plant Sci. 2019, 24, 587–601. [Google Scholar] [CrossRef]
  9. Gao, Q.M.; Zhu, S.; Kachroo, P.; Kachroo, A. Signal regulators of systemic acquired resistance. Front. Plant Sci. 2015, 6, 228. [Google Scholar] [CrossRef]
  10. Ding, P.; Ding, Y. Stories of salicylic acid: A plant defense hormone. Trends Plant Sci. 2020, 25, 549–565. [Google Scholar] [CrossRef]
  11. Wasternack, C. How jasmonates earned their laurels: Past and present. J. Plant Growth Regul. 2015, 34, 761–794. [Google Scholar] [CrossRef]
  12. Yu, Y.; Gui, Y.; Li, Z.; Jiang, C.; Guo, J.; Niu, D. Induced systemic resistance for improving plant immunity by beneficial microbes. Plants 2022, 11, 386. [Google Scholar] [CrossRef] [PubMed]
  13. Yuan, M.; Huang, Y.; Ge, W.; Jia, Z.; Song, S.; Zhang, L.; Huang, Y. Involvement of jasmonic acid, ethylene and salicylic acid signaling pathways behind the systemic resistance induced by Trichoderma longibrachiatum H9 in cucumber. BMC Genom. 2019, 20, 144. [Google Scholar] [CrossRef] [PubMed]
  14. Barakat, I.; Chtaina, N.; Grappin, P.; El, G.M.; Ezzahiri, B.; Aligon, A.; Neveu, M.; Marchi, M. Induced systemic resistance (ISR) in Arabidopsis thaliana by Bacillus amyloliquefaciens and Trichoderma harzianum used as seed treatments. Agriculture 2019, 9, 166. [Google Scholar]
  15. Samaras, A.; Roumeliotis, E.; Ntasiou, P.; Karaoglanidis, G. Bacillus subtilis MBI600 promotes growth of tomato plants and induces systemic resistance contributing to the control of soilborne pathogens. Plants 2021, 10, 1113. [Google Scholar] [CrossRef] [PubMed]
  16. Wang, D.; Amornsiripanitch, N.; Dong, X. A genomic approach to identify regulatory nodes in the transcriptional network of systemic acquired resistance in plants. PLoS Pathog. 2006, 2, e123. [Google Scholar] [CrossRef]
  17. Timmermann, T.; Poupin, M.J.; Vega, A.; Urrutia, C.; Ruz, G.A.; González, B. Gene networks underlying the early regulation of Paraburkholderia phytofirmans PsJN induced systemic resistance in Arabidopsis. PLoS ONE 2019, 14, e0221358. [Google Scholar] [CrossRef]
  18. Chen, X.; Li, C.; Wang, H.; Guo, Z. WRKY transcription factors evolution, binding, and action. Phytopathol. Res. 2019, 1, 13. [Google Scholar] [CrossRef]
  19. Eulgem, T.; Rushton, P.J.; Robatzek, S.; Somssich, I.E. The WRKY superfamily of plant transcription factors. Trends Plant Sci. 2000, 5, 199–206. [Google Scholar] [CrossRef]
  20. Phukan, U.J.; Jeena, G.S.; Shukla, R.K. WRKY transcription factors: Molecular regulation and stress responses in plants. Front. Plant Sci. 2016, 7, 760. [Google Scholar] [CrossRef]
  21. Shimono, M.; Koga, H.; Akagi, A.; Hayashi, N.; Goto, S.; Sawada, M.; Kurihara, T.; Matsushita, A.; Sugano, S.; Jiang, C.J.; et al. Rice WRKY45 plays important roles in fungal and bacterial disease resistance. Mol. Plant Pathol. 2012, 13, 83–94. [Google Scholar] [CrossRef]
  22. Li, J.; Brader, G.; Palva, E.T. The WRKY70 transcription factor: A node of convergence for jasmonate-mediated and salicylate-mediated signals in plant defense. Plant Cell 2004, 16, 319–331. [Google Scholar] [CrossRef] [PubMed]
  23. Li, J.; Brader, G.; Kariola, T.; Tapio Palva, E. WRKY70 modulates the selection of signaling pathways in plant defense. Plant J. 2006, 46, 477–491. [Google Scholar] [CrossRef] [PubMed]
  24. Chen, C.; Chen, Z. Potentiation of developmentally regulated plant defense response by AtWRKY18, a pathogen-induced Arabidopsis transcription factor. Plant Physiol. 2002, 129, 706–716. [Google Scholar] [CrossRef] [PubMed]
  25. Xu, X.; Chen, C.; Fan, B.; Chen, Z. Physical and functional interactions between pathogen-induced Arabidopsis WRKY18, WRKY40, and WRKY60 transcription factors. Plant Cell 2006, 18, 1310–1326. [Google Scholar] [CrossRef]
  26. D’Hont, A.; Denoeud, F.; Aury, J.M.; Baurens, F.C.; Carreel, F.; Garsmeur, O.; Noel, B.; Bocs, S.; Droc, G.; Rouard, M.; et al. The banana (Musa acuminata) genome and the evolution of monocotyledonous plants. Nature 2012, 488, 213–217. [Google Scholar] [CrossRef]
  27. Goel, R.; Pandey, A.; Trivedi, P.; Asif, M. Genome-wide analysis of the Musa WRKY gene family: Evolution and differential expression during development and stress. Front. Plant Sci. 2016, 7, 299. [Google Scholar] [CrossRef]
  28. Kaliyappan, R.; Viswanathan, S.; Suthanthiram, B.; Subbaraya, U.; Marimuthu Somasundram, S.; Muthu, M. Evolutionary expansion of WRKY gene family in banana and its expression profile during the infection of root lesion nematode, Pratylenchus coffeae. PLoS ONE 2016, 11, e0162013. [Google Scholar]
  29. Jia, C.; Wang, Z.; Wang, J.; Miao, H.; Zhang, J.; Xu, B.; Liu, J.; Jin, Z.; Liu, J. Genome-wide analysis of the banana WRKY transcription factor gene family closely related to fruit ripening and stress. Plants 2022, 11, 662. [Google Scholar] [CrossRef]
  30. González-Torralva, F.; Brown, A.P.; Chivasa, S. Comparative proteomic analysis of horseweed (Conyza canadensis) biotypes identifies candidate proteins for glyphosate resistance. Sci. Rep. 2017, 7, 42565. [Google Scholar] [CrossRef]
  31. Rodríguez-García, C.M.; Canché-Gómez, A.D.; Sáenz-Carbonell, L.; Peraza-Echeverría, L.; Canto-Canché, B.; Islas-Flores, I.; Peraza-Echeverría, S. Expression of MfAvr4 in banana leaf sections with black leaf streak disease caused by Mycosphaerella fijiensis: A technical validation. Australas. Plant Pathol. 2016, 45, 481–488. [Google Scholar] [CrossRef]
  32. Tzean, Y.; Hou, B.H.; Tsao, S.M.; Chen, H.M.; Cheng, A.P.; Chen, E.G.; Yeh, H.H. Identification of MaWRKY40 and MaDLO1 as effective marker genes for tracking the salicylic acid-mediated immune response in bananas. Phytopathology 2021, 111, 1800–1810. [Google Scholar] [CrossRef] [PubMed]
  33. Zhao, M.L.; Wang, J.N.; Shan, W.; Fan, J.G.; Kuang, J.F.; Wu, K.Q.; Lu, W.J. Induction of jasmonate signalling regulators MaMYC2s and their physical interactions with MaICE1 in methyl jasmonate-induced chilling tolerance in banana fruit. Plant Cell Environ. 2013, 36, 30–51. [Google Scholar] [CrossRef] [PubMed]
  34. Shimono, M.; Sugano, S.; Nakayama, A.; Jiang, C.J.; Ono, K.; Toki, S.; Takatsuji, H. Rice WRKY45 plays a crucial role in benzothiadiazole-inducible blast resistance. Plant Cell 2007, 19, 2064–2076. [Google Scholar] [CrossRef] [PubMed]
  35. Hall, T.A. BioEdit: A user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucleic Acids Symp. Ser. 1999, 41, 95–98. [Google Scholar]
  36. Rombauts, S.; Déhais, P.; Van Montagu, M.; Rouzé, P. PlantCARE, a plant cis-acting regulatory element database. Nucleic Acids Res. 1999, 27, 295–296. [Google Scholar] [CrossRef]
  37. Chow, C.N.; Lee, T.Y.; Hung, Y.C.; Li, G.Z.; Tseng, K.C.; Liu, Y.H.; Chang, W.C. PlantPAN3. 0: A new and updated resource for reconstructing transcriptional regulatory networks from ChIP-seq experiments in plants. Nucleic Acids Res. 2019, 47, D1155–D1163. [Google Scholar] [CrossRef]
  38. Schwede, T.; Kopp, J.; Guex, N.; Peitsch, M.C. SWISS-MODEL: An automated protein homology-modeling server. Nucleic Acids Res. 2003, 31, 3381–3385. [Google Scholar] [CrossRef]
  39. Tamura, K.; Stecher, G.; Kumar, S. MEGA 11: Molecular evolutionary genetics analysis version 11. Mol. Biol. Evol. 2021, 38, 3022–3027. [Google Scholar] [CrossRef]
  40. Von Arnim, A.G.; Deng, X.W.; Stacey, M.G. Cloning vectors for the expression of green fluorescent protein fusion proteins in transgenic plants. Gene 1998, 221, 35–43. [Google Scholar] [CrossRef]
  41. Vallejo-Reyna, M.A.; Santamaría, J.M.; Rodríguez-Zapata, L.C.; Herrera-Valencia, V.A.; Peraza-Echeverria, S. Identification of novel ERF transcription factor genes in papaya and analysis of their expression in different tissues and in response to the plant defense inducer benzothiadiazole (BTH). Physiol. Mol. Plant Pathol. 2015, 91, 141–151. [Google Scholar] [CrossRef]
  42. Van den Berg, N.; Berger, D.K.; Hein, I.; Birch, P.R.; Wingfield, M.J.; Viljoen, A. Tolerance in banana to Fusarium wilt is associated with early up-regulation of cell wall-strengthening genes in the roots. Mol. Plant Pathol. 2007, 8, 333–341. [Google Scholar] [CrossRef] [PubMed]
  43. Schmittgen, T.D.; Livak, K.J. Analyzing real-time PCR data by the comparative CT method. Nat. Protoc. 2008, 3, 1101–1108. [Google Scholar] [CrossRef] [PubMed]
  44. Duan, M.R.; Nan, J.; Liang, Y.H.; Mao, P.; Lu, L.; Li, L.; Su, X.D. DNA binding mechanism revealed by high resolution crystal structure of Arabidopsis thaliana WRKY1 protein. Nucleic Acids Res. 2007, 35, 1145–1154. [Google Scholar] [CrossRef] [PubMed]
  45. He, Y.; Mao, S.; Gao, Y.; Zhu, L.; Wu, D.; Cui, Y.; Qian, W. Genome-wide identification and expression analysis of WRKY transcription factors under multiple stresses in Brassica napus. PLoS ONE 2016, 11, e0157558. [Google Scholar] [CrossRef]
  46. Jiang, J.; Ma, S.; Ye, N.; Jiang, M.; Cao, J.; Zhang, J. WRKY transcription factors in plant responses to stresses. J. Integr. Plant Biol. 2017, 59, 86–101. [Google Scholar] [CrossRef]
  47. Tian, F.; Yang, D.C.; Meng, Y.Q.; Jin, J.; Gao, G. PlantRegMap: Charting functional regulatory maps in plants. Nucleic Acids Res. 2020, 48, D1104–D1113. [Google Scholar] [CrossRef]
  48. Ye, Y.J.; Xiao, Y.Y.; Han, Y.C.; Shan, W.; Fan, Z.Q.; Xu, Q.G.; Chen, J.Y. Banana fruit VQ motif-containing protein5 represses cold-responsive transcription factor MaWRKY26 involved in the regulation of JA biosynthetic genes. Sci. Rep. 2016, 6, 23632. [Google Scholar] [CrossRef]
  49. Shan, W.; Chen, J.Y.; Kuang, J.F.; Lu, W.J. Banana fruit NAC transcription factor MaNAC5 cooperates with MaWRKYs to enhance the expression of pathogenesis-related genes against Colletotrichum musae. Mol. Plant Pathol. 2016, 17, 330–338. [Google Scholar] [CrossRef]
  50. Luo, D.L.; Ba, L.J.; Shan, W.; Kuang, J.F.; Lu, W.J.; Chen, J.Y. Involvement of WRKY transcription factors in abscisic-acid-induced cold tolerance of banana fruit. J. Agric. Food Chem. 2017, 65, 3627–3635. [Google Scholar] [CrossRef]
  51. Liu, G.; Zeng, H.; Li, X.; Wei, Y.; Shi, H. Functional analysis of MaWRKY24 in transcriptional activation of autophagy-related gene 8f/g and plant disease susceptibility to soil-borne Fusarium oxysporum f. sp. cubense. Pathogens 2019, 8, 264. [Google Scholar] [CrossRef]
  52. Nakayama, A.; Fukushima, S.; Goto, S.; Matsushita, A.; Shimono, M.; Sugano, S.; Takatsuji, H. Genome-wide identification of WRKY45-regulated genes that mediate benzothiadiazole-induced defense responses in rice. BMC Plant Biol. 2013, 13, 150. [Google Scholar] [CrossRef] [PubMed]
  53. Majeran, W.; Le Caer, J.P.; Ponnala, L.; Meinnel, T.; Giglione, C. Targeted profiling of Arabidopsis thaliana subproteomes illuminates co-and posttranslationally N-terminal myristoylated proteins. Plant Cell 2018, 30, 543–562. [Google Scholar] [CrossRef] [PubMed]
  54. Toska, E.; Campbell, H.A.; Shandilya, J.; Goodfellow, S.J.; Shore, P.; Medler, K.F.; Roberts, S.G. Repression of transcription by WT1-BASP1 requires the myristoylation of BASP1 and the PIP2-dependent recruitment of histone deacetylase. Cell Rep. 2012, 2, 462–469. [Google Scholar] [CrossRef] [PubMed]
  55. Shekhawat, U.K.S.; Ganapathi, T.R.; Srinivas, L. Cloning and characterization of a novel stress-responsive WRKY transcription factor gene (MusaWRKY71) from Musa spp. cv. Karibale Monthan (ABB group) using transformed banana cells. Mol. Biol. Rep. 2011, 38, 4023–4035. [Google Scholar] [CrossRef] [PubMed]
  56. Vlot, A.C.; Sales, J.H.; Lenk, M.; Bauer, K.; Brambilla, A.; Sommer, A.; Nayem, S. Systemic propagation of immunity in plants. New Phytol. 2021, 229, 1234–1250. [Google Scholar] [CrossRef] [PubMed]
  57. Huangfu, J.; Li, J.; Li, R.; Ye, M.; Kuai, P.; Zhang, T.; Lou, Y. The transcription factor OsWRKY45 negatively modulates the resistance of rice to the brown planthopper Nilaparvata lugens. Int. J. Mol. Sci. 2016, 17, 697. [Google Scholar] [CrossRef] [PubMed]
  58. Chi, Y.; Yang, Y.; Zhou, Y.; Zhou, J.; Fan, B.; Yu, J.Q.; Chen, Z. Protein–protein interactions in the regulation of WRKY transcription factors. Mol. Plant 2013, 6, 287–300. [Google Scholar] [CrossRef]
  59. Maleck, K.; Levine, A.; Eulgem, T.; Morgan, A.; Schmid, J.; Lawton, K.A.; Dietrich, R.A. The transcriptome of Arabidopsis thaliana during systemic acquired resistance. Nat. Genet. 2000, 26, 403–410. [Google Scholar] [CrossRef]
  60. Dhatterwal, P.; Basu, S.; Mehrotra, S.; Mehrotra, R. Genome wide analysis of W-box element in Arabidopsis thaliana reveals TGAC motif with genes down regulated by heat and salinity. Sci. Rep. 2019, 9, 1681. [Google Scholar] [CrossRef]
  61. Goto, S.; Sasakura-Shimoda, F.; Suetsugu, M.; Selvaraj, M.G.; Hayashi, N.; Yamazaki, M.; Takatsuji, H. Development of disease-resistant rice by optimized expression of WRKY45. Plant Biotechnol. J. 2015, 13, 753–765. [Google Scholar] [CrossRef]
  62. Goto, S.; Sasakura-Shimoda, F.; Yamazaki, M.; Hayashi, N.; Suetsugu, M.; Ochiai, H.; Takatsuji, H. Development of disease-resistant rice by pathogen-responsive expression of WRKY45. Plant Biotechnol. J. 2016, 14, 1127–1138. [Google Scholar] [CrossRef] [PubMed]
Genes 13 01891 g001 550

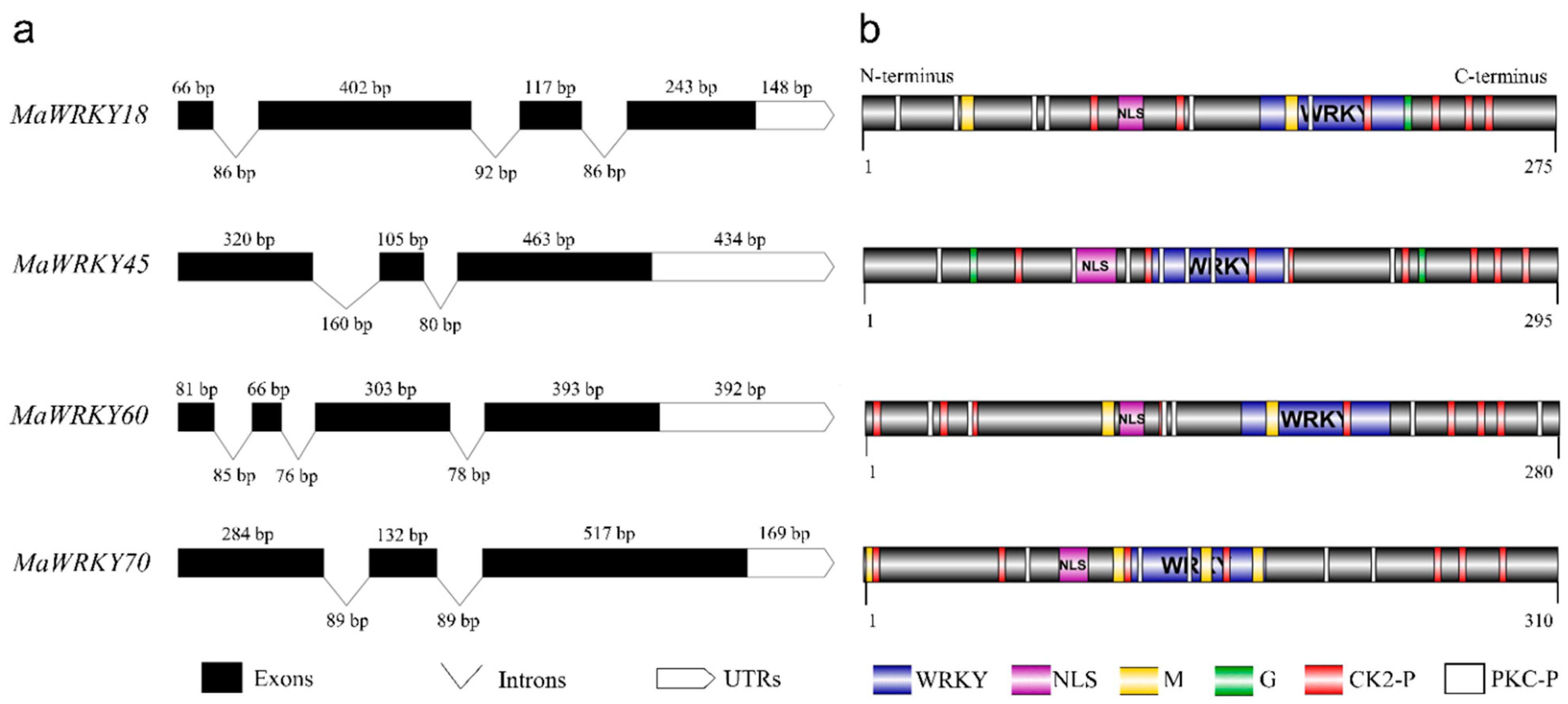

Figure 1. Schematic representation of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 cDNAs and their protein sequence structures. (a) Exon/intron and 3′ UTR composition. (b) Protein domains and posttranslational modification predictions. UTRs, untranslated regions; NLS, nuclear localization signal; WRKY, WRKY domain; M, myristoylation; G, glycosylation; CK2-P, CK2-phosphosites; PKC-P, PKC-phosphosite.
Figure 1. Schematic representation of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 cDNAs and their protein sequence structures. (a) Exon/intron and 3′ UTR composition. (b) Protein domains and posttranslational modification predictions. UTRs, untranslated regions; NLS, nuclear localization signal; WRKY, WRKY domain; M, myristoylation; G, glycosylation; CK2-P, CK2-phosphosites; PKC-P, PKC-phosphosite.
Genes 13 01891 g001
Genes 13 01891 g002 550

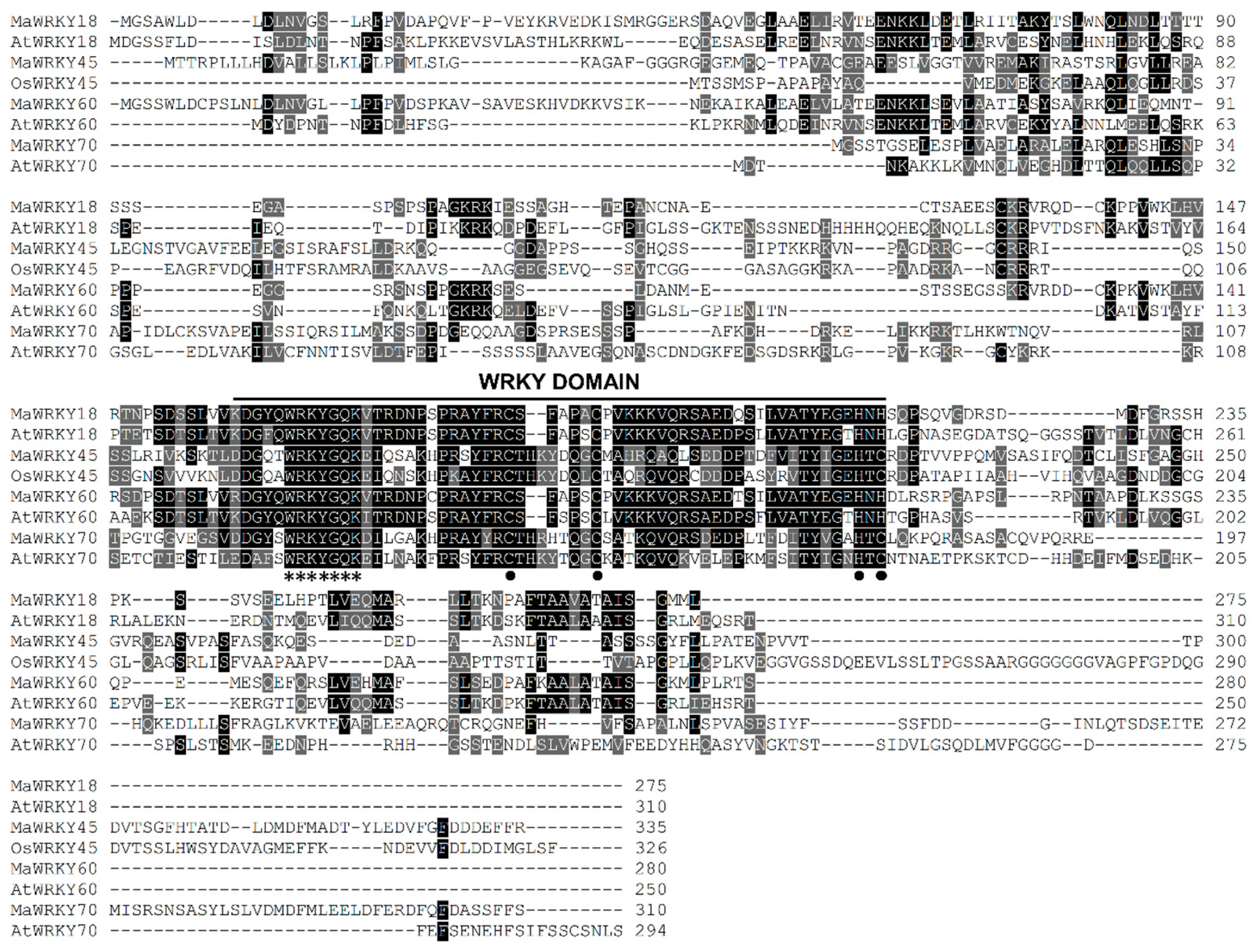

Figure 2. Multiple sequence alignment of the proteins MaWRKY18, MaWRKY45, MaWRKY60, MaWRKY70, and their homologs from rice and Arabidopsis. Identical and similar amino acids are shaded in black and gray, respectively. The amino acids of the WRKYGQK and zinc-finger motifs are highlighted with asterisks and black circles, respectively.
Figure 2. Multiple sequence alignment of the proteins MaWRKY18, MaWRKY45, MaWRKY60, MaWRKY70, and their homologs from rice and Arabidopsis. Identical and similar amino acids are shaded in black and gray, respectively. The amino acids of the WRKYGQK and zinc-finger motifs are highlighted with asterisks and black circles, respectively.
Genes 13 01891 g002
Genes 13 01891 g003 550

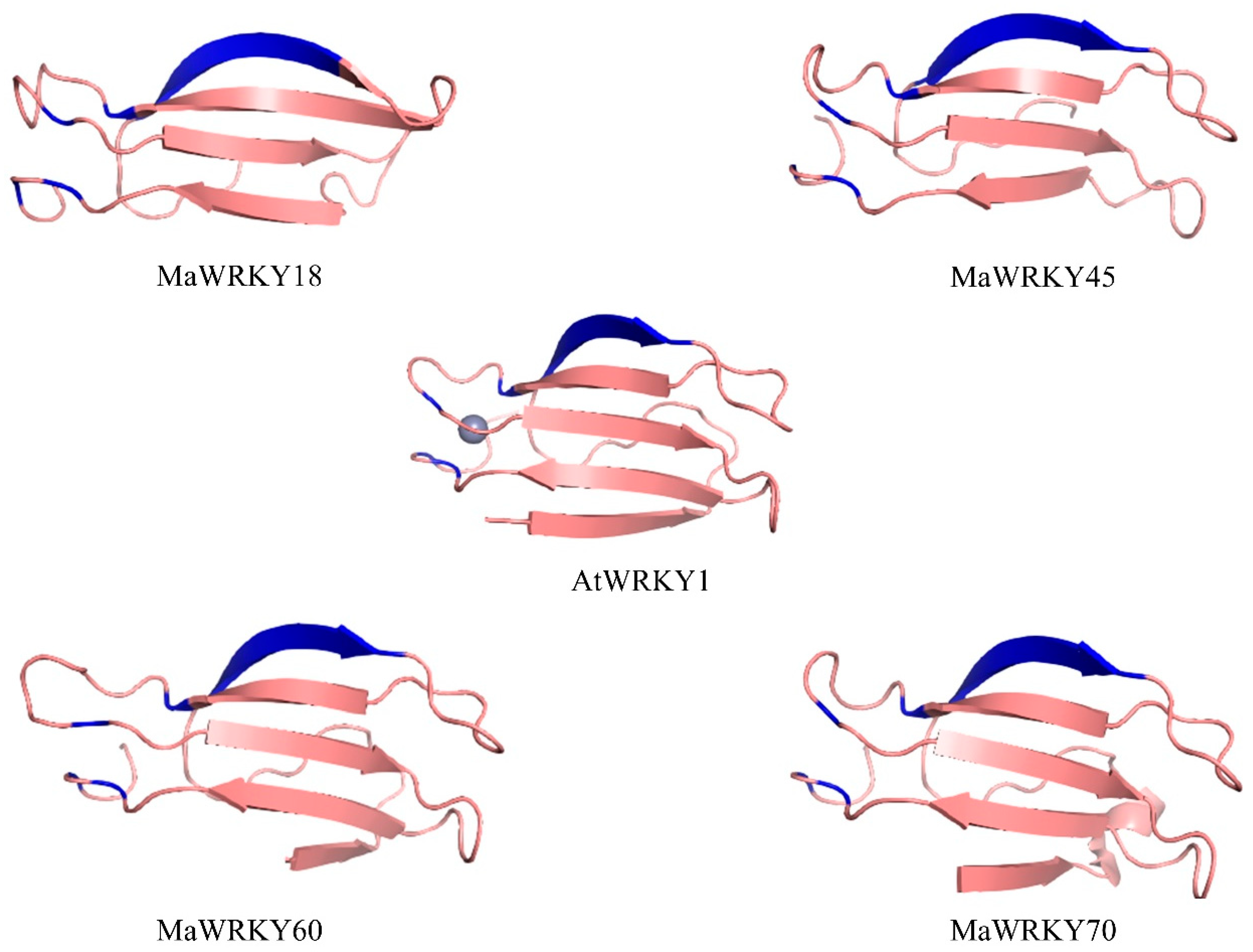

Figure 3. 3D ribbon cartoon view of the WRKY domain of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70. The WRKYGQK β-sheets and the zinc-finger motifs are shown in blue. The zinc ion is presented for the Arabidopsis AtWRKY1 3D model (PDB accession code 2AYD).
Figure 3. 3D ribbon cartoon view of the WRKY domain of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70. The WRKYGQK β-sheets and the zinc-finger motifs are shown in blue. The zinc ion is presented for the Arabidopsis AtWRKY1 3D model (PDB accession code 2AYD).
Genes 13 01891 g003
Genes 13 01891 g004 550

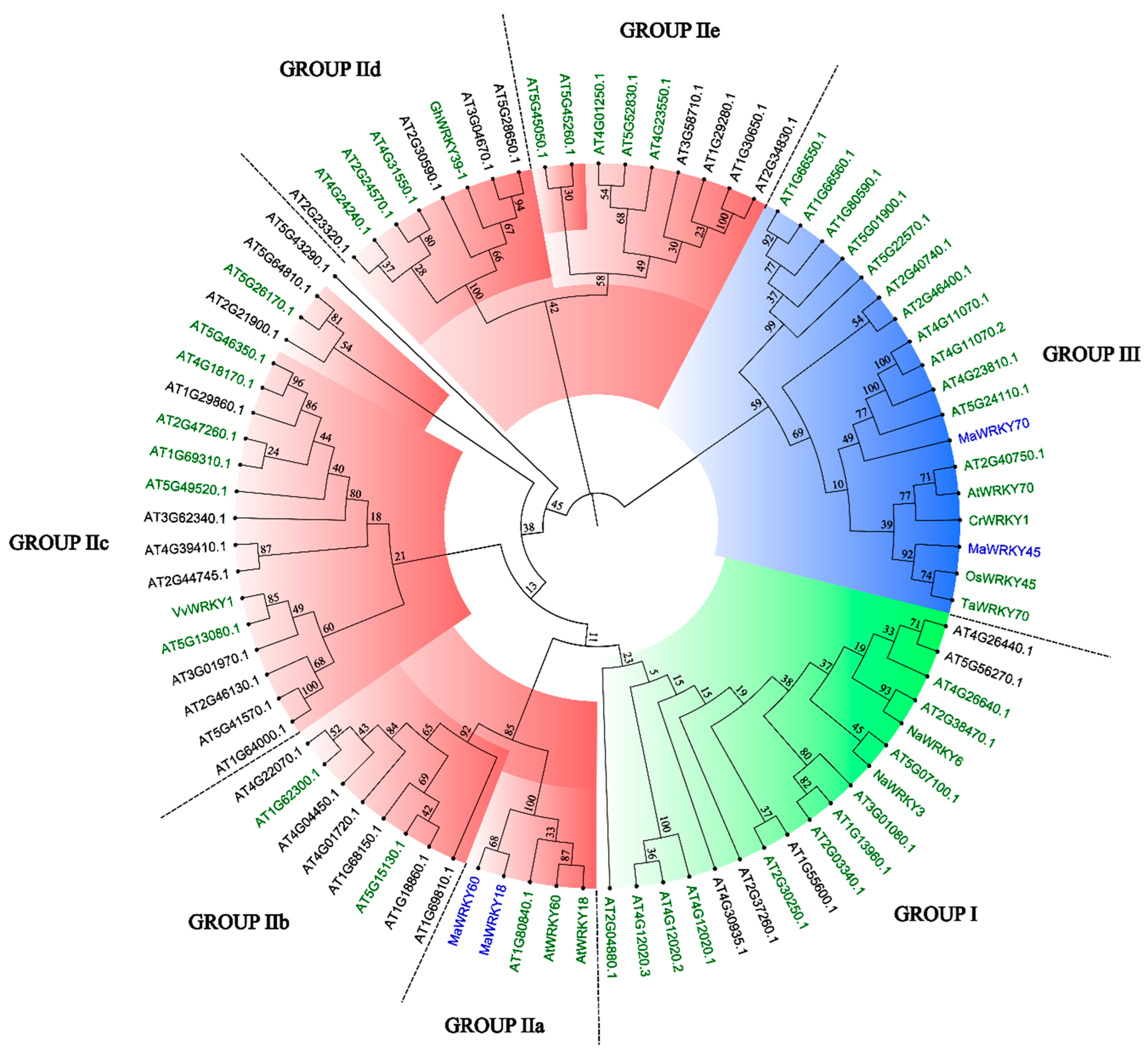

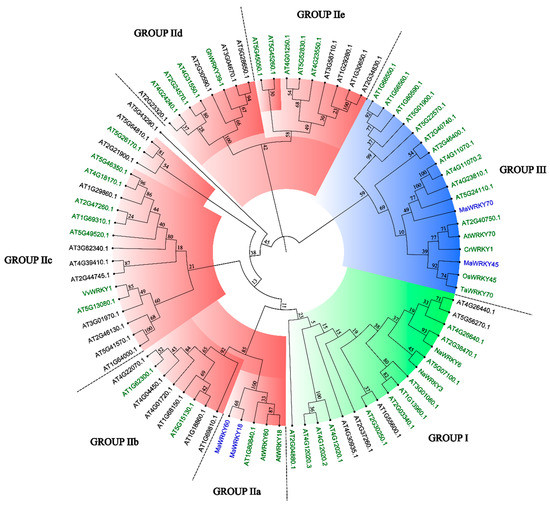

Figure 4. Neighbor-joining phylogenetic tree of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 TFs, including the complete set of Arabidopsis WRKY TFs and other plant WRKY TFs with known functions. Groups I, II, and III of the WRKY TF family are highlighted in green, red, and blue, respectively. WRKY TFs with green names are involved in biotic stress responses. MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 are highlighted in blue. Numbers above branches are bootstrap values supporting the nodes based on 1000 bootstrap replications.
Figure 4. Neighbor-joining phylogenetic tree of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 TFs, including the complete set of Arabidopsis WRKY TFs and other plant WRKY TFs with known functions. Groups I, II, and III of the WRKY TF family are highlighted in green, red, and blue, respectively. WRKY TFs with green names are involved in biotic stress responses. MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 are highlighted in blue. Numbers above branches are bootstrap values supporting the nodes based on 1000 bootstrap replications.
Genes 13 01891 g004
Genes 13 01891 g005 550

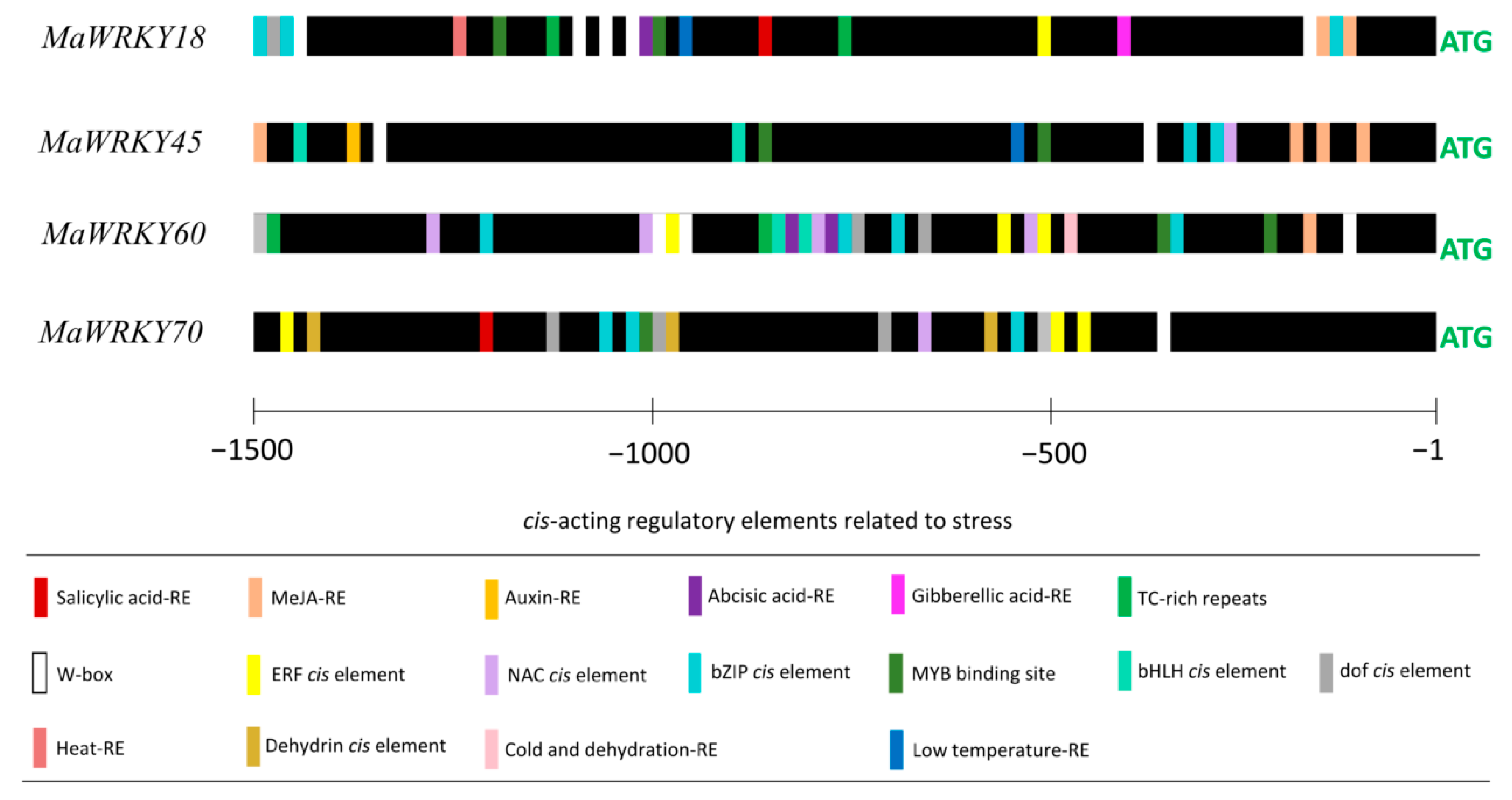

Figure 5. Predicted cis-acting regulatory elements in the promoter regions of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70. A region of 1500 bp upstream of the ATG start codon of each gene was used for the prediction of cis-acting regulatory elements. Bars with different colors represent the predicted cis-acting regulatory elements.
Figure 5. Predicted cis-acting regulatory elements in the promoter regions of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70. A region of 1500 bp upstream of the ATG start codon of each gene was used for the prediction of cis-acting regulatory elements. Bars with different colors represent the predicted cis-acting regulatory elements.
Genes 13 01891 g005
Genes 13 01891 g006 550

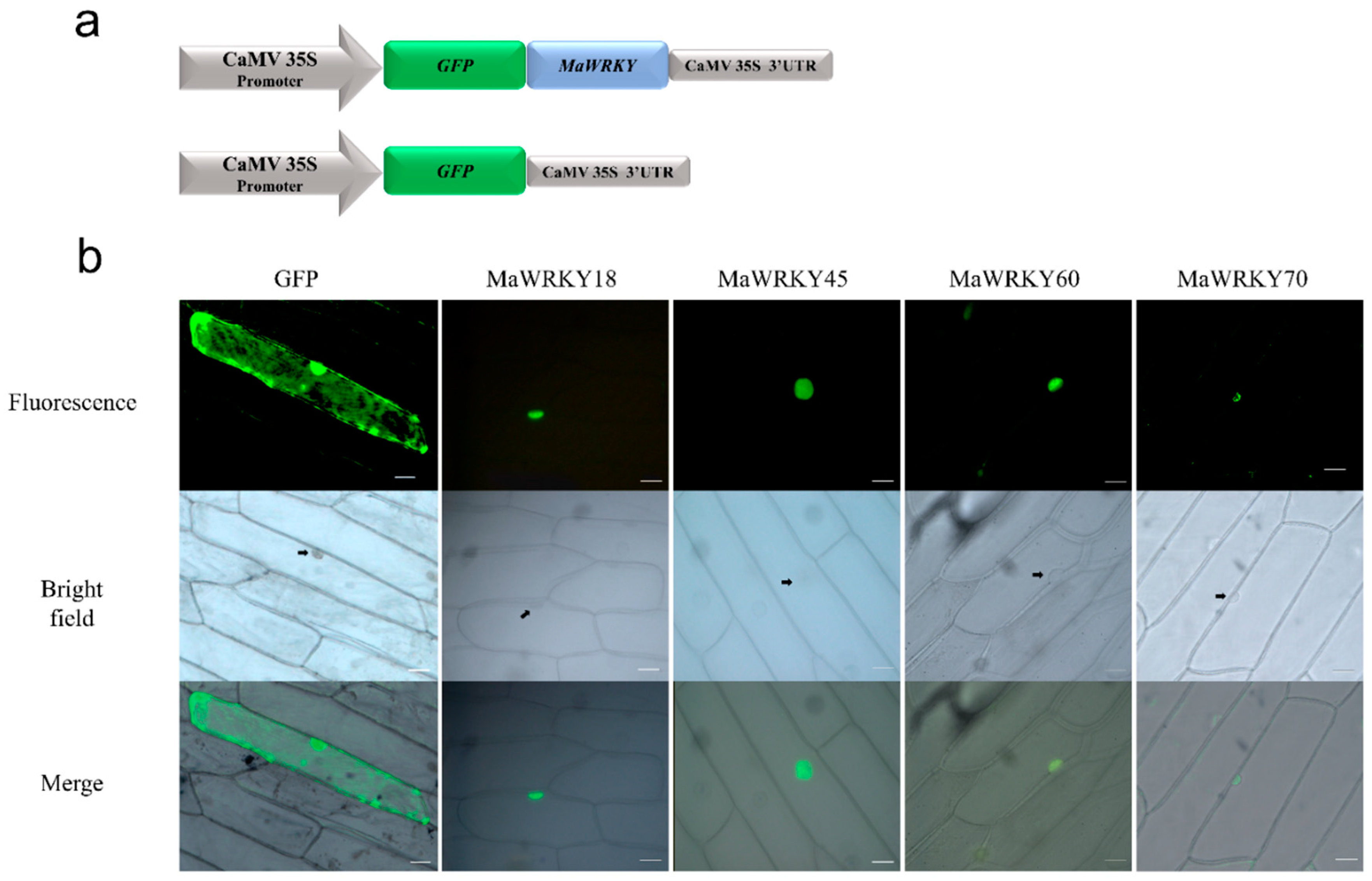

Figure 6. Subcellular localization of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 proteins in onion epidermal cells. (a) Schematic representation of the expression cassettes used for the transient expression analyses. Gene expression is regulated by the CaMV 35S promoter and terminator present in the pAVA121 vector [40]. (b) The fluorescence of GFP fused with the MaWRKY proteins is localized in the nucleus, whereas the fluorescence of GFP alone used as a control is present in both the cytoplasm and nucleus. Scale bars: 5 μm.
Figure 6. Subcellular localization of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 proteins in onion epidermal cells. (a) Schematic representation of the expression cassettes used for the transient expression analyses. Gene expression is regulated by the CaMV 35S promoter and terminator present in the pAVA121 vector [40]. (b) The fluorescence of GFP fused with the MaWRKY proteins is localized in the nucleus, whereas the fluorescence of GFP alone used as a control is present in both the cytoplasm and nucleus. Scale bars: 5 μm.
Genes 13 01891 g006
Genes 13 01891 g007 550

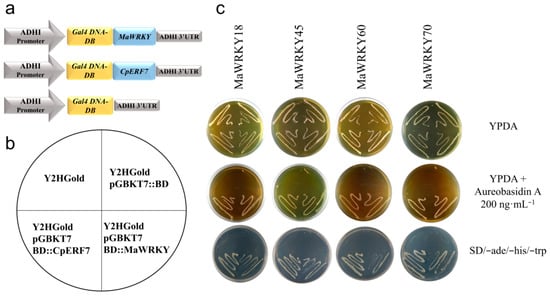

Figure 7. Transactivation activity analysis of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 in Y2HGold yeast. (a) Schematic representation of the expression cassettes used for the transient expression analyses. Gene expression is regulated by the ADH1 promoter and terminator present in the pGBKT7 vector. (b) The diagram shows the order in which the yeast strains were plated. (c) Yeast strains transformed with MaWRKYs fused with Gal4 DNA-BD were grown in YPDA or YPDA supplemented with aureobasidin A or SD minimal medium (-Trp, -His, -Ade). The Gal4 DNA BD::CpERF7 construct [41] was used as a positive control in this assay.
Figure 7. Transactivation activity analysis of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 in Y2HGold yeast. (a) Schematic representation of the expression cassettes used for the transient expression analyses. Gene expression is regulated by the ADH1 promoter and terminator present in the pGBKT7 vector. (b) The diagram shows the order in which the yeast strains were plated. (c) Yeast strains transformed with MaWRKYs fused with Gal4 DNA-BD were grown in YPDA or YPDA supplemented with aureobasidin A or SD minimal medium (-Trp, -His, -Ade). The Gal4 DNA BD::CpERF7 construct [41] was used as a positive control in this assay.
Genes 13 01891 g007
Genes 13 01891 g008 550

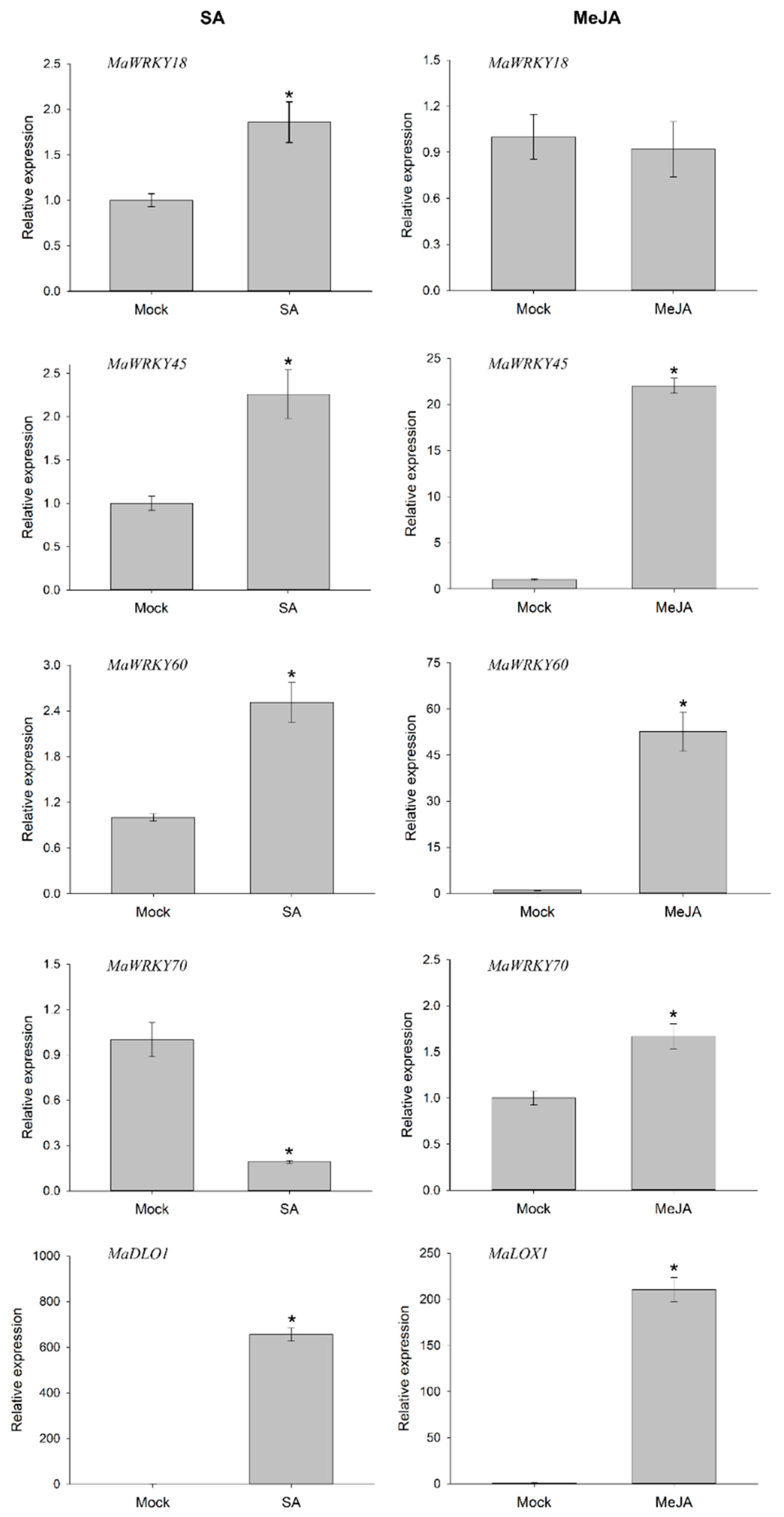

Figure 8. Transcription profiles of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 genes in response to SA and MeJA phytohormones. A floating disc assay was performed in either SA (5 mM) or MeJA (100 µM) phytohormones. The leaf discs were incubated for 6 h and collected for total RNA extraction. Gene expression was evaluated by quantitative real-time PCR. The banana 25S gene was used as a reference gene for RT-qPCR analysis. The MaDLO1 and MaLOX1 genes were used as SA- and MeJA-responsive marker genes, respectively. The relative expression value was calculated by the 2−ΔΔCT method [43]. The mean ± S.D. of three biological replicates is presented. Asterisks (*) indicate p ≤ 0.05 (t test).
Figure 8. Transcription profiles of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 genes in response to SA and MeJA phytohormones. A floating disc assay was performed in either SA (5 mM) or MeJA (100 µM) phytohormones. The leaf discs were incubated for 6 h and collected for total RNA extraction. Gene expression was evaluated by quantitative real-time PCR. The banana 25S gene was used as a reference gene for RT-qPCR analysis. The MaDLO1 and MaLOX1 genes were used as SA- and MeJA-responsive marker genes, respectively. The relative expression value was calculated by the 2−ΔΔCT method [43]. The mean ± S.D. of three biological replicates is presented. Asterisks (*) indicate p ≤ 0.05 (t test).
Genes 13 01891 g008
Table
Table 1. Relevant features of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 cDNAs and their deduced proteins.
Table 1. Relevant features of MaWRKY18, MaWRKY45, MaWRKY60, and MaWRKY70 cDNAs and their deduced proteins.
Gene NameGenbank Accession Number of cDNAsCDS Length (bp)3′UTR Length (bp)Number of
Exon/Intron		Chromosome
Location No.		Protein Length (aa)DomainskDapISubcellular Location
MaWRKY18OP1863098281484/33275WRKY30.316.61Nucleus
MaWRKY45OP1863108884343/25295WRKY32.365.34Nucleus
MaWRKY60OP1863118433924/37280WRKY30.668.80Nucleus
MaWRKY70OP1863129331693/21310WRKY34.525.54Nucleus
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

García-Laynes, S.; Herrera-Valencia, V.A.; Tamayo-Torres, L.G.; Limones-Briones, V.; Barredo-Pool, F.A.; Baas-Espinola, F.M.; Alpuche-Solís, A.G.; Puch-Hau, C.; Peraza-Echeverria, S. The Banana MaWRKY18, MaWRKY45, MaWRKY60 and MaWRKY70 Genes Encode Functional Transcription Factors and Display Differential Expression in Response to Defense Phytohormones. Genes 2022, 13, 1891. https://doi.org/10.3390/genes13101891

AMA Style

García-Laynes S, Herrera-Valencia VA, Tamayo-Torres LG, Limones-Briones V, Barredo-Pool FA, Baas-Espinola FM, Alpuche-Solís AG, Puch-Hau C, Peraza-Echeverria S. The Banana MaWRKY18, MaWRKY45, MaWRKY60 and MaWRKY70 Genes Encode Functional Transcription Factors and Display Differential Expression in Response to Defense Phytohormones. Genes. 2022; 13(10):1891. https://doi.org/10.3390/genes13101891

Chicago/Turabian Style

García-Laynes, Sergio, Virginia Aurora Herrera-Valencia, Lilia Guadalupe Tamayo-Torres, Verónica Limones-Briones, Felipe Alonso Barredo-Pool, Fray Martin Baas-Espinola, Angel Gabriel Alpuche-Solís, Carlos Puch-Hau, and Santy Peraza-Echeverria. 2022. "The Banana MaWRKY18, MaWRKY45, MaWRKY60 and MaWRKY70 Genes Encode Functional Transcription Factors and Display Differential Expression in Response to Defense Phytohormones" Genes 13, no. 10: 1891. https://doi.org/10.3390/genes13101891

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
