Article

Functional Analysis of a Novel, Non-Canonical RPGR Splice Variant Causing X-Linked Retinitis Pigmentosa

by
Samuel Koller
1,*,
Tim Beltraminelli
2,
Jordi Maggi
1,
Agnès Wlodarczyk
1,
Silke Feil
1,
Luzy Baehr
1,
Christina Gerth-Kahlert
3,
Moreno Menghini
2,3 and
Wolfgang Berger
1,4,5
1
Institute of Medical Molecular Genetics, University of Zurich, 8952 Schlieren, Switzerland
2
Department of Ophthalmology, Institute of Clinical Neurosciences of Southern Switzerland, Ente Ospedaliero Cantonale (EOC), 6962 Lugano, Switzerland
3
Department of Ophthalmology, University Hospital, University of Zurich, 8091 Zurich, Switzerland
4
Zurich Center for Integrative Human Physiology (ZIHP), University of Zurich, 8057 Zurich, Switzerland
5
Neuroscience Center Zurich (ZNZ), University and ETH Zurich, 8057 Zurich, Switzerland
*
Author to whom correspondence should be addressed.
Genes 2023, 14(4), 934; https://doi.org/10.3390/genes14040934
Submission received: 20 March 2023 / Revised: 5 April 2023 / Accepted: 12 April 2023 / Published: 18 April 2023
(This article belongs to the Special Issue Genetics in Inherited Retinal Diseases)
Browse Figures
Review Reports Versions Notes

Abstract

:
X-linked retinitis pigmentosa (XLRP) caused by mutations in the RPGR gene is one of the most severe forms of RP due to its early onset and intractable progression. Most cases have been associated with genetic variants within the purine-rich exon ORF15 region of this gene. RPGR retinal gene therapy is currently being investigated in several clinical trials. Therefore, it is crucial to report and functionally characterize (all novel) potentially pathogenic DNA sequence variants. Whole-exome sequencing (WES) was performed for the index patient. The splicing effects of a non-canonical splice variant were tested on cDNA from whole blood and a minigene assay. WES revealed a rare, non-canonical splice site variant predicted to disrupt the wildtype splice acceptor and create a novel acceptor site 8 nucleotides upstream of RPGR exon 12. Reverse-transcription PCR analyses confirmed the disruption of the correct splicing pattern, leading to the insertion of eight additional nucleotides in the variant transcript. Transcript analyses with minigene assays and cDNA from peripheral blood are useful tools for the characterization of splicing defects due to variants in the RPGR and may increase the diagnostic yield in RP. The functional analysis of non-canonical splice variants is required to classify those variants as pathogenic according to the ACMG’s criteria.

1. Introduction

Retinitis pigmentosa (RP) is the most common form of inherited retinal dystrophy (IRD) disease, affecting 1 in about 3500–4000 individuals [1,2]. RP has been associated with variants in an exceptionally large list of genes (RetNetTM, https://sph.uth.edu/retnet/, accessed on 17 March 2023). Autosomal inherited RP has been described to be caused by recessive variants in at least 44 genes or by dominant variants in 23 genes (RetNetTM). In a large IRD cohort, it was found that autosomal dominant inheritance represented around 20% of molecularly diagnosed families, while autosomal recessive inheritance was found in about 64% of the molecularly diagnosed families [3].
X-linked retinitis pigmentosa (XLRP) is one of the most severe forms of retinitis pigmentosa (RP), frequently characterized by strongly reduced retinal function in most affected males before 10 years of age and progression to legal blindness by the third or fourth decade of life [4,5,6,7,8]. XLRP is an orphan disease with a worldwide prevalence of approximately 1:40,000 [6]. It is estimated that XLRP accounts for 7–15% of all RP cases [1]. Furthermore, as recognized several decades ago, female carriers are sometimes symptomatic [9]. The carrier state is typically highly variable and ranges from a normal fundus appearance, or the presence of only the so-called tapetal-like reflex to widespread pigmentary retinopathy resembling a male-pattern disease severity [10].
Three different genes have been linked to XLRP, with the pigmentosa GTPase regulator (RPGR) being responsible for more than 60–80% of the cases [11]. The remaining 20–40% of cases are caused by variants in RP2 [12] or OFD1 [13].
The RPGR was discovered in a patient with XLRP, retinitis pigmentosa-3 (RP3) and could, in a first attempt, be assigned to a genomic segment of less than 1000 kb on the short arm of the human X chromosome (Xp21.1-p11.4, [14]). Subsequently, the RPGR cDNA was characterized as a predicted gene product with homology to the regulator of chromosome condensation 1 (RCC1), the guanine nucleotide exchange factor (GEF) of the Ras-like GTPase Ran [15]. The transcription pattern is highly complex, as this gene has been found to undergo extensive differential splicing, generating a number of transcript isoforms that vary according to the tissue of origin [16,17].
The RPGR is ubiquitously expressed in ciliated cells throughout the body. The canonical isoform is composed of 19 exons, which is termed the constitutive variant (RPGREx1–19). It codes for a protein of 815 amino acid residues that localize at the base (the transition zone) of the cilia (primary and motile) or at the centrioles in dividing cells [18]. In the retina, RPGREx1–19 was found in the connecting cilium of photoreceptor cells, whose function is crucial in protein transport across the outer segment [18].
The retina-specific RPGR isoform, RPGRORF15, encodes a protein consisting of 1152 amino acids. Similar to the constitutive variant, RPGRORF15 also localizes in the photoreceptor-connecting cilium [19]. Moreover, some studies suggest that RPGRORF15 is found in the outer segment of photoreceptor cells in humans but not in mice [20,21]. This isoform contains a highly repetitive Glu-Gly-rich exon (designated exon ORF15), which represents a mutational hotspot [13]. Notably, among the more than 300 known sequence variants in the RPGR currently reported in the Human Gene Mutation Database, more than 50% are located within exon ORF15 and lead to frameshift or premature termination codons [5,22]. Similarly, ClinVar currently contains 510 pathogenic and 231 likely pathogenic variants in the RPGR; of these, 369 (72%) and 125 (54%) localize to exon ORF15, respectively. Interestingly, only four pathogenic and one likely pathogenic variants have been reported in exons exclusively included in the constitutive form (exons 16–19).
Despite the large number of pathogenic variants identified in exon ORF15, the analysis of this region is challenging due to its highly repetitive nature. We have recently shown that conventional bioinformatic pipelines can result in false negatives and positives and that alternative analysis pipelines can help improve sensitivity and specificity [23,24].
Recent years have seen unprecedented developments in the treatment landscape for RP, with more than ten clinical trials (source: www.clinicaltrials.gov, access on 12 March 2023) currently testing a gene therapy strategy for XLRP. It is, therefore, of high importance to report and characterize all novel potentially pathogenic RPGR variants to contribute to the continuously increasing body of scientific knowledge and ultimately help in the quest of developing a therapy for RP.
Here, we describe a novel RPGR variant in intron 11 (NM_001034853.1:c.1415-9A>G), leading to a frameshift and a premature stop codon in its transcripts, identified in a 12-year-old male patient suffering from X-linked RP.

2. Materials and Methods

2.1. Clinical Examinations

The index patient and his affected mother underwent a comprehensive eye examination at the Department of Ophthalmology, the University Hospital of Zurich. Phenotype quantification was performed using spectral-domain optical coherence tomography (Spectralis, Heidelberg Engineering GmbH, Heidelberg, Germany), ultra-widefield retinal imaging (Optomap, Optos plc, Dunfermline, UK), kinetic visual field testing (I:4e and V:4e isopters, Octopus 900 device, Haag Streit, Köniz, Switzerland), and full-field electroretinogram (ERG) recording using DTL electrodes on an Espion system (Diagnosys LLC, Lowell, MA, USA), according to the standards of the International Society for Clinical Electrophysiology of Vision (ISCEV) [25].

2.2. Genetic Testing

DNA from blood samples of the index patient and the mother was extracted using a Chemagic DNA Blood kit (Perkin Elmer, Waltham, MA, USA). Whole-exome sequencing (WES) was performed for the index patient using IDT’s Exome kit v2 and additional IDT RPGR spike-in probes (Discovery Pool RPGR_15, 54 oligos), according to the manufacturer’s instructions.
Reads were aligned to the human reference genome (hg19), and variant calling was performed according to a Genome Analysis Toolkit (GATK). Best Practices Workflows for germline short variant discovery for single-sample data were used [26]. Briefly, raw unmapped reads were mapped to the hg19 reference sequence using a Burrows–Wheeler Aligner (BWA) v0.7.17 (https://bio-bwa.sourceforge.net/, accessed on 17 March 2023). Subsequently, duplicate reads were tagged using a Picard v2.27.2 MarkDuplicates tool, and the base quality scores were recalibrated using GATK v4.2.6.1 BaseRecalibrator and ApplyBQSR. The alignment file (BAM) was validated using Picard ValidateSamFiles.
Subsequently, variant calling was carried out using GATK HaplotypeCaller, and the identified variants were assigned a score by running GATK CNNScoreVariants in the 2D model setting and GATK FilterVariantTranches. Finally, variant annotation was performed with Alamut Batch v1.11 (Sophia Genetics, Saint Sulpice, Switzerland) for genes (n = 241) previously described as being involved in retinal disorders [27].
Filtering and prioritization of variants were performed according to the following strategy. Only variants with a frequency of less than 1% in gnomAD (total allele frequency) and one or more of the following criteria: CADD PHRED [28] with a score higher than 20, a distance to the nearest splice site of within 10 nucleotides, a local splice effect, as predicted by Alamut Batch v1.11, or published in the HGMD (HGMD Professional 2022.4) as a DM (disease-causing mutation), were considered.
Candidate variants were confirmed by Sanger sequencing. Additionally, segregation analysis for candidate variants was performed by Sanger sequencing, as previously described [29].

2.3. Functional Analyses

The effect of a candidate variant in intron 11 of the RPGR on splicing was first functionally tested in a cellular system using a minigene construct and secondly characterized in RNA extracted from the peripheral blood of the index patient and his mother.
The minigene construct used in this study contains the human RHO sequence spanning exons 3 to 5 and has been described in detail previously [29,30]. In brief: the human genomic region encompassing exons 3 to 5 of the gene RHO was cloned into the pcDNA3.1 backbone (Invitrogen). An artificial start codon was introduced in the sequence of RHO exon 3. Exon 4 of RHO, as well as part of the flanking introns, were excised by restriction enzyme digestion with PflMI and EcoNI from the construct and replaced by the human genomic region encompassing exon 12 and part of the flanking introns (introns 11 and 12, NM_001034853.1:c.1415-397_1507-124) of the gene, RPGR.
Minigene constructs, with the reference sequence or with the candidate variant, were transfected into HEK293T cells. RNA was extracted and analyzed, as previously described [29,31]. Primers specific to RHO exons 3 and 5 were used as forward and reverse primers for the characterization of splicing patterns, respectively (Supplementary Materials).
In addition, RNA was extracted from blood collected in PAXgene Blood RNA tubes (PreAnalytiX, Hombrechtikon, Switzerland) and reverse-transcribed into cDNA, as previously reported [29]. Consequently, primers specific to RPGR exons 11 and 13 were used to amplify the region of interest from cDNA with a HOT FIREPol kit (Solis Biodyne, Tartu, Estonia), according to the manufacturer’s instructions (Supplemental Materials and Methods). Finally, amplified fragments were separated by agarose gel (1%) electrophoresis and characterized by Sanger sequencing, as previously described [29].

3. Results

3.1. Clinical Presentation

The index patient is a 12-year-old healthy boy from Portugal with nyctalopia but subjectively preserved peripheral visual fields. Visual acuity was 0.4 and 0.5 decimal Snellen in the right and left eye, respectively. He is myopic, with a spherical equivalent (SEQ) of −6.875 in the right eye and −5.875 diopters in the left eye. The anterior segment examination was normal, while the dilated ophthalmoscopy revealed diffuse pigmentary retinopathy with bone spicule-like pigmentation, mild vascular attenuation, and a slightly pale optic disc in both eyes (Figure 1A). Fundus autofluorescence (FAF) showed corresponding reduced autofluorescence with a ring-shaped area of increased autofluorescence centered on the fovea (Figure 1B), corresponding to the loss of the photoreceptor complex visible in the macular OCT scan, without evidence of macular edema (Figure 1C). Kinetic visual fields (Figure 1D) demonstrated a reduced sensitivity with severe constriction to smaller isopters. The ERG revealed severely reduced scotopic, more than photopic responses (Figure 1E). The last follow-up at the age of 14 years did not show a deterioration of visual function.
Examination of the patient’s mother at the age of 47 years showed a reduced distance visual acuity of hand movements due to a dense cataract in the right eye and 0.6 decimal Snellen equivalent in the left eye. Widefield fundus photography and autofluorescence demonstrated a tapetal-like reflex, as illustrated in Figure 1F–H. An ERG, performed at the age of 50 years, revealed an asymmetric rod–cone dysfunction, which may be partially related to the asymmetric lens opacity. All the findings were compatible with the status of a female carrier of an X-linked RP-causing genetic variant [32].

3.2. Genetic Testing of the Patient and His Mother

Filtering of the WES data was performed according to the criteria described in the Methods section. The filtering strategy resulted in six variants in six different genes. All the variants were in a heterozygous state except for the one in the RPGR, which was in a hemizygous state in the affected patient (Table 1) and heterozygous in his mother.
The variants in CC2D2A and INPP5E were retained during filtering due to their positions close to the nearby splice sites. However, both of them showed no effect on splicing, as predicted by different splice prediction algorithms (SpliceAI or built-in AlamutVisualPlus v1.2.1 (Sophia Genetics) tools [33]; SpliceSiteFinder-like, MaxEntScan [34], NNSPLICE [35], and GeneSplicer [36]). The variant in GRM6 was predicted to create a new acceptor site by Alamut Batch splicing prediction tools. However, GRM6 variants are inherited in an autosomal recessive manner, and they have been described to lead to a different clinical phenotype (congenital stationary night blindness) [37]. Similarly, the variant in TMEM67 was within the filtering criteria due to its CADD score. However, variants in this gene have been described to cause syndromic ciliopathies, such as Joubert syndrome [38]. Finally, the variant in NRL was retained due to its CADD score. Variants in NRL have been described in autosomal dominant retinitis pigmentosa patients [39] and may, therefore, have the potential to explain the patient’s phenotype, as the frequency is quite rare in gnomAD (1/250,000 alleles). However, the predictions are contradictory, ranging from benign to pathogenic. For these reasons, these variants were excluded as the disease-causing variant in this family.
The hemizygous variant in the RPGR was predicted to act as a non-canonical splice site (NCSS) variant upstream of exon 12 (NM_001034853.1:c.1415-9A>G, Figure S1A). [40] This NCSS variant was not found in the gnomAD database and is predicted to create a novel splice acceptor site 8 nucleotides upstream of exon 12, as well as weaken the existing wildtype acceptor by all the prediction tools on AlamutVisualPlus v1.2.1 (Sophia Genetics) (SpliceSite Finder-like, MaxEntScan, NNSPLICE, and GeneSplicer) (Figure 2A). Similarly, SpliceAI [41] predicted acceptor gain (1 bp downstream from the variant) and acceptor loss (9 bp downstream from the variant), with scores of 0.98 and 0.95, respectively. However, the ACMG (American College of Medical Genetics and Genomics) classified this variant as of unknown significance (VUS, ACMG class 3) due to its localization outside of the canonical splice dinucleotide region.
The clinical findings in the mother of the index patient further support an X-linked inheritance. The presence of this variant in the index and his mother was confirmed by Sanger sequencing (Figure S1A, only the mother is shown). No potentially pathogenic variant was found in addition in the patients’ ORF15 region, which was well covered in the WES data by an average of 160 reads, with a minimum coverage of 49 reads (Figure S2). For these reasons, this RPGR NCSS variant was identified as the most likely disease-causative variant in this family.

3.3. Functional Characterization of an Intronic Sequence Variant

Sequencing of the cDNA derived from HEK293T cells transfected with the variant-containing minigene construct (RHO exon 3–introns flanked RPGR exon 12–RHO exon 5) revealed that the non-canonical splice variant extended exon 12 of the RPGR mRNA by 8 nucleotides at the 5′-end (Figure 2B,C). The insertion is out-of-frame and results in a premature stop codon (p.Asp472Valfs*7). Interestingly, Sanger sequencing revealed partial RPGR exon 12-skipping, as can be seen by overlapping sequences in both the variant and reference constructs. This was also detected by gel electrophoresis, as shown by a smaller fragment of 92 bp in size and also in lower amounts (Figure 2B and Figure S1B). It is important to note that the correctly spliced transcript (without an additional 8 nt) could not be detected by Sanger sequencing in the spliced transcripts of the variant minigene construct. Thus, the variant results in aberrant splicing in the vast majority of the transcripts.
We were able to amplify RPGR exon 11 to 13 in the cDNA derived from a peripheral blood sample from the index patient and his mother (Figure S1C), confirming that the RPGR is expressed at low levels in whole blood, as reported in the GTEx database [42]. Similarly, subsequent sequencing of this PCR product confirmed the findings of the minigene assay with the frameshifting insertion of 8 nucleotides (TCATTCAG) from intron 11 upstream of the wildtype splice acceptor of exon 12 (Figure 2D). Due to the low resolution of the gel electrophoresis, the size difference of the 8 nucleotides in the main PCR product is not visible in both the minigene and blood cDNA (Figure S1B,C). Sanger sequencing results from the mother’s sample revealed the presence of both the correct and the misspliced transcripts, in accordance with her carrier status (Figure 2D). In addition, evidence of exon 12-skipping was observed in cDNA derived from both the index patient and his mother (Figure 2D and Figure S1C). This resulted in three overlapping Sanger sequences in the mother’s cDNA analysis (Figure 2D is indicated by an arrow).

4. Discussion

We report a novel non-canonical splice site variant in RPGR intron 11 identified in a patient with characteristic clinical manifestations of XLRP. Segregation analysis confirmed the carrier status in the patient’s mother, who showed a tapetal-like reflex, as assessed by FAF. In silico splicing prediction tools strongly suggested this variant weakens the wildtype splice acceptor and, concomitantly, creates a novel splice acceptor site in intron 11, 8 nucleotides upstream of exon 12. A functional assessment using a minigene assay showed an out-of-frame insertion of the respective 8 nucleotides of intron 11, ultimately leading to a premature stop codon.
PAX blood analysis confirmed the aberrant splicing previously observed in the minigene assay with a transcript analysis from the blood samples. Exon 12-skipping was observed in the minigene assay as well as in the blood’s mRNA, indicating that the minigene assay published by de Heer et al. is able to mimic proper RPGR splicing in vitro [43]. The skipping of exon 12 in the wildtype RPGR has been previously reported in the retina (approximately 0.8% of all isoforms), in the brain, in another minigene splicing assay, and in healthy human retinas from donors [16,44].
Canonical splice site variants are located in the dinucleotides adjacent to exons as these bases are highly conserved within human splice donors and acceptors [45] and thus are included in the PVS1 (very strong evidence of pathogenicity) category of the ACMG’s classification. In contrast, novel NCSS variants can only be classified as a VUS by the ACMG unless a functional analysis is performed. It has been reported that the contribution of the NCSS is underestimated by approximately 35–40% [45]. Thus, conducting functional analyses to assess the potential effects of candidate NCSS variants on splicing is of paramount importance.
In addition, several recent studies indicate the impact of the NCSS in molecular diagnostics for patients affected by retinal-inherited diseases. Pathogenic NCSSs have been described in many genes associated with inherited retinal dystrophies, including ABCA4, BEST1, POC1B, CACNA2D4, FSCN2, MAK, MERTK, PRCD, RIMS1, RP2, RPGR, or USH2A [44,46,47,48,49,50]. Moreover, a large study focusing on ABCA4 has shown that sequencing the entire locus (including the intronic regions) allowed the identification of a molecular diagnosis in 42.5% of the probands with suspected ABCA4-related retinopathy [51]. The authors found that NCSS variants represented 10% of all unique pathogenic alleles identified, which highlights the importance of this variant type in inherited retinal dystrophies.
The results of the well-established minigene assay or whole blood mRNA analysis of a candidate splice site variant fulfills the PS3 category criterion of the ACMG’s classification. The variant reported here can thereby be classified as likely pathogenic (PS3, PP1, PP3, and PP4 categories of the ACMG’s classification) due to the mRNA transcript analysis results obtained with both assays.
In addition, the ocular phenotype in the mother supports our classification of the intronic variant in the RPGR as potentially disease-causing. The clinical findings in the mother are characteristic for female carriers with pathogenic RPGR variants and, therefore, also argue against the potential pathogenicity of the variant in NRL found in the index (Table 1).
Even though the phenotype associated with the gene CC2D2A is different from the clinical findings in the index and the splicing prediction software results were unremarkable, caution has also been taken when excluding this variant. In fact, this variant lies one nucleotide in front of the splice donor site and might weaken the donor and activate a cryptic donor site. A similarly located variant in the gene CHD7, which is located two bases upstream of the splice donor site, was described by Haug et al. to alter splicing by activating an alternative donor site [29]. Moreover, an exon splice enhancer (ESE) or silencer (ESS) might also be affected by the variant and lead to different splicing patterns [52,53,54].
The feasibility of splicing correction by gene therapy has been shown for an RPGR donor splice site variant with the use of therapeutic U1snRNA [55]. The variant presented in this study, however, creates a novel splice acceptor site and, concomitantly, weakens the wildtype splice acceptor site. Thus, the use of a variant-adapted U1 snRNA would not suffice. Hence, gene replacement therapy would be favored in this case: nonsense-mediated RNA decay (NMD) or degradation of the predicted truncated protein is expected. This was previously shown for the nonsense variant NM_000328.3:c.1154T>A (p.Leu385*) [56]. The authors reported that the truncated RPGR protein could not be detected at the primary cilium in patient-derived fibroblasts.
This study emphasizes the contribution of non-canonical splice variants in molecular diagnostics and the requirement of functional assays for the re-classification of those types of variants. It seems that a minigene assay is a reliable approach to characterize NCSS variants in the RPGR if no patient blood sample for RNA extraction is available. In addition, the splice effects of a variant need to be carefully evaluated on the transcript (cDNA) level for designing future therapeutic approaches.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes14040934/s1, Figure S1: Sequencing data and PCR analysis of transcripts. Figure S2: Coverage of ORF15 in WES data, supplemental methods and figure legends.

Author Contributions

S.K., M.M. and W.B. conceived the study; S.K., T.B. and J.M. wrote the manuscript with input from C.G.-K., M.M. and W.B.; T.B., C.G.-K. and M.M. performed the patient’s clinical evaluation; S.K., J.M., A.W., S.F. and L.B. performed the genetic testing and functional characterization of the variant; S.K., J.M. and W.B analyzed and interpreted the genetic data; all authors provided intellectual input and reviewed the data and the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially funded by Velux Stiftung, grant number 1371 (to W.B.). M.M. received an unrestricted research grant from Bayer A.G. Switzerland.

Institutional Review Board Statement

This study was conducted in accordance with Good Clinical Practices and the guidelines of the Declaration of Helsinki, and approval for genetic testing in human patients was awarded to the Institute of Medical Molecular Genetics by the Federal Office for Public Health (FOPH) in Switzerland.

Informed Consent Statement

Signed informed consent was obtained from all subjects involved in the analysis.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We would like to thank James V. M. Hanson (Department of Ophthalmology, the University Hospital of Zurich, Zurich, Switzerland) for ERG acquisition and proofreading of the manuscript.

Conflicts of Interest

M.M. acts as Chief Medical Officer for Endogena Therapeutics, all other authors declare no competing interest.

References

  1. Ayuso, C.; Millan, J.M. Retinitis pigmentosa and allied conditions today: A paradigm of translational research. Genome Med. 2010, 2, 34. [Google Scholar] [CrossRef] [PubMed]
  2. Berger, W.; Kloeckener-Gruissem, B.; Neidhardt, J. The molecular basis of human retinal and vitreoretinal diseases. Prog. Retin. Eye Res. 2010, 29, 335–375. [Google Scholar] [CrossRef]
  3. Perea-Romero, I.; Gordo, G.; Iancu, I.F.; Del Pozo-Valero, M.; Almoguera, B.; Blanco-Kelly, F.; Carreño, E.; Jimenez-Rolando, B.; Lopez-Rodriguez, R.; Lorda-Sanchez, I.; et al. Author Correction: Genetic landscape of 6089 inherited retinal dystrophies affected cases in Spain and their therapeutic and extended epidemiological implications. Sci. Rep. 2021, 11, 10340. [Google Scholar] [CrossRef] [PubMed]
  4. Verbakel, S.K.; van Huet, R.A.C.; Boon, C.J.F.; den Hollander, A.I.; Collin, R.W.J.; Klaver, C.C.W.; Hoyng, C.B.; Roepman, R.; Klevering, B.J. Non-syndromic retinitis pigmentosa. Prog. Retin. Eye Res. 2018, 66, 157–186. [Google Scholar] [CrossRef] [PubMed]
  5. Di Iorio, V.; Karali, M.; Melillo, P.; Testa, F.; Brunetti-Pierri, R.; Musacchia, F.; Condroyer, C.; Neidhardt, J.; Audo, I.; Zeitz, C.; et al. Spectrum of Disease Severity in Patients with X-Linked Retinitis Pigmentosa due to RPGR Mutations. Investig. Ophthalmol. Vis. Sci. 2020, 61, 36. [Google Scholar] [CrossRef] [PubMed]
  6. Sandberg, M.A.; Rosner, B.; Weigel-DiFranco, C.; Dryja, T.P.; Berson, E.L. Disease course of patients with X-linked retinitis pigmentosa due to RPGR gene mutations. Investig. Ophthalmol. Vis. Sci. 2007, 48, 1298–1304. [Google Scholar] [CrossRef] [PubMed]
  7. Hosch, J.; Lorenz, B.; Stieger, K. RPGR: Role in the photoreceptor cilium, human retinal disease, and gene therapy. Ophthalmic Genet. 2011, 32, 1–11. [Google Scholar] [CrossRef]
  8. Iftikhar, M.; Kherani, S.; Kaur, R.; Lemus, M.; Nefalar, A.; Usmani, B.; Junaid, N.; Campochiaro, P.A.; Scholl, H.P.; Shah, S.M. Progression of Retinitis Pigmentosa as Measured on Microperimetry: The PREP-1 Study. Ophthalmol. Retin. 2018, 2, 502–507. [Google Scholar] [CrossRef]
  9. Bird, A.C. X-linked retinitis pigmentosa. Br. J. Ophthalmol. 1975, 59, 177–199. [Google Scholar] [CrossRef]
  10. Nanda, A.; Salvetti, A.P.; Clouston, P.; Downes, S.M.; MacLaren, R.E. Exploring the Variable Phenotypes of RPGR Carrier Females in Assessing their Potential for Retinal Gene Therapy. Genes 2018, 9, 643. [Google Scholar] [CrossRef]
  11. Hartong, D.T.; Berson, E.L.; Dryja, T.P. Retinitis pigmentosa. Lancet 2006, 368, 1795–1809. [Google Scholar] [CrossRef] [PubMed]
  12. Schwahn, U.; Lenzner, S.; Dong, J.; Feil, S.; Hinzmann, B.; van Duijnhoven, G.; Kirschner-Schwabe, R.; Hemberger, M.; Bergen, A.A.; Rosenberg, T.; et al. Positional cloning of the gene for X-linked retinitis pigmentosa 2. Nat. Genet. 1998, 19, 327–332. [Google Scholar] [CrossRef] [PubMed]
  13. Lyraki, R.; Megaw, R.; Hurd, T. Disease mechanisms of X-linked retinitis pigmentosa due to RP2 and RPGR mutations. Biochem. Soc. Trans. 2016, 44, 1235–1244. [Google Scholar] [CrossRef] [PubMed]
  14. Roepman, R.; Bauer, D.; Rosenberg, T.; van Duijnhoven, G.; van de Vosse, E.; Platzer, M.; Rosenthal, A.; Ropers, H.-H.; Cremers, F.P.M.; Berger, W. Identification of a gene disrupted by a microdeletion in a patient with X-linked retinitis pigmentosa (XLRP). Hum. Mol. Genet. 1996, 5, 827–833. [Google Scholar] [CrossRef] [PubMed]
  15. Roepman, R.; van Duijnhoven, G.; Rosenberg, T.; Pinckers, A.J.; Bleeker-Wagemakers, L.M.; Bergen, A.A.; Post, J.; Beck, A.; Reinhardt, R.; Ropers, H.-H.; et al. Positional cloning of the gene for X-linked retinitis pigmentosa 3: Homology with the guanine-nucleotide-exchange factor RCC1. Hum. Mol. Genet. 1996, 5, 1035–1041. [Google Scholar] [CrossRef]
  16. Schmid, F.; Glaus, E.; Cremers, F.P.; Kloeckener-Gruissem, B.; Berger, W.; Neidhardt, J. Mutation- and tissue-specific alterations of RPGR transcripts. Investig. Ophthalmol. Vis. Sci. 2010, 51, 1628–1635. [Google Scholar] [CrossRef]
  17. Kirschner, R.; Rosenberg, T.; Schultz-Heienbrok, R.; Lenzner, S.; Feil, S.; Roepman, R.; Cremers, F.P.M.; Ropers, H.-H.; Berger, W. RPGR transcription studies in mouse and human tissues reveal a retina-specific isoform that is disrupted in a patient with X-linked retinitis pigmentosa. Hum. Mol. Genet. 1999, 8, 1571–1578. [Google Scholar] [CrossRef]
  18. Megaw, R.D.; Soares, D.C.; Wright, A.F. RPGR: Its role in photoreceptor physiology, human disease, and future therapies. Exp. Eye Res. 2015, 138, 32–41. [Google Scholar] [CrossRef]
  19. Hong, D.H.; Pawlyk, B.; Sokolov, M.; Strissel, K.J.; Yang, J.; Tulloch, B.; Wright, A.F.; Arshavsky, V.Y.; Li, T. RPGR isoforms in photoreceptor connecting cilia and the transitional zone of motile cilia. Investig. Ophthalmol. Vis. Sci. 2003, 44, 2413–2421. [Google Scholar] [CrossRef]
  20. Mavlyutov, T.A.; Zhao, H.; Ferreira, P.A. Species-specific subcellular localization of RPGR and RPGRIP isoforms: Implications for the phenotypic variability of congenital retinopathies among species. Hum. Mol. Genet. 2002, 11, 1899–1907. [Google Scholar] [CrossRef]
  21. Iannaccone, A.; Breuer, D.K.; Wang, X.F.; Kuo, S.F.; Normando, E.M.; Filippova, E.; Baldi, A.; Hiriyanna, S.; Macdonald, C.B.; Baldi, F.; et al. Clinical and immunohistochemical evidence for an X linked retinitis pigmentosa syndrome with recurrent infections and hearing loss in association with an RPGR mutation. J. Med. Genet. 2003, 40, e118. [Google Scholar] [CrossRef] [PubMed]
  22. Shu, X.; Black, G.C.; Rice, J.M.; Hart-Holden, N.; Jones, A.; O’Grady, A.; Ramsden, S.; Wright, A.F. RPGR mutation analysis and disease: An update. Hum. Mutat. 2007, 28, 322–328. [Google Scholar] [CrossRef] [PubMed]
  23. Maggi, J.; Koller, S.; Bahr, L.; Feil, S.; Kivrak Pfiffner, F.; Hanson, J.V.M.; Maspoli, A.; Gerth-Kahlert, C.; Berger, W. Long-Range PCR-Based NGS Applications to Diagnose Mendelian Retinal Diseases. Int. J. Mol. Sci. 2021, 22, 1508. [Google Scholar] [CrossRef]
  24. Maggi, J.; Roberts, L.; Koller, S.; Rebello, G.; Berger, W.; Ramesar, R. De Novo Assembly-Based Analysis of RPGR Exon ORF15 in an Indigenous African Cohort Overcomes Limitations of a Standard Next-Generation Sequencing (NGS) Data Analysis Pipeline. Genes 2020, 11, 800. [Google Scholar] [CrossRef]
  25. Robson, A.G.; Nilsson, J.; Li, S.; Jalali, S.; Fulton, A.B.; Tormene, A.P.; Holder, G.E.; Brodie, S.E. ISCEV guide to visual electrodiagnostic procedures. Doc. Ophthalmol. 2018, 136, 1–26. [Google Scholar] [CrossRef]
  26. Available online: https://gatk.broadinstitute.org/hc/en-us/articles/360035535932-Germline-short-variant-discovery-SNPs-Indels- (accessed on 17 March 2023).
  27. UZH Institut für Medizinische Molekulargenetik. Gen-Panel für Untersuchungen Mittels Hochdurchsatzsequezierung 2021 [Updated 09.09.2021]. Available online: https://www.medmolgen.uzh.ch/de/services/Hauptgene.html (accessed on 17 March 2023).
  28. Rentzsch, P.; Schubach, M.; Shendure, J.; Kircher, M. CADD-Splice-improving genome-wide variant effect prediction using deep learning-derived splice scores. Genome Med. 2021, 13, 31. [Google Scholar] [CrossRef]
  29. Haug, P.; Koller, S.; Maggi, J.; Lang, E.; Feil, S.; Wlodarczyk, A.; Bähr, L.; Steindl, K.; Rohrbach, M.; Gerth-Kahlert, C.; et al. Whole Exome Sequencing in Coloboma/Microphthalmia: Identification of Novel and Recurrent Variants in Seven Genes. Genes 2021, 12, 65. [Google Scholar] [CrossRef]
  30. Rechsteiner, D.; Issler, L.; Koller, S.; Lang, E.; Bahr, L.; Feil, S.; Rüegger, C.M.; Kottke, R.; Toelle, S.P.; Zweifel, N.; et al. Genetic Analysis in a Swiss Cohort of Bilateral Congenital Cataract. JAMA Ophthalmol. 2021, 139, 691–700. [Google Scholar] [CrossRef] [PubMed]
  31. Lang, E.; Koller, S.; Bahr, L.; Toteberg-Harms, M.; Atac, D.; Roulez, F.; Bahr, A.; Steindl, K.; Feil, S.; Berger, W.; et al. Exome Sequencing in a Swiss Childhood Glaucoma Cohort Reveals CYP1B1 and FOXC1 Variants as Most Frequent Causes. Transl. Vis. Sci. Technol. 2020, 9, 47. [Google Scholar] [CrossRef]
  32. Kilgore, D.A.; Kilgore, T.A.; Sukpraprut-Braaten, S.; Schaefer, G.B.; Uwaydat, S.H. Multimodal imaging of an RPGR carrier female. Ophthalmic Genet. 2021, 42, 312–316. [Google Scholar] [CrossRef]
  33. Shapiro, M.B.; Senapathy, P. RNA splice junctions of different classes of eukaryotes: Sequence statistics and functional implications in gene expression. Nucleic Acids Res. 1987, 15, 7155–7174. [Google Scholar] [CrossRef] [PubMed]
  34. Yeo, G.; Burge, C.B. Maximum entropy modeling of short sequence motifs with applications to RNA splicing signals. J. Comput. Biol. 2004, 11, 377–394. [Google Scholar] [CrossRef] [PubMed]
  35. Reese, M.G.; Eeckman, F.H.; Kulp, D.; Haussler, D. Improved splice site detection in Genie. J. Comput. Biol. 1997, 4, 311–323. [Google Scholar] [CrossRef] [PubMed]
  36. Pertea, M.; Lin, X.; Salzberg, S.L. GeneSplicer: A new computational method for splice site prediction. Nucleic Acids Res. 2001, 29, 1185–1190. [Google Scholar] [CrossRef] [PubMed]
  37. Zeitz, C.; van Genderen, M.; Neidhardt, J.; Luhmann, U.F.; Hoeben, F.; Forster, U.; Wycisk, K.; Mátyás, G.; Hoyng, C.B.; Riemslag, F.; et al. Mutations in GRM6 cause autosomal recessive congenital stationary night blindness with a distinctive scotopic 15-Hz flicker electroretinogram. Investig. Ophthalmol. Vis. Sci. 2005, 46, 4328–4335. [Google Scholar] [CrossRef] [PubMed]
  38. Baala, L.; Romano, S.; Khaddour, R.; Saunier, S.; Smith, U.M.; Audollent, S.; Ozilou, C.; Faivre, L.; Laurent, N.; Foliguet, B.; et al. The Meckel-Gruber syndrome gene, MKS3, is mutated in Joubert syndrome. Am. J. Hum. Genet. 2007, 80, 186–194. [Google Scholar] [CrossRef]
  39. Bessant, D.A.; Payne, A.M.; Mitton, K.P.; Wang, Q.L.; Swain, P.K.; Plant, C.; Bird, A.C.; Zack, D.J.; Swaroop, A.; Bhattacharya, S.S. A mutation in NRL is associated with autosomal dominant retinitis pigmentosa. Nat. Genet. 1999, 21, 355–356. [Google Scholar] [CrossRef]
  40. Karczewski, K.J.; Francioli, L.C.; Tiao, G.; Cummings, B.B.; Alfoldi, J.; Wang, Q.; Collins, R.L.; Laricchia, K.M.; Ganna, A.; Birnbaum, D.P.; et al. The mutational constraint spectrum quantified from variation in 141,456 humans. Nature 2020, 581, 434–443. [Google Scholar] [CrossRef]
  41. Jaganathan, K.; Kyriazopoulou Panagiotopoulou, S.; McRae, J.F.; Darbandi, S.F.; Knowles, D.; Li, Y.I.; Kosmicki, J.A.; Arbelaez, J.; Cui, W.; Schwartz, G.B.; et al. Predicting Splicing from Primary Sequence with Deep Learning. Cell 2019, 176, 535–548.e24. [Google Scholar] [CrossRef]
  42. Available online: https://www.gtexportal.org/home/ (accessed on 17 March 2023).
  43. de Heer, A.M.; Collin, R.W.; Huygen, P.L.; Schraders, M.; Oostrik, J.; Rouwette, M.; Kunst, H.P.; Kremer, H.; Cremers, C.W. Progressive sensorineural hearing loss and normal vestibular function in a Dutch DFNB7/11 family with a novel mutation in TMC1. Audiol. Neurootol. 2011, 16, 93–105. [Google Scholar] [CrossRef]
  44. Kortum, F.; Kieninger, S.; Mazzola, P.; Kohl, S.; Wissinger, B.; Prokisch, H.; Stingl, K.; Weisschuh, N. X-Linked Retinitis Pigmentosa Caused by Non-Canonical Splice Site Variants in RPGR. Int. J. Mol. Sci. 2021, 22, 850. [Google Scholar] [CrossRef] [PubMed]
  45. Lord, J.; Gallone, G.; Short, P.J.; McRae, J.F.; Ironfield, H.; Wynn, E.H.; Gerety, S.S.; He, L.; Kerr, B.; Johnson, D.S.; et al. Pathogenicity and selective constraint on variation near splice sites. Genome Res. 2019, 29, 159–170. [Google Scholar] [CrossRef] [PubMed]
  46. Sangermano, R.; Khan, M.; Cornelis, S.S.; Richelle, V.; Albert, S.; Garanto, A.; Elmelik, D.; Qamar, R.; Lugtenberg, D.; van den Born, L.I.; et al. ABCA4 midigenes reveal the full splice spectrum of all reported noncanonical splice site variants in Stargardt disease. Genome Res. 2018, 28, 100–110. [Google Scholar] [CrossRef] [PubMed]
  47. Reurink, J.; Oostrik, J.; Aben, M.; Ramos, M.G.; van Berkel, E.; Oldak, M.; van Wijk, E.; Kremer, H.; Roosing, S.; Cremers, F.P.M. Minigene-Based Splice Assays Reveal the Effect of Non-Canonical Splice Site Variants in USH2A. Int. J. Mol. Sci. 2022, 23, 13343. [Google Scholar] [CrossRef] [PubMed]
  48. Rodriguez-Munoz, A.; Liquori, A.; Garcia-Bohorquez, B.; Jaijo, T.; Aller, E.; Millan, J.M.; García-García, G. Functional assays of non-canonical splice-site variants in inherited retinal dystrophies genes. Sci. Rep. 2022, 12, 68. [Google Scholar] [CrossRef] [PubMed]
  49. Toulis, V.; Cortes-Gonzalez, V.; Castro-Miro, M.; Sallum, J.F.; Catala-Mora, J.; Villanueva-Mendoza, C.; Ciccioli, M.; Gonzàlez-Duarte, R.; Valero, R.; Marfany, G. Increasing the Genetic Diagnosis Yield in Inherited Retinal Dystrophies: Assigning Pathogenicity to Novel Non-canonical Splice Site Variants. Genes 2020, 11, 378. [Google Scholar] [CrossRef]
  50. Weisschuh, N.; Mazzola, P.; Bertrand, M.; Haack, T.B.; Wissinger, B.; Kohl, S.; Stingl, K. Clinical Characteristics of POC1B-Associated Retinopathy and Assignment of Pathogenicity to Novel Deep Intronic and Non-Canonical Splice Site Variants. Int. J. Mol. Sci. 2021, 22, 5396. [Google Scholar] [CrossRef]
  51. Khan, M.; Cornelis, S.S.; Pozo-Valero, M.D.; Whelan, L.; Runhart, E.H.; Mishra, K.; Bults, F.; AlSwaiti, Y.; AlTalbishi, A.; De Baere, E.; et al. Resolving the dark matter of ABCA4 for 1054 Stargardt disease probands through integrated genomics and transcriptomics. Genet. Med. 2020, 22, 1235–1246. [Google Scholar] [CrossRef]
  52. Wang, Z.; Xiao, X.; Van Nostrand, E.; Burge, C.B. General and specific functions of exonic splicing silencers in splicing control. Mol. Cell 2006, 23, 61–70. [Google Scholar] [CrossRef]
  53. Blencowe, B.J. Exonic splicing enhancers: Mechanism of action, diversity and role in human genetic diseases. Trends Biochem. Sci. 2000, 25, 106–110. [Google Scholar] [CrossRef]
  54. Hong, D.H.; Li, T. Complex expression pattern of RPGR reveals a role for purine-rich exonic splicing enhancers. Investig. Ophthalmol. Vis. Sci. 2002, 43, 3373–3382. [Google Scholar]
  55. Glaus, E.; Schmid, F.; Da Costa, R.; Berger, W.; Neidhardt, J. Gene therapeutic approach using mutation-adapted U1 snRNA to correct a RPGR splice defect in patient-derived cells. Mol. Ther. 2011, 19, 936–941. [Google Scholar] [CrossRef] [PubMed]
  56. Vossing, C.; Owczarek-Lipska, M.; Nagel-Wolfrum, K.; Reiff, C.; Juschke, C.; Neidhardt, J. Translational Read-Through Therapy of RPGR Nonsense Mutations. Int. J. Mol. Sci. 2020, 21, 8418. [Google Scholar] [CrossRef] [PubMed]
Genes 14 00934 g001 550

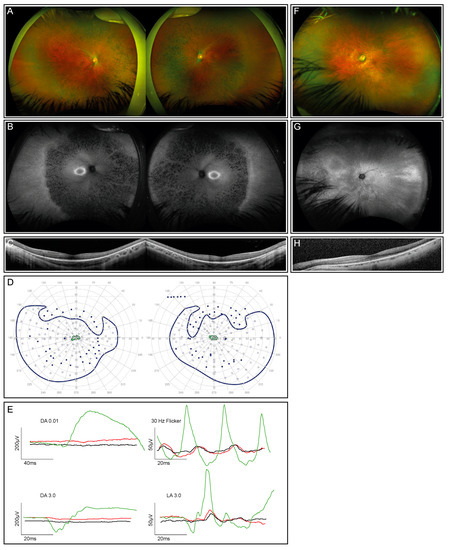

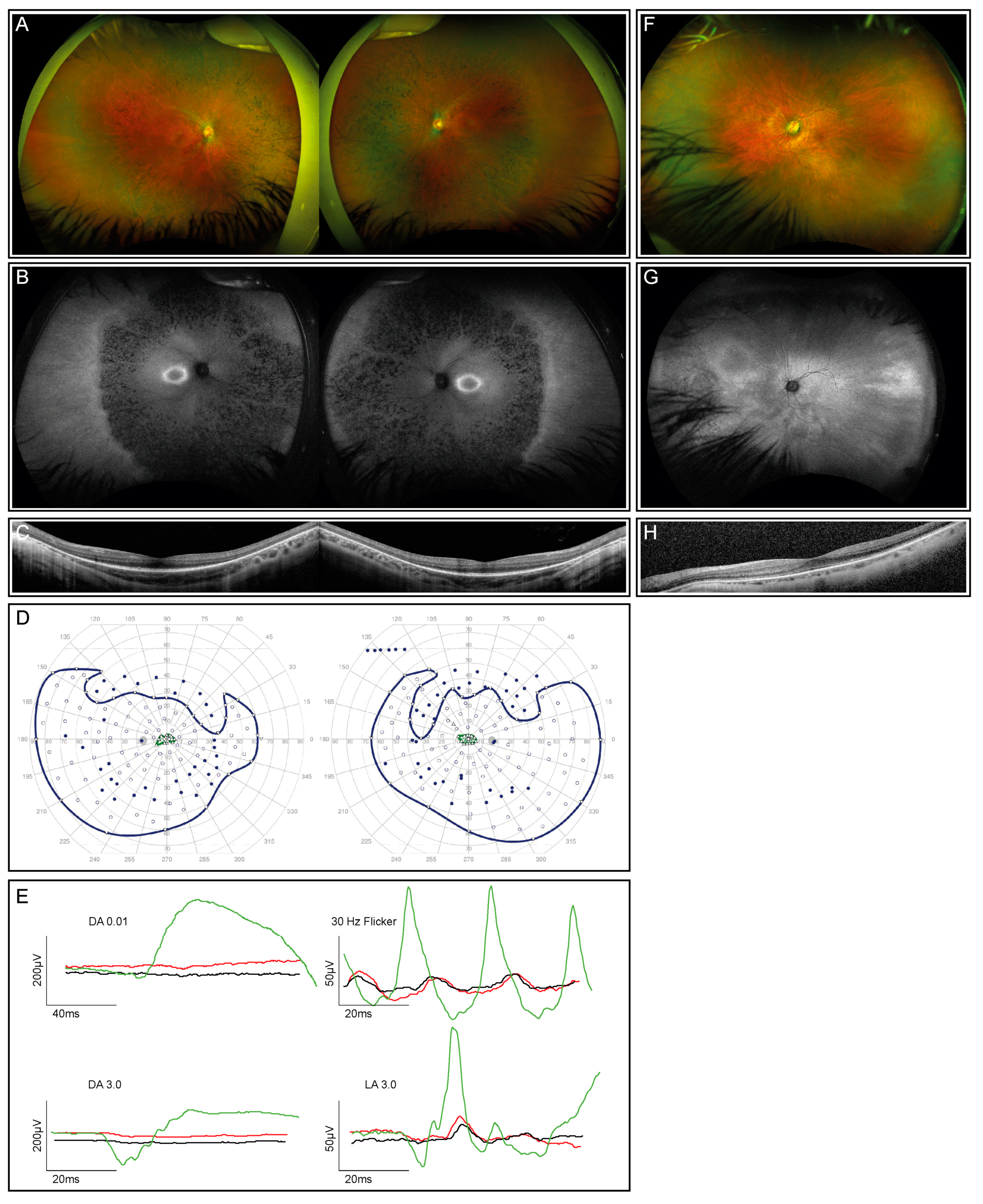

Figure 1. Clinical phenotype for the index patient (both eyes) and his mother (left eye only; right eye not shown due to dense cataract and consequently insufficient image quality). (A) Fundus images of the index patient demonstrate advanced retinal dystrophy with bone spicule pigmentation. (B) Corresponding autofluorescence images show retinal atrophy and a circular ring of increased autofluorescence. (C) OCT scans through the macula of the index patient reveal reduced outer segment layers. (D) Kinetic visual fields (only available from the index patient) showed a severely constricted field to isopter I:4e and relatively preserved temporal and lower fields to the large isopter V:4e (filled circles: test target not seen, unfilled circles: test target seen). (E) Full-field ERG responses of both eyes of the index patient (red, right eye; black, left eye) in comparison with an age-matched normal subject (green traces). DA, dark-adapted, LA, light-adapted. All responses of the patient are severely reduced and delayed. (F) The fundus image of the mother’s left eye showing reduced retinal sheen but no bone spiculae pigmentation. (G) Corresponding autofluorescence image of the mother’s left eye showing a tapetal-like reflex with a patchy and nasally speckled pattern. (H) OCT scan through the macula of the mother’s left eye with a reduced outer segment layer of lesser extent than her son’s.
Figure 1. Clinical phenotype for the index patient (both eyes) and his mother (left eye only; right eye not shown due to dense cataract and consequently insufficient image quality). (A) Fundus images of the index patient demonstrate advanced retinal dystrophy with bone spicule pigmentation. (B) Corresponding autofluorescence images show retinal atrophy and a circular ring of increased autofluorescence. (C) OCT scans through the macula of the index patient reveal reduced outer segment layers. (D) Kinetic visual fields (only available from the index patient) showed a severely constricted field to isopter I:4e and relatively preserved temporal and lower fields to the large isopter V:4e (filled circles: test target not seen, unfilled circles: test target seen). (E) Full-field ERG responses of both eyes of the index patient (red, right eye; black, left eye) in comparison with an age-matched normal subject (green traces). DA, dark-adapted, LA, light-adapted. All responses of the patient are severely reduced and delayed. (F) The fundus image of the mother’s left eye showing reduced retinal sheen but no bone spiculae pigmentation. (G) Corresponding autofluorescence image of the mother’s left eye showing a tapetal-like reflex with a patchy and nasally speckled pattern. (H) OCT scan through the macula of the mother’s left eye with a reduced outer segment layer of lesser extent than her son’s.
Genes 14 00934 g001
Genes 14 00934 g002 550

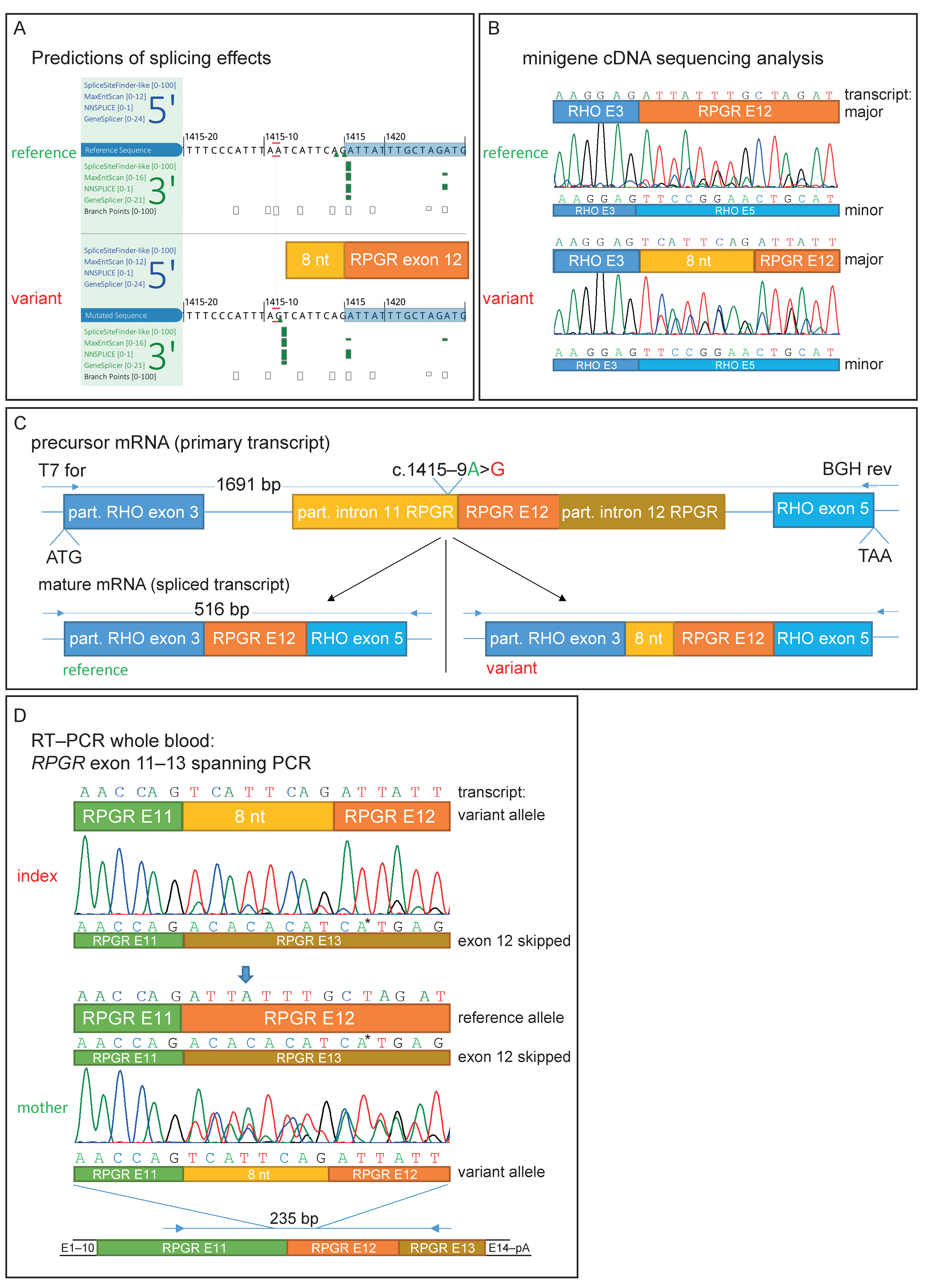

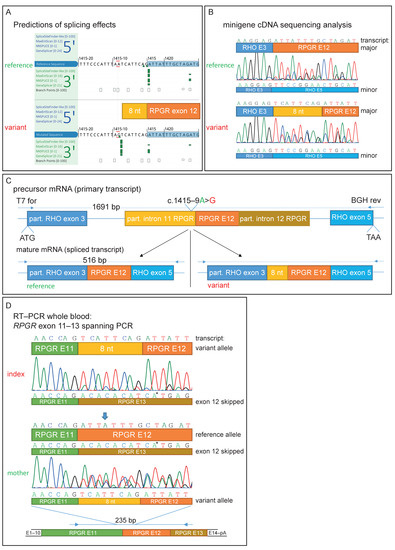

Figure 2. Genetic testing and functional characterization of the sequence variant. (A) Prediction of different splice algorithms, shown by AlamutVisualPlus, predicted a new acceptor site 9 nucleotides upstream of exon 12. (B) Sequence analysis of transcripts derived from the minigene assay. Analysis showed a predicted 8 nt extension of exon 12 by the found variant and, in addition, exon 12-skipping. (C) Minigene construct used for RPGR NM_001034853.1:c.1415-9A>G splice effect analysis. A part of RHO exon 3 to partial exon 5 was cloned into the pcDNA3.1 vector. RHO exon 4 was replaced by RPGR exon 12 with flanking introns. Predicted spliced products are shown for the reference and variant transcript. (D) RNA was extracted from whole blood samples from the patient and his mother. Similar observations as in the minigene sequencing analysis were observed. Arrow shows the only position in the depicted nucleotide stretch with three different bases (from three different transcripts: reference, exon 12-skipping, and exon 12 extended by 8 nucleotides). * Sequencing artifact: this marked base derived from exon 13 of the RPGR was only seen in the reverse sequencing chromatogram.
Figure 2. Genetic testing and functional characterization of the sequence variant. (A) Prediction of different splice algorithms, shown by AlamutVisualPlus, predicted a new acceptor site 9 nucleotides upstream of exon 12. (B) Sequence analysis of transcripts derived from the minigene assay. Analysis showed a predicted 8 nt extension of exon 12 by the found variant and, in addition, exon 12-skipping. (C) Minigene construct used for RPGR NM_001034853.1:c.1415-9A>G splice effect analysis. A part of RHO exon 3 to partial exon 5 was cloned into the pcDNA3.1 vector. RHO exon 4 was replaced by RPGR exon 12 with flanking introns. Predicted spliced products are shown for the reference and variant transcript. (D) RNA was extracted from whole blood samples from the patient and his mother. Similar observations as in the minigene sequencing analysis were observed. Arrow shows the only position in the depicted nucleotide stretch with three different bases (from three different transcripts: reference, exon 12-skipping, and exon 12 extended by 8 nucleotides). * Sequencing artifact: this marked base derived from exon 13 of the RPGR was only seen in the reverse sequencing chromatogram.
Genes 14 00934 g002
Table
Table 1. Variants obtained after filtering WES data from the index patient. The selection criteria, in addition to the frequency, are highlighted in bold letters in the table.
Table 1. Variants obtained after filtering WES data from the index patient. The selection criteria, in addition to the frequency, are highlighted in bold letters in the table.
GenecNomengnomAD (%)CADD PHREDDist. NSSLSESplice AI
(Score)		HGMDACMGZyg
CC2D2ANM_001080522.2:
c.1017C>T		0.00080.0−1 DL (0.05)-LBhet
GRM6NM_000843.4:
c.138G>A		0.082212.1154NASAG (0.17)-LBhet
TMEM67NM_153704.6:
c.2848G>A		0.000828.3−60 all (0.00)DM?VUShet
INPP5ENM_019892.6:
c.1159+8C>T		0.40920.48 DL (0.02)-Bhet
NRLNM_006177.3:
c.14C>G		0.000423.741 all (0.00)-VUShet
RPGRNM_001034853.2:
c.1415-9A>G		-23.9−9NASAG/AL (0.98)/(0.95)-VUShem
gnomAD (%): minor allele frequency percentage, as reported by gnomAD “all”; Dist. NSS: distance nearest splice site; LSE: Alamut local splice site effect (average change predicted by MaxEntScan, NNSPLICE, and SSF); NAS: new acceptor site; DL: donor loss; AG: acceptor gain; AL: acceptor loss; all: donor loss, donor gain, acceptor loss, and acceptor gain; HGMD: Human Gene Mutation Database classification; DM?: disease-causing mutation? (HGMD classification); ACMG: American College of Medical Genetics and Genomics classification, classified by varsome.com (accessed on 17 March 2023); LB: likely benign; VUS: variant of unknown significance; B: benign; Zyg: zygosity.
