Molecular Cloning and Characterization of WRKY12, A Pathogen Induced WRKY Transcription Factor from Akebia trifoliata

Abstract

WRKY transcription factors (TFs), which are plant-specific TFs, play significant roles in plant defense. Here, a pathogen-induced WRKY gene, named AktWRKY12, which was the homologous gene of AtWRKY12, was isolated from Akebia trifoliata. The AktWRKY12 gene has a total length of 645 nucleotides and an open reading frame (ORF) encoding 214 amino acid polypeptides. The characterizations of AktWRKY12 were subsequently performed with the ExPASy online tool Compute pI/Mw, PSIPRED and SWISS-MODEL softwares. The AktWRKY12 could be classified as a member of WRKY group II-c TFs based on sequence alignment and phylogenetic analysis. The results of tissue-specific expression analysis revealed that the AktWRKY12 gene was expressed in all the tested tissues, and the highest expression level was detected in A. trifoliata leaves. Subcellular localization analysis showed that AktWRKY12 was a nuclear protein. Results showed that the expression level of AktWRKY12 significantly increased in A. trifoliata leaves with pathogen infection. Furthermore, heterologous over-expression of AktWRKY12 in tobacco resulted in suppressed expression of lignin synthesis key enzyme genes. Based on our results, we speculate that AktWRKY12 might play a negative role in A. trifoliata responding to biotic stress by regulating the expression of lignin synthesis key enzyme genes during pathogen infection.

1. Introduction

All plant species are continually under attack from a vast range of pathogens, including viruses, bacteria, oomycetes, fungi and so on [1,2]. For example, rice crops are affected by almost 70 kinds of pathogens, including 8 viruses, 5 bacteria and about 50 fungi [3]. During millions of years of co-evolution, the relationship between plant and pathogen populations has become more complicated [4,5,6]. Pathogens can damage commercial crops and reduce production. For example, in previous studies, the production and quality of medicinal materials decreased rapidly when medicinal plants were subjected to disease [7,8,9]. Thus, protection of commercial crops, especially medicinal plants, against plant diseases is crucial for minimizing the losses and increasing total production and quality. In the past few decades, due to the application of highly toxic pesticides, large doses of pesticides or ignoring the safety interval of pesticide application and other problems, there may be risks to people, animals and the environment [10]. Deploying resistance genes in medicinal plants is the best way to eliminate plant diseases and reduce environmental damage by avoiding the application of agrochemicals.

Plant resistances were activated in plant cells upon pathogen infection, dependent on an intricate regulatory network of signaling pathways involving innate immunity and a class of resistance genes [11,12,13]. Transcription factors are important components of these disease response and resistant signaling pathways, in which WRKY transcription factors (TFs), which are plant-specific TFs, play significant roles in plant defense [14,15]. Members of this family contain at least one conserved DNA-binding domain, which consists of 60 amino acids, including a highly conserved WRKYGQK heptapeptide sequence at the N-terminal and a C₂H₂- or C₂HC-type of zinc finger motif in its C-terminal. The WRKY domain is responsible for binding to a cis-element (W box), which is abundant in the promoter region of defense-related genes [16,17]. In general, group I WRKY proteins contain two WRKY domains, and group II WRKY proteins only contain one WRKY domain followed by a C₂H₂-type of zinc finger motif, while the rest of the members are grouped in group III. Numerous reports have demonstrated that WRKY TFs can help plants enhance their resistance to pathogens through up-regulating expression levels of the PATHOGEN-RELATED (PR) gene and inducing phytoalexin accumulation [18,19,20]. For example, Salicylic acid (SA)-induced WRKY TFs act upstream of non-expressors of pathogenesis-related gene 1 (NPR1) and mediate its expression as a positive regulator during the activation of plant defense responses [21]. In Arabidopsis, AtWRKY33 regulates the expression of camalexin biosynthetic genes as the downstream of (mitogen-activated protein kinase) MAPK cascade, thereby driving metabolic flow to synthesize camalexin and improve the seedling disease resistance. A novel tobacco WRKY transcription factor, NtWRKY12, is required to induce PR-1a expression via salicylic acid and bacterial elicitors [22,23]. In addition, many reports demonstrated that WRKY factors acted as negative regulators in plant defense responses [24,25]. It has been reported that Gossypium hirsutum WRKY25 over-expression could enhance the susceptibility of plant response to fungal pathogens through reducing the transcription levels of SA or Ethylene (ET) signal-related genes, indicating that the reduction in pathogen resistance caused by GhWRKY25 might be related to the cross-talk of the SA and jasmonic acid (JA)/ET signaling pathways [26]. Journot-Catalino et al. [25] reported that two of Arabidopsis WRKY IId’s subfamily members, WRKY11 and WRKY17, acted as negative regulators of basal resistance to Pseudomonas syringae pv tomato. Further, two orthologs of AtWRKY12, Medicago truncatula sugar transporter (MtSTP) and PtrWRKY19 have been proven to negatively regulate the formation of secondary walls in pith cells, implying that AtWRKY12 might negatively regulate lignin biosynthesis [27,28].

A. trifoliata (Thunb.) Koidz., a member of Lardizabalaceae family, is mainly distributed in China, South Korea, and Japan [29]. It is a famous traditional Chinese medicinal plant because of its medicinal value. Its air-dried stems and fruits have been used as anti-inflammatory, anti-tumor and diuretic agents for a long time in China [30]. Moreover, the fresh fruit of A. trifoliata as a delicious fruit has long been eaten by the local people [31]. In recent years, with the excessive exploitation of natural resources and grave pollution of the environment, the wild resources of A. trifoliata are on the verge of exhaustion. Because of its value as both medicine and food, A. trifoliata has become an artificial planting commercial crop in the middle and lower reaches of the Yangtze River basin in China. However, the yield and quality of the medicinal materials and fruit of A. trifoliata have rapidly decreased because of the biotic stresses. Thus, protecting A. trifoliata from pathogens is a crucial way to increase total production and quality. In the fields, orchardman usually use agrochemicals against plant pathogens, which might decline the quality of fruit and medicinal materials. Therefore, it is important to improve the disease resistance and immunity of A. trifoliata seedlings. Here, we isolated a pathogen-induced WRKY transcription factor, AktWRKY12, from A. trifoliata leaves infected with Colletotrichum acutatum. A variety of bioinformatics methods and tools were used to analyze the sequence characteristics and phylogenetic trees of WRKYs from different plants. The expression patterns of AktWRKY12 in different organs were further determined. Furthermore, over-expression of AktWRKY12 in tobacco resulted in suppressed expression of key enzyme genes in lignin synthesis. Our data will provide useful information for further study of the role of WRKYs in the disease resistance signaling pathway.

2. Materials and Methods

2.1. Plant Materials and Growth Conditions

A. trifoliata seedlings were planted in Mutong yard in Jiujiang University, Jiangxi, China. Seeds of tobacco (Nicotiana benthamiana) were germinated on a medium containing 1/2 Murashige and Skoog’s (MS) medium in the growth chambers at 25 °C. The Illumination period of seedlings was 16 h light/8 h dark cycle. All samples were frozen in liquid nitrogen and refrigerated at −80 °C if RNA extraction and subsequent analysis were not performed immediately. All experiments were performed at least twice, and each of which had three biological replicates and presented the representative results of one experiment.

2.2. RNA Isolation and Amplification of AktWRKY12

Total RNA was isolated from plant samples using Trizol (Invitrogen, Carlsbad, CA, USA) method according to the manufacturer’s protocol. Genomic DNA contamination was removed using RNase-free DNaseI (TaKaRa, Dalian, China). The first strand cDNA was synthesized using PrimeScript^TM 1st Strand cDNA Synthesis Kit according to the manufacturer’s specification (TaKaRa, Dalian, China). cDNA from disease resistance variety of A. trifoliata was used as the template to amplify AktWRKY12 using PrimeSTAR HS DNA Polymerase (TaKaRa, Dalian, China) with primer pairs (FP: 5′-ATGGAAGGAGATCGAGAAG-3′ and RP: 5′-TTAAAATGAGCTGAAGCATTC-3′). The reaction parameters were as follows: denaturation at 94 °C, annealing at 54 °C and extension at 72 °C, 30 cycles. The product was purified and cloned into pEASY-Blunt Cloning Kit (Transgen, Beijing, China), transformed into Escherichia coli strain DH5α and sequenced using Sangon Biotech (Shanghai, China).

2.3. Bioinformatics Analysis

The DNAMAN version 7 and NCBI CDD tools (http://www.ncbi.nlm.nih.gov/, accessed on 10 April 2022) were used to translate the DNA sequence and analyze the conserved domain of WRKY proteins, respectively. The ExPASy online tool Compute pI/Mw (http://web.expasy.org/compute_pi/, accessed on 11 April 2022) was used to calculate the molecular weight (MW) and theoretical isoelectric point (pI) of deduced AktWRKY12 protein. The online subcellular location predictor CELLO (cello.life.nctu.edu.tw, accessed on 11 April 2022) was used to predict the subcellular localization with the default parameter. Gene ontology prediction results were performed using the PredictProtein online server (http://www.predictprotein.org, accessed on 12 April 2022). The secondary structure and 3D molecular modeling of AktWRKY12 protein was predicted through PSIPRED analysis (http://bioinf.cs.ucl.ac.uk/psipred/, accessed 12 April 2022) and SWISS-MODEL (http://swissmodel.expasy.org/, accessed on 12 April 2022) with the default parameters, respectively. The multiple alignment analyses of the WRKYs sequences via ClustalW and were displayed in GeneDoc software. Neighbor-joining (NJ) and Maximum likelihood (ML) trees were performed using the MEGA-X tools, based on the alignment of WRKY12s protein sequences in different species (parameters selected: p-distance, pairwise deletion, 1000 bootstrap replicates). The Bayesian phylogenetic tree was generated via the Bayesian inference method using MrBayes software.

2.4. Transformation of Tobacco Leaves

For transformation of tobacco leaves, agrobacterium-mediated transient transformation was used based on a previous method [32]. Agrobacterium strain EHA 105 containing individual constructs was grown on YEP solid medium supplemented with rifampicin (60 μg·mL⁻¹) and kanamycin (50 μg·mL⁻¹) at 28 °C for 48 h. The selective EHA 105 were then inoculated in 20 mL induction medium containing 1× AB salts (1 g·L⁻¹ NH₄Cl, 0.3 g·L⁻¹ MgSO₄·7H₂O, 0.15 g·L⁻¹ KCl, 0.01 g·L⁻¹ CaC1₂, 0.0025 g·L⁻¹ FeSO₄·7H₂O), 2 mM phosphate, 1% glucose, 20 mM MES (2-(N-morpholino) ethanesulfonic acid, pH 5.5), 100 μM acetosyringone, rifampicin and kanamycin. After overnight culture at 28 °C, agrobacteria were centrifuged (15 min, 3000× g) and resuspended in 10 mM MES (pH 5.5) plus 10 mM MgSO₄ solution as well as 100 μM acetosyringone, and agrobacterial suspension was adjusted to a final OD₆₀₀ of 0.8 for agroinfiltration. A total of 100 μL of agrobacterial suspension was infiltrated into intercellular spaces of intact tobacco leaves using a 1 mL plastic syringe. After agroinfiltration, tobacco plants were covered with transparent plastic bags and maintained in a growth chamber at 25 °C under a 16 h light/8 h dark cycle for 24–48 h.

2.5. Gene Expression Analysis

For tissue-specific expression patterns analysis of AktWRKY12, the A. trifoliata tissues of bud, young leaves, mature leaves, female flowers, male flowers and young fruit were collected for RNA isolation using the method mentioned above. For infection analysis, three different A. trifoliata varieties leaves, including C01 (wile type), I02 (susceptible variety) and H05 (resistance variety), were infected with C. acutatum for 6 h and then collected for RNA isolation. For heterologous over-expression analysis, the tobacco leaves were infiltrated with agrobacterium containing 35S::AktWRKY12 overexpression construct. After growing 36 h in a growth chamber, the tobacco leaves were sprayed with spores of C. acutatum. After infection for 6 h, the agroinfiltrated area of tobacco leaves was collected for RNA isolation. In this study, a series of lignin synthesis pathway key enzyme genes and pathogenesis-related genes were selected for an expression level test. The expression levels of all detected genes and AktWRKY12 were based on the qRT-PCR results. qRT-PCR was performed using Mastercycler ep realplex (Eppendorf, Hamburg, Germany) with SYBR Premix Ex TaqTM II (TaKaRa, Dalian, China). A. trifoliata 18S and tobacco Ubiquitin were used as internal reference, respectively. Each qPCR assay was repeated three times. The expression level of genes was calculated using the 2^−ΔΔCT method. Two-tailed Student’s t-test (p < 0.05) was used to detect the significant difference in relative expression of each gene (Microsoft Excel 2007). Gene-specific primers for quantitative real-time PCR are listed in Table S1.

3. Results

3.1. cDNA Cloning and Characterization Analysis

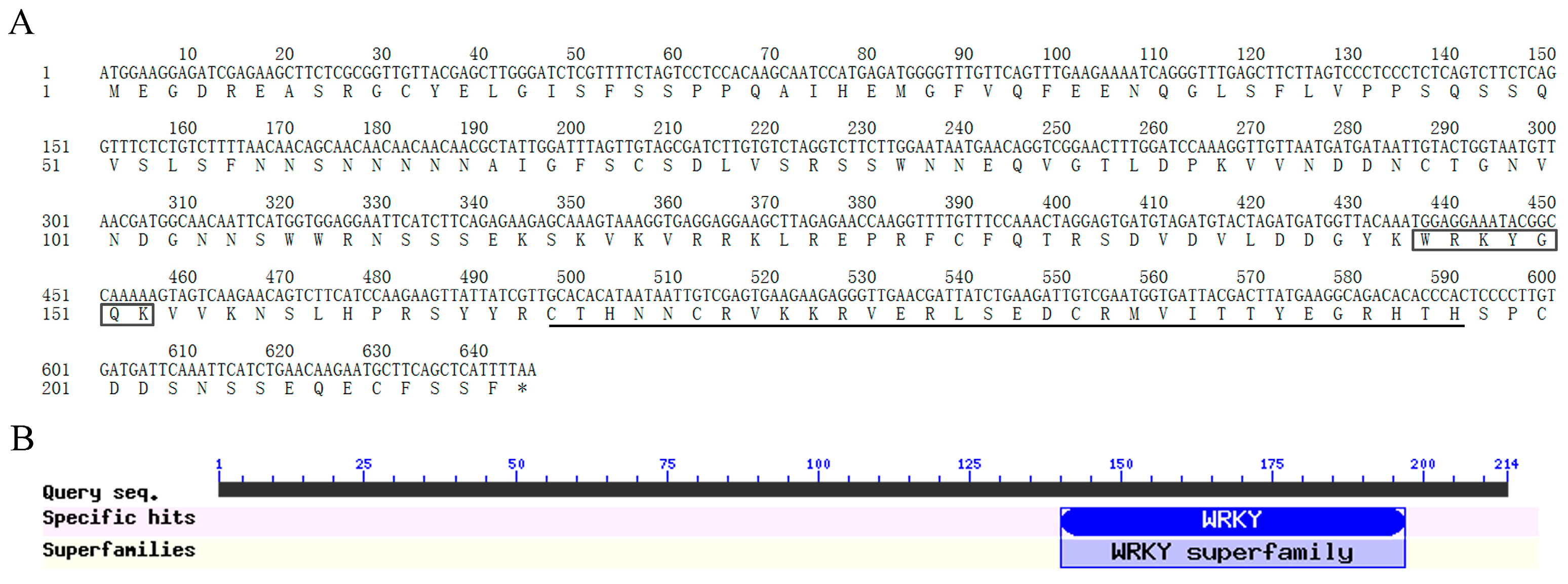

The previous RNA-Seq analysis results showed that the expression level of several WRKY transcriptional factor genes were significantly increased after infection with C. acutatum for 6 h in A. trifoliata leaves, suggesting that these WRKY gene members might be involved in plant responses to the pathogen attack. In these genes, a AktWRKY gene members were significantly induced in all three test A. trifoliata varieties leaves after C. acutatum infection, especially in the susceptible variety. The ORF of this AktWRKY gene member was predicted using TBtools, according to the assembly result of RNA-Seq data [33]. The NCBI blast online tools were used to validate the potential ORF sequences through alignment with other WRKY12s sequences. A pair of special primers was designed according to the ORF prediction results, and PCR amplification of this WRKY gene member was performed. A WRKY-type gene, named AktWRKY12, was successfully isolated from A. trifoliata leaves, which contained an ORF composed of 645 nucleotides encoding 214 amino acid residues (Figure 1A, Figure S1 and Table S2). The estimated molecular weight of the deduced protein was 24.49 kDa, while the isoelectric point was 7.55. By conducting a search in NCBI-CDD (https://www.ncbi.nlm.nih.gov/cdd, accessed on 10 April 2022), results showed that the predicted protein has a WRKY domain at the C-terminal of the amino acid sequence, followed by a C₂H₂ zinc-finger motif (Figure 1B). Subcellular localization prediction analysis using CELLO, an online subcellular localization predictor, suggested that this protein may be present in the nucleus. Gene ontology prediction results indicated that the main molecular function of AktWRKY12 may be DNA binding transcription factor activity, and the biological process of AktWRKY12 was involved in the regulation of gene expression and metabolic processes.

3.2. The Structure and Phylogeny of AktWRKY12

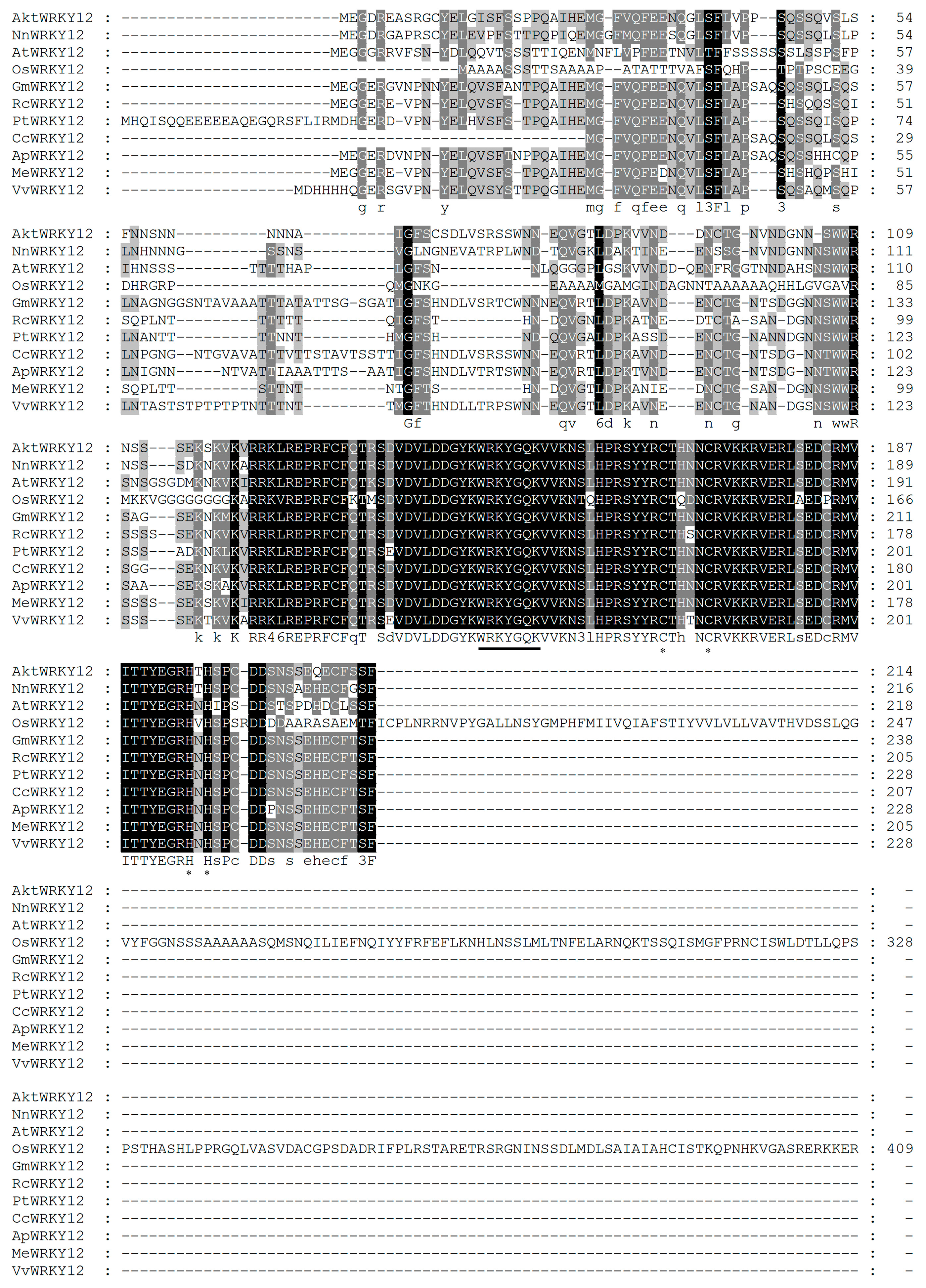

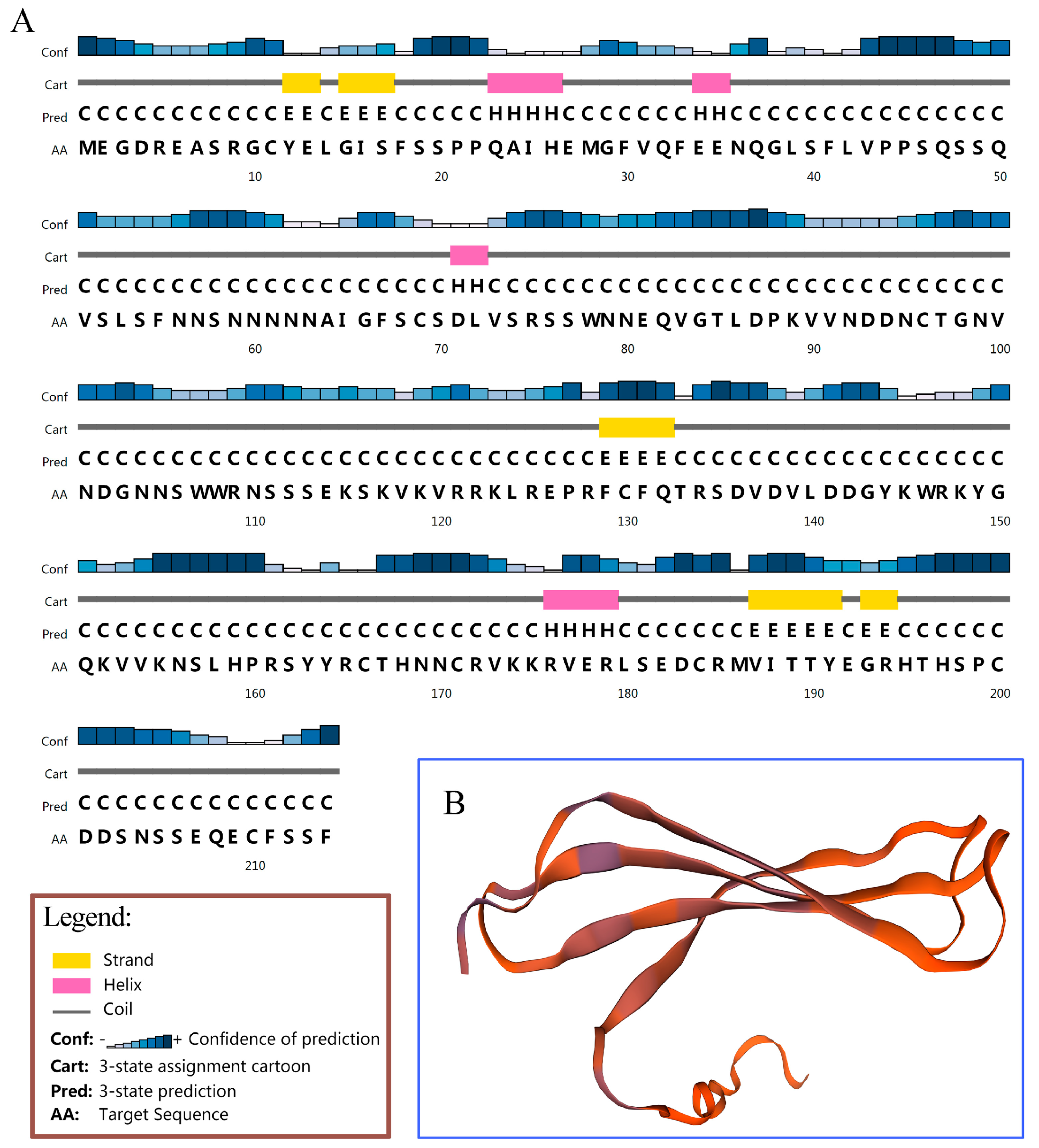

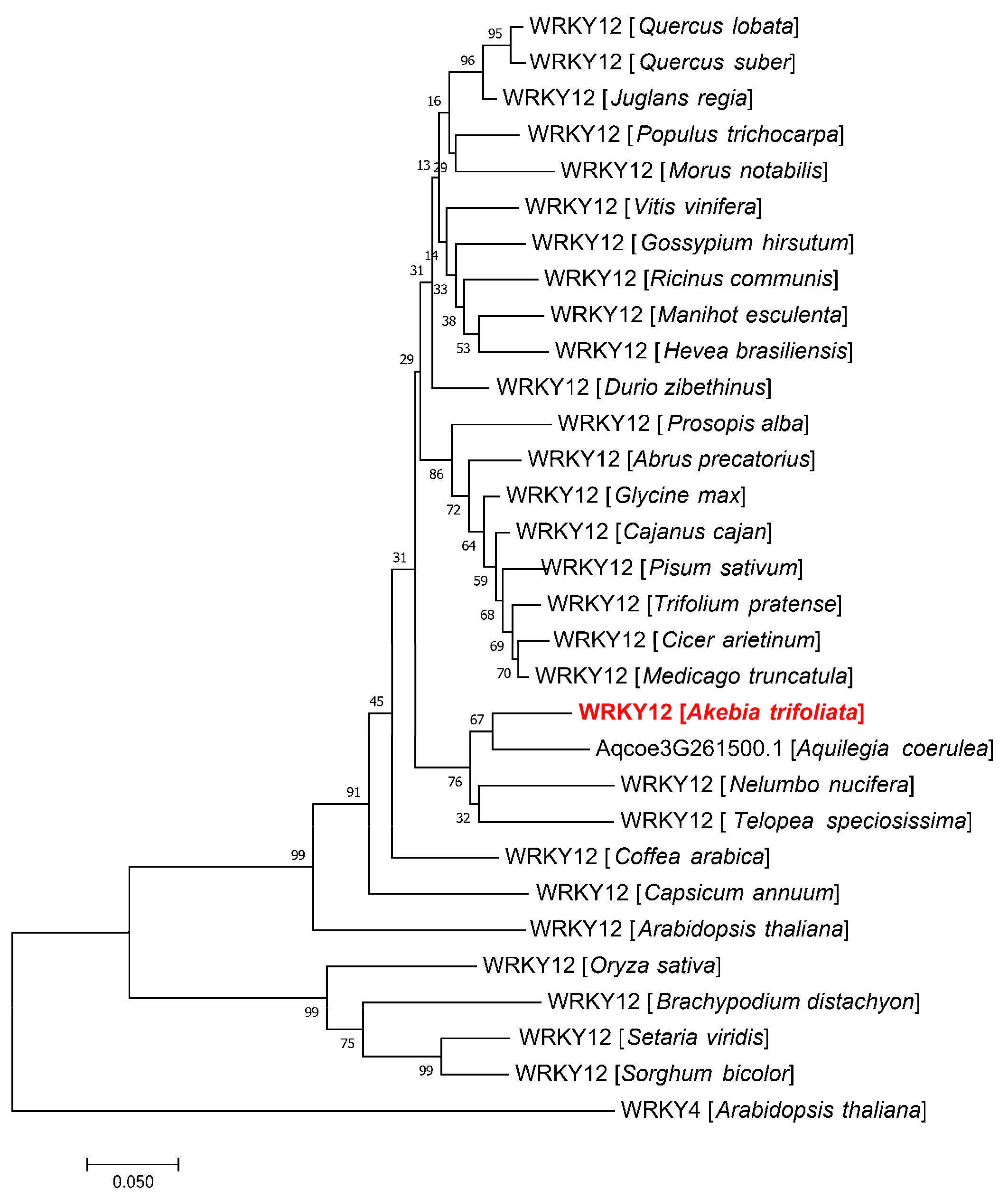

The secondary structure analysis result showed that the AktWRKY12 protein was composed of four helixes and five β-strands via online protein structure prediction (Figure 2A). A 3D molecular model of AktWRKY12 was generated using SWISS MODEL, and results showed that the sequence identity between AktWRKY12 and the template (WRKY4, SMTL id: wj2.1.A) was 62.69%, suggesting that the 3D model of the AktWRKY12 protein was reasonable and belonged to the WRKY family (Figure 2B). As shown in Figure 3, consistent with 10 WRKY12s in other plants, the sequence alignment results showed that AktWRKY12 contained highly conserved WRKY domains followed by a C-X₄-C-X₂₃-H-X-H type zinc finger motif. The alignment of the protein sequence revealed that the WRKY domains in AktWRKY12 and other WRKY12s were strongly conserved, although the N and C terminal sequences of AktWRKY12 showed significant divergence from other WRKY12s. An NJ phylogenetic tree constructed from AktWRKY12 and other WRKY12 proteins was divided into two main clades, monocot and dicot. Obviously, AktWRKY12 belongs to the dicot branch, which was consistent with its phylogenetic classification. Further, results revealed that AktWRKY12 is close to Aqcoe3G261500 (Aquilegia coerulea), TsWRKY12 (Telopea speciosissima) and NnWRKY12 (Nelumbo nucifera), since these four sequences were clustered to a consistent clade (Figure 4 and Figure S2). Moreover, alignment analysis showed the amino acid sequence identity between AktWRKY12 and Aqcoe3G261500 as 79.8%, while the sequence proximity between AktWRKY12 and NnWRKY12 was 76% (Figure 3). Therefore, AktWRKY12 could be classified as a member of group II-c of WRKY transcription factor superfamily, based on the previous classification method [34].

3.3. Expression Patterns

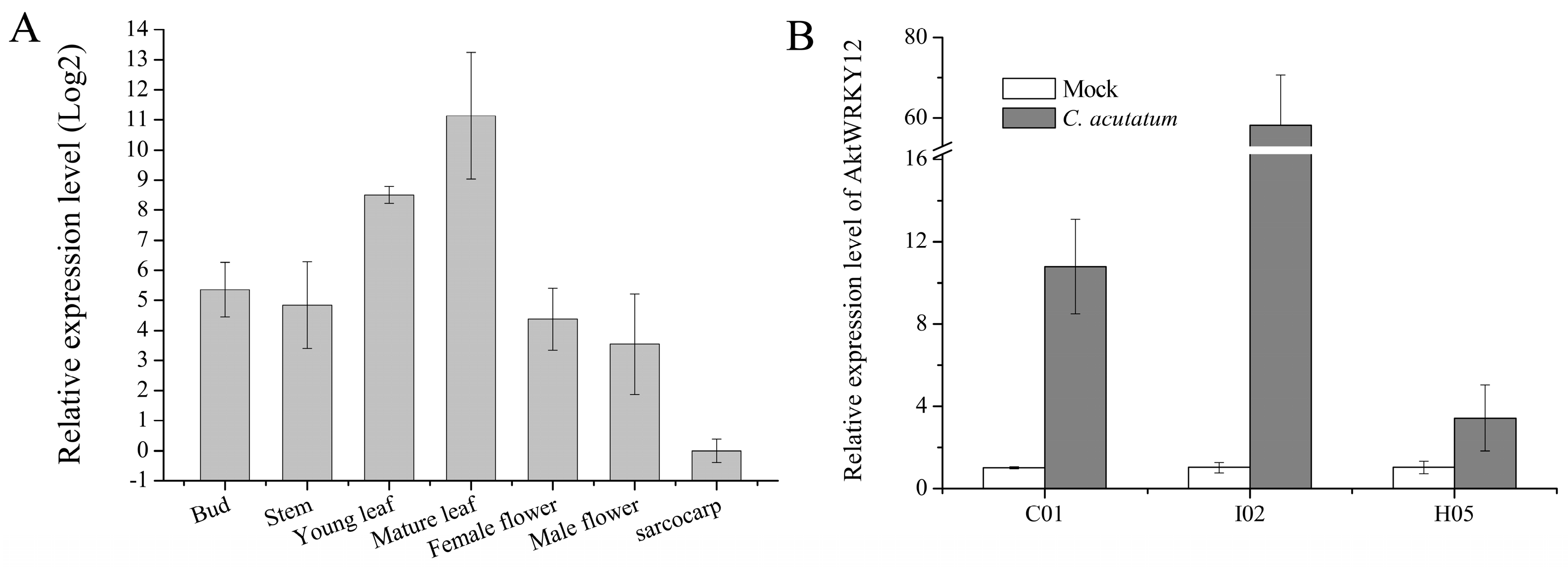

To investigate the potential physiological functions of AktWRKY12, the tissue-specific expression patterns of AktWRKY12 were performed. Results revealed that the AktWRKY12 gene can be detected in all tested tissues, including the bud, stem, young leaf, mature leaf, female flower, male flower and sarcocarp. The expression level of AktWRKY12 was highest in mature leaves of A. trifoliata, followed by young leaves, and it was lowest in sarcocarp (Figure 5A). To further investigate the potential functions of the AktWRKY12 gene in response to pathogen infection, a qRT-PCR analysis was performed to detect the expression level of the AktWRKY12 gene in three different A. trifoliata varieties after C. acutatum infection (Figure 5B). Results revealed that the expression levels of AktWRKY12 significantly increased in all three A. trifoliata varieties leaves with pathogen infection, especially in the leaves of the I02 variety (a susceptible variety of A. trifoliata).

3.4. Heterologous Over-Expression of AktWRKY12 in Tobacco Resulted in Suppressed Expression of Lignin Synthesis Pathway Key Enzyme Genes

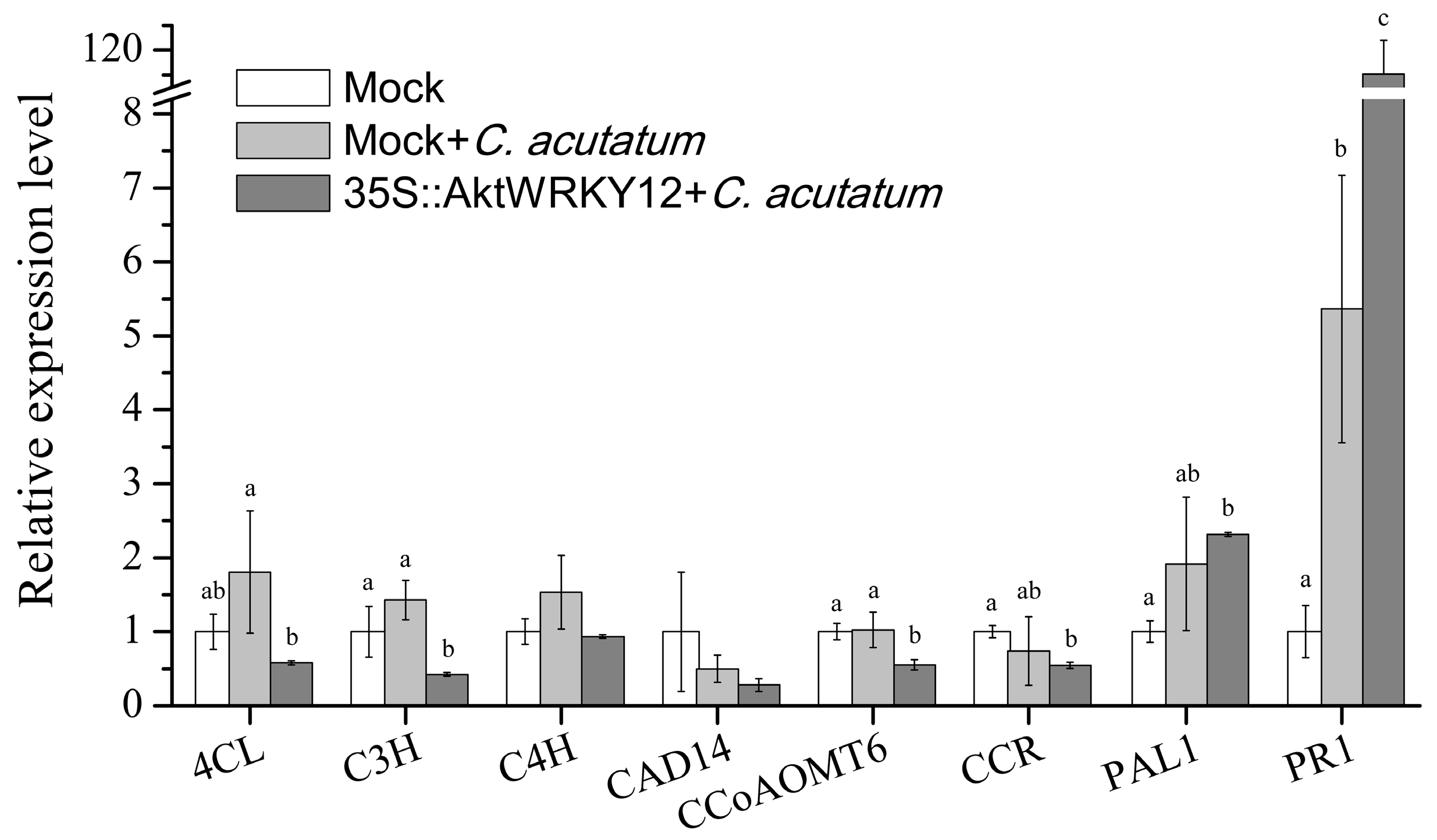

To examine whether a change in AktWRKY12 expression would affect pathogen defense, a 35S::AktWRKY12 construct was introduced into the tobacco leaf cell via Agrobacterium-mediated transient transformation. Compared to the mock (empty construct), the transcript level of some enzyme genes in the phenylpropanes metabolic pathway, including 4CL, C3H, C4H and PAL1, increased after infection with C. acutatum for 6 h (Figure 6). Although the expression levels of PAL1 (which encode a key enzyme at the first step of the phenylpropanoid path) slightly increased, three lignin synthesis pathway key enzyme genes (4CL, C3H and CCoAOMT6) were significantly suppressed in AktWRKY12-OE tobacco leaves compared to that in non-transgenic tobacco after infection with C. acutatum for 6 h (p < 0.05). Moreover, other test lignin synthesis pathway key enzyme genes (C4H, CAD14 and CCR) were also slightly suppressed in AktWRKY12-OE tobacco leaves after pathogen treatment. These results demonstrate that AktWRKY12 was involved in pathogens responsive in A. trifoliata, and they might play a role in the lignin synthesis pathway, which is consistent with previous work [27]. In addition, the expression of orthologs of lignin synthesis pathway key enzyme genes in A. trifoliata were analyzed in different organs and varieties based on RNA-seq results (Figures S3 and S4). Results showed that the transcription levels of most of lignin synthesis pathway key enzyme genes were low in the susceptible variety of A. trifoliata, and their expression levels were also down-regulated after C. acutatum infection (Figure S4). Interestingly, PR1, which was part of the plant’s natural defense response against pathogen attack, was significantly up-regulated 100.9-fold and 5.4-fold in AKtWRKY12-OE and non-transgenic tobacco leaves after C. acutatum infection compared to control, respectively (p < 0.05).

4. Discussion

The WRKY TFs comprise one of the largest plant-specific families of transcription factors. The first WRKYs, which was first named SPF1, was isolated from sweet potato (Ipomoea batatas). Since then, many WRKY genes have been isolated, identified and functionally characterized in a variety of plants, such as Arabidopsis thaliana (74), Brachypodium distachyon (86), Populus (100) and Oryza sativa (109) [15,35,36,37]. Previous studies have revealed that WRKY TFs function as positive or negative regulators during plant disease response. Most WRKY domains can recognize and bind W-box cis-acting elements in the promoter region of target genes related to the SA signaling pathway, such as PR genes [38]. For example, plants over-expressing CaWRKY22 and AtWRKY70 showed constitutive expression of PR genes, while over-expression WRKY4 in Arabidopsis resulted in greatly increased susceptibility of plants to bacterial pathogens and down-regulated pathogen-induced PR1 gene expression [19,39,40]. On the other hand, WRKY TFs have been found to be involved in regulating the phenylpropanes metabolic pathway, including flavonoids, antitoxin and lignin synthesis [41,42]. Over-expressing VvWRKY2 in tobacco seedlings exhibited altered expression of lignin biosynthesis-related key enzyme genes, suggesting that VvWRKY2 played a role in the regulation of grape lignification, which might be a response to biotic or abiotic stresses [42]. A study on OsWRKY89 indicated that the over-expression of the OsWRKY89 gene increased the resistance of rice to the Magnaporthe oryzae with an accompanying increase in lignification in culms [43]. Moreover, numbers of WRKY TFs have been isolated in some medicinal plants, such as Artemisia annua and Salvia miltiorrhiza [44,45]. Despite the medical and edible value of A. trifoliata being attractive, the yield and quality of the medicinal materials and fruit of A. trifoliata was very low because of the disease susceptibility of A. trifoliata trees. At the moment, no disease-resistance-related WRKY gene has previously been characterized in A. trifoliata. In this study, we cloned a fungi-induced WRKY gene from A. trifoliata (Figure 1). Conserved domain and sequence alignment analysis of the full-length deduced protein clearly exhibited that AktWRKY12 contained a C-terminal WRKY domain followed by a C₂H₂ zinc-finger motif and belonged to the group II-C WRKY family (Figure 1, Figure 2 and Figure 3). The WRKY domain sequences of AktWRKY12 and other WRKY12s were almost identical, implying a possible functional similarity among them, and AktWRKY12 might play roles in the phenylpropanes metabolic pathway and disease response [27,46]. Gene expression patterns in different organs and tissues might be due to their physiological functions. To further investigate the potential physiological functions of AktWRKY12, the tissue-specific expression patterns of AktWRKY12 were investigated (Figure 5A). Results showed that the AktWRKY12 gene was expressed in all the tissues tested, especially in leaves. Many WRKY transcription factors exhibit greatly uneven distribution among different tissues to exert different physiological functions [47]. For instance, AtWRKY12 played a critical role in pith secondary wall formation, which was abundant in pith and cortex cells of stem and hypocotyls. These results implied that AktWRKY12 might be involved in leaf development.

Previous studies have shown that WRKY12 played significant roles in plant growth and development and abiotic/biotic stress response. For instance, AtWRKY12, which was abundant in stem and hypocotyls, has been reported to play a key role in secondary wall formation of pith [27]. Li et al. found that disrupting the expression of AtWRKY12 led to a delayed flowering time, suggesting that WRKY12 mediated the role of GA3 in controlling flowering time to a certain extent [48]. WRKY12 directly targeted GSH1, indirectly inhibited the expression of the PC synthesis-related gene, and negatively regulated the accumulation and tolerance of Cd in Arabidopsis [49]. In Brassica rapa, the expression level of BrWRKY12 increased after pathogen treatment, and over-expression BrWRKY12 could enhance disease resistance through transcriptional activation of defense-related genes, contrary to the function of WRKY12 in Arabidopsis [46]. Since the expression level of WRKY12 was significantly induced by C. acutatum infection in A. trifoliata leaves (Figure 5B), and AktWRKY12 showed high conserved WRKY domains to other WRKY12, we speculated that AktWRKY12 might play a role in regulating plant disease responsive genes expression. Furthermore, the qPCR results showed that three enzyme genes in the lignin synthesis pathway were obviously suppressed in tobacco leaves overexpressing AktWRKY12 (Figure 6). These results were consistent with a previous report wherein WRKY12 acted as a negative regulator in controlling the biosynthesis of the xylan, cellulose and lignin [27]. Therefore, the expression level of AktWRKY12 was significantly upregulated in a susceptible variety of A. trifoliata after C. acutatum infection, which negatively regulated the expression of key enzyme genes in lignin synthesis (Figure 6 and Figure S4). Interestingly, the expression level of AktWRKY12 in I02 (a susceptible variety of A. trifoliata) was higher than other varieties, implying that AktWRKY12 was pathogen inducible and that it might play an important role in response to pathogen attacks. Since lignin synthesis was inhibited in the susceptible variety of A. trifoliata, the plant became more vulnerable to pathogens. On the other hand, plants may recruit other disease-resistant pathways to resist further invasion by pathogens, such as an SA-mediated defense response. This might be a possible explanation for why the PR1 gene was up-regulation in AktWRKY12-OE tobacco leaves after pathogen treatment.

5. Conclusions

A novel WRKY transcription factor designated as AktWRKY12 was isolated from A. trifoliata, an important Chinese traditional medicinal plant. AktWRKY12 was significantly induced in A. trifoliata leaves after pathogen infection. Heterologous over-expression of AktWRKY12 in tobacco resulted in suppressed expression of key enzyme genes in lignin synthesis. Thus, we primarily conclude that AktWRKY12 might play a negative role in A. trifoliata responding to biotic stress by regulating the expression of lignin synthesis key enzyme genes during pathogen infection.
