The Chloroplast Genome of Endive (Cichorium endivia L.): Cultivar Structural Variants and Transcriptome Responses to Stress Due to Rain Extreme Events

by
Giulio Testone
1,
Michele Lamprillo
1,
Maria Gonnella
2,
Giuseppe Arnesi
3,
Anatoly Petrovich Sobolev
1,
Riccardo Aiese Cigliano
4 and
Donato Giannino
1,*
1
Institute for Biological Systems, National Research Council (CNR), Via Salaria Km 29,300, Monterotondo, 00015 Rome, Italy
2
Institute of Sciences of Food Production, National Research Council (CNR), Via G. Amendola 122/O, 70126 Bari, Italy
3
Enza Zaden Italia, Strada Statale Aurelia Km 96.400, Tarquinia, 01016 Viterbo, Italy
4
Sequentia Biotech SL, C/ del Dr. Trueta 179, 08005 Barcelona, Spain
*
Author to whom correspondence should be addressed.
Genes 2023, 14(9), 1829; https://doi.org/10.3390/genes14091829
Submission received: 23 August 2023 / Revised: 15 September 2023 / Accepted: 19 September 2023 / Published: 21 September 2023
(This article belongs to the Special Issue Plant Plastid Genome)
Browse Figures
Review Reports Versions Notes

Abstract

:
The chloroplast (cp) genome diversity has been used in phylogeny studies, breeding, and variety protection, and its expression has been shown to play a role in stress response. Smooth- and curly-leafed endives (Cichorium endivia var. latifolium and var. crispum) are of nutritional and economic importance and are the target of ever-changing breeding programmes. A reference cp genome sequence was assembled and annotated (cultivar ‘Confiance’), which was 152,809 base pairs long, organized into the angiosperm-typical quadripartite structure, harboring two inverted repeats separated by the large- and short- single copy regions. The annotation included 136 genes, 90 protein-coding genes, 38 transfer, and 8 ribosomal RNAs and the sequence generated a distinct phyletic group within Asteraceae with the well-separated C. endivia and intybus species. SSR variants within the reference genome were mostly of tri-nucleotide type, and the cytosine to uracil (C/U) RNA editing recurred. The cp genome was nearly fully transcribed, hence sequence polymorphism was investigated by RNA-Seq of seven cultivars, and the SNP number was higher in smooth- than curly-leafed ones. All cultivars maintained C/U changes in identical positions, suggesting that RNA editing patterns were conserved; most cultivars shared SNPs of moderate impact on protein changes in the ndhD, ndhA, and psbF genes, suggesting that their variability may have a potential role in adaptive response. The cp transcriptome expression was investigated in leaves of plants affected by pre-harvest rainfall and rainfall excess plus waterlogging events characterized by production loss, compared to those of a cycle not affected by extreme rainfall. Overall, the analyses evidenced stress- and cultivar-specific responses, and further revealed that genes of the Cytochrome b6/f, and PSI-PSII systems were commonly affected and likely to be among major targets of extreme rain-related stress.

1. Introduction

Endives are widely consumed in Europe as fresh or minimally processed and packaged salads with healthy properties [1]. They belong to the species Cichorium endivia (fam. Asteraceae) with the botanical varieties crispum and latifolium, which provide the genetic pools for the breeding of curly- and smooth-leafed commercial cultivars [2]. Endive is a low-input and cold-tolerant crop, although it is quite sensitive in terms of yield and quality to some stresses such as waterlogging or heavy rainfall [3]. More than 90% of the Italian production takes place outdoors (2037 tons in 2021; http://dati.istat.it (accessed on 13 September 2023)) and commercial varieties have been selected to guarantee quality standards under variable environmental conditions and continuous production cycles that overcome seasonality. In the current context of climate change, the intensification of unpredictable rainfall excess events (together with inadequate drainage systems and the soil’s intrinsic inability to store it) causes extreme damage to this crop even from short-term waterlogging [4]. Roots are the first anoxia-affected targets by soil anaerobiosis that trigger multi-level responses of the aerial organs resulting in stomatal closure, reduced leaf chlorophyll content and photosynthesis, and accelerated senescence [5]. The whole-plant response that alters nutrient contents is complex and varies with stress intensity and genotypes, for instance, a cultivar-specific carbohydrate drop occurred in endive challenged by natural short-term waterlogging [6]. Contextually, the chloroplast (cp) plays a central role in photosynthesis [7] and its genome responds to mechanical stresses/stimuli [8,9] such as water spray, precipitation hits and wounding of biotic or abiotic origin (e.g., pest bites or hail). Studies on the effects of heavy rainfall on plastid organelles are scarce and needed on a broad scale because of the expected increase in frequency and severity of extreme rainfall events [10]. Angiosperm cp genomes maintain a quadripartite structure [11,12]. However, the occurrence of sequence diversity [13] has allowed refined phylogenetic classification of the Asteraceae family into species, tribes, and subtribes [14,15]. Moreover, SNP markers have been useful for intraspecific genotyping with the aim of genetic breeding [12,16,17]. In this context, several resources (https://npgsweb.ars-grin.gov/gringlobal/search (accessed on 13 September 2023)) and markers are available for endive genetics [18], ranging from a reference genome sequence [19] and tissue-specific transcriptomes [6,20], although the cp genome sequence has not yet been published. Here, a chloroplast reference genome was assembled by DNA-Seq and structural variation in curly and smooth cultivars was further explored by RNA-Seq data. The cp transcriptome response was monitored in cultivars from two case studies of heavy pre-harvest rainfall (affecting production) compared to a standard cycle without extreme events. Gene expression analyses revealed a number of photosynthesis genes that showed similar expression changes, suggesting that they are common targets of extreme precipitation and may contribute to the resulting nutrient (sugar) loss.

2. Materials and Methods

2.1. Plant Material, Growth Conditions, Samplings and Studied Models

Enza Zaden Italy s.r.l. provided seeds and plants of curly- and smooth-leafed genotypes, which were patented cultivars and experimental lines, respectively identified by names and number codes. Curly-types: ‘Domari’ (D), ‘Myrna’ (M), ‘Imari’ (I), ‘A32861’ (A32); smooth-types: ‘Confiance’ (C), ‘Flester’ (F), ‘E02S.0338’ (E02S). The cultivation cycles spanned September-November 2011 and 2012; the dates of outdoor seedling transplant and harvest were 14/9/2011–17/11/2011 and 14/9/2012–15/11/2012. The growth occurred in the same parcels at Tarquinia (Lazio, Italy, 42°15’ N 11°44’ E, 31 m a.s.l.). Standard cultivation procedures, soil, water content variation, rainfall (R), relative humidity (RH), and temperature (T) were previously detailed [6,21,22]. In 2013, D and F only were grown in Conversano fields (41°00’ N 17°50’ E, 100 m a.s.l.) in soils with similar characteristics as Tarquinia’s [22] using standard interventions. Transplant and harvest dates were 15/9/2013–22/11/2013. Table S1 reports monthly average values of R, RH, and T of the entire cycle (September–November), while R daily values (Figure S1A) and T weekly values (Figure S1B) regard one month before harvest. The year 2011 was used as a reference because unexpected events of excess rain did not happen. Synoptically, R was much higher in 2012 than in 2011 (+200%) before harvest (November values in Table S1), while a low increase of T and RH was recorded (+5 and +7%). The extreme rain event of 11/11/2012 (Figure S1A) caused soil saturation (0 kPa) and root-zone waterlogging for 72 h, after which draining to field capacity (10 kPa) was restored [6]. In the cultivation of 2013, R was +49%, RH −3%, T +5% (November values in Table S1), and the rainfalls of 12 and 19/11/2013 (Figure S1) did not cause waterlogging.
The transcriptomic analyses were conducted using D, M, C, and F grown in 2012, and D and F grown in 2013 compared to respective cultivars grown in 2011. In all experiments, sampling included 9 heads per cultivar, accurately selected according to market standards. The leaves (n = 10) intended for consumption were cut from each head and pooled into a cultivar-specific bulk, which was subdivided into 3 replicate batches (RB) of 30 leaves each. RBs of equal weights were frost in liquid nitrogen and gently crunched, and aliquots were ground to powder and used for nucleic acid isolation. As for variant studies based on RNA-Seq, all genotypes were used.

2.2. DNA Isolation, Sequencing, Chloroplast Assembly and Annotation

Total genomic DNA of ‘Confiance’ was isolated from two RBs using the DNeasy Plant Mini Kit (QIAGEN), checked for quality standards (A260/280 and A260/230 ratios > 1.8), and 1 µg was used for library construction and subjected to whole genome sequencing (IGA Technology Services, Udine, Italy). The Ovation® Ultralow System V2 DNA-Seq Library Preparation Kit (Tecan, Männedorf, Switzerland) was used for library preparation according to the manufacturer’s instructions. Both input and final libraries were quantified using the Qubit 2.0 Fluorometer (Invitrogen, Carlsbad, CA, USA) and quality checked using the Agilent 2100 Bioanalyzer High Sensitivity DNA Assay (Agilent Technologies, Santa Clara, CA, USA). The library was sequenced in 150 bp paired-end mode on NovaSeq 6000 (Illumina, San Diego, CA, USA). Raw reads were checked for quality and filtered to remove ambiguous and poor-quality bases using FastQC v0.11.9 (www.bioinformatics.babraham.ac.uk/projects/fastqc/ (accessed on 13 September 2023)) and Trimmomatic v0.39, respectively. The chloroplast genome was assembled by NOVOPlasty v.4.2 [23] using the C. intybus chloroplast sequence (NCBI Reference Sequence: NC_043842.1) as reference genome, annotated by GeSeq [24] and visualised by OGDRAW [25], and cpgview [26]. The plastome sequence of C. endivia was stored in GenBank (Accession No. OQ928160). As for SSRs, MIcroSAtellite tool v1.0 (MISA; http://pgrc.ipk-gatersleben.de/misa (accessed on 13 September 2023)) scored sequence repeats (SSRs) targeting 1 to 10 nucleotide long stretches by minimum repetitions. The MISA script was set for SSR search as follows: “1-15 2-5 3-3 4-3 5-3 6-3” and “0” interruptions. SSRs were intersected with the endive annotation file (annotation.bed) using the options –wa and –wb.

2.3. RNA Isolation, Sequencing, SNP Calling and Transcriptomic Analyses

RNA was isolated from 3 replicate batch per genotype as described [21], yields and integrity (RIN > 7) were assessed (NanoDrop ND-1000, Thermo Scientific Inc (Waltham, MA, USA); BioAnalyzer 2100, Agilent Technologies Inc, cDNA libraries were synthesised from 1 µg of total RNA (TruSeq RNA-Seq kit, Illumina) and sequenced in 50 bp single-end mode (Illumina HiSeq2000; IGA Technology Services, Udine, Italy).
For variant identification, BWA (v0.7.17) was used to align the RNA reads to the reference genome, Picard tools (v 2.23.9) to remove PCR artefacts, GATK SplitNCigarReads (v4.2.6.1) to split reads containing Ns in their cigar string, and bcftools (v1.15.1) to identify raw variants. Biallelic SNPs were then recovered by filtering out variants with low genotype quality scores (GQ < 30), low alternative allele calling (QUAL < 20), inappropriate coverage depth (min: DP < 10; max: DP > 2xDP average), significant bias (strand, mapping quality, read position, and base quality). InDel consecutive clusters (distances < 10 bp) and SNPs close (±10 bp) to InDel were further excluded. Gene variant annotations and functional effect predictions were obtained using SnpEff (v5.1d).
For gene expression analyses, HISAT2 (ver 2.2.1, parameter “dta”) and StringTie (v2.2.1) were respectively used to map the reads on the reference genome and assemble them into transcripts. Transcript-level count data were used to estimate gene-level abundances by the R-package Tximport (v.1.28.0). Analysis of differentially expressed genes (DEG) was achieved by DESeq2 package [27] and by selecting genes with false discovery rate (FDR) ≤ 0.05 and an absolute log2 fold change ≥1.

2.4. Phylogenetic Trees

A phylogenetic tree was constructed using 17 chloroplast genome sequences from species (listed below) of the Cichorieae tribe. MAFFT v.7.490 (https://mafft.cbrc.jp/alignment/software/ (accessed on 13 September 2023)) produced sequence alignment (Data S1) and MEGA11 (https://www.megasoftware.net/ (accessed on 13 September 2023)) produced both the distance matrix and the Maximum Likelihood tree with 1000 bootstrap iterations. The phylogenetic tree of botanical varieties and cultivars of endive was built using SNP concatemers, which generated FASTA sequence files further processed by MEGA11. Cicerbita alpina Wallr. (NC_066724.1), Cichorium endivia L. (OQ928160), Cichorium intybus L. (NC_043842.1), Crepidiastrum sonchifolium (Maxim.) Pak and Kawano (NC_046513.1), Crepis japonica (L.) Benth. (NC_046516.1), Ixeris polycephala Cass. (NC_046514.1), Lactuca sativa L. (NC_007578.1), Lapsanastrum humile (Thunb.) Pak and K.Bremer (NC_046515.1), Launaea arborescens (Batt.) Murb. (NC_060827.1), Notoseris macilenta (Vaniot and H.Le’v.) N.Kilian (NC_066766.1), Paraprenanthes melanantha Ze H.Wang (NC_066769.1), Reichardia picroides (L.) Roth (NC_062408.1), Sonchus arvensis L. (NC_054161.1), Sonchus brassicifolius S.-C.Kim and Mejias (NC_051922.1), Soroseris hookeriana Stebbins (NC_070135.1), Stebbinsia umbrella (Franch.) Lipsch. (NC_051973.1), Taraxacum officinale F.H.Wigg (NC_030772.1), and Cucumis sativus L. (NC_007144.1) as outgroup.

2.5. Metabolite Profiling of Hydro-Soluble Compounds by NMR

The whole methodology to achieve water-soluble fraction starting from 25 mg of lyophilized ground leaves of endives and producing both NMR spectra (Bruker AVANCE 600 NMR; proton freq. of 600.13 MH) and metabolite concentrations were detailed previously [6].

3. Results

3.1. Endive Chloroplast DNA Assembly and Annotation

After achieving 161,817,528 clean reads (95.4%) counting for more than 24.3 billion bases from high-throughput sequencing (Q20 and Q30 were 99.99% and 97.3%, respectively), a chloroplast genome of C. endivia was assembled showing a length of 152,809 bp and an organization into a typical quadripartite structure. It comprised two inverted (IRA and IRB), one large single-copy (LSC), and one short single-copy (SSC) region (Figure 1), which, respectively, consisted of 25,085, 84,057 and 18,582 bp, with an overall GC content of 37.7% (Table 1). The genome encoded 136 genes, consisting of 90 protein-coding genes (8 lay in both IRs), 38 transfer RNAs (tRNAs; 8 in both IRs), and 8 ribosomal RNAs (rRNAs; 4 in both IRs). The set of 116 unique genes (79 protein-coding, 30 tRNAs, 4 rRNAs, and 3 pseudogenes) was annotated and grouped according to shared functions. Overall, 16 unique genes bore one (atpF, ndhA, ndhB, petB, petD, rpl16, rpl2, rpoC1, rps12, rps16, trnA-UGC, trnE-UUC, trnG-UCC, trnK-UUU, trnL-UAA, trnV-UAC), or two introns (pafI and clpP, Figure S2A). Among intron-containing genes, 12 genes (atpF, clpP, pafI, petB, petD, rpl16, rpoC1, rps16, trnG-UCC, trnK-UUU, trnL-UAA, trnV-UAC) were in the LSC, one gene (ndhA) fell in the SSC, 5 genes (rps12, ndhB, rpl2, trnA-UGC(x2), trnI-GAU) occurred in both IRs, and the trans-splicing rps12 gene had the exon 1 in the LSC while the exon 2 and 3 in the IR regions (Figure S2B). As for the region boundaries, the rps19 and Ψycf1 respectively hosted the LSC/IRB and IRB/SSC junctions; the ycf1 and Ψrps19 the SSC/IRA and IRA/LSC junctions. The trnN–GUU/ndhF and rpl2/trnH–GUG intergenic regions respectively harboured the IRB/SSC and IRA/LSC junctions (frequently found feature).

3.2. Phylogenetic and Sequence Variant Analyses

The ‘Confiance’ chloroplast genome sequence was included in a phylogenetic tree construction that was restricted to species of Cichorioideae subfamily (Figure 2) to address whether chloroplast DNA polymorphisms could separate the subtribe groups. The genus Cichorium formed a phyletic group per se with the well-separated endivia and intybus species at the level of subtribes. Structurally, the ‘Confiance’ cp genome harboured SSR variants (Table 2 and Table 3) and RNA editing sites (Table S2). Di-, tri-, and tetra-nucleotides were scored a maximum of six times (Table 2); briefly, the three-time repeated trinucleotides were the most frequent (65 times) and the AAT/ATT motifs prevailed (34.3%). Moreover, out of 48 SSRs, 43 fell in 24 in mRNAs, 3 in tRNAs, and 2 in rRNAs, and the ycf2 genes contained the highest SSR number, followed by the ndh group (Table 3).
Cytosine to uracil (C/U) changes are typical of Asteraceae, as variant calling on the DNA-Seq data of ‘Confiance’ did not reveal any variants (not shown), DNA/RNA-Seq comparison within the cultivar (Table S2) identified 20 C/U events (homo + het) out of 104 SNPs (Table 4) falling in 12 protein-coding genes, and all cultivars showed C/U homozygous switches in 13 identical positions (Table S2, grey shaded rows), suggesting that RNA editing was conserved.
Nucleotide variation was further explored using RNA-Seq data of seven cultivars that showed 70 to 98% coverage vs. the ‘Confiance’ reference genome (Figure 3 and Table 4). Focusing on cultivars with >90% coverage, the variant number was higher in smooth (C and F) than curly (M and D) ones, 141–152 vs. 113–129. As for all cultivars, the normalised frequency of variants (total variants/RNA-Seq covered region) ranged from 0.79 in M to 1.08 in A32 (Table 4). A phylogenetic tree was built by SNP concatemers using 7 cultivars; separation into the curly and smooth botanical varieties was observed though supported by modest bootstrap values (Figure S3).
As for the SNP putative effects (Table 5), 10 were intergenic and 41 lay in coding regions; variants with high and moderate impacts were ca. 55%, the high ones (5.9%) were of stop-lost/gained types, whilst the moderate ones (49%) were all missense. Private SNPs were assigned (Figure 4) in those regions that were fully covered by the reads of all cultivars and found as heterozygous type only in I (2), M (1), and E02S (5). The private SNPs of M, I, and E02S (1, 2, and 4, respectively) fell into protein-coding genes, and a high-impact variant occurred in rpl14 of Imari (Table 6). Among all cultivars, six genes (Table 7) contained homozygous SNPs of high or moderate impact that are predicted to cause protein changes; specifically, the ndhD, ndhA, psbF genes shared moderate events in 6 out of 7 cultivars.

3.3. Cp Transcriptome Response to Heavy Rain-Related Stress Before Harvest

Two case studies related to cultivation that underwent rain excess before harvest (Figure S1) were used to compare leaf cp expression with that of a cycle unaffected by extreme events. As for the high vs. moderate rainy year (HRY vs. MRY), a 60% rain surplus occurred in November (Table S1, bold values), and loss of several nutrients was recorded in D and M cultivars by NMR survey (Table S3), with significant impact on carbohydrate levels. In the second case study, cultivars D, M, C, and F were affected by excessive rainfall and waterlogging as described above [6].
Looking at the cp transcriptome variation of HRY vs. MRY (Table 8, left columns), we scored 14 differentially expressed genes (DEGs) with modest fold change variation (min and max values were −1.27 and 1.51). The smooth F was more responsive than the curly D (13 vs. 8 DEGs); both cultivars shared the up-regulation of 2 genes belonging to cytochrome b6f (Cyt.b6/f) and 2 of the large subunit ribosomal protein groups (LS-RP), and the down-regulation of 3 genes of the photosystem I and II groups (PSI and II). Moreover, it was observed the cultivar F-specific variation of 6 genes, which were scattered in the groups of NADH-oxidoreductases (NADH-OR), PSI and II, RNA polymerases (RNA-POL), and small subunits ribosomal protein (SS-RP), while cultivar D-specific variation included 1 gene of the PSI group.
As for the cp expression in HRY + WL vs. MRY (Table 8, right columns), a total of 25 genes among the four cultivars showed expression variation ranging from −2.14 to 2.08 fold changes; the smooth C and F were more responsive than curly D and M (18–22 vs. 13–14 DEGs). All cultivars shared the down-regulation of 5 genes within the PSI and PSII groups, and the up-regulation of 3 genes of the Cyt.b6/f and 1 (very modest) of the NADH-OR group; cultivar-specific expression also occurred (e.g., rpoC2 and rpl18 were unique DEG in ‘Confiance’). Overall, the altered expression pattern recurred in genes of the Cyt.b6/f, PSI, and PSII systems in the two case studies, suggesting that these may be among the major targets of extreme rain.

4. Discussion

The endive chloroplast genome here sequenced is conformed in the typical quadripartite structure [11,12] and its size falls in the range of species of the Cichorieae tribe [28]. Narrowing comparisons between the C. intybus and endivia close species, we observed that the latter showed a 166 bp smaller genome [29] due to shorter LSC (−319 bp) and longer IR and SSC (21 and 132 bp), higher n. of genes (136 vs. 127), of protein coding ones (90 vs. 74), and of tRNAs (38 vs. 29), and lower n. of rRNAs (8 vs. 24). Moreover, pafI and clpP contained two introns in both species, which also showed similar GC content (37.7 vs. 37.3%). Chloroplast genome variation within an individual (heteroplasmy) can be due to variable orientation of SSC and IR zones (defining distinct haplotypes) or due to DNA sequence polymorphism [30,31]. The endive plastome was constructed by short reads and did not allow the assembly of two haplotypes, which are known to occur in lettuce through long-read sequence technology [30]. However, several polymorphic events were revealed within the same cultivar by multiple RNA seq runs. Hence, the SNP pools that existed after selecting out the RNA editing motifs known for Asteraceae [32] indirectly support the sequence heteroplasmy as observed in cultivars of other crops [33,34].
In most species of Asteraceae, the positions of rps19 and Ψrps19 respectively mark the LSC/IRB and IRA/LSC junctions and those of ycf1 and Ψycf1 mark the IRB/SSC and SSC/IRA junctions [28]. Here (Figure 1 and Figure 3), the endive plastome sequence showed swapped positions for ycf1 and Ψycf1, as observed both in Asteraceae [35] and other species [36], indicating that the SSC orientation may belong to the haplotype A [30]. After refining the annotation of both rps19 and Ψrps19 from C. intybus (NC_043842.1), we observed that both species shared the same orientations. In coding regions, ycf2 showed a high SSR number in both IRs, consistently with other Asteraceae species [35,37] representing a region of variability useful to develop highly specific markers. Cp sequence variability allowed the separation of several species at the subtribe level so that Cichoriinae fell apart from Lactucinae, Crepidinae, and Hyoseridinae, which is consistent with the effective use of chloroplast sequence to place subtribes within genera [38]. The 98.4% RNA-Seq coverage vs. cp genome in Confiance is consistent with the almost full transcription in plants [39,40] and that of the other cultivars ranged from 74 to 96%, scoring variants inclusive of private SNPs. The association between gene variants and cultivar leaf-type can be attributed to endive breeding programs based on crossing the same types rather than a functional impact on leaf shape. The trend of SNP number was higher in smooth- than curly- types though a much larger variety pool is needed to confirm it. Most cultivars commonly hosted SNPs of moderate effect (missense) in ndhA, D, and psbF genes. The ndhA and psbF of some species undergo RNA editing and transcription slippage that explain variability [41]; Table 6 of SNP impact excluded C/U editing, hence, the computed protein isoforms may account for diversified functions related to stress response/protection as shown for ndh genes [42]. The ycf1 hosts frequent nonsynonymous SNPs, which were observed in endives and are often used in barcoding alternatively to the matK and rbcL genes [43]. Similarly, the rpo genes are relatively fast-evolving sequences used for marker production [44]; however, SNPs in endive rpoC1 suggest a high functional impact that prompts further investigation.
Here, the affected leaf nutrient content confirmed that endive is a sensitive crop to excessive rainfall before harvest [6]; therefore, it is useful to gain insight into the cp transcriptome response of cultivars under this multifactorial stress. In both case studies, the smooth types showed a higher number of responding genes than the curly ones, and the range of expression variation was higher in all cultivars that underwent waterlogging. The former results suggest the occurrence of cultivar-dependent plasticity, which has also been observed in stressed lettuce [45] and deserves further study. The latter results may be due to the severity and/or complexity of the stress. The similar expression patterns observed in the two stress situations (one of which was exacerbated by waterlogging) could be the result of different transduction and control processes, considering the mutual interactions between chloroplast and nucleus [46]. Consistently, waterlogging is known to affect chloroplast morphology in sensitive lines [47] accompanied by the involvement of gene expression re-arrangements. In this work, the up-regulation of RPL20 and RPL33 in D and M cultivars is consistent with the stress status of the chloroplast; the former gene is essential for ribosome assembly and the latter is highly sensitive to temperature stress [48]. Moreover, the upregulation of Cyt.b6/f genes is accompanied by the down-regulation of some PSI and PSII ones in both case studies, supporting that these are common targets of the two stresses. Cytochrome b6/f controls the electron transfer from PSII to PSI and alleviates oxidative stress [49], so the altered and “orchestrated” expression would sustain that the cp machinery was undergoing photosynthetic impairment and oxidative stress. Consequently, it is proposed that such an alteration contributes to the loss of leaf carbohydrate content, although further studies targeting gene function are needed.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes14091829/s1, Figure S1: climate conditions one month before harvest of three productive cycles; Figure S2: splicing events in endive chloroplast genes; Figure S3: SNP-based phylogenetic tree of seven endive cultivars; Table S1: temperature, rain and relative humidity parameters before harvest; Table S2: overview of variants identified in seven C. endivia cultivars by RNA-Seq data; Table S3: nutrient content variation of leaves in year affected by heavy rain. Data S1, MAFFT sequence alignment of the selected chloroplast genomes.

Author Contributions

D.G. planned and supervised the project experiments and structured the manuscript. G.T. carried out bioinformatics analyses, statistical elaborations, and produced tables and figures, except for phylogenetic trees made by M.L. A.P.S. produced the NMR profiles. G.A. and M.G. managed plant production and sample delivery according to experiment design. R.A.C. and M.G. provided criticism and suggestions respectively for bioinformatic analyses and climate data presentation. D.G. and G.T. wrote the manuscript and approved it. All authors have read and agreed to the published version of the manuscript.

Funding

The Agritech National Research Center, European Union Next-Generation EU (PIANO NAZIONALE DI RIPRESA E RESILIENZA (PNRR)—MISSIONE 4 COMPONENTE 2, INVESTIMENTO 1.4–D.D. 1032 17/06/2022, CN00000022)—SPOKE 1, Task 1.2.2.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The chloroplast genome sequence of Cichorium endivia has GenBank accession OQ928160.

Acknowledgments

Tiziano Biancari is thanked for technical support in outdoor work; Carla Ticconi (US native and PhD in “Genetics, Molecular and Cellular Biology” at the UC Davis) is thanked for English proofreading.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mentel, I.; Cieślik, E.; Sadowska-Rociek, A. Healthy properties of endive (Cichorium endivia L.) depending on the variety and vegetative of season. J. Microbiol. Biotechnol. Food Sci. 2015, 4, 118–121. [Google Scholar] [CrossRef]
  2. Kalloo, G. Endive, Cichorium endivia L. In Genetic Improvement of Vegetable Crops; Kalloo, G., Bergh, B.O., Eds.; Pergamon Press: Oxford, UK, 1993; pp. 541–542. [Google Scholar]
  3. Lucchin, M.; Varotto, S.; Barcaccia, G.; Parrini, P. Chicory and Endive. In Vegetables I: Asteraceae, Brassicaceae, Chenopodicaceae, and Cucurbitaceae; Prohens, J., Nuez, F., Eds.; Springer: New York, NY, USA, 2008; pp. 3–48. [Google Scholar]
  4. Cox, J.; McFarlane, D. Causes of waterlogging. J. Dep. Agric. West. Aust. Ser. 4 1990, 31, 58–61. [Google Scholar]
  5. Parent, C.; Capelli, N.; Berger, A.; Crèvecoeur, M.l.; Dat, J.F. An overview of plant responses to soil waterlogging. Plant Stress 2008, 2, 20–27. [Google Scholar]
  6. Testone, G.; Sobolev, A.P.; Mele, G.; Nicolodi, C.; Gonnella, M.; Arnesi, G.; Biancari, T.; Giannino, D. Leaf nutrient content and transcriptomic analyses of endive (Cichorium endivia) stressed by downpour-induced waterlog reveal a gene network regulating kestose and inulin contents. Hortic. Res. 2021, 8, 92. [Google Scholar] [CrossRef]
  7. Song, Y.; Feng, L.; Alyafei, M.A.M.; Jaleel, A.; Ren, M. Function of chloroplasts in plant stress responses. Int. J. Mol. Sci. 2021, 22, 13464. [Google Scholar] [CrossRef]
  8. Van Aken, O.; De Clercq, I.; Ivanova, A.; Law, S.R.; Van Breusegem, F.; Millar, A.H.; Whelan, J. Mitochondrial and chloroplast stress responses are modulated in distinct touch and chemical inhibition phases. Plant Physiol. 2016, 171, 2150–2165. [Google Scholar] [CrossRef]
  9. Li, X.; Hao, C.; Zhong, J.; Liu, F.; Cai, J.; Wang, X.; Zhou, Q.; Dai, T.; Cao, W.; Jiang, D. Mechano-stimulated modifications in the chloroplast antioxidant system and proteome changes are associated with cold response in wheat. BMC Plant Biol. 2015, 15, 219. [Google Scholar] [CrossRef]
  10. Myhre, G.; Alterskjaer, K.; Stjern, C.W.; Hodnebrog, O.; Marelle, L.; Samset, B.H.; Sillmann, J.; Schaller, N.; Fischer, E.; Schulz, M.; et al. Frequency of extreme precipitation increases extensively with event rareness under global warming. Sci. Rep. 2019, 9, 16063. [Google Scholar] [CrossRef]
  11. Palmer, J.D. Plastid chromosomes: Structure and evolution. In The Molecular Biology of Plastids: Cell Culture and Somatic Cell Genetics of Plants; Hermann, R.G., Ed.; Springer: Vienna, Austria, 1991; Volume 7, pp. 5–53. [Google Scholar]
  12. Daniell, H.; Lin, C.S.; Yu, M.; Chang, W.J. Chloroplast genomes: diversity, evolution, and applications in genetic engineering. Genome Biol. 2016, 17, 134. [Google Scholar] [CrossRef]
  13. Li, W.; Liu, Y.; Yang, Y.; Xie, X.; Lu, Y.; Yang, Z.; Jin, X.; Dong, W.; Suo, Z. Interspecific chloroplast genome sequence diversity and genomic resources in Diospyros. BMC Plant Biol. 2018, 18, 210. [Google Scholar] [CrossRef]
  14. Jansen, R.K.; Palmer, J.D. A chloroplast DNA inversion marks an ancient evolutionary split in the sunflower family (Asteraceae). Proc. Natl. Acad. Sci. USA 1987, 84, 5818–5822. [Google Scholar] [CrossRef]
  15. Mandel, J.R.; Dikow, R.B.; Funk, V.A. Using phylogenomics to resolve mega-families: an example from Compositae. J. Syst. Evol. 2015, 53, 391–402. [Google Scholar] [CrossRef]
  16. Ingvarsson, P.K.; Ribstein, S.; Taylor, D.R. Molecular evolution of insertions and deletion in the chloroplast genome of silene. Mol. Biol. Evol. 2003, 20, 1737–1740. [Google Scholar] [CrossRef] [PubMed]
  17. Li, C.; Zheng, Y.; Huang, P. Molecular markers from the chloroplast genome of rose provide a complementary tool for variety discrimination and profiling. Sci. Rep. 2020, 10, 12188. [Google Scholar] [CrossRef] [PubMed]
  18. Liang, X.Y.; Zhang, X.Q.; Bai, S.Q.; Huang, L.K.; Luo, X.M.; Ji, Y.; Jiang, L.F. Genetic diversity and relationship of chicory (Cichorium intybus L.) using sequence-related amplified polymorphism markers. Genet Mol. Res. 2014, 13, 7736–7746. [Google Scholar] [CrossRef]
  19. Zhang, B.; Wang, Z.; Han, X.; Liu, X.; Wang, Q.; Zhang, J.; Zhao, H.; Tang, J.; Luo, K.; Zhai, Z.; et al. The chromosome-scale assembly of endive (Cichorium endivia) genome provides insights into the sesquiterpenoid biosynthesis. Genomics 2022, 114, 110400. [Google Scholar] [CrossRef]
  20. Hodgins, K.A.; Lai, Z.; Oliveira, L.O.; Still, D.W.; Scascitelli, M.; Barker, M.S.; Kane, N.C.; Dempewolf, H.; Kozik, A.; Kesseli, R.V.; et al. Genomics of Compositae crops: reference transcriptome assemblies and evidence of hybridization with wild relatives. Mol. Ecol. Resour. 2014, 14, 166–177. [Google Scholar] [CrossRef]
  21. Testone, G.; Mele, G.; di Giacomo, E.; Tenore, G.C.; Gonnella, M.; Nicolodi, C.; Frugis, G.; Iannelli, M.A.; Arnesi, G.; Schiappa, A.; et al. Transcriptome driven characterization of curly- and smooth-leafed endives reveals molecular differences in the sesquiterpenoid pathway. Hortic. Res. 2019, 6, 1. [Google Scholar] [CrossRef]
  22. D’Acunzo, F.; Giannino, D.; Longo, V.; Ciardi, M.; Testone, G.; Mele, G.; Nicolodi, C.; Gonnella, M.; Renna, M.; Arnesi, G.; et al. Influence of cultivation sites on sterol, nitrate, total phenolic contents and antioxidant activity in endive and stem chicory edible products. Int. J. Food Sci. Nutr. 2017, 68, 52–64. [Google Scholar] [CrossRef]
  23. Dierckxsens, N.; Mardulyn, P.; Smits, G. NOVOPlasty: de novo assembly of organelle genomes from whole genome data. Nucleic. Acids Res. 2017, 45, e18. [Google Scholar] [CrossRef]
  24. Tillich, M.; Lehwark, P.; Pellizzer, T.; Ulbricht-Jones, E.S.; Fischer, A.; Bock, R.; Greiner, S. GeSeq - versatile and accurate annotation of organelle genomes. Nucleic. Acids Res. 2017, 45, W6–W11. [Google Scholar] [CrossRef]
  25. Greiner, S.; Lehwark, P.; Bock, R. OrganellarGenomeDRAW (OGDRAW) version 1.3.1: expanded toolkit for the graphical visualization of organellar genomes. Nucleic. Acids Res. 2019, 47, W59–W64. [Google Scholar] [CrossRef]
  26. Liu, S.; Ni, Y.; Li, J.; Zhang, X.; Yang, H.; Chen, H.; Liu, C. CPGView: A package for visualizing detailed chloroplast genome structures. Mol. Ecol. Resour. 2023, 23, 694–704. [Google Scholar] [CrossRef] [PubMed]
  27. Love, M.I.; Huber, W.; Anders, S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biol. 2014, 15, 550. [Google Scholar] [CrossRef] [PubMed]
  28. Pascual-Diaz, J.P.; Garcia, S.; Vitales, D. Plastome diversity and phylogenomic relationships in Asteraceae. Plants 2021, 10, 2699. [Google Scholar] [CrossRef]
  29. Yang, S.; Sun, X.; Wang, L.; Jiang, X.; Zhong, Q. The complete chloroplast genome sequence of Chicory (Cichorium intybus L.). Mitochondrial DNA Part B 2019, 4, 1533–1534. [Google Scholar] [CrossRef]
  30. Wang, W.; Lanfear, R. Long-reads reveal that the chloroplast genome exists in two distinct versions in most plants. Genome Biol. Evol. 2019, 11, 3372–3381. [Google Scholar] [CrossRef] [PubMed]
  31. Scarcelli, N.; Mariac, C.; Couvreur, T.L.; Faye, A.; Richard, D.; Sabot, F.; Berthouly-Salazar, C.; Vigouroux, Y. Intra-individual polymorphism in chloroplasts from NGS data: where does it come from and how to handle it? Mol. Ecol. Resour. 2016, 16, 434–445. [Google Scholar] [CrossRef]
  32. Wang, M.; Cui, L.; Feng, K.; Deng, P.; Du, X.; Wan, F.; Weining, S.; Nie, X. Comparative analysis of Asteraceae chloroplast genomes: structural organization, RNA editing and evolution. Plant Mol. Biol. Report. 2015, 33, 1526–1538. [Google Scholar] [CrossRef]
  33. Wang, X.; Bai, S.; Zhang, Z.; Zheng, F.; Song, L.; Wen, L.; Guo, M.; Cheng, G.; Yao, W.; Gao, Y.; et al. Comparative analysis of chloroplast genomes of 29 tomato germplasms: genome structures, phylogenetic relationships, and adaptive evolution. Front. Plant Sci. 2023, 14, 1179009. [Google Scholar] [CrossRef]
  34. Zhu, Q.; Gao, P.; Liu, S.; Amanullah, S.; Luan, F. Comparative analysis of single nucleotide polymorphisms in the nuclear, chloroplast, and mitochondrial genomes in identification of phylogenetic association among seven melon (Cucumis melo L.) cultivars. Breed. Sci. 2016, 66, 711–719. [Google Scholar] [CrossRef] [PubMed]
  35. Cho, M.S.; Kim, J.H.; Kim, C.S.; Mejias, J.A.; Kim, S.C. Sow thistle chloroplast genomes: insights into the plastome evolution and relationship of two weedy species, Sonchus asper and Sonchus oleraceus (Asteraceae). Genes 2019, 10, 881. [Google Scholar] [CrossRef] [PubMed]
  36. Kim, K.J.; Lee, H.L. Complete chloroplast genome sequences from Korean ginseng (Panax schinseng Nees) and comparative analysis of sequence evolution among 17 vascular plants. DNA Res. 2004, 11, 247–261. [Google Scholar] [CrossRef] [PubMed]
  37. Curci, P.L.; De Paola, D.; Danzi, D.; Vendramin, G.G.; Sonnante, G. Complete chloroplast genome of the multifunctional crop globe artichoke and comparison with other Asteraceae. PLoS ONE 2015, 10, e0120589. [Google Scholar] [CrossRef]
  38. Gnutikov, A.A.; Nosov, N.N.; Punina, E.O.; Probatova, N.S.; Rodionov, A.V. On the placement of Coleanthus subtilis and the subtribe Coleanthinae within Poaceae by new molecular phylogenetic data. Phytotaxa 2020, 468, 243–274. [Google Scholar] [CrossRef]
  39. Shi, C.; Wang, S.; Xia, E.H.; Jiang, J.J.; Zeng, F.C.; Gao, L.Z. Full transcription of the chloroplast genome in photosynthetic eukaryotes. Sci. Rep. 2016, 6, 30135. [Google Scholar] [CrossRef]
  40. Osuna-Mascaro, C.; Rubio de Casas, R.; Perfectti, F. Comparative assessment shows the reliability of chloroplast genome assembly using RNA-seq. Sci. Rep. 2018, 8, 17404. [Google Scholar] [CrossRef]
  41. Lin, C.P.; Ko, C.Y.; Kuo, C.I.; Liu, M.S.; Schafleitner, R.; Chen, L.F. Transcriptional slippage and RNA editing increase the diversity of transcripts in chloroplasts: insight from deep sequencing of Vigna radiata genome and transcriptome. PLoS ONE 2015, 10, e0129396. [Google Scholar] [CrossRef]
  42. Sabater, B. On the edge of dispensability, the chloroplast ndh genes. Int. J. Mol. Sci. 2021, 22, 12505. [Google Scholar] [CrossRef]
  43. Dong, W.; Xu, C.; Li, C.; Sun, J.; Zuo, Y.; Shi, S.; Cheng, T.; Guo, J.; Zhou, S. ycf1, the most promising plastid DNA barcode of land plants. Sci. Rep. 2015, 5, 8348. [Google Scholar] [CrossRef]
  44. Krawczyk, K.; Sawicki, J. The uneven rate of the molecular evolution of gene sequences of DNA-Dependent RNA polymerase I of the Genus Lamium L. Int. J. Mol. Sci. 2013, 14, 11376–11391. [Google Scholar] [CrossRef] [PubMed]
  45. Adhikari, B.; Olorunwa, O.J.; Wilson, J.C.; Barickman, T.C. Morphological and physiological response of different lettuce genotypes to salt stress. Stresses 2021, 1, 285–304. [Google Scholar] [CrossRef]
  46. Chan, K.X.; Phua, S.Y.; Crisp, P.; McQuinn, R.; Pogson, B.J. Learning the Languages of the Chloroplast: Retrograde Signaling and Beyond. Annu. Rev. Plant Biol. 2016, 67, 25–53. [Google Scholar] [CrossRef] [PubMed]
  47. Zhang, H.; Li, G.; Yan, C.; Zhang, X.; Cao, N.; Le, M.; Hu, X.; Zhu, F.; Liu, W. Elucidating the molecular responses to waterlogging stress in Cucumis melo by comparative transcriptome profiling. Horticulturae 2022, 8, 891. [Google Scholar] [CrossRef]
  48. Rogalski, M.; Schottler, M.A.; Thiele, W.; Schulze, W.X.; Bock, R. Rpl33, a nonessential plastid-encoded ribosomal protein in tobacco, is required under cold stress conditions. Plant Cell 2008, 20, 2221–2237. [Google Scholar] [CrossRef]
  49. Malone, L.A.; Proctor, M.S.; Hitchcock, A.; Hunter, C.N.; Johnson, M.P. Cytochrome b(6)f - Orchestrator of photosynthetic electron transfer. Biochim. Biophys. Acta Bioenerg. 2021, 1862, 148380. [Google Scholar] [CrossRef]
Genes 14 01829 g001

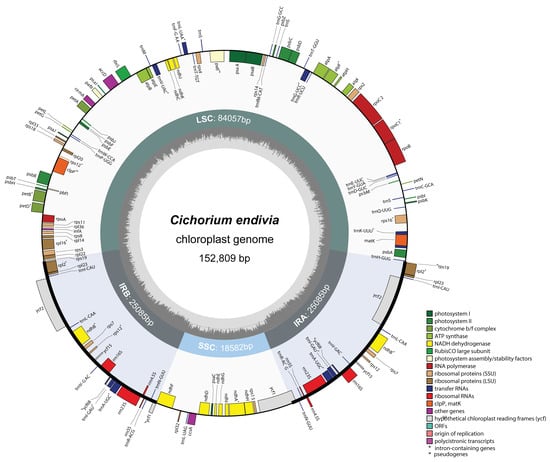

Figure 1. Circular chloroplast genome map of C. endive cv ‘Confiance’. GC contents are graphed in the inner circle reports. The large single-copy (LSC), the short single-copy (SSC), and the two inverted regions with their relative sizes are marked in the middle circle. Genes lie in the outer circle and are colored according to different colour-coded functional groups. Genes drawn outside or inside the circle are transcribed clockwise or anticlockwise, respectively.
Figure 1. Circular chloroplast genome map of C. endive cv ‘Confiance’. GC contents are graphed in the inner circle reports. The large single-copy (LSC), the short single-copy (SSC), and the two inverted regions with their relative sizes are marked in the middle circle. Genes lie in the outer circle and are colored according to different colour-coded functional groups. Genes drawn outside or inside the circle are transcribed clockwise or anticlockwise, respectively.
Genes 14 01829 g001
Genes 14 01829 g002

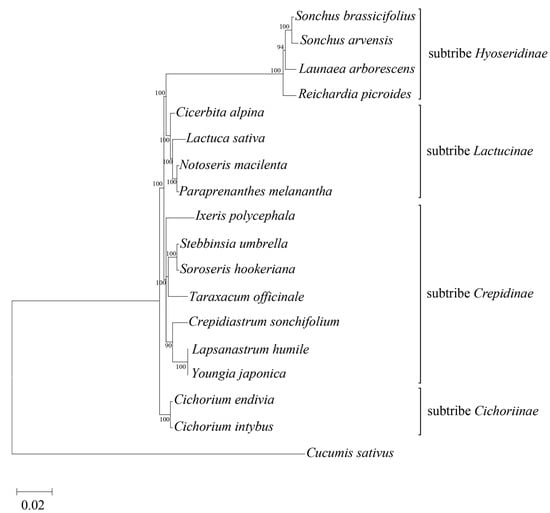

Figure 2. Phylogenetic analysis. The maximum likelihood tree of species belonging to the Cichorieae tribe was built using their complete chloroplast genomes (accession numbers are in the material and methods section). The chloroplast sequence of Cucumis sativus (fam. Cucurbitaceae) was used as an outgroup. The bootstrap values were inferred from 1000 replicates. The scale bar reports the number of changes per site.
Figure 2. Phylogenetic analysis. The maximum likelihood tree of species belonging to the Cichorieae tribe was built using their complete chloroplast genomes (accession numbers are in the material and methods section). The chloroplast sequence of Cucumis sativus (fam. Cucurbitaceae) was used as an outgroup. The bootstrap values were inferred from 1000 replicates. The scale bar reports the number of changes per site.
Genes 14 01829 g002
Genes 14 01829 g003

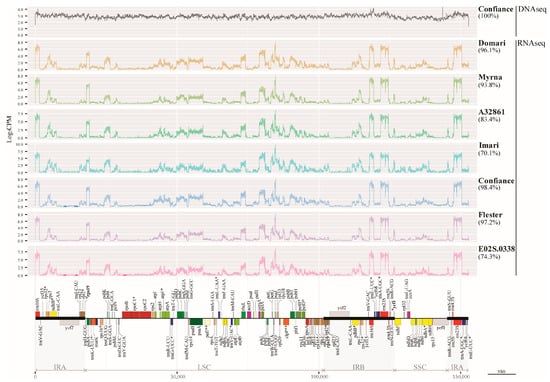

Figure 3. Coverage plots. Top: coverage of DNA-Seq (black line) and RNA-Seq (coloured lines) data over the reference cp genome measured as the logarithm of counts per million reads aligned over a given region. Bottom: linearised map of the cp genome. Genes marking region boundaries are bolded. *, Single intron gene; **, gene containing two introns; Ψ, pseudogene.
Figure 3. Coverage plots. Top: coverage of DNA-Seq (black line) and RNA-Seq (coloured lines) data over the reference cp genome measured as the logarithm of counts per million reads aligned over a given region. Bottom: linearised map of the cp genome. Genes marking region boundaries are bolded. *, Single intron gene; **, gene containing two introns; Ψ, pseudogene.
Genes 14 01829 g003
Genes 14 01829 g004

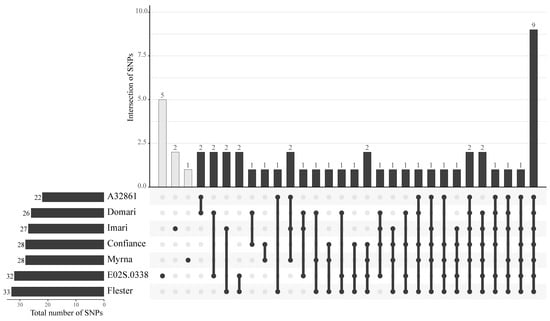

Figure 4. UpSet plot of private and shared SNPs among the seven cultivars. In the upper panel, the light and dark grey vertical bars correspond to the number of SNPs that are genotype-specific or shared by two or more genotypes, respectively. The number of SNPs in each set is given above the bars. Single and connected dots indicate the cultivar (names are on the left panel) that shares each gene group. Horizontal bars indicate the total number of SNP per cultivar.
Figure 4. UpSet plot of private and shared SNPs among the seven cultivars. In the upper panel, the light and dark grey vertical bars correspond to the number of SNPs that are genotype-specific or shared by two or more genotypes, respectively. The number of SNPs in each set is given above the bars. Single and connected dots indicate the cultivar (names are on the left panel) that shares each gene group. Horizontal bars indicate the total number of SNP per cultivar.
Genes 14 01829 g004
Table 1. Summary of the complete genome features of C. endivia chloroplast.
Table 1. Summary of the complete genome features of C. endivia chloroplast.
ParametersValuesGene Groups
Total length (bp)152,809
LSC size (bp)84,057
SSC size (bp)18,582
IR size (bp)25,085
GC%37.7%
Genes number136 (20 occurring in both IRs)
Protein-coding genes90 (8 duplicated in IR)
psaA, psaB, psaC, psaI, psaJ, pafI**(ycf3), pafII(ycf4),Photosystem I
psbA, psbB, psbC, psbD, psbE, psbF, psbH, psbI, psbJ, psbK, psbM, pbf1, psbT, psbZPhotosystem II
petA, petB *, petD *, petG, petL, petNCytochrome b6/f complex
ccsACytochrome C synthesis
atpA, atpB, atpE, atpF *, atpH, atpIATP synthase
rbcLRuBisCO
ndhA *, ndhB * (x2), ndhC, ndhD, ndhE, ndhF, ndhG, ndhH, ndhI, ndhJ, ndhKNADH oxidoreductase
rpl2 * (x2), rpl14, rpl16 *, rpl20, rpl22, rpl23 (x2), rpl32, rpl33, rpl36Large subunit ribosomal proteins
rps2, rps3, rps4, rps7 (x2), rps8, rps11, rps12 *,a (x2), rps14, rps15, rps16 *, rps18, Ψrps19, rps19Small subunit ribosomal proteins
rpoA, rpoB, rpoC1 *, rpoC2RNA polymerase
infATranslation initiation factor
accD, cemA, clpP **, matKOthers
Ψycf1, ycf1, ycf2 (x2), ycf15 (x2), Ψycf68 (x2)Unknown function genes
tRNA genes38 (8 occurring in both IRs)
trnA-UGC * (x2), trnC-GCA, trnD-GUC, trnE-UUC (x2), trnF-GAA, trnfM-CAT, trnG-GCC, trnG-UCC *, trnH-GUG, trnI-GAU * (x2), trnI-CAU (x2), trnK-UUU *, trnL-CAA (x2), trnL-UAA *, trnL-UAG, trnM-CAU, trnN-GUU (x2), trnP-UGG, trnQ-UUG, trnR-ACG (x2), trnR-UCU, trnS-GCU, trnS-GGA, trnS-UGA, trnT-GGU, trnT-UGU, trnV-GAC (x2), trnV-UAC *, trnW-CCA, trnY-GUA Transfer RNAs
rRNA genes8 (4 occurring in both IRs)
rrn4.5S (x2), rrn5 (x2), rrn16 (x2), rrn23 (x2)Ribosomal RNAs
*, Single intron gene; **, Gene containing two introns; (x2), indicates genes duplicated in the IR regions. a, Trans-splicing gene. Ψ, pseudogene.
Table 2. SSR in cp of Confiance.
Table 2. SSR in cp of Confiance.
Unit Repeat TypeNumber of RepetitionsTotalMajor Type (%)
3456
Di-nucleotide00112AT/AT (100.0%)
Tri-nucleotide6520067AAT/ATT (34.3%)
Tetra-nucleotide10001AAAG/CTTT (100.0%)
Table 3. Distribution of SSR in cp genes.
Table 3. Distribution of SSR in cp genes.
TypeGene#SSRTypeGene#SSR
mRNAycf1 (IRA)2mRNArps19 (IRB)1
ycf2 (IRA)5 ndhA3
ycf2 (IRB)5 ndhB (IRA)2
accD1 ndhB (IRB)2
matK2 ndhF2
rpoC12 psbA1
rpoC21 psbB2
atpI1 psbC2
rbcL1 psaA1
rpoA2 psaB1
rpl161tRNAtrnK-UUU2
rpl221 trnV-UAC1
rpl361rRNArrn23S (IRB)1
rps181 rrn23S (IRA)1
Table 4. SNP overview.
Table 4. SNP overview.
Smooth Curly
EventConfianceFlesterE02SDomariMyrnaImariA32861
No calls18124322465910
HomoREF41364049413952
Het66725359454063
HomoALT75806470686275
TOT variantsa141152117129113102138
SNP1041088795837998
INDEL37443034302340
Coverage (%)98.497.274.396.193.870.183.4
Coverage (kbp) b150.36148.53113.54146.85143.33107.12127.44
Freq (variants/kb)0.941.021.030.880.790.951.08
Freq (bp/variants)1066.4977.2970.41138.41268.41050.2923.5
a, Total variants account for the sum of heterozygous and homozygous for alternative allele genotypes. b, Normalised with respect to the length of the Confiance cp genome.
Table 5. Overview of SNP effects.
Table 5. Overview of SNP effects.
Impactn.%Effectn.%
High3 5.9stop_lost23.9
stop_gained12.0
Moderate2549.0missense_variant2549.0
Low59.8synonymous_variant47.8
splice_region_variant&intron_variant12.0
Modifier1835.3intergenic_region1019.6
intron_variant713.7
non_coding_transcript_exon_variant12.0
Table 6. Private SNPs in genes.
Table 6. Private SNPs in genes.
GenePosRefAltImpactEffectMyrnaE02SImari
psbC51406CAModerateMissense_variant *
psaB55447AGModerateMissense_variant *
cemA78984AGModerateMissense_variant *
psbE82115GCModerateMissense_variant *
psbE82130GAModerateMissense_variant *
rpl1498501CAHighstop_gained *
ndhA137326CTModifierintron_variant*
*, SNP occurrence.
Table 7. Homozygous SNPs and likely effect on deduced proteins.
Table 7. Homozygous SNPs and likely effect on deduced proteins.
Cultivars aSNP
Effect b		SNP
Impact c		Protein Changes d
GenesCFEDMIA
rpoC1* * **stop-HTer598Gluext *?
psbZ * missMSer17Leu
psbF*** ***missMSer26Phe
ndhD****** missMSer160Leu
ndhA****** missMSer321Phe
ycf1*** *missMPhe664Leu
a, Smooth-leafed: C, Confiance; F, Flester; E, E02S.0338. Curly-leafed: D, Domari; M, Myrna; I, Imari; A, A32861. b, SNP effects: stop-, stop-lost; Miss, missense variant. c, SNP impacts. H, high; M, moderate. d, Sequence variant annotation in the format: “reference amino acid” “position” and “changed amino acid”. *, SNP occurrence. The notation “Ter598Gluext*?” refers to the loss of the normal termination site, occurring at position 598, its substitution by a Glu-codon, and the addition of a tail of new amino acids of unknown length (position *?), since the shifted frame does not contain a new stop codon.
Table 8. Cp gene expression variation in years affected by heavy rain.
Table 8. Cp gene expression variation in years affected by heavy rain.
GeneGroupHRY vs. MRYHRY + WL vs. MRY
DFDMCF
LFCPadjLFCPadjLFCPadjLFCPadjLFCPadjLFCPadj
atpIATP-SYN −1.01*−1.19**
atpE −1.18*−1.05*
atpB −1.28** −1.04*
petACyt.b6/f1.01**1.07**1.36***1.02*1.40***1.55***
petL 1.35**1.10*1.52**1.52***
petG 1.04**1.07*1.83***1.50**1.70**1.83***
rpl33LS-RP1.16*1.04**1.07* 1.16**1.41***
rpl20 1.40*1.36***1.33** 1.30**1.12**
ndhBNADH-OR 1.40** 1.08*1.09*1.28***
ndhJ 1.08**1.02**1.08**1.04**
ndhB 1.34** 1.10*1.23***
ndhH −1.12*
psaBPSI−1.09**−1.03**−1.16***−1.07*−1.08*−1.39***
psaA −1.13**−1.23***−1.08**−1.01**−1.46***−1.52***
psaJ 1.02*** 2.08*** 1.63***
psbAPSII−1.13**−1.27**−1.04*−1.58***−1.04*−2.14***
psbI 1.19** 1.00* 1.82***
psbD −1.16**−1.00*−1.08*−1.20***
psbC −1.05**−1.04*−1.11*−1.12***
psbZ −1.45** −1.37***
psbE −1.10* −1.16*
rpoC2RNA-POL −1.25** −1.10*
rbcLRuBisCO −1.18* −1.09*
rps7SS-RP 1.12**
rps16 1.26*
rps18 1.51*** 1.47***
Log fold change (LFC) values are negative and positive respectively in down- and up-regulated genes vs. control (year with no unexpected heavy rain events). Expression trends shared among all cultivars within heavy rain (HRY) or waterlogging events (HRY+WL) are shaded in grey. Gene expression trends conserved in both events are bolded. ***, **, * respectively significant for p < 0.01, 0.05, 0.1. ATP-SYN, ATP synthases; Cyt.b6/f, Cytochrome b6/f complex; LS-RP, Large subunit ribosomal proteins; PSI, Photosystem I; PSII, Photosystem II; RNA-POL, RNA polymerase; SS-RP, Small subunit ribosomal proteins.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Testone, G.; Lamprillo, M.; Gonnella, M.; Arnesi, G.; Sobolev, A.P.; Aiese Cigliano, R.; Giannino, D. The Chloroplast Genome of Endive (Cichorium endivia L.): Cultivar Structural Variants and Transcriptome Responses to Stress Due to Rain Extreme Events. Genes 2023, 14, 1829. https://doi.org/10.3390/genes14091829

AMA Style

Testone G, Lamprillo M, Gonnella M, Arnesi G, Sobolev AP, Aiese Cigliano R, Giannino D. The Chloroplast Genome of Endive (Cichorium endivia L.): Cultivar Structural Variants and Transcriptome Responses to Stress Due to Rain Extreme Events. Genes. 2023; 14(9):1829. https://doi.org/10.3390/genes14091829

Chicago/Turabian Style

Testone, Giulio, Michele Lamprillo, Maria Gonnella, Giuseppe Arnesi, Anatoly Petrovich Sobolev, Riccardo Aiese Cigliano, and Donato Giannino. 2023. "The Chloroplast Genome of Endive (Cichorium endivia L.): Cultivar Structural Variants and Transcriptome Responses to Stress Due to Rain Extreme Events" Genes 14, no. 9: 1829. https://doi.org/10.3390/genes14091829

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
